MOBASE ELECTRONICS SYEBCM1611 Unit Assy-BCM & Receiver User Manual
SEOYON ELECTRONICS CO., LTD. Unit Assy-BCM & Receiver
User Manual
Title : NO.
Date
0. GENERAL
0.1. Make
SEOYON ELECTRONICS
0.2. Model No.
- Transmitter
- Receiver
0.3. Name and address of manufacturer
SEOYON ELECTRONICS
424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
0.4. Address of assembly plant
SEOYON ELECTRONICS
424, Sinwon-ro, Danwon-gu, Ansan-si, Gyeonggi-do, Korea
711, Baekseok-dong, Seobuk-gu, Cheonan-si, Chungcheongnam-do, Korea
Remote Keyless Entry Transmitter
SYEC3TX1612
Unit Assy-BCM & Receiver
SYECBCM1611
Information Document
Title : NO.
Date
2. PRODUCT SPECIFICATION
2.1 Remote Keyless Entry System
2.1.1 KEY PART : TRANSMITTER is inside of the REMOTE KEY, and it
sends the ROLLING CODE to the RECEIVER by Radio Frequency.
2.1.2 RECEIVER : It receives the ROLLING CODE and decodes that,
thereafter RECEIVER drives the actuator.
2.2 SPECIFICATIONS
2.2.1 TRANSMITTER
2.2.2 RECEIVER
ITEM SPECIFICATION
Rated supply voltage DC 3V
Operating voltage range DC 2.5 ~ 3.2V
Operating temperature range -20 ~+60℃
Frequency 433.92MHz
Code Rolling Code(Hopping Algorithm)
Storage temperature range -30 ~ 80℃
Modulation FSK
Battery life 3 Year(20Cycle/Day)(Lithium 3V 1EA)
Electric field strength 10mW (433.92MHz)
Below than 4.0mA
Operating Temperature - 35 ~ + 75℃
Max Humidity 95%
Standby Current (in alarm setting condition)
Specification
Item
DC 9 ~ 16VOperating Voltage
DC 12VRated Supply Voltage
Information
Information Document
Title : NO.
Date
2.3 Operating summary
①TRANSMITTER's button is pushed.
②TRANSMITTER sends the code by radio frequency.
③RECEIVER gets the code and decodes it.
④RECEIVER judges the code whether it is right code or not.
⑤RECEIVER checks door lock or unlock Tail-Gate state.
⑥RECEIVER drives the actuator.
2.3.1 LOCK & UNLOCK
①If LOCK or UNLOCK button is pushed for less than 1 sec, then
TRANSMITTER sends the LOCK or UNLOCK DATA.
2.4 Caution
①Danger of explosion if battery is incorrectly replaced.
②Replace only with the same or equivalent type recommended by the manufacturer.
③Dispose of used batteries according to the manufacturer's instructions.
Information Document
Information Document
Title : NO.
Date
3. USER MANUAL
3.1 NAME : BCM system
- This system is BCM and inculdes RKE.
- RKE in BCM system is intended for auto door lock or unlock or TAIL-GATE in vehicle.
- This BCM system is to be installde on motor vehicles as *OE item.
*OE : Original Equipment.
*BCM : Body Control Module.
*RKE : Remote Keyless Entry.

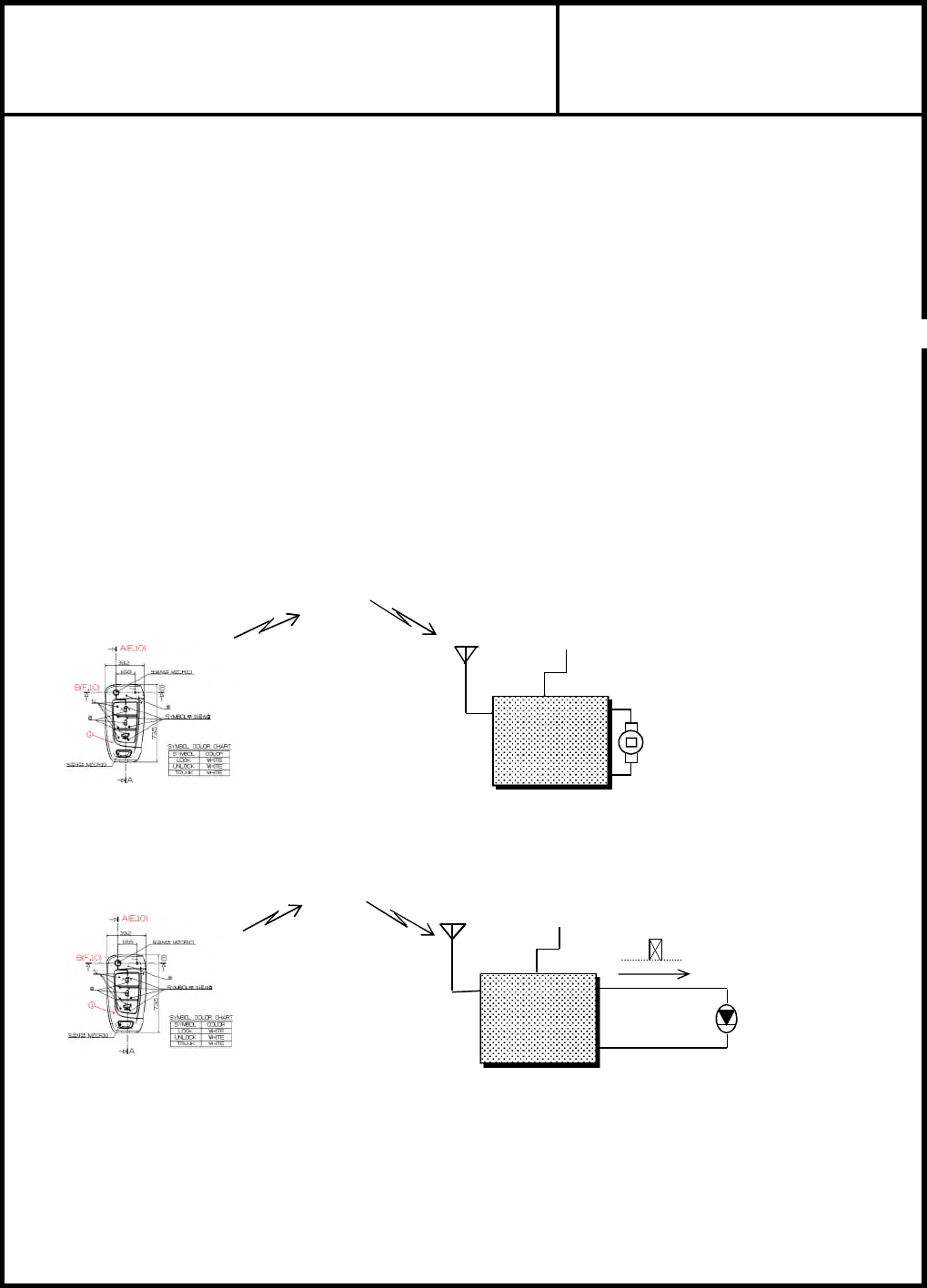

3.2 SYSTEM CONSTRUCTION
3.2.1 SYSTEM IN VEHICLE
3.2.2 SYSTEM FOR TEST
* Through the use of lamp, operating state is displayed by lamp.
lamp 'ON' means that actuator is operated by door lock or unlock or tail-gate output signal.
Information Document
Information Document
Information Document
Information Document
ANTENNA
ROLLING CODE
(433.92MHz)
ANTENNA
RECEIVER
BATTERY
lamp
ROLLING CODE
(433.92MHz)
LOCK or UNLOCK or TAIL-GATE DATA
BATTERY
DOOR
ACTUATOR
RECEIVER
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the
following two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try correct the interference by one or more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact during normal
operation. The antenna should not be contacted during operation to avoid the possibility of exceeding the
FCC radio frequency exposure limit.
"ATTENTION: L'exposition aux rayonnements à fréquence radioélectrique.
Antenne doit être montée de telle manière à minimiser le risque de contact humain pendant l'utilisation
normale. L'antenne ne doit pas être contacté pendant le fonctionnement pour éviter la possibilité de
dépasser la limite de l'exposition aux fréquences radio de la FCC.
IC Information
This device complies with Industry Canada license-exempt RSS standard(s). Operation in subject to The
following two conditions: (1) this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
