Contents
- 1. manual
- 2. manual regulatory information
manual regulatory information
Standard 457kHz Avalanche Transceiver Funtionality
Independently of the availability of W-Link data, your transceiver will always operate as a
normal 457kHz avalanche transceiver in transmit and receive mode.
US, Canadian and New Zealand Version (US/W-Link Region B)
Please note that the W-Link frequency used in Europe is different than that used in North
America and New Zealand. If you own an ELEMENT Barryvox®purchased in North America
or New Zealand your device is only able to exchange W-Link information with devices com-
municating on the W-Link region B frequency.
European Version (EU/W-Link Region A)
Please note that the W-Link frequency used in North America and New Zealand is different
than that used in Europe. If you own an ELEMENT Barryvox®purchased in Europe your
device is only able to exchange W-Link information with devices communicating on the W-
Link region A frequency.
Japanese Version (no/W-Link not available)
Please note that the W-Link function is not allowed in Japan and therefore not available.
How to verify the W-Link setting of your ELEMENT Barryvox®
Press the key on the side during shut-down to view the W-Link region of your device.
EU = W-Link Region A, NA = W-Link Region B, no = W-Link not available.
Shut-down screen Top left: W-Link Region
Bottom: Year of next periodic check
EC Declaration of Conformity
Manufacturer: Mammut Sports Group AG
Address: Birren 5
City: CH-5703 Seon
Country: Switzerland
Declares that the equipment:
Product: Avalanche Beacon
Type designation(s): ELEMENT Barryvox®A10010-10000
Trademark: Mammut®
is in compliance with the essential requirements and other relevant provisions of Directive
1999/05/EC.
ETSI EN 300 718-1:2001-05; EN 300 220-2 V2.3.1; EN 301 489-1 V1.8.1;
EN 301 489-3 V1.4.1; EN 60950-1:2006 / A11:2009
Date: 20. April 2012
City: CH-5703 Seon
Name: Andres Lietha Mick Farnworth
Signature: .................................. ........................................
Head of Business Purchasing Manager
Unit Hardware Hardware
R&TTE Declaration of Conformity
Hereby,
Manufacturer: Mammut Sports Group AG
Address: Birren 5
City: CH-5703 Seon
Country: Switzerland
declares that the equipment:
Product: Avalanche Beacon
Type designation(s): PULSE Barryvox®462001-10000
Trademark: Mammut®
is in compliance with the essential requirements and other relevant provisions of Directive
1999/05/EC.
Date: 19. Juli 2008
City: CH-5703 Seon
Name: Andres Lietha Mick Farnworth
Signature: .................................. ........................................
Head of Business Purchasing Manager
Unit Hardware Hardware
USA/Canada/New Zealand Type/Model: PULSE Barryvox®462002-10000
IC: 8038A-PULSE
FCC ID: ARN-PULSE-B-212 New Zealand: N11394
All Regions With Disabled W-Link Type/Model: PULSE Barryvox®462003-10000
Manufacturer Mammut Sports Group AG
Country of origin Switzerland
Type PULSE Barryvox® Code number
Approval / Conformity
USA/Canada/New Zealand Type/Model: ELEMENT Barryvox®A10012-10000
IC: 8038A-ELEMENT
FCC ID: ARN-ELEMENT-B-211 New Zealand: N11394
All Regions With Disabled W-Link Type/Model: ELEMENT Barryvox®A10013-10000
Manufacturer Mammut Sports Group AG
Country of origin Switzerland
Type ELEMENT Barryvox® Code number
Approval / Conformity
Standard 457kHz Avalanche Transceiver Funtionality
Independently of the availability of W-Link data, your transceiver will always operate as a
normal 457kHz avalanche transceiver in transmit and receive mode.
US, Canadian and New Zealand Version (W-Link Region B)
Please note that the W-Link frequency used in Europe is different than that used in North
America and New Zealand. Furthermore the American Federal Communications Commission
(FCC) specifically prohibits that the customer can choose the W-Link region on his or her
own, except for disabling the W-Link completely. If you own a PULSE Barryvox®purchased
in North America or New Zealand and need to use your device in Europe, you can have the
European W-Link configuration activated by an official Barryvox Service Center.
European Version (W-Link Region A)
The European Telecommunications Standards Institute (ETSI) allows the customer to choose
the W-Link frequency on his or her own. If you have a European W-Link configuration, you
can choose in the settings whether your device should operate in the W-Link region A or B,
or if W-Link should be completely disabled.
Japanese Version
Please note that the W-Link function is not allowed in Japan. When using your PULSE
Barryvox®outside of Japan, you can have the appropriate W-Link configuration activated by
an official Barryvox Service Center.
How to modify the W-Link setting of your PULSE Barryvox®
To access the «Settings», switch the transceiver from OFF to SEND, wait for the «Group
Check» message to appear at the bottom of the screen and then press any key. The confir-
mation «activated» appears at the bottom of the screen. Wait until the start menu appears.
The selection is now on the first entry «Group Check», press the -key within 8 seconds
to get to the menu item «Profile». Confirm your selection by pressing the -key. Press the
-key, to get to the “Advanced” profile. Confirm your selection by pressing the -key.
Press the -key, to get to the menu item «Settings». Confirm your selection by pressing
the -key. Press the -key, to get to the menu item «W-Link». Confirm your selection by
pressing the -key. Press the -key, to choose the appropriate W-Link setting (see «W-
Link World Map»). Confirm your selection by pressing the -key.
Barryvox®W(ireless)-Link
Your Barryvox®has a W-Link communication channel that allows data communication between
W-Link capable avalanche transceivers. The W-Link channel allows the exchange of vital data
(PULSE Barryvox®only), providing faster
and more reliable multiple burial data as well as the
communication with the W-Link based test and configuration
adapters.
The W-Link channel is
completely separate from the primary 457kHz functions of the transceiver. Without W-Link
data available, your transceiver will still operate as a normal 457kHz avalanche trans-
ceiver in transmit and receive mode. Due to differences in country specific communication
laws and frequency usage, the W-Link configuration is different in different countries.

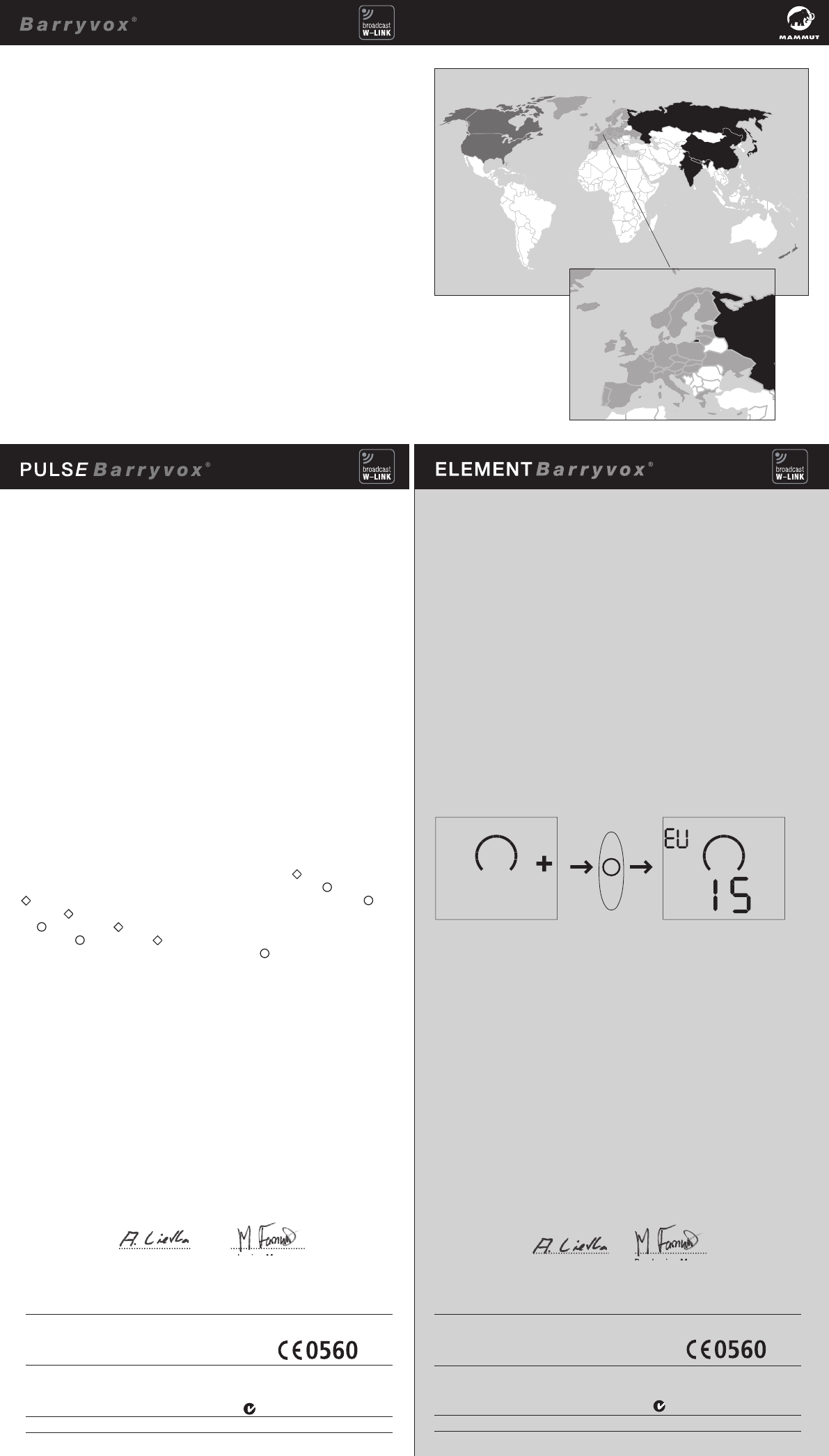

W-Link World Map
Different countries have varying frequency regulations. The following world map shows the fre-
quencies used in the individual countries. Note that specific frequencies may not be used in
certain countries. The frequency is factory set depending on the country of sale. The man-
ufacturer declines all liability in the case of after-sale frequency modifications.
Frequency setting:
Region A / W-Link Frequency Band 868 MHz [= light grey]
EU- and EFTA-Member Countries
Region B / W-Link Frequency Band 915 MHz [= dark grey]
USA, Canada and New Zealand
W-Link not allowed [= black]
Japan, Russia, India, China
unknown [= white]
PULSE Barryvox®and ELEMENT Barryvox®are designed for ski, snow board,
snowshoe, and snowmobile travel off maintained trails. All winter sport activi-
ties are inherently dangerous. Knowledge and experience are essential to
reduce the risk of injury or even death. Do not enter avalanche terrain without
an experienced guide or equivalent training. Apply common sense at all times.
Never pursue these activities alone.
Barryvox Service Centers and Additional Resources
For additional information on avalanche rescue, avalanche theory and the official Barryvox
Service Centers please visit www.mammut.ch/Barryvox.
The following documents are available for the Barryvox Transceivers at
www.mammut.ch/BarryvoxManual:
• Barryvox Legal and Regulatory Guide • Barryvox Reference Handbook
• Barryvox Emergency Plan • Barryvox Application Safety Guide
• Barryvox User Manual
It is absolutely necessary that you read this safety relevant information and familiarize your-
self with the device before you use it in avalanche terrain!
Important, register your Barryvox®today!
By registering your device, you will gain exclusive access to the Barryvox Service Network.
We will remind you
when to have your device serviced and provide you with technical tips,
the latest insights on avalanche theory, as
well as information about the availability of soft-
ware updates.
Register today at www.mammut.ch/barryvox
All information provided without liability. Status July 2012. Technical data and specifications
are subject to change without notice in future transceivers.
© Copyright by Mammut Sports Group AG. All rights reserved. Text, text excerpts, images
and diagrams are all subject to copyright. No part may be reproduced or copied.
Disposal Information
At the end of its lifetime, this product may not be disposed in the regular waste.
It must be recycled by a specialized facility for recycling electronic devices.
Mammut Sports Group AG, Birren 5, 5703 Seon, Switzerland
Tel. +41 (0)62 769 81 81, info@mammut.ch
d
Table of Contents:
• PULSE Barryvox and ELEMENT Barryvox W(ireless)-Link
• W-Link World Map
• How to Verify/Modify W-Link Settings
• Registration and Warranty
• Barryvox Service Centers
• Additional Resources
• Disposal Information
• Declaration of Conformity
• US: FCC Statement
• Canada: IC Statement
• EU: Regulatory Information
USA: FCC Statement
This equipment has been tested and found to comply with the limits for Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residual installation. This equipment generates, uses an can
radiate frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that inter-
ference will not occur in a particular installation. If this equipment does harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by interference by one of the following meas-
ures:
• Reorient or relocate the receiving antenna
•Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
•Consult the dealer or an experienced radio/TV technician for help
• To assure continued compliance, any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with the Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Canada: IC Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference and
2. This device must accept any interference, including interference that cause undesired opera-
tion of the device
Le presént appareil est conforme CNR d’Industrie Canada applicables aux appareils radio
exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes:
1. l’appareil ne doit pas produire de brouillage, et
2. l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouil-
lage est susceptible d’en compromettre le fonctionnement
Europe – EU Declaration of Conformity
Barryvox Legal and Regulatory Guide
Find more Barryvox Resources at:
www.mammut.ch/Barryvox
Version 1.0 2012
Barryvox Emergency Plan
The emergency plan shows the elementary steps for a suc-
cessful companion rescue.
Depending on the situation at hand, the procedure must be
adapted.
Stick the emergency plan on the back of the battery com-
partment lid.
Periodic Checks and Preventative Maintenance
To ensure the proper performance of the transceiver, it is highly recommended that you
send your device to a service center once every three years for a functional test.
To further optimize the safe application of the device, especially in institutional settings,
please refer to the application safety guide.
Warranty
There is a 5-year warranty on the Barryvox transceiver (excluding the batteries, the carrying
system, and the wrist loop) from the date of purchase shown on the purchase receipt. In case
of a warranty claim, all parts that can be shown to have material or production defects will be
replaced free of charge. Damage due to incorrect handling or normal wear and tear is excluded.
The warranty is voided if the buyer or any non-authorized third party opens the device. This is
also the case for devices that have been used with spare parts or accessories, which are not
original and are not recommended by the manufacturer. A fee will be charged for the diagnostic
test of a transceiver not needing any repair. Warranty repairs do not extend the duration of the
warranty. There is a six-month warranty on spare parts. Warranty repairs will only be conduct-
ed if the device is sent in along with the receipt. The owner will be charged for the shipping.
No other warranty shall exist. Any liability for any kind of loss or damage including but not lim-
ited to any direct, indirect or consequential damage is explicitly excluded.
Cesky
[Czech] Mammut Sports Group AG tímto prohlašuje, že tento PULSE
Barryvox/ELEMENT Barryvox je ve shodě se základními požadavky a
dalšími příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish] Undertegnede Mammut Sports Group AG erklærer herved, at følgende
udstyr PULSE Barryvox/ELEMENT Barryvox overholder de væsentlige
krav og øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt
Mammut Sports Group AG
, dass sich das Gerät
PULSE
Barryvox/ELEMENT Barryvox
in Übereinstimmung mit den grund legenden
Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG
befindet.
Eesti
[Estonian] Käesolevaga kinnitab Mammut Sports Group AG seadme PULSE
Barryvox/ELEMENT Barryvox vastavust direktiivi 1999/5/EÜ põhinõuetele
ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
English Hereby, Mammut Sports Group AG, declares that this PULSE
Barryvox/ELEMENT Barryvox is in compliance with the essential require-
ments and other relevant provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Mammut Sports Group AG declara que el PULSE
Barryvox/ELEMENT Barryvox cumple con los requisitos esenciales y cuales-
quiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Mammut Sports Group AG ΔΗΛΩΝΕΙ ΟΤΙ PULSE
Barryvox/ELEMENT Barryvox ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙ-
ΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French] Par la présente Mammut Sports Group AG déclare que l’appareil PULSE
Barryvox/ELEMENT Barryvox est conforme aux exigences essentielles et
aux autres d.ispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian] Con la presente Mammut Sports Group AG dichiara che questo PULSE
Barryvox/ELEMENT Barryvox è conforme ai requisiti essenziali ed alle
altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian] Ar šo Mammut Sports Group AG deklarē, ka PULSE Barryvox/ELEMENT
Barryvox atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian] Šiuo Mammut Sports Group AG deklaruoja, kad šis PULSE
Barryvox/ELEMENT Barryvox atitinka esminius reikalavimus ir kitas
1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch] Hierbij verklaart Mammut Sports Group AG dat het toestel PULSE
Barryvox/ELEMENT Barryvox in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese] Hawnhekk, Mammut Sports Group AG, jiddikjara li dan PULSE
Barryvox/ELEMENT Barryvox jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian] Alulírott, Mammut Sports Group AG nyilatkozom, hogy a PULSE
Barryvox/ELEMENT Barryvox megfelel a vonatkozó alapvetõ követelmén-
yeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish] Niniejszym Mammut Sports Group AG oświadcza, że PULSE
Barryvox/ELEMENT Barryvox jest zgodny z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese] Mammut Sports Group AG declara que este PULSE Barryvox/ELEMENT
Barryvox está conforme com os requisitos essenciais e outras disposiçõ-
es da Directiva 1999/5/CE.
Slovensko
[Slovenian] Mammut Sports Group AG izjavlja, da je ta PULSE Barryvox/ELEMENT
Barryvox v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili
direktive 1999/5/ES.
Slovensky
[Slovak] Mammut Sports Group AG týmto vyhlasuje, že PULSE Barryvox/ELE-
MENT Barryvox spĺňa základné požiadavky a všetky príslušné ustanove-
nia Smernice 1999/5/ES.
Suomi
[Finnish] Mammut Sports Group AG vakuuttaa täten että PULSE Barryvox/ELE-
MENT Barryvox tyyppinen laite on direktiivin 1999/5/EY oleellisten vaati-
musten ja sitä koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Mammut Sports Group AG att denna PULSE Barryvox/ELE-
MENT Barryvox står I överensstämmelse med de väsentliga egenskapskrav
och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
