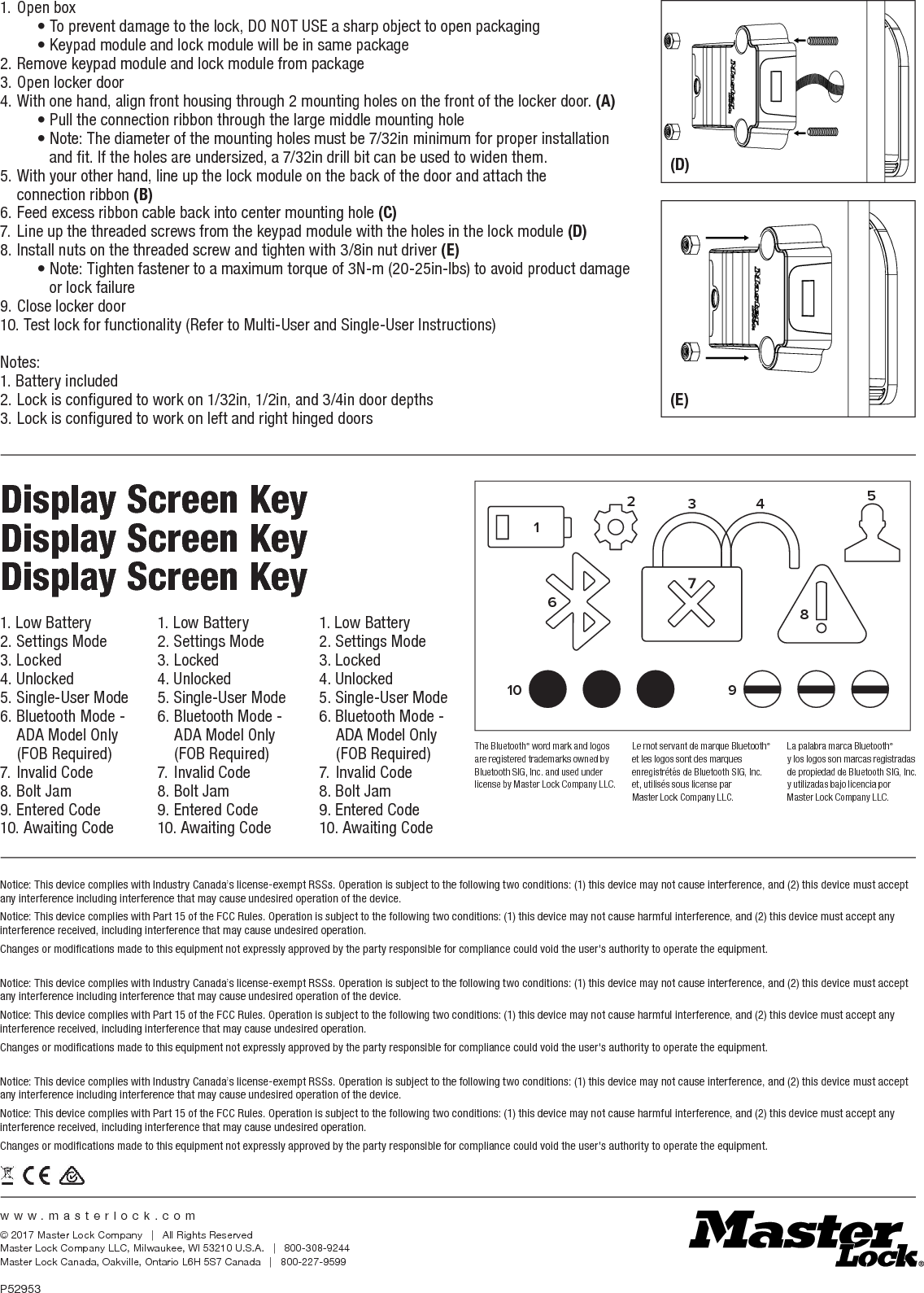

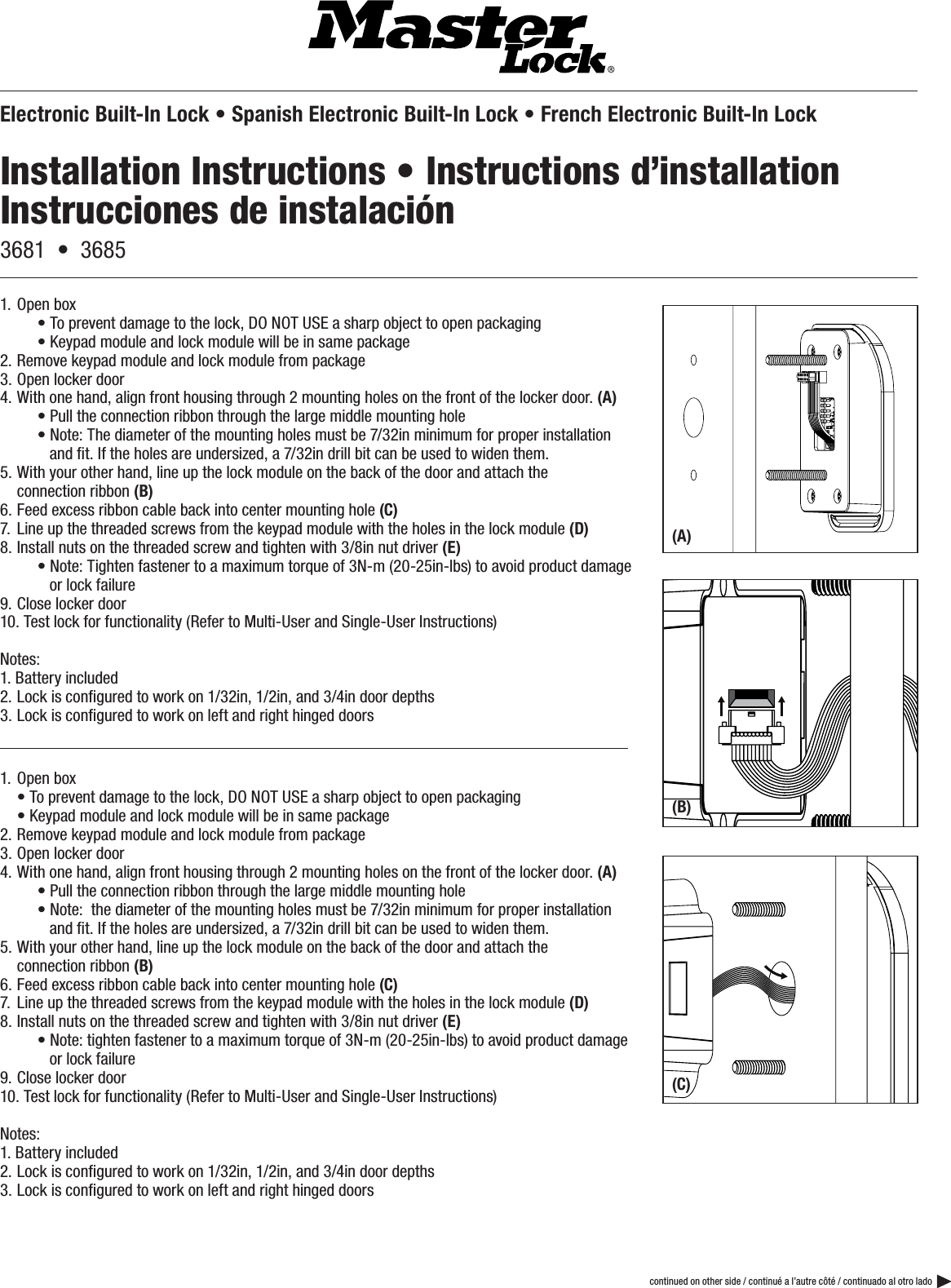

Installation Instructions • Instructions d’installationInstrucciones de instalaciónElectronic Built-In Lock • Spanish Electronic Built-In Lock • French Electronic Built-In Lock3681  •  3685continued on other side / continué a l’autre côté / continuado al otro lado1. Open box     • To prevent damage to the lock, DO NOT USE a sharp object to open packaging            • Keypad module and lock module will be in same package2. Remove keypad module and lock module from package3. Open locker door4. With one hand, align front housing through 2 mounting holes on the front of the locker door. (A)    • Pull the connection ribbon through the large middle mounting hole     • Note: The diameter of the mounting holes must be 7/32in minimum for proper installation         and fit. If the holes are undersized, a 7/32in drill bit can be used to widen them. 5. With your other hand, line up the lock module on the back of the door and attach the    connection ribbon (B)6. Feed excess ribbon cable back into center mounting hole (C)7.  Line up the threaded screws from the keypad module with the holes in the lock module (D)8. Install nuts on the threaded screw and tighten with 3/8in nut driver (E)    • Note: Tighten fastener to a maximum torque of 3N-m (20-25in-lbs) to avoid product damage         or lock failure9. Close locker door10. Test lock for functionality (Refer to Multi-User and Single-User Instructions)Notes:1. Battery included 2. Lock is configured to work on 1/32in, 1/2in, and 3/4in door depths 3. Lock is configured to work on left and right hinged doors1. Open box   • To prevent damage to the lock, DO NOT USE a sharp object to open packaging       • Keypad module and lock module will be in same package2. Remove keypad module and lock module from package3. Open locker door4. With one hand, align front housing through 2 mounting holes on the front of the locker door. (A)    • Pull the connection ribbon through the large middle mounting hole     • Note:  the diameter of the mounting holes must be 7/32in minimum for proper installation         and fit. If the holes are undersized, a 7/32in drill bit can be used to widen them. 5. With your other hand, line up the lock module on the back of the door and attach the    connection ribbon (B)6. Feed excess ribbon cable back into center mounting hole (C)7.  Line up the threaded screws from the keypad module with the holes in the lock module (D)8. Install nuts on the threaded screw and tighten with 3/8in nut driver (E)    • Note: tighten fastener to a maximum torque of 3N-m (20-25in-lbs) to avoid product damage         or lock failure9. Close locker door10. Test lock for functionality (Refer to Multi-User and Single-User Instructions)Notes:1. Battery included 2. Lock is configured to work on 1/32in, 1/2in, and 3/4in door depths 3. Lock is configured to work on left and right hinged doors(A)(B)(C)
www.masterlock.com© 2017 Master Lock Company   |   All Rights ReservedMaster Lock Company LLC, Milwaukee, WI 53210 U.S.A.   |   800-308-9244Master Lock Canada, Oakville, Ontario L6H 5S7 Canada   |   800-227-9599P529531. Open box     • To prevent damage to the lock, DO NOT USE a sharp object to open packaging            • Keypad module and lock module will be in same package2. Remove keypad module and lock module from package3. Open locker door4. With one hand, align front housing through 2 mounting holes on the front of the locker door. (A)    • Pull the connection ribbon through the large middle mounting hole     • Note: The diameter of the mounting holes must be 7/32in minimum for proper installation         and fit. If the holes are undersized, a 7/32in drill bit can be used to widen them. 5. With your other hand, line up the lock module on the back of the door and attach the    connection ribbon (B)6. Feed excess ribbon cable back into center mounting hole (C)7.  Line up the threaded screws from the keypad module with the holes in the lock module (D)8. Install nuts on the threaded screw and tighten with 3/8in nut driver (E)    • Note: Tighten fastener to a maximum torque of 3N-m (20-25in-lbs) to avoid product damage         or lock failure9. Close locker door10. Test lock for functionality (Refer to Multi-User and Single-User Instructions)Notes:1. Battery included 2. Lock is configured to work on 1/32in, 1/2in, and 3/4in door depths 3. Lock is configured to work on left and right hinged doors(D)(E)1. Low Battery2. Settings Mode3. Locked4. Unlocked5. Single-User Mode6. Bluetooth Mode -  ADA Model Only  (FOB Required)7.  Invalid Code8. Bolt Jam9. Entered Code10. Awaiting Code1. Low Battery2. Settings Mode3. Locked4. Unlocked5. Single-User Mode6. Bluetooth Mode -  ADA Model Only  (FOB Required)7.  Invalid Code8. Bolt Jam9. Entered Code10. Awaiting Code1. Low Battery2. Settings Mode3. Locked4. Unlocked5. Single-User Mode6. Bluetooth Mode -  ADA Model Only  (FOB Required)7.  Invalid Code8. Bolt Jam9. Entered Code10. Awaiting CodeDisplay Screen Key Display Screen KeyDisplay Screen Key123610 9845Notice: This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device.       Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications made to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Notice: This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device.       Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications made to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.Notice: This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference including interference that may cause undesired operation of the device.       Notice: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Changes or modifications made to this equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and used under license by Master Lock Company LLC. La palabra marca Bluetooth®  y los logos son marcas registradas  de propiedad de Bluetooth SIG, Inc.  y utilizadas bajo licencia por  Master Lock Company LLC.Le mot servant de marque Bluetooth® et les logos sont des marques enregistrétés de Bluetooth SIG, Inc. et, utilisés sous license par  Master Lock Company LLC.
