Mercury Innovations Science and Technology A1 Bluetooth Speaker User Manual Users manual

Shenzhen Mercury Innovations Science and Technology Ltd Bluetooth Speaker Users manual

Users manual

USER MANUAL
Bluetooth Speaker
A
LISTEN.MIFA
THE MUSIC POWER TO
YOUR DEEP HEART!
MI FA W E CH AT
MI FA A P P
www.mifa.net
FCC WARNING
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful inter ference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful inter ference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/T V technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with
minimum distance between 20cm the radiator your body: Use only the supplied antenna.
FCC ID: 2AF7A-A1
Warnings
01
To ensure proper use and trouble-free operation, please carefully read this user manual first.
For the first use, a full charge is recommended.
Please use and store the product at room temperature.
Do not throw and drop the product to avoid damages.
Do not expose the product to fire, high temperature, direct sunlight, etc.
Do not use organic solvents or other chemicals to clean the product.
Do not allow small particles to get into the product.
Please contact the seller if the cable is not matched.
Please keep volumes of the speaker moderate to avoid temporary or permanent hearing impairment.
Do not dissemble the product, or make any modifications to the structure or any parts of it.
Keep the product out of children’s reach.
English
Product Features
02
Wireless Bluetooth music playback
Automatically connects to the last-connected device
Built-in Mic for hands-free calls
Aux-in jack and 3.5mm audio cable for non-Bluetooth devices
Supports up to 32 GB Micro SD card
Supports MP3, WMA,WAV, FLAC, APE
Automatically turns off after 10 minutes if there is no manual operation and no device connected
Supports ring tong playing under IOS system ,others are default tone
English
1 × 3.5 mm Audio Cable
1 × Micro USB Cable
Packing Contents
03
1 × User Manual
1 × Detachable Strap
English
User Manual
Warranty Card
1 x Warranty card
1 × A1 Bluetooth Speaker
Keys Functions
04 English
Power Button
• Press and hold the button for 2 seconds to turn on or turn off
• When playing music, short press to pause or play
• When a call coming, short press to answer or hang up; press and hold it for 2 seconds to reject
Volume Down Button
• Short press to decrease the volume
• Long press to play the previous song
Volume Up Button
• Short press to increase the volume
• Long press to play the next song
Keys Functions
05 English
Other Instructions
Modes Switch
• Once powered on, the speaker enters Bluetooth pairing mode by default.
• •If it is inserted with a Micro SD card or an audio cable, double press the power button to switch modes in
turns: Bluetooth mode Micro SD card mode or Aux-in mode
• •If it is inserted with a Micro-SD card and an audio cable, double press the power button to switch modes
in turns: Bluetooth mode Micro SD card mode Aux-in mode
Restart
If the speaker doesn't respond to any operation, press and hold the power button for 8 seconds to restart it.

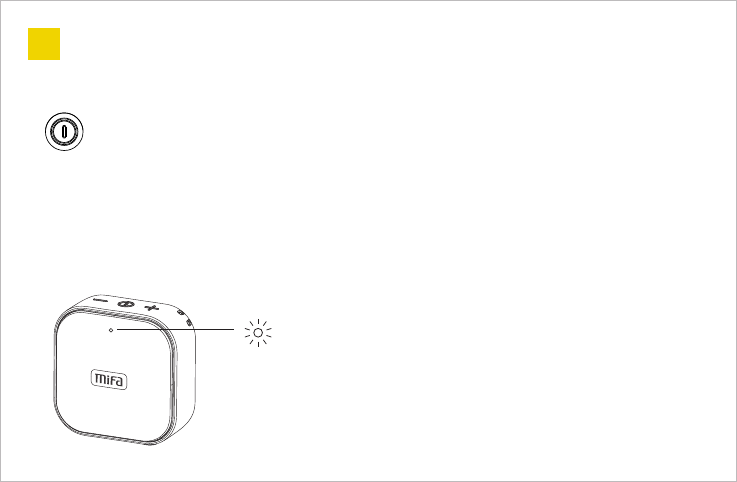

LED Indicator
Blue light flashes after powered on
Blue light stays on after connected to a device
Blue light stays on while playing
Blue light flashes slowly when playing is paused
Blue light flashes rapidly at the max / min volume
Red light stays on while charging; when fully charged, red light goes off
Ports Functions
06 English
MI CR O
SD
Micro SD card slot
In the powered-on state, insert a Micro-SD card into the slot. It will
play the music stored in the card automatically after two beeps.
Micro USB port
• Charging: use a DC 5V / 1A adaptor or connect it to a
computer to charge the speaker
• Data transmission: in the powered-off state, insert a Micro
SD card and then connect it to a computer. It will turn on and
you can manage music files in the card on the computer.
Aux-in jack
In the powered-on state, insert an audio cable. It
will beep to indicate a successful connection.
Bluetooth Connection
07 English

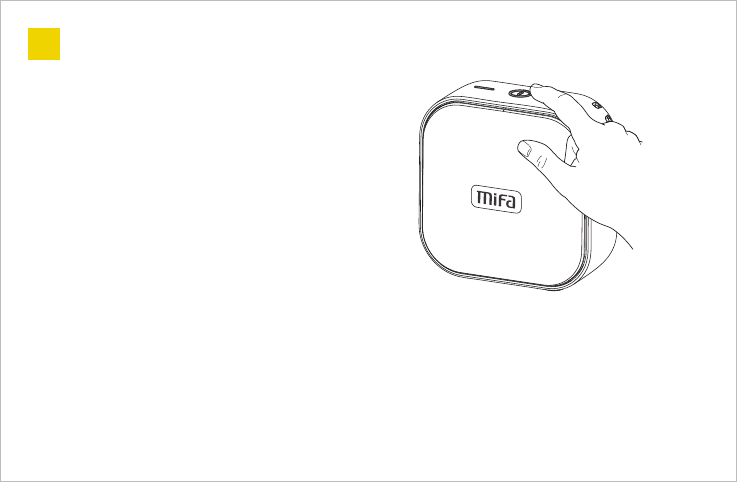

1. Press and hold the power button for more than 2
seconds until it beeps and the blue LED light flashes.
Note1. The speaker will connect to the last-connected
device automatically once the device's Bluetooth is
turned on.
Note2. The operating range is about 10m / 33 feet and will
be influenced by the surroundings.
2. Turn on the Bluetooth of your device and select
Mifa_A1. Once the connection is completed, the speaker
will beep and the blue LED light will stay on.
Other Instructions
To connect to another device, press and hold the volume down and volume up buttons simultaneously for
more than 2 seconds. The paired one will be disconnected and the speaker will enter the pairing mode.
To reconnect it to the last used device, short press the power button.
Specifications
08 English
Size: 3.3 × 1.8 × 3.4 in / 85 × 46 × 86 mm
Weight: 6.2 oz / 175g (including the built-in lithium battery)
Speaker Type Portable Bluetooth Speaker
Speaker System Mono
Loudspeaker 1.5 inches internal magnetic speaker
+ Passive radiators
Input 5V / 1A
Battery
Built-in 1200mAh Lithium battery
About 3.5 hours with 1A output adaptor
Charging Time
Output Power 5W, THD=10%
Frequency
80 Hz - 18 KHz
USB Standard USB 2.0 (compatible with USB 1.1)
Supported Storage
Up to 32 G B Micro SD card (FAT32)
Supported Media Type
APE, FLAC, WAV, WMA, MP3
1.8 in
3.3 in
3.4 in
Trouble Shooting
09
Copyright © MIFA. All rights reserved.
MIFA, the MIFA logo and other MIFA marks are all owned and registered by MIFA INNOVATIONS LLC. All other
trademarks are the property of their respective owners. The information contained here is subject to change
without prior notice.
MIFA INNOVATIONS LLC
www.mifa.net Designed in USMade in China
English
Not able to connect
to your device
FAQ Solutions
1. Restar t the speaker and try again
2. If your device requires a Pin Code, please enter 0000
1. Please ensure the format of the Micro SD card is FAT32. It only
supports FAT32 Micro SD card
2. Please ensure the formats of the music files are APE, FLAC, WAV, WMA
or MP3
No sound when playing
1. Please adjust the volume of the speaker
2. Please adjust the volume of your device
3. Please check if the speaker is paused
Keeps cutting out when playing Please ensure the speaker is within the operating range and there
are no obstacles between the speaker and the device
Not able to play the music in
Micro SD card
No sound in AUX-in mode Please ensure the audio cable is connected well
Not able to turn on Please try to charge the speaker for about 3 .5hours
No respond to any operation Please try to press and hold the power button for about 8 seconds
to reset the speaker
