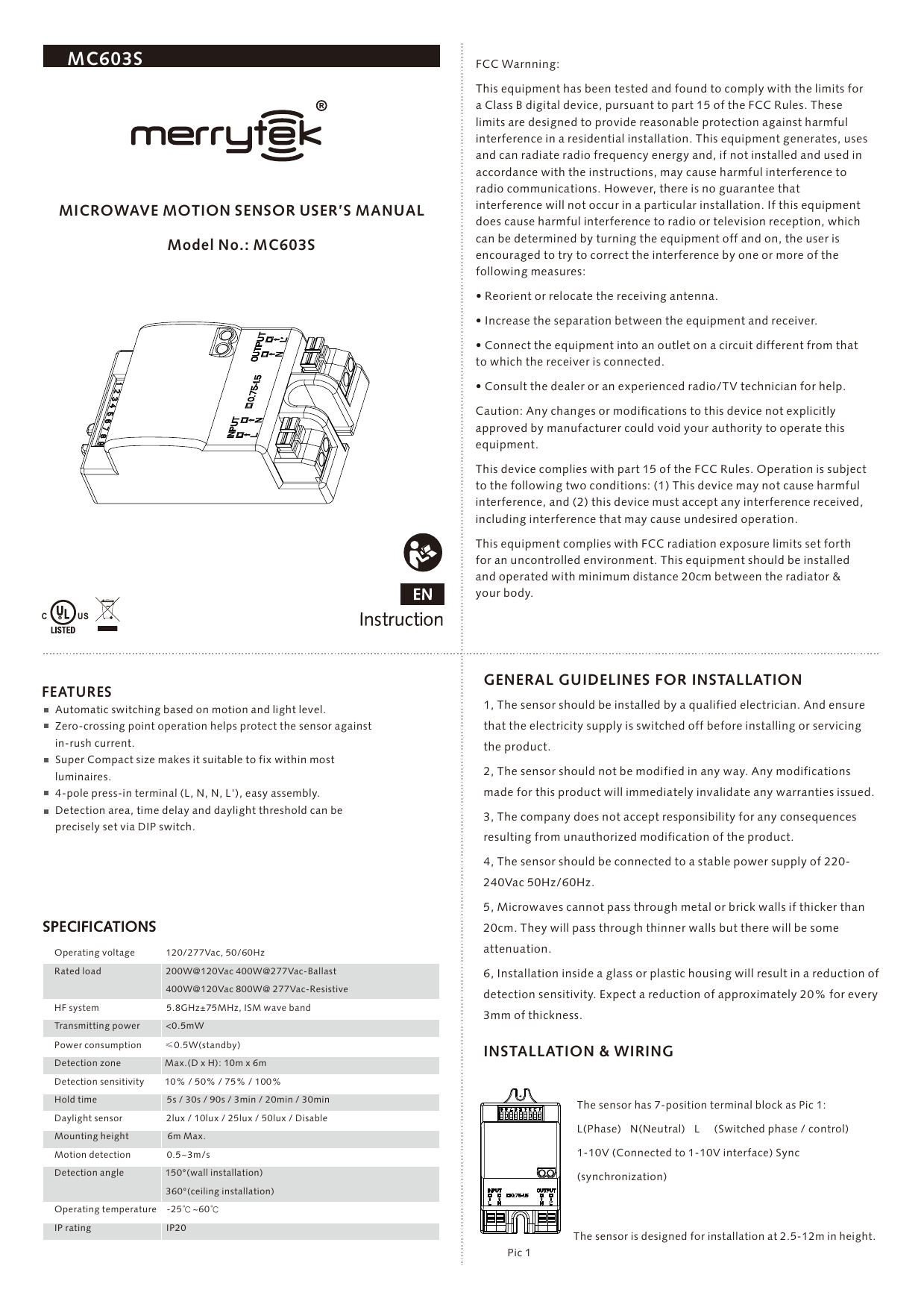

Model No.: MC603SMC603SGENERALGUIDELINESFORINSTALLATION INSTALLATION & WIRINGThe sensor has 7-position terminal block as Pic 1:L(Phase) N(Neutral) L (Switched phase / control) 1-10V (Connected to 1-10V interface) Sync(synchronization)The sensor is designed for installation at 2.5-12m in height. Pic 1MICROWAVE MOTION SENSOR USER’S MANUALFEATURES1, The sensor should be installed by a qualified electrician. And ensure that the electricity supply is switched off before installing or servicing the product.2, The sensor should not be modified in any way. Any modifications made for this product will immediately invalidate any warranties issued.3, The company does not accept responsibility for any consequences resulting from unauthorized modification of the product.4, The sensor should be connected to a stable power supply of 220-240Vac 50Hz/60Hz.5, Microwaves cannot pass through metal or brick walls if thicker than 20cm. They will pass through thinner walls but there will be some attenuation.6, Installation inside a glass or plastic housing will result in a reduction of detection sensitivity. Expect a reduction of approximately 20% for every 3mm of thickness.C USAutomatic switching based on motion and light level.Zero-crossing point operation helps protect the sensor against in-rush current.Super Compact size makes it suitable to fix within most luminaires.4-pole press-in terminal (L, N, N, L'), easy assembly.Detection area, time delay and daylight threshold can be precisely set via DIP switch.Operating voltage 120/277Vac, 50/60HzRated load 200W@120Vac 400W@277Vac-Ballast 400W@120Vac 800W@ 277Vac-ResistiveHF system 5.8GHz±75MHz, ISM wave bandTransmitting power <0.5mWPower consumption ≤0.5W(standby)Detection zone Max.(D x H): 10m x 6mDetection sensitivity 10% / 50% / 75% / 100%Hold time 5s / 30s / 90s / 3min / 20min / 30minDaylight sensor 2lux / 10lux / 25lux / 50lux / DisableMounting height 6m Max.Motion detection 0.5~3m/sDetection angle 150°(wall installation) 360°(ceiling installation)Operating temperature -25℃~60℃IP rating IP20FCC Warnning:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician for help.Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Detection area, hold time and daylight sensor can be set by using DIP switches on the sensor. Note that reducing the detection area will also reduce the sensitivity.SETTINGS1, Detection areaI: up to 100%II: up to 75%III: up to 50%IV: up to 10%2, Hold timeRefers to the time period the lamp remains at 100% illumination after no motion is detected.I: 5sII: 30sIII: 90sIV: 3minV: 20minVI:30minWhen set to 30min,The sensor function will be inactive, the light will go back to normal one.3,Daylight sensor The sensor can be set to only allow the lamp to illuminate below a defined ambient brightness threshold. The settings are as follows:I: 2lux, darkness operation only II: 10lux, darkness operation onlyIII: 25lux, twilight operationIV: 50lux, twilight operation V: Disable*When set to Disable, the daylight sensor will switch on the lamp when motion is detected regardless of ambient light levels.*It should be set to Disable mode if the motion sensor is connected to stand-alone daylight sensors.Shenzhen Merrytek Technology Co..LtdNo.3 Building, 380 Xiangshan Avenue, No.3 Industrial Park Luotian, Songgang Town, Bao’an District, Shenzhen 518105, Guangdong, China www.merrytek.com Email:sales@merrytek.com ON ONONONON ⅠⅡⅢⅣ1 2100%75%50%10%ON ON ONON ONON ONONON ONONⅠⅡⅢⅣⅤ3 4 5Ⅳ5s30s90s3min20min30minON ON ONON ONONONON ⅠⅡ6 7 8Disable50lux10lux2lux25luxⅢⅣⅤFOR ON/OFF FUNCTION :Connect to normal control gears (normal LED drivers or ballasts), the wiring as following:WIRING SCHEMELNLLLNNNControl gearMax. 400WLLLLLLNNNNNNControl gear Control gearDETECTION PATTERN10%50%75%100%02486246810 1 2 1410121410121410%50%75%100%1 2 3 4 55 4 3 2 1Ceiling mounting pattern (Unit: m)Suggested installation height: 2.5-6mWall mounting pattern (Unit: m)Suggested installation height: 1-1.8mQuestionThe load will not illuminateIncorrect daylight sensor setting selected.Load has failed.Power is switched off. Switch on.Adjust setting.Replace load.Continuous movement in the detection area.The lamp (containing sensor) is installed in an area too close to reflective surfaces, i.e. metal, glass or concrete walls.Check detection area setting.1, Make sure installation area suitable with at least 30cm space between lamp and surrounding reflective surfaces.2, Reduce sensitivity (detection area).The load is permanently illuminated.The load will not illuminate despite movement.Speed of moving object is not in the range of 0.5-3m/s or the detection radius is too small.Check detection area setting.Cause RemedyFAQONConst-ant ONWhen set to “Const-ant ON”, the microwave sensor function is inactive, lights turns on or off by switch. When set to Sensor, the microwave sensor function is active. 4,Stand-by dimming level
