Mertik Maxitrol and KG B6RHAS Control Unit For GV60/Symax System User Manual Users manual Part 3 of 3

Mertik Maxitrol GmbH & Co. KG Control Unit For GV60/Symax System Users manual Part 3 of 3

Contents

Users manual Part 3 of 3

28 / 29
INSTALLATION AND OPERATING INSTRUCTIONS FOR OEM USE ONLY
© 2018 Mertik Maxitrol GmbH & Co. KG, All Rights Reserved.
DRAFT 21/11/2018
ON-OFF
UP
DOWN
Wall Switch (optional)
G6R-ZWSE(N)…
Power Flue Control
(not available from
Mertik Maxitrol)
Receiver
B6R-R8(9)P…

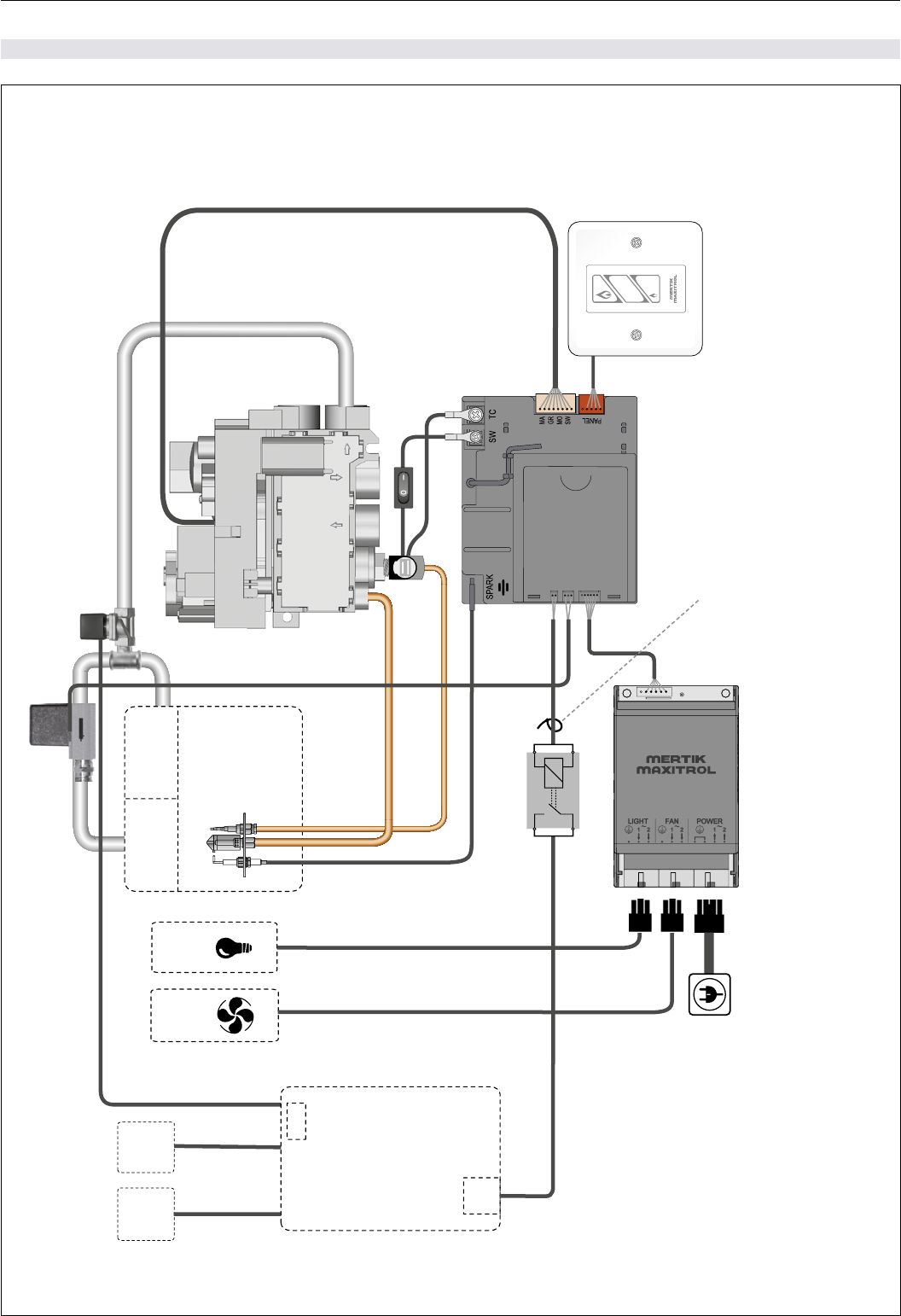

RECEIVER FOR POWER FLUE CONTROL, FAN, LIGHT / DIMMER, LATCHING SOLENOID, AUX (VOLT-FREE CONTACT)
Relay with Cable (volt-free contact)
G6R-CL40 (50 V / 0.6 A)
G6R-CLB40 (240 V / 5 A)
Power Flue Control
▪ The receiver has an additional connection to start the power ue control.
▪ With a bistable relay at the cable the receiver controls the start function of a Power Flue Control.
▪ A solenoid valve must be installed downstream from the GV60. In case a 2nd burner is installed,
the Solenoid Valve has to close both burners. If the Solenoid Valve is installed upstream of the
valve a pilot gas position would not be possible.
Solenoid Valve
(Required for Power Flue Control)
Gas Combination
Control
GV60…
Pilot Burner
G30-ZP2M-L
For Relay with Cable strain reliefs
required, min. 30 N.
(to be mounted by installer)
Figure 29
▪ Power Flue Control, solenoid valve, fan and pressure switch are not available from Mertik
Maxitrol. The Power Flue Control operates the fan and the solenoid valve and checks the pres-
sure switch. When there is the required draft, the solenoid valve opens. For safety, the solenoid
valve must close in case of power outage.
▪ The B6R starts the Power Flue Control with the ignition sequence and when the motor leaves
the pilot gas position and stops it at shut off and in pilot position.
Main Burner 1Main Burner 2
LightFan
Fan
Draft
Switch
Start
in
Latching Solenoid Valve
Mains Power
(115 / 230 V; AC)
V Module G6R-BUMV3
29 / 29
ENGLISH
INSTALLATION AND OPERATING INSTRUCTIONS FOR OEM USE ONLY
© 2018 Mertik Maxitrol GmbH & Co. KG, All Rights Reserved.
DRAFT 21/11/2018

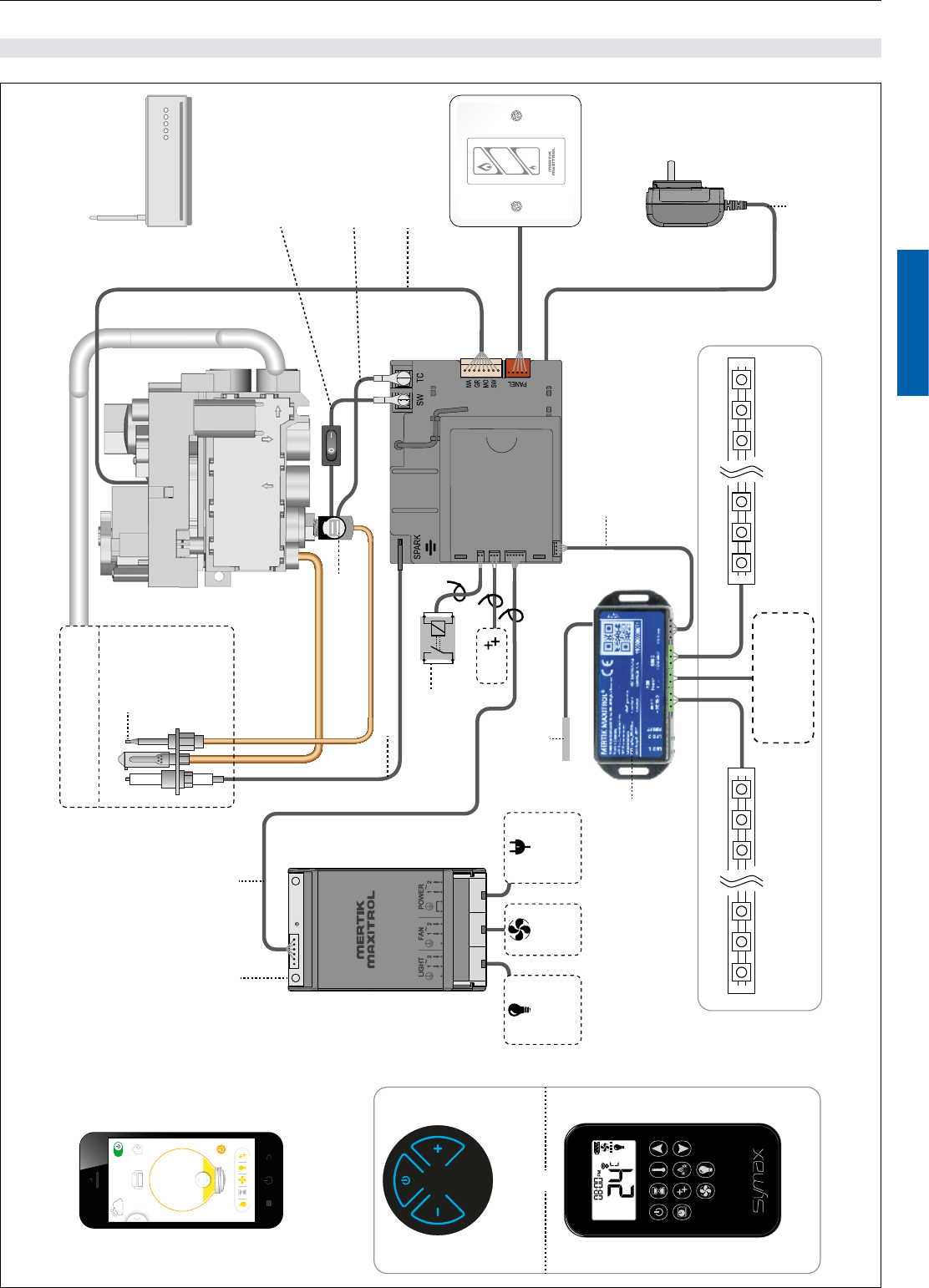

MYFIRE APP SETUP
Figure 30
Pilot Burner
G30-ZP2M
8 Wire Cable
G6R-C…
Thermocurrent Cable SW
with ON/OFF Switch
G60-ZSKS(L)S…
Thermocurrent Cable TC
G60-ZKIRS…
Cable
G60-ZCSW2…
Mains Adapter (optional)
G60-ZMA3
Provided by OEM.
myfire Wi-Fi Box
B6R-W2(XX)-(2)-(T)
Temperature Sensor (optional)
G60-ZCT…
RGB 1 Phoenix, MC 1,5/3-ST-3,5
Receiver
B6R-R8(9)P
B6R-R8(9)PT
Main Burner
Relay with Cable
(volt-free contact)
G6R-CL… (50 V/0.6A)
G6R-CLB… (240 V/5A)
Ignition Cable G60-ZKIS…
Interrupter Block
G60-ZUS…
Gas Combination
Control
GV60…
Cable
G6R-CBV…
Home Network
Wall Switch (optional)
G6R-ZWSE(N)…
ON-OFF
UP
DOWN
V Module (optional)
G6R-BU(E)…
Fan
4 levels from
60 % to 100 %
14 to 100 Watt
Mains Power
115/230 V; AC
Light
Infinitely variable
20 % to 100 %
0 to 100 Watt
NOTE: To connect LED
lights or 12 V lamps a
driver/transformator
is needed.
RGB Power Input
LED Driver / Transformer
5 V - 24 V DC
WS2811/12 Standard
AUX
RGB 2 Phoenix, MC 1,5/3-ST-3,5
Symax Handset
(optional)
B6R-H8(9)…P…D…
The Puck – Handset
(optional)
B6R-H8(9)SP…
Mobile Device
with myfire App
(Android/iOS)
-11
