User Manual update

Meru Access Point and

Radio Switch

Installation Guide

Other names and brands may be claimed as the property of others.

Document Number: 882-70034 Rev. A

Contents

About This Guide . . . . . . . . . . . . . . . . . . . . . . .ix

Audience . . . . . . . . . . . . . . . . . . . . . . . . . ix

In This Guide. . . . . . . . . . . . . . . . . . . . . . . . ix

Other Sources of Information . . . . . . . . . . . . . . . . . . x

Meru Publications . . . . . . . . . . . . . . . . . . . . . x

External References . . . . . . . . . . . . . . . . . . . . x

Typographic Conventions . . . . . . . . . . . . . . . . . . . x

Contacting Meru . . . . . . . . . . . . . . . . . . . . . . xi

Customer Services and Support . . . . . . . . . . . . . . . . xi

Chapter 1

Meru Access Points and Radio Switch . . . . . . . . . . . . . 1

Introducing the Radio Switch RS4000 . . . . . . . . . . . . . . . 1

RS4000 Hardware Features and Specifications . . . . . . . . . . . 3

Meru Access Point Features. . . . . . . . . . . . . . . . . . . 5

Introducing the Meru Access Point AP200 Series . . . . . . . . . . 5

Introducing the Meru Access Point AP150 Series . . . . . . . . . . 6

Chapter 2

Installing the RS4000 . . . . . . . . . . . . . . . . . . . . . 9

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . 9

Unpacking the RS4000 . . . . . . . . . . . . . . . . . . . . 9

Installation Requirements . . . . . . . . . . . . . . . . . . . 10

About an Hoffman/NEMA Enclosure Installation . . . . . . . . . . 12

Optimum Antenna Positioning and Placement . . . . . . . . . . . 13

Installing the RS4000 . . . . . . . . . . . . . . . . . . . . . 14

Mounting the RS4000 . . . . . . . . . . . . . . . . . . . . 14

Placing and Positioning the Antenna . . . . . . . . . . . . . . 23

Hoffman/NEMA Enclosure RS4000 Installation . . . . . . . . . . . 25

Where to Go From Here . . . . . . . . . . . . . . . . . . . . 27

Checking LED Activity. . . . . . . . . . . . . . . . . . . . . 28

RS4000 Status LEDs . . . . . . . . . . . . . . . . . . . . 28

Chapter 3

Installing the AP200 . . . . . . . . . . . . . . . . . . . . 31

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . 31

Unpacking the AP200 . . . . . . . . . . . . . . . . . . . . . 31

Installation Requirements . . . . . . . . . . . . . . . . . . . 32

Installing the Access Points . . . . . . . . . . . . . . . . . . . 34

Selecting a Location . . . . . . . . . . . . . . . . . . . . 34

Attaching the AP200 Antennas . . . . . . . . . . . . . . . . 35

Mounting the Access Point . . . . . . . . . . . . . . . . . 35

Where to Go From Here . . . . . . . . . . . . . . . . . . . 43

Checking LED Activity . . . . . . . . . . . . . . . . . . . . 43

Ethernet Connector LEDs . . . . . . . . . . . . . . . . . . 43

AP200 Status LEDs . . . . . . . . . . . . . . . . . . . . 44

Chapter 4

Installing the AP150 . . . . . . . . . . . . . . . . . . . . . 47

Safety Precautions . . . . . . . . . . . . . . . . . . . . . 47

Unpacking the AP150 . . . . . . . . . . . . . . . . . . . . 47

Installation Requirements. . . . . . . . . . . . . . . . . . . 48

Installing the Access Points . . . . . . . . . . . . . . . . . . 50

Selecting a Location . . . . . . . . . . . . . . . . . . . 50

Attaching the AP150 Antennas . . . . . . . . . . . . . . . . 51

Mounting the Access Point . . . . . . . . . . . . . . . . . 51

Where to Go From Here . . . . . . . . . . . . . . . . . . . 57

Checking LED Activity . . . . . . . . . . . . . . . . . . . . 58

AP150 Status LEDs . . . . . . . . . . . . . . . . . . . . 58

Appendix A

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 61

Wireless Interface . . . . . . . . . . . . . . . . . . . . . 61

Ethernet Interface . . . . . . . . . . . . . . . . . . . . . 62

Physical . . . . . . . . . . . . . . . . . . . . . . . . . 62

Appendix B

Regulatory Information . . . . . . . . . . . . . . . . . . . 63

USA . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Underwriters Laboratories . . . . . . . . . . . . . . . . . 63

FCC Radiation Exposure Statement . . . . . . . . . . . . . . 64

Radio Frequency Interference Requirements . . . . . . . . . . . 64

Canada. Industry Canada (IC) . . . . . . . . . . . . . . . . . 65

Europe—EU Declaration of Conformity and Restrictions . . . . . . . . 67

IEEE 802.11a Restrictions. . . . . . . . . . . . . . . . . . 69

EEE 802.11b/g Restrictions . . . . . . . . . . . . . . . . . 70

Japan. . . . . . . . . . . . . . . . . . . . . . . . . . 70

Manufacturing Information . . . . . . . . . . . . . . . . . . 71

Appendix C

Channels . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Channels . . . . . . . . . . . . . . . . . . . . . . . . 73

IEEE 802.11a . . . . . . . . . . . . . . . . . . . . . . 73

IEEE 802.11b/g . . . . . . . . . . . . . . . . . . . . . 75

Appendix D

Mounting Bracket Stencils . . . . . . . . . . . . . . . . . . 77

AP150 Mounting Bracket Stencil . . . . . . . . . . . . . . . . 77

List of Figures

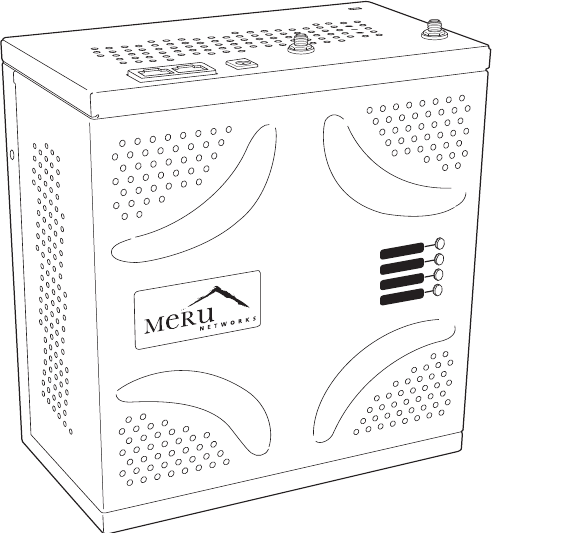

Figure 1 Radio Switch RS4000 .............................................................. 2

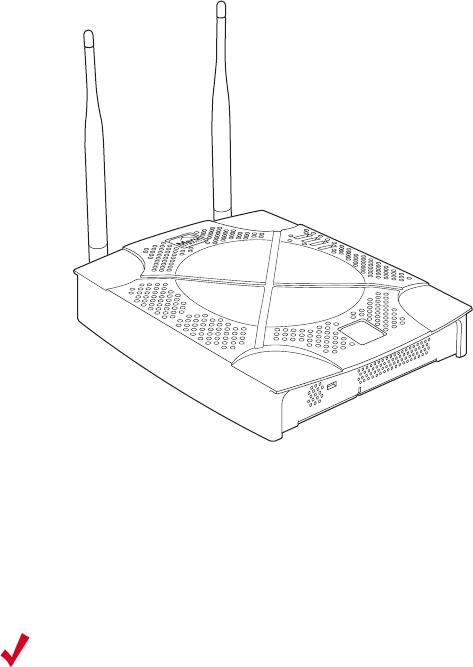

Figure 2 Access Point AP200 ............................................................... 6

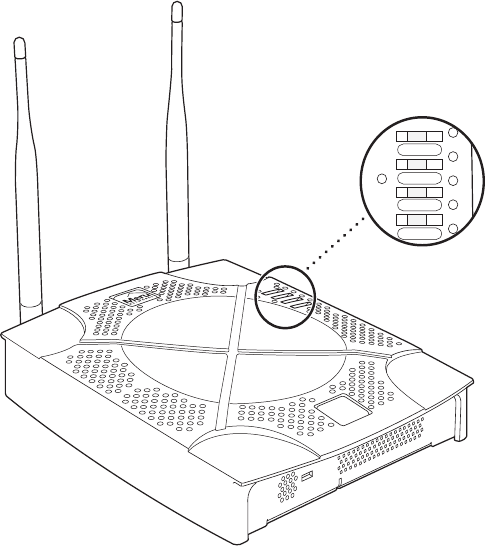

Figure 3 Access Point AP150 ............................................................... 7

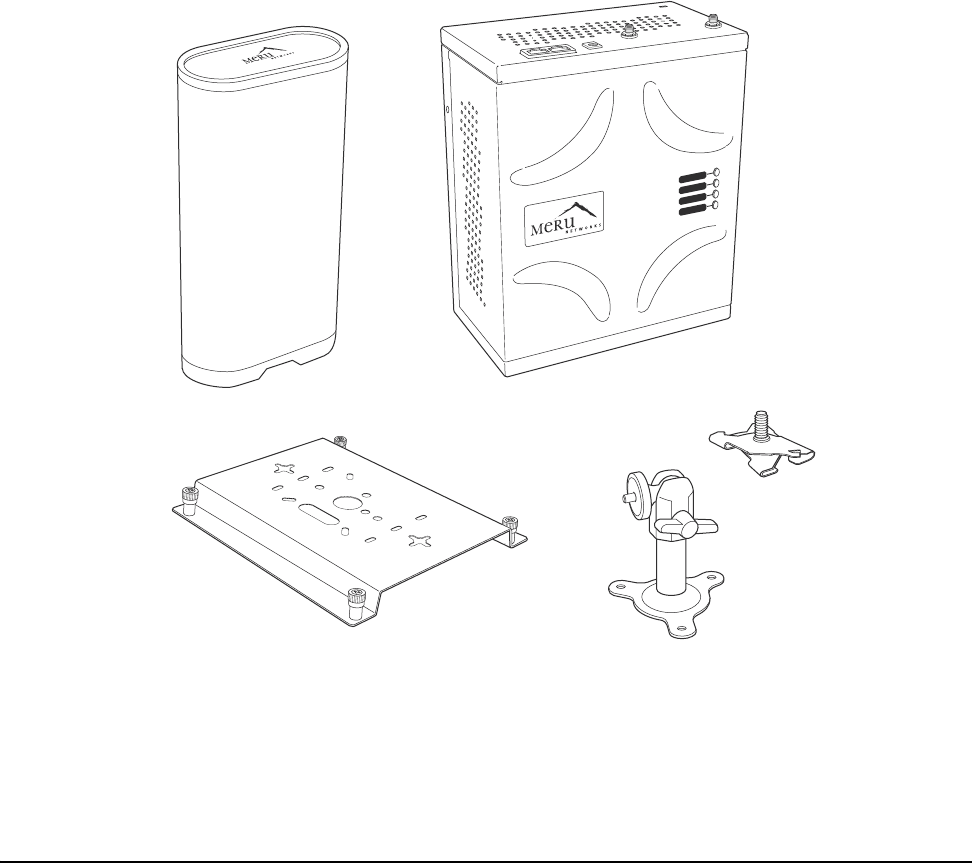

Figure 4 RS4000 Package Contents ........................................................ 10

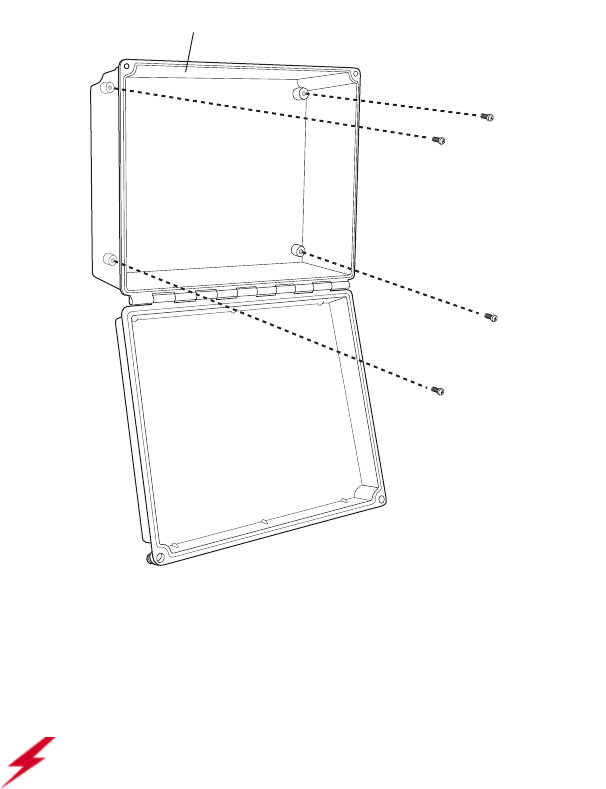

Figure 5 Open NEMA Box Showing Mounting Holes ...................................... 13

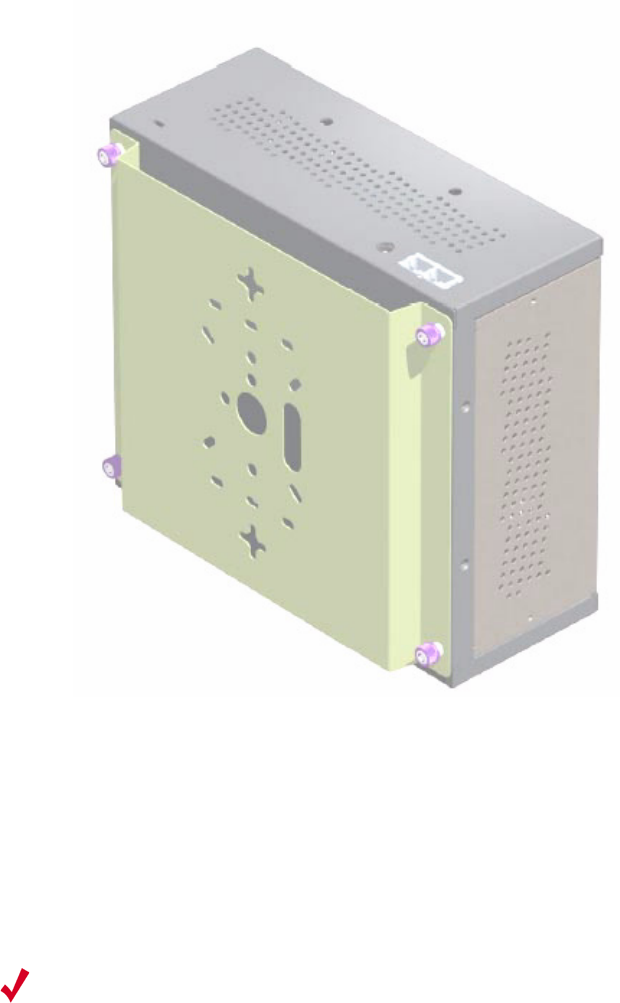

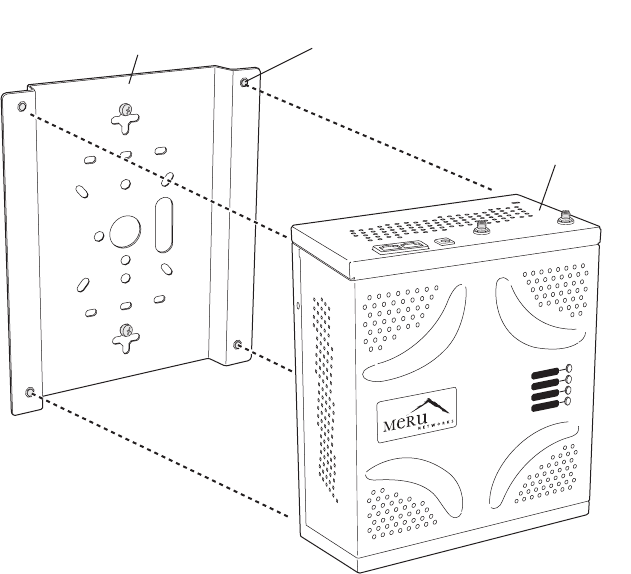

Figure 6 Bracket Attached to RS4000 ..................................................... 15

Figure 7 RS4000 Bracket Mounting ........................................................ 16

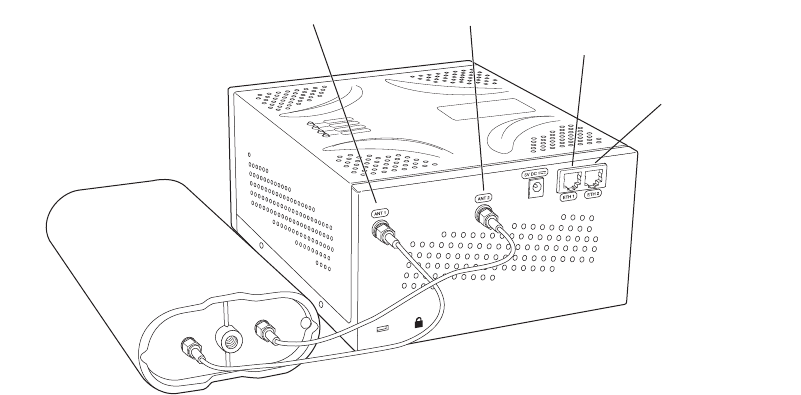

Figure 8 RS4000 with Antenna Attached ................................................. 17

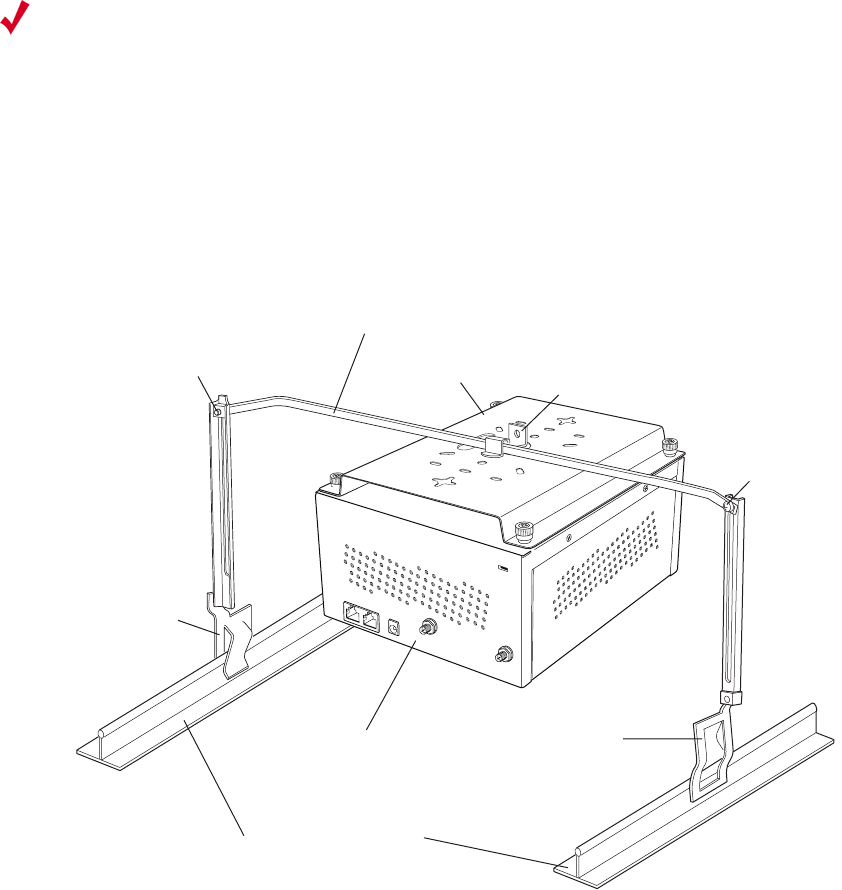

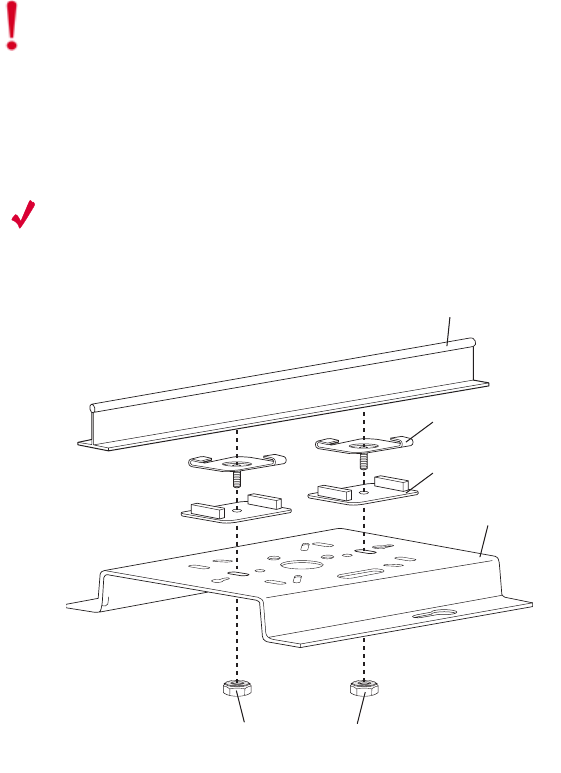

Figure 9 Mounting the RS4000 Below a Suspended Ceiling Rail ....................... 18

Figure 10 RS4000 with Antenna Attached ................................................ 19

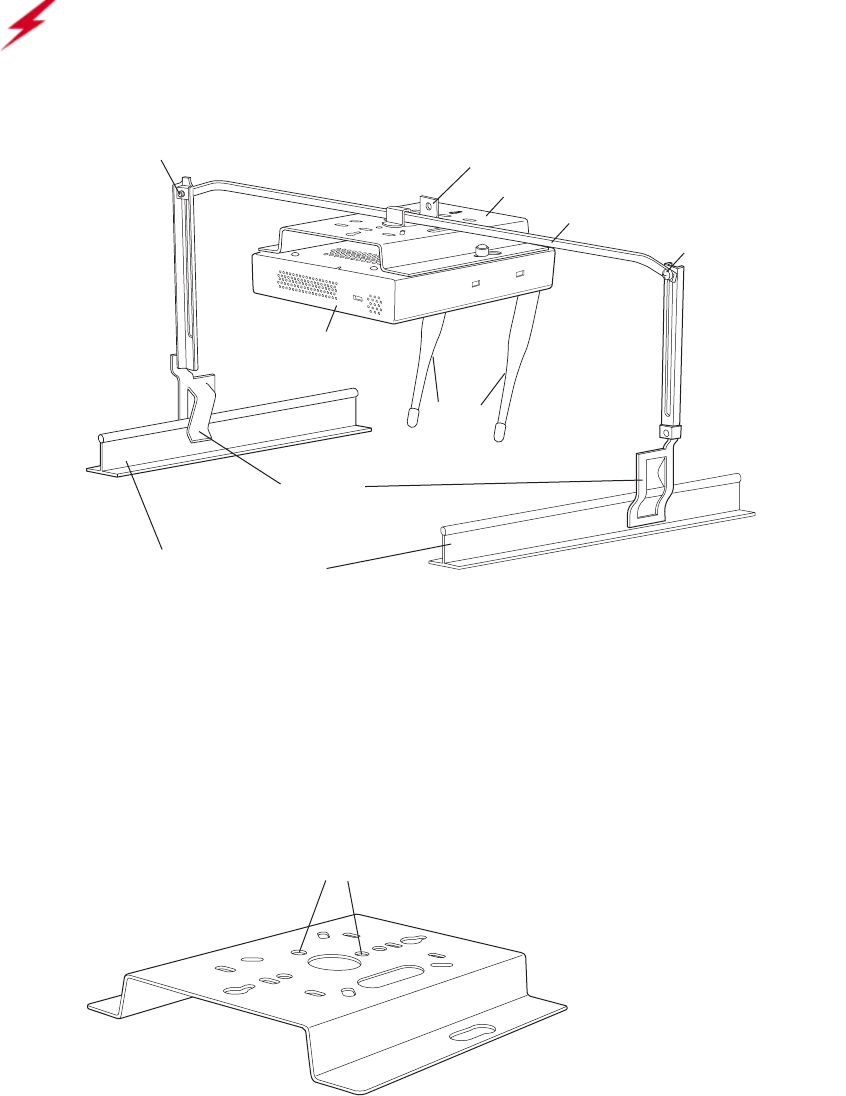

Figure 11 Mounting the RS4000 Above a Suspended Ceiling ........................... 20

Figure 12 Box Hanger Mounting Bracket Holes .......................................... 21

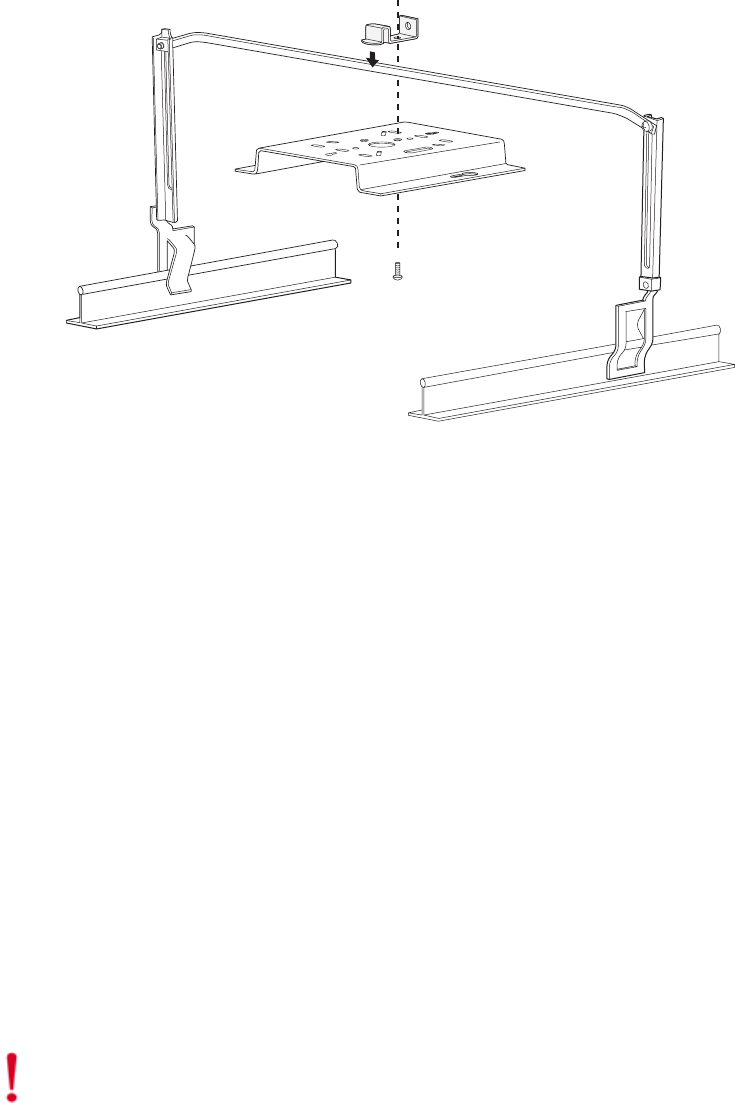

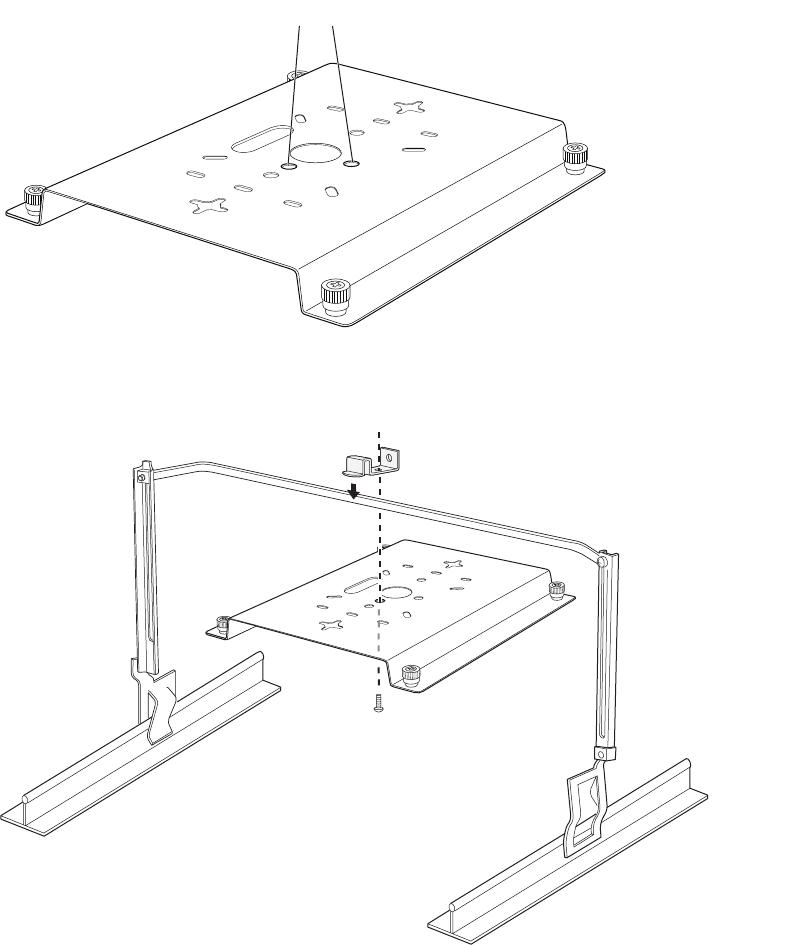

Figure 13 Attaching the Mounting Bracket to the Box Hanger ........................ 21

Figure 14 RS4000 with Antenna Attached ................................................ 22

Figure 15 RS4000 180o Directional Antenna ............................................. 23

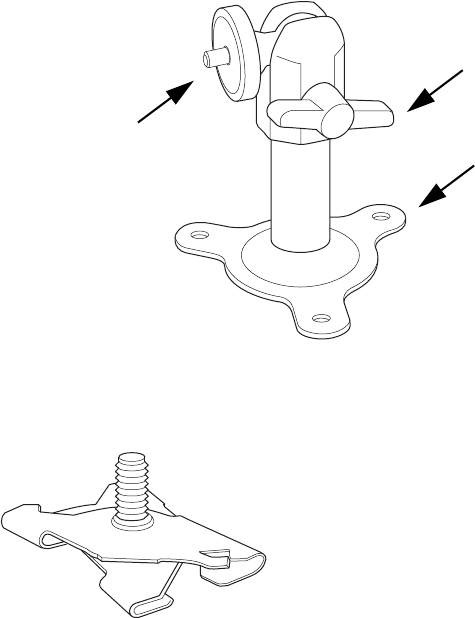

Figure 16 Antenna Mounting Arm with Wall Bracket (shown attached) ............. 24

Figure 17 Antenna Ceiling Tile Rail Base ................................................. 24

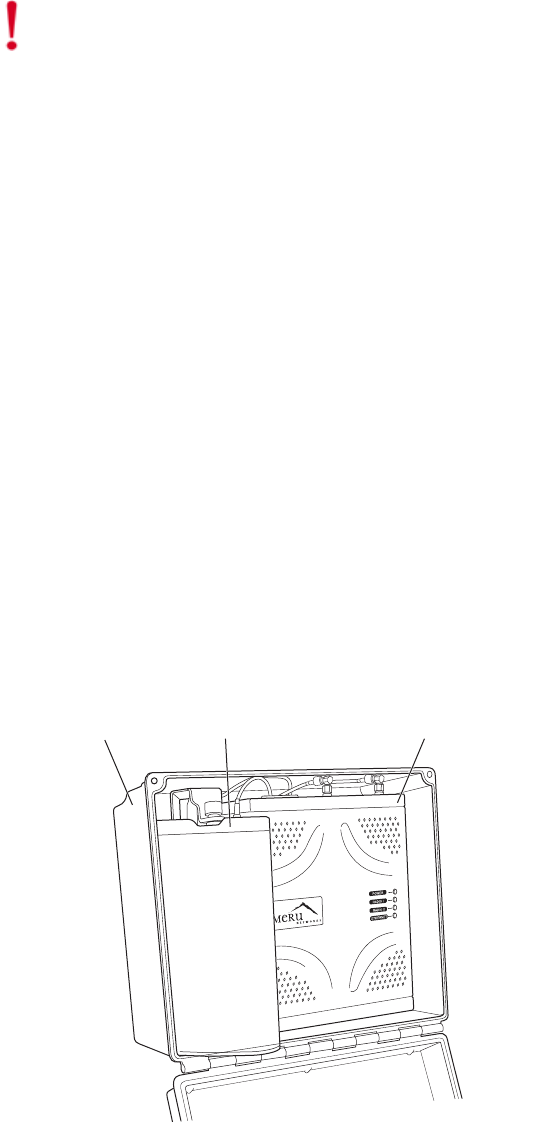

Figure 18 RS4000 and Antenna Installed in NEMA Enclosure .......................... 26

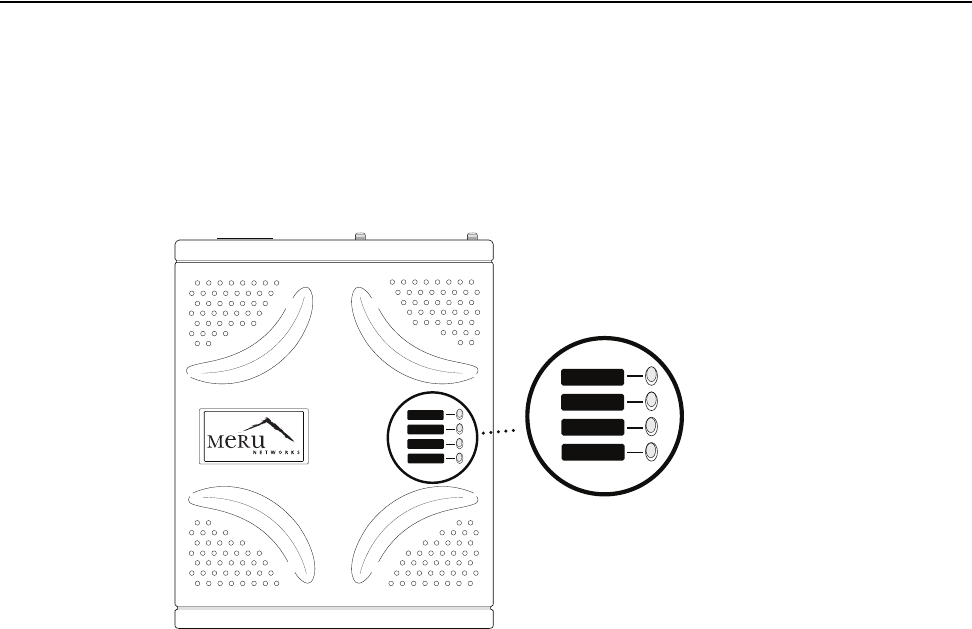

Figure 19 RS4000 Status LEDs .............................................................. 28

Figure 20 AP200 Mounting Bracket ........................................................ 32

Figure 21 AP200 Antenna Connection ..................................................... 36

Figure 22 AP200 Connector Panel ......................................................... 36

Figure 23 AP200 Bracket .................................................................... 37

Figure 24 Aligning the AP200 with the Bracket ......................................... 38

Figure 25 Sliding the AP200 into the Bracket ............................................ 38

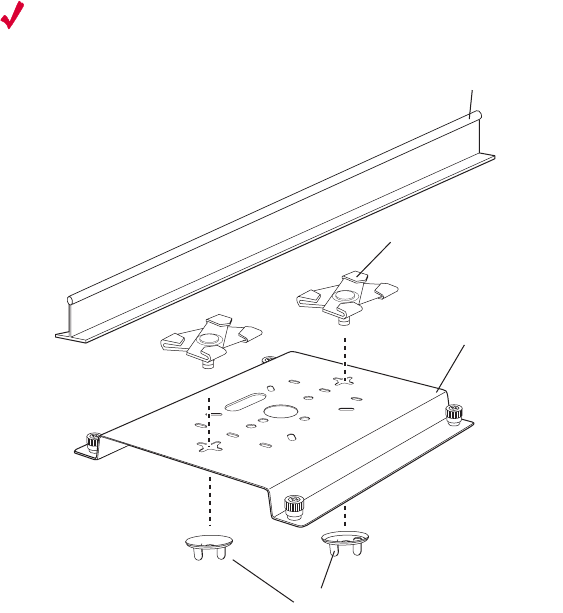

Figure 26 Mounting the AP200 to a Suspended Ceiling Rail ........................... 39

Figure 27 Mounting the AP200 Above a Suspended Ceiling ............................ 41

Figure 28 Box Hanger Mounting Bracket Holes .......................................... 41

Figure 29 Attaching the Mounting Bracket to the Box Hanger ........................ 42

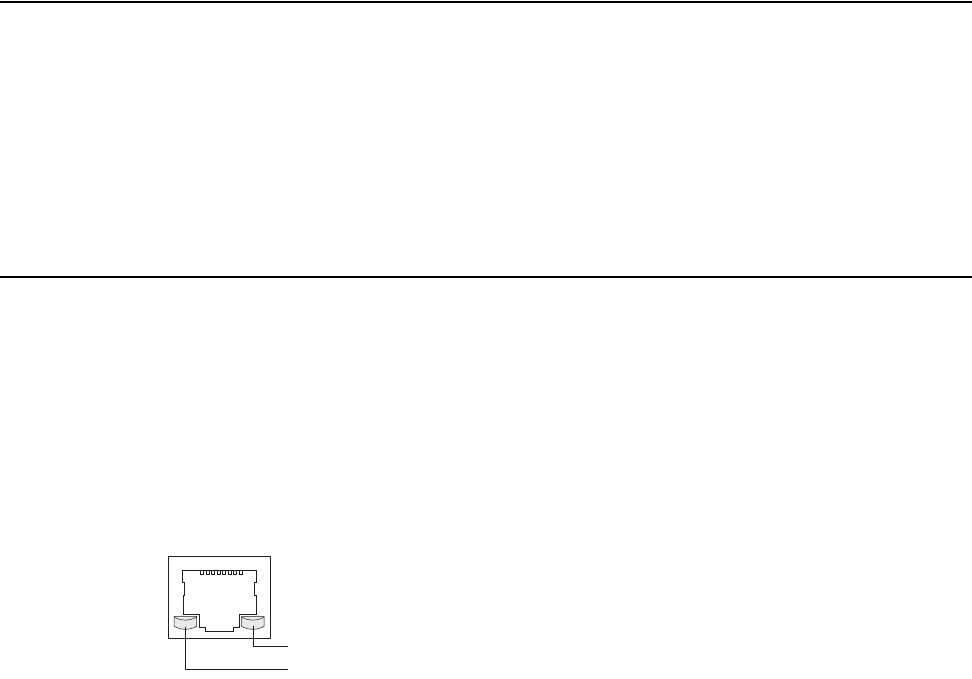

Figure 30 RJ-45 LEDs ........................................................................ 43

Figure 31 AP200 Status LEDs ............................................................... 44

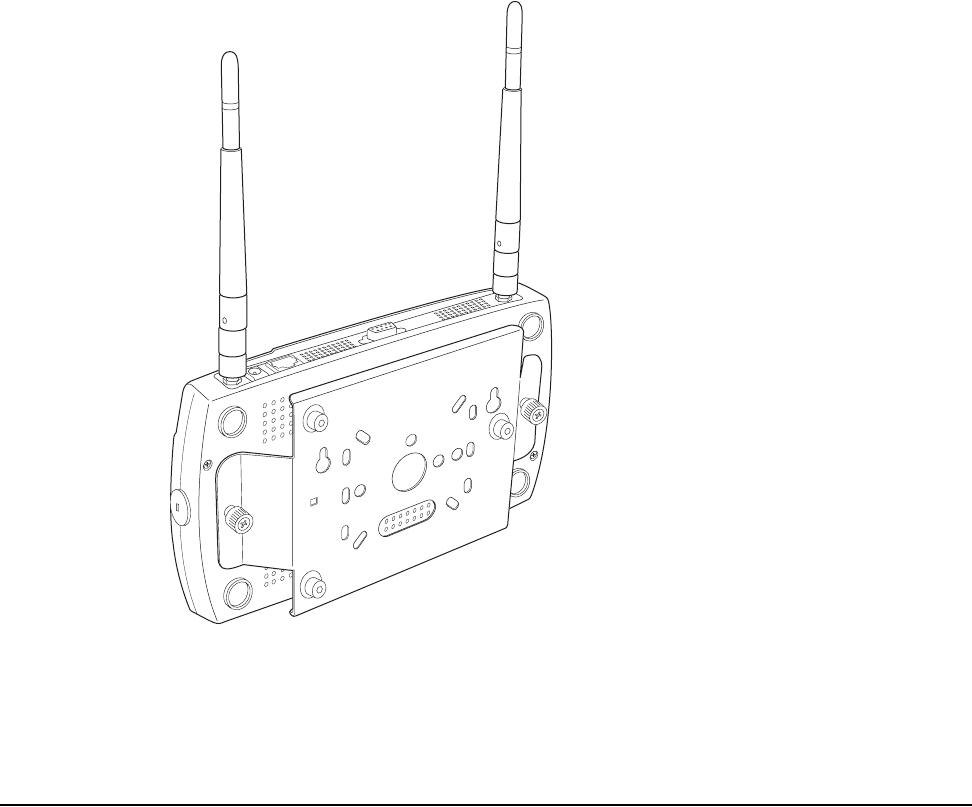

Figure 32 AP150 with Mounting Bracket .................................................. 48

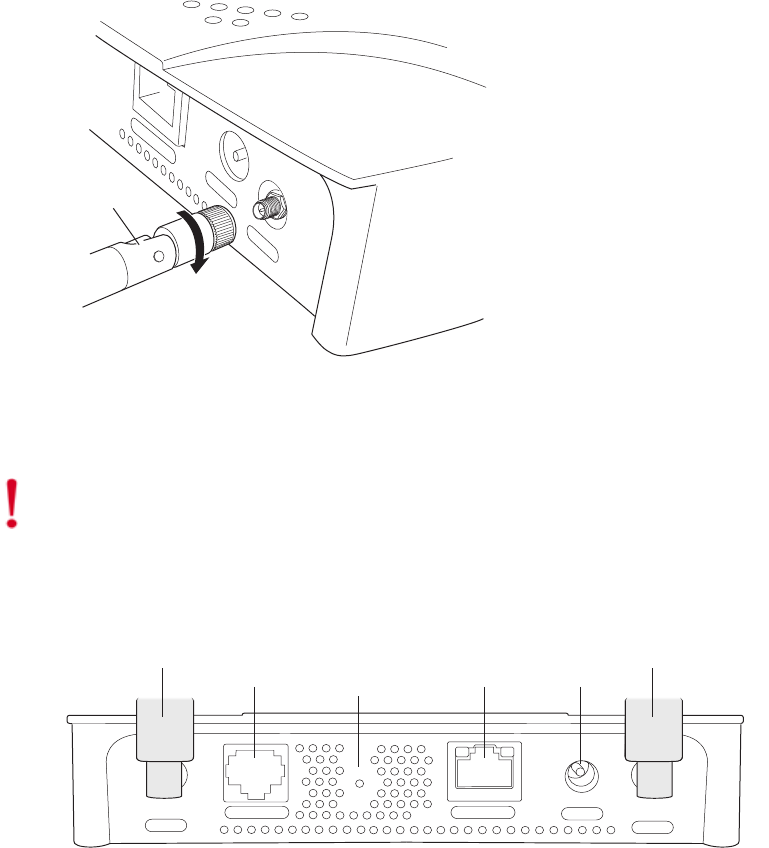

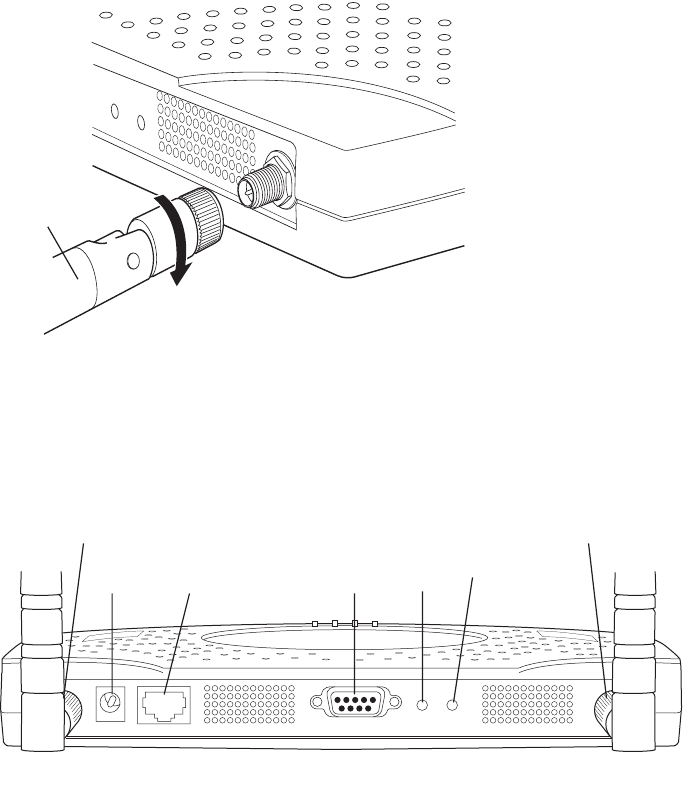

Figure 33 AP150 Antenna Connection ..................................................... 52

Figure 34 AP150 Connector Panel ......................................................... 52

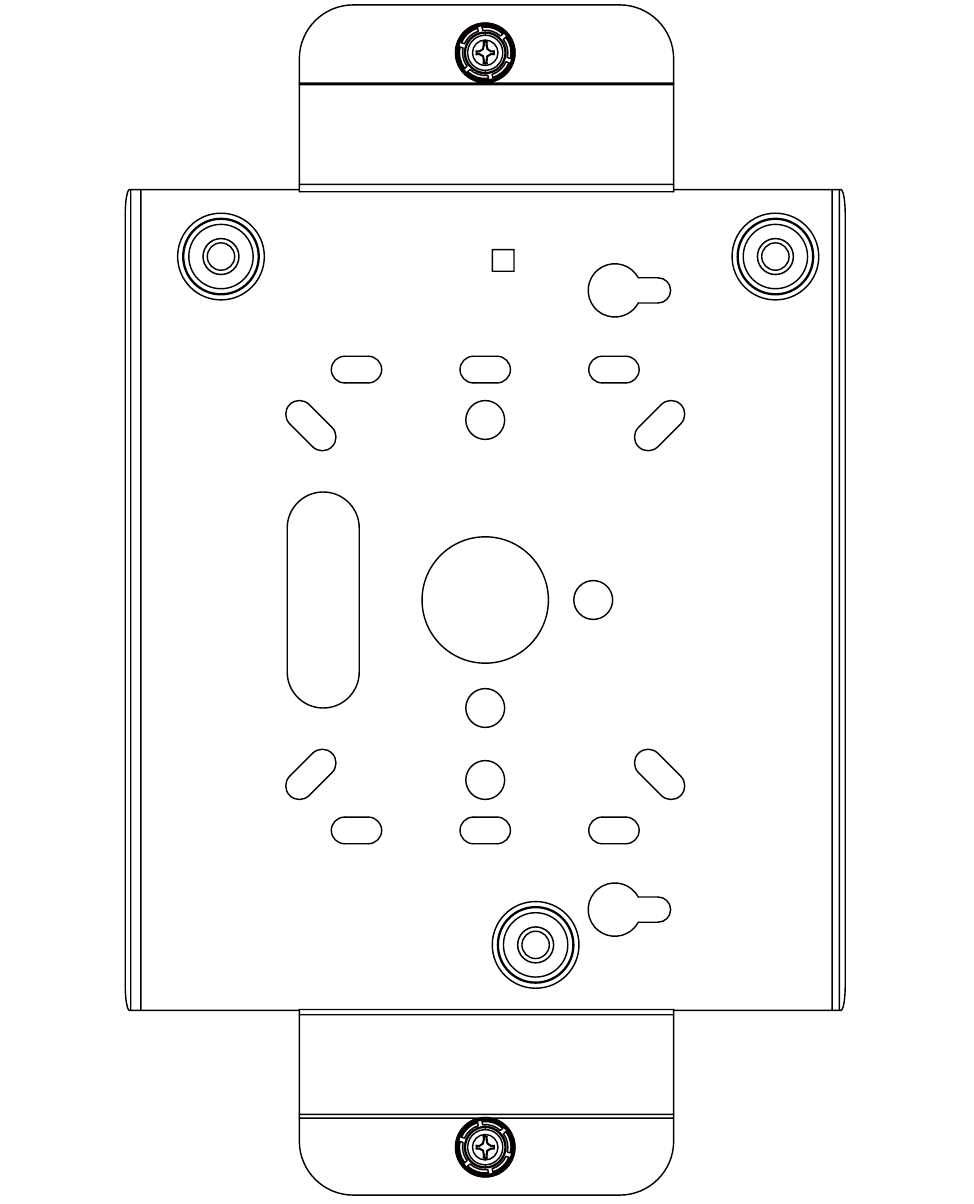

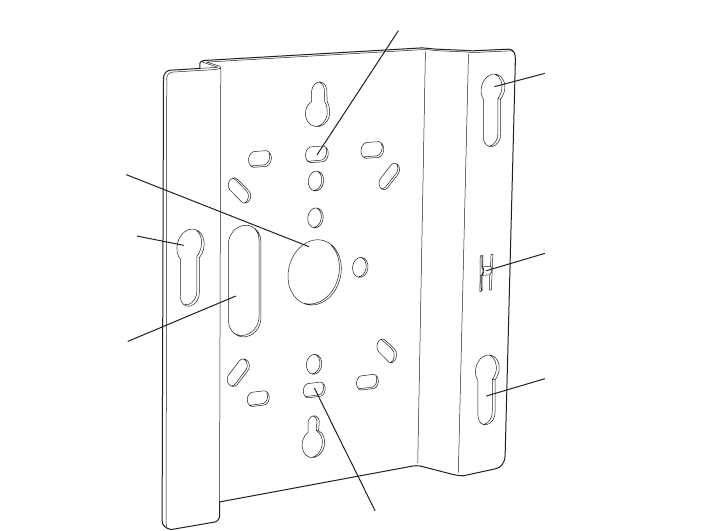

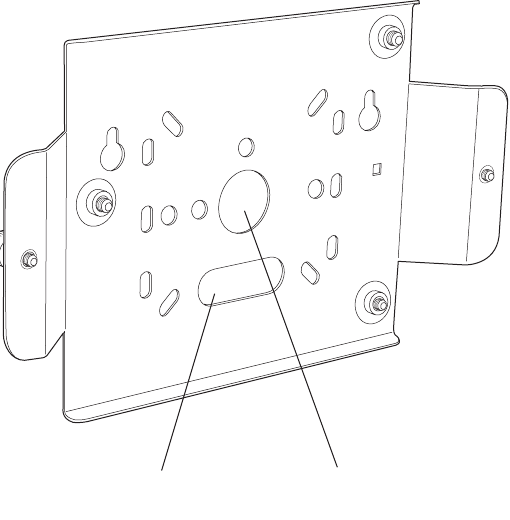

Figure 35 AP150 Bracket .................................................................... 54

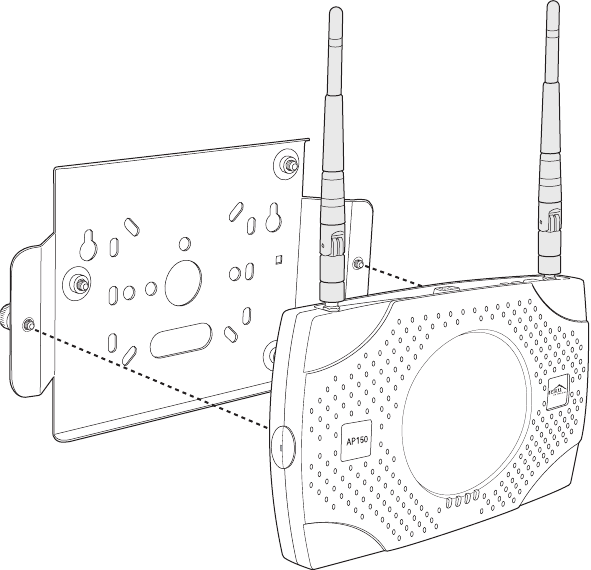

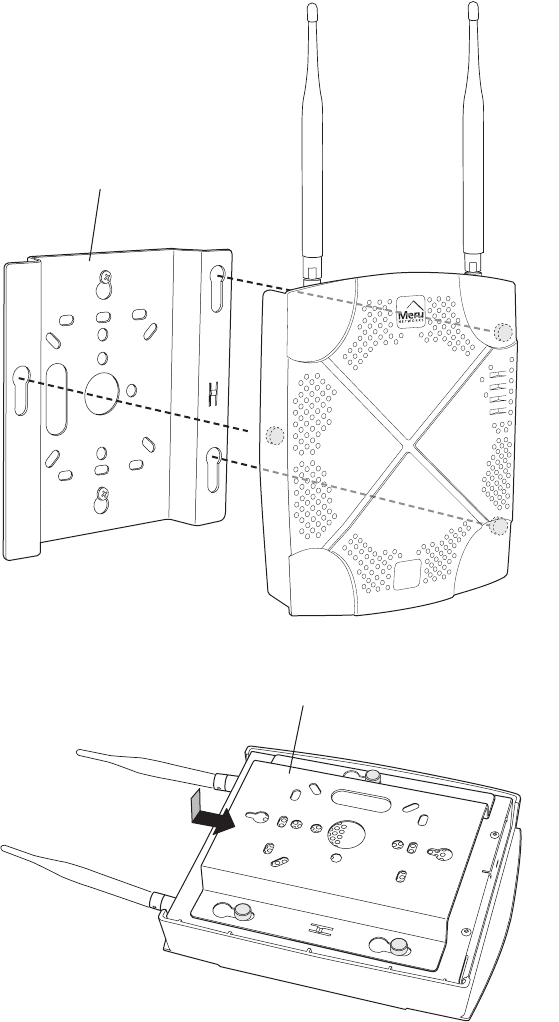

Figure 36 Aligning the AP150 with the Bracket ......................................... 55

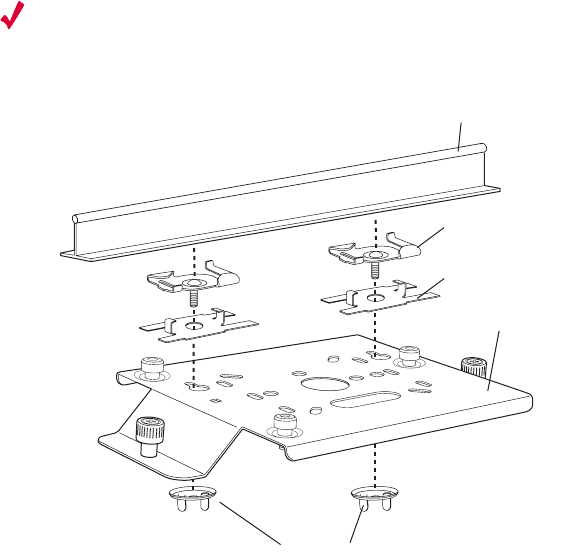

Figure 37 Mounting the AP150 to a Suspended Ceiling Rail ........................... 56

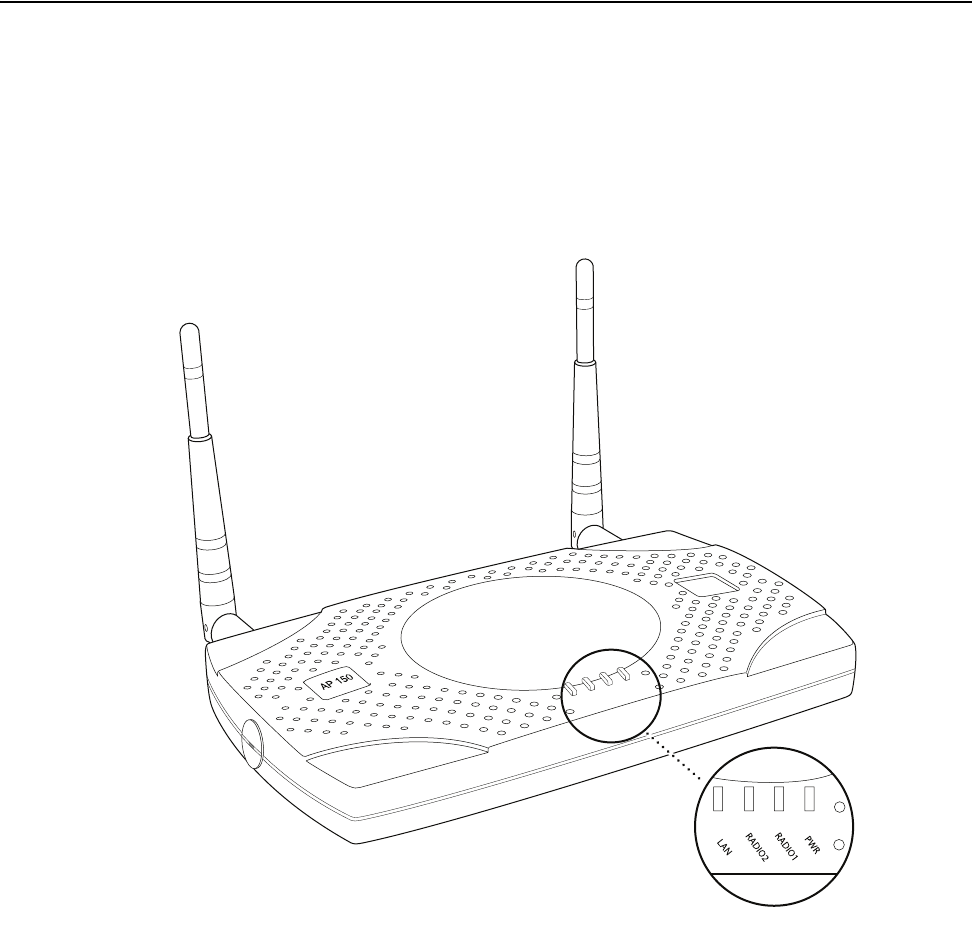

Figure 38 AP150 Status LEDs ............................................................... 58

List of Tables

Table 1 RS4000 Hardware Features .............................................. 3

Table 2 RS4000 Installation Tools ................................................ 12

Table 3 RS4000 LED Descriptions ................................................. 29

Table 4 AP200 Installation Items ................................................. 33

Table 5 AP200 Installation Tools ................................................. 34

Table 6 AP200 LED Descriptions .................................................. 45

Table 7 AP200 Controller Status Information ................................... 45

Table 8 AP150 Installation Items ................................................. 49

Table 9 AP150 Installation Tools ................................................. 50

Table 10 AP150 LED Descriptions ................................................. 59

Table 11 Wireless Interface Specifications ..................................... 61

Table 12 IEEE 802.11a Channels .................................................. 73

Table 13 IEEE 802.11b/g Channels ............................................... 75

About This Guide

This guide describes the features and provides installation instructions for the Meru

Access Points, which includes the AP200 and AP150 models, and the Radio Switch

RS4000. The term access point is used interchangeably throughout this document to

apply to any model when there are no differences among the models.

Audience

This guide is intended for persons installing the Meru Wireless LAN System Access

Point (AP) and Radio Switches.

In This Guide

This guide includes the following chapters:

zChapter 1, “Meru Access Points and Radio Switch”

zChapter 2, “Installing the RS4000”

zChapter 3, “Installing the AP200”

zChapter 4, “Installing the AP150”

zAppendix A, “Specifications”

zAppendix B, “Regulatory Information”

zAppendix C, “Channels”

zAppendix D, “Mounting Bracket Stencils”

Other Sources of Information

Additional information is available in the following Meru publications, Web site, and

external references.

Meru Publications

zMeru System Director Release Notes

zMeru System Director Getting Started Guide

zMeru Controller Installation Guide

zMeru System Director Command Reference

zMeru System Director Configuration Guide

External References

zStevens, W. R. 1994. TCP/IP Illustrated, Volume 1, The Protocols. Addison-Wesley,

Reading, Mass.

zGast, M.S. 2002. 802.11 Wireless Networks, The Definitive Guide. O’Reilly and

Associates, Sebastopol, Calif.

Typographic Conventions

This document uses the following typographic conventions to help you locate and

identify information:

Note:

Provides extra information, tips, and hints regarding the topic.

Caution!

Identifies important information about actions that could result in

damage to or loss of data, or could cause the application to behave in

unexpected ways.

Warning!

Identifies critical information about actions that could result in

equipment failure or bodily harm.

Contacting Meru

You can visit Meru Networks, Inc. on the Internet at this URL:

http://www.merunetworks.com

Customer Services and Support

For assistance, contact Meru Customer Services and Support 24 hours a day at

+1-888-637-8952 (+1-888-Meru-WLA(N)) or +1-408-215-5305. Email can be sent to

support@merunetworks.com.

Meru Networks, Inc. Customer Services and Support provide end users and channel

partners with the following:

zTelephone technical support

zSoftware update support

zSpare parts and repair service

RMA Procedures

Contact Meru Customer Services and Support for a Return Material Authorization

(RMA) for any Meru equipment.

Please have the following available when making a call:

zCompany and contact information

zEquipment model and serial numbers

zMeru software release and revision numbers (for example, 3.0.0-35)

zA description of the symptoms the problem is manifesting

zNetwork configuration

Chapter 1

Meru Access Points and Radio Switch

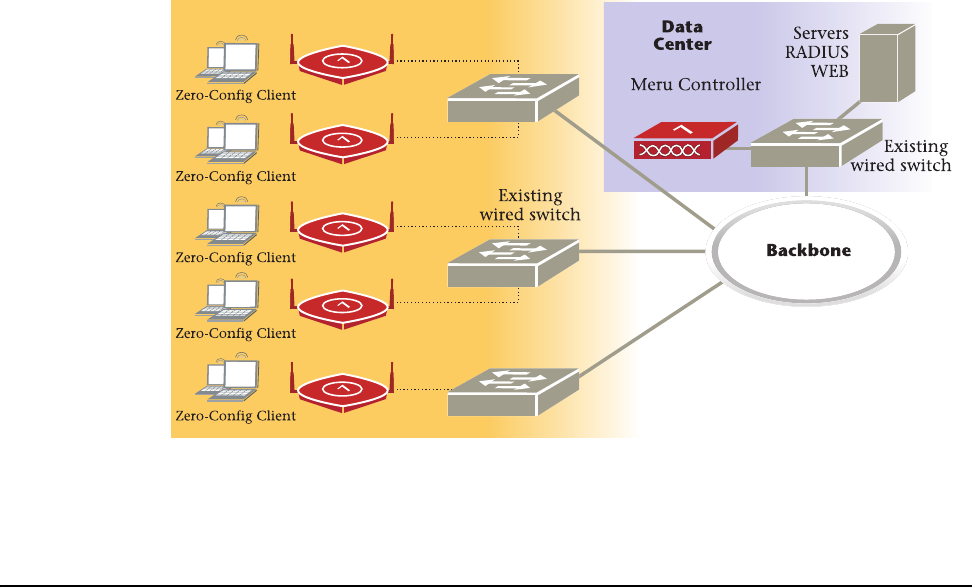

Meru Access Points and Radio Switches contain radio devices that communicate with

the Meru Controller and form the wireless LAN (WLAN). The Meru Controller, Radio

Switches, and Access Points connect to the site’s wired LAN through wired switches.

Wireless clients associate with the Radio Switches and Access Points as they roam

throughout the WLAN. As such, the Meru Wireless LAN System is an extension of the

wired LAN, providing the wireless benefits of client mobility, enhanced access, and

dynamic network configuration.

Introducing the Radio Switch RS4000

The Radio Switch RS4000 enables high-capacity enterprise-class wireless LAN connec-

tivity with full support of standard 802.11 security and network management

features. Each RS4000 contains four 802.11 radios (two 802.11b/g, two 802.11a) for

high data and voice throughput – an essential requirement for high user-density envi-

ronments with several simultaneous users. Classrooms and convention halls are

typical deployment applications of the Radio Switch. Deploying the Radio Switch is

Meru AP

easy— as with wireless access points, the Radio Switch can be installed wherever

wireless coverage is needed. For large buildings with multiple rooms and floors, more

than one Radio Switch can be installed to cover the desired area. Wireless users can

seamlessly roam from one Radio Switch to another, getting high-capacity WLAN

access throughout the wireless enterprise enabled with multiple Radio Switches. The

RS4000 also balances radio traffic across its RF channels and resolves contention

within each RF channel such that users receive a switched wireless experience with

dedicated bandwidth to execute a variety of applications ranging from web browsing

and VoIP mobility to multimedia streaming.

The RS4000 ships with either a high-gain omni-directional indoor antenna or a 180-

degree directional indoor antenna that aggregates and layers radio transmissions

from each of the built-in radios. The antenna can broadcast every channel available

to blanket the area around the Radio Switch, yet avoid interference and contention.

This simplifies deployment efforts by eliminating the need for additional antennas

for each radio. More importantly, RF channel planning efforts are greatly simplified.

Using the RS4000, wireless users experience the benefits of switching technology on

Wi-Fi—dedicated bandwidth, traffic separation, and multi-service network support.

The RS4000 can be deployed with up to two 802.11b/g and two 802.11a channels

active on the radio interfaces. The 802.11b/g channels must be separated by a

minimum of 8 channels (for example, channels 1 and 9), so the recommended set is

channels 1 and 11, typically. The 802.11a channels must be separated by a minimum

of 80MHz/16 channels for best performance (for example, channels 36 and 52).

Figure 1: Radio Switch RS4000

POWER

RADIO I

RADIO II

ETHERNET

00178

RS4000 Hardware Features and Specifications

The RS4000 has four 802.11 radios (two 802.11a and two 802.11bg) that transmit and

receive simultaneously on four different channels to increase the total available

wireless bandwidth at a given area. The RS4000 connects to the LAN using one 10/100

Mbps Ethernet connection for each radio pair. The RS4000 is powered using two IEEE

802.3af POE connections, each with 15W power.

The RS4000 works in conjunction with a wideband RF combination omni directional

(WRC/OD) indoor antenna or a 180-degree directional indoor antenna. Only one

antenna is needed for simultaneous operation of all radios of an RS4000 in both the

2.4GHz and 5GHz bands. The antenna must be connected to the Radio Switch using

any one of the low-loss antenna cables provided in the antenna packaging.

The following table lists the key hardware features of the RS4000.

Note:

PoE must be provided on the first Ethernet connector (ETH1); the antenna

cannot operate correctly without that power source. Power to the second

Ethernet connector (ETH2 ) is optional; if not connected, two of the

radios will not operate.

Table 1: RS4000 Hardware Features

Feature Description

802.11 Connectivity Two 802.11b/g radios (2.4GHz)

Two 802.11a radios (5 GHz)

Ethernet Connectivity Two auto-sensing 10/100 Mbps ports, one

for each radio pair

Power

Provided by two 802.3af POE connec-

tions, one for each radio pair (15W per

connector)

LEDs Power, Radio Activity, and Ethernet

Activity LEDs per radio

Dimensions 9.5" x 8.5" x 3.875"

Mounting Options

RS4000 has mounting brackets available

for:

zCeiling Mount

zWall Mount

zInside NEMA Enclosures (Hoffman,

etc.)

Antenna

The RS4000 ships with either of these

antennas:

zWideband RF Combination/Omni-

Directional (WRC/OD) Antenna. 5dBi

gain. Indoor use.

z180-degree directional indoor antenna

Antenna Cables

3’ low-loss cables (default option)

6’ and plenum-rated cables (available

option)

Table 1: RS4000 Hardware Features

Feature Description

Meru Access Point Features

Meru Access Points provide the following features:

zWi-Fi Certified Tri-mode Access Point Delivers Exceptional Performance

A key component of the Meru Wireless LAN System, Meru Access Points deliver

unsurpassed Wi-Fi performance in conjunction with Meru Controllers.

Representing a shift to the fourth generation WLAN architecture using

coordinated intelligent APs at the edge, the Meru Wireless LAN System delivers

toll quality voice over Wi-Fi, a ten-fold increase in client density, intelligent load

balancing, and lowest total cost of ownership.

zThe Only Solution to Deliver a Large Scale Voice and Data Wireless Access

Embedded Wi-Fi in laptops are almost ubiquitous and other mobile devices aren't

far behind. In addition, with emerging dual mode Wi-Fi/cellular phones the

number of clients in your enterprise is going to increase exponentially in only a

few short years. Deploy a system that is designed to deal with high densities of

voice and data clients, without sacrificing performance and that works with any

standard Wi-Fi certified client.

zTri-mode Access Point Provides Investment Protection

Enterprise applications and user density continue to increase. Tri-mode

802.11a/b/g clients are now commonplace in laptops. Ensure your network

supports the full breadth of wireless LAN clients with Meru Access Points.

—Dual 802.11b/g and 802.11a software programmable radios

—Simultaneously support 802.11b, 802.11g and 802.11a clients

Introducing the Meru Access Point AP200 Series

The Meru Access Point AP200 series provides two models that conform to the speci-

fications provided by the IEEE 802.11a and 802.11g protocols and provide backward

compatibility for the 802.11b protocol. An AP200 works with most standard Wi-Fi

clients.

zThe AP201 houses a single 802.11a/b/g radio device

zThe AP208 supports a maximum of two radio devices that can simultaneously run

two protocols (802.11b, g or b/g on interface 1 and 802.11a on interface 2).

Alternately the second radio can be configured to run as an RF monitor to the Meru

Controller, providing real-time status of RF activity to optimize the wireless

network.

The Meru Access Point AP200 series (referred hereafter as the AP200, unless specif-

ically referring to the AP201 or AP208) is housed in a metal case with a plastic remov-

able cover. As such, it can be used for plenum installations when the plastic cover is

removed.

Figure 2: Access Point AP200

Introducing the Meru Access Point AP150 Series

The AP150 has two 802.11 radios for simultaneous 802.11a and 802.11b/g WLAN

access. It is an ideal option for enterprise-wide data-only WLAN implementations and

small-sized converged data and voice WLAN implementations. The AP150 works in

conjunction with Meru Controller products and can be easily integrated into existing

Layer 2 and Layer 3 wired network environments to provide enterprise-grade Wi-Fi

access with multi-layered security options, basic VoWLAN support, centralized

configuration, troubleshooting tools, remote management and RF visualization capa-

bilities.

The Meru Access Point AP150 supplies the following features:

zDual 802.11b/g and 802.11a radios

zSimultaneously support for 802.11b, 802.11g, and 802.11a clients

zContention Management for high density of data clients

zBasic VoWLAN QoS support for small density of voice clients

zMultiple ESSIDs with individual security policies to ensure separation of different

user groups or dynamic VLAN assignment per user based on RADIUS credentials

AP200

00109

Note:

Meru Access Point AP150 models may have different revisions, but function-

ally they are the same, and all are referred to as the AP150 series. Hereafter

in this document, all AP150 series models are referred to as the AP150.

zZero configuration required at the access point; the installation procedure is a

simple plug-n-play

zAutomatic AP discovery, configuration

zIntelligent load balancing of clients

zLayer 2 or 3 connectivity for flexible deployment options

zLocking mechanism secures access point when mounted in public areas

Figure 3: Access Point AP150

PWR

LAN

RADIO2

RADIO1

00175

Chapter 2

Installing the RS4000

This chapter describes how to physically install the Meru Radio Switch RS4000. It

contains the following sections:

zSafety Precautions

zUnpacking the RS4000

zInstallation Requirements

zInstalling the RS4000

zWhere to Go From Here

zChecking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in Appendix B, “Regulatory Informa-

tion” on page 63 before installing and operating this product.

Unpacking the RS4000

Confirm that the RS4000 shipping package contains the following items:

zRS4000

z180-degree directional antenna or omni-directional antenna

zTwo 3-foot antenna cables

zOne 3-inch mounting arm (includes wall mount base and ceiling rail base)

zMounting bracket

zAdditional options can be purchased, such as a NEMA box mounting bracket and

6-foot antenna cables

Installation Requirements

Figure 4: RS4000 Package Contents

Installation Requirements

The following prerequisites and system requirements must be met:

z2 IEEE 802.3 PoE connections— one to each Ethernet port, yielding a maximum

power specification of 11W per port, 22W total for the RS4000

zNetwork switch for connecting all networking components

The RS4000 requires a location that meets the following:

zA location to mount the antenna within 6’ of the RS4000 and with relatively

unobstructed access to the client stations

zPower over Ethernet (PoE) connection to the network switch servicing the RS4000

POWER

RADIO I

RADIO II

ETHERNET

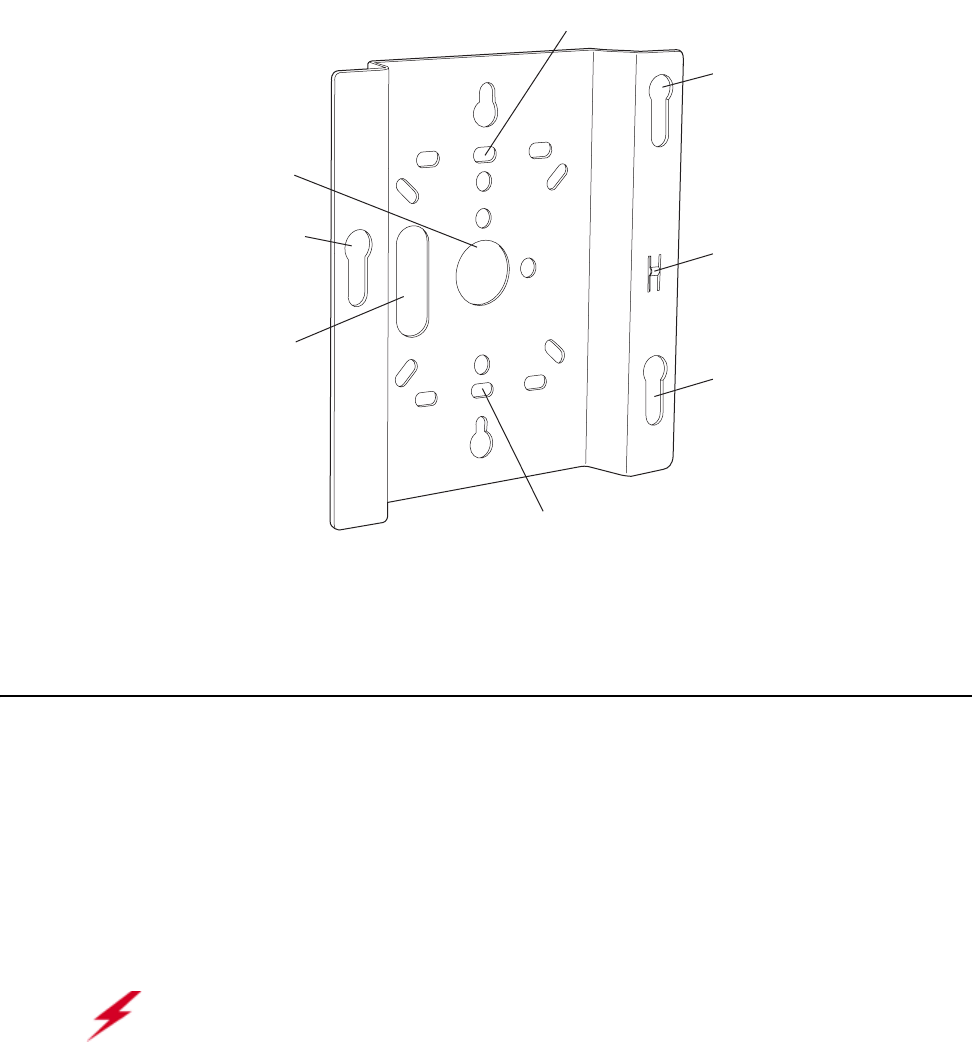

Wall mounting bracket 3-inch mounting arm with

wall mounting base

Ceiling rail

mounting

base

00193

RS4000Antenna

Installation Requirements

The RS4000 obtains power from 802.3af standard Power over Ethernet (PoE)-compat-

ible network switch or PoE power injector installed between the switch and the

RS4000. At least one PoE connection must be connected.

Select a location with minimal physical obstructions between the RS4000 antenna

and the wireless stations. In many cases, mounting the RS4000 antenna on the wall

near the ceiling provides the least obstructed communications path.

Most installations receive the best coverage using the following guidelines:

zDo not install the antenna near metal objects, such as heating ducts, metal doors,

or electric service panels.

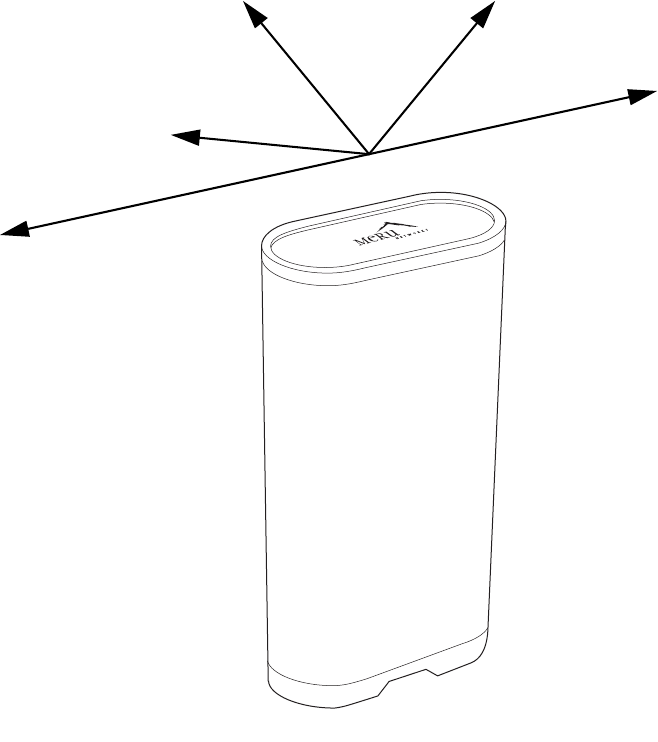

zRelative to the ground, orient the antenna up or down, not sideways.

The RS4000 is only intended for installation in Environment A as defined in IEEE

802.3af. All interconnected equipment must be contained within the same building,

including the interconnected equipment's associated LAN connection.

Note:

The previous guidelines are general guidelines. Each site has its own unique

environment. Place antenna accordingly.

Installation Requirements

You need the tools listed in Tab le 2 .

Table 2: RS4000 Installation Tools

About an Hoffman/NEMA Enclosure Installation

The recommended RS4000 installation is a wall mount, but if necessary the RS4000

can be housed inside a protective NEMA or Hoffman box that is manufactured with

external corner tabs for standard wall mounting, above or below a ceiling. When

installing in the Hoffman/NEMA box, the RS4000 attaches to an optional

Hoffman/NEMA box mounting plate, which replaces the standard wall mount bracket.

Meru leaves the placement and orientation of the Hoffman/NEMA enclosure to the

customer. It will be necessary to drill holes through the plastic NEMA enclosure with

a Meru-provided template to enable the antenna and Ethernet cabling to exit the

enclosure. Instructions for performing this task are provided in the section “Creating

Installation Type Tools Required

Vertical mounting over a wall

stud

zDrill

z1/8"drill bit

zScrewdriver

z(Optional) Pliers

Vertical mounting on sheetrock

zDrill

z3/16" drill bit

zScrewdriver

z(Optional) Pliers

Horizontal mounting below a

hanging ceiling

zTwo caddy fasteners

zTwo plastic spacers

zTwo keps nuts (with attached lock washer)

zMounting bracket

Mounting above a ceiling tile

zTwo T-ra i l cl i p s

zOne T-box hanger

zOne bracket mounting clip

zMounting bracket

Caution!

This method of mounting has not been evaluated by Underwriters

Laboratories.

Installation Requirements

Cable Pass-through Holes in the NEMA Enclosure” on page 25. To install in the

Hoffman/NEMA Enclosure, see the section “Hoffman/NEMA Enclosure RS4000 Instal-

lation” on page 25.

Figure 5: Open NEMA Box Showing Mounting Holes

Optimum Antenna Positioning and Placement

00187

NEMA box

Attach to wall with 4 screw

Warning!

Inside antennas must be positioned to observe minimum separation of 20

cm. (~ 8 in.) from all users and bystanders. For the protection of personnel working

in the vicinity of inside (downlink) antennas, the following guidelines for minimum

distances between the human body and the antenna must be observed.

The installation of the indoor antenna must be such that, under normal conditions,

all personnel cannot come within 20 cm. (~ 8.0 in.) from any inside antenna.

Exceeding this minimum separation will ensure that the employee or bystander does

not receive RF-exposure beyond the Maximum Permissible Exposure according to FCC

CFR 47, section 1.1310 i.e. limits for General Population/Uncontrolled Exposure.

Installing the RS4000

Mounting the RS4000

You can mount the RS400 in the following ways:

zWall Mounting the RS4000

zMounting Below a Suspended Ceiling

zMounting Above a Suspended Ceiling

zPlacing and Positioning the Antenna

zHoffman/NEMA Enclosure RS4000 Installation

Wall Mounting the RS4000

The RS4000 can be mounted to any type of solid wall (including ceiling walls) using

the supplied wall mount bracket. The bracket also allows for junction box mounting.

Note:

The RS4000 has a security cable slot so you can secure the RS4000 with a

standard security cable (for example, Kensington cable locks), such as are used to

secure laptop computers.

To wall mount an RS4000:

1. Remove the bracket from back side the RS4000, if it is attached, by unscrewing

each of the 4 knurled thumbscrews (see Figure 6).

Installing the RS4000

Figure 6: Bracket Attached to RS4000

2. Choose the location on the wall where the RS4000 will be mounted. The RS4000

can be oriented in any direction, but it is probably more convenient if the SMA

antenna mounts are at the top. This orientation is more convenient for reading

LED status.

3. Using the bracket holes as a template, mark the location on the wall for the two

RS4000 bracket mounting screws. They are placed 5 25/32" (147mm) apart,

center-to-center, one above the other. If you are not using plastic wall anchors,

you must center the mounting screws on a wall stud.

4. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

5. If you are using plastic anchors, install them in the holes.

Note:

The RS4000 mounting bracket provides holes to accommodate many types of

common installations such as over a junction box, etc. This procedure describes only

the standard wall mount.

Installing the RS4000

6. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

7. Mount the bracket on the screws, placing the circular portion of the keyhole

mounts over the screw heads and sliding the bracket down.

Figure 7: RS4000 Bracket Mounting

8. Tighten the bracket captive screws to secure the RS4000 to the bracket.

9. On the RS4000, attach the two antenna cables to the SMA antenna connectors

labeled ANT1 and ANT2 on the top panel of the RS4000 (see Figure 8) by turning

the cable ends clockwise until tight.

POWER

RADIO I

RADIO II

ETHERNET

00186

Wall mounting bracket

(attached to wall)

RS4000

Captive screws (4)

Installing the RS4000

Figure 8: RS4000 with Antenna Attached

10. Attach at least one Ethernet cable to the Ethernet port labeled ETH1 and

optionally to ETH2 on the top panel of the RS4000. If just ETH1 is connected, only

two of the four radios will be active.

11. Align the RS4000 to the bracket (against the wall) and tighten the four knurled

thumbscrews until secure. If necessary, apply extra tightening with pliers.

12. Attach the antenna cables to the antenna, as described in “Placing and

Positioning the Antenna.”

13. Connect the two Ethernet cables to the PoE device.

14. Apply power to the PoE component and network switch to power up the RS4000.

15. Verify correct operating using the LEDs, as shown in “Checking LED Activity.”

00182

ANT1 ANT2

ETH1

ETH2

ANT1

ANT2

(Meru logo is upside down)

Installing the RS4000

Mounting Below a Suspended Ceiling

The optional suspended ceiling mounting kit allows the RS4000 mounting bracket to

attach to suspended ceiling T-rails (see Figure 9).

Note:

To comply with NEC code, attach a grounding wire to any of the screws used

to attach the RS4000 to the mounting bracket.

Figure 9: Mounting the RS4000 Below a Suspended Ceiling Rail

To mount an RS4000 below a suspended ceiling:

1. Determine the location on the ceiling rail where the RS4000 will be mounted and

remove the ceiling tiles.

2. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to

the rail.

3. Adjust the distance between the caddy fasteners by using the mounting bracket

holes as a guide.

4. Tighten the caddy fasteners in place using a standard screwdriver. Do not

overtighten.

5. Place each spacer on the caddy fastener stud. The spacer legs should contact the

ceiling T-rail.

6. Align the mounting bracket keyholes with the caddy fastener studs and slide the

RS4000 to the narrow end of the hole.

00189

Mounting brack

Ceiling tile fastener

Washers

Installing the RS4000

7. Attach a keps nut to each caddy fastener stud and hand tighten. Do not

overtighten.

8. On the RS4000, attach the two antenna cables to the SMA antenna connectors

labeled ANT1 and ANT2 on the top panel of the RS4000 (see Figure 8) by turning

the cable ends clockwise until tight.

Figure 10: RS4000 with Antenna Attached

9. Attach at least one Ethernet cable to the Ethernet port labeled ETH1 and

optionally to ETH2 on the top panel of the RS4000. If just ETH1 is connected, only

two of the four radios will be active.

10. Align the RS4000 to the bracket and tighten the four knurled thumbscrews until

secure. If necessary, apply extra tightening with pliers.

11. Attach the antenna cables to the antenna, as described in “Placing and

Positioning the Antenna.”

12. Connect the two Ethernet cables to the PoE device.

13. Apply power to the PoE component and network switch to power up the RS4000.

14. Verify correct operating using the LEDs, as shown in “Checking LED Activity.”

00182

ANT1 ANT2

ETH1

ETH2

ANT1

ANT2

(Meru logo is upside down)

Installing the RS4000

Mounting Above a Suspended Ceiling

The optional T-bar box hanger mounting kit allows the RS4000 to be mounted above

suspended ceiling T-rails (see Figure 11). The installation attaches the T-bar box

hanger to the ceiling rails using clips. The RS4000 attaches to the mounting bracket

that is attached to the T-bar box hanger.

Any Fast Ethernet (FE) cables installed in air-handling spaces should be suitable

under NEC Article 800.50 and marked accordingly for use in plenums and air-handling

spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi Purpose

Plenum), or CMP (Communications Plenum).

Figure 11: Mounting the RS4000 Above a Suspended Ceiling

To mount an RS4000 above suspended ceiling rails:

1. Determine the location on the ceiling rails where the RS4000 will be mounted and

remove the ceiling tile.

Note:

The RS4000 and its antenna meet the requirements for fire resistance and low

smoke-generating characteristics required by Section 300-22(C) of the National

Electrical Code (NEC) for installation in a building’s environmental air space.

Additonally, you must use Ethernet cable that meets the requirements for operating

in environmental air space (in accordance with Section 300-22(C) of the NEC).

00190

Bracket mounting clipMounting bracket

T-bar hanger

Height adjustment screw

Suspended ceiling T-rail

T-rail clip

4000

Height

adjustment

screw

Installing the RS4000

2. Unpack the T-bar hanger kit and unfold the legs of the T-bar hanger.

3. Locate the bracket mounting clip holes on the mounting bracket (see Figure 12).

One hole attaches the bracket perpendicular to the box hanger. The other mounts

the bracket parallel to the box hanger.

Figure 12: Box Hanger Mounting Bracket Holes

4. Attach the U-joint of the clip to the T-bar and snap in place (see Figure 13).

Figure 13: Attaching the Mounting Bracket to the Box Hanger

Mounting bracket holes

00191

00192

Installing the RS4000

5. Pass the long end clip through the large center hole to the underside of the the

mounting bracket clip and then attach the bracket to the clip using the supplied

screw (see Figure 13 for orientation).

6. Hold the RS4000 next to the mounting bracket to estimate the height of the T-bar

box hanger to provide enough clearance between the RS4000 and the ceiling.

7. Adjust the height of the box hanger using the height adjusting screws (see

Figure 13).

8. Clip the box hanger T-rail clips to the ceiling rails, making sure they are securely

attached.

9. Connect a drop wire to a building structural element and through the hole

provided in the bracket mounting clip. The U.S. National Electrical Safety Code

requires this additional support.

10. Align the RS4000 to the bracket and tighten the four knurled thumbscrews until

secure. If necessary, apply extra tightening with pliers.

11. On the RS4000, attach the two antenna cables to the SMA antenna connectors

labeled ANT1 and ANT2 on the top panel of the RS4000 (see Figure 8) by turning

the cable ends clockwise until tight.

Figure 14: RS4000 with Antenna Attached

12. Attach at least one Ethernet cable to the Ethernet port labeled ETH1 and

optionally to ETH2 on the top panel of the RS4000. If just ETH1 is connected, only

two of the four radios will be active.

13. Attach the antenna cables to the antenna, as described in “Placing and

Positioning the Antenna.” The antenna can also be mounted within the plenum

space if need be.

14. Connect the Ethernet cables to the PoE device.

15. Apply power to the PoE component and network switch to power up the RS4000.

00182

ANT1 ANT2

ETH1

ETH2

ANT1

ANT2

(Meru logo is upside down)

Installing the RS4000

16. Check that the RS4000 is operating correctly before replacing the ceiling tile to

the ceiling. Verify correct operating using the LEDs, as shown in “Checking LED

Activity.”

Placing and Positioning the Antenna

The RS4000 antenna should be mounted to the wall using the 3" mounting arm within

3' of the RS4000 when using the supplied 3-foot cables or 6' when using the optional

6-foot cables.

Figure 15: RS4000 180o Directional Antenna

The antenna mount arm includes two screw-in base types to accommodate either

wall mounts (Figure 16) or ceiling tile rail mounts (Figure 17).

00179

ANT1

ANT2

Direction of Signal Coverage

Installing the RS4000

Figure 16: Antenna Mounting Arm with Wall Bracket (shown attached)

Figure 17: Antenna Ceiling Tile Rail Base

The RS4000 antenna uses two RF cables (3-foot cables are supplied) to connect to the

SMA connectors on the top panel of the RS4000 (see Figure 8). The RF cables should

be attached to the RS4000 as a result of the procedures described in one of the

previous installation procedures.

Mount the antenna and connect the cables as described in the following:

1. Choose whether to hang the arm on a wall (including solid ceiling wall) or ceiling

tile rail.

—For wall or ceiling mount:

a. Using the screwholes in the mounting bracket as a template, mark and drill holes

into the wall.

b. Attach the bracket securely with three 1/4" diameter fasteners or one 5/16"

diameter and one 1/4" diameter fastener, if mounting to a wall stud (fasteners

are not supplied).

—For ceiling tile rail mount:

a. Pull apart the rail clamps so the ears can fit over the width of the ceiling rail.

b. Squeeze the rail clamp to attach to the ceiling rail.

00180

Wall bracket base

Angle adjusting lever

Antenna attachment

stud (threaded)

00183

Installing the RS4000

c. Attach the rail mount base to the antenna arm by screwing the base into the

arm pole (you may have to unscrew and remove the wall mount base if it is

attached to the arm).

2. Connect the RF antenna wires from the RS4000 to the SMA connectors on the top

of the antenna, using Figure 8 or Figure 15 for orientation.

3. Attach the top of the antenna to the 1/4-20 threaded stud on the swivel head and

tighten against the antenna.

4. For a 180o directional antenna, position the antenna such that the logo on the top

of the antenna is pointing in the direction where reception is required.

5. Loosen the angle adjusting lever on the swivel assembly, if necessary, to adjust

the hanging angle.

6. Position the antenna to maximize the reception and tighten the adjusting lever.

Hoffman/NEMA Enclosure RS4000 Installation

Use the procedures in this section to mount the RS4000 within the Hoffman or NEMA

enclosure. It will be necessary to modify the NEMA enclosure by drilling cable pass-

through holes before installing the RS4000.

Creating Cable Pass-through Holes in the NEMA Enclosure

To create cable pass-through holes in the NEMA enclosure, Meru supplies a template

with markings that coincide with the placement of the Ethernet and antenna cable

locations on the RS4000. Depending on the orientation of the RS4000 installation in

the NEMA enclosure, the template is to be used on the side of the enclosure adjacent

to the RS4000 top panel, where the cables connect.

1. Open the lid of the empty NEMA enclosure to provide unimpeded access to the

enclosure sides.

2. On the outside of the empty NEMA enclosure, locate the top center of the side

where the cables will exit.

3. Using the pattern on the supplied template, mark the center of the holes and drill

a 1/2" to 1" hole at each of the three locations specified by the template.

Note:

The recommended Meru installation is a vertical wall mount, which allows for

unimpeded air flow through the unit. The option to install the RS4000 within a

Hoffman/NEMA enclosure is left to the customer’s discretion, based on site-specific

factors such as protection and accessibility, etc. Installation in the Hoffman

enclosure requires drilling air vents and cable pass-through holes.

Installing the RS4000

Mounting the RS4000 in the Hoffman/NEMA Enclosure

To mount the RS4000 in the Hoffman/NEMA enclosure, it is necessary to use the

optional mounting plate that is not supplied with the RS4000 packing items. This

procedure assumes the Hoffman/NEMA enclosure is already mounted at the site.

1. Remove the wall bracket from back of the RS4000, if attached, by unscrewing

each of the 4 knurled thumbscrews.

2. Attach the Hoffman/NEMA mounting plate to the back of the RS4000.

3. Attach the right-angle elbow joint to the antenna cable, if not already attached.

4. Attach the two antenna cables to the SMA antenna connectors labeled ANT1 and

ANT2 on the top panel of the RS4000 (see Figure 8) by turning the cable ends

clockwise until tight.

5. Attach two Ethernet cables to the Ethernet ports labeled ETH1 and ETH2 on the

top panel of the RS4000.

6. Place the RS4000 into the Hoffman/NEMA enclosure, and align the plate

screwholes with the holes in the Hoffman/NEMA enclosure.

7. Pass the Ethernet and antenna cables out of the Hoffman/NEMA enclosure through

the cable pass-through holes.

8. Tighten the captive screws on the mounting plate to the Hoffman/NEMA

enclosure.

9. Attach the antenna cables to the antenna (see Figure 15).

10. Position and align the bottom of the antenna over the threaded stud on the

antenna mount arm and tighten the threaded stud to the antenna.

Figure 18: RS4000 and Antenna Installed in NEMA Enclosure

Caution!

This method of mounting has not been evaluated by Underwriters

Laboratories.

00188

RS4000AntennaNEMA box

Where to Go From Here

11. Connect the two Ethernet cables to the PoE device.

12. Apply power to the PoE component and network switch to power up the RS4000.

13. Test the reception for the antenna and then securely tighten the antenna.

14. Verify correct operating using the LEDs, as shown in “Checking LED Activity.”

15. Close the lid to the Hoffman/NEMA enclosure.

Where to Go From Here

Now that the RS4000 is installed, go to the Meru System Director Getting Started

Guide for instructions on initializing the controller and connecting the controller and

RS4000 to the Ethernet switch to form the WLAN. Return to this chapter to check the

status of the LEDs once the WLAN is operational.

Checking LED Activity

Radio switch status LEDs are provided on the face of the RS4000.

RS4000 Status LEDs

Status LEDs on the face of the RS4000 light, as shown in Figure 19.

. .

Figure 19: RS4000 Status LEDs

The RS4000 uses 4 LEDs. The functions of the status LEDs are described in Ta bl e 3 .

POWER

RADIO I

RADIO II

ETHERNET

POWER

RADIO I

RADIO II

ETHERNET

00185

Status LEDs

Checking LED Activity

Table 3: RS4000 LED Descriptions

LED Function

Power

The Power status LED status is as follows:

zoff—power is off

zsolid red—when power is applied, system initializes for 40 sec-

onds and then the LED turns amber; after discovering the con-

troller the LED turns green. Otherwise, the system is in an

abnormal state (notify Customer Support).

zsolid amber—at any time, if this LED state persists longer than 40

seconds, notify Customer Support

zsolid green—system is fully operational

Radio I The Radio I LED is lit when radio packets are being transmitted and

when the radio is beaconing.

Radio II The Radio II LED is lit when radio packets are being transmitted and

when the radio is beaconing.

Ethernet

The Ethernet LED status is as follows:

zoff—no link

zsolid green—100Mbps connection

zblinking green—transmit or receive activity at 100Mbps

zsolid amber—10Mbps connection

zblinking amber—transmit or receive activity at 10Mbps

Checking LED Activity

Chapter 3

Installing the AP200

This chapter describes how to physically install the AP200. It contains the following

sections:

zSafety Precautions

zUnpacking the AP200

zInstallation Requirements

zInstalling the Access Points

zWhere to Go From Here

zChecking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in “Regulatory Information” on page 63

before installing and operating this product.

Unpacking the AP200

As you unpack the AP200, confirm that the AP200 shipping package contains the items

listed on your packing list.

Shipments of the AP200 include a mounting bracket and mounting hardware for stan-

dard wall mounting. Optional mounting kits are available for mounting the AP200

above or below a hanging ceiling. The AP200 mounting studs are placed so they can

be used with brackets supplied by other vendors or to replace an AP100.

Note:

The AP200 has a security cable slot so you can secure the AP200 with a

standard security cable, such as those used to secure laptop computers.

Installation Requirements

An array of holes on the mounting bracket (see Figure 20) allows it to be mounted on

the wall and over junction boxes or molly bolts. There are also holes for passing the

PoE Ethernet or external power supply cable through the bracket if the bracket is

mounted on a junction box or over the ceiling T-bar box hanger.

Figure 20: AP200 Mounting Bracket

Installation Requirements

The following recommended mounting locations provide the best reception for the

AP200:

zOn a horizontal surface, such as a table or a desk

zOn a vertical surface, usually a wall

zBelow a hanging ceiling

zAbove a hanging ceiling tiles (this installation is supported only for the AP200 with

the plastic enclosure removed)

Access point mount

Ceiling mount hole

ccess point mount

Access point mount

Locking detent

all cable access

uspended ceiling

able access

00100

Warning!

With plastic covers removed, this product is suitable for use in

environmental air space in accordance with the Section 300-22(c) of the National

Electric Code and Sections 2- 128.12 - 010 (3) and 12 - 100 of the Canadian Electrical

Code. Part 1. C22. 1. For other countries, consult local authorities for regulations.

Installation Requirements

To complete this installation, you need the items listed in Tab le 4 .

Table 4: AP200 Installation Items

Installation Type Consumable Items Required

Horizontal mounting None

Vertical mounting over a wall

stud

zTwo #6 x 2" wood screws for a wood stud; or

zTwo #6 x 1½" metal screws for a metal stud

zMounting bracket

Vertical mounting on sheetrock

zTwo #6 x 1" screws

zTwo #4-6 x 7/8" ribbed plastic wall anchors

zMounting bracket

Horizontal mounting below a

hanging ceiling

zTwo caddy fasteners

zTwo plastic spacers

zTwo keps nuts (with attached lock washer)

zMounting bracket

Mounting above a ceiling tile

(AP200 metal enclosure only)

zTwo T-ra i l cl i p s

zOne T-box hanger

zOne bracket mounting clip

zMounting bracket

Installing the Access Points

You need the tools listed in Tab le 5 .

Table 5: AP200 Installation Tools

Installing the Access Points

Selecting a Location

The AP200 requires a location that meets the following:

zRelatively unobstructed access to the stations the AP serves

zPower over Ethernet (PoE) connection to the network switch servicing the

controller.

APs can obtain their power from 802.3af standard Power over Ethernet (PoE)-compat-

ible network switch or PoE power injector installed between the switch and the

AP200.

Select a location with minimal physical obstructions between the AP and the wireless

stations. In an office with cubicles, mounting the APs below a hanging ceiling or the

wall near the ceiling provides the least obstructed communications path. For an

external power supply connection, ensure the power source is near to where the

AP200 will be mounted.

Installation Type Tools Required

Horizontal mounting None

Vertical mounting over a wall stud

zDrill

z1/8"drill bit

zScrewdriver

Vertical mounting on sheetrock

zDrill

z3/16" drill bit

zScrewdriver

Horizontal mounting below a hanging ceiling zScrewdriver

zWrench or pliers

Mounting above a hanging ceiling (AP200

metal enclosure only)

zWrench or pliers

zScrewdriver

Installing the Access Points

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

zDo not install APs near metal objects, such as heating ducts, metal doors, or

electric service panels.

zRelative to the ground, orient the antenna up or down, not sideways.

The AP200 is only intended for installation in Environment A as defined in IEEE

802.3af. All interconnected equipment must be contained within the same building,

including the interconnected equipment's associated LAN connection.

Attaching the AP200 Antennas

The AP200 is provided with external antenna ports. Make sure that all external

antennas and their associated wiring are located entirely indoors. The external

antennas are not suitable for outside use.

If the AP200 does not have external antennas, attach the antennas to the connectors

on the AP200 (see Figure 21). Rotate the knurled ring at the base of the antenna

clockwise to attach the antenna. The ring should be finger-tight.

Mounting the Access Point

You can mount an AP200 in the following ways:

zHorizontally, as described in the “Horizontal Mounting” section.

zVertically, as described in the “Vertical Mounting” section.

zBelow a hanging ceiling, as described in the “Mounting Below a Suspended

Ceiling” section.

zAbove a tiled hanging ceiling, as described in the “Mounting Above a Suspended

Ceiling” section.

Note:

The previous guidelines are general guidelines. Each site has its own unique

environment. Place access points accordingly.

Caution!

When changing the orientation of the antennas, be sure to slightly loosen

the knurled ring before moving the antenna. Retighten the ring afterward.

Otherwise, you might damage the internal cabling in the AP.

Installing the Access Points

Horizontal Mounting

To horizontally mount an AP200:

1. Place the AP200 flat on the horizontal surface.

2. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 21), point the antenna straight up, then retighten the ring.

Figure 21: AP200 Antenna Connection

3. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 22.

Figure 22: AP200 Connector Panel

Turn clockwise

to tighten

ntenna

ETHERNET

3.3 VDC ANT 2

00110

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

CONSOLE

ANT 1 ANT 2

3.3 VDC

ETHERNET

00108

100/1000

Ethernet

(Reserved)

Console

port

Antenna 1 Antenna 2

Power

inlet

Reset

(Push to restore

default settings)

(Currently

unsupported)

Installing the Access Points

Vertical Mounting

To vertically mount an AP:

1. Using the bracket holes as a template, mark the location on the wall for the two

AP bracket mounting screws. They are placed 4 ½ inches apart, center-to-center,

one above the other. If you are not using plastic wall anchors, you must center

the mounting screws on a wall stud. If you do not center the mounting screws on

a wall stud, you must use plastic wall anchors.

Figure 23: AP200 Bracket

2. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

3. If you are using plastic anchors, install them in the holes.

4. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

5. Mount the bracket on the screws, placing the circular portion of the keyhole

mounts over the screw heads and sliding the bracket down.

6. Tighten the screws to secure the bracket.

7. Align the AP200 mounting posts over the circular portion of the keyhole mounts,

push the AP in and slide the AP down until it engages with the locking detents.

You should hear it snap in place.

Access point mount

Ceiling mount hole

ccess point mount

Access point mount

Locking detent

all cable access

uspended ceiling

able access

00100

Installing the Access Points

Figure 24: Aligning the AP200 with the Bracket

Figure 25: Sliding the AP200 into the Bracket

8. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 21), point the antenna straight up, then retighten the ring.

00115

Mounting bracket attached to wall

AP200

00112

Mounting bracket

Installing the Access Points

9. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 22.

Mounting Below a Suspended Ceiling

The optional suspended ceiling mounting kit allows the AP200 mounting bracket to

attach to suspended ceiling T-rails (see Figure 26).

Note:

To comply with NEC code, attach a grounding wire to any of the screws used

to attach the AP200 to the mounting bracket.

Figure 26: Mounting the AP200 to a Suspended Ceiling Rail

To mount an AP200 below a suspended ceiling:

1. Determine the location on the ceiling rail where the AP will be mounted and

remove the ceiling tiles.

2. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to

the rail.

3. Adjust the distance between the caddy fasteners by using the mounting bracket

holes as a guide.

4. Tighten the caddy fasteners in place using a standard screwdriver. Do not

overtighten.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Suspended ceiling T-rail

Mounting bracke

Keps nuts with attached

locking washer

Caddy fastener(

Plastic spacer(s

)

00102

Installing the Access Points

5. Place each spacer on the caddy fastener stud. The spacer legs should contact the

ceiling

T-rail.

6. Align the mounting bracket keyholes with the caddy fastener studs and slide the

AP200 to the narrow end of the hole.

7. Attach a keps nut to each caddy fastener stud and hand tighten. Do not

overtighten.

8. Align the AP200 mounting posts over the circular portion of the keyhole mounts,

push the AP in and slide the AP down until it engages with the locking detents

(see Figure 25). You should hear it snap in place.

9. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 21), point the antenna straight down, then retighten the ring.

10. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in (see Figure 22).

Mounting Above a Suspended Ceiling

The optional T-bar box hanger mounting kit allows the AP200 to be mounted above

suspended ceiling T-rails (see Figure 27). The installation attaches the T-bar box

hanger to the ceiling rails using clips. The AP200 attaches to the mounting bracket

that is attached to the T-bar box hanger.

The AP200 antennas should point straight down for this type of installation. You may

need to modify thicker tiles to support this installation.

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Warning!

When installed in air-handling spaces, such as above a suspended ceiling,

the AP200 is to be powered via PoE only (PoE is required).

Warning!

The AP200 with the metal enclosure exposed meets the requirements for

fire resistance and low smoke-generating characteristics required by Section 300-

22(C) of the National Electrical Code (NEC) for installation in a building’s

environmental air space. You must remove the plastic enclosure to reveal the

plenum-rated AP200 metal case for installations above a suspended ceiling.

Additionally, you must use Ethernet cable that meets the requirements for operating

in plenums and environmental air space (in accordance with Section 300-22(C) of the

NEC).

Installing the Access Points

Figure 27: Mounting the AP200 Above a Suspended Ceiling

To mount an AP200 above suspended ceiling rails:

1. Determine the location on the ceiling rails where the AP will be mounted and

remove the ceiling tile.

2. Unpack the T-bar hanger kit and unfold the legs of the T-bar hanger.

3. Locate the bracket mounting clip holes on the mounting bracket (see Figure 28).

One hole attaches the bracket perpendicular to the box hanger; the other mounts

the bracket parallel to the box hanger.

Figure 28: Box Hanger Mounting Bracket Holes

Warning!

Any Fast Ethernet (FE) cables installed in air-handling spaces should be

suitable under NEC Article 800.50 and marked accordingly for use in plenums and air-

handling spaces with regard to smoke propagation, such as CL2-P, CL3-P, MPP (Multi

Purpose Plenum), or CMP (Communications Plenum).

Bracket mounting clip

Mounting bracket

T-bar hanger Height adjustment scre

Height adjustment screw

Suspended ceiling T-rail

T-rail clips

Antennas

Access Point 200

00103

Mounting bracket holes

00101

Installing the Access Points

4. Attach the U-joint of the clip to the T-bar and snap in place (see Figure 29).

Figure 29: Attaching the Mounting Bracket to the Box Hanger

5. Pass the long end clip through the large center hole to the underside of the the

mounting bracket clip and then attach the bracket to the clip using the supplied

screw (see Figure 29 for orientation).

6. Hold the AP200 next to the mounting bracket to estimate the height of the T-bar

box hanger to provide enough clearance for the external antennas, which should

be pointing down.

7. Adjust the height of the box hanger using the height adjusting screws (see

Figure 26).

8. Clip the box hanger T-rail clips to the ceiling rails, making sure they are securely

attached.

9. Connect a drop wire to a building structural element and through the hole

provided in the bracket mounting clip. The U.S. National Electrical Safety Code

requires this additional support.

10. Connect the posts of the AP200 to the three keyholes of the mounting bracket and

slide into the keyhole (see Figure 25), ensuring the locking detent is engaged. You

will hear a click.

11. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 21), point the antenna down, then retighten the ring.

12. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 22.

00104

Caution!

Be sure to connect the Ethernet cable to the Ethernet port; the cable can

mistakenly be plugged into the Console port.

Where to Go From Here

13. Check that the AP200 is operating correctly before replacing the ceiling tile to

the ceiling. Verify correct operating using the LEDs, as shown in Checking LED

Activity.

Where to Go From Here

Now that the AP200 is installed, go to the Meru System Director Getting Started

Guide for instructions on initializing the controller and connecting the controller and

APs to the Ethernet switch to form the WLAN. Return to this chapter to check the

status of the LEDs once the WLAN is operational.

Checking LED Activity

Access point status LEDs are provided on the Ethernet connector and on the face of

the AP200.

Ethernet Connector LEDs

After the AP200 is connected, the LEDs near the RJ-45 connector should light, as

shown in Figure 30.

Figure 30: RJ-45 LEDs

The green LED on the left blinks if any Ethernet activity is taking place. If there is

no Ethernet activity, the LED is off. The LED on the right is solid green if an Ethernet

link is present. If no Ethernet link is present or connectivity is lost, the LED is off.

Ethernet activity

Link present

00129

Checking LED Activity

AP200 Status LEDs

Four status LEDs on the face of the AP200 also light, as shown in Figure 31.

. .

Figure 31: AP200 Status LEDs

The functions of the status LEDs are described in Tab le 7.

When the AP200 is first connected to the controller and any time the access point is

rebooted thereafter, the AP initializes with and then is programmed by the

controller. When the AP is first powered up, all LEDs are green. Thereafter, the

Status LED (see Figure 31) color reflects the various operating states (Tabl e 7).

AP200

RF2

RF1

STATUS

POWER

00113

Checking LED Activity

Table 6: AP200 LED Descriptions

Table 7: AP200 Controller Status Information

LED Function

RF 2

The status LED for Radio 2 is a follows:

off—no radio present

yellow—radio initializing

red—radio failure

solid green—radio OK

blinking green—radio activity

RF 1

The status LED for Radio 1 is a follows:

off—no radio present

yellow—radio initializing

red—radio failure

solid green—radio OK

blinking green—radio activity

Status AP-Controller operational status (see Tabl e 7)

Power green—presence of power

State Interpretation AP200 LED Cycle

Attempting to dis-

cover Controller

In the process of discovering the con-

troller. The AP is connected but not

associated with the controller. If the

AP does not associate with the control-

ler after a period of time, verify that

the connection between the AP and the

switch or the switch and the controller

is unbroken.

Green/Red/Blue/R

Connected Normal operation without security.

Blue/Blue/Blue/R

ed, for 2 seconds.

Authenticated Normal operation with security. Blue blinka

Checking LED Activity

Disconnected

Access point was once connected to a

controller and configured by the con-

troller, but can no longer find that con-

troller

Green/Purple/

Green/Purple

Standalone Access point is operating in a standal-

one mode Purple blink

Downloading Downloading image or configuration

from the controller

Green/Blue

Error State Access point is in an error state.

Call Meru technical support

Red (blinking or

solid)

a. The AP200 LEDs cycle from bright to dim for each “blink.”

State Interpretation AP200 LED Cycle

Chapter 4

Installing the AP150

This chapter describes how to physically install the AP150. It contains the following

sections:

zSafety Precautions

zUnpacking the AP150

zInstallation Requirements

zInstalling the Access Points

zWhere to Go From Here

zChecking LED Activity

Safety Precautions

IMPORTANT—Read and follow the instructions in Appendix B, “Regulatory Informa-

tion” on page 63 before installing and operating this product.

This product is intended to be supplied by a UL Listed power supply, marked Class 2

or LPS, and rated minimum 5 Vdc, 3A.

Unpacking the AP150

Confirm that the AP150 shipping package contains the AP150 access point with

attached mounting bracket

Caution!

The AP150 is not certified for plenum installations, and should not be

installed in the plenum space.

Installation Requirements

Figure 32: AP150 with Mounting Bracket

Installation Requirements

If you choose not to use the AP150 mounting bracket, the backside of the AP150

contains two keyholes to accommodate a simple wall mount.

A mounting bracket can be used for many wall mounting configurations. The AP150

bracket mounting studs are placed so they can be used with brackets supplied by

other vendors or to replace an AP100. An array of holes on the mounting bracket (see

Figure 32) allow it to be mounted on the wall and over junction boxes or molly bolts.

There are also holes for passing the PoE Ethernet or external power supply cable

through the bracket if the bracket is mounted on a junction box.

Additional optional mounting kits are available for mounting the AP150below a

hanging ceiling, using the mounting bracket.

00177

Installation Requirements

Note:

The AP150 has two security cable slots (one on each side of the AP150) so you

can secure the AP150 with a standard security cable, such as those used to secure

laptop computers.

The following recommended mounting locations provide the best reception for the

AP150:

zOn a horizontal surface, such as a table or a desk

zOn a vertical surface, usually a wall

zBelow a hanging ceiling

To complete this installation, you need the items listed in Tab le 8 .

Table 8: AP150 Installation Items

Caution!

The AP150 is not certified for plenum installations, and should not be

installed in the plenum space.

Installation Type Consumable Items Required

Horizontal mounting None

Vertical mounting over a wall

stud

zTwo #6 x 2" wood screws for a wood stud; or

zTwo #6 x 1½" metal screws for a metal stud

zMounting bracket

Vertical mounting on sheetrock

zTwo #6 x 1" screws

zTwo #4-6 x 7/8" ribbed plastic wall anchors

zMounting bracket

Horizontal mounting below a

hanging ceiling

zTwo caddy fasteners

zTwo plastic spacers

zTwo keps nuts (with attached lock washer)

zMounting bracket

Installing the Access Points

You need the tools listed in Tab le 9 .

Table 9: AP150 Installation Tools

Installing the Access Points

Selecting a Location

The AP150 requires a location that meets the following:

zRelatively unobstructed access to the stations the AP serves

zPower over Ethernet (PoE) connection to the network switch servicing the

controller.

APs can obtain their power from 802.3af standard Power over Ethernet (PoE)-compat-

ible network switch or PoE power injector installed between the switch and the

AP150.

Select a location with minimal physical obstructions between the AP and the wireless

stations. In an office with cubicles, mounting the APs below a hanging ceiling or the

wall near the ceiling provides the least obstructed communications path.

Installation Type Tools Required

Horizontal mounting None

Vertical mounting over a wall

stud

zDrill

z1/8"drill bit

zScrewdriver

z1/8"Allen wrench

Vertical mounting on sheetrock

zDrill

z3/16" drill bit

zScrewdriver

z1/8"Allen wrench

Horizontal mounting below a

hanging ceiling

zScrewdriver

zWrench or pliers

z1/8"Allen wrench

Installing the Access Points

Most installations receive the best coverage using the following guidelines:

Install APs toward the center of the building.

zDo not install APs near metal objects, such as heating ducts, metal doors, or

electric service panels.

zRelative to the ground, orient the antenna up or down, not sideways.

The AP150 is only intended for installation in Environment A as defined in IEEE

802.3af. All interconnected equipment must be contained within the same building,

including the interconnected equipment's associated LAN connection.

Attaching the AP150 Antennas

The AP150 is provided with external antenna ports. Make sure that all external

antennas and their associated wiring are located entirely indoors. The external

antennas are not suitable for outside use.

If the AP150 does not have external antennas, attach the antennas to the connectors

on the AP150 (see Figure 33). Rotate the knurled ring at the base of the antenna

clockwise to attach the antenna. The ring should be finger-tight.

Mounting the Access Point

You can mount an AP150 in the following ways:

zHorizontally, as described in the “Horizontal Mounting” section.

zVertically, as described in the “Vertical Mounting with the Mounting Bracket”

section.

zBelow a hanging ceiling, as described in the “Mounting Below a Suspended

Ceiling” section.

Horizontal Mounting

To horizontally mount an AP150:

1. Place the AP150 flat on the horizontal surface.

2. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 33), point the antenna straight up, then retighten the ring.

Note:

The previous guidelines are general guidelines. Each site has its own unique

environment. Place access points accordingly.

Caution!

When changing the orientation of the antennas, be sure to slightly loosen

the knurled ring before moving the antenna. Retighten the ring afterward.

Otherwise, you might damage the internal cabling in the AP.

Installing the Access Points

Figure 33: AP150 Antenna Connection

3. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 34.

Figure 34: AP150 Connector Panel

Vertical Mounting the AP150

To perform a simple wall mount using the keyholes on the back of the AP150:

1. Remove the attached mounting bracket from the back of the AP150.

2. Mark the location on the wall for two mounting screws. They are placed 4.3"

apart, center-to-center, or one above the other. If you are not using plastic wall

anchors, you must either center the mounting screws on a wall stud or use plastic

wall anchors.

3. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

00172

ANT 2

RELOAD

RESET

Turn clockwise

to tighten

ntenna

ANT1 ANT2

LAN

DC 5V CONSOLE RESET RELOAD

00173

Power Ethernet

connection

Console

port Reset

button Reload

Antenna 1 Antenna 2

(reserved) (reserved)

Installing the Access Points

4. If you are using plastic anchors, install them in the holes.

5. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

6. Align the AP150 keyholes over the mounting screws and slightly pull down (or

across, if mounting sideways).

7. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 33), point the antenna straight up, then retighten the ring.

8. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 34.

Vertical Mounting with the Mounting Bracket

The AP150 uses thumbscrews to attach to the mounting bracket or mounting plate

that allows the access point to be mounted on a vertical surface. Additionally, three

shoulder screws may be installed on the mounting bracket to allow the AP150 and

attached bracket to mount over a previously installed Cisco 1200 mounting bracket.

To vertically mount an AP:

1. If not mounting the AP150 to a previously third-party installed mounting bracket,

use a 1/8" Allen wrench to remove the shoulder screws from the mounting

bracket, if already attached.

2. Using the bracket holes as a template, remove the bracket from the AP150 (or use

the stencil in Appendix D, “Mounting Bracket Stencils”) to mark the location on

the wall for the two AP bracket mounting screws. They are placed 4.3 inches

apart, center-to-center. If you are not using plastic wall anchors, you must center

the mounting screws on a wall stud. If you do not center the mounting screws on

a wall stud, you must use plastic wall anchors.

Installing the Access Points

Figure 35: AP150 Bracket

3. Drill holes at the locations you marked:

—3/16-inch holes if you are using plastic anchors

—1/8-inch holes if you are using only the screws

4. If you are using plastic anchors, install them in the holes.

5. Screw in the screws most of the way, so that the screw head is about 1/16 of an

inch from the wall.

6. Mount the bracket on the screws, placing the circular portion of the keyhole

mounts over the screw heads and sliding the bracket down.

7. Tighten the screws to secure the bracket.

8. Align the AP150 with the bracket thumbscrews (see Figure 36) and tighten the

thumbscrews to attach the bracket.

00167

Suspended ceiling

cable access Wall cable access

Installing the Access Points

Figure 36: Aligning the AP150 with the Bracket

9. For external antennas, loosen the knurled ring at the base of each antenna (see

Figure 33), point the antenna straight up, then retighten the ring.

10. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in Figure 34.

00169

Installing the Access Points

Mounting Below a Suspended Ceiling

The optional suspended ceiling mounting kit allows the AP150 mounting bracket to

attach to suspended ceiling T-rails (see Figure 37).

Note:

To comply with NEC code, attach a grounding wire to any of the screws used

to attach the AP150 to the mounting bracket.

Figure 37: Mounting the AP150 to a Suspended Ceiling Rail

To mount an AP150 below a suspended ceiling:

1. Using a 1/8" Allen wrench, remove the shoulder screws from the mounting

bracket, if already attached.

2. Determine the location on the ceiling rail where the AP will be mounted and

remove the ceiling tiles.

3. Place each of the two caddy fasteners on the ceiling T-rail and twist to attach to

the rail.

4. Adjust the distance between the caddy fasteners by using the mounting bracket

holes as a guide.

5. Tighten the caddy fasteners in place using a standard screwdriver. Do not

overtighten.

6. Place each spacer on the caddy fastener stud. The spacer legs should contact the

ceiling T-rail.

7. Align the mounting bracket keyholes with the caddy fastener studs and slide the

AP150 to the narrow end of the hole.

00170

Washers

Suspended ceiling T-rail

Mounting bracke

Caddy fastener(

Spacer(s)

Where to Go From Here

8. Attach a keps nut to each caddy fastener stud and hand tighten. Do not

overtighten.

9. Align the AP150 with the bracket thumbscrews (see Figure 36) and tighten the

thumbscrews to attach the bracket.

10. For each antenna, loosen the knurled ring at the base of the antenna (see

Figure 33), point the antenna straight down, then retighten the ring.

11. Connect one end of the PoE 100BaseT Ethernet cable to the 100/1000 Ethernet

connector, shown in (see Figure 34).

Where to Go From Here

Now that the AP150 is installed, go to the Meru System Director Getting Started

Guide for instructions on initializing the controller and connecting the controller and

APs to the Ethernet switch to form the WLAN. Return to this chapter to check the

status of the LEDs once the WLAN is operational.

Checking LED Activity

Access point status LEDs are provided on the Ethernet connector and on the face of

the AP150.

AP150 Status LEDs

Four status LEDs on the face of the AP150 also light, as shown in Figure 38.

Figure 38: AP150 Status LEDs

When the AP150 is first connected to the controller and any time the access point is

rebooted thereafter, the AP initializes with and then is programmed by the

controller. The Status LED (see Figure 38) color reflects the various operating states

(Tab le 1 0).

PWR

LAN

RADIO2

RADIO1

Status LEDs

00166

Checking LED Activity

Table 10: AP150 LED Descriptions

LED Function

Power

The Power status LED status is as follows:

zoff—power is off

zsolid red—when power is applied, system initializes for 40 sec-

onds and then the LED turns amber; after discovering the con-

troller the LED turns green. Otherwise, the system is in an

abnormal state (notify Customer Support).

zsolid amber—at any time, if this LED state persists longer than 40

seconds, notify Customer Support

zsolid green—system is fully operational

Radio I The Radio I LED is lit when radio packets are being transmitted and

when the radio is beaconing.

Radio II The Radio II LED is lit when radio packets are being transmitted and

when the radio is beaconing.

Ethernet

The Ethernet LED status is as follows:

zoff—no link

zsolid green—100Mbps connection

zblinking green—transmit or receive activity at 100Mbps

zsolid amber—10Mbps connection

zblinking amber—transmit or receive activity at 10Mbps

Checking LED Activity

Appendix A

Specifications

This chapter provides specifications for Meru Access Points and contains the following

sections:

zWireless Interface

zEthernet Interface

zPhysical

Wireless Interface

Table 11: Wireless Interface Specifications

Feature Details

Wireless Standards z802.11a, 802.11b, 802.11g, 802.11n

Antennas zTwo to six external antennas. Omnidirectional and direc-

tional antennas for specific coverage requirements

Wireless Medium

Access

zWi-Fi Compliant 802.11 MAC standard

Power Management zPower-save mode for clients in both QoS mode and non-

QoS mode

Frame Size

zPeak frame size of > 2346 bytes

zFragmentation and reassembly of 802.11/Ethernet

frames

Client Activities Sup-

ported

zActive scanning and passive scanning

zPre-authentication

zPower-save mode supported

Ethernet Interface

Physical

Physical specifications for Meru Access Points are provided in the access point Data

Sheet. Contact your Meru sales engineer for a copy of the document.

Feature Detail

Wireline Standard

zOne Ethernet (IEEE 802.3) interface, supporting

half-duplex and full-duplex modes

zSupports the Power over Ethernet (PoE) IEEE

802.3af standard

Appendix B

Regulatory Information

The Meru Access Points (APs) must be installed and used in strict accordance with the

manufacturer’s instructions as described in the user documentation that comes with

the product. For country-specific approvals, see below. Meru Networks, Inc. is not

responsible for any radio or television interference caused by unauthorized modifi-

cation of APs, or the substitution or attachment of connecting cables and equipment

other than that specified by Meru Networks, Inc. The correction of interference

caused by such unauthorized modification, substitution or attachment is the respon-

sibility of the user. Meru Networks, Inc. and its authorized resellers or distributors

are not liable for any damage or violation of government regulations that may arise

from the user failing to comply with these guidelines.

USA

Underwriters Laboratories

For the AP150 series, the AP200 series, and the RS4000, the following statement and

notices are applicable:

Use only with Listed I.T.E. equipment.

Notices

The unit is intended for installation in Environment A as defined in IEEE 802.3.af. All

interconnected equipment must be contained within the same building, including the

interconnected equipment's associated LAN connection.

Suitable for use in environmental air space in accordance with Section 300-22(c) of

the National Electrical Code, and Sections 2-128, 12-010(3) and 12-100 of the Cana-

dian Electrical Code, Part 1, C22.1.

USA

FCC Radiation Exposure Statement

Radio Frequency Interference Requirements

Interference Statement

These devices comply with Part 15 of the FCC Rules. Operation of the devices is

subject to the following two conditions: (1) The devices may not cause harmful inter-

ference, and (2) The devices must accept any interference that may cause undesired

operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installa-

tion. This equipment generates, uses, and can radiate radio frequency energy. If the

equipment is not installed and used in accordance with the instructions, the equip-

ment may cause harmful interference to radio communications. There is no guar-

antee, however, that such interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception

(which can be determined by turning the equipment off and on), the user is encour-

aged to try to correct the interference by taking one or more of the following

measures:

zRelocate this device.

zIncrease the separation between the device and the receiver.

zConnect the device into an outlet on a circuit different from that of other

electronics.

zConsult the dealer or an experienced radio technician for help.

Caution!

The radiated output power of the Meru Networks devices is well below the

FCC radio frequency exposure limits. However, the Meru Access Points

should be used in such a manner that the potential for human contact dur-

ing normal operation is minimized. When installing and operating these

devices, keep a minimum distance of 20 cm (8 inches) between the anten-

nas and any persons/users in the vicinity.

Note:

Meru Access Point

These devices are restricted to indoor use because they operate in the

5.15 to 5.25 GHz frequency range. The FCC requires such products to be

used indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce the

potential for harmful interference to co-channel Mobile Satellite systems.

Canada. Industry Canada (IC)

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

For products available in the USA and Canadian markets, only channels 1 through 11

can be operated. Selection of other channels is not authorized.

Canada. Industry Canada (IC)

The Class B digital portion of this apparatus complies with Canadian standard ICES-

003.

These devices comply with RSS210, Issue 5 of Industry Canada.

For products available in the USA and Canadian markets, only channels 1 through 11

can be operated. Selection of other channels is not authorized.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interfer-

ence that may cause undesired operation of this device.

This device and its listed antenna(s) must not be co-located or operated in conjunc-

tion with any other antenna or transmitter

L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes: (1) il

ne doit pas produire de brouillage et (2) l’utilisateur du dispositif doit étre prêt à

accepter tout brouillage radioélectrique reçu, même si ce brouillage est susceptible

de compromettre le fonctionnement du dispositif.

The term "IC" before the equipment certification number only signifies that the

Industry Canada technical specifications were met.

To reduce the potential radio interference to other users, the antenna type and gain

should be chosen so that the equivalent isotropically radiated power (EIRP) is not

more than that required for successful communication.

To prevent radio interference to the licensed service, this device is intended to be

operated indoors and away from windows to provide maximum shielding. Equipment

(or its transmit antenna) that is installed outdoors is subject to licensing.

Note:

The Meru Access Point must be installed and used in strict accordance

with the manufacturer’s instructions as described in the user documenta-

tion that comes with the product. Any other installation or use may violate

FCC Part 15 regulations. Modifications not expressly approved by Meru

Networks, Inc. could void your authority to operate the equipment.

Canada. Industry Canada (IC)

Pour empecher que cet appareil cause du brouillage au service faisant l’objet d’une

licence, il doit etre utilze a l’interieur et devrait etre place lin des fenetres afin de

Fournier un ecram de blindage maximal. Si le matriel (ou son antenne d’emission) est

installe a l’exterieur, il doit faire l’objet d’une licence.

Access Points have been designed to operate with the antennas listed below.

Antennas not included in this list are strictly prohibited for use with these devices.

The required antenna impedance is 50 ohms.

Caution!

Exposure to Radio Frequency Radiation.

The installer of this radio equipment must ensure that the antenna is

located or pointed such that it does not emit an RF field in excess of

Health Canada limits for the general population; consult Safety Code 6,

obtainable from Health Canada’s website http://www.hc-sc.gc.ca/rpb.

This equipment complies with IC RSS-102 radiation exposure limits set

forth for an uncontrolled environment. This equipment should be installed

and operated with a minimum distance of 20cm between the antennas and

any persons/users in the vicinity.

Note:

Meru Access Points

These devices are restricted to indoor use because they operate in the

5.15 to 5.25 GHz frequency range. Industry Canada requires such products

to be used indoors for the frequency range 5.15 GHz to 5.25 GHz to reduce

the potential for harmful interference to co-channel Mobile Satellite sys-

tems.

AP Model Antenna Type Gain (2.4 GHz) Gain (5 GHz)

AP200 Dual-Band Omni-Directional

SAA04-220050 2 dBi 3 dBi

AP200 Dual-Band Omni-Directional

TWX-614XRSXX 4 dBi 5 dBi

AP150 Dual-Band Omni-Directional

MMO224580608 6 dBi 8 dBi

Europe—EU Declaration of Conformity and Restrictions

To reduce potential radio interference to other users, the antenna type and its gain

should be chosen so that the equivalent isotropically radiated power (e.i.r.p.) is not

more than that permitted for successful communication.

Europe—EU Declaration of Conformity and

Restrictions

EN 300 328. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).

Wideband transmission systems, data transmission equipment operating in the 2.4

GHz ISM (Industrial, Scientific, and Medical frequency bands in the range of 902–928

MHz, 2.4–2.485 GHz, and

5.15–5.25 GHz) band and using spread spectrum modulation techniques, harmonized

EN standards covering essential requirements under article 3.2 of the R&TTE direc-

tive.

AP150 Single-Band Omni-Directional

SAA04-050280 8 dBi

AP150 Panel

MP24013 XFPTNF

13 dBi

AP150 Dual-Band Omni-Directional

SAA04-220050

2 dBi 3 dBi

RS4000 Dual-Band Multi-Channel Omni-

Directional

MN-ACC-ANTRSO

4 dBi 4.5 dBi

RS4000 Dual-Band Multi-Channel 180o

MN-ACC-ANTRSOH 5 dBi 5.5 dBi

This equipment is marked with either the CE Mark, the alert symbol, and the notified

body's number and can be used throughout the European Community. This mark indi-

cates compliance with the R&TTE Directive 1999/5/EC and the relevant parts of the

following technical specifications.

Europe—EU Declaration of Conformity and Restrictions

EN 301 893. Broadband Radio Access Networks (BRAN). 5 GHz high-performance

RLAN, harmonized EN standards covering essential requirements of article 3.2 of the

R&TTE directive.

EN 301 489-17. Electromagnetic Compatibility and Radio Spectrum Matters (ERM).

Electromagnetic Compatibility (EMC) Standard for Radio Equipment and Services,

Part 17 Specific Conditions for Wideband Data and HIPERLAN Equipment.

EN 60950-1. Safety of Information Technology Equipment.

Meru Networks, Inc. declares that their Access Points comply with the essential

requirements and other relevant provisions of Directive 1999/5/EC.

Meru Networks, Inc. vakuuttaa täten että Access Points tyyppinen laite on direktiivin

1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen

mukainen.

Hierbij verklaart Meru Networks, Inc. dat het toestel Access Points in overeenstem-

ming is met de essentiële eisen en de andere relevante bepalingen van richtlijn

1999/5/EG.

Bij deze verklaart Meru Networks, Inc. dat deze Access Points voldoet aan de essen-

tiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.

Par la présente, Meru Networks, Inc. déclare que l’appareil Access Points est

conforme aux exigences essentielles et aux autres dispositions pertinentes de la

directive 1999/5/CE.

Par la présente, Meru Networks, Inc. déclare que ce Access Points est conforme aux

exigences essentielles et aux autres dispositions de la directive 1999/5/CE qui lui

sont applicables.

Härmed intygar Meru Networks, Inc. att denna Access Points står I överensstämmelse

med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av

direktiv 1999/5/EG.

Undertegnede Meru Networks, Inc. erklærer herved, at følgende udstyr Access Points

overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.

Hiermit erklärt Meru Networks, Inc. dass sich dieser/diese/dieses Access Points in

Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten

Vorschriften der Richtlinie 1999/5/EG befindet.

Hiermit erklärt Meru Networks, Inc. die Übereinstimmung des Gerätes Access Points

mit den grundlegenden Anforderungen und den anderen relevanten Festlegungen der

Richtlinie 1999/5/EG.

Marking by the alert symbol indicates that usage restrictions apply.

Europe—EU Declaration of Conformity and Restrictions

Con la presente Meru Networks, Inc. dichiara che questo Access Points è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva

1999/5/CE.

Por medio de la presente Meru Networks, Inc. declara que el Access Points cumple

con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles

de la Directiva 1999/5/CE.

Meru Networks, Inc. declara que este Access Points está conforme com os requisitos

essenciais e outras disposições da Directiva 1999/5/CE.

Hawnhekk, Meru Networks, Inc. jiddikjara li dan Access Points jikkonforma mal-

htigijiet essenzjali u ma provvedimenti ohrajn relevanti li hemm fid-Dirrettiva

1999/5/EC.

Käesolevaga kinnitab Meru Networks, Inc. seadme Access Points vastavust direktiivi

1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjako-

hastele sätetele.

Alulírott, Meru Networks, Inc. nyilatkozom, hogy a Access Points megfelel a vonat-

kozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.

Meru Networks, Inc. týmto vyhlasuje, e Access Points splna základné poiadavky a

všetky príslušné ustanovenia Smernice 1999/5/ES.

Meru Networks, Inc. tímto prohlašuje, e tento Access Points je ve shode se základními

poadavky a dalšími príslušnými ustanoveními smernice 1999/5/ES.

Šiuo Meru Networks, Inc. deklaruoja, kad šis Access Points atitinka esminius reikala-

vimus ir kitas 1999/5/EB Direktyvos nuostatas.

Ar šo Meru Networks, Inc. deklare, ka Access Points atbilst Direktivas 1999/5/EK

butiskajam prasibam un citiem ar to saistitajiem noteikumiem.

Niniejszym, Meru Networks, Inc., deklaruje, ze Access Points spelnia wymagania

zasadnicze oraz stosowne postanowienia zawarte Dyrektywie 1999/5/EC.

These products are intended to be used in all countries of the European Economic

Area with the following restrictions:

IEEE 802.11a Restrictions

zThese products are for indoor use only (5150–5250 MHz).

zTo ensure compliance with local regulations, be sure to set your Access Point to

the country in which you are using the Access Point.

ΠΑΡΟΨΣΑ Meru Networks Inc. ∆ΗΛΩΝΕΙ ΟΤΙ Access Points

ΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕ

ΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.

Japan

zThe Meru Networks, Inc. products can be used only indoors in the following

countries: Austria, Belgium, Bulgaria, Czech Republic, Germany, Cyprus,

Denmark, Estonia, Finland, France, Greece, Hungary, Iceland, Ireland, Italy,

Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Norway, Portugal,

Poland, Romania, Spain, Slovak Republic, Slovenia, Sweden, Switzerland, Turkey,

and United Kingdom.

EEE 802.11b/g Restrictions

zFrance—In all Metropolitan départements, wireless LAN frequencies can be used

under the following conditions, either for public or private use:

Indoor use: maximum power (EIRP) of 100 mW for the entire 2400–2483.5 MHz

frequency band.

Japan

Model 208

Model 208 Rev 2 Module

Model AP208 Rev 2

Model 201

Model AP201 Rev 2

003NY06089 0000 003GZ06018 0000 003WY06035 0000

003NY07014 0000 003GZ07002 0000 003WY07004 0000

003NY07015 0000 003GZ07003 0000 003WY07005 0000

003NY06117 0000 003GZ06026 0000 003WY06043 0000

003NY07015 0000 003GZ07003 0000 003WY07005 0000

Manufacturing Information

Model AP150

Manufacturing Information

The AP150 and AP200 are built in Taiwan. Factory information is provided under NDA

and upon request.

003NY06122 0000 003GZ06030 0000 003WY06046 0000

Manufacturing Information

Appendix C

Channels

B-1

This appendix provides the access point radio channels supported by the world’s

regulatory domains.

This appendix contains the following section:

zChannels

Channels

IEEE 802.11a

The channel identifiers, channel center frequencies, and regulatory domains of each

IEEE 802.11a 20-MHz-wide channel are listed in Tab le 1 2.

Note:

All channel sets are restricted to indoor usage except the Americas, which

allow for indoor and outdoor use on channels 52 through 64 in the United

States.

Table 12: IEEE 802.11a Channels

Channel

Number

Frequency in

MHz

Regulatory Domains

Americas Japan

34 5170 - X

36 5180 X -

Channels

38 5190 - X

40 5200 X -

42 5210 - X

44 5220 X -

46 5230 - X

48 5240 X -

52 5260 X -

56 5280 X -

60 5300 X -

64 5320 X -

149 5745 X -

153 5765 X -

157 5785 X -

161 5805 X -

165 5825 X -

Table 12: IEEE 802.11a Channels (Continued)

Channel

Number

Frequency in

MHz

Regulatory Domains

Americas Japan

Channels

IEEE 802.11b/g

The channel identifiers, channel center frequencies, and regulatory domains of each

IEEE 802.11b/g 22-MHz-wide channel are listed in Ta bl e 13 .

Note:

Mexico is included in the Americas regulatory domain; however, channels 1

through 8 are for indoor use only while channels 9 through 11 can be used

indoors and outdoors. Users are responsible for ensuring that the channel

set configuration complies with the regulatory standards of Mexico.

Table 13: IEEE 802.11b/g Channels

Channel

Number

Frequency

in MHz

Regulatory Domains

Americas EMEA Israel China Japan

1 2412 X X - X X

2 2417 X X - X X

3 2422 X X X X X

4 2427 X X X X X

5 2432 X X X X X

6 2437 X X X X X

7 2442 X X X X X

8 2447 X X X X X

9 2452 X X X X X

10 2457 X X - X X

11 2462 X X - X X

Channels

12 2467 - X - - X

13 2472 - X - - X

14 2484 - - - -

(for 802.11b

only)

Table 13: IEEE 802.11b/g Channels (Continued)

Channel

Number

Frequency

in MHz

Regulatory Domains

Americas EMEA Israel China Japan

Appendix D

Mounting Bracket Stencils

B-1

This appendix provides drawings of the AP mounting brackets.

AP150 Mounting Bracket Stencil

The following page contains the stencil of the AP150 mounting bracket. It should be

printed at 100% scale to ensure correct dimensions.

AP150 Mounting Bracket Stencil

MERU NETWORKS, INC.

Limited Product Warranty

This Limited Product Warranty applies to the original end-user customer of the Meru product which you

purchased for your own use, and not for resale (“Product”), from Meru Networks, Inc. (“Meru”) or its

authorized reseller (“Reseller”).

Limited Warranties

—One-year limited hardware warranty: Meru warrants to you that Meru hardware (other than Third

Party Products as described below) will be free from defects in materials and workmanship for a

one-year period after the date of delivery of the applicable product to you from Meru or its

Reseller (the “Hardware Warranty Period”). If Meru receives written notice from you of such

defects during the Hardware Warranty Period, Meru will, at its option, either repair or replace

Meru hardware that Meru determines to be defective. Replacement products may be remanufac-

tured units, and will be warranted for the remainder of the original Hardware Warranty Period, or

if greater, for thirty days from delivery of such replacement. Should Meru be unable to repair or

replace the Meru hardware, Meru (or its Reseller, as applicable) will refund to you the purchase

price of the Product.

—90-Day Limited Software Warranty: Meru warrants to you that, for a 90-day period after the date

of delivery of the applicable product to you from Meru or its Reseller (the “Software Warranty

Period”), when properly installed and used, (a) the media on which the Meru software is provided

will be free from defects in materials or workmanship; and (b) the Meru software will substantially

conform to the functional specifications in the applicable documentation. If Meru receives written

notice from you of a breach of this warranty during the Software Warranty Period and is able to

reproduce the defect, Meru will, at its option, either repair or replace the defective Meru software.

Should Meru be unable to repair or replace the Meru software, Meru (or its Reseller, as applicable)

will refund to you the purchase price of the Product.

Exclusions

The warranty on the Product shall not apply to defects resulting from the following:

—Alteration or modification of the Product in any way, including without limitation configuration

with software or components other than those supplied by Meru or integration with parts other

than those supplied by Meru.

—Abuse, damage or otherwise being subjected to problems caused by negligence or misapplication

(including without limitation improper or inadequate maintenance or calibration), relocation of

the products (including without limitation damage caused by use of other than Meru shipping

containers), or use of the products other than as specified in the applicable Meru product docu-

mentation (including without limitation incompatible operating environments and systems), or

improper site preparation or maintenance.

—Damage as a result of accidents, extreme power surge, extreme electromagnetic field, acts of

nature or other causes beyond the control of Meru.

—Use of the Product with software, interfacing, parts or supplies not supplied by Meru.

The warranty on the Product does not apply if the Product is sold, or in the case of software, licensed,

for free for evaluation or demonstration purposes.

80 Meru Access Point and Radio Switch Installation Guide

Meru expressly disclaims any warranty or obligation to support the Product for all operating

environments – for example, as illustration and not limitation, Meru does not warrant or

ensure interoperability of the Product with future telecommunication systems or other future

software or hardware.

You understand and acknowledge that the Products may generate, use or radiate radio

frequency energy and may interfere with radio communications and/or radio and television

receptions if is not used and/or installed in accordance with the documentation for such

products. WHILE MERU USES COMMERCIALLY REASONABLE EFFORTS TO

ENSURE COMPLIANCE OF THE PRODUCTS WITH APPLICABLE UNITED STATES

FEDERAL COMMUNICATIONS COMMISSION AND PROTECT AGAINST HARMFUL

INTERFERENCES, YOU ACKNOWLEDGE AND AGREE THAT INTERFERENCES

WITH RADIO COMMUNICATIONS AND/OR RADIO AND TELEVISION

RECEPTIONS MAY OCCUR AND THAT MERU WILL NOT BE LIABLE FOR ANY

DAMAGES OR INCONVENIENCE BASED ON SUCH INTERFERENCES.

Third Party Products - The above Limited Warranties are exclusive of products

manufactured by third parties (“Third Party Products”). If such third party manufacturer

provides a separate warranty with respect to the Third Party Product, Meru will include such

warranty in the packaging of the Meru Product.

Return procedures

To obtain warranty service you must: (a) obtain a return materials authorization number

(“RMA#”) from Meru by contacting rmaadmin@merunetworks.com, and (b) deliver the

Product, in accordance with the instructions provided by Meru, along with proof of purchase

in the form of a copy of the bill of sale including the Product’s serial number, contact

information, RMA# and detailed description of the defect, in either its original package or

packaging providing the Product with a degree of protection equivalent to that of the original

packaging, to Meru at the address below. You agree to obtain adequate insurance to cover loss

or damage to the Product during shipment.

If you obtain an RMA# and return the defective Product as described above, Meru will pay

the cost of returning the Product to Meru. Otherwise, you agree to bear such cost, and prior

to receipt by Meru, you assume risk of any loss or damage to the Product. Meru is responsible

for the cost of return shipment to you if the Meru Product is defective.

Returned products which are found by Meru to be not defective, returned out-of-warranty or

otherwise ineligible for warranty service will be repaired or replaced at Meru’s standard

charges and shipped back to you at your expense.

At Meru’s sole option, Meru may perform repair service on the Product at your facility, and

you agree to provide Meru with all reasonable access to such facility and the Product, as

required by Meru. On-site repair service may be available and is governed by the specific

terms of your purchase.

All replaced parts, whether under warranty or not, are the property of Meru.

Warranty limitations

THE WARRANTIES SET FORTH ABOVE ARE EXCLUSIVE AND NO OTHER

WARRANTY, WHETHER WRITTEN OR ORAL, IS EXPRESSED OR IMPLIED BY

MERU, TO THE MAXIMUM EXTENT PERMITTED BY LAW. THERE ARE NO OTHER

WARRANTIES RESPECTING THE PRODUCT AND DOCUMENTATION AND

SERVICES PROVIDED UNDER THIS AGREEMENT, INCLUDING WITHOUT

LIMITATION ANY WARRANTY OF DESIGN, MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE (EVEN IF MERU HAS BEEN INFORMED OF SUCH

PURPOSE), TITLE OR AGAINST INFRINGEMENT OF THIRD PARTY RIGHTS. IF

ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED UNDER APPLICABLE LAW,

THEN SUCH IMPLIED WARRANTY SHALL BE LIMITED IN DURATION TO THE

HARDWARE AND SOFTWARE WARRANTY PERIODS DESCRIBED ABOVE.

NO AGENT OF MERU IS AUTHORIZED TO ALTER OR EXCEED THE WARRANTY

OBLIGATIONS OF MERU.

MERU SPECIFICALLY DOES NOT WARRANT THAT THE MERU SOFTWARE WILL

BE ERROR FREE OR OPERATE WITHOUT INTERRUPTION.

THE REMEDIES IN THIS LIMITED PRODUCT WARRANTY ARE YOUR SOLE AND

EXCLUSIVE REMEDIES, AND MERU’S SOLE AND EXCLUSIVE LIABILITY, FOR

BREACH OF THE HARDWARE OR SOFTWARE WARRANTY SET FORTH ABOVE.

Limitations of Liability

You acknowledge and agree that the consideration which you paid to Meru does not include

any consideration by Meru of the risk of consequential, indirect or incidental damages which
