Contents
USERS MANUAL 4
27
Wireless 11g MiniPCI Card MP54G User’s Guide
Network key
Enter a key for the network.
Key format
You can decide the network key to be encoded by
ASCII characters or hexadecimal digitals.
Key length
In ASCII characters format, it can be 5 or 13 charac-
ters. In hexadecimal digitals format, it would be 10
or 26 digitals.
Key index
There can be up to 4 sets of WEP key (1~4). The 4
sets of WEP key must have the identical sequence
with the key settings on the Access Point.

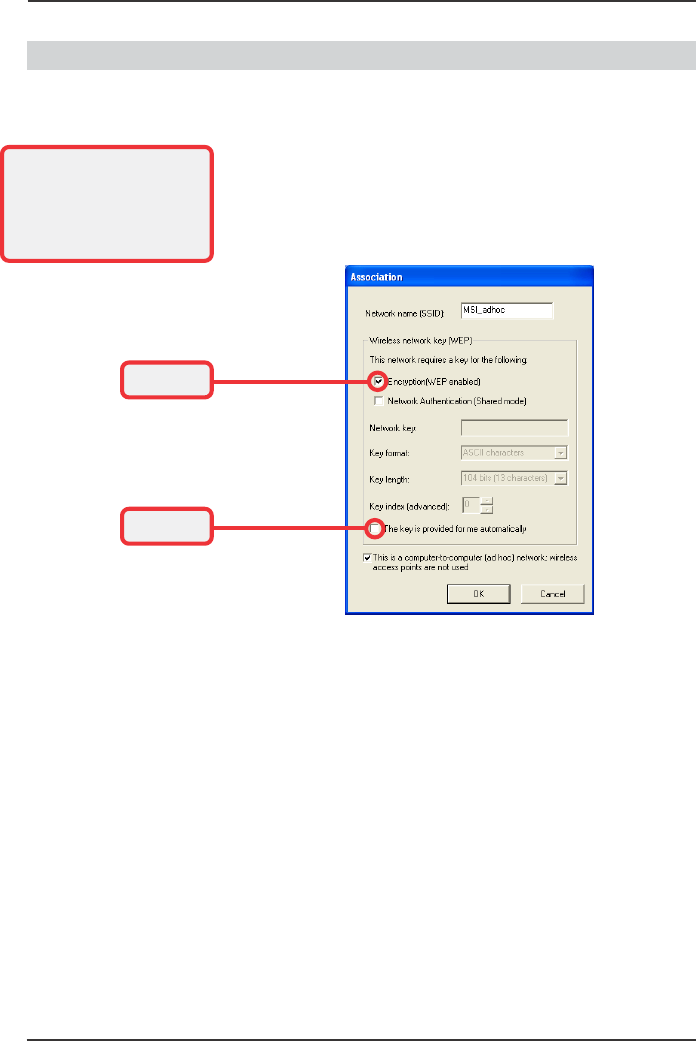

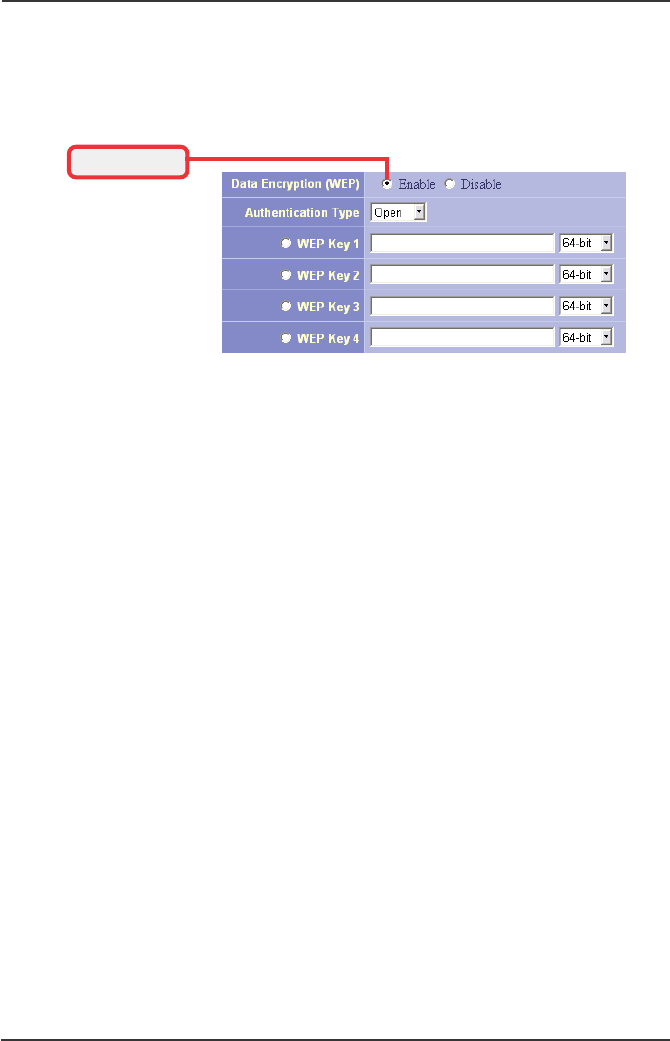

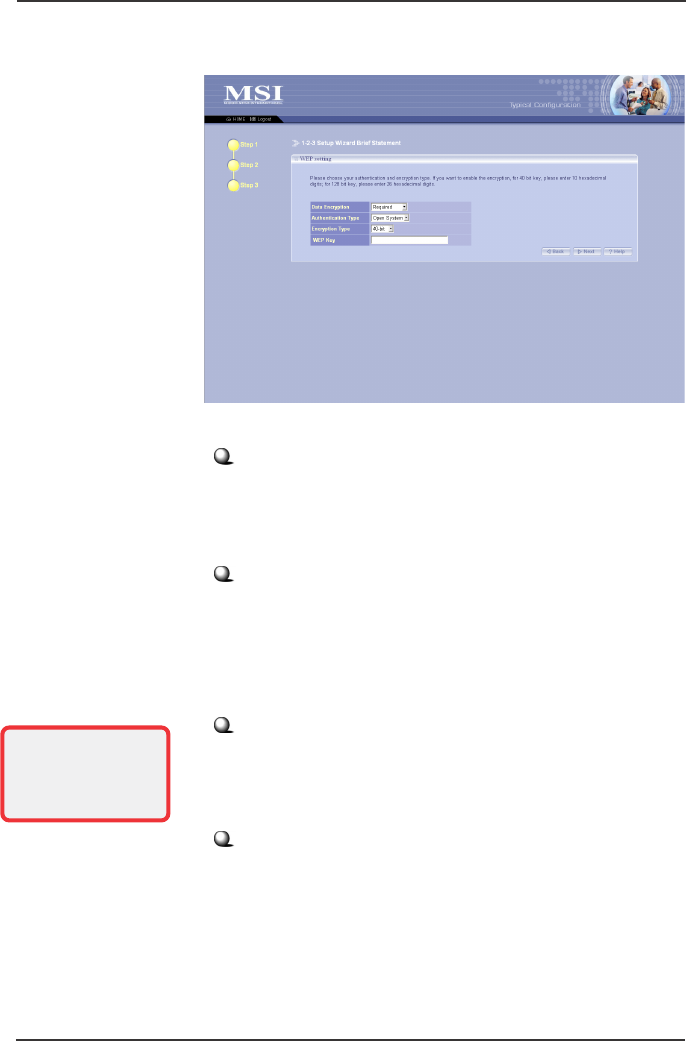

>>> 4.3 Encryption
In the wireless network environment, the administrator
can set up password (Network Key) to protect the network
from being attacked or unauthorized access. When
building the network, you can set up 4 sets of WEP keys,
which can be 5 characters (10 hex-adecimal digital) or 13
characters (26 hex-adecimal digital) and specify one of
them to use.
Check this
Cancel this
To setup the Network Key,
check Encryption option
first, then cancel The key is
provided for me automati-
cally option.
28
Wireless 11g MiniPCI Card MP54G User’s Guide

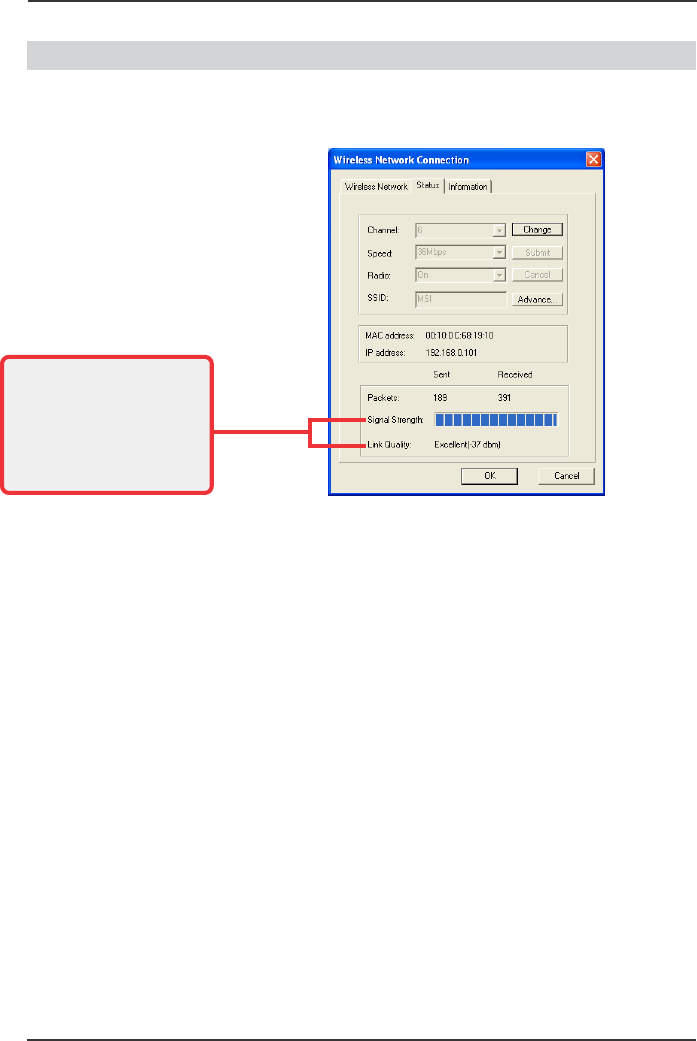

Status
In Status tab, you can configure more network settings.

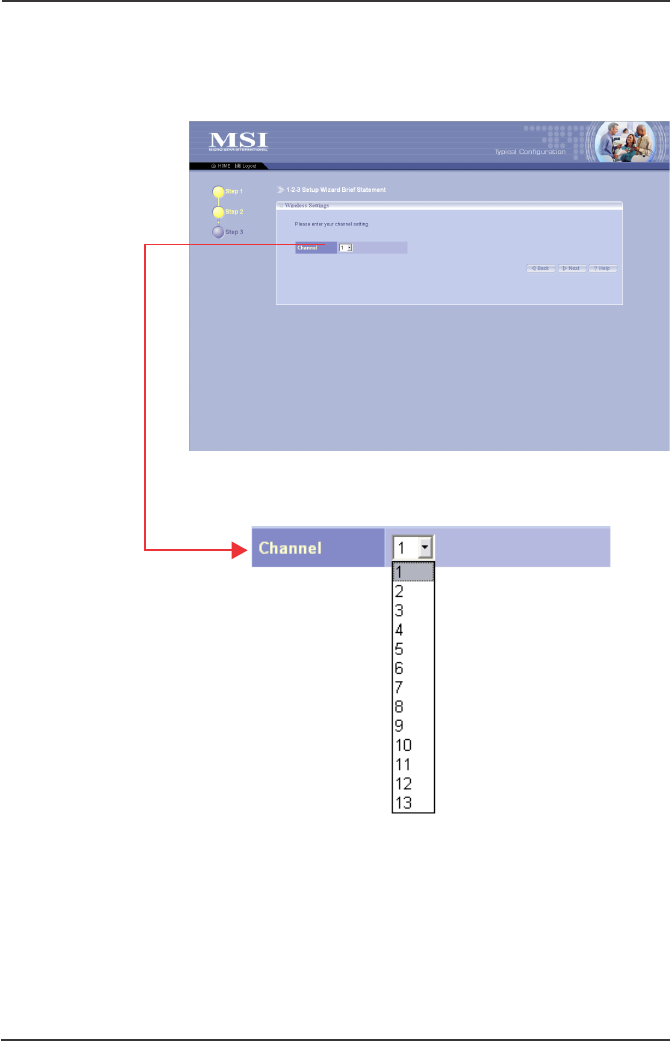

Channel
Specify the operating radio frequency channel in
Ad-hoc mode, which should be set to the same
channel as the other points in the wireless net-
work.
Speed
This field sets the current transmitting rate. The
speed should be set to Auto rate to optimize
performance and range, which will adjust the
transfer speed for best performance and longest
range automatically.
Radio
Set to On to activate the radio.
SSID
Means Service Set Identifier, a unique name
shared among all points in a wireless network. It
must be identical for all points in the network.
Then the card will be able to connect to an access
point with the same SSID.
Signal Strength:
shows the received signal
strength level.
Link Quality:
shows the measured signal
level and connection status.
>>> 4.4
29
Wireless 11g MiniPCI Card MP54G User’s Guide

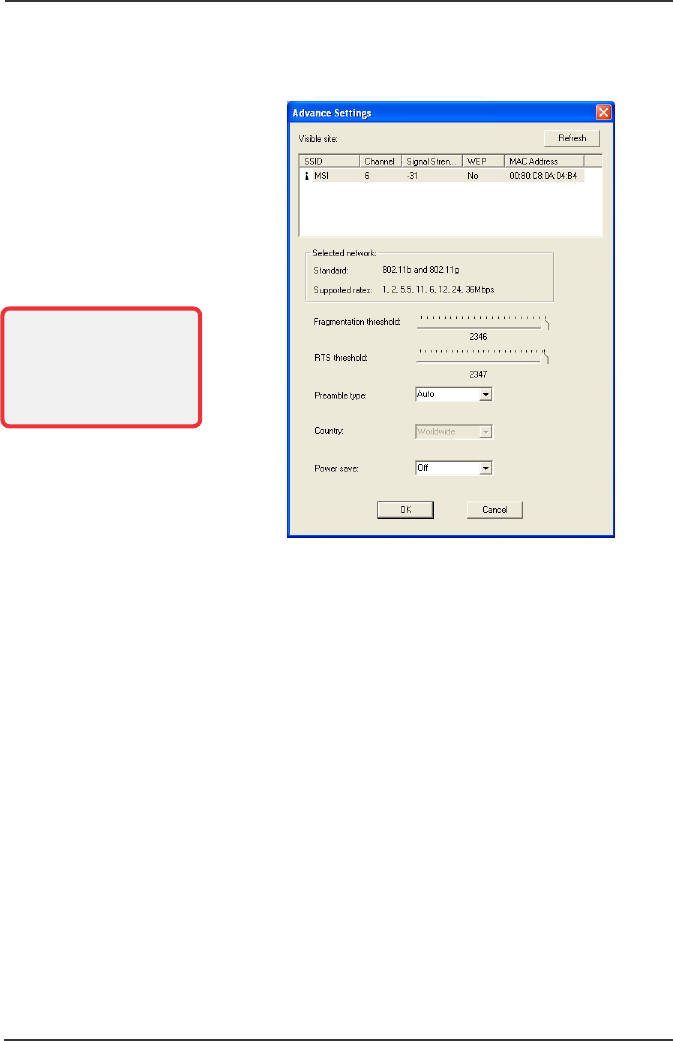

Fragmentation Threshold
You may set the length of the fragment in this field.
Please note that each fragment should not be
larger than the Fragmentation Threshold.
RTS/CTS Threshold
You may set the length threshold.
Preamble Type
You may set the length of preamble in this field.
Setting options are: Long - it is set to 144 bits.
Short - it is set to 72 bits. Auto - The card supports
an auto-detection feature, it automatically selects
the Preamble Type depending on the Access Point
Preamble Type if this option is selected.
Country
Select one option according to your location you are
in. The options are: Worldwide 1-13, Japan 1-13,
and USA 1-11. The default setting is Worldwide 1-
13.
Power save
The card will turn into power save mode when idle.
Click Advance, and you can get more information about
the LAN traffic status and more detailed settings.
It is not recommended to
change these settings if
you are not familiar with
the advanced configura-
tion.
30
Wireless 11g MiniPCI Card MP54G User’s Guide

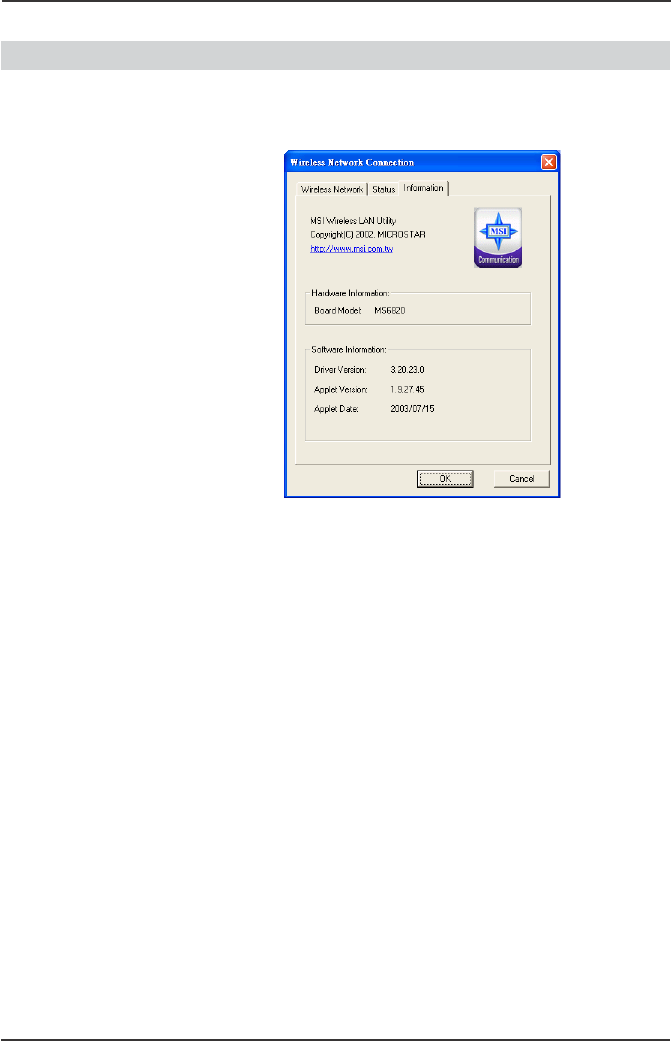

Information
In Information tab, you can get some information about the
manufacturer, hardware and software.
>>> 4.5
31
Wireless 11g MiniPCI Card MP54G User’s Guide
Sharing Network under Windows®
XP
Windows®
XP provides a special feature to link two
networks.

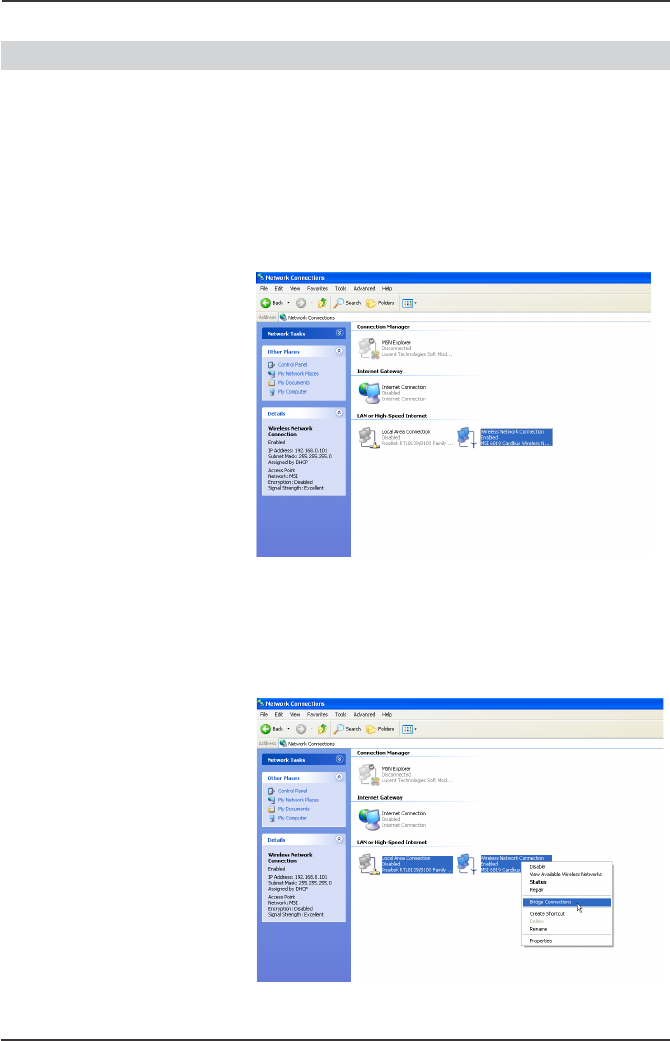

1. Go to Start -> Settings -> Control Panel.
2. Select the Network Connections item in
Control Panel to open the Network Connec-
tions window.
3. Select Wireless Network Connection and Local
Area Connection simultaneously; then, right-click
to select Bridge Connections in the context
menu.
>>> 4.6
32
Wireless 11g MiniPCI Card MP54G User’s Guide

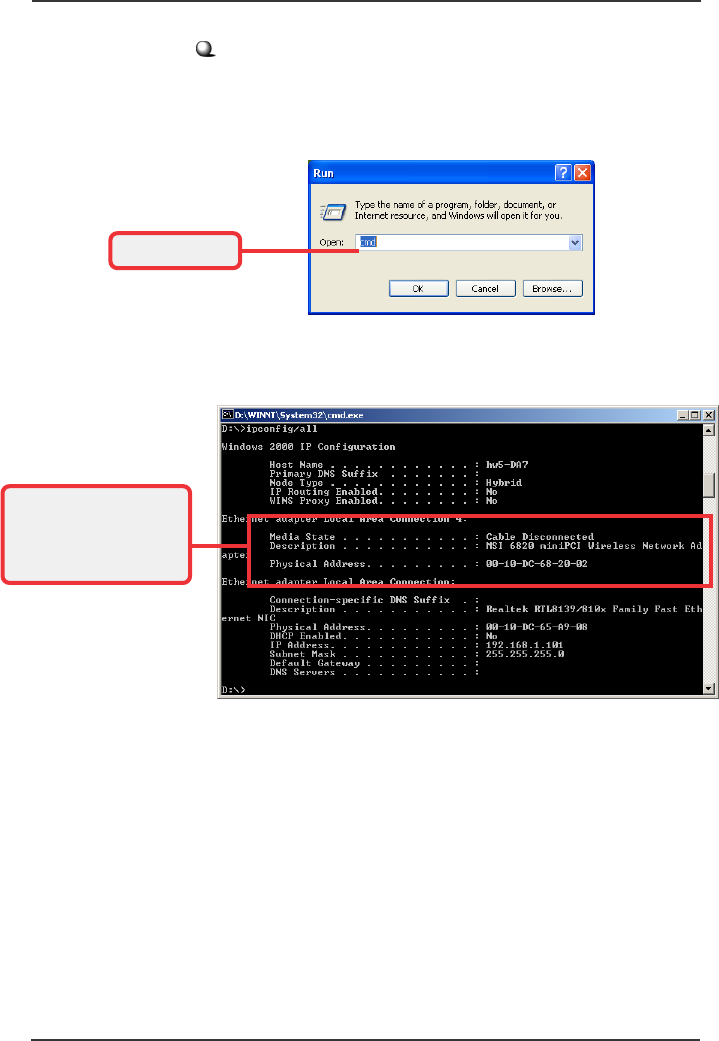

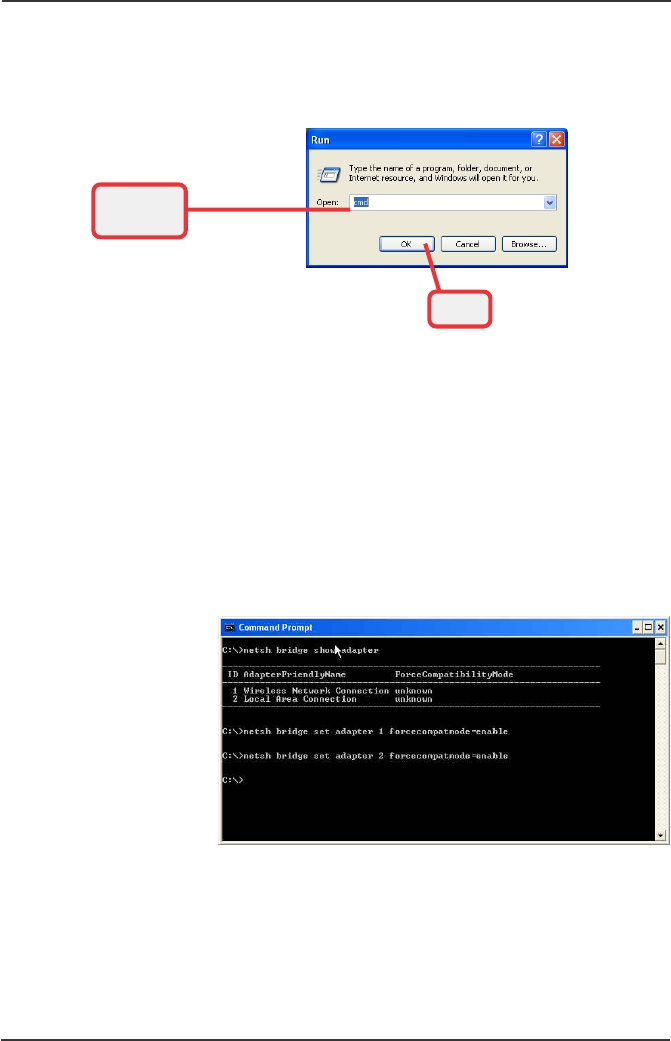

4. Go to Start -> Run and enter cmd in the Open
box; then, click OK, and a DOS prompt window
will appear.
5. Type net bridge show adapter and press
[Enter].
6. Type netsh bridge set adapter X
forcecompatmode=enable, where X is your
ethernet identifier, and press [Enter].
7. Type netsh bridge set adapter Y
forcecompatmode=enable, where Y is your
wireless identifier, and press [Enter].
Click
Enter cmd
in the box
33
Wireless 11g MiniPCI Card MP54G User’s Guide
Click
Click

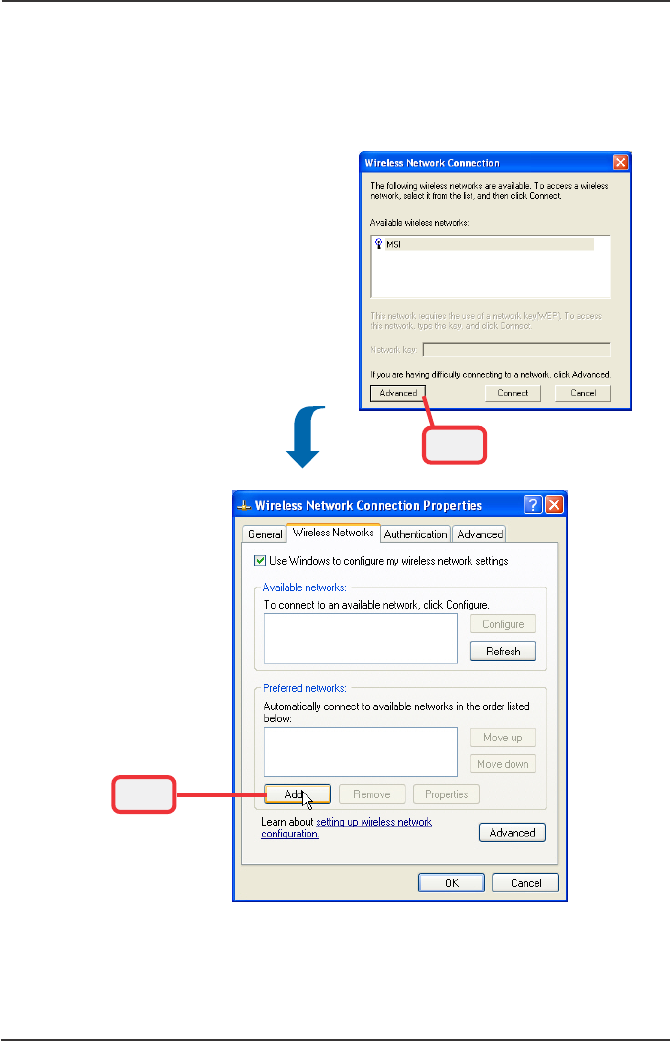

8. Click the MSI Wireless LAN icon in status area,
and click Advanced to bring up the Wireless
Network Connection Properties window. Click
Add... to add a new wireless network connec-
tion.
34
Wireless 11g MiniPCI Card MP54G User’s Guide

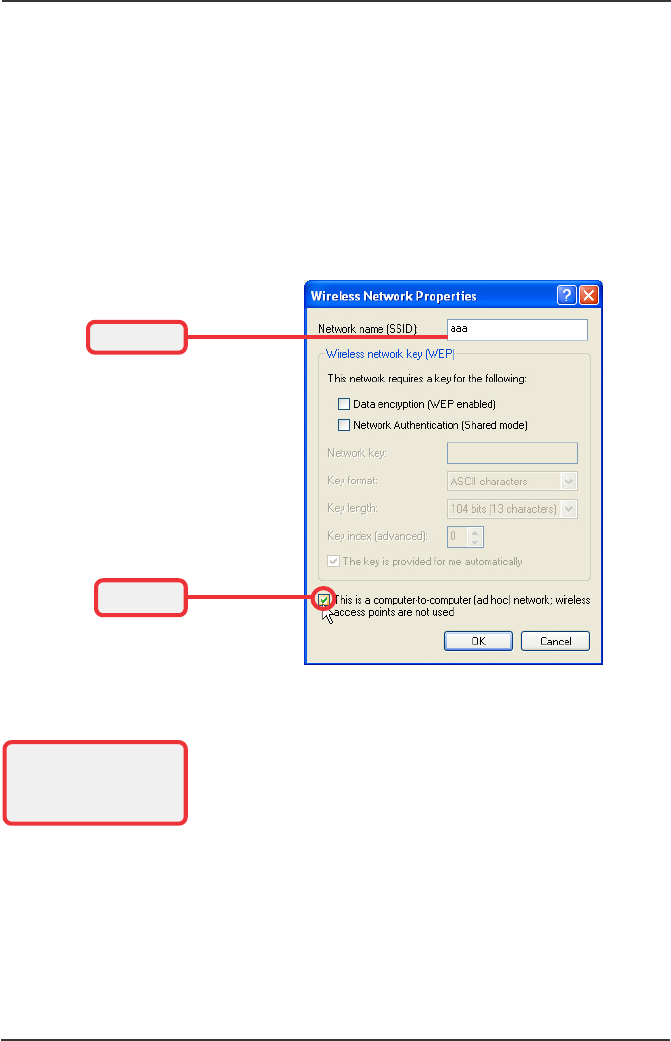

9. Enter a name for this new network in the Net-
work name (SSID), and check the "This is a
computer-to-computer [ad hoc] network;
wireless access points are not used" option.
In this case, this computer will function as an
access point, while other computers can use
this network name (which is "aaa " in the picture
below) to access. Once they connect success
fully, they could access the ethernet LAN via
Network Neighborhood.
Enter SSID
Check this
Please also refer to
Windows XP help file
for more information.
35
Wireless 11g MiniPCI Card MP54G User’s Guide

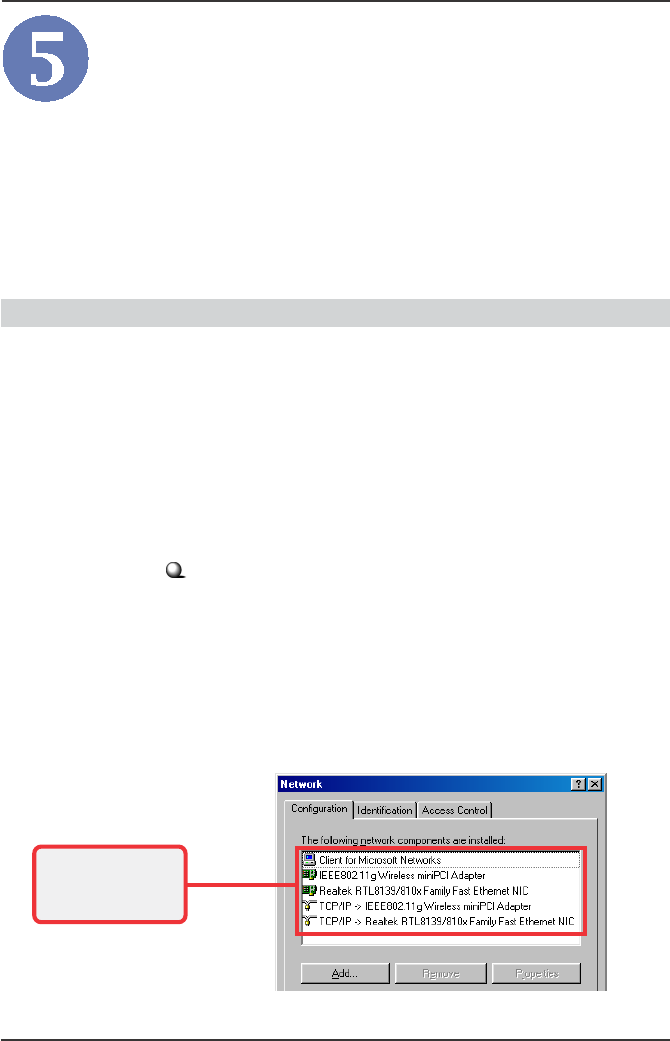

This chapter describes how to prepare for connection to
network and some basic outline of networking basics,
including sharing files, printing from a computer on the
network, or accessing the Internet on multiple computers
with one connection.
Checking the Network Elements
The following elements are required for all computers if
you want to connect to a network:
- Client for Microsoft Network
- TCP/IP (for MSI 6820 MiniPCI Card)
- File and printer sharing for Microsoft Networks
To check the required elements are installed in the
system, you can:
Under Windows 98SE/ME
1. Click Start and choose Settings; then, click
Control Panel to open the Control Panel win-
dow.
2. Double-click the Network icon.
3. The Network window appears to show the
current network settings of the system.
>>> 5.1
Check the required
elements from this
field.
Network Connection
36
Wireless 11g MiniPCI Card MP54G User’s Guide
Check the required
elements from this
field.
Under Windows 2000/XP
1. Click Start and choose Control Panel to open
the Control Panel window.
2. Double-click the Network Connection icon to
open the Network Connection window.
3. Right-click the Wireless Network Connection
icon and click Properties from the shortcut
menu.

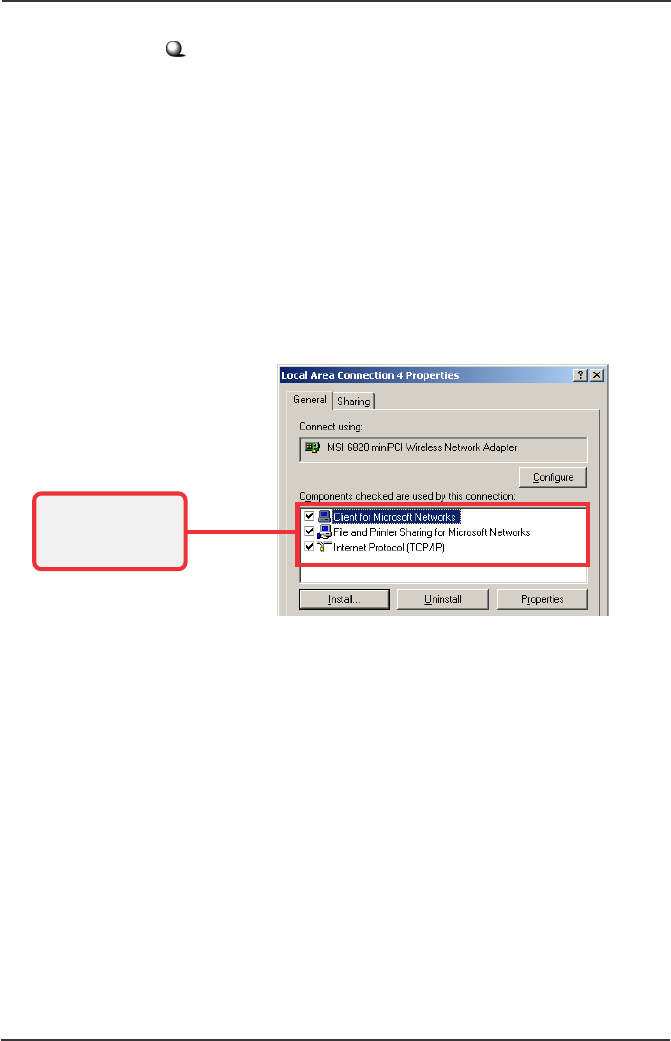

4. The Wireless Network Connection Properties
window appears to show the current network
settings of the system.
37
Wireless 11g MiniPCI Card MP54G User’s Guide
Computer Identification
Please verify that each computer has a unique name and
common workgroup name, if you had previously given
your Windows 98SE/ME/2000/XP computers names.
Under Windows 98SE/ME

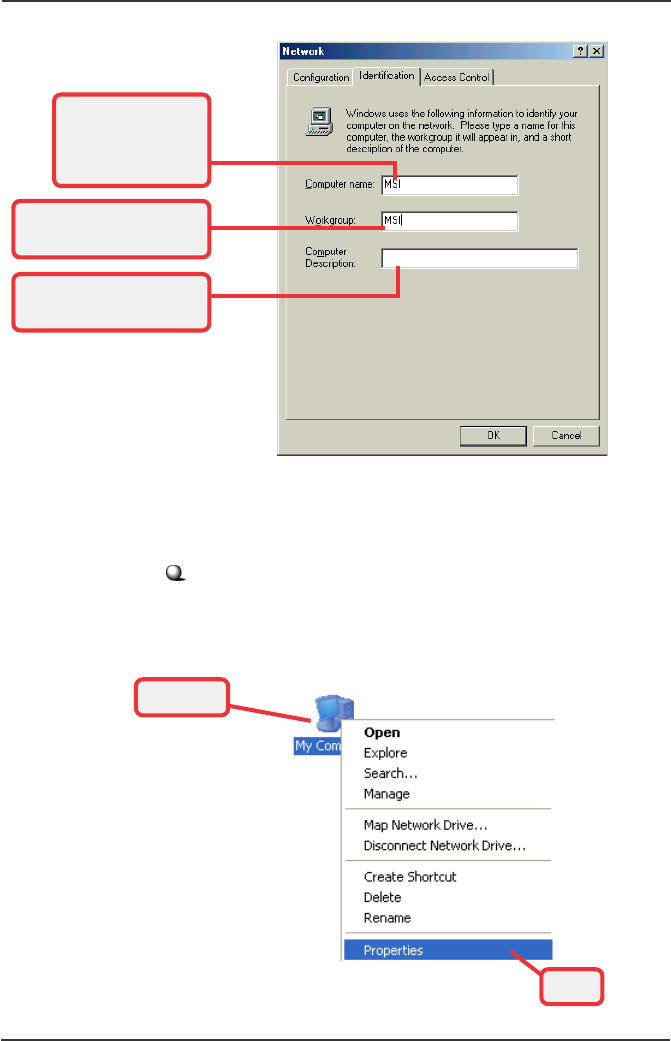

1. Open the Network window as described in
previous section, and choose Identification tab.
2. Type a name for the computer In the Computer
name box. This will be the name of this compu-
ter used by other computers on your network to
communicate with. Please NOTE that each
computer’s name must be unique on a particu-
lar network to avoid confusion.
3. Type the workgroup name that the computer will
belong to in the Workgroup box. All the comput-
ers on your network should have an identical
Workgroup name.
4. The Computer Description box is optional. You
may enter a description that helps to identify this
computer on your network. Then, click OK.
5. Repeat the procedure above for each computer
on your network to ensure that they all have unique
Computer Name and identical Workgroup.
>>> 5.2
38
Wireless 11g MiniPCI Card MP54G User’s Guide
Under Windows 2000/XP
1. Right-click My Computer icon on your Windows
desktop, and click Properties from the shortcut
menu.
Enter a name for
your computer (less
than 15 characters
without space.
Your computer will
belong to this workgroup.
Enter some information
for reference.
Click
Right-click
39
Wireless 11g MiniPCI Card MP54G User’s Guide
3. To rename the computer and join a workgroup/
domain, click Change.

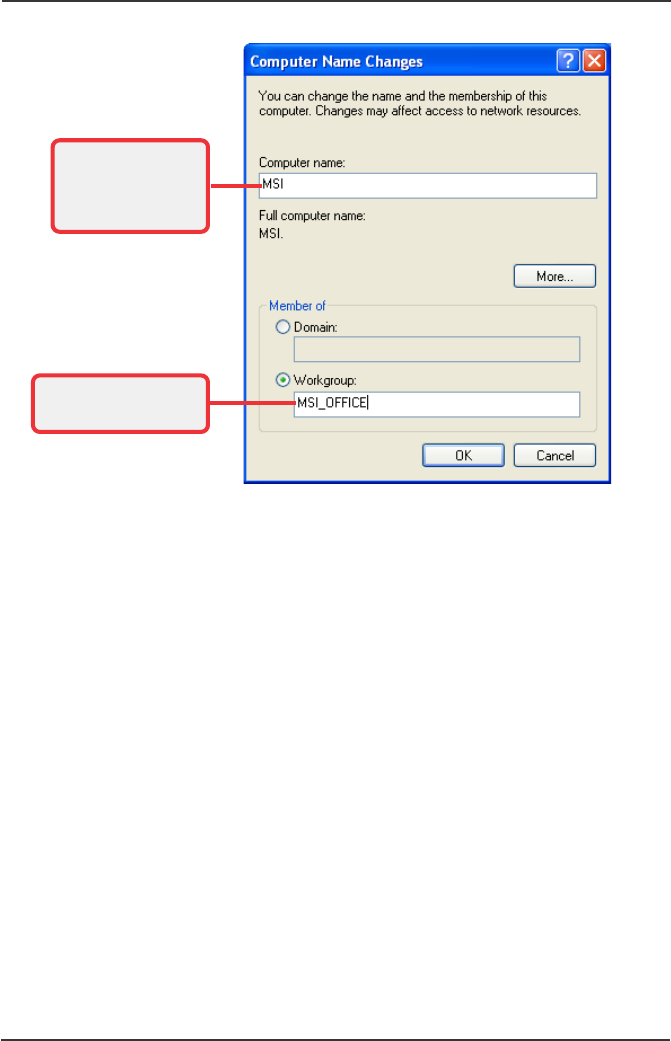

4. The Computer Name Changes window appears
as below. Enter a Computer Name, select
Workgroup and enter the name of your
workgroup. Please NOTE that each computer’s
name must be unique on a particular network to
avoid confusion.
5. Click OK to save changes.
Your computer’s
name.
Your computer will
belong to this workgroup.
Enter some information
for reference.

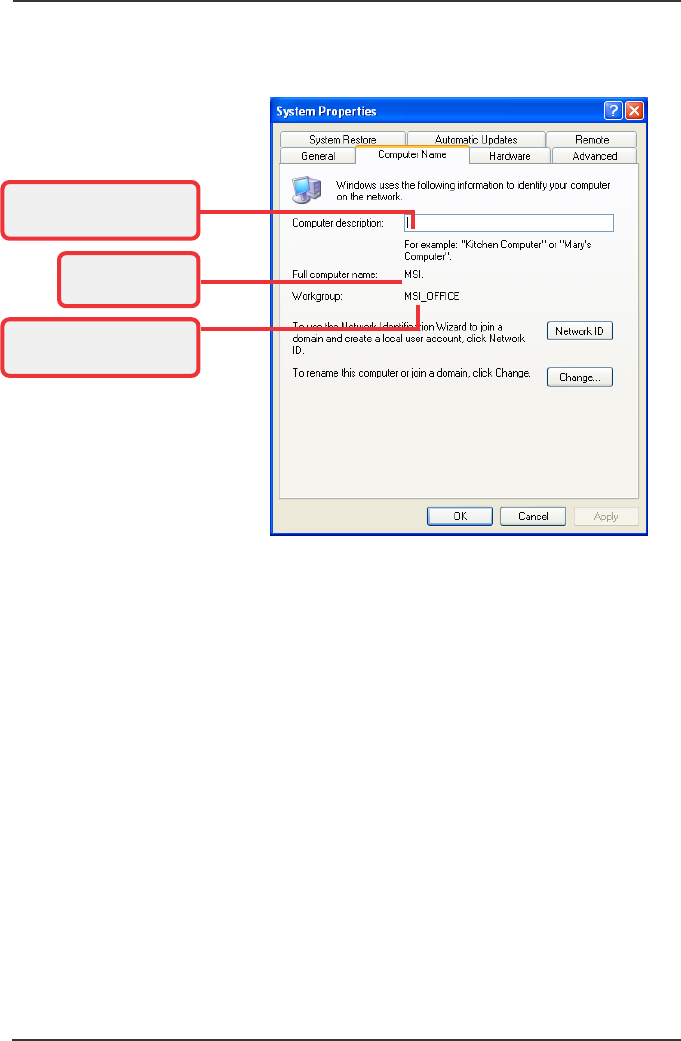

2. The System Properties window appears;
choose Computer Name tab.
40
Wireless 11g MiniPCI Card MP54G User’s Guide
Enter a name for
your computer (less
than 15 characters
without space.
Enter the name of the
workgroup.
41
Wireless 11g MiniPCI Card MP54G User’s Guide
Configuring a Dynamic/Fixed IP Address
When the drivers are installed, the default setting here is
set to obtain IP dynamically through a DHCP server. If
you want to change the settings, please follow the steps
below:
Under Windows 98SE/ME
1. Go to Start -> Settings -> Control Panel.
2. Double-click the Network icon.

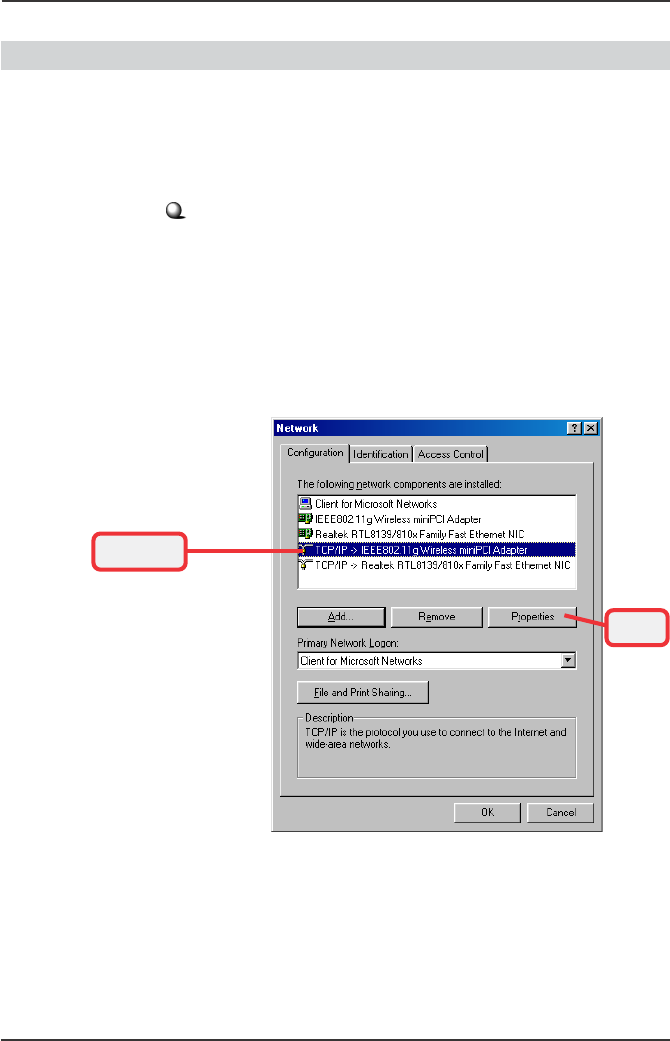

3. The Network window appears as below. Select
TCP/IP -> IEEE802.11g Wireless Network
miniPCI Adapter, and click Properties to bring
up the TCP/IP Properties window.
>>> 5.3
Select this
Click
42
Wireless 11g MiniPCI Card MP54G User’s Guide

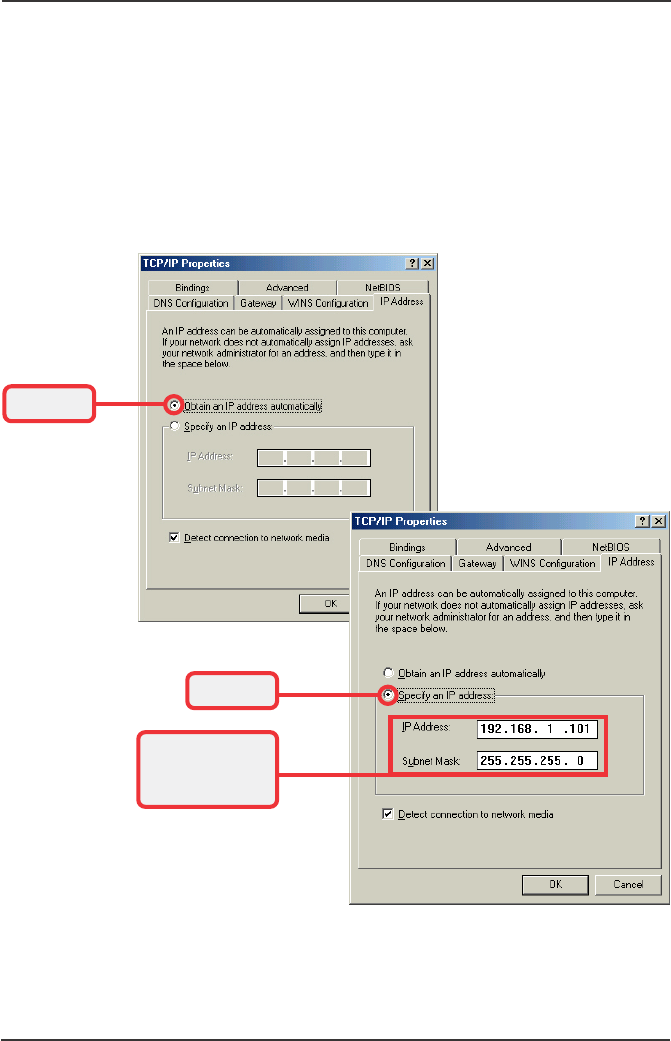

4.a To configure a dynamic IP address, choose IP
Address tab and check Obtain an IP Address
Automatically.
4.b To configure a fixed IP address, choose IP Ad-
dress tab and check Specify an IP Address.
Then, enter an IP address into the empty field.
Suggested IP Address Range is 192.168.1.1 to
192.168.1.253, and suggested Subnet Mask is
255.255.255.0.
Check this
Check this
Enter a fixed IP
address and
Subnet Mask
5. Click OK. Then, click Yes when prompted to
reboot the computer.
4.a Configuring a dynamic IP address
4.b Configuring a fixed IP address
43
Wireless 11g MiniPCI Card MP54G User’s Guide

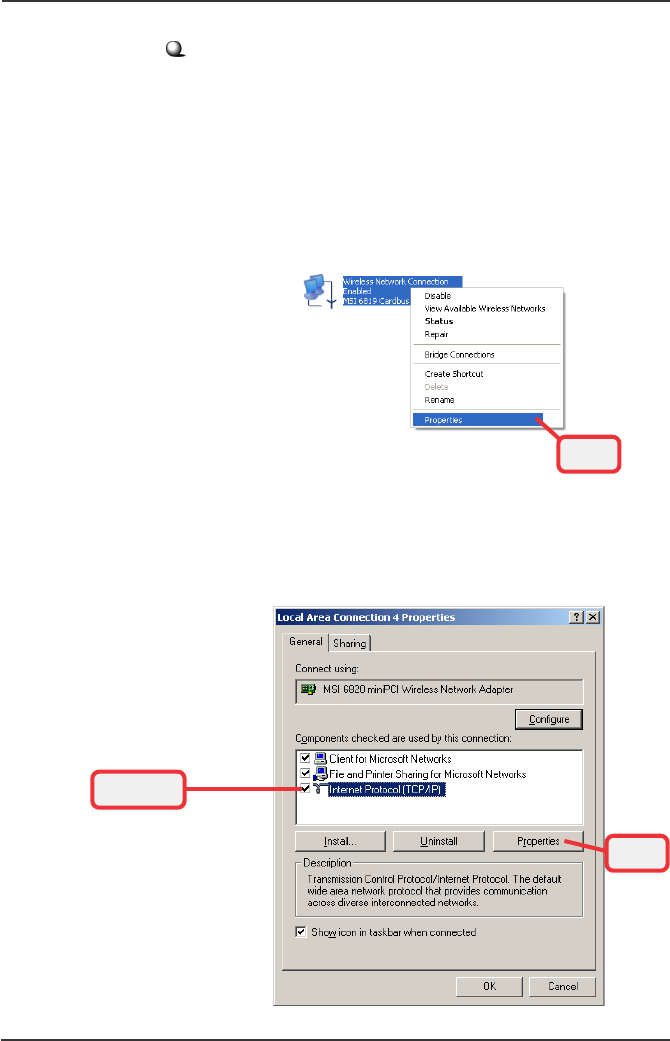

4. When the Wireless Network Connection
Properties window appears, choose General
tab and select Internet Protocol [TCP/IP], and
click Properties to bring up the Internet Proto-
col [TCP/IP] Properties window.
Select this
Click
Under Windows 2000/XP
1. Click Start and choose Control Panel to open
the Control Panel window.
2. Double-click the Network Connection icon to
open the Network Connection window.
3. Right-click the MSI 6820 miniPCI Wireless
Network Adapter icon and click Properties
from the shortcut menu.
Click
44
Wireless 11g MiniPCI Card MP54G User’s Guide

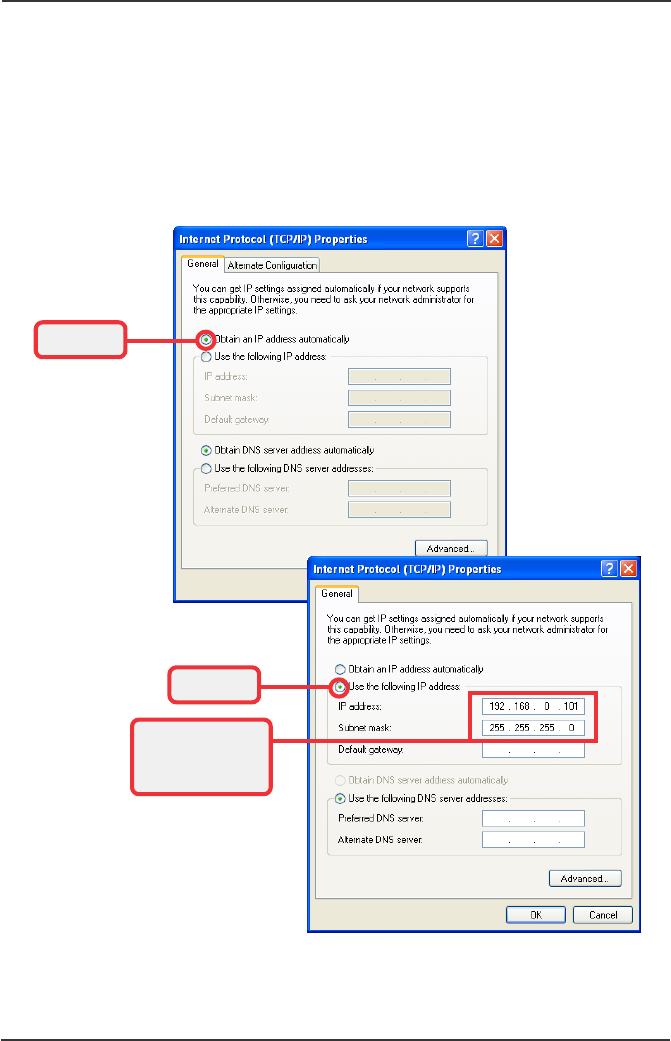

5.a To configure a dynamic IP address, check
Obtain an IP Address Automatically.
5.b To configure a fixed IP address, check Use the
following IP address. Then, enter an IP ad-
dress into the empty field. Suggested IP Ad
dress Range is 192.168.1.1 to 192.168.1.253,
and suggested Subnet Mask is 255.255.255.0.
Check this
Check this
Enter a fixed IP
address and
Subnet Mask
6. Click OK to complete the configuration.
5.a Configuring a dynamic IP address
5.b Configuring a fixed IP address
45
Wireless 11g MiniPCI Card MP54G User’s Guide

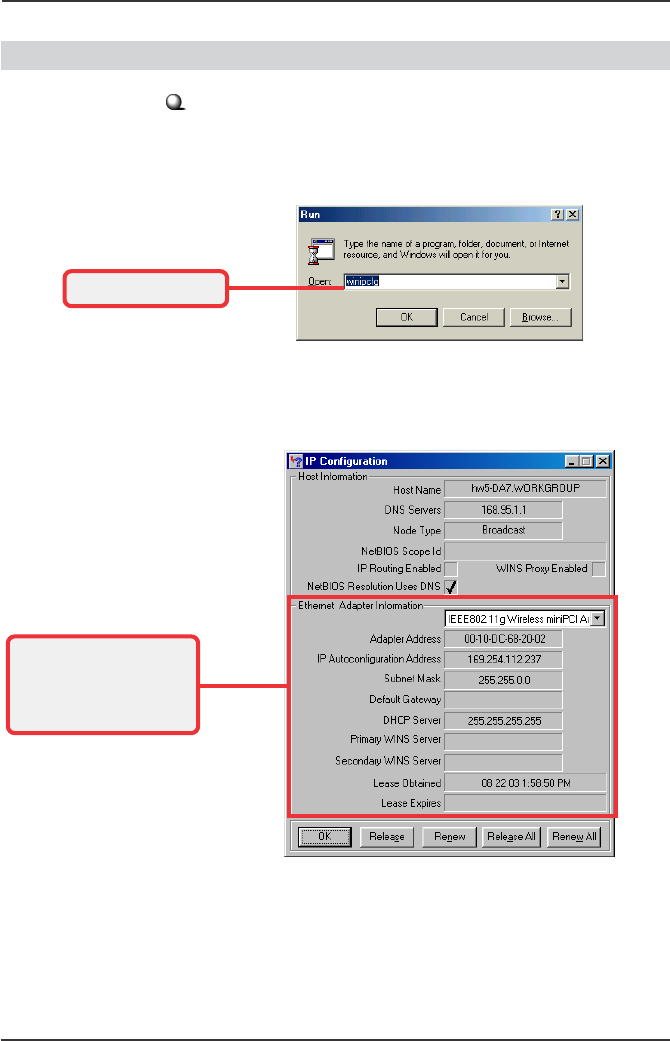

>>> 5.4 Checking TCP/IP Address
Under Windows 98SE/ME
1. Go to Start -> Run....
2. Type winipcfg in the Open box and click OK.
Type winipcfg here.
3. The IP Configuration screen will appear, click
More Info to bring up a screen containing detail
information of your wireless network adapter.
Check the configuration
of IP Address, Subnet
Mask, and Default
Gateway are correct.
46
Wireless 11g MiniPCI Card MP54G User’s Guide
Under Windows 2000/XP
1. Go to Start -> Run....
2. Type cmd in the Open box and click OK.
3. A DOS prompt window appears. Type ipconfig/
all and press [Enter] to display IP information.
Type cmd here.
Check the configuration
of IP Address, Subnet
Mask, and Default
Gateway are correct.
47
Wireless 11g MiniPCI Card MP54G User’s Guide
Checking Connection by Pinging
1. Go to Start -> Run....
2. Type command (Windows 98SE/ME) or cmd
(Windows 2000/XP) in the Open box and click
OK.
3. A DOS prompt window appears. Type ping
www.msi.com.tw (or any URL address), which
is the IP address of the Gateway in this case,
and press [Enter].
>>> 5.5

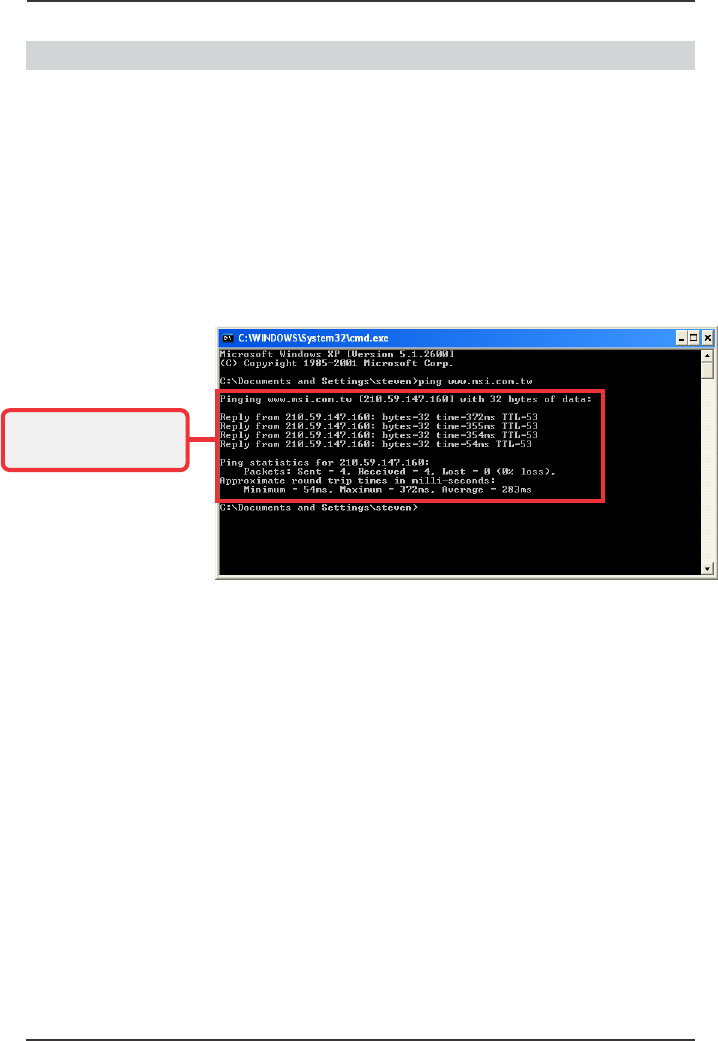

You will get reply if the
pinging is successful.
48
Wireless 11g MiniPCI Card MP54G User’s Guide
Sharing Files
You may now open and save files on other computers
once your computers are connected together on a
network. You will also be able to specify particular folders
or disk drives to share and even password to protect
them. Please verify that each computer has a unique
name and common workgroup name, if you had previ-
ously given your Windows®
98SE/ME/2000/XP computers
names. Follow the steps below to share specific files
and folders with other computers on your network.
1. On your Windows desktop, right-click My Net-
work Place icon and select Properties from the
context menu.
2. You will configure your computers network set-
tings in this dialog. It is also available through
the Network icon in the Control Panel.

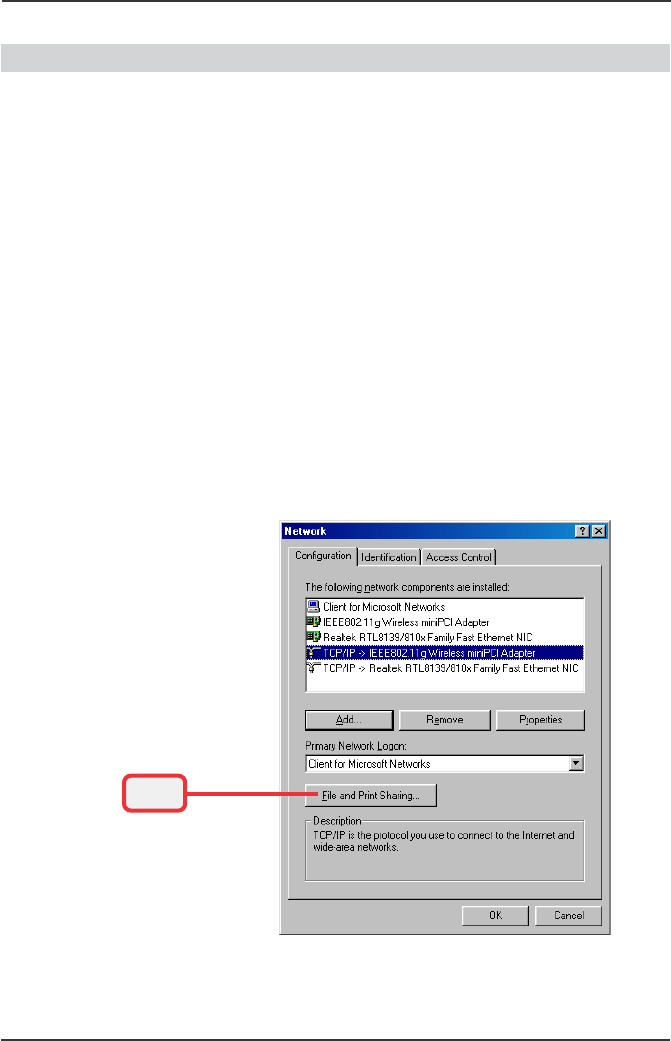

3. Click File and Print Sharing.
>>> 5.6
Click
49
Wireless 11g MiniPCI Card MP54G User’s Guide

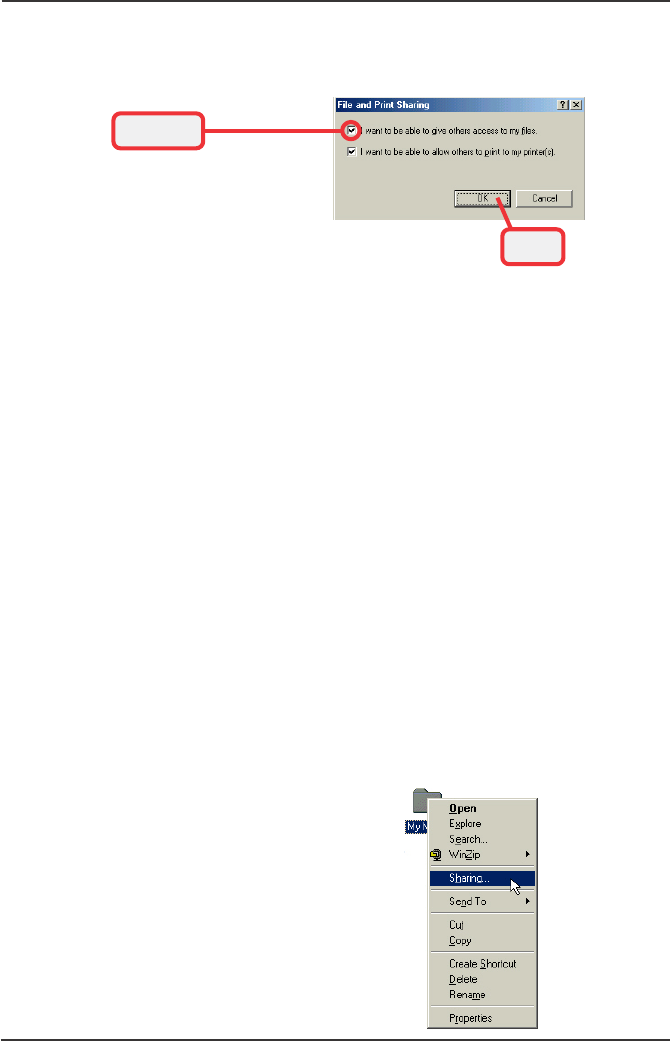

4. Check the option I want to be able to give
others access to my files, and click OK.
Check this
Click
5. Click OK in the Network dialog box.
6. Provide the Windows Setup CD or direct the path
to the proper location of the installation files if
prompted. Then, reboot if prompted.
7. Now you can identify a particular folder or disk
drive to share, which means you can share a
folder that both you and your family member/
colleague needs to access occasionally. You
can also share your CD-ROM drive for others to
use if your other computers do not have one.
Both of these processes are the same. Only the
disk drives and folders that you specifically
identify as shared will be accessible to other
computers on your network.
8. Locate the disk drive or folder you want to share
in Windows Explore or My Computer icon on
your desktop.
9. Right-click the disk drive or folder and select
Sharing.
50
Wireless 11g MiniPCI Card MP54G User’s Guide

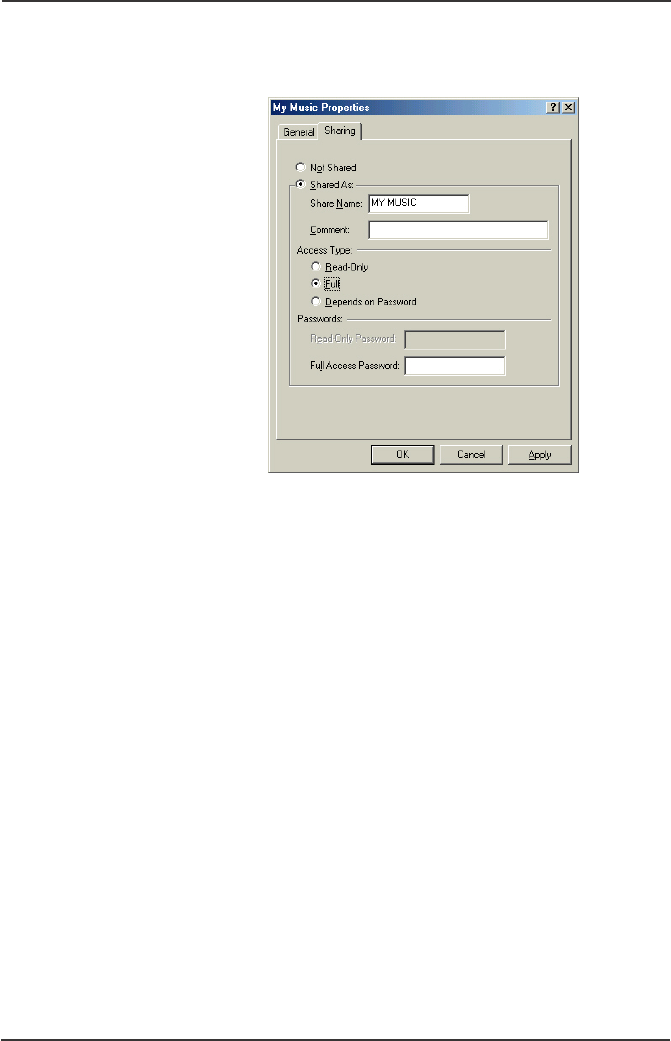

10. Select Share As to set the parameters for
sharing this particular disk drive or folder.
- Share Name
This is used to identify the disk drive or folder you
are sharing to other computers in the network,
which can be helpful as more resources in your
network for others.
- Comment
This field is optional, which can be used to further
describe the disk drive or folder for others in the
network.
- Access Type
This option allows you to designate how much
someone else can do with this shared disk drive or
folder. Setting options are: Read-Only - only allows
others to look at or open the files in the disk drive or
folder. Full - allows others to read, write, open,
save, copy, move, and even delete files. Depends
on Password - gives other computers access
conditional on the password they provide.
51
Wireless 11g MiniPCI Card MP54G User’s Guide
- Password
This option allows you to apply a level of security to
your shared disk drive and folder. Any other compu-
ter (user) will be asked to enter the password you
set here before accessing the disk drive or folder.
Two passwords are used to give two levels of
security (or access) to others in the network using
the Depends on Password setting. Leaving the
Password boxes empty will give everyone in the
network access to the disk drive or folder.
11. Click OK to continue. You will be prompted to
type the password(s) you provided for verifica-
tion. Type the password(s) just as you typed
them again.
12. Now you may access this disk drive or folder
from another computer in your network. You may
do so by double-clicking the My Network Place
icon on your Windows desktop or inside Win-
dows Explorer.
13. Navigate to the computer with the shared disk
drive or folder (recognized by the Computer
Name you provided), and double-click it. If you
specified a password when sharing this disk
drive or folder, you will be asked for the pass-
word.
14. You can access a disk drive of folder shared
over the network from most Windows 98SE/ME/
2000/XP applications. you can map these disk
drives and folders to a drive letter on another
computer to make this process easier. For
example, on a computer where you are access-
ing a shared folder from another computer,
inside Windows Explorer right-click and select
Map Network Drive. Now you are able to assign
an available drive letter. Checking Reconnect at
logon allows Windows to map this network drive
each time when you start your computer.
52
Wireless 11g MiniPCI Card MP54G User’s Guide
Installing and Using the Software AP
To use the MSI Software AP, install the driver and utility
for your MSI wireless adapter (for more instructions on
installing, please refer to your adapter’s User’s Manual).

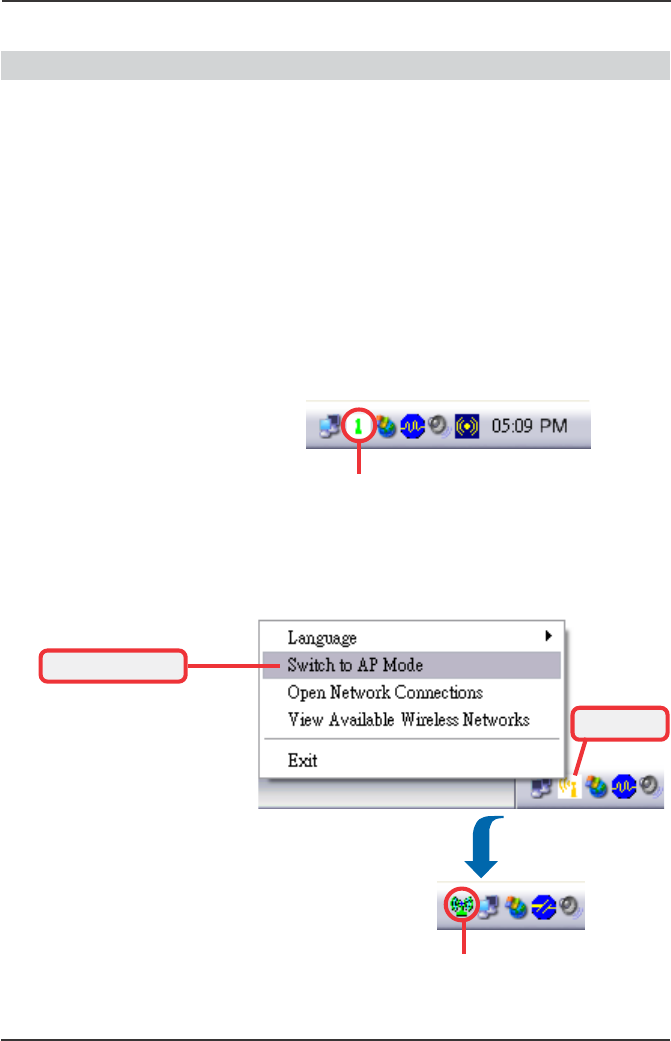

When you install the driver and utility successfully, you
can see the MSI Wireless LAN icon appears in the
status area.
A.1
Right-click the MSI Wireless LAN icon, and select the
Switch to AP Mode option to enable the Software AP
mode.
Right-click
Select this option
Software AP Controller
MSI Wireless LAN icon
Appendix
- MSI Software AP
53
Wireless 11g MiniPCI Card MP54G User’s Guide

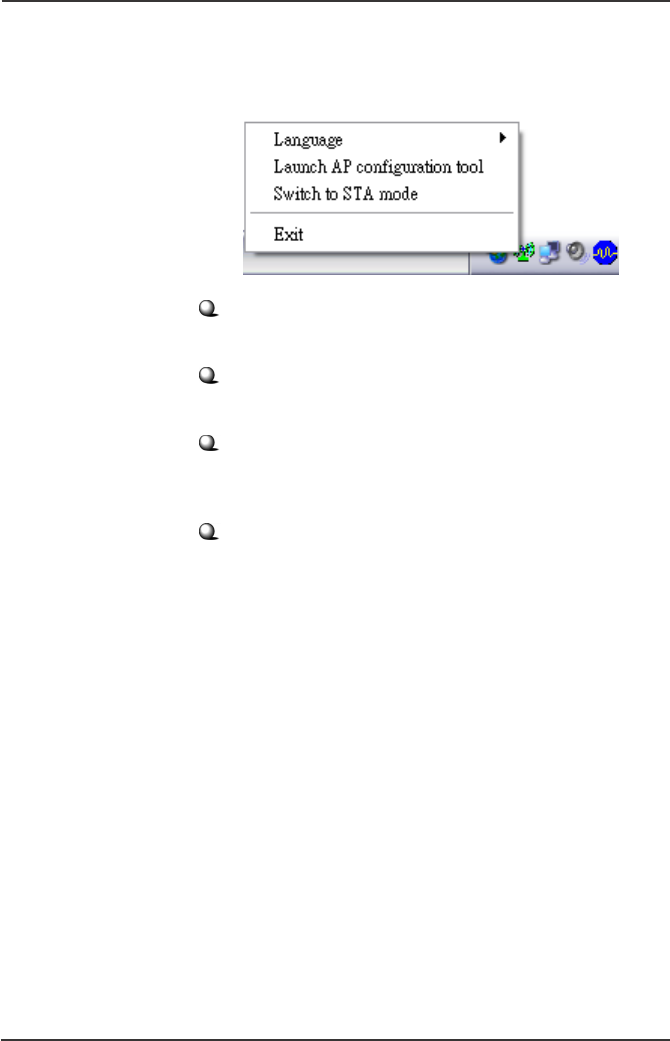

When the Software AP is enabled, right-click the Soft-
ware AP Controller icon and a sub-menu containing
more settings will appear as below.
Language
Choose a language according to your operating system.
Launch AP configuration tool
Launch the utility to configure your network settings.
Switch to STA mode
Select to switch to the adapter’s normal function and dis-
able the virtual AP mode.
Exit
Close the program.
54
Wireless 11g MiniPCI Card MP54G User’s Guide

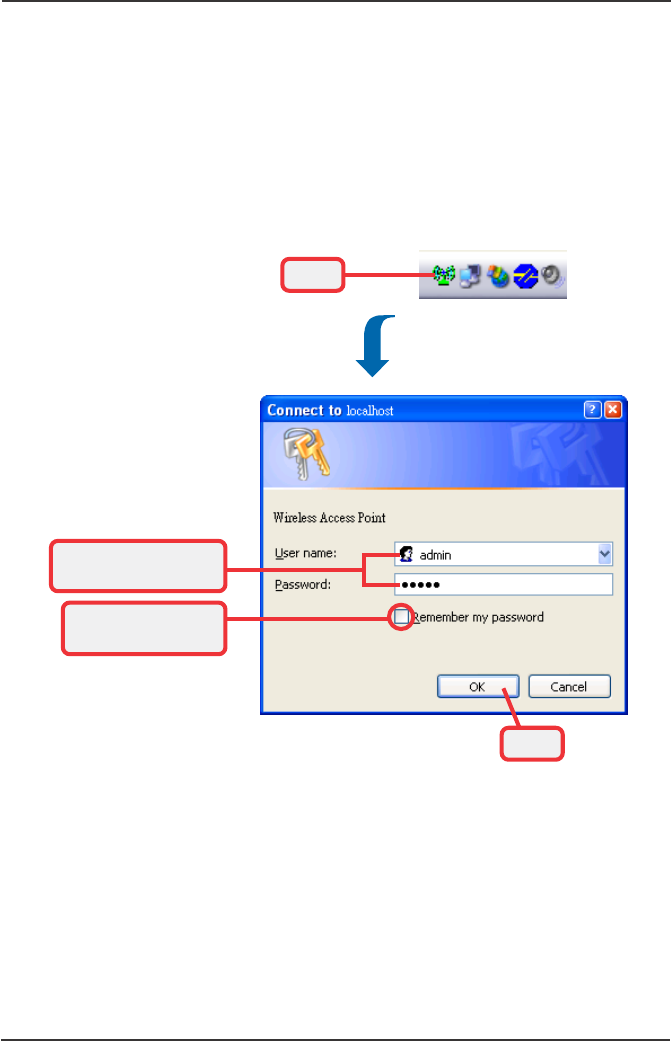

A.2 Launching the Configuration Utility
When the Software AP is enabled, click the icon to
launch the Configuration Utility (or select Launch AP
configuration tool option in the previous section).
First, enter the user’s information in the Connect dialog
box. By default, the User Name is admin and the
Password is admin. Then, click OK.
Check this option to
save the settings
Click
Enter the User Name
and Password
Click
55
Wireless 11g MiniPCI Card MP54G User’s Guide

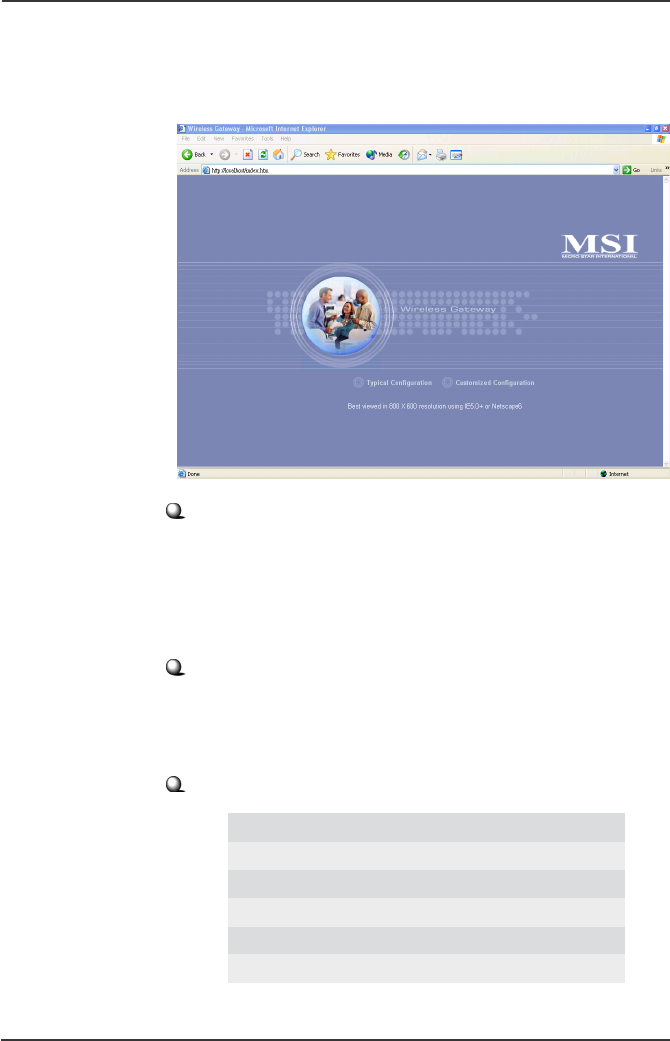

The Home window of the Configuration Utility will appear
as below, which provides two options to select: Typical
Configuration and Customized Configuration.
Typical Configuration provides a step-by-step Setup
Wizard to guide you through the basic settings of the
gateway. Generally, after completing the three steps in
this option, your virtual AP can connect to the ISP and
your client computer can access to the Internet without
any problem.
Customized Configuration allows you to customize the
network settings of your virtual AP for some specific
purposes, such as changing password and other
network settings.
Factory Default Settings of the Virtual AP
SSID MSI
Channel 1
User Name admin
Password admin
Encryption Disable
DHCP client Enable
56
Wireless 11g MiniPCI Card MP54G User’s Guide
Setting the SSID
SSID (Service Set Identifier) is the name designated for
a specific wireless local area network (WLAN). The
factory default setting is MSI.

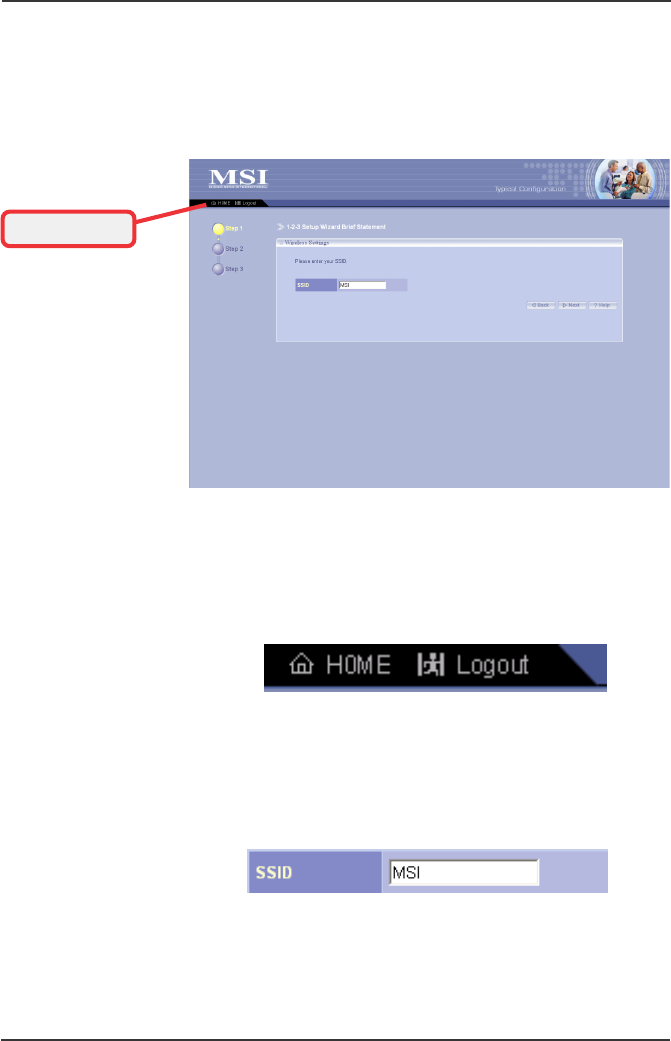

Typical Configuration
In the Home window, click Typical Configuration and the
Setup Wizard appears from Step 1 to guide you through
the configuration.
The Menu Bar
During the Setup Wizard, whenever you click HOME in
the menu bar will make you return to the Home window;
click Logout to exit the Configuration Utility.
The Menu Bar
The Menu Bar
Step 1. Setting the SSID
After entering your SSID, click Next to continue step 2.
A.3
Step 1.
57
Wireless 11g MiniPCI Card MP54G User’s Guide
Setting the Channel
Channel 1 is the default value. Please note that all
devices on the network must share the same channel.
Step 2. Setting the Channel
Make your choice and click Next to continue step 3.
Step 2.
58
Wireless 11g MiniPCI Card MP54G User’s Guide
Data Encryption
If Data Encryption is set to Required, the following
items must be answered. If it is set to Not Required,
you may skip Step 3 and click Next to close the 1-2-3
Setup Wizard.
Authentication Type
- Open System : communicates the key across the
network.
- Shared Key : devices must have identical WEP
settings to communicate.
Select your authentication type and continue on to the
next item.
Encryption Type
Select the level of encryption desired: 40-bit or 128-bit.
If you want to enable the encryption, for 40-bit key,
enter 10 hexadecimal digits; for 128-bit key, enter 26
hexadecimal digits.
WEP Key
Enter your 10- or 26-digit WEP Key.
When completed, click Next to close the 1-2-3 Setup
Wizard.
Tip: Hexadecimal
digits consist of the
numbers 0-9 and the
letters A-F.
WEP Setting
Step 3. Setting the WEP
Step 3.
59
Wireless 11g MiniPCI Card MP54G User’s Guide
Customized Configuration
Typically your virtual AP will have no problem to connect to
your ISP and let internal clients to access to the Internet
without any problem after going through the three steps in
Typical Configuration. However, if you want to customize
your virtual AP for some specific purposes, you may per-
form the configuration here.

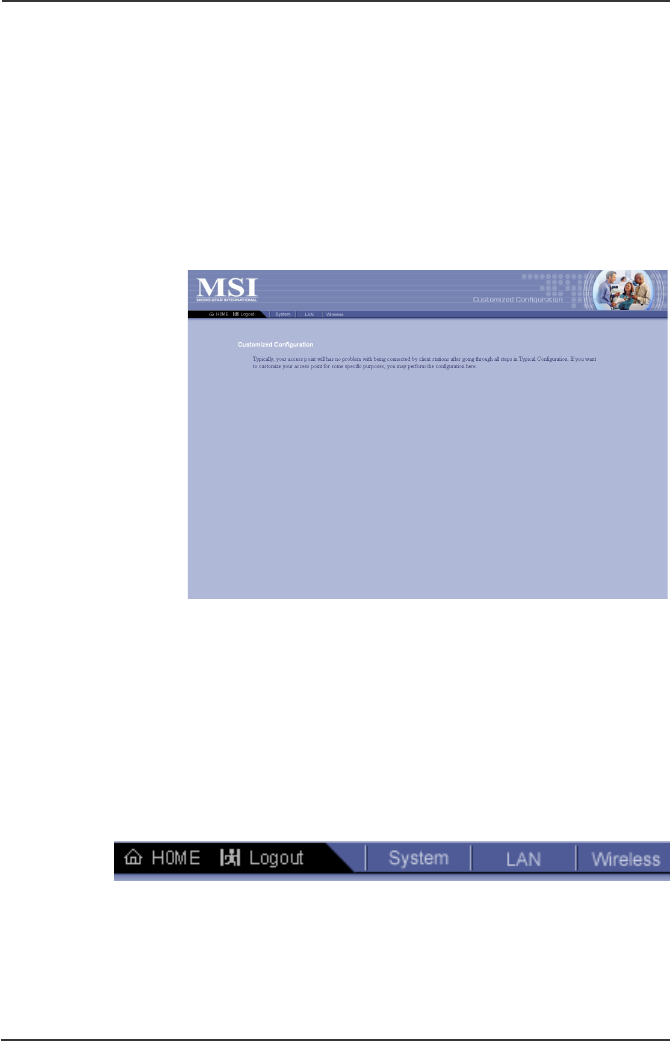

Click Customized Configuration, and the main window
appears as below.

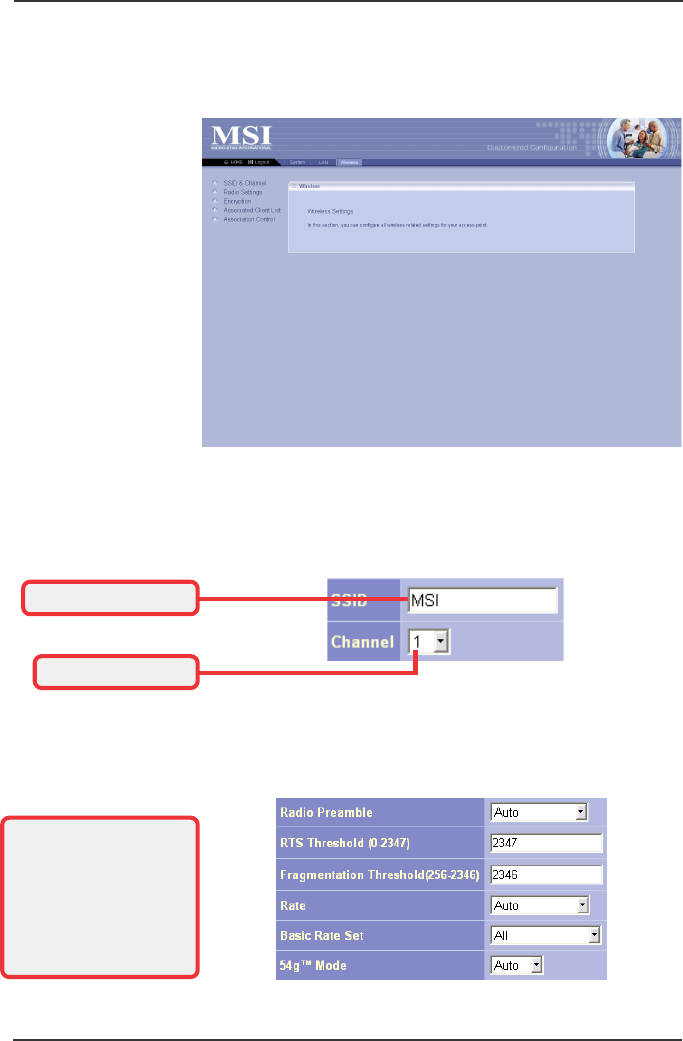

Main Window of Customized Configuration
The Menu Bar
There is a menu bar in the top of the Customized
Configuration window, where contains two options to exit
the configuration window (HOME and Logout, as
described in page 8); and three options for advanced
configuration: System, LAN, and Wireless, allowing you
to configure these respective settings and view the
system status.
The Menu Bar
A.4
60
Wireless 11g MiniPCI Card MP54G User’s Guide
Factory Default
You may re-load the factory settings of your Virtual AP.
System Status
This option contains detail information of your Virtual AP,
including general information and respective network
settings.

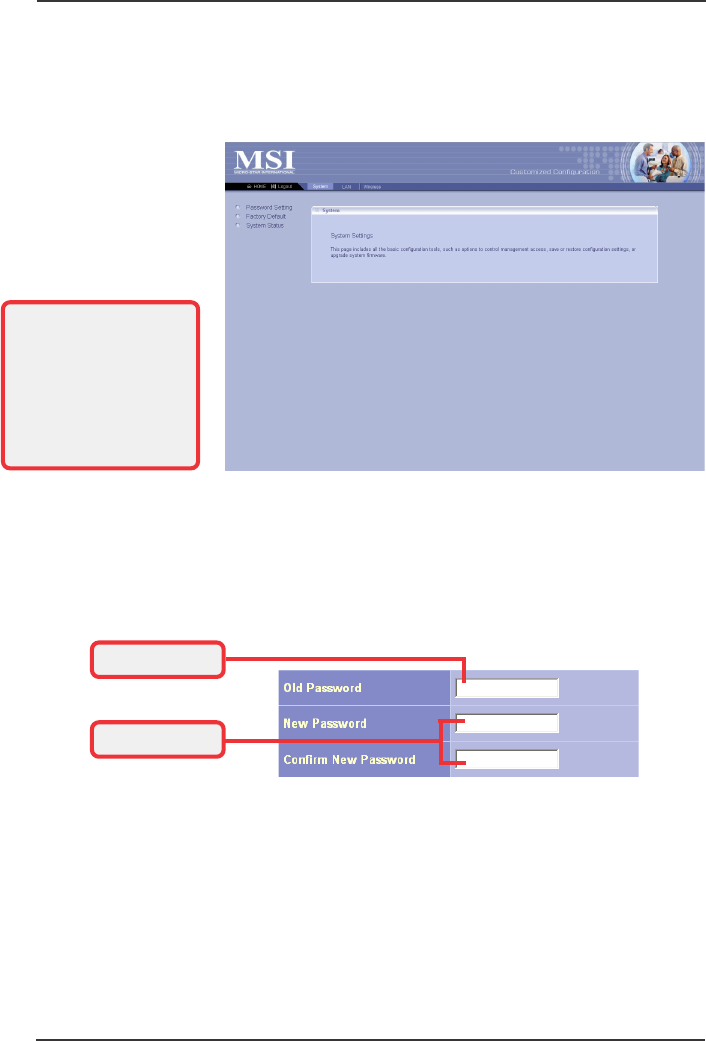

System
This page includes all the basic configuration tools such
as options to set up password, re-load the factory
default settings, and view system status.
Password Setting
The default password of your virtual AP is admin. This
option allows you to use other password to replace the
old password. First, enter the old password, and then
enter the new password twice to confirm the password
changed. Then, click Apply to save the settings.
This window includes:
> Password Setting
> Factory Default
> System Status
Old Password
New Password
Tip: Once you have
changed the settings in
each option, click Apply
to save the settings, or
Cancel to abandon.
Clicking Help can bring
up the help window.
A.4.1
61
Wireless 11g MiniPCI Card MP54G User’s Guide

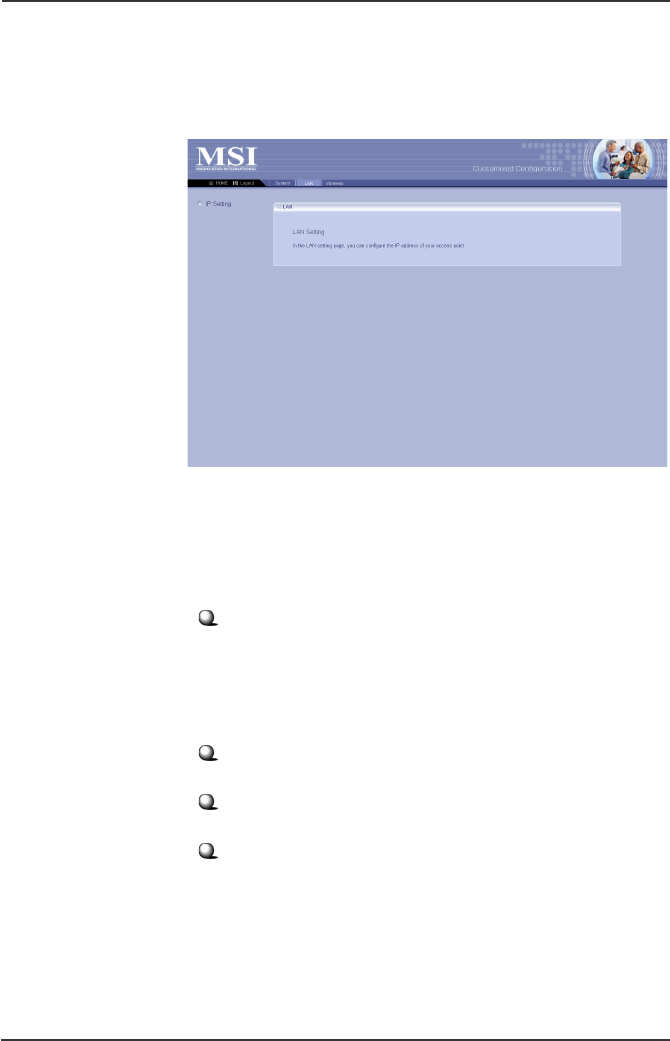

LAN
LAN is short for Local Area Network. This is considered
your internal network. In the LAN Setting window, you
can configure the IP setting.
A.4.2
IP Setting
The default setting of the IP address is obtained from
your DHCP server. If there is no DHCP server in your
network, uncheck the Enable DHCP client option and set
up the IP address for your virtual AP.
DHCP Client
When set to Enable, your virtual AP can obtain an IP
address automatically from the DHCP server. Please
note that once you enable DHCP Client, you might not
be able to configure your virtual AP in the browser unless
you know what IP address your virtual AP is assigned.
IP Address
The IP address of the LAN interface.
Subnet Mask
The subnet mask of the LAN interface.
Default Gateway
The IP address of the router/gateway in your network.
This window includes:
> IP Setting
62
Wireless 11g MiniPCI Card MP54G User’s Guide
Wireless
In this section, you can configure all wireless related
settings for your virtual AP.
A.4.3
SSID & Channel
This option is used to set the SSID (Network Name) and
channel for your virtual AP. If you have changed the SSID
or Channel settings, click Apply to save the settings.
This window includes:
> SSID & Channel
> Radio Settings
> Encryption
> Associated Client List
> Association Control
* These settings are for
advanced users or MIS
staff only. If you do not
know how to set these
parameters, you are
recommended to use the
default value.
Radio Setting
This option allows you to configure the operation
parameters of the AP radio settings*.
Select the Channel
The virtual AP’s SSID
63
Wireless 11g MiniPCI Card MP54G User’s Guide
Associated Client List
This option is to display information of stations that are
currently associating to your virtual AP.
Association Control
This option allows you to control which PC can connect
to the wireless LAN. If you enabled this feature, only
PCs with MAC address located in Association Control
List can connect to the wireless LAN.
Enable WEP
Encryption
This option allows you to configure the setting of data
encryption. The WEP key must be set before the data
encryption is enforced.
64
Wireless 11g MiniPCI Card MP54G User’s Guide
AAccess Point 1, 3
Ad-hoc mode 2, 24
ASCII 27
Available Networks 22
Bridge Connections 31
CCK 4
Channel 4, 28
Command 47
Computer Identification 37
Country 29
DBPSK 4
DOS 32
DQPSK 4
DSSS 4
Dynamic IP Address 41
Encryption 4, 27
File and Print Sharing 48
Fixed IP Address 41
Fragmentation Threshold 29
Index
B
C
D
E
F
65
Wireless 11g MiniPCI Card MP54G User’s Guide
Gateway 47
Hex-adecimal digital 27
IEEE802.11g 1
Information tab 30
Infrastructure mode 1, 3
InstallShield Wizard 11
Internet 2, 35
Key format 27
Key index 27
Key length 27
LAN 2
LED 7
Link Quality 28
Local Area Connection 31
MSI Wireless LAN icon 19
Network key 22
Power save 29
Preamble Type 29
Preferred network list 23
priority 23
Protocol 4
G
H
I
M
K
L
N
P
66
Wireless 11g MiniPCI Card MP54G User’s Guide
Radio 28
Range 4
RTS/CTS Threshold 29
Service Set Identifier 28
Signal Strength 28
Speed 28
SSID 28
Status tab 28
Subnet Mask 42
TCP/IP 4, 45
WEP 22, 27
winipcfg 45
Wireless Network Connection 21
Wireless Network Connection Properties 33
R
W
S
T
