1 Introduction
The RU00-M03 is a System in Package (SiP) that comprises a completely in integrated solution for EPC Gen
2 / ISO18000-63 (formerly 18000-6C) application.
The SiP was developed to make embedding UHF RFID reader capability easy. The RU00-M03 builds on
market-leading Indy reader chip technology and integrates all of the necessary components into a tiny
package. It requires very few external components. The RU00-M03 comes in a surface mount package
designed to work as a SMT (surface mount technology) component in a standard PCB manufacturing
process.
This document provides instructions to the end-user to ensure optimal performance in their OEM
hardware. Details on the use of the RU00-M03 Development Kit are also included to provide an example
of appropriate application.
Model Number Supported Regions Operating Frequency
RU00-M03-X001 US 902.75MHz~927.25MHz
EU 866.3MHz~867.5MHz
RU00-M03-X011 CN 920.625MHz~924.375MHz
JP 916.8MHz~920.4MHz
Table 1: Band configurations
Regions configuration in different end-use products is limited by an original equipment manufacturer (OEM)
MICROELECTRONICS TECHNOLOGY INC 4 April 16, 2015
2 Regulatory Statement
Federal Communication Commission Interference
Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 21cm
between the radiator & your body.
MICROELECTRONICS TECHNOLOGY INC 5 April 16, 2015
3 Block Diagram
An example of a RU00-M03 system-level block diagram for an embedded application is shown in Figure 1.
Required connections:
VDC and GND are required to power the RU00-M03.
RF pin must be connected to the OEM antenna.
UART1 provides host communications to control the operation of the RU00-M03.
ENABLE pin resets the RU00-M03 when set low.
Recommended connections:
UART2 provides debug information.
HEALTH indicates successful boot of the RU00-M03. Connection to an LED provides a visual indication
of whether or not an error condition exists.
STATUS provides an indication when the RU00-M03 is inventorying tags. Connection to an LED
provides a visual indicator of the tag activity.
Optional connections:
GPIO allow the user to provide general-purpose user-controlled digital I/O
WAKEUP is a digital input which may wake the RU00-M03 from its sleep mode, the lowest power state
of the RU00-M03 (TBD).

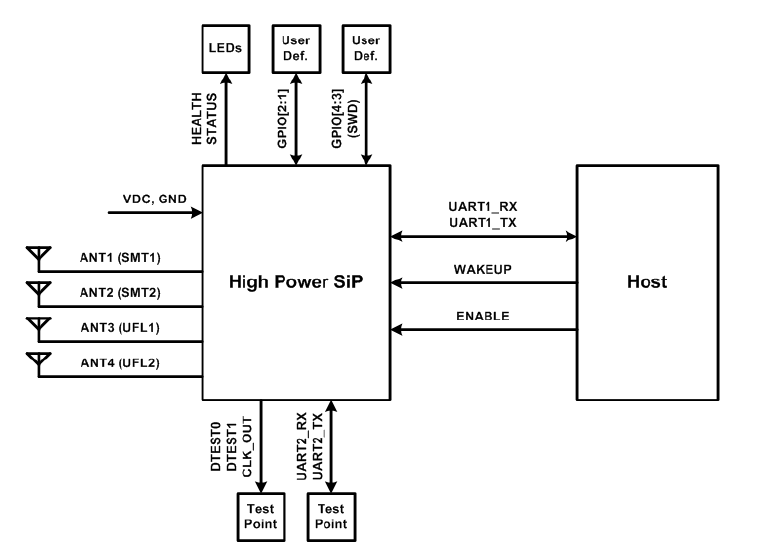

Figure 1: System Block Diagram
MICROELECTRONICS TECHNOLOGY INC 6 April 16, 2015
4 Pin Configurations and Descriptions
The module is 35-pin surface mount package (SMT compatible). The pin configurations are shown in Figure

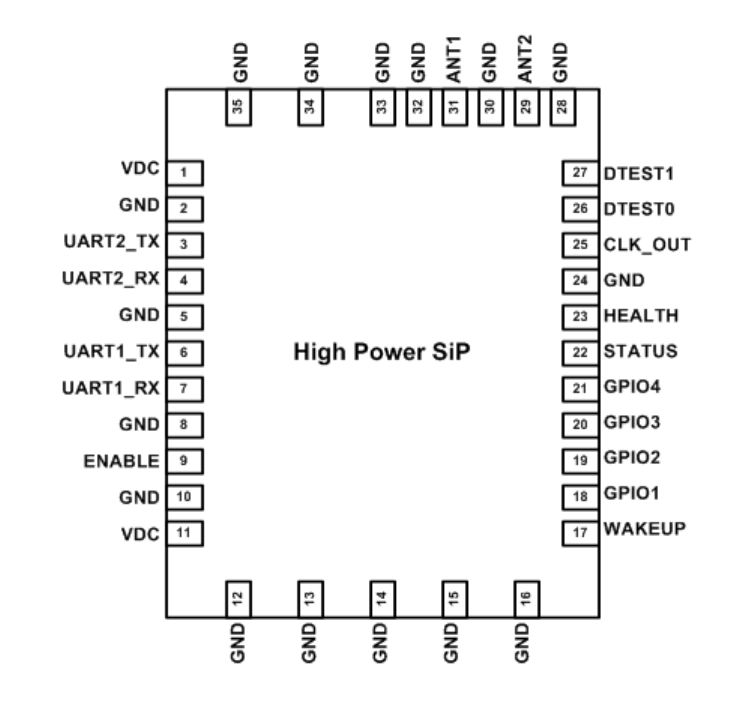

Figure 2: Pin Configurations
MICROELECTRONICS TECHNOLOGY INC 7 April 16, 2015
Pin
Number Pin Name Type Description
1 VDC Power Power Supply
2 GND Ground Ground
3 UART2_TX Output UART Debug Transmit Data
4 UART2_RX Input UART Debug Receive Data
5 GND Ground Ground
6 UART1_TX Output UART Console Transmit Data
7 UART1_RX Input UART Console Receive Data
8 GND Ground Ground
9 ENABLE Input Active High Enable Device
10 GND Ground Ground
11 VDC Power Power Supply
12,13,14,15,16 GND Ground Ground
17 WAKEUP Input Active High Wake up Device
18 GPIO1 I/O General Purpose Input/Output
19 GPIO2 I/O General Purpose Input/Output
20 GPIO3 I/O General Purpose Input/Output (*1)
21 GPIO4 I/O General Purpose Input/Output (*2)
22 STATUS Output Status Indication
23 HEALTH Output Status Indication
24 GND Ground Ground
25 CLK_OUT Output N/A
26 DTEST0 Output N/A
27 DTEST1 Output N/A
28 GND Ground Ground
29 ANT2 Output Monostatic antenna port 2 (*3)
30 GND Ground Ground
31 ANT1 Output Monostatic antenna port 1 (*3)
32,33,34,35 GND Ground Ground
Table 2: Pin Descriptions
(*1) Pin 20 : GPIO3 can be configured to SWDIO (Serial Wire Input/Output) for programming
(*2) Pin 21 : GPIO4 can be configured to SWDIO (Serial Wire Input/Output) for programming
(*3) Antenna connections may be used via ANT1(pin 29), ANT2(pin 31) pads with 50Ω line on the
bottom of board and via U.FL connectors on the top of board named ANT3(UFL1) and ANT4(UFL2).
MICROELECTRONICS TECHNOLOGY INC
8
April 16, 2015
5 Package Descriptions
Package Mechanical Outline

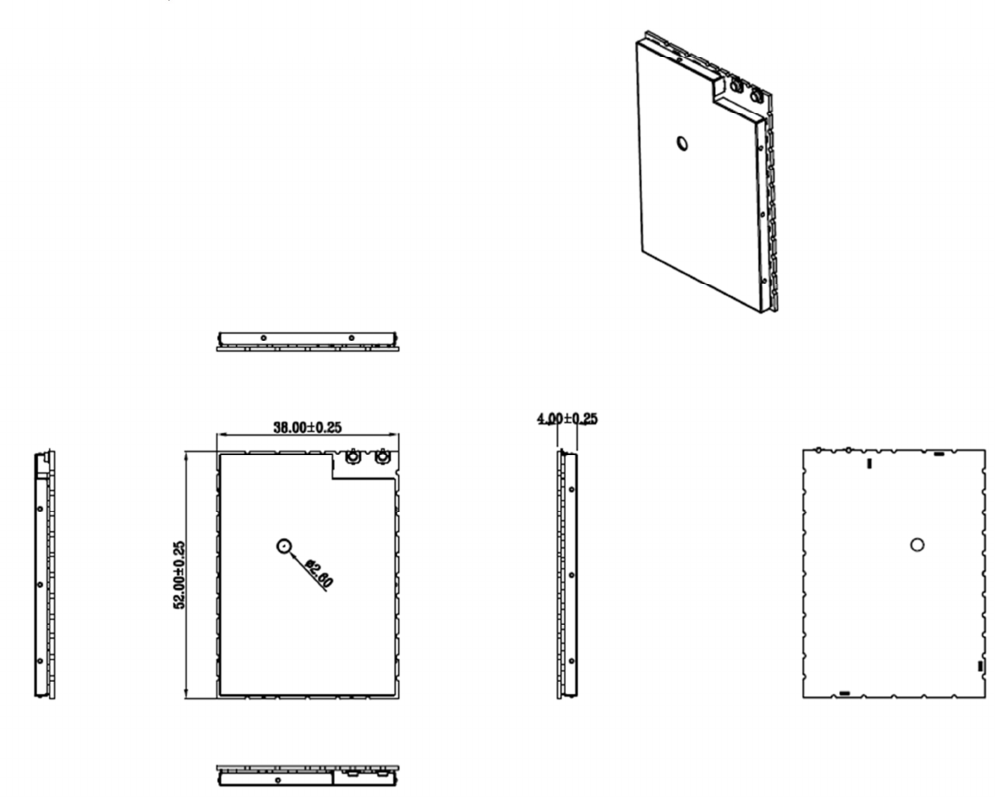

Figure 3: Package Mechanical Outline
MICROELECTRONICS TECHNOLOGY INC
9
April 16, 2015
Recommend Footprint
Figure 4: Recommend Footprint
Recommend Stencil
Figure 5: Recommend Stencil
MICROELECTRONICS TECHNOLOGY INC 10 April 16, 2015
6 Interfacing to the RU00-M03
Power and Ground
All circuits on the RU00-M03 are powered from inputs at pin 1 and 11. The RU00-M03 operates with any
supply voltage between 3.2 and 5.25V. Because the individual supplies within the part are regulated on the
RU00-M03, a large amount of supply filtering is not required. A high value, low ESR tantalum capacitor
(150uF or greater) is recommended and should be accompanied by a 0.1uF ceramic chip capacitor close to
the pin.
All 16 available ground pins of the RU00-M03 must be soldered to the user PCB per the recommended
assembly guidelines. If the PCB utilizes separate analog/RF and digital grounds, it is recommended that the
RU00-M03 connect to the analog/RF ground. Providing a highly conductive path from the SiP ground to a
continuous ground plane (by use of numerous vias to the ground plane) and as much ground conductor
area as possible on the outer layers of the user PCB will help to reduce the RU00-M03 temperature rise
during operation.
Communication
The RU00-M03 has two UART ports, each of which utilizes 3.3V CMOS I/O over a pair of pins. The UARTs are
compatible with a standard RS-232C serial port through an appropriate level translator IC. The user’s host
processor issues IRI commands to the HOST UART (RX pin 7, TX pin 6), which can be configured for any
standard UART data rate for 115.2k, 230.4k, 460.8k and 921.6 kbaud. The default rate is set to 115.2 kbaud.
The DEBUG UART (RX pin 4, TX pin 3) is available to provide status information from the RU00-M03
microcontroller. The DEBUG UART is not required for RU00-M03 reader applications and should be
operated at a fixed data rate of 115.2 kbaud. Please see the RU00-M03data sheet for detailed I/O
specifications.
RF
The RU00-M03 is configured for monostatic operation, which requires only a single RF I/O pin for full duplex
communication. The output must be routed to the antenna via 50 ohm microstrip or stripline on the OEM
PCB. No coupling capacitor is required given that the RF pin is AC-coupled internal to the RU00-M03. To
maximize the radiated power (and corresponding communication range), the length of the transmission line
between RU00-M03 and antenna should be made as short as possible.
GPIO
There are four user-configurable digital GPIOs on the RU00-M03. The signals are number GPIO1 – GPIO4
and occupy pins 17 – 20 respectively. Each GPIO operates at standard 3.3V CMOS logic levels with a
minimum output current capability of 4 mA per pin while maintaining guaranteed noise margins.
Appropriate interface circuitry and layout as well as handling of the OEM hardware should be applied.
Please see the RU00-M03 data sheet for detailed I/O specifications.
MICROELECTRONICS TECHNOLOGY INC 11 April 16, 2015
Enable
Pin 9 of the RU00-M03 comprises the ENABLE signal. The RU00-M03 is held in reset if the signal is held low.
The ENABLE signal is bidirectional and is pulled down to 3.3V by ~10kΩ resistance internal to the RU00-M03.
Any external connection to this pin must maintain a low impedance (<<10kΩ) other than when an external
reset signal is applied. This allows the RU00-M03 to exert control of the reset line during power up and
other situations that require it.
Health and Status
RU00-M03 pin 22 is a dedicated digital output that indicates the HEALTH of the RU00-M03. After the RU00-
M03 is successfully booted and in its operational state, the health output switches to low. Otherwise, the
output is high. The OEM can digitally monitor this signal or use it to drive an LED for visual indication of the
RU00-M03 health.
Pin 23 is a dedicated digital output that indicates the tag inventory STATUS of the RU00-M03. When the
RU00-M03 is successfully inventorying one or more tags, it will generate 0.5ms minimum high pulse. The
output remains low when no tags are being inventoried. Like the health signal, the OEM can monitor it via
firmware or use it to drive an LED for visual indication to the device user.
7 Operating the RU00-M03
Once the required hardware connections are made to the RU00-M03, the unit can be operated with simple
software routines running on the OEM’s host processor. The host software issues commands to configure
the reader, set the reader’s idle mode and to start and stop various Gen2 RFID reader operations.
An example of the sequence of events starting at reader power-up is:
1. Apply 3.2V~5.25V power to the RU00-M03.
2. Establish a connection to the device via the host software.
3. Configure the reader. Critical parameters are:
a. Region of operation
When configured for a specific region, the RU00-M03 can operate only according to the air interface
standards for that region. Key communication parameters are not adjustable by the user but are
inherent in the RU00-M03 firmware. The FCC regional operation is the default for the device.
NOTE: The OEM is strictly forbidden to operate the RU00-M03 in a regional mode other than that in
which the device is located. Applicable agency certification must be obtained by the OEM for their
product to operate in the region in which it is located. The modular certification of the RU00-M03 in
the U.S. may only be utilized by OEM’s that follow all guidelines set forth in this document.
b. RF output power
The RU00-M03 output power must be set to a level between 10 and 30dBm. The default power is set
to the reader’s maximum allowable of 30dBm.
4. Initiate an RFID operation.
Gen2 RFID operations including Inventory, Read, Write, Lock and Kill are initiated with a command.
5. Set the RU00-M03 standby mode.
When the RU00-M03 is not executing an RFID operation, it assumes a low power state until another RFID
function is initiated by the host.
MICROELECTRONICS TECHNOLOGY INC 12 April 16, 2015
8 Revision history
Version
Number Description Revision Date
1.0.0 Initial release Aprril 16, 2015
Table 3: Revision history

Navigation menu
