the menu.

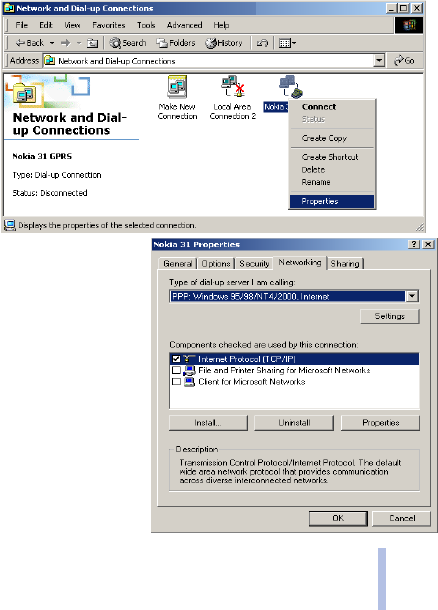

3Select Properties from the
drop down menu.
Set properties
In the dial-up connection Properties (e.g. Nokia 31
Properties) window, select the Networking tab. Press
Settings.
2002 Nokia Corporation. All rights reserved.34

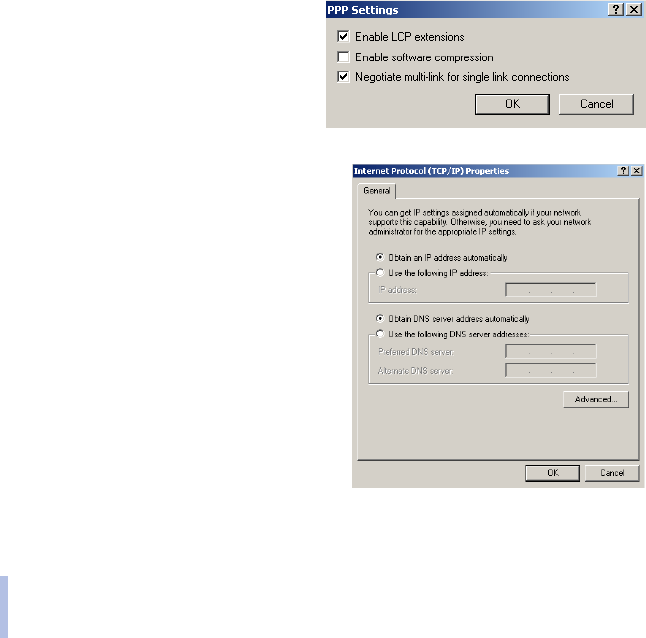

1Make certain that the Enable software
compression in the PPP Settings window is
unchecked.
2Press OK.
3Back under the Networking tab, click on the
Properties button for Internet Protocol (TCP/
IP).I
4Complete these fields with the information
provided by your Internet service provider.
5Click on the Advanced tab.
2002 Nokia Corporation. All rights reserved.
U.S. English
35

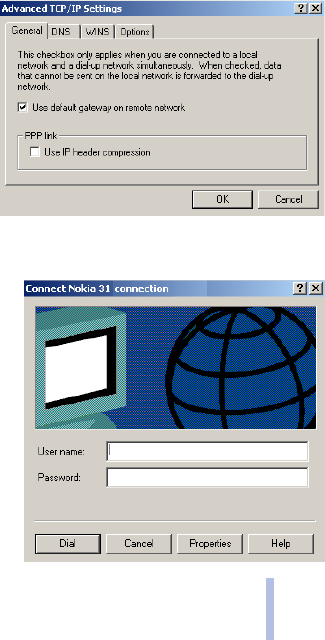

6In the Advanced TCP/IP Settings window,
make certain that the Use IP header
compression box is not checked.
Note: Advanced TCP/IP Settings are
Internet service provider dependent.
For more information, please contact
your Internet service provider.
7Press OK
8In the Dial-up connection Properties (e.g.
Nokia 31 Properties) Networking window
press OK.
CONNECTING TO THE INTERNET
If properly configured, your Nokia 31 GSM
Connectivity Terminal should now be ready to make
an the Internet connection. Go to the Taskbar and
select Start, Settings and Control Panel. Select
Network and Dial-up Connections. Double-click
the new connection icon (e.g. Nokia 31).
1Enter your Internet access username and
password. For more information, contact your
Internet service provider.
2002 Nokia Corporation. All rights reserved. 36

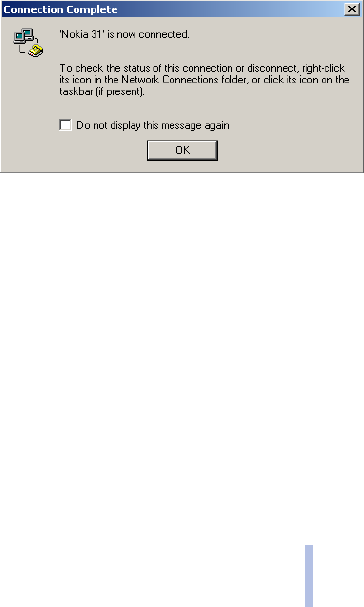

2When you have successfully
connected to the Internet, the
Connection Complete window will
appear into your PC screen.
UNINSTALLING MODEM SETUP FOR
NOKIA 31
1Click the Start button, point to Settings, and click Control Panel.
2Double-click Add/Remove Programs.
3In the Install/Uninstall tab, select Modem Setup for Nokia 31 from the list of software that
can be removed.
4Click Add/Remove.
5Follow the instructions on the screen until the program files are removed.
2002 Nokia Corporation. All rights reserved.
U.S. English
37
6 Troubleshooting
If you are experiencing problems with the Nokia 31 terminal, check the following:
1Confirm that the data cable is firmly connected to the Nokia 31 terminal and to the PC (or
other compatible device).
2Confirm that the power supply is firmly connected to the Nokia 31 terminal and to an AC wall
outlet.
3Disconnect the power supply from the AC wall outlet and verify that the SIM card is installed
properly.
POOR RECEPTION
If there are problems with reception, for example, interruptions in the service, the signal may be
too weak. The signal strength is indicated at startup by the LED indicators on the front of the Nokia
31 terminal (see Signal Strength, p. 17).
To check the strength using the HyperTerminal application, start the software and enter the AT
command sequence: at+csq. The response is +csq: <rssi>, 99. The parameters for <rssi> are from
0 through 31 at 2 dBm intervals:
0 ... 6 -101 dBm or less -> Unacceptable coverage
7 ... 11 -100 dBm ... -91 dBm -> Weak coverage
12 ... 16 -90 dBm ... -81 dBm -> Moderate coverage
2002 Nokia Corporation. All rights reserved.38
For example, the response +csq: 31, 99 means that the signal strength is excellent.
If the signal is weaker than -91 dBm (the <rssi> parameter is 11 or less), move the Nokia 31
terminal to another location. You may need to install an external antenna to improve the
reception. (For more information on external antenna installation, please see www.
americas.forum.nokia.com.)
BLOCKED PIN CODE
If you enter the wrong PIN code three times in a row, the code will be blocked (L.E.D. indicators 1
and 2 will blink red). To unblock the PIN code, you must enter your Personal Unblocking Key (PUK)
code.
Unblock using HyperTerminal application
To do this in the HyperTerminal application:
1Type the AT command at+cpin? and press Enter. If the PUK code is required, the response is
+cpin: SIM PUK.
2Enter the PUK code via the command at+cpin=PUK, PIN where PUK is your PUK code and PIN
is your old or new PIN code. Press Enter.
17 ... 31 -80 dBm or greater -> Good coverage
99 Not known or not detectable
2002 Nokia Corporation. All rights reserved.
U.S. English
39
NO CONNECTION
If you do not get an OK response when you press Enter in the HyperTerminal connection window,
verify that the port settings are correct.
Modem driver
Check that no other device uses the same COM port with your PC to which you have connected
the Nokia 31 terminal.
If you wish to see the log file to check what the Nokia 31 terminal has responded to the AT
commands, you can find the file named Modem_Nokia30.txt on your PC in the WINNT or
Windows folder. If the log file is not found:
1(In Windows 2000) Select Control Panel > Phone and Modem options > Modems > Nokia 31
> Properties > Diagnostics.
2In the Logging section, select Append to Log.
If you are unable to to create the Internet connection
Check the Nokia Modem Options settings are correct.
Check New Dial-up Connection settings are correct.
Contact your Internet service provider.
2002 Nokia Corporation. All rights reserved.40
7 CARE AND MAINTENANCE
Your Nokia 31 terminal is a product of superior design and craftsmanship and should be treated
with care. The suggestions below will help you fulfill your warranty obligations and allow you to
enjoy this product for many years.
Keep the terminal and all its parts and accessories out of the reach of small children.
Keep the terminal dry. Precipitation, humidity and all types of liquids or moisture contain
minerals that will corrode electronic circuits.
Do not use or store the terminal in dusty, dirty areas. Its moving parts can be damaged.
Do not store the terminal in hot areas. High temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt certain plastics.
Do not store the terminal in cold areas. When it warms up (to its normal temperature), moisture
can form inside which could damage electronic circuit boards.
Do not attempt to open the terminal. Non-expert handling may damage it.
Do not drop, knock or shake the terminal. Rough handling can damage internal circuit boards.
Do not use harsh chemicals, cleaning solvents or strong detergents to clean the terminal.
Do not paint the terminal. Paint can clog the moving parts and prevent proper operation.
Use only an approved, optional external antenna. Unauthorized antennas, modifications or
attachments could damage the terminal and may violate regulations governing radio devices.
Always disconnect the power supply from the terminal before you remove it from the data
adapter.
2002 Nokia Corporation. All rights reserved.
U.S. English
41
Do not install or remove the SIM card if the terminal’s power supply is connected to an AC wall
outlet.
If the terminal or any accessory is not working properly, take it to your nearest qualified service
facility. The personnel there will assist you, and if necessary, arrange for service.
All of these suggestions apply equally to the Nokia 31 terminal as well as all compatible Nokia
accessories.
2002 Nokia Corporation. All rights reserved.42
8 IMPORTANT SAFETY INFORMATION
Power supply
The Nokia 31 terminal’s power supply (ACW-5A) converts AC voltage to the proper DC.
Note: The power supply socket should be easily accessible and it must not be covered. The power
supply is insulation class 2-covered.
Warning! Dangerous voltage. Do not attempt to open the casing of the AC converter. When you
disconnect the power supply’s AC power cord, grasp and pull the plug, not the cord.
Note: This power supply is for indoor use only! Do not expose the unit to water, rain or dust.
The power supply should be disconnected from the socket when the terminal is not in use for a
prolonged period of time or when the power supply is not connected to the terminal.
Important! Use only the power supply approved by Nokia. The use of any non approved power
supply will invalidate any warranty applying to the terminal and may be dangerous.
Operating environment
Remember to follow any special regulations and warnings in force in any area and always switch
off the terminal whenever it is forbidden to use it. Otherwise, the use of the terminal could cause
interference or danger.
Do not connect the Nokia 31 terminal’s AC power supply whenever it is forbidden to use a wireless
device, or when it may cause interference or danger.
2002 Nokia Corporation. All rights reserved.
U.S. English
43
When connecting the terminal or any accessory to another device, read all applicable user guides
for detailed safety instructions. Do not connect incompatible products.
Electronic devices
Most modern electronic equipment is shielded from radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against the RF signals from your terminal.
PACEMAKERS
Pacemaker manufacturers recommend that a minimum separation of 6 inches (20 cm.) should be
maintained between a wireless device and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent research by and the
recommendations of Wireless Technology Research.
Persons with pacemakers:
should always keep the terminal more than 8 inches (20 cm.) from their pacemaker when the
terminal is powered on;
should stop using the terminal immediately if there is any reason to suspect that interference
is occurring.
HEARING AIDS
Some digital wireless devices may interfere with some hearing aids. In the event of such
interference, you may want to consult your service provider.
2002 Nokia Corporation. All rights reserved.44
OTHER MEDICAL DEVICES
Operation of any radio transmitting equipment, including wireless terminals, may interfere with
the functionality of inadequately protected medical devices. Consult a physician or the
manufacturer of the medical device to determine if they are adequately shielded from external RF
energy or if you have any questions. Do not use your terminal in health care facilities when any
regulations posted in these areas instruct you to do so. Hospitals or health care facilities may be
using equipment that could be sensitive to external RF energy.
POSTED FACILITIES
Be certain not to connect the power to the terminal in any facility where there are posted
warnings against using wireless devices.
Potentially explosive atmospheres
Do not use the Nokia 31 terminal in any area with a potentially explosive atmosphere and obey
all signs and instructions. Sparks in such areas could cause an explosion or fire resulting in bodily
injury or even death.
Users are advised not to use the terminal while at a refuelling point (service station). Users also
are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel
storage and distribution areas), chemical plants or where blasting operations are in progress.
Areas with a potentially explosive atmosphere are often but not always clearly marked. They
include below deck on boats; chemical transfer or storage facilities; vehicles using liquefied
petroleum gas (such as propane or butane); areas where the air contains chemicals or particles,
such as grain, dust or metal powders; and any other area where you would normally be advised to
turn off your vehicle engine.
2002 Nokia Corporation. All rights reserved.
U.S. English
45
9 TECHNICAL SPECIFICATIONS
Dimensions 84 x 53 x 26 mm
109 x 76 x 34 mm (with RS-232 adapter)
Weight 65 grams (without adapter)
70 grams (with cables; without adapter)
130 grams (with RS-232 adapter)
Power supply ACW-5A
Charger type Switched mode power supply
AC plug type Europe, UK, US
Input voltage 90 – 264V AC
DC connector 3.2 mm DC plug
Volume 100 cm3
Operating
temperature range -10º C to +55º C
Storage
temperature range -40º C to +85º C
2002 Nokia Corporation. All rights reserved.46
Relative humidity
range for operation 20...75% non-condensing and for storage 5...95% non-condensing
Caution: The Nokia 31 terminal is not water resistant and should be
shielded against water and other liquids.
