MilDef Crete RT9 13" Notebook User Manual UM
MilDef Crete Inc. 13" Notebook UM
Users Manual
NOTEBOOK COMPUTER
RT9
Preliminary
User’s Guide
I
Notice
The company reserves the right to revise this publication or to change its
contents without any notice. Information contained herein is for reference
only and does not constitute a commitment on the part of the
manufacturer or any subsequent vendor. They assume no responsibility
or liability for any errors or inaccuracies that may appear in this
publication nor are they in anyway responsible for any loss or damage
resulting from the use (or misuse) of this publication.
Any of the software described in this manual is sold or licensed "as is".
Should the programs prove defective following purchase, the buyer (and
not the manufacturer, its distributor, or its dealer) assumes the entire
cost of all necessary servicing, repair and any incidental or
consequential damages resulting from any software defects.
Brand and product names mentioned in this publication may or may not
be copyrights and/or registered trademarks of their respective
companies. They are mentioned for identification purposes only and are
not intender as an endorsement of that product or its manufacturer.
Copyright © 2010 CReTE Systems Inc
Trademarks
All other brand and product names are trademarks or registered
trademarks of their respective companies.
II
Regulatory Information/ Disclaimers
Installation and use of this computer must be in strict accordance with
the instructions included in the user documentation provided with the
product. Any changes or modifications (including the antennas) made to
this device that are not expressly approved by the manufacturer may
void the user’s authority to operate the equipment.
The manufacturer is not responsible for any radio or television
interference caused by unauthorized modification of this device, or the
substitution of the connecting cables and equipment other than
manufacturer specified. It is the responsibility of the user to correct any
interference caused by such unauthorized modification, substitution or
attachment. Manufacturer and its authorized resellers or distributors will
assume no liability for any damage or violation of government
regulations arising from failing to comply with these guidelines.
III
FCC (Federal Communications Commission) Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and radiates radio frequency energy. If
not being installed and used in accordance with the instructions, it may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
z Re-orient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
z This device may not cause harmful interference, and
z This device must accept any interference received, including
interference that may cause undesired operation.
FCC Caution
To assure continued compliance, any changes or modifications not
expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment. (Example - use
only shielded interface cables when connecting to computer or
peripheral devices).
III
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed and
operated with a minimum distance of 20 centimeters between the
radiator and your body.
This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or
transmitter.
III
CE
Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following
European Norms:
EN55022 (CISPR 22) Radio Frequency Interference
EN55024 (EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8,
EN61000-4-11, EN61000-3-2, EN61000-3-3)
Generic Immunity Standard
LVD EN 60950 Product Safety, IEC 60950-1: 2005
R&TTE (CE) Manual Regulatory Requirement
WLAN - IEEE 802.11a/b/g/n
802.11a/b/g/n Restrictions:
European standards dictate maximum radiated transmit power of
100mW EIRP and frequency range 2.400-2.4835 GHz. In France, the
equipment must be restricted to the 2.4465-2.4835 GHz frequency range
and must be restricted to indoor use.
VI
CE Declaration of Conformity
It is confirmed to comply with the requirements set out in the Council
Directive on the approximation of the laws of the member states relating
to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive
(73/23/EEC), the Amendment Directive (93/68/EEC), and the
procedures given in European Council Directive (99/5/EC and
89/3360EEC).
The equipment was passed, and the equipment test was performed
according to the following European standards:
EN 300 328 V1.7.1:2006
EN 301 893 V1.4.1(2007-07)
EN 301 V1.8.1 2008-04 / EN 301 489-17 V1.3.2 2008-04
EN 50371:2002
EN 60950-1: 2005
UL, TÜV
AC Adapter (TÜV includes EN60950 LVD)
VII
Environmental Information, Material Safety & Recycling
All materials used in the manufacturing of this equipment are recyclable
or environmentally friendly.
Please recycle the packing materials by the local regulations at the end
of the product's service life.
Notice:
z The equipment may still contain tiny amount of hazardous
substances for health and environment, though those are below
control level.
z To avoid spreading such substances into the eco system, and to
minimize the pressure on the natural, you are encouraged to use the
appropriate take-back for reusing or recycling most of the materials
in a safe way after the service life.
z The crossed bin symbol indicates proper disposal is required.
z For more information on collection, reuse and recycling, please
consult the local or regional waste administration for more
information.
z You can also contact with the dealer for more information on the
environmental details of the equipment.
CONTENTS
CHAPTER ONE- GETTING STARTED .................................................1

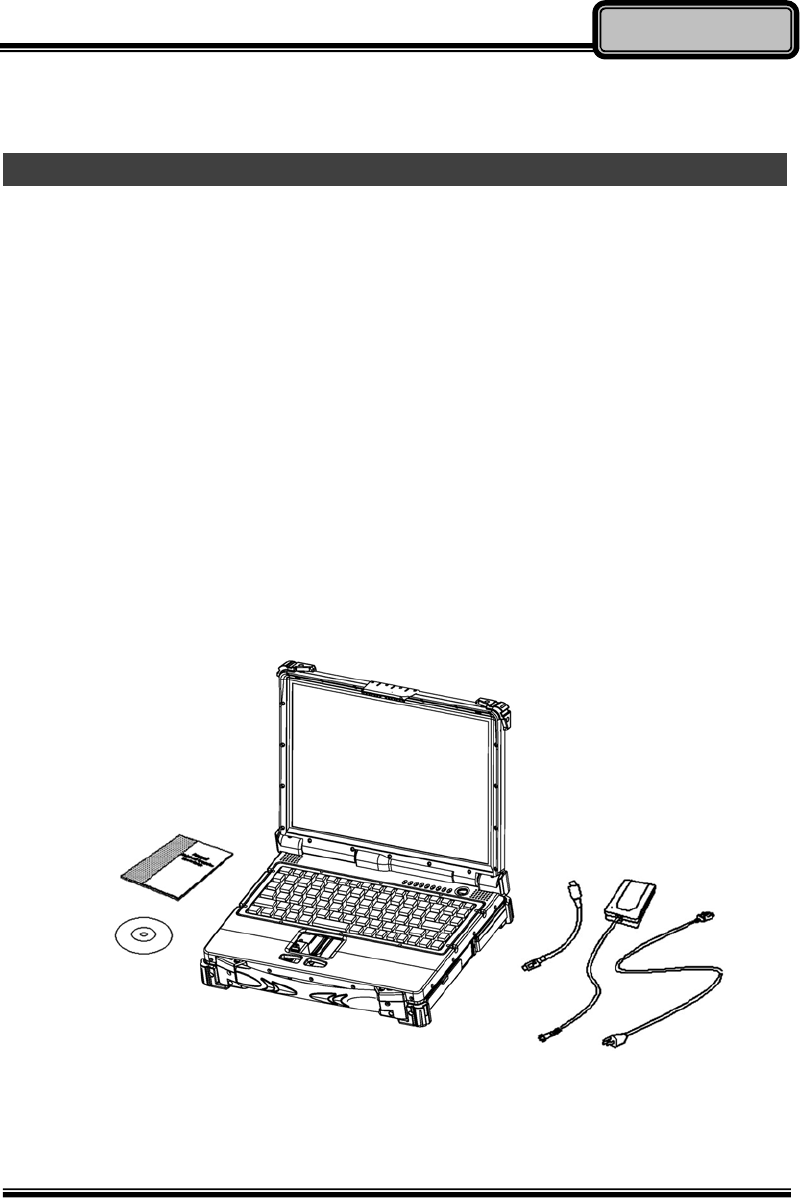

UNPACKING ..............................................................................................................................1
QUICK OPERATION...................................................................................................................2

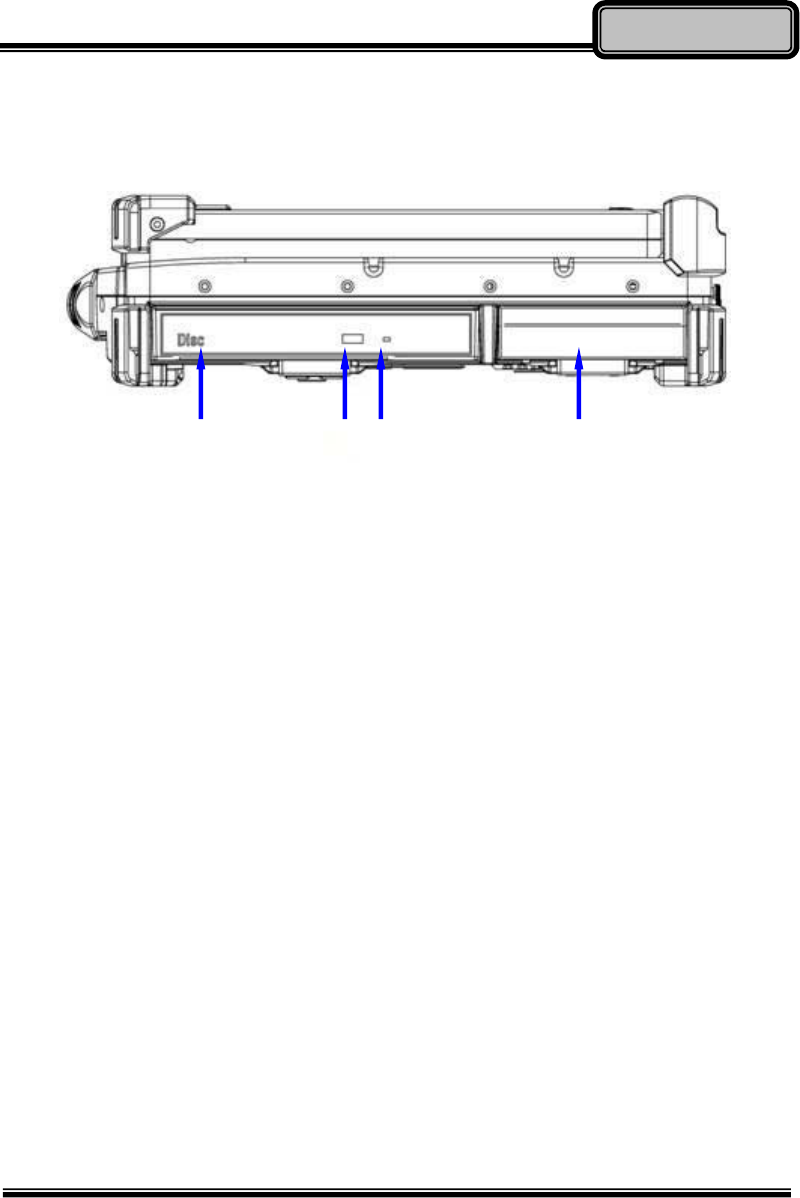

APPEARANCE OVERVIEW.........................................................................................................3
CHAPTER TWO- OPERATING INFORMATION................................... 8
WORKPLACE.............................................................................................................................8
RUGGEDNESS ..........................................................................................................................8
SHUT DOWN ...........................................................................................................................10
SLEEP/ HIBERNATE ................................................................................................................10
HARD DISK DRIVE (HDD)......................................................................................................12
ODD (OPTICAL DISK DEVICE)...............................................................................................12
EXPRESS AND PCMCIA CARDS............................................................................................13
RTC .......................................................................................................................................13
REPLACING MODULES ...........................................................................................................14

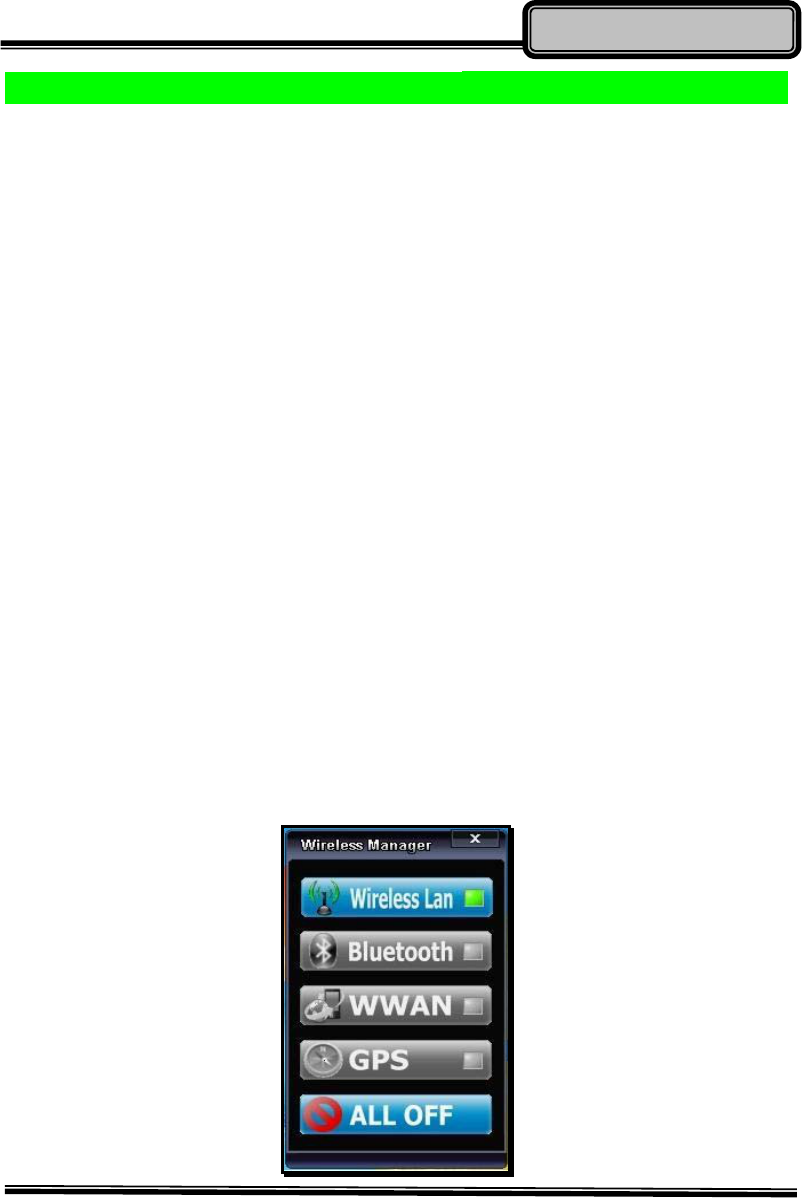

WIRELESS DEVICES (OPTIONAL) (TBD) ...............................................................................15
AC ADAPTER..........................................................................................................................21
BATTERY ................................................................................................................................22
CHAPTER FOUR- BIOS SETUP ......................................................... 26
MAIN MENU ............................................................................................................................26
SATA PORT 1 SUB-MENU.....................................................................................................28
SATA PORT 2 SUB-MENU.....................................................................................................29
ADVANCED MENU ..................................................................................................................30
SIO SMC27 CONFIGURATION SUB-MENU .....................................................................33
SECURITY MENU ....................................................................................................................35
RF INTERFACE CONTROL SUB-MENU ...................................................................................37
BOOT MENU ...........................................................................................................................38
EXIT MENU .............................................................................................................................39
CHAPTER FIVE- SPECIFICATION .....................................................40
CPU .......................................................................................................................................40
MEMORY.................................................................................................................................40
DISPLAY..................................................................................................................................40
KEYBOARD .............................................................................................................................41
TOUCHPAD .............................................................................................................................41
HARD DISK DRIVE ..................................................................................................................41
DVD SUPER MULTI DRIVE.....................................................................................................41
AC ADAPTER..........................................................................................................................42
BATTERY ................................................................................................................................43
SYSTEM UNIT DIMENSIONS AND WEIGHT..............................................................................43
MATERIALS AND RECYCLING .................................................................................................44
ENVIRONMENTAL....................................................................................................................44
CHAPTER SIX- OPTIONAL DEVICES................................................45
MEMORY CARD ......................................................................................................................45
VEHICLE ADAPTER .................................................................................................................45
2ND BATTERY ..........................................................................................................................45
2ND HDD.................................................................................................................................45
ODD (OPTICAL DISK DRIVE).................................................................................................46
HEATER ..................................................................................................................................46
LAN AND MODEM CARD ........................................................................................................46
WIRELESS LAN CARD ...........................................................................................................46
KB DUST COVER ...................................................................................................................47
PCMCIA COVER ...................................................................................................................47
BUILT-IN VEHICLE ADAPTER ..................................................................................................47
DUAL-BAY BATTERY CHARGER.............................................................................................48
CHAPTER SEVEN- UTILITIES AND DRIVERS ..................................49
CHIPSET DRIVER....................................................................................................................50
GRAPHIC CONTROLLER .........................................................................................................50
AUDIO .....................................................................................................................................50
MINI PCI-E 1G RTL8111B LAN DRIVER.............................................................................50
MINI PCI INT8100 LAN DRIVER...........................................................................................51
MODEM DRIVER (OPTIONAL).................................................................................................51
TOUCH PANEL (OPTIONAL)....................................................................................................51
WIRELESS LAN DRIVER (TBD) (OPTIONAL).........................................................................51
GPS DRIVER (TBD) (OPTIONAL)..........................................................................................51
WWAN DRIVER (TBD) (OPTIONAL).....................................................................................51
WIRELESS MANAGER.............................................................................................................52
CHAPTER EIGHT– MAINTENANCE AND SERVICE .........................53
CLEANING...............................................................................................................................53
TROUBLESHOOTING ...............................................................................................................53
RMA SERVICE .......................................................................................................................54
Chapter One - 1
Gettin
g
Started
Chapter One- Getting Started

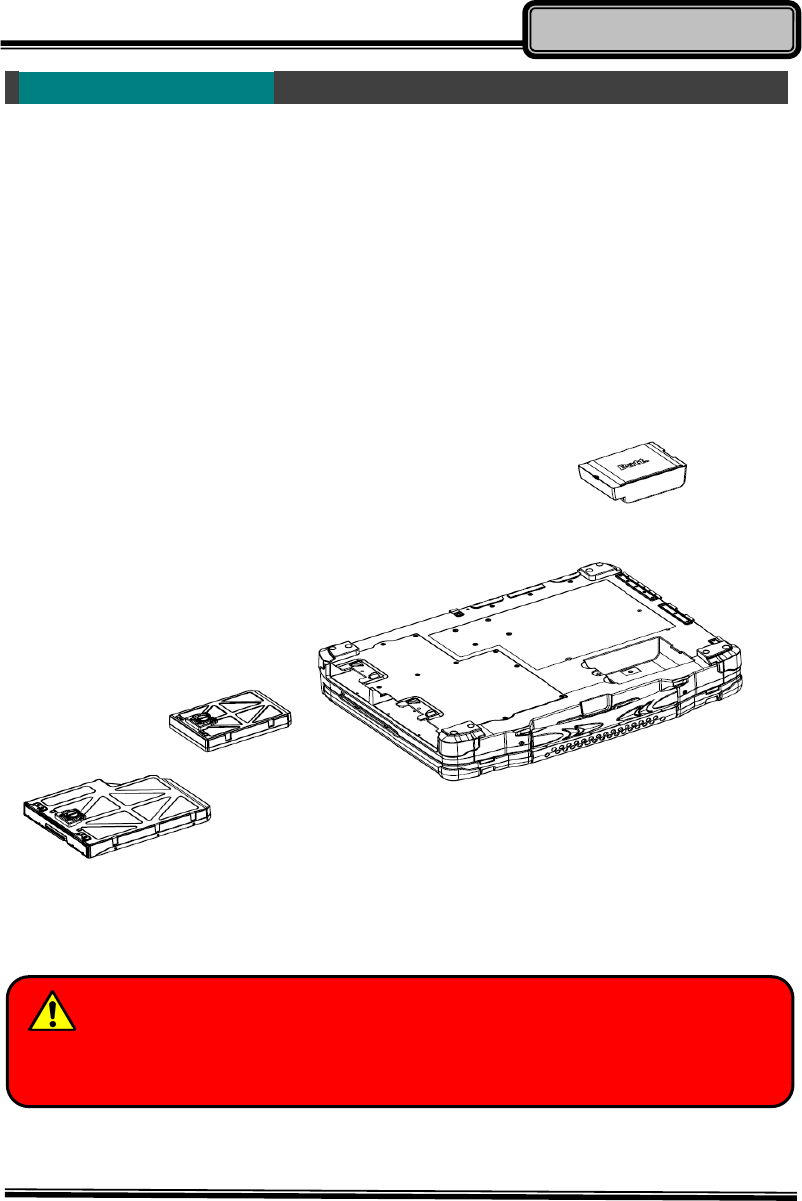

Unpacking
The following components are along with your notebook computer. If there
is any missing or damaged, please contact with your dealer immediately.
z Computer Unit
z Removable HDD (Hard Disk Drive)
z Removable ODD (Optical Disk Drive)
z AC Adapter
z AC Power Cord
z Utility DVD
z User Guide
z Carrying Bag
Chapter One - 2
Gettin
g
Started
Quick Operation
z Loosen the battery screw, remove the battery insulation sheet, and
mount the battery.
z Connect the AC adapter with the computer and start charging the
battery for at least 10 minutes.
z Turn ON the computer by pressing the Power Switch.
Notice:
z When ambient temperature is under +5℃ (This is the default setting
for this computer.), the system may not boot up immediately. System
will beep with LED heater light flashing to remind the user while
heater working. Also, the frequency of the LED will become faster to
remind the user while the temperature is approaching to be suitable.
After 5~15 minutes, the system will boot up automatically.
z Under an emergency situation, it is able to skip heating for booting up
the system immediately by pressing the power switch for >9 seconds.
The speaker will also beep with a special sound. (It is not guaranteed
all devices on the computer are possible to work properly.)
z Press the power switch again during the heating process will shut
down the computer.
z Driver or application software installation may be necessary for
further operation.
z The following procedures will help to Turn OFF the computer:
1. Press power switch to “Shut Down”, “Sleep”* or “Hibernate”*
dependending on operating system (OS) and power management
settings.
2. Press power switch for 4 seconds for a “Hard” power off. But the
system will shut down immediately without saving any data or
parameters.
3. Click Start → Shut Down in Windows to Turn OFF.
Note:
¾ Some operating systems may not support the above-mentioned
functions.
Chapter One - 3
Gettin
g
Started
Appearance Overview
LCD Panel Open
1. Heater
2. BT/WLAN/GPS
3. Keyboard Number Lock
4. Keyboard Caps Lock
5. Keyboard Scroll Lock
6. HDD in Use
7. Secondary Battery Charge
8. Primary Battery Charge
9. Power Indicator
10. Power Switch
11. Touchpad Left Button
12. Touchpad
13. Touchpad Right Button
Chapter One - 4
Gettin
g
Started
Right View
1. Flex Bay:
a. Standard: SATA ODD
b. Optional: 2nd SATA HDD or 2nd Battery
2. Eject Button
3. In-use Indicator Light
4. 1st SATA HDD
○
1 ○
3
○
2 ○
4
Chapter One - 5
Gettin
g
Started
Left View
1. PS/2 Port (KB + Mouse)
2. IEEE1394 Port (Fire Wire)
3. Optional: Modem Jack RJ11
4. LAN RJ45
5. USB Port (Universal Serial Bus)
6. External Speaker & Ear phone Jack
7. USB Port (Universal Serial Bus)
8. Line In Jack
9. USB Port (Universal Serial Bus)
10. Microphone Jack
11. Optional: Serial Port DB9 (COM 3)
12. Express Card Slot x 1 & PCMCIA II Slot x 1 (Optional: PCMCIA x 2)
13. Optional: Serial Port DB9 (COM 4)
Chapter One - 6
Gettin
g
Started
Rear View
1. Optional: Military Connector Port
2. DC Power Jack
3. Serial Port DB9 (COM1)
4. RGB DB15 Port
5. Docking Port
6. Printer Port
7. Serial Port DB9 (COM2)
Chapter One - 7
Gettin
g
Started

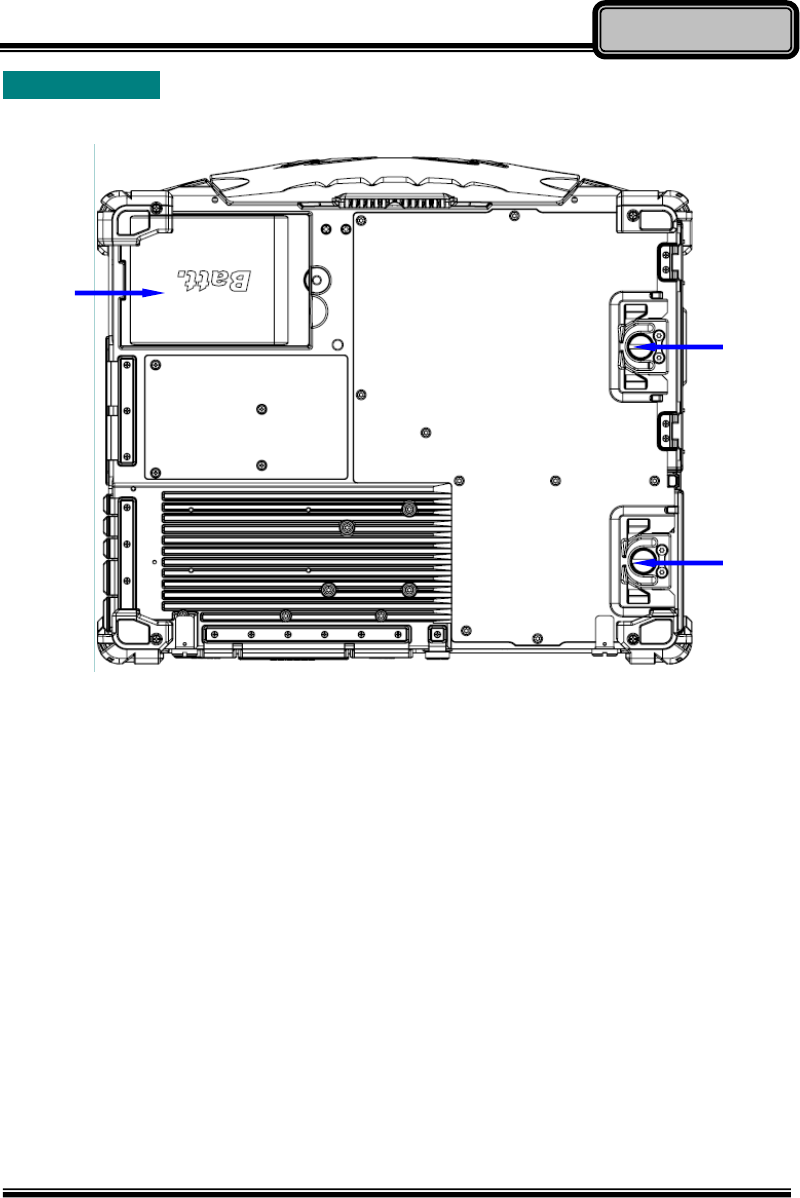

Bottom View
1. Primary Battery
2. ODD Latch
3. HDD Latch
○
1
○
2
○
3
○
2
○
3
Chapter Two - 8
O
p
eratin
g
Information
Chapter Two- Operating Information
Workplace
A clean and moisture-free environment is preferred. Make room for air
circulation. Remember to avoid areas from:
z Sudden or extreme changes in temperature.
z Extreme heat.
z Strong electromagnetic fields (near television set, motor rotation area,
etc.).
z Dust or high humidity.
If it is necessary to work in a hostile environment, please regularly
maintain your notebook computer by cleaning dust, water, and etc. to
keep it in an optimal condition.
Ruggedness
This notebook computer is designed with rugged features such as
vibration, shock, dust, and rain/ water protection. However, it is still
necessary to provide appropriate protection while operating in harsh
environments.
The notebook computer is also designed to withstand rainfall from top with
mild wind blowing only. Please keep the keyboard facing up, i.e. normal
operating direction, to maintain water resistance. NEVER immerse the
unit in water, or spray water at an upside-down system. Doing so may
cause permanent damage.
The D-sub connector caps on the rear of the computer are for dust and
shock protection. The connectors are sealed internally. Other I/O ports
Chapter Two - 9
O
p
eratin
g
Information
and devices on the left or right must have caps tightly closed or cable
inlets sealed while being exposed to water or dust.
There are optional gaskets for DB-9 and DB-25 connectors. You may
install them to improve rain/ dust/ moisture resistance on your commercial
type cable. Insert the packing into the male connector (with pins) and
fasten the screws.
All connectors will be corroded if being exposed to water or moisture.
Corrosion is accelerated if the power is ON. Please take proper
water-resistant measures for cable connections.
The DC jack and cables are sealed and may be operated with water
splashing while attached. All port covers should be in place when no cable
is attached.
Operating System
This notebook computer is compatible with most operating systems (OS).
However, not all functions are 100% compatible. For example, ACPI,
Smart Battery, and etc. are not available on DOS, and other non-Microsoft
OS. Consequently “Standby”, “Hibernation”, “Battery Gauge”, and etc.
would not work under such operating systems.
Boot Up and POST
Boot up
The computer turns ON and loads the operating system (such as
Windows) into the system memory. This start-up procedure is called “boot
up”.
The ROM BIOS Power on Self-Test (POST)
Each time the computer powers on, it automatically performs a self-test of
its memory and hardware devices.
Chapter Two - 10
O
p
eratin
g
Information
Shut down
Before shutting down, please always remember to save the unfinished
works and close the application for preventing from any possible data loss
or HDD damage.
“Shut down” will totally turn OFF the power of your notebook computer. If
you want to start your notebook computer again, you need to press the
power switch.
Sleep/ Hibernate
Sleep
Under “Sleep” mode, the system will temporarily save your work into RAM.
You are able to do enter “Sleep” mode by directly clicking from your OS.
Or, you can do the “Sleep” Mode settings in your OS. If you want to start
your notebook computer again, all you need to press any key.
Hibernate
Under “Hibernate” mode, the system will save your work into HDD. You
are able to do enter “Hibernate” mode by directly clicking from your OS. Or,
you can do the “Hibernate” Mode in your OS. If you want to start your
handheld computer again, you need to press the power switch.
Note:
¾ Standby/Hibernate/Resume works with both AC adapter and
battery. The power management functions may not work under
non-ACPI operating systems.
¾ If you work under Windows 7 (64 bit) with external KB or
mouse, please do the Windows Setting as follows:
1. External Mouse: Device Manager
→
Mice and other
pointing devices
→
HID- compliant
→
Power Management
→
Disable “Allow this device to wake the computer”
2. External KB: Device Manager
→
Keyboards
→
HID-
compliant
→
Power Management
→
Disable “Allow this
device to wake the computer”
Chapter Two - 11
O
p
eratin
g
Information

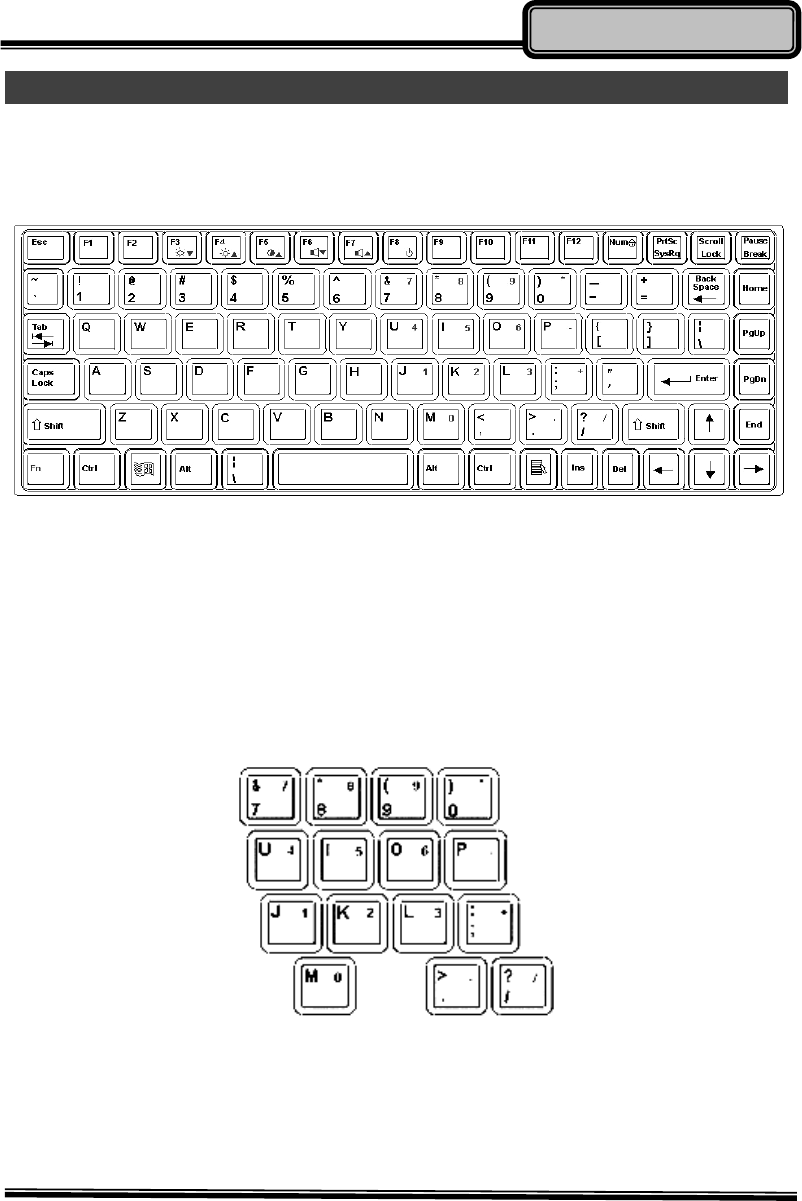

Keyboard
The keyboard is functionally equivalent to a full size desktop keyboard. A
sample layout is shown below.
The Numeric Keypad
The numeric keypad functions are the same as an electronic calculator. It
is embedded in the main keyboard, with the numeric figures printed on the
upper right of their respective keys. There are keys for the digits 0~9, the
decimal point ( . ), addition ( + ), subtraction ( - ), multiplication ( * ), and
division ( / ) in the keypad.
To activate the keypad, press the Num Lock key. There are 15 keys
switching from alphabetic to numeric. Press Num Lock again to return.
Chapter Two - 12
O
p
eratin
g
Information
Keyboard Backlight (Optional)
Press [Fn] [F5] key for approximately 1 second to turn the keyboard
backlight ON or OFF.
Hard Disk Drive (HDD)
The Hard Disk Drive (HDD) is a 2.5” type/ 9.5mm height standard SATA
interface data storage device.
HDD and ODD are removable. This design provides convenience and
security. They can ONLY be removed when the power is OFF.
ODD (Optical Disk Device)
There is a 5.25” type/ 12.7mm height standard SATA interface ODD. The
actual device will depend on the model you purchased. The ODD may be
used as a boot device if properly set in the BIOS.
The ODD accepts a variety of standard 12cm CDs, DVD-ROM (Single
Layer, Dual Layer), DVD-Video, DVD-R*10 (1.4 GB, 2.8 GB, 4.7GB),
DVD-RW (Ver.1.1/1.2 1.4 Gx`B, 2.8 GB, 4.7 GB, 9.4 GB), DVD-R DL (8.5
GB), DVD-RAM (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB), +R (4.7 GB), +R DL
(8.5 GB), +RW (4.7 GB), CD-Audio, CD-ROM (XA compatible), CD-R,
Photo CD (multiple session compatible), Video CD, CD EXTRA, CD-RW,
CD-TEXT and etc. Do not use the IDE-interface ODD; it may cause the
computer malfunction.
Note:
NEVER drop your HDD, ODD or expose them to high temperature,
high humidity, or any hazardous environment. NEVER try to
disassemble the module. Static discharge may destroy your device
and data. Always pick up the modules by touching the case only.
Chapter Two - 13
O
p
eratin
g
Information
The following procedure assumes that all the necessary ODD utilities
were installed on the computer. For ODD utility installation, please refer to
“Utilities and Drivers”. ODD also can be removed and swapped with the
2nd battery or 2nd SATA HDD.
Put disk into the ODD
While the power is ON, push the ejecting button of ODD. The tray will
release. Then gently pull the tray out. Put the disk with its label facing up
on the holder and push the tray back into the cabinet. Any dirt on the data
side of the disk may cause to the erroneous read. Please avoid touching
the data side.
Read from the ODD
The ODD may be designated as drive D: or higher depending on your
configuration. You may access to it in DOS or Windows. Please avoid
shock or vibration when the optical device is active.
Express and PCMCIA Cards
The computer supports one PCMCIA II and one Express card or two
PCMCIA II cards. To remove the card, push the button on the right of the
card to eject it. The ejecting button can hide into the compartment by
pushing it inward gently.
RTC
Battery backed up RTC (Real Time Clock/Calendar) is built in an on-board
CMOS (Complementary Metal Oxide Semiconductor) chip. The RTC
keeps track of the time and date while the computer is off. The CMOS chip
also stores system setup information.
RTC battery is also recharged when AC adapter is attached. Recharge
the computer approximately once per month to ensure RTC operation.
Chapter Two - 1
4
O
p
eratin
g
Information
Replacing Modules
To remove the modules:
1. Turn OFF the computer or hibernate.
2. Disconnect all cables from the computer.
3. Use a coin to turn and loose the screws on the modules.
4. Remove the battery from the compartment.
5. Push the latch knob to release the ODD or HDD module and push
them outward.
6. Remove the module from the computer.
To re-install the modules:
Gently push the module into the slot. Fasten the screw to fix the module.
Caution
You must turn the power OFF before replacing the ODD and HDD
modules.
Chapter Two - 1
5
O
p
eratin
g
Information
Wireless Devices (Optional) (TBD)
Before using wireless devices, please turn “ON” the Wireless Devices All
ON/OFF Switch, and then use the Wireless Manager to do the rest
settings.
The following instructions are only for the models with optional Wireless
Devices (Wireless LAN/ Bluetooth/ WWAN/ GPS) and taking the systems
working under Windows 7/ 64-bit OS for example.
Wireless LAN
1. Driver & Utility Installation:
a. Install the Chipset Driver first:
Insert the Utility DVD into the ODD. Click infinst_autol.exe in the
directory of “RX9\Drivers\Chipset\Win7(64-bit)”, and then follow the
prompt to complete installation.
b. Then, install the Wireless Manager utility:
Insert the Utility DVD into the ODD. Click setup.exe in the directory of
Utilities\Wireless Manager then follow the prompt to complete installation.
2. Launch the Wireless Manager:
a. Launch the Wireless Manager.
b. Click “Wireless LAN” for enabling the Wireless LAN function (click
again for disabling the WLAN function). Once the Wireless LAN starts up,
the RF LED will turn on accordingly. Please see the illustration as below
(with Wireless LAN function “ON”):
Chapter Two - 16
O
p
eratin
g
Information
2. Driver & Utility Installation:
a. Install the WWAN driver first:
Insert the Utility DVD into the ODD. Click Autorun.exe in the directory of
“RF9\Drivers\WWAN\Win7(64-bit)”, and then follow the prompt to
complete installation.
b. Then, install the Wireless Manager utility:
Insert the Utility DVD into the ODD. Click setup.exe in the directory of
Utilities\Wireless Manager then follow the prompt to complete installation.
3. Launch the Wireless Manager:
a. Launch the Wireless Manager.
b. Click “WWAN” for enabling the WWAN function (click again for
disabling the WWAN function). Once the WWAN starts up, the RF LED will
turn on accordingly. Please see the illustration as below (with WWAN
function “ON”):
Chapter Two - 17
O
p
eratin
g
Information
DockUnder
DockUnder is utilized for system unit docking. AC adapter or vehicle
adapter should attach directly to DockUnder and automatically charge the
computer while docked.
Ports
1. Serial Port DB9 (COM2)
2. Serial Port DB9 (COM1)
3. PS/2 (KB with Mouse)
4. USB #1 & #2
5. RGB DB15
6. DVI Port
7. LAN RJ45 (10M/100M)
8. Antenna Hole (Reserved for Wireless Signals)
9. DC Jack
Chapter Two - 18
O
p
eratin
g
Information

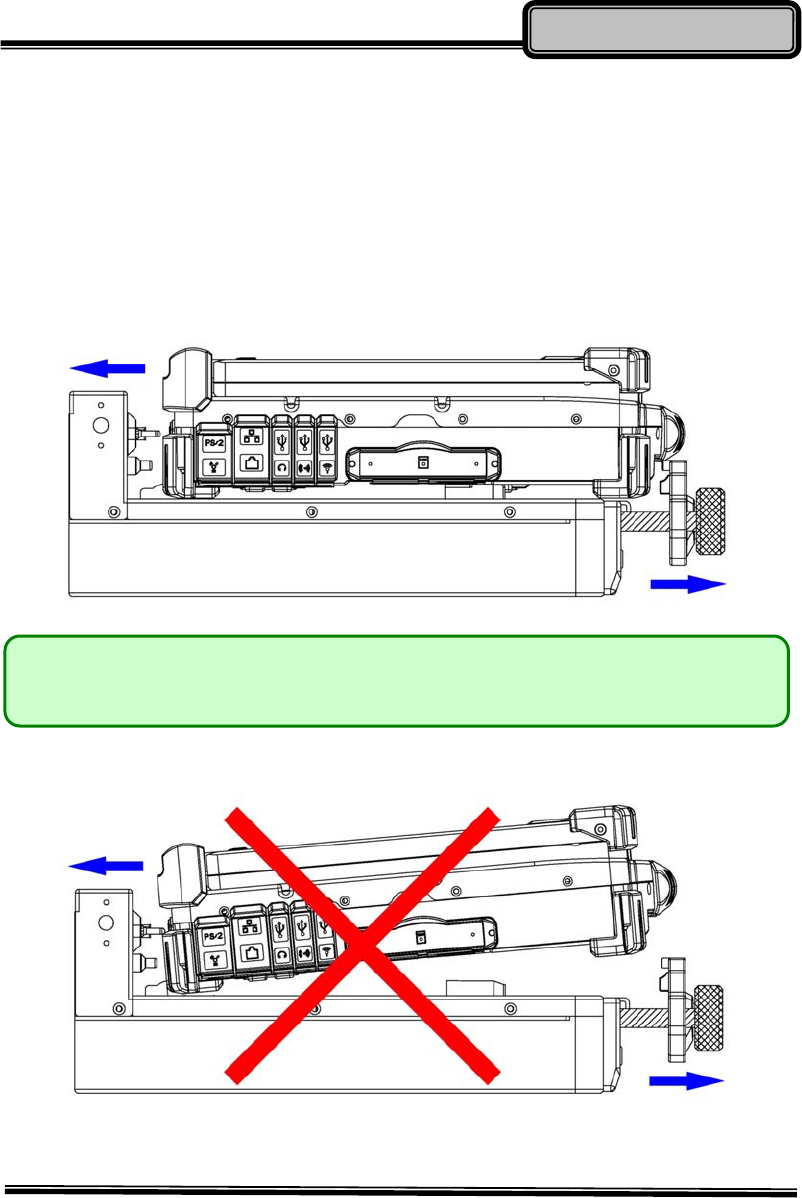

Mounting the DockUnder:
1. Turn OFF the power.
2. Open the rubber cap of the docking connector.
3. Align the docking connector.
4. Push the computer to join the guiding pins. Do not lift the computer up
while docking.
5. Metal bar is drawn outward.
Note:
¾ Do not lift up the computer while engaging.
Chapter Two - 19
O
p
eratin
g
Information
1. Pull up the metal bar.
2. Move forward inside.
3. Lock along the direction of the clock.
4. Key Locked with Electric Power ON／OFF.
While turn on the power of DockUnder with the Key that can use all the
functions on DockUnder. Meantime Computer will also have the power.
There are 1*PCI+1*PCIe slots on the DockUnder. Maximum card
dimensions are 260mm (L: length, including L-bracket thickness) x
115mm (W: width, including gold fingers) x 25 mm (H: height). The total
power rating of 2 PCI slots is +5V 3A, +3.3V 3A, +12V 300mA, and -12V
300mA.
5. Power On/Off with Computer.
The Power On/Off can be replaced for Computer itself.
Chapter Two - 20
O
p
eratin
g
Information
To install expansion card in DockUnder:
1. Unplug the AC adapter.
2. Release and remove the computer.
3. Remove the screws on the upper and lower covers.
4. Open the upper cover.
5. Install the expansion card into the slot and fix the L-bracket.
6. Assemble the upper cover.
7. Attach the computer and perform functions test.
IRQ DMA
0. Timer output 0 0 Sound
1. KB 1 Sound
2. 8 RTC 2 FDD
9 ACPI (or Free) 3 Reserved (or ECP/EPP)
10 Free (16-bit PCMCIA, or COM3*)
11 PCI devices or Card Bus 0/1 (Sound, LAN*, 32-bit PCMCIA, etc.)
12 Touch pad (PS/2 mouse)
13 Co-processor
14 HDD
15 DVD-ROM drive
3. COM2 (or Fax/Modem*, IrDA)
4. COM1 (or Touch screen)
5. Free (COM4*)
6. FDD
7. Parallel port 1
*: Optional devices.
Note:
¾ Please check IRQ conflict before installing cards and drivers.
¾ Never dock or un-dock the computer while power is ON.
Chapter Two - 21
Mana
g
in
g
Power
Chapter Three- Managing Power
AC Adapter
The AC adapter performs two functions:
z It powers the computer from an external AC source.
z It charges the computer battery.
The adapter automatically detects the AC line voltage (100V or 240V) and
adjusts accordingly.
The following are recommended when using the AC adapter:
z Use a properly grounded AC outlet.
z Use one AC outlet exclusively for the computer. Having other
appliances on the same line may cause interference.
z Use a power strip with built-in surge protection.
Connecting the AC adapter:
z Plug the AC cord to the adapter.
z Plug the other end of the AC cord into the wall outlet. Make sure the
green LED on the adapter turns on.
z Attach the DC plug into the power jack of the computer; turn the lock
ring clockwise to secure it.
AC Adapter Indicator:
The green LED indicates that AC power is ready.
Chapter Two - 22
Mana
g
in
g
Power
Battery
The power source will automatically switch to battery when the external
power source (AC adapter or optional vehicle adapter) is disconnected.
Battery Low
When the battery is nearly exhausted, the computer gives the following
“Battery Low” warnings:
z Windows battery low warning (when operating system is Windows)
z The power LED flashes.
Once the Battery Low warning occurs, please:
z Save and close the files you are currently working on.
z Plug in the AC adapter to recharge the battery.
Charging the Battery
Plug in the AC adapter (or optional vehicle adapter) to start the battery
charging. If the battery is already full, the sense circuitry will stop high
current charge within several minutes.
There are two LED indicators next to the power indicator for the Primary
and Secondary battery respectively. Indicator turns ON when the battery
is charging and turns OFF when the battery charging is completed.
To charge the Secondary battery, simply install it into the computer and
attach the AC adapter. The internal charger will charge the Primary
battery first. The Secondary battery will be charged once the Primary
battery charges full. Optional Dual Battery Charger can charge the
Primary and Secondary batteries externally.
Chapter Two - 23
Mana
g
in
g
Power
Battery Charging Notice
The followings are the detailed information for charging the Primary and
Secondary batteries under AC and DC modes:
AC mode:
z When the Power Status is changed and AC mode is detected, the
Primary battery will be charged.
z Until the Primary Battery is finished charging, then it will continue to
charge the Secondary Battery fully also.
z When batteries are all full, the EC (embedded controller) will be
turned off.
z If there is no Power Status change, until the capacity is down below
90%, a natural discharging occurs, and then recharge again.
DC mode:
z When DC mode is detected, it will discharge the Secondary Battery
until the capacity is below 10%, and then switch to the Primary
Battery for continuing discharging.
z When the capacity of the Primary Battery is below 10%, the Low
Battery LED will flash.
Battery Gauge
You may check battery status from battery gauge in Windows. Click the
power/battery icon to reveal the battery gauge window.
Chapter Three - 2
4
Mana
g
in
g
Power
Battery Power Saving Tips
The computer comes with an intelligent power-saving feature. You may
extend the battery life by:
z Setup power saving functions in Operating System Power Management
options (e.g. Windows Power Options).
z Lower the intensity of the display by brightness control.
z Use standby option when computer is temporarily not in use.
z Shut down the computer when it will not be for a long-time use.
Replacing Battery
When the battery is nearly exhausted, there are two ways to keep your
handheld computer working. Connect the AC adapter and the power cord
designed for this handheld computer to start charging is one method;
directly replace a charged battery designed for this handheld computer may
be the other one.
Power Conservation
This computer consumes much less power than conventional computers.
However, power consumption may be reduced by configuring the Power
Management Setup properly.
It is recommended the power saving functions to be enabled even when not
running on battery power. Power Management will not degrade performance
while saving power.
Note:
¾ Always remember to turn OFF the power before replacing the
battery.
Chapter Three - 2
5
Mana
g
in
g
Power
Supporting ACPI
Your notebook computer supports ACPI (Advanced Configuration and
Power Interface) for power management. With ACPI and an ACPI-compliant
operating system such as Windows, the feature will allow you to reduce the
power consumption for energy saving. By supporting ACPI, the AC adapter
LED and the Power indicator LED will show in different ways. The followings
are the detailed description.
Sleep:
AC adapter LED is ON (while connecting with power)
Power LED indicator is ON; Other LED indicators are OFF
Under Hibernation:
AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; Other LED indicators are OFF
Shutdown:
AC adapter LED is ON (while connecting with power)
Power LED indicator is OFF; Other LED indicators are OFF
Chapter Four - 26
BIOS Setu
p
Chapter Four- BIOS Setup
Press [F2] at boot up to enter BIOS setup. Use arrow keys to select options
and [+/-] to modify them. When finished, move to” Exit” and press [Enter]
then confirm save by pressing [Y].
Main Menu
Phoenix SecureCore (tm) Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
System Time: [15:48:04]
System Date: [10/02/2010]
► SATA Port 1 [Auto]
► SATA Port 2 [Auto]
System Memory: 632 KB
Extended Memory: 1012736KB
<Tab>, <Shift-Tab>, or
<Enter> selects field.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Main Menu Selections
You can make the following selections on the Main Menu. Use the
sub-menus for other selections.
Feature Options Description
System Time HH:MM:SS Set the system time Hour, Minute, Second.
System Date MM/DD/YYYY Set the system date Month, Day, Year.
SATA Port 1~2 None Auto-detect the device, then show the
device.
Note:
¾ The contents may vary depending on computer configurations.
Chapter Four - 27
BIOS Setu
p
General Help Window
Pressing <F1> or <Alt-H> at any menu brings up the General Help
window that describes the detailed keys and functions for setup.
The scroll bar on the right of any window indicates that there is more than
one page of information in the window. Use <PgUp> and <PgDn> to
display all the pages. Pressing <Home> and <End> displays the first and
last page. Pressing <Enter> displays each page and then exits the
window. Press <Esc> to exit the current window.
Chapter Four - 28
BIOS Setu
p
SATA Port 1 Sub-Menu
Phoenix SecureCore (tm) Setup Utility
Main
SATA Port 1 [Auto)] Item Specific Help
Type: [Auto]
LBA Format
Total Sectors: 78140160
Maximum Capacity: 40008MB
Multi-Sector Transfers: [16 Sectors]
LBA Mode Control: [Enabled]
32 Bit I/O: [Disabled]
Transfer Mode: [FPIO 4/ DMA 2 ]
Ultra DMA Mode: [Mode 5]
User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive installed
here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SATA Port 1 Sub-Menu Selections
You can make the following selections on the SATA Port 1 Sub-Menu.
Feature Options Description
32 Bit I/O: Enabled
Disabled
This setting enables or disables 32 bit IDE
data transfers.
Chapter Four - 29
BIOS Setu
p
SATA Port 2 Sub-Menu
Phoenix SecureCore (tm) Setup Utility
Main
SATA Port 2 [Auto] Item Specific Help
Type: [Auto]
Multi-Sector Transfers: [Disabled]
LBA Mode Control: [Disabled]
32 Bit I/O: [Disabled]
Transfer Mode: [Standard ]
Ultra DMA Mode: [Mode 5]
SMART Monitoring: Disabled
User = you enter
parameters of hard-disk
drive installed at this
connection.
Auto = autotypes
hard-disk drive installed
here.
CD-ROM = a CD-ROM
drive is installed here.
ATAPI Removable =
removable disk drive is
installed here.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SATA Port 2 Sub-Menu Selections
You can make the following selections on the SATA Port 2 Sub-Menu.
Feature Options Description
32 Bit I/O Enabled
Disabled
This setting enables or disables 32 bit
IDE data transfers.
Chapter Four - 30
BIOS Setu
p
Advanced Menu
Phoenix SecureCore (tm) Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Boot-time Diagnostic Screen: [Enabled]
QuickBoot Mode: [Enabled]
IGD - Boot Type: [VBT Default]
PS/2 Mouse [Auto Detect]
PCI Express Port #1 [Enabled]
Device 29 USB 2.0 Enable: [Enabled]
Passive Cooling Trip Point: [87 C]
Core Multi-Processing: [Enabled]
Intel(R) SpeedStep (tm) [Enabled]
CX States [Enabled]
PCI Hot-Plug Resources [Enabled]
► SIO SMC227 CONFIGURATION
Display the diagnostic
screen during boot
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Warning
Incorrect settings may cause system malfunction. To correct it, restore
the Setup Default with <F9>.
Chapter Four - 31
BIOS Setu
p
Advanced Menu Selections
You can make the following selections on the Advanced Menu.
Feature Options Description
Boot-time
Diagnostic Screen
Enable
Disabled
Display the diagnostic screen during
boot
QuickBoot Mode Enable
Disabled
Allows the system to skip certain tests
while booting. This will decrease the time
needed to boot the system.
IGD - Boot Type VBT Default
CRT
LFP
CRT+LFP
EFP
CRT+EFP
Select the Video Device that will be
activated during POST
PS/2 Mouse Auto Detect
Disabled
Enabled
“Disabled” prevents any installed PS/2
mouse from functioning, but frees up IRQ
12. “Enabled” forces the PS/2 mouse
port to be enabled regardless if a mouse
is present. “Auto Detect” will enable the
PS/2 mouse only if present. “OS
Controlled” only displayed if the OS
controls the mouse.
PCI Express Port
#1
Enabled
Auto
Disabled
Disabled – Port always disabled. (If Port
#1 is disabled), then the rest
of the Ports will also be
disabled.)
Enabled – Port always enabled.
Auto – Only enable if card found.
Device 29 USB
2.0 Enable
Enable
Disabled
Enables Device 29 USB 2.0 functionality.
Passive Cooling
Trip Point
15 C/23 C/31 C/39 C/
47 C/55 C/63 C/71 C/
79 C/87 C/95 C/103 C/
109 C/111C
Disabled
This value controls the temperature of
the ACPI Passive Trip Point – the point in
which the OS will begin throttling the
CPU.
Note: When the DTS is enabled, only
values below 97C are valid.
Core
Multi-Processing
Enable
Disabled
Determines whether the 2nd core is
enabled.
Disabled = 2nd core is disabled.
Enabled = 2nd core is enabled.
Chapter Four - 32
BIOS Setu
p
Feature Options Description
Intel(R)
SpeedStep (tm)
Enable
Disabled
Allows more than two freq. range to be
supported
CX States Enabled
Disabled
Enable CPU C-states: Main switch for
C0, C1, C2, C3, C4, Deep C4, C6
SIO SMC227
CONFGURATION
These items control the configuration of
various National 393 SIO devices.
Warning
Make sure internal COMx mode settings must be with the same type of
the external connected devices. Otherwise it may cause serial
components damage in either side.
Chapter Four - 33
BIOS Setu
p
SIO SMC27 CONFIGURATION Sub-Menu
Phoenix SecureCore (tm) Setup Utility
Advanced
SIO SMC227 CONFIGURATION Item Specific Help
COM1 port: [3F8-IRQ 4]
COM1 mode: [COM1]
COM2 port: [2F8-IRQ 3]
COM2 mode: [COM2]
COM3 port: [3E8-IRQ 10]
COM3 mode: [COM3]
COM4 port: [2E8-IRQ 5]
COM4 mode: [COM4]
Printer1: [378-IRQ 3]
Printer1 mode: [Standard]
Printer2: [Disabled]
Configure COM1 using
device options:
[Disabled]
No configuration
[3F8-IRQ 4]
Set the base I/O
address for COM1
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
SIO SMC27 CONFIGURATION Sub-Menu Selections
You can make the following selections on the SIO SMC27
CONFIGURATION Sub-Menu.
Feature Options Description
COM1 port 3F8-IRQ 4
Disabled
Configure COM1 using device options:
[Disabled]
No configuration
[3F8-IRQ 4]
Set the base I/O address for COM1
COM1 mode COM1
TTL1
Configure UART mode options:
[COM1]: External Device
[TTL1]: Internal Device
COM2 port 2F8-IRQ 3
Disabled
Configure COM2 using device options:
[Disabled]
No configuration
[2F8-IRQ 3]
Set the base I/O address for COM2
COM2 mode COM2 Configure UART mode options:
Chapter Four - 3
4
BIOS Setu
p
Feature Options Description
TTL2 [COM2]: External Device
[TTL2]: Internal Device
COM3 port 3E8-IRQ 10
Disabled
Configure COM3 using device options:
[Disabled]
No configuration
[3E8-IRQ 10]
Set the base I/O address for COM3
COM3 mode COM3
TTL3
Configure UART mode options:
[COM3]: External Device
[TTL3]: Internal Device
COM4 port 2E8-IRQ 5
Disabled
Configure COM4 using device options:
[Disabled]
No configuration
[2E8-IRQ 5]
Set the base I/O address for COM4
COM4 mode COM4
TTL4
Configure UART mode options:
[COM4]: External Device
[TTL4]: Internal Device
Printer1 378-IRQ 7
Disabled
Configure Printer1 device options:
[Disabled]
No configuration
[378-IRQ 7]
Set the base I/O address for Printer1
Printer1 mode Standard
ECP
EPP
Configure Printer1 mode options:
Standard
EPP
ECP
Printer2 Disabled
3BC
Configure Printer2 device options:
[Disabled]
No configuration
[3BC]
Set the base I/O address for Printer2
Chapter Four - 3
5
BIOS Setu
p
Security Menu
Phoenix SecureCore (tm) Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Supervisor Password Is: Clear
User Password Is: Clear
Set Supervisor Password [Enter]
Set User Password [Enter]
Diskette access: [Supervisor]
Fixed disk boot sector:
[Normal]
Password on boot: [Disabled]
AC97 Audio Interface: [Auto]
Cardbus/1394 Interface [Auto]
►RF Interface Control
Supervisor Password
controls access to the
setup utility.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Warning
If you forget user/supervisor password, the computer has to send back
to manufacturer and replace Flash ROM to make it work again.
Note:
¾ Once you enter the incorrect password for three times, “System
Disabled” will show on the screen. Please press the power switch for
more than 5 seconds to shut down the computer. After shutting
down, you are able to restart the system to enter the password
a
g
ain
,
Chapter Four - 36
BIOS Setu
p
Security Menu Selections
You can make the following selections on the Security Menu.
Feature Options Description
Set Supervisor
Password
Enter Supervisor Password controls access to
the setup utility.
Fixed disk boot
sector
Normal
Write Protect
Write protects the boot sector on the
hard disk to protect against viruses.
AC97 Audio
Interface
Auto
Disabled
Enabled
Control Detection of the AC97 Device.
Cardbus/1394
Interface
Auto
Disabled
Enabled
Cardbus Device Function Disable/
Enable
USB Interface
Control
These items control various ICH USB
Devices.
PCIe Interface
Control
These items control various ICH PCI
Express Devices.
RF Interface
Control
RF Security Control:
Wireless LAN
WWAN
GPS
BlueTooth
Chapter Four - 37
BIOS Setu
p
RF Interface Control Sub-Menu
Phoenix SecureCore (tm) Setup Utility
Security
RF Interface Control Item Specific Help
Wireless LAN: [Disabled]
WWAN: [Disabled]
GPS: [Disabled]
BlueTooth: [Disabled]
Wireless LAN Control
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
RF Interface Control Sub-Menu Selections
You can make the following selections on the RF Interface Control
Sub-Menu.
Feature Options Description
Wireless LAN Enabled
Disabled
Wireless LAN Control
WWAN Enabled
Disabled
WWAN Control
GPS Enabled
Disabled
GPS Control
BlueTooth Enabled
Disabled
BlueTooth Control
Chapter Four - 38
BIOS Setu
p
Boot Menu
Phoenix SecureCore (tm) Setup Utility
Main Advanced Security Boot Exit
Item Specific Help
Boot priority order:
1: USB FDC:
2: IDE CD:
3: USB KEY:
4: IDE HDD: FUJITSU MHW2040BH – (PM)
5: Legacy Network Card
6: PCI BEV: IBA GE Slot 00C8 v1322
7:
8:
Excluded from boot order:
: USB HDD:
: USB CDROM:
: USB ZIP:
: USB LS120:
: PCI SCSI:
: Other USB:
: PCI:
: Legacy
:1394 CDROM
Keys used to view or
configure devices:
Up and Down arrows
select a device.
<+> and <–> moves the
device up or down.
<f> and <r> specifies the
device fixed or removable.
<x> exclude or include the
device to boot.
<Shift + 1> enables or
disables a device.
<1 – 4> Loads default
boot sequence.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
The system will try to boot from device on top then the 2nd and so on. If
there is more than one device in each category, only the device on top of
sub-menu can boot up.
Chapter Four - 39
BIOS Setu
p
Exit Menu
Phoenix SecureCore (tm) Setup Utility
Main Advance Security Boot Exit
Item Specific Help
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit System Setup and
save your changes to
CMOS.
F1 Help ↑↓ Select Item –/+ Change Values F9 Setup Defaults
Esc Exit ↔ Menu Enter Select ► Sub-Menu F10 Save and Exit
Exit Menu Selections
You can make the following selections on the Exit Menu.
Feature Options Description
Exit Saving
Changes
Exit System Setup and save your
changes to CMOS.
Exit Discarding
Changes
Exit utility without saving Setup data to
CMOS.
Load Setup
Defaults
Load default values for all SETUP items.
Discard
Changes
Load previous values from CMOS for all
SETUP items.
Save Changes Save Setup Data to CMOS
Chapter Five - 40
S
p
ecification
Chapter Five- Specification
CPU
z Intel® Core™ Duo Processor (Penryn) T9400 2.26 GHz
CPU runs at multiple speeds depending on the CPU type and operating
system. Also, CPU speed switches automatically by detecting AC adapter/
battery operation and busy state.
Memory
z System memory: Standard: 1GB
Expandable: 8GB
z Cache memory: Internal Level 3 MB
z Graphic memory: Shared system memory from 32M to 1695 MB
Chipset
z North Bridge: Mobile Intel® GM45 Express chipset Cantiga (G) MCH
z South Bridge: Intel® ICH9M-Enhanced
Display
z Type: 13.3” Active TFT Color
z Resolution: 1024 x 768 pixels
z Mode: XGA
z Color: 18 bit, 256K colors
z Brightness: 384~480nits
Chapter Five - 41
S
p
ecification
Keyboard
z Number of keys: 87 Keys (standard 87-key w/o backlight)
89 keys (optional rubber 89-key with backlight)
z Key travel: 2.8 mm (standard 87-key w/o backlight)
1.5 mm (optional rubber 89-key with backlight)
Touchpad
z Type: Resistive type
z Compatible: PS/2
z Lifetime: Over 5,000,000 strokes lifetime
Hard Disk Drive
z Type: 2.5” (Removable)
z Height: 9.5mm
z Interface: SATA
DVD Super Multi Drive
z Type: 5.25” (Removable)
z Height: 12.7mm
z Interface: SATA
Chapter Five - 42
S
p
ecification
I/O Ports
z PS/2 x1 (KB + mouse)
z USB 2.0 x 3
z IEEE1394 Fire Wire x 1
z LAN RJ45 x 1
z Optional: Modem RJ11 Port x 1
z PCMCIA type I/II x 1;Express card (PCI-e) x 1
Optional: PCMCIA Type I/II x 2
z Audio Jack x 3 (Mic/Line in/Earphone)
z DB9 x 2 (COM1/2)
z Optional: DB9 x 2 (COM3/4)
z Printer DB25 x 1
z Docking Conn. x 1 (Optional: Military type)
z RGB DB15 x 1
z Optional: Military Connector Port
AC Adapter
z AC Input: 100 - 240 V
z Frequency: 50/60 Hz
z DC Output: 19V
z Maximum Power: 90 Watts Max. Output
z Dimension: 130mm (W) x 60mm (D) x 34mm (H)
z Weight: 430 g (0.9 lb.)
Chapter Five - 43
S
p
ecification
Battery
Primary Battery:
Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 7200mAH
Dimension: 103 mm (W) x 73 mm (D) x 38 mm (H)
Weight: 435 g
2nd Battery (Optional):
Type: 9 x 18650 cells Lithium Ion
Capacity: 11.1V 7200mAH
Dimension: 150 mm(W) x 90 mm(D) x 20 mm(H)
Weight: 560 g
System Unit Dimensions and Weight
Width: 312 mm
Depth: 246 mm
Height: 66.7 mm
Weight: 4.3Kg
Note:
¾ Weight varies depending on system configurations.
Chapter Five - 4
4
S
p
ecification
Materials and Recycling
Materials of the computer are as follows:
z Cabinet: Aluminum Alloy ADC-12,
Magnesium Alloy AZ91D,
UL grade PC+ABS GE C6200 or TN-3813BW
z Bracket: Aluminum 5052, Steel with Nickel Plating, or
Stainless Steel S304
z Cushion pad: Silicon Rubber, TPE
z PCB: FR-4, UL 94V0
z Battery: Rechargeable Lithium Ion, 9 Cells per Pack
z Packing: Carton- Unbleached Paper
Cushion- Recyclable EPE
Carrying bag- Recyclable PE Fiber
User Guide- Recycled/Recyclable Paper
Please recycle the parts according to the local regulations.
Environmental
z Temperature: -20 ~ +50ºC (-4 ~ +122ºF) operating
-40 ~ +70ºC (-40 ~ +158ºF) storage
z Humidity: 5~95% Non-condensing operating
95% maximum storage
z Altitude: 0 ~ 4,572 meters (0 ~ 15,000 feet)
Chapter Six - 4
5
O
p
tional Devices
Chapter Six- Optional Devices
Memory Card
The memory card will expand your memory to facilitate better system
performance. 1GB, 2GB, and 4GB SO-DIMM DDR3 memory cards are
acceptable:
Vehicle Adapter
z Input Voltage: 12~32V
z Input Current: 9A max
z Output Voltage: 19V
z Output Current: 4A
z Wiring: Cigarette lighter/ Truck battery
z Application: Car or Truck installation
2
nd Battery
A Lithium Ion rechargeable 2nd battery may install into the DVD Super Multi
Drive-compartment. It shares the same capacity of primary battery and
smart battery compliance.
The computer’s internal charger can detect 2nd battery and perform charging
accordingly.
2
nd HDD
z Swappable with ODD, set as SATA primary slave drive.
Chapter Six - 46
O
p
tional Devices
ODD (Optical Disk Drive)
z Swappable ODD for disks playing
z Compatible with VCD-ROM, DVD-ROM, and etc.
Heater
RT9 provides a heater kit for enabling the unit to work under the low
temperature, the heater will first heat the HDD up to the temperature set by
the user, and the system will boot after then. Also, the heater will keep
monitoring the temperature of the HDD. Once the temperature becomes
lower, the heater will heat up again to maintain the temperature set by the
user.
LAN and Modem Card
z 10Mb/100Mb/1Gb LAN Card
z 56Kbps V.92 Modem Card
Wireless LAN Card
z IEEE 802.11 a/b/g/n wireless LAN card
Bluetooth
z USB interface, Bluetooth® v2.1 + EDR system is backward compatible
with v1.1/1.2/2.0 devices.
WWAN
z USB interface, HSDPA/UMTS 3.5G
Chapter Six - 47
O
p
tional Devices
GPS
z USB interface, Ublox LEA-5H
KB Dust Cover
z KB Dust Cover is available for standard Keyboard.
PCMCIA Cover
Besides the attached PCMCIA rubber cover, there is an optional cover with
a metal frame that can be fixed by using screws. The cover provides
protection from dust or water for cabled PCMCIA cards. Users may seal the
cable outlet after installation.
Built-in Vehicle Adapter
Converting power from car lighters or truck batteries to DC +19V, they are
the same output ratings as AC adapters. It can power the system and
charge the batteries simultaneously.
Caution
Remove or disconnect the adapter when leaving the vehicle to avoid
battery exhaustion.
Chapter Six - 48
O
p
tional Devices
Dual-Bay Battery Charger
This charger provides two bays for the Primary and Secondary Batteries
respectively. It accepts power from AC adapter or vehicle adapter and
charged batteries. It takes approximately 6 hours to fully charge both
batteries.
COM 3/4 Card and Additional Serial Ports
z Supporting RS232, TTL, RS422, and RS485 formats.
Military Connector/ Military Serial Connector
z Military connectors x 2 are available.
z 37-pin MIL-DTL-38999 military serial connector carrying max. 4 COM
port signals is available.
DockUnder RT8/9
z Supporting Ports:
DB9 x 2, USB 2.0 x 2, DVI x 1, PS/2 x 1, (KB with Mouse), RGB x 1,
LAN RJ45 10M/100M, Antenna Hole (Reserved for Wireless Signals)
z Supporting Slots:
PCI Slot x 1, PCIe Slot x 1
z DC Input: 12~32V
z DC Power: 5V/ 2.5A, 3.3V/2.5A, ±12V/500mA
z Fan: Optional
z Dimensions: 302mm x 281mm x 109mm
z Weight: 4.8 kg
Chapter Seven - 49
Utilities & Drivers
Chapter Seven- Utilities and Drivers
The Utility DVD includes all the drivers for the installed devices in your
notebook computer. Please consult the dealer if there is any driver missing.
Also, through Device Manager in Windows, you are able to perform “Driver
Update” or check if there are still drivers for the devices needed to be
installed.
Check readme.txt file on utility DVD to get the newest information before
starting to install drivers.
Note:
¾ Most device drivers are available in Windows.
¾ The Utility DVD includes most drivers of the computer’s installed
devices. Consult dealer if any driver is missing.
¾ Re-install drivers or perform “Driver Update” to replace the
Windows default drivers.
¾ Check readme.txt file on Utility DVD to get the newest
information before starting to install drivers.
Chapter Seven - 50
Utilities & Drivers
Chipset Driver
Windows 7/Enterprise 64-bit Drivers Installation:
The Windows 7/Enterprise 64-bit will automatically install the driver.
Graphic Controller
RF9 supports Intel® GM45 giving you a flexible, programmable architecture
that supports 2D, 3D and advanced 3D graphics, high-definition video
decode, and image processing. Please follow the installation as below to
use well with Intel® GM45.
Insert the Utility DVD into the ODD. Click "setup.exe" in the directory of
"RX9\Drivers\Win7(64bit)\VGA", and then follow prompt to complete driver
installation. Windows may recommend using their driver, but you should
confirm to change the factory bundled driver.
Audio
RF9 provides a high-quality audio sound effect for user to enjoy better
sound quality. To activate this function, please follow the installation as
below.
Insert the Utility DVD into the ODD. Click"Vista_R221.exe" in the directory of
"RX9\Drivers\Win7(64bit)\Audio", and then follow the prompt to complete
installation.
Mini PCI-E 1G RTL8111B LAN Driver
The Windows 7/Enterprise 64-bit will automatically install the driver.
Chapter Seven - 51
Utilities & Drivers
Mini PCI INT8100 LAN Driver
The Windows 7/Enterprise 64-bit will automatically install the driver.
Modem Driver (Optional)
The Windows 7/ Enterprise 64-bit will automatically install the driver.
Touch Panel (Optional)
There is a high sensitive touch panel for RF9 to be equipped with. Please
follow the installation as below.
Enter BIOS Setup screen and set COM1 port as “TTL1”. (COM1 has
multiple connectivity, so it’s necessary to setup. The optional COM4 may be
configured as touch screen and doesn’t need to configure the BIOS.)
Afterwards, please cancel the prompt of installation wizard to setup the
driver from the Utility DVD “RX9\Drivers\Win7(64bit)\PenMount Universal
Driver v2.1.0.263\setup.exe), and follow the prompt to complete installation
and then restart.
Wireless LAN Driver (TBD) (Optional)
Bluetooth Driver (TBD) (Optional)
GPS Driver (TBD) (Optional)
WWAN Driver (TBD) (Optional)
Chapter Seven - 52
Utilities & Drivers
Wireless Manager
Wireless Manager is an exclusive utility designed and developed for the
Wireless Devices of your notebook computer. Through Wireless Manager,
turning the power ON or OFF become more convenient for being one of the
power-saving tips.
Read from the Utility DVD. Click Setup.exe in the directory of
RX9\Utilities\Win7(64bit)Wirelessmanager then follow the prompt to
complete installation.
Chapter Eight - 53
Maintenance & Service
Chapter Eight– Maintenance and Service
Cleaning
ALWAYS turn OFF the power, unplug the power cord and remove the
battery before cleaning.
The exterior of the system and display may be wiped with a clean, soft, and
lint-free cloth. If there is difficulty removing dirt, apply non-ammonia,
non-alcohol based glass cleaner to the cloth and wipe.
An air gun is recommended for cleaning water and dust. For salty water
please clean with fresh water then blow-dry with an air gun. Be sure not to
turn the computer up side down while there is water being applied.
Troubleshooting
Should the computer fail to function properly, the troubleshooting steps
below may be followed.
z Check AC/vehicle adapter, battery, and the power source.
z Minimize the configuration, i.e. remove extra peripherals and devices.
z Remove the modules one by one (HDD, CD-ROM, Battery, etc.).
z Remove the software suspected.
z Set BIOS fail-safe default.
z Re-install operating system and application software.
Chapter Eight - 5
4
Maintenance & Service
RMA Service
If troubleshooting steps are unsuccessful, consult your dealer for RMA.
Shipping instructions:
1. Remove any personal disks or other media.
2. Use the original shipping container and packing materials, if possible.
3. If the original packing materials are not available, wrap the equipment
with soft material (e.g. PU/PE form) then put the wrapped equipment
into a hard cardboard shipping box.
4. Include a sheet with the following information: (Note: Please keep a
copy of this sheet for your records)
z Name
z Address
z Unit serial number
z Place and date of purchase or the original invoice number
z Date of failure
z A DETAILED Description of the problems you have encountered
z A list of the hardware/software configuration, if applicable.
5. Clearly mark the outside of the shipping box with the RMA #. If RMA #
is not present on the shipping box, receiving will be unable to identify it
and it might be returned.
6. Unless prior arrangements have been made, the customer is
responsible for all shipping costs. Unauthorized use of the company’s
shipping accounts is not permitted.
Recycled/ Recyclable
Printed in Taiwan
G630902000
