Mine Site Technologies MP70 MP70 MINE PHONE HANDSET USES 802.11B/G WI-FI, VOIP User Manual USERS MANUAL 2

Mine Site Technologies Pty Ltd MP70 MINE PHONE HANDSET USES 802.11B/G WI-FI, VOIP USERS MANUAL 2

Contents

USERS MANUAL 2

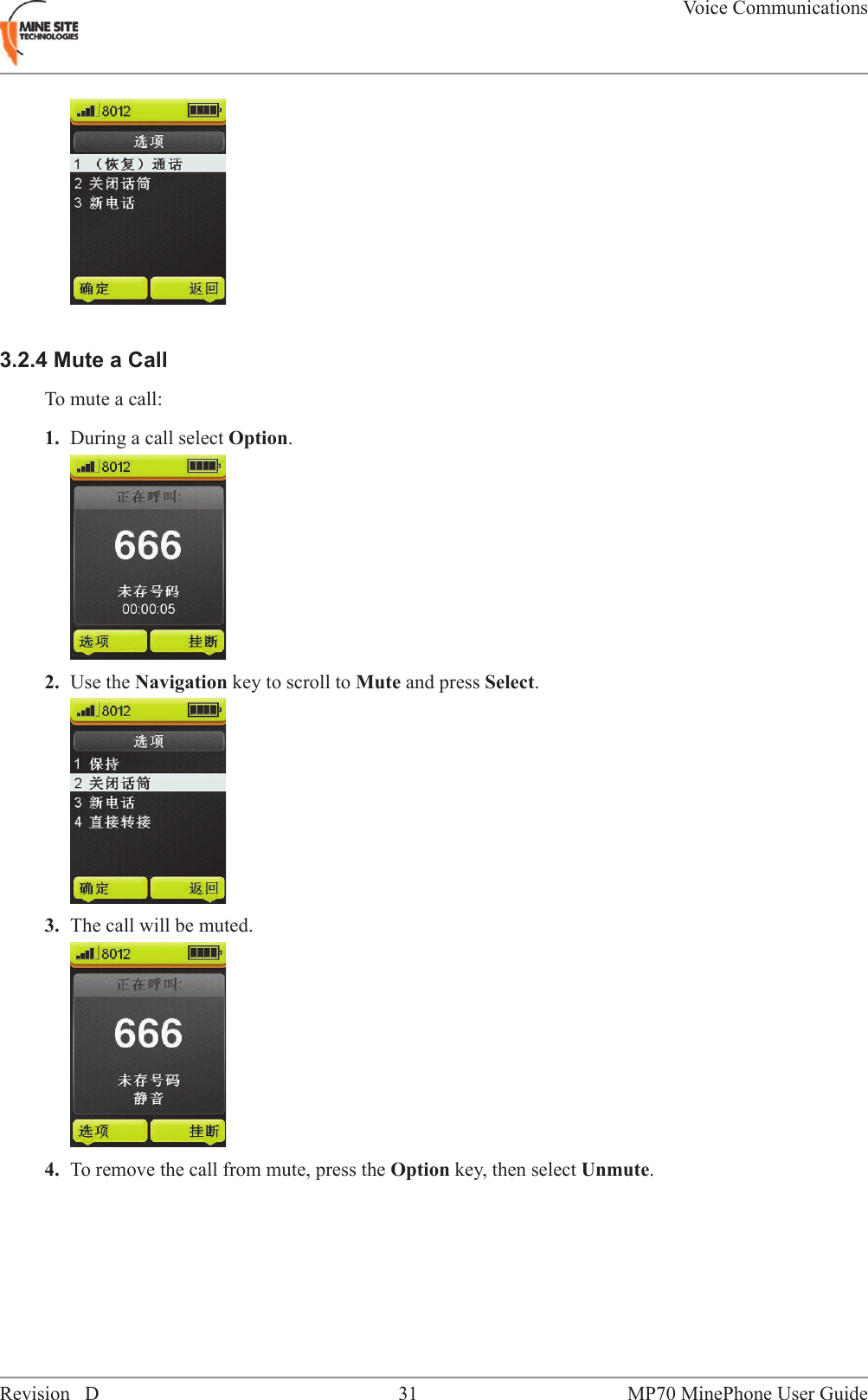

3.2.4 Mute a CallTo mute a call:1. During a call select Option.2. Use the Navigation key to scroll to Mute and press Select.3. The call will be muted.4. To remove the call from mute, press the Option key, then select Unmute.MP70 MinePhone User Guide31Revision DVoice Communications

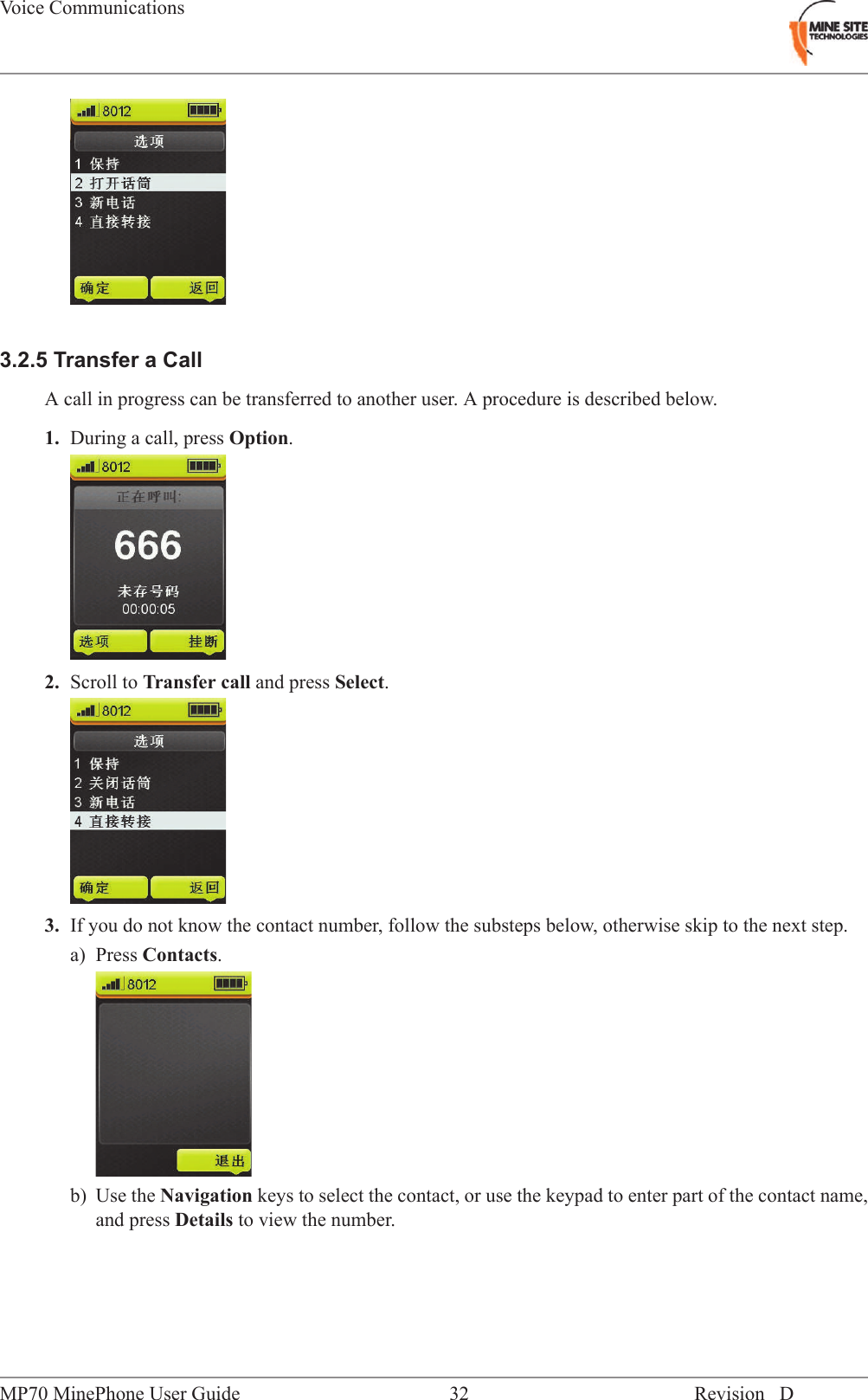

3.2.5 Transfer a CallA call in progress can be transferred to another user. A procedure is described below.1. During a call, press Option.2. Scroll to Transfer call and press Select.3. If you do not know the contact number, follow the substeps below, otherwise skip to the next step.a) Press Contacts.b) Use the Navigation keys to select the contact, or use the keypad to enter part of the contact name,and press Details to view the number.Revision D32MP70 MinePhone User GuideVoice Communications

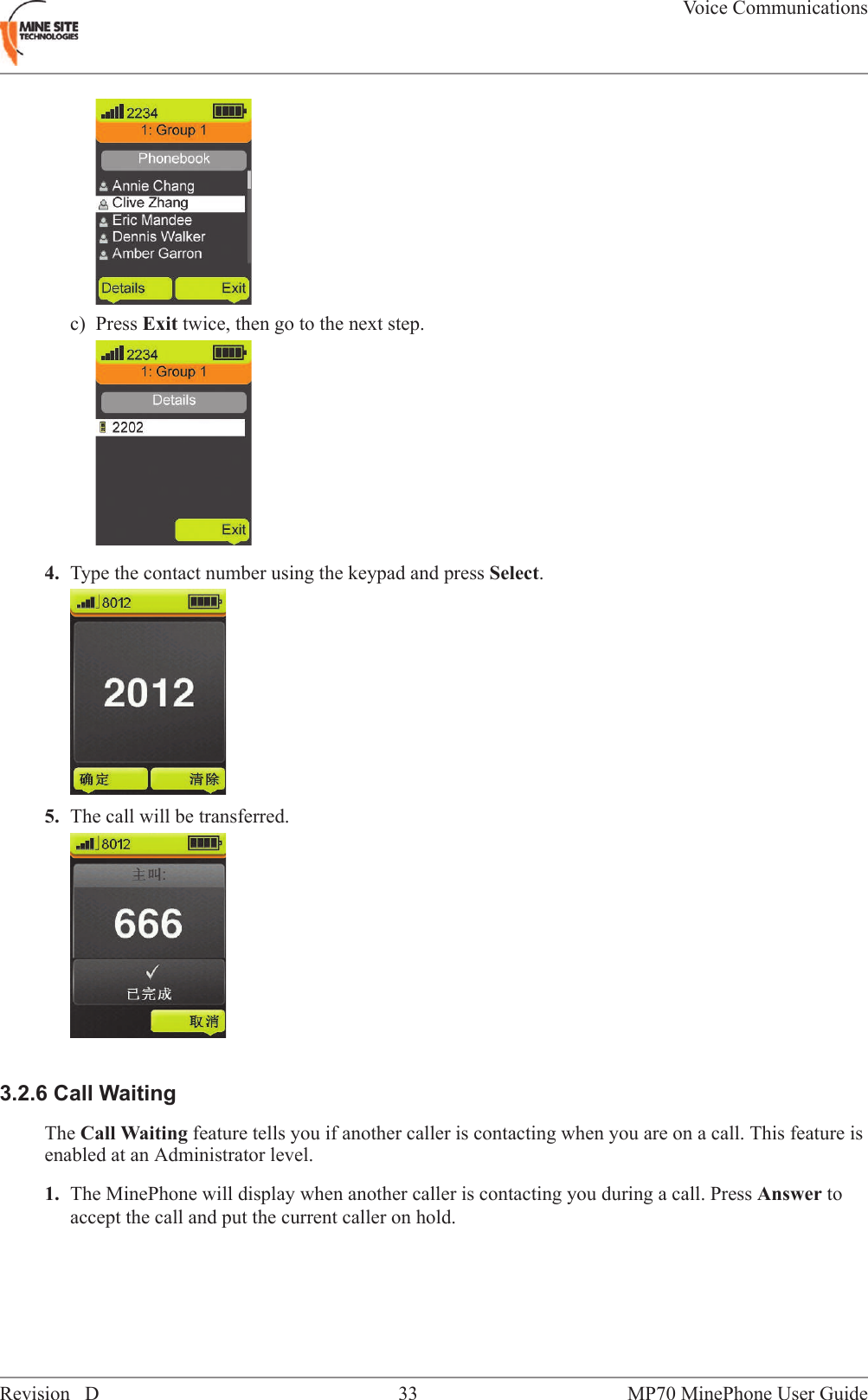

c) Press Exit twice, then go to the next step.4. Type the contact number using the keypad and press Select.5. The call will be transferred.3.2.6 Call WaitingThe Call Waiting feature tells you if another caller is contacting when you are on a call. This feature isenabled at an Administrator level.1. The MinePhone will display when another caller is contacting you during a call. Press Answer toaccept the call and put the current caller on hold.MP70 MinePhone User Guide33Revision DVoice Communications

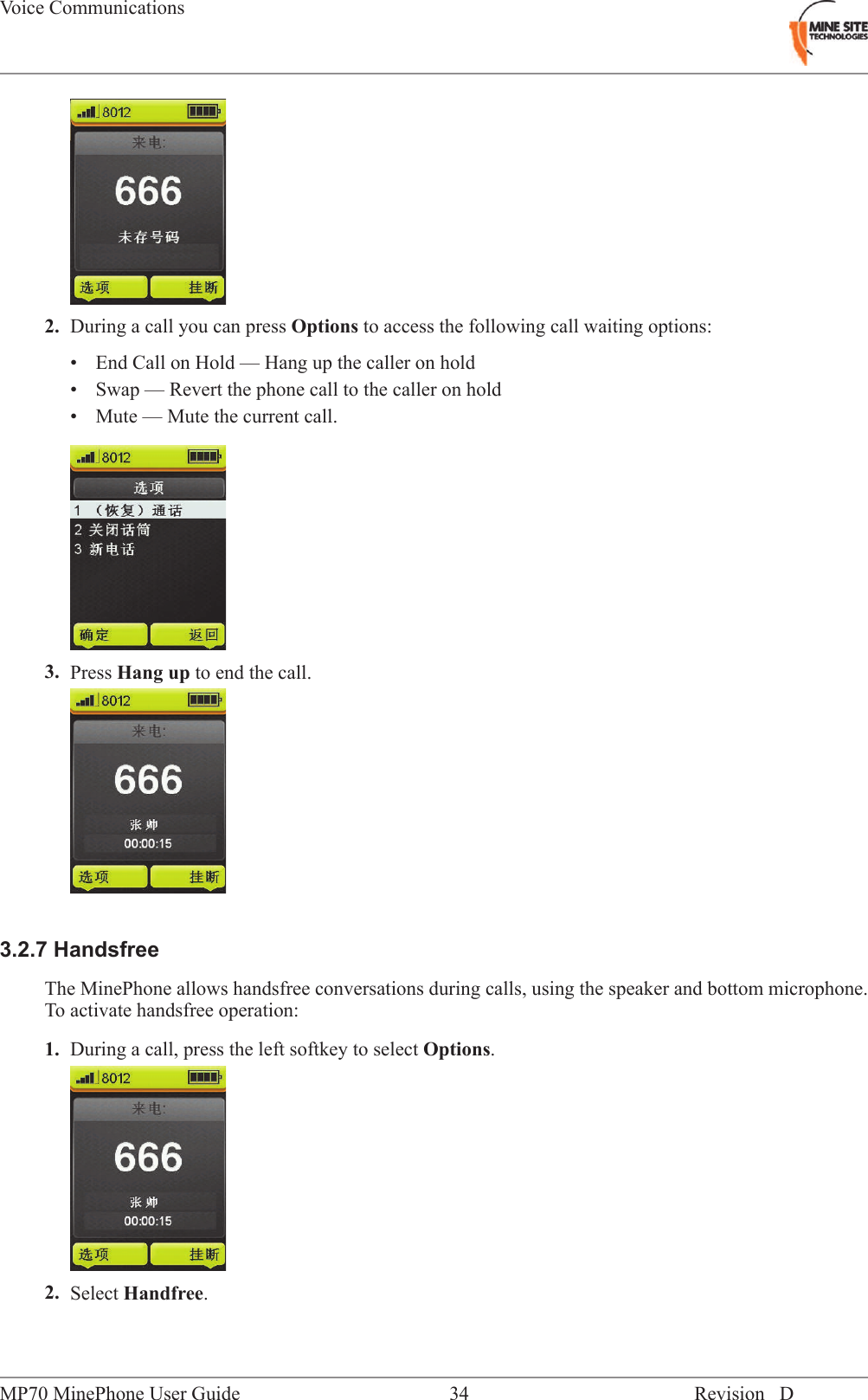

2. During a call you can press Options to access the following call waiting options:• End Call on Hold — Hang up the caller on hold• Swap — Revert the phone call to the caller on hold• Mute — Mute the current call.3. Press Hang up to end the call.3.2.7 HandsfreeThe MinePhone allows handsfree conversations during calls, using the speaker and bottom microphone.To activate handsfree operation:1. During a call, press the left softkey to select Options.2. Select Handfree.Revision D34MP70 MinePhone User GuideVoice Communications

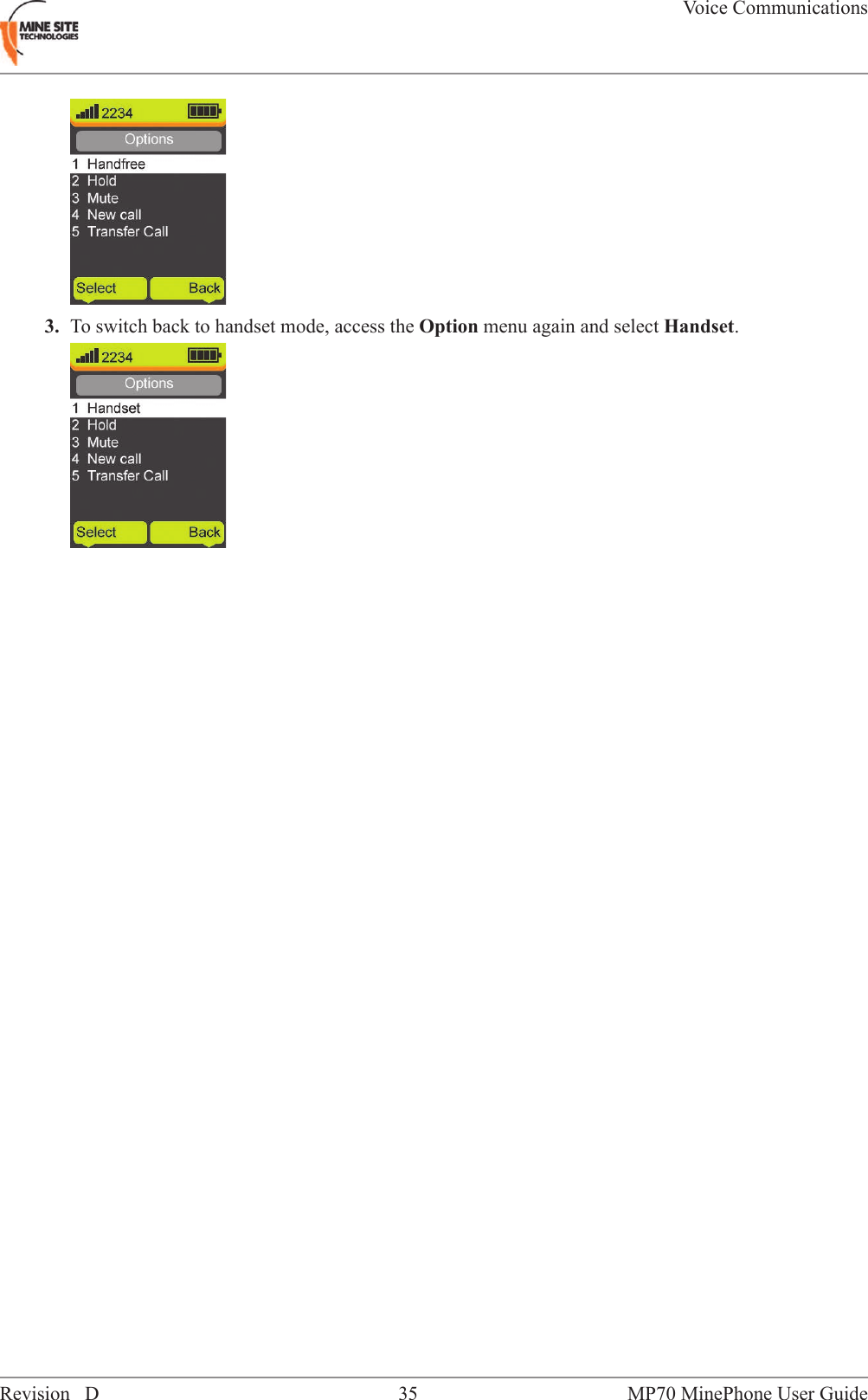

3. To switch back to handset mode, access the Option menu again and select Handset.MP70 MinePhone User Guide35Revision DVoice Communications

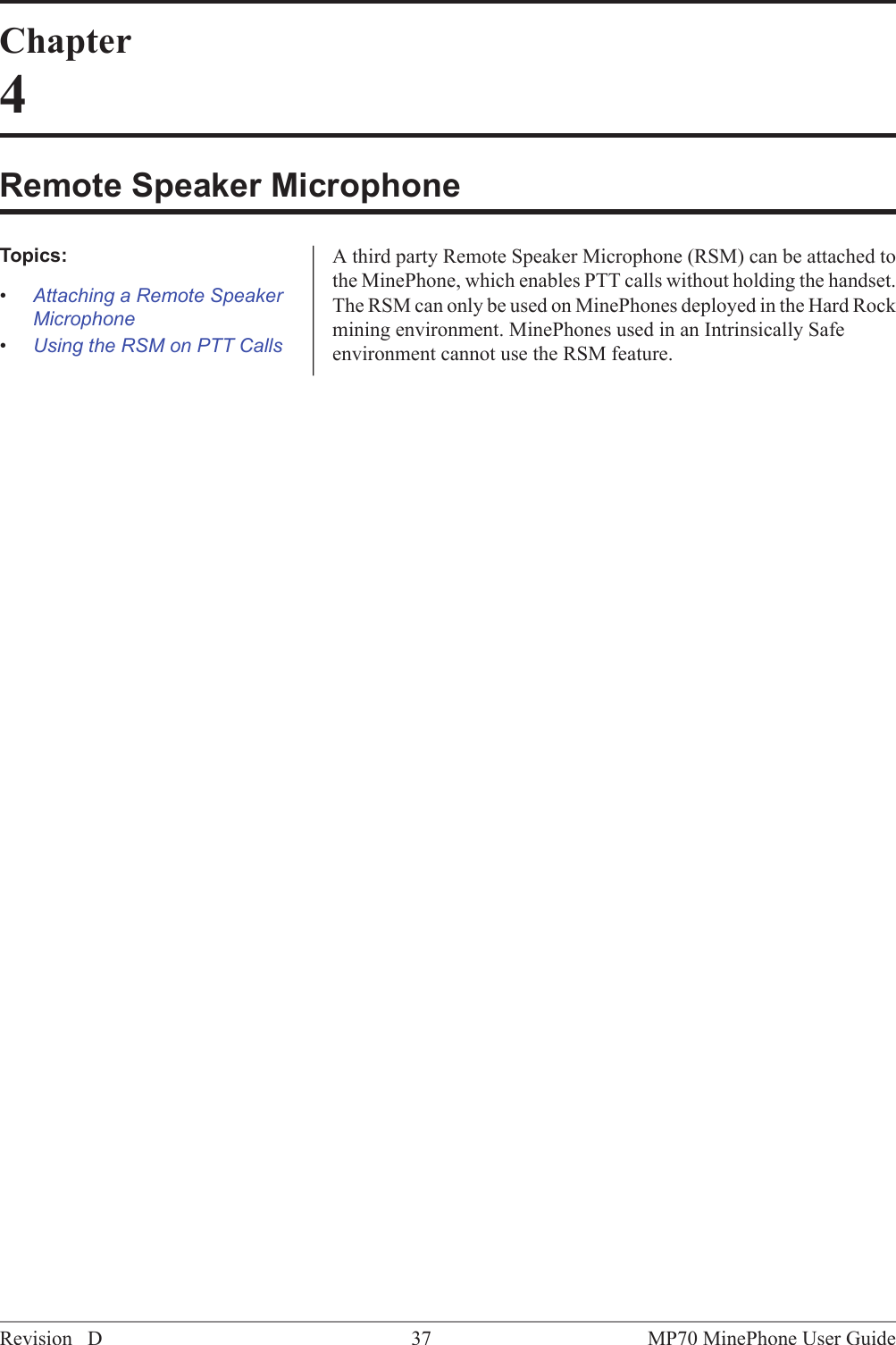

Chapter4Remote Speaker MicrophoneA third party Remote Speaker Microphone (RSM) can be attached tothe MinePhone, which enables PTT calls without holding the handset.Topics:•Attaching a Remote SpeakerMicrophone The RSM can only be used on MinePhones deployed in the Hard Rockmining environment. MinePhones used in an Intrinsically Safeenvironment cannot use the RSM feature.•Using the RSM on PTT CallsMP70 MinePhone User Guide37Revision D

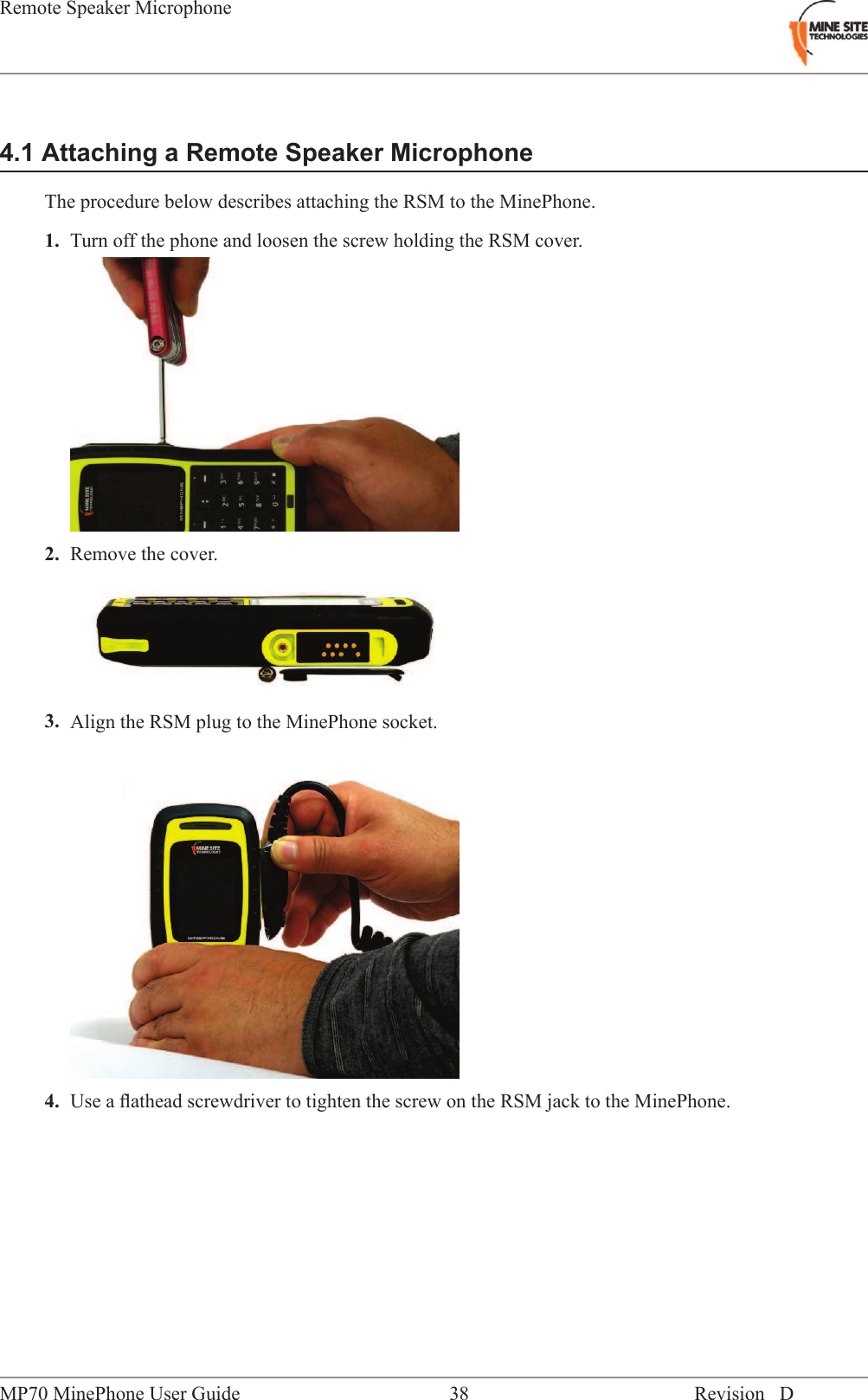

4.1 Attaching a Remote Speaker MicrophoneThe procedure below describes attaching the RSM to the MinePhone.1. Turn off the phone and loosen the screw holding the RSM cover.2. Remove the cover.3. Align the RSM plug to the MinePhone socket.4. Use a flathead screwdriver to tighten the screw on the RSM jack to the MinePhone.Revision D38MP70 MinePhone User GuideRemote Speaker Microphone

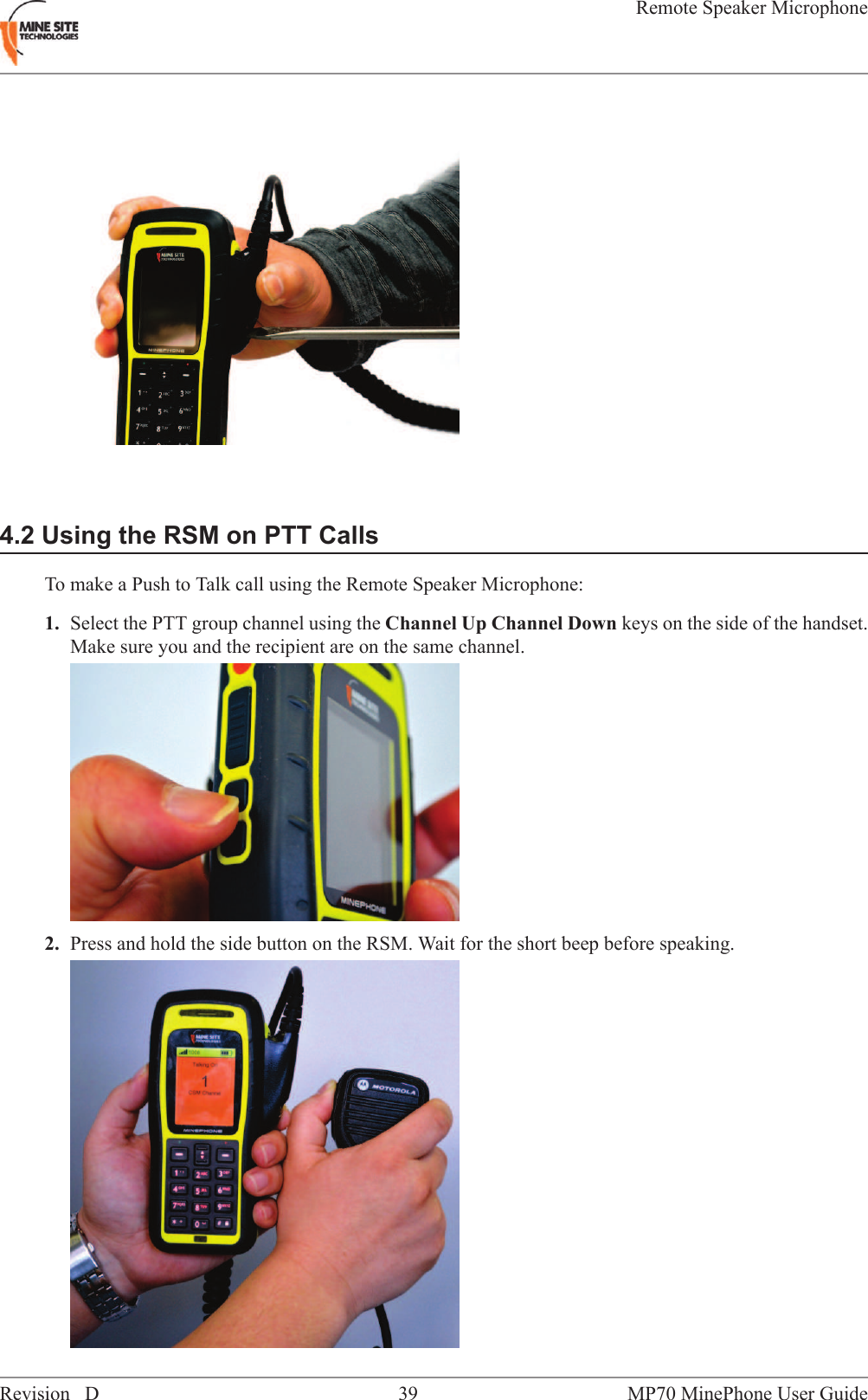

4.2 Using the RSM on PTT CallsTo make a Push to Talk call using the Remote Speaker Microphone:1. Select the PTT group channel using the Channel Up Channel Down keys on the side of the handset.Make sure you and the recipient are on the same channel.2. Press and hold the side button on the RSM. Wait for the short beep before speaking.MP70 MinePhone User Guide39Revision DRemote Speaker Microphone

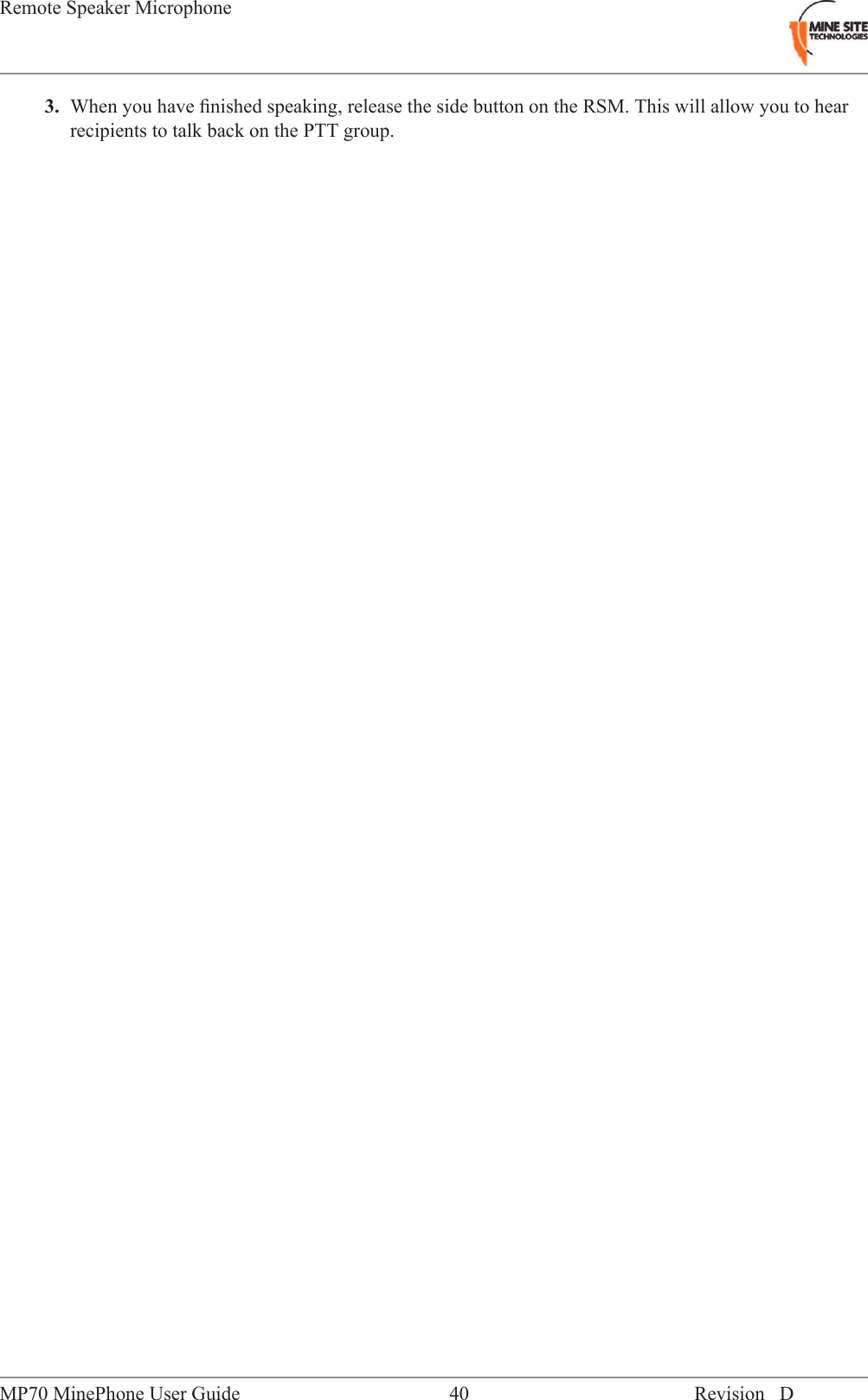

3. When you have finished speaking, release the side button on the RSM. This will allow you to hearrecipients to talk back on the PTT group.Revision D40MP70 MinePhone User GuideRemote Speaker Microphone

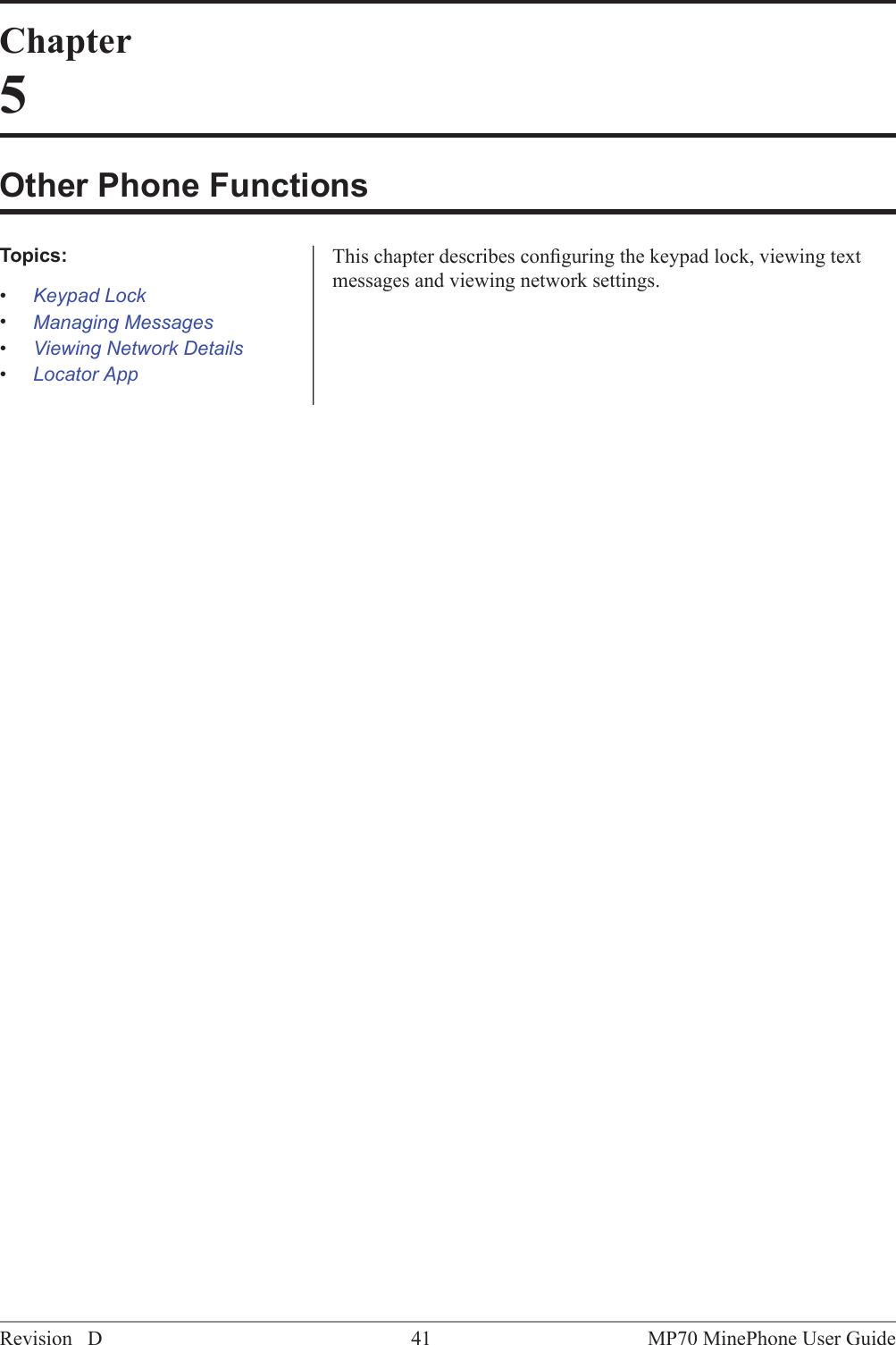

Chapter5Other Phone FunctionsThis chapter describes configuring the keypad lock, viewing textmessages and viewing network settings.Topics:•Keypad Lock•Managing Messages•Viewing Network Details•Locator AppMP70 MinePhone User Guide41Revision D

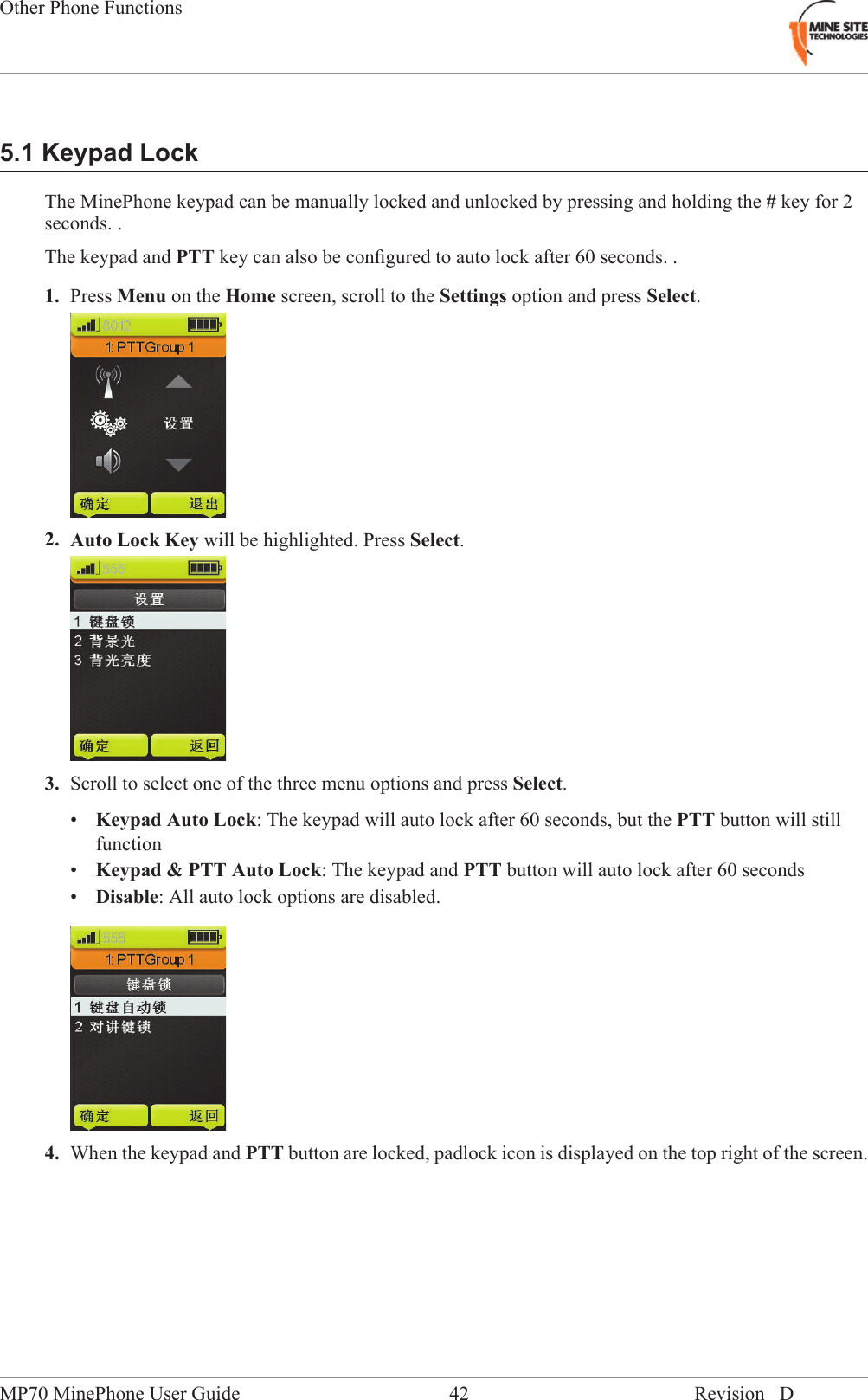

5.1 Keypad LockThe MinePhone keypad can be manually locked and unlocked by pressing and holding the #key for 2seconds. .The keypad and PTT key can also be configured to auto lock after 60 seconds. .1. Press Menu on the Home screen, scroll to the Settings option and press Select.2. Auto Lock Key will be highlighted. Press Select.3. Scroll to select one of the three menu options and press Select.•Keypad Auto Lock: The keypad will auto lock after 60 seconds, but the PTT button will stillfunction•Keypad & PTT Auto Lock: The keypad and PTT button will auto lock after 60 seconds•Disable: All auto lock options are disabled.4. When the keypad and PTT button are locked, padlock icon is displayed on the top right of the screen.Revision D42MP70 MinePhone User GuideOther Phone Functions

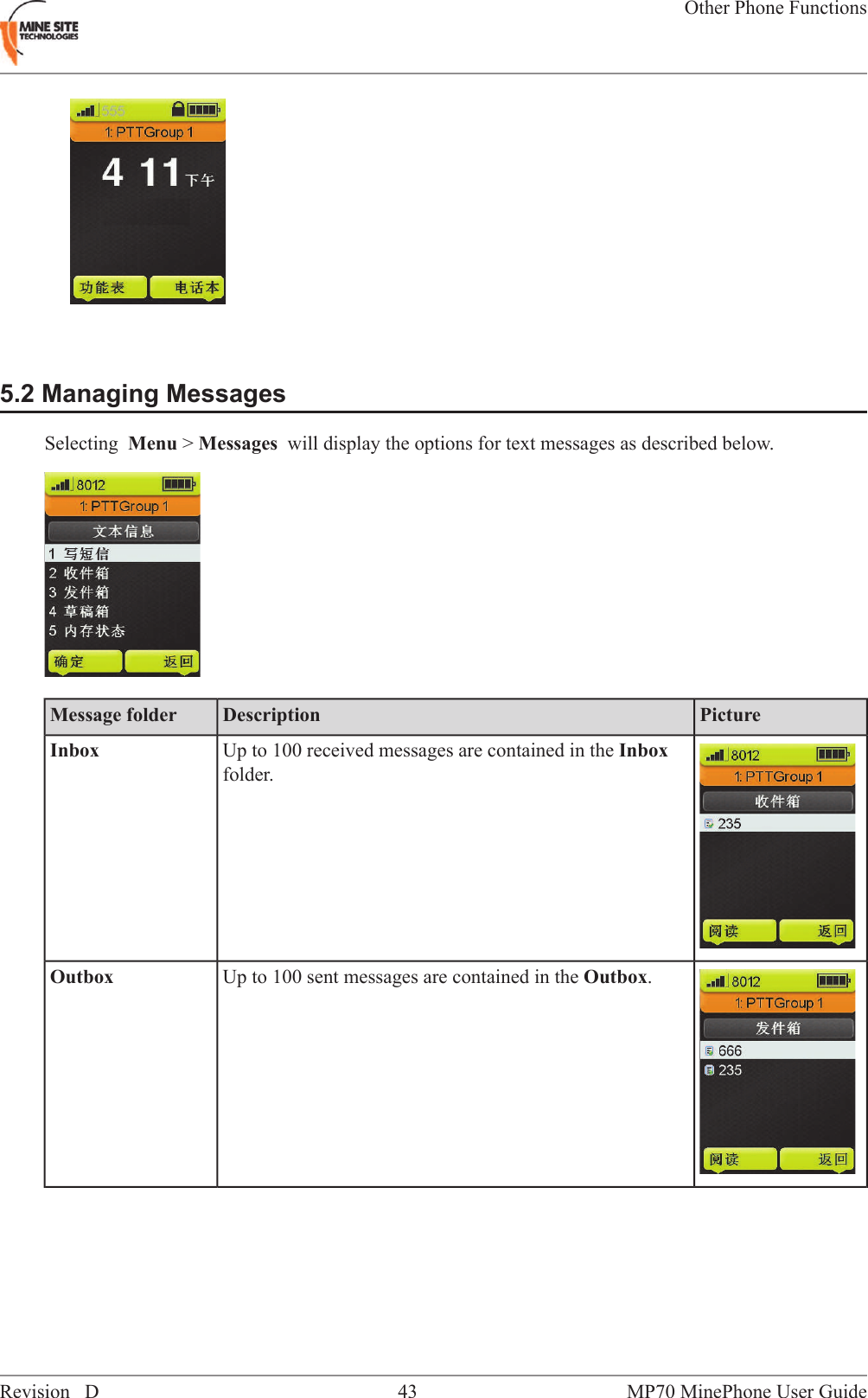

5.2 Managing MessagesSelecting Menu >Messages will display the options for text messages as described below.PictureDescriptionMessage folderUp to 100 received messages are contained in the Inboxfolder.InboxUp to 100 sent messages are contained in the Outbox.OutboxMP70 MinePhone User Guide43Revision DOther Phone Functions

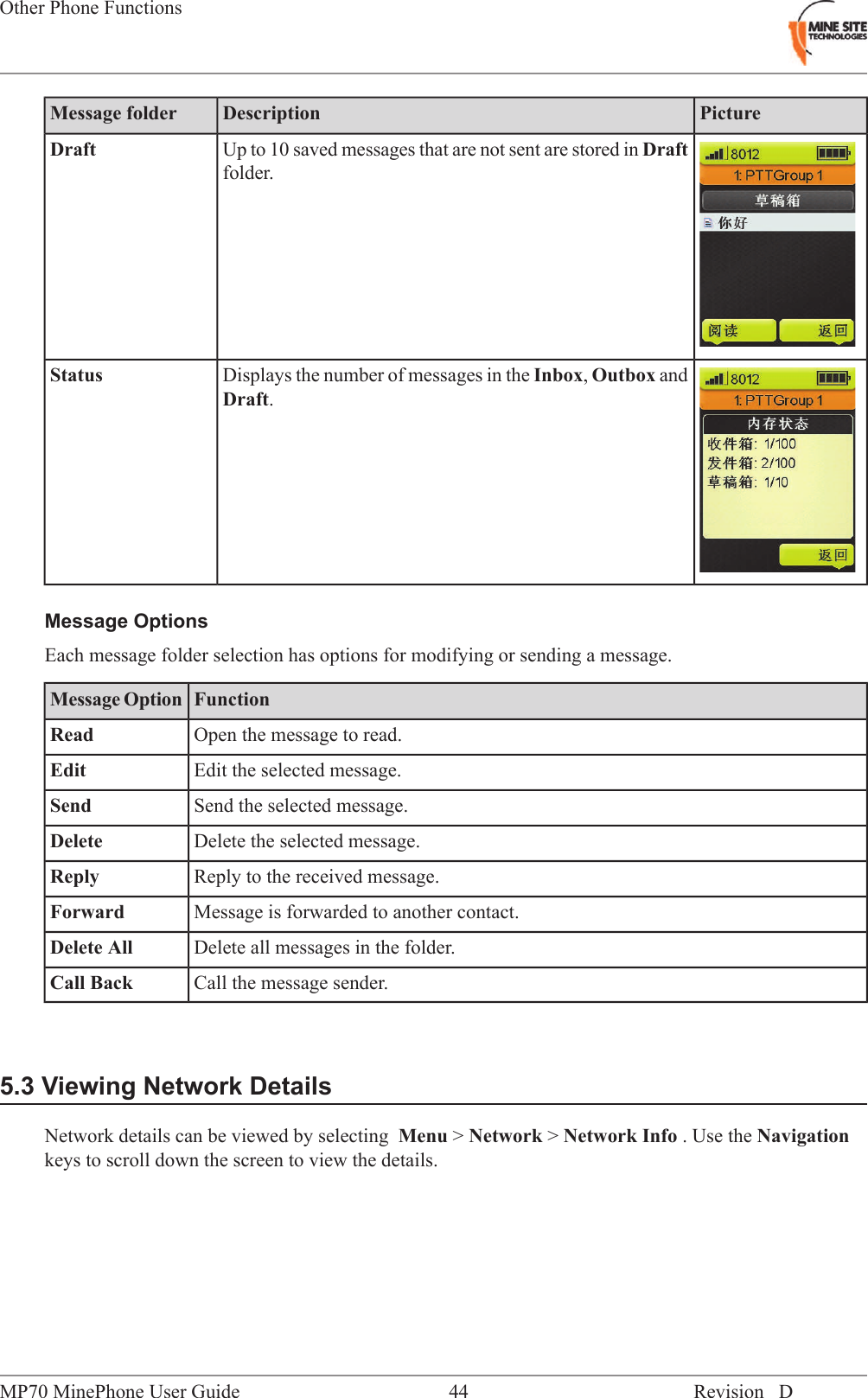

PictureDescriptionMessage folderUp to 10 saved messages that are not sent are stored in Draftfolder.DraftDisplays the number of messages in the Inbox,Outbox andDraft.StatusMessage OptionsEach message folder selection has options for modifying or sending a message.FunctionMessage OptionOpen the message to read.ReadEdit the selected message.EditSend the selected message.SendDelete the selected message.DeleteReply to the received message.ReplyMessage is forwarded to another contact.ForwardDelete all messages in the folder.Delete AllCall the message sender.Call Back5.3 Viewing Network DetailsNetwork details can be viewed by selecting Menu >Network >Network Info . Use the Navigationkeys to scroll down the screen to view the details.Revision D44MP70 MinePhone User GuideOther Phone Functions

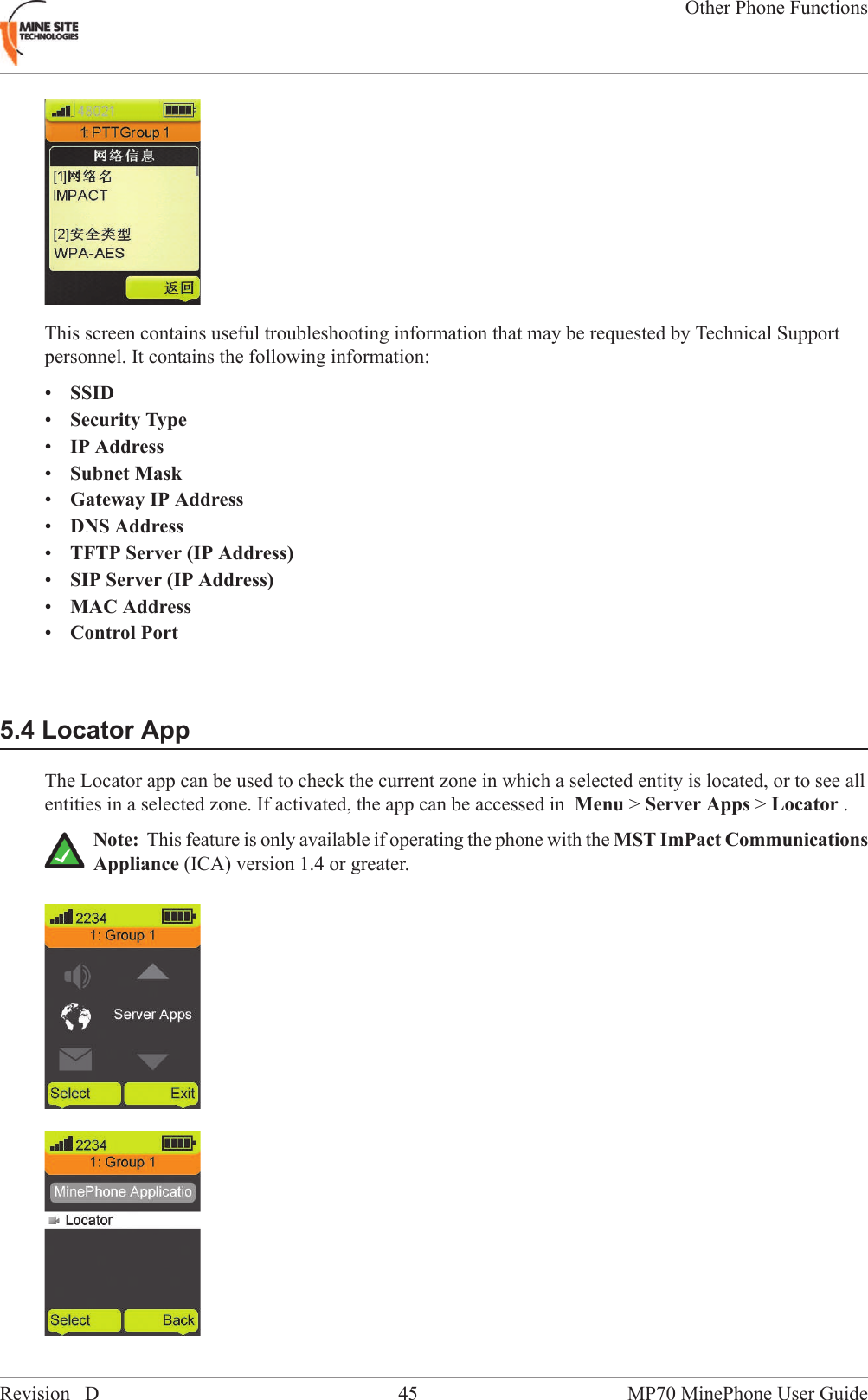

This screen contains useful troubleshooting information that may be requested by Technical Supportpersonnel. It contains the following information:•SSID•Security Type•IP Address•Subnet Mask•Gateway IP Address•DNS Address•TFTP Server (IP Address)•SIP Server (IP Address)•MAC Address•Control Port5.4 Locator AppThe Locator app can be used to check the current zone in which a selected entity is located, or to see allentities in a selected zone. If activated, the app can be accessed in Menu >Server Apps >Locator .Note: This feature is only available if operating the phone with the MST ImPact CommunicationsAppliance (ICA) version 1.4 or greater.MP70 MinePhone User Guide45Revision DOther Phone Functions

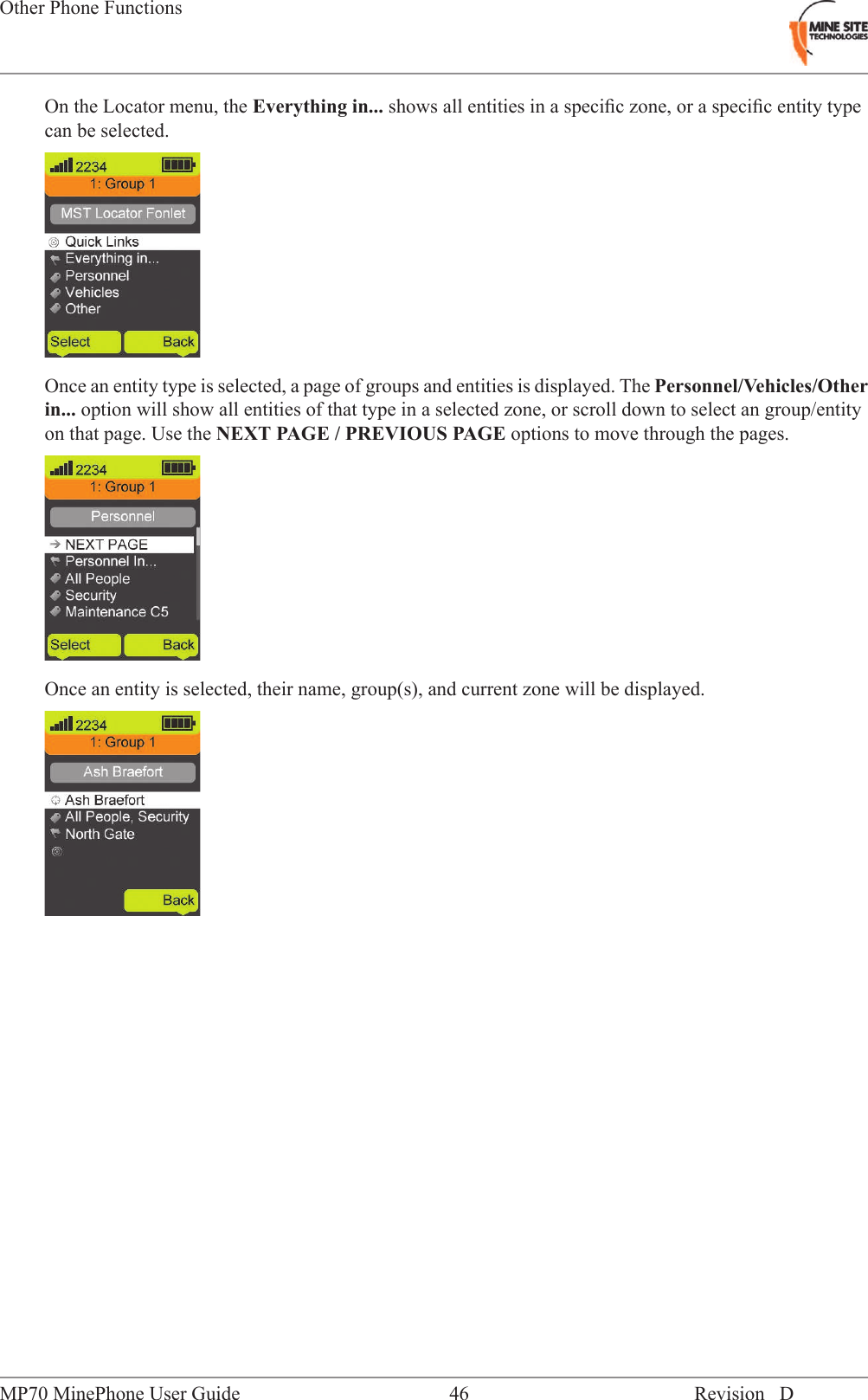

On the Locator menu, the Everything in... shows all entities in a specific zone, or a specific entity typecan be selected.Once an entity type is selected, a page of groups and entities is displayed. The Personnel/Vehicles/Otherin... option will show all entities of that type in a selected zone, or scroll down to select an group/entityon that page. Use the NEXT PAGE / PREVIOUS PAGE options to move through the pages.Once an entity is selected, their name, group(s), and current zone will be displayed.Revision D46MP70 MinePhone User GuideOther Phone Functions

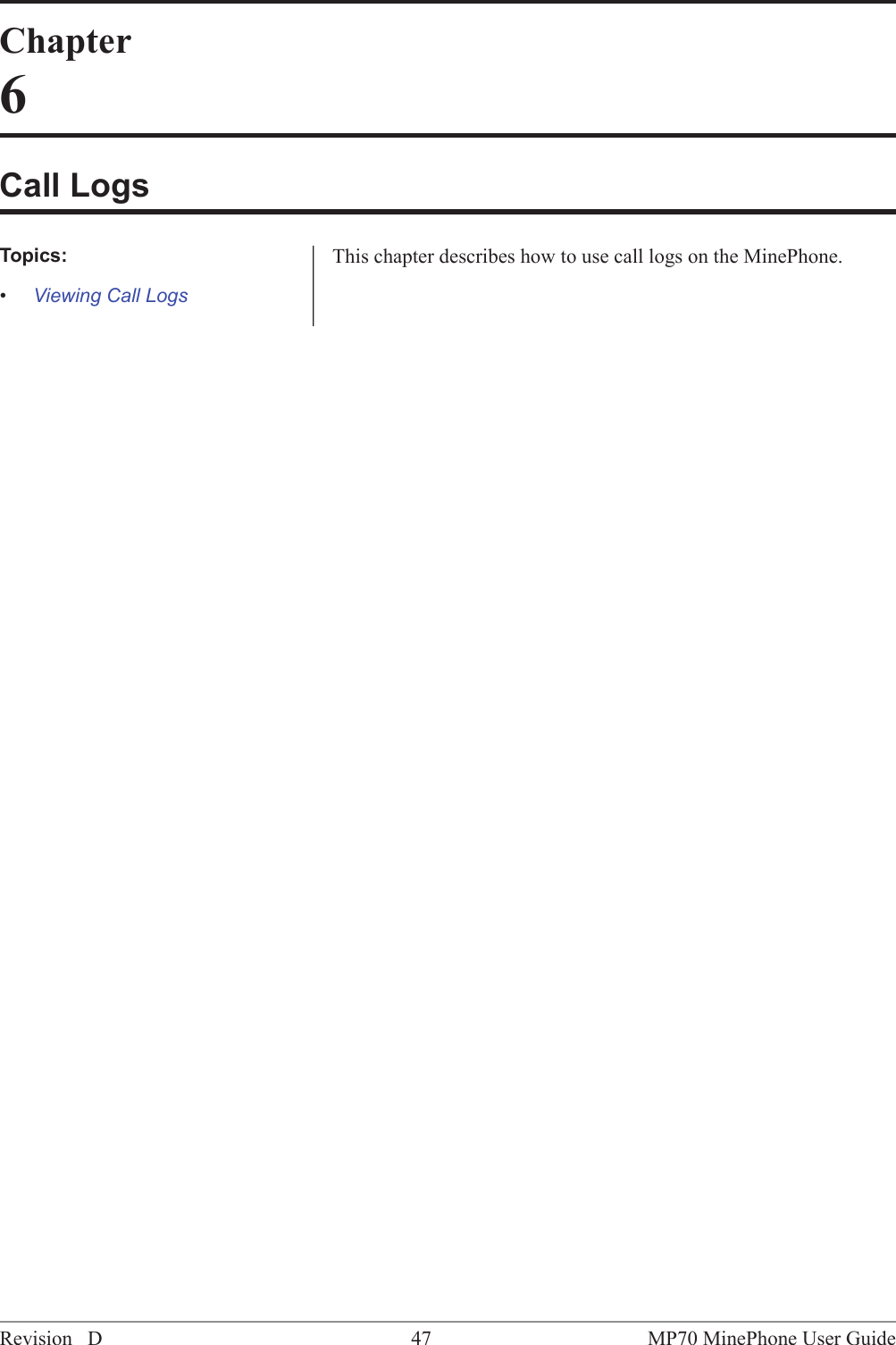

Chapter6Call LogsThis chapter describes how to use call logs on the MinePhone.Topics:•Viewing Call LogsMP70 MinePhone User Guide47Revision D

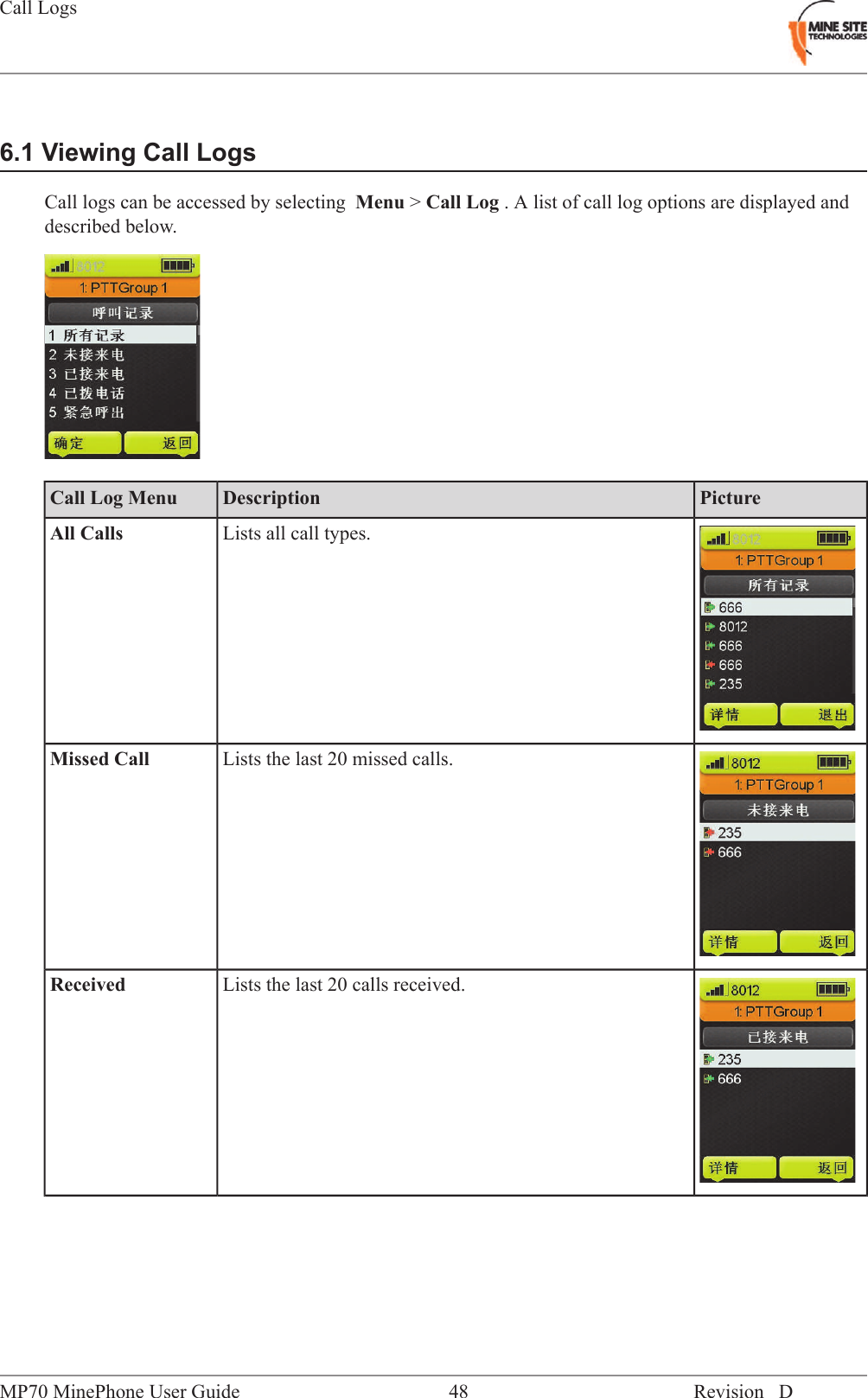

6.1 Viewing Call LogsCall logs can be accessed by selecting Menu >Call Log . A list of call log options are displayed anddescribed below.PictureDescriptionCall Log MenuLists all call types.All CallsLists the last 20 missed calls.Missed CallLists the last 20 calls received.ReceivedRevision D48MP70 MinePhone User GuideCall Logs

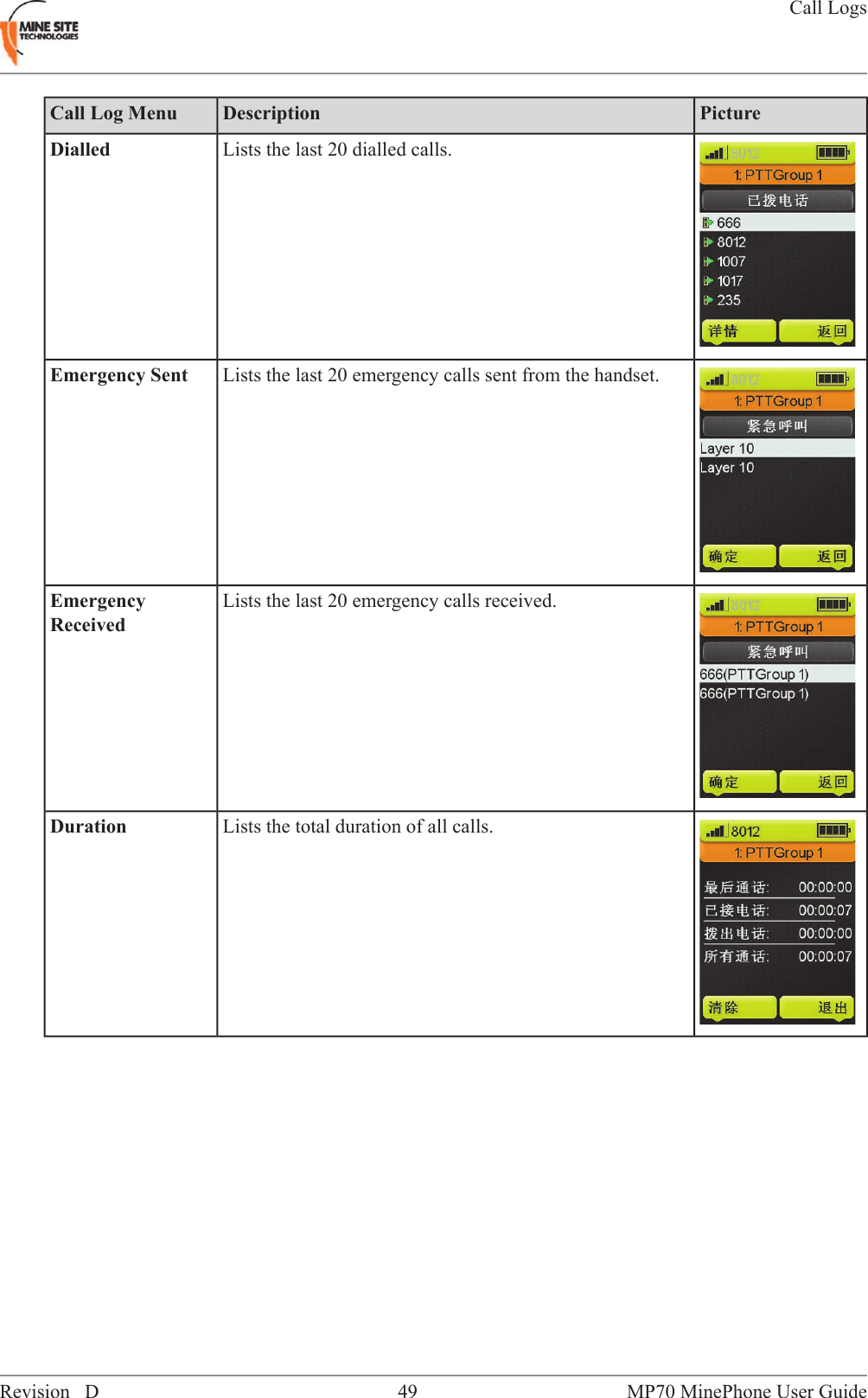

PictureDescriptionCall Log MenuLists the last 20 dialled calls.DialledLists the last 20 emergency calls sent from the handset.Emergency SentLists the last 20 emergency calls received.EmergencyReceivedLists the total duration of all calls.DurationMP70 MinePhone User Guide49Revision DCall Logs

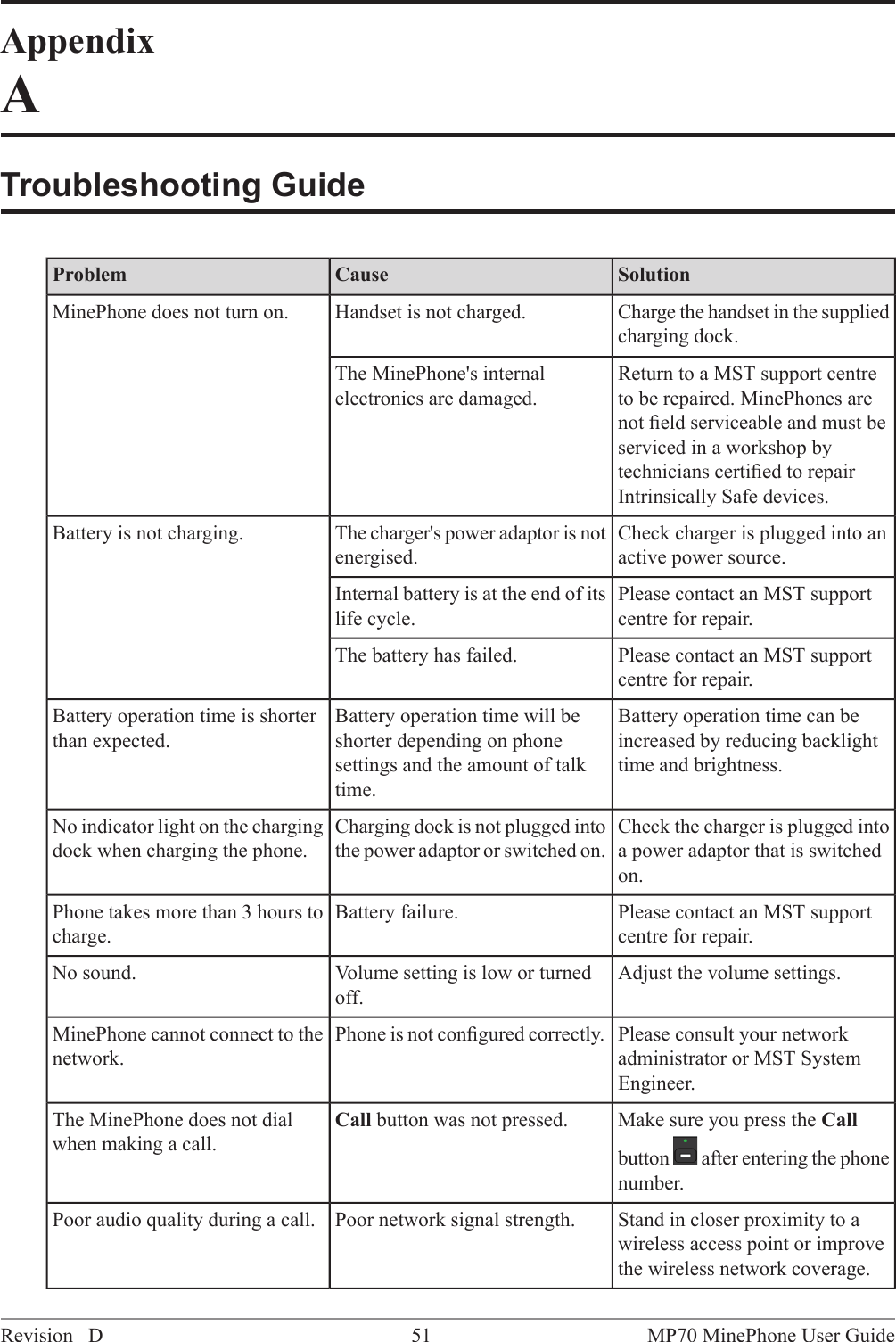

AppendixATroubleshooting GuideSolutionCauseProblemCharge the handset in the suppliedcharging dock.Handset is not charged.MinePhone does not turn on.Return to a MST support centreto be repaired. MinePhones areThe MinePhone's internalelectronics are damaged.not field serviceable and must beserviced in a workshop bytechnicians certified to repairIntrinsically Safe devices.Check charger is plugged into anactive power source.The charger's power adaptor is notenergised.Battery is not charging.Please contact an MST supportcentre for repair.Internal battery is at the end of itslife cycle.Please contact an MST supportcentre for repair.The battery has failed.Battery operation time can beincreased by reducing backlighttime and brightness.Battery operation time will beshorter depending on phonesettings and the amount of talktime.Battery operation time is shorterthan expected.Check the charger is plugged intoa power adaptor that is switchedon.Charging dock is not plugged intothe power adaptor or switched on.No indicator light on the chargingdock when charging the phone.Please contact an MST supportcentre for repair.Battery failure.Phone takes more than 3 hours tocharge.Adjust the volume settings.Volume setting is low or turnedoff.No sound.Please consult your networkadministrator or MST SystemEngineer.Phone is not configured correctly.MinePhone cannot connect to thenetwork.Make sure you press the Callbutton after entering the phonenumber.Call button was not pressed.The MinePhone does not dialwhen making a call.Stand in closer proximity to awireless access point or improvethe wireless network coverage.Poor network signal strength.Poor audio quality during a call.MP70 MinePhone User Guide51Revision D

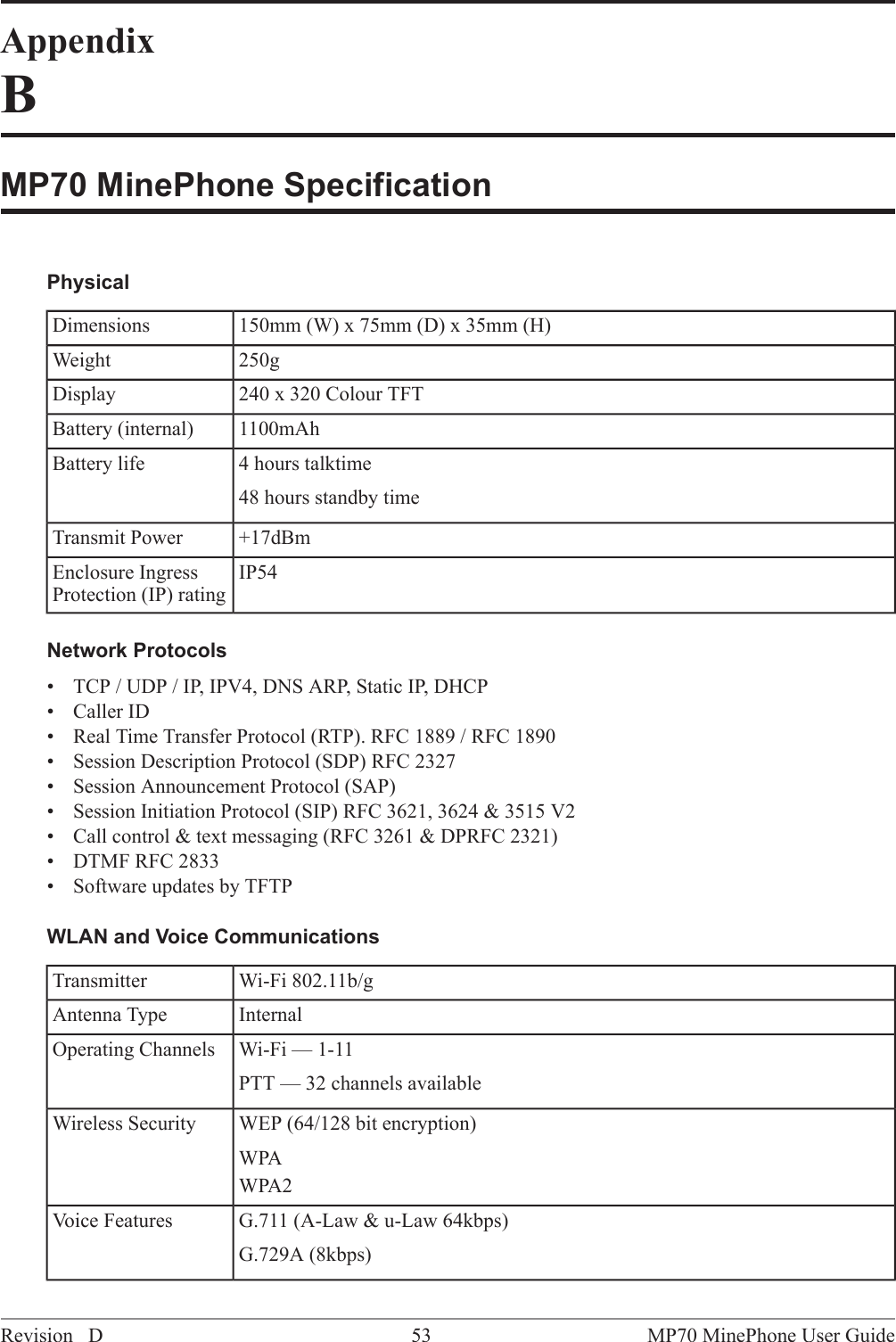

AppendixBMP70 MinePhone SpecificationPhysical150mm (W) x 75mm (D) x 35mm (H)Dimensions250gWeight240 x 320 Colour TFTDisplay1100mAhBattery (internal)4 hours talktime48 hours standby timeBattery life+17dBmTransmit PowerIP54Enclosure IngressProtection (IP) ratingNetwork Protocols• TCP / UDP / IP, IPV4, DNS ARP, Static IP, DHCP• Caller ID• Real Time Transfer Protocol (RTP). RFC 1889 / RFC 1890• Session Description Protocol (SDP) RFC 2327• Session Announcement Protocol (SAP)• Session Initiation Protocol (SIP) RFC 3621, 3624 & 3515 V2• Call control & text messaging (RFC 3261 & DPRFC 2321)• DTMF RFC 2833• Software updates by TFTPWLAN and Voice CommunicationsWi-Fi 802.11b/gTransmitterInternalAntenna TypeWi-Fi — 1-11PTT — 32 channels availableOperating ChannelsWEP (64/128 bit encryption)WPAWireless SecurityWPA2G.711 (A-Law & u-Law 64kbps)G.729A (8kbps)Voice FeaturesMP70 MinePhone User Guide53Revision D

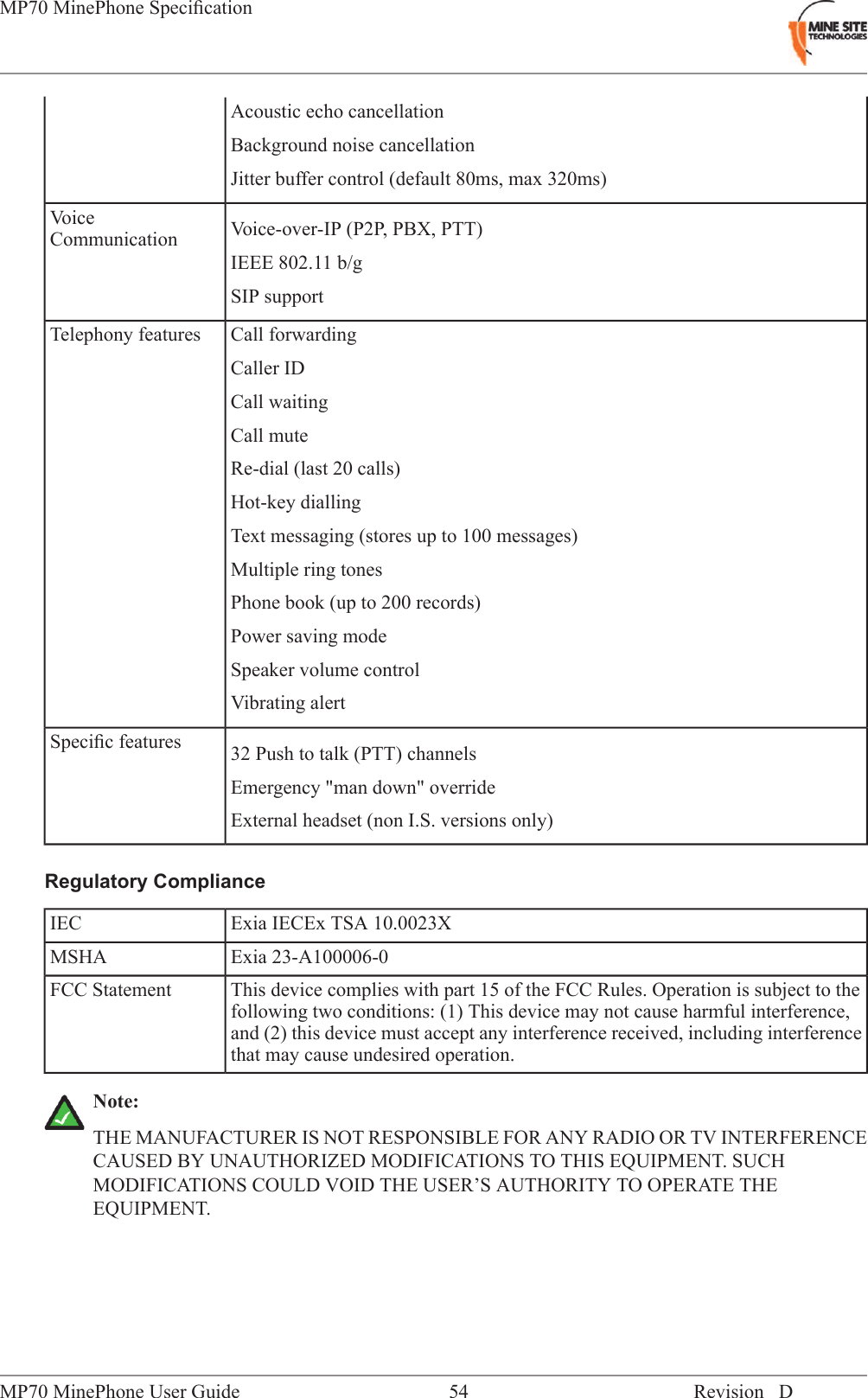

Acoustic echo cancellationBackground noise cancellationJitter buffer control (default 80ms, max 320ms)Voice-over-IP (P2P, PBX, PTT)VoiceCommunicationIEEE 802.11 b/gSIP supportCall forwardingCaller IDTelephony featuresCall waitingCall muteRe-dial (last 20 calls)Hot-key diallingText messaging (stores up to 100 messages)Multiple ring tonesPhone book (up to 200 records)Power saving modeSpeaker volume controlVibrating alert32 Push to talk (PTT) channelsSpecific featuresEmergency "man down" overrideExternal headset (non I.S. versions only)Regulatory ComplianceExia IECEx TSA 10.0023XIECExia 23-A100006-0MSHAThis device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions: (1) This device may not cause harmful interference,FCC Statementand (2) this device must accept any interference received, including interferencethat may cause undesired operation.Note:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCECAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCHMODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THEEQUIPMENT.Revision D54MP70 MinePhone User GuideMP70 MinePhone Specification

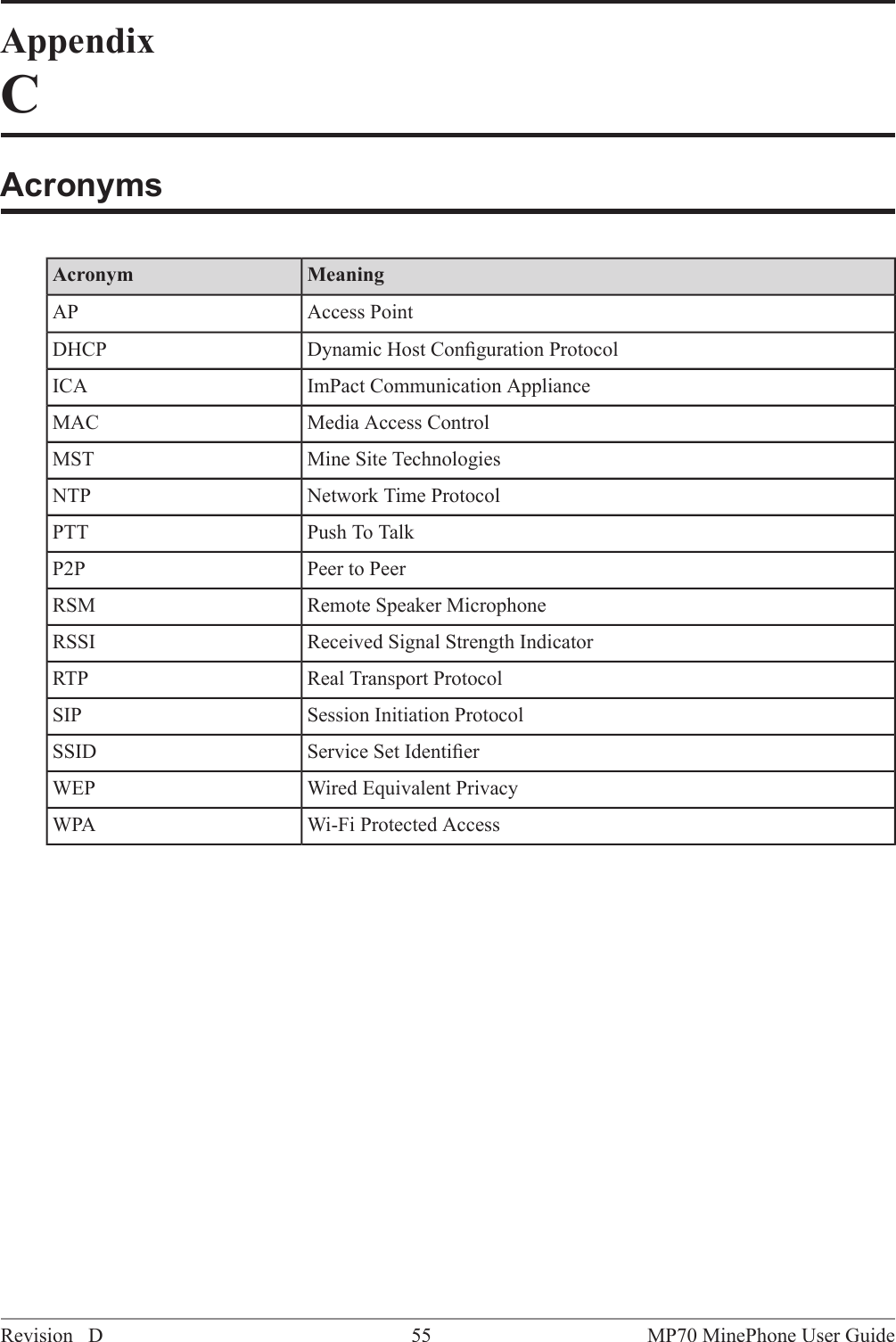

AppendixCAcronymsMeaningAcronymAccess PointAPDynamic Host Configuration ProtocolDHCPImPact Communication ApplianceICAMedia Access ControlMACMine Site TechnologiesMSTNetwork Time ProtocolNTPPush To TalkPTTPeer to PeerP2PRemote Speaker MicrophoneRSMReceived Signal Strength IndicatorRSSIReal Transport ProtocolRTPSession Initiation ProtocolSIPService Set IdentifierSSIDWired Equivalent PrivacyWEPWi-Fi Protected AccessWPAMP70 MinePhone User Guide55Revision D

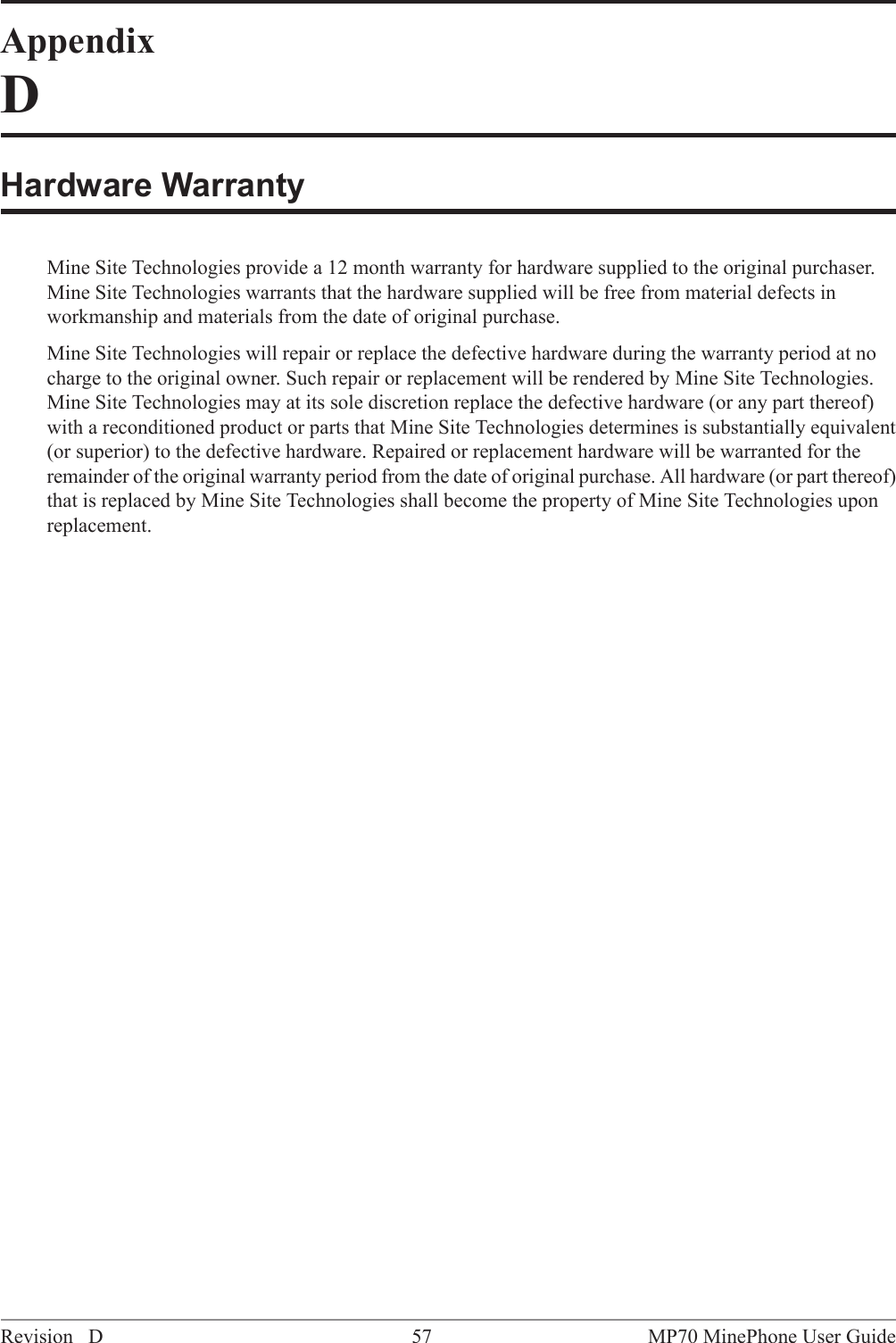

AppendixDHardware WarrantyMine Site Technologies provide a 12 month warranty for hardware supplied to the original purchaser.Mine Site Technologies warrants that the hardware supplied will be free from material defects inworkmanship and materials from the date of original purchase.Mine Site Technologies will repair or replace the defective hardware during the warranty period at nocharge to the original owner. Such repair or replacement will be rendered by Mine Site Technologies.Mine Site Technologies may at its sole discretion replace the defective hardware (or any part thereof)with a reconditioned product or parts that Mine Site Technologies determines is substantially equivalent(or superior) to the defective hardware. Repaired or replacement hardware will be warranted for theremainder of the original warranty period from the date of original purchase. All hardware (or part thereof)that is replaced by Mine Site Technologies shall become the property of Mine Site Technologies uponreplacement.MP70 MinePhone User Guide57Revision D

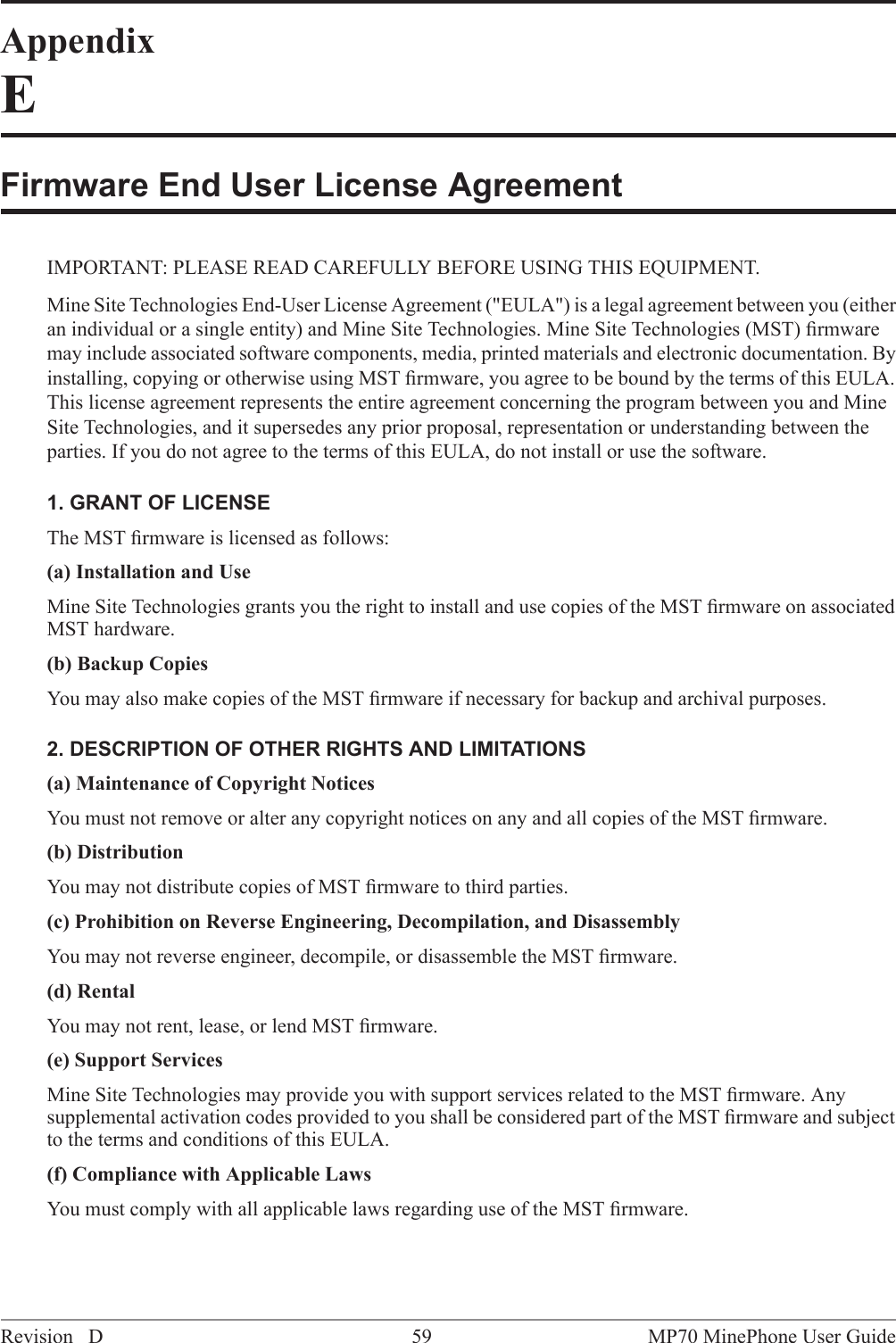

AppendixEFirmware End User License AgreementIMPORTANT: PLEASE READ CAREFULLY BEFORE USING THIS EQUIPMENT.Mine Site Technologies End-User License Agreement ("EULA") is a legal agreement between you (eitheran individual or a single entity) and Mine Site Technologies. Mine Site Technologies (MST) firmwaremay include associated software components, media, printed materials and electronic documentation. Byinstalling, copying or otherwise using MST firmware, you agree to be bound by the terms of this EULA.This license agreement represents the entire agreement concerning the program between you and MineSite Technologies, and it supersedes any prior proposal, representation or understanding between theparties. If you do not agree to the terms of this EULA, do not install or use the software.1. GRANT OF LICENSEThe MST firmware is licensed as follows:(a) Installation and UseMine Site Technologies grants you the right to install and use copies of the MST firmware on associatedMST hardware.(b) Backup CopiesYou may also make copies of the MST firmware if necessary for backup and archival purposes.2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS(a) Maintenance of Copyright NoticesYou must not remove or alter any copyright notices on any and all copies of the MST firmware.(b) DistributionYou may not distribute copies of MST firmware to third parties.(c) Prohibition on Reverse Engineering, Decompilation, and DisassemblyYou may not reverse engineer, decompile, or disassemble the MST firmware.(d) RentalYou may not rent, lease, or lend MST firmware.(e) Support ServicesMine Site Technologies may provide you with support services related to the MST firmware. Anysupplemental activation codes provided to you shall be considered part of the MST firmware and subjectto the terms and conditions of this EULA.(f) Compliance with Applicable LawsYou must comply with all applicable laws regarding use of the MST firmware.MP70 MinePhone User Guide59Revision D

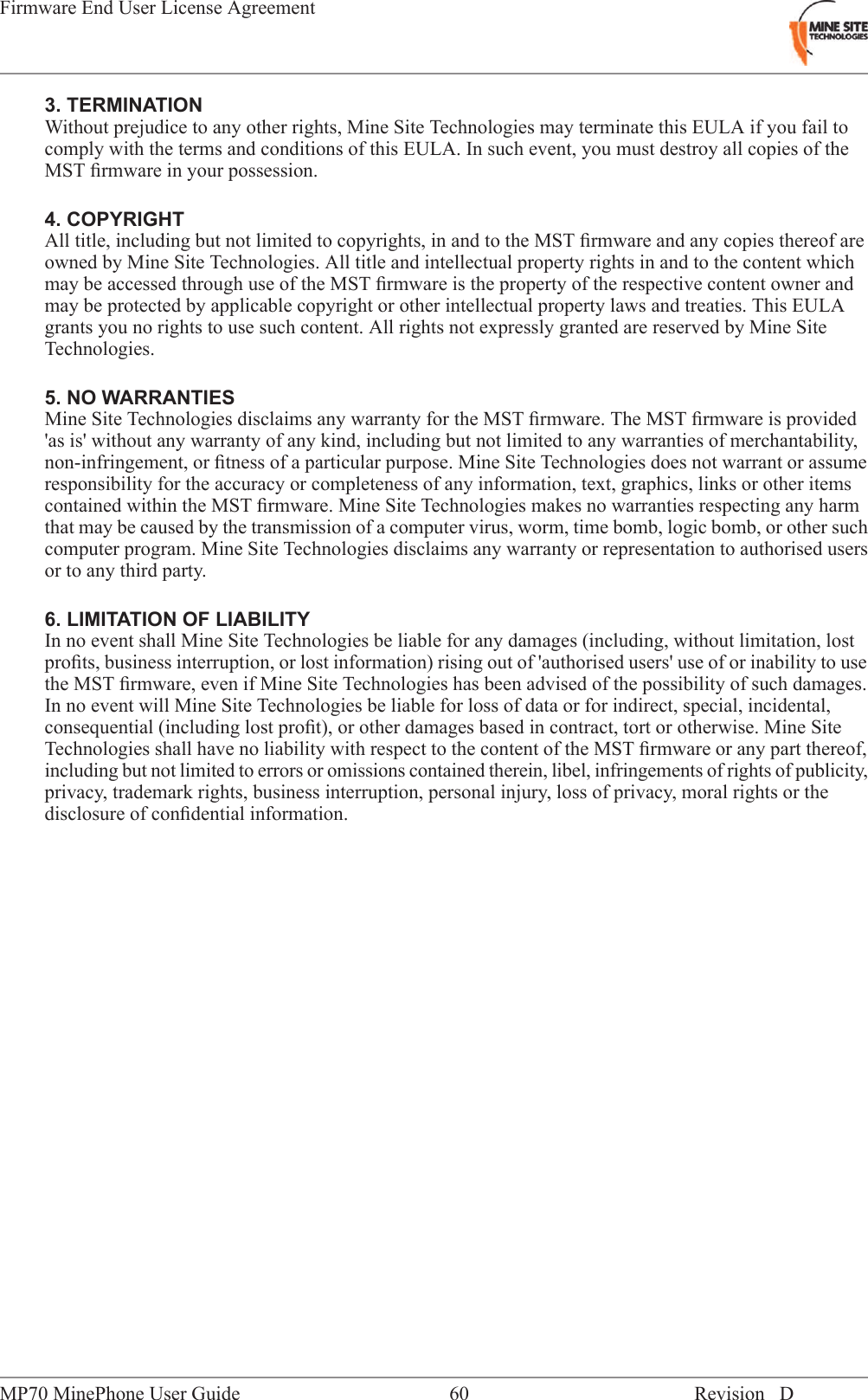

3. TERMINATIONWithout prejudice to any other rights, Mine Site Technologies may terminate this EULA if you fail tocomply with the terms and conditions of this EULA. In such event, you must destroy all copies of theMST firmware in your possession.4. COPYRIGHTAll title, including but not limited to copyrights, in and to the MST firmware and any copies thereof areowned by Mine Site Technologies. All title and intellectual property rights in and to the content whichmay be accessed through use of the MST firmware is the property of the respective content owner andmay be protected by applicable copyright or other intellectual property laws and treaties. This EULAgrants you no rights to use such content. All rights not expressly granted are reserved by Mine SiteTechnologies.5. NO WARRANTIESMine Site Technologies disclaims any warranty for the MST firmware. The MST firmware is provided'as is' without any warranty of any kind, including but not limited to any warranties of merchantability,non-infringement, or fitness of a particular purpose. Mine Site Technologies does not warrant or assumeresponsibility for the accuracy or completeness of any information, text, graphics, links or other itemscontained within the MST firmware. Mine Site Technologies makes no warranties respecting any harmthat may be caused by the transmission of a computer virus, worm, time bomb, logic bomb, or other suchcomputer program. Mine Site Technologies disclaims any warranty or representation to authorised usersor to any third party.6. LIMITATION OF LIABILITYIn no event shall Mine Site Technologies be liable for any damages (including, without limitation, lostprofits, business interruption, or lost information) rising out of 'authorised users' use of or inability to usethe MST firmware, even if Mine Site Technologies has been advised of the possibility of such damages.In no event will Mine Site Technologies be liable for loss of data or for indirect, special, incidental,consequential (including lost profit), or other damages based in contract, tort or otherwise. Mine SiteTechnologies shall have no liability with respect to the content of the MST firmware or any part thereof,including but not limited to errors or omissions contained therein, libel, infringements of rights of publicity,privacy, trademark rights, business interruption, personal injury, loss of privacy, moral rights or thedisclosure of confidential information.Revision D60MP70 MinePhone User GuideFirmware End User License Agreement
