Functional Description 20/Sep/2001
MITSUMI
Bluetooth Module “ WML-C07##”
Hardware:Version 1
Ultra-small and thin size achieved through
use of high density mounting technology.
1. APPLICATIONS
Notebook PCs, mobile phones, digital cameras, PC peripherals, PDA.
2. DESCRIPTIONS
Wireless communication module conforming to Bluetooth Ver.1.1.
3. FEATURES
1 ) Ultra-small and thin size achieved through use of high density mounting
technology.
2 ) High sensitivity.
3 ) UART, USB and PCMIF interfaces enable wide range of applications.
4 ) Conforms to FCC, CE and other countries’ EMI standards.
5 ) Supports Bluetooth Class1.
Note)The BLUETOOTH trademarks are owned by Telefonaktiebolaget L M,
Ericsson, Sweden.
4. SPECIFICATIONS
I t e m S p e c i f i c a t i o n s
F r e q u e n c y 2402 to 2480MHz
M o d u l a t i o n FHSS / GFSK
Channel intervals 1 M H z
Number of channels 7 9 C H
Power supply voltage 3.3V(typ.) ,3.2 to 3.4V
Transmission rate 7 2 1 k b p s
Receive sensitivity -85dBm typ.
Output level (Class1) 20dBm max.
TM
©1998-2000 MITSUMI Electronics Corp. All rights reserved.MITSUMI is a trademark of MITSUMI
Electronics Corporation.
Other company names and products names are trademarks of their respective companies.
Product specifications are subject to revisions or changes without notification.
5. TERMINAL DESCRIPTION
No. Symbol I/O Description
1 GND Ground
2 UART_RX** I UART Data Input
3 SPI_MISO O Synchronous Serial Interface data output (N.C.*)
4 SPI_CLK** I Synchronous Serial Interface clock (N.C.*)
5 SPI_MOS**I I Synchronous Serial Interface data input (N.C.*)
6 PIO 4/USB_ON I/O Programmable I/O line
7SPI_CSB** I Chip select for Synchronous Serial Interface (N.C.*)
8 PCM_CLK I/O Synchronous PCM data clock
9 PIO 5/USB_DETACH I/O Programmable I/O line
10 PIO 6 I/O Programmable I/O line
11 VDD_PA Supply for Internal Power Amp (3.3V+/-0.1V).
12 VDD Supply for VDD (3.3V+/-0.1V)
13 UART_CTS/USB_D- I UART Clear To Send
14 UART_RTS/USB_D+ O UART Ready To Send
15 UART_TX O UART Data Output
16 PIO 3/USB_WAKE_UP I/O Programmable I/O line
17 PIO 2/USB_PULL_UP I/O Programmable I/O line
18 PIO 7 I/O Programmable I/O line
19 PCM_SYNC I/O Synchronous data strobe
20 PCM_IN I Synchronous PCM data input
21 PCM_OUT O Synchronous PCM data output
22 RESET_IN I Reset pin (N.C.*)
ANT I/O RF input/output
* N.C.=OPEN
**5V tolerant input terminal.

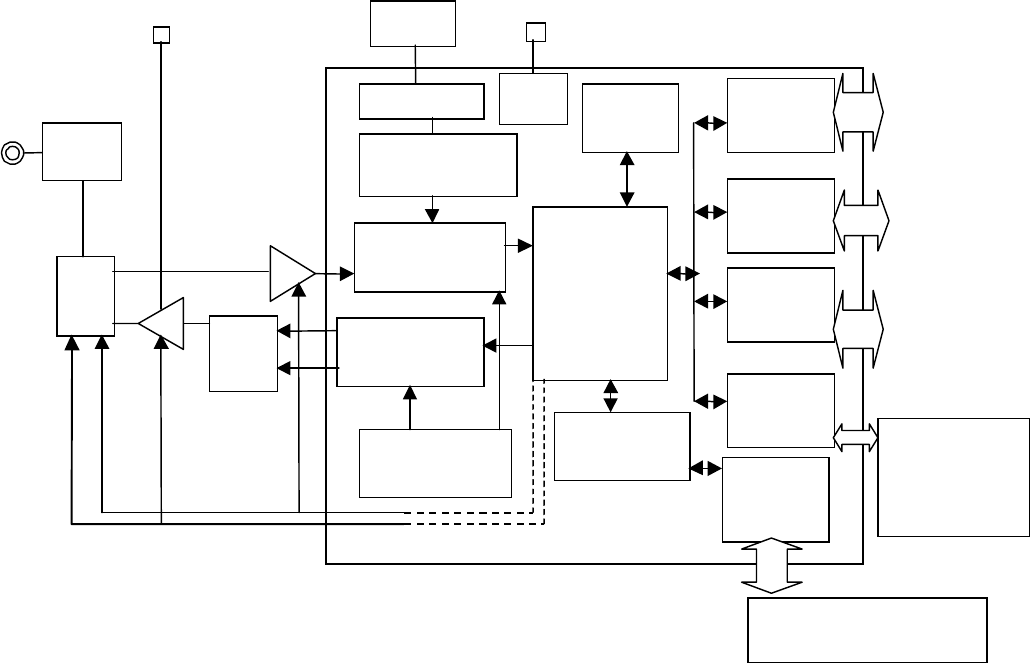

6. BLOCK DIAGRAM
7. PCM IF
PCM_OUT, PCM_IN, PCM_CLK, PCM_SYNC carry one of bi-directional channel of
voice data using 13bits PCM at 8ks/s.
PCM_SYNC operates at a fixed clock frequency of 8kHz.
PCM_CLK operates at a fixed clock frequency of 256kHz.
Bits 1 to 13 of the PCM_OUT data carry the current output sample value.
Bits 14 to 16 carry a three bit signal level value.
Reference PCM audio device is MC145483.
UART_RTS/USB D+
UART_CTS/USB D-
UART/
USB
UART_TX
UART_RX
SPI_CSB
SPI_CLK
SPI_MOSI
SPI_MISO
PCM_OUT
PCM_IN
PCM_SYNC
PCM_CLK
SPI
PCM/IF
MEMORY
DRIVER
PIO
FLASH
ROM
256kx16
RAM
RF Receiver
RF Transmitter
1st Synthesizer
Baseband-
Controller
Memory-
Management
2nd Synthesizer
REG
16bits Micro-
Processor
XT Driver
16MH
zVDD
SW
TX_EN
RX_EN
BC01b-UART / BC01b-USB
Balun
PIO(0),..PIO(7)
ANT
Connector
BPF
VDD_PA
8. OVERALL APPEARANCE
