Moor Technology Co., Ltd Wireless Inspection Camera Users Manual
Users Manual
User Manual
Wireless Inspection Camera with Color LCD Monitor
Version 1.0
Please read this User Manual carefully before using this product
Contents
WELCOME.................................................1
PACKING LIST 1
STRUCTURE 2
INSTALLATION 3
GENERAL SAFTY INFORMATION................6
OPERATION...............................................6
SPECIFICATIONS.......................................8
CAUTIONS.................................................9
FCC INFORMATION.....................Back cover
............................................
..............................................
...........................................
* MG-5808(Monitor) + MG-6808(Camera)
WELCOME
Thank you for choosing our wireless inspection video camera kit and
please read the operation guide carefully before using the product.
The product is designed as a remote inspection device, which can be
used to look into tight spots, aperture or pipes to check via color real-time
video.
Its typical applications include HVAC inspection, automotive inspection,
cable routing, boat/vehicle/aircraft inspection etc.
PACKING LIST
1
Camera 1×LCD Monitor 1×Extension tube(Optional)
Adapter 1×Video Cable 1×Screwdriver 1×
Mirror 1×Magnet 1×Hook 1×
Lantern Ring 1×

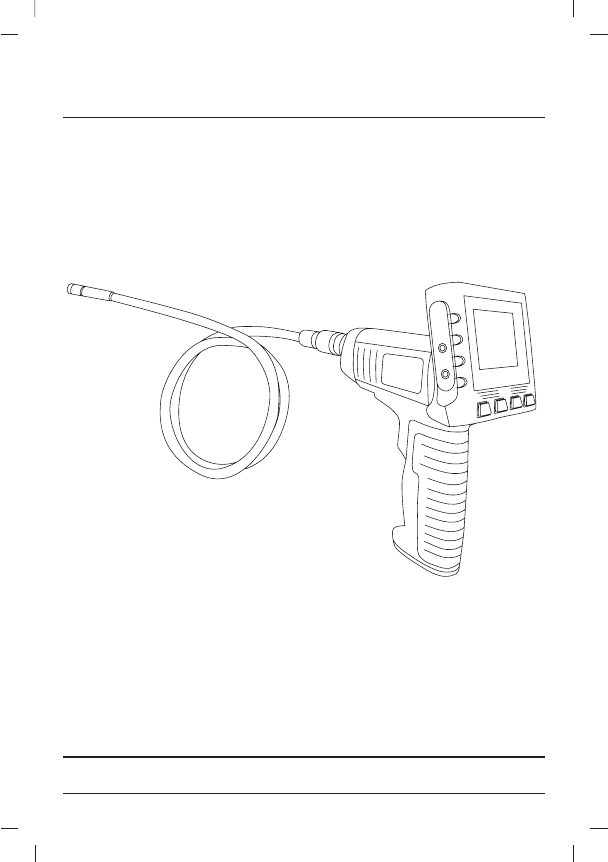

STRUCTURE
2
Flexible Tube
Power ON/OFF
Power Indicator
Signal
output
Camera and LEDs
Battery Cabinet
Video Output
Power Supply
Power Indicator
Contrast
Brightness
Image Orientation
LCD ON/OFF
Signal Input
INSTALLATION
Please install the batteries and tube first before using, and choose the
accessory according to actual application.
Steps of installation as below:

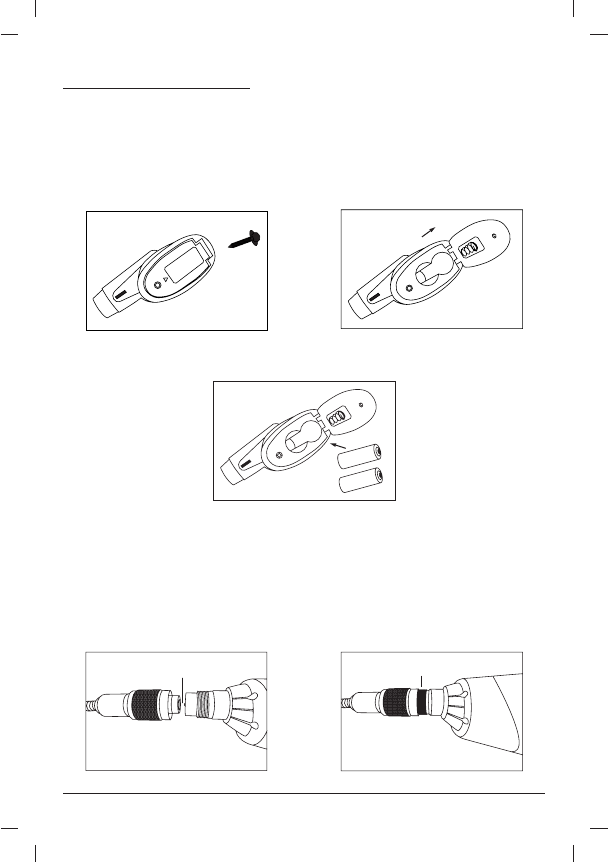

Step 1: To install batteries
1. Using a screwdriver and remove the screws and open the battery cover.
2. Insert four new AA batteries in the battery compartment directly.
Proper battery orientation is indicated on the battery compartment.
3. Close the battery cover and screw as before.
NOTE: Dry your hands before installation or replacing batteries.
Step 2: To install the camera with flexible tube
Connect the camera with flexible tub to the body and make sure the
keyed ends are properly aligned. Once they are aligned, tighten the
knurled knob to hold the connection in place.
Keyed ends Finger Tighten
3

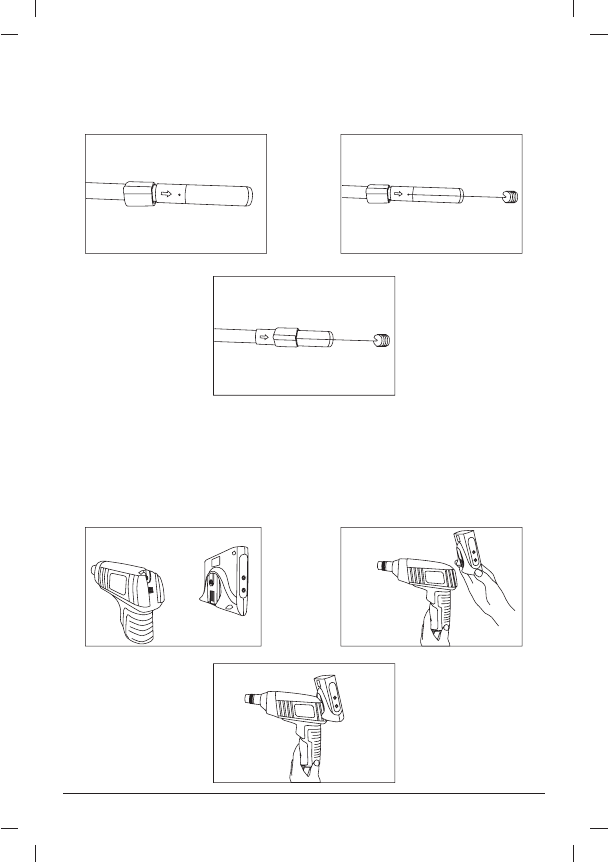

Step 3: To install accessory
The three included accessories: Mirror, Hook and Magnet, all attached
to the camera by the same way. To install as below:
Make sure put each accessory into the hole of the stem of camera part,
and slide the green clip to lock each accessory.
Step 4: To install monitor for wired use
The product also supports wired by connecting the monitor to the body
with camera.
Use the green lantern ring
to hitch the tube
Put accessories into the hole
Slide the green lantern ring to lock the accessories
4
Step 5: To connect monitor's power
Plug the connect cable into the power socket of monitor, and plug the end
of connect cable to adapter, then connect the adapter to 6V power, the
power indicator will lights as red, which indicates being charging.
The built-in Li-battery will be charged after the adapter is plugged in,
and the red color indicator lights up during charging and will turn off after
a full charge.
Step 6: Video output
Insert the video cable into the VIDEO OUT socket of monitor. Insert the
other end of the cable into VIDEO IN jack of a TV or another monitor. The
LCD Monitor will out put a high quality video.
5
TIP: The Monitor can be used when it is charging.
GENERAL SAFTY INFORMATION
Warning: Read and understand all installations. Failure to
follow all instructions listed below may result in electrical
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS BELOW
★
★
★
★
Prevent object and liquid entry.
The unit is not shock-resistant.
Do not immerse the camera and the monitor in water.
Do not use the camera if condensation forms inside the lens.
Never spill liquid of any kind on the
video display unit. Liquid increases the risk of electrical shock and
damage to the product.
Donotuseitasahammerordropit.
Storeinadry
place. Such measures reduce the risk of electrical shock and damage.
The imager head and the cable are water resistant when the unit is
fully assembled, but the camera and the monitor are not.
Let
the water evaporate before using again.
OPERATION

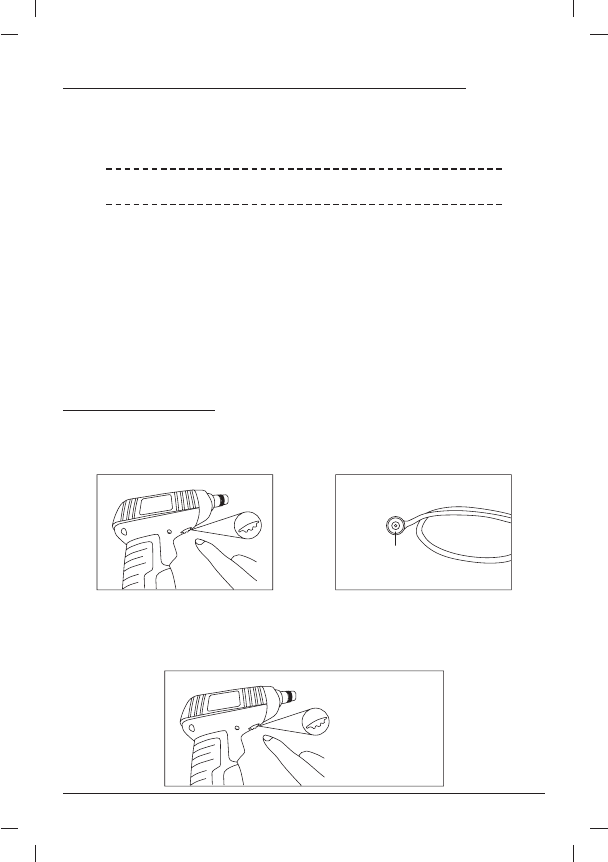

1. Roll the ON/OFF switch to turn ON the camera, and the power indicator
will light. The switch then acts as a dimmer for the twin LEDs that
surround the camera on the imager head and provide lighting.
2. Slide the ON/OFF switch to ON position, and power indicator will light
as green and then the picture will display on LCD. Adjust brightness,
contrast, image orientation and roll the ON/OFF switch of the camera
for better image effect.
LEDs
Provide lighting
The switch acts
asadimmer
6

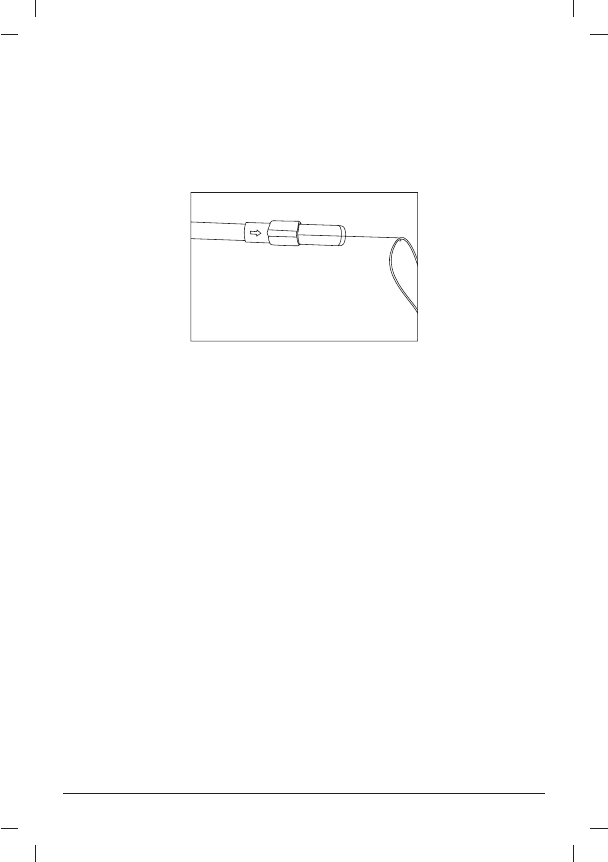

3. When using, the tube should easily maneuver itself into position going
forward.
TIP: The flexible tube can be bent to a certain shape. This may help
you explore the tube into narrow areas.
4. The accessories of Handhold Inspection Camera can be used to
retrieve small items like dropped rings or screws.
7
SPECIFICATIONS
Image sensor
Effective Pixels
Transmission frequency
Minimum illumination
Modulation Mode
Bandwidth
Unobstructed Effective Range
Power Supply
Waterproof level
Dimensions
Weight
1/13-inch CMOS
640 480
2468MHz
0 Lux
FM
18 MHz
10 m
4 AA batteries
IP 67
190 150 42(mm)
(Exclude Flexible Tube)
550 g
Camera
Model No.: MG6808 Value
Model No.: MG5808 Value
LCD screen
Effective pixels
Video System
Transmission frequency
Exterior supply voltage
Consumption current (MAX)
Video output level
Receiving sensitivity
Dimensions
Weight
Operation Humidity
Operation Temperature
2.4" TFT LCD
480 240
PAL/NTSC
2468MHz
6V DC
490mA
0.9-1.3v @75ohm
-85dBm
1107535mm
150g
-10~+50/-14~+122
15-85 RH
≤
℃℃℉ ℉
％
Monitor
＊
＊
Actual transmission range may vary according to the weather, location,
interference and building constructions.
All the specifications are subject to minor change without prior notice.
8
CAUTIONS
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
The apparatus shall not be exposed to dripping or splashing and that
no objects filled with liquid, such as vases, shall be placed on the
apparatus.
Turn off the Camera and Monitor if not use.
The adapter is used as the disconnect device from the mains.
The adapter shall remain readily operable.
The Camera/Monitor can only be completely disconnected from the
mains by unplugging the adapter.
Do not cut the DC power cable of the apparatus to fit with another
power source.
Attention should be drawn to the environment aspects of batter
disposal.
Remove the batteries when cleaning the unit.
Remove the batteries before storing the unit for a long time.
When necessary, REPLACE ALL FOUR BATTERIES in this unit with
new ones.
Use only the size and type of the battery specified.
Be sure to install the battery with correct polarity as indicated in the
battery compartment.
Properly dispose of the battery. Exposure to high temperatures can
cause the battery to explode. So do not dispose of in a fire. Please
tape over the terminals to prevent direct contact with other objects.
Some countries have regulations concerning battery disposal. Please
follow all applicable regulations.
The graphics included are subject to minor change without prior notice.
9
CAUTIONS
This device complies with part 15 of the FCC rules. Operation is subject
to the following two regulations:
1) this device may not cause harmful interference;
2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user s authority to operate
the equipment.
’
EU ENVIRONMENTAL PROTECTION
Waste electrical products should
not be disposed of with household waste.
Please recycle where facilities exist.
Check with your local Authority
or retailer for recycling advice.
