Users Guide

Event HD

User Reference and Installation Manual

Document Number: 602-14886-01, Rev. A

Date: OCTOBER, 2007

This book and the information contained herein is the proprietary and confidential

information of Moseley, Inc. that is provided by Moseley exclusively for evaluating the

purchase of Moseley, Inc. technology and is protected by copyright and trade secret

laws.

No part of this document may be disclosed, reproduced, or transmitted in any form or by

any means, electronic or mechanical, for any purpose without the express written

permission of Moseley, Inc.

For permissions, contact Moseley Marketing Group at 1-805-968-9621 or 1-805-685-

9638 (FAX).

Notice of Disclaimer: The information and specifications provided in this document are

subject to change without notice. Moseley, Inc. reserves the right to make changes in

design or components as progress in engineering and manufacturing may warrant.

The Warranty(s) that accompany Moseley products are set forth in the sales

agreement/contract between Moseley and its customer. Please consult the sales

agreement for the terms and conditions of the Warranty(s) provided by Moseley. To

obtain a copy of the Warranty(s), contact you Moseley Sales Representative at 1-805-

968-9621 or 1-805-685-9638 (FAX).

The information provided in this document is provided “as is” without warranty of any

kind, either expressed or implied, including, but not limited to, the implied warranties of

merchantability, fitness for a particular purpose, or non-infringement. Some jurisdictions

do not allow the exclusion of implied warranties, so the above exclusion may not apply

to you.

In no event shall Moseley, Inc. be liable for any damages whatsoever – including special,

indirect, consequential or incidental damages or damages for loss of profits, revenue,

use, or data whether brought in contract or tort, arising out of or connected with any

Moseley, Inc., document or the use, reliance upon or performance of any material

contained in or accessed from this document. Moseley’s license agreement may be

provided upon request. Additional Terms and Conditions will be finalized upon

negotiation or a purchase.

The above information shall not be constructed to imply any additional warranties for

Moseley, Inc. equipment including, but not limited to, warranties of merchantability or

fitness for an intended use.

Trademark Information

Software Defined Indoor UnitTM (SDIDUTM) is a product and trademark of Moseley Inc.

JavaTM is a trademark of Sun Microsystems Inc.

Windows® is a registered trademark of Microsoft Corporation

All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

Part Number: MK-MAN-4001

iii

Table of Contents

1. SAFETY PRECAUTIONS ...................................................................................1

2. SYSTEM DESCRIPTION ...................................................................................1

2.1 About This Manual......................................................................................... 1

2.2 Introduction.................................................................................................. 1

2.3 System Features ........................................................................................... 5

2.4 Physical Description ....................................................................................... 6

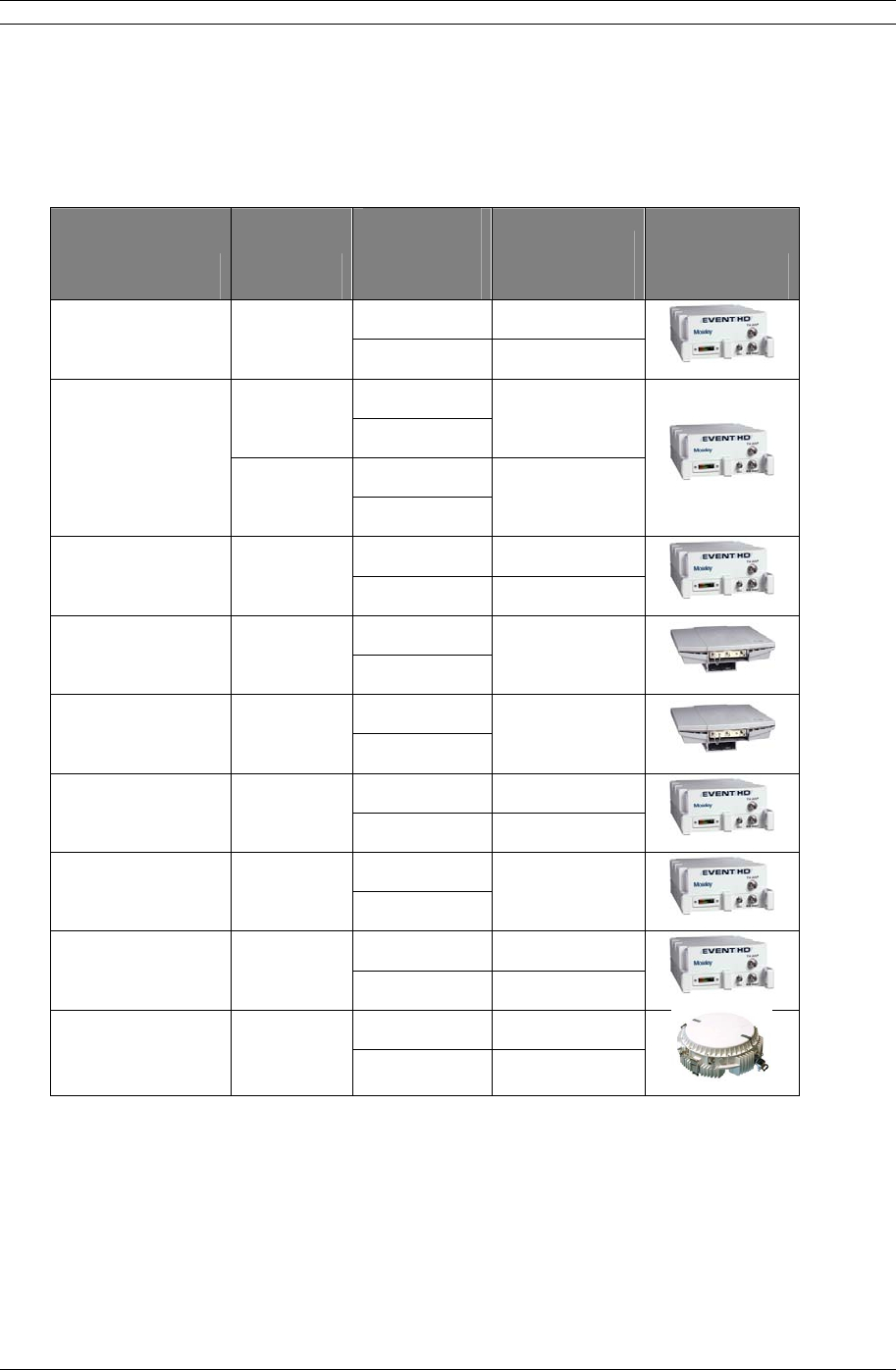

2.4.1 Model Types............................................................................................ 7

2.4.2 Front Panel ............................................................................................. 8

2.4.3 Rear Panel Indicators................................................................................ 9

2.4.4 Rear Panel Connections............................................................................12

2.4.5 ODU LED Indicators.................................................................................15

2.5 System Description.......................................................................................16

2.6 Consecutive Point Architecture .......................................................................19

2.7 2 + 0 (East-West) Configuration ....................................................................21

2.8 Spanning Tree Protocol (STP).........................................................................22

2.9 1+1 Protection.............................................................................................22

2.9.1 Protected Non-Diversity (Hot Standby).......................................................22

2.9.2 Protected Diversity..................................................................................23

2.10 1 + 1 Multi-hop Repeater Configuration .........................................................24

2.11 Data Interfaces...........................................................................................25

2.12 Crosspoint Switch .......................................................................................26

2.13 Power Management.....................................................................................27

2.14 Event-HD Software and Network Management ................................................28

2.14.1 IP Address............................................................................................28

2.14.2 Network...............................................................................................28

2.14.3 NMS Network Operational Principles.........................................................29

2.14.4 Third Party Network Management Software Support...................................30

2.15 System Loopbacks ......................................................................................30

3. INSTALLATION...............................................................................................1

3.1 Unpacking .................................................................................................... 1

3.2 Notices ........................................................................................................ 2

3.3 PRE-INSTALLATION NOTES............................................................................. 2

3.4 Back-to-Back Bench Testing............................................................................ 2

3.5 Overview of Installation and Testing Process ..................................................... 3

3.6 Site Evaluation.............................................................................................. 4

3.6.1 Preparing for a Site Evaluation................................................................... 5

3.6.2 Site Evaluation Process............................................................................. 6

3.6.3 Critical System Calculations....................................................................... 8

3.6.4 Frequency Plan Determination ..................................................................10

3.6.5 Antenna Planning....................................................................................13

3.6.6 ODU Transmit Power Setup ......................................................................14

3.7 Installation of the Event-HD...........................................................................17

3.7.1 Installing the Event-HD SDIDUTM .............................................................17

3.7.2 Installing the Event-HD ODU.....................................................................18

3.7.3 Routing the ODU/IDU Interconnect Cable ...................................................22

3.8 Quick Start Guide .........................................................................................23

3.8.1 Materials Required ..................................................................................23

3.8.2 Grounding the ODU.................................................................................24

3.8.3 Grounding the SDIDUTM ..........................................................................26

3.8.4 Connecting the SDIDUTM to the PC and Power Source..................................26

3.8.5 SDIDU™ Configuration.............................................................................27

3.8.6 ODU Antenna Alignment...........................................................................30

3.8.7 Quick Start Settings ...............................................................................31

3.9 SDIDU™ Service...........................................................................................32

3.9.1 Removing a Module.................................................................................33

3.9.2 Installing a Module..................................................................................34

4. SUMMARY SPECIFICATION.............................................................................1

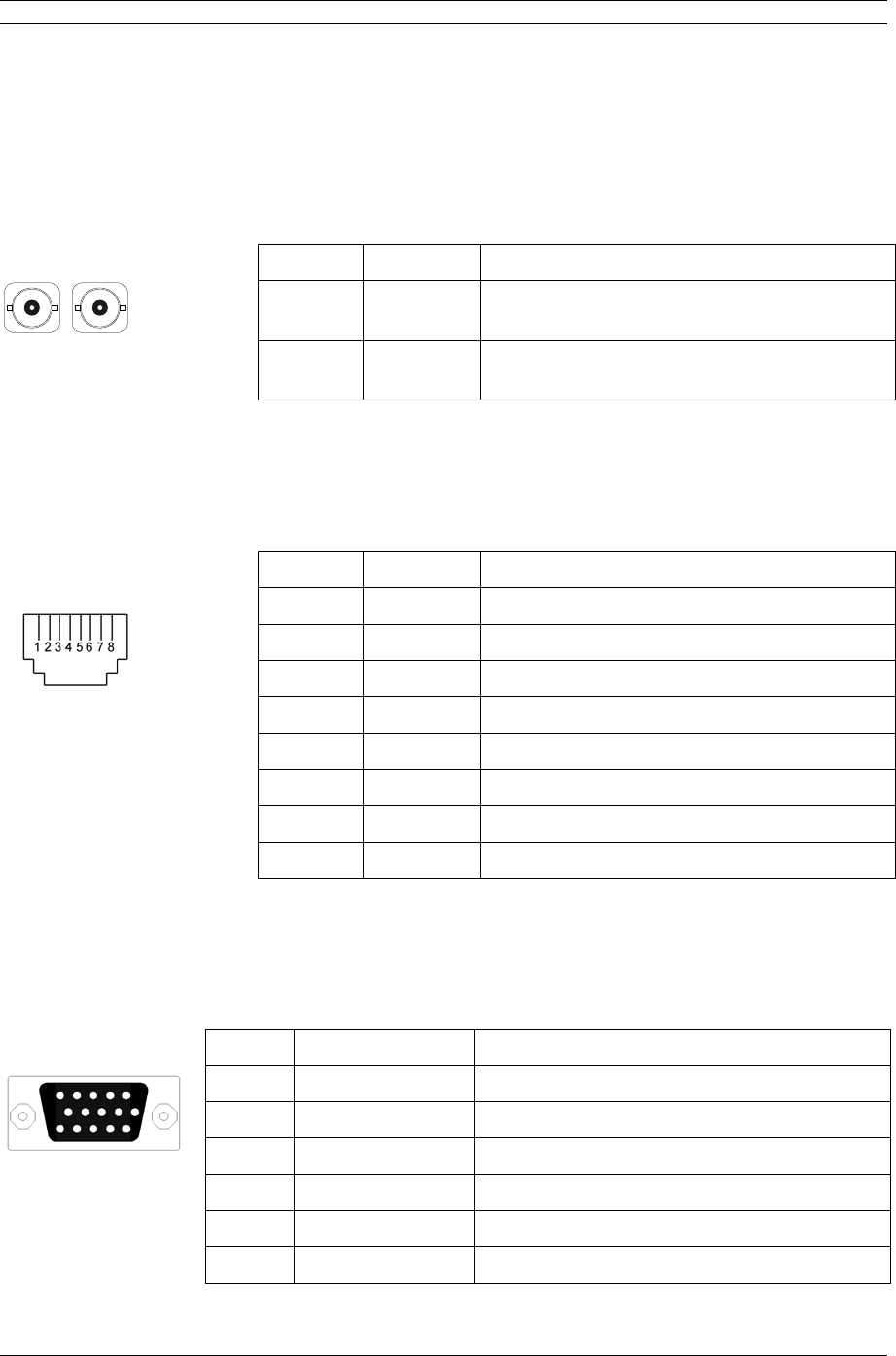

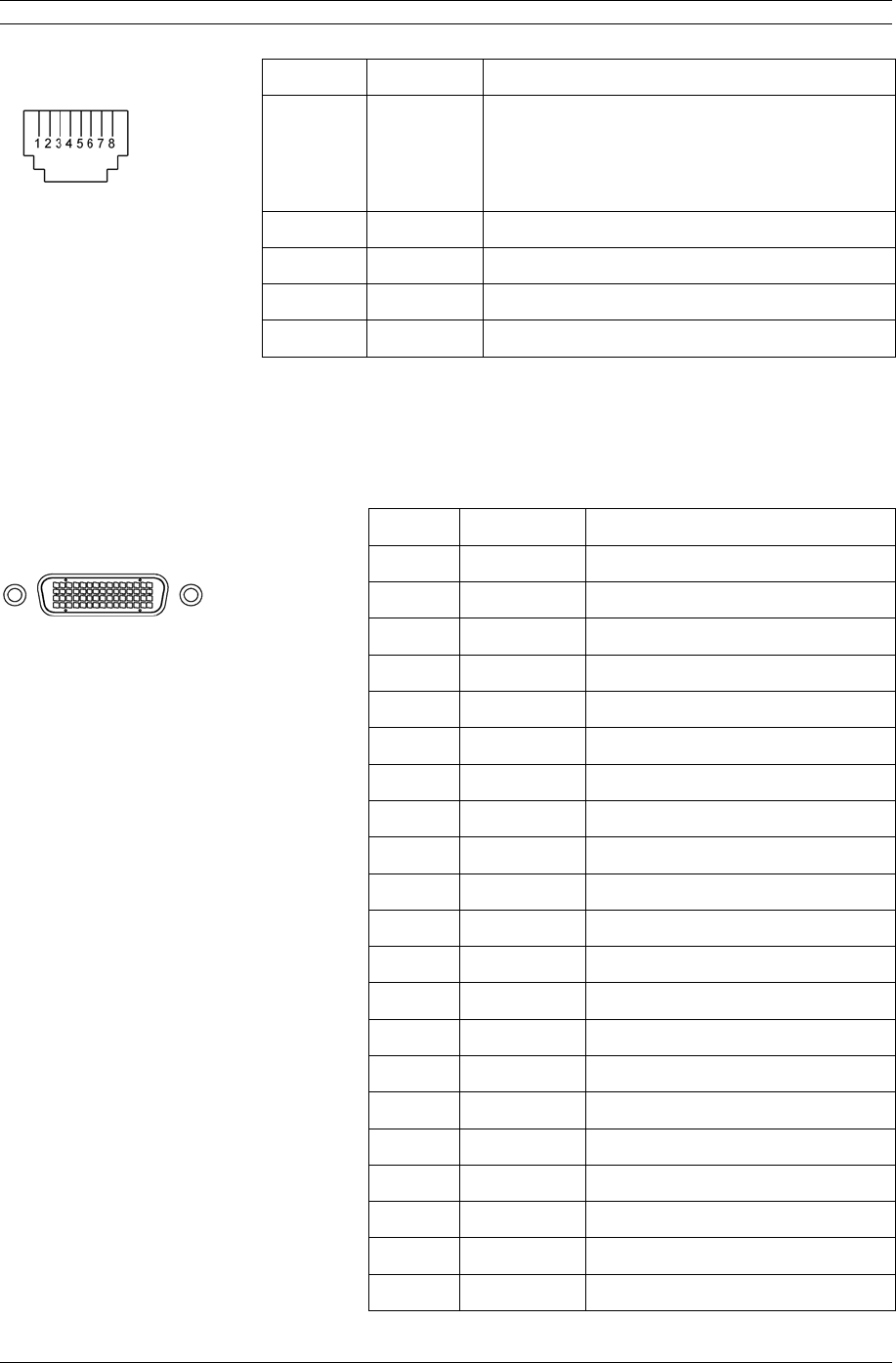

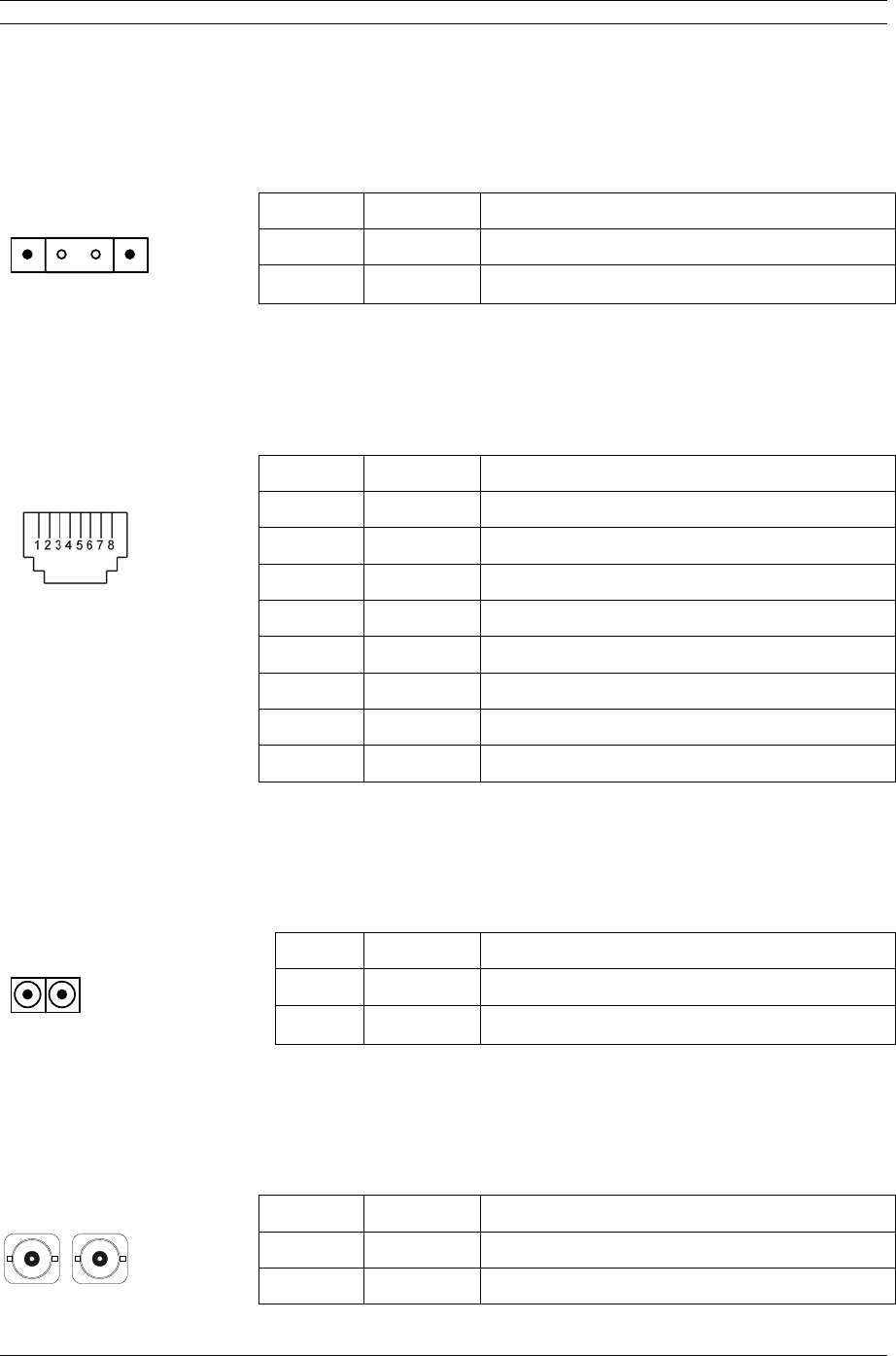

5. REAR PANEL CONNECTORS.............................................................................1

5.1 DC Input (Power) Connector ........................................................................... 1

5.2 Ethernet 100BaseTX Payload Connector 1-2 ...................................................... 1

5.3 SONET Payload Connector .............................................................................. 1

5.4 STM-1 Payload Connector............................................................................... 2

5.5 DVB/ASI, DS-3, E-3, STS-1 Payload Connector.................................................. 2

5.6 NMS 10/100BaseTX Connector 1-2................................................................... 2

5.7 Alarm/Serial Port Connector............................................................................ 3

5.8 ODU Connector ............................................................................................. 3

5.9 T1/E1 - Channels 1-2 Connector...................................................................... 4

5.10 T1/E1 - Channels 3-16 Connector................................................................... 4

5.11 USB........................................................................................................... 6

5.12 Voice Order Wire ......................................................................................... 7

5.13 Data Order Wire .......................................................................................... 7

5.13.1 RS422 .................................................................................................. 7

5.13.2 RS-232................................................................................................. 8

6. APPENDIX ......................................................................................................1

6.1 Alarm Descriptions......................................................................................... 1

Abbreviations & Acronyms..................................................................................15

Conversion Chart ..............................................................................................17

List of Figures

Figure 2-1. Typical Broadcast ENG Application......................................................... 2

Figure 2-2. Microwave Split Mount Architecture ....................................................... 3

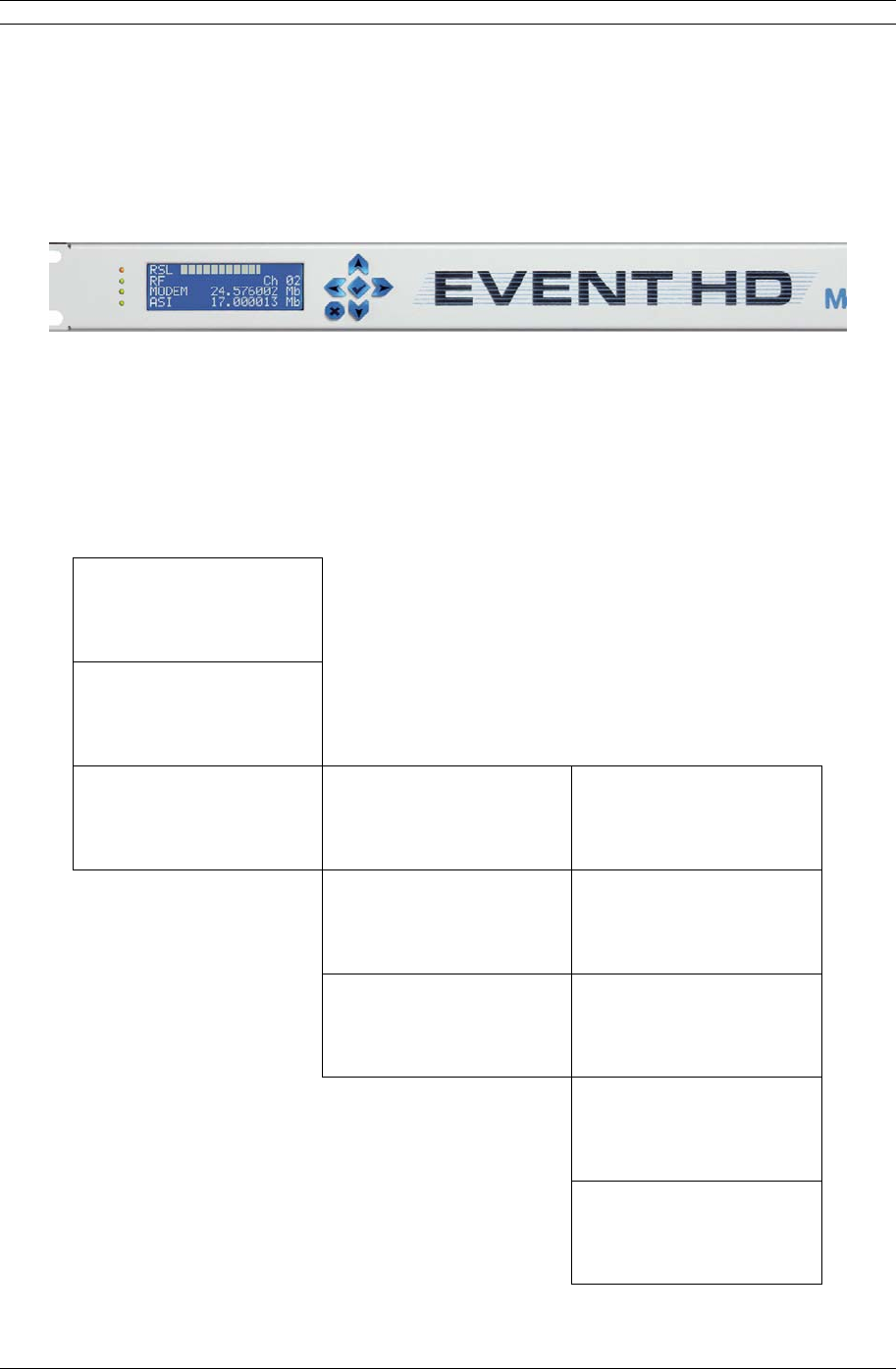

Figure 2-2. Event-HD front panel (optional) ............................................................ 8

Figure 2-2. Software Defined IDU™ LEDs: SDIDUTM Rear Panel Configuration for

Software Defined IDU™, 1+0 Configuration ...........................................................10

Figure 2-3. Software Defined IDU™-SB, 1+1 Protection: SDIDUTM Rear Panel

Connections ......................................................................................................12

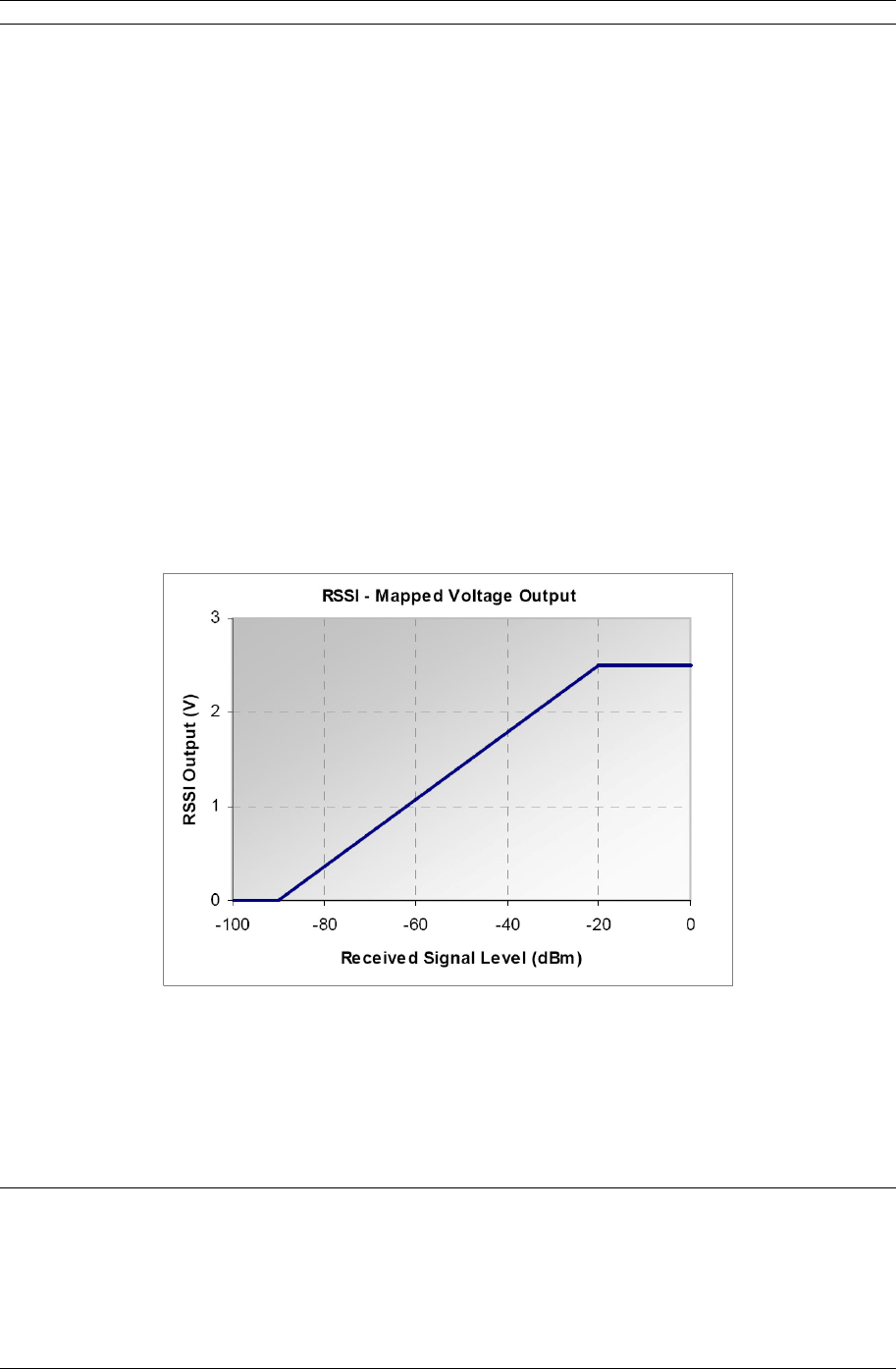

Figure 2-4. ODU 2200 RSSI Output vs. Received Signal. .........................................15

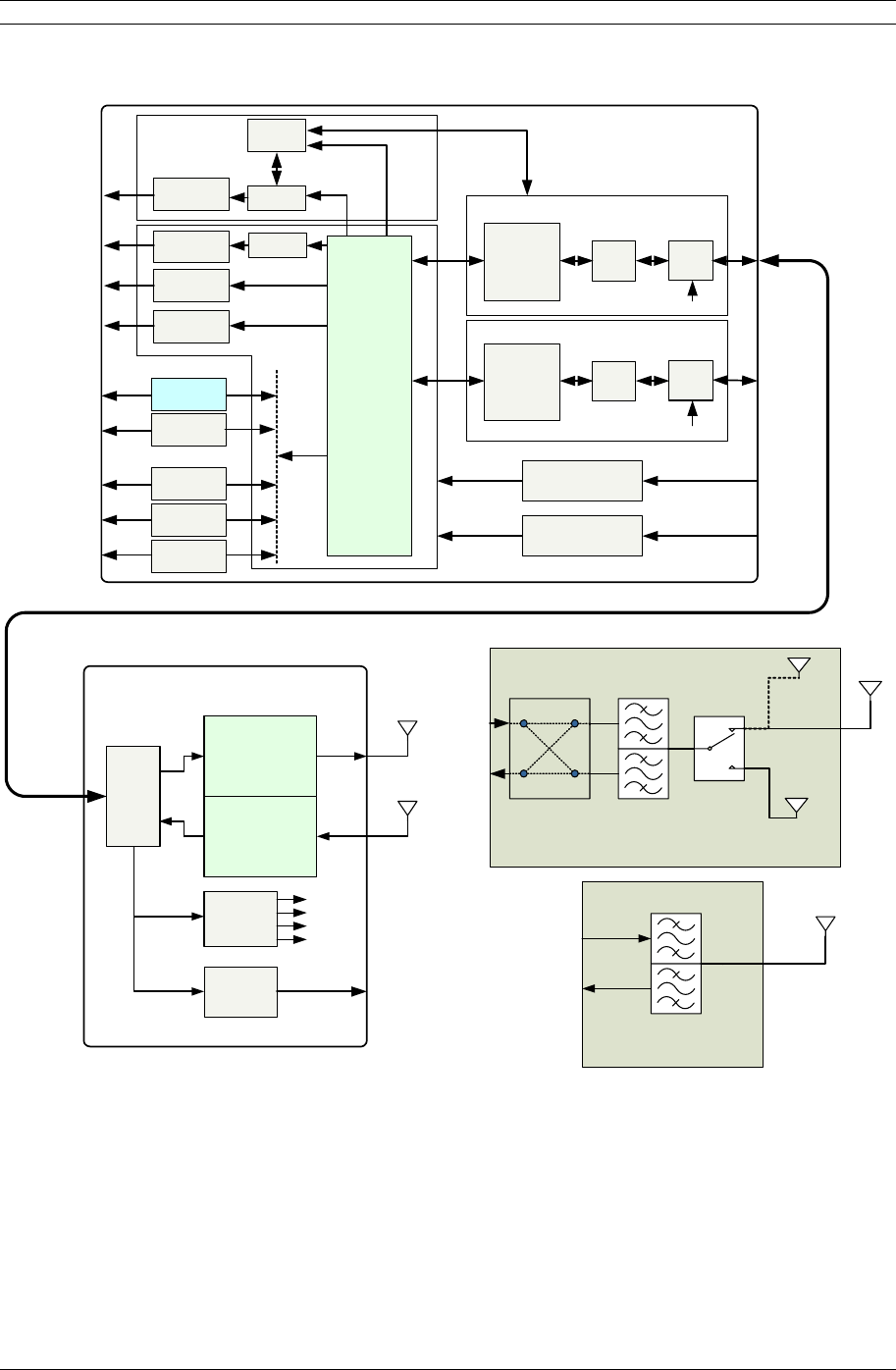

Figure 2-5. Event-HD Block Diagram.....................................................................17

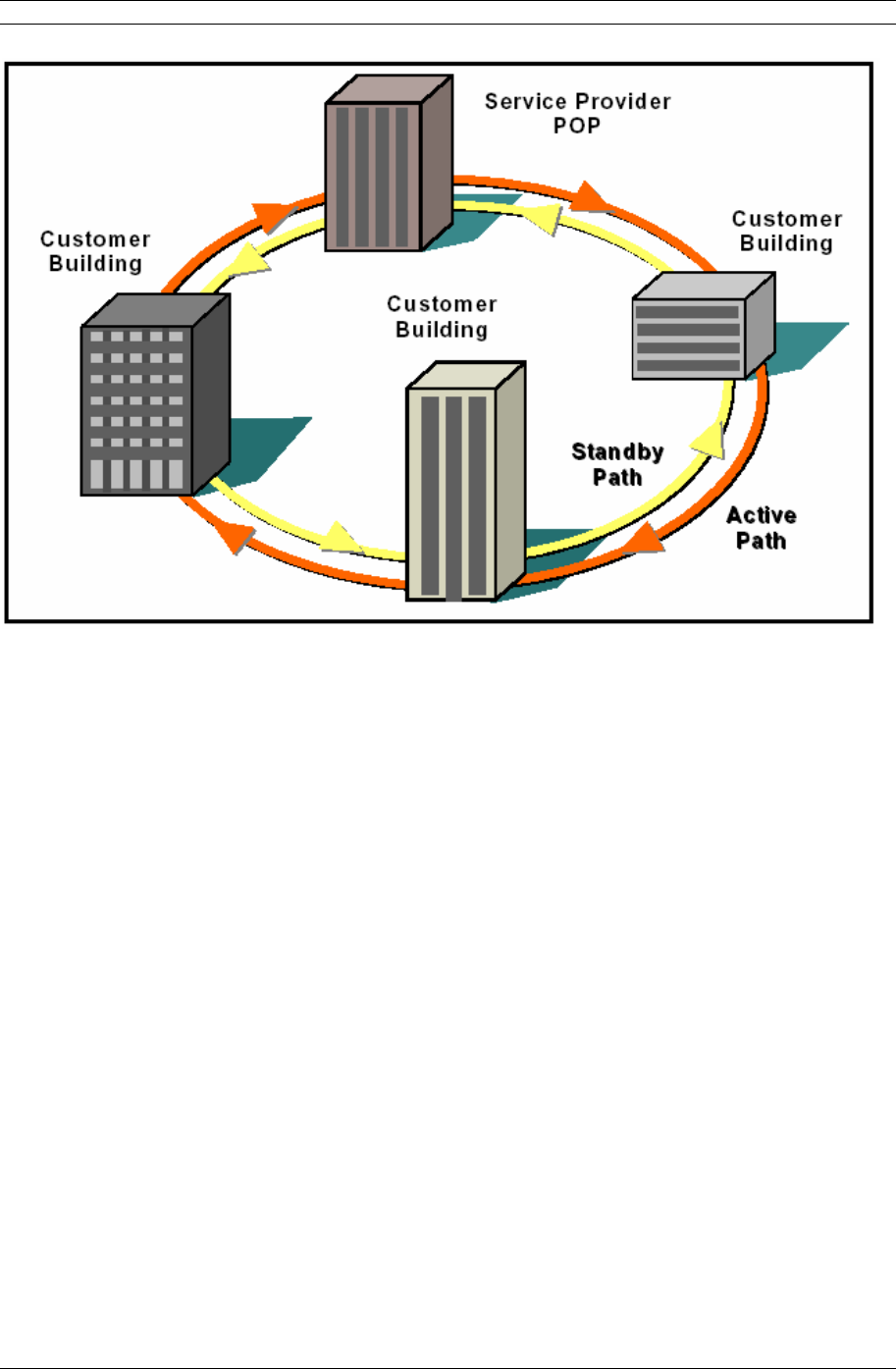

Figure 2-6. Ring Configuration .............................................................................20

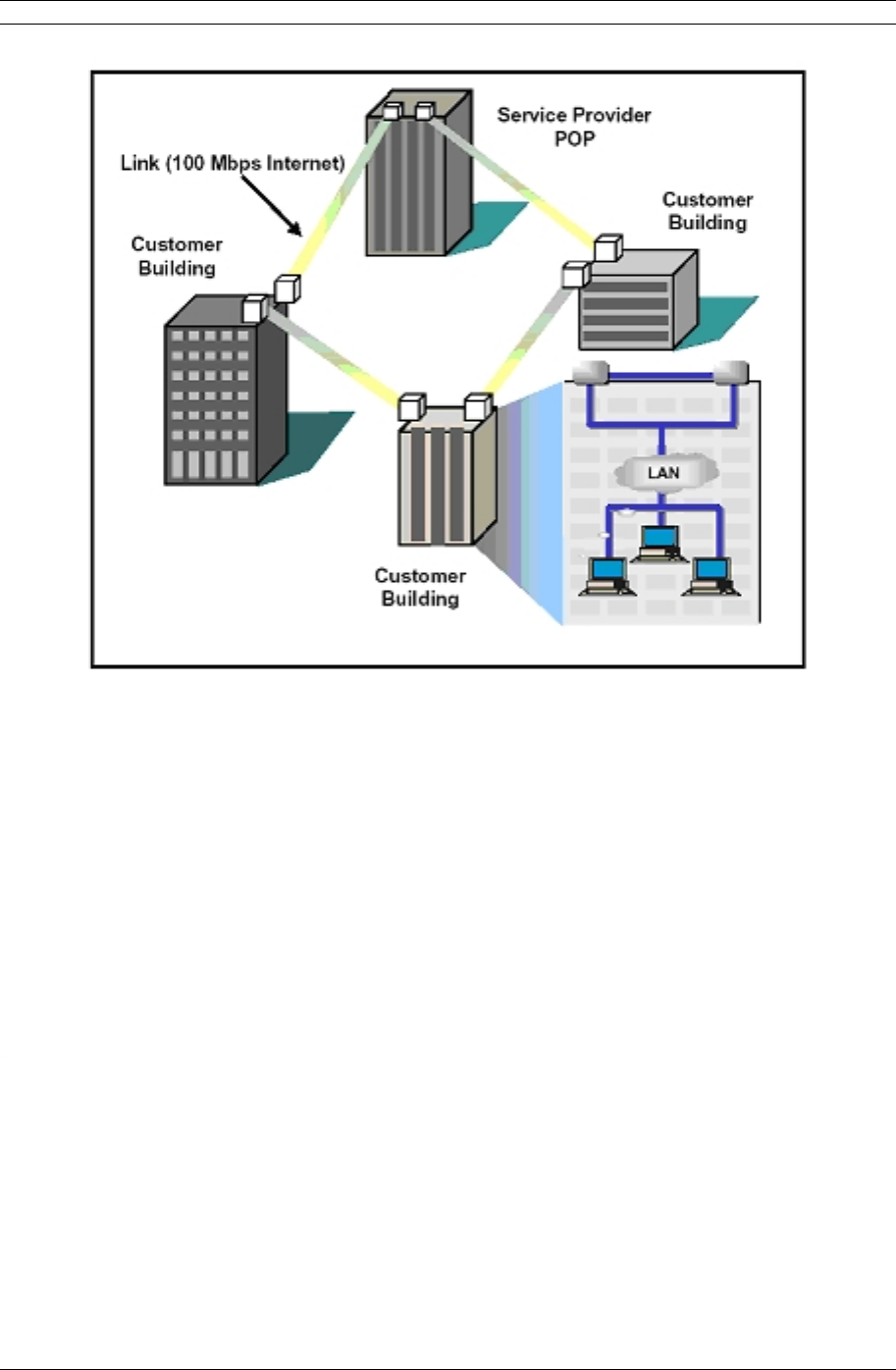

Figure 2-7. Consecutive Point Network..................................................................21

Figure 2-8. 2 + 0 (East West) Configuration...........................................................22

Figure 2-9. 1+1 Protection in Non-Diversity Mode...................................................23

Figure 2-10. 1+1 Protection in Diversity Mode........................................................23

Figure 2-11. 1 + 1 Multi-Hop Repeater Configuration ..............................................25

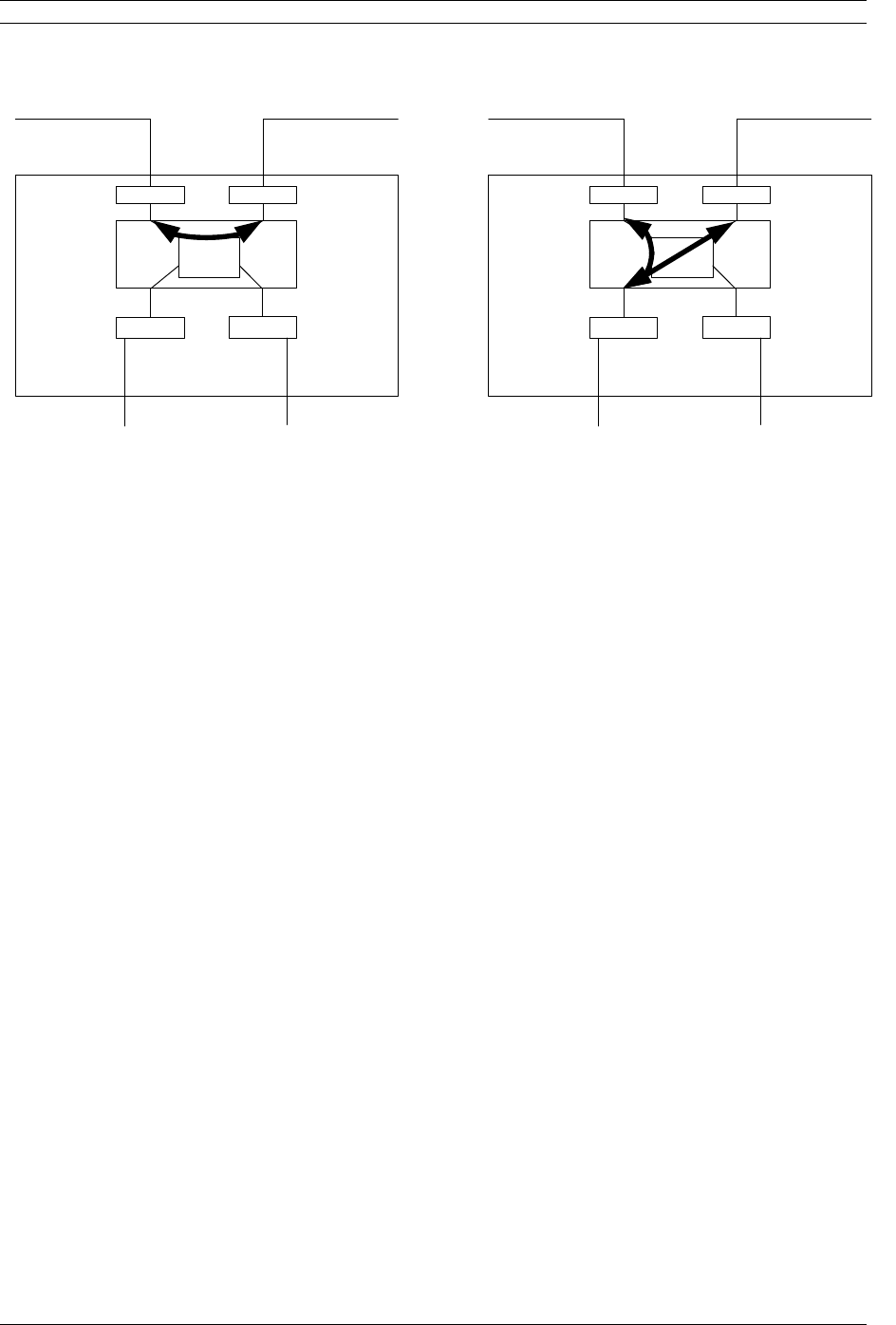

Figure 2-12. Crosspoint Switch ............................................................................26

Figure 2-13. (a) Crosspoint Switch used a passthrough in repeater configuration. (b)

Crosspoint Switch allows access for add/drop.........................................................27

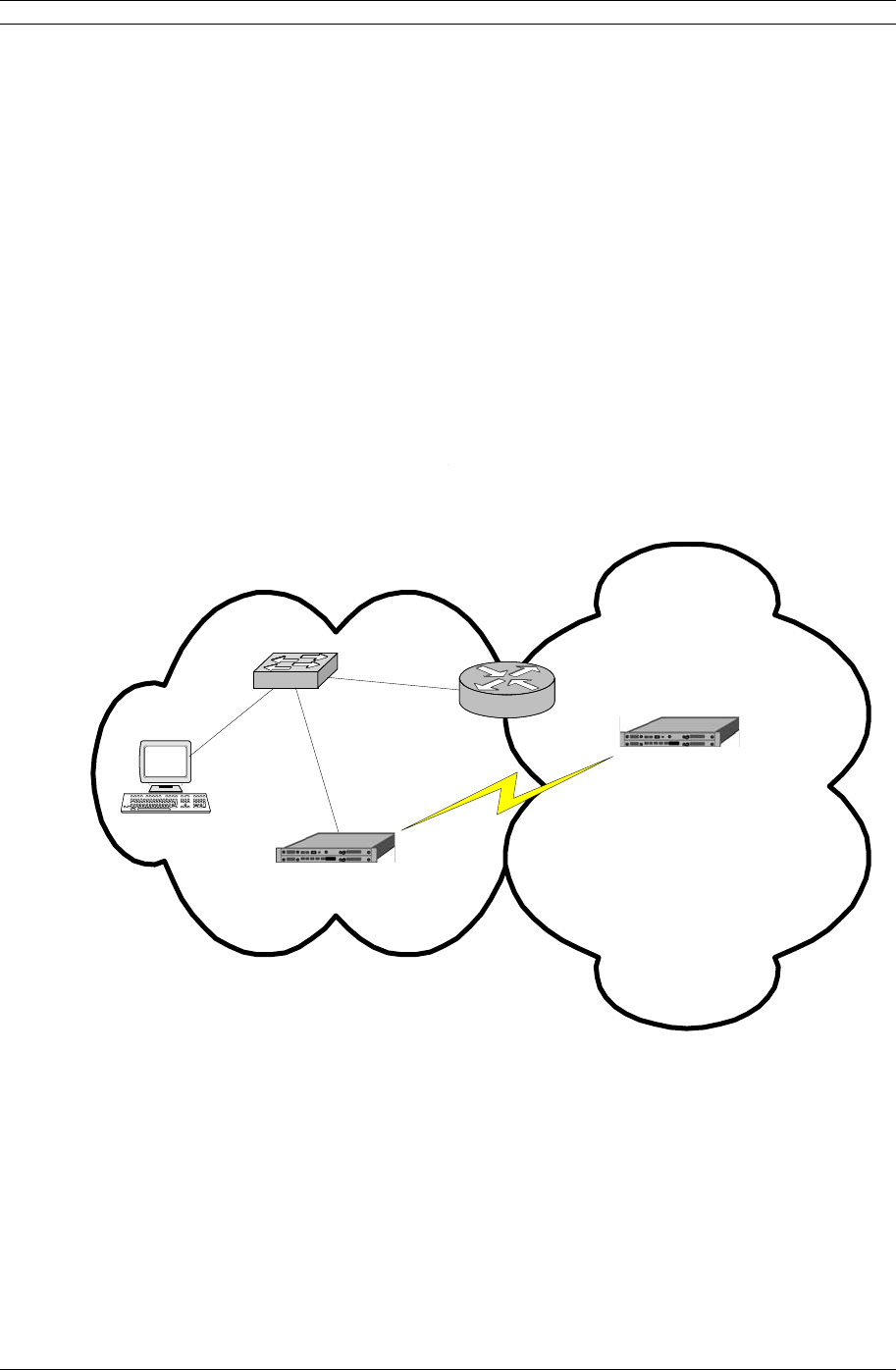

Figure 2-14. PC and Event-HD SDIDUs™ on Same Subnet .......................................29

Figure 2-15. Event-HD SDIDUs™ on Different Subnets ............................................30

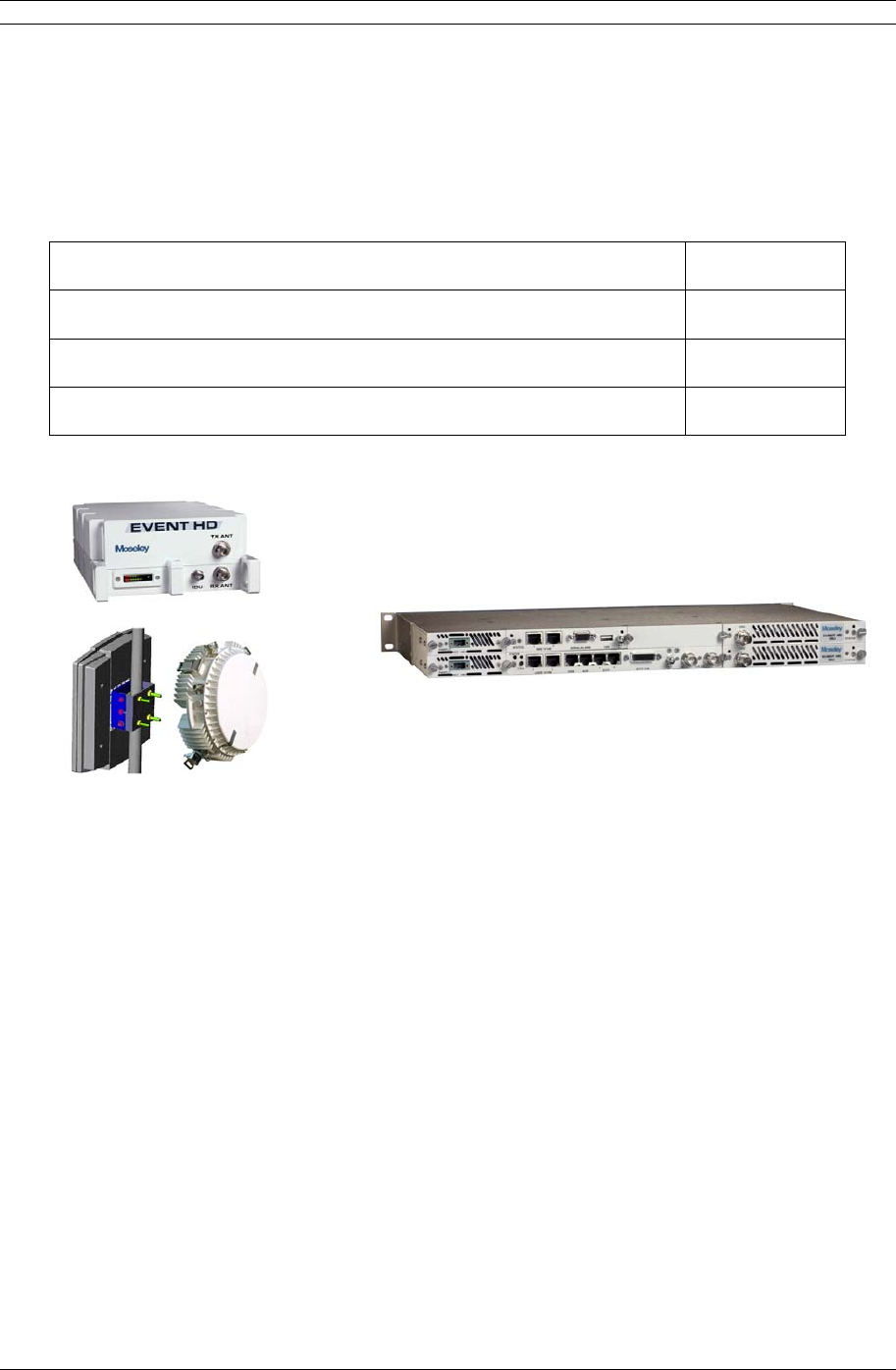

Figure 3-1. Event HD (1+0) Components................................................................ 1

Figure 3-2. Event-HD Back-to-Back Testing Configuration......................................... 3

Figure 3-3. Network Deployment Lifecycle .............................................................. 4

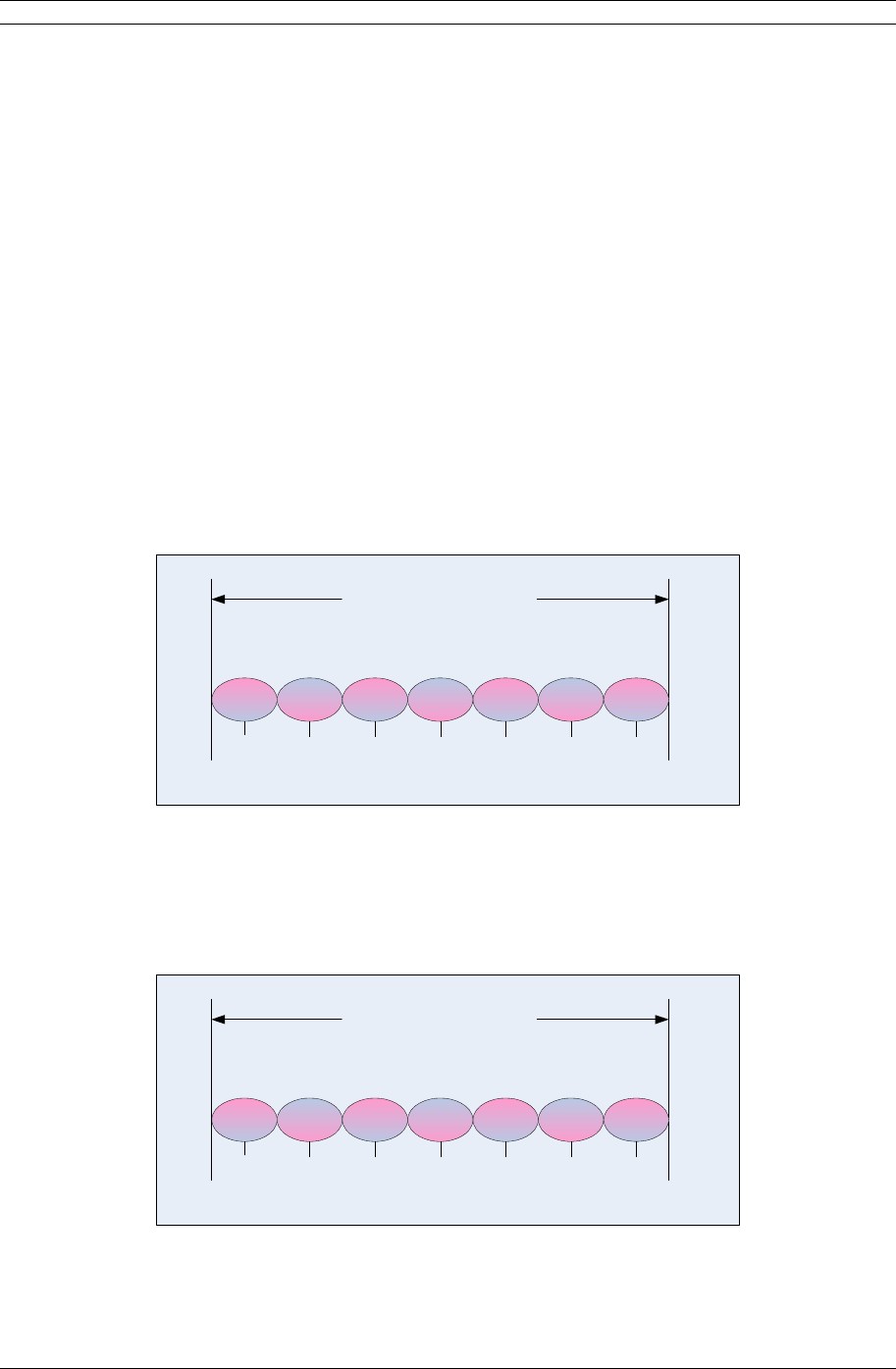

Figure 3-3. 2 GHz, 12 MHz BAS Frequency Plan......................................................10

Figure 3-4. 2 GHz, 17 MHz Legacy BAS Frequency Plan ...........................................11

Figure 3-6. 7 GHz, 25 MHz BAS Frequency Plan......................................................11

Figure 3-7. Event-HD 5.3 GHz Frequency Plan .......................................................12

Figure 3-8. Event-HD 5.8 GHz Frequency Plan .......................................................13

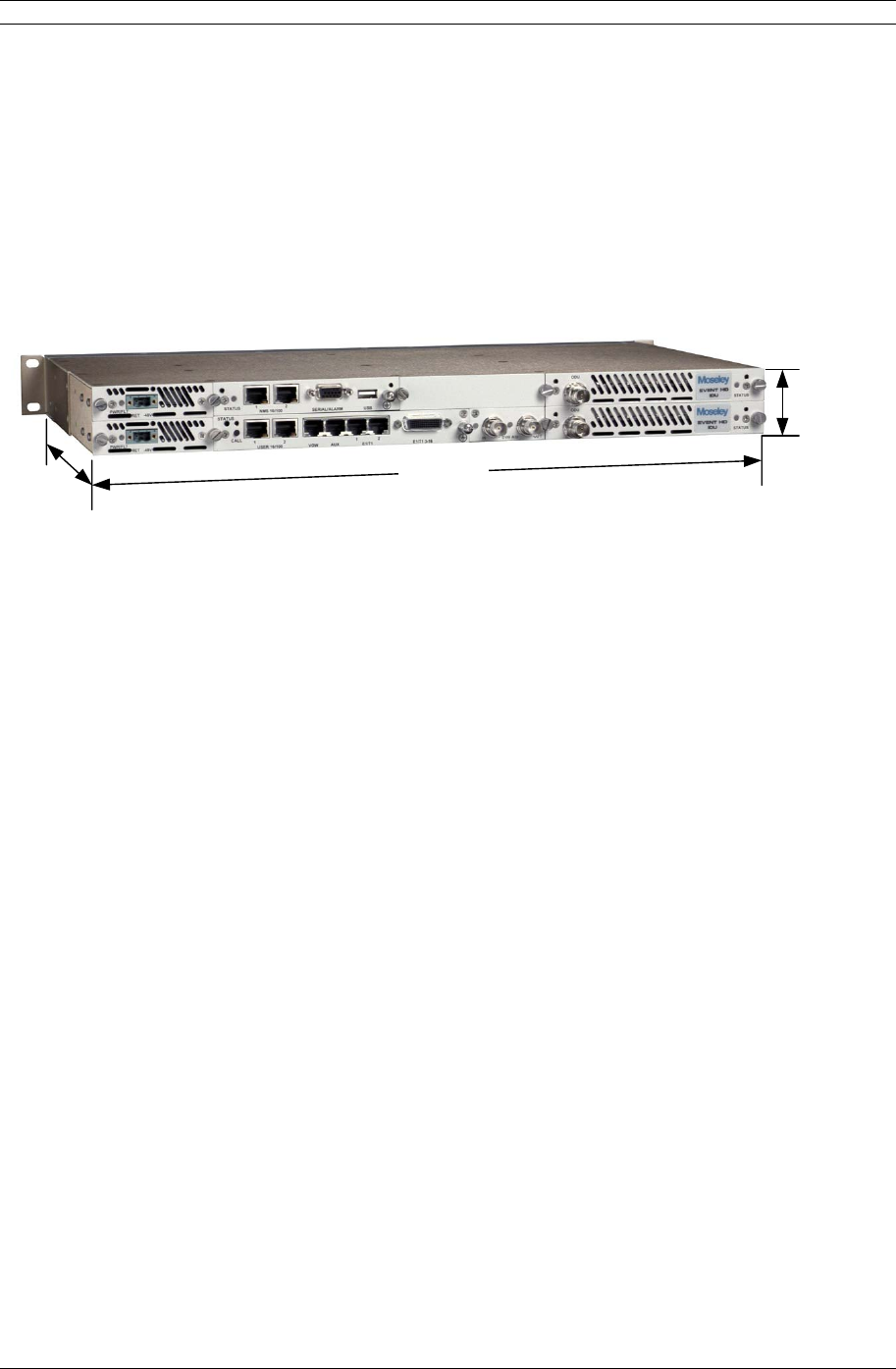

Figure 3-8. Software Defined IDU™ Dimensions .....................................................18

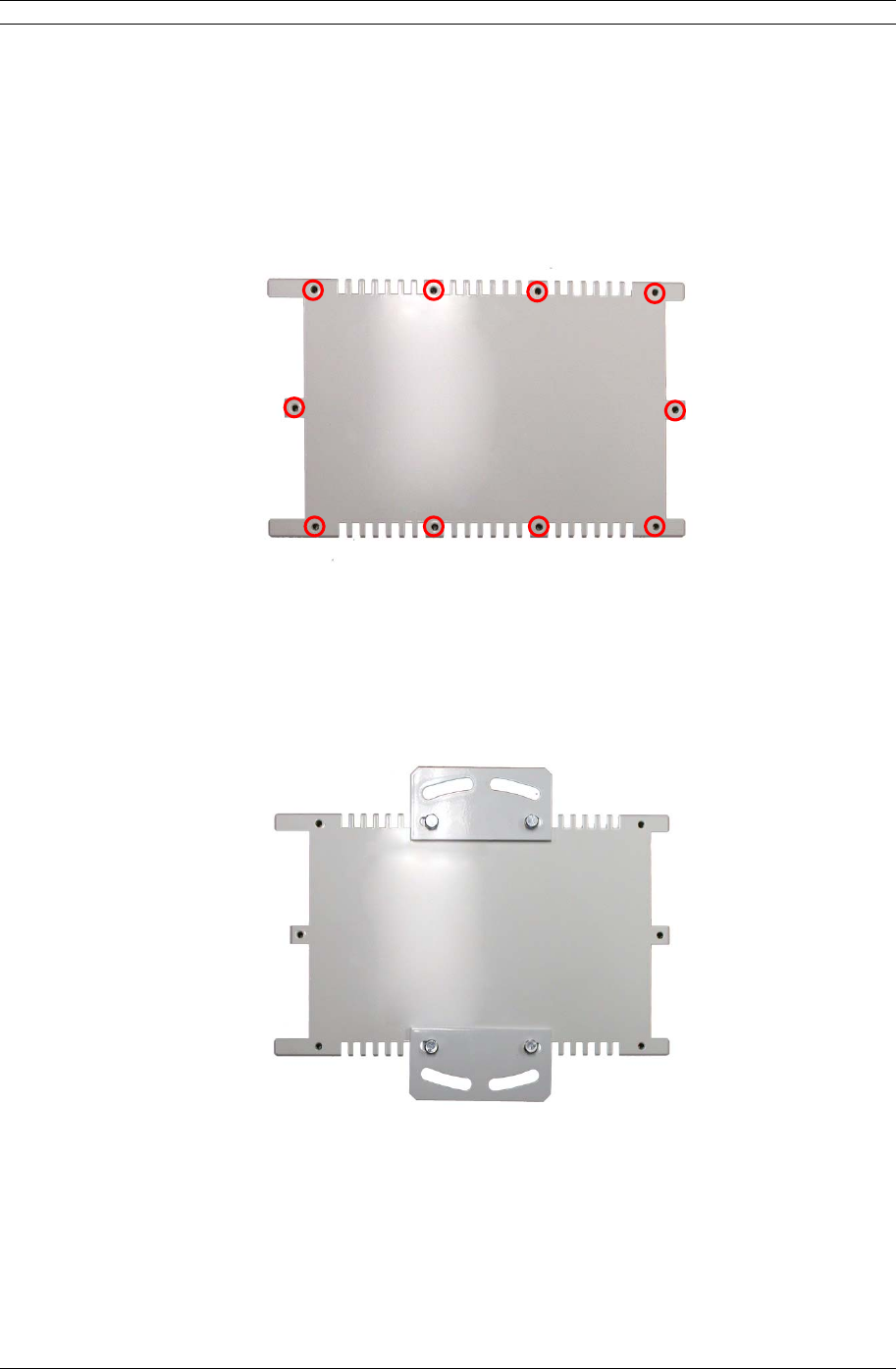

Figure 3-9. ¼-20 threaded mounting hole locations on ODU2200..............................19

Figure 3-10. Pole Mounting Brackets on ODU2200 ..................................................19

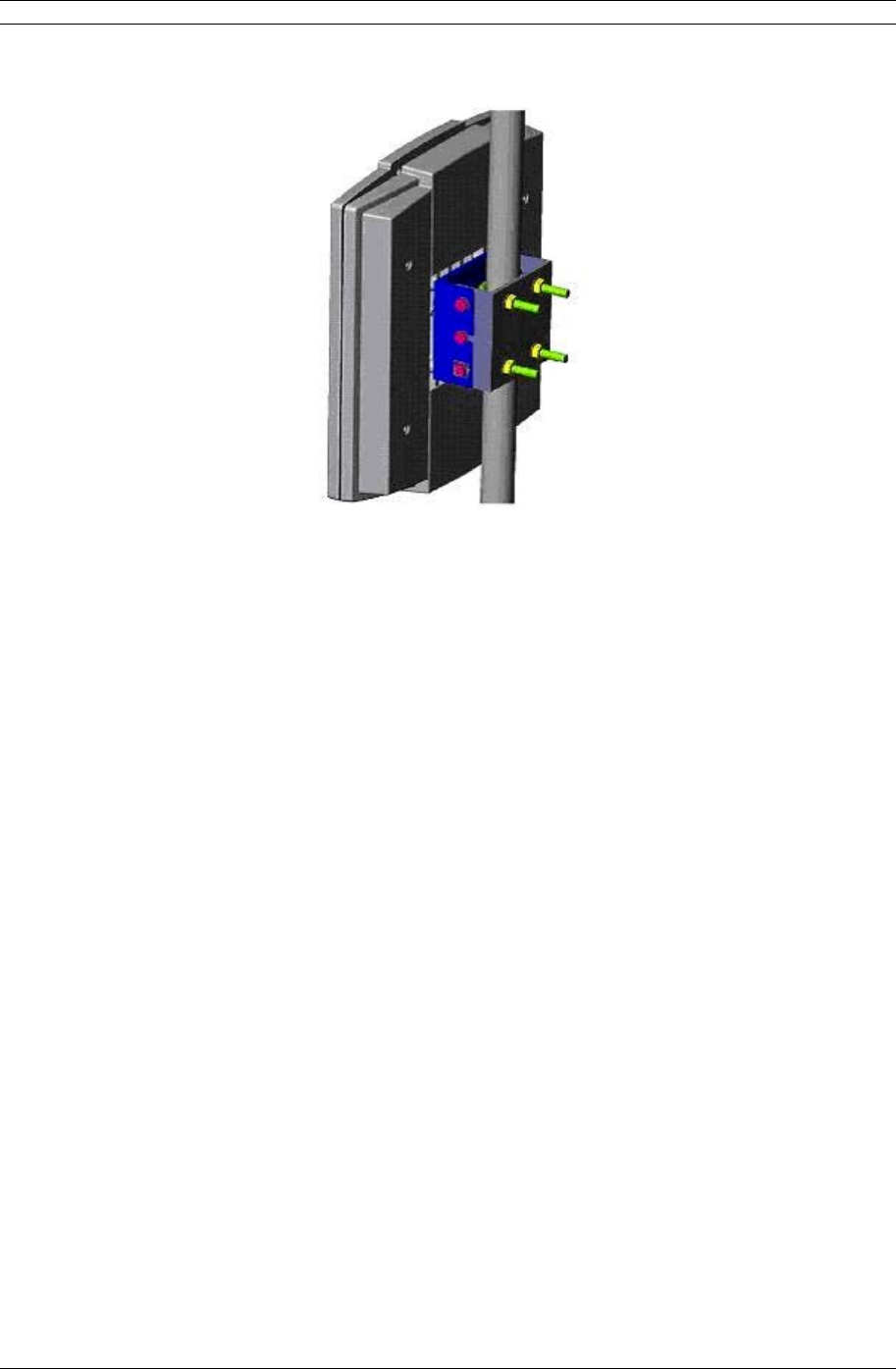

Figure 3-11. Completed Pole Mounting of ODU2200 ................................................20

Figure 3-12. Event ODU5800 Rear View ...............................................................20

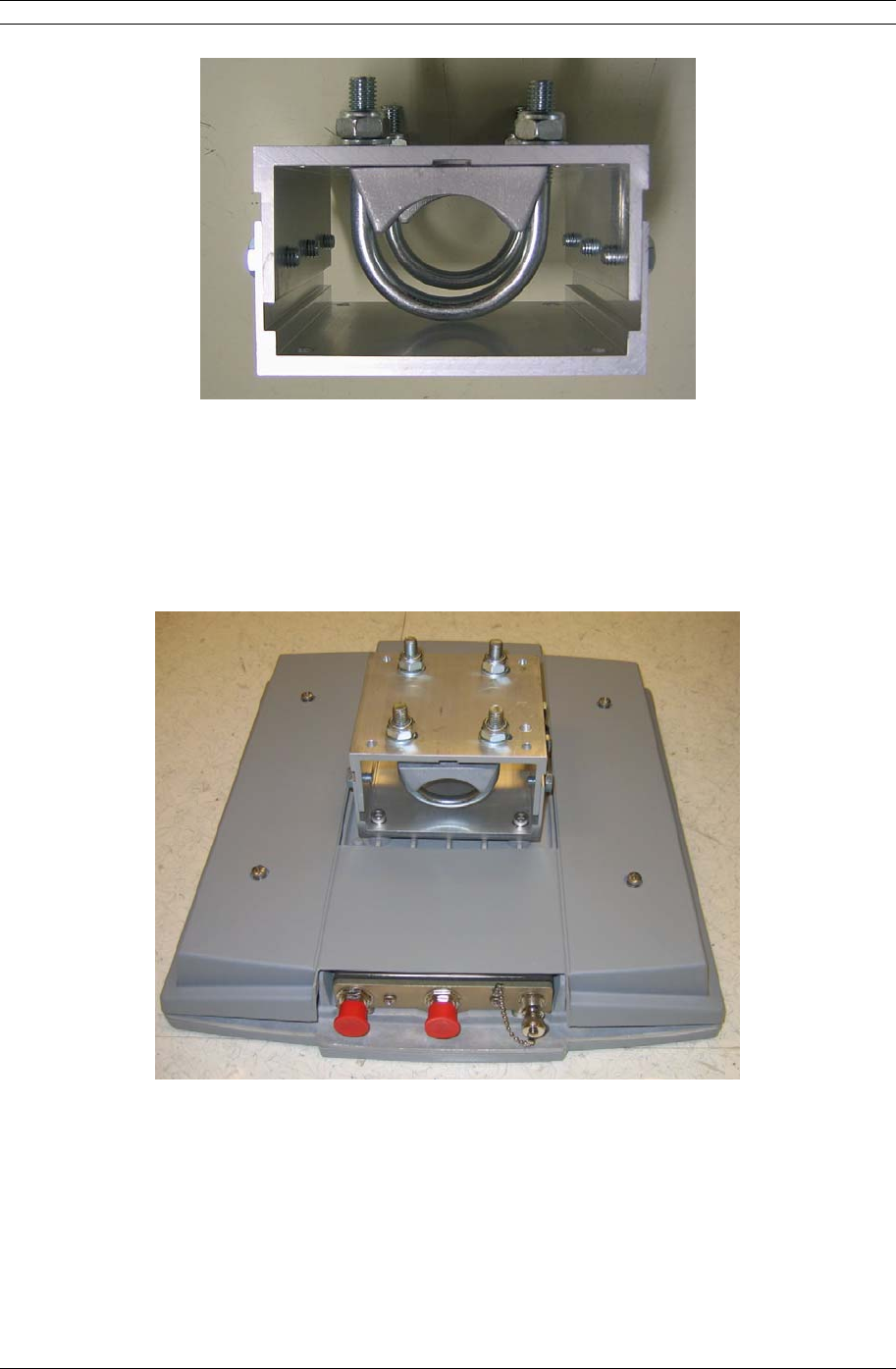

Figure 3-13. Tilt Bracket for Event ODU5800..........................................................21

Figure 3-14. Event ODU5800 with Mounted Tilt Bracket ..........................................21

Figure 3-15. Completed Mounting for the Event ODU5800........................................22

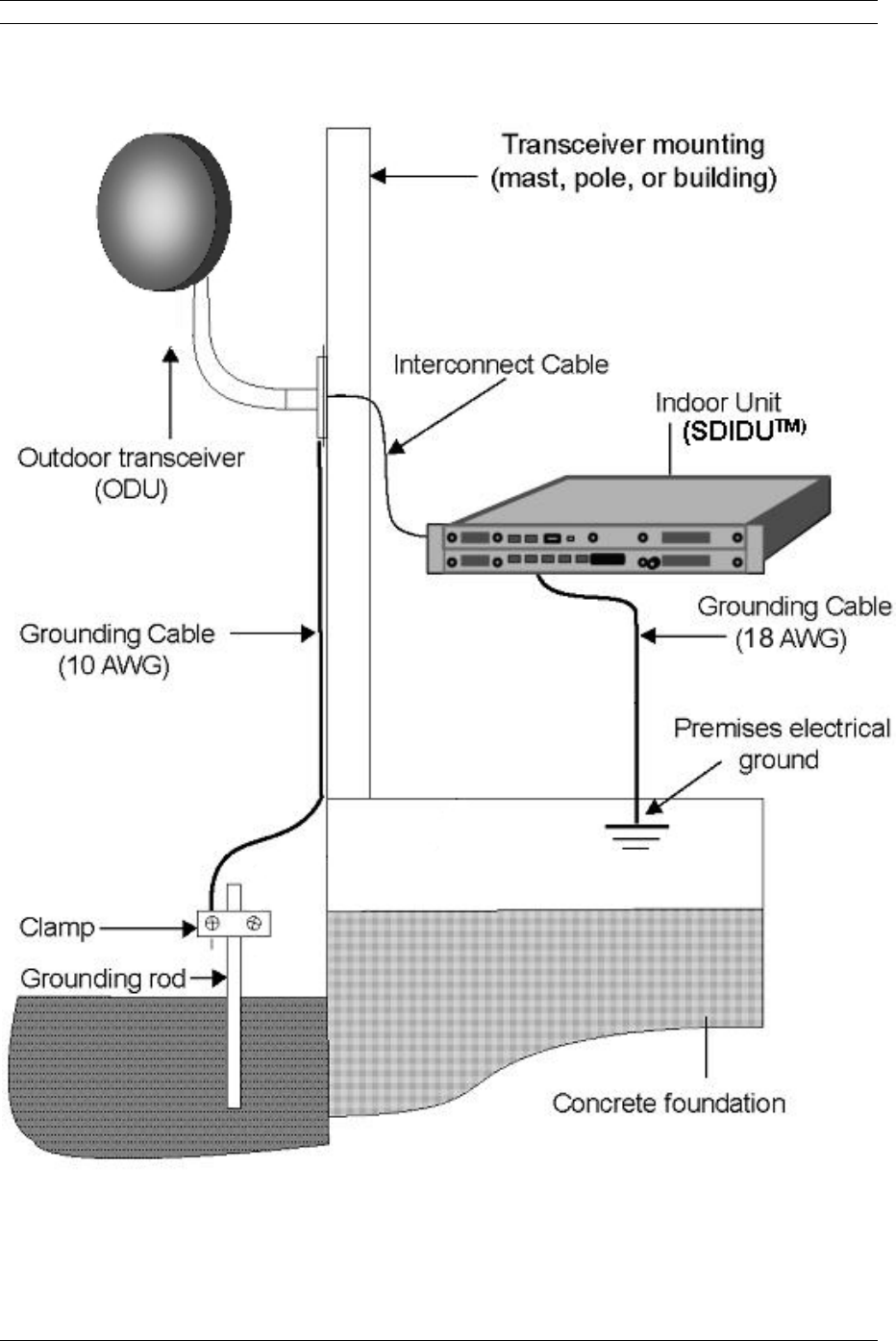

Figure 3-16. Ground Connections to ODU. .............................................................25

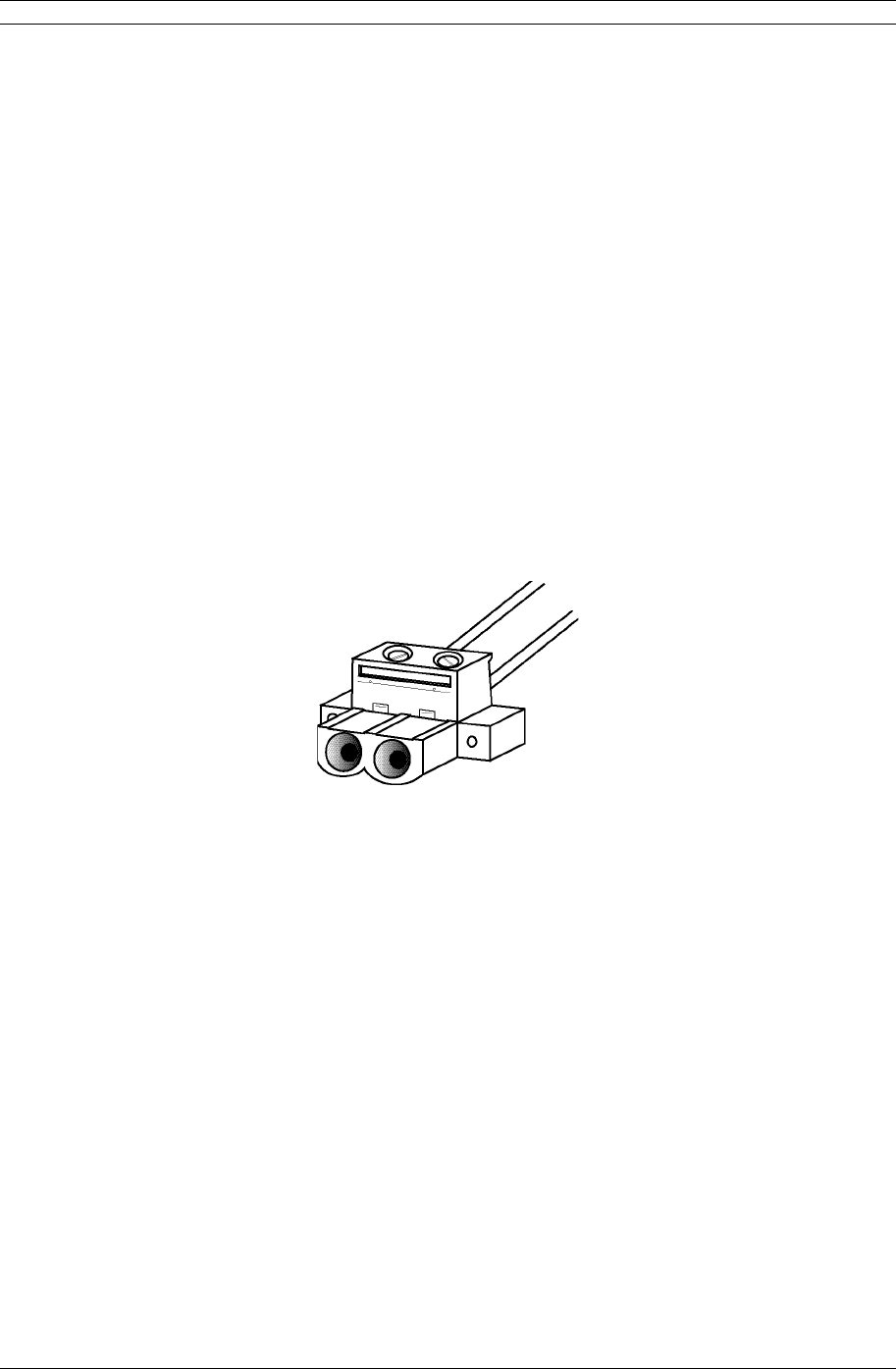

Figure 3-17. SDIDU DC Power Cable Connector......................................................26

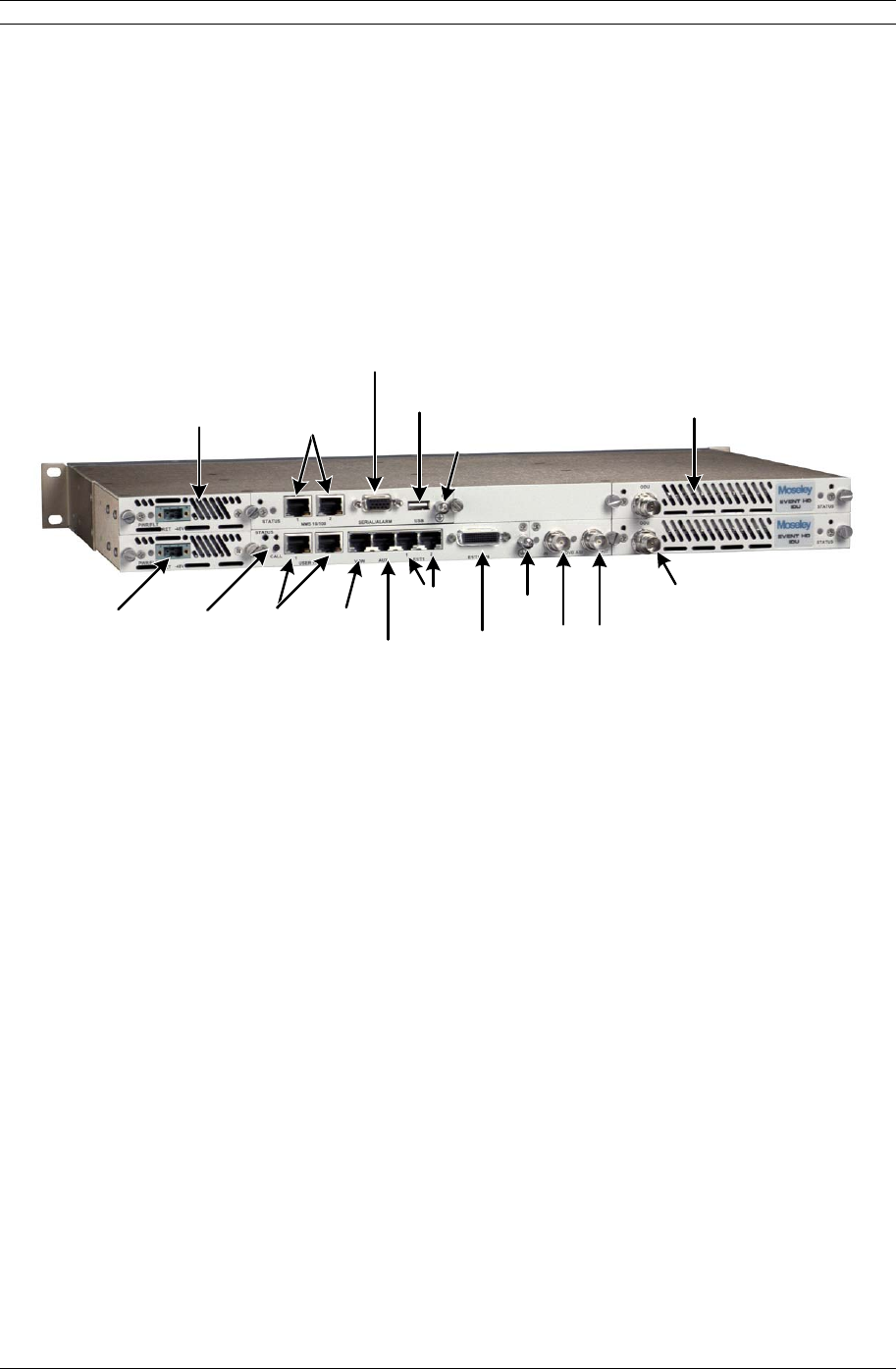

Figure 3-18. Software Defined IDU™-SB, 1+1 Protection, Rear Panel Connections.......27

Figure 3-19. ODU 2200 RSSI Output vs. Received Signal. .......................................30

Figure 3-20. ODU RSSI Output vs. Received Signal. ...............................................31

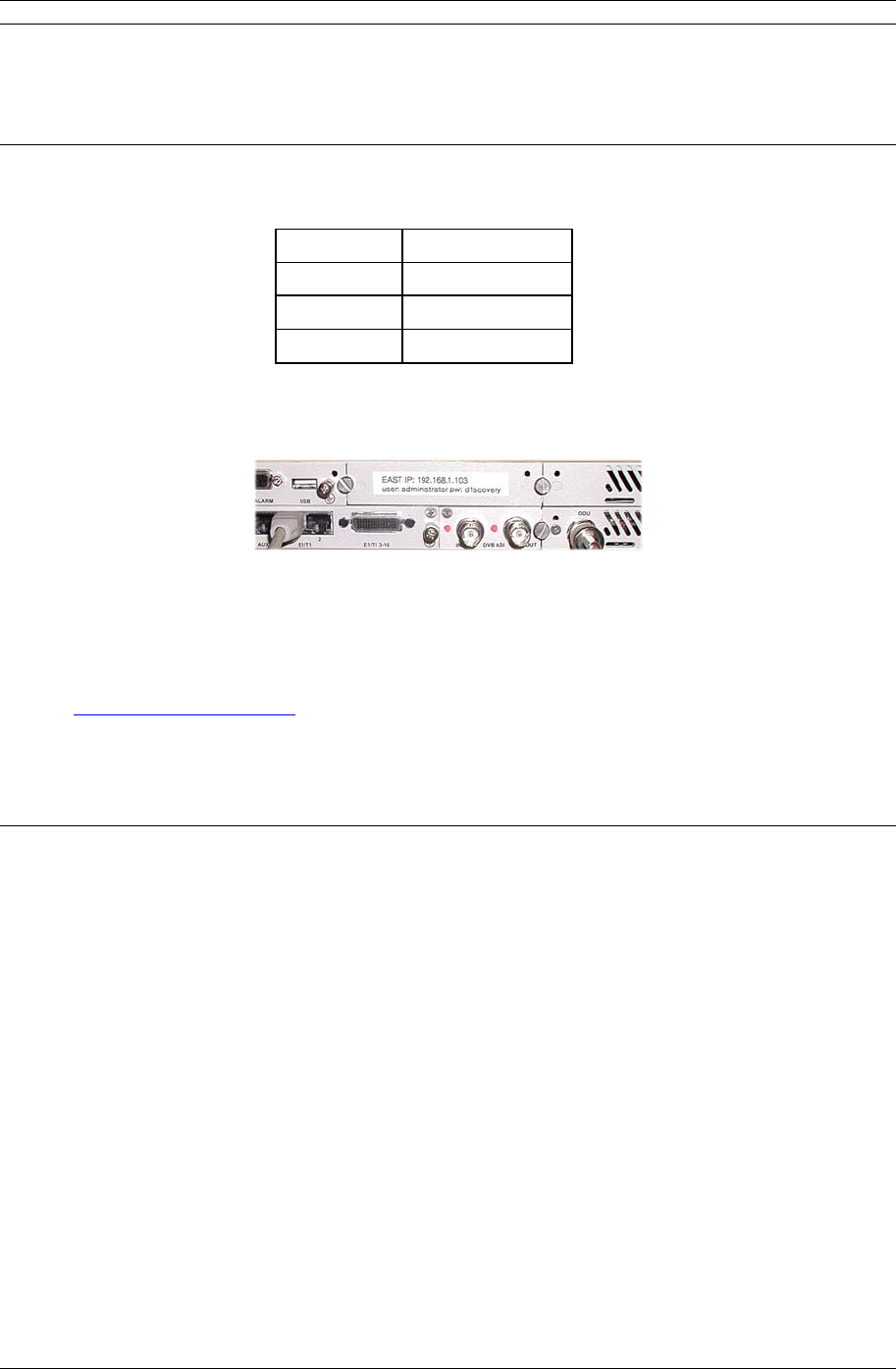

Figure 3-21. IDU IP address label location .............................................................32

Figure 3-22. SDIDU™ Modules.............................................................................33

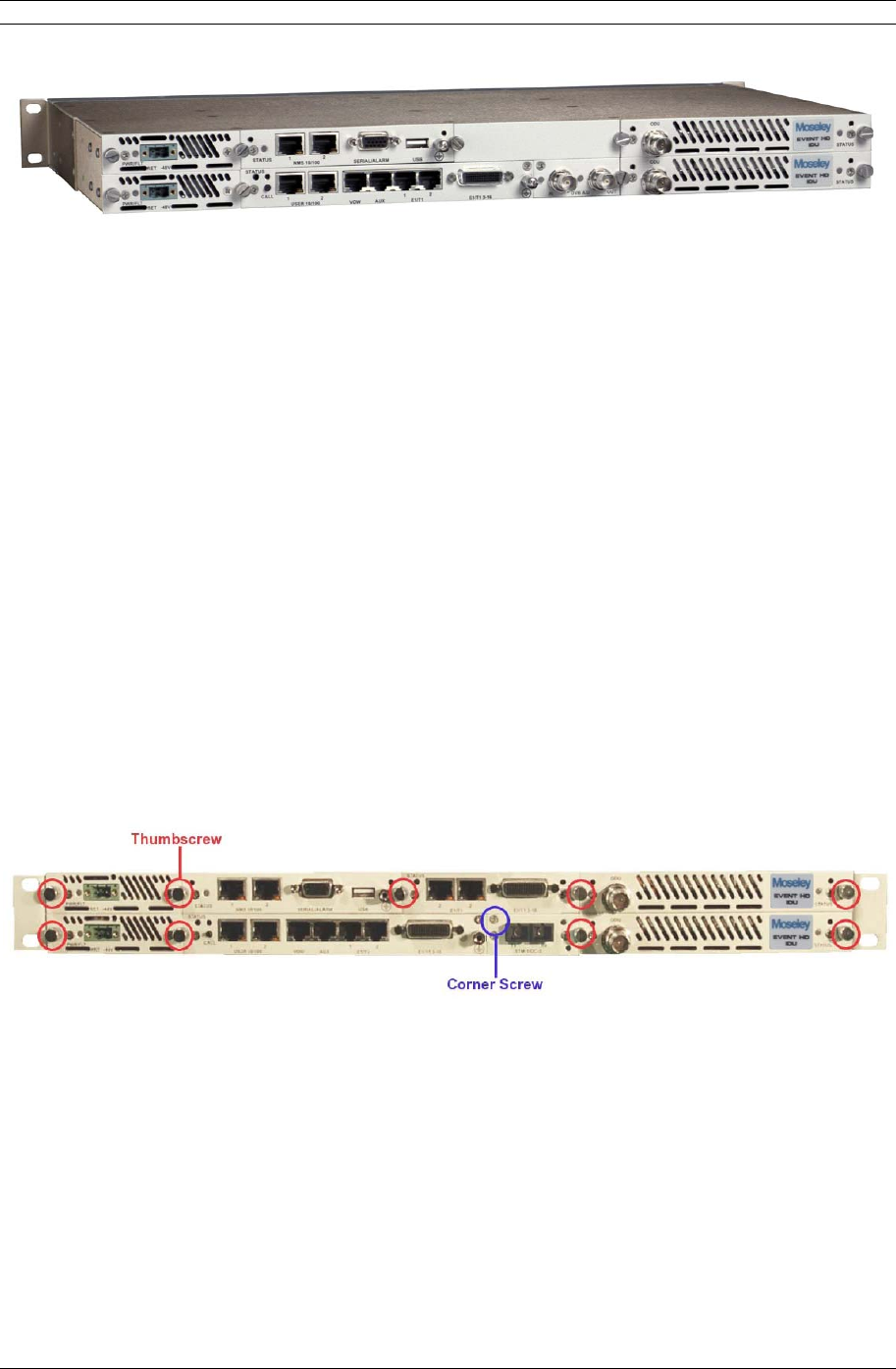

Figure 3-23. Thumbscrew and Corner Screw Locations ............................................33

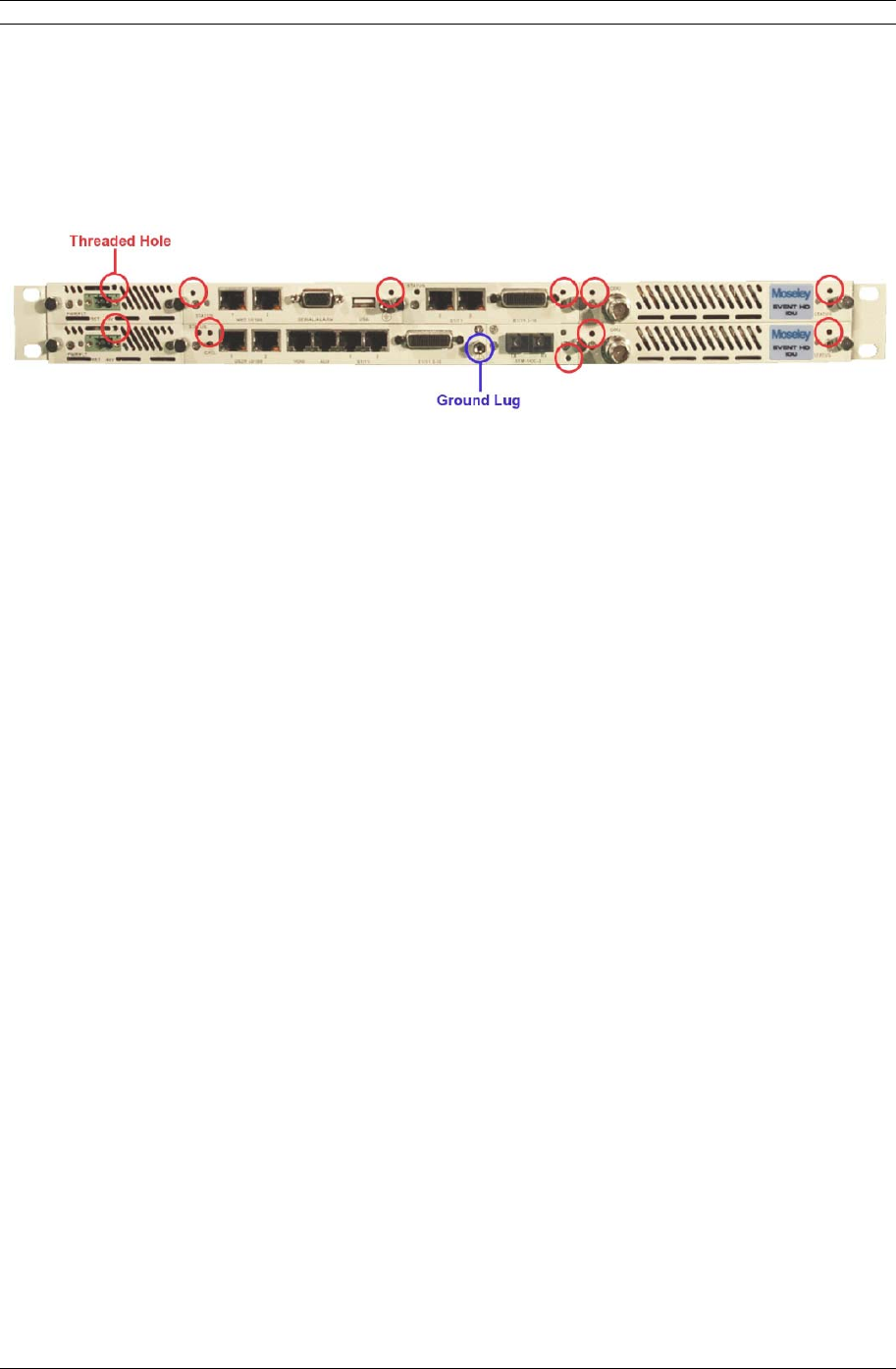

Figure 3-24. Threaded Hole Locations ...................................................................34

Figure 3-25. Guides............................................................................................35

List of Tables

Table 2-1. Key Benefits and Advantages of the Event-HD Radios................................ 3

Table 2-4. DVB-ASI Output status LED.................................................................11

1. Safety Precautions 1

1.Safety Precautions

PLEASE READ THESE SAFETY PRECAUTIONS!

RF Energy Health Hazard

This symbol indicates a risk of personal injury due to radio frequency exposure.

The radio equipment described in this guide uses radio frequency transmitters. Do not

allow people to come in close proximity to the front of the antenna while the transmitter

is operating. The antenna will be professional installed on fixed-mounted outdoor

permanent structures to provide separation from any other antenna and all persons.

WARNING: RF Energy Exposure Limits and Applicable Rules for 6-38 GHz. It is

recommended that the radio equipment operator refer to the RF exposure rules and

precaution for each frequency band and other applicable rules and precautions with

respect to transmitters, facilities, and operations that may affect the environment due to

RF emissions for each radio equipment deployment site.

Appropriate warning signs must be properly placed and posted at the equipment site and

access entries.

Protection from Lightning

Article 810 of the US National Electric Department of Energy Handbook 1996 specifies

that radio and television lead-in cables must have adequate surge protection at or near

the point of entry to the building. The code specifies that any shielded cable from an

external antenna must have the shield directly connected to a 10 AWG wire that connects

to the building ground electrode.

Do not turn on power before reading Moseley’s product documentation. This device has a

48 VDC direct current input.

Protection from RF Burns

It is hazardous to look into or stand in front of an active antenna aperture. Do not stand

in front of or look into an antenna without first ensuring the associated transmitter or

transmitters are switched off. Do not look into the waveguide port of an ODU (if

applicable) when the radio is active.

2 1. Safety Precautions

Risk of Personal Injury from Fiber Optics

DANGER: Invisible laser radiation. Avoid direct eye exposure to the end of a fiber, fiber

cord, or fiber pigtail. The infrared light used in fiber optics systems is invisible, but can

cause serious injury to the eye.

WARNING: Never touch exposed fiber with any part of your body. Fiber fragments can

enter the skin and are difficult to detect and remove.

Warning – This is a Class A product

WARNING: This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate measures.

Warning – Turn off all power before

servicing

WARNING: Turn off all power before servicing.

Safety Requirements

Safety requirements require a switch be employed between the SDIDU™ external power

supply and the SDIDU™ power supplies.

Proper Disposal

The manufacture of the equipment described herein has required the extraction and use

of natural resources. Improper disposal may contaminate the environment and present a

health risk due to the release of hazardous substances contained within. To avoid

dissemination of these substances into our environment, and to lessen the demand on

natural resources, we encourage you to use the appropriate recycling systems for

disposal. These systems will reuse or recycle most of the materials found in this

equipment in a sound way. Please contact Moseley or your supplier for more information

on the proper disposal of this equipment.

2. System Description 1

2.System Description

2.1About This Manual

This manual is written for those who are involved in the “hands-on” installation of the

EVENT HD in a microwave point-to-point link, such as installation technicians, site

evaluators, project managers, and network engineers. It assumes the reader has a basic

understanding of how to install hardware, use Windows® based software, and operate

test equipment.

2.2Introduction

The Moseley family of digital radios provides high capacity transmission, flexibility,

features, and convenience for wireless digital communications networks. The Moseley

digital point-to-point radios represent a new microwave architecture that is designed to

address universal applications for video, audio, data, PDH and SDH platforms. This

advanced technology platform is designed to provide the flexibility to customers for their

current and future network needs.

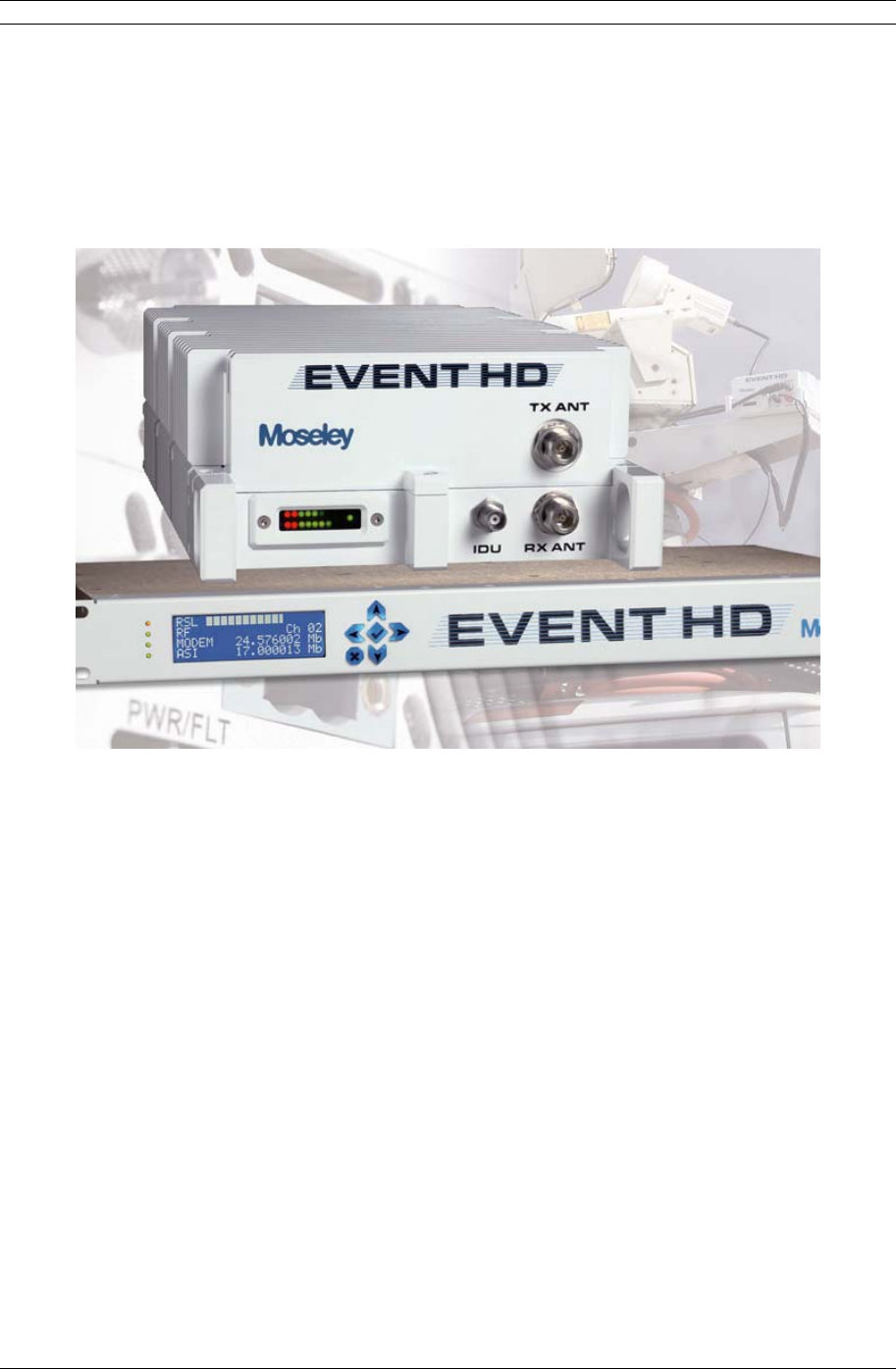

The Moseley EVENT HD is a digital microwave radio terminal composed of a Software

Defined Indoor Unit™ (SDIDU™) and Outdoor Unit (ODU). The SDIDU is common to all

product lines whereas the ODU, the radio transceiver unit which establishes the

frequency of operation, is selected by application and model. The ODU is fully

interchangeable covering the licensed 2, 7, 13, 18, and 23 GHz bands as well as the

unlicensed 5.3 and 5.8 GHz ISM bands. Some applications are:

Broadcast STL (Studio-to-Transmitter Link) and BAS (Broadcast Auxiliary Service) for for

licensed half-duplex applications, FCC part 74.602, for data rates to 150 Mbps,

 2 GHz band between 1990 to 2110 MHz in 12 MHz and 17 MHz channels.

 6.5 GHz band between 6425 to 6525 MHz in 25 MHz channels.

 7 GHz band between 6825 to 7125 MHz in 25 MHz channels.

 13 GHz band between 12.7 to 13.25 GHz in 25 MHz channels.

2 2. System Description

ENG VAN Studio

MPEG / HDTV

Encoder

MPEG / HDTV

Decoder

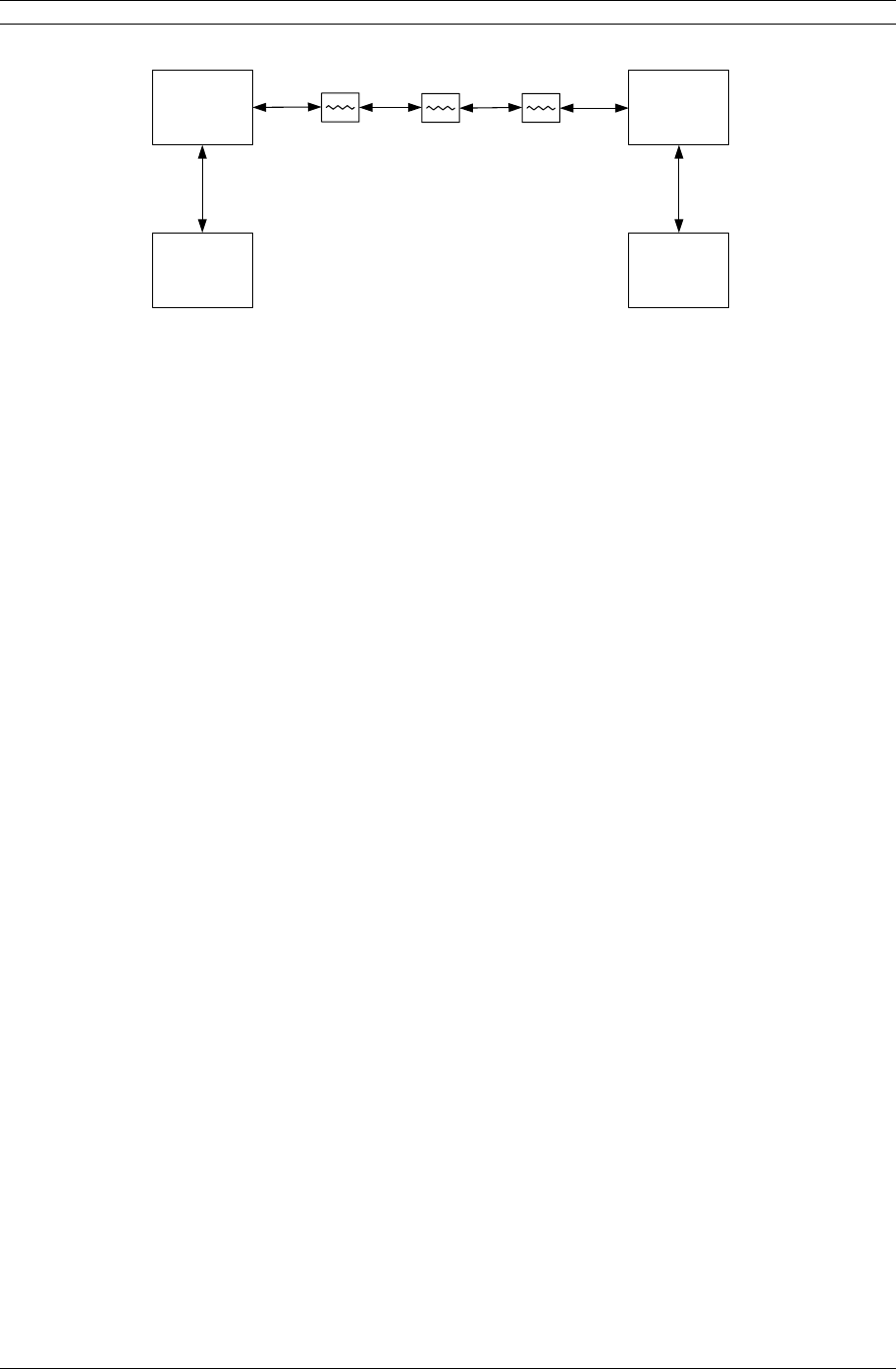

Figure 2-1. Typical Broadcast ENG Application

Unlicensed high-capacity full-duplex data and broadcast applications for data rates to 100

Mbps,

 5.3 GHz band between 5.25 to 5.35 GHz for U-NII in 13, 20, and 30 MHz

channels.

 5.8 GHz band between 5.725 to 5.850 GHz for ISM in 12.5, 16.7, 25, and 30 MHz

channels.

Licensed high-capacity full-duplex data and broadcast applications for data rates to 100

Mbps,

 2/2.2 GHz band, Canada and Australia.

 6.8 GHz band, FCC part 101.147, in 10 MHz channels.

 6 GHz lower and upper, and 7 GHz ETSI.

 18 and 23 GHz, US part 101.

The Event HD digital radios support diversity, 1+0, and 1+1 protection and ring

architectures in a single 1 RU chassis. The modem and power supply functions are

supported using easily replaceable plug-in modules. An additional feature of the SDIDUTM

is provision for a second plug-in modem/IF module to provide diversity, repeater or

east/west network configurations.

The Event HD includes integrated Operations, Administration, Maintenance, and

Provisioning (OAM&P) functionality and design features enabling simple commissioning

when the radio network is initially set up in the field at the customer’s premises.

Furthermore, a highlight of the Event HD is scalability and the capability to support a

2. System Description 3

ring-type architecture. This ring or consecutive point radio architecture is self-healing in

the event of an outage in the link and automatically re-routes data traffic, thereby

ensuring that service to the end user is not interrupted.

The Event HD digital radios enable network operators (mobile and private), government

and access service provides to offer a portfolio of secure, scalable wireless applications

for data, video, and Voice over IP (VoIP). The overall split mount architecture consists of

a single 1RU rack mount Software Defined Indoor Unit (SDIDUTM) with a cable

connecting to an Outdoor Unit (ODU) with an external antenna.

Figure 2-2. Microwave Split Mount Architecture

Table 2-2 shows key features that Moseley technology offers to those involved in the

design, deployment and support of broadband fixed wireless networks.

Table 2-1. Key Benefits and Advantages of the Event-HD Radios

Benefits Advantages to Providers/Customers Reference

Software Defined Indoor Unit (SDIDUTM)

Universal signal processing platform

Advanced Single Chip Modem ASIC

Integrated Forward Error Correction (FEC)

Powerful adaptive equalizer

Enables easy network interface options and

network capacity growth in the future.

Cost effective solution; simplifying product

logistics and overall product life cycle costs.

The flexibility reduces capital and operating

expenditures commonly associated with field

installation, maintenance, training and spares.

Frequency independent and Scalable.

Software defined flexibility enables selective

modulation for spectral efficiency and

adherence to worldwide regulatory emissions

guidelines.

2.2 – 2.5

4 2. System Description

Benefits Advantages to Providers/Customers Reference

Easy to install units

Straightforward modular system enables fast

deployment and activation.

Carrier-class reliability.

Fast return on investment.

No monthly leased line fees.

3.1, 3.4, 3.6

Complete support of payload capacity with additional voice orderwire

Aggregate capacity beyond basic network

payload.

Scalable and spectrally efficient system.

Separate networks for radio

overhead/management and user payload.

Increases available bandwidth of network.

Allows customer full use of revenue-generating

payload channel.

Lowers total cost of ownership.

2.2 – 2.5

Ring Architecture

Supports a ring (consecutive point)

configuration, thus creating a self-healing

redundancy that is more reliable than

traditional point-to-point networks.

In the event of an outage, traffic is

automatically rerouted via another part of the

ring without service interruption.

Ring/consecutive point networks can overcome

line-of-sight issues and reach more buildings

than other traditional wireless networks.

Networks can be expanded by adding more

Software Defined IDU™ or more rings, without

interruption of service.

A separate management channel allows for a

dedicated maintenance ring with connections

to each Software Defined IDU™ on the ring.

Enables network scalability.

Increases deployment scenarios for initial

deployment as well as network expansion with

reduced line-of-sight issues.

Increases network reliability due to self-

healing redundancy of the network.

Minimizes total cost of ownership and

maintenance of the network.

Allows for mass deployment.

2.6

Adaptive Power Control

Automatically adjusts transmit power in

discrete increments in response to RF

interference.

Enables dense deployment.

Simplifies deployment and network

management.

2.7

Comprehensive Link/Network Management Software

2. System Description 5

Benefits Advantages to Providers/Customers Reference

A graphical user interface offers security,

configuration, fault, and performance

management via standard craft interfaces.

Suite of SNMP-compatible network

management tools that provide robust local

and remote management capabilities.

Simplifies management of radio network and

minimizes resources as entire network can be

centrally managed out of any location.

Simplifies troubleshooting of single radios,

links, or entire networks.

Simplifies network upgrades with remote

software upgrades.

Allows for mass deployment.

2.5, 2.8

2.3System Features

 Selectable Rates and Interfaces

o DVB-ASI interface application scalable from 10 to 100 Mbps.

o PDH Options

 Up to 16 x E1/T1

 100BaseTX/Ethernet: Scalable 1-100 Mbps

 DS-3/E-3/STS-1

o Super PDH Options

 Up to 32 x E1/T1

 100 BaseTX/Ethernet: Scalable 1-100 Mbps

o SDH Options

 1-2 x SDH STM-1/OC-3 SONET

 Support for multiple configurations for both PDH and SDH

o 1+0, 1+1 protection/diversity

o Hot Standby

o East/West Repeater (2 + 0)

 Selectable Spectral Efficiency of 0.8 to 6.25 bits/Hz (including FEC and spectral

shaping effects)

 QPSK, 16 –256 QAM Modulation

 Powerful Trellis Coded Modulation concatenated with Reed-Solomon Error

Correction

6 2. System Description

 Built-in Adaptive Equalizer

 Support of Voice Orderwire Channels

 Adaptive Power Control

 Standard high-power feature at antenna port

o 5W (37 dBm) in 2 GHz bands

o 1W (30 dBm) in 5.8, 7, and 13 GHz bands

 Built-in Network Management System (NMS)

 Consecutive Point ring architecture

 Built-in Bit Error Rate (BER) performance monitoring

 Integrated Crosspoint switch: allows a total of 160 E1s (200 T1s) to be mapped

any-to-any between front-panel ports and RF link(s).

2.4Physical Description

The following section details the physical features of the Event HD™ digital radios.

• Model Types

• Front and rear panel configurations

• LED and I/O descriptions

2. System Description 7

2.4.1Model Types

The following model types are available with associated ODU configuration:

Product Name Band

Primary

Data

Interfaces Primary

Throughput ODU

ASI 10-100 Mbps

1. Event 2200 1990-2110

Ethernet 2 Mbps

ODU2200

16xE1/T1

2025-2150

2xEthernet up to 100

Mbps

16xE1/T1

2. Event 2200 FD

2200-2300

2xEthernet

up to 100

Mbps

ODU2200FD

ASI 10-100 Mbps

3. Event 2500 2450-2500

Ethernet 2 Mbps

ODU2500

16xE1/T1

4. Event 5300 5250-5350

2xEthernet

up to 100

Mbps

ODU5300

16xE1/T1

5. Event 5800 5725-5850

2xEthernet

up to 100

Mbps

ODU5800

ASI 10-150 Mbps

6. Event 6500 6425-6525

Ethernet 2 Mbps

ODU6500

16xE1/T1

7. Event 6800 6525-6875

2xEthernet

up to 100

Mbps

ODU6800

ASI 10-150 Mbps

8. Event 7200 6875-7125

Ethernet 2 Mbps

ODU7200

ASI 10-150 Mbps

9. Event 13G 12700-

13250 Ethernet 2 Mbps

ODU13G/18G/23G

8 2. System Description

2.4.2Front Panel

All models of the Event HD are available with an optional front panel to perform primary

configuration functions such as change frequency and monitor receiver status and radio

health parameters. The panel is shown in Figure 2-2.

Figure 2-2. Event-HD front panel (optional)

The menu structure is navigated with the arrow keys, using the “check” key to enter, and

the X key to escape (go back one level). The menu structure gives access to three

primary functions: Status, Configuration, and Alarms. The menus are navigated as

follows:

Event

Status

Configuration

Alarms

Status

Transmit

Receive

Versions

Transmit

Output Pwr: xx.xxxxx

Freq : x.xxxxxx

Receive

Freq: x.xxxxxx

Modem

Errors

Versions

FP:xxxxxxxxxx

IDU/ODU

Modem

RSL :-xx.xxxx

SNR :x.xxxxxx

Lock:xxxxxxxx

IDU/ODU

Software/FPGA

Configuration

Firmware

Errors

Last Err sec:xxxxxx

Err sec 24h:xxxxxx

Software/FPGA

Kernel:xxxxxxxxxxxx

Appl :xxxxxxxxxxxx

FPGA :xxxxxxxxxxxx

Configuration

ODU :xxxxxxxxxxxxx

Modes:xxxxxxxxxxxxx

Chan :xxxxxxxxxxxxx

Firmware

ODU :xxxxxxxxx

Boot :xxxxxxxxx

Modm :xxxxxxxxx

2. System Description 9

Configuration

ODU Control

ODU Channel

Administration

ODU Control

Str Tx Pwr:x.xxxxx

Mute :xxxxxx

State :xxxxxx

ODU Channel

Link

Loopback

Administration

xxxx days xxh:xxm

FP Network

IDU Network

Link

Freq:x.xxxxxx

Link:QPSK-10.5Mbaud

dataR=BaudR*mod

FP Network

IP :xxx.xxx.xxx.xxx

Mask:xxx.xxx.xxx.xxx

GW :xxx.xxx.xxx.xxx

Loopback

Type:combo of 3

LIU: combo

Duration: combo

IDU Network

IP :xxx.xxx.xxx.xxx

Mask:xxx.xxx.xxx.xxx

GW :xxx.xxx.xxx.xxx

Alarms

Active

Clear

1) mm-dd-yy hh:mm:ss

xxxxxxxxxxxxxxxxxx

Are you sure?

2) mm-dd-yy hh:mm:ss

xxxxxxxxxxxxxxxxxx

Alarms Cleared

The front panel provides immediate and convenient access to these functions however

much more extensive configuration and status information (status, alarm, graphical

history, constellations, etc.) are provided via the NMS Ethernet interface and web GUI.

2.4.3Rear Panel Indicators

All models of the Event HD support a variety of rear panel configurations that are

dependent on the network interface and capacity configurations.

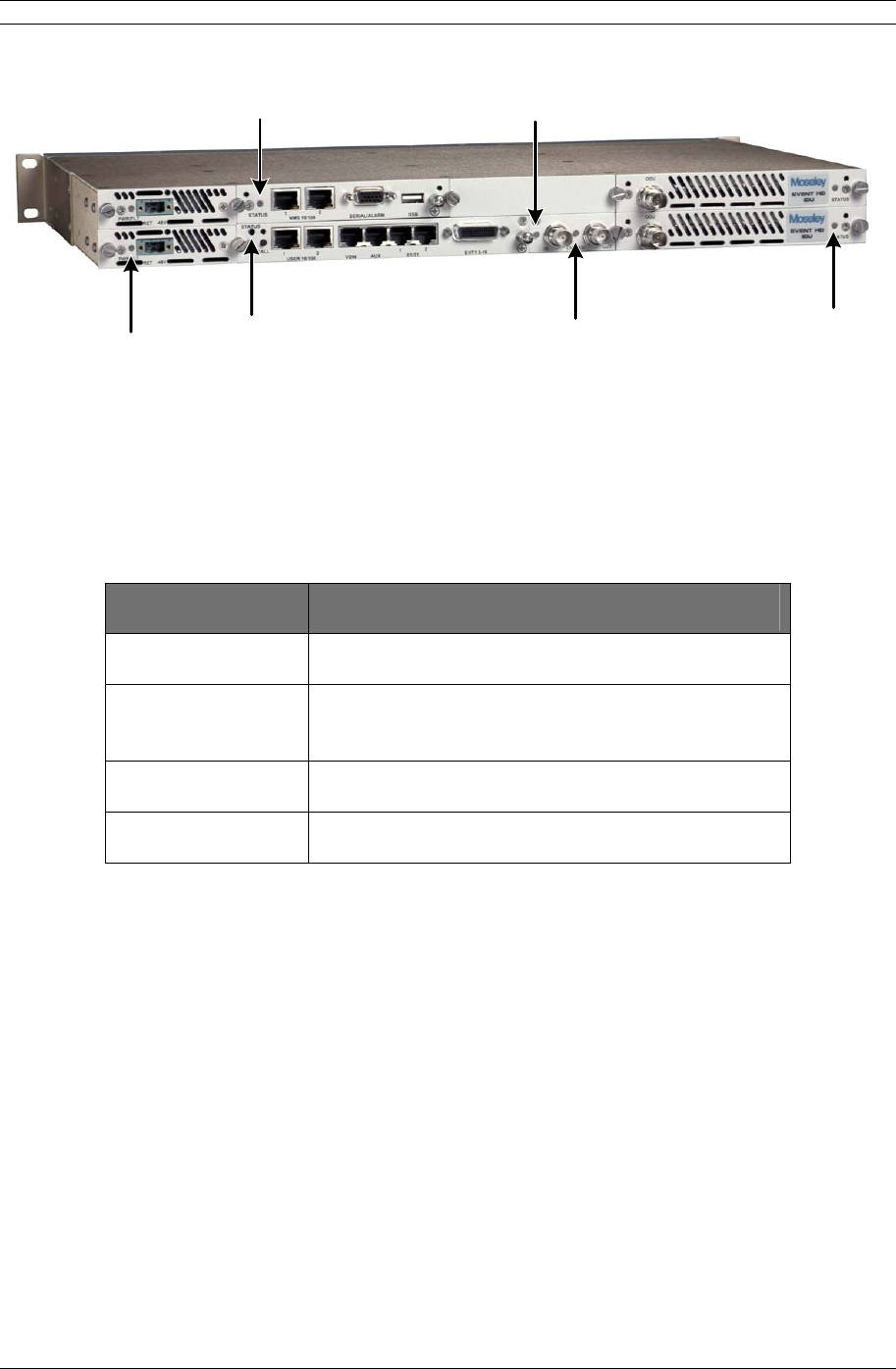

Figure 2-2 provides an example of the Event HD 1+0 configuration and the associated

LEDs displayed on the SDIDUTM rear panel. The controller, standard I/O, and each

modem card have a status LED.

10 2. System Description

Controller

Status LED

Power/

Fault LED

Ethernet/

E1/T1

Status LED

DVB-ASI

Out Status

LED

DVB-ASI In

Status LED

Modem

Status LED

Figure 2-2. Software Defined IDU™ LEDs: SDIDUTM Rear Panel Configuration for

Software Defined IDU™, 1+0 Configuration

The modem status LED indicates the modem status as described in Table 2-2.

Table 2-2. Modem status LED.

LED STATUS

GREEN Active Locked Link

ORANGE Standby Locked Link (1+1 Non-Diversity

Only)

Flashing GREEN Low SNR

Flashing ORANGE Unlocked

2. System Description 11

Table 2-3. DVB-ASI Input status LED.

LED STATUS

GREEN Good ASI input

RED No ASI input

Alternating

YELLOW/GRN ASI exceeds radio bit rate

(FIFO overflow)

Flashing RED Loss-of-Frame

Flashing GRN No ASI data

Table 2-4. DVB-ASI Output status LED.

LED STATUS

GREEN Active Locked ASI Link

Alternating

RED/GREEN No ASI, loss-of-frame

GREEN,

occasionally

flashing YELLOW

Locked ASI link with errors

(yellow flashes)

The controller status LED is the primary rear panel indicator of alarms. An alarm is

generated when a specific condition is identified and is cleared when the specified

condition is no longer detected. When an alarm is posted,

1. The controller status LED turns orange for 5 seconds

2. The controller status LED turns off for 5 seconds

3. The controller status LED flashes orange the number of times specified by the first

digit of the alarm code

4. The controller status LED turns off for 3 seconds

5. The controller status LED flashes orange the number of times specified by the

second digit of the alarm code

Steps 2-5 are repeated for each alarm posted. The entire process is repeated as long as

the alarms are still posted.

12 2. System Description

The standard I/O and modem status LEDs are set to red when certain alarms are posted.

A complete list of alarms is provided in Appendix H6.1.

The alarm description is also displayed in the Graphical User Interface (GUI) as described

in the User Interface Reference Manual.

2.4.4Rear Panel Connections

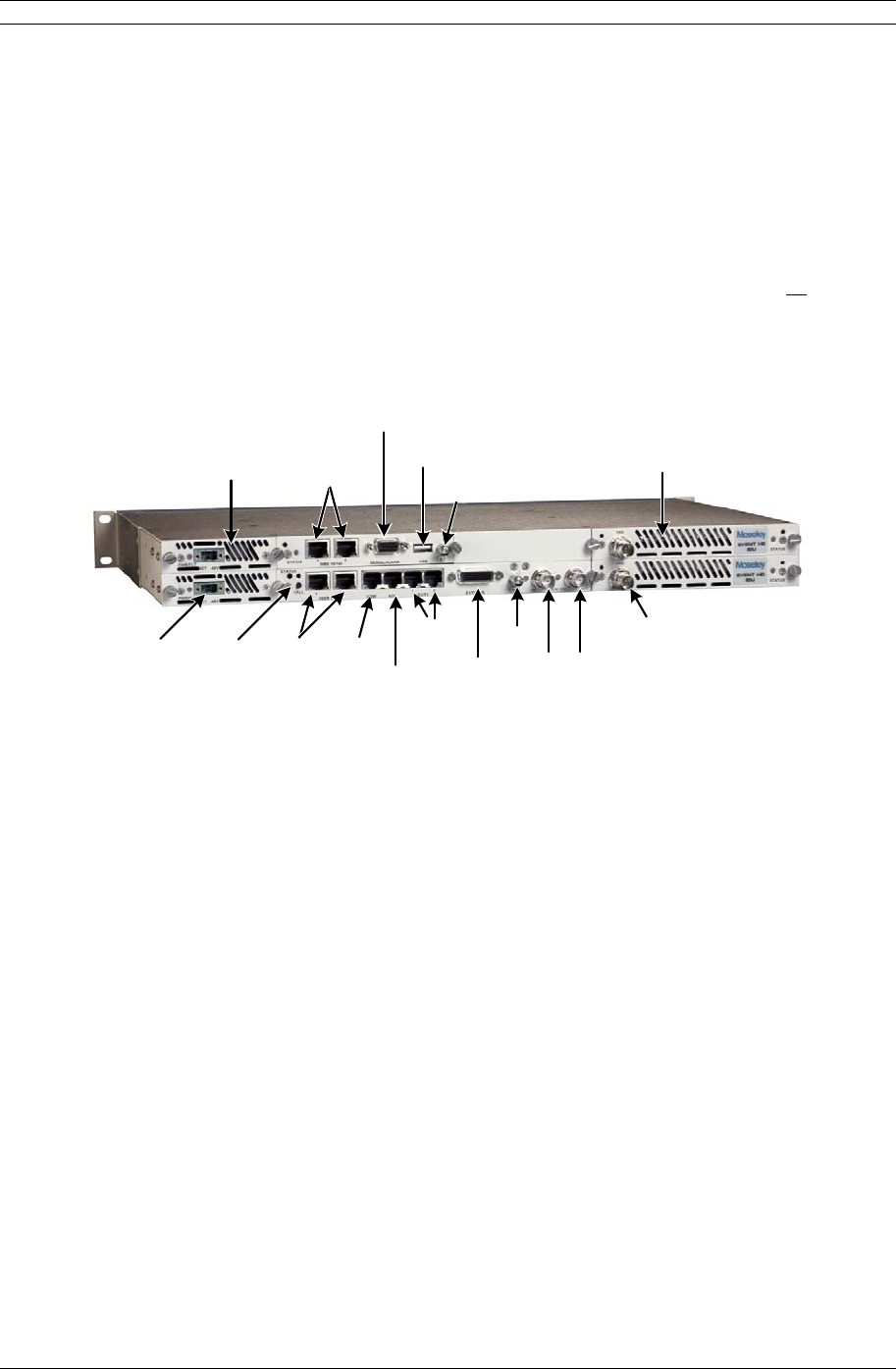

Refer to the Figure 2-3 for an example of a Software Defined IDU™ rear panel followed

by a description of the connections.

NMS

Controller

Ethernet

-48V Power

Input 100Base-T

Ethernet

Data

Channels

ASI

Output

ASI

Input

ODU IF

Connection

Redundant

Power-Supply

(optional for

1+1, 2+0)

ALARM/Serial

Interface Redundant

MODEM

(optional for

1+1, 2+0)

USB

Ground

lug

Call

Button Voice

Orderwire

Data

Orderwire

2xT1/E1

14xT1/E1

Ground

lug

Figure 2-3. Software Defined IDU™-SB, 1+1 Protection: SDIDUTM Rear Panel

Connections

2. System Description 13

Power Supply Input

DC Input

-48 VDC

48v (Isolated Input); 2-pin captive power connector. The

Software Defined IDU™ requires an input of 48 volts dc

±10% at the rear panel DC Input connector. The total

required power is dependent on the option cards and

protection configuration (1+0, 1+1). The SDIDUTM rear

panel power connector pin numbering is 1 through 2,

from left to right, when facing the unit rear panel. Pin 1

is the power supply return and is connected to unit

chassis ground internally. Pin 2 should be supplied with

a nominal 48 V dc, with respect to the unit chassis

(ground). A ground-isolated supply may be used,

provided it will tolerate grounding of its most positive

output.

The recommended power input is 44 to 52 V dc at 2

Amps minimum. It is recommended that any power

supply used be able to supply a minimum of 100 W to

the SDIDUTM.

A mating power cable connector is supplied with the

Software Defined IDU™. It is a 2-pin plug, 5 mm pitch,

manufactured by Phoenix Contact, P/N 17 86 83 1

(connector type MSTB 2,5/2-STF). This connector has

screw clamp terminals that accommodate 24 AWG to 12

AWG wire. The power cable wire should be selected to

provide the appropriate current with minimal voltage

drop, based on the power supply voltage and length of

cable required. The recommended wire size for power

cables under 10 feet in length supplying 48 Vdc is 18

AWG.

The SDIDUTM supplies the ODU with all required power

via the ODU/SDIDUTM Interconnect cable. The Software

Defined IDU™

does not have a power on/off switch.

When DC power is connected to the SDIDUTM, the digital

radio powers up and is operational. There can be up to

320 mW of RF power present at the antenna port

(external antenna version). The antenna should be

directed safely when power is applied.

14 2. System Description

Alarm/Serial Interface

Alarms/Serial DB-15HD female connector for two Form-C relay alarm

outputs (rated load: 1A @ 24 VDC), two TTL alarm

outputs, four TTL alarm inputs, and Serial Console. The

two Form-C relay alarm outputs can be configured to

emulate TTL alarm outputs.

USB Interface

USB USB connector, reserved.

Voice Orderwire Connector

Call Button The voice orderwire provides a PTP connection via a PTT

handset and buzzer. The call button initiates a ring.

Only the SDIDU’s™ link partner will receive the ring.

VOW does not ring all nodes or support “party line” calls.

Voice

Orderwire RJ-45 modular port connector for voice orderwire

interface.

Data Orderwire Connector

Data

Orderwire RJ-45 modular port connector for RS422/RS-232 data at

64 kbps.

NMS 10/100 Network Management System Connections

NMS 10/100 1 10/100Base-TX RJ-45 modular local port connector for

access to the Network Management System (SNMP) and

GUI.

NMS 10/100 2 10/100BaseTX RJ-45 modular remote port connector for

access to the Network Management System (SNMP). This

port to be used for consecutive point networks.

100/Ethernet Models: Ethernet 100BaseT Connections

USER 10/100 1 100Base-TX RJ-45 modular port connector for the local

Fast Ethernet interface.

USER 10/100 2 100Base-TX RJ-45 modular port connector. This port to

be used for consecutive point networks.

T1 Channels

T1 1-2 Two T1/E1 (RJ-48C) interface connections.

T1 3-8/16 Single Molex 60-pin connector containing 14 T1/E1

connections.

2. System Description 15

DVB/ASI, DS-3, E-3, and STS-1Connection (Optional Mini IO)

DVB/ASI Out BNC connector for the DVB/ASI digital video and DS-3,

E-3, and STS-1 interface.

DVB/ASI In BNC connector for the DVB/ASI digital video and DS-3,

E-3, and STS-1 interface.

OC-3 Connection (Optional Mini IO)

OC-3 Out OC-3 type SC connectors for the OC-3 interface.

OC-3 In OC-3 type SC connectors for the OC-3 interface.

STM-1 Connection (Optional Mini IO)

STM-1Out BNC connector for the STM-1 interface.

STM-1 In BNC connector for the STM-1 interface.

ODU/SDIDUTM Interconnect

To ODU TNC female connector. Used to connect the ODU to the

SDIDUTM. Provides –48VDC and 350 MHz Transmit IF to

the ODU and receives 140 MHz Receive IF from the ODU.

Ground Connection

Ground Lug Two ground lugs are provided on the rear panel. Either

may be used to connect the SDIDU™ to ground.

2.4.5ODU LED Indicators

The ODU 2200, 6500, and 7200 has an externally visible LED meter that provides both

RSL (Receive Signal Level) and transmit power. For full-duplex operation the ODU meter

displays RSL on the top bar and transmit level on the bottom bar as shown in Figure 2-4.

Figure 2-4. ODU 2200 RSSI Output vs. Received Signal.

16 2. System Description

The upper RSL LED meter is calibrated to represent exactly 10 dB for each LED, going

from -95 dBm at the far left (red) to -15 dBm at the far right (green). The brightness of

each LED is modulated for levels between 0 to 10 dB such that the far left LED will be

fully extinguished at -95 dBm and the far right LED will be fully illuminated at -15 dBm.

When the RSL is in the red region (<-75 dBm) the signal level is approaching or has

reached threshold (depends on modulation type).

The transmit LED indicates full power will all 8 LEDs illuminated to minimum power with 1

LED illuminated. For simplex applications the both rows indicate either RSL or transmit

power.

2.5System Description

The overall Event-HD digital radio architecture consists of a single 1RU rack mount

Software Defined Indoor UnitTM (SDIDUTM) with a cable connecting to an Outdoor Unit

(ODU). The IF signal between the SDIDU and ODU operates at a relatively low frequency

compared with the RF signal allowing for extensive cable runs in excess of 250 m with

inexpensive coaxial cable with no degradation in radio performance.

The Event-HD ODU is mounted to a fixed or telescoping antenna mast near the desired

antenna location providing a short cable run between ODU and antenna at the RF

frequency. This SDIDU /ODU architecture is advantageous when compared to a single

IDU (no ODU) with external mount antenna as operating at these RF frequencies from

the IDU rack to the antenna will result in significant signal degradation and require

expensive low-loss coaxial cable or waveguide.

2. System Description 17

FRAMER

DVB-ASI

DS-3/ES/

STS-1

2xSTM-1/

OC3

4xDS3/ES/

STS1

STM-1/OC3

64 kbps

Voice

16 T1/E1

User 2x

100Base-Tx Switch MODEM/

FEC ASIC

MODEM/

FEC ASIC

4x44.736/34.368/

51.84 Mbps

2x 155.52 Mbps

4x44.736/34.368/

51.84 Mbps

Up to 150 Mbps

2x 100 Mbps

16x 1.544/2.048

Mbps

Digital

Quad

Mux

SNMP 2x

100Base-Tx Switch

CPU

East/Primary Modem

West/Secondary Modem

Digital

Quad

Mux

2x 100 Mbps

IDU

CONTROLLER

Optional I/O Cards

(Small Slot)

Standard I/O Cards

Optional I/O Cards

(Large Slot) Primary Power

Supply

Secondary Power

Supply

Serial

RCH Serial

Modem Control

Telemetry

IDU

-48Vdc

Multiplexed

155.52 Mbps

External

Antenna

N-type

Internal/

Horizontal

Antenna

Transfer

Switch Duplexer

Diversity

Switch

Vertical

Antenna

Unlicensed 5.3/5.8 GHz

Internal Duplexer Configuration

Duplexer

Short-Haul 6-38 GHz

Internal Duplexer Config

External

Antenna

(Waveguide

Flange)

Transmitter

Up-Converter

Receiver

Down-Converter

350

MHz

140

MHz

DC/DC

Converters

-48Vdc +10Vdc

+5Vdc

+3Vdc

-5Vdc

Commlink

& Processor

5/10

MHz

ODU

RSL

(Received Signal Level)

Voltage

TNC

BNC

Quad

Mux

Tx Out Tx Ext

Antenna

N-Type

Rx In

Rx Ext

Antenna

N-Type

Figure 2-5. Event-HD Block Diagram

Figure 2-5 shows the Event-HD digital radio and interfaces from a functional point of

view. The functional partitions for the I/O, Modem/IF, power supply modules, up/down

converters, and internal RF duplexing partition are shown. The SDIDUTM comes with the

standard I/O capability which can be upgraded. The Modem/IF function is modular

allowing the addition of a second Modem to support protection or ring architectures. The

power supply is similarly modular. In addition, the ODUs are interchangeable allowing

use of a single IDU in licensed, unlicensed, and short-haul applications by swapping the

RF component.

18 2. System Description

The Event-HD ODU RF Up/Down Converter provides the interface to the antenna. The

transmit section up converts and amplifies the modulated Intermediate Frequency (IF) of

350 MHz from the IF Processor and provides additional filtering. The receive section down

converts the received signal, provides additional filtering, and outputs an IF of 140 MHz

to the IF Processor.

The Event-HD digital radio modem performs QPSK, 16-QAM, 32-QAM, 64-QAM, and 128-

QAM modulation and demodulation of the payload and forward error correction using

advanced modulation and coding techniques. Using all-digital processing, the IF Modem

uses robust modulation and forward error correction coding to minimize the number of

bit errors and optimize the radio and network performance. The IF Modem also

scrambles, descrambles and interleaves/deinterleaves the data stream in accordance

with Intelsat standards to ensure modulation efficiency and resilience to sustained burst

errors. The modulation will vary by application, data rate, and frequency spectrum. The

highest order modulation mode supported is 128 Quadrature Amplitude Modulation

(QAM). Table 2-5 summarizes the TCM/convolutional code rates for each modulation type

supported by the Event-HD.

Table 2-5. Event-HD TCM/Convolutional Code Rates

Modulation Type Available Code Rates

QPSK 1/2, 3/4, 7/8

16-QAM 3/4, 7/8,

32-QAM 4/5, 9/10

64-QAM 5/6, 11/12

128-QAM 11/12

The major functions of the SDIDUTM can be summarized as follows:

• I/O Processing – Event-HD digital radio comes with a standard I/O capability that

includes support for up to 16xT1/E1 and 2x100Base-TX user payloads, 2x100Base-TX

for SNMP, and voice orderwire. In addition, option cards for DVB-ASI, DS-3/E3/STS-

1, 1-2 x STM-1/OC-3, and 4xDS-3/E3/STS-1 may be added. The Event-HD

architecture is flexible and allows for the addition of other I/O types in the future.

• Switch/Framing – The Event-HD digital radio includes an Ethernet Switch and a

proprietary Framer that are designed to support 1+1 protection switching, ring

architecture routing, and overall network control functions.

• Network Processor – The Event-HD digital radio includes a Network Processor which

performs SNMP and Network Management functions.

• Modem/IF – The Event-HD digital radio modem performs forward-error-correction

(FEC) encoding, PSK/QAM modulation and demodulation, equalization, and FEC

decoding functions. The IF chain provides a 350 MHz carrier and receives a 140 MHz

2. System Description 19

carrier. The multiplexer function is built into an appliqué that resides in the Modem/IF

Module. Two modems can be used for 1+1 protection or ring architectures.

• Power Supply – The Event-HD power supply accepts 48 Vdc and supplies the SDIDUTM

and ODU with power. A second redundant power supply may be added as an optional

module.

The Modem Processor and its associated RAM, ROM, and peripherals control the digital

and analog operation. It also provides configuration and control for both the IF and I/O

cards. The SDIDU interfaces with the ODU to receive and provide modulated transmit

and receive waveforms.

The Event-HD digital radio also provides the physical interface for the user payload and

network management. In transmit mode, the Framer merges user payload (OC-3 or Fast

Ethernet) with radio overhead-encapsulated network management data. This combined

data stream is transmitted without any loss of user bandwidth. In the receive mode, the

Framer separates the combined data stream received from the 256-QAM Modem. The

SDIDUTM supports Scalable Ethernet data rates, such as 25 or 50 Mbps via the 100BaseT

data interface port. The SDIDUTM provides network management data on 10 Mbps ports

accessible via the 10/100BaseTX port. The Central Processor Unit (CPU) provides the

embedded control and network element functionality of the OAM&P. The CPU also

communicates with other functions within the SDIDUTM for configuration, control, and

status monitoring. The CPU passes appropriate status information to the SDIDUTM rear

panel display.

The power supply converts -48 Vdc to the DC voltage levels required by each component

in the system.

2.6Consecutive Point Architecture

The consecutive point network architecture is based upon the proven SONET/SDH ring.

Telecommunications service providers traditionally use the SONET/SDH ring architecture

to implement their access networks. A typical SONET/SDH network consists of the

service provider’s Point of Presence (POP) site and several customer sites with fiber optic

cables connecting these sites in a ring configuration (see Figure 2-6). This architecture

lets providers deliver high bandwidth with high availability to their customers.

20 2. System Description

Figure 2-6. Ring Configuration

SONET/SDH rings are inherently self-healing. Each ring has both an active path and a

standby path. Network traffic normally uses the active path. If one section of the ring

fails, the network will switch to the standby path. Switchover occurs in seconds. There

may be a brief delay in service, but no loss of payload, thus maintaining high levels of

network availability.

The consecutive point architecture implemented in the Moseley Digital Radio family is

based on a point-to-point-to-point topology that mimics fiber rings, with broadband

wireless links replacing in-ground fiber cable. A typical consecutive point network consists

of a POP and several customer sites connected using Software Defined IDU™. These

units are typically in a building in an east/west configuration. Using east/west

configurations, each unit installed at a customer site is logically connected to two other

units via an over-the-air radio frequency (RF) link to a unit at an adjacent site.

Each consecutive point network typically starts and ends at a POP. A pattern of wireless

links and in-building connections is repeated at each site until all buildings in the network

are connected in a ring as shown for an ethernet network in Figure 2-7. For 2 x 1+0 and

2 x 1+1 nodes payload and NMS connections need to be jumpered between two

SDIDUTM. For 1 x 2+0 nodes, there is no need for jumpers as there is a single SDIDUTM.

For SDH or SONET payloads, the configuration is similar but an external add/drop mux is

required.

2. System Description 21

Figure 2-7. Consecutive Point Network

2.72 + 0 (East-West) Configuration

The Event-HD supports a 2+0, or east-west, configuration that allows a consecutive point

architecture to be achieved with only a single 1 RU chassis at each location. In this

configuration the SDIDUTM contains two modems and may contain two power supplies.

One modem is referred to as the west modem and the other as the east modem. The

SDIDUTM is connected to two ODUs, one broadcasting/receiving in one directing of the

ring architecture and the other broadcasting/receiving in the other as shown in Figure

2-8.

Figure 2-8. 2 + 0 (East West) Configuration

2.8Spanning Tree Protocol (STP)

Spanning Tree Protocol (STP) keeps Ethernet loops from forming in a ring architecture.

Without STP, loops would flood a network with packets. STP prevents loops by creating

an artificial network break. In the event of a network outage, STP automatically removes

the artificial break, restoring connectivity.

22 2. System Description

2.91+1 Protection

The Event HD supports 1+1 protection as an option for a critical link. In this

configuration, protection is provided in a single 1 RU chassis. The SDIDUTM contains two

power supplies and two modems. The power supply, ODU, IF/telemetry and modem are

protected. The digital framing and LIUs are not. One modem is referred to as the west

modem and the other as the east modem. 1+1 protection can be run in two modes called

Protected Non-Diversity and Protected Diversity.

2.9.1Protected Non-Diversity (Hot Standby)

Figure 2-9 shows operation in Protected Non-Diversity mode, also called Hot Standby. In

this mode, one ODU at each location transmits to two ODUs at the other location. This

mode does not require the extra bandwidth or interference protection. It provides hitless

receive switching and hot standby. The SDIDUTM automatically switches transmit ODU

upon appropriate ODU alarm or ODU interface error, minimizing transmit outage time.

Figure 2-9. 1+1 Protection in Non-Diversity Mode

2.9.2Protected Diversity

In Protected Diversity mode, the link between each pair of modems is the same, as

shown in Figure 2-10, providing complete redundancy. This arrangement requires

bandwidth for both links and non-interference between the links, but it provides hitless

receive and transmit switching. The SDIDUTM supports both frequency and spatial

diversity.

2. System Description 23

Figure 2-10. 1+1 Protection in Diversity Mode

2.9.2.1 Frequency Diversity

In frequency diversity, two frequencies are used to achieve non-interference. The

proprietary framer chooses the best, or error-free, data stream and forwards it to the

Line Interface Units (LIUs).

2.9.2.2 Spatial Diversity

In spatial diversity, two non-interfering paths are used. The proprietary framer chooses

the best, or error-free, data stream and forwards it to the Line Interface Units (LIUs).

2.9.2.2.1 Single Transmitter

Protected Non-Diversity, or Hot Standby, is also referred to as Single Transmitter Spatial

Diversity. For more information on this mode, see Section 2.9.1.

2.9.2.2.2 Dual Transmitter

When using Dual Transmitter Spatial Diversity, two active transmitters are physically

isolated to avoid crosstalk.

2.101 + 1 Multi-hop Repeater Configuration

The Event HD supports a 1 + 1 multi-hop repeater configuration with drop/insert

capability as shown in Figure 2-11. This configuration provides individual 1 + 1 link

protection as described in section 2.7, as well as the full-scale protection inherent in the

consecutive point architecture as described in section 2.6. At each location within the

network, data may be dropped or inserted. In this configuration each SDIDUTM contains

two power supplies and two modems.

Figure 2-11. 1 + 1 Multi-Hop Repeater Configuration

24 2. System Description

2.11Data Interfaces

The primary interface for video and broadcast applications is the DVB-ASI interface

located in the mini-I/O card slot. Alternatively this interface can be replaced with STM-1

Optical/OC-3 or STM-1 Electrical interfaces. The optical interface is single mode at 1300

nm. Consult factory for availability of Mini-IO STM-1/OC-3 Module.

The I/O card has 2x100BaseTX interfaces that can be configured as either primary

payload, or secondary wayside channels. The Over-the-air channel has a data-bandwidth

capacity that is set by the frequency-bandwidth, modulation, and coding. The data-

bandwidth may be allocated to various I/O card interfaces, including 155.52 Mbps for

DVB-ASI or STM-1, 2 Mbps per E1, up to 100 Mbps Ethernet, and up to 1 Mbps NMS.

Only up to 100 Mbps of data-bandwidth may be allocated for either net data, and the two

I/O card 100BaseTX interfaces will share that 100 Mbps data-bandwidth.

2.12Crosspoint Switch

The SDIDU™ crosspoint switch provides any-to-any E1/T1 routing between rear panel

ports and RF links, as shown in Figure 2-12. Flexible channel mapping allows selection

from predefined routings or custom routing. Custom routings are uploaded to the

SDIDU™ via FTP. Two examples of the crosspoint capability are to use the crosspoint

switch to configure a repeater or an add/drop. These examples are shown in Figure 2-13.

In the repeater example, the Crosspoint Switch is used as a passthrough to send E1/T1s

from the east modem to the west modem. In the add/drop example, the crosspoint

switch connects E1/T1s from the modems to the rear-panel ports.

Figure 2-12. Crosspoint Switch

2. System Description 25

Crosspoint

Switch

Framer

Modem East Modem West

Up to 32 E1 Up to 32 E1

Up to 16E1 Up to 16E1

Optional IO

Crosspoint

Switch

Framer

Modem East Modem West

Up to 32 E1 Up to 32 E1

Up to 16E1 Up to 16E1

Optional IO

Repeater Example Add/Drop Example

Figure 2-13. (a) Crosspoint Switch used a passthrough in repeater

configuration. (b) Crosspoint Switch allows access for add/drop.

2.13Power Management

RF power management is a radio design feature that controls the power level (typically

expressed in dBm) of the RF signal received from a transmitter by a receiver. The

traditional goal of power management is to ensure that the RF signal at a receiver is

strong enough to maintain the radio link under changing weather and link conditions.

The Quadrature Amplitude Modulation (QAM) is not a constant envelope waveform.

Therefore, the average power and peak power are different. The difference in peak and

average power depends on the constellation type and shaping factor, where spectral

efficiency such as more constellation points or lower shaping factor leading to peak

powers higher than average powers. The peak power is typically 5-7 dB greater than the

average power and never exceeds 7 dB. Regulatory requirements are sometimes based

on peak EIRP which is based on peak power and antenna gain.

Traditional power management techniques such as Constant Transmit Power Control

(CTPC) and Automatic Transmit Power Control (ATPC) transmit at a high power level to

overcome the effects of fading and interference. However, these techniques continue to

operate at a higher power level than needed to maintain the link in clear weather.

Because transmit power remains high when the weather clears, the level of system

interference increases.

Radios operating at high transmit power will interfere with other radios, even if the

interfering source is miles away from the victim. High interference levels can degrade

signal quality to the point that wireless radio links become unreliable and network

availability suffers. The traditional solution to system interference is to increase the

distance between radios. However, the resulting sparse deployment model is

inappropriate for metropolitan areas.

26 2. System Description

In response to the need for a high-density deployment model the Event-HD uses a

unique power control technique called AdTPC. AdTPC enables Event-HD to transmit at the

minimum power level necessary to maintain a link regardless of the prevailing weather

and interference conditions. The Event-HD is designed and manufactured to not exceed

the maximum power allowed. The purpose of power management is to minimize transmit

power level when lower power levels are sufficient. AdTPC also extends the concept of

power management by controlling not only the power (dBm) of the RF signal, but its

quality (signal-to-noise ratio) as well.

In contrast to ATPC, the AdTPC technique dynamically adjusts the output power based on

both the actual strength and quality of the signal. Networked Event-HD radios constantly

monitor receive power and maintain 10-12 BER performance under varying interference

and climate conditions. Each Event-HD unit can detect when there is a degradation in the

received signal level of quality and adjust the transmit power level of the far-end Event-

HD unit to correct for it.

AdTPC provides maximum power in periods of heavy interference and fading and

minimum power when conditions are clear. Minimal transmit power reduces potential for

co-channel and adjacent channel interference with other RF devices in the service area,

thereby ensuring maximum frequency re-use. The resulting benefit is that operators are

able to deploy more Event-HD units in a smaller area.

2.14Event-HD Software and Network Management

All of the Event-HD parameters are accessible in three ways:

1. Using a standard web-browser via HTTP to access the built in web server.

2. Via SNMP using the fully featured MIB, allowing for automation of data collection

and network management.

3. Via a command line client accessible from a terminal client connected to the serial

port, or telnet over the NMS Ethernet.

The GUI (HTTP), SNMP, and CLI interfaces are discussed in detail in the Software Defined

IDU™ User Interface Manual.

2.14.1IP Address

Each Event-HD radio is configured independently for network parameters such as IP

address, subnet, and gateway. However, the Event-HD also supports acting as a DHCP

client, in which case the IP address can be assigned to the Event-HD radio using a DHCP

server. A specific IP address may be associated with a particular Event-HD radio by

configuring the DHCP server to serve IP addresses based upon the SDIDU™ Ethernet

MAC address.

2.14.2Network

The Event-HD uses an “Out-of-Band” NMS network which is separated from the payload

Ethernet network. Each Event-HD contains a managed Layer 2 Ethernet switch that

supports Spanning-Tree Protocol (STP) for managing NMS traffic. This allows the Event-

2. System Description 27

HD to be configured in a protected ring configuration where the STP will prevent an

Ethernet loop in the ring. This will also allow the ring to re-configure in the event of an

outage. The Event-HD acts as a network bridge via the Ethernet switch and STP. The

Event-HD does not currently support NMS routing capability.

2.14.3NMS Network Operational Principles

The Event-HD does not provide routing capability. Therefore, all Event-HD radios must be

on the same subnet as the PC being used to access the Event-HD radios. If the Event-HD

radios and/or the PC are on different subnets, a router must be used, with the gateway

addresses set appropriately. Figure 2-14 shows the PC and both Event-HD SDIDUs™ in

the same subnet. In this case, no router is required. Figure 2-15 shows the PC and one

of the Event-HD SDIDUs™ in one subnet and the other Event-HD SDIDU™ in another. In

this case, a router is required. Note how the GW addresses are set to allow

communication from the PC to the Event-HD SDIDU™ in the other subnet.

Figure 2-14. PC and Event-HD SDIDUs™ on Same Subnet

SUBNET 1 PC

IP: 192.168.1.10

GW: 192.168.1.1

SWITCH

SUBNET 2

ROUTER

IP1: 192.168.1.1

IP2: 192.168.2.1

SDIDUTM

IP: 192.168.1.21

GW: 192.168.1.1

SDIDUTM

IP: 192.168.2.33

GW: 192.168.2.1

Figure 2-15. Event-HD SDIDUs™ on Different Subnets

2.14.4Third Party Network Management Software Support

The Event-HD SDIDU™ supports SNMPv1, SNMPv2, and SNMPv3 protocols for use with

third party network management software. The SNMP agent will send SNMP traps to

specified IP addresses when an alarm is set or cleared. Information contained in the trap

includes:

28 2. System Description

 IP address

 System uptime

 System time

 Alarm name

 Alarm set/clear detail

The Event-HD SDIDU™ may also be managed via HTTP, TELNET, and SSH

protocols.

2.15System Loopbacks

The Event-HD SDIDU™ provides system loopbacks as a means for test and verification of

a unit, link, and/or network. A variety of loopback points, including LIU selection, are

available. Loopback points and duration are easily selected through the Graphical User

Interface, for more information see the User Interface Guide.

3. Installation 1

3.Installation

3.1Unpacking

The following is a list of possible included items.

Description Quantity

Event-HD SDIDUTM (1RU chassis) 1

ODU (with hardware) 1

Manual (or Soft copy on a CD) 1

ODUs

SDIDUTM

Figure 3-1. Event HD (1+0) Components

Be sure to retain the original boxes and packing material in case of return shipping.

Inspect all items for damage and/or loose parts. Contact the shipping company

immediately if anything appears damaged. If any of the listed parts are missing, call the

distributor or the factory immediately to resolve the problem.

2 3. Installation

3.2Notices

CAUTION:

DO NOT OPERATE UNITS WITHOUT AN ANTENNA, ATTENUATOR, OR LOAD CONNECTED

TO THE ANTENNA PORT. DAMAGE MAY OCCUR TO THE TRANSMITTER DUE TO

EXCESSIVE REFLECTED RF ENERGY.

ALWAYS ATTENUATE THE SIGNAL INTO THE RECEIVER ANTENNA PORT TO LESS THAN -

20 dBm. THIS WILL PREVENT OVERLOAD AND POSSIBLE DAMAGE TO THE RECEIVER

MODULE.

WARNING

HIGH VOLTAGE IS PRESENT INSIDE THE ODU and SDIDUTM WHEN THE UNIT IS

PLUGGED IN. TO PREVENT ELECTRICAL SHOCK, UNPLUG THE POWER CABLE

BEFORE SERVICING. UNIT SHOULD BE SERVICED BY QUALIFIED PERSONNEL

ONLY.

3.3PRE-INSTALLATION NOTES

It may be useful to gain familiarity with the Software Defined IDU™ via back-to-back

bench testing prior to final installation. We highly recommend installation of lightning

protectors on the ODU/ SDIDUTM Interconnect Cable to prevent line surges from

damaging expensive components.

3.4Back-to-Back Bench Testing

Back-to-back bench testing prior to final installation is highly recommended in order to

gain familiarity with the product. The following additional equipment is required for back-

to-back testing:

• Low-loss cables, TNC-male connectors on ODU interfaces.

• Three Inline RF attenuators, 2 x 30 dB (10 Watts min.) and 1 x 20 dB (2 Watts min.),

rated for ODU frequency.

The Event-HD SDIDUTM and ODUs must be configured in an operational configuration and

set-up as shown in Figure 3-2 for ODUs with transmit powers of 1W and 5W. For 5.3 GHz

and 5.8 GHz applications the 20 dB attenuator may be removed. When equipment is

connected in operational configuration, no errors should be reported on the rear panel.

3. Installation 3

ODU 1 ODU 2

SDIDU 1 SDIDU 2

30dB 30dB20dB

10W2W10W

Ant.

Port Ant.

Port

TNC IF

Cable

(supplied)

TNC IF

Cable

(supplied)

Figure 3-2. Event-HD Back-to-Back Testing Configuration

3.5Overview of Installation and Testing Process

The installation and testing process is accomplished by performing a series of separate,

yet interrelated, procedures, each of which is required for the successful implementation

of a production Event-HD network. These procedures are as follows:

• Site Evaluation: gathering specific information about potential Event-HD radio™

installation sites.

• Cable and Installation: Testing and installing ODU cables and optional interface

devices at installation sites.

• Event-HD ODU Mounting and Alignment: Mounting ODUs to a pole or wall, performing

link alignment and radio frequency (RF) verification.

• Event-HD Digital Radio Configuration: Using Event-HD Link Manager software to

install network- and site-specific parameters in the radios.

• Event-HD Digital Radio Testing: Performing cable continuity checks and RF tests for

links, the payload/radio overhead channel, and the management channel.

The following diagram shows where installation and commissioning resides within the

Event-HD network deployment life cycle and defines the sequence in which the processes

that comprise installation and commissioning should be performed.

4 3. Installation

03-01-013b

Customer

Requirements

RF Planning

& Network

Design

Site Selection

& Acquisition Installation &

Commissioning

Network

Operation &

Maintenance

Network

Upgrade &

Expansion

Install Cables

Mount and Align

ODUs

Perform Site

Evaluation

Configure Digital

Software Defined

IDUTM

Perform Fast

PDH Network Test

Perform

SDH Network Test

Type of

Network?

Installation &

Commissioning

Complete

PDH SDH

Network Life Cycle

Figure 3-3. Network Deployment Lifecycle

3.6Site Evaluation

A site evaluation consists of a series of procedures for gathering specific information

about potential Event-HD locations. This information is critical to the successful design

and deployment of a network.

Site evaluations are required to confirm whether or not a building meets network design

requirements. The main objectives are as follows:

3. Installation 5

• Confirm

• Line of sight for each link

• Event-HD ODU mounting locations

• Site equipment locations

• Cable routes

• Any other potential RF sources

• Prepare site drawings and record site information

3.6.1Preparing for a Site Evaluation

The following tools are required to perform a site evaluation:

• RF and network design diagrams (as required)

• Binoculars

• Global positioning system (GPS) or range finder

• Compass

• Measuring tape and/or wheel

• Digital camera

• Area map

• Aerial photograph (if available)

• List of potential installation sites (“targeted buildings”)

The following tasks must be completed prior to performing a site evaluation:

• Prepare the initial network design by performing the following:

• Identify potential buildings by identifying targeted customers (applicable if you’re

a service provider)

• Identify potential links by selecting buildings based on the high probability of line

of sight

• Arrange for access with the facility personnel into the buildings, equipment rooms,

and architectural plans to become familiar with the location of all ducts, risers, etc.

3.6.2Site Evaluation Process

The following steps must be completed to perform a successful site evaluation. Each step

in the process is detailed in the following subparagraphs:

6 3. Installation

• Ensure RF Safety compliance: Ensure that appropriate warning signs are properly

placed and posted at the equipment site or access entry. For a complete list of

warnings, refer the Safety Precautions listed at the beginning of this manual.

• Ensure Compliance with Laws, Regulations, Codes, and Agreements: Ensure that

any installation performed as a result of the site evaluation is in full compliance

with applicable federal and local laws, regulations, electrical codes, building codes,

and fire codes.

• Establish Line of Sight between antennas: The most critical step in conducting

a site evaluation is confirming clear radio Line of Sight (LOS) between a

near antenna and a far antenna. If LOS does not exist, another location

must be used.

Event-HD radios must have a clear view of each other, or “line of sight”. Binoculars may

be used evaluate the path from the desired location of the near antenna to the desired

location of the far antenna.

To confirm Line of Sight:

• Ensure that no obstructions are close to the transmitting/receiving path. Take into

consideration trees, bridges, construction of new buildings, unexpected aerial

traffic, window washing units, etc.

• Ensure that each Event-HD ODU can be mounted in the position required to

correctly align the Event-HD ODU with its link partner.

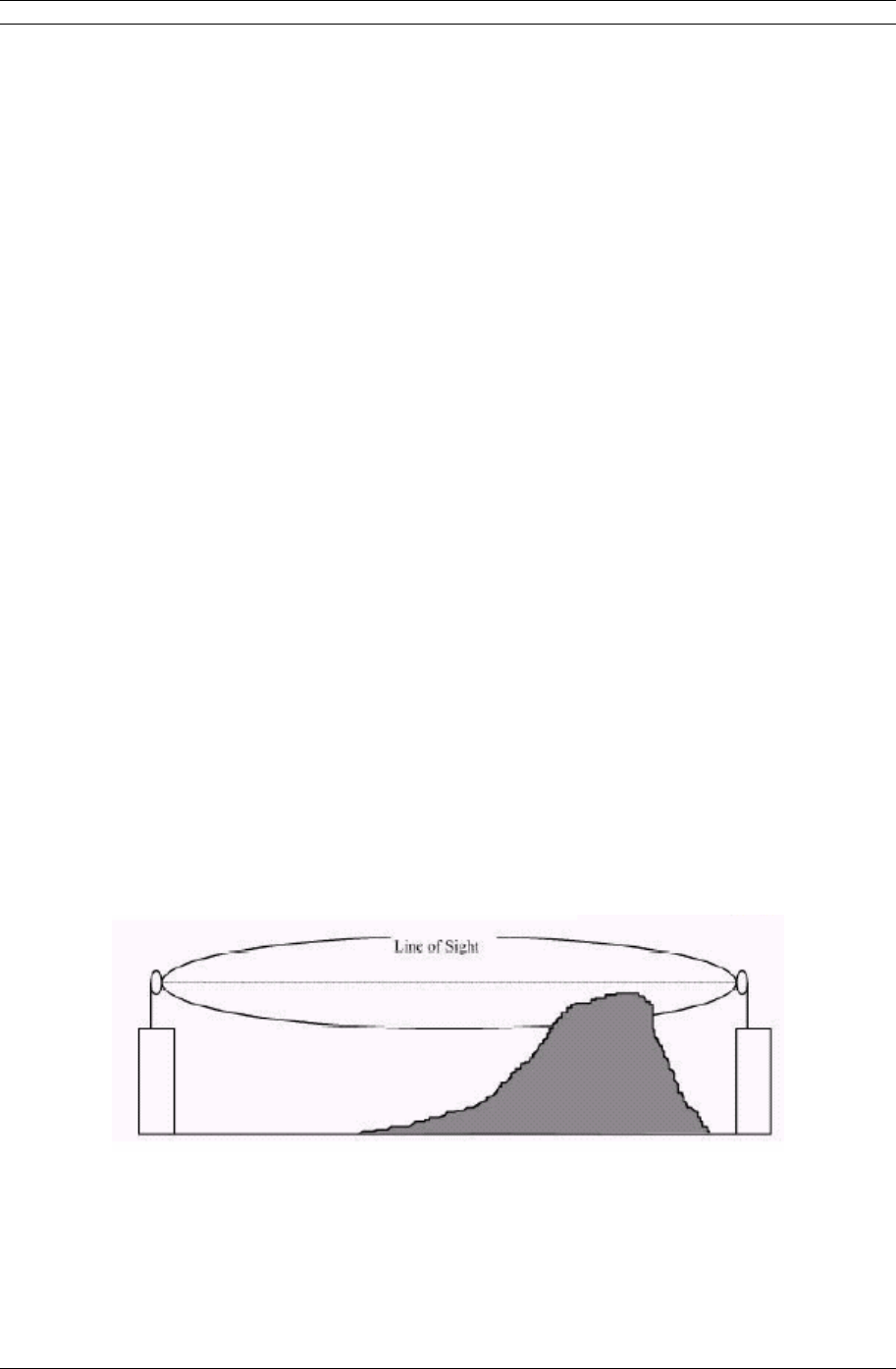

The antennas must also have a clear radio line of sight. If a hard object, such as a

mountain ridge or building, is too close to the signal path, it can damage the radio signal

or reduce its strength. This happens even though the obstacle does not obscure the

direct, visual line of sight. The Fresnel zone for a radio beam is an elliptical area

immediately surrounding the visual path. It varies in thickness depending on the length

of the signal path and the frequency of the signal. The necessary clearance for the

Fresnel zone can be calculated, and it must be taken into account when designing a

wireless links.

As shown in the picture above, when a hard object protrudes into the signal path within

the Fresnel zone, knife-edge diffraction can deflect part of the signal and cause it to

reach the receiving antenna slightly later than the direct signal. Since these deflected

signals are out of phase with the direct signal, they can reduce its power or cancel it out

altogether. If trees or other 'soft' objects protrude into the Fresnel zone, they can

attenuate (reduced the strength of) a passing signal. In short, the fact that you can see a

3. Installation 7

location does not mean that you can establish a quality radio link to that location.

Consult factory for a link planner spreadsheet that calculates the Fresnel ratio and helps

determine link feasibility.

• Determine Event-HD ODU Mounting Requirements: Event-HD ODUs can be

mounted on an antenna mast, brick, masonry or wall. Refer to detailed installation

sections specific for each ODU and antenna type.

• Determine Event-HD Software Defined IDU™ Installation Location: Software

Defined IDU™ can be installed tabletop or cabinet, wall mount, or rack mount.

The site must provide DC power. Refer to detailed installation sections.

• Document Potential Sources of Co-location Interference: When Event-HD ODUs

are located on a roof or pole with other transmitters and receivers, an interference

analysis may be required to determine and resolve potential interference issues.

The interference analysis needs to be performed by an RF engineer. The specific

information required for each transmitter and receiver includes the following:

- Transmitting and/or receiving frequency

- Type of antenna

- Distance from Event-HD ODU (horizontal and vertical)

- Polarity (horizontal or vertical), if applicable

- Transmit power level

- Antenna direction

• Measure the Link Distance: The two ways to measure link distance are as follows:

- GPS: record the latitude and longitude for the near and far ODU sites and

calculate the link distance. Record the mapping datum used by the GPS unit

and ensure the same mapping datum is used for all site evaluations in a given

network.

- Range finder: measure the link distance (imperial or metric units may be

used).

Once the link distance has been measured, verify that the link distance meets the

availability requirements of the link.

• Select the Grounding Location for both the Event-HD ODU and SDIDUTM: The

Software Defined IDU™ must be properly grounded in order to protect it and the

structure it is installed on from lightning damage. This requires

- Grounding all Event-HD ODUs to antenna tower.

- Grounding all SDIDUTM to the rack.

• Determine the Length of Interconnect Cable from Event-HD ODU to SDIDUTM: The

primary consideration for the outdoor interconnect cable from the Event-HD ODU

8 3. Installation

to SDIDUTM is the distance and route between the Event-HD ODU and SDIDUTM.

This cable should not exceed 330 feet using Times Microwave LMR-200 cable.

Guidelines are provided in Table 3-1. Exact distances should take ODU

requirements into account.

Table 3-1. Maximum Cable Lengths

Loss at (dB/100 m)

Cable Type 140 MHz 350 MHz Maximum

Length*

LMR-200 12.6 20.1 100 m

LMR-300 7.6 12.1 165 m

LMR-400 4.9 7.8 256 m

RG-214 8 13.1 153 m

Belden 7808 8.6 14 143 m

* Does not account for connector loss.

• Confirm the Presence of DC Power for the Event-HD Software Defined IDU™.

• Ensure Building Aesthetics: Ensure that the ODU can be mounted so that it is

aesthetically pleasing to the environment and to the property owner. Aesthetics

must be approved by the property owner and the network engineer.

• Take Site Photographs

• Sketch the Site

3.6.3Critical System Calculations

3.6.3.1 Received Signal Level (RSL) and Link Budget

The received signal level (RSL) can be estimated using the following formula:

RSL (dBm) = PTX + GTX ANT – LPath + GRX ANT

Where: PTX is the transmitter output power (in dBm)

GTX ANT is the gain of the transmit antenna (in dB)

GRX ANT is the gain of the receive antenna (in dB)

LPath is the Path loss, defined by:

LP (dB) = 36.6 + 20log10 (F*D)

Where: F is the Frequency in MHz, D is the Distance of path in miles

This link budget is very important in determining any potential problems during

installation. The expected RSL and measured RSL should be close (+/- 5 to 10 dB)

3. Installation 9

3.6.3.2 Fade Margin Calculation

The fade margin is the difference between the actual received signal and the Event-HD

digital radio’s threshold for the modulation mode selected. The fade margin can be used

to determine availability and should be at least 10 dB for most cases but is ultimately

determined by required application reliability.

3.6.3.3 Availability Calculation

Availability of the microwave path is a prediction of the percent of time that the link will

operate without producing an excessive BER due to multipath fading. Availability is

affected by the following:

• Path length

• Fade margin

• Frequency

• Terrain (smooth, average, mountainous, valleys)

• Climate (dry, temperate, hot, humid)

Depending on the type of traffic carried over the link and the overall network design

redundancy, fade margin should be included to support the desired availability rate.

Critical data and voice may require a very high availability rate (99.999% or 5.3 minutes

of predicted outage per year). To improve availability, the fade margin can be increased

by shortening the path length, transmitting at a higher power level, or by using higher

gain antennas.

Availability can be computed using the following formula, which is known as the Vigants

Barnett Method.

Availability = 100 × (1 – P)

P = 2.5 × 10-9 × C × F × D3× 10(-FM/10)

Where F is the frequency in MHz

D is the distance in miles

FM is the fade margin in dB

C is the climate/terrain factor as defined below:

Humid/Over Water: C = 4 (worst case channel)

Average Conditions: C = 1

Dry/Mountains: C = 0.25 (best case channel)

Example: Assume 21 dB fade margin, over 5 miles with average climate/terrain. The

availability comes out to be 99.9986. This corresponds to the link being unavailable for

7.6 minutes per year.

10 3. Installation

3.6.4Frequency Plan Determination

When configuring Event-HD units in a point-to-point or consecutive point configuration,

careful engineering of the Event-HD frequency plans and antenna locations should be

performed in order to minimize potential interference between nearby radios. Nearby

radios should operate on different frequencies, transmitting in the same band (high side

or low side). Local frequency coordination efforts are often a requirement for broadcast

auxiliary service applications. When designing multi-radio configurations, antenna size,

antenna polarization, and antenna location are critical.

The frequency plan is selected based band of use. Desired data rate and capacity is

selected based on expected link conditions or fixed based on application. In a high

interference environment or with lower gain antennas, higher bandwidth, more robust

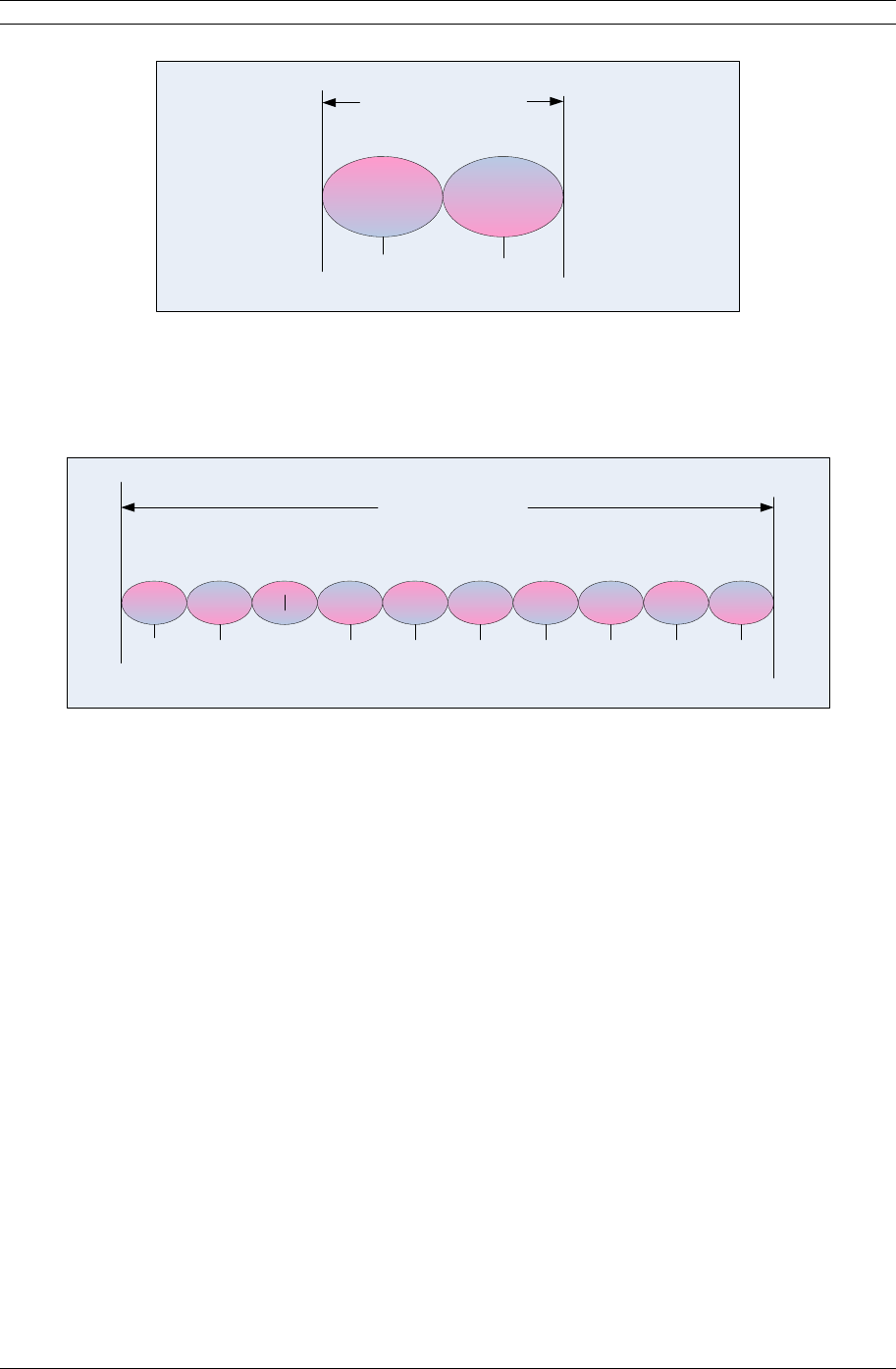

modulation formats must be employed. The available frequency plans are illustrated in

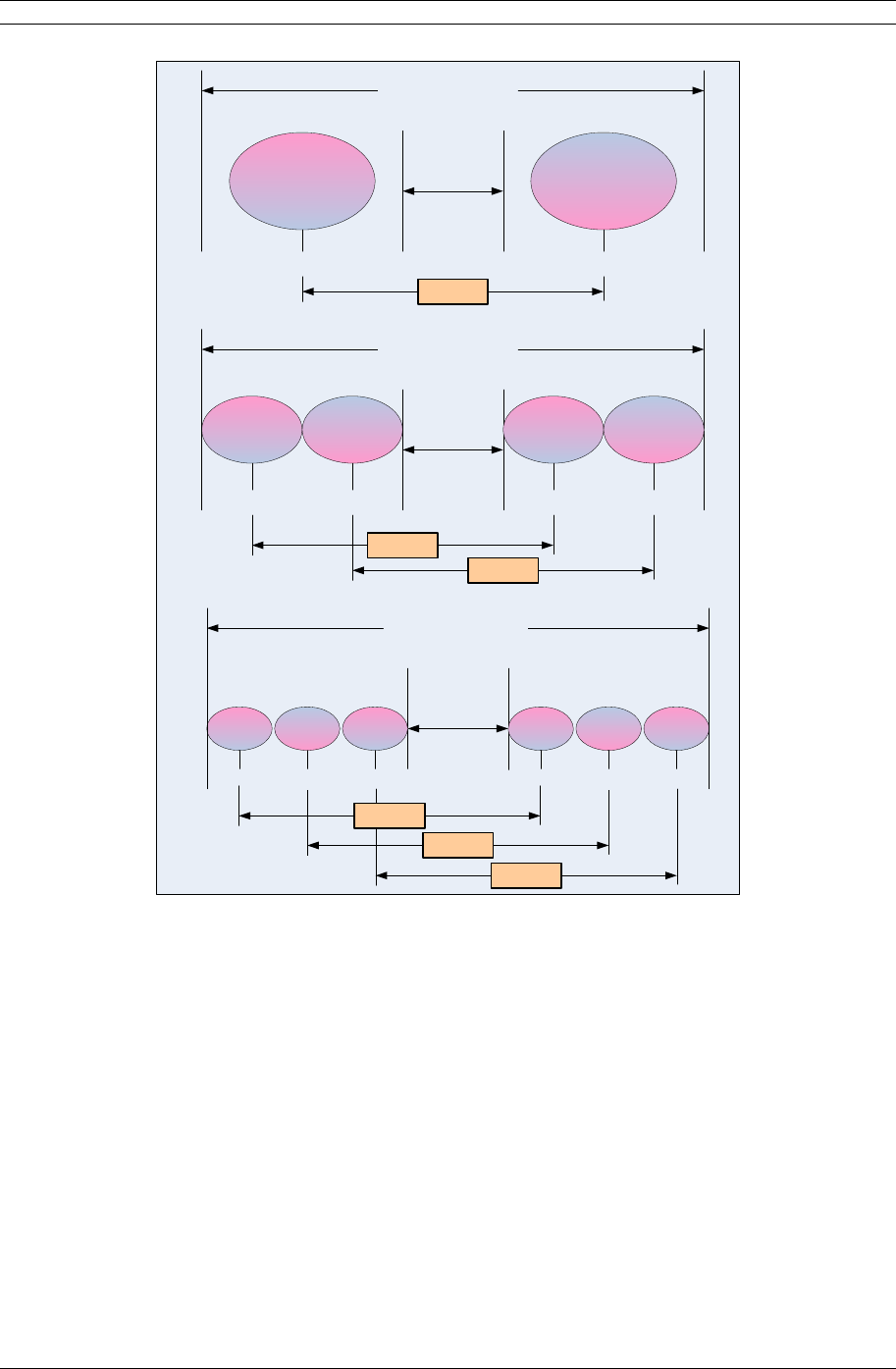

Figures 3-3 through Figure 3-8 based on application frequency.

The channel assignments shown in the figures correspond to the channel numbers

entered via the graphical user interface (GUI) or SNMP.

A1r

12 MHz A2r

12 MHz

2 GHz 12 MHz

(BAS Band A)

2031.5

2109.52025.5

2043.5

A3r

12 MHz

2055.5

A5r

12 MHz A6r

12 MHz A7r

12 MHz

2091.5 2103.5

A4r

12 MHz

2067.5 2079.5

Frequency (MHz)

Figure 3-3. 2 GHz, 12 MHz BAS Frequency Plan

18 MHz A2

17 MHz

2 GHz 17 MHz

(BAS Band A)

1999.0

21101990

2016.5

17 MHz

2033.5

17 MHz A6

17 MHz A7

17 MHz

2084.5 2101.5

17 MHz

2050,5 2067.5

Frequency (MHz)

Figure 3-4. 2 GHz, 17 MHz Legacy BAS Frequency Plan

3. Installation 11

17 MHz A9

17 MHz

2.4 GHz 17 MHz

(BAS Band A)

2450

2458.5

Frequency (MHz) 2483.5

2475

Figure 3-5. 2.4 GHz, 17 MHz BAS Frequency Plan

A05

25 MHz A06

25 MHz

7 GHz 25 MHz

(BAS Band)

6887.5

7125

6875

6912.5

A07

25 MHz

6937.5

A09

25 MHz A10

25 MHz A11

25 MHz

7012.5 7037.5

A08

25 MHz

6962.5 6987.5

Frequency (MHz)

A12

25 MHz A13

25 MHz A14

25 MHz

7087.5 7112.57062.5

Figure 3-6. 7 GHz, 25 MHz BAS Frequency Plan

12 3. Installation

30MHz B1

30MHz

5.3 GHz

1-Channel Plan, 30 MHz

20 MHz T/R

Guard Band

5270 5330 5350531052905250

20MHz A2

20MHz

5.3 GHz

2-Channel Plan, 20 MHz

20 MHz T/R

Guard Band

5260 5320

5350531052905250

60MHz T/R

20MHz B2

20MHz

5280 5340

60MHz T/R

13MHz A2

13MHz

5.3 GHz

3-Channel Plan, 13 MHz

20 MHz T/R

Guard Band

5257

5350

53105290

5250

5270

60MHz T/R

13MHz

5283

13MHz B2

13MHz B3

13MHz

5317 5330 5343

60MHz T/R

Figure 3-7. Event-HD 5.3 GHz Frequency Plan

3. Installation 13

30MHz B1

30MHz

5.8 GHz

1-Channel Plan, 30 MHz

25 MHz T/R

Guard Band

5750 5825 5850580057755725

25MHz A2

25MHz

5.8 GHz

2-Channel Plan, 25 MHz

25 MHz T/R

Guard Band

5737 5812

5850580057755725

75MHz T/R

25MHz B2

25MHz

5762 5837

75MHz T/R

16.7MHz A2

16.7MHz

5.8 GHz

3-Channel Plan, 16.7 MHz

25 MHz T/R

Guard Band

5733

5850

58005775

5725

5750

75MHz T/R

16.7MHz

5766

16.7MHz B2

16.7MHz B3

16.7MHz

5808 5825 5841

75MHz T/R

Figure 3-8. Event-HD 5.8 GHz Frequency Plan

3.6.5Antenna Planning

Larger antennas have the advantage of providing narrower beam widths and high

isotropic gain, which yields better link performance (higher fade margin, better

availability), and improves immunity to spatial interference (due to the smaller beam

widths). However, larger antennas are more costly to purchase and install than smaller

antennas and in some cases, they require special equipment for installation due to

narrower beam widths. They are also more easily affected by wind.

1. Select where the cable will enter the building from the outside.

2. Determine the length of cable required. Allow three extra feet on each end to allow

for strain relief, as well as any bends and turns.

14 3. Installation

3.6.6ODU Transmit Power Setup

Setting the ODU transmit power is conditional on the band and application. The

installer of this equipment is responsible for proper selection of allowable

power settings. If there are any questions on power settings refer to your

professional installer in order to maintain the FCC legal ERP limits.

This warning is particularly true for the 5.3 GHz and 5.8 GHz bands and special

instructions are provided below for these bands. For the broadcast auxiliary service (BAS)

applications the power should not exceed that necessary to render for satisfactory

service.

It is also noted that as QAM mode order increases the linearity requirements also

increase. As a rule to maintain requisite signal quality the transmit power should be

lowered 1 dB for every order increase in QAM mode order. For instance, the maximum

power for the Event 2200 is 37 dBm in QPSK mode. Therefore the maximum power

backoff would follow Table 3-2 below:

Table 3-2. Maximum Output Power vs. Modulation Order

for Event 2200

Modulation Backoff

(dB)

Max.Output

Power

(dBm)

QPSK 0 37

16 QAM -1 36

32 QAM -2 35

64 QAM -3 34

128 QAM -4 33

3.6.6.1 5.8 GHz Band

For fixed point-to-point applications in the United States the maximum EIRP (Effective

Isotropic Radiated Power) is unlimited when using directional antennas in accordance

with FCC part 15.247b(3). The ODU 5800 may therefore be operated at its maximum

output power, +23 dBm, for maximum system gain.

EIRP is calculated for link budget with external antennas as,

EIRP(avg) dBm = External Antenna Gain (dBi) + 23 dBm

For internal antenna (23 dBi) EIRP is,

EIRP(avg) = 46 dBm

3. Installation 15

3.6.6.2 5.3 GHz Band

In the 5.3 GHz U-NII band the peak EIRP (Effective Isotropic Radiated Power) is limited

to +30 dBm at the antenna for bandwidths above 20 MHz and is reduced for narrower

bandwidths in accordance with FCC part 15.407a(3).

The installer is responsible during set up of transmit power to not exceed FCC limits on

transmission power. These maximum power levels are provided in Table 3-1 for both

internal antenna and external antenna ODU configurations, along with the operational

bandwidths.

Note that though regulatory limits are stated in terms of peak power, the system

transmit power levels are calibrated as averaged power readings. Average power is used

for link calculations. Therefore the levels provided in the following table is average power

levels that have been certified to correspond with the maximum peak EIRP allowed.

3.6.6.2.1 ODU with Internal Antenna

Table 3-3 indicates the maximum average transmit power setting that may be selected

ODU 5300 with internal (23 dBi) antenna.

The number of supported channels per band (low band or high band) is shown in the link

configuration wizard. The greater number of channels supported the lower the emission

bandwidth for each channel.

For link budget, EIRP(Avg) = 23 dBi + Tx Power Setting (dBm).

3.6.6.2.2 ODU with External Antenna

When using external antennas with gains greater than 23 dBi, the transmit power must

be reduced in dB from that given in Table 3-3 by the antenna gain difference above 23

dBi for the mode that is being used.

For example, using a 6 foot dish antenna with 37 dBi gain, the output power would be

dropped by

Antenna Gain (External) – 23 dBi = Antenna Gain Difference

37.6 dBi – 23 dBi = 14.6 dB

For mode 100FE1 (single channel configuration with 30MHz emission bandwidth) the

power would be lowered from

Tx Power (Internal Antenna) – Antenna Gain Difference = Tx Power (External Ant)

+5 dBm – 14.6 dB = -9.6 dBm (-10 dBm).

Table 3-3 also presents transmit power settings for various antenna dish sizes.

16 3. Installation

For link budget, EIRP(Avg) dBm = 37 dBi + Tx Power Setting (dBm).

Table 3-3. Maximum Power Settings for 5.3GHz

U-NII Band Operation (US).

Antenna Diameter Antenna

Gain, dBi*

(example)

Maximum

Tx Power

Setting,

dBm

1 Channel

Mode

(30MHz

BW)

Maximum

Tx Power

Setting,

dBm

2 Channel

Mode

(20MHz

BW)

Maximum

Tx Power

Setting,

dBm

3 Channel

Mode

(13.3MHz

BW)

6 foot dish 37.6 -10 -11 -12

4 foot dish 34.6 -7 -8 -9

3 foot dish 31.2 -3 -4 -5

2 foot dish 28.0 0 -1 -2

1.5 foot dish 25.3 +3 +2 +1

Internal 23.0 +5 +4 +3

* Note: Many antenna manufacturers rate antenna gain in dBd (dB referred to a dipole

antenna) in their literature. To convert to dBi, add 2.15 dB.

Power settings for other modes of operation can be budget calculations,

EIRP(Avg) dBm= Antenna Gain (dBi) + Tx Power

Though transmitter radiated power is limited in the receiver benefits from gain of larger

antennas.

3. Installation 17

3.7Installation of the Event-HD

The following sections provide installation guides for:

• SDIDUTM Installation

• ODU Installation

3.7.1Installing the Event-HD SDIDUTM

The Event-HD SDIDUTM can be installed in the following three options:

1. Table top or cabinet

2. Wall mount

3. Rack mount

The Event-HD SDIDUTM should be:

• Located where you can easily connect to a power supply and any other equipment

used in your network, such as a router or PC.

• In a relatively clean, dust-free environment that allows easy access to the rear

grounding post as well as the rear panel controls and indicators. Air must be able to

pass freely over the chassis, especially the rear.

• Accessible for service and troubleshooting.

• Protected from rain and extremes of temperature (it is designed for indoor use).

3.7.1.1 Installing on a Table Top or Cabinet

The Event-HD Software Defined IDU™ can be placed on a tabletop or cabinet shelf. In

order to prevent possible disruption, it is recommended to use a strap to secure the

SDIDUTM.

3.7.1.2 Installing on a Wall

An installation option for the Event-HD SDIDUTM is mounting the unit to a wall. Consult

factory for details.

If the wall mount option is being considered, plan to position the Event-HD Software

Defined IDU™ at a height that allows LEDs, the connectors on the rear panel, and the

rear grounding post to be visible at all times and easily accessible. Also, including plastic

clamps to support and arrange the ODU/ SDIDUTM Interconnect Cable should also be

considered.

18 3. Installation

3.7.1.3 Installing in a Rack

To maintain good airflow and cooling, it is preferred that the Event-HD Software Defined

IDU™ is installed in a slot that has blank spaces above and below the unit.

To rack-mount the SDIDUTM, use the supplied mounting brackets (Moseley part number

2734001-0001) to secure the chassis to the rack cabinet. As shown in Figure 3-8, the

brackets can be attached at any of four points on the sides of the enclosure – back, back,

middle facing front, and middle facing back. This flexibility ensures compatibility with

most rack mounting arrangements.

Width:

17 inches

43.13 cm

Depth:

9.5 inches

24.1 cm

Height:

1.75 inches

4.45 cm

Figure 3-8. Software Defined IDU™ Dimensions

3.7.2Installing the Event-HD ODU

The Event-HD ODU is intended for mounting on either a pole or antenna mast within

close proximity to the antenna.

Each site must be assessed for the mounting method, location, and height. After defining

the mounting location and height for the Event-HD, re-confirm the line of sight.

Note: When operating a 1+1 configured Event-HD, i.e. an SDIDU™ with two power

supplies and two modem modules installed, an ODU must be connected to the modem in

the bottom slot. If the ODU is connected to the modem in the top slot, the SDIDU™ will

not communicate with the ODU, and a link cannot be established.

For proper support the antenna mast or mounting pole must be mounted in a vertical

position (i.e., no tilt), preferably with a plum.

If the ODU utilizes an internal antenna, such as the ODU5300 and ODU5800 with

internal antenna option, vertical tilt of the ODU is accomplished from the tilt

mounting bracket. Also, it is important to note the direction in which the ODU will

point when installing the mounting pole.

The antenna mast or mounting pole must be grounded. Different ODUs may require

different mounting hardware and techniques. The next sections describe mounting

techniques for various ODU families.

3. Installation 19

3.7.2.1 Installing ODU2200, ODU6500, ODU7200

11. The ODUxx00 chassis family has mounting holes located on the underside of the

unit. There are total of 10 threaded ¼-20 holes available for mounting directly to a

plate or to a pole with optional pole mounting hardware. The threaded screw locations

are shown below in red in Figure 3-9. It is recommended to use at least 4 ¾” screws

with lock washers.

Figure 3-9. ¼-20 threaded mounting hole locations on ODU2200.

Use any 4.

32. For pole mounting, optional brackets are installed in the location as shown below

in Figure 3-10.

Figure 3-10. Pole Mounting Brackets on ODU2200

53. Install U-bolts to ODU brackets and tighten. Assembled pole-mounted ODU2200

is shown in Figure 3-11.

20 3. Installation

Figure 3-11. Completed Pole Mounting of ODU2200

3.7.2.2 Installing ODU5300, ODU5800

71. Remove the pole mount portion of the tilt bracket from the ODU5800 by

loosening the middle bolts and removing the top and bottom bolts on each side.

Figure 3-12. Event ODU5800 Rear View

82. Mount the tilt bracket to the mounting pole using the U-Bolts and nuts. Insert the

U-bolts around the pole and through the holes in the tilt bracket. Install a washer and

nut to each side of the threaded U-bolt and hand tighten. Repeat this step for the

second U-bolt.

3. Installation 21

Figure 3-13. Tilt Bracket for Event ODU5800

93. Place the Event-HD ODU5800 on the mating half of the tilt bracket connected by

the two center bolts.

104. Add the remaining four bolts to the tilt bracket but do not tighten until the

antenna alignment is complete (only applies for internal antenna ODUs).

Figure 3-14. Event ODU5800 with Mounted Tilt Bracket

125. Manually point the ODU in the direction of the link partner ODU.

22 3. Installation

Figure 3-15. Completed Mounting for the Event ODU5800

3.7.3Routing the ODU/IDU Interconnect Cable

1. Select where the cable will enter the truck or building from outside.

2. Determine the length of cable required. Allow three extra feet on each end to allow

for strain relief, as well as any bends and turns.

3. Route the cable.

The SDIDUTM is equipped with TNC female connector on the rear of the chassis.

Depending on the ODU type, it will be equipped with either an N-type or TNC female

connector at its interconnecting port. A length of coaxial cable (such as Times Microwave

Systems LMR-400, LMR-300 or LMR-200) fitted with the appropriate N-type or TNC male

connectors is required to connect the ODU to the SDIDUTM. This cable assembly may be

supplied in fixed lengths with the digital radio. Bulk coaxial cable of equivalent

specification may also be used, with terminating connectors applied during cable

installation.

Based on an evaluation of the cable routing path, pull the ODU/SDIDUTM Interconnect

cable from one unit to the other, utilizing cable trays, ducts, or conduit as required. Take

care that the ODU/ SDIDUTM Interconnect cable is not kinked or damaged in any way

during installation. Be sure to protect the TNC connectors from stress, damage and

contamination during installation (do not pull the cable by the connectors). If multiple

ODU/ SDIDUTM Interconnect cables are to be installed along the same route, the cables

should all be pulled at one time. Be sure the installed cable does not have any bends that

exceed the specified cable bend radius. The ODU/ SDIDUTM Interconnect cable should be

adequately supported on horizontal runs and should be restrained by hangers or ties on

3. Installation 23

vertical runs to reduce stress on the cable. Outside the building, support and restrain the

cable as required by routing and environmental conditions (wind, ice).

The Event-HD ODU/SDIDUTM and interconnection must be properly grounded in order to

protect it and the structure it is installed on from lightning damage. This requires that the

ODU, any mounting pole or mast and any exposed interconnect cable be grounded on the

outside of the structure. The SDIDUTM must be grounded to a rack or structure ground

that also has direct path to earth ground.

The ODU must be directly connected to a ground rod or equivalent earth ground. The

ODU/ SDIDUTM interconnect cable should also be grounded at the ODU, where the cable

enters the structure and at intermediate points if the exposed cable run is long (typically

at intervals of 100 ft), with the cable manufacturer’s grounding kits. Lightning protection

devices used with the interconnect cable must be appropriate for the transmission of the

interconnect signals (DC to 350 MHz).

Provide a sufficient but not excessive length of cable at each end to allow easy

connection to the ODU and SDIDUTM without stress or tension on the cable. Excessive

cable length, especially outdoors, should be avoided to minimize signal attenuation and

provide a more robust and reliable installation. If installing using bulk coaxial cable,

terminate the ODU/ SDIDUTM Interconnect cable at each end with a TNC male connector

on the SDIDUTM side and either an N-type or TNC male connector on the ODU side that is

appropriate for the cable type. Use of connectors, tools and termination procedures

specified by the cable manufacturer is recommended.

Once the cable has been installed but before connection has been made to either unit, a

simple DC continuity test should be made to verify the integrity of the installed cable. A

DC continuity tester or digital multimeter may be used to verify a lack of DC continuity

between the cable center conductor and outer conductor, with the opposite end of the

cable unconnected. With a temporary test lead or shorting adapter connected to one end

of the cable, DC continuity should be verified between the center and outer conductors at

the opposite end.

3.8Quick Start Guide

Although configuration of the SDIDUTM does not require a connection to the ODU, it is

suggested that the ODU and SDIDU™ are connected prior to configuring the SDIDUTM.

Each SDIDU™ has a Graphical User Interface (GUI) installed that can be accessed

through a computer connection. The GUI is described in detail in the User Interface

Guide. The section below describes how to get started configuring the SDIDU TM via the

GUI.

3.8.1Materials Required

The following items are needed to configure an SDIDUTM:

1. Power supply (-48 V DC @ 2 Amps) OR optional AC/DC power supply and power

cable

24 3. Installation

2. Digital voltmeter with test leads

3. SDIDUTM Serial Cable (optional)

4. Computer with networking capability, consisting of either:

- Laptop computer with Windows 98/2000/XP/Vista operating system, an Ethernet

card with any necessary adapters and a Cat-5 Ethernet regular or crossover cable

- Networked computer with Windows 98/2000/XP/Vista operating system and an

additional Ethernet cable providing access to the network.

5. Web Browser program, Internet Explorer 5.5 and above or Mozilla Firefox 1.0.6

and above with Java environment installed, available at http://www.java.com.

6. Site engineering folder with site drawings, or equivalent SDIDU configuration

information

3.8.2Grounding the ODU

1. Place the grounding rod so as to allow for the shortest possible path from the

grounding cable to the ODU.

2. Drive the grounding rod into the ground at least eight inches from the ground

surface.

3. Attach a grounding clamp to the grounding rod. You will use this clamp to attach

grounding wires for both the ODU and indoor junction box, reference Figure 3-16.

4. Connect a ground lug to one end of the grounding wire.

5. Remove one of the lower mounting screws of the mounting pole. Insert a screw

through the grounding lug terminal and re-install it to the mounting pole.

6. Attach the grounding wire to the clamp on the grounding rod. If necessary, use wire

staples to secure the grounding wire to the outside wall.

7. Install a grounding wire from the junction box to the grounding rod.

3. Installation 25

Figure 3-16. Ground Connections to ODU.

26 3. Installation

3.8.3Grounding the SDIDUTM

1. The SDIDU™ should be able to be connected to a system or building electrical ground

point (rack ground or power third-wire ground) with a cable of 36” or less.

2. Connect the grounding wire to either grounding point on the rear panel. Use 6-

32x5/16 maximum length screws (not provided) to fasten the lug of the grounding

cable.

3. Connect the other end of the ground to the local source of ground in an appropriate

manner.

3.8.4Connecting the SDIDUTM to the PC and Power Source

1. Using the supplied power cable connector, pin 2 (labeled -V) should be connected to the

power supply terminal supplying -48 V dc, while pin 1 (labeled RET) should be connected to

the power supply return. Refer to Figure 3-17. Use of a power supply with an inappropriate

ground reference may cause damage to the SDIDUTM and/or the supply.

Figure 3-17. SDIDU DC Power Cable Connector

2. Connect the SDIDUTM power cable to the 48 V dc power supply, and place the

voltmeter probes on the unconnected SDIDUTM end of the power cable, with the

positive voltmeter probe on pin 2 (-V) of the cable connector and the negative probe

on pin 1(RET). The connector terminal screw heads may be used as convenient

monitor points. Refer to Figure 3-17.

3. Turn on the –48 V dc supply. Verify that the digital voltmeter reads between 44 V dc

and 52 V dc when monitoring the cable points specified above. Adjust the power

supply output voltage and/or change the connections at the power supply to achieve

this reading.

4. Turn the 48 V dc supply off.

5. Plug the SDIDUTM power cable into the SDIDUTM rear panel DC Power connector (DC

Input). Place the voltmeter probes on the cable connector terminal screw heads as

3. Installation 27

per step 2 above. Refer to Figure 3-17. Note that the Software Defined IDU™

SDIDUTM does not have a power on/off switch. When DC power is connected, the

digital radio powers up and is operational. There can be up to 5 W of RF power

present at the antenna port. The antenna should be directed safely when power is

applied.

6. Turn on the 48 V dc power supply, and verify that the reading on the digital voltmeter

is as specified in step 3 above.

7. Connect the SDIDUTM to the laptop computer, using a Cat-5 Ethernet cable or connect

the SDIDUTM to a computer network, using a Cat-5 Ethernet cable. Connect the

Ethernet cable to the NMS 1 or 2 connector on the SDIDUTM rear panel. Refer to

Figure 3-18 for the SDIDUTM rear panel connections.

NMS

Controller

Ethernet

-48V Power

Input 100Base-T

Ethernet

Data

Channels

ASI

Output

ASI

Input

ODU IF

Connection

Redundant

Power-Supply

(optional for

1+1, 2+0)

ALARM/Serial

Interface Redundant

MODEM

(optional for

1+1, 2+0)

USB

Ground

lug

Call

Button Voice

Orderwire

Data

Orderwire

2xT1/E1

14xT1/E1

Ground

lug

Figure 3-18. Software Defined IDU™-SB, 1+1 Protection, Rear Panel

Connections

3.8.5SDIDU™ Configuration

Although basic configuration of the Event-HD SDIDUTM does not require a connection to

the ODU, it is recommended that the ODU and SDIDUTM are connected prior to

configuring the SDIDUTM. A connection to the ODU must be established prior to running

the Link Configuration process (section 5.2) in order to configure ODU related

parameters.

Using the site attributes identified in the site assessment or equivalent configuration

information, configure each IDU by completing the following procedures:

- Setting the SDIDUTM IP Address and Network Parameters

- Configuring the SDIDUTM

- Setting the SDIDUTM Device Information

28 3. Installation

3.8.5.1 Setting the IDU IP Address

1. The PC’s network configuration must be set with the parameters provided at

the end of this guide.

2. The IDU should be accessible from your PC at the default IP address provided

at the end of this guide. A network ‘ping’ can be done to verify connectivity to

the IDU.

3. Start web browser and use the SDIDUTM default IP address as the url.

4. Log in at the login prompt. The username and password are provided at the

end of this guide.

5. The GUI includes a navigation menu in the left frame. If this navigation menu

is not visible, make sure the Java environment is properly installed and active.

In the navigation menu, select Administration, then Network Configuration,

and then General. The IP address, IP Netmask, and IP Gateway are shown.

6. Enter the new IP address, IP Netmask, and IP Gateway. The gateway must be

in the same subnet as the IP address for proper operation. Click “Update” to

change the values.

7. To verify the new IP address, change the PC's network configuration to be on

the same subnet as the new IP address set in the unit and a network 'ping'

may be performed to the new address.

8. To continue using the GUI, point the web browser to the new IP address.

3.8.5.2 Link Configuration

Use the GUI to configure the SDIDUTM as follows:

1. To start the GUI, open a web browser and use the SDIDUTM IP address

(192.168.1.1xx) as the URL and log in when prompted.

2. Use the frame on the left side of the window to navigate to “Radio Link.”

3. Select the subcategory “Link Configuration.”

4. Select the operating mode. If the SDIDUTM has one modem installed and is

connected to one ODU, select standard. If the SDIDUTM has two modems installed

and is connected to two ODUs, select 1+1 diversity or 1+1 non-diversity for a

protected link or east-west for a 2+0 ring configuration.

5. Follow the wizard located here to enter the rest of the required settings.

3. Installation 29

3.8.5.3 Configuring the Site Attributes

Use the GUI to enter device information as follows:

1. In the navigation menu, select Administration, then Device Information, and then

Device Names.

2. Enter the Owner, Contact, Description, and Location. These values are not

required for operation, but will help keep a system organized.

3.8.5.4 Power on Reset to Factory Defaults

The SDIDU™ may be reset to factory defaults during power up. A power on reset affects

the IP address and the user logins/passwords. To perform a power on reset:

1. Power on the SDIDU™

2. During bootup, the SDIDU™ will flash the controller-card LED alternating

red/green for five seconds.

3. Make sure the call button is not active at the start of this five second period.

4. While the LED is flashing, press the call button and release it within one second of

the LED changing to static green.

3.8.5.5 CLI Access via NMS Ethernet

The CLI may be accessed via NMS Ethernet after connecting and configuring the PC as

described in the previous section. Then using a Telnet client, telnet to the SDIDUTM IP

address. You will be prompted for a username and password. Use the username and

password supplied at the end of this guide.

3.8.5.5.1 CLI Access via Serial Port

The CLI for configuring/monitoring the SDIDUTM may be accessed via the front-panel

serial port. Table 3-3 shows the pinout for constructing a DB-9 to HD-15 cable.

Table 3-3: Serial Cable Pinout

DB-9 Pin

HDB-15 Pin

2 2

3 3

5 5

The serial port parameters are show in Table 3-4.

30 3. Installation

Table 3-4: Serial Port Parameters

Parameter Value

Speed 38400

Bits 8

Stop-Bits 1

Parity None

Flow-Control

None

After powering-on the SDIDUTM, the CLI may be accessed by connecting the serial cable

between the PC and the SDIDUTM, launching and configuring a terminal program (e.g.

Hyperterm) and pressing the enter key. You will be prompted for a username and

password, which are supplied at the end of this guide.

3.8.6ODU Antenna Alignment

Receive signal level indication at the antenna/ODU location is a power tool to aid antenna

alignment at the time of installation. The following provides ODU specific information

regarding the receive signal.

3.8.6.1 ODU 2200, 6500, 7200

The ODU 2200, 6500, and 7200 has an externally visible LED meter that provides both

RSL (Receive Signal Level) and transmit power. For full-duplex operation the ODU meter

displays RSL on the top bar and transmit level on the bottom bar as shown in Figure 3-

19.

Figure 3-19. ODU 2200 RSSI Output vs. Received Signal.

The upper RSL LED meter is calibrated to represent exactly 10 dB for each LED, going

from -95 dBm at the far left (red) to -15 dBm at the far right (green). The brightness of

each LED is modulated for levels between 0 to 10 dB such that the far left LED will be

fully extinguished at -95 dBm and the far right LED will be fully illuminated at -15 dBm.

When the RSL is in the red region (<-75 dBm) the signal level is approaching or has

reached threshold (depends on modulation type).

3. Installation 31

The transmit LED indicates full power will all 8 LEDs illuminated to minimum power with 1

LED illuminated.

For simplex applications such as broadcast STL or ENG where the ODU is a receiver or a

transmitter only then both LED bars represent either RSL for receiver ODU or transmit

power for transmitter ODU. For RSL each LED represents 5 dB, with brightness

modulated from off for 0 dB to fully on for 5 dB increments.

3.8.6.2 ODU 5300/5800

To use the built-in tuning of the ODU 5300 or 5800 antenna, a complete link is required,

with both ends of the link roughly pointed at each other, and transmitting.

Once the links are roughly pointed, connect the voltmeter to the RSSI (Receive Signal

Strength Indication) BNC connector seen on the ODU. This mode outputs 0 to +2.5 Volts.

Adjust the antenna for maximum voltage. The RSSI voltage is linearly calibrated from 2.5

Volts for maximum RSL (received signal level) at –20 dBm to 0Volts for minimum RSL at

-90 dBm. This mapping characteristic is plotted below in Figure 3-20.

Figure 3-20. ODU RSSI Output vs. Received Signal.

3.8.7Quick Start Settings

PC Network Configuration

The Web GUI may be accessed via NMS by connecting a CAT5 patch cable between the

SDIDUTM front-panel NMS port and a PC. The PCs network interface must be configured to

an open IP address within the same subnet. For the default Moseley Event-HD

configuration, the IP address of the PC needs to be 192.168.1.x, where x (between 1 and

100) provides an available IP address. DHCP may also be used to set the PC IP address if

32 3. Installation

a DHCP server is configured on the same subnet.

Event-HD IP Address

The Event-HD system will be configured and tested as link prior to delivery to the

customer. The IP address will be set at the factory to these default values:

Parameter

Value

IP Address

192.168.1.1xx

Netmask

255.255.255.0

Gateway 192.168.1.1

Where xx is in the range from 01 to 99. The IP address is indicated on the rear panel as

shown in Figure 3-21.

Figure 3-21. IDU IP address label location

After configuring the PCs network interface, a web browser may be launched and the

following URL entered into the address bar to access the unit’s Web GUI:

http://192.168.0.101/

or as specified on the rear panel.

Username and Password

A dialog box will show requesting a username and password:

• User: administrator

• Pass: d1scovery

3.9SDIDU™ Service

At times, it may be necessary to service the SDIDU™. This may include installing,

removing, or replacing an SDIDU™ module. There may be up to 8 modules installed in a

single SDIDU™ chassis. Figure 3-22 shows the rear panel of the SDIDU™ with each

module labeled. The basic procedure for removing and installing a module is common to

all the modules, with slight variations for the Power Supply Module, Controller Module,

and Mini IO Module. These basic procedures are described below. Variations are

described in sub-items beneath each step.

3. Installation 33

Power Supply

Module

Power Supply

Module

Controller

Module

Standard IO

Module

Mini IO

Module

Expansion

Module

Modem

Module

Modem

Module

Figure 3-22. SDIDU™ Modules

3.9.1Removing a Module

9. Modules are static sensitive and should only be handled in an ESD-safe

environment. When packaging modules for shipment or storage, place in an

ESD bag.

10. Remove rear panel connections to the module.

11. Remove the two thumbscrews on either side of the module. Figure 3-23 shows

the locations of these thumb screws.

a. The thumbscrew for the Standard IO Module is located on the right side of

the Mini IO Module slot.

b. If a Mini IO module is installed and the Standard IO Module is to be

removed, both modules will be removed as one unit.

c. When removing only the Mini IO card, remove the corner screw indicated in

Figure 3-23 and one thumb screw.

Figure 3-23. Thumbscrew and Corner Screw Locations

12. Thread thumbscrew(s) into hole(s) shown in Figure 3-24. Remove the module

by grasping the thumbscrew(s) and pulling module straight out of the

SDIDU™. Both thumbscrews should be used for all modules except the Power

Supply and the Mini IO Modules.

a. The Power Supply and Mini IO Modules have only one threaded hole each.

b. When removing the Standard IO Module, the ground lug indicated in Figure

3-24 is used as the second threaded hole. If the SDIDU™ is to remain

34 3. Installation

powered on and the ground lug is being used to ground the unit, first move

the ground connection to the ground lug located on the Controller Module.

The SDIDU™ retains its current configuration when a module is removed, unless that

module is the Controller Module. In which case, the IP addresses will need to be

reprogrammed.

Figure 3-24. Threaded Hole Locations

3.9.2Installing a Module

1. Modules are static sensitive and should only be handled in an ESD-safe

environment. When packaging modules for shipment or storage, place in an ESD

bag.

2. Line up the module board with the guides in the chassis and slide the module into

the SDIDU™. Figure 3-25 shows a photo of the guides. As the module face plate

comes flush with the face of the SDIDU™, connectors on the rear of the module

will engage with the SDIDU™ backplane. It is possible to encounter interference

from adjacent module rear panels. If this occurs, loosen the thumbscrews holding

the neighboring panels and shift them as necessary to ensure fit.

a. The Mini IO Module only has one guide on the right side. Take care to insert

the Mini IO module carefully and correctly engage the rear connector with its

mate on the Standard IO Module.

3. Installation 35

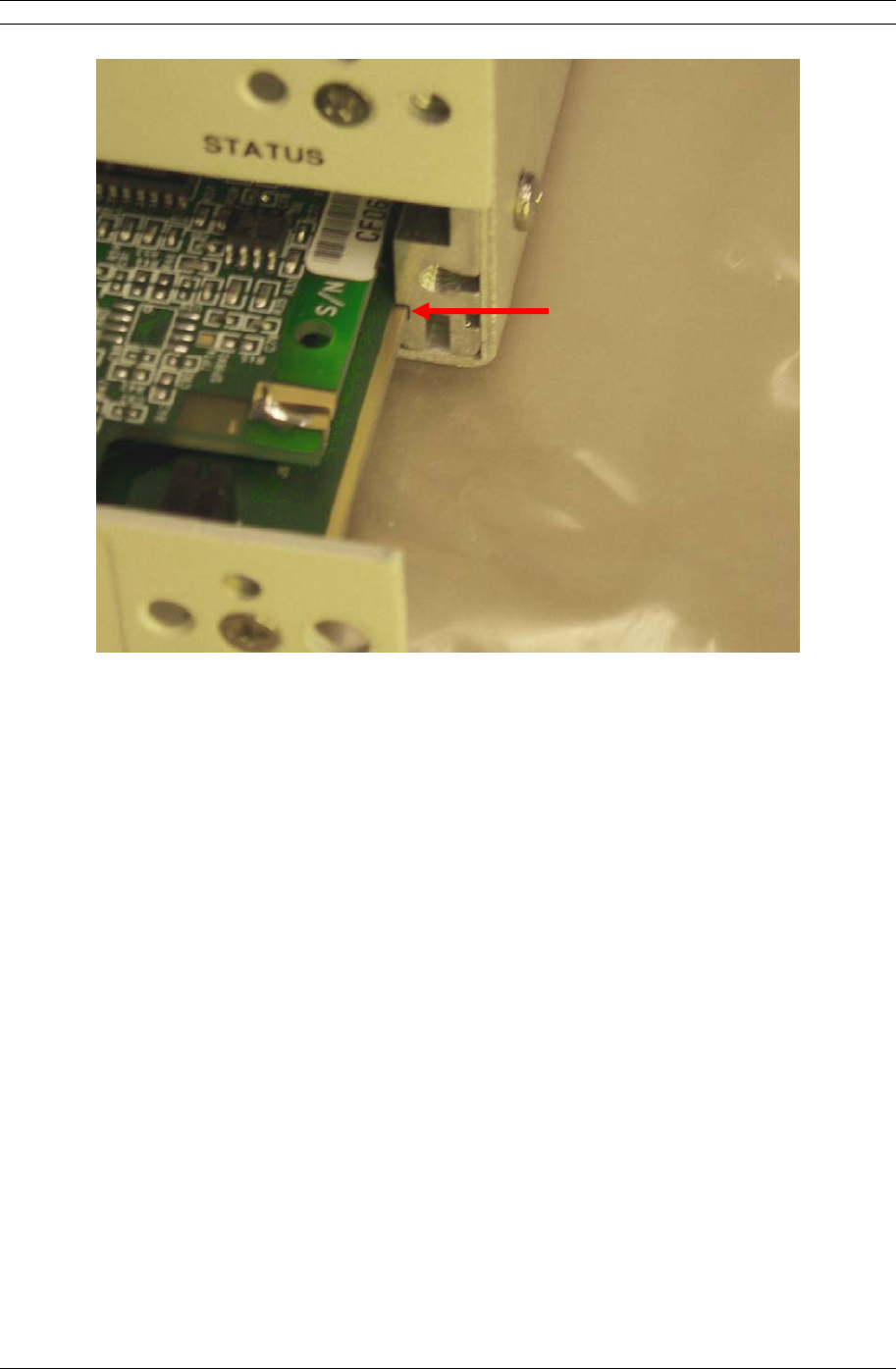

Figure 3-25. Guides

3. Install thumbscrews on either side of the module as shown in Figure 3-24.

a. The Mini IO card has a corner screw, which should be installed. This corner

screw is shown in Figure 3-23.

4. Make rear panel connections to the module and power on the SDIDU™ if

necessary.

5. Verify proper operation of the unit.

a. If the Controller Module has been changed, reprogram the IP addresses.

Guide

36 3. Installation

4. Summary Specification 1

4.Summary Specification

Parameter Event

2200,

2200FD,

2400

2GHz

Event

6500,

6800,

7200, 7400

6-7 GHz

Event 5800

5.8 GHz

Event 5300

5.3 GHz

System

Frequency Bands

(others available on

request)

1.990-2.110

2.200-2.300

2.450-2.500

6.425-6.525

6.525-6.875

6.875-7.125

7.125-7.425

5.725-5.850

5.250-5.350

Output Power

(avg. max.)

4 Watts 1 Watt 200 mW +5 dBm

Channelization

(others available on

request)

12, 17 MHz 20, 25, 28,

30 MHz 12.5, 16.7,

25, 30 MHz 13.3, 20, 30

MHz

Capacity 150Mbps ASI

2-100 Mbps Ethernet

1-16 T1/E1

Various combinations of above

Input Sensitivity -84 dBm (or higher, based on selected mode)

Modulation QPSK, 16, 32, 64, 128 QAM

Radio Interfaces

External Antenna N-Type Female

SDIDUTM /ODU Link TNC Female

Data Interfaces

Payload

DVB/ASI

Ethernet

2 T1/E1

14 T1/E1

BNC Female (2)

10Base-T/100Base-Tx RJ-45 Female (2)

100 Ω / 120 Ω Balanced, RJ-48C Female (2)

Molex High-Density 60-pin (14)

SNMP 10Base-T/100Base-Tx RJ-45 Female

Control

Network Management SNMP, Proprietary GUI

2 4. Summary Specification

Parameter Event

2200,

2200FD,

2400

2GHz

Event

6500,

6800,

7200, 7400

6-7 GHz

Event 5800

5.8 GHz

Event 5300

5.3 GHz

NMS Connector 10Base-T/100Base-Tx RJ-45 Female (2)

Voice Orderwire RJ-45 for PTT handset

Auxiliary Data (64

kbps) RS422 via RJ-45

Encryption (Consult

Moseley Sales) AES

Alarm Port 2 Form C (SPDT), 2 TTL Output, 4 TTL Input, DB-15HD

Power/Environment

DC Power -48 Volts

±10%,

<100 W

-48 Volts

±10%,

<100 W

-48 Volts

±10%, <70

-48 Volts

±10%, <70

SDIDUTM Operational

Temperature -5º to 55º C

ODU Operational

Temperature -30º to 55º C

SDIDUTM Humidity 0 to 95%, non-condensing

ODU Humidity 0 to100% at 45º C

Altitude 15,000 feet/4572 meters, maximum

Physical Dimensions

SDIDUTM Size (WxHxD) 17.2 x 1.75 x 9.4 inches

(43.7 x 4.5 x 23.9 cm)

SDIDUTM Weight 7 lbs (3.12 Kg)

SDIDUTM

EIA Rack Mount 19 inch/48.2 cm, 1 rack unit

ODU Size (WxHxD) 14.0 x 8.5 x

4 inches 14.0 x 8.5 x

4 inches 14.6 x 15.4

x 2.6 inches 14.6 x 15.4

x 2.6 inches

ODU Weight 16.3 lbs (7.4

kgs) 16.3 lbs (7.4

kgs) 15 lbs (6.8

kgs)

ODU

Mounting Custom Bracket

5. Rear Panel Connectors 1

5.Rear Panel Connectors

5.1DC Input (Power) Connector

MSTB 2,5/ 2-GF PIN TYPE SIGNAL

1 POWER Power supply return

2 POWER 48 Vdc, nominal

Mating Connector: MSTB 2,5/ 2-STF

Ordering Information: Phoenix Contact Part Number 1786831

5.2Ethernet 100BaseTX Payload Connector 1-2

RJ-45 Female PIN TYPE SIGNAL

1 INPUT RX+

2 INPUT RX-

3 OUTPUT TX+

4 N/A N/A

5 N/A N/A

6 OUTPUT TX-

7 N/A N/A

8 N/A N/A

Mating Connector: Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554169-3 or equivalent

5.3SONET Payload Connector

SC Duplex Female Fiber PIN TYPE SIGNAL

OUT OUTPUT SONET OC-3 payload output (optical)

INOUT

IN INPUT SONET OC-3 payload input (optical)

Mating Connector: SC-Duplex Male

Ordering Information: Molex Part Number 86066-4000 or equivalent

5.4STM-1 Payload Connector

BNC Female PIN TYPE SIGNAL

TX OUTPUT SDH STM-1 payload output (electrical)

RXTX RX INPUT SDH STM-1 payload input (electrical)

2 5. Rear Panel Connectors

Mating Connector: BNC Male

Ordering Information: Tyco Electronics/Amp Part Number 225395-2 or equivalent

5.5DVB/ASI, DS-3, E-3, STS-1 Payload Connector

Consult factory for availability.

BNC Female PIN TYPE SIGNAL

TX OUTPUT DVB-ASI, DS-3, E-3, STS-1 payload

output

RXTX RX INPUT DVB-ASI, DS-3, E-3, STS-1 payload

input

Mating Connector: BNC Male

Ordering Information: Tyco Electronics/Amp Part Number 225395-2 or equivalent

5.6NMS 10/100BaseTX Connector 1-2

RJ-45 Female PIN TYPE SIGNAL

1 OUTPUT TX+

2 OUTPUT TX-

3 INPUT RX+

4 N/A N/A

5 N/A N/A

6 INPUT RX-

7 N/A N/A

8 N/A N/A

Mating Connector: Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554169-3 or equivalent

5.7Alarm/Serial Port Connector

DB-15HD Female PIN TYPE SIGNAL

1 OUTPUT TTL Alarm Output 3

2* INPUT/ Output RS-232 RX/TX

3* OUTPUT/ Input RS-232 TX/RX

4 OUTPUT TTL Alarm Output 4

5 N/A GROUND

61** N/A Alarm 1 Form C Contact Normally Open

5. Rear Panel Connectors 3

DB-15HD Female PIN TYPE SIGNAL

7** N/A Alarm 1 Form C Contact Normally Closed

8** N/A Alarm 2 Form C Contact Common

9 INPUT TTL Alarm Input 1

10 INPUT TTL Alarm Input 3

11** N/A Alarm 1 Form C Contact Common

12** N/A Alarm 2 Form C Contact Normally Open

13** N/A Alarm 2 Form C Contact Normally Closed

14 INPUT TTL Alarm Input 2

15 Input TTL Alarm Input 4

* Pins 2 and 3 are hardware jumper configurable for DCE or DTE operation.

** Form C Contacts are hardware jumper configurable to emulate TTL outputs

Mating Connector: HD-DSUB15 Male (15 pins in a DB9 shell)

Ordering Information: Norcomp Part Number 180-015-102-001 or equivalent

5.8ODU Connector

TNC Coaxial Female PIN TYPE SIGNAL

Center I/O 350 MHz TX IF / 140 MHz RX IF / -48 VDC

Shield N/A Shield / Chassis GND

Mating Connector: TNC Male

Cable Type Ordering Information

LMR-200 Times Microwave Systems Part Number TC-200-TM

LMR-300 Times Microwave Systems Part Number TC-300-TM

LMR-400 Times Microwave Systems Part Number TC-400-TM

RG-214 Tyco Electronics/Amp Part Number 225550-8 or equivalent

Belden 7808 Tyco Electronics/Amp Part Number 1-225550-3 or equivalent

5.9T1/E1 - Channels 1-2 Connector

RJ-48C Female PIN TYPE SIGNAL

1 INPUT RX+

2 INPUT RX-

100 Ω /120 Ω Balanced

3 N/A GND

4 5. Rear Panel Connectors

RJ-48C Female PIN TYPE SIGNAL

4 OUTPUT TX+

5 OUTPUT TX-

6 N/A GND

7 N/A N/A

8 N/A N/A

Mating Connector: Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554169-3 or equivalent

5.10T1/E1 - Channels 3-16 Connector

Molex LFH Matrix 50 Receptacle

PIN TYPE SIGNAL

1 OUTPUT T1 Channel 13 Transmit Tip

2 OUTPUT T1 Channel 14 Transmit Tip

3 OUTPUT T1 Channel 15 Transmit Tip

100 Ω / 120 Ω Balanced

4 OUTPUT T1 Channel 16 Transmit Tip

5 OUTPUT T1 Channel 9 Transmit Tip

6 OUTPUT T1 Channel 10 Transmit Tip

7 OUTPUT T1 Channel 11 Transmit Tip

8 OUTPUT T1 Channel 12 Transmit Tip

9 OUTPUT T1 Channel 5 Transmit Tip

10 OUTPUT T1 Channel 6 Transmit Tip

11 OUTPUT T1 Channel 7 Transmit Tip

12 OUTPUT T1 Channel 8 Transmit Tip

13 OUTPUT T1 Channel 3 Transmit Tip

14 OUTPUT T1 Channel 4 Transmit Tip

15 NC NC

16 NC NC

17 OUTPUT T1 Channel 4 Transmit Ring

18 OUTPUT T1 Channel 3 Transmit Ring

19 OUTPUT T1 Channel 8 Transmit Ring

20 OUTPUT T1 Channel 7 Transmit Ring

21 OUTPUT T1 Channel 6 Transmit Ring

5. Rear Panel Connectors 5

Molex LFH Matrix 50 Receptacle

PIN TYPE SIGNAL

22 OUTPUT T1 Channel 5 Transmit Ring

23 OUTPUT T1 Channel 12 Transmit Ring

24 OUTPUT T1 Channel 11 Transmit Ring

25 OUTPUT T1 Channel 10 Transmit Ring

26 OUTPUT T1 Channel 9 Transmit Ring

27 OUTPUT T1 Channel 16 Transmit Ring

28 OUTPUT T1 Channel 15 Transmit Ring

29 OUTPUT T1 Channel 14 Transmit Ring

30 OUTPUT T1 Channel 13 Transmit Ring

31 INPUT T1 Channel 16 Receive Tip

32 INPUT T1 Channel 15 Receive Tip

33 INPUT T1 Channel 9 Receive Tip

34 INPUT T1 Channel 14 Receive Tip

35 INPUT T1 Channel 10 Receive Tip

36 INPUT T1 Channel 13 Receive Tip

37 INPUT T1 Channel 11 Receive Tip

38 INPUT T1 Channel 4 Receive Tip

39 INPUT T1 Channel 12 Receive Tip

40 INPUT T1 Channel 3 Receive Tip

41 INPUT T1 Channel 5 Receive Tip

42 INPUT T1 Channel 8 Receive Tip

43 INPUT T1 Channel 6 Receive Tip

44 INPUT T1 Channel 7 Receive Tip

45 NC NC

46 NC NC

47 INPUT T1 Channel 7 Receive Ring

48 INPUT T1 Channel 6 Receive Ring

49 INPUT T1 Channel 8 Receive Ring

50 INPUT T1 Channel 5 Receive Ring

51 INPUT T1 Channel 3 Receive Ring

52 INPUT T1 Channel 12 Receive Ring

53 INPUT T1 Channel 4 Receive Ring

54 INPUT T1 Channel 11 Receive Ring

6 5. Rear Panel Connectors

Molex LFH Matrix 50 Receptacle

PIN TYPE SIGNAL

55 INPUT T1 Channel 13 Receive Ring

56 INPUT T1 Channel 10 Receive Ring

57 INPUT T1 Channel 14 Receive Ring

58 INPUT T1 Channel 9 Receive Ring

59 INPUT T1 Channel 15 Receive Ring

60 INPUT T1 Channel 16 Receive Ring

Mating Connector: Molex LFH Matrix 50 Plug

Ordering Information: Molex Part Number 70929-2000 (connector) + Molex Part

Number 51-24-2021 (pins, Qty 4 per connector)

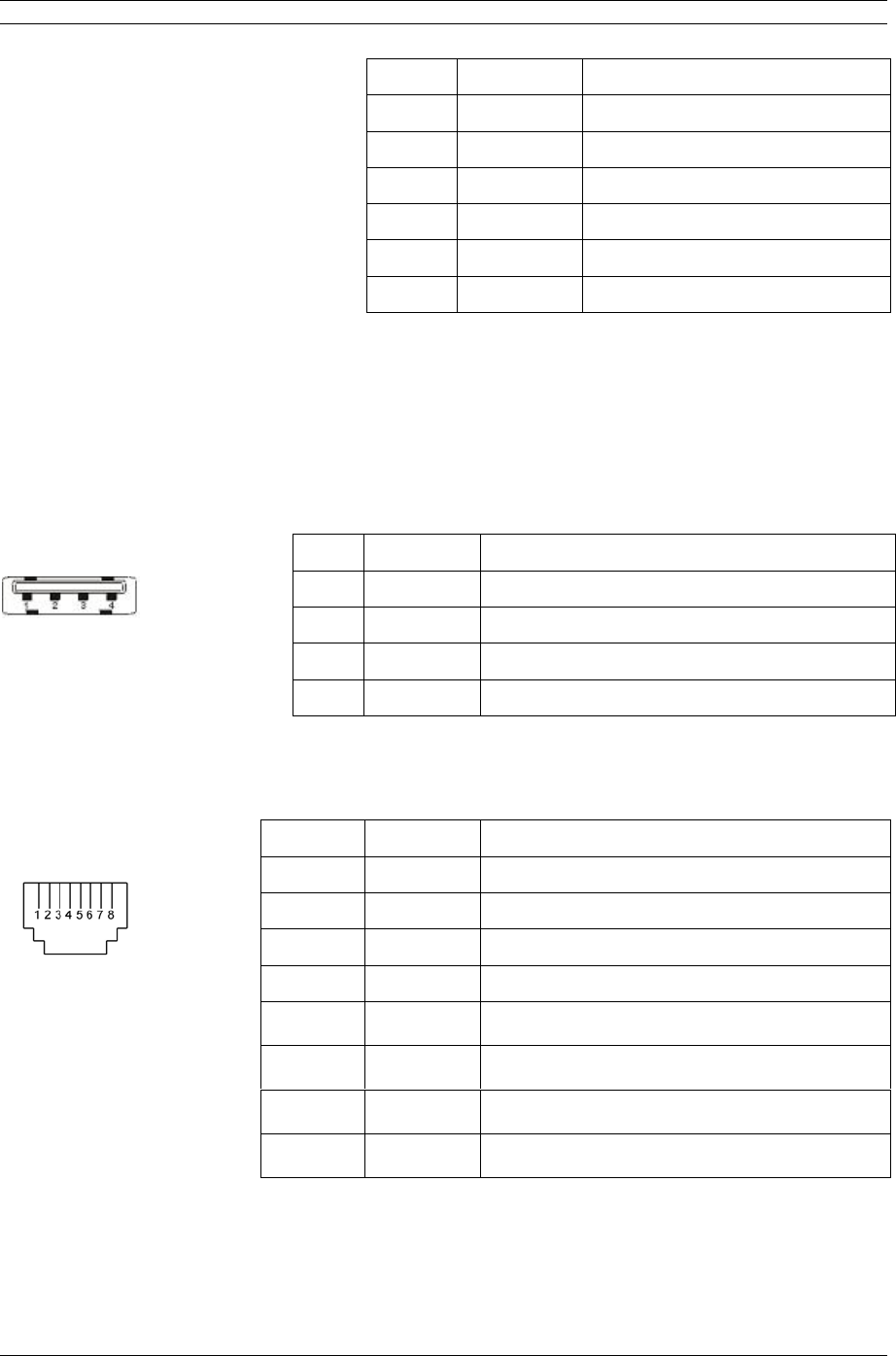

5.11USB

Consult factory for availability.

USB Type A Receptacle PIN TYPE SIGNAL

1 OUTPUT +5V

2 I/O -Data

3 I/O +Data

4 N/A GND

Mating Connector: USB Type A Plug

5.12Voice Order Wire

Mating Connector: Standard RJ-6 Plug or Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554710-3 or equivalent

for RJ-6. Tyco Electronics/Amp Part Number 5-554169-3 or equivalent for RJ-45.

RJ-45 Female PIN TYPE SIGNAL

1 N/A NC

2 INPUT PTT

3 N/A GND

4 OUTPUT PO-

5 OUTPUT PO+

6 INPUT TI-

7 N/A GND

8 N/A NC

5. Rear Panel Connectors 7

5.13Data Order Wire

5.13.1RS422

RJ-45 Female PIN TYPE SIGNAL

1 OUTPUT TX Clock -

2 OUTPUT TX Clock +

3 OUTPUT TX Data -

4 INPUT RX Data -

5 INPUT RX Data +

6 OUTPUT TX Data +

7 INPUT RX Clock -

8 INPUT RX Clock +

Mating Connector: Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554169-3 or equivalent

5.13.2RS-232

RJ-45 Female PIN TYPE SIGNAL

1 N/A NC

2 N/A NC

3 N/A Signal GND

4 N/A NC

5 INPUT RX Data +

6 OUTPUT TX Data +

7 N/A NC

8 N/A NC

Mating Connector: Standard RJ-45 Plug

Ordering Information: Tyco Electronics/Amp Part Number 5-554169-3 or equivalent

8 5. Rear Panel Connectors

6. Appendix 1

6.Appendix

6.1Alarm Descriptions

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Modem Fault

Lower Modem The specified Modem card has

indicated a fault. Fault

detection is via reading

Modem Hardware Status from

MODEM during start-up and

polling GPIO for MODEM fault

indication. Polling interval 5

sec.

N/A 11 Critical

Modem Comm

Failure Lower Modem The Controller Card is unable

to communicate with the

specified Modem card.

Modem

Lower 12 Critical

Modem Card

Removed Lower Modem The specified Modem card has

been removed from the IDU

(only if the specified Modem

card has been enabled for

use). Fault detection via card-

detect logic.

N/A 13 Major

Modem Card

Installed Lower Modem The specified Modem card has

been installed into the IDU

(only if the specified Modem

card is not enabled for use).

Fault detection via card-detect

logic. Alarm is raised then

lowered.

Modem

Lower 14 Info

Modem Unlock

Lower Modem The demodulation functional

components of the modem

have lost lock to the incoming

signal. The data received

through the RF link is not

valid. Fault detection via

modem status polling. Polling

interval: 1 sec.

N/A N/A Critical

RSL Low Lower Modem RSSI is approaching the

minimum operational level of

the link as set during

configuration. Fault detection

via modem status polling,

comparing RSSI value to

threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

2 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Synthesizer

Unlock Lower Modem Modem synthesizer has

unlocked. Fault detection via

modem status polling. Polling

is done in conjunction with

Modem Unlock polling.

N/A N/A Critical

SNR Low Lower Modem The signal-to-noise ratio is

below the minimum

operational level of the link as

set during configuration. Fault

detection via modem status

polling, comparing Eb/N0

value to threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

Modem Fault

Upper Modem The specified Modem card has

indicated a fault. Fault

detection is via reading

Modem Hardware Status from

MODEM during start-up and

polling GPIO for MODEM fault

indication. Polling interval 5

sec.

N/A 16 Critical

Modem Comm

Failure Upper Modem The Controller Card is unable

to communicate with the

specified Modem card.

Modem

Lower 17 Critical

Modem Card

Removed Upper Modem The specified Modem card has

been removed from the IDU

(only if the specified Modem

card has been enabled for

use). Fault detection via card-

detect logic.

N/A 18 Major

Modem Card

Installed Upper Modem The specified Modem card has

been installed into the IDU

(only if the specified Modem

card is not enabled for use).

Fault detection via card-detect

logic. Alarm is raised then

lowered.

Modem

Upper 19 Info

Modem Unlock

Upper Modem The demodulation functional

components of the modem

have lost lock to the incoming

signal. The data received

through the RF link is not

valid. Fault detection via

modem status polling. Polling

interval 1 sec.

N/A N/A Critical

6. Appendix 3

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

RSL Low Upper Modem RSSI is approaching the

minimum operational level of

the link as set during

configuration. Fault detection

via modem status polling,

comparing RSSI value to

threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

SNR Low Upper Modem The signal-to-noise ratio is

below the minimum

operational level of the link as

set during configuration. Fault

detection via modem status

polling, comparing Eb/N0

value to threshold value in

configuration table. Polling

interval 5 sec.

N/A N/A Major

Synthesizer

Unlock Upper Modem Modem synthesizer has

unlocked. Fault detection via

modem status polling. Polling

is done in conjunction with

Modem Unlock polling.

N/A N/A Critical

Fan Failure Controller

he Fan rotational speed is too

low. (Controller card LED

flashed red rather than

orange). Fault detection via

polling fan controller status.

Polling interval 10 sec.

Controller 21 Major

Controller Card

Fault Controller The CPU has detected a fault

in the controller card.

(Controller card LED flashes

red rather than orange). Fault

detection via software.

Controller 22 Critical

Low Battery

Voltage Controller The CPU has detected a low-

battery voltage condition.

(Controller card LED flashes

red rather than orange). Fault

detection via software polling

RTC via controller FPGA.

Controller 23 Info

Power Supply

Fault Lower Power Supply The Power Supply card has

indicated a fault. Fault

detection via polling GPIO.

Polling interval 5 sec.

N/A 31 Critical

4 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Power Supply

Card Removed

Lower

Power Supply The specified Power Supply

card has been removed from

the IDU. Fault detection via

card-detect logic.

N/A 32 Major

Power Supply

Fault Upper Power Supply The Power Supply card has

indicated a fault. Fault

detection via polling GPIO.

Polling interval 5 sec.

N/A 36 Critical

Power Supply

Card Removed

Upper

Power Supply The specified Power Supply

card has been removed from

the IDU. Fault detection via

card-detect logic.

N/A 37 Major

Standard I/O

Card Removed StdIO The Standard I/O card has

been removed from the IDU.

Fault detect via card-detect

logic.

N/A 41 Critical

Ethernet

Payload

Disconnect

StdIO There is no cable detected at

either Ethernet payload on

Standard I/O card (only if

Ethernet mode enabled). Fault

detection via polling of

Ethernet PHY. Polling interval

5 sec.

Standard

I/O 42 Critical

Framer

Initialization

Timeout

StdIO There is an initialization wait

for Framer to turn ON the

Framer Receiver side after

turning ON the Modem/ODU.

Fault detection via polling. Poll

only after timeout to detect.

Standard

I/O 43 Critical

Mini I/O Card

Removed MiniIO The Mini I/O card has been

removed from the IDU (only if

Mini I/O card has been

enabled for use). Fault

detection via card-detect logic.

Standard

I/O 46 Critical

Mini I/O Card

Installed MiniIO The Mini I/O card has been

installed into the IDU (only if

Mini I/O card is noted enabled

for use). Fault detection via

card-detect logic. Alarm is

raised then lowered.

Standard

I/O 47 Info

6. Appendix 5

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

Optional I/O

Card Removed OptIO The Optional I/O card has

been removed from the IDU

(only if the Optional I/O card

has been enabled for use).

Fault detection via card-detect

logic.

N/A 26 Critical

Optional I/O

Card Installed OptIO The Optional I/O card has

been installed into the IDU

(only if the Optional I/O card

is not enabled for use). Fault

detection via card-detect logic.

Alarm is raised then lowered.

Optional

I/O 27 Info

T1/E1 Channel

Alarm Ch x StdIO (1-16)

OptIO (17-

32)

There is either no cable

detected at the specified

E1/T1 channel port on

Standard I/O Card or there is

an AIS condition detected

(only for active T1/E1

channels). Fault detection via

polling of LIUs on Standard

I/O card and Optional I/O

Card when installed. Polling

interval 2 channels per 1 sec.

Report of this alarm in the

GUI/Syslog/Alarm history

indicates whether this is a

disconnect or AIS condition. If

both conditions are present,

the disconnect alarm will take

precedence over the AIS

alarm.

Standard

I/O when

1-16

Optional

I/O when

17-32

Turn LED

orange

rather

than RED

51-58

(1-16)

61-68

(17-32)

Critical

T1/E1 Test

Mode StdIO The user has selected a T1/E1

test mode (loopback or Tx

Data). This alarm will be set

when the user sets the test

mode for any of the T1/E1

channels, and cleared when all

T1/E1 channels are not in

loopback and Tx Data is

normal.

N/A 59 Info

BERT/LB/CW

Test Mode StdIO This alarm will be set when

the user enables either BERT,

Loopback, or CW mode, and

cleared when all BERT,

Loopback and CW modes are

disabled.

N/A 69 Info

6 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

ODU Fault

Lower ODU The ODU has indicated a fault

condition. Fault detection via

polling of ODU or unsolicited

message, if supported. Polling

interval 5 sec. Polling done via

API functional call. Report of

this alarm in the

GUI/Syslog/Alarm history

indicates the fault code from

the ODU.

N/A 71 Critical

ODU Comm

Failure Lower ODU The IDU is unable to

communicate with the ODU.

This could be a problem with

the ODU or a problem with the

cable connecting the ODU to

the IDU.

N/A 72 Critical

ODU Fault

Upper ODU The ODU has indicated a fault

condition or unsolicited

message, if supported. Fault

detection via polling of ODU.

Polling interval 5 sec. Polling

done via API function call.

Report of this alarm in the

GUI/Syslog/Alarm history

indicates the fault code from

the ODU.

N/A 73 Critical

ODU Comm

Failure Upper ODU The IDU is unable to

communicate with the ODU.

This could be a problem with

the ODU or a problem with the

cable connecting the ODU to

the IDU.

N/A 74 Critical

Protection

Switch MODEM/ODU This alarm will be set when an

AL1 command is received from

the active MODEM/ODU.

Cleared when an AL2

command is received from the

standby MODEM/ODU. Report

of this alarm in the

GUI/Syslog/Alarm history

indicates the fault code from

the ODU, if received.

N/A 75 Major

6. Appendix 7

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

East ATPC Tx at

Max Power ODU The IDU is unable to increase

the Tx Power as requested by

link partner due to maximum

power being reached.

Maximum power is specified in

the configuration table.

N/A 76 Info

West ATPC Tx at

Max Power ODU The IDU is unable to increase

the Tx Power as requested by

link partner due to maximum

power being reached.

Maximum power is specified in

the configuration table.

N/A 78 Info

Link Fault IDU Failed to receive link heartbeat

from link partner via Radio

Overhead (ROH) channel.

Fault detection via timeout

counter, which is reset via

reception of link heartbeat

message.

N/A 81 Critical

Remote Fault IDU Link Partner IDU indicating it

has a fault condition. Local

IDU receives Link Partner

Fault detection via Radio

Overhead (ROH) channel

message.

N/A 82 Info

Encryption

Failure IDU Data is not being decrypted

properly due to encryption key

mismatch between link

partners. Fault detection via

software detection of

unreadable ROH messages

from link partner.

N/A 83 Critical

Encryption

OneWay IDU Only one IDU has data

encryption enabled. Fault

detection via software

messages to/from link

partner.

N/A 84 Major

External

Alarm 1 External The external Alarm 1 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 91 Info

External

Alarm 2 External The external Alarm 2 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 92 Info

8 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

External

Alarm 3 External The external Alarm 3 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 93 Info

External

Alarm 4 External The external Alarm 4 input

has been activated. Fault

detection via polling GPIO.

Polling interval 1 sec.

N/A 94 Info

Remote IDU

Alarm Link Partner

IDU The link partner IDU has

indicated an alarm condition

via ROH.

N/A 95 Major

Remote IDU

External

Alarm 1

Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 1 has been

activated.

N/A 96 Info

Remote IDU

External

Alarm 2

Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 2 has been

activated.

N/A 97 Info

Remote IDU

External Alarm

Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 3 has been

activated.

N/A 98 Info

Remote IDU

External

Alarm 4

Link Partner

External The link partner IDU has

indicated via ROH its external

alarm input 4 has been

activated.

N/A 99 Info

STM Loss of

Clock IDU

he SDH/SONET clock has lost

lock. Fault detection via

polling of LIU.

N/A Solid Critical

STM RS_LOS IDU The SDH/SONET has a Loss of

Signal Defect. Fault detection

via polling of LIU.

N/A Solid Critical

STM RS_B1 IDU The SDH/SONET Mux/Demux

has a B1 Defect. Fault

detection via polling of

RS_B1_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

6. Appendix 9

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM RS_LOF IDU The SDH/SONET Mux/Demux

has a Loss of Frame Defect.

Fault detection via polling of

RS_LOF_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM RS_OOF IDU The SDH/SONET Mux/Demux

has an Out of Frame Defect.

Fault detection via polling of

RS_OOF_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM RS_TIM IDU The SDH/SONET Mux/Demux

has a Trace Identifier

Mismatch Defect. Fault

detection via polling of

RS_TIM_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM MS-AIS IDU The SDH/SONET Mux/Demux

has detected an AIS at the

Multiplexer Level. Fault

detection via polling of

MS_AIS_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM MS-REI IDU The SDH/SONET Mux/Demux

has detected a Remote Error

at the Multiplexer Level. Fault

detection via polling of

MS_REI_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM MS-RDI IDU The SDH/SONET Mux/Demux

has detected a Remote Defect

at the Multiplexer Level. Fault

detection via polling of

MS_RDI_T bit in STM-1 Core.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

10 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM MS_B2 IDU The SDH/SONET Mux/Demux

has a B2 Defect at the

Multiplex level. Fault detection

via polling of MS_B2_T bit in

STM-1 Core. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM AU-AIS x IDU The SDH/SONET Mux/Demux

has detected an AIS at the AU

Level. Fault detection via

polling of AU_AIS_T bit in

STM-1 Core. Where ‘x’ is the

HP index. Alternate detection

via Interrupt enabled in STM-1

core.

N/A Solid Critical

STM AU-LOP x IDU The SDH/SONET Mux/Demux

has detected a Loss of Pointer

Defect at the AU Level. Fault

detection via polling of

AU_LOP_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM HP-UNEQ x IDU The SDH/SONET Mux/Demux

HP number ‘x’ is Unequipped.

Fault detection via polling of

HP_UNEQ_T bit in STM-1

Core. Where ‘x’ is the HP

index. Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM HP-TIM x IDU The SDH/SONET Mux/Demux

HP number ‘x’ has a Trace

Identifier Mismatch. Fault

detection via polling of

HP_TM_TIM_T bit in STM-1

Core. Where ‘x’ is the HP

index. Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

6. Appendix 11

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM HP-REI x IDU The SDH/SONET Mux/Demux

HP number ‘x’ has a Remote

Error Indication. Fault

detection via polling of

HP_REI_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM HP-RDI x IDU The SDH/SONET Mux/Demux

HP number ‘x’ has a Remote

Defect Indication. Fault

detection via polling of

HP_RDI_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM HP-PLM x IDU The SDH/SONET Mux/Demux

HP number ‘x’ has a Path

Identifier Mismatch. Fault

detection via polling of

HP_PLM_T bit in STM-1 Core.

Where ‘x’ is the HP index.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Critical

STM HP_B3 x IDU The SDH/SONET Mux/Demux

HP number ‘x’ has a CRC

Error. Fault detection via

polling of HP_B3_T bit in STM-

1 Core. Where ‘x’ is the HP

index. Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM TU-LOM

lkm IDU The SDH/SONET Mux/Demux

TU number ‘x’ has a Loss of

Multiframe. Fault detection via

polling of TU_LOMF_T bit in

STM-1 Core. Where ‘lkm’ is

the TU index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

12 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM TU-AIS lkm IDU The SDH/SONET Mux/Demux

TU number ‘x’ has an AIS.

Fault detection via polling of

TU_AIS_T bit in STM-1 Core.

Where ‘lkm’ is the TU index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM TU-LOP

lkm IDU The SDH/SONET Mux/Demux

TU number ‘x’ has a Loss of

Pointer Defect. Fault detection

via polling of TU_LOP_T bit in

STM-1 Core. Where ‘lkm’ is

the TU index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM LP-UNEQ

lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ is Unequipped.

Fault detection via polling of

LP_UNEQ_T bit in STM-1 Core.

Where ‘lkm’ is the LP index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM LP-TIM lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a Trace

Identifier Mismatch. Fault

detection via polling of

LP_TM_TIM_T bit in STM-1

Core. Where ‘lkm’ is the LP

index as LKM numbering.

Alternate detection via

Interrupt enabled in STM-1

core.

N/A Solid Major

STM LP-REI lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a Remote

Error Indication. Fault

detection via polling of

LP_REI_T bit in STM-1 Core.

Where ‘lkm’ is the LP index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

6. Appendix 13

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

STM LP-RDI lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a Remote

Defect Indication. Fault

detection via polling of

LP_RDI_T bit in STM-1 Core.

Where ‘lkm’ is the LP index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

STM LP-PLM lkm

IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a Path

Identifier Mismatch. Fault

detection via polling of

LP_PLM_T bit in STM-1 Core.

Where ‘lkm’ is the LP index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM LP-RFI lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a Remote

Fault Indication. Fault

detection via polling of

LP_RFI_T bit in STM-1 Core.

Where ‘lkm’ is the LP index as

LKM numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Critical

STM LP-BIP2

lkm IDU The SDH/SONET Mux/Demux

LP number ‘x’ has a CRC

Error. Fault detection via

polling of LP_BIP2_T bit in

STM-1 Core. Where ‘lkm’ is

the LP index as LKM

numbering. Alternate

detection via Interrupt

enabled in STM-1 core.

N/A Solid Major

SDIDU Power-

Up IDU During power-up raise then

lower this alarm. N/A Solid Info

SDIDU Re-boot IDU When a user reboots the

SDIDU, raise then lower this

alarm prior to re-booting.

N/A Solid Info

14 6. Appendix

Alarm Affected

Component Description LED to

RED Alarm

Code Severity

NTP Update IDU When the system time is

updated via NTP raise then

lower this alarm. The previous

system time and new system

time should be noted in the

alarm log, SNMP trap, and

syslog messages.

N/A Solid Info

Remote

Reconfiguration

Failure

IDU When a remote

reconfiguration fails and the

original configuration is

restored after timeout, raise

then lower this alarm.

N/A Solid Info

FPGA

Programming

Failure

IDU When the FPGA programming

fails, this alarm will be set. N/A Solid Critical

6. Appendix 15

Abbreviations & Acronyms

AdTPC Adaptive Power Control

AIS Alarm Indication Signal

BER Bit Error Rate

Codec Coder-Decoder

CPU Central Processing Unit

DB Decibel

DBm Decibel relative to 1 mW

DCE Data Circuit-Terminating Equipment

DTE Data Terminal Equipment

EIRP Effective Isotropic Radiated Power

FEC Forward Error Correction

FPGA Field Programmable Gate Array

GPIO General Purpose Input/Output

IF Intermediate frequency

IP Internet Protocol

LED Light-Emitting diode

LOS Line of Sight

MIB Management Information Base

Modem Modulator-demodulator

Ms Millisecond

NC Normally closed

NMS Network Management System

OAM&P Operations, Administration, Maintenance, and Provisioning

OC-3 Optical Carrier level 3

ODU Outdoor Unit

PCB Printed circuit board

POP Point of Presence

QAM Quadrature Amplitude Modulation

QPSK Quadrature Phase Shift Keying

RF Radio Frequency

RSL Received Signal Level (in dBm)

RSSI Received Signal Strength Indicator/Indication

16 6. Appendix

RX Receiver

SDH Synchronous Digital Hierarchy

SNMP Simple Network Management Protocol

SNR Signal-to-Noise Ratio

SDIDUTM Software Defined Indoor Unit (Moseley trademark)

SONET Synchronous Optical Network

STM-1 Synchronous Transport Module 1

TCP/IP Transmission Control Protocol/Internet Protocol

TTL Transistor-transistor logic

TX Transmitter

6. Appendix 17

Conversion Chart

microvolts to dBm (impedance = 50 ohms)

microvolts dBm microvolts dBm

0.10 -127.0 180 -61.9

0.25 -119.0 200 -61.0

0.50 -113.0 250 -59.0

0.70 -110.1 300 -57.4

1.0 -107.0 350 -56.1

1.4 -104.1 400 -54.9

2.0 -101.0 450 -53.9

2.5 -99.0 500 -53.0

3.0 -97.4 600 -51.4

3.5 -96.1 700 -50.1

4.0 -94.9 800 -48.9

4.5 -93.9 900 -47.9

5.0 -93.0 1,000 -47.0

6.0 -91.4 1,200 -45.4

7.0 -90.1 1,400 -44.1

8.0 -88.9 1,600 -42.9

9.0 -87.9 1,800 -41.9

10 -87.0 2,000 -41.0

11 -86.2 2,500 -39.0

12 -85.4 3,000 -37.4

14 -84.1 3,500 -36.1

16 -82.9 4,000 -34.9

18 -81.9 4,500 -33.9

20 -81.0 5,000 -33.0

25 -79.0 6,000 -31.4

30 -77.4 7,000 -30.1

35 -76.1 8,000 -28.9

40 -74.9 9,000 -27.9

45 -73.9 10,000 -27.0

50 -73.0 22.36 mV -20 (10 mW)

60 -71.4 70.7 mV -10(100 mW)

18 6. Appendix

microvolts dBm microvolts dBm

70 -70.1 223.6 mV 0 (1 mW)

80 -68.9 707.1 mV +10 (10mW)

90 -67.9 2.23 V +20 (100 mW)

100 -67.0 7.07 V +30 (1 W)

120 -65.4 15.83 V +37 (5 W)

140 -64.1 22.36 V +40 (10 W)

160 -62.9

IN CASE OF DIFFICULTY...

Moseley products are designed for long life and trouble-free operation. However, this

equipment, as with all electronic equipment, may have an occasional component failure.

The following information will assist you in the event that servicing becomes necessary.

TECHNICAL ASSISTANCE

Technical assistance for Moseley products is available from our Technical Support

Department by phone or email. When calling, please give the complete model number of

the radio, along with a description of the trouble/symptom(s) that you are experiencing.

In many cases, problems can be resolved over the telephone, without the need for

returning the unit to the factory. Please use one of the following means for product

assistance:

Phone: 805 968-9621 E-Mail: mailto:Support@moseleysb.com

FAX: 805 685-7772 Web: http://www.moseleysb.com/mb

For all sales related questions please call your sales representative or for general inquires

please email sales@moseleysb.com.

FACTORY SERVICE

Component level repair of radio equipment is not recommended in the field. Many

components are installed using surface mount technology, which requires specialized

training and equipment for proper servicing. For this reason, the equipment should be

returned to the factory for any PC board repairs. The factory is best equipped to

diagnose, repair and align your radio to its proper operating specifications.

If return of the equipment is necessary, you will be issued a Service Request Order

(SRO) number and return shipping address. The SRO number will help expedite the

repair so that the equipment can be repaired and returned to you as quickly as possible.

Please be sure to include the SRO number on the outside of the shipping box, and on any

correspondence relating to the repair. No equipment will be accepted for repair without

an SRO number.

A statement should accompany the radio describing, in detail, the trouble symptom(s),

and a description of any associated equipment normally connected to the radio. It is also

important to include the name and telephone number of a person in your organization

who can be contacted if additional information is required.

The radio must be properly packed for return to the factory. The original shipping

container and packaging materials should be used whenever possible.
