User’s Guide
i294
i296
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: i294, i296
Model Number: H88XAH6JR2BN (i294), H88XAH6JR2AN (i296)
FCC-ID: IHDP56KY2 (i294), IHDP56KY1 (i296)
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
FCC Notice to Users
The following statement applies to all products that have
received FCC approval. Applicable products bear the FCC logo,
and/or an FCC ID in the format FCC-ID: IHDP56KY2 (i294),
IHDP56KY1 (i296) on the product label.
Motorola has not approved any changes or modifications to this device by
the user. Any changes or modifications could void the user’s authority to
operate the equipment. See 47 CFR Sec. 15.21.
Class B Digital Device
As a personal computer peripheral, this device complies with part 15 of
the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation. See 47 CFR Sec. 15.19(3).
Note:
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for
help.
Industry Canada Notice to Users
Operation is subject to the following two conditions: (1) This device may
not cause interference and (2) This device must accept any interference,
including interference that may cause undesired operation of the device.
See RSS-GEN 7.1.5.
Motorola, Inc.
Consumer Advocacy Office
600 North US Highway 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your phone to the above address. If you need to
return your phone for repairs, replacement, or warranty service,
please contact the Motorola Customer Support Center at:
1-800-453-0920 (United States)
1-877-483-2840 (TTY/TDD United States for hearing impaired)
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. Java and all other
Java-based marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2009.
Manual Number: NNTN7906A
1
HELLOMOTO

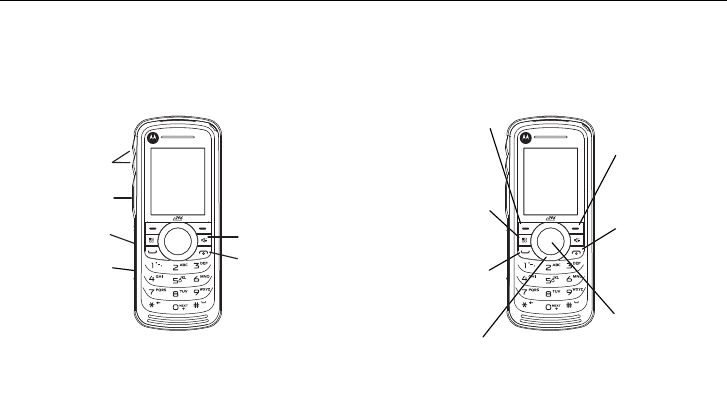

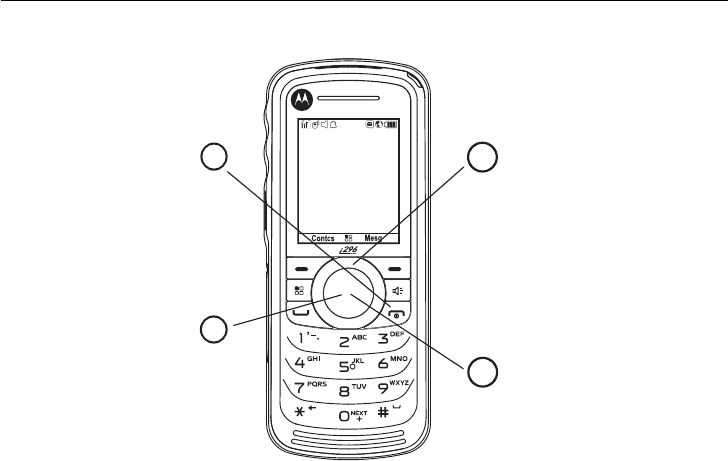

Introducing your new Motorola wireless phone. Here’s a quick anatomy lesson.
Left Soft Key
Perform function
in lower left
display.
Right Soft Key
Perform function
in lower right
display.
End/Power Key
End calls, exit
menu system,
turns phone
on/off.
Talk Key
Make &
answer calls.
OK Key
In menus & lists,
press to select
highlighted option.
4-Way Navigation
Key
On/Off Key
Volume Buttons
PTT Button
2.5mm Audio
Jack
Micro USB
Connector
Connects charger
and accessories.
Speaker Key
Menu Key
From home screen,
open main menu.
2
check it out
1
2
3
4
Press and hold the
Power Key for a
few seconds, or until
the screen lights up,
to turn on your phone.
Customizable r key
that can be used
to open the
Settings screen.
Press the Navigation Key
up, down, left or right
to highlight a menu feature.
Press the r key
to select.

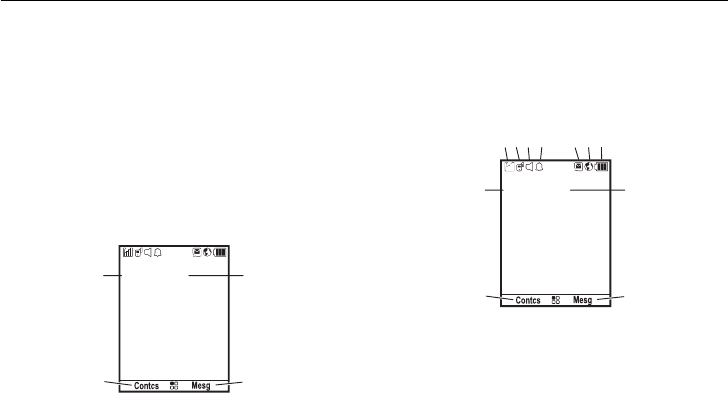

10:05pm 10/23
Ready
6
menu map
main menu
1
Net
L
Java Apps
• Java System
u
Settings
• (see next page)
0
VoiceRecord
• [New VoiceRec]
L
Contacts
• [New Contact]
• [New SDG List]
• [New Msg Group]
E
Messages
• [Create Message]
•Voice Mail
• Inbox
•Drafts
• Outbox
•Fax Mail
• Net Alert
• Sent Items
P
Call Forward
D
Datebook
l
Memo
M
Call Timers
•Last Call
• Phone Reset
• Phone Lifetime
•Prvt/Grp Reset
• Prvt/Grp Life
• Kbytes Reset
B
Recent Calls
K
Shortcuts
•[New Entry]
• 1)Shortcuts
• 2)Cntcs[New Contact]
• 3)Recent Calls
•4)Contacts
• 5)Datebook
• 6)Messages
• 7)VoiceRecord
•8)Net
• 9)Call Forward
J
My Info
•My Name
• Line 1
• Line 2
• Private ID
•Group ID
•Carrier IP
•IP1 Address
•IP2 Address
L
Quick PTT
o
Profiles
p
Call Alert
c
GPS
• Position
•Privacy
•Interface
t
Ring To n e s
• Vibrate All: On/Off
• Ringer
• Vibrate
• Silent
P
MOTOtalk
•Go To MOTOtalk
• Setup
•Help
j
Media Center
c
Bluetooth
(i296 only)
• Hands Free
• Link to Devices
• Device History
• Setup
• Find Me
N
PT Manager
•Quick PTT
• Send Message
• Send Picture
• Send Event
• Send My Info
• Send Contact
• Configure
This is the standard Main Menu layout.
Your phone’s menu may be a little different.
7
settings menu
Display/Info
• Wallpaper
•Text Size
• Theme
• Home Icons
• Backlight
•Clock
• Menu View
• Large Dialing
• Language
Phone Calls
• Set Line
•Any Key Ans
• Auto Redial
• Call Waiting
• Auto Ans
• Minute Beep
• Call Duration
• TTY
• Hearing Aid
• Notifications
• DTMF Dialing
• Prepend
2-Way Radio
• Tkgrp Silent
•Tkgrp Area
• One Touch PTT
•Alert Type
• PTT Quick Notes
•On/Off PTT
• Store Rcvd Info
Personalize
• Menu Options
•Up Key
•Down Key
•Left Key
• Right Key
• Center Key
• Left Sftkey
• Right Sftkey
•Power Up
Vo l um e
• Line 1
• Line 2
• Messages
• Earpiece
• Speaker
•Keypad
• Java Earpiece
• Java Spkr
•Data
Security
• Phone Lock
• Keypad Lock
• SIM PIN
•GPS PIN
• Change Passwds
Advanced
• Alert Timeout
• Headset/Spkr
• Connectivity
• Reset Defaults
• Return to Home
• Transmitters
• Phone Only
• Baud Rate
9
essentials
essentials
Caution:
Before using the phone for the first
time, read the Important Safety and Legal
information included in the gray-edged pages
at the back of this guide.
about this guide
This guide shows how to locate a menu
feature as follows:
Find it:
/
>
u
>
Phone Calls
This means that, from the home screen:
1
Press the menu key
/
and then press
the
Settings
u
menu option .
2
Press the navigation keys to scroll to
Phone
Calls
, and press the center key
r
to
select it.
symbols
This means a feature is network or
subscription dependent and may
not be available in all areas, or might
not be offered by your service
provider. Contact customer service
for more information.
This means a feature requires an
optional accessory.
10
essentials
SIM card
insert the SIM card
Warning:
To avoid loss or damage, do not
remove your SIM card from your phone
unless absolutely necessary.
battery
Note:
Please consult “Battery Use and
Safety” on page 85 before using this product.
battery installation

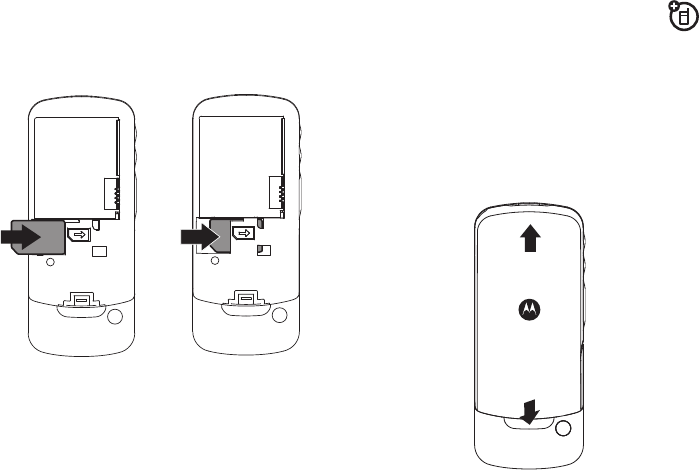

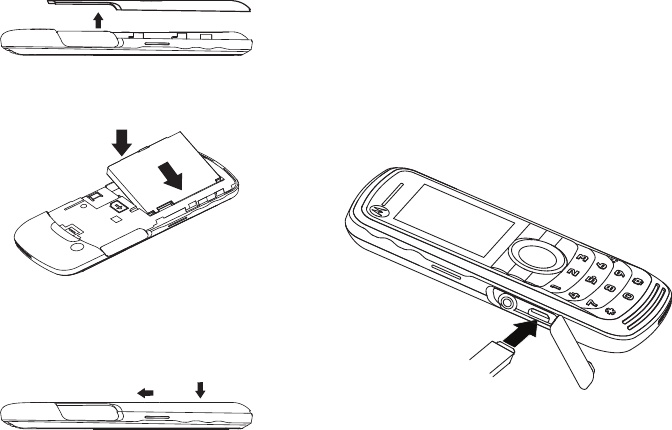

1
Press down on the battery door latch,
and slide the battery door up.
11
essentials
battery charging
New batteries are not fully charged.
charge using the charger
1
Pull out the connector cover, and insert
the charger into the micro USB connector
on your phone as shown.
2
Remove the battery door.
3
Push the battery down until it clicks in
place.
4
Replace the battery door, and slide it
toward the base of the phone until it
locks into place.
12
essentials
charge from your
computer
You can partially charge your phone’s battery
by connecting a Motorola-approved USB cable
from your phone’s micro USB port to a high
power USB connector on a computer (not a
low-power one, such as the USB connector
on your keyboard or bus-powered USB hub).
Typically, USB high-power connectors are
located directly on your computer.
battery indicators
d
The battery is at approximately 100%
to 90% capacity when the indicator is
blue and displaying three bars.
e
The battery is at approximately 65%
capacity when the indicator is green
and displaying two bars.
f
The battery is at approximately 10%
capacity when the indicator is yellow
and displaying one bar.
g
The battery is at approximately 5%
capacity when the indicator is red
and has a flashing red bar.
h
The battery is charging.
13
essentials
turn it on & off
To turn on your phone,
press and hold
@
for a few
seconds or until the display
turns on. If prompted, enter
your four-digit unlock code.
Note:
If you press the
@
for more than four
seconds, the phone will turn on in
Transmitters Off
mode. See “transmitters” on page 41.
To turn off your phone, press and hold
@
for
a few seconds.
enable security
You will need to enable security the first time
you power on your phone or within 10 days of
first activation of your phone.
1
Press
K
under
Ok
.
2
You are prompted to enable security.
Press
K
under
Yes
and follow on screen
instructions.
3
Press
@
to return to the home screen.
make a phone call
Enter a phone number and press
`
or use a
voice command. See “place a call using a
voice name” on page 60.
To hang up press
@
.
answer a phone call
•
If you want to answer the call on
speaker phone, press the speaker key
)
.
•
If you want to answer the call using the
phone, press
`
. To hang up press
@
.
14
essentials
•
If you are using a Bluetooth headset,
press the answer key on your headset.
To hang up press the key again.
advanced calling
make a private call
Your Private ID is the number at which you
receive one-to-one Private calls.
Talkgroup numbers are numbers through
which you receive one-to-many group calls.
to make a Private call
1
Enter the Private ID you want to call.
2
Press and hold the PTT button. Begin
talking after your phone emits a chirping
sound.
3
Release the PTT button to listen.
To end the call press
@
.
feature
call waiting
To accept the second call
and put the active call on
hold press
K
under
Yes
.
To accept the second call
and end the active call press
`
.
3-way call
Make or receive a phone call
and press
/
>
3 Way
. Enter
the second phone number,
press
`
and
K
under
Join
.
You cannot make any other
calls during a three-way call,
even if one party hangs up.
any key
answer
To answer phone calls by
pressing any key on the
keypad press
/
>
u
>
Phone Calls
>
Any Key Ans
>
On
.
feature
15
essentials
Note:
A Private call ends automatically if there
is no activity on the call for a few seconds.
send call alerts
Sending a call alert discretely lets the
recipient know that you want to talk to him or
her on a Private call.
When you send a call alert, the recipient’s
phone displays your name and emits a series
of beeps or vibrations.
to send a call alert
1
Enter the Private ID you want to call.
2
Press
K
under
Alert
.
When the message
Ready To Alert
appears on
the display, press the PTT button until the
message
Alert Successful
appears.
answer a private call
1
When your phone emits a chirping sound
or vibrates to indicate you are receiving a
Private call, wait for the caller to finish
speaking.
2
Press and hold the PTT button and begin
talking after your phone emits a chirping
sound.
3
Release the PTT button to listen.
To end the call press
@
.
answer a call alert
When you receive a call alert, you cannot
receive phone calls or Private calls until you
do one of the following:
option
Answer
Press the PTT button to begin a
Private call with the sender.
16
essentials
store a phone number
or private ID
You can store a phone number or private ID in
Contacts
:
Find it:
/
>
L
>
[New Contact]
1
Enter a name for the new entry. Each
entry’s name can contain 20 characters.
2
Select a
Ring Tone
.
3
Select a type for the entry (
Mobile
,
Private1
,
Private2
,
Work1
,
Work2
,
Home
,
Email1
,
Email2
,
Fax
,
Pager
,
Talkgroup
,
IP
or
Other
). To store a private
ID choose
Private1
or
Private2
.
4
Enter the number for the entry and press
K
under
Save
when done.
contacts
Queue
Press
K
under
Queue
to
store the
call alert to the call alert queue.
Clear
Press
K
under
Clear
to dismiss
and delete the call alert.
option
feature
edit/delete
contact
entry
Press
K
under
Contcs
. Select
a contact and press
/
>
Edit
. Change the desired
content and press
r
. Press
K
under
Save
.
set ringer ID
Press
K
under
Contcs.
Select
a contact and press
/
>
Edit
. Select
Ringer
and chose
your desired ring tone. Press
K
under
Back
.
17
essentials
call a stored phone
number or private ID
Find it:
/
>
L
1
Scroll to the
Contacts
entry.
2
If the Contacts entry contains more than
one number, scroll left or right until the
type of the number you want to call is
displayed (
Mobile
,
Private1
,
Private2
,
Work1
,
Work2
,
Home
, etc.).
3
If you chose a phone number, press
`
to
call the entry, or if you chose a Private ID,
Talkgroup ID, or SDG List, press and hold
the PTT button to call the number.
find your phone number
and private ID
Find it:
/
>
My Info
messaging
Your phone has the ability to use both SMS
and Multimedia Messaging Service (MMS)
messaging. The type of messaging your
phone uses will be determined by your
service provider.
Additionally, MMS allows you to send and
receive messages that may include text,
pictures, and audio files.
create and send messages
1
From the home screen press
K
under
Msgs
>
[Create Message]
.
2
Enter the phone number of the person
you want to send the message to and
press
r
or press
K
under
Search
. Select
Contacts
or
Recent Calls
to find the number you
want.
18
essentials
3
Select
Mesg
: and enter the text of the
message or to use a quick note press
K
under
QNotes
and scroll to the quick note
you want then press
r
.
4
If you want to send the message, press
K
under
Send
or to delete the message
without sending it, press
K
under
Cancel
.
quick notes
When you are filling in the
Mesg
and
Subject
fields, you can add ready-made words or short
phrases called Quick Notes. After you add
these words or phrases, you can edit them as
you would any other text.
1
While you are creating a message, scroll
to or select
Mesg
or
Subject
.
2
Press
K
under
QNotes
.
3
Select the quick note you want to insert
into the message.
4
Press
K
under
Send
.
MMS features
Note:
The following features are available only
when using MMS.
more message options
To view more message fields in a message
you are creating, select
....More....
The following options become available:
option
Subject
Create or edit the subject line.
Attach
Attach a picture, audio file, or
voice record.
Cc
Send a copy of this message to
someone else.
Auto Replies
Allows you to create a list of
possible short answers for the
recipient to choose when
replying to your message.
19
essentials
insert a picture and audio
recording
You can insert one or more pictures, and audio
files from the media center into the body of
the message. You can include text in the body
of your message in addition to these items.
insert items
While you are writing your message, press
/
, select
Insert
and choose from
Add QNotes
,
Add
,
Insert Audio
, or
Record Voice
.
Select the picture or audio recording you want
to insert. You can only insert one item at a
time.
To remove an item from a message, highlight
it and press
K
under
Delete
.
attach a picture or audio
recording
You can attach one or more pictures, audio or
voice recordings from your phone to a
message. You can include text in the body of
your message in addition to these items.
1
While you are filling in the
Attach
field,
press
[New]
> and select from
Browse Pictures
,
Browse Audio
, or
Record Voice
.
A list of available pictures, audio files, or
voice recordings appears.
2
Select the picture, audio or voice record
you want to attach.
Priority
Set priority
Normal
or
High
.
Valid Until
Set a date after which attempts
to deliver the message end, or
press
K
under
No Date
.
option
20
essentials
If you want to attach more items, select
[New]
.
3
When finished, press
K
under
Done
.
Note:
You can only attach audio files and
pictures if they are not forward locked and if
their DRM settings do not prevent you from
sending.
Forward locked items are usually copyright
protected, and you cannot share them with
anyone, such as in Private calls or by
uploading them from your phone.
create a new voice record
You can create a new voice record to send
with a message:
1
Press
/
or select
Attach
>
[New]
.
2
Select
Record Voice
.
3
Say the message you want to record into
the microphone.
4
When you are finished recording, press
r
.
5
When finished, press
K
under
Done
.
6
The voice record is attached to the
message and saved to the media center
and the list of voice records.
remove an attachment
To remove an attachment in a message you
are creating:
1
Select
Attach
.
2
Scroll to the attachment you want to
remove.
3
Press
/
>
Unattach
.
use drafts
When you save a message as a draft, it is
saved in the drafts folder.
Find it:
Press
/
>
E
>
Drafts
21
essentials
1
Select the draft you want to edit.
2
To edit the fields you want to change,
follow step 2 through step 4 in “create
and send messages”.
delete a draft
When you send a draft, it is removed from the
Drafts folder.
1
To delete a message in the Drafts folder
without sending it, scroll to the message
you want to delete and press
K
under
Delete
.
2
Press
K
under
Yes
to confirm.
inbox
Find it:
Press
/
>
E
>
Inbox
receive a message
•
To view the message, press
K
under
Read
.
•
To dismiss the message notification
press
K
under
Exit
.
While reading a text and numeric message
that contains a phone number, you can press
`
to call that number.
threaded inbox
The threaded Inbox allows you to organize
your messages by subject or sender.
From the Message Center, press
/
>
Threading
, and select from
None
,
Subject
, or
Sender
.
Note:
Threading by subject is dependant
upon your service provider.
22
essentials
read from the message center
1
From the home screen press
K
under
Mesg
>
Inbox
.
2
Select the message you want to read.
3
To reply to the message, press
K
under
Reply
.
delete unread messages
1
Scroll to the message you want to delete.
2
Press
K
under
Delete
and
K
under
Yes
to
confirm.
forward a message
1
Press
/
>
Forward
.
2
Create and send your message.
Embedded objects and attachments are
included when you forward a message.
lock and unlock messages
Locked messages cannot be deleted until you
unlock them.
1
View the message you want to lock or
unlock.
2
Press
/
>
Lock Message
or
Unlock Message
.
call a number in a message
If a message you receive contains a phone
number, Private ID, or Talkgroup ID in the
From
field, the
To
field, the
Cc
field, the
Subject
field, or
the body of the message, you can call or send
a call alert to that number.
send a call alert
1
View the message.
2
Highlight the Private ID or Talkgroup ID
you want to alert.
3
Press
/
>
Alert
.
23
essentials
4
Push the PTT button.
make a group call
1
View the message.
2
Highlight the Talkgroup ID you want to
call.
3
Press
/
.
4
Select
Talkgroup
.
5
Push the PTT button.
store message information to
contacts
If a message you receive contains a phone
number, Private ID, Talkgroup ID, or an email
address in the
From
field, the
To
field, the
Cc
field, the
Subject
field, or the body of the
message, you can store this information to
Contacts
.
1
View the message.
2
Highlight the number or email address
you want to save.
3
Press
/
>
Save Number
or
Save Address
.
4
To store the number or email address as a
new entry, select
[New Contact]
.
To store the number or email address to
an existing entry, select the entry.
5
With the Contacts type field highlighted,
press the navigation key left or right to
display the Contacts type you want to
assign the number or email address.
6
Press
K
under
Save
.
reply to a message
1
View the message you want to reply to.
2
To reply to the sender only, press
K
under
Reply
or press
/
and select
Reply All
to reply to all recipients.
24
essentials
3
A list of short phrases appears. Select any
of these phrases to add it to your
messages or select
[Create Reply]
.
4
Edit any message fields you want to
change.
5
Press
K
under
Send
.
use auto replies
If the message you are replying to was sent
with auto replies, it contains a numbered list
of possible replies for you to send. Press the
number of the reply you want to send. The
reply is sent immediately without further
action.
go to a website
If a message contains one or more website
URLs, you can go to that website.
1
View the message.
2
Highlight the website URL you want to go
to.
3
Press
/ > Go To Website.
Note:
The entire URL must appear in the
message to allow you to open the website.
embedded objects and
attachments
If a message contains pictures or audio files in
the body of the message, highlight each
picture or audio recording to view or play it.
If a message contains a picture or audio
recording as an attachment, open the
attachment to view the picture or play the
audio recording.
open attachments
1
View the message.
25
essentials
2
Highlight the attachment you want to
open. Attachments appear at the end of a
message.
3
Press
r
.
Attachments of an unknown type cannot be
opened, but can be deleted.
save an embedded picture or
audio recording
To save a picture or audio recording that is
part of the body of a message you receive:
1
View the message.
2
Highlight the picture or audio recording
you want to save.
3
Press
/
.
4
Select
Save Picture
or
Save Audio
.
The item will save in the default storage
location.
delete an embedded picture or
audio recording
To delete a picture or audio recording that is
part of the body of a message you receive:
1
View the message.
2
Highlight the picture or audio recording
you want to delete and press
/
.
3
Select
Delete Picture
or
Delete Audio
.
save attachments
1
View the message.
2
Highlight the attachment you want to
save.
3
Press
/
>
Save Attachment
.
Selected items save to the default storage
location.
26
essentials
delete attachments
1
View the message.
2
Highlight the attachment you want to
delete.
3
Press
/
>
Delete Attachment
.
4
Press
K
under
Yes
to confirm.
outbox
The Outbox holds all unsent messages.
Find it:
Press
/
>
E
>
Outbox
resending failed messages
from the outbox
1
Scroll to the message you want to resend
or press the number of the message you
want to resend.
2
Press
K
under
Resend
.
cancel an unsent message
1
Highlight the message you want to
cancel.
2
Press
/
.
3
Press
K
under
Cancel
.
sent items
The Sent Items box holds sent messages.
forward messages from sent
items
1
Scroll to the message you want to
forward.
2
Press
/
>
Forward
.
3
Make edits if you wish, select the
recipient and press
K
under
Send
.
27
essentials
setting up delivery reports
While creating a message you can set up read
receipts. Press
/
>
Delivery
Report
to view the
options
.
check delivery status
If a message was successfully sent and you
set the message to confirm delivery, you can
check the delivery status:
1
Scroll to the message you want to view.
2
Press
/
>
Delivery Status
.
delete sent messages
1
Scroll to the message you want to delete.
2
Press
K
under
Delete
.
3
Press
K
under
Yes
to confirm.
delete all unlocked sent messages
1
Press
/
>
Delete All
.
2
Press
K
under
Yes
to confirm.
option
Off
Delivery report will not be
generated.
On
Delivery report will be generated
when a message is delivered.
Note:
Delivery reports are
available with MMS only.
28
essentials
customize messaging
Find it:
/
>
E
>
/
>
Setup
This option is available from many menus.
The following options are available:
manage memory
Your text Inbox and Sent Items hold 200
messages each. The Outbox, and Drafts
folder hold up to 30 messages each. If they
are full, you cannot receive messages, send
option
Signature
Allows you to create a
signature that is automatically
inserted at the end of your
messages. Signatures can be
edited before sending the
message.
Quick Notes
Lets you create new Quick
Notes and edit or delete Quick
Notes you created.
Cleanup
Controls how long messages
remain in the
Inbox
and
Sent Items
before being deleted.
Delivery Rp:
Allows you to be automatically
notified when your message is
delivered.
Memory Size
Shows a report on used and
free memory in your phone.
MMS Setup
Opens a submenu to set MMS
options.
Note:
Available with MMS
only.
Text Message
Setup:
Opens a submenu to set text
messaging options.
Note:
Available with SMS only.
option
29
essentials
messages, or save drafts until you delete
some items.
Note:
Media files and Java applications can
affect the available amount of memory on
your phone. If you run out of memory and
your Inbox, Sent Items, Outbox, and Drafts
folder are empty, delete unwanted media files
and Java applications to free up memory.
To view the amount of memory available in
your text inbox:
Find it:
Press
/
>
E
>
/
>
Setup
>
Memory Size
MMS setup
Find it:
/
>
E
>
/
>
Setup
>
MMS Setup
The following options become available:
option
Friendly Name
Allows you to create a friendly
name. Your friendly name is
displayed in the
From
field on
other iDEN phones when your
message is received.
Downloads Downloads:
Controls whether
your phone downloads new
messages. Set this option to
Automatic
if you want your
phone to download new
messages automatically.
Select
Manual
if you want your
phone to prompt you before
downloading new messages.
30
essentials
text message setup
Find it:
/
>
E
>
/
>
Setup
>
Text Msg setup
The following options become available:
new quick notes and reply
phrases
create quick notes or replies
1
From the Setup menu, select
Quick Notes
, or
select
MMS Setup
>
Replies
.
2
Select
[New Quicknote]
, or
[New Reply]
.
3
Enter text from the keypad and press
r
.
edit quick notes or replies
You can edit only Quick Note phrases you
have created.
1
From the Setup menu, select
Quick Notes
, or
select
MMS Setup
>
Replies
.
2
Select the quick note or reply you want to
edit.
3
Edit the text and press
r
.
Replies Replies:
Lets you create or edit
and delete reply phrases you
created.
option
Srvc Cntr No
Allows you to enter a service
center number.
Expire After
Allows you to set the number
of days before a message
expires.
option
31
essentials
delete quick notes or replies you have
created
1
From the Setup menu, select
Quick Notes
, or
select
MMS Setup
>
Replies
.
2
Scroll to the quick note you want to
delete.
3
Press
K
under
Delete
.
4
Press
K
under
Yes
to confirm.
delete all quick notes or replies you
have created
1
From the Setup menu, select
Quick Notes
, or
select
MMS Setup
>
Replies
.
2
Press
/
>
Delete All
.
3
Press
K
under
Yes
to confirm.
cleanup options
The cleanup option controls how long and
how many messages remain in the Inbox and
Sent Items before they are deleted. You set
the cleanup option for the Inbox and Sent
Items separately.
The clean up option deletes only read,
unlocked messages and sent messages.
Find it:
/
>
E
>
/
>
Setup
>
Cleanup
1
Select
Inbox
or
Sent Items
.
2
Choose a clean up option from the
following list:
option
Off
Messages are never
automatically deleted.
5 Messages
If you have more than 5
messages, messages are
deleted in the order they were
received, starting with the
oldest, until 5 are left.
32
essentials
3
Press
K
under
Yes
to automatically delete
messages now or press
K
under
No
to
delete messages later.
delete all messages
Find it:
/
>
E
1
Select
Inbox
,
Drafts
,
Sent Items
, or
Outbox
.
2
Press
/
>
Delete All
.
3
Press
K
under
Yes
to confirm.
10 Messages
If you have more than 10
messages, messages are
deleted in the order they were
received, starting with the
oldest, until 10 are left.
1 Day
Messages are deleted if they
are older than 1 day.
3 Days
Messages are deleted if they
are older than 3 days.
With these options, messages
are deleted when you exit the
message center after setting
the option.
F-In F-Out
Messages are deleted as
necessary on a FirstIn FirstOut
basis.
option
Custom
Lets you create a clean-up
option of up to 199 messages
or 99 days for the Inbox and
Sent Items.
option
33
essentials
delete a thread
1
From the Inbox, select a thread.
2
Press
/
>
Delete Thread
.
3
Press
K
under
Yes
to confirm.
message notifications
When you receive a message, your phone
notifies you with text on the display, a
notification tone or vibration.
You can access the message or dismiss the
notification.
If you dismiss the notification, the message is
not deleted. It can be accessed through the
message center.
If you are not on a phone call when you
receive a message, your phone sounds a
notification tone every 30 seconds until you
access the message or dismiss the alert.
If you are on a call when you receive a
message, your phone may sound a
notification tone during the call or after you
end the call, depending on how you set your
notification options.
set notification options
To control whether your phone sounds
message notification tones while you are on a
phone call:
Find it:
/
>
u
>
Phone Calls
>
Notifications
Select from these options:
option
Receive All
Tones sound during calls for all
types of messages.
Msg Mail
Only
Tones sound during calls for mail
messages; tones for all other
types of messages are held until
you end calls.
34
essentials
To set notification options during a call press
/
>
Call Setup
>
Notifications
.
datebook
Delay All
Tones for all types of messages
are held until you end calls.
Note:
Delay All
is the default
setting.
feature
create
datebook
events
To create a new Datebook
event press
/
>
Datebook
>
[New Event]
.
see
datebook
event
To see a calendar event
press
/
>
Datebook
. Press
the navigation key left or
right to see the day and up
or down to see the events.
option
event
reminder
When an event reminder
occurs press
K
under
View
.
Press
K
under
Back
to close
the reminder.
receive
datebook
events via
PTT
To view the information
while still in the Private call
press
r
.
The 5 most recent events
received from a Private ID
are stored with that Private
ID on the recent calls list.
To store events to the
Datebook press
K
under
Save
while viewing the event
you want to store.
feature
35
essentials
datebook setup
Find it:
/
>
Datebook
>
/
>
Setup
You can view or change these options:
using your phone as
a modem
Your phone can be connected to a computer
via USB for use as a modem. For more
specific information on how to setup your
phone for use with your computer please visit
www.motorola.com/support
and look under the FAQ
section.
options
Start View
Sets Datebook to start in day
view, week view, or month
view when you access
Datebook.
Daily Begin
Sets the beginning of your day.
This is the earliest time of day
displayed in week view, if you
have a 12-hour day view.
Delete After
Sets the amount of time
Datebook waits to delete an
event after it occurs.
Time Shift
Lets you shift the times of all
Datebook events. This is
useful if you are traveling to a
different time zone.
Alert Timeout
Sets the amount of time a
tone continues to sound when
you receive a Datebook
reminder.
Clock
Controls whether the time
and date appear on the home
screen; sets time and date
format; sets year.
options
36
basics
basics
See page 1 for a basic phone diagram.
display
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and
`
.
Note:
Your home screen may look different.
Soft key labels show the current soft key
functions. For soft key locations, see page 1.
status indicators
Status indicators are shown at the top of the
home screen:
1Signal Strength Indicator:
Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when
~
shows.
10:05pm 10/23
Ready
Date
Right Soft
Key Label
Left Soft
Key Label
Time
10:05pm 10/23
Ready
Date
Right Soft
Key Label
Left Soft
Key Label
Time
1. 2. 3. 4. 5. 6. 7.
37
basics
2Active Phone Line:
$
indicates phone
line 1 is ready to make calls;
(
indicates
phone line 2 is ready to make calls.
3Speaker On/Off:
Sounds associated with
Private calls and group calls can be set to
come through the earpiece rather than
through the speaker.
4Ringer Vibe/Off:
Your phone is set to not
ring.
5 Message Indicator:
Shows when
you receive a text message.
6Packet Data:
Your phone is ready to
transfer packet data or is transferring
packet data when it shows a blinking
arrow.
7Battery Charge Indicator:
A fuller battery
indicates a greater charge. Recharge the
battery when your phone shows
Low Battery
.
main menu
All your phone’s features can be accessed
through the main menu. You can set the main
menu to appear as
List View
or
Icon View
.
Find it:
/
>
u
>
Display/Info
>
Menu View
text entry
Your phone provides convenient ways to enter
words, letters, punctuation, and numbers
whenever you are prompted to enter text (for
example, when adding a Contacts entry or
when using Text Messaging).
change the character input mode
1
When you see a screen where you can
enter text, press
/
to change the
character input mode.
38
basics
2
Select one of the following options:
Tip:
When entering text, press and hold
#
to change letter capitalization (
Abc
>
ABC
>
abc
).
word method
The Word text input method lets you enter
text into your phone by pressing keys just
once per letter.
The Word text input method combines the
groups of letters found on each phone key
with a fast-access dictionary of words, and
recognizes what you want to text as you type.
It first offers the most commonly-used word
for the key sequence you enter and lets you
access other choices with one or more
presses of the
0
key or ny pressing the
navigation key up or down. You may also hold
the navigation key down to display a pop-up
list of choices.
entry method
Alpha
Press a key several times for
different characters.
Word
Enter words using a predictive
text entering system that lets
you enter a word with fewer
keypresses.
Symbols
Enter symbols.
Numeric
Enter numbers by pressing the
numbers on the keypad.
Text Input
Settings
Selects the desired entry
languages and Word Prediction
features.
Insert
Selects a item to be inserted,
such a picture, an audio clip or a
voice recording.
Note:
available only when using
MMS messaging.
39
basics
enter a word using “word” method
character input
1
Select the
Word
character input method.
2
Press the corresponding keys once per
letter to enter a word (for example, to
enter the word
Bill
, press
2455
).
(If you make a mistake, press
*
to erase
a single character. Press and hold
*
to
delete an entire entry.)
3
To accept a word and insert a space,
press
#
.
To accept a word completion (such as
Billion when you entered Bill), press
;
right.
If you get a word you don’t want, you can
press the
0
key to see more word
choices and pick the one you want.
alpha method
To enter characters by tapping the keypad:
1
Select the
Alpha
method.
2
Press the corresponding keys repeatedly
until the desired letter appears. (For
example, to enter the word
Bill
, press
2
twice,
4
three times,
5
three times,
and
5
three times again. If you make a
mistake, press
Delete
to erase a single
character. Press and hold
Delete
to erase an
entire word.)
By default, the first letter of an entry is
capitalized and the following letters are
lowercased. After a character is entered, the
cursor automatically advances to the next
space after two seconds or when you enter a
character on a different key.
Characters scroll in the following order:
characters
1
Space . 1 ? ! , @ & : ; “ - ( ) ‘ ¿
¡ %
£ $ ¥
2
A B C 2 Á Ã Â À Ç
40
basics
When entering text, press and hold
#
to
switch between lowercase and uppercase
letters. The icons in the upper left-hand corner
of the screen show the character type.
volume
Press the volume keys up or
down to:
•
change the earpiece
volume during calls
•
change the ringer
volume from the home screen
Tip:
You can quickly set your ringer to
Vibrate All
by holding the down volume
key in the home screen.
3
D E F 3 É Ê È
4
G H I 4 Í Ì
5
J K L 5
6
M N O 6 ñ Ó Õ Ô Ò
7
P Q R S 7 ß
8
T U V 8 Ú Ü Û Ù
9
W X Y Z 9
0
+ - 0 * / \ [ ] = > < # §
#
Space / Shift
*
Back
characters character type
Q or T
Lowercase
R or U
Uppercase
S or V
Shift Lock
W
Numerical
X
Symbols
41
basics
navigation key
Press the navigation key
up, down, left, or right to
scroll to items in the
display. When you
highlight the desired
item, press
r
to select
it.
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
During a call, press
K
under
Spkr
to turn the
handsfree speaker On.
The handsfree speaker stays on until you
press
K
under
Spkr
again.
transmitters
Consult airline staff about the use of the
Transmitters Off feature during flight. Turn off
your phone whenever instructed to do so by
airline staff.
Transmitters Off turns off your phone’s calling
and Bluetooth features in situations where
wireless phone use is prohibited, but you can
use the phone’s other non-calling features
when Transmitters is turned Off.
Find it:
/
>
u
>
Advanced
>
Transmitters
>
Off
use GPS with map
software
Your phone can be connected to a PC, laptop,
or PDA via USB for use as a GPS receiver. For
more specific information on how to setup
your phone for use with your computer please
42
basics
visit
www.motorola.com/support
and look under the
FAQ section.
features for the hearing
impaired
using your phone with a
hearing aid
For best results use the following optimization
procedures and phone setting. They generally
apply as well for users with cochlear implants:

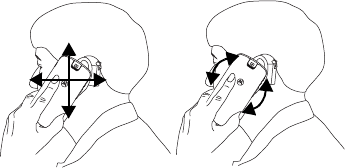

optimize your phone position and
orientation
While in a phone call slide your phone up and
down, then left and right until best
microphone coupling is obtained. You also
may need to adjust your hearing aid (HA)
volume setting
.
If your HA has a telecoil, activate its switch,
then also rotate the phone as illustrated to
align the telecoils.
Note:
Some automatically switched hearing
aids may need an auxiliary switching magnet.
If you are unsure whether your HA is telecoil
equipped or needs an auxiliary magnet,
please refer to your HA user guide or contact
a hearing aid professional or supplier.
43
basics
choose your hearing aid setting
Find it:
/
>
u
>
Phone Calls
>
Hearing Aid
1
Set this option to
Microphone
. Microphone
coupling is now optimized.
or
2
Set this option to
Telecoil
. Phone meets US
federal requirements for telecoil coupling
sound or set this option to
Off
(factory
default). This is the setting for non HA
users.
TTY
Approximate telecoil location is just
above the battery.
Approximate telecoil location is within
6-13 mm of this location.
Off - Shut off
M - Microphone
T - Telecoil
feature
turn On TTY
feature
Press
/
>
u
>
Phone Calls
>
TTY
>
Use TTY
>
On
.
choose TTY
mode
Press
/
>
u
>
Phone Calls
>
TTY
>
Type
.
Select from
TTY
,
VCO
or
HCO
.
change the
TTY baud
rate
Press
/
>
u
>
Phone Calls
>
TTY
>
Baud
.
Select
45.45
or
50.00
.
change TTY
mode
during a call
While in the TTY call, press
/
>
In Call Setup
>
TTY
>
Type
.
Select from
TTY
,
VCO
or
HCO
.
44
basics
security features
Note:
You can make emergency calls on a
locked phone (see page 61).
feature
phone lock
To lock the phone press
/
>
u
>
Security
>
Phone Lock
>
Lock Now
or
Auto Lock
.
keypad lock
To lock the keypad press
/
>
u
>
Security
>
Keypad Lock
>
Lock Now
or
Auto Lock
.
Shortcut:
To l ock the
keypad press
/
>
*
.
enable SIM
PIN
Press
/
>
u
>
Security
>
SIM PIN
>
On
.
change SIM
PIN
Press
/
>
u
>
Security
>
Change Passwords
>
SIM PIN
.
45
main attractions
main attractions
media center
The media center lets you access pictures and
audio recordings stored in your phone’s
memory.
The following audio recordings can be
accessed through the media center:
•
Voice records
•
Ringtones
•
Audio recordings saved from MMS
messages
•
Audio recordings downloaded to your
phone
Items in the media center can be sent in
MMS messages and with Bluetooth. See
“MMS features” on page 18 and
“Bluetooth
®
” on page 55.
Pictures in the media center can be sent in
Private calls using Send via PTT. See “PTX
features” on page 46.
Audio files supported by the Media Center
include:
FormatSampling Rates/Bit Rates
.au 8 KHz/8 kbps
.midi 8 KHz
.mp3 8 KHz/8 kbps
.wav 8 KHz/64 kbps
.amr 12kbps
46
main attractions
Image files supported by the Media Center
include:
PTX features
With Push To View features, your phone can
send and receive the following items through
Private calls with other phones that have this
capability:
•
Short text messages
1
•
Pictures
1
•
Datebook events
•
My Info
•
Contact information
You can choose to send messages, pictures,
events,
My Info
or
Contacts
information to the
Private ID you are engaged in a Private call
with, Private IDs on the
Recent Calls
list, and
Private IDs stored in
Contacts
.
When you make or receive a Private call, your
phone automatically determines whether the
phone you are engaged in a Private call with is
able to receive each of these items. Your
phone saves this information for as long as
the Private ID is on your
Recent Calls
list or is
saved in your
Contacts
. Your phone updates the
saved information each time you make or
receive a call to or from that Private ID.
Note:
You cannot send PTT feature items
during Talkgroup calls or SDGC calls.
FormatMax. Image Size (in pixels)
.png 128 x 160
.gif 128 x 160
.jpg 640 x 480
.wbmp 128 x 160
1. Additional charges may apply.
47
main attractions
send messages
The Push to Send Messages feature
lets you send short text messages through
Private calls.
When you send a message, it appears on the
display of the phone you are engaged in the
Private call with.
begin a message and choose a
recipient
You can begin a message during a Private call,
from the
Contacts
list, the
Recent Calls
list, or from
the
PT Manager
.
begin a message during a Private call
While in a Private call, press
/
>
Use PTT Feature
>
Send Message
.
Note:
The first time you send a message,
Messaging Fees May Apply Continue?
appears and you
are prompted to respond. Press
K
under
Yes
to acknowledge the message.
begin a message from the Contacts or
the Recent Calls list
1
From the
Contacts
or the
Recent Calls
list,
select the entry containing the Private ID
you want to send the message to.
2
Press
/
>
Use PTT Feature
>
Send Message
.
begin a message from the PT Manager
The
PT Manager
lets you select the Private ID
you want to send the message to from
Contacts
or the
Recent Calls
list.
Find it:
/
>
N
>
Send Contact
>
Browse
Then select
Contacts
or
Recent Calls
to see a list of
entries from the
Contacts
or the
Recent Calls
list
that can receive messages.
48
main attractions
create messages
After you have begun a message and chosen
a recipient, a screen appears that lets you
create the text of the message you want to
send. Your message may be up to 400
characters long.
You can choose from a list of ready-made
words or short phrases called Quick Notes.
You can use a Quick Note as it is or edit it
before you send it. Editing a Quick Note
changes the Quick Note for this message only
and will not change the Quick Note on the list.
send a completed message
After you have completed your message,
press the PTT button to send it.
receive messages
When you receive a message, a message
notification appears on the display.
To view the message, press
K
under
Read
.
To dismiss the message, press
K
under
Dismiss
.
reply to a message
1
View the message.
2
Press
K
under
Reply
.
3
Create the message and press the PTT
button to send it.
send pictures
You can send pictures stored in the
Media
Center
through Private calls. The picture you
send appears on the Private call recipient’s
display.
If the recipient accepts the picture, their
phone saves the picture. The picture then
appears in that phone’s recent call list.
49
main attractions
The first time you send a stored picture after
turning the phone on,
Picture Fees May Apply
Continue?
appears and you are prompted to
respond.
Note:
You cannot make or receive Private
calls while transmitting or receiving a picture.
send a picture during a call
1
While in a Private call, press
K
under
or press
/
>
Use PTT Feature
>
Send Picture.
A list of pictures that can be included in a
Private call appears.
2
Select the picture you want to send.
3
Press the PTT button to send the picture.
4
Wait while the picture is transmitted. The
Private call is temporarily interrupted
while a picture is transmitted.
5
When prompted, press the PTT button to
resume the Private call.
start a call by sending a picture
from the media center
Find it:
/
>
Media Center
1
Scroll left or right to
Media: Pictures
.
2
Select the picture you want to send.
3
Press
/
>
Send Via...
>
Send Via PTT
.
4
Select
A Contact
or
A Recent Call
A list of contacts that have Private IDs and
are able to receive pictures appears.
5
Select the name of the person you want
to send the picture to.
6
Press the PTT button to send the picture.
7
When prompted, press the PTT button to
resume the Private call.
50
main attractions
from the PT manager:
Find it:
/
>
N
>
Send Picture
1
Select
A Contact
or
A Recent Call
A list of contacts that have Private IDs and
are able to receive pictures appears.
2
Select the name of the person you want
to send the picture to.
3
Select
Browse Picture
.
4
Press the PTT button to send the picture.
5
Once picture has been sent, when
prompted press the PTT button to resume
the call.
receive a picture
When someone sends you a picture, your
phone emits a tone or vibrates and a message
appears asking if you want to accept the
picture.
Pictures you receive are saved to your phone’s
memory. They are accessible through the
media center.
When you see a message asking if you want
to accept the picture, press
Yes
to accept or
No
to decline.
clear a picture from the display
If you want to clear a picture from your
phone’s display while still on a call, press
/
>
Clear Screen
.
send a datebook event
To send a datebook event during a
private call:
1
While in a Private call press
/
>
Use PTT Feature
>
Send Event
.
Note:
If these options do not appear on
the menu, the Private ID you are engaged
51
main attractions
in a private call with is not able to receive
Datebook events.
2
If you want to create a new datebook
event, press
K
under
New
and create the
event in your datebook. If you want to
chose an existing event do so.
3
If the event is a recurring event: Select
This Event Only
to send only the event
selected. Select
Repeat Events
to send all
occurrences of the event.
4
Push the PTT button to send the event.
send my info
•
While in a Private Call press
/
>
Send via PTT > Send My Info
, and push the
PTT button to send.
•
From the home screen press
/
>
My Info
>
/
>
Send via PTT
. Enter a Private
ID or press
K
under
Browse
to chose a
recipient from Contacts, Recent Calls
or Memo, and press
r
. Push the PTT
button to send.
set my info sending option
You can control what portion of the
information in
My Info
is sent and whether it is
sent automatically in every call or only when
you choose to send it.
Find it:
/
>
PT Manager
>
Configure
>
PTT My Info
>
Info to Send
1
Select or remove the fields you want to
send.
2
Press
K
under
Done
.
The information your phone sends always
includes
My Name
, and
Private
. You may also
send
Line 1
,
Line 2
, and
Carrier IP
, depending on
your sending options.
52
main attractions
automatic sending
To control whether you send your information
automatically:
Find it:
/
>
PT Manager
>
Configure
>
PTT My Info
>
Auto Send
1
Select
On
or
Off
2
When you make a call in which your
information is sent automatically, the
name you entered in the
My Name
field of
My Info
appears on the display of the
recipient’s phone, even if your name and
Private ID are not stored in the recipient’s
Contacts.
send contact information
send contact during private call
1
While in a Private Call press
/
>
Use PTT Feature
.
2
Select
Send Contact
and select the contact
information you want to send.
3
Push the PTT button to send.
send contact from home screen
1
From the home screen press
/
>
PT Manager
>
Send Contact.
2
Enter the Private ID number of the person
you want to send the Contact information
to or press
K
under
Browse
.
3
Select from
Recent Calls
,
Contacts
, or
Memo
.
4
Select the contact information you want
to send and push the PTT button.
turn PTT features on and off
You can turn your phone’s ability to send and
receive messages, pictures, and Datebook
events on and off.
53
main attractions
You cannot turn your phone’s ability to send
and receive My Info and contact information
on and off.
Find it:
/
>
u
>
2-Way Radio
>
On/Off PTT
1
Check or uncheck Messages, Pictures or
Events.
one touch PTT
Find it:
/
>
u
>
2-Way Radio
>
One Touch PTT
One Touch PTT sets your phone to do any of
the following each time you press the PTT
button from the home screen:
option
Off
Nothing happens when you
press the PTT button from the
home screen.
Quick PTT
Go to Quick PTT. See “quick
PTT” on page 54.
Last Call
Call the most recent Private ID
or Group on the recent calls
list.
Assigned No.
Call a Private ID you assign.
Enter the number using your
keypad, or press
K
under
Search
. Select
Contacts
,
Recent Calls
,
or
Memo
.
Note:
If you are entering a
Talkgroup number, enter
#
before the number.
PT Manager
Go to PT Manager. See “PT
manager” on page 54.
Send
Message
:
Go to the first screen to send a
message.
Send Picture
: Go to the first screen to send
pictures. See “send pictures”
on page 48.
option
54
main attractions
quick PTT
Quick PTT lets you quickly make a call,
create an SDG list or make an SDG call when
accessing any Private IDs on your phone.
To view a list of Contacts and SDG lists with
Private IDs in
Contacts
:
Find it:
/
>
Quick PTT
To move between
Contacts
,
Recent Calls
, or
Memo
,
press the navigation key left or right.
To make a Private call or SDG call:
1
Select the entries you want.
2
Press
K
under
Done
.
3
Push the PTT button.
To save your selections as an SDG list press
/
>
Save SDG
. For more information about
SDG lists, see “selective dynamic group
(SDG) calls” on page 63.
If you want to assign a name to the SDG list,
enter the name.
Note:
If you do not assign a name, the SDG
list is named SDG followed by the number of
members in the SDG list. For example, SDG
(8) for an SDG list with 8 members.
PT manager
The
PT Manager
lets you quickly access PTT
features, and other Private call features, from
the main menu.
Send Event
Go to the first screen to send a
Datebook event.
Send My Info
Go to the first screen to send
My Info. See “send my info”
on page 51.
Send Contact
Go to the first screen to send a
contact. See “send contact
information” on page 52.
option
55
main attractions
Find it:
/
>
PT Manager
•
Select
Quick
PTT
,
Send Message
,
Send Picture
,
Send Event
,
Send My Info
,
Send Contact
,
or
Configure
. After choosing what PTT item
you are sending, select a contact and
press the PTT button to send.
•
Select
Configure
to configure your
PTT Quick
Notes
,
PTT My Info
,
One Touch PTT
, or
On/Off PTT
.
Bluetooth®
Note:
Bluetooth supported on i296 only.
Find it:
/
>
c
turn Bluetooth
on or off
You can turn your phone’s Bluetooth feature
on or off. While Bluetooth power is on, your
phone can communicate with other devices.
Find it:
/
>
c
>
Setup
>
Power
1
Select
On
to power Bluetooth On.
2
Select
Name
if you wish to assign a name
to your phone.
3
Select
Find Me Time
to determine the
amount of time in which your phone can
be found by other Bluetooth devices.
You can turn off Bluetooth if you want to
prolong battery life or if you enter an area
where Bluetooth is prohibited.
make a Bluetooth connection
connect your phone with a Bluetooth
headset
Find it:
/
>
c
>
Hands Free
1
Follow the instructions on your Bluetooth
headset to set it up to be found.
2
Once your Bluetooth headset is set to be
found, select
[Find Devices]
. Your phone will
scan for all Bluetooth devices in range.
56
main attractions
Select your Bluetooth headset from the
list of devices and press
r
.
3
Your phone requires that you pair it with
the Bluetooth headset in order to create a
connection. Press
K
under
Yes
when you
are prompted to pair with the headset.
4
Enter the Bluetooth pass key.
Some Bluetooth devices ship with
Bluetooth PINs. Please refer to your
Bluetooth device’s user guide to locate
this information.
If a device ships without a Bluetooth PIN,
then you can enter any PIN for that
device.
This phone offers the Bluetooth auto pair
feature with auto pair compatible
Motorola devices. When paired via
Bluetooth with a certain device, the PIN
will not be required.
5
Press
K
under
Ok
.
Note:
Once your phone and headset have
been paired, it will be stored on your phone
and you will not need to pair them again
unless the device is removed from memory.
connect your phone with another
Bluetooth device
Find it:
/
>
c
>
Link To Devices
1
Select the device you want from the list of
found devices on your screen.
2
Create a bond if you are prompted to do
so.
If you have previously connected to a device,
the device will be stored on your phone so
you can connect with it easily.
use Bluetooth during a call
You can connect with available Bluetooth
devices during a call.
1
While in a call, press
/
>
Use Bluetooth
.
57
main attractions
2
Select the audio device you want to
connect to from the list of
Hands Free Devices
.
If the
Audio Devices
list contains only one device,
your phone will try to connect to it.
send information via Bluetooth
Your phone can transfer Contacts entries,
Datebook events, audio files, and pictures to
another Bluetooth device.
The receiving device must be within 32 feet
(10 meters) of your phone in order to connect.
Note:
Files sent or received may be up
to 1 MB, depending on your service
provider.
sending information
1
From within Contacts, datebook, or Media
Center, select the Contacts entry,
Datebook event, audio file or picture you
want to send.
2
Press
/
>
Send Via...
>
Bluetooth
.
3
Select the device you want to transfer the
contact information to, or search for the
device by selecting
[Find Devices]
.
4
If prompted, bond with the device.
Your phone connects with the devices and
transfers the information.
58
call features
call features
turn off a call alert
You can press the volume keys to turn off a
call alert before answering the call.
recent calls
The recent calls list contains information
associated with calls you have made and
received and call alerts you have received.
When you send or receive Private calls, the
recent call list contains the following PTX
items with those calls:
•
contact information received
•
My Info received
•
short text messages received
•
pictures sent or received
•
Datebook events received
The recent calls list displays up to 20 of the
most recent calls and call alerts.
1
Press
/
>
Recent Calls
.
2
Scroll through the list.
3
To view more details of the item
press
r
.
store an item to contacts from
recent calls
Phone calls, Private calls, My Info, Contacts or
Location entries received from other phones
can be stored to the Contacts list from the
Recent Calls list.
59
call features
Find it:
/
>
Recent Calls
1
Scroll to or select the item you want to
store.
2
Press
K
under
Save
to store the
information as a new entry in the
Contacts list.
or
3
Select an existing contact and update the
information.
4
Press
K
under
Done
to save your changes.
redial
To redial your last outgoing call, press and
hold
`
or push the PTT button if it was a
private call.
caller ID
Caller ID allows people to identify a caller
before answering the phone by displaying the
number of the incoming call.
To block your phone number from being
displayed for a specific outgoing call:
1
Press
*67
.
2
Enter the number you want to call.
3
Press
`
.
To permanently block your number, call your
customer service provider.
call forward
Call forwarding sends calls to the phone
numbers you specify. You can forward all calls
to one number or forward missed calls to
different numbers depending on the reason
60
call features
you missed the call. You can forward phone
lines 1 and 2 independently.
Find it:
/
>
Call Forward
1
To forward all calls select
All Calls
and select
To
to enter the phone number you want all
your calls forwarded to.
or
2
You can specify a forwarding number for
each type of missed call by selecting
Detailed
and choosing the following options:
If Busy
: When your phone is on a call or
transferring data.
If No Answer
: When you do not answer on
the first 4 rings.
If Unreachable
: When your phone is out of
coverage or powered off.
voice names
You can place calls by speaking commands to
your phone if you have previously assigned a
voice name to your contacts.
assign voice names to contacts
1
Press
K
under
Contcs
and select
[New Contact]
.
2
Assign a name, phone number and select
[Options]
.
3
Select
Voice Name
and follow the prompt to
record the voice name.
4
Press
K
under
Back
and
K
under
Save
.
place a call using a voice name
1
Press the speaker key
)
until you are
prompted to say the voice name.
The phone will automatically place the call.
61
call features
emergency calls
Your service provider programs one or more
emergency phone numbers that you can call
under any circumstances. Emergency calls
can be made without a SIM card, when your
phone is locked, or when the SIM card is
blocked.
Note:
Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
Dial 911 or your local emergency number to
be connected to an emergency response
center. If you are on an active call, you must
end it before making an emergency call.
When you make an emergency call, your
phone’s GPS Enabled feature can help
emergency service personnel find you, if you
are in a location where your phone's GPS
antenna has established a clear view of the
open sky and your local emergency response
center has the equipment to process location
information. Because of the limitations of this
feature, always provide your location, to the
best of your knowledge, to the emergency
response center when you make an
emergency call
.
Note:
Emergency calls cannot be placed
while the keypad is locked, or if your phone is
displaying a
No Service
message on the screen.
To unlock the keypad, press
/
>
*
.
international calls
If your phone service includes international
dialing, press and hold
0
to insert your local
international access code (indicated by +).
Then, press the keypad keys to dial the
country code and phone number.
62
call features
speed dial
Each phone number stored in Contacts is
assigned a Speed Dial number, which you can
use to call that number.
1
From the home screen, use the keypad to
enter the Speed Dial number assigned to
the phone number you want to call.
2
Press
#
.
3
Press
`
.
turbo dial
The first nine entries in your contacts are set
for turbo dial. They can be called by pressing
and holding the speed dial number
(1 through 9).
voice mail
To receive voice mail messages, you must
first contact your service provider to set up a
voice mail account.
receiving a message
When you receive a voice mail message,
New
VoiceMail Message
appears on the display.
To call your service provider’s voice mail
system and listen to the message:
1
Press
K
under
Call
.
2
To dismiss the message notification:
•
Press
r
or
Back
.
If the caller leaves a message,
3
appears on
the display.
63
call features
selective dynamic
group (SDG) calls
An SDG call is similar to a Private call, but is
made to all members of an SDG list at once.
An SDG list is a group of Private IDs that you
create. An SDG list must contain at least 2
members and can contain up to 20 members.
You can create an SDG list for one call only or
store it to Contacts so you can call it any time.
Note:
In order to store SDG lists on your
phone, you you will need an SDG-capable SIM
card. For more information about
SDG-capable SIM cards, contact your service
provider. SDG lists created with your phone
are not readable by an older iDEN SIM-based
phone.
You can use Send via PTT to send SDG
lists to other phones that have this
capability.
create SDG lists in contacts
Find it:
/
>
L
1
Select
[New SDG List]
.
2
If you want to assign a name to the SDG
list, enter the name.
If you do not assign a name, the SDG list
is named “SDG” followed by the number
of members in the SDG list. For example,
“SDG (8)” for an SDG list with 8
members.
3
Add Private IDs. See “Add Private
Numbers” below.
4
Press
K
under
Save
.
add private numbers
You can add Private IDs to an SDG list by
selecting them from Contacts, the recent
calls list, or memo. You can add all members
in an existing SDG list by selecting the list.
64
call features
You can select more than one member from
Contacts and the recent calls list. A
checkmark appears next to each selected
item.
add members from contacts,
the recent calls list, or memo
1
While creating an SDG list, select
[Add
Member]
or select
[Add Number]
and press
K
under
Browse
.
2
Scroll to the members you want from
Contacts, the recent calls list, or Memo,
and press
r
. A checkmark appears next
to each selected member.
If you chose
[Add Number]
in step one, you can
enter a Private ID number from the keypad.
3
Press
K
under
Done
.
remove members or SDG lists
remove a member from an SDG list
1
From Contacts, scroll to the SDG list you
want to delete the member from.
2
Press
K
under
Edit
.
3
Scroll to the member you want to remove.
4
Press
/
>
Remove Member
.
5
Press
K
under
Save
.
remove all members from an SDG list
1
From Contacts, scroll to the SDG list you
want to delete the member from.
2
Press
K
under
Edit
.
3
Press
/
>
Remove All
.
4
Press
K
under
Yes
to confirm.
delete an SDG list from Contacts
1
Scroll to the SDG list you want to delete.
65
call features
2
Press
/
>
Delete SDG List
.
make SDG calls
1
From Contacts or the recent calls list,
scroll to or select the SDG list you want.
2
Push the PTT button.
start an SDG call with a
private ID
1
From the home screen, enter the Private
ID, or from the Contacts list or the recent
Calls List, scroll to an entry containing the
Private ID.
2
Press
/
>
Call SDG
.
3
Add more Private IDs. See “add private
numbers” on page 63.
If you want to save the SDG list you have
created press
/
>
Save SDG
, or if you do
not want to save the SDG list, press
K
under
Done
.
4
Push the PTT button to make the call.
SDG call information
While you are in an SDG call, the following
appears on the screen:
•
The name of the SDG list
•
The name or the Private ID of the
person speaking
•
The number of participants in the SDG
call
SDG Call Details
During an SDG call, you can view details
about the other SDG list members, such as
their name or Private ID, and their status on
the call. To view SDG call details, press
K
under
Details
.
66
call features
In the SDG Call Details view, these icons
appear next to member names or Private IDs:
F
The member of the SDG list who is
speaking.
E
A member of the SDG list who is active
on the SDG call, but not speaking.
D
A member of the SDG list who has
exited the call.
H
A member of the SDG list who could not
be reached on the SDG call.
G
A member of the SDG list whose status
is unknown.
75
customize
customize
ring tones
To set the ring tone your phone makes when
you receive phone calls, call alerts, message
notifications, pictures sent using Send via PTT
or Datebook reminders:
Find it:
/
>
Ring Tones
1
Make sure
Vibrate All
is set to
Off
.
2
Scroll through the list of ring tones and
select the one you want to assign.
Vibrate
sets your phone to vibrate instead
of making a sound.
Silent
sets your phone
to neither vibrate nor make a sound.
3
Select the features you want to assign the
ring tone to.
4
When you are finished, press
K
under
Done
.
Note:
This icon
,
appears on the display if
you set your phone to
Silent
. This icon
5
appears on the display if you set the phone to
Vibrate All
.
set your phone to vibrate
You can set your phone to vibrate for all calls
and alerts.
Find it:
/
>
Ring Tones
>
Vibrate All
Set this option to
On
or
Locked
.
Setting this option to
On
lets you turn
Vibrate All
off by pressing the up volume control. Setting
this option to
Locked
requires you to press and
hold the up volume control to turn
Vibrate All
off.
76
customize
The
Locked
option helps prevent you from
accidentally turning
Vibrate All
off.
To set
Vibrate All
to
On
or
Locked
using the volume
controls:
Press the volume controls to turn down the
volume as far as possible to set
Vibrate All
to
On
.
Continue to hold the down volume control to
set
Vibrate All
to
Locked
.
To set your phone to vibrate instead of making
a sound for some features but not others:
Find it:
/
>
Ring Tones
1
Make sure
Vibrate All
is set to
Off
.
2
Select
Vibrate
from the list of ring tones.
3
Select the features you want to set to
make no sound.
4
When you are finished, press
K
under
Done
.
backlight
Set the amount of time that the display and
java apps. backlights remain on, or turn off the
backlight feature to extend battery life.
Find it:
/
>
u
>
Display/Info
>
Backlight
wallpaper
Set a previously saved photo or picture as a
wallpaper (background) image on your phone’s
display screen or throughout all menu
screens.
Find it:
/
>
u
>
Display/Info
>
Wallpaper
1
Select
Wallpaper
.
2
Scroll through the list of pictures and
press
r
to select a picture.
You can set the wallpapers to change
automatically after a certain period of time by
turning on the
Auto Cycle
feature located in the
77
customize
Wallpaper menu. You can select from
5 minutes
,
15 minutes
,
1 hour
,
8 hours
,
Daily
, or
Startup
.
hide or show
location
Your phone has a location feature for use in
connection with location-based services that
may be available in the future.
Turning Location
On
will allow the network to
detect your position using GPS technology,
making some applications and services easier
to use. Turning Location off will disable the
GPS location function for all purposes except
911, but will not hide your general location
based on the cell site serving your call. No
application or service may use your location
without your request or permission. GPS-
enhanced 911 is not available in all areas.
set your privacy options
Find it:
/
>
GPS
>
Privacy
Select from the following options:
option
Restricted
No Java or similar software
applications may view the
location of your phone.
However, location information
may still be available to the
phone’s owner, fleet manager,
or account administrator.
Unrestricted
All applications may view the
location of your phone,
without notifying you.
78
customize
change GPS PIN
When you receive your phone, your GPS PIN
is 0000.
To change your GPS PIN press
/
>
u
>
Security
>
Change Passwords
>
GPS PIN
. Enter the
current GPS PIN and enter the new
four-to-eight digit GPS PIN. Re-enter the new
four- to eight-digit GPS PIN to confirm.
Ask Access
When an application attempts
to view the location of your
phone, you will be prompted
to give permission. However,
location information may still
be available to the phone’s
owner, fleet manager, or
account administrator.
option
Legal and Safety
79
Legal and Safety
Safety and General Information
This section contains important information on the safe and
efficient operation of your mobile device. Read this
information before using your integrated multi-service
portable radio.*
Exposure to Radio Frequency (RF) Energy
Your mobile device contains a transmitter and receiver. When it is
ON, it receives and transmits RF energy. When you communicate
with your phone, the system handling your call controls the power
level at which your phone transmits.
Your mobile device is designed to comply with local regulatory
requirements in your country concerning exposure of human beings
to RF energy.
Portable Radio Product Operation and EME
Exposure
Your Motorola radio product is designed to comply with the
following national and international standards and guidelines
regarding exposure of human beings to radio frequency
electromagnetic energy (EME):
•
United States Federal Communications Commission, Code
of Federal Regulations; 47 CFR part 2 sub-part J.
•
American National Standards Institute (ANSI) / Institute of
Electrical and Electronics Engineers (IEEE). C95. 1-1992.
•
Institute of Electrical and Electronics Engineers (IEEE).
C95. 1-2005 Edition.
*
•
International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998.
•
Ministry of Health (Canada). Safety Code 6. Limits of
Human Exposure to Radio frequency Electromagnetic
Fields in the Frequency Range from 3 kHz to 300 GHz,
1999.
•
Australian Communications Authority Radio
communications (Electromagnetic Radiation - Human
Exposure) Standard 2003.
•
ANATEL, Brazil Regulatory Authority, Resolution 303 (July
2, 2002) “Regulation of the limitation of exposure to
* The information provided in this document supersedes the general
safety information in user’s guides published prior to May 1, 2006
80
Legal and Safety
electrical, magnetic, and electromagnetic fields in the
radio frequency range between 9 kHz and 300 GHz.”
“Attachment to Resolution 303 from July 2, 2002."
Operational Precautions
For optimal mobile device performance, and to be sure that human
exposure to RF energy does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions.
Phone Operation
When placing or receiving a phone call, hold your mobile phone as
you would a landline telephone.
Speak directly into the
microphone
.
Two-way radio operation
Your radio product has been designed and tested to comply with
national and international standards and guidelines regarding
human exposure to RF electromagnetic energy, when operated in
the two-way mode (at the face, or at the abdomen when using an
audio accessory) at usage factors of up to 50% talk/50% listen.
Transmit no more than the rated duty factor of 50% of the time. To
transmit (talk), push the PTT button. To receive calls, release the
PTT button. Transmitting 50% of the time or less, is important
because this radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
When using your radio product as a traditional
two-way radio,
hold the radio product in a
vertical position with the microphone one
to two inches (2.5 to 5 cm) away from the
lips
.
If you wear the mobile device on your body,
always place the mobile device in a Motorola approved clip,
holder, holster, case or body harness. If you do not use a body-worn
accessory supplied or approved by Motorola and are not using the
mobile device in the intended use positions along side the head in
the phone mode or in front of the face in the two-way radio mode,
or if you hang your device from a lanyard around your neck, keep
the device at least 2.5 centimeters (1 inch) from your body when
transmitting.
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, or
visit our website at www.motorola.com/phoneaccessories.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed or
otherwise configured for RF energy compatibility. In some
circumstances your mobile device may cause interference with
other devices.
Legal and Safety
81
Follow Instructions to Avoid Interference
Problems
Turn OFF your mobile device in any location where posted notices
instruct you to do so.
In an aircraft, turn off your mobile device whenever instructed to
do so by airline staff. If your mobile device offers an airplane mode
or similar feature, consult airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical devices, such as a pacemaker
or defibrillator, consult your physician before using this mobile
device.
Persons with implantable medical devices should observe the
following precautions:
•
ALWAYS keep the mobile device more than 20
centimeters (8 inches) from the implantable medical
device when the phone is turned ON.
•
DO NOT carry the mobile device in the breast pocket;
•
Use the ear opposite the implantable medical device to
minimize the potential for interference.
•
Turn OFF the mobile device immediately if you have any
reason to suspect that interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
your mobile device with your implantable medical device, consult
your health care provider.
Hearing Aids
Some phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your hearing aid
manufacturer or physician to discuss alternatives.
Other Medical Devices and Health Care Facilities
If you use any other personal medical devices, consult your
physician or the manufacturer or your device to determine if it is
adequately shielded from RF energy. Turn off your radio product
when instructed to do so in hospitals or health care facilities that
may be using equipment that is sensitive to external RF energy.
Caring for the Environment by
Recycling
This symbol on a Motorola product means the
product should not be disposed of with household
waste.
Disposal of your Mobile Device and Accessories
Please do not dispose of mobile devices or electrical accessories
(such as chargers, headsets, or batteries) with your household
waste. These items should be disposed of in accordance with the
national collection and recycling schemes operated by your local or
82
Legal and Safety
regional authority. Alternatively, you may return unwanted mobile
devices and electrical accessories to any Motorola Approved
Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola
recycling activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging and
User’s Guide
Product packaging and user’s guides should only be disposed of in
accordance with national collection and recycling requirements.
Please contact your regional authorities for more details.
Driving Precautions
The use of wireless phones while driving may cause distraction.
Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Responsible driving practices can be found in the “Smart Practices
While Driving” section (see page 95).
Operational Warnings
Obey all posted signs when using Mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust
or metal powders.
When you are in such area, turn off your handset, and do not
remove, install, or charge batteries unless it is a radio product type
especially qualified for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or portable radio may contain symbols,
defined as follows:
Symbol Definition
Important safety information
follows.
Do not dispose of your battery
or phone in a fire.
032374o
032376o
Legal and Safety
83
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use and Battery Safety”
section in this user’s guide.
Keep Your Mobile Device and Its Accessories
Away from Small Children
These products are not toys and may be hazardous to small
children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing
hearing injury.
•
Improperly handled batteries could overheat and cause a
burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass
could break if the product is dropped on a hard surface or receives
a substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your mobile device until the glass is replaced
by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your mobile device.
Your battery or phone may
require recycling in
accordance with local laws.
Contact your local regulatory
authorities for more
information.
Do not throw your battery or
phone in the trash.
Your phone contains an
internal lithium ion battery.
Do not let your battery,
charger, or phone get wet.
Listening at full volume to
music or voice through a
headset may damage your
hearing.
Symbol Definition
032375o
032378o
Li Ion BATT
84
Legal and Safety
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Warning:
Warning: Exposure to loud noise from any
source for extended periods of time may affect your
hearing. The louder the volume sound level, the
less time is required before your hearing could be
affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones
at high volume.
•
Avoid turning up the volume to block out noisy
surroundings.
•
Turn the volume down if you can’t hear people speaking
near you.
If you experience hearing discomfort, including the sensation of
pressure or fullness in your ears, ringing in your ears, or muffled
speech, you should stop listening to the device through your
headset or headphones and have your hearing checked.
For more information about hearing, see our Web site at
www.motorola.com/hearingsafety
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Service and Repairs
If you have questions or need assistance, we’re here to help.
Go to
www.motorola.com/support
, where you can select from
a number of customer care options. You can also contact the
Motorola Customer Support Center at 1 (800) 453-0920 (United
States), 1 (877) 483-2840 (TTY, TDD United States for hearing
impaired).
Export Law Assurances
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Legal and Safety
85
Battery Use and Safety
•
In very limited circumstances, such as where your phone
has been exposed to extreme heat Cool Down message
screens will appear. To avoid possible damage to your
battery and phone, you should follow these instructions
until the phone is within its recommended temperature
range. When your phone is in Cool Down mode, only
emergency calls may be made.
• Motorola recommends you always use
Motorola-branded batteries and chargers.
The
warranty does not cover damage caused by non-Motorola
batteries and/or chargers.
Caution:
Use of an unqualified battery or charger may
present a risk of fire, explosion, leakage, or other hazard.
Improper battery use, or use of a damaged battery, may
result in a fire, explosion, or other hazard.
•
Battery usage by children should be supervised.
• Important
: Motorola mobile devices are designed to work
best with qualified batteries. If you see a message on your
display such as
Invalid Battery
or
Unable to Charge
, take the
following steps:
•
Remove the battery and inspect it to confirm it bears a
Motorola “Original Equipment” hologram;
•
If there is no hologram, the battery is not a qualified
battery;
•
If there is a hologram, replace the battery and retry
charging it;
•
If the message remains, contact a Motorola Authorized
Service Center.
•
When storing your battery, keep it in a cool, dry place.
•
It is normal over time for battery life to decrease, and for
the battery to exhibit shorter runtime between charges or
require more frequent or longer charging times.
Important: Handle and store batteries properly to avoid
injury or damage.
Most battery issues arise from improper
handling of batteries, and particularly from the continued use of
damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or
otherwise attempt to change the form of your
battery.
• Don’t let the phone or battery come in contact with
water.
Water can get into the phone’s circuits, leading to
corrosion. If the phone and/or battery get wet, have them
checked by your carrier or contact Motorola, even if they
appear to be working properly.
• Don’t allow the battery to touch metal objects.
If
metal objects, such as jewelry, stay in prolonged contact
with the battery contact points, the battery could become
very hot.
86
Legal and Safety
• Don’t place your battery near a heat source.
Excessive heat can damage the phone or the battery. High
temperatures can cause the battery to swell, leak, or
malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an appliance or
heat source, such as a hair dryer or microwave oven.
•
Avoid leaving your phone in your car in high temperatures.
DOs
• Do avoid dropping the battery or phone.
Dropping
these items, especially on a hard surface, can potentially
cause damage.
• Do contact your service provider or Motorola if your
phone or battery has been damaged from dropping
or high temperatures.
Important: Use Motorola Original products for quality
assurance and safeguards.
To aid consumers in identifying
authentic Motorola batteries from non-original or counterfeit
batteries (that may not have adequate safety protection), Motorola
provides holograms on its batteries. Consumers should confirm
that any battery they purchase has a “Motorola Original”
hologram.
Motorola recommends you always use Motorola-branded
batteries and chargers.
Motorola mobile devices are designed
to work with Motorola batteries. If you see a message on your
display such as
Invalid Battery
or
Unable to Charge
, take the following
steps:
•
Remove the battery and inspect it to confirm that it has a
“Motorola Original” hologram;
•
If there is no hologram, the battery is not a Motorola
battery;
•
If there is a hologram, replace the battery and retry
charging it;
•
If the message remains, contact a Motorola authorized
service center.
Important:
Motorola’s warranty does not cover damage to the
phone caused by non-Motorola batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger may present a
risk of fire, explosion, leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper
battery disposal is not only important for safety, it benefits the
environment. Consumers may recycle their used batteries in many
retail or service provider locations. Additional information on
proper disposal and recycling may be found on the Web:
• www.motorola.com/recycling
• www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries in accordance with
local regulations. Contact your local recycling center or national
recycling organizations for more information on how to dispose of
batteries.
Warning:
Never dispose of batteries in a fire because they may
explode.
Legal and Safety
87
Battery Charging
Notes for charging your phone’s battery:
•
When charging your battery, keep it near room
temperature. Never expose batteries to temperatures
below 0°C (32°F) or above 45°C (113°F) when charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take
more time to charge.
•
Motorola batteries and charging systems have circuitry
that protects the battery from damage from overcharging.
Specific Absorption Rate
Your model wireless phone meets the governmental
requirements for exposure to radio waves.
Your mobile device is a radio transmitter and receiver. It is
designed and manufactured to not exceed limits for exposure to
radio frequency (RF) energy set by the Federal Communications
Commission (FCC) of the U.S. Government and by the Canadian
regulatory authorities. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for the
general population. The guidelines are based on standards that
were developed by independent scientific organizations through
periodic and thorough evaluation of scientific studies. The
standards include a substantial safety margin designed for the
safety of all persons, regardless of age or health, and to account
for any variations in measurements.
The exposure standard for mobile devices employs a unit of
measurement known as the Specific Absorption Rate (SAR). The
SAR limit set by the FCC and by the Canadian regulatory
authorities is 1.6 watts per kilogram (W/kg), averaged over one
gram of tissue. Tests for SAR are conducted using procedures
accepted by the FCC and by Industry Canada with the mobile
device transmitting at its highest certified power level in all tested
frequencies. Although the SAR is determined at the highest
certified power level, the actual SAR level of the mobile device
while operating can be below the maximum value. This is because
the mobile device is designed to operate at multiple power levels
so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station, the lower
the power output.
Before a mobile device is available for sale to the public in the U.S.
and Canada, it must be tested and certified to the FCC and Industry
Canada that it does not exceed the limit established by each
government for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the body)
submitted to the FCC and available for review by Industry Canada.
The highest SAR value for this mobile device when tested for use
at the ear is 1.43 W/kg, and when worn on the body, as described
in this guide, is 1.09 W/kg. Body-worn measurements can differ,
depending upon available accessories and regulatory
requirements. The SAR information includes the Motorola testing
88
Legal and Safety
protocol, assessment procedure, and measurement uncertainty
range for this product.
While there may be differences between the SAR levels of various
mobile devices and at various positions, they meet the
governmental requirements for safe exposure. Please note that
improvements to this product model could cause differences in the
SAR value for later products; in all cases, products are designed to
be within the guidelines.
Additional information on SAR can be found on the Cellular
Telecommunications & Internet Association (CTIA) Web site:
http://www.phonefacts.net
or the Canadian Wireless Telecommunications Association (CWTA)
Web site:
http://www.cwta.ca
AGPS and Emergency Calls
When you make an emergency call, your mobile device can use
Assisted Global Positioning System (AGPS) satellite signals to tell
the emergency response center your approximate location.
The AGPS feature has limitations, so always tell the emergency
response center your best knowledge of your location. Remain on
the phone for as long as the emergency response center instructs
you.
AGPS
might not work
for emergency calls, if your local
emergency response center does not process AGPS location
information. For details, contact your local authorities.
If your mobile device cannot find strong AGPS satellite signals, the
location of the nearest cell tower in contact with your mobile
device is automatically provided to the emergency response
center.
AGPS Performance Tips
•
Go outside and away from underground locations, covered
vehicles, structures with metal or concrete roofs, tall
buildings, and foliage. Indoor performance might improve
if you move closer to windows, but some window sun
shielding films can block satellite signals.
•
Move away from radios, entertainment equipment, and
other electronic devices that might interfere with or block
AGPS satellite signals.
AGPS uses satellites controlled by the U.S. government and
subject to changes implemented in accordance with the
Department of Defense AGPS user policy and the Federal Radio
Navigation Plan. These changes might affect AGPS performance.
Legal and Safety
89
Limited Warranty Motorola
Communications Products
(International)
What Does this Warranty Cover?
MOTOROLA warrants the MOTOROLA manufactured iDEN
Communication Products listed below (“Product”) against defects
in material and workmanship under normal use and service for a
period of time from the date of purchase as scheduled below:
Rechargeable Batteries will be replaced during the applicable
warranty period if:
•
the battery capacity falls below 80% of rated capacity, or
•
the battery develops leakage.
MOTOROLA, at its option, will at no charge either repair the
Product (with new or reconditioned parts), replace it (with a new or
reconditioned Product), or refund the purchase price of the Product
during the warranty period provided it is returned in accordance
with the terms of this warranty. Replaced parts or boards are
warranted for the balance of the original applicable warranty
period. All replaced parts of Product shall become the property of
MOTOROLA.
This express limited warranty is extended by MOTOROLA to the
original end user purchaser only and is not assignable or
transferable to any other party. This is the complete warranty for
the Product manufactured by MOTOROLA. MOTOROLA assumes
no obligations or liability for additions or modifications to this
warranty unless made in writing and signed by an officer of
MOTOROLA. Unless made in a separate agreement between
MOTOROLA and the original end user purchaser, MOTOROLA does
not warrant the installation, maintenance or service of the Product.
MOTOROLA cannot be responsible in any way for any ancillary
equipment not furnished by MOTOROLA which is attached to or
used in connection with the Product, or for operation of the Product
with any ancillary equipment, and all such equipment if expressly
excluded from this warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims liability for range,
Products Covered Length of Coverage
iDEN Subscriber
Digital Mobile and
Portable Units
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Product Accessories
(manufactured by or
under license from
MOTOROLA).
One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
Batteries. One (1) year
from the date of
purchase by the first consumer
purchaser of the product unless
otherwise provided for below.
90
Legal and Safety
coverage, or operation of the system as a whole, or any portion of
the system not produced by MOTOROLA, under this warranty.
General Provisions:
This warranty sets forth the full extent of MOTOROLA’S
responsibilities regarding the Product, Repair, replacement or
refund of the purchase price, at MOTOROLA’S options, is the
exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL
OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,
INLCUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY TO
THE FULL EXTENT SUCH MAY BE DISCLAIMED BY LAW. IN NO
EVENT SHALL MOTOROLA BE LIABLE FOR DAMAGES IN EXCESS
OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY LOSS OF
USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST
PROFITS OR SAVINGS OR OTHER INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT SUCH
MAY BE DISCLAIMED BY LAW.
How to Get Warranty Service:
You must provide proof of purchase (bearing the date of purchase
and Product item serial number) in order to receive warranty
service and, also, deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty service location.
Warranty service will be provided by MOTOROLA through one of
its authorized warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer or
communication service provider), it can facilitate your obtaining
warranty service.
What This Warranty Does Not Cover:
•
Defects or damage resulting from use of the Product in
other than its normal and customary manner.
•
Defects or damage from misuse, accident, water, or
neglect.
•
Defects or damage from improper testing, operation,
maintenance, installation, alteration, modification, or
adjustment.
•
Breakage or damage to antennas unless caused directly by
defects in material workmanship.
•
A Product subjected to unauthorized Product
modifications, disassembles or repairs (including, without
limitation, the audition to the Product of non-MOTOROLA
supplied equipment).
•
Product which has had the serial number removed or made
illegible.
•
Rechargeable batteries if:
Any of the seals on the battery enclosure of cells are
broken or show evidence of tampering.
The damage or defect is caused by charging or using the
battery in equipment or service other than the Product for
which it is specified.
Legal and Safety
91
•
Freight costs to the repair depot.
•
A Product which, due to illegal or unauthorized alteration
of the software/firmware in the Product, does not function
in accordance with MOTOROLA’S published specifications
or the local type acceptance labeling in effect for the
Product at the time the Product was initially distributed
from MOTOROLA.
•
Scratches or other cosmetic damage to Product surfaces
that does not effect the operation of the Product.
•
Normal and customary wear and tear.
•
Exclusion for defects or damage arising from use of the
products in connection with non-MOTOROLA equipment.
Patent and Software Provisions:
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a patent, and Motorola will
pay those costs and damages finally awarded against the end user
purchaser in any such suit which are attributable to any such
claim, but such defense and payments are conditioned on the
following:
•
That MOTOROLA will be notified promptly in writing by
such purchaser of any notice of such claim;
•
That MOTOROLA will have sole control of the defense of
such suit and all negotiations for its settlement or
compromise; and
•
Should the Product or parts become, or in MOTOROLA’S
opinion be likely to become, the subject of a claim of
infringement of a patent, that such purchaser will permit
MOTOROLA, at its option and expense, either to procure
for such purchaser the right to continue using the Product
or parts or to replace or modify the same so that it
becomes non infringing or to grant such purchaser a credit
for the Product or parts as depreciated and accept its
return. The depreciation will be an equal amount per year
over the lifetime of the Product or parts as established by
MOTOROLA.
MOTOROLA will have no liability with respect to any claim of
patent infringement which is based upon the combination of the
Product or parts furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or software not
furnished by MOTOROLA which is attached to or sued in
connection with the Product or any parts thereof. In no event shall
MOTOROLA be liable for any incidental, special or consequential
damages arising from any claim of patent infringement or alleged
infringement.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software, such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software
was originally embodied and such software in such Product may
not be replaced, copied, distributed, modified in any way, or used
92
Legal and Safety
to produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise or
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
Hearing Aid Compatibility With Mobile
Phones
Some Motorola phones are measured for compatibility with
hearing aids. If the box for your particular model has “Rated for
Hearing Aids” printed on it, the following explanation applies.
When some mobile phones are used near some hearing devices
(hearing aids and cochlear implants), users may detect a buzzing,
humming, or whining noise. Some hearing devices are more
immune than others to this interference noise, and phones also
vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of
their mobile phones, to assist hearing device users in finding
phones that may be compatible with their hearing devices. Not all
phones have been rated. Phones that are rated have the rating on
their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the
user’s hearing device and hearing loss. If your hearing device
happens to be vulnerable to interference, you may not be able to
use a rated phone successfully. Trying out the phone with your
hearing device is the best way to evaluate it for your personal
needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and
are likely to generate less interference to hearing devices than
phones that are not labeled. M4 is the better/higher of the two
ratings.
T-Ratings:
Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing device’s telecoil (“T
Switch” or “Telephone Switch”) than unrated phones. T4 is the
better/higher of the two ratings. (Note that not all hearing devices
have telecoils in them.)
Hearing devices may also be measured for immunity to this type of
interference. Your hearing device manufacturer or hearing health
professional may help you find results for your hearing device. The
more immune your hearing aid is, the less likely you are to
experience interference noise from mobile phones.
Information From the World Health
Organization
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
exposure by limiting the length of calls or by using hands-free
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Legal and Safety
93
Further information:
http://www.who.int./peh-emf
.
Product Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new
Motorola product. Registering permits us to contact you for
product or software updates and allows you to subscribe to
updates on new products or special promotions. Registration is not
required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Wireless: The New Recyclable
Your wireless phone can be recycled. Recycling your phone
reduces the amount of waste disposed in landfills and allows
recycled materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their phones and
have taken steps to promote the collection and environmentally
sound recycling of end-of-life devices.
As a phone user, you have an important role in ensuring that this
device is recycled properly. When it comes time to give this phone
up or trade it in for a new one, please remember that the phone,
the charger, and many of its accessories can be recycled. It's easy.
To learn more about CTIA's Recycling Program for Used Wireless
Devices, please visit us at:
http://recycling.motorola.young-america.com/ index.html
California Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate
.
There is no special handling required by consumers.
Patent and Trademark Information
MOTOROLA, the Stylized M Logo and all other trademarks
indicated as such herein are trademarks of Motorola, Inc. ® Reg.
U.S. Pat. & Tm. Off. © 2009 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are registered
trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic Communications.
T9
®
Text Input Patent and Trademark Information.
94
Legal and Safety
This product is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541,
U.S. Pat. 6,011,554 and other patents pending.
Java and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other
countries.
All other product names or services mentioned in this manual are
the property of their respective trademark owners.
Software Copyright Notice
Motorola products may include copyrighted Motorola and third
party software stored in semiconductor memories or other media.
Laws in the United States and other countries preserve for
Motorola and third party software providers certain exclusive
rights for copyrighted software, such as the exclusive rights to
distribute or reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola products may not
be modified, reverse-engineered, distributed, or reproduced in any
manner to the extent allowed by law. Furthermore, the purchase of
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third
party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your mobile device may
affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access—
Keep your mobile device with you and
do not leave it where others may have unmonitored
access. Lock your device’s keypad where this feature is
available.
• Keep software up to date—
If Motorola or a
software/application vendor releases a patch or software
fix for your mobile device that updates the device’s
security, install it as soon as possible.
• Erase before recycling—
Delete personal information
or data from your mobile device prior to disposing of it or
turning it in for recycling. For instructions on how to delete
all personal information from your device, please contact
your local service provider.
• Understanding AGPS—
To provide location information
for emergency calls, certain Motorola mobile devices
incorporate Assisted Global Positioning System (AGPS)
technology. AGPS technology also can be used in
non-emergency applications to track and monitor a user’s
location—for example, to provide driving directions. Users
who prefer not to permit such tracking and monitoring
should avoid using such applications.
Legal and Safety
95
If you have further questions regarding how the use of your mobile
device may impact your privacy or data security, please contact
Motorola at
privacy@motorola.com
, or contact your service
provider.
Smart Practices While Driving
Drive Safe, Call Smart
SM
Check the laws and regulations on the use of phones and
their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas—for example handsfree use
only. Go to www.motorola.com/callsmart (in English only)
for more information.
Your mobile device lets you communicate by voice and
data—almost anywhere, anytime, wherever wireless service is
available and safe conditions allow. When driving a car, driving is
your first responsibility. If you choose to use your phone while
driving, remember the following tips:
• Get to know your Motorola mobile device and its
features such as speed dial and redial.
If available,
these features help you to place your call without taking
your attention off the road.
• When available, use a handsfree
device.
If possible, add an additional
layer of convenience to your phone with
one of the many Motorola Original handsfree accessories
available today.
• Position your mobile device within easy reach.
Be
able to access your phone without removing your eyes
from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voice mail answer
it for you.
• Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while
driving.
Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility, driving safely.
• Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic.
If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
• Do not engage in stressful or emotional
conversations that may be distracting.
Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
• Use your mobile device to call for help.
Dial 911 or
other local emergency number in the case of fire, traffic
96
Legal and Safety
accident, or medical emergencies (wherever wireless
phone service is available).
• Use your mobile device to help others in
emergencies.
If you see an auto accident, crime in
progress, or other serious emergency where lives are in
danger, call 911 or other local emergency number
(wherever wireless phone service is available), as you
would want others to do for you.
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary.
If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number (wherever
wireless phone service is available).
www.motorola.com
NNTN7906A
@NNTN7906A@
xxxxxxxx xx xx JAN/10
Printed in USA

Navigation menu
