1EN Check it out
Check it out
here’s what you can do
Unlock your phone’s true potential. With the Motorola
Lapdock™ 500 Pro, turn your webtop-enabled mobile
phone into a productivity powerhouse.
Note: Only some Motorola phones are
compatible with the Lapdock. Visit
qr.motorola.com/lapdock500 or scan the
QR code with your phone to see if your
phone is compatible.
• Large display: You’ll no longer have to zoom in or
scroll around to look at webpages. With your dock’s
14 inch screen, you’ll be able to see webpages as
they were meant to be seen.
• Full size keyboard: Type long messages with ease on
the dock’s full sized keyboard.
• USB ports: Connect a mouse, and flash drive or hard
drive to the dock’s two USB ports.
Note: USB mass storage devices should be formatted
with the FAT32 file system. Refer to your storage
device’s manual for more information on it’s file
system.
•Webcam: Use the webcam to video chat with family
and friends.
• SD card reader: Store files on SD cards.
• Charge your phone: Your phone charges while using
your dock.
• Ethernet port: No Wi-Fi? Poor reception? No
problem. Use the Ethernet port to connect your dock
to the Internet.
Note: Just like your phone, your dock supports
data-intensive apps and services. You can use a Wi-Fi or
ethernet connection when available. However, it’s
strongly recommended you purchase a data plan for
your phone that meets your needs. Contact your service
provider for details.
Go ahead, check it out:
Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Connect & go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Want more? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Safety, Regulatory & Legal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caution: Please read the important safety, regulatory
and legal information at the back of this guide.
November 5, 2011
2Start EN
Start
let’s get you up and running
Attach phoneCharge
Dock phone
12
4

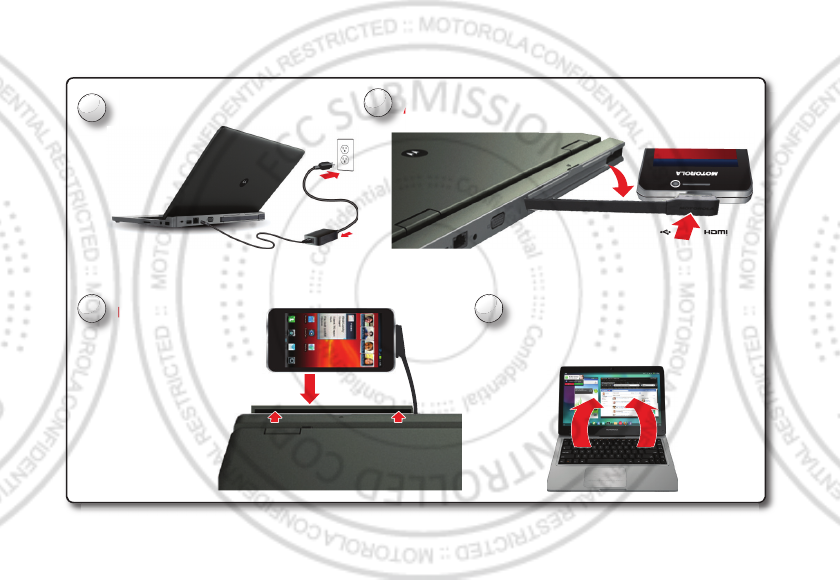

After you attach the phone, just open the dock
and you’re ready to go.
Turn on
A. Open cradle.
B. Lower into cradle.
A. Release dock cable.
B. Connect to phone.
Important: When using the product on your lap, always place your phone in the Lapdock cradle as illustrated to maintain compliance with RF
exposure (SAR) guidelines.
A
3
November 5, 2011
3EN Connect & go
Connect & go
let’s get you connected

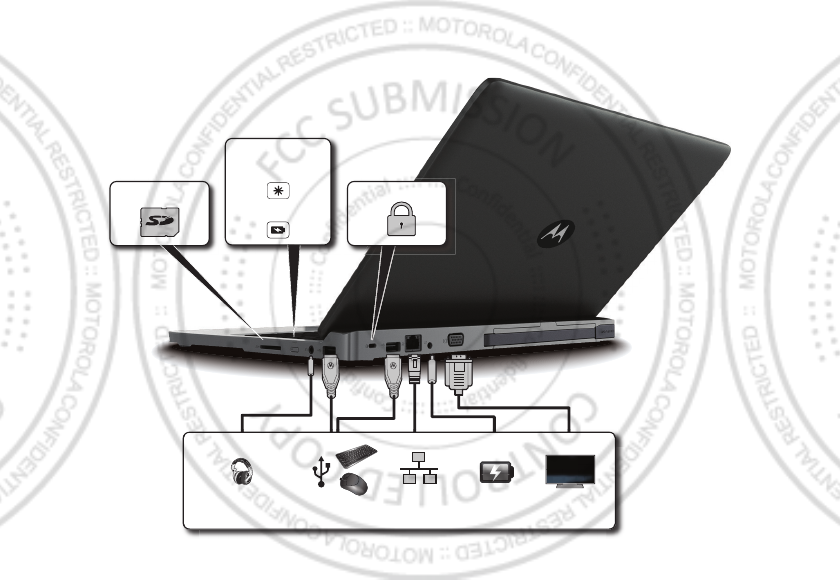

Battery
Charge Indicator
Check Button
SD Card Slot
USB
3.5 mm
Headset Jack
Ports
VGAEthernet Charger
Security Lock
Slot
November 5, 2011
4Basics EN
Basics
standard features, advanced quality

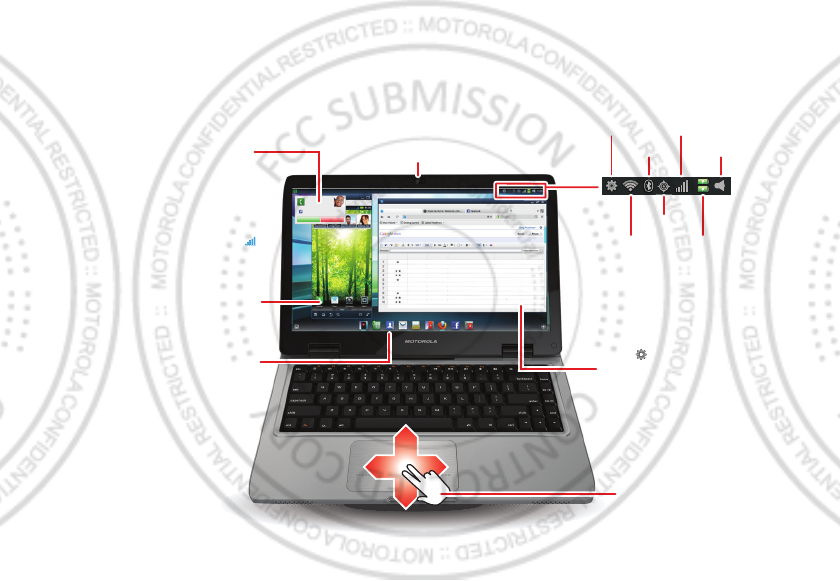

At a glance
Webcam
Webtop app
Click Settings > Help to learn
about all the really cool features of
the webtop app.
Calls: If you receive a call while your
phone is in the dock, your phone goes
into speakerphone mode. You don’t
need to lean toward your phone—your
caller will hear you just fine.
Airplane mode: On an airplane, you can
close your wireless connections by
clicking on the signal status indicator ( )
and selecting Turn Airplane Mode On.
Use two fingers, slightly
separated, to scroll up/down or
left/right. Press the bottom of
the touchpad to select an item.
Tip: Press F11 to toggle full screen
mode on/off in Firefox.
Settings
Bluetooth
Battery StrengthWi-Fi
GPS
Signal Strength
Volume
Mobile view: A virtual screen for your
phone. Use your apps, or change phone
settings. Anything you can do on your
phone can be done here.
Touchpad
Webtop app tray: App shortcuts for
Contacts, Messaging, Facebook, and
more.
November 5, 2011
5EN Basics

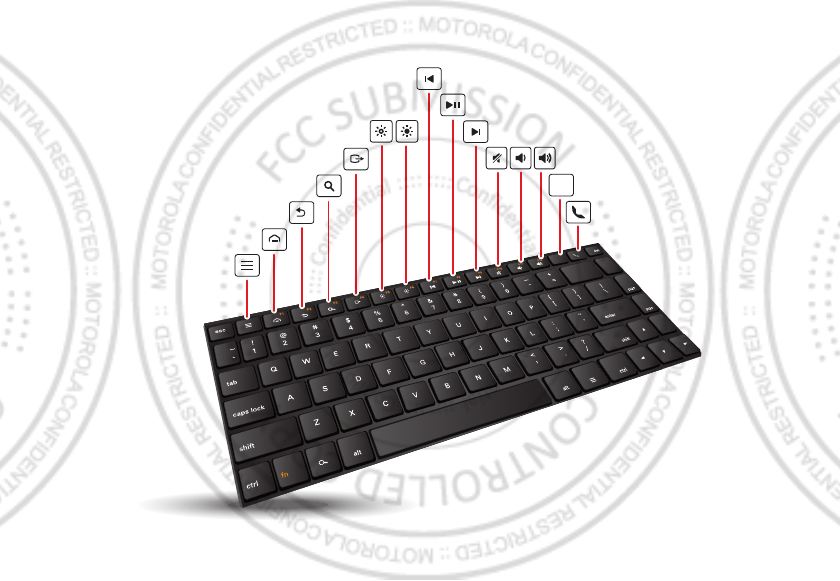

Keys
backspace
home
end
print
screen
VGA Out
Play/Pause
Next Track
Previous Track
Print Screen
Calls
Brightness
Menu
Home
Back
Search
Volume/Mute
print
screen
November 5, 2011
6Want more? EN
Lapdock battery
Check your dock battery level with the battery charge
indicator (top right).
Charger connected:
•Flashing white = charging
•Solid white = fully charged
Charger disconnected, and phone connected:
•Flashing red = battery below 10%
•Solid red = battery below 5%
Press the Battery Check Button :
•Solid red = charge battery
•Double flash white = low battery
•Triple flash white = medium charge
•Solid white = full charge
Note: Your phone starts to charge when you attach it,
even if your dock is not plugged into a wall outlet.
Tip: When you close your dock, it turns off the display
but continues to charge your phone. To save dock
battery power when the power supply isn’t connected,
remove your phone.
Note: The battery should only be replaced by a
Motorola-approved service facility. Any attempt to
remove or replace your battery may damage the
product.
Want more?
we’re here to help
Get what you need:
•Answers:
•Online: User guides, online help and more at
www.motorola.com/support.
•Phone:
Apps
>
Help Center
•Webtop:
Settings
>
Help
• Accessories: Find more accessories at
www.motorola.com/products.
• Social: The latest news, tips & tricks, videos and so
much more—join us on:
YouTube
™ www.youtube.com/motorola
Facebook
™ www.facebook.com/motorola
Twitter
www.twitter.com/motomobile
November 5, 2011
7EN Safety, Regulatory & Legal
Safety, Regulatory & Legal
Battery Use & Safety
DON’Ts
• Don’t let the product come in contact with liquids.*
Liquids can get into the
product’s circuits, leading to corrosion.
• Don’t place your product near a heat source.*
High temperatures can cause the
battery to swell, leak, or malfunction.
• Don’t dry a wet or damp product with an appliance or heat source
, such as a hair
dryer or microwave oven.
DOs
• Do avoid leaving your product in your car in high temperatures.*
• Do avoid dropping the product.*
Dropping your product, especially on a hard surface,
can potentially cause damage.*
• Do contact your retailer or Motorola if your product has been damaged by
dropping, liquids or high temperatures.
Warning:
Never dispose of battery powered products in a fire because they may explode.
Battery Charging
Battery Charging
Notes for charging your product’s battery:
•
During charging, keep your battery and charger near room temperature for efficient
battery charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to charge.
•
Motorola batteries and charging systems have circuitry that protects the battery from
damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries, chargers, headsets,
covers, cases, screen protectors and memory cards, may impact your product’s performance.
In some circumstances, third party accessories can be dangerous and may void your product
warranty. For a list of Motorola accessories, visit
www.motorola.com/products
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel of a
vehicle. Using a mobile device or accessory for a call or other application while driving may
cause distraction. Using a mobile device or accessory may be prohibited or restricted in
certain areas, always obey the laws and regulations on the use of these products.
While driving, NEVER:
•
Type or read texts.
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as audible
directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories in the
vehicle.
•
End your call or other task if you cannot concentrate on driving.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in
English only).
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the volume sound level, the less time is required before your hearing
could be affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in your
ears, ringing in your ears, or muffled speech, you should stop listening to the device through
your headset or headphones and have your hearing checked.
For more information about hearing, see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English only).
November 5, 2011
8Safety, Regulatory & Legal EN
Children
Keep your product and its accessories away from small children.
These products are
not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Symbol Key
Your battery, charger, or accessory product may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your product or battery in a fire.
Your product or battery may require recycling in accordance with
local laws. Contact your local regulatory authorities for more
information.
Do not dispose of your product or battery with your household waste.
See “Recycling” for more information.
Do not use tools.
For indoor use only.
European Union Directives Conformance
Statement
EU Conformance
This product complies with the applicable EU requirements and carries the CE mark.
FCC Declaration of Conformity
FCC DoC
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola Mobility, Inc.
Address: 8000 West Sunrise Boulevard, Suite A,
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: Lapdock 500 Pro
Model Number: Lapdock 500 Pro
Conforms to the following regulations: FCC Part 15, subpart B, section 15.107(a), 15.107(d)
and section 15.109(a)
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo on the
product label.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
November 5, 2011
9EN Safety, Regulatory & Legal
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
For products that support Wi-Fi 802.11a (as defined in the product specifications available at
www.motorola.com
), the following information applies. This equipment has the
capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure
(U-NII) band. Because this band is shared with MSS (Mobile Satellite Service), the FCC has
restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wireless hot spots
operating in this band have the same restriction, outdoor services are not offered.
Nevertheless, please do not operate this device in Wi-Fi mode when outdoors.
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not cause
interference and (2) This device must accept any interference, including interference that may
cause undesired operation of the device. See RSS-GEN 7.1.5. This Class B digital apparatus
complies with Canadian ICES-003.
Privacy & Data Security
Privacy & Data Security
Motorola understands that privacy and data security are important to everyone. Because
some features of your product may affect your privacy or data security, please follow these
recommendations to enhance protection of your information:
• Monitor access
—Keep your product with you and do not leave it where others may
have unmonitored access. Use your product’s security and lock features, where available.
• Keep software up to date
—If Motorola or a software/application vendor releases a
patch or software fix for your product that updates the device’s security, install it as soon
as possible.
• Secure Personal Information
—Your product can store personal information in various
locations including a SIM card, memory card, and built-in memory. Be sure to remove or
clear all personal information before you recycle, return, or give away your product.
Note:
For information on how to backup or wipe data from your product, go to
www.motorola.com/support
• Online accounts
—Some products provide a Motorola online account. Go to your
account for information on how to manage the account, and how to use security features.
• Applications and updates
—Choose your apps and updates carefully, and install from
trusted sources only. Some apps can impact your product’s performance and/or have
access to private information including account details, call data, location details and
network resources.
•Wireless
—For products with Wi-Fi features, only connect to trusted Wi-Fi networks.
Also, when using your product as a hotspot (where available) use network security. These
precautions will help prevent unauthorized access to your device.
If you have further questions regarding how the use of your product may impact your privacy
or data security, please contact Motorola at
privacy@motorola.com
, or contact your
service provider.
Use & Care
Use & Care
To care for your Motorola product, please keep it away from:
liquids of any kind
Don’t expose your product to water, rain, extreme humidity, sweat, or other
moisture. If it does get wet, don’t try to accelerate drying with the use of an
oven or dryer, as this may damage the product.
extreme heat or cold
Avoid temperatures below -10°C (14°F) or above 60°C (140°F). For battery
powered accessories, do not recharge your accessory in temperatures below
0°C (32°F) or above 45°C (113°F).
microwaves
Don’t try to dry your product in a microwave oven.
dust and dirt
Don’t expose your product to dust, dirt, sand, food, or other inappropriate
materials.
cleaning solutions
To clean your product, use only a dry soft cloth. Don’t use alcohol or other
cleaning solutions.
November 5, 2011
10 Safety, Regulatory & Legal EN
shock and vibration
Don’t drop your product.
Recycling
Recycling
Products & Accessories
Please do not dispose of products or electrical accessories (such as chargers,
headsets, or batteries) with your household waste, or in a fire. These items
should be disposed of in accordance with the national collection and recycling
schemes operated by your local or regional authority. Alternatively, you may
return unwanted products and electrical accessories to any Motorola Approved Service
Center in your region. Details of Motorola approved national recycling schemes, and further
information on Motorola recycling activities can be found at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with national
collection and recycling requirements. Please contact your regional authorities for more
details.
Software Copyright Notice
Soft ware Copyri ght Not ice
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software contained in Motorola products may not be
modified, reverse-engineered, distributed, or reproduced in any manner to the extent allowed
by law. Furthermore, the purchase of Motorola products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise, any license under the copyrights, patents,
or patent applications of Motorola or any third-party software provider, except for the normal,
non-exclusive, royalty-free license to use that arises by operation of law in the sale of a
product.
Content Copyright
Content Copyri ght
The unauthorized copying of copyrighted materials is contrary to the provisions of the
Copyright Laws of the United States and other countries. This device is intended solely for
copying non-copyrighted materials, materials in which you own the copyright, or materials
which you are authorized or legally permitted to copy. If you are uncertain about your right to
copy any material, please contact your legal advisor.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of America and
Canada. The Governments of the United States of America and Canada may restrict the
exportation or re-exportation of this product to certain destinations. For further information
contact the U.S. Department of Commerce or the Canadian Department of Foreign Affairs and
International Trade.
Product Registration
Registra tion
Online Product Registration:
www.motorola.com/us/productregistration
(in English only)
Product registration is an important step toward enjoying your new Motorola product.
Registering permits us to contact you for product or software updates and allows you to
subscribe to updates on new products or special promotions. Registration is not required for
warranty coverage.
Please retain your original dated sales receipt for your records. For warranty service of your
Motorola Personal Communications Product you will need to provide a copy of your dated
sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Motorola Limited Warranty for the United
States and Canada
Warrant y
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola Mobility, Inc. warrants its mobile
telephones (“Products”), Motorola-branded or certified accessories sold for use with these
Products (“Accessories”), and Motorola software contained on CD-ROMs or other tangible
media and sold for use with these Products (“Software”) to be free from defects in materials
and workmanship under normal consumer usage for the period(s) outlined below. This limited
warranty is a consumer’s exclusive remedy, and applies as follows to new Motorola Products,
November 5, 2011
11EN Safety, Regulatory & Legal
Accessories, and Software purchased by consumers in the United States or Canada, which
are accompanied by this written warranty:
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts due to
normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their rated
capacity and batteries that leak are covered by this limited warranty.
Abuse & Misuse.
Defects or damage that result from: (a) improper operation, storage,
misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc.) to the
surface of the product resulting from misuse; (b) contact with liquid, water, rain, extreme
humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the
Products or Accessories for commercial purposes or subjecting the Product or Accessory to
abnormal usage or conditions; or (d) other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result from
the use of non-Motorola branded or certified Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Products Covered Length of Coverage
Products and Accessories
as
defined above, unless otherwise
provided for below.
One (1) year
from the date of purchase by the
first consumer purchaser of the product unless
otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers, bezels,
PhoneWrap™ covers and cases.
Limited lifetime warranty
for the lifetime of
ownership by the first consumer purchaser of
the product.
Monaural Headsets.
Ear buds
and boom headsets that transmit
mono sound through a wired
connection.
Limited lifetime warranty
for the lifetime of
ownership by the first consumer purchaser of
the product.
Products and Accessories that
are Repaired or Replaced.
The balance of the original warranty or
for ninety (90) days
from the date returned to
the consumer, whichever is longer.
Unauthorized Service or Modification.
Defects or damages resulting from service,
testing, adjustment, installation, maintenance, alteration, or modification in any way by
someone other than Motorola, or its authorized service centers, are excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags that have
been removed, altered or obliterated; (b) broken seals or that show evidence of tampering; (c)
mismatched board serial numbers; or (d) nonconforming or non-Motorola housings, or parts,
are excluded from coverage.
Communication Services.
Defects, damages, or the failure of Products, Accessories or
Software due to any communication service or signal you may subscribe to or use with the
Products Accessories or Software is excluded from coverage.
Software
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software will meet
your requirements or will work in combination with any hardware or software applications
provided by third parties, that the operation of the software products will be uninterrupted or
error free, or that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical
media (e.g. software that is downloaded from the Internet), is provided “as is” and without
warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of any
Products, Accessories or Software that does not conform to this warranty. We may use
functionally equivalent reconditioned/refurbished/pre-owned or new Products, Accessories
or parts. No data, software or applications added to your Product, Accessory or Software,
including but not limited to personal contacts, games and ringer tones, will be reinstalled. To
Products Covered Length of Coverage
Software.
Applies only to physical defects in the
media that embodies the copy of the software (e.g.
CD-ROM, or floppy disk).
Ninety (90) days
from the
date of purchase.
November 5, 2011
12 Safety, Regulatory & Legal EN
avoid losing such data, software, and applications, please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other
Information
You will receive instructions on how to ship the Products, Accessories or Software, at your
expense, to a Motorola Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of purchase; (b) a written
description of the problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly; (e) your address
and telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR
REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE
REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT,
INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA, SOFTWARE
OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH
THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental
or consequential damages, or limitation on the length of an implied warranty, so
the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state
or from one jurisdiction to another.
USA
1-800-734-5870
Canada
1-800-461-4575
TTY
1-888-390-6456
Copyright & Trademarks
Motorola Mobility, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.motorola.com
Note:
Do not ship your product to the above address. If you need to return your product for
repairs, replacement, or warranty service, please contact the Motorola Customer Support
Center at:
1-800-734-5870 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain features, services and applications are network dependent and may not be available
in all areas; additional terms, conditions and/or charges may apply. Contact your service
provider for details.
All features, functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to be
accurate at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google
Latitude, Gmail, YouTube, Picasa, Google Books, Google Docs, Google Goggles, Google
Finanace, Google Places, Google Maps Navigation Beta, Google Calendar, Android and
Android Market are trademarks of Google, Inc. All other product or service names are the
property of their respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Product ID: Motorola Lapdock 500 Pro
Manual Number: 68016241001-C
November 5, 2011
68000201711.book Page -1 Friday, October 31, 2008 12:40 PM
November 5, 2011
November 5, 2011

Navigation menu
