34 Web
•To zoom in or out,
pinch two fingers
together or apart.
Note: Your phone
automatically uses
your mobile phone
network to connect
to the web. Your
service provider may charge to surf the web or
download data. If you can’t connect, contact your
service provider.
Tip: You can connect to the web with “Wi-Fi
Networks” on page 48.
Downloads
To download files in your browser, touch a file link or
touch and hold a picture to choose Save image.
To show the files you downloaded, touch >
Browser > > More > Downloads. Touch and
hold an item to open it, see details, or remove it from
the list.
You can download “App menu” on page 15.
www.google.com: Google
www.google.com: Google
News results for android
Verizon Droid Success Limited by Android Market -
7 hours ago
The idon't ad campaign pits the Android-based Droid head-to-head
against the formidable iphone. Based on preliminary predictions ..
PC World - 1778 related articles »
35Location
Location
where you are, and where you’re going
Quick Start: Location
From the home screen, touch > Maps
Google Maps™ offers powerful, user-friendly mapping
technology and local business information—including
business locations, contact information, and driving
directions.
•To find an address, touch Menu > Search, and
enter it in the search bar at the top. The map moves
to show the address.
N Clark St
Wacker Dr
M
E Ontario St
E Ohio St
N Rush St
N Park St
N New St
N Wabash Ave
N Dearborn St
E Grand Ave
E Randolph St
N Micigan Ave
N Micigan Ave
r
D
subm
uloC N
W Lake St W Lake St
E Wacker Pl
State/Lake
Grand Red
Lake
Randolph
St Metra
Randolph/
Wabash
Washington-Blue
E S WaterSt
M
M
M
M
Ontario St
Search
My Location
Directions
Join Latitude
Layers
More
12:09
AM
To u ch to open, then
touch to add to
Starred Places.
Drag or flick to scroll.
Touch to open a
menu where you can get
directions, open your
starred places, windows,
and more.
36 Location
Tip: You can touch and hold a spot on the map to
show the nearest address.
•To find stores, restaurants, and other places near
you, touch Menu > My Location to see details.
•To get directions, find an address on the map, touch
it, then touch Menu > Directions.
•For help, touch Menu > More > Help.
Google Maps Navigation™
Google Maps Navigation is an Internet-connected GPS
navigation system with voice guidance.
To open navigation, touch > Navigation. Follow
the prompts to speak or type your destination.
For more, go to www.google.com/mobile/navigation.
Latitude
Latitude lets you see where your friends and family are
on Google Maps™. Plan to meet up, check that they
got home safely, or just stay in touch. Don’t worry, your
location is not shared unless you agree to it. After you
join Latitude, you can invite your friends to view your
location, or accept their invitations.
Touch > Maps and then:
37Location
•To join Latitude, touch Menu > Join Latitude.
Read the privacy policy and, if you agree with it,
choose to continue.
•To add friends touch Menu > Latitude >
Menu > Add friends.
Touch Select from Contacts or Add via email
address, then touch a contact and Add friends.
Your friend will receive an email notice.
•To remove friends touch Menu > Latitude to
show your friends list. Touch a name, then touch
Remove this friend.
•To share your location when you receive a request,
you can choose Accept and share back (show your
location and see theirs), Accept, but hide my
location (hide your location, but see theirs), or
Don’t accept (hide both locations).
•To hide your location touch Menu > Latitude
to show your friends list. Touch your contact name,
then touch Menu > Settings > Do not detect
your location.
•To sign out of Latitude, touch Menu > Latitude
to show your friends list. Touch Menu >
Settings > Sign out of Latitude.
38 Photos & videos
Photos & videos
see it, capture it, share it!
Quick Start: Photos & Videos
From any screen, press the Camera Key on the right
side of the phone to open the camera.
Tip: For the clearest photos and videos, clean the lens
with a soft, dry cloth.
•To t a k e a photo, open the camera, then press the
Camera Key.
•To record a video, open the camera, then touch the
camcorder icon to switch to the camcorder. Press
the Camera Key to start and stop recording.
Open your last
photo or video.
Photo or video quality.
Store your location in
photos.
Set white balance for your
lighting.
Zoom.
Choose camera
or camcorder.
Capture.
39Photos & videos
View & Share Photos & videos
From the home screen, touch > My Gallery.
Flick left and right to show folders. Touch a folder to
show its photos or videos, then touch a thumbnail
image to open, share, or delete it.
Tip: From the viewfinder, you can touch the thumbnail
in the top right to open your last photo or video.

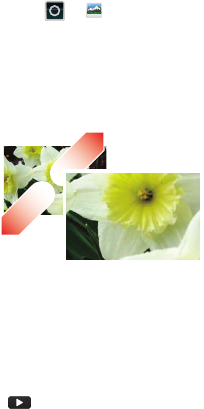

•To zoom in, touch
the screen with
two fingers and
then drag them
apart. To zoom out,
drag your fingers
together.
•To send or post
the photo or video, touch Menu > Share.
•To delete the photo or video, touch Menu > Delete.
•To set a photo as your wallpaper or a contact photo,
touch More > Set as.
•To crop or rotate a photo, touch More.
•To play a video, touch .
Tip: Turn the phone sideways for a widescreen view.
40 Music
Music
when music is what you need...
Quick start: Music
From the home screen, touch > Music, then
choose a song to play it:
•To a dj u st volume, use the phone’s volume keys.
11:04
Music Artist
Album Title
Song Title
0:26 3:27
Open Playlist
Shuffle On/Off
Repeat Off/All/Current
Music Controls
To t al Song T ime
Progress Bar
41Music
•When a song is playing, you touch Menu to add
it to a playlist or use it as a Use it as a ringtone.
To edit, delete, or rename playlists, touch >
Music touch the Playlists tab, then touch and hold
the playlist name.
•To hide the player and use other apps,
touch Home . Your music keeps playing. To
return to the player, flick down the status bar and
touch .
Tip: For quick music player controls, touch and hold
an empty spot in your home screen, then choose
Widget > Music.
•To stop the player, touch .
• Before a flight, turn off network and wireless
connections so that you can keep listening to music:
press and hold Power/Lock key > Airplane
mode.
Note: When you select airplane mode, all wireless
services are disabled. You can then turn Wi-Fi and/or
Bluetooth back on, if permitted by your airline. Other
wireless voice and data services (such as calls and
text messages) remain off in airplane mode.
Emergency calls to your region's emergency
number can still be made.
42 Music
You can use your phone’s 3.5mm headset to connect
wired headphones, or go wireless with “Bluetooth™
Devices” on page 47.
To listen to FM radio stations, plug in a 3.5mm
headset and touch > FM Radio. Your phone
uses the headset wire as the radio antenna.
Music Files
Note: Copyright—do you have the right? Always follow
the rules. See “Content Copyright” in your legal and
safety information.
To get songs for your music player, you can download
them from online services or copy them from your
computer. Your music player can play these file
formats: MP3, M4A, AAC, ACC+, MIDI, WAV, or OGG
Vor bis.
Note: Your phone does not support any DRM
protected files.
To copy files from your computer to your phone, you
can use “Cable Connection” on page 49 or “Bluetooth™
Devices” on page 47.
To save a CD as files on your computer (“rip” the CD),
you can use a program like Microsoft™ Windows™
Media Player. First, make sure you change the format
to MP3 (under Rip > Format in Windows Media
Player).
101
98 106
1
43personalize
personalize
add your personal touch
Quick Start: personalize
From the home screen, touch Menu > Settings
>Sound or Display.
•To choose a ring tone or vibration for incoming
calls and messages, touch Menu > Settings
Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns off
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notifications
Notification ringtone
Choose separate volume
settings for incoming calls,
media, alarms, and notifications.
Call & Message Notifications
Turn on or off menu animations.
44 personalize
>Sound, then choose Phone ringtone,
Notification ringtone, or Vibrate.
•To set the volume for your ringtone, media, and
alarm, touch Menu > Settings > Sound
>Volume.
Tip: Press the volume keys to
change the ringer volume (in the
home screen), or the earpiece
volume (during a call).
•To hear dialpad sounds, touch
Menu > Settings > Sound >
Audible touch tones.
•To hear menu selection sounds, touch Menu
>Settings > Sound > Audible selection
•To set display brightness, touch Menu
>Settings > Display > Brightness
•Many apps can rotate the screen when you rotate
your phone. To turn this on or off, touch Menu
>Settings > Display > Auto-rotate screen.
•Screen animations make your menus look
smoother. To turn animations on or off, touch
Menu > Settings > Display > Animation
Volume
Keys
45personalize
wallpaper
To set a new wallpaper, touch and hold an empty spot
on the home screen, then touch Wallpapers.
Language & region
Set your menu language and region:
Find it: Menu > Settings > Language &
keyboard > Select language
Date & time
Set date, time, time zone, and formats:
Find it: Menu > Settings > Date & time
46 Connections
Connections
home, office, or hotspot
Quick Start: Connections
From the home screen, touch Menu > Settings
>Wireless & networks, then Bluetooth settings or
Wi-Fi settings.
Wi-Fi networks
Wi-Fi settings
Notify me when an open network is
available
Network notification
(Your network)
Add Wi-Fi network
Wi-Fi
Bluetooth devices
Bluetooth settings
(Your Phone)
Device name
Scan for devices
Make device discoverable
Discoverable
Bluetooth
Pair with this device
(Nearby Bluetooth Device)
Turn Bluetooth power on & scan,
or turn off.
Change your phone’s Bluetooth
device name.
Turn Wi-Fi power on & scan, or
turn off.
Re-scan.
Connect a device found by the
scan.
Connect a device found by the
scan.
47Connections
•To connect Bluetooth devices, touch Menu
>Settings > Wireless & networks > Bluetooth
settings > Scan for devices (or Bluetooth, if it is
off). Touch a device that your phone found, to
connect it.
•To connect Wi-Fi networks, touch Menu
>Settings > Wireless & networks > Wi-Fi
settings (then touch Wi-Fi, if it is off). Touch a
network that your phone found, to connect it.
•To use a cable connection, connect your phone’s
micro USB port to a standard USB port on your
computer, then use a computer program to transfer
files to and from your phone’s memory card. Your
phone supports microSD cards up to 32GB.
On your phone, flick down the status bar and touch
to enable your phone’s memory card (optional
accessory).
You can download your phone’s driver files from
www.motorola.com/support.
Bluetooth™ Devices
Note: This feature requires an optional accessory.
You can connect your phone to other Bluetooth
devices for handsfree calls, file transfers, and more:
1Make sure the device you are pairing with is in
discoverable mode.
48 Connections
2Touch Menu > Settings > Wireless &
networks > Bluetooth settings.
3Touch Scan for devices (Bluetooth if it is turned
off). Your phone scans, and lists nearby devices.
4Touch a device to connect.
5If necessary, touch Pair or enter the device passkey
(like 0000) to connect to the device. When the
device is connected, the Bluetooth connected
indicator appears in the status bar.
To reconnect a device you’ve connected before, just
turn it on.
To disconnect a device, just turn it off.
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
Tip: Touch and hold an empty spot on your home
screen, then choose Widgets > Power Control for a
widget that lets you turn on or off Wi-Fi, Bluetooth,
Use GPS satellites, and more.
Wi-Fi Networks
You can connect to Wi-Fi networks for even faster
Internet access and to download data:
1Touch Menu > Settings > Wireless &
networks > Wi-Fi settings.
49Connections
2Touch Menu > Scan (or touch Wi-Fi, if it is off.
Your phone scans for nearby networks.
To see your phone’s MAC address or other Wi-Fi
details, touch Menu > Advanced.
3Touch a network to connect.
4If necessary, enter details from from the network
administrator. When your phone is connected, the
Wi-Fi indicator appears in the status bar.
When power is on and your phone finds a network
you’ve used, it automatically reconnects and shows
in the status bar.
Cable Connection
You can use a cable connection to transfer songs,
pictures, or other files between your phone and
computer. You will need a:
•Microsoft™ Windows™ PC or Apple™
Macintosh™.
•data cable with a standard USB connector on one
end and a micro USB connector on the other end.
•microSD memory card (up to 32GB) inserted in your
phone, as shown in “Assemble & charge” on page 5.
Tip: To see the available memory on your memory
card, from the home screen touch Menu >
Settings > Storage.
50 Connections
To connect your phone and computer with a cable:
1Insert a memory card in
your phone, then connect
your phone’s micro USB
port to a USB port on your
computer.
Note: If your computer asks
for your phone’s driver files, you can download them
from www.motorola.com/support.
2Your phone should show in the status bar. Flick
down the status bar, touch the to enable your
phone’s memory card.
3On your computer, open a program (like Windows™
Media Player for music files, or
Microsoft™ Windows™ Explorer to drag and drop
other files) and use it to transfer your files.
51Security
Security
help keep your phone safe
Quick start: Security
From the home screen, touch Menu > Settings
>Location & security.
•To set a lock Pattern, PIN, or Password that you
must enter whenever you wake up the screen,
touch Menu > Settings > Location & security
>Set up screen lock. Follow the prompts to enter
and confirm the pattern, PIN, or password.
Device administration
Lock screen with a pattern, PIN, or password
Set up screen lock
Show password as you type
Turn off ephemeris auto download
Visible passwords
Credential storage
Screen unlock
Passwords
Add or remove device administrators
Select device administrators
Location & security settings
Set up SIM card lock
SIM card lock
Show password letters and
numbers when you enter them
(rather than ***).
Choose a number code that you
must enter when you turn on
your phone.
Set a lock pattern, PIN, or
password that you must enter
whenever you wake up the
screen.
52 Security
Note: You can make emergency calls on a locked
phone (“Emergency calls” on page 21). A locked
phone still rings, but you need to unlock it to
answer.
•To set a SIM card PIN that you must enter when
you turn on your phone, touch Menu > Settings
> Location & security > Set up SIM card lock >
Lock SIM card. Enter your SIM PIN code. To change
your code, choose Change SIM PIN.
Caution: If you enter an incorrect PIN code three
times, your phone locks your SIM card. To unlock it,
you need a PUK code from your service provider.
Reset
To reset your phone to factory settings and erase all
the data on your phone, touch Menu > Settings >
Privacy > Factory data reset > Reset phone.
Warning: All downloaded apps and user data on your
phone will be deleted. Data on your memory card will
not be deleted.
53Troubleshooting
Troubleshooting
we’re here to help
Crash recovery
In the unlikely event that your phone stops responding
to touchs and key presses, try a quick reset. Remove
the back cover and battery (“Assemble & charge” on
page 5), then replace and turn on your phone as usual.
Service & Repairs
If you have questions or need assistance, we’re here
to help.
Go to www.motorola.com/support, where you can
select from a number of customer care options. You
can also contact the Motorola Customer Support
Center at 0800 666 8676 (Argentina), 800-201-442
(Chile), 01-800-700-1504 (Colombia), 01 800 021 0000
(México), 0800-100-4289 (Venezuela), or 0-800-52-470
(Perú).
54 Troubleshooting
Safety, Regulatory & Legal
Battery Use & Safety
Battery Use & Safety
Important: Handle and store batteries properly to avoid injury or damage.
Most
battery issues arise from improper handling of batteries, and particularly from the
continued use of damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt to change
the form of your battery.
• Don’t let the mobile device or battery come in contact with liquids.*
Liquids
can get into the mobile device’s circuits, leading to corrosion.
• Don’t allow the battery to touch metal objects.
If metal objects, such as jewelry,
stay in prolonged contact with the battery contact points, the battery could become
very hot.
• Don’t place your mobile device or battery near a heat source.*
High
temperatures can cause the battery to swell, leak, or malfunction.
• Don’t dry a wet or damp battery with an appliance or heat source
, such as a
hair dryer or microwave oven.
DOs
• Do avoid leaving your mobile device in your car in high temperatures.*
• Do avoid dropping the mobile device or battery.*
Dropping these items,
especially on a hard surface, can potentially cause damage.*
• Do contact your service provider or Motorola if your mobile device or battery
has been damaged by dropping, liquids or high temperatures.
* Note:
Always make sure that the battery compartment and any connector covers are
closed and secure to avoid direct exposure of the battery to any of these conditions, even
if your product information states that your
mobile device
can resist damage from these
conditions.
Important: Motorola recommends you always use Motorola-branded batteries
and chargers for quality assurance and safeguards.
Motorola’s warranty does not
cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To
help you identify authentic Motorola batteries from non-original or counterfeit batteries
(that may not have adequate safety protection), Motorola provides holograms on its
55
batteries. You should confirm that any battery you purchase has a “Motorola Original”
hologram.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a “Motorola Original”
hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and try charging it again;
•
If the message remains, contact a Motorola authorized service center.
Warning:
Use of a non-Motorola battery or charger may present a risk of fire, explosion,
leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper battery disposal is not only
important for safety, it benefits the environment. You can recycle your used batteries in
many retail or service provider locations. Additional information on proper disposal and
recycling can be found at
www.motorola.com/recycling
Disposal:
Promptly dispose of used batteries in accordance with local
regulations. Contact your local recycling center or national recycling
organizations for more information on how to dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
Battery Charging
Battery Cha rging
Notes for charging your product’s battery:
•
During charging, keep your battery and charger near room temperature for efficient
battery charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to charge.
•
Motorola batteries and charging systems have circuitry that protects the battery from
damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries, chargers, headsets,
covers, cases, screen protectors and memory cards, may impact your mobile device’s
performance. In some circumstances, third party accessories can be dangerous and may
void your mobile device’s warranty. For a list of Motorola accessories, visit
www.motorola.com/products
032375o
56
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel of a
vehicle. Using a mobile device or accessory for a call or other application while driving
may cause distraction. Using a mobile device or accessory may be prohibited or restricted
in certain areas, always obey the laws and regulations on the use of these products.
While driving, NEVER:
•
Type or read texts.
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories in
the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” in this guide and at
www.motorola.com/callsmart
(in English only).
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed to
flashing lights, such as when playing videos or games. These may occur even if a person
has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family history of such
occurrences, please consult with your physician before playing videos or games or
enabling a flashing-lights feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following symptoms occur:
convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or
disorientation. It is always a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop use if you are tired.
57
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the volume sound level, the less time is required before your
hearing could be affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in
your ears, ringing in your ears, or muffled speech, you should stop listening to the device
through your headset or headphones and have your hearing checked.
For more information about hearing, see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering finger-written
characters, you may experience occasional discomfort in your hands, arms, shoulders,
neck, or other parts of your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Children
Keep your mobile device and its accessories away from small children.
These
products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Similar to a computer, if a child does use your mobile device, you may want to monitor
their access to help prevent exposure to inappropriate apps or content.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could break if the
product receives a substantial impact. If glass breaks, do not touch or attempt to remove.
Stop using your mobile device until the glass is replaced by a qualified service center.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
58
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted and can
include fueling areas, such as below decks on boats, fuel or chemical transfer or storage
facilities, or areas where the air contains chemicals or particles, such as grain dust, or
metal powders.
When you are in such an area, turn off your mobile device, and do not remove, install, or
charge batteries unless it is a radio product type especially qualified for use in such areas
as “Intrinsically Safe” (for example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Your battery or mobile device may require recycling in accordance
with local laws. Contact your local regulatory authorities for more
information.
Do not dispose of your battery or mobile device with your household
waste. See “Recycling” for more information.
Do not use tools.
032374o
032376o
032375o
59
Radio Frequency (RF) Energy
Exposure to RF Energy
Your mobile device contains a transmitter and receiver. When it is ON, it receives and
transmits RF energy. When you communicate with your mobile device, the system
handling your call controls the power level at which your mobile device transmits.
Your mobile device is designed to comply with local regulatory requirements in your
country concerning exposure of human beings to RF energy.
RF Energy Operational Precautions
For optimal mobile device performance, and to be sure that human exposure to RF energy
does not exceed the guidelines set forth in the relevant standards, always follow these
instructions and precautions:
•
When placing or receiving a phone call, hold your mobile device just like you would a
landline phone.
•
If you wear the mobile device on your body, always place the mobile device in a
Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not
use a body-worn accessory supplied or approved by Motorola, keep the mobile device
and its antenna at least 2.5 cm (1 inch) from your body when transmitting.
•
Using accessories not supplied or approved by Motorola may cause your mobile device
to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved
accessories, visit our website at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external sources if
inadequately shielded, designed, or otherwise configured for RF energy compatibility. In
some circumstances, your mobile device may cause interference with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do so.
For indoor use only.
Symbol Definition
60
In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If
your mobile device offers an airplane mode or similar feature, consult airline staff about
using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or defibrillator, consult
your physician before using this mobile device.
Persons with implantable medical devices should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
implantable medical device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the potential for
interference.
•
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Read and follow the directions from the manufacturer of your implantable medical device.
If you have any questions about using your mobile device with your implantable medical
device, consult your healthcare provider.
Specific Absorption Rate (IEEE)
SAR (IEEE)
YOUR MOBILE DEVICE MEETS FCC LIMITS FOR
EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by the
Federal Communications Commission (FCC). These limits include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The highest
SAR values under the FCC guidelines for your device model are listed below:
Head SAR UMTS 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
0.957 W/kg
1.22 W/kg
Body-worn SAR UMTS/HSDPA 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
1.11 W/kg
1.16 W/kg
61
During use, the actual SAR values for your device are usually well below the values
stated. This is because, for purposes of system efficiency and to minimize interference on
the network, the operating power of your mobile device is automatically decreased when
full power is not needed for the call. The lower the power output of the device, the lower
its SAR value.
Body-worn SAR testing has been carried out using an approved accessory or at a
separation distance of 2.5 cm (1 inch). To meet RF exposure guidelines during body-worn
operation, the device should be in an approved accessory or positioned at least 2.5 cm
(1 inch) away from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the phone at least
2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific information does not
indicate the need for any special precautions for the use of mobile devices. They
recommend that if you are interested in further reducing your exposure then you can easily
do so by limiting your usage or simply using a hands-free kit to keep the device away from
the head and body.
Additional information can be found at
www.who.int/emf
(World Health
Organization) or
www.motorola.com/rfhealth
(Motorola Mobility, Inc.).
Specific Absorption Rate (ICNIRP)
SAR (ICNIRP)
YOUR MOBILE DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields) recommended
by international guidelines. The guidelines were developed by an independent scientific
organization (ICNIRP) and include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The highest
SAR values under the ICNIRP guidelines for your device model are listed below:
Head SAR UMTS 850/2100, Wi-Fi, Bluetooth
UMTS/HSDPA 850/1900, Wi-Fi, Bluetooth
0,996 W/kg
0,901W/kg
62
During use, the actual SAR values for your device are usually well below the values
stated. This is because, for purposes of system efficiency and to minimize interference on
the network, the operating power of your mobile device is automatically decreased when
full power is not needed for the call. The lower the power output of the device, the lower
its SAR value.
Body-worn SAR testing has been carried out using an approved accessory or at a
separation distance of 2.5 cm (1 inch). To meet RF exposure guidelines during body-worn
operation, the device should be in an approved accessory or positioned at least 2.5 cm
(1 inch) away from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the phone at least
2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific information does not
indicate the need for any special precautions for the use of mobile devices. They
recommend that if you are interested in further reducing your exposure then you can easily
do so by limiting your usage or simply using a hands-free kit to keep the device away from
the head and body.
Additional information can be found at
www.who.int/emf
(World Health
Organization) or
www.motorola.com/rfhealth
(Motorola Mobility, Inc.).
Information from the World Health
Organization
WHO Inf ormation
“A large number of studies have been performed over the last two decades to assess
whether mobile phones pose a potential health risk. To date, no adverse health effects
have been established for mobile phone use.”
Source: WHO Fact Sheet 193
Further information:
http://www.who.int/emf
Body-worn SAR UMTS/HSDPA 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
0,745 W/kg
0,824 W/kg
63
European Union Directives Conformance
Statement
EU Conformance
The following CE compliance information is applicable to Motorola mobile devices that
carry one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on the website.
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo on the
product label.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and,
0168
[Only Indoor Use Allowed In France
for Bluetooth and/or Wi-Fi]
0168
0168
Product
Approval
Number
64
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
For products that support W-Fi 802.11a (as defined in the product specifications available
at
www.motorola.com
), the following information applies. This equipment has the
capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure
(U-NII) band. Because this band is shared with MSS (Mobile Satellite Service), the FCC
has restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wireless hot
spots operating in this band have the same restriction, outdoor services are not offered.
Nevertheless, please do not operate this device in Wi-Fi mode when outdoors.
Location Services (GPS & AGPS)
GPS & AGP S
The following information is applicable to Motorola mobile devices that provide location
based (GPS and/or AGPS) functionality.
Your mobile device can use Global Positioning System (GPS) signals for location-based
applications. GPS uses satellites controlled by the U.S. government that are subject to
changes implemented in accordance with the Department of Defense policy and the
Federal Radio Navigation Plan. These changes may affect the performance of location
technology on your mobile device.
Your mobile device can also use Assisted Global Positioning System (AGPS), which
obtains information from the cellular network to improve GPS performance. AGPS uses
65
your wireless service provider's network and therefore airtime, data charges, and/or
additional charges may apply in accordance with your service plan. Contact your wireless
service provider for details.
Your Location
Location-based information includes information that can be used to determine the
approximate location of a mobile device. Mobile devices which are connected to a
wireless network transmit location-based information. Devices enabled with GPS or AGPS
technology also transmit location-based information. Additionally, if you use applications
that require location-based information (e.g. driving directions), such applications transmit
location-based information. This location-based information may be shared with third
parties, including your wireless service provider, applications providers, Motorola, and
other third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS
technology in your mobile device to tell the emergency responders your approximate
location.
AGPS has limitations and
might not work in your area
. Therefore:
•
Always tell the emergency responder your location to the best of your ability; and
•
Remain on the phone for as long as the emergency responder instructs you.
Navigation
Navigation
The following information is applicable to Motorola mobile devices that provide
navigation features.
When using navigation features, note that mapping information, directions and other
navigational data may contain inaccurate or incomplete data. In some countries, complete
information may not be available. Therefore, you should visually confirm that the
navigational instructions are consistent with what you see. All drivers should pay
attention to road conditions, closures, traffic, and all other factors that may impact driving.
Always obey posted road signs.
Smart Practices While Driving
Driving Safety
Check the laws and regulations on the use of mobile devices and their accesso-
ries in the areas where you drive. Always obey them. The use of these devices
may be prohibited or restricted in certain areas—for example, handsfree use only
66
may be required. Go to
www.motorola.com/callsmart
(in English only) for
more information.
Your mobile device lets you communicate by voice and data—almost anywhere, anytime,
wherever wireless service is available and safe conditions allow. When driving a car,
driving is your first responsibility. If you choose to use your mobile device while driving,
remember the following tips:
• Get to know your Motorola mobile device and its features such as speed dial,
redial and voice dial.
If available, these features help you to place your call without
taking your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer of
convenience to your mobile device with one of the many Motorola Original handsfree
accessories available today.
• Position your mobile device within easy reach.
Be able to access your mobile
device without removing your eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voicemail answer it for you.
• Let the person you are speaking with know you are driving; if necessary,
suspend the call in heavy traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a “to
do” list or going through your address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your car is
not moving or before pulling into traffic.
If you must make a call while moving, dial
only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and suspend
conversations that can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency number
in the case of fire, traffic accident, or medical emergencies (wherever wireless phone
service is available).
• Use your mobile device to help others in emergencies.
If you see an auto
accident, crime in progress, or other serious emergency where lives are in danger, call
911 or other local emergency number (wherever wireless phone service is available),
as you would want others to do for you.
• Call roadside assistance or a special non-emergency wireless assistance
number when necessary.
If you see a broken-down vehicle posing no serious
67
hazard, a broken traffic signal, a minor traffic accident where no one appears injured,
or a vehicle you know to be stolen, call roadside assistance or other special
non-emergency wireless number (wherever wireless phone service is available).
Privacy & Data Security
Privacy & Data Security
Motorola understands that privacy and data security are important to everyone. Because
some features of your mobile device may affect your privacy or data security, please
follow these recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and do not leave it where others
may have unmonitored access. Use your device’s security and lock features, where
available.
• Keep software up to date
—If Motorola or a software/application vendor releases a
patch or software fix for your mobile device that updates the device’s security, install it
as soon as possible.
• Secure Personal Information
—Your mobile device can store personal information
in various locations including your SIM card, memory card, and phone memory. Be sure
to remove or clear all personal information before you recycle, return, or give away
your device. You can also backup your personal data to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device, go to
www.motorola.com/support
• Online accounts
—Some mobile devices provide a Motorola online account (such as
MOTOBLUR). Go to your account for information on how to manage the account, and
how to use security features such as remote wipe and device location (where
available).
• Applications and updates
—Choose your apps and updates carefully, and install
from trusted sources only. Some apps can impact your phone’s performance and/or
have access to private information including account details, call data, location details
and network resources.
• Wireless
—For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi
networks. Also, when using your device as a hotspot (where available) use network
security. These precautions will help prevent unauthorized access to your device.
• Location-based information
—Location-based information includes information that
can be used to determine the approximate location of a mobile device. Mobile phones
which are connected to a wireless network transmit location-based information.
Devices enabled with GPS or AGPS technology also transmit location-based
information. Additionally, if you use applications that require location-based
68
information (e.g. driving directions), such applications transmit location-based
information. This location-based information may be shared with third parties,
including your wireless service provider, applications providers, Motorola, and other
third parties providing services.
• Other information your device may transmit
—Your device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This information is
used to help improve products and services offered by Motorola.
If you have further questions regarding how the use of your mobile device may impact your
privacy or data security, please contact Motorola at
privacy@motorola.com
, or
contact your service provider.
Use & Care
Use & Care
To care for your Motorola mobile device, please observe the following:
liquids
Don’t expose your mobile device to water, rain, extreme humidity, sweat, or
other liquids. If it does get wet, don’t try to accelerate drying with the use of
an oven or dryer, as this may damage the mobile device.
extreme heat or cold
Don’t store or use your mobile device in temperatures below -10°C (14°F) or
above 60°C (140°F). Don’t recharge your mobile device in temperatures
below 0°C (32°F) or above 45°C (113°F).
microwaves
Don’t try to dry your mobile device in a microwave oven.
dust and dirt
Don’t expose your mobile device to dust, dirt, sand, food, or other
inappropriate materials.
69
cleaning solutions
To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
shock and vibration
Don’t drop your mobile device.
protection
To help protect your mobile device, always make sure that the battery
compartment and any connector covers are closed and secure.
Recycling
Recycling
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such as
chargers, headsets, or batteries) with your household waste, or in a fire.
These items should be disposed of in accordance with the national collection
and recycling schemes operated by your local or regional authority.
Alternatively, you may return unwanted mobile devices and electrical accessories to any
Motorola Approved Service Center in your region. Details of Motorola approved national
recycling schemes, and further information on Motorola recycling activities can be found
at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional authorities for
more details.
Software Copyright Notice
Software Copyright Notic e
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the
copyrighted software. Accordingly, any copyrighted software contained in Motorola
70
products may not be modified, reverse-engineered, distributed, or reproduced in any
manner to the extent allowed by law. Furthermore, the purchase of Motorola products
shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any third-party
software provider, except for the normal, non-exclusive, royalty-free license to use that
arises by operation of law in the sale of a product.
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions of the
Copyright Laws of the United States and other countries. This device is intended solely for
copying non-copyrighted materials, materials in which you own the copyright, or materials
which you are authorized or legally permitted to copy. If you are uncertain about your right
to copy any material, please contact your legal advisor.
Open Source Software Information
OSS Information
For instructions on how to obtain a copy of any source code being made publicly available
by Motorola related to software used in this Motorola mobile device, you may send your
request in writing to the address below. Please make sure that the request includes the
model number and the software version number.
MOTOROLA MOBILITY, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA
The Motorola website
opensource.motorola.com
also contains information
regarding Motorola's use of open source.
Motorola has created the
opensource.motorola.com
website to serve as a portal for
interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and required
copyright notices for open source packages used in this Motorola mobile device, please
press Menu Key >
Settings
>
About phone
>
Legal information
>
Open source licenses
. In addition, this Motorola device may include
self-contained applications that present supplemental notices for open source packages
used in those applications.
71
Service & Repairs
If you have questions or need assistance, we're here to help.
Go to
www.motorola.com/support
, where you can select from a number of
customer care options. You can also contact the Motorola Customer Support Center at
0800 666 8676 (Argentina), 800-201-442 (Chile), 01-800-700-1504 (Colombia), 01 800 021
0000 (México), 0800-100-4289 (Venezuela), or 0-800-52-470 (Perú).
Latin America Warranty, Except Mexico
Warranty (Except Mexico)
Latin America Warranty Motorola Mobility Inc.
Subscribers/Cellular Division
Through its own service centers and/or its authorized service centers, Motorola provides a
1-year warranty that covers the cellular phone, all its parts and labor against any defect
and operation as long as the “Product” has been operated and handled under normal
conditions. The term of 1 year begins when the “Product” is purchased.
Conditions
1. For warranty service, return the “Product” and this warranty to the place of purchase or
to any Motorola authorized service center.
If additional information is needed, please contact any of our service centers:
Motorola Comercial, S.A. de C.V.
Bosques Alisos No. 125
Bosques de las Lomas
CP 05120 México, D.F.
Telephone: 257-6700
Motorola Industrial Ltda.
Av. Chedid Jafet
222-Bloco D-1 Andar
Vila Olimpia, 04551-065
Sao Paulo, Brazil
Telephone: 0800-773 1244
72
If the cellular phone has been installed in a vehicle, take the vehicle to the service
center to analyze the equipment, or the installation on the vehicle. This warranty does
not cover the installation of the cellular phone.
2. Motorola Mobility Inc., through its own service centers and/or their authorized service
centers, will repair or replace the cellular phone at no charge. This warranty covers
shipping expenses, only if it is needed to make the repair.
Motorola Mobility Inc. through its own service centers and/or their authorized service
centers, at its own discretion, will repair, replace, or reimburse the purchase price of
the defective cellular phone only during the warranty period, as long as the “Product,”
in accordance with the conditions established in this warranty, is returned to a Motorola
service center or to a Motorola authorized service center. All the accessories, batteries,
parts, small boards or equipment of the cellular telephone that by virtue of being
defective are replaced in fulfillment of this warranty, will automatically become
property of Motorola Mobility, Inc.
3. To receive warranty service, present your cellular phone or accessory to any Motorola
service center or Motorola authorized service center, along with your receipt of
purchase or comparable substitute that indicates the date of purchase, serial number of
the transceiver, and/or electronic serial number.
4. The repair time will not be greater than 30 days, starting from the day the equipment
was received at the service center.
5. To purchase parts, spare parts, accessories and service not covered by this warranty,
contact one of the service centers listed in section 1, or any authorized service center in
your locality.
6. This warranty is not valid in the following cases:
•
Defects or damages derived from abnormal use.
•
Defects or damages derived from accident or negligence.
Motorola Mobility Colombia S.A.S.
Carrera 7 7152
Torre B Piso 13 Oficina 1301
Torre del Banco Ganadero
Santa Fe de Bogotá, Colombia
Telephone: 01800 700 1504
73
•
Defects or damages derived from tests, unsuitable operation, maintenance,
installation and adjustments, or derived from any alteration or modification of any
type.
•
Damage caused to antennas, unless they are consequences of defects in material or
workmanship.
•
When the cellular phone has been disassembled and/or repaired so that its operation
has been affected or that it can not be tested to verify any claim that grants this
warranty.
•
Any cellular phone with a serial number that has been removed, altered, or obliterated.
•
Defects or damages caused by food spills or liquids.
•
When the cables of the control unit have been stretched or the module tongue-piece
has broken.
•
When the surface of the “Product” and its pieces have been scratched or damaged due
to normal use.
•
Leather cases.
•
Rented cellular phones.
•
When the “Product” has been altered or repaired by non-Motorola authorized service
centers.
•
When the “Product” has not been operated in agreement with the instructions that
accompany the “Product.”
7. The batteries (Nickel-Cadmium) are warranted only if their capacity is reduced by 80%
below its predicted capacity. This warranty is null for all types of batteries if:
•
The batteries are charged by a charger that has not been approved by Motorola.
•
Any of the battery seals are broken or tampered with.
•
The batteries were used or installed in non-Motorola equipment.
“Product”:
Brand: Motorola Model:
Number of Mechanical Series:
Number of Electronic Series:
Name of Distributor:
Street and Number:
74
Limited Warranty (Mexico)
Warranty (Mexico)
For Motorola personal communication products and accessories purchased in
Mexico
I. Concepts Covered by this Warranty
This warranty covers all the parts, components, accessories and labor of the Motorola
“Product” from defects in materials and workmanship under normal consumer usage.
The Motorola “Products” that are protected under this warranty can be: (a) cellular
telephones, (b) radar sets, (c) two-way radios, and (d) wireless telephones.
Motorola Comercial, S.A. de C.V., at its option, will at no charge repair, replace, or refund
the purchase price of any “Product” that does not conform to this warranty. Motorola may
use functionally equivalent reconditioned/refurbished/pre-owned or new products,
accessories, or parts. Updates in software are not covered.
II. Length of Warranty Coverage
The length of coverage is one (1) year from the date the new “Product” was purchased
from an authorized distributor.
III. Place where consumers can make the
warranty effective, obtain parts, components, and
accessories
Motorola Comercial, S.A. de C.V.
Bosques de Alisos 125
Col. Bosques de las Lomas
Del. Cuajimalpa
Te:(55) 5257-6700
Town:
Municipality:
Postal Code, City, State, or Country:
Telephone:
Date of Delivery or Installation:
75
IV. Procedure to Make the Warranty Effective
For warranty service, return the “Product” (with its components and accessories, such as
batteries, antennas, and charger) to the place of purchase, to the address above, or to an
authorized service center, or call 01 800 021 0000. To request a refund, you must present
this warranty, sealed by the place of purchase, along with the “Product.”
V. Warranty Limitations or Exceptions
The warranty is not valid when:
•
The “Product” has been used in conditions different from the normal ones.
•
The “Product” has not been operated as described in the operating instructions.)
•
The “Product” has been altered or repaired by someone other than Motorola, or its
authorized service centers.
If repairs are not covered by this warranty, Motorola, at the request of the purchaser, will
provide information regarding availability, prices, and other conditions for the repair of the
“Product.”
To obtain information on products that need repairs not covered by this warranty, please
call 01 800 021 0000.
Note:
In other countries, consult the laws and local regulations under the warranty and its
local Motorola office.
Product Model: Date of Purchase:
Seal of the authorized or established distributor where the “Product” was purchased:
76
Copyright & Trademarks
Motorola Mobility Argentina S.A.
Suipacha 1111 - Piso 18
C1008AAW Buenos Aires
ARGENTINA
www.motorola.com
Certain features, services and applications are network dependent and may not be
available in all areas; additional terms, conditions and/or charges may apply. Contact your
service provider for details.
All features, functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to be
accurate at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google
Latitude, Gmail, YouTube, Picasa, Android and Android Market are trademarks of Google,
Inc. All other product or service names are the property of their respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Caution:
Motorola does not take responsibility for changes/modification to the
transceiver.
Product ID: MOTOROLA SPICE key (XT316)
Manual Number: 68016263001-A

Users Manual 3 of 3

34 Web
•To zoom in or out,
pinch two fingers
together or apart.
Note: Your phone
automatically uses
your mobile phone
network to connect
to the web. Your
service provider may charge to surf the web or
download data. If you can’t connect, contact your
service provider.
Tip: You can connect to the web with “Wi-Fi
Networks” on page 48.
Downloads
To download files in your browser, touch a file link or
touch and hold a picture to choose Save image.
To show the files you downloaded, touch >
Browser > > More > Downloads. Touch and
hold an item to open it, see details, or remove it from
the list.
You can download “App menu” on page 15.
www.google.com: Google
www.google.com: Google
News results for android
Verizon Droid Success Limited by Android Market -
7 hours ago
The idon't ad campaign pits the Android-based Droid head-to-head
against the formidable iphone. Based on preliminary predictions ..
PC World - 1778 related articles »
35Location
Location
where you are, and where you’re going
Quick Start: Location
From the home screen, touch > Maps
Google Maps™ offers powerful, user-friendly mapping
technology and local business information—including
business locations, contact information, and driving
directions.
•To find an address, touch Menu > Search, and
enter it in the search bar at the top. The map moves
to show the address.
N Clark St
Wacker Dr
M
E Ontario St
E Ohio St
N Rush St
N Park St
N New St
N Wabash Ave
N Dearborn St
E Grand Ave
E Randolph St
N Micigan Ave
N Micigan Ave
r
D
subm
uloC N
W Lake St W Lake St
E Wacker Pl
State/Lake
Grand Red
Lake
Randolph
St Metra
Randolph/
Wabash
Washington-Blue
E S WaterSt
M
M
M
M
Ontario St
Search
My Location
Directions
Join Latitude
Layers
More
12:09
AM
To u ch to open, then
touch to add to
Starred Places.
Drag or flick to scroll.
Touch to open a
menu where you can get
directions, open your
starred places, windows,
and more.
36 Location
Tip: You can touch and hold a spot on the map to
show the nearest address.
•To find stores, restaurants, and other places near
you, touch Menu > My Location to see details.
•To get directions, find an address on the map, touch
it, then touch Menu > Directions.
•For help, touch Menu > More > Help.
Google Maps Navigation™
Google Maps Navigation is an Internet-connected GPS
navigation system with voice guidance.
To open navigation, touch > Navigation. Follow
the prompts to speak or type your destination.
For more, go to www.google.com/mobile/navigation.
Latitude
Latitude lets you see where your friends and family are
on Google Maps™. Plan to meet up, check that they
got home safely, or just stay in touch. Don’t worry, your
location is not shared unless you agree to it. After you
join Latitude, you can invite your friends to view your
location, or accept their invitations.
Touch > Maps and then:
37Location
•To join Latitude, touch Menu > Join Latitude.
Read the privacy policy and, if you agree with it,
choose to continue.
•To add friends touch Menu > Latitude >
Menu > Add friends.
Touch Select from Contacts or Add via email
address, then touch a contact and Add friends.
Your friend will receive an email notice.
•To remove friends touch Menu > Latitude to
show your friends list. Touch a name, then touch
Remove this friend.
•To share your location when you receive a request,
you can choose Accept and share back (show your
location and see theirs), Accept, but hide my
location (hide your location, but see theirs), or
Don’t accept (hide both locations).
•To hide your location touch Menu > Latitude
to show your friends list. Touch your contact name,
then touch Menu > Settings > Do not detect
your location.
•To sign out of Latitude, touch Menu > Latitude
to show your friends list. Touch Menu >
Settings > Sign out of Latitude.
38 Photos & videos
Photos & videos
see it, capture it, share it!
Quick Start: Photos & Videos
From any screen, press the Camera Key on the right
side of the phone to open the camera.
Tip: For the clearest photos and videos, clean the lens
with a soft, dry cloth.
•To t a k e a photo, open the camera, then press the
Camera Key.
•To record a video, open the camera, then touch the
camcorder icon to switch to the camcorder. Press
the Camera Key to start and stop recording.
Open your last
photo or video.
Photo or video quality.
Store your location in
photos.
Set white balance for your
lighting.
Zoom.
Choose camera
or camcorder.
Capture.
39Photos & videos
View & Share Photos & videos
From the home screen, touch > My Gallery.
Flick left and right to show folders. Touch a folder to
show its photos or videos, then touch a thumbnail
image to open, share, or delete it.
Tip: From the viewfinder, you can touch the thumbnail
in the top right to open your last photo or video.
•To zoom in, touch
the screen with
two fingers and
then drag them
apart. To zoom out,
drag your fingers
together.
•To send or post
the photo or video, touch Menu > Share.
•To delete the photo or video, touch Menu > Delete.
•To set a photo as your wallpaper or a contact photo,
touch More > Set as.
•To crop or rotate a photo, touch More.
•To play a video, touch .
Tip: Turn the phone sideways for a widescreen view.
40 Music
Music
when music is what you need...
Quick start: Music
From the home screen, touch > Music, then
choose a song to play it:
•To a dj u st volume, use the phone’s volume keys.
11:04
Music Artist
Album Title
Song Title
0:26 3:27
Open Playlist
Shuffle On/Off
Repeat Off/All/Current
Music Controls
To t al Song T ime
Progress Bar
41Music
•When a song is playing, you touch Menu to add
it to a playlist or use it as a Use it as a ringtone.
To edit, delete, or rename playlists, touch >
Music touch the Playlists tab, then touch and hold
the playlist name.
•To hide the player and use other apps,
touch Home . Your music keeps playing. To
return to the player, flick down the status bar and
touch .
Tip: For quick music player controls, touch and hold
an empty spot in your home screen, then choose
Widget > Music.
•To stop the player, touch .
• Before a flight, turn off network and wireless
connections so that you can keep listening to music:
press and hold Power/Lock key > Airplane
mode.
Note: When you select airplane mode, all wireless
services are disabled. You can then turn Wi-Fi and/or
Bluetooth back on, if permitted by your airline. Other
wireless voice and data services (such as calls and
text messages) remain off in airplane mode.
Emergency calls to your region's emergency
number can still be made.
42 Music
You can use your phone’s 3.5mm headset to connect
wired headphones, or go wireless with “Bluetooth™
Devices” on page 47.
To listen to FM radio stations, plug in a 3.5mm
headset and touch > FM Radio. Your phone
uses the headset wire as the radio antenna.
Music Files
Note: Copyright—do you have the right? Always follow
the rules. See “Content Copyright” in your legal and
safety information.
To get songs for your music player, you can download
them from online services or copy them from your
computer. Your music player can play these file
formats: MP3, M4A, AAC, ACC+, MIDI, WAV, or OGG
Vor bis.
Note: Your phone does not support any DRM
protected files.
To copy files from your computer to your phone, you
can use “Cable Connection” on page 49 or “Bluetooth™
Devices” on page 47.
To save a CD as files on your computer (“rip” the CD),
you can use a program like Microsoft™ Windows™
Media Player. First, make sure you change the format
to MP3 (under Rip > Format in Windows Media
Player).
101
98 106
1
43personalize
personalize
add your personal touch
Quick Start: personalize
From the home screen, touch Menu > Settings
>Sound or Display.
•To choose a ring tone or vibration for incoming
calls and messages, touch Menu > Settings
Display settings
Brightness
Screen timeout
All window animations are shown
Animation
Auto-rotate screen
Adjust the delay before the screen
automatically turns off
Sound settings
General
Incoming calls
Only in Silent mode
Vibrate
Volume
Silent mode
Silence all sounds except media &
alarms
Phone ringtone
Notifications
Notification ringtone
Choose separate volume
settings for incoming calls,
media, alarms, and notifications.
Call & Message Notifications
Turn on or off menu animations.
44 personalize
>Sound, then choose Phone ringtone,
Notification ringtone, or Vibrate.
•To set the volume for your ringtone, media, and
alarm, touch Menu > Settings > Sound
>Volume.
Tip: Press the volume keys to
change the ringer volume (in the
home screen), or the earpiece
volume (during a call).
•To hear dialpad sounds, touch
Menu > Settings > Sound >
Audible touch tones.
•To hear menu selection sounds, touch Menu
>Settings > Sound > Audible selection
•To set display brightness, touch Menu
>Settings > Display > Brightness
•Many apps can rotate the screen when you rotate
your phone. To turn this on or off, touch Menu
>Settings > Display > Auto-rotate screen.
•Screen animations make your menus look
smoother. To turn animations on or off, touch
Menu > Settings > Display > Animation
Volume
Keys
45personalize
wallpaper
To set a new wallpaper, touch and hold an empty spot
on the home screen, then touch Wallpapers.
Language & region
Set your menu language and region:
Find it: Menu > Settings > Language &
keyboard > Select language
Date & time
Set date, time, time zone, and formats:
Find it: Menu > Settings > Date & time
46 Connections
Connections
home, office, or hotspot
Quick Start: Connections
From the home screen, touch Menu > Settings
>Wireless & networks, then Bluetooth settings or
Wi-Fi settings.
Wi-Fi networks
Wi-Fi settings
Notify me when an open network is
available
Network notification
(Your network)
Add Wi-Fi network
Wi-Fi
Bluetooth devices
Bluetooth settings
(Your Phone)
Device name
Scan for devices
Make device discoverable
Discoverable
Bluetooth
Pair with this device
(Nearby Bluetooth Device)
Turn Bluetooth power on & scan,
or turn off.
Change your phone’s Bluetooth
device name.
Turn Wi-Fi power on & scan, or
turn off.
Re-scan.
Connect a device found by the
scan.
Connect a device found by the
scan.
47Connections
•To connect Bluetooth devices, touch Menu
>Settings > Wireless & networks > Bluetooth
settings > Scan for devices (or Bluetooth, if it is
off). Touch a device that your phone found, to
connect it.
•To connect Wi-Fi networks, touch Menu
>Settings > Wireless & networks > Wi-Fi
settings (then touch Wi-Fi, if it is off). Touch a
network that your phone found, to connect it.
•To use a cable connection, connect your phone’s
micro USB port to a standard USB port on your
computer, then use a computer program to transfer
files to and from your phone’s memory card. Your
phone supports microSD cards up to 32GB.
On your phone, flick down the status bar and touch
to enable your phone’s memory card (optional
accessory).
You can download your phone’s driver files from
www.motorola.com/support.
Bluetooth™ Devices
Note: This feature requires an optional accessory.
You can connect your phone to other Bluetooth
devices for handsfree calls, file transfers, and more:
1Make sure the device you are pairing with is in
discoverable mode.
48 Connections
2Touch Menu > Settings > Wireless &
networks > Bluetooth settings.
3Touch Scan for devices (Bluetooth if it is turned
off). Your phone scans, and lists nearby devices.
4Touch a device to connect.
5If necessary, touch Pair or enter the device passkey
(like 0000) to connect to the device. When the
device is connected, the Bluetooth connected
indicator appears in the status bar.
To reconnect a device you’ve connected before, just
turn it on.
To disconnect a device, just turn it off.
Note: Using a mobile device or accessory while
driving may cause distraction and may be illegal.
Always obey the laws and drive safely.
Tip: Touch and hold an empty spot on your home
screen, then choose Widgets > Power Control for a
widget that lets you turn on or off Wi-Fi, Bluetooth,
Use GPS satellites, and more.
Wi-Fi Networks
You can connect to Wi-Fi networks for even faster
Internet access and to download data:
1Touch Menu > Settings > Wireless &
networks > Wi-Fi settings.
49Connections
2Touch Menu > Scan (or touch Wi-Fi, if it is off.
Your phone scans for nearby networks.
To see your phone’s MAC address or other Wi-Fi
details, touch Menu > Advanced.
3Touch a network to connect.
4If necessary, enter details from from the network
administrator. When your phone is connected, the
Wi-Fi indicator appears in the status bar.
When power is on and your phone finds a network
you’ve used, it automatically reconnects and shows
in the status bar.
Cable Connection
You can use a cable connection to transfer songs,
pictures, or other files between your phone and
computer. You will need a:
•Microsoft™ Windows™ PC or Apple™
Macintosh™.
•data cable with a standard USB connector on one
end and a micro USB connector on the other end.
•microSD memory card (up to 32GB) inserted in your
phone, as shown in “Assemble & charge” on page 5.
Tip: To see the available memory on your memory
card, from the home screen touch Menu >
Settings > Storage.
50 Connections
To connect your phone and computer with a cable:
1Insert a memory card in
your phone, then connect
your phone’s micro USB
port to a USB port on your
computer.
Note: If your computer asks
for your phone’s driver files, you can download them
from www.motorola.com/support.
2Your phone should show in the status bar. Flick
down the status bar, touch the to enable your
phone’s memory card.
3On your computer, open a program (like Windows™
Media Player for music files, or
Microsoft™ Windows™ Explorer to drag and drop
other files) and use it to transfer your files.
51Security
Security
help keep your phone safe
Quick start: Security
From the home screen, touch Menu > Settings
>Location & security.
•To set a lock Pattern, PIN, or Password that you
must enter whenever you wake up the screen,
touch Menu > Settings > Location & security
>Set up screen lock. Follow the prompts to enter
and confirm the pattern, PIN, or password.
Device administration
Lock screen with a pattern, PIN, or password
Set up screen lock
Show password as you type
Turn off ephemeris auto download
Visible passwords
Credential storage
Screen unlock
Passwords
Add or remove device administrators
Select device administrators
Location & security settings
Set up SIM card lock
SIM card lock
Show password letters and
numbers when you enter them
(rather than ***).
Choose a number code that you
must enter when you turn on
your phone.
Set a lock pattern, PIN, or
password that you must enter
whenever you wake up the
screen.
52 Security
Note: You can make emergency calls on a locked
phone (“Emergency calls” on page 21). A locked
phone still rings, but you need to unlock it to
answer.
•To set a SIM card PIN that you must enter when
you turn on your phone, touch Menu > Settings
> Location & security > Set up SIM card lock >
Lock SIM card. Enter your SIM PIN code. To change
your code, choose Change SIM PIN.
Caution: If you enter an incorrect PIN code three
times, your phone locks your SIM card. To unlock it,
you need a PUK code from your service provider.
Reset
To reset your phone to factory settings and erase all
the data on your phone, touch Menu > Settings >
Privacy > Factory data reset > Reset phone.
Warning: All downloaded apps and user data on your
phone will be deleted. Data on your memory card will
not be deleted.
53Troubleshooting
Troubleshooting
we’re here to help
Crash recovery
In the unlikely event that your phone stops responding
to touchs and key presses, try a quick reset. Remove
the back cover and battery (“Assemble & charge” on
page 5), then replace and turn on your phone as usual.
Service & Repairs
If you have questions or need assistance, we’re here
to help.
Go to www.motorola.com/support, where you can
select from a number of customer care options. You
can also contact the Motorola Customer Support
Center at 0800 666 8676 (Argentina), 800-201-442
(Chile), 01-800-700-1504 (Colombia), 01 800 021 0000
(México), 0800-100-4289 (Venezuela), or 0-800-52-470
(Perú).
54 Troubleshooting
Safety, Regulatory & Legal
Battery Use & Safety
Battery Use & Safety
Important: Handle and store batteries properly to avoid injury or damage.
Most
battery issues arise from improper handling of batteries, and particularly from the
continued use of damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt to change
the form of your battery.
• Don’t let the mobile device or battery come in contact with liquids.*
Liquids
can get into the mobile device’s circuits, leading to corrosion.
• Don’t allow the battery to touch metal objects.
If metal objects, such as jewelry,
stay in prolonged contact with the battery contact points, the battery could become
very hot.
• Don’t place your mobile device or battery near a heat source.*
High
temperatures can cause the battery to swell, leak, or malfunction.
• Don’t dry a wet or damp battery with an appliance or heat source
, such as a
hair dryer or microwave oven.
DOs
• Do avoid leaving your mobile device in your car in high temperatures.*
• Do avoid dropping the mobile device or battery.*
Dropping these items,
especially on a hard surface, can potentially cause damage.*
• Do contact your service provider or Motorola if your mobile device or battery
has been damaged by dropping, liquids or high temperatures.
* Note:
Always make sure that the battery compartment and any connector covers are
closed and secure to avoid direct exposure of the battery to any of these conditions, even
if your product information states that your
mobile device
can resist damage from these
conditions.
Important: Motorola recommends you always use Motorola-branded batteries
and chargers for quality assurance and safeguards.
Motorola’s warranty does not
cover damage to the mobile device caused by non-Motorola batteries and/or chargers. To
help you identify authentic Motorola batteries from non-original or counterfeit batteries
(that may not have adequate safety protection), Motorola provides holograms on its
55
batteries. You should confirm that any battery you purchase has a “Motorola Original”
hologram.
If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a “Motorola Original”
hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and try charging it again;
•
If the message remains, contact a Motorola authorized service center.
Warning:
Use of a non-Motorola battery or charger may present a risk of fire, explosion,
leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper battery disposal is not only
important for safety, it benefits the environment. You can recycle your used batteries in
many retail or service provider locations. Additional information on proper disposal and
recycling can be found at
www.motorola.com/recycling
Disposal:
Promptly dispose of used batteries in accordance with local
regulations. Contact your local recycling center or national recycling
organizations for more information on how to dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
Battery Charging
Battery Cha rging
Notes for charging your product’s battery:
•
During charging, keep your battery and charger near room temperature for efficient
battery charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to charge.
•
Motorola batteries and charging systems have circuitry that protects the battery from
damage from overcharging.
Third Party Accessories
Use of third party accessories, including but not limited to batteries, chargers, headsets,
covers, cases, screen protectors and memory cards, may impact your mobile device’s
performance. In some circumstances, third party accessories can be dangerous and may
void your mobile device’s warranty. For a list of Motorola accessories, visit
www.motorola.com/products
032375o
56
Driving Precautions
Responsible and safe driving is your primary responsibility when behind the wheel of a
vehicle. Using a mobile device or accessory for a call or other application while driving
may cause distraction. Using a mobile device or accessory may be prohibited or restricted
in certain areas, always obey the laws and regulations on the use of these products.
While driving, NEVER:
•
Type or read texts.
•
Enter or review written data.
•
Surf the web.
•
Input navigation information.
•
Perform any other functions that divert your attention from driving.
While driving, ALWAYS:
•
Keep your eyes on the road.
•
Use a handsfree device if available or required by law in your area.
•
Enter destination information into a navigation device
before
driving.
•
Use voice activated features (such as voice dial) and speaking features (such as
audible directions), if available.
•
Obey all local laws and regulations for the use of mobile devices and accessories in
the vehicle.
•
End your call or other task if you cannot concentrate on driving.
Remember to follow the “Smart Practices While Driving” in this guide and at
www.motorola.com/callsmart
(in English only).
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed to
flashing lights, such as when playing videos or games. These may occur even if a person
has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family history of such
occurrences, please consult with your physician before playing videos or games or
enabling a flashing-lights feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following symptoms occur:
convulsion, eye or muscle twitching, loss of awareness, involuntary movements, or
disorientation. It is always a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop use if you are tired.
57
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended periods of time may affect
your hearing. The louder the volume sound level, the less time is required before your
hearing could be affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or fullness in
your ears, ringing in your ears, or muffled speech, you should stop listening to the device
through your headset or headphones and have your hearing checked.
For more information about hearing, see our website at
direct.motorola.com/hellomoto/nss/AcousticSafety.asp
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering finger-written
characters, you may experience occasional discomfort in your hands, arms, shoulders,
neck, or other parts of your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Children
Keep your mobile device and its accessories away from small children.
These
products are not toys and may be hazardous to small children. For example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Similar to a computer, if a child does use your mobile device, you may want to monitor
their access to help prevent exposure to inappropriate apps or content.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could break if the
product receives a substantial impact. If glass breaks, do not touch or attempt to remove.
Stop using your mobile device until the glass is replaced by a qualified service center.
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
58
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted and can
include fueling areas, such as below decks on boats, fuel or chemical transfer or storage
facilities, or areas where the air contains chemicals or particles, such as grain dust, or
metal powders.
When you are in such an area, turn off your mobile device, and do not remove, install, or
charge batteries unless it is a radio product type especially qualified for use in such areas
as “Intrinsically Safe” (for example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
Your battery or mobile device may require recycling in accordance
with local laws. Contact your local regulatory authorities for more
information.
Do not dispose of your battery or mobile device with your household
waste. See “Recycling” for more information.
Do not use tools.
032374o
032376o
032375o
59
Radio Frequency (RF) Energy
Exposure to RF Energy
Your mobile device contains a transmitter and receiver. When it is ON, it receives and
transmits RF energy. When you communicate with your mobile device, the system
handling your call controls the power level at which your mobile device transmits.
Your mobile device is designed to comply with local regulatory requirements in your
country concerning exposure of human beings to RF energy.
RF Energy Operational Precautions
For optimal mobile device performance, and to be sure that human exposure to RF energy
does not exceed the guidelines set forth in the relevant standards, always follow these
instructions and precautions:
•
When placing or receiving a phone call, hold your mobile device just like you would a
landline phone.
•
If you wear the mobile device on your body, always place the mobile device in a
Motorola-supplied or approved clip, holder, holster, case, or body harness. If you do not
use a body-worn accessory supplied or approved by Motorola, keep the mobile device
and its antenna at least 2.5 cm (1 inch) from your body when transmitting.
•
Using accessories not supplied or approved by Motorola may cause your mobile device
to exceed RF energy exposure guidelines. For a list of Motorola-supplied or approved
accessories, visit our website at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external sources if
inadequately shielded, designed, or otherwise configured for RF energy compatibility. In
some circumstances, your mobile device may cause interference with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to do so.
For indoor use only.
Symbol Definition
60
In an aircraft, turn off your mobile device whenever instructed to do so by airline staff. If
your mobile device offers an airplane mode or similar feature, consult airline staff about
using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or defibrillator, consult
your physician before using this mobile device.
Persons with implantable medical devices should observe the following precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches) from the
implantable medical device when the mobile device is turned ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the potential for
interference.
•
Turn OFF the mobile device immediately if you have any reason to suspect that
interference is taking place.
Read and follow the directions from the manufacturer of your implantable medical device.
If you have any questions about using your mobile device with your implantable medical
device, consult your healthcare provider.
Specific Absorption Rate (IEEE)
SAR (IEEE)
YOUR MOBILE DEVICE MEETS FCC LIMITS FOR
EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields) adopted by the
Federal Communications Commission (FCC). These limits include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 1.6 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The highest
SAR values under the FCC guidelines for your device model are listed below:
Head SAR UMTS 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
0.957 W/kg
1.22 W/kg
Body-worn SAR UMTS/HSDPA 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
1.11 W/kg
1.16 W/kg
61
During use, the actual SAR values for your device are usually well below the values
stated. This is because, for purposes of system efficiency and to minimize interference on
the network, the operating power of your mobile device is automatically decreased when
full power is not needed for the call. The lower the power output of the device, the lower
its SAR value.
Body-worn SAR testing has been carried out using an approved accessory or at a
separation distance of 2.5 cm (1 inch). To meet RF exposure guidelines during body-worn
operation, the device should be in an approved accessory or positioned at least 2.5 cm
(1 inch) away from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the phone at least
2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific information does not
indicate the need for any special precautions for the use of mobile devices. They
recommend that if you are interested in further reducing your exposure then you can easily
do so by limiting your usage or simply using a hands-free kit to keep the device away from
the head and body.
Additional information can be found at
www.who.int/emf
(World Health
Organization) or
www.motorola.com/rfhealth
(Motorola Mobility, Inc.).
Specific Absorption Rate (ICNIRP)
SAR (ICNIRP)
YOUR MOBILE DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO WAVES.
Your mobile device is a radio transmitter and receiver. It is designed not to exceed the
limits for exposure to radio waves (radio frequency electromagnetic fields) recommended
by international guidelines. The guidelines were developed by an independent scientific
organization (ICNIRP) and include a substantial safety margin designed to assure the
safety of all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating positions with the device
transmitting at its highest certified power level in all tested frequency bands. The highest
SAR values under the ICNIRP guidelines for your device model are listed below:
Head SAR UMTS 850/2100, Wi-Fi, Bluetooth
UMTS/HSDPA 850/1900, Wi-Fi, Bluetooth
0,996 W/kg
0,901W/kg
62
During use, the actual SAR values for your device are usually well below the values
stated. This is because, for purposes of system efficiency and to minimize interference on
the network, the operating power of your mobile device is automatically decreased when
full power is not needed for the call. The lower the power output of the device, the lower
its SAR value.
Body-worn SAR testing has been carried out using an approved accessory or at a
separation distance of 2.5 cm (1 inch). To meet RF exposure guidelines during body-worn
operation, the device should be in an approved accessory or positioned at least 2.5 cm
(1 inch) away from the body. If you are not using an approved accessory, ensure that
whatever product is used is free of any metal and that it positions the phone at least
2.5 cm (1 inch) away from the body.
The World Health Organization has stated that present scientific information does not
indicate the need for any special precautions for the use of mobile devices. They
recommend that if you are interested in further reducing your exposure then you can easily
do so by limiting your usage or simply using a hands-free kit to keep the device away from
the head and body.
Additional information can be found at
www.who.int/emf
(World Health
Organization) or
www.motorola.com/rfhealth
(Motorola Mobility, Inc.).
Information from the World Health
Organization
WHO Inf ormation
“A large number of studies have been performed over the last two decades to assess
whether mobile phones pose a potential health risk. To date, no adverse health effects
have been established for mobile phone use.”
Source: WHO Fact Sheet 193
Further information:
http://www.who.int/emf
Body-worn SAR UMTS/HSDPA 850/2100, Wi-Fi, Bluetooth
UMTS 850/1900, Wi-Fi, Bluetooth
0,745 W/kg
0,824 W/kg
63
European Union Directives Conformance
Statement
EU Conformance
The following CE compliance information is applicable to Motorola mobile devices that
carry one of the following CE marks:
Hereby, Motorola declares that this product is in compliance with:
•
The essential requirements and other relevant provisions of Directive 1999/5/EC
•
All other relevant EU Directives
The above gives an example of a typical Product Approval Number.
You can view your product’s Declaration of Conformity (DoC) to Directive 1999/5/EC (to
R&TTE Directive) at
www.motorola.com/rtte
. To find your DoC, enter the Product
Approval Number from your product’s label in the “Search” bar on the website.
FCC Notice to Users
FCC Notice
The following statement applies to all products that bear the FCC logo on the
product label.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. See 47 CFR Sec. 15.105(b). These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and,
0168
[Only Indoor Use Allowed In France
for Bluetooth and/or Wi-Fi]
0168
0168
Product
Approval
Number
64
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation. See 47 CFR Sec. 15.19(a)(3).
Motorola has not approved any changes or modifications to this device by the user. Any
changes or modifications could void the user’s authority to operate the equipment. See 47
CFR Sec. 15.21.
For products that support W-Fi 802.11a (as defined in the product specifications available
at
www.motorola.com
), the following information applies. This equipment has the
capability to operate Wi-Fi in the 5 GHz Unlicensed National Information Infrastructure
(U-NII) band. Because this band is shared with MSS (Mobile Satellite Service), the FCC
has restricted such devices to indoor use only (see 47 CFR 15.407(e)). Since wireless hot
spots operating in this band have the same restriction, outdoor services are not offered.
Nevertheless, please do not operate this device in Wi-Fi mode when outdoors.
Location Services (GPS & AGPS)
GPS & AGP S
The following information is applicable to Motorola mobile devices that provide location
based (GPS and/or AGPS) functionality.
Your mobile device can use Global Positioning System (GPS) signals for location-based
applications. GPS uses satellites controlled by the U.S. government that are subject to
changes implemented in accordance with the Department of Defense policy and the
Federal Radio Navigation Plan. These changes may affect the performance of location
technology on your mobile device.
Your mobile device can also use Assisted Global Positioning System (AGPS), which
obtains information from the cellular network to improve GPS performance. AGPS uses
65
your wireless service provider's network and therefore airtime, data charges, and/or
additional charges may apply in accordance with your service plan. Contact your wireless
service provider for details.
Your Location
Location-based information includes information that can be used to determine the
approximate location of a mobile device. Mobile devices which are connected to a
wireless network transmit location-based information. Devices enabled with GPS or AGPS
technology also transmit location-based information. Additionally, if you use applications
that require location-based information (e.g. driving directions), such applications transmit
location-based information. This location-based information may be shared with third
parties, including your wireless service provider, applications providers, Motorola, and
other third parties providing services.
Emergency Calls
When you make an emergency call, the cellular network may activate the AGPS
technology in your mobile device to tell the emergency responders your approximate
location.
AGPS has limitations and
might not work in your area
. Therefore:
•
Always tell the emergency responder your location to the best of your ability; and
•
Remain on the phone for as long as the emergency responder instructs you.
Navigation
Navigation
The following information is applicable to Motorola mobile devices that provide
navigation features.
When using navigation features, note that mapping information, directions and other
navigational data may contain inaccurate or incomplete data. In some countries, complete
information may not be available. Therefore, you should visually confirm that the
navigational instructions are consistent with what you see. All drivers should pay
attention to road conditions, closures, traffic, and all other factors that may impact driving.
Always obey posted road signs.
Smart Practices While Driving
Driving Safety
Check the laws and regulations on the use of mobile devices and their accesso-
ries in the areas where you drive. Always obey them. The use of these devices
may be prohibited or restricted in certain areas—for example, handsfree use only
66
may be required. Go to
www.motorola.com/callsmart
(in English only) for
more information.
Your mobile device lets you communicate by voice and data—almost anywhere, anytime,
wherever wireless service is available and safe conditions allow. When driving a car,
driving is your first responsibility. If you choose to use your mobile device while driving,
remember the following tips:
• Get to know your Motorola mobile device and its features such as speed dial,
redial and voice dial.
If available, these features help you to place your call without
taking your attention off the road.
• When available, use a handsfree device.
If possible, add an additional layer of
convenience to your mobile device with one of the many Motorola Original handsfree
accessories available today.
• Position your mobile device within easy reach.
Be able to access your mobile
device without removing your eyes from the road. If you receive an incoming call at an
inconvenient time, if possible, let your voicemail answer it for you.
• Let the person you are speaking with know you are driving; if necessary,
suspend the call in heavy traffic or hazardous weather conditions.
Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
• Do not take notes or look up phone numbers while driving.
Jotting down a “to
do” list or going through your address book takes attention away from your primary
responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your car is
not moving or before pulling into traffic.
If you must make a call while moving, dial
only a few numbers, check the road and your mirrors, then continue.
• Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and suspend
conversations that can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local emergency number
in the case of fire, traffic accident, or medical emergencies (wherever wireless phone
service is available).
• Use your mobile device to help others in emergencies.
If you see an auto
accident, crime in progress, or other serious emergency where lives are in danger, call
911 or other local emergency number (wherever wireless phone service is available),
as you would want others to do for you.
• Call roadside assistance or a special non-emergency wireless assistance
number when necessary.
If you see a broken-down vehicle posing no serious
67
hazard, a broken traffic signal, a minor traffic accident where no one appears injured,
or a vehicle you know to be stolen, call roadside assistance or other special
non-emergency wireless number (wherever wireless phone service is available).
Privacy & Data Security
Privacy & Data Security
Motorola understands that privacy and data security are important to everyone. Because
some features of your mobile device may affect your privacy or data security, please
follow these recommendations to enhance protection of your information:
• Monitor access
—Keep your mobile device with you and do not leave it where others
may have unmonitored access. Use your device’s security and lock features, where
available.
• Keep software up to date
—If Motorola or a software/application vendor releases a
patch or software fix for your mobile device that updates the device’s security, install it
as soon as possible.
• Secure Personal Information
—Your mobile device can store personal information
in various locations including your SIM card, memory card, and phone memory. Be sure
to remove or clear all personal information before you recycle, return, or give away
your device. You can also backup your personal data to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile device, go to
www.motorola.com/support
• Online accounts
—Some mobile devices provide a Motorola online account (such as
MOTOBLUR). Go to your account for information on how to manage the account, and
how to use security features such as remote wipe and device location (where
available).
• Applications and updates
—Choose your apps and updates carefully, and install
from trusted sources only. Some apps can impact your phone’s performance and/or
have access to private information including account details, call data, location details
and network resources.
• Wireless
—For mobile devices with Wi-Fi features, only connect to trusted Wi-Fi
networks. Also, when using your device as a hotspot (where available) use network
security. These precautions will help prevent unauthorized access to your device.
• Location-based information
—Location-based information includes information that
can be used to determine the approximate location of a mobile device. Mobile phones
which are connected to a wireless network transmit location-based information.
Devices enabled with GPS or AGPS technology also transmit location-based
information. Additionally, if you use applications that require location-based
68
information (e.g. driving directions), such applications transmit location-based
information. This location-based information may be shared with third parties,
including your wireless service provider, applications providers, Motorola, and other
third parties providing services.
• Other information your device may transmit
—Your device may also transmit
testing and other diagnostic (including location-based) information, and other
non-personal information to Motorola or other third-party servers. This information is
used to help improve products and services offered by Motorola.
If you have further questions regarding how the use of your mobile device may impact your
privacy or data security, please contact Motorola at
privacy@motorola.com
, or
contact your service provider.
Use & Care
Use & Care
To care for your Motorola mobile device, please observe the following:
liquids
Don’t expose your mobile device to water, rain, extreme humidity, sweat, or
other liquids. If it does get wet, don’t try to accelerate drying with the use of
an oven or dryer, as this may damage the mobile device.
extreme heat or cold
Don’t store or use your mobile device in temperatures below -10°C (14°F) or
above 60°C (140°F). Don’t recharge your mobile device in temperatures
below 0°C (32°F) or above 45°C (113°F).
microwaves
Don’t try to dry your mobile device in a microwave oven.
dust and dirt
Don’t expose your mobile device to dust, dirt, sand, food, or other
inappropriate materials.
69
cleaning solutions
To clean your mobile device, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
shock and vibration
Don’t drop your mobile device.
protection
To help protect your mobile device, always make sure that the battery
compartment and any connector covers are closed and secure.
Recycling
Recycling
Mobile Devices & Accessories
Please do not dispose of mobile devices or electrical accessories (such as
chargers, headsets, or batteries) with your household waste, or in a fire.
These items should be disposed of in accordance with the national collection
and recycling schemes operated by your local or regional authority.
Alternatively, you may return unwanted mobile devices and electrical accessories to any
Motorola Approved Service Center in your region. Details of Motorola approved national
recycling schemes, and further information on Motorola recycling activities can be found
at:
www.motorola.com/recycling
Packaging & Product Guides
Product packaging and product guides should only be disposed of in accordance with
national collection and recycling requirements. Please contact your regional authorities for
more details.
Software Copyright Notice
Software Copyright Notic e
Motorola products may include copyrighted Motorola and third-party software stored in
semiconductor memories or other media. Laws in the United States and other countries
preserve for Motorola and third-party software providers certain exclusive rights for
copyrighted software, such as the exclusive rights to distribute or reproduce the
copyrighted software. Accordingly, any copyrighted software contained in Motorola
70
products may not be modified, reverse-engineered, distributed, or reproduced in any
manner to the extent allowed by law. Furthermore, the purchase of Motorola products
shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any third-party
software provider, except for the normal, non-exclusive, royalty-free license to use that
arises by operation of law in the sale of a product.
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions of the
Copyright Laws of the United States and other countries. This device is intended solely for
copying non-copyrighted materials, materials in which you own the copyright, or materials
which you are authorized or legally permitted to copy. If you are uncertain about your right
to copy any material, please contact your legal advisor.
Open Source Software Information
OSS Information
For instructions on how to obtain a copy of any source code being made publicly available
by Motorola related to software used in this Motorola mobile device, you may send your
request in writing to the address below. Please make sure that the request includes the
model number and the software version number.
MOTOROLA MOBILITY, INC.
OSS Management
600 North US Hwy 45
Libertyville, IL 60048
USA
The Motorola website
opensource.motorola.com
also contains information
regarding Motorola's use of open source.
Motorola has created the
opensource.motorola.com
website to serve as a portal for
interaction with the software community-at-large.
To view additional information regarding licenses, acknowledgments and required
copyright notices for open source packages used in this Motorola mobile device, please
press Menu Key >
Settings
>
About phone
>
Legal information
>
Open source licenses
. In addition, this Motorola device may include
self-contained applications that present supplemental notices for open source packages
used in those applications.
71
Service & Repairs
If you have questions or need assistance, we're here to help.
Go to
www.motorola.com/support
, where you can select from a number of
customer care options. You can also contact the Motorola Customer Support Center at
0800 666 8676 (Argentina), 800-201-442 (Chile), 01-800-700-1504 (Colombia), 01 800 021
0000 (México), 0800-100-4289 (Venezuela), or 0-800-52-470 (Perú).
Latin America Warranty, Except Mexico
Warranty (Except Mexico)
Latin America Warranty Motorola Mobility Inc.
Subscribers/Cellular Division
Through its own service centers and/or its authorized service centers, Motorola provides a
1-year warranty that covers the cellular phone, all its parts and labor against any defect
and operation as long as the “Product” has been operated and handled under normal
conditions. The term of 1 year begins when the “Product” is purchased.
Conditions
1. For warranty service, return the “Product” and this warranty to the place of purchase or
to any Motorola authorized service center.
If additional information is needed, please contact any of our service centers:
Motorola Comercial, S.A. de C.V.
Bosques Alisos No. 125
Bosques de las Lomas
CP 05120 México, D.F.
Telephone: 257-6700
Motorola Industrial Ltda.
Av. Chedid Jafet
222-Bloco D-1 Andar
Vila Olimpia, 04551-065
Sao Paulo, Brazil
Telephone: 0800-773 1244
72
If the cellular phone has been installed in a vehicle, take the vehicle to the service
center to analyze the equipment, or the installation on the vehicle. This warranty does
not cover the installation of the cellular phone.
2. Motorola Mobility Inc., through its own service centers and/or their authorized service
centers, will repair or replace the cellular phone at no charge. This warranty covers
shipping expenses, only if it is needed to make the repair.
Motorola Mobility Inc. through its own service centers and/or their authorized service
centers, at its own discretion, will repair, replace, or reimburse the purchase price of
the defective cellular phone only during the warranty period, as long as the “Product,”
in accordance with the conditions established in this warranty, is returned to a Motorola
service center or to a Motorola authorized service center. All the accessories, batteries,
parts, small boards or equipment of the cellular telephone that by virtue of being
defective are replaced in fulfillment of this warranty, will automatically become
property of Motorola Mobility, Inc.
3. To receive warranty service, present your cellular phone or accessory to any Motorola
service center or Motorola authorized service center, along with your receipt of
purchase or comparable substitute that indicates the date of purchase, serial number of
the transceiver, and/or electronic serial number.
4. The repair time will not be greater than 30 days, starting from the day the equipment
was received at the service center.
5. To purchase parts, spare parts, accessories and service not covered by this warranty,
contact one of the service centers listed in section 1, or any authorized service center in
your locality.
6. This warranty is not valid in the following cases:
•
Defects or damages derived from abnormal use.
•
Defects or damages derived from accident or negligence.
Motorola Mobility Colombia S.A.S.
Carrera 7 7152
Torre B Piso 13 Oficina 1301
Torre del Banco Ganadero
Santa Fe de Bogotá, Colombia
Telephone: 01800 700 1504
73
•
Defects or damages derived from tests, unsuitable operation, maintenance,
installation and adjustments, or derived from any alteration or modification of any
type.
•
Damage caused to antennas, unless they are consequences of defects in material or
workmanship.
•
When the cellular phone has been disassembled and/or repaired so that its operation
has been affected or that it can not be tested to verify any claim that grants this
warranty.
•
Any cellular phone with a serial number that has been removed, altered, or obliterated.
•
Defects or damages caused by food spills or liquids.
•
When the cables of the control unit have been stretched or the module tongue-piece
has broken.
•
When the surface of the “Product” and its pieces have been scratched or damaged due
to normal use.
•
Leather cases.
•
Rented cellular phones.
•
When the “Product” has been altered or repaired by non-Motorola authorized service
centers.
•
When the “Product” has not been operated in agreement with the instructions that
accompany the “Product.”
7. The batteries (Nickel-Cadmium) are warranted only if their capacity is reduced by 80%
below its predicted capacity. This warranty is null for all types of batteries if:
•
The batteries are charged by a charger that has not been approved by Motorola.
•
Any of the battery seals are broken or tampered with.
•
The batteries were used or installed in non-Motorola equipment.
“Product”:
Brand: Motorola Model:
Number of Mechanical Series:
Number of Electronic Series:
Name of Distributor:
Street and Number:
74
Limited Warranty (Mexico)
Warranty (Mexico)
For Motorola personal communication products and accessories purchased in
Mexico
I. Concepts Covered by this Warranty
This warranty covers all the parts, components, accessories and labor of the Motorola
“Product” from defects in materials and workmanship under normal consumer usage.
The Motorola “Products” that are protected under this warranty can be: (a) cellular
telephones, (b) radar sets, (c) two-way radios, and (d) wireless telephones.
Motorola Comercial, S.A. de C.V., at its option, will at no charge repair, replace, or refund
the purchase price of any “Product” that does not conform to this warranty. Motorola may
use functionally equivalent reconditioned/refurbished/pre-owned or new products,
accessories, or parts. Updates in software are not covered.
II. Length of Warranty Coverage
The length of coverage is one (1) year from the date the new “Product” was purchased
from an authorized distributor.
III. Place where consumers can make the
warranty effective, obtain parts, components, and
accessories
Motorola Comercial, S.A. de C.V.
Bosques de Alisos 125
Col. Bosques de las Lomas
Del. Cuajimalpa
Te:(55) 5257-6700
Town:
Municipality:
Postal Code, City, State, or Country:
Telephone:
Date of Delivery or Installation:
75
IV. Procedure to Make the Warranty Effective
For warranty service, return the “Product” (with its components and accessories, such as
batteries, antennas, and charger) to the place of purchase, to the address above, or to an
authorized service center, or call 01 800 021 0000. To request a refund, you must present
this warranty, sealed by the place of purchase, along with the “Product.”
V. Warranty Limitations or Exceptions
The warranty is not valid when:
•
The “Product” has been used in conditions different from the normal ones.
•
The “Product” has not been operated as described in the operating instructions.)
•
The “Product” has been altered or repaired by someone other than Motorola, or its
authorized service centers.
If repairs are not covered by this warranty, Motorola, at the request of the purchaser, will
provide information regarding availability, prices, and other conditions for the repair of the
“Product.”
To obtain information on products that need repairs not covered by this warranty, please
call 01 800 021 0000.
Note:
In other countries, consult the laws and local regulations under the warranty and its
local Motorola office.
Product Model: Date of Purchase:
Seal of the authorized or established distributor where the “Product” was purchased:
76
Copyright & Trademarks
Motorola Mobility Argentina S.A.
Suipacha 1111 - Piso 18
C1008AAW Buenos Aires
ARGENTINA
www.motorola.com
Certain features, services and applications are network dependent and may not be
available in all areas; additional terms, conditions and/or charges may apply. Contact your
service provider for details.
All features, functionality, and other product specifications, as well as the information
contained in this guide, are based upon the latest available information and believed to be
accurate at the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
Note:
The images in this guide are examples only.
MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola
Trademark Holdings, LLC. Google, the Google logo, Google Maps, Google Talk, Google
Latitude, Gmail, YouTube, Picasa, Android and Android Market are trademarks of Google,
Inc. All other product or service names are the property of their respective owners.
© 2011 Motorola Mobility, Inc. All rights reserved.
Caution:
Motorola does not take responsibility for changes/modification to the
transceiver.
Product ID: MOTOROLA SPICE key (XT316)
Manual Number: 68016263001-A

Navigation menu
