1
Congratulations
The MOTO Avon TV is a phone with several premium features
including personalization, music, photo, video, browsing,
mobile TV and more...all in a streamlined touch screen design.
•
Personalization: Unify your work and personal life
with calendar, email and contacts.
•
Photo: Use a 2MP camera to take photos and send
them to your friends.
•
Dual SIM slot: Enable you to use two SIM cards at
the same time without changing them.
We have crammed all the main features of your phone into this
handy guide, and in a matter of minutes we’ll show you just
how easy your phone is to use. You may be surprised at what
you discover.
If you’d like to get more information about how to use your
new phone, please visit
www.motorola.com
.
Caution:
Before using your phone for the first time, please
read the important
legal and safety information
at the back
of the
Getting Started Guide.
2
Contents
My Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Menu Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Let’s Go . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Customize. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Text Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
E-mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Mobile TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Audio Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Web. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Personal Organizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Legal, Safety & Regulatory . . . . . . . . . . . . . . . . . . . . . . . . 36
![](/img.php?id=1539026&img=bg5.png)

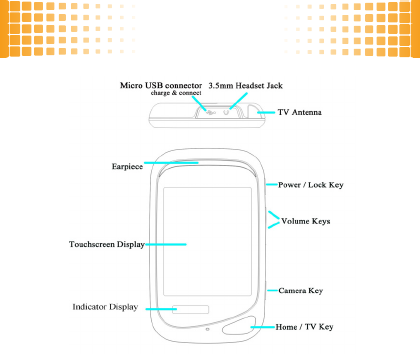

My Phone
3
My Phone
Note:
All the illustrations, simulated screen and related images
used in this manual are for reference only. There may be slight
defference between the phone and keys and content of display
used in this manual and those of your phone. Please refer to
your phone for actuality.
![](/img.php?id=1539026&img=bg6.png)
Home Screen
4
Home Screen
Keep you updated at all times...
The home screen appears when you turn on the phone. It gives
you all your latest information in one place. Status indicators
can appear at the top of the home screen.
Note:
Your home screen may look different.
Status indicators
Signal Strength General Profile
Active Voice Call Meeting Profile
Headset Outdoor Profile
Alarm Lock Silent Profile
Roaming Service Bluetooth
New Messages Battery
![](/img.php?id=1539026&img=bg7.png)
Menu Map
5

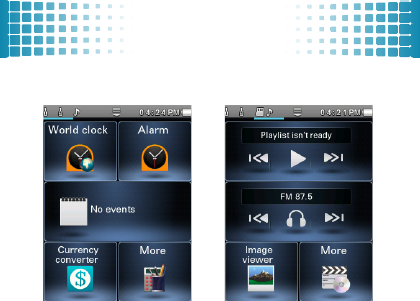

Menu Map
Main menu 1
• World clock
•Alarm
• Event
• Currency converter
• File manager
• Calendar
•Tasks
•Notes
• Calculator
• Unit changer
• Stop watch
• Ebook
• Settings
Main menu 2
• Playlist
•FM Radio
• Image viewer
• Camera
• Video player
• Sound recorder
• Photo editor
• Audio player
* Flick the menu screen right or
left to view more panels.
* Touch and hold an icon to
change a shortcut in a menu.
![](/img.php?id=1539026&img=bg8.png)
Menu Map
6

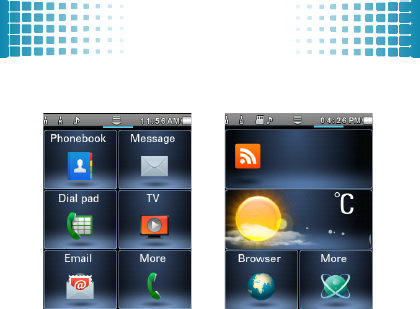

Main menu 3
• Phonebook
• Message
• Dial pad
•TV
•Email
• Call log
Main menu 4
•RSS
• Weather
• Browser
![](/img.php?id=1539026&img=bg9.png)
Menu Map
7

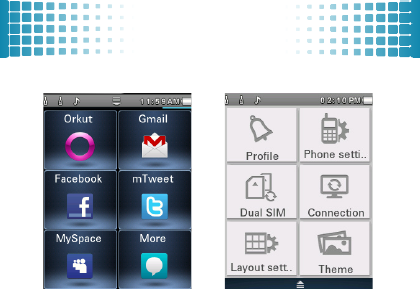

Main menu 5
• Orkut
• Gmail
• Facebook
• mTweet
• MySpace
• YouTube
• Google Search
• Yahoo
•Twitter
• MotoID
•Java
Setup menu
• Profile
• Phone settings
• Dual SIM
• Connection
• Layout settings
•Theme
![](/img.php?id=1539026&img=bga.png)
Let’s Go
8

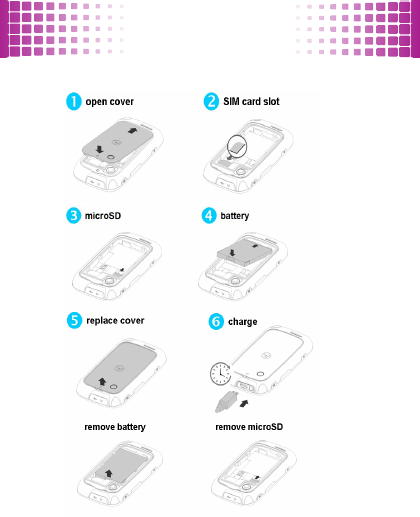

Let’s Go
Note:
Your battery is intentionally tight fitting.
![](/img.php?id=1539026&img=bgb.png)
Basics
9
B
asics
Here’s a few essentials:
About this guide
Touch the Menu icon to open the Main Menu. Flick the
menu screen to change pages of menus, then touch the icon to
select the item. Touch the Right Soft Key on the screen to
go back to the previous level.
This guide shows how to locate a menu as follows:
Find it:
Touch
Menu icon> More >Call log > Received calls.
1
Touch the Menu icon to open the Main Menu.
2
Touch the icon of
Call log
.
3
Touch
Received calls
to select the received calls.
Turn it on/off
Touch and hold the Power Key for a few seconds to turn the
phone on/off. If prompted, enter your unlock code to turn it on.
Activate SIM cards
Your phone supports the Dual SIM cards mode, enabling you
to use two SIM cards at the same time without changing them.
![](/img.php?id=1539026&img=bgc.png)
Basics
10
When two SIM cards are both installed, you can activate
both
SIM cards or
one of them except in the flight mode.
Find it:
Touch
Menu icon > Flick the menu screen to Menu
1 > More > Settings > Dual SIM settings.
Note:
If only one SIM card is installed, this SIM card would be
activated as default.
Access the main menu
1
From the home screen, touch the Menu icon to open
the Main Menu.
2
You can flick the menu screen to change pages of menu
among Menu1, Menu2, Menu3, Menu4 and Menu5.
3
You can touch the Right Soft Key on screen to move
up to the previous level. You can also press the Home Key
to return to the home screen anytime.
![](/img.php?id=1539026&img=bgd.png)
Calls
11
Calls
It’s good to talk.
Make calls
From the home screen, Touch to open a virtual keypad.
Enter a number and touch the Call/Answer Key .
Note:
If the Dual SIM Open mode is activated, you must
choose which SIM card as voice call.
Answer calls
Touch the Call/Answer Key on screen when your phone rings
or vibrates.
End a call
Touch the End Key on screen when your phone rings or
vibrates.
Redial a number
1
From the home screen, touch the Menu icon to open the
Main Menu.
2
Touch the
icon of call log to view the history of calls. You
can select to redial a number from Missed, Dialled or
Received calls.
![](/img.php?id=1539026&img=bge.png)
Calls
12
Note:
If the Dual SIM Open mode is activated, you must
choose which SIM card as call history and voice call.
Go handsfree
During an active call, touch the icon of handsfree to turn the
handsfree speaker on. To turn the handsfree speaker off, touch
the icon of handsfree again
.
You can also use a wired headset
to go handsfree.
Note:
The use of handfree speaker while driving may cause
distraction. Discontinue a call if you can’t concentrate on
driving. Additionally, the use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always abide by laws and regulations on the use of these
products.
Speed dial
You can set the speed dial to call the entries in your phonebook.
Find it:
Touch
Menu icon> Phonebook > Options (Left soft
key on screen)> Phonebook settings >Speed dial
.
1
Select
Status
to switch it on, then select
Set number
.
2
Scroll to the speed dial number (2-9) you want to set, then
touch
Edit
.
![](/img.php?id=1539026&img=bgf.png)
Calls
13
3
Scroll to the desired contact and touch .
4
To call speed dial entries, touch and hold the single-digit
speed dial number for a few seconds.
Note:
Speed dial 1 is reserved for calling your voicemail.
In-call options
During an active call, you can access the in-call options by
touching icons on screen
,
including Call on hold,
loudspeaker,
keypad and contacts,or you can touch
Options
:
•
Hold Single Call: put a call on hold
.
•
End Single Call: end a call
.
•
New Call:
make a new call during an active call.
•
Phonebook:
shortcut to phonebook menu.
•
Sound Recorder: record your conversation during
an active call.
•
Mute: Mute your voice during an active call
.
•
DTMF: swith DTMF (Dual Tone Multi-Frequency)
tone dialing system
.
![](/img.php?id=1539026&img=bg10.png)
Calls
14
Note:
This is the standard main menu layout. Your phone’s
menu may be
different.
Emergency calls
To call an emergency number, enter the emergency number and
touch the Call/Answer Key.
Your service provider programs one or more emergency phone
numbers, (such as 112 or 911), that you can call under any
circumstances, even when your phone is locked.
Emergency numbers vary by country. Your phone’s
pre-programmed emergency number(s) may not work in all
locations, and sometimes an
emergency
call cannot be placed
due to network, environmental, or interference issues.
![](/img.php?id=1539026&img=bg11.png)
Contacts
15
Contacts
Meet someone new? Save their names.
Save a contact
1
From the home screen, touch to open a virtual
keypad. Enter a number.
2T
ouch
Options > Save to Phonebook > Add New
Contact.
3
Enter the contact name and details, and touch
Options
> Save
.
Call a contact
1
From the home screen, touch to open the phonebook.
2
Scroll the list to highlight a contact.
3
Select the contact and touch the Call/Answer Key.
Note:
If the Dual SIM Open mode is activated, you must
choose which SIM card as voice call.
Tip:
Your phone calls all contacts’ default numbers. If you
ha
v
e stored more than one number for a contact, select the
contact to see other number(s). To dial a number, scroll to it
and touch the Call/Answer Key on screen.
![](/img.php?id=1539026&img=bg12.png)
Customize
16
Customize
Create your personal style
.
User profiles
Your phone has different profiles. You can customize
ringtones, alerts, and volumes for each profile.
1T
ouch
Menu icon > Setup menu (Drag down to the
bottom) > Profiles.
•
General: Standard profile as default setting.
After activating this profile, your phone shows
an indicator
.
•
Slient: Vibrator and ringtones are set to be off.
After this profile is activated, only the screen of
your phone shows incoming events
. Your phone
shows an indicator .
•
Meeting: ringtone is set to be off. Only vibrator
is activated. After this profile is activated, your
phone shows an indicator
.
•
Outdoor: The Volume of ringtone and key tone
is set to maximum. After this profile is activated,
your phone shows an indicator
.
![](/img.php?id=1539026&img=bg13.png)
Customize
17
•
My style: You can set your desired ringtones and
alert types when using My style
.
2T
ouch
Menu icon
>
Drag Setup menu down to the
bottom
>
Profile
>
My style
>
Options
on screen
>
Customize
to set your desired ringtones and alert types.
•
Alert Type: Select an alert type (Ring only,
Vibrate only, Vibrate and Ring, Vibrate then
ring)
.
•
Ring Type: Select a ring type (Repeat,
Ascending, Beep once)
.
•
SIM1 incoming call, SIM2 incoming call,
SIM1 message, SIM2 message: Set the
ringtones of incoming call and messages
respectively for two SIM cards. You can also
select different ringtone types for power on/off.
•
Ringtone volume, Message volume: Adjust
ringtone volume and message volume
.
•
Other tones: Change tones of Keytone, Power
on, Power off and System alert
.
![](/img.php?id=1539026&img=bg14.png)
Customize
18
Display settings
You can set display settings such as Wallpaper, Screen Saver
and Main Menu Style.
Find it:
T
ouch
Menu icon > Setup menu > Phone Settings >
Display.
Find it:
T
ouch
Menu icon > Setup menu > Layout setting.
Find it:
Touch
Menu icon > Setup menu > Theme.
Date & time
You can set date, time, time zone and format.
Find it:
Touch
Menu icon > Setup menu > Phone Settings >
Time and date.
Language
You can set menu language.
Find it:
Touch
Menu icon > Setup menu > Phone Settings >
Language
.
Note:
This is the standard main menu layout. Your phone’s
menu may be different.
![](/img.php?id=1539026&img=bg15.png)
Text Entry
19
Tex t Ent ry
Give you comfortable and quick typing.
With your phone’s touch screen, you can enter text or numbers
and create messages or notes. After you enter the text input
field, an indicator at the top left of the display shows the text
input mode you are currently using.
1
You can change the text input mode by touching
Options
(Left soft key on screen) > Input method.
2
Use the following keys to access functions:
•
To delete letters, touch the Back Key on
screen.
•
To enter a space, enter the Space Key .
•
To start a new line, touch
first, then touch
the Enter Key .
•
To enter a capital letters, touch the Caps
Key .To enter the small letters, touch the .
•
To insert symbols, touch Options
> Insert
symbol
.
Note:
This is the standard input method layout. Your phone
may be different.
![](/img.php?id=1539026&img=bg16.png)
Messages
20
Messages
It’s good to text.
Create & send a message
Find it:
From the home screen, touch to open Message
Menu, then choose
Write message
.
1
To enter a message, touch the screen, then use the virtual
keypad to enter text or numbers.
2
To insert pictures, audioes, videoes or objects, touch
Options
or the shortcut on screen
.
3
When you finish the message, touch
Options > Send to
or
shortcut on screen. You can enter one or more
recipients or choose recipients from your phonebook.
Read messages
When you receive a message, your phone plays an alert and
shows a message indicator in the middle of the screen.
1
To read a new message, touch
View
in the message
notification area.
2
You can read all received messages in your inbox by touch
Menu icon > Message> Inbox.
![](/img.php?id=1539026&img=bg17.png)
E-mail
21
E-mail
It’s good to E-mail.
Set up an e-mail account
Find it:
Touch
Menu icon > Email.
1
Enter your e-mail address, touch
Options > Next
to set
Protocol, Data account, Incoming server, Outgoing server,
User name, Password and Account name.
2
In
Email
, select the e-mail address you want to activate,
then touch
Options > Connect
.
3
To add another new account, touch
Options > Email
accounts > Options > New account.
Note:
E-mail service depends on your e-mail and phone
network service providers.
Create & send e-mail
Find it:
Touch
Menu icon > Email> Options > Write Email.
1
To edit the subject and the content, use the virtual keypad
to enter text or numbers.
2
To add a picture or a file, touch
Options > Add
attachments or shortcut on screen.
3
When you finish the e-mail, touch
Options >Send
.
![](/img.php?id=1539026&img=bg18.png)
E-mail
22
4
Scroll to one of the recipients and touch
Options
>Send
.You can touch
Options > Change Type
.to set the
type of recipients as
To, C c
and/or
Bcc
.
Tip:
You can save an e-mail draft you are composing and then
finish and send it later. Touch
Options > Save to Drafts
. An
e-mail draft is stored in
Drafts
.
Create & add an e-mail signature
Find it:
Touch the Main
Menu icon > Email > Options>
Email accounts.
Scroll to the account for which you are creating the signature,
then touch
Options > Edit > Advance settings > Signature.
Read E-mails
When you receive an e-mail message, your phone plays an
alert and shows a message indicator at the top of the screen.
1
To read new e-mail, touch
View
in the E-mail notification
area.
2
You can read all received E-mails in your inbox by
touching
Menu icon > Email.
Select an e-mail account
and touch
Inbox.
![](/img.php?id=1539026&img=bg19.png)
Bluetooth
23
Bluetooth
Connect your phone and other devices.
Your phone supports Bluetooth wireless pairing (also called
linking or bonding). You can pair your phone with a Bluetooth
headset or car kit.
Note:
The use of wireless devices and their accessories may be
prohibited or restricted in certain areas. Always abide by laws
and regulations on the use of these products.
Note:
Bluetooth - indoor use only in France.
Turn Bluetooth power on and off
Find it:
T
ouch
Menu icon > Setup menu > Connection >
Bluetooth.
1
Touch
Power
to
switch Bluetooth on / off. After
Bluetooth is turned on, your phone shows an indicator
at the top of the display.
2
If Bluetooth
Power
is
On
, your phone can automatically
pair with the handsfree device you have used before. Just
turn on the device or move it near the phone.
Note:
To extend battery life, use the previous procedure to set
Bluetooth
Power
to
Off
when it is not in use. It will not pair
with devices until you set Bluetooth
Power
back to
On
.
![](/img.php?id=1539026&img=bg1a.png)
Bluetooth
24
Pair with a handsfree device
Before you try to pair your phone with a device, make sure
your phone’s Bluetooth
Power
is
On
and the device is on and
ready in pairing or bonding mode.
1
Put the device (handsfree headset, stereo headset, car kit,
etc.) in pairing mode.
2
Touch
My devices > Search new device
. Your phone can
search and list the devices it has found within range.
3
Select the device from the list, and then touch
Connect.
If
prompted, enter the device passkey and touch .
Send objects to another device
You can use Bluetooth pairing to send contacts, tasks, calendar
items, audioes, pictures, videoes, and voice notes from your
phone to another device.
1
Select the object you want to send.
2
Touch
Options > Send> Via Bluetooth.
3
Select the device from the list, then sending will
automatically start.
4
To cancel sending an item, touch
Cancel.
![](/img.php?id=1539026&img=bg1b.png)
Mobile TV
25
Mobile TV
Watch your favorite programs!
1
The TV antenna is located inside your phone. To receive
better TV signal, stretch out the TV antenna.
2
Touch
TV key
to open Mobile TV.
3
Your phone will show
Local Setting
to let you select your
located region for channel scanning.
4
Touch
Channel Scan
to search for available channels.
Touch the screen to switch to full screen mode.
Note:
Available programming and networks may vary
depending on your service provider or region.
ATV function
does not support in USA area
.
Note:
Always retract and store the aerial after use, especially
when making or receiving calls. This will maintain compliance
with RF exposure (SAR) guidelines and help protect your
aerial.
Control menu
Settings
Set options such as Channel Scan, Local
Setting, Caption, Parenetal Rating, etc
Options
Display Channel List and Program Guide
Previous
Move up to the previous channel
Next Channel
Move down to the next channel
![](/img.php?id=1539026&img=bg1c.png)
Camcorder
26
Camcorder
Capture your colorful life!
Take a photo
1
To open the camera viewfinder, you can touch
Menu icon
> Flick the menu screen to Menu 2 > More >Camera.
2
Touch the Camera Key to take a picture. Your phone
saves the picture and shows it in the camera viewfinder.
3
You can find your stored pictures by touching
>
Switch to photo album.
Note:
Before taking your photo, you can touch to adjust
picture settings, such as
Capture m ode, Image size, White
balance, Effects,
etc.
![](/img.php?id=1539026&img=bg1d.png)
Camcorder
27
Record a video clip
1
To open the video viewfinder, you can touch
Menu icon >
Flick the menu screen to Menu 2> More >Camera.
2
Touch the Camcorder Key to start recording a video.
3
Touch to end recording the video, or touch to
pause recording and to continue recording.
4
You can find your stored videos by touching
Menu icon >
Flick the menu screen to Menu 1> File Manager >
Phone
or
Memory Card
, then select the folder that
contains the stored videos
.
Note:
Before recording your video, you can touch to
adjust video settings, such as
Record size, White balance,
Effects, Video quality, Record audio,
etc.
![](/img.php?id=1539026&img=bg1e.png)
Audio Player
28
Audio Player
Enjoy music anytime and anywhere.
Playlists
Create a playlist
Find it:
Touch
Menu icon > Flick the menu screen to Menu
2 > More > Audio Player > Playlists > Options > New.
1
Enter a name for the playlist, then touch
Options > Done.
2
Open the playlist you want to edit, then touch
Options >
Add
to add music files from your phone or your memory
card.
Play a playlist
In
Playlists
, touch the playlist you want to play, then touch one
of the songs.
1
In
Playlists
, open the playlist you want to play, then select
one of the music files.
2
Use these keys to control Audio Player:
Controls
previous song
touch
next song
touch
![](/img.php?id=1539026&img=bg1f.png)
Audio Player
29
Delete a playlist
In
Playlists
, scroll to the playlist you want to delete, then touch
Options > Delete.
Player settings
When using the media player, you can touch
Options >
Settings > Player Settings
to set these options.
• Shuffle:
Set all songs play shuffled or one by one.
•Repeat:
Repeat all songs or one selected song.
•Sound effects:
Set your desired equalizer modes such as
Bass, Classical or Party.
• Bass Enhancement:
Switch the effect of bass
enhancement.
play / pause
touch or
volume touch the sideVolume keys up or down
Controls
![](/img.php?id=1539026&img=bg20.png)
FM Radio
30
FM Radio
Listen to your favorite channels.
1
Plug a wired headset into your phone.
Note:
The FM radio works only when a headset is plugged in.
2
Touch
Menu icon >Flick the menu screen to Menu 2 >
More > FM radio
.
3
Use these keys to control the radio:
4
Touch
Options
to set these options:
•
Loudspeaker: Turn on/off the loudspeaker.
•
Channel list: Bookmarks for up to 30 radio
channels.
•
Manual input: Key into a channel frequency.
Controls
tune in a station touch or
previous or next
available station touch or
turn off the radio touch
volume touch the
Vol ume key s
(on the right side of
your phone)
![](/img.php?id=1539026&img=bg21.png)
FM Radio
31
•
Auto Search: Automatically search for available
radio channels and store them to the channel list.
•
Settings: Change record format, audio quality,
and record storage.
•
Record: Record your favorite radio programs.
•
File List: Manage the previous recorded files.
![](/img.php?id=1539026&img=bg22.png)
Web
32
Web
Surf your favorite web sites.
Surf web sites
Find it:
Touch
Menu icon >Flick the menu screen to Menu 4
> Browser.
1
To go to a Web page, input the URL.
2
To bookmark a Web page, touch
> Bookmarks >
Manage.
3
To change displays settings like
Zoom
and
Load Images,
touch
> Settings.
4
To go to a link on a Web page, touch it.
Note:
If you can’t connect, contact your service provider.
![](/img.php?id=1539026&img=bg23.png)
Personal Organizer
33
Personal Organizer
Manage your life with these handy tools
.
Calendar
Find it:
Touch
Menu icon > Flick the menu screen to Menu
1 > More > Calendar.
1
Touch
Options
to add, delete or view events. You can set
six types of events including
Reminder, Meetings,
Course, Date, Call
and
Anniversary.
2
More details of the first coming event in the calendar will
appear in
Menu1
.
Tasks
Find it:
Touch
Menu icon >Flick the menu screen to Menu
1> More > Tasks.
Alarms
Find it:
Touch
Menu icon > Flick the menu screen to Menu
1 > Alarm
You can set the FM radio as your alarm tone by touching
Edit
> Alarm Tone > FM radio.
![](/img.php?id=1539026&img=bg24.png)
Security
34
Security
Keep your phone secure!
Lock & unlock the phone
You can lock your phone to keep others from using it.
Find it:
Touch
Menu icon> Flick the menu screen to Menu 1
> More > Settings > Security settings > SIM1/2 security
setting.
1
Touch
SIM lock
to turn this lock on. The Lock code is
provided by your network service provider
.
2
In Security Setting, you can change the password by
touching
Change Password > SIM1/2 PIN
.
Lock & unlock the keypad
You can lock the keypad to prevent any unwanted phone
operations.
1
Touch the
Power/Lock key
on the right side of your
phone to lock the keypad
.
2
To unlock, touch the
Power/Lock key
,
then drag
from the top to the bottom of the screen.
![](/img.php?id=1539026&img=bg25.png)
Troubleshooting
35
Troubleshooting
We are here to help
.
Crash recovery
In the unlikely event that your phone stops responding to
touches and key presses, try a quick reset. Remove the back
cover and battery, then replace them and turn your phone on as
usual.
Reset
Find it:
Touch
Menu icon > Flick the menu screen to Menu
1> More > Settings > Restore factory settings.
Your phone will be reset to factory settings, and all data in your
phone will be deleted.
![](/img.php?id=1539026&img=bg26.png)
36
Legal, Safety & Regulatory
Legal, Safety & Regulatory
Battery Use & Safety
Battery Use & Safety
Important: Handle and store batteries properly to avoid injury or damage.
Most battery issues arise from improper handling of batteries, and particularly
from the continued use of damaged batteries.
DON’Ts
• Don’t disassemble, crush, puncture, shred, or otherwise attempt to
change the form of your battery.
• Don’t let the phone or battery come in contact with water.
Water can
get into the phone’s circuits, leading to corrosion. If the phone and/or
battery get wet, have them checked by your carrier or contact Motorola,
even if they appear to be working properly.
• Don’t allow the battery to touch metal objects.
If metal objects, such as
jewelry, stay in prolonged contact with the battery contact points, the
battery could become very hot.
• Don’t place your battery near a heat source.
Excessive heat can
damage the phone or the battery. High temperatures can cause the battery
to swell, leak, or malfunction. Therefore:
•
Do
not
dry a wet or damp battery with an appliance or heat source, such
as a hair dryer or microwave oven.
•
Avoid leaving your phone in your car in high temperatures.
DOs
• Do avoid dropping the battery or phone.
Dropping these items,
especially on a hard surface, can potentially cause damage.
• Do contact your service provider or Motorola if your phone or
battery has been damaged from dropping or high temperatures.
Important: Use Motorola Original products for quality assurance and
safeguards.
To aid consumers in identifying authentic Motorola batteries from
non-original or counterfeit batteries (that may not have adequate safety
![](/img.php?id=1539026&img=bg27.png)
37
protection), Motorola provides holograms on its batteries. Consumers should
confirm that any battery they purchase has a “Motorola Original” hologram.
Motorola recommends you always use Motorola-branded batteries and
chargers.
Motorola mobile devices are designed to work with Motorola
batteries. If you see a message on your display such as
Invalid Battery
or
Unable to Charge
, take the following steps:
•
Remove the battery and inspect it to confirm that it has a “Motorola
Original” hologram;
•
If there is no hologram, the battery is not a Motorola battery;
•
If there is a hologram, replace the battery and retry charging it;
•
If the message remains, contact a Motorola authorized service center.
Important:
Motorola’s warranty does not cover damage to the phone caused by
non-Motorola batteries and/or chargers.
Warning:
Use of a non-Motorola battery or charger may present a risk of fire,
explosion, leakage, or other hazard.
Proper and safe battery disposal and recycling:
Proper battery disposal is not
only important for safety, it benefits the environment. Consumers may recycle
their used batteries in many retail or service provider locations. Additional
information on proper disposal and recycling may be found on the Web:
• www.motorola.com/recycling
• www.rbrc.org/call2recycle/
(in English only)
Disposal:
Promptly dispose of used batteries in
accordance with local regulations. Contact your local
recycling center or national recycling organizations for
more information on how to dispose of batteries.
Warning:
Never dispose of batteries in a fire because they may explode.
032375o
38
Battery Charging
Battery Charging
Notes for charging your phone’s battery:
•
When charging your battery, keep it near room temperature. Never expose
batteries to temperatures below 0°C (32°F) or above 45°C (113°F) when
charging.
•
New batteries are not fully charged.
•
New batteries or batteries stored for a long time may take more time to
charge.
•
Motorola batteries and charging systems have circuitry that protects the
battery from damage from overcharging.
Specific Absorption Rate (ICNIRP)
SAR (ICNIRP)
Your model wireless phone meets international guidelines for exposure to
radio waves:
Your mobile device is a radio transmitter and receiver. It is designed to not
exceed the limits for exposure to radio waves recommended by international
guidelines. These guidelines were developed by the independent scientific
organization ICNIRP and include safety margins designed to assure the
protection of all persons, regardless of age and health, and to account for any
variations in measurements. The guidelines use a unit of measurement known as
the Specific Absorption Rate (SAR). The ICNIRP SAR limit for mobile devices
used by the general public is 2 watts per kilogram (W/kg), and the CE MAX
SAR value for this mobile device when tested at the head is
0.707
mW/10g and
the FCC MAX SAR value for this mobile device when tested at the head is
1.32
mW/g . As mobile devices offer a range of functions, they can be used in other
positions, such as on the body as described in this guide. In this case, the tested
CE MAX SAR value is
0.733
mW/10g and the tested FCC MAX SAR value is
1.46
mW/g. The tests are carried out in accordance with international guidelines
for testing. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for this product.
As SAR is measured utilizing the mobile device’s highest transmitting power, the
39
actual SAR of this mobile device while operating is typically below that
indicated above. This is due to automatic changes to the power level of the
mobile device to ensure it only uses the minimum level required to reach the
network.
While there may be differences between the SAR levels of various mobile
devices and at various positions, they meet the governmental requirements for
safe exposure. Please note that improvements to this product model could cause
differences in the SAR value for later products; in all cases, products are
designed to be within the guidelines.
The World Health Organization has stated that present scientific information
does not indicate the need for any special precautions for the use of mobile
devices. They note that if you want to reduce your exposure, then you can do so
by limiting the length of calls or using a handsfree device to keep the mobile
device away from the head and body.
Additional Information can be found on the Web sites of the World Health
Organization (http://www.who.int/emf) or Motorola Mobility, Inc.
(http://www.motorola.com/rfhealth).
Software Copyright Notice
Software Copyright Notice
Motorola products may include copyrighted Motorola and third-party software
stored in semiconductor memories or other media. Laws in the United States and
other countries preserve for Motorola and third-party software providers certain
exclusive rights for copyrighted software, such as the exclusive rights to
distribute or reproduce the copyrighted software. Accordingly, any copyrighted
software contained in Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent
allowed by law. Furthermore, the purchase of Motorola products shall not be
deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents, or patent applications of Motorola or any
third-party software provider, except for the normal, non-exclusive, royalty-free
license to use that arises by operation of law in the sale of a product.
40
Content Copyright
Content Copyright
The unauthorized copying of copyrighted materials is contrary to the provisions
of the Copyright Laws of the United States and other countries. This device is
intended solely for copying non-copyrighted materials, materials in which you
own the copyright, or materials which you are authorized or legally permitted to
copy. If you are uncertain about your right to copy any material, please contact
your legal advisor.
Safety & General Information
Safety Information
This section contains important information on the safe and efficient
operation of your mobile device. Read this information before using your
mobile device.
Exposure to Radio Frequency (RF) Energy
Your mobile device contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with your mobile
device, the system handling your call controls the power level at which your
mobile device transmits.
Your mobile device is designed to comply with local regulatory requirements in
your country concerning exposure of human beings to RF energy.
Operational Precautions
For optimal mobile device performance, and to be sure that human exposure to
RF energy does not exceed the guidelines set forth in the relevant standards,
always follow these instructions and precautions.
Product Operation
When placing or receiving a phone call, hold your mobile device just like you
would a landline phone.
If you wear the mobile device on your body, always place the mobile device in a
Motorola-supplied or approved clip, holder, holster, case, or body harness. If you
do not use a body-worn accessory supplied or approved by Motorola, keep the
mobile device and its antenna at least 2.5 centimeters (1 inch) from your body
when transmitting.
![](/img.php?id=1539026&img=bg2b.png)
41
Using accessories not supplied or approved by Motorola may cause your mobile
device to exceed RF energy exposure guidelines. For a list of Motorola-supplied
or approved accessories, visit our Web site at:
www.motorola.com
.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference from external
sources if inadequately shielded, designed, or otherwise configured for RF
energy compatibility. In some circumstances, your mobile device may cause
interference with other devices.
Follow Instructions to Avoid Interference Problems
Turn off your mobile device in any location where posted notices instruct you to
do so.
In an aircraft, turn off your mobile device whenever instructed to do so by airline
staff. If your mobile device offers an airplane mode or similar feature, consult
airline staff about using it in flight.
Implantable Medical Devices
If you have an implantable medical device, such as a pacemaker or defibrillator,
consult your physician before using this mobile device.
Persons with implantable medical devices should observe the following
precautions:
•
ALWAYS keep the mobile device more than 20 centimeters (8 inches)
from the implantable medical device when the mobile device is turned
ON.
•
DO NOT carry the mobile device in the breast pocket.
•
Use the ear opposite the implantable medical device to minimize the
potential for interference.
•
Turn OFF the mobile device immediately if you have any reason to
suspect that interference is taking place.
Read and follow the directions from the manufacturer of your implantable
medical device. If you have any questions about using your mobile device with
your implantable medical device, consult your healthcare provider.
![](/img.php?id=1539026&img=bg2c.png)
42
Driving Precautions
Using a mobile device while driving may cause distraction. End a call if you
can’t concentrate on driving. Input information about your destination and route
prior to your drive. Do not input data or engage in text messaging while driving.
Keep your eyes on the road while driving. Listen to the audible turn-by-turn
directions, if available.
Also, using a mobile device or accessory may be prohibited or restricted in
certain areas. Always obey the laws and regulations on the use of these products.
Responsible driving practices can be found at
www.motorola.com/callsmart
(in
English only).
Operational Warnings
Obey all posted signs when using mobile devices in public areas.
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often, but not always, posted
and can include fueling areas, such as below decks on boats, fuel or chemical
transfer or storage facilities, or areas where the air contains chemicals or
particles, such as grain dust, or metal powders.
When you are in such an area, turn off your mobile device, and do not remove,
install, or charge batteries. In such areas, sparks can occur and cause an
explosion or fire.
Symbol Key
Your battery, charger, or mobile device may contain symbols, defined as follows:
Symbol Definition
Important safety information follows.
Do not dispose of your battery or mobile device in a fire.
032374o
032376o
![](/img.php?id=1539026&img=bg2d.png)
43
Batteries & Chargers
Caution:
Improper treatment or use of batteries may present a danger of fire,
explosion, leakage, or other hazard. For more information, see “Battery Use &
Safety.”
Keep Your Mobile Device & Its Accessories Away
From Small Children
These products are not toys and may be hazardous to small children. For
example:
•
A choking hazard may exist for small, detachable parts.
•
Improper use could result in loud sounds, possibly causing hearing injury.
•
Improperly handled batteries could overheat and cause a burn.
Glass Parts
Some parts of your mobile device may be made of glass. This glass could break
if the product is dropped on a hard surface or receives a substantial impact. If
Your battery or mobile device may require recycling in
accordance with local laws. Contact your local regulatory
authorities for more information.
Do not throw your battery or mobile device in the trash.
Do not let your battery, charger, or mobile device get wet.
Listening at full volume to music or voice through a headset
may damage your hearing.
Symbol Definition
032375o
![](/img.php?id=1539026&img=bg2e.png)
44
glass breaks, do not touch or attempt to remove. Stop using your mobile device
until the glass is replaced by a qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts when exposed
to flashing lights, such as when playing video games. These may occur even if a
person has never had a previous seizure or blackout.
If you have experienced seizures or blackouts, or if you have a family history of
such occurrences, please consult with your physician before playing video games
or enabling a flashing-lights feature (if available) on your mobile device.
Discontinue use and consult a physician if any of the following symptoms occur:
convulsion, eye or muscle twitching, loss of awareness, involuntary movements,
or disorientation. It is always a good idea to hold the screen away from your
eyes, leave the lights on in the room, take a 15-minute break every hour, and stop
use if you are tired.
Caution About High Volume Usage
Warning:
Exposure to loud noise from any source for extended
periods of time may affect your hearing. The louder the volume
sound level, the less time is required before your hearing could be
affected. To protect your hearing:
•
Limit the amount of time you use headsets or headphones at high volume.
•
Avoid turning up the volume to block out noisy surroundings.
•
Turn the volume down if you can’t hear people speaking near you.
If you experience hearing discomfort, including the sensation of pressure or
fullness in your ears, ringing in your ears, or muffled speech, you should stop
listening to the device through your headset or headphones and have your
hearing checked.
For more information about hearing, see our Web site at
direct.motorola.com/
hellomoto/nss/AcousticSafety.asp
(in English only).
Repetitive Motion
When you repetitively perform actions such as pressing keys or entering
finger-written characters, you may experience occasional discomfort in your
45
hands, arms, shoulders, neck, or other parts of your body. If you continue to have
discomfort during or after such use, stop use and see a physician.
[Nov0109]
Industry Canada Notice to Users
Industry Canada Notice
Operation is subject to the following two conditions: (1) This device may not
cause interference and (2) This device must accept any interference, including
interference that may cause undesired operation of the device. See RSS-GEN
7.1.5.
FCC Notice to Users
FCC Notice
The following statement applies to all products that have received FCC
approval. Applicable products bear the FCC logo, and/or an FCC ID in the
format FCC-ID:xxxxxx on the product label.
Motorola has not approved any changes or modifications to this device by the
user. Any changes or modifications could void the user’s authority to operate the
equipment. See 47 CFR Sec. 15.21.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation. See 47 CFR Sec. 15.19(3).
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•
Relocate this device.
46
•
Increase the separation between the device and the receiver.
•
Connect the device into an outlet on a circuit different from that of other
electronics.
•
Consult the dealer or an experienced radio technician for help.
Federal Communication Commission
(FCC) Statement
Federal Communication Commission (FCC)Statement
15.21
You are cautioned that changes or modifications not expressly approved by the
part responsible for compliance could void the user’s authority to operate the
equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
•
this device may not cause harmful interference and
![](/img.php?id=1539026&img=bg31.png)
47
•
this device must accept any interference received, including interference
that may cause undesired operation of the device
.
FCC RF Radiation Exposure Statement:
For body worn operation, this device has been tested and meets FCC RF
exposure guidelines when used with an accessory that contains no metal and that
positions the device a minimum of 1.5 cm from the body. Use of other
accessories may not ensure compliance with FCC RF exposure guidelines.
Use & Care
Use & Care
To care for your Motorola phone, please keep it away from:
liquids of any kind
Don’t expose your phone to water, rain, extreme humidity, sweat, or
other moisture. If it does get wet, don’t try to accelerate drying with
the use of an oven or dryer, as this may damage the phone.
extreme heat or cold
Avoid temperatures below 0°C/32°F or above 45°C/113°F.
microwaves
Don’t try to dry your phone in a microwave oven.
dust and dirt
Don’t expose your phone to dust, dirt, sand, food, or other
inappropriate materials.
cleaning solutions
To clean your phone, use only a dry soft cloth. Don’t use alcohol or
other cleaning solutions.
![](/img.php?id=1539026&img=bg32.png)
48
shock and vibration
Don’t drop your phone.
EU Declaration of Conformity
EU Declaration of Comformity
Hereby, Motorola declares that this phone is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC:
• EN60950-1:2006+A11:2009
Safety of Information Technology Equipment
• EN50360: (2001)
Product standard to demonstrate the compliance of mobile phones with
the basic restrictions related to human exposure to electromagnetic fields
(300 MHz - 3GHz)
• EN 300 328 V1.7.1: (2006-10)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Radio Specifications:
GSM Essential Requirements EN 301 511: V9.0.2
Wideband 2.4 GHz Systems EN 300 328: V1.7.1
EMC Specifications
Common Technical Requirements EN 301 489-1 V1.8.1
GSM Digital Cellular Radio EN 301 489-7 V1.3.1
Radio Wideband Systems EN 301 489-17 V2.1.1
Safety Specifications
IT Equipment EN 60950-1: 2009
Specific Absorption Rate (SAR) EN 50360: 2008
49
Wideband Tansmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive
• EN 301 511 V9.0.2: (2003-03)
Global System for Mobile communications (GSM); Harmonized standard
for mobile stations in the GSM 900 and DCS 1800 bands covering
essential requirements under article 3.2 of the R&TTE directive (1999/5/
EC)
• EN 301 489-1 V1.8.1: (2008-04)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part1: Common technical requirements
• EN 301 489-7 V1.3.1: (2005-11)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part7: Specific conditiona for mobile and portable radio and
ancillary equipment of digital cellular radio telecommunications systems
(GSM and DCS)
• EN 301 489-17 V2.1.1: (2009-05)
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part17: Specific conditiona for 2.4 GHz wideband transmission
systems and 5GHz high performance RLAN equipment
• EN 50332-1/-2
Sound pressure test
In Italy the end-user should apply for a license at the national spectrum
authorities in order to obtain authorization to use the device for setting up
outdoor radio links and/or for supplying public access to telecommunications
and/or network services.
![](/img.php?id=1539026&img=bg34.png)
50
This device may not be used for setting up outdoor radio links in France and in
some areas the RF output power may by limited to 10 mW EIRP in the frequency
range of 2454 - 2483.5 MHz. For detailed information the end-user should
contact the national spectrum authority in France.
Česky
[Czech]
[Jméno výrobce]
tímto prohlašuje, že tento
[typ zařízení]
je ve shodě se základními
požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede
[fabrikantens navn]
erklærer
herved, at følgende udstyr
[udstyrets
typebetegnelse]
overholder de væsentlige
krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German] Hiermit erklärt
[Name des Herstellers]
, dass sich
das Gerät
[Gerätetyp]
in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen
einschlägigen Bestimmungen der Richtlinie 1999/5/
EG befindet.
Eesti
[Estonian] Käesolevaga kinnitab
[tootja nimi = name of
manufacturer]
seadme
[seadme tüüp = type of
equipment]
vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele
teistele asjakohastele sätetele.
![](/img.php?id=1539026&img=bg35.png)
51
English
Hereby,
[name of manufacturer]
, declares
that this
[type of equipment]
is in
compliance with the essential requirements
and other relevant provisions of Directive
1999/5/EC.
Español
[Spanish] Por medio de la presente
[nombre del fabricante]
declara que el
[clase de equipo]
cumple con los
requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική
[Spanish] ΜΕ ΣΗΝ ΠΑΡΟΤ?Α
[name of manufacturer]
ΔΗΛΩΝΕΙ ΟΣΙ
[type of equipment]
?ΤΜΜΟΡΦΩΝΕΣΑΙ ΠΡΟ? ΣΙ? ΟΤ?ΙΩΔΕΙ?
ΑΠΑΙΣΗ?ΕΙ? ΚΑΙ ΣΙ? ΛΟΙΠΕ? ?ΥΕΣΙΚΕ?
ΔΙΑΣΑΞΕΙ? ΣΗ? ΟΔΗΓΙΑ? 1999/5/ΕΚ.
Français
[French] Par la présente
[nom du fabricant]
déclare que
l'appareil
[type d'appareil]
est conforme aux
exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente
[nome del costruttore]
dichiara che questo
[tipo di apparecchio]
è
conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo
[name of manufacturer / izgatavotāja
nosaukums]
deklarē, ka
[type of equipment
/ iekārtas tips]
atbilst Direktīvas 1999/5/
EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
![](/img.php?id=1539026&img=bg36.png)
52
Lietuvių
[Lithuanuan]
Šiuo
[manufacturer name]
deklaruoja, kad
šis
[equipment type]
atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart
[naam van de fabrikant]
dat het toestel
[type van toestel]
in
overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, [
isem tal-manifattur]
,
jiddikjara li dan
[il-mudel tal-prodott]
jikkonforma mal-ħtiġijiet essenzjali u ma
provvedimenti oħrajn relevanti li hemm
fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott,
[gyártó neve]
nyilatkozom, hogy
a
[... típus]
megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym
[nazwa producenta]
oświadcza, że
[nazwa wyrobu]
jest zgodny
z zasadniczymi wymogami oraz
pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
[Nome do fabricante]
declara que este
[tipo de equipamento]
está conforme com
os requisitos.
Slovensko
[Slovenian]
[Ime proizvajalca]
izjavlja, da je ta
[tip
opreme]
v skladu z bistvenimi zahtevami in
ostalimi relevantnimi določili direktive
1999/5/ES.
![](/img.php?id=1539026&img=bg37.png)
53
Motorola Limited Warranty for the
United States and Canada
Warranty
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its
telephones, pagers, messaging devices, and consumer and professional two-way
radios (excluding commercial, government or industrial radios) that operate via
Family Radio Service or General Mobile Radio Service, Motorola-branded or
certified accessories sold for use with these Products (“Accessories”) and
Motorola software contained on CD-ROMs or other tangible media and sold for
use with these Products (“Software”) to be free from defects in materials and
workmanship under normal consumer usage for the period(s) outlined below.
This limited warranty is a consumer's exclusive remedy, and applies as follows to
Slovensky
[Slovak]
Hierbij verklaart
[naam van de fabrikant]
dat het toestel
[type van toestel]
in
overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van
richtlijn 1999/5/EG.
Suomi
[Slovenian]
[Valmistaja = manufacturer]
vakuuttaa
täten että
[type of equipment = laitteen
tyyppimerkintä]
tyyppinen laite on
direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin
muiden ehtojen mukainen.
Svenska
[Sendish]
Härmed intygar
[företag]
att denna
[utrustningstyp]
står I överensstämmelse
med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som
framgår av direktiv 1999/5/EG.
![](/img.php?id=1539026&img=bg38.png)
54
new Motorola Products, Accessories, and Software purchased by consumers in
the United States or Canada, which are accompanied by this written warranty:
Products and Accessories
Exclusions (Products and Accessories)
Normal Wear and Tear.
Periodic maintenance, repair and replacement of parts
due to normal wear and tear are excluded from coverage.
Batteries.
Only batteries whose fully charged capacity falls below 80% of their
rated capacity and batteries that leak are covered by this limited warranty.
Products Covered Length of Coverage
Products and Accessories
as defined above, unless
otherwise provided for
below.
One (1) year
from the date of purchase by
the first consumer purchaser of the product
unless otherwise provided for below.
Decorative Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™ covers
and cases.
Limited lifetime warranty
for the lifetime
of ownership by the first consumer
purchaser of the product.
Monaural Headsets.
Ear
buds and boom headsets that
transmit mono sound
through a wired connection.
Limited lifetime warranty
for the lifetime
of ownership by the first consumer
purchaser of the product.
Consumer and
Professional Two-Way
Radio Accessories.
Ninety (90) days
from the date of purchase
by the first consumer purchaser of the
product.
Products and Accessories
that are Repaired or
Replaced.
The balance of the original warranty or
for ninety (90) days
from the date returned
to the consumer, whichever is longer.
![](/img.php?id=1539026&img=bg39.png)
55
Abuse & Misuse.
Defects or damage that result from: (a) improper operation,
storage, misuse or abuse, accident or neglect, such as physical damage (cracks,
scratches, etc.) to the surface of the product resulting from misuse; (b) contact
with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the
like, extreme heat, or food; (c) use of the Products or Accessories for commercial
purposes or subjecting the Product or Accessory to abnormal usage or
conditions; or (d) other acts which are not the fault of Motorola, are excluded
from coverage.
Use of Non-Motorola Products and Accessories.
Defects or damage that result
from the use of non-Motorola branded or certified Products, Accessories,
Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.
Defects or damages resulting from
service, testing, adjustment, installation, maintenance, alteration, or modification in
any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products.
Products or Accessories with (a) serial numbers or date tags
that have been removed, altered or obliterated; (b) broken seals or that show
evidence of tampering; (c) mismatched board serial numbers; or
(d) nonconforming or non-Motorola housings, or parts, are excluded from
coverage.
Communication Services.
Defects, damages, or the failure of Products,
Accessories or Software due to any communication service or signal you may
subscribe to or use with the Products Accessories or Software is excluded from
coverage.
Software
Products Covered Length of Coverage
Software.
Applies only to physical defects
in the media that embodies the copy of the
software (e.g. CD-ROM, or floppy disk).
Ninety (90) days
from the
date of purchase.
![](/img.php?id=1539026&img=bg3a.png)
56
Exclusions (Software)
Software Embodied in Physical Media.
No warranty is made that the software
will meet your requirements or will work in combination with any hardware or
software applications provided by third parties, that the operation of the software
products will be uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in
physical media (e.g. software that is downloaded from the internet), is provided
“as is” and without warranty.
Who is Covered?
This warranty extends only to the first consumer purchaser, and is not
transferable.
What Will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase
price of any Products, Accessories or Software that does not conform to this
warranty. We may use functionally equivalent reconditioned/refurbished/
pre-owned or new Products, Accessories or parts. No data, software or
applications added to your Product, Accessory or Software, including but not
limited to personal contacts, games and ringer tones, will be reinstalled. To avoid
losing such data, software and applications please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other Information
USA Phones:
1-800-331-6456
Pagers:
1-800-548-9954
Two-Way Radios and Messaging Devices:
1-800-353-2729
Canada All Products:
1-800-461-4575
TTY
1-888-390-6456
![](/img.php?id=1539026&img=bg3b.png)
57
You will receive instructions on how to ship the Products, Accessories or
Software, at your expense, to a Motorola Authorized Repair Center. To obtain
service, you must include: (a) a copy of your receipt, bill of sale or other
comparable proof of purchase; (b) a written description of the problem; (c) the
name of your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your address and
telephone number.
What Other Limitations are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT,
OR REFUND AS PROVIDED UNDER THIS EXPRESS LIMITED
WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND
IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR
IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN
CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, ACCESSORY
OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF REVENUE
OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO
USE THE PRODUCTS, ACCESSORIES OR SOFTWARE TO THE FULL
EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of
incidental or consequential damages, or limitation on the length of an
implied warranty, so the above limitations or exclusions may not apply to
For
Accessories
and
Software
, please call the telephone number designated
above for the product with which they are used.
58
you. This warranty gives you specific legal rights, and you may also have
other rights that vary from state to state or from one jurisdiction to another.
Hearing Aid Compatibility with Mobile
Phones
Hearing Aids
Some Motorola phones are measured for compatibility with hearing aids. If the
box for your particular model has “Rated for Hearing Aids” printed on it, the
following explanation applies.
When some mobile phones are used near some hearing devices (hearing aids and
cochlear implants), users may detect a buzzing, humming, or whining noise.
Some hearing devices are more immune than others to this interference noise,
and phones also vary in the amount of interference they generate.
The wireless telephone industry has developed ratings for some of their mobile
phones, to assist hearing device users in finding phones that may be compatible
with their hearing devices. Not all phones have been rated. Phones that are rated
have the rating on their box or a label on the box.
The ratings are not guarantees. Results will vary depending on the user’s hearing
device and hearing loss. If your hearing device happens to be vulnerable to
interference, you may not be able to use a rated phone successfully. Trying out
the phone with your hearing device is the best way to evaluate it for your
personal needs.
M-Ratings:
Phones rated M3 or M4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not labeled. M4
is the better/higher of the two ratings.
T-Rati ngs:
Phones rated T3 or T4 meet FCC requirements and are likely to be
more usable with a hearing device’s telecoil (“T Switch” or “Telephone Switch”)
than unrated phones. T4 is the better/higher of the two ratings. (Note that not all
hearing devices have telecoils in them.)
Hearing devices may also be measured for immunity to this type of interference.
Your hearing device manufacturer or hearing health professional may help you
find results for your hearing device. The more immune your hearing aid is, the
less likely you are to experience interference noise from mobile phones.
![](/img.php?id=1539026&img=bg3d.png)
59
Information from the World Health
Organization
WHO Information
Present scientific information does not indicate the need for any special
precautions for the use of mobile phones. If you are concerned, you may want to
limit your own or your children’s RF exposure by limiting the length of calls or
by using handsfree devices to keep mobile phones away from your head and
body.
Source: WHO Fact Sheet 193
Further information:
http://www.who.int/peh-emf
Product Registration
Registration
Online Product Registration:
www.motorola.com/us/productregistration
Product registration is an important step toward enjoying your new Motorola
product. Registering permits us to contact you for product or software updates
and allows you to subscribe to updates on new products or special promotions.
Registration is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For warranty
service of your Motorola Personal Communications Product you will need to
provide a copy of your dated sales receipt to confirm warranty status.
Thank you for choosing a Motorola product.
Export Law Assurances
Export Law
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce
or the Canadian Department of Foreign Affairs and International Trade.
![](/img.php?id=1539026&img=bg3e.png)
60
Caring for the Environment by Recycling
Recycling Information
This symbol on a Motorola product means the product should not be
disposed of with household waste.
Disposal of your Mobile Device & Accessories
Please do not dispose of mobile devices or electrical accessories (such
as chargers, headsets, or batteries) with your household waste. Do not
dispose of your battery or mobile device in a fire. These items should
be disposed of in accordance with the national collection and
recycling schemes operated by your local or regional authority. Alternatively,
you may return unwanted mobile devices and electrical accessories to any
Motorola Approved Service Center in your region. Details of Motorola approved
national recycling schemes, and further information on Motorola recycling
activities can be found at:
www.motorola.com/recycling
Disposal of your Mobile Device Packaging &
User’s Guide
Product packaging and user’s guides should only be disposed of in accordance
with national collection and recycling requirements. Please contact your regional
authorities for more details.
California Perchlorate Label
Perchlorate Label
Some mobile phones use an internal, permanent backup battery on the printed
circuit board that may contain very small amounts of perchlorate. In such cases,
California law requires the following label:
Perchlorate Material – special handling may apply. See
www.dtsc.ca.gov/
hazardouswaste/perchlorate
There is no special handling required by consumers.
Privacy & Data Security
Privacy & Data Security
Motorola understands that privacy and data security are important to everyone.
Because some features of your mobile device may affect your privacy or data
032376o
![](/img.php?id=1539026&img=bg3f.png)
61
security, please follow these recommendations to enhance protection of your
information:
• Monitor access
—Keep your mobile device with you and do not leave it
where others may have unmonitored access. Lock your device’s keypad
where this feature is available.
• Keep software up to date
—If Motorola or a software/application vendor
releases a patch or software fix for your mobile device that updates the
device’s security, install it as soon as possible.
• Secure personal information
—Your mobile device can store personal
information in various locations including your SIM card, memory card,
and phone memory. Be sure to remove or clear all personal information
before you recycle, return, or give away your device. You can also backup
your personal data to transfer to a new device.
Note:
For information on how to backup or wipe data from your mobile
device, go to
www.motorola.com/support
• Online accounts
—Some mobile devices provide a Motorola online
account (such as MOTOBLUR). Go to your account for information on
how to manage the account, and how to use security features such as
remote wipe and device location (where available).
• Location-based information
—Location-based information includes
information that can be used to determine the approximate location of a
mobile device. Mobile phones which are connected to a wireless network
transmit location-based information. Devices enabled with GPS or AGPS
technology also transmit location-based information. Additionally, if you
use applications that require location-based information (e.g. driving
directions), such applications transmit location-based information. This
location-based information may be shared with third parties, including
your wireless service provider, applications providers, Motorola, and
other third parties providing services.
• Other information your device may transmit
—Your device may also
transmit testing and other diagnostic (including location-based)
information, and other non-personal information to Motorola or other
![](/img.php?id=1539026&img=bg40.png)
62
third-party servers. This information is used to help improve products and
services offered by Motorola.
If you have further questions regarding how the use of your mobile device may
impact your privacy or data security, please contact Motorola at
privacy@motorola.com
, or contact your service provider.
Smart Practices While Driving
Driving Safety
Drive Safe, Call Smart
Check the laws and regulations on the use of mobile devices and their
accessories in the areas where you drive. Always obey them. The use of these
devices may be prohibited or restricted in certain areas -- for example,
handsfree use only. Go to www.motorola.com/callsmart (in English only) for
more information.
Your mobile device lets you communicate by voice and data—almost anywhere,
anytime, wherever wireless service is available and safe conditions allow. When
driving a car, driving is your first responsibility. If you choose to use your mobile
device while driving, remember the following tips:
• Get to know your Motorola mobile device and its features such as
speed dial and redial.
If available, these features help you to place your
call without taking your attention off the road.
• When available, use a handsfree device.
If possible,
add an additional layer of convenience to your mobile
device with one of the many Motorola Original handsfree
accessories available today.
• Position your mobile device within easy reach.
Be able
to access your mobile device without removing your eyes from the road.
If you receive an incoming call at an inconvenient time, if possible, let
your voicemail answer it for you.
• Let the person you are speaking with know you are driving; if
necessary, suspend the call in heavy traffic or hazardous weather
conditions.
Rain, sleet, snow, ice, and even heavy traffic can be
hazardous.
63
• Do not take notes or look up phone numbers while driving.
Jotting
down a “to do” list or going through your address book takes attention
away from your primary responsibility—driving safely.
• Dial sensibly and assess the traffic; if possible, place calls when your
car is not moving or before pulling into traffic.
If you must make a call
while moving, dial only a few numbers, check the road and your mirrors,
then continue.
• Do not engage in stressful or emotional conversations that may be
distracting.
Make people you are talking with aware you are driving and
suspend conversations that can divert your attention away from the road.
• Use your mobile device to call for help.
Dial 911 or other local
emergency number in the case of fire, traffic accident, or medical
emergencies (wherever wireless phone service is available).
• Use your mobile device to help others in emergencies.
If you see an
auto accident, crime in progress, or other serious emergency where lives
are in danger, call 911 or other local emergency number (wherever
wireless phone service is available), as you would want others to do for
you.
• Call roadside assistance or a special non-emergency wireless
assistance number when necessary.
If you see a broken-down vehicle
posing no serious hazard, a broken traffic signal, a minor traffic accident
where no one appears injured, or a vehicle you know to be stolen, call
roadside assistance or other special non-emergency wireless number
(wherever wireless phone service is available).
![](/img.php?id=1539026&img=bg42.png)
64
Motorola, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note:
Do not ship your phone to the above address. If you need to return your
phone for repairs, replacement, or warranty service, please contact the Motorola
Customer Support Center at:
1-800-331-6456 (United States)
1-888-390-6456 (TTY/TDD United States for hearing impaired)
1-800-461-4575 (Canada)
Certain mobile phone features are dependent on the capabilities and settings of
your service provider’s network. Additionally, certain features may not be
activated by your service provider, and/or the provider’s network settings may
limit the feature’s functionality. Always contact your service provider about
feature availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this user’s guide
are based upon the latest available information and are believed to be accurate at
the time of printing. Motorola reserves the right to change or modify any
information or specifications without notice or obligation.
MOTOROLA and the Stylized M Logo are registered in the US Patent &
Trademark Office. All other product or service names are the property of their
respective owners. The Bluetooth trademarks are owned by their proprietor and
used by Motorola, Inc. under license. Java and all other Java-based marks are
trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and
other countries. Microsoft and Windows are registered trademarks of Microsoft
Corporation; and Windows XP is a trademark of Microsoft Corporation.
© 2010 Motorola, Inc. All rights reserved.
Caution:
Changes or modifications made in the radio phone, not expressly
approved by Motorola, will void the user’s authority to operate the equipment.
Manual Number: 68000202648-A
U.S. patent Re. 34,976
