Users manual
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. The use of wireless devices and their
accessories may be prohibited or restricted in certain areas.
Always obey the laws and regulations on the use of these
products. The Bluetooth trademarks are owned by their
proprietor and used by Motorola, Inc. under license. All other
product or service names are the property of their respective
owners.
© Motorola, Inc. 2007.
Motorola, Inc.
Consumer Advocacy Office
1307 East Algonquin Road
Schaumburg, IL 60196
www.hellomoto.com
1-877-MOTOBLU
1-888-390-6456 (TTY/TDD United States for
hearing impaired)
Guide Number: 6809503A46-O
Bluetooth ID: xxxxxx
TEST AND USE
Before using this product, read the Important Safety and Legal Information pamphlet and follow its instructions.
Take a moment before you get started to familiarize yourself with your new MOTOROKR
™
T3
Bluetooth
®
Wireless Music and Handsfree Car Speaker.
BEFORE YOU BEGIN
1
SET UP
START HERE >
1
2
To get started, your MOTOROKR T3 must be
set up with initial configuration settings.
Press and hold Power button to enter
setup mode. You hear a voice prompt to
select appropriate language for
remaining voice prompts.
Select language for voice prompts as
follows:
Press Volume buttons to change
current selection.
Press Play/Pause button to make
selection. You hear a confirmation
tone.
3Select whether to enable/disable the
auto caller ID feature:
Press Volume buttons to select enable
or disable.
Press Play/Pause button to confirm
selection. You hear a confirmation
tone.
4
When setup is complete, you hear the voice
prompt “Setup is complete. Device is ready.”
After a few moments, your MOTOROKR T3
enters Bluetooth pairing mode.
a
b
a
bPress (Menu) > Settings > Connection >
Bluetooth Link > Setup.
Scroll to Power.
Select Change.
Scroll to On.
Press Select to turn on the Bluetooth
feature. The Bluetooth feature remains on
until you turn the feature off.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
To use your MOTOROKR T3, you must turn on
the Bluetooth feature in your phone or music
device.
For most Motorola phones:
M
Your MOTOROKR T3
1
2
3
4
5
2
PAIR
Your MOTOROKR T3 and
Bluetooth Device
Before you can use your MOTOROKR T3, you
must pair (link) it with your phone and/or music
device.
Step A - ENSURE MOTOROKR T3 IS IN
PAIRING MODE
When setup is complete (step 1), your
MOTOROKR T3 is automatically placed in
Bluetooth pairing mode. The main indicator light
will be steadily lit in blue to indicate handsfree
speaker is in pairing mode.
If the handsfree speaker is not pairing mode,
see TROUBLESHOOTING for help.
Step C - SET YOUR DEVICE TO LOOK FOR
YOUR MOTOROKR T3
Step B - TURN ON BLUETOOTH FEATURE
ON YOUR DEVICE
While the MOTOROKR T3 is in pairing mode,
use your phone or music device to perform a
device discovery. Refer to your device’s manual
for detailed instructions on accessing Bluetooth
and putting it in device discovery mode.
For most Motorola phones:
3
4
5
1
2
Press (Menu) > Settings > Connection >
Bluetooth Link > Handsfree > Look for Devices.
The phone lists Bluetooth devices it finds.
Select Motorola T3.
Select OK or Yes to pair your MOTOROKR
T3 with your phone.
Enter the passkey: 0000
Select OK.
Note: These steps are for most Motorola phones.
For other phones, see your phone's user's guide.
When your MOTOROKR T3 successfully pairs
and connects with your phone or music
device, the main indicator light flashes purple
and blue.
M
Your MOTOROKR T3 and phone or music device
are now paired and connected. Do the following
to verify proper operation:
Press Play/Pause button again to complete
setup. You hear a confirmation tone.
3
●To verify handsfree calling operation,
dial the number you want to call on the
phone and press SEND key on your
phone. If your phone and MOTOROKR T3
are successfully paired, you will hear
ringing on your T3.
To verify streaming audio listening
operation, play music on your streaming
music device. If your music source and
MOTOROKR T3 are successfully paired
and connected for streaming music, you
hear music on your T3.
●
USING YOUR
MOTOROKR
T3
See
Features and
Functions Guide
on the reverse side
for information on
using your T3
My MOTOROKR T3 will not enter pairing mode.
Make sure that any devices previously paired with
the T3 are turned off. If the main indicator light is
pulsing in blue, first turn off the other device, then
turn your T3 off and on. The main indicator light
becomes steadily lit in blue indicating the T3 is
now in pairing mode.
My phone/music device doesn't find my
MOTOROKR T3.
Make sure the indicator light on your T3 is on (lit in
blue) and steady when your phone/music device is
searching for devices (see step 2a).
My MOTOROKR T3 worked before but now it's
not working.
Make sure your phone/music device is on and the
Bluetooth feature is turned on in your device (see
step 2b). If the Bluetooth feature was turned off or
was turned on only temporarily, you may need to
restart the Bluetooth feature (see step 2b) and pair
your device and T3 again (see step 2c).
Support.
If you need more help, contact us at
1-877-MOTOBLU or visit us at
www.hellomoto.com/Bluetoothsupport
TROUBLESHOOTING
YOU’RE FINISHED!
After you have successfully set up your
MOTOROKR T3, you don't need to repeat
these steps.
For daily use, ensure that your T3 is turned ON
and your phone and/or music device’s
Bluetooth feature is ON.
To modify T3 configuration settings, you can
reenter setup mode by pressing and holding
the Power and Call buttons when powering
up.
To use the T3 with your FM car radio, see
“Using With Your FM Car Radio” on the
reverse side.
CHECKING BATTERY LEVEL
To check your T3’s battery charge level while
turned on and not on a call, you can by
pressing and holding both Volume buttons
until you hear a beep (about 5 seconds) The
main indicator light displays charge status
for a few seconds (see “Indicator Light” on
reverse side for details).
To charge your T3, see “Charging Battery”
on the reverse side for details.
Front View Rear View
Volume Up
Button
Call
Button
Play/Pause
Button
Main
Indicator
Light
Microphone
Visor Clip
Bezel
Indicator Light
Speaker Volume Down
Button
Radio
Button
Charging
Port
Power
Button
Main Indicator Light
(steadily blue
for pairing mode)
DRAFT
DRAFT

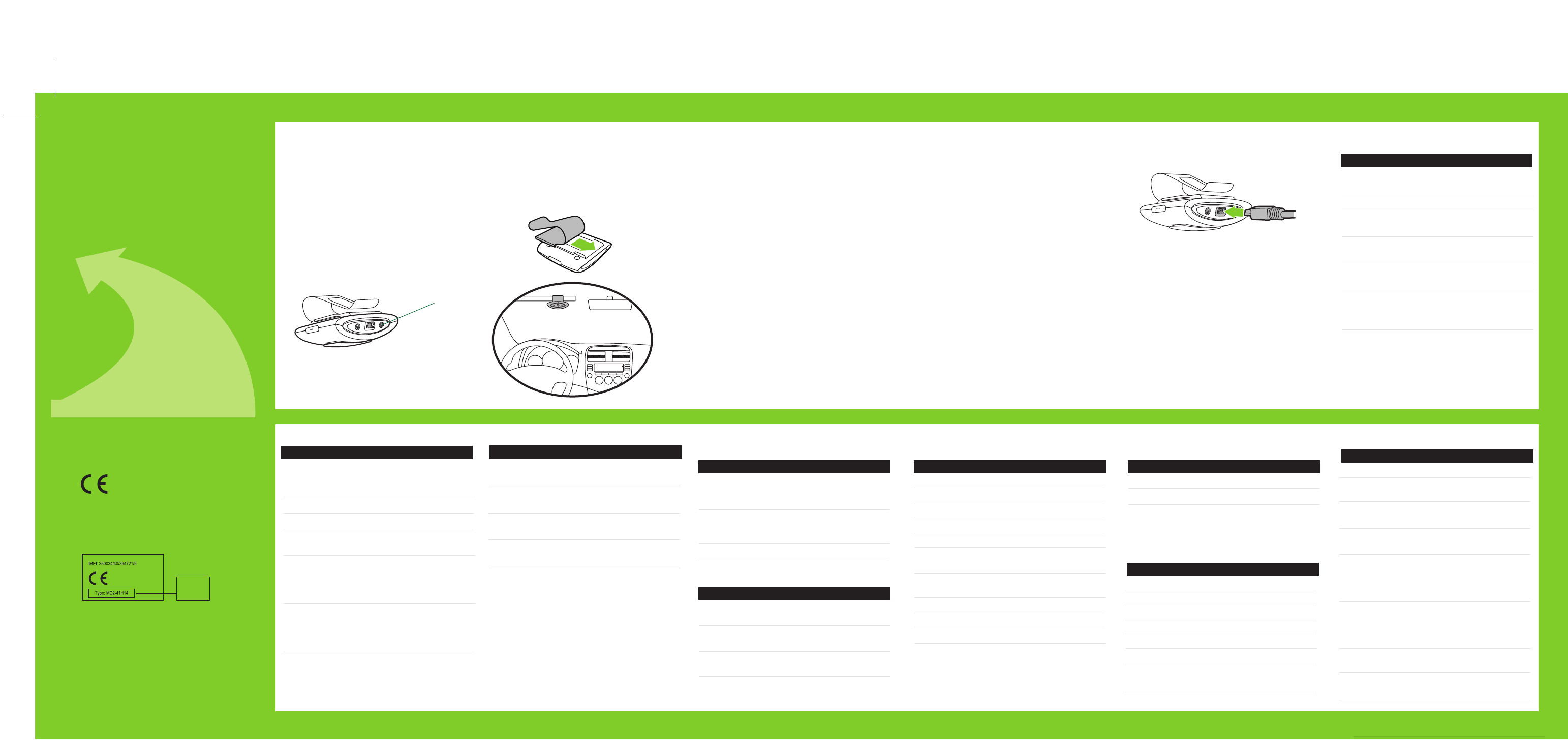

To install the T3 in your car, first slide metal visor
clip onto T3, then secure T3 to the sun visor in
your car as shown below.
INSTALLING IN CAR SETTING FM CAR
RADIO FREQUENCY
LISTENING TO MUSIC
MAKING CALLS
• The essential requirements and
other relevant provisions of Directive
1999/5/EC.
• All other relevant EU Directives.
European Union Directives
Conformance Statement
Product
Approval
Number
The above gives an example of a typical Product
Approval Number.
You can view your product’s Declaration of Conformity
(DoC) to Directive 1999/5/EC (to R&TTE Directive) at
www.motorola.com/rtte. To find your DoC, enter the
product Approval Number from your product’s label in
the “Search” bar on the web site.
Hereby, Motorola declares that this
product is in compliance with:
TURNING MOTOROKR T3
ON AND OFF
To turn your T3 on, press and hold the
Power button until you hear the voice
prompt “Device is ready”, and the main
indicator light flash blue three times.
To turn your T3 off, press and hold the
Power button until you hear the voice
prompt “Powering off”, and the main
indicator light flash blue three times.
Function Action
Make a voice dial call Tap the Call button
and speak the
name after the tone
End a call Tap the Call button
Answer a call Tap the Call button
Ignore a call Tap either Volume
button
Reject a call Press and hold either
Volume button until
incoming call stops
ringing
Redial last call Press and hold the
Call button for at least
2 seconds until you
hear a beep
Note: Some features are phone/network dependent.
Note: Your T3 supports both Handsfree and Headset Profiles.
Accessing call functions depends upon which profile your
phone supports. See your phone's user's guide for more
information.
MAKING CALLS CONTINUED
Function Action
Mute or unmute a call Tap Play/Pause
button
Answer a second Tap the Call button
incoming call
End an active call and Tap the Call button
resume a call on hold
Ignore a second Tap either Volume
incoming call button
Note: Some features are phone/network dependent.
Function Action
Play/Pause music Tap Play/Pause
button
Skip to next track Tap Volume Up button
Skip to previous track Tap Volume Down
button
Fast-forward track Press and hold
Volume Up button
Rewind track Press and hold
Volume Down button
Stop music player Press and hold the
Play/Pause button
until you hear a beep
CHARGING BATTERY
MAIN INDICATOR LIGHT
With the Charger Plugged In
Indicator Status
Red Charging (battery
level less than 80%
charge)
Yellow Charging (battery
level more than 80%
charge)
Blue Charging complete
When Checking Battery Level
Indicator Status
Red Battery at less than
10% charge
Yellow Battery at between
10% and 80% charge
Green Battery at more than
80% charge
With No Charger Plugged In
Indicator Status
Off Power off
Three blue flashes Powering on/off
Steady blue Pairing mode
Rapid blue/purple flashes Pairing successful
Quick blue flash Incoming/outgoing call
Slow blue pulse Connected (on a call)/
Standby (not on a call)
Slow red pulse Idle (not connected
to Bluetooth device)
Slow purple pulse Connected call muted
Quick red flash Low battery
Slow green pulse Music streaming
Note: After [xx] minutes on a call or of inactivity, the light stops
flashing to conserve power, but the headset remains on.
MAIN INDICATOR LIGHT
With No Charger Plugged In
Indicator Status
Off FM transmitter off
On FM transmitter on
Note: After [xx] minutes on a call or of inactivity, the light stops
flashing to conserve power, but the headset remains on.
BEZEL INDICATOR LIGHT AUDIO TONES (CONTINUED)
Audio Tone Status
Series of ascending tones Volume increasing
Series of descending Volume decreasing
tones
Two rapid ascending Mute enabled
tones
Two rapid descending Mute disabled
tones
Two short tones when Track forward
pressing Volume Up
button when music
playing
Two short tones when Track backward
pressing Volume Down
button when music
playing
High/low tones Low battery
repeated every 60 sec.
No audio indications; Out of range
deteriorating quality
When idle (not connected to a Bluetooth
device) or not active for 30 minutes, the T3
powers down automatically.
Plug the Motorola charger into the charging
port on the rear of the T3.
The main indicator light turns red or yellow
when the battery is charging. It may take
up to 1 minute for the indicator light to turn
on. When the T3's battery is fully charged
(about [x] hours), the indicator light turns
green.
Disconnect the charger.
1
2
Note: T3 is not functional while charging.
When your MOTOROKR T3 is connected and
operating with your phone and/or music device,
you can route call and music audio to your car’s
FM radio.
To hear calls and streaming music over your FM
car radio:
USING WITH YOUR FM
CAR RADIO
Press Radio button on rear of your
MOTOROKR T3. After a few moments,
the bezel indicator light is lit and voice
prompt states the currently set frequency
(default is “88.1MHz”).
Turn on your car’s FM radio and tune to
broadcast frequency. Call and streaming
music audio is broadcast on your FM
1
2
To turn off FM transmitter, press and hold Radio
button until the bezel indicator turns off.
You can set the frequency used by the T3 to
broadcast calls and streaming music to your FM
car radio.
To do this, tap the Radio button. The T3 searches
for another clear frequency. When found, the
voice prompts states the new frequency. (For
example, if the new frequency is 96.1MHz, the
voice prompt states “96.1MHz”.)
[How do you save/confirm the new frequency?]
AUDIO TONES
Audio Tone Status
Ascending tone Powering on
Two descending tones Powering off
Four ascending tones Charger connected
Four descending tones Charger disconnected
Three ascending tones Connected call
Three descending tones Disconnected call
Two short tones when Volume at minimum
pressing Volume button or maximum
IMPORTANT:
Be sure to first follow the
Quick Start Guide
on the reverse side
of this guide
to complete initial setup
of your MOTOROKR T3.
Features and
Functions Guide
Power
Button
1
2
DRAFT
DRAFT
