Motorola Exhibit 14 Instruction Manual

APPLICANT: MOTOROLA INC. FCC ID: IHDT6ZD1

Page 1 of 1 EXHIBIT 14

EXHIBIT 14

Instruction Manual

Exhibit Summary:

This mobile station transceiver is capable of operation on GSM Systems using

900 MHz, 1800 MHz and 1900 MHz frequency bands and reference is made to

that in the user manual. In North America, however, Commercial GSM systems

operate only in the 1900 MHz frequency bands so references to other bands or

networks may be irrelevant.

English

Options Menu Quick Access

Quick Reference

leap_en.bk : qkref.fm5 Page 1 Wednesday, February 24, 1999 4:21 PM

English

Special Keys

SPress to turn phone on and off.

OPress to accept call, setting, option,...

CPress to reject call, setting, option,...

EPress to enter the Quick Access features.

$Press to access the options or phone book

menus.

<> Press both simultaneously to lock the keypad

on flipless models; also use to scroll left and

right.

ªPress the top to scroll up and press the

bottom to scroll down.

fPress to call Voicemail.

Making a Call

Enter CO.

Receiving a Call

Press O or open the flip (only on models with flip

when the ‘Key Answer Only’ feature is set to Off).

Ending a Call

Press O, C or close the flip (models with flip only).

Making an Emergency Call

Enter 112O. The call will be directed to a

central emergency operator.

Quick Access Features

Press E followed by the appropriate key, or press

E, scroll to the feature and press O to select.

Adjust Ringer Volume

Press E followed by the volume button to either

increase or decrease the ringer volume.

Recording a VoiceNote™

Press the Start/Stop Record button (?) on the side of the

phone. Press the button again to stop recording.

Playing a VoiceNote™

Select Messages, VoiceNote™, Play VoiceNotes™, or use

the Quick Access item.

Redialling the Last Number Called

1Press O to display the last number dialled.

2Press O to call the number.

One-Touch Dialling

Press and hold the appropriate digit key 1 to 9.

Storing Numbers in the Phone Book

Press E2 to store a number on the SIM card.

Recalling a Number from the Phone Book

Press the Smart button (=) and then use the volume

button to scroll to the stored number, or press the

appropriate digit key to skip to a particular letter. To

make the call, either hold down = for 1.5 seconds or

press O.

Dialling Phone Book Numbers

Enter G>O

Stopping a Call Alert

Press the volume button when the phone is ringing or

vibrating. This will stop the alert but not answer the call.

Quick Reference

leap_en.bk : qkref.fm5 Page 2 Wednesday, February 24, 1999 4:21 PM

Introduction 1English

Introduction

Welcome

Congratulations on your purchase of a phone from Motorola, the world leader in cellular technology. The phones are packed

with features that put you in control and give you unrivalled power, whilst remaining discrete.

Control

• Customisable Quick Access Menu E - Place nine of your most

frequently used features in your own personal menu so that they

can be accessed with just two key presses. Icons make each

feature easy to identify.

• VoiceNotes™ feature } - Allows you to record a number of

personal voice messages or to record part of a phone call - useful

when you haven’t got pen and paper to hand for taking down

directions or a message.

• Voice Control - Use voice commands to call up Phone Book

entries and to select Quick Access options.

Power

• Superb battery performance G - Each phone is capable of

several hours conversation or several days standby, but is still

small and light.

• Tri Band - versions of the phone include the powerful Tri Band

feature which means that they can use 900, 1800 and 1900MHz

bands for greater call success and allow wider roaming

opportunities.

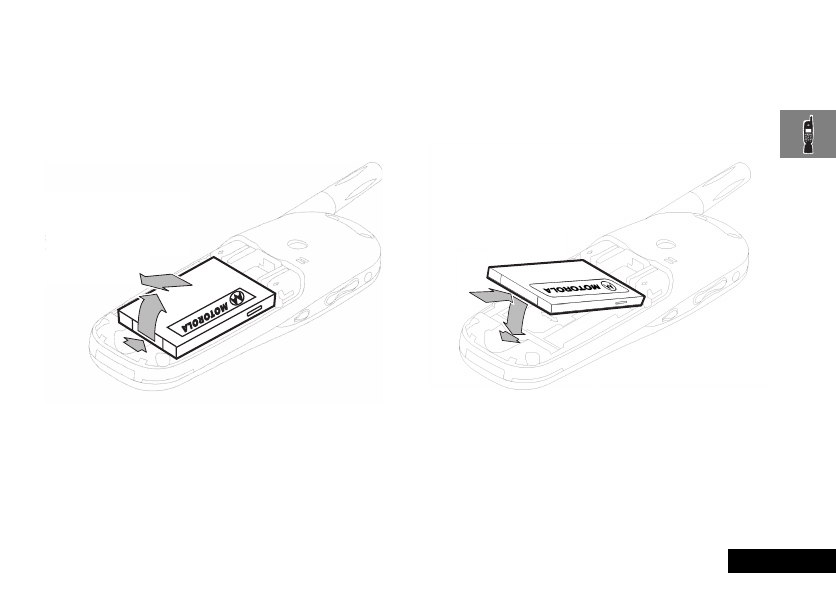

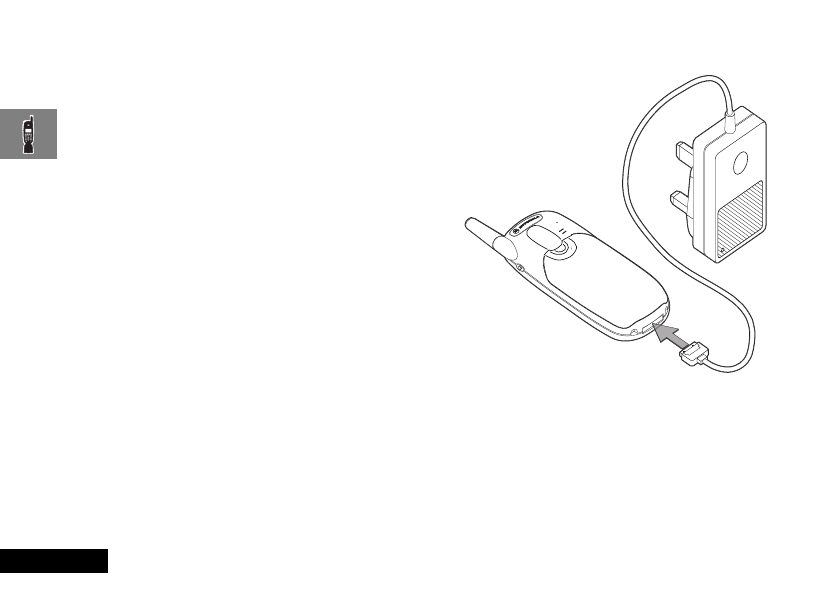

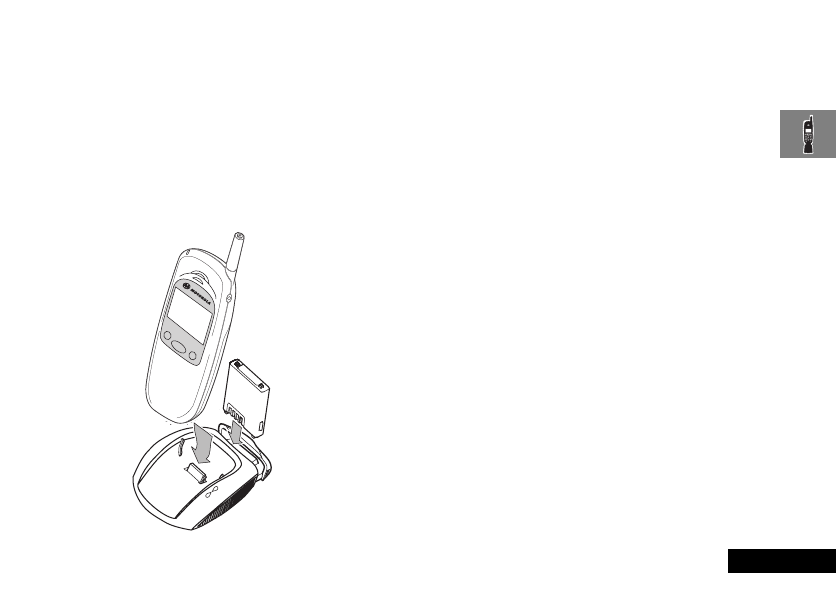

!Before you use your phone, please see the ‘Your Battery’

section for important information on charging a new

battery.

Discretion

• VibraCall™ L - In locations where you don’t want your phone

to ring, or which are too noisy to hear your phone ring, your

phone can vibrate to alert you of a call.

• Wearable Holster - Wear your phone in a stylish holster on your

belt. It is small enough and light enough to keep with you almost

anywhere.

• Stop Call Alert - Press the volume button when the phone is

ringing or vibrating. This will stop the alert but not answer the

call.

Personality™

This cellular telephone incorporates Personality™. Unique to

Motorola, Personality™ removes the complexity of cellular

communications by guiding you through the features and

presenting you with simple choices every step of the way.

Personality™ also allows you to personalise the way you use your

phone - for example, different ringer tones, a phone book and

network selection preferences - all presented with clarity and

simplicity. In this manual, each of the Personality™ features is

identified with an j symbol to indicate that it is customisable to

meet your requirements.

leap_en.bk : intro.fm5 Page 1 Wednesday, February 24, 1999 4:21 PM

Introduction

English

Understanding this Manual

Many of your phone options are accessed by a simple menu

system. A full description of the menus and how to move around

them is covered in the next section Menu Navigation. When

the manual describes the use of each menu item, it will be

assumed that you are familiar with the menu system.

Key Presses

Key presses are represented in this manual using symbols so that

you may locate and use the required sequence quickly. A

sequence of key presses may be shown as follows:

$OC

This means that you should press the $ key followed by the

O key and then the C key, in sequence, not

simultaneously.

Entering Information

When you are requested to enter information, such as the

number of the phone you wish to call, this is represented in bold

type. For example:

C - enter the required telephone number.

A - enter your Personal Identification Number.

B - enter your unlock code.

G - enter the Phone Book location number.

Prompts and Messages

Your phone responds to key presses by displaying either easy to

understand prompts that guide you to the next action, or simple

messages confirming that your action is complete. Prompts and

messages are represented in this manual in LCD style, for

example:

Enter PIN or Completed.

Other Symbols

You will find the following symbols used throughout this manual:

AA Note contains additional information which is relevant to

the feature/item.

!A Caution contains important additional information

which is relevant to the efficient and/or safe usage of

your phone.

jThis symbol indicates that the feature is a Personality™

feature that can be customised to meet your requirements.

iThis symbol indicates a short key sequence for the feature.

leap_en.bk : intro.fm5 Page 2 Wednesday, February 24, 1999 4:21 PM

Introduction 3English

Menu Navigation

A large number of your phone's options are accessed by using

menus which use a common approach for selection, change and

cancellation.

Please read this section carefully before attempting to access a

menu option. When you understand the common approach to

menu navigation and how the menus are shown on the page,

you will be able to access and change options with ease.

Entering the Menus

Two different keys are used to access the menus:

$enters the Options menu whilst in standby mode;

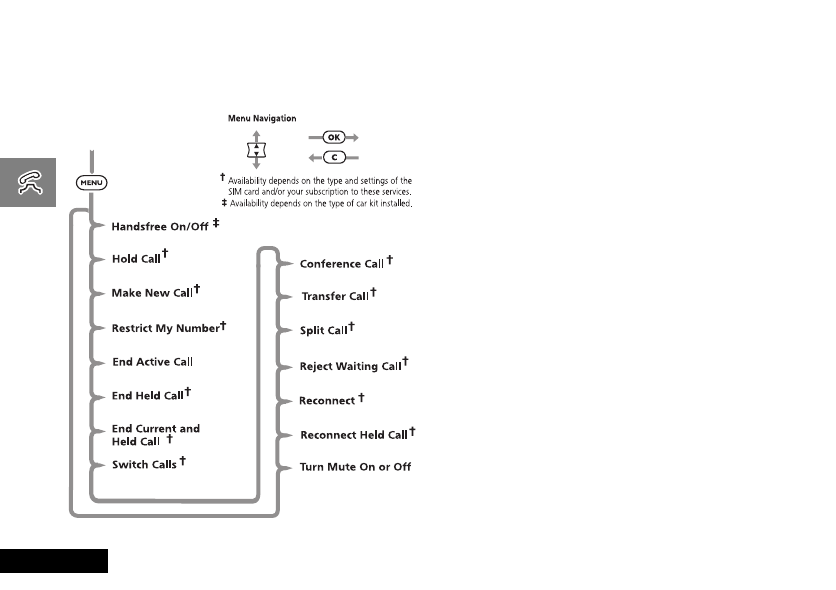

enters the In-call menu during a call.

Eenters the Quick Access menu.

Once entered, the menus use the $, ª, <, >, O

and C keys in a common manner to access, select and change

individual options.

Leaving the Menus

To leave any of the menus, you can either press and hold the

C key or repeatedly press the C key. Both of these actions

will return your phone to the standby mode.

iAlternatively, a quicker way to leave the menus is to press

EC.

Menus and Sub-menus

A menu is a simple list of options. Some of these options provide

access to a further list of options called a sub-menu. When

navigating through the menus you may find it is helpful to think

in terms of menu levels - the ‘parent’ menu being on one level

and its sub-menus being on a lower level.

Moving To and Selecting a Menu Option

To move from one option to another on the same level, use the

scroll key ª; press the bottom half to scroll forwards and press

the top half to scroll backwards. When you find the option you

want, press the O key to select it.

Depending on the option you select, one of three things will

happen:

• either a brief message will be displayed confirming an action,

for example Completed.

• or a prompt will be displayed requesting you to enter

information, for example Enter PIN or Enter Name.

• or the first option of a sub-menu will be displayed. You can

select this option using the O key or browse through the

other options using the scroll keys.

To leave an option or sub-menu, press the C key. This will

take you back to the parent menu item.

Menu Options with Security Codes

Some options are protected from misuse by requiring you to

entry one of the security codes. To use these options, you must

enter the requested code before proceeding.

leap_en.bk : intro.fm5 Page 3 Wednesday, February 24, 1999 4:21 PM

Introduction

English

Menu Navigation - A Working Example

The following steps will take you through how to switch the

Extended Menus option on:

1When the phone is in the standby mode, press the $ key.

This will access the Options menu and Phone Book will be

displayed.#

2Press the ª key three times to go to the Phone Setup

menu item.

3Press the O key to select the sub-menu.

4Press the ª key repeatedly until the Extended Menus sub-

menu item is shown in the display.

5Press the O key to select this item. You can now select

between On or Off, the current setting will be shown with a

z character. If the z character is next to Off, press ª and

then O to switch on the Extended Menus. If the z

character is next to On, press C to leave the setting as it is.

# If your service provider has added their own menu, the Phone

Book menu will not be the first item in the Options menu.

† Availability depends on the type and settings of the SIM card,

and/or your subscription to these features.

leap_en.bk : intro.fm5 Page 4 Wednesday, February 24, 1999 4:21 PM

Introduction 5English

j Short, Extended and Personalised Menus

With Personality™ you can personalise the menus by choosing

which features you want readily available. The features that are

less frequently used can be stored out of sight.

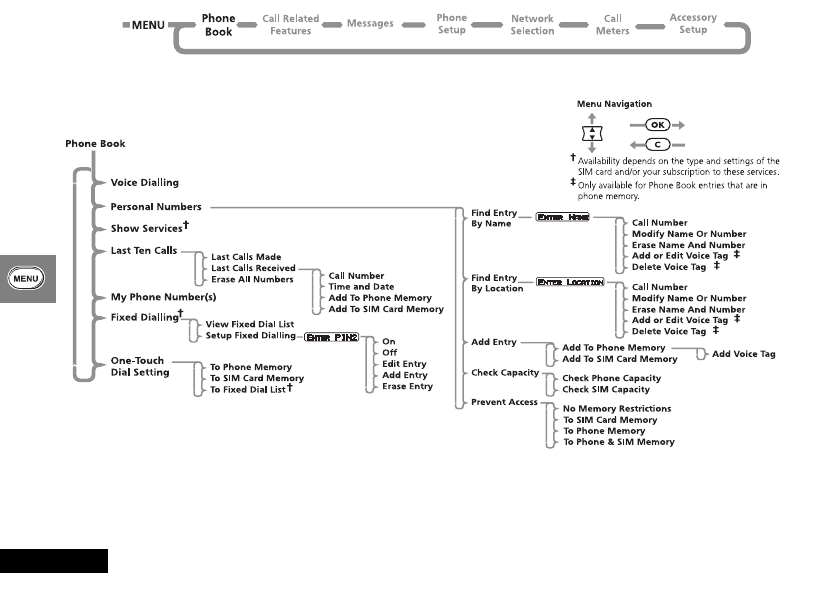

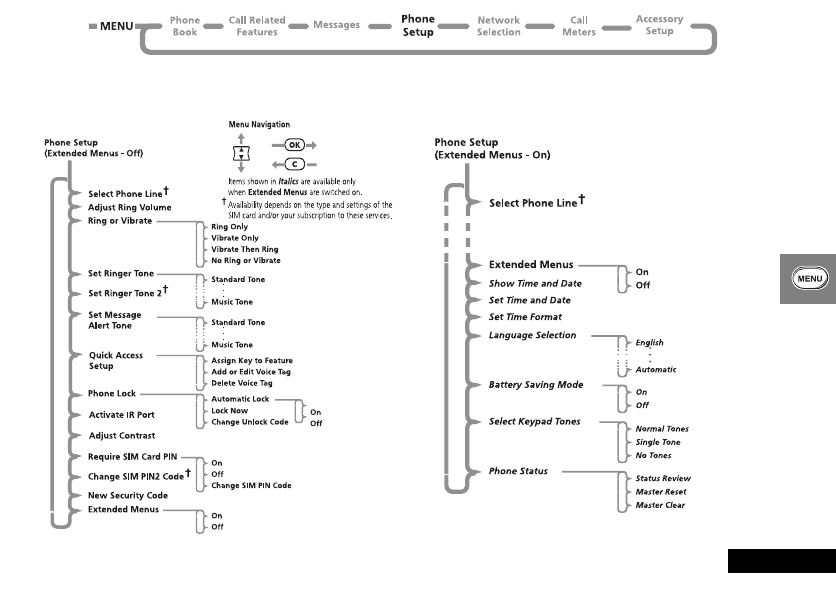

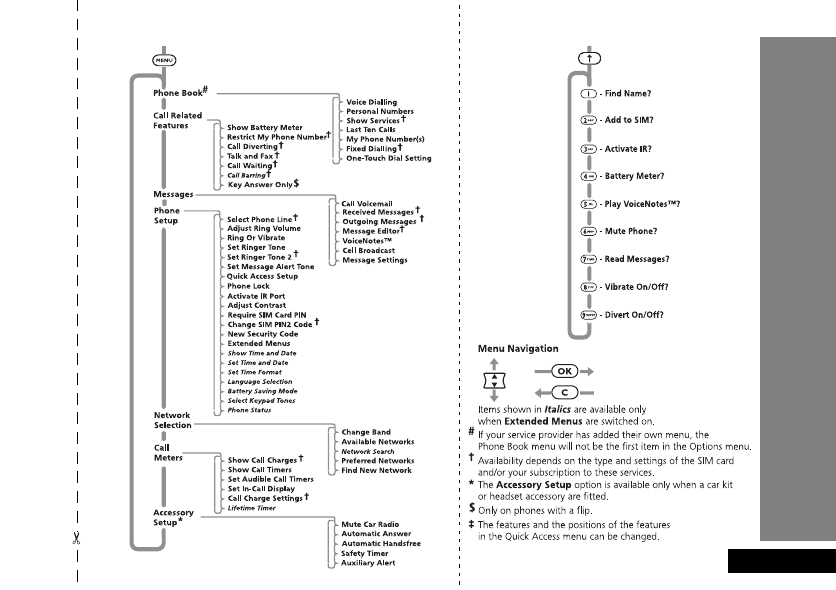

The menu diagrams in this manual show the condition of the

menu settings when you first receive your phone. Some features

are in the Short Menu and are shown in bold type. Other

features are in the Extended Menu and appear in italics.

You can change which features appear in the Short and

Extended Menus, and therefore personalise the menus, to suit

your requirements.

If you want to move a feature from the Short Menu to the

Extended Menu (or from the Extended Menu to the Short Menu),

go to the feature and then hold down the O key until a

prompt appears offering the following choices:

• Add the current feature to the Short Menu/Extended Menu.

• Leave the current feature in the Short/Extended Menu.

Select the option you want by pressing the O key.

The settings for some menu features cannot be changed.

leap_en.bk : intro.fm5 Page 5 Wednesday, February 24, 1999 4:21 PM

Introduction

English

Total Customer Satisfaction

At Motorola, Total Customer Satisfaction is a top priority. If you

have a question, a suggestion or a concern about your Motorola

Cellular Phone, Motorola wants to hear from you.

Please contact the Motorola Cellular Response Centre by fax on:

+44 (0) 131 458 6732, or use one of the local phone numbers in

the following countries:

Austria 0660 7246

Belgium 0800 72 370

Denmark 43 43 15 56

Egypt 02 3411800

Eire 01 402 6887

Finland 0800 117 036

France 0 803 303 302

Germany 0180 35050

Greece 00800 441 28150

Italy 02 696 333 16

Jordan 06 863750

Kuwait 484 2000 Ext 1177

Lebanon 01 744156

Luxembourg 0800 21 99

Netherlands 0800 022 27 43

Norway 22 55 10 04

Oman 790925

Portugal 01 318 0051

Qatar 418999

Saudi Arabia 01 2303294

South Africa 0800 11 48 49

Spain 902 100 077

Sweden 08 445 1210

Switzerland 0800 553 109

Turkey 0212 2673353

UK 0500 55 55 55

United Arab Emirates 04 32 11 66

For e-mail queries contact:mcrc@ei.css.mot.com

For Internet queries contact:http://www.mot.com

Motorola’s Warranty

Your Cellular Phone is warranted by Motorola to be of

satisfactory quality, fit for its purpose and comply with applicable

Motorola specifications for a period of twelve (12) months from

the date you bought it (verified by reference to your proof of

purchase).

This warranty does not apply if the phone has:

1been mishandled, misused, wilfully damaged, neglected,

improperly tested, repaired, altered or defaced in any way.

2a defect arising as a result of any failure to follow instructions

either in the manual or product specification.

3a defect which has arisen from the use of non-Motorola

approved accessories or ancillary items attached to or in

connection with the telephone.

This warranty does not affect your statutory rights as a consumer.

Warranty conditions may vary depending on the country in which

you bought the phone.

leap_en.bk : intro.fm5 Page 6 Wednesday, February 24, 1999 4:21 PM

Contents 7English

Contents

Safety

Important information for the efficient and safe operation of your phone ................................................................................9

About Your Phone, Battery and SIM Card

Introduces your phone, explains how to charge and maintain batteries, explains about your SIM Card...............................13

Making and Receiving Phone Calls

Explains how to make single or conference calls, how to redial, how to transfer a call, and how to end a call....................23

Using Voice Features

Explains how to use the VoiceNotes™ and Voice Control features on your phone..................................................................35

Using The Options Menu

Provides an explanation of the Options Menu and how to use it ..............................................................................................41

Using the Quick Access Menu

Provides an explanation of the Quick Access Menu and how to use it......................................................................................79

Accessories

Details the accessories available for use with your phone..........................................................................................................85

What To Do If...

Helps you to solve any problems that may occur.........................................................................................................................87

Index

A comprehensive Index ..................................................................................................................................................................89

The Manufacturer reserves the right to make changes in technical and product specifications without prior notice.

leap_en.bk : toc.fm5 Page 7 Wednesday, February 24, 1999 4:21 PM

Contents

English

leap_en.bk : toc.fm5 Page 8 Wednesday, February 24, 1999 4:21 PM

Safety 9English

Safety

IMPORTANT

For the efficient and safe operation of

your wireless handheld portable

telephone, observe these guidelines.

Exposure To Radio Frequency Signals

Your wireless handheld portable telephone is a low power radio

transmitter and receiver. When it is ON, it receives and also sends

out radio frequency (RF) signals.

European and International agencies have set standards and

recommendations for the protection of public exposure to RF

electromagnetic energy.

•International Commission on Non-Ionizing Radiation

Protection (ICNIRP) 1996

•Verband Deutscher Elektringenieure (VDE) DIN-0848

•Directives of the European Community, Directorate General V

in Matters of Radio Frequency Electromagnetic Energy

•National Radiological Protection Board of the United

Kingdom, GS 11, 1988

•American National Standards Institute (ANSI) IEEE.C95.1-1992

•National Council on Radiation Protection and Measurements

(NCRP). Report 86

•Department of Health and Welfare Canada. Safety Code 6

These standards are based on extensive scientific review. For

example, over 120 scientists, engineers and physicians from

universities, government health agencies and industry reviewed

the available body of research to develop the updated ANSI

Standard.

The design of your phone complies with these standards when

used normally.

Antenna Care

Use only the supplied or approved replacement antenna.

Unauthorised antennas, modifications or attachments could

damage the phone and may violate FCC regulations.

Phone Operation

Normal Position: Hold the phone as you would any other

telephone with the antenna pointed up and over your shoulder.

Tips on Efficient Operation: For your phone to operate most

efficiently:

•Extend your antenna fully (if applicable).

•Do not touch the antenna unnecessarily when the phone is in

use. Contact with the antenna affects call quality and may

cause the phone to operate at a higher power level than

otherwise needed.

leap_en.bk : safety.fm5 Page 9 Wednesday, February 24, 1999 4:21 PM

Safety

English

Batteries

!All batteries can cause property damage, injury or burns

if a conductive material such as jewellery, keys or

beaded chains touches exposed terminals. The material

may complete an electrical circuit and become quite hot.

To protect against such unwanted current drain,

exercise care in handling any charged battery,

particularly when placing it inside your pocket, purse or

other container with metal objects. When the battery is

detached from the phone, your batteries are packed

with a protective battery cover; please use this cover for

storing your batteries when not in use.

Driving

Check the laws and regulations on the use of wireless telephones

in the areas where you drive. Always obey them. Also, if using

your phone while driving, please:

•give full attention to driving - driving safely is your first

responsibility

•use hands-free operation, if available

•pull off the road and park before making or answering a call if

driving conditions so require.

Electronic Devices

Most modern electronic equipment is shielded from RF signals.

However, certain electronic equipment may not be shielded

against the RF signals from your wireless phone.

Pacemakers

The Health Industry Manufacturers Association recommends that

a minimum separation of six (6”) inches be maintained between

a handheld wireless phone and a pacemaker to avoid potential

interference with the pacemaker. These recommendations are

consistent with the independent research by and

recommendations of Wireless Technology Research.

Persons with pacemakers:

•Should ALWAYS keep the phone more than six inches from

their pacemaker when the phone is turned on.

•Should not carry the phone in a breast pocket.

•Should use the ear opposite the pacemaker to minimise the

potential for interference.

If you have any reason to suspect that interference is taking

place, turn your phone OFF immediately.

Hearing Aids

Some digital wireless phones may interfere with some hearing

aids. In the event of such interference you may want to consult

your hearing aid manufacturer to discuss alternatives.

Other Medical Devices

If you use any other personal medical device, consult the

manufacturer of your device to determine if they are adequately

shielded from external RF energy. Your physician may be able to

assist you in obtaining this information.

Turn your phone OFF in health care facilities when any

regulations posted in these areas instruct you to do so. Hospitals

or health care facilities may be using equipment that could be

sensitive to external RF energy.

leap_en.bk : safety.fm5 Page 10 Wednesday, February 24, 1999 4:21 PM

Safety 11 English

Vehicles

RF signals may affect improperly installed or inadequately

shielded electronic systems in motor vehicles. Check with the

manufacturer or its representative regarding your vehicle. You

should also consult the manufacturer of any equipment that has

been added to your vehicle.

Posted Facilities

Turn your phone OFF in any facility where posted notices so

require.

Aircraft

FCC regulations prohibit using your phone while in the air.

Switch OFF your phone before boarding an aircraft.

Blasting Areas

To avoid interfering with blasting operations, turn your phone

OFF when in a “blasting area” or in areas posted: “turn off two-

way radio”. Obey all signs and instructions.

Potentially Explosive Atmospheres

Turn your phone OFF and do not remove the battery when in any

area with a potentially explosive atmosphere and obey all signs

and instructions. Sparks, from your battery, in such areas could

cause an explosion or fire resulting in bodily injury or even death.

Areas with a potentially explosive atmosphere are often, but not

always clearly marked. They include fueling areas such as

gasoline stations; below deck on boats; fuel or chemical transfer

or storage facilities; areas where fuel odors are present, i.e. if a

gas/propane leak occurs in a car or home; areas where the air

contains chemicals or particles, such as grain, dust, or metal

powders; and any other area where you would normally be

advised to turn off your vehicle engine.

For Vehicles Equipped with an Air Bag

An air bag inflates with great force. DO NOT place objects,

including both installed or portable wireless equipment, in the

area over the air bag or in the air bag deployment area. If in-

vehicle wireless equipment is improperly installed and the air bag

inflates, serious injury could result.

leap_en.bk : safety.fm5 Page 11 Wednesday, February 24, 1999 4:21 PM

Safety

English

European Union Directives

Conformance Statement

This product is in conformance with the

requirements of the applicable EU Council

Directives.

Declarations of Conformance with the

requirements are located at:

Motorola Ltd.

European Cellular Subscriber Division

Midpoint, Alençon Link

Basingstoke, Hampshire RG21 7PL

United Kingdom

APPROVED for connection to

telecommunications systems specified

in the instructions for use subject to

the conditions set out in them.

S/1357/4/V/503894

leap_en.bk : safety.fm5 Page 12 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card 13 English

About Your Phone, Battery and SIM Card

Special Keys

STurns the phone on and off.

OAccept call, setting, option.

CReject call, setting, option.

EEnter the Quick Access menu.

$Press to access the Options and Phone Book menus.

<> Press both simultaneously to lock the keypad on

flipless models; also use to scroll left and right.

ªPress the top to scroll up and press the bottom to

scroll down.

fPress to call Voicemail.

AThe shape of the keys that appear in the manual may vary

slightly from those on the phone.

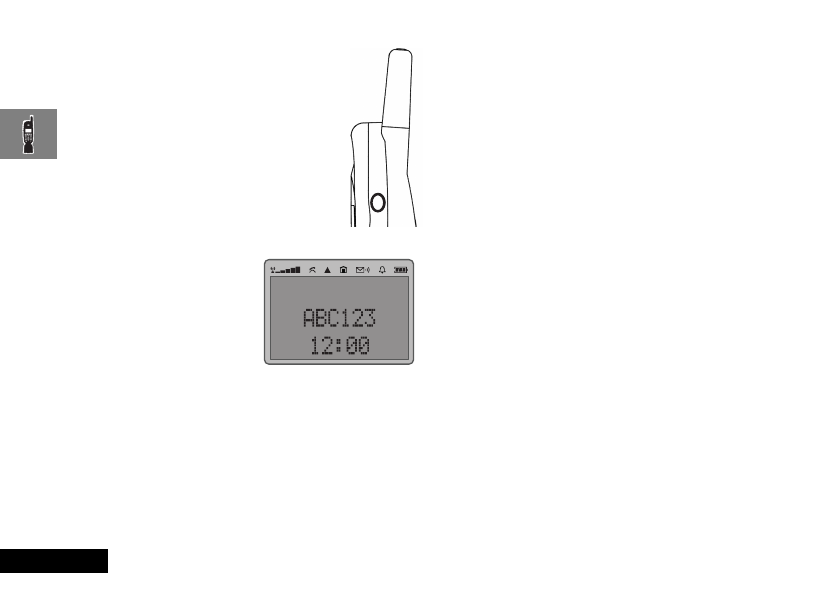

The Flip (if fitted)

Opening the flip answers a call (when the ‘Key

Answer Only’ feature is set to Off, the default

position). Closing the flip ends a call.

The Smart Button

The Smart button (=) is on the left-hand side of

your phone, below the volume button. Press it to

quickly access all your Phone Book entries, and

then either scroll through the entries using the

volume button or press one of the alphanumeric

keys to search for a specific name - for example,

press 7 to search for the name Pam, or press

7 four times to search for the name Sam.

AIf a Phone Book entry does not have a name, it will not be

displayed.

If you are using the optional headset, you can also use the Smart

button to make, answer and end calls as follows:

•To answer a call, press = for 1.5 seconds.

•To end a call, press = for 1.5 seconds and then quickly press

= again.

•To make a call, enter or recall a number and then press and

hold = for 1.5 seconds.

Volume Button

The Volume button (¬) is on the left-hand side of your phone,

above the Smart button. The button is used for adjusting the

keypad, earpiece and ringer volume. A volume meter will display

the current volume setting. The meter will disappear after a short

time, or if you press O or C.

•To adjust the keypad and earpiece volume, press the button

with no other features selected.

•To adjust the ringer volume, first select the ‘Adjust Ring

Volume’ option in the Phone Setup Menu and then use the

button to set the required volume.

The volume button can also be used to scroll though the Phone

Book entries after pressing the Smart button.

AIf you receive a call and you do not want to answer it

immediately, you can press the volume button to stop the

phone from ringing or vibrating. This will not answer the

call.

leap_en.bk : abtphone.fm5 Page 13 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card

English

The Start/Stop Record Button

The Start/Stop Record button (?) is on the right

hand side of your phone. Press it to start and

stop recording VoiceNotes™. Refer to Using

VoiceNotes™ for more information.

The Display

The display on your phone can

show alphanumeric characters as

well as useful information

symbols.The various elements of

the display are as follows:

In addition, when you are expected to press the O key, a

prompt will appear in the display, for example Completed?.

Low Temperature Use

The liquid crystal display used in your phone will behave

differently at extremely low temperatures. You may notice that

the display responds slowly to key presses; this is to be expected

and does not affect the phone operation in any way.

ABC123 Characters are used to display messages and

telephone numbers.

rx Signal Strength. The more segments displayed in

the bar graph, the better the signal strength.

kIn Use. Displayed when a call is in progress.

lRoam. Displayed when you are registered on a

system other than your home system.

nHome Zone. Availability depends on your service

provider.

oShort Message Service. Displayed when the

phone has received a message. The symbol will

flash when your message storage area is full.

pVoicemail Waiting Indicator. Displayed when

you have a voice message waiting. The availability

of this feature depends on your service provider.

h Ringer On. Displayed when the call ringer is

selected. If you select the No Ring or Vibrate or the

Vibrate Only options this symbol will not be

displayed.

qBattery Charge Indicator. The more segments

displayed, the greater the battery charge.

B...K Icons are displayed when you are in the Quick

Access menu.

z Indicates that a menu item is currently selected.

12:00 Real Time Clock. In the idle display, the real time

clock can display the time in either a 12-hour or

24-hour format.

leap_en.bk : abtphone.fm5 Page 14 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card 15 English

Earpiece Connector

The earpiece connector is on the left-hand side of your phone,

above the volume button. Use this connector for the headset

accessories available from your Motorola stockist.

Communicating with External Devices

To communicate with an external device, such as a personal

computer or a fax machine, your phone includes the following

features:

•an infra-red lens located next to the antenna on the top of the

phone.

•an RS-232 serial data port located at the bottom of the phone.

Setting up the Infra-Red Feature

iPress E. Select the Quick Access feature (« Activate

IR?) or after the tone, say the Voice Tag name. See ‘Voice

Control for Quick Access Features’.

Before you can transfer your data:

•Align the infra-red lens on your phone with the infra-red lens

on the external device.

•Make sure that the infra-red feature is active in both the

phone and the external device.

The phone and the external device can be up to 30 cm apart.

For operating details, see ‘Activate IR Port’ in the ‘Phone Setup’

section of this manual.

Setting up the RS-232 Serial Data Port

The RS-232 serial data port requires a Motorola 3-pin

RS-232 serial data cable. This is available from your Motorola

stockist.

To connect the cable to your external device, please refer to the

manufacturer’s documentation.

Looking After Your Phone

•Never leave your phone or battery in extreme temperatures

(over 60°C), for example behind glass in very hot, direct

sunlight.

•To clean your phone, use a moistened or antistatic cloth. Do

not use a dry or electrostatically charged cloth.

The Status Indicator

The status indicator on the top of the phone

provides you with the following information:

Incoming Call Alternate Red/Green

In Service Flashing Green

No Service Flashing Red

Roaming Flashing Yellow

leap_en.bk : abtphone.fm5 Page 15 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card

English

Your Battery

Charging a New Battery

New batteries are supplied in a totally uncharged state.

To ensure maximum battery performance, a new battery (or

battery that has not been used for several months) should be

charged for at least 14 hours before use.

AA new battery will require several full charge/discharge

cycles in order to achieve its optimum performance.

AA new battery, or a battery that has not been used for

several months, may cause a premature fully charged

indication. Ignore this indication and let the battery charge

for several more hours, remove and re-insert the battery

into the charger, and charge for an additional 14 hours.

Important Battery Information

!Always treat your batteries with care. See ‘Batteries’, at

the beginning of this manual.

!Never leave your battery in extremely high

temperatures (over 60°C), for example behind glass in

very hot, direct sunlight.

!Only Motorola Original Accessory batteries can be

charged in the phone or the optional desktop charger.

This is to protect you and your phone from the risks of

incorrect charging.

ADo not use lithium ion batteries at extremely low

temperatures as the maximum standby/talk time will not be

available when cold.

To ensure that you enjoy maximum battery life and use your

battery to its fullest capacity:

•The battery should be at or near room temperature when

charging.

Battery Performance and Maintenance

•Best battery performance will be achieved when you regularly

charge and discharge batteries as instructed in this manual.

•Battery performance is greatly affected by network coverage.

•Set Battery Saving Mode to On (see ‘Phone Setup Menu’)

and/or Frequency of Search to Slow or Medium (see

‘Network Selection Menu’).

•If left unused, a fully charged battery will discharge itself in

approximately one month.

•When not in use, store your battery uncharged in a cool, dark

and dry place.

Low Battery Warning

When the battery level is low and only a few minutes of talk time

remain, a warning signal (two double beeps) will sound, the

border of the battery symbol will begin to flash, and Low

Battery will be displayed.

When the battery is completely discharged, your phone will turn

off.

leap_en.bk : abtphone.fm5 Page 16 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card 17 English

Removing Your Battery

!Switch off your phone before removing the battery.

Failure to do so may damage your phone memory.

1Press the release catch on the battery compartment and lift off

the cover.

2Push the battery towards the top of the phone and lift the

battery out from the bottom end.

Fitting Your Battery

1Remove the battery compartment cover.

2Align the connections on the battery with the connections on

the phone.

3Press the battery towards the connections and push it

downwards until it clicks into place. Replace the cover.

leap_en.bk : abtphone.fm5 Page 17 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card

English

Charging Your Battery Using the Travel

Charger

The travel charger can power the phone and charge a fitted

battery.

!Ensure that the local mains voltage at your location

matches that of your travel charger.

Fit a battery onto your phone.

To charge your battery:

1Attach the correct adapter plug to the travel charger.

2Connect the travel charger to the phone.

AThe connector is keyed and can only be inserted one way.

3Insert the travel charger plug into a suitable mains power

socket.

A beep-tone is heard and the battery icon flashes when charging

begins.

AYour phone can be either on or off during charging.

The state of charging is monitored and displayed by your phone.

See ‘Battery Meter Indicators’ later in this section for details.

leap_en.bk : abtphone.fm5 Page 18 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card 19 English

Desktop Charging Your Battery

AThe Desktop Charger is an optional accessory that allows

you to charge both the battery fitted in your phone and a

spare battery at the same time.

Batteries charge in about 2 to 3 hours, depending on the battery.

AIt is normal for batteries to become warm during charging.

1Connect the travel charger to the desktop charger socket.

(The connector is keyed and can only be inserted one way.)

2Plug the travel charger into a standard mains socket.

3Insert your phone into the desktop charger as shown.

A spare battery can be charged on its own or at the same time as

your phone. Insert the battery into the desktop charger as

shown.

AFor maximum NiMH battery charging, you should double

the charge time.

ACharge times will increase if you make or receive phone calls

while charging.

leap_en.bk : abtphone.fm5 Page 19 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card

English

Battery Indicators

Your Motorola cellular phone includes the Motorola Expert

Performance (¢) charging system. This enables the charging

circuits in both the phone and the optional (¢) desktop

charger to communicate directly with the battery. Based on this

communication, the charger can implement the optimum

charging cycle for best performance and determine the level of

charge.

Your phone monitors and displays information about your

battery. The following message will appear on the display, as the

condition occurs:

Battery Meter Indicators

The battery meter displays different messages depending on the

batteries attached, and whether or not there is an external power

source. The battery meter is found in the Call Related Features

part of the Options Menu.

AWhen the battery is completely discharged, you must

charge the battery for one minute before you can make or

accept a phone call.

Low Battery The battery charge is low. The battery should

be recharged.

Insert

Battery

No battery fitted; external power connected

Invalid

Battery

This message is accompanied by a single beep.

Your phone is alerting you that you do not

have charging capabilities with this battery

even though the battery may be able to power

the phone.

The most likely reason why your charging

system does not recognise the battery is that

the battery you have purchased is not a

Motorola original battery and therefore does

not have the communications technology built

into it. All Motorola original batteries include

this communications technology.

It is recommended that you use only Motorola

original batteries, chargers and other

accessories.

Charging

Battery

The battery is being charged.

Charging

Complete

Charging is complete.

Invalid

Battery

Battery may be defective, or may not be a

Motorola original battery.

leap_en.bk : abtphone.fm5 Page 20 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card 21 English

Your SIM Card

Your SIM (Subscriber Identity Module) card was supplied by your

Cellular Service Provider when you bought your phone. You will

not be able to make or receive calls if you do not have a SIM card

inserted in your phone.

ASome networks allow you to make emergency calls without

a SIM card inserted.

The SIM card is a ‘Smart Card’ that contains your phone number,

service details and memory for storing Phone Book numbers and

messages. You can therefore use your SIM card in someone else’s

GSM phone and you will be charged for the call.

Like a bank or credit card, you should keep your SIM card secure.

Do not bend or scratch your card and avoid exposure to static

electricity or water.

!Switch off your phone before inserting or removing the

SIM card. Failure to do so may damage the memory on

your SIM card.

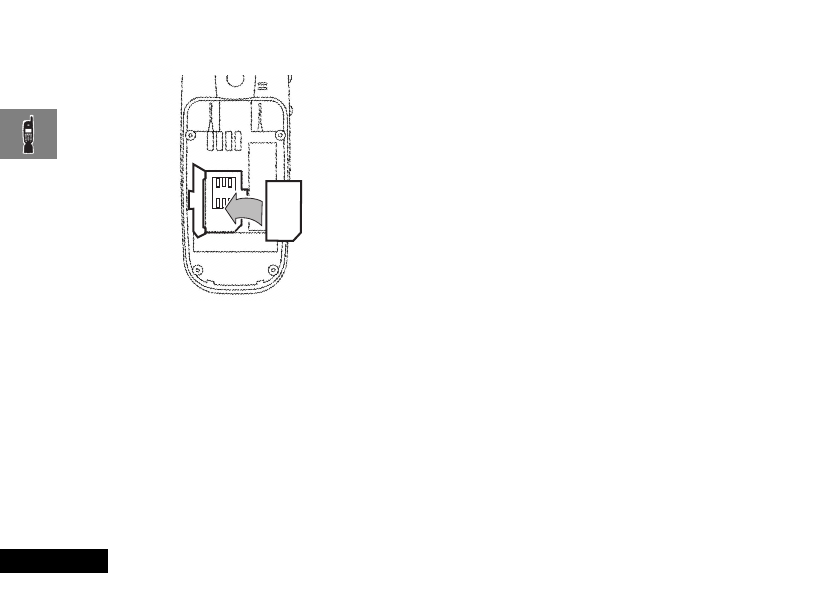

SIM Card Insertion/Removal

1Switch off your phone by pressing and holding the S key,

remove the battery cover and the battery.

2Slide the SIM cover towards the left and lift up the right side

of the cover.

3If necessary, remove the SIM card from the recess in the base

of the phone.

leap_en.bk : abtphone.fm5 Page 21 Wednesday, February 24, 1999 4:21 PM

About Your Phone, Battery and SIM Card

English

4Place the SIM card into the recess in the base of the phone so

that the notch is in the bottom right-hand corner.

5Replace the SIM cover, then press and slide it to the right to

lock it into place.

6Replace the battery and battery cover.

If the SIM card is inserted the wrong way round, or damaged, the

Check Card message may be displayed. Remove the SIM card,

check that it is the right way round and then re-insert it into the

phone.

If either of the Bad Card See Supplier or Blocked See

Supplier messages are displayed, then you will need to contact

your Cellular Service Provider.

leap_en.bk : abtphone.fm5 Page 22 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls 23 English

Making and Receiving Phone Calls

Switching the Phone On and Off

To switch the phone on or off, press and hold the S key. If

VibraCall™ is selected, the phone will vibrate when it is switched

on.

If you switch the phone on and there is no SIM card inserted, you

will be asked to insert one. Once inserted, the phone will check

that the SIM card is valid.

A number of messages will then be displayed:

•Enter PIN - a request to enter the SIM card PIN code (if

required).

•Enter Phone Unlock Code - a request to enter the phone

unlock code (if required).

•Searching... followed by a network name - as the phone

searches and then finds a suitable network to connect to.

Entering Your SIM Card PIN Code

To enter the PIN code, enter AO.

As you type in each digit of the PIN code a * character will be

displayed.

If you make a mistake, press and release the C key to remove

the last digit. Holding the C key down will remove the entire

entry.

When the PIN code is complete press the O key.

If the PIN code entered is incorrect, the warning message Wrong

PIN will be displayed, followed by Enter PIN.

!If the PIN number is entered incorrectly three times in a

row, your phone will automatically lock-up and the

Blocked message will be displayed. See ‘Unblocking

Your Phone’ for details on unblocking your phone.

The PIN code can be changed, see ‘Change SIM PIN Code’ in the

Phone Setup Menu section for more details.

j Entering Your Unlock Code

If your phone displays the message Enter Phone Unlock

Code you must enter your unlocking code by entering

BO.

The unlock code is a four digit number which is set at

manufacture to 1234. The code can be changed, see ‘Change

Unlock Code’ in the Phone Setup Menu section for more

details.

If you forget your unlock code, press the $ key. This will

display the ‘Change Unlock Code’ option. Enter O

D, enter a new unlock code, and press O.

leap_en.bk : usephone.fm5 Page 23 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls

English

Making a Phone Call

To make a phone call, your phone must be switched on and

unlocked.

It will not be possible to make a phone call unless you are in an

area where there is a GSM900, 1800 or 1900 service. When a

service has been found, a series of rising bars, x, will

show the signal strength.

There are a number of different ways to make a phone call:

•Using the digit keys.

•Using automatic redial.

•Redialling the last number called.

•One-touch dialling a Phone Book entry*.

•Dialling a Phone Book entry*.

•Calling an embedded number in a message.

•Using the Smart button (=) and Voice Control.

A*Your phone contains a 'phone book' that can be used to

store names and telephone numbers. See ‘What is the

Phone Book?’ for further details.

The simplest method of making a phone call is to enter the

number using the digit keys then press O.

AIf you make a mistake, press and release the C key to

remove the last digit. Holding the C key down will

remove the entire number.

Your phone will then attempt to make the phone call. The display

will show Calling to show the call attempt is being made. If

the call is not answered, pressing O, or closing the flip (models

with flip only), at this point will end the attempt.

When the phone call is answered, the display will change to

Connected for a few seconds, followed by End Call?.

To end your call press O, or close the phone.

Automatic Redial

If your call attempt does not succeed, the message Redial? will

be displayed for five seconds. Pressing O at this point will

automatically redial the phone number.

When the call is answered, you will hear a short ring tone.

The maximum number of redial attempts is set by your Cellular

Service Provider. If the phone call cannot be connected within

this maximum, the message Redial Failed will be shown.

Redialling the Last Number Called

iWhen in standby mode, press OO.

Alternatively, you can retrieve the last number dialled using the

‘Last Ten Calls’ feature in the Phone Book menu.

leap_en.bk : usephone.fm5 Page 24 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls 25 English

j One-Touch Dialling Phone Book Numbers

To quickly retrieve and dial a number stored in the first nine

locations of your Phone Book1, press and hold the appropriate

digit key. For example, pressing and holding 2 will dial the

phone number stored in location 2 of your Phone Book.

AYou do not need to press O to call the number.

j Dialling Phone Book Numbers

Alternatively, enter the phone book G number followed

by >O.

j Dialling Phone Book Numbers with Smart Button

The following Smart button (=) options are available:

•Press = and say the Voice Tag name after the tone. See ‘Using

Voice Control’ for more information.

•Press = and use the volume button to scroll to the stored

number, or press the appropriate digit key to skip to a

particular letter. To make the call, either hold down = for 1.5

seconds or press O.

Calling an Embedded Number in a Message

Details on how to call a number embedded in a message are

given in the Messages Menu section.

1. The Phone Book entries that you are able to access will

depend on the One-Touch Dial Setting option in the Phone

Book menu.

International Phone Calls

To make an international phone call press and hold the 0 key.

After a couple of seconds the international dialling prefix + will

appear in the display, this allows you to call from any country

without knowing the local international access code.

Now enter the country code, followed by the phone number. The

country code follows the conventional format, 49 for Germany,

44 for the UK, 46 for Sweden, etc.

Just like a conventional international call, remove the leading '0'

of the area code when you dial.

Inserting Pauses Into Phone Numbers

To obtain a three second 'pause' character in a phone number,

press and hold the < key for a couple of seconds, the pause

symbol Ü will appear.

The pause character produces a three second delay whenever it is

used. However, the first pause character in a phone number is a

special case, it will not begin its delay until the call is answered.

Pause - A Working Example.

If, for example, you have a tone-based voicemail system on

555-6911, with a mailbox number 1066 and password 2001.

Then you may dial the following number:

5556911Ü1066Ü2001 O.

The first part of the number would be used to call the voicemail

system.

When the call is answered the first pause will produce a delay of

three seconds before the tones for 1066 are sent to select the

mailbox.

There will be a second pause of three seconds before the tones

for 2001 are sent as the password.

leap_en.bk : usephone.fm5 Page 25 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls

English

GSM Emergency Calls

The world-wide GSM standard provides a single, uniform

number, 112, to dial in cases of emergency.

Provided that your phone has found a network, you will be able

to make an emergency call. The call can be made regardless of

any security codes and, depending on the network, with or

without a SIM card inserted.

The emergency call will be directed to a central emergency

operator.

To dial the GSM emergency number, press 112O.

While the emergency call is being made and connected, the

display will show Emergency Calling .

AEmergency calls can be made without a battery fitted if the

phone is powered by the travel charger.

leap_en.bk : usephone.fm5 Page 26 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls 27 English

Receiving a Phone Call

To receive a phone call:

•Your phone must be switched on and unlocked.

•You must be in an area where there is GSM900, 1800 or 1900

service.

•Your Call Diversion and Call Barring settings should not be set

to divert or bar incoming calls.

When your phone receives a call, it will ring or vibrate and the

display will show the Call message (if you have Caller Line

Identification, the caller’s number or name will be displayed

instead).

Normally, the call is answered as soon as the phone is opened.

However, if the Key Answer Only option is selected, opening the

phone will not answer the call - you will have to press a key.

When the identification is displayed, you can decide whether or

not to answer the call by pressing O, a numeric key (1 to

9), < or >. To set this option, see ‘Key Answer Only’.

You can also answer using the keys if the phone rings whilst the

phone is already open.

If your phone is open and you do not want to answer the call,

you can:

Press and release the C key. If you have enabled the

'Detailed Diverting - If Busy' or ‘Divert when unavailable’

options in the Options Menu, the caller will be diverted to the

forwarding number, otherwise the caller will hear the busy

tone.

Press and hold the C key. This will reject the incoming call.

No call divert option will be offered.

If your phone rings and you do not answer it, the message

Unanswered Call will be displayed to show you that a call

attempt was received.

Ending a Phone Call

To end a phone call, press O, C or close phone.

leap_en.bk : usephone.fm5 Page 27 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls

English

In-Call Menu

The “In-Call” menu provides access to additional functionality

during a call. Entering the In-Call Menu

The “In-Call” menu is accessed by pressing the $ key during a

call.

Leaving the In-Call Menu

To leave the “In-Call” menu press the C key.

In-Call Menu Options

The options listed in the “In-Call” menu will dynamically change

depending on the current call state. The following list contains all

of the possible options in the “In-Call” menu.

AOnly some of the options will appear at any given time. The

order of the options may vary.

Handsfree On/Off

This option is used to switch between Handsfree and normal

operation if the phone is installed in a car kit that does not have

an automatic presence detector.

Hold Call

This option will put the active call on hold.

Make a New Call

This option allows you to make another call.

Restrict My Number

This option allows you to make a call without the remote user

getting advanced warning of the number.

End Active Call

This option terminates the active call, and makes the call that was

previously on hold, the active call.

leap_en.bk : usephone.fm5 Page 28 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls 29 English

End Held Call

This option will terminate a held call.

End Current And Held Call

This option will terminate all connected calls.

Switch Calls

This option allows you to switch between the active call and the

call that is on hold.

Conference Call

This option connects you with up to five other telephones on one

call (see ‘Making a Conference Call’).

Transfer Call

This option transfers a call to another telephone (see ‘Transfer

Call’ later in this section).

Split Call

This option allows you to separate an individual from the main

Conference Call.

Reject Waiting Call

This option will reject a waiting call.

Reconnect

This option will make the call on hold the active call.

Reconnect Held Call

This option is similar to Reconnect but will appear if you have a

call on hold, and a call waiting. Reconnect Held Call will

make the call on hold the active call.

Turn Mute On or Off

Temporarily turns the microphone off during a phone call.

Reselect this option to resume your conversation.

j Call Holding and Call Waiting

Your phone supports the GSM options of Call Holding and Call

Waiting. Using these options you can place a current phone call

on hold and accept an incoming call or start a second call (See

‘Call Waiting’ in the ‘Call Related Features’ menu for details

of how to control this feature).

Call Holding and Call Waiting Scenarios

The display will automatically change according to the status of

your current call (or calls) and will propose the option that you

are most likely to want. Press O to accept this option or press

$and then ª to scroll through the “In-Call” menu for the

alternative options. By following this procedure you will find that

even the triple combination of an active call, a held call, and a call

waiting is easy to manage.

The following points summarise the more common situations:

•To put an active call on hold, press $, the display will show

Hold Call Select? - press O to put the call on hold. To

reconnect the call, press O.

•To put an active call on hold and make another call, first put

the active call on hold, then press $ and select the Make

New Call option1.

•To switch between an active call and a held call press O at

the Two Calls Switch? prompt.

1. A quicker method of making another call is to enter the

number to be called directly and press O. Your phone will

place the current call on hold and attempt to call the number

entered.

leap_en.bk : usephone.fm5 Page 29 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls

English

•To accept a waiting call during an active call, press O at the

Call Waiting Answer? prompt. The active call will be

placed on hold. If you prefer to end the active call before

accepting the waiting call, press $ and select the End

Active Call option.

•To reject a waiting call, press $ and select the Reject

Call Waiting option (or simply press the C key).

AIf you have an active call, a call on hold and a call waiting,

you cannot accept the waiting call until you end either the

active call or the held call, or join the active and held calls.

Call Holding and Call Waiting Messages

During Call Holding and/or Call Waiting operations, your phone

may display one or more of the following messages:

Trying

A request to hold the active call, swap the active with a held

call, or add a member to a Conference Call, has been made.

A request to reconnect the held call has been made.

Hold Failed

The request to hold a call has been unsuccessful.

Cannot Hold Second Call

A call is already on hold, you cannot place two calls on hold at

the same time.

Connection Failed

The held call could not be made active again.

Busy Try Later

Your phone is still working on a previous command. Wait a

short time before repeating the command.

Anonymous

The person who is calling you has blocked their number from

appearing on your phone.

Unavailable

The network is unable to provide the caller’s number.

Conference Unsuccessful

The request for Conference Call has been unsuccessful.

Transferring Call

A request to transfer a call has been made.

Transfer Unsuccessful

The request to transfer a call has been unsuccessful.

leap_en.bk : usephone.fm5 Page 30 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls 31 English

Making a Conference Call

This option joins the active call with a held call. With Conference

Call, you can have a conference with up to five other telephones.

At any time during your call, you can add, disconnect or separate

individuals from the Conference Call using other “In-Call” menu

options.

AYou must subscribe to both Conference Call and Call

Waiting Supplementary Services to be able to use this

feature.

Initiating a Conference Call

To initiate a Conference Call, place the active call on hold, and

dial another phone number. You will then have one active call

and one call on hold.

Press the $ key to enter the “In-Call” menu and select

Conference Call. The currently active call and the call on

hold will then join into one Conference Call.

Managing a Conference Call

While in a Conference Call, you will have the option to add new

calls to the Conference Call or separate one of the members from

the Conference Call.

Adding a New Call

There are a number of different ways to add new calls to the

Conference Call:

•Using the digit keys.

•Using the Make New Call option from the “In-Call” menu.

•Recalling a Phone Book Entry using Quick Access.

•Answer Call Waiting.

No matter which method is chosen to add a new call, the original

Conference Call will be first placed on hold while the new call is

being connected. You must then enter the “In-Call” menu and

select Conference Call to join the New Call with the original

Conference Call in progress.

Separate One of the Members in the Conference

During a Conference Call, you will also have the option to

separate a selected member from the main Conference Call.

AIn order to separate a member from the main Conference

Call, there must not be any calls on hold.

Press $ during a Conference Call and select Split Call.

You will then be presented with the phone number or name of

all members of the Conference Call. Use the scroll keys to find

the selected member of the Conference Call. Once the desired

member is selected, press the O key and select Split Call.

At this point, the selected call will be separated from the main

Conference Call and private conversation between you and the

selected member is possible.

To re-join all the parties again, select Conference Call from

the “In-Call” menu.

leap_en.bk : usephone.fm5 Page 31 Wednesday, February 24, 1999 4:21 PM

Making and Receiving Phone Calls

English

Transfer Call

Transfer Call transfers a call to another telephone. There are two

ways to transfer a call; before or after the third party is

connected.

AYou must subscribe to both Conference Call and Call

Waiting Supplementary Services to be able to use this

feature.

Initiating Transfer Call Before the Third

Party is Connected

To transfer a call to another telephone, press the $ key and

select Transfer Call from the “In-Call” menu. Enter the

number where the call will be transferred and press O.

Your phone will then attempt to transfer the call. The display will

show Transferring Call followed by Call

Transferred. When the call has been successfully transferred,

you will be disconnected automatically.

Initiating Transfer Call After the Third Party

is Connected

If you already have an active call and a call on hold, press the

$ key and select Transfer Call from the “In-Call” menu.

Your phone will then attempt to transfer the active call to the call

on hold. The display will show Transferring Call followed

by Call Transferred. Once the call has been successfully

transferred, you will be disconnected automatically.

leap_en.bk : usephone.fm5 Page 32 Wednesday, February 24, 1999 4:21 PM

Using Voice Features 33 English

Using Voice Features

Using VoiceNotes™

The VoiceNotes™ feature allows you to record up to 3 minutes

of personal voice messages or to record part of a phone call. This

is useful when you don't have a pen and paper to hand for

taking directions or a message. Recording is available during the

following call scenarios:

•Phone idle (no calls).

•Single active call (includes conference calls).

•Active call plus waiting call.

Recording a VoiceNote™

To record a VoiceNote™, press the Start/Stop Record button (?).

You will hear a short tone to indicate that recording has started

and the display will show the message Recording and the

remaining recording time available.

If you are recording during a call, the person you are speaking to

will hear a tone every 10 seconds to warn them that you are

recording the call.

ADuring the recording of an active call, only the person you

are talking to is recorded.

To stop recording a call, press the Start/Stop Record button (?) or

O; on models with a flip you can also close the flip, although

this will end the call. The display shows the message VoiceNote

XX Stored where XX is the number of the storage location.

VoiceNotes™ are stored in sequential locations.

Recording stops immediately with no further notification if:

•you choose to accept an incoming call while you are recording

(the Call Waiting alert is played)

•you choose to initiate a call during recording a VoiceNote™.

VoiceNote™ Storage Capacity

The ‘Show Time Available' option in the Messages, VoiceNotes™

menu displays the amount of recording time available, see

‘Messages Menu’.

During recording, ten seconds before the recording capacity is

reached you will hear a warning tone. If you do not stop

recording within the time limit, recording will automatically stop

and a single, one second tone will be heard, accompanied by the

Storage Full message.

Playing VoiceNotes™

To play your VoiceNotes™, select the ‘Play VoiceNotes' option in

the Messages, VoiceNotes™ menu or the Quick Access menu

item (}).

The first VoiceNote™ will begin to play after two seconds. The

display will show VoiceNote XX playing... Go to next ?

Press C to stop playing a VoiceNote™. A message showing

the current VoiceNote™ is displayed (VoiceNote XX), together

with a prompt Go to next?. Press $and then ª to skip to

the next VoiceNote™.

AIf you selected ‘Play VoiceNotes' from the Quick Access

Menu, the phone will simply return to its idle state.

leap_en.bk : voice.fm5 Page 33 Wednesday, February 24, 1999 4:21 PM

Using Voice Features

English

If you press press $ and then ª (top) during playback, the

message will start to replay from the beginning. Press ª (top)

twice rapidly to skip back to the previous message.

Press $ to play the next VoiceNote™. To skip to the next

VoiceNote™ during playback, press O.

To play a VoiceNote™ stored at a specific location, press the

appropriate digit key 1 to 9.

AIt is not possible to playback VoiceNotes™ during a call.

Erasing VoiceNotes™

To erase your VoiceNotes™, select the ‘Erase All VoiceNotes'

option in the Messages, VoiceNotes™ menu. You will be

requested to confirm the deletion with the message Erase All

VoiceNotes - Select? . Press O to confirm the deletion.

The confirmation message VoiceNotes Erased is displayed.

AYou cannot erase individual VoiceNotes™.

leap_en.bk : voice.fm5 Page 34 Wednesday, February 24, 1999 4:21 PM

Using Voice Features 35 English

Using Voice Control

With Voice Control, you can call up a phone number or activate a

Quick Access feature with a single spoken command.

The single spoken command is called a Voice Tag.

You can assign Voice Tags to call any of the Phone Book numbers

in your phone memory, and you can also assign Voice Tags to

activate any of the Quick Access features.

AYou cannot assign Voice Tags to call any of the numbers in

your SIM card memory.

When you are recording a Voice Tag, you cannot make or receive

any calls.

For best results, when you record a Voice Tag, make sure there is

no background noise and speak in a clear, natural voice. Your

phone allows you about two seconds for each Voice Tag.

Voice Control for Phone Book Entries

You can add a new Voice Tag when you set up a new Phone

Book entry or when you amend an existing Phone Book entry.

Alternatively, you can overwrite an existing Voice Tag or delete it

completely.

AYou cannot record a Voice Tag if you have set Prevent

Access To Phone Memory.

Add Voice Tag

This option is available from the Phone Book menu and allows

you to add a Voice Tag to a new Phone Book entry.

When you select ‘Add To Phone Memory, your phone prompts

you to enter a number, name and location and then stores the

entry. For more details, see The Phone Book Menu.

After the prompt Stored XXX, your phone then prompts you

for a Voice Tag as follows:

1uAdd Voice Tag?

Press O to continue.

If there are already 25 Phone Book Voice Tags in your phone,

Voice Tag Storage Full appears and your phone

returns you to the ‘Add To Phone Memory’ menu option. You

must delete a Voice Tag before you can add another.

If there are Voice Tags available, your phone prompts you to:

2u Press OK When Ready

Press O to continue.

3Say Name After Tone...

Wait for the tone to finish and then say the name.

Sometimes Repeat Name After Tone... prompts you to

repeat this operation.

4If the recording is successful, Please Wait appears after

two seconds followed by y Voice Tag Stored.

leap_en.bk : voice.fm5 Page 35 Wednesday, February 24, 1999 4:21 PM

Using Voice Features

English

When a Voice Tag recording is successful, your phone returns

you to the ‘Add To Phone Memory’ menu option.

If the recording is not successful, for example, the name you used

is too similar to another Voice Tag name, the phone displays the

reason for not accepting the name and returns you to the

uPress OK When Ready prompt.

Add or Edit Voice Tag and Delete Voice Tag

These options are available from the Phone Book menu or the

Quick Access menu. First, select either ‘Find Entry by Name’ or

‘Find Entry by Location’.

After you enter the name or location details, you can select the

appropriate Voice Tag menu option.

’.

Add or Edit Voice Tag

AThis option does not appear if the phone number is not in

phone memory.

Select this option to add a Voice Tag to the Phone Book entry or

to overwrite an existing Voice Tag. If an entry already has a Voice

Tag, the symbol )) appears after the location number.

When you select this option, the phone prompts you with

uPress OK When Ready .

To complete the Voice Tag recording, follow the same process as

for ‘Add Voice Tag’.

Delete Voice Tag

AThis option does not appear if the phone number is not in

phone memory or if there is no Voice Tag to delete.

Select this option to delete the Voice Tag from the Phone Book

entry.

When you press O, the phone deletes the Voice Tag and

returns the prompt y Voice Tag Deleted .

leap_en.bk : voice.fm5 Page 36 Wednesday, February 24, 1999 4:21 PM

Using Voice Features 37 English

Using Voice Activation with Phone Book Entries

You can use either the Smart button (=) or you can use the

Phone Book menu followed by =.

Voice Activation using the Smart button (=)

Press =.

If there is a Phone Book entry with a Voice Tag, the following

prompt appears:

1Say Name After Tone ...

Wait for the tone to finish and then say the name.

AIf you press a key, you return to the Phone Book.

If the phone does not find a matching Voice Tag, No Match

Found appears and you return to the Phone Book.

2If the name you say matches a Voice Tag, the phone repeats

the name and displays the Phone Book entry.

3Do one of the following:

•Wait for two seconds and the phone makes the call.

•Press O to make the call or C to cancel the call.

•Press ª to display the next entry in the Phone Book.

When you scroll to a Phone Book entry that has a Voice Tag, your

phone replays the Voice Tag through the speaker.

Voice Activation using the Phone Book Menu

Select Voice Dialling from the Phone Book menu.

When you press O, the phone displays the message

uPress Smart Button When Ready .

To complete the voice activation, follow the same process as for

‘Voice Activation using the Smart button (=)’.

Voice Control for Quick Access Features

You can use Voice Tags to activate any of the Quick Access

features on your phone. You are not restricted to the nine Quick

Access keys.

Quick Access Setup

This option is available from the Phone Setup menu and allows

you to do the following:

•Customise your Quick Access menu.

•Set up and change the Voice Tag allocation for the Quick

Access features.

When you select Quick Access Setup, your phone displays a list of

the Quick Access features. If a feature already has a Voice Tag,

the symbol )) appears with the feature name.

Use ª to highlight the feature you require and then press O.

You can then assign a key or change the Voice Tag setup.

Assign Key to Feature

Select this option to assign a key to the Quick Access feature.

Your phone displays the prompt Enter 1-9:.

Press 1 to 9 to assign a key and then press O.

If you assign a valid key, your phone displays y Completed and

then returns you to the Quick Access feature list.

leap_en.bk : voice.fm5 Page 37 Wednesday, February 24, 1999 4:21 PM

Using Voice Features

English

As an alternative, you can also assign a key using the Quick

Access key (E). See Using the Quick Access Menu.

Add or Edit Voice Tag

Select this option to add a Voice Tag to the Quick Access feature

or to overwrite an existing Voice Tag.

If you attempt to add another Voice Tag when there are already

15 Quick Access Voice Tags in your phone, Voice Tag

Storage Full appears and your phone returns you to the

Quick Access feature list. You must delete a Voice Tag before you

can add another.

If there are Voice Tags available, your phone prompts you to:

1u Press OK When Ready

Press O to continue.

2Say Name After Tone...

Wait for the tone to finish and then say the name.

Sometimes Repeat Name After Tone... prompts you to

repeat this operation.

3If the recording is successful, Please Wait appears after

two seconds followed by y Voice Tag Stored.

When a Voice Tag recording is successful, your phone returns

you to the Quick Access feature list.

If the recording is not successful, for example, the name you used

is similar to another Voice Tag name, the phone displays the

reason for not accepting the name and returns you to the

uPress OK When Ready prompt.

Delete Voice Tag

AThis option does not appear if there is no Voice Tag to

delete.

Select this option to delete the Voice Tag from the Quick Access

feature.

When you press O, the phone deletes the Voice Tag and

returns the prompt y Voice Tag Deleted .

leap_en.bk : voice.fm5 Page 38 Wednesday, February 24, 1999 4:21 PM

Using Voice Features 39 English

Using Voice Activation with Quick Access Features

To activate a Quick Access feature using Voice Control:

1Press E.

If there is a Quick Access feature with a Voice Tag, the following

prompt appears:

2Say Name After Tone ...

Wait for the tone to finish and then say the name.

AAt this point, you can press C to return to the idle

screen; press a numeric key or O to activate the

appropriate Quick Access feature; press ª to display the

Quick Access menu list.

If the phone does not find a matching Voice Tag, No Match

Found appears and you return to the Quick Access menu.

3If the name you say matches a Voice Tag, the phone repeats

the name and displays the entry for the Quick Access feature.

4Do one of the following:

•Wait for two seconds and the phone activates the feature.

•Press O to activate the feature or C to return to the

Quick Access menu list.

•Press ª to display the next entry in the Quick Access menu.

When you scroll to a Quick Access feature that has a Voice Tag,

your phone replays the Voice Tag through the speaker.

leap_en.bk : voice.fm5 Page 39 Wednesday, February 24, 1999 4:21 PM

Using Voice Features

English

leap_en.bk : voice.fm5 Page 40 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 41 English

Using the Options Menu

leap_en.bk : opt_menu.fm5 Page 41 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

The Phone Book Menu

AIf your service provider has added their own menu, the

Phone Book menu will not be the first item in the Options

menu.

leap_en.bk : opt_menu.fm5 Page 42 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 43 English

j What is the Phone Book?

You can store names and telephone numbers as entries in an

electronic 'Phone Book'. These entries are stored in the Personal

Numbers list in your phone or SIM card's memory, and in the

Fixed Dial list1 on your SIM card. Once stored, a number can be

quickly retrieved and dialled.

Your phone can store 100 entries and the SIM card can store up

to 155 entries in the Personal Numbers list. The number of SIM

card entries will vary depending upon the type of SIM card issued

by your Cellular Service Provider.

You can also store up to 40 entries in a Fixed Dialling list if you

have this feature. Fixed Dialling allows you to limit use of your

phone to particular numbers, or, if you wish, to country codes,

area codes, or other prefixes of your choosing.

Each Phone Book entry comprises:

•A telephone number. Up to 32 digits can be stored, but this is

reduced to 20 digits for SIM card locations.

•A name. Up to 16 characters for phone locations. Up to 50

characters for SIM card locations, but typically 10 or less.

•A location label - from 1 to 255 in your Personal Numbers list,

or 1 to 40 in your Fixed Dial list.

1. Availability of the Fixed Dialling feature depends on the type

of SIM card you have.

Postscripting

This allows you to make use of area codes and other prefixes

previously stored in your Phone Book when making a call.

To use postscripting, select the Phone Book entry containing the

prefix and then simply enter the rest of the number and press

O to make the call.

You can also use postscripting if you want to call a number

similar to one you have stored in your Phone Book. Retrieve the

number from the Phone Book, delete the relevant digits and then

enter the new number.

APostscripting a number does not overwrite the entry in the

Phone Book.

APostscripting is not available when accessing the Phone

Book using the Smart button.

leap_en.bk : opt_menu.fm5 Page 43 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

How to Enter Alphabetic Characters

The 0, 1,... ...,8 and 9 keys are used to enter

alphabetic characters, for example when storing names in the

Phone Book or when creating messages.

For example, if you press the 5 key, the first displayed

character will be J. If this is not the required character, then you

can press the same key again to show K. Another press will

display L, another... ...will display 5. Your phone will continue to

scroll through the characters available on the selected key with

each new key press.

A long press of any of the keys will switch all the characters to

lower case, a second long press will switch back to upper case.

To enter the next character press the appropriate key. If,

however, the next character is on the same key as the previous

character you will first need to press the > key. Pressing the

> key a second time will produce a space.

If a mistake has been made, you can go back to the incorrect

character by pressing <.

Characters can be removed from the display by pressing the C

key.

The character before the cursor (Ö) is the character which will be

deleted.

Press the O key to store the information.

Available Characters

Press the appropriate keys to get the following characters:

1Space . 1 ? ! , Ÿ Ä & : " ( ) ' ` @ % ¡ ¢

Space . 1 ? ! , Ÿ Ä & : " ( ) ' ` @ % ¡ ¢

2A B C 2 [ ® ± ¼ ¾ ©

a b c 2 { ¯ ± ½ ¾ ©

3D E F 3 ° ¿ ¤ ²

d e f 3 ° ¥ ¤ ²

4G H I 4 À §

g h i 4 À §

5J K L 5 Á

j k l 5 Á

6M N O 6 ] \ « ¨ µ

m n o 6 } | ¬ ¨ µ

7P Q R S 7 Â ¾ ¸

p q r s 7 Â ¾ ¸

8T U V 8 ¹ ^ ¦

t u v 8 ¹ ~ ¦

9W X Y Z 9 º ·

w x y z 9 º ·

0+ - 0 x * / = > < #

+ - 0 x * / = > < #

The top line for each key shows the upper case characters, the

lower line shows the lower case.

leap_en.bk : opt_menu.fm5 Page 44 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 45 English

Voice Dialling

Select this option to call any phone number that has a Voice Tag.

The phone prompts you to press the smart button (=). See

Using Voice Control.

Personal Numbers

The Personal Numbers sub-menu is used for creating and

managing your list of personal numbers.

Find Entry By Name

iPress = and say the Voice Tag name after the tone. See

‘Using Voice Control’ for more information.

iPress = and use the volume button to scroll to the stored

number, or press the appropriate digit key to skip to a

particular letter. To make the call, either hold down = for

1.5 seconds or press O.

This option is used to select a telephone number from a list of

alphabetically sorted Phone Book names.

Once selected, this option will display the message Enter Name.

You can enter a maximum of three characters from a name but

you do not need to enter all three characters to begin a search.

The Phone Book entries will be searched and the first

alphabetically matching entry will be displayed.

If there isn’t a name matching your entry, the nearest

alphabetically matching entry will be displayed.

If you do not enter any name information, the first alphabetical

entry will be displayed.

If there are no names stored, No Names Stored will be

displayed.

To display adjacent Phone Book entries use the ª key. When

the desired name is displayed press the O key to select it. The

phone then enters the options sub-menu for ‘Find Entry By

Name’. See ‘The Options for ‘Find Entry By ...’’.

Find Entry By Location

iPress = and say the Voice Tag name after the tone. See

‘Using Voice Control’ for more information.

iG>

This option is used to select a telephone number from a list of

numerically sorted Phone Book locations.

Once selected, this option will display the message Enter

Location. You can now enter a location number. If the entered

location is not valid, a timed message Range 1-XXX will be

displayed and the phone will return to the Enter Location

menu item.

The Phone Book entries will be searched and an entry will be

displayed.

If you enter a location number for which there is no entry,

Location Empty will be displayed and the nearest non-empty

location will be selected instead.

leap_en.bk : opt_menu.fm5 Page 45 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

If you did not enter a location, the first numerical entry will be

displayed.

If there are no numbers stored, No Numbers Stored will be

displayed.

To display adjacent Phone Book entries use the ª key. When

the desired name is displayed press the O key to select it. The

phone then enters the options sub-menu for ‘Find Entry By

Location’. See ‘The Options for ‘Find Entry By ...’’

The Options for ‘Find Entry By ...’

Once a Phone Book entry has been selected, it can be called,

modified or deleted.

If the Phone Book entry is in phone memory, you can also add,

edit or delete the Voice Tag.

Call Number

This option is used to call the selected Phone Book telephone

number.

Modify Name or Number

This option is used to change the selected Phone Book entry.

The entry’s current telephone number and name will be

presented, in turn, for modification. You can accept the current

settings or modify as required.

Erase Name and Number

This option is used to erase the selected Phone Book entry.

Simply press the O key when the phone displays the message

Erase Name And Number . The option will display the timed

message Erased XXX and then return to the Find Entry

menu item.

Add or Edit Voice Tag and Delete Voice Tag

Use these options to add, edit or delete the Voice Tag for the

Phone Book entry. See Using Voice Control.

Add Entry

iPress E. Select the Quick Access feature (T Add to

SIM? or F Add to Phone?) or after the tone, say the Voice

Tag name. See ‘Voice Control for Quick Access Features’.

This option is used to add (store) entries to the Phone Book. You

can choose to add the new entry to either the phone or SIM card

memory locations.

Add To Phone Memory, Add To SIM Card Memory

Once you have selected the destination of the new entry, you will

be asked to enter the telephone number, name and location

number of the new entry.

The last telephone number displayed will be presented by

default; it can be used or discarded as required.

If the entered location is not valid, a timed message Range

YYY-ZZZ will be displayed and the phone will return to the

Enter Location prompt. If the chosen location is currently

used by another entry, you will be asked for confirmation that

the location can be overwritten.

If you do not supply a location number, the next available

location will be used.

When the new entry has been entered, a timed message

Stored XXX will be displayed.

leap_en.bk : opt_menu.fm5 Page 46 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 47 English

Add Voice Tag

If you add a Phone Book entry to the phone memory, the Add

Voice Tag? prompt appears after Stored XXX . Press O to

add a Voice Tag. See Using Voice Control.

Check Capacity

This option is used to check the number of free Phone Book

entries in the phone or SIM card memory areas.

Check Phone Capacity, Check SIM Capacity

Once selected, a timed message XX Unused Locations

displays the requested information.

Prevent Access

This option enables you to prevent access to the Personal

Numbers list.

AYou cannot record a Voice Tag if you have set Prevent

Access To Phone Memory.

To SIM Card Memory, To Phone Memory, To Phone &

SIM Memory, No Memory Restrictions

You can prevent access to all entries in the SIM card memory, the

phone memory or both the phone and SIM card memory. To

cancel all access restrictions use the No Memory Restrictions

option.

When you change the restrictions, you will be requested to enter

the Security Code before the change is made.

Show Services

iPress E. Select the Quick Access feature (e Show

Services?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option displays a list of phone numbers and services

provided by your Cellular Service Provider.

AAvailability depends on the type and settings of the SIM

card, and/or your subscription to this feature.

Last Ten Calls

These options allow you to review your most recently used phone

numbers. Depending on the option you choose, you can then

redial a phone number, store a phone number in your phone

book, or erase all of the phone numbers.

After you select an option, use the ª key to scroll through the

list of phone numbers. Press the O key to proceed.

AYou can use postscripting to modify a number once you

have retrieved it from either of the Last Ten Calls lists.

Last Calls Made

Select this option to redial the phone number of any one of the

last ten calls made.

leap_en.bk : opt_menu.fm5 Page 47 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Last Calls Received

iPress E. Select the Quick Access feature (W Received

Calls?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Select this option to redial the phone number of any one of the

last ten calls received. In addition, you can add time and date

information to one call, and you can store any of the phone

numbers in your phone book.

AYou will only see numbers in the Last Calls Received list if

you have Caller Line Identification.

When you scroll through your last ten calls, each call appears

with a call position number, for example:1+, 2-, 3+ ... 10+. A +

symbol indicates that you answered the call. A - symbol

indicates that you did not answer the call.

Press the O key to select a phone number. You can then scroll

through and select one of the following options:

Call Number

Select this option to call the phone number.

Time and Date

Select this option to add a time and date stamp to the phone

number. Press the O key to accept the date and time stamp

and return to the list of last ten calls received.

Add to Phone Memory

Select this option to add all the phone number details (including

any details you have added) to your phone memory. If the name

in the received call does not appear in your phone book, the

phone prompts you to Enter Name and Enter Location. For

further details, see 'Add Entry' in this section.

Add to SIM Card Memory

Select this option to add the phone number details (including any

details you have added) to your SIM card memory. If the name in

the received call does not appear in your phone book, the phone

prompts you to Enter Name and Enter Location. For

further details, see 'Add Entry' in this section.

Erase All Numbers

This option erases all the numbers stored in your Last Ten Calls

Made and Last Ten Calls Received lists.

AThe Last Ten Calls lists will be erased when a new SIM is

inserted in the phone.

leap_en.bk : opt_menu.fm5 Page 48 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 49 English

My Phone Number(s)

This option allows you to access your cellular phone, fax and data

numbers so that you can retrieve or modify them when required.

For example, if you have difficulty remembering your cellular

phone number, store it with the name My Phone and then you

will be able to retrieve the number as required.

The My Phone Number(s) list is stored on your SIM card.

When you select this item, the first location will be displayed. Use

the ª key to scroll through the phone numbers stored.

To enter or change a number, scroll to the location and press

O. You will be prompted to enter a phone number and then a

name. Press O to store the information.

ADepending on your Cellular Service Provider, you may find

that one or more of the entries in the My Phone Number(s)

list will have been defined. You may not be able to change

these predefined entries.

Fixed Dialling

AAvailability of the Fixed Dialling menu depends on the type

of SIM card.

This feature allows you to limit use (typically third-party use) of

your phone to a predefined list of telephone numbers or, if you

wish, to a list of country codes, area codes, or other prefixes of

your choosing.

When Fixed Dialling is switched on, the only numbers that can be

dialled from your phone are those stored (or whose prefix is

stored) in the Fixed Dial list. If you attempt to dial any other

number (apart from an emergency number), the message

Restricted will be displayed. You will not be able to make fax

or data calls.

To make a call when Fixed Dialling is switched on, either dial the

number manually, or select it from the Fixed Dial list and press

Up to 40 entries can be stored in the Fixed Dial list. The list is

stored on your SIM card.

!This option may be affected by the Call Barring setting.

View Fixed Dial List

This option allows you to scroll through the numbers in the Fixed

Dial list. When you find the number you want, press O to

make the call.

leap_en.bk : opt_menu.fm5 Page 49 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Setup Fixed Dialling

This option allows you to switch Fixed Dialling on or off and to

enter or change entries in the Fixed Dial list.

You will be prompted to enter your PIN2 security code when you

select this option.

Switches fixed dialling on.

Off

Switches fixed dialling off.

Edit Entry

Modifies or clears an entry in the Fixed Dial list. When you select

this option, the first non-empty location in the list will be

displayed. Scroll to the entry you want to change and press O.

You will be prompted to edit the phone number and the name.

To erase the entry, press C.

Add Entry

Adds a phone number and name to the Fixed Dial list. When you

select this option you will be prompted to enter the phone

number, name and a location number. If you do not specify a

location number, it will be stored in the next available location.

AWhen setting up your Fixed Dial list, you may want to

reserve the first nine locations for phone numbers you wish

to One-Touch Dial. See also ‘One-Touch Dial Setting’.

Erase Entry

Erases a phone number and name from the Fixed Dial list. The

first entry in the Fixed Dial list will be displayed. Scroll to the entry

you wish to delete and press O.

One-Touch Dial Setting

This option allows you to specify which Phone Book list can be

One-Touch Dialled.

To Phone Memory

Switches One-Touch Dialling to your Personal Numbers list stored

in phone memory (locations 1 to 9).

To SIM Card Memory

Switches One-Touch Dialling to your Personal Numbers list stored

on your SIM card (locations 101 to 109).

To Fixed Dial list

AThis option is only available if you have Fixed Dialling.

Switches One-Touch Dialling to your Fixed Dial list

(locations 1 to 9).

leap_en.bk : opt_menu.fm5 Page 50 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 51 English

Call Related Features Menu

Show Battery Meter

This option displays the approximate amount of battery capacity

remaining, for example:

iPress E. Select the Quick Access feature (G Battery

Meter?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Number of

Segments

Approximate Charge Level

1 less than 5% (recharging needed)

3 less than 20%

5 less than 60%

7 greater than 60%

leap_en.bk : opt_menu.fm5 Page 51 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Restrict My Phone Number

'Restrict My Phone Number' is a network feature. You will need

to subscribe to one of the two Caller Line Identification restriction

features with your Cellular Service Provider.

Show ID on Next Call

Your phone number is sent with the next attempted call, after

this your phone number will not be sent until you re-select this

option.

Restrict ID on Next Call

iPress E. Select the Quick Access feature (c Restrict

My ID?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Your phone number will not be sent with the next attempted

call, after this your phone number will be sent with calls until you

re-select this option.

j Call Diverting

Call diverting is a network feature. If your phone is unavailable,

or you do not wish to receive calls, incoming calls can be diverted

to other phone numbers.

This option can be used to:

•Divert all incoming Voice calls unconditionally.

•Divert incoming Voice calls whenever your phone is

unavailable, busy, not reachable or not answered.

•Divert incoming Fax calls.

•Divert incoming Data calls.

•Reset all diversion options to off.

AYou cannot change the call divert settings when you are out

of network coverage.

leap_en.bk : opt_menu.fm5 Page 52 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 53 English

After selecting any of the call divert options there will be a short

delay while the phone asks the network for the current setting.

Divert Voice Calls

This option will allow you to set your phone to Divert When

Unavailable, Divert All Voice Calls or Detailed Diverting.

Divert When Unavailable

This option will enable you to divert all incoming Voice calls to a

single number, whenever your phone is unavailable.

The option has two settings, On or Off.

If you change the setting to On, you will be asked to enter a

diversion phone number using the digit keys.

ASetting “Divert When Unavailable” to On will have the same

effect as setting all “Detailed Diverting” options to On.

AWhen On, Divert When Unavailable takes priority over

detailed diversion settings.

Divert All Voice Calls

iPress E. Select the Quick Access feature (P Divert On/

Off?) or after the tone, say the Voice Tag name. See ‘Voice

Control for Quick Access Features’.

This option will enable you to unconditionally divert all incoming

Voice calls to a single number.

The option has two settings, On or Off.

If you change the setting to On, you will be asked to enter a

diversion phone number using the digit keys.

AWhen On, Divert All Voice Calls takes priority over all other

Voice call diversion settings.

Detailed Diverting

These options will enable you to divert Voice calls to different

numbers, depending upon the current status of your phone.

Each of the following detailed diverting options operate in the

same way.

Each option has two settings, On or Off.

If you change the setting to On, you will be asked to enter a

diversion phone number using the digit keys.

ADetailed diversion settings are ignored while Divert All Voice

Calls or Divert When Unavailable are On.

If Busy

This option will divert incoming calls if your phone is busy.

If Not Reachable

This option will divert incoming calls if your phone cannot be

contacted by the network.

If No Answer

This option will divert incoming calls if you do not answer the

call.

Divert Fax Calls

This option will enable you to divert all Fax calls to a single

number.

The option has two settings, On or Off.

If you change the setting to On, you will be asked to enter a

diversion phone number using the digit keys.

leap_en.bk : opt_menu.fm5 Page 53 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Divert Data Calls

This option will enable you to divert all Data calls to a single

number.

The option has two settings, On or Off.

If you change the setting to On, you will be asked to enter a

diversion phone number using the digit keys.

Cancel All Diverting

This option will enable you to cancel the diversion of incoming

calls.

!This option resets all diversion settings to Off and

removes all diversion numbers.

Talk and Fax

iPress E. Select the Quick Access feature (Z Talk and

Fax?) or after the tone, say the Voice Tag name. See ‘Voice

Control for Quick Access Features’.

This is a network feature that allows you to speak and then send

or receive a fax during the course of a single call.

AYour phone supports a data and fax transmission speed of

up to 14.4 kbps.

Before making a Talk and Fax call, ensure that:

•Your phone is “fax-ready” (it has been switched off,

connected to the fax with one of the optional data/fax

accessories, then switched back on). Connecting your phone

to the fax in the middle of the call will not work.

•The Talk and Fax mode is set to On.

A Talk and Fax call automatically switches to fax mode when you

start sending the fax. While the fax is being transmitted, the

message Fax in progress will be displayed. The call

automatically ends when the fax transmission is complete. You

cannot switch back to voice mode in the same call.

AWhile a Talk and Fax call is active, incoming call services like

Call Waiting and Call Holding are suspended.

If you receive a Talk and Fax call when:

•Your phone is not fax-ready - you can only talk.

•Your phone is fax-ready but Talk and Fax mode is off - the call

is automatically routed to your fax (you cannot talk).

Switches Talk and Fax mode on for the next and all subsequent

calls.

Off

Switches Talk and Fax mode off for the next and all subsequent

calls.

leap_en.bk : opt_menu.fm5 Page 54 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 55 English

j Call Waiting

The Call Waiting menu item has two settings On or Off. If you

select Off, you will be not be notified of waiting calls. The

person trying to contact you will either receive the busy tone, or

be diverted by the ‘Detailed Diverting - If Busy ’

option.

If Call Waiting is On, you will be notified of a waiting call by an

audible alert and by the message Call Waiting - Answer?.

You can press the O key to accept the waiting call, or use the

$ and then the ª key to scroll to an alternative option and

then press O.

AIf you have Caller Line Identification, the caller’s number or

name is displayed instead of the Call Waiting message.

AAvailability of this feature depends on your service provider.

j Call Barring

Call barring is a network feature which can be used to selectively

bar outgoing and incoming calls.

If you change the barring setting, you may be asked to enter your

barring password. There will be a short delay while the phone

notifies the network of the new setting. When the change has

been made by the network, the phone will display a confirmation

message.

The initial password will be supplied to you by your Cellular

Service Provider when you subscribe to this service.

AThis option may be affected by the Fixed Dialling setting.

Bar Outgoing Calls

After selecting this option, there will be a short delay while the

phone asks the network for the current setting.

Int'l Calls

When selected, this option will bar outgoing international calls.

Int'l Calls Except Home

When selected, this option will bar outgoing international calls,

except those to your home country.

All Calls

When selected, this option will bar all outgoing calls, except

emergency calls.

Off

When selected, this option will disable all call barring for

outgoing calls.

Bar Incoming Calls

After selecting this option, there will be a short delay while the

phone asks the network for the current setting.

When Roaming

When selected, this option will bar incoming calls when you are

roaming.

You may wish to select this option, as some Cellular Service

Providers charge an additional fee for receiving calls when you

are roaming.

All Calls

When selected, this option will bar all incoming calls.

leap_en.bk : opt_menu.fm5 Page 55 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Off

When selected, this option will disable all call barring for

incoming calls.

Cancel All Barring

This option can be used to set all Call Barring options to Off.

Change Bar Password

This option can be used to change the call barring password.

After selecting this option, you will be asked to enter the current

password.

You will then be asked to enter, and then re-enter, your new,

4 digit, barring password. When the change has been made by

the network, the phone will display a confirmation message.

Key Answer Only

AThis option is only available if you have a phone with a flip.

iPress E. Select the Quick Access feature (^ Key Answer

Only?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This feature has two options: On or Off.

When set to On, this feature allows the flip to be opened without

answering an incoming call. The call can be answered by pressing

an appropriate key (O, 1 to 9, ª, < or >). To

reject the call press C.

When set to Off, opening the flip answers an incoming call.

leap_en.bk : opt_menu.fm5 Page 56 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 57 English

Messages Menu

Your phone supports the two GSM message features: Short

Message Services (SMS) and Cell Broadcast.

SMS Messages

These are text messages that are sent specifically to and from

your phone number.

When an SMS message is received, your phone:

1Makes three short alert tones (depending on the ‘Ring or

Vibrate’ setting).

2Displays the o (messages) icon.

3Stores the message for later viewing, if there is space. If there

is not enough space, the o icon will flash. One or more

messages must be removed before the message can be

stored.

Your Cellular Service Provider will transmit a message for a

limited amount of time. If a memory location is not made

available before the message is removed from the network, then

you will not be able to receive or read it.

4Message will then be displayed with the prompt; Read Now?

5If O is pressed, the phone will enter the Received Messages

browser and immediately display the new message.

6If C is pressed the phone will return to the screen which

was displayed prior to receipt of the message.

7If any other key is pressed it will perform the function linked

with that key.

8If no key is pressed the display will time-out after 1 minute

and return to the screen which was displayed prior to receipt

of the message.

leap_en.bk : opt_menu.fm5 Page 57 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Cell Broadcast Messages

These are general messages, broadcast to a group of phones and

can only be received when your phone is in standby mode.

These messages are broadcast in numbered 'channels' and, in

general, each channel will tend to carry one particular type of

information.

Typical cell broadcast channels could have information on local

weather conditions, traffic reports or stock market prices. Please

contact your network operator for a list of available channels and

the information they supply.

When the message has scrolled across the display, the beginning

of the message will be shown until you either remove it or a new

message arrives.

How to Read SMS Messages

You can use the scroll key (ª) to scroll through messages in

either the Received Messages or Outgoing Messages lists.

To display a specific message, enter the message number, for

example press 5 to display the 5th message. If the message

does not exist, Invalid Msg Number will be displayed.

Alternatively, to display the next message, press O and select

Go To Next Message .

How to Create and Edit SMS Messages

Use the Message Editor to create or modify text messages. When

you enter the editor, the last message that was edited will be

displayed. Press and hold C to clear the message and start a

new one, or modify the message displayed. For an explanation of

how to enter text, see ‘How to Enter Alphabetic Characters’.

Press O once you have completed your message. You will then

be presented with the following options:

Send Message - If you select this option you will be

prompted for a phone number, enter the number and then

press O to send the message.

Store Message - Select this option to store your edited

message in your Outgoing Messages list.

AIf you don’t store the message after it has been edited, you

will lose all your changes as soon as you select another

message to be edited.

j Call Voicemail

iPress E. Select the Quick Access feature (R Call

Voicemail?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option will make a call to the current voicemail number. You

can also press f to call the Voicemail number.

The voicemail number is entered using the ‘Voicemail Number’

option in the Message Settings menu.

leap_en.bk : opt_menu.fm5 Page 58 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 59 English

j Received Messages

iPress E. Select the Quick Access feature (K Read

Messages?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option is used to view and manage any SMS messages that

have been sent to your phone number.

When selected, this option will display a message indicating the

total number of messages and how many of these are new. If

there are no messages No Messages will be displayed.

If there are messages, the new messages will be displayed first,

followed by the old. Repeated presses of the ª key will display

the whole message, when it was sent and the phone number

who sent it (if available).

Once you have read a new message it will automatically become

old.

See ‘How to Read SMS Messages’ for more information on

navigating through the messages.

Press the O key, when viewing any message, to enter the

sub-menu.

Delete Message

This option will delete the currently viewed message

Reply to Message

This option allows you to reply with a message.

Return Call

This option can be used to call the person who sent you the

message, if their number has been included by the network, or a

number that has been included in quotes “” in the message.

Edit Message

This option allows you to use the Message Editor to edit the

selected message and then to either send the modified message

and/or store it in your Outgoing Messages list. See ‘How to

Create and Edit SMS Messages’ for more information on using

the Message Editor.

Go to Next Message

This option will display the next received message.

If you are currently reading the last message in your list then this

option will take you back to the top of the list.

Delete All Messages

This option allows you to delete all received messages whether

they have been read or not.

AOnce deleted, messages are NOT retrievable.

leap_en.bk : opt_menu.fm5 Page 59 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Outgoing Messages

iPress E. Select the Quick Access feature (U Outgoing

SMS?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option is used to view and manage any outgoing messages.

These messages will be stored on your SIM card. When you select

this option, the total number of messages will be displayed

followed by the first message in the list.

AYou cannot send an outgoing message until the Message

Service Centre number has been set. See ‘Message

Settings’.

Press the O key, when viewing any message, to enter the

sub-menu. See ‘How to Read SMS Messages’ for more

information on navigating through the messages.

Send Message

This option allows you to add the destination phone number

using a sub-menu. Using the scroll keys you can select:

Enter Number - this allows you to manually enter the phone

number using the keypad and send the message.

Find Entry by Name - this allows you to recall a phone number

from the Phone Book by name and send the message (see ‘Find

Entry by Name’ in the ‘Phone Book’ section).

Find Entry by Location - this allows you to recall a phone

number from the Phone Book by location and send the message

(see ‘Find Entry by Location’ in the ‘Phone Book’ section).

Edit Message

This option allows you to use the Message Editor to edit the

selected message and then to either send the modified message

or store it in your Outgoing Messages list. See ‘How to Create

and Edit SMS Messages’ for more information on using the

Message Editor.

Delete Message

This option will delete the currently viewed message.

Go to Next Message

This option will display the next outgoing message.

leap_en.bk : opt_menu.fm5 Page 60 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 61 English

Message Editor

iPress E. Select the Quick Access feature (a Message

Editor?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

The Message Editor is used to edit the currently selected message

and then to either send the modified message or store it in your

Outgoing Messages list. See ‘How to Create and Edit SMS

Messages’ for more information on using the Message Editor.

VoiceNotes™

The VoiceNotes™ feature allows you to record a number of

personal voice messages or to record conversations during a

phone call.See Using VoiceNotes™ for more information.

Play VoiceNotes™

iPress E. Select the Quick Access feature (} Play

VoiceNotes™?) or after the tone, say the Voice Tag name.

See ‘Voice Control for Quick Access Features’.

This option allows you to play your VoiceNotes™. Press ª to

scroll through the VoiceNotes™. Press O while a VoiceNote™

is playing to go to the next VoiceNote™.

Show Time Available

This option displays the amount of time available for you to

record your VoiceNotes™.

Erase All VoiceNotes™

This option allows you to delete all your VoiceNotes™.

Cell Broadcast

This option is used to set the cell broadcast settings. The option

has two settings On or Off.

If you change the setting to On, you will be asked to enter the

channel you wish to receive information from.

Please contact your Cellular Service Provider for a list of available

channels and the information they provide.

While a broadcast message is scrolling across the display you can

stop and start it by pressing <. Press > to restart the

message from the beginning. If you want to remove the message

from the display, press C.

AIf you need to use the < and > keys for their normal

functions while you are receiving a cell broadcast message,

you must first remove the message.

leap_en.bk : opt_menu.fm5 Page 61 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Message Settings

Voicemail Number

This option is used to enter a phone number which will be used

by the ‘Call Voicemail’ option.

If there is already a Voicemail Number, this will be shown in the

display. This can be used, modified or deleted as desired.

ARemember to add the + symbol and the appropriate country

code prefix to the phone number.

Service Centre

Before you can send any messages you must use this option to

enter your Message Service Centre number. This number is

obtained from your Cellular Service Provider.

If there is already a Message Service Centre number, this will be

shown in the display. This can be used, modified or deleted as

desired.

ARemember to add the + symbol and the appropriate country

code prefix to the phone number.

Expiry Period

You can use this option to specify the maximum time, in hours,

that your unforwarded messages are to remain with the Message

Service Centre before being deleted. When you select this option,

the current expiry period will be displayed (the default is 24

hours).

The maximum value you can enter is 10584, though the real limit

will depend on your Message Service Centre.

Outgoing Message Type

This option is network dependent and can be used to specify the

format of your outgoing messages. You can select from the

following message types: Text (default), Fax, X400, Paging,

E-Mail, ERMES or Voice.

AYou do not need to select Voice to send messages to

Voicemail boxes.

leap_en.bk : opt_menu.fm5 Page 62 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 63 English

Phone Setup Menu

leap_en.bk : opt_menu.fm5 Page 63 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Select Phone Line

iPress E. Select the Quick Access feature (d Switch Line

1/2?) or after the tone, say the Voice Tag name. See ‘Voice

Control for Quick Access Features’.

This option allows you to switch between Line 1 and Line 2.

AAvailability depends on the type and settings of the SIM

card, and/or your subscription to this feature.

AThis feature is not available when you are using the

GSM 900 band.

Adjust Ring Volume

This option is used to set the incoming call ring tone volume.

The volume will be displayed as follows:

Adjust the volume by pressing the volume buttons on the side of

your phone.

iPress E followed by the volume button to either

increase or decrease the ringer volume.

j Ring or Vibrate

iPress E. Select the Quick Access feature (L Vibrate

On/Off?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option sets the way your phone alerts you to an incoming

call. The options are:

•Ring Only - the phone will ring with the tone specified by

the Set Ringer Tone option.

•Vibrate Only - the phone will vibrate using VibraCall™.

•Vibrate Then Ring - the phone will vibrate twice and then

ring.

•No Ring or Vibrate - the phone will just display the Call

message.

AThe setting you choose also defines the type of alert for an

incoming SMS message (except that if you select Vibrate

Then Ring, your phone will just vibrate).

j Set Ringer Tone

This option sets the tone your phone will make when an

incoming call is received on Line 1.

Standard Tone

Your phone makes a standard ringing tone.

Single Ring Tone - Music Tone

When selected, your phone will produce one of these alternative

ringer tones.

leap_en.bk : opt_menu.fm5 Page 64 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 65 English

AIf you select the Single Ring Tone option, the phone will

only ring once when a call is received.

j Set Ringer Tone 2

This option sets the tone your phone will make when an

incoming call is received on Line 2.

AThis option will not appear if you do not subscribe to Line 2.

j Set Message Alert Tone

This option sets the tone your phone makes when it receives an

SMS message.

Standard Tone

Your phone makes a standard SMS alert tone.

Single Ring Tone - Music Tone

When selected, your phone will produce one of these alternative

SMS alert tones.

AIf you select the Single Ring Tone option, the phone will

only ring once when it receives a SMS message.

Quick Access Setup

This option allows you to do the following:

•Customise your Quick Access menu.

•Set up and change the Voice Tag allocation for the Quick

Access features.

For more information, see Voice Control for Quick Access

Features.

j Phone Lock

iPress E. Select the Quick Access feature (H Lock

Now?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option is used to set, and change, the unlock code.

The unlock code can be set to protect your phone from

unauthorised use. It can be set to automatically lock your phone

each time it is switched on.

The unlock code is a four digit number which is set at

manufacture to 1234. This can be changed at any time by using

the 'change unlock code' option.

Automatic Lock

This option can be used to automatically lock your phone each

time it is switched on. The option has two settings, On or Off.

Lock Now

This option can be used to immediately lock your phone. Once

selected, your phone will be unusable until the unlock code is

entered.

Change Unlock Code

This option is used to change the unlock code.

After selecting this option, you will be asked to enter the current

security code before you can proceed.

You can now enter a four digit code to replace the old code.

ABy pressing the $ key, you can access this option even

when the phone is locked.

leap_en.bk : opt_menu.fm5 Page 65 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Activate IR Port

iPress E. Select the Quick Access feature (« Activate

IR?) or after the tone, say the Voice Tag name. See ‘Voice

Control for Quick Access Features’.

Press O to activate the infra-red feature. y Activated

indicates that the phone is ready for an infra-red connection.

Your phone waits for an infra-red connection for one minute and

then automatically de-activates. Before the infra-red feature de-

activates, your phone emits an alert tone and displays the

Re-Activate Feature prompt. Press O to continue.

The prompt y Connection Made indicates that the phone is

ready for a data transfer.

For additional setup details, see ‘Setting up the Infra-Red Feature’

in the ‘About Your Phone...’ section of this manual.

Adjust Contrast

iPress E. Select the Quick Access feature (© Adjust

Contrast?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

This option is used to adjust the screen contrast.

The contrast is displayed as follows:

Adjust the contrast by pressing < or > on the keypad.

Pressing O or C on the keypad will end the contrast

adjustment.

Require SIM Card PIN

This option is used to set, and change, the PIN code.

The PIN code can be set to protect your SIM card from

unauthorised use. If set to On, access to your SIM card will be

restricted each time it is inserted or the phone is turned on.

The option has two settings, On or Off.

AIf the SIM card does not support PIN code disabling, these

items will not appear.

Change SIM PIN Code

This option is used to change the SIM card PIN code.

The 'Require SIM Card PIN' option must be set to On and you

must enter the old PIN code before you can proceed.

leap_en.bk : opt_menu.fm5 Page 66 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 67 English

You will be asked to enter a new, four to eight digit code to

replace the old PIN code. The new PIN code must be entered

again as confirmation.

!If the PIN number is entered incorrectly three times in a

row, your SIM card will automatically lock-up and the

Blocked message will be displayed.

Unblocking Your Phone

If you receive the Blocked message you will need to enter an

unblock code and key sequence before you can use the phone.

AThe 8 digit PIN unblocking code will have been provided

with your SIM card by your Cellular Service Provider.

Enter the following key sequence to unblock your phone:

<<05<EO

FOFO

The new PIN code must contain four to eight digits.

!If this operation is performed incorrectly 10 times in a

row, your SIM card will become permanently blocked.

Change SIM PIN2 Code

This option is used to change your PIN2 security code.

When you select this option you must enter the old PIN2 security

code before you can proceed.

You will be asked to enter a new, four to eight digit code to

replace the old PIN2 security code. The new PIN2 security code

must be entered again as confirmation.

!If the PIN2 security code is entered incorrectly three

times in a row, the Blocked message will be displayed.

When the Blocked message is displayed, you are not allowed

access to menu items that require you to enter the PIN2 code, for

example ‘Setup Fixed Dialling’ and ‘Call Charge Settings’.

If you receive the Blocked message when you try to enter your

PIN2 code, you will need to unblock and change the code using

the following key sequence:

<<052<EO

JOJO

AThe 8-digit unblocking code will have been provided with

your SIM card by your Cellular Service Provider.

!If the PIN2 unblocking operation is performed

incorrectly 10 times in a row, your PIN2 code will

become permanently blocked.

j New Security Code

The security code is used to control access to security and other

options within the menus.

This option is used to change the security code, which is set at

manufacture to 000000.

Once selected, you will be asked to enter the current security

code before you can proceed.

You will then be asked to enter a new, six digit code to replace

the old security code.

AIn order to safeguard your phone, you should change your

security code from the factory setting as soon as possible.

leap_en.bk : opt_menu.fm5 Page 67 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

j Extended Menus

iPress and hold $. Extended Menus will be temporarily

activated until you exit the Options menu.

This option is used to switch the extended menus on or off.

If the extended menu option is switched off, you will not be able

to access any of the extended features.

The option has two settings, On or Off.

Show Time and Date

iPress E. Select the Quick Access feature (¥ Show

Time/Date?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

When selected, this option displays the time and date until any

key is pressed.

j Set Time and Date

This option is used to set the time and date. You will be

prompted to Enter Time - the time must be entered in 24-hour

format. You will then be prompted to Enter Date.

j Set Time Format

This option is used to set the clock to either 12-hour or 24-hour

format.

j Language Selection

This option is used to change the language for display messages.

The option has multiple settings.

When you select a language, all further display prompts and help

messages will be in the selected language.

Battery Saving Mode

This option can help you to conserve battery power by activating

DTX (Discontinuous Transmission), turning the status indicator

off, and deactivating the backlight for incoming Cell Broadcast

messages.

The option has two settings, On or Off.

j Select Keypad Tones

This option allows you to change or disable tones you hear when

you press a key.

The option has three settings, Normal Tones, Single Tone

or No Tones.

leap_en.bk : opt_menu.fm5 Page 68 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 69 English

Phone Status

Status Review

This option can be used to view the current setting of menu

options.

When selected, your phone will display a list of menu items

which have been changed from the default setting. Press the

$ key to view the next item.

Master Reset

!This option should be used with caution.

This option is used to restore certain phone options to their

original settings.

When selected, you will be asked to enter the security code.

Once entered, the master reset option will perform the following

operations:

•Cancel Automatic Answer, Audible Call Timers, In-Call Display

Meter, Battery Save (DTX), Auxiliary Alert, Automatic

Handsfree, Automatic Lock, Cell Broadcast and Talk and Fax

Mode.

•Return Language Selection to Original.

•Restore Keypad Tones to Normal, Ringer Tones to Standard,

SMS Alert Tones to Standard, Volume Level to Medium and

Network Search frequency to Medium.

•Restore Extended Menus to their default settings.

•Erase all recorded VoiceNotes™.

•Erase all recorded Voice Tags.

•Return the band selection to the default setting.

Master Clear

!This option should be used with extreme caution, for

example it will clear all the Phone Book entries from

your phone memory.

This option is used to restore certain phone options to their

original settings.

When selected, you will be asked to enter the security code.

Once entered, the master clear option will perform the same

operations as 'Master Reset', plus the following operations:

•Clear the Phone Book entries from phone memory (not from

SIM memory)

•Clear the Last Calls Made and Last Calls received list

•Clear the Message Editor

•Reset the Resettable Call Timers.

Master Clear does not clear the:

•Fixed Dial list

•My Number(s) list

•Charge Meters

•Received and Outgoing Messages list

•Voicemail number

•SMS Service Centre number

•Lifetime timer.

leap_en.bk : opt_menu.fm5 Page 69 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Network Selection Menu

Network Selection

In order for the phone to make and receive phone calls, it must

handle any of the following types of network: GSM 900,

GSM 1800, combined GSM 900/1800, and GSM 1900.

Your phone automatically searches for the last network used. If,

for any reason, this network is unavailable, your phone will

attempt to register with a new network.

When your phone needs to register with a new network, it will

generate a sorted list of networks.The network list is sorted in the

following order:

•The Home network.

•Networks from a preferred list.

•A random list of other networks found above a certain signal

strength.

Any forbidden networks, stored in the SIM card, will not be

included in the sorted list.

Change Band

The country where you purchased your phone determines the

default band that it uses. Phones purchased in the USA default to

the GSM 1900 band. Phones purchased elsewhere normally

default to the GSM 900/1800 band. When you travel abroad,

you must remember to change to an appropriate band.

Use this option to change the band of operation for your phone.

leap_en.bk : opt_menu.fm5 Page 70 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 71 English

The country where you purchased your phone also determines

which of the following options are available:

•GSM 900/1800 (referred to as 900/1800)

•GSM 900 (referred to as 900)

•GSM 1800 (referred to as 1800)

•GSM 1900 (referred to as 1900)

When you select Change Band, your phone prompts you to

Select Band. Press O and then use the ª key to scroll

through the options. Press O to select the band you require.

When you select a new band, your phone displays the

confirmation message Changed to XXX. and then

automatically searches all the available networks.

Your phone then attempts to register with a preferred network

within the selected band.

If you re-select the currently selected band, the confirmation

message still appears but the band is not changed and the phone

does not attempt to register with any other network.

AYou cannot change bands during a call. If you attempt to

change bands during a call, your phone displays Can’t

Access Network and then returns to the in-call display.

Available Networks

When selected, this option will scan to see which networks are

operating in your current location. When the scan is complete,

press the ª key to scroll through the list. When you see a

network you wish to register with or store in your preferred list,

press the O key. You will now enter the 'Register Now' and

'Make Preferred' sub-menu.

Once selected, your phone will try to register with the selected

network. If the registration fails, your phone will try to register in

the normal way.

Make Preferred

Once selected, you will be asked where the selected network is to

be located in the preferred list.

Network Search

These options determine how often your phone tries to register

with a network and how the attempt is made.

Registration Preferences

This option determines how the phone tries to register with a

network.

The option has two settings, Automatic Search or Manual

Search.

Automatic Search Mode

In the automatic mode, the phone will try to register with the

first network in the sorted list. If this is successful, your phone will

display the network name and then enter the standby mode.

If registration is unsuccessful with one network in the list, your

phone will try the next listed network. If your phone fails to

beginning of the list after a preset period. The preset period is

determined by the 'Frequency Of Search' option.

leap_en.bk : opt_menu.fm5 Page 71 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Manual Search Mode

In the manual mode, the phone will present you with the sorted

list of networks. Use the ª and O keys to select one network

from the list. Your phone will try to register with the selected

network. If this is successful, the phone will display the network

name and then enter the standby mode.

If registration is unsuccessful, your phone will present the list

again after a preset period. The preset period is determined by

the 'Frequency Of Search' option.

Frequency of Search

This option is used to determine how long your phone waits

before attempting to re-register after a registration attempt has

failed.

The option has the following settings: Slow Search, Medium

Search, Fast Search or Continuous Search.

!Fast and Continuous Search may use up a significant

amount of battery power.

j Preferred Networks

Add Network to List

This option enables you to add networks to your preferred list.

When selected, the 'Choose From Available' option will scan to

see which networks are operating in your current location. When

the scan is complete, press the ª key to scroll through the list.

When you see a network you wish to store in your preferred list,

press the O key. You will be asked where the selected

network is to be located in the preferred list.

The 'Choose From Known' option will, when selected, present

you with a preset list of networks. Press the ª key to scroll

through the list. When you see a network you wish to store in

your preferred list, press the O key. You will be asked where

the selected network is to be located in the preferred list.

Select the 'Add New Network Code' option to enter network

codes directly. Once entered, you will be asked where the

network is to be located in the preferred list.

Show List of Networks

This option is used to display the networks you have stored in

your preferred list. In addition, pressing the O key will select

the currently displayed entry and enter a move/delete sub-menu.

When 'Move to New Location' is selected you will be asked to

enter a new location for the selected network.

When selected, 'Delete Selection' will remove the selected

network from the preferred list.

Find New Network

iPress E. Select the Quick Access feature (¤ Find New

Network?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

When selected, the phone will try to register with a network in

the normal manner, with one exception. When the registration

attempt is made, your current network will be excluded from the

list of those available. If the attempt fails, your phone will then try

to re-register with the previous network.

leap_en.bk : opt_menu.fm5 Page 72 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 73 English

Call Meters Menu

Call Metering

Your phone has an internal metering system which can be used

to provide you with individual and total call times or costs.

ACall cost information is only available if you receive the

Advice of Charge service. If you do not receive this service,

then only time meters are available.

The meter can be displayed during a phone call and audible

tones can be generated to indicate the passage of call time.

Your phone can handle values up to 21 digits long, although

during calls it can only display the last 12 digits. If the value

exceeds 21 digits, then Too Large is displayed.

In addition, you can set a maximum charge limit so that your

phone will monitor either the number of units used or the call

cost, and then not allow the limit to be exceeded.

Show Call Charges

This feature allows you to display the cost of your calls or the

amount of credit remaining. The figures are in phone units or

currency depending on the setting of the Set Charge Type

option.

AShow Call Charges is only available if you receive the Advice

of Charge service.

leap_en.bk : opt_menu.fm5 Page 73 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Show Last Call

iPress E. Select the Quick Access feature (X Call

Charge?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Displays the cost of your last chargeable call.

Total For All Calls

Displays the cost of all your chargeable calls since the charge

meters were reset to zero using the ‘Reset Call Charges’ option.

Credit Remaining

iPress E. Select the Quick Access feature (£ Show

Credit?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Displays the difference between your total call costs and the limit

specified by the ‘Set Total Charge Limit’ option. If there is no

limit, No Charge Limit Set will be displayed.

Show Call Timers

This feature allows you to display the duration of your calls and

to reset your time meters to zero.

If you receive the Advice of Charge service then all calls are

timed. If you do not receive the Advice of Charge service then,

depending on the model, either all calls or only outgoing calls are

timed.

Show Last Call

iPress E. Select the Quick Access feature (Y Call

Timer?) or after the tone, say the Voice Tag name. See

‘Voice Control for Quick Access Features’.

Displays the duration of your last call.

Total For All Calls

Displays the duration of all your calls since the time meter was

reset to zero using the ‘Reset All Timers’ option.

Reset All Timers

Sets the resettable time meters to zero. The Lifetime Meter is not

resettable.

leap_en.bk : opt_menu.fm5 Page 74 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 75 English

j Set Audible Call Timers

Your phone provides two programmable audible call timers:

•The 'Single Alert Timer' will sound a beep just once during a

call, after a preset time has elapsed.

•The 'Repetitive Timer' will sound regular beeps during a call,

at preset intervals.

In both cases, the timers will sound their beeps ten seconds

before the end of the programmed time.

Set In-Call Display

This feature allows you to specify whether the time or charge

meters are displayed during a call. If you do not have the Advice

of Charge service, then only the time meter is available.

AIf a total charge limit has been set, then the in-call display

always shows your remaining credit.

Show Time Per Call

This option is used to display the time meter during calls. If you

receive the Advice of Charge service, only the chargeable calls

will be displayed.

Show Charge Per Call, Show Total Call Charges

AThese menu items are only available if you receive the

Advice of Charge service.

These options are used to display the call charges meter during

and after chargeable calls. The meter shows phone units or

currency depending on the setting of the ‘Set Charge Type’

option.

No In-Call Display

This option switches off in-call display of the charge/time meter.

Call Charge Settings

This feature allows you to customise your Advice of Charge

settings. You will be prompted to enter your PIN2 security code

before you can access the options.

AThis menu item is only available if you receive the Advice of

Charge service.

Reset Call Charges

This option resets your charge meters to zero.

Set Total Charge Limit

This option sets the maximum limit for call charges; once this

limit has been reached, the network will refuse any further

chargeable calls.

If you switch the charge limit On, you will be prompted to enter a

new limit. Enter the amount as either units or currency

depending on the setting of the Set Charge Type option.

Units must be entered as whole numbers.

AWhen the charge limit is On, you will not be able to make

fax or data calls.

Once a limit is set, the in-call display will show the remaining

credit. When you reach your last two minutes, the warning

message Approaching Charge Limit will be displayed and a

warning alert will sound. The sound will be repeated when one

minute remains. When the limit is reached the message Charge

Limit Reached will be displayed and you will not be able to

make any more chargeable calls.

leap_en.bk : opt_menu.fm5 Page 75 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Once the limit is reached the Total Charge Limit will need to be

reset or switched off before any chargeable calls can be made.

Select Off to switch off the charge limit.

Set Charge Type

This option defines whether charge information is displayed as

either phone units or currency.

Units

Sets the charge type to phone units.

Currency

Sets the charge type to currency. You will be prompted to enter

the Currency Name. Enter a 3-character notation, for example

GBP for the UK, DEM for Germany or FFR for France. You will

then be prompted for the Charge Per Unit. Enter the amount

and press O.

Lifetime Timer

This option is used to display the total time of all calls made on

your phone.

This meter can not be reset, the Reset All Timers, Master

Reset or Master Clear options have no effect.

leap_en.bk : opt_menu.fm5 Page 76 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu 77 English

Accessory Setup Menu

† Only this option will be displayed when the headset accessory

is attached.

‡ Availability depends on the type of car kit installed.

You will only be able to access this menu when your phone is

mounted in a car kit or when a headset accessory is attached.

Car kits can provide charging facilities and some provide

connection to an external antenna for better reception.

Your phone can also be linked to external microphones and

speakers for hands free operation, and provides several options

to complement the use of car kits.

j Mute Car Radio

This option can be used to mute your car radio when you make,

or receive, a call when your phone is attached to the car kit. It

must be enabled by your local dealer.

This option has two settings, On or Off.

AThis option will have no effect if your car radio does not

have a mute feature, or if the car kit installation does not

support this option.

Automatic Answer

This option allows your phone to automatically answer an

incoming call after two rings.

This option has two settings, On or Off.

AIf this option is On, we recommend that the 'Ring or

Vibrate' option be set to Ring Only.

Automatic Handsfree

This option is used in conjunction with the 'Automatic Answer'

option and a car kit, to transfer call conversation to external

microphones and speakers. It is available only with selected car

kits. Contact your Motorola representative for further details.

This option has two settings, On or Off.

leap_en.bk : opt_menu.fm5 Page 77 Wednesday, February 24, 1999 4:21 PM

Using the Options Menu

English

Safety Timer

This option can be used to keep the phone on for a set period

after the vehicle ignition has been turned off. This prevents the

vehicle's battery from becoming drained and saves you from

having to re-enter PIN and Unlock codes after every short stop.

As standard the 'Safety Timer' is set to 60 minutes. Once

selected, this option can be adjusted to any value between zero

and 999 minutes. When set to zero, this option is effectively

switched off.

Auxiliary Alert

This option allows your phone to alert you of an incoming call by

flashing your vehicle lights, or by sounding the horn. It must be

enabled by your local dealer.

ASome local regulations prevent the use of this option and,

accordingly, this option may not be present on your phone.

leap_en.bk : opt_menu.fm5 Page 78 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu 79 English

Using the Quick Access Menu

AThe menu shown above represents the default setting

supplied with your phone.

Although the features in your phone are available through easy

access menus, some of the most commonly used features are

also available in the Quick Access menu. Each feature in the

menu is allocated a number from 1 to 9.

To use a Quick Access feature, you can use any of the following

methods:

• Press the quick access key (E) and say the Voice Tag name

after the tone. See Using Voice Control.

• Press E followed by the number of the feature.

• Press E. Use ª to highlight the appropriate menu option

and then press O to select it.

You can change the features, and the positions of the features,

available in the Quick Access menu - see ‘Customising the Quick

Access Menu’.

Each Quick Access feature is represented by an icon as well as the

feature name. The currently selected icon is shown with a dark

background.

B Find Name?

You will be prompted to Enter Name. Enter the first three

characters of the name and press O. The first matching entry

in the Phone Book will be displayed. Press O to call the

number.

leap_en.bk : qkaccess.fm5 Page 79 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu

English

T Add to SIM?

You will be prompted to enter a phone number and then a

name.

AIf you already had a number displayed, it will automatically

be re-displayed when you select this feature.

The number will be stored in the next available SIM card location.

See ‘Add Entry’ for more information.

« Activate IR?

Activates the infra-red lens on the top of your phone. This allows

you to communicate with any external device that also supports

infra-red communications.

See ‘Activate IR Port’ for more information.

G Battery Meter?

A bar graph indicating the approximate battery charge level will

be displayed. The more bars displayed, the greater the charge

level.

See ‘Show Battery Meter’ for more information.

} Play VoiceNotes™?

Plays the recorded VoiceNotes™. See Using VoiceNotes™ for

more information.

J Mute Phone?

Temporarily turns the microphone off during a phone call.

Reselect this option to resume your conversation.

K Read Messages?

Your newest message will be displayed; you can then read,

delete and edit messages as normal. See ‘Received Messages’ for

more information.

L Vibrate On/Off?

VibraCall™ will be switched either on or off depending on the

current setting. If VibraCall™ is switched on, the ‘Ring or Vibrate’

setting changes to Vibrate Only. If VibraCall is switched off,

the ‘Ring or Vibrate’ setting changes to Ringer Only. See

‘j Ring or Vibrate’ for more information.

P Divert On/Off?

Unconditional voice call diversion will be switched either on or off

depending on the current setting. This will allow Fax and Data

diversion to remain enabled independent of the Voice Call

Diversion setting.

AYou must have defined a diversion number using the ‘Divert

All Voice Calls’ option in the Call Diverting menu in order to

use this feature.

AYou cannot switch call diverting on or off if you are outside

network coverage.

D Find Location?

You will be prompted to Enter Location. Enter the location

number and press O. The first matching entry in the Phone

Book will be displayed. Press O to call the number.

leap_en.bk : qkaccess.fm5 Page 80 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu 81 English

F Add to Phone?

You will be prompted to enter a phone number and then a

name.

AIf you already had a number displayed, it will automatically

be re-displayed when you select this feature.

The number will be stored in the next available phone memory

location. See ‘Add Entry’ for more information.

R Call Voicemail?

Your phone will make a call to your voicemail number.

AYou must have defined a Voicemail number in order to use

this feature.

See ‘Call Voicemail’ for more information.

H Lock Now?

Immediately locks your phone, you will not be able to use your

phone until the unlock code is entered. See ‘Phone Lock’ for

more information.

N Adjust Ring?

This option is used to display and to set the incoming call ring

tone volume.

V Switch Memory?

Switches one-touch dialling between the phone and SIM

memories depending on the current setting.

U Outgoing SMS?

Your newest message will be displayed; you can then read, send,

delete and edit messages as normal. See ‘Outgoing Messages’

for more information.

a Message Editor?

The last message that was edited will be displayed. Press and

hold C to clear the message and start a new one, or modify

the message displayed. See ‘How to Create and Edit SMS

Messages’ for more information.

W Received Calls?

Displays the first entry in the Last Calls Received list. You can

scroll through the list and call the numbers as normal. See ‘Last

Calls Received’ for more information.

X Call Charge?

Displays the cost of your last chargeable call. See ‘Show Call

Charges’ for more information.

Y Call Timer?

Displays the duration of your last chargeable call. See ‘Show Call

Timers’ for more information.

Z Talk and Fax?

Switches Talk and Fax on for the next call only. See ‘Talk and Fax’

for more information.

leap_en.bk : qkaccess.fm5 Page 81 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu

English

c Restrict My ID?

Your phone number will not be sent with the next attempted

call; after this your phone number will be sent until you reselect

this option.

^ Key Answer Only?

AThis option is only available if you have a phone with a flip.

Disables open-flip answering. To answer the call, press a key.

d Switch Line 1/2?

AAvailability depends on the type and settings of the SIM

card, and/or your subscription to this feature.

Allows you to switch between Line 1 and Line 2.

e Show Services?

AAvailability depends on the type and settings of the SIM

card, and/or your subscription to this feature.

Displays a list of phone numbers and services provided by your

Cellular Service Provider.

¥ Show Time/Date?

Displays the current time and date.

£ Show Credit?

Allows you to quickly display the Credit Remaining.

AThis will only show the credit remaining if you receive the

Advice of Charge service.

¤ Find New Network?

Allows you to quickly search for a new network.

Allows you to adjust the screen contrast.

leap_en.bk : qkaccess.fm5 Page 82 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu 83 English

Customising the Quick Access Menu

You can change the features in the Quick Access menu to suit

your personal preferences.

To customise the menu, you can use either the Quick Access

Setup menu (See Using Voice Control) or you can do the

following:

1Press E and scroll to the menu item you wish to change.

2Press and hold O to access the list of features available. The

currently selected feature will be displayed.

3Scroll through the list until you find the feature you wish to

store in the Quick Access menu; press O.

4Completed will be displayed to confirm that the feature has

been stored.

The items in the Quick Access list will appear in the following

order:

• Find by Name

• Find by Location

• Add Entry to Phone

• Add Entry to SIM

• Call Voicemail

• Battery Meter

• Phone Lock Now

• Phone Mute On or Off

• Ring Volume

• VibraCall On or Off

• Ringer On or Off

• Switch Memory

• Read Messages

• Outgoing Messages

• Message Editor

• Last Calls Received

• Last Call Charge

• Last Call Timer

• Restrict My ID

• Switch Line 1/21

• Show Services1

• Play VoiceNotes™

• Divert Voice Call

• Show Time and Date

• Credit Remaining

• Find New Network

• Adjust Contrast

• Activate IR

1. Availability depends on the type and settings of the SIM card,

and/or your subscription to this feature.

leap_en.bk : qkaccess.fm5 Page 83 Wednesday, February 24, 1999 4:21 PM

Using the Quick Access Menu

English

leap_en.bk : qkaccess.fm5 Page 84 Wednesday, February 24, 1999 4:21 PM

Accessories 85 English

Accessories

The following accessories have been designed to work with your

phone. Additional accessories may be available and are packaged

separately. Please refer to your local service provider or retail

outlet for more information.

Desktop Charger

The Desktop Charger allows you to charge a battery fitted in a

phone and a spare battery at the same time. The charging status

for each battery is indicated by LEDs at the front of the charger.

AThe Desktop Charger must be used with the Power

Adapter.

Power Adapter

The Power Adapter (charger) connects to the Desktop Charger or

directly to the phone. When connected directly to the phone, it

charges the battery and also provides dead battery operation.

The Power Adapter requires an appropriate Adapter Plug.

UK Adapter Plug

The UK Adapter Plug connects the Power Adapter to a UK-style

mains power outlet.

European Adapter Plug

The European Adapter Plug connects the Power Adapter to a

Continental European-style mains power outlet.

Aust/NZ Adapter Plug

The Australia/New Zealand Adapter Plug connects the power

adapter to a Australian/New Zealand mains power outlet.

US Adapter Plug

The US Adapter Plug connects the Power Adapter to a US mains

power outlet. This plug can also be used in the Philippines.

Indian Adapter Plug

The Indian Adapter Plug connects the power adapter to an Indian

mains power outlet. This plug can also be used in Pakistan and

Bangladesh.

Cigarette Lighter Adapter

The Cigarette Lighter Adapter connects to your phone and allows

you to charge your phone's battery while driving. When the

phone is in use, the adapter overrides the battery therefore

preserving battery life. The adapter also provides dead battery

operation.

PC Cards

CELLect™1+

CELLect™3

Both PC Cards allow you to send and receive data and fax calls

using your phone and a computer with a PCMCIA Type II slot.

Both PC cards also allow you to manage your phone book and

send SMS messages direct from your PC with the supplied

software.

The CELLect™3 card also contains a landline modem for

connection to the conventional telephone network. This gives

you both wired and wireless connection options in a single PC

card.

AA cable is required to connect the PC Cards to the phone.

leap_en.bk : access.fm5 Page 85 Wednesday, February 24, 1999 4:21 PM

Accessories

English

Data Cable

Allows you to send and receive data and fax calls using your

phone and a computer with a simple RS232 connection.

The supplied software allows you to manage your phone book

and send SMS messages direct from your PC.

Personal Handsfree System

The Personal Handsfree System allows you to use your phone

handsfree.

Leather Holster

The Leather Holster holds the phone while being worn on your

belt.

Belt Clip

The Belt Clip holds the phone while being worn on your belt.

ATo use the belt clip, you must remove the rubber plug from

the rear housing.

Vehicle Handsfree System

The Standard Vehicle Handsfree System includes a phone holder

and battery charger, and provides handsfree operation.

!A tri-band antenna should be specified when installing

a Vehicle Handsfree System for use with tri-band

phones.

AThese accessories require professional installation.

leap_en.bk : access.fm5 Page 86 Wednesday, February 24, 1999 4:21 PM

What to do if... 87 English

What to do if...

You can’t switch your phone on Check the battery. Is it charged, properly fitted and are the contacts clean and dry? See ‘Important Battery

Information’.

You can’t make calls Check the signal strength meter in the display. If the signal is weak, move to an open space or, if you are in

a building, move closer to a window.

Check the Network Selection settings. Try Manual Selection, or try another network. See ‘Network Search’.

Check your Operator coverage map.

Is Restricted displayed? Check the Call Barring and Fixed Dialling settings.

Has the call charge limit been reached? Use your PIN2 code to reset the limit or contact your Service

Provider. See ‘Set Total Charge Limit’.

Has a new SIM card been inserted? Check that no new restrictions have been imposed.

You can’t receive calls Check the signal strength meter in the display. If the signal is weak, move to an open space or, if you are in

a building, move closer to a window.

Check the Call Diversion and Call Barring settings.

Check the Ringer and VibraCall™ settings. If both are off, there is no audible alert. See ‘j Ring or Vibrate’.

Your phone won’t unlock Have you inserted a new SIM card? Enter the new PIN code. See ‘Entering Your SIM Card PIN Code’.

Do you have a replacement phone? Enter the default phone unlock code - 1234.

Have you forgotten the unlock code? Press $ to change the unlock code (you will need your security

code).

Your PIN is blocked Enter the PIN unblocking code supplied with your SIM card (see ‘Unblocking Your Phone’).

Your PIN2 is blocked Enter the PIN2 unblocking code supplied with your SIM card (see ‘Change SIM PIN2 Code’).

Your SIM card won’t work Is the card inserted the right way round? See ‘SIM Card Insertion/Removal’.

Is the gold chip visibly damaged or scratched? Return the card to your Service Provider.

Check the SIM contacts. If they are dirty, clean them with an antistatic cloth.

leap_en.bk : notes.fm5 Page 87 Wednesday, February 24, 1999 4:21 PM

What to do if...

English

The battery won’t charge Check the charger. Is it properly connected? Are its contacts clean and dry? See ‘Your Battery’.

Check the battery contacts. Are they clean and dry?

Check the battery temperature. If it is warm, let it cool before recharging.

Is it an old battery? Battery performance will decline after several years use. Replace the battery.

Are you using a Motorola original battery? Your charging system may not be able to communicate with

your battery. See ‘Your Battery’.

The battery icon and meter are

missing

Are you using a Motorola original battery? Your charging system may not be able to communicate with

your battery. See ‘Your Battery’.

The battery drains faster than

normal

Are you in an area of variable coverage? This uses extra battery power.

Is it a new battery? A new battery will need two to three charge/discharge cycles to attain normal

performance. See ‘Charging a New Battery’

Is it an old battery? Battery performance will decline after several years use. Replace the battery.

Is it a battery that hasn’t been completely discharged? Allow the battery to fully discharge (until the phone

turns itself off) and then charge the battery overnight.

Check that the Frequency Of Search feature in the Network Selection menu has not been set to Fast or

Continuous. See ‘Network Search’.

Check that the Battery Saving Mode feature has not been set to Off.

Are you using your phone in extreme temperatures? At extreme hot or cold temperatures, battery

performance is significantly reduced.

You can’t cancel Call Diverting

or Call Barring

Wait until you are in an area with good network coverage and try again.

The o symbol is flashing There is not enough memory available to store another SMS message. Use the Messages menu to delete

one or more existing messages.

I can’t make international calls Some Service Providers automatically bar the ability to make international calls. Contact your Service

Provider.

Have you included the relevant codes? Press and hold the 0 key to display the international dialling

prefix (+) and then enter the appropriate country code followed by the phone number.

leap_en.bk : notes.fm5 Page 88 Wednesday, February 24, 1999 4:21 PM

Index 89 English

Index

Accessories ..........................................85

Accessory setup menu ..........................77

Activate IR Port

Setting up .......................................15

Using ...............................................66

Add entry

To phone memory ....................46, 81

To SIM card memory ................. 46, 80

Adjust Contrast .............................66, 82

Adjust ring volume ...............................64

Alert tones ...........................................65

Assign Key to Feature ...........................37

Automatic answer ................................77

Automatic Handsfree ...........................77

Automatic lock .....................................65

Automatic redial ..................................24

Auxiliary alert .......................................78

Available networks ...............................71

Bar incoming calls ................................55

Bar outgoing calls ................................55

Batteries

Charging .........................................16

Desktop charging ............................19

Fitting ..............................................17

Low battery warning ........................16

Maintaining .....................................16

Removing ........................................17

Battery charge indicator .......................14

Battery meter ................................ 51, 80

Battery saving mode .............................68

Blocked message ........................... 23, 67

Buttons

Smart button ...................................13

Start/Stop Record ............................14

Volume ...........................................13

Call charge settings ..............................75

Call diverting ................................. 52, 80

Call holding .........................................29

Call metering .......................................73

Call meters menu .................................73

Call related features menu ...................51

Call timers ............................................75

Call Transfer .........................................32

Call Voicemail ......................................58

Call waiting ..........................................29

Calling a number .................................24

Cancel all diverting ........................ 54, 80

Capacity

Checking battery capacity ................51

Checking Phone Book capacity ........47

Cell broadcast ......................................61

Battery saving mode ........................68

Messages ........................................58

Change band .......................................70

From the default (1900) ...................70

From the default (900/1800) ............70

Change bar password ..........................56

Change SIM PIN2 code ........................67

Change unlock code ............................65

Characters ...........................................44

Charge meters

Resetting .........................................75

Check capacity (of the Phone Book) .....47

Communications

Infra-Red ............................15, 66, 80

RS-232 Serial Data ...........................15

Conference Call ...................................29

Call Waiting ....................................32

End Active And Held ........................29

Hold Call .........................................28

Make a New Call .............................28

Reconnect .......................................29

Reconnect Held Call ........................29

Restrict My Number .........................28

Split Call ..........................................29

Switch Calls .....................................29

Contrast

Adjust Contrast ........................ 66, 82

adjusting .........................................82

leap_en.bk : leap_en.IX Page 89 Wednesday, February 24, 1999 4:21 PM

Index

English

Delete

Last ten calls ................................... 48

Message ...................................59, 60

Phone book entries ......................... 46

Desktop charging of your battery ........ 19

Detailed diverting ................................ 53

Dialling phone book numbers .............. 25

Display ................................................ 14

Adjusting the contrast ..............66, 82

Display characters ................................ 44

Displaying your own phone number .... 49

Divert

Cancelling ...................................... 54

Fax calls .......................................... 53

DTX ..................................................... 68

Earpiece connector .............................. 15

Editing messages ................................. 58

Emergency calls ................................... 26

Ending a phone call ............................. 27

Entering characters .............................. 44

Erase name and number ...................... 46

Extended menus ..............................5, 68

Fault finding ........................................ 87

Find entry by location ....................45, 80

Find entry by name ........................45, 79

Find new network ............................... 72

Fitting your battery .............................. 17

Fixed dialling ........................................49

Calling numbers ..............................49

Setting .............................................50

Flip .......................................................13

Handsfree On/Off .................................28

Headset

Making and receiving calls ...............13

Hold Call ..............................................28

In use symbol .......................................14

Infra-Red ................................ 15, 66, 80

Initiating Transfer Call ..........................32

International phone calls ......................25

Key Answer Only ..................................56

Language selection ...............................68

Last Calls Received ...............................48

Add to Phone Memory ....................48

Add to SIM Card Memory ................48

Time and Date .................................48

Last ten calls ..................................47, 81

Lifetime timer .......................................76

Lock now ......................................65, 81

Low battery warning ............................16

Making a phone call .............................24

Master clear .........................................69

Master reset .........................................69

Menus

Accessory setup menu .....................77

Call Diverting menu .........................52

Call meters menu ............................73

Call related features menu ...............51

Extended menu .................................5

Messages menu ...............................57

Network selection menu ..................70

Options menu .................................41

Personalised menus ...........................5

Phone Book menu ...........................42

Phone setup menu ..........................63

Quick Access menu ..........................79

Send Messages menu ......................60

Short menu .......................................5

Message editor ............................. 61, 81

Message settings ..................................62

Messages

Call holding/call waiting messages ...30

Cell broadcast messages ..................58

Creating and editing ........................58

Reading SMS messages ...................58

Sending SMS messages ...................60

Messages menu ...................................57

My phone number(s) ............................49

leap_en.bk : leap_en.IX Page 90 Wednesday, February 24, 1999 4:21 PM

Index 91 English

Names

Entering ..........................................44

Network search ....................................71

Network selection menu ......................70

Networks

Automatic search .............................71

Change band ..................................70

Finding new networks .....................72

Manual search .................................72

New security code ................................67

One-touch dial setting ..........................50

One-touch dialling ........................ 25, 81

Options menu ......................................41

Outgoing messages ....................... 60, 81

Pauses

Inserting into phone numbers ..........25

Personal numbers .................................45

Personalised menu .................................5

Phone book

Call number ....................................46

Capacity ..........................................43

Deleting/erasing entries ...................46

Dialling phone book numbers ..........25

Modify name or number ..................46

Preventing access to ........................47

Storing numbers - see Add Entry .....46

Phone calls

Automatic redial ..............................24

Dialling phone book numbers ..........25

Emergency calls ...............................26

Ending .............................................27

International ....................................25

Making ............................................24

One-touch dialling ...........................25

Receiving .........................................27

Phone setup menu ...............................63

Phone status ........................................69

PIN code

Entering ..........................................23

Setting and changing ......................66

PIN2 code ............................................67

Postscripting ........................................43

Prevent access (to Phone Book) ............47

Quick Access features

Assign key .......................................37

Setup ..............................................37

Quick access menu ..............................79

Customising ....................................83

Quick Access Setup ..............................37

Reading SMS messages ........................58

Received messages ...............................59

Receiving a phone call ..........................27

Recording VoiceNotes ................... 33, 61

Redialling the last number called ..........24

Removing your battery .........................17

Require SIM card PIN ............................66

Restrict My Number .............................28

Restrict my phone number ............ 52, 82

Return call ...........................................59

Ring or vibrate .....................................64

Ring tones ...........................................64

leap_en.bk : leap_en.IX Page 91 Wednesday, February 24, 1999 4:21 PM

Index

92 68P09410A06

English

Safety timer ......................................... 78

Screen

adjusting the contrast ..................... 82

Security code

Changing ....................................... 67

Select Phone Line ................................ 64

Sending SMS messages ....................... 60

Service centre ...................................... 62

Set in-call display ................................. 75

Set Message Alert Tone ....................... 65

Set Ringer Tone ................................... 64

Set Ringer Tone 2 ................................ 65

Set Time and Date ............................... 68

Set Time Format .................................. 68

Setup fixed dialling .............................. 50

Short menu ........................................... 5

Short message service symbol .............. 14

Show battery meter .......................51, 80

Show call charges ..........................73, 81

Show call timers ............................74, 81

Show Services ..................................... 47

Show Time and Date ........................... 68

Signal strength symbol ........................ 14

SIM card

Insertion/removal ............................ 21

PIN code ...................................23, 66

PIN2 code ....................................... 67

Smart button ....................................... 13

SMS messages ..................................... 57

Special keys ......................................... 13

Split Call .............................................. 29

Start/Stop Record button ......................14

Status indicator ....................................15

Battery saving mode ........................68

Status review ........................................69

Switch Calls ..........................................29

Symbols ...............................................14

Talk and fax ..................................54, 81

Timers ..................................................75

Tones

Setting alert tones ...........................65

Setting ringer tones .........................64

Transfer Call .........................................32

Transmission rate .................................54

Troubleshooting ...................................87

Turn Mute On or Off ............................29

Unblocking your phone ........................67

Unconditional call diversion ..................80

Unlock code

Setting and changing .......................65

VibraCall ....................................... 64, 80

Voice Activation

Phone Book entries ..........................37

Quick Access features ......................39

Voice Dialling ................................37, 45

Voice Features ......................................33

Voice Control ..................................35

VoiceNotes ......................................33

Voice Tag (Phone Book)

Adding or editing when entry exists .36

Adding when entry is new ...............35

Deleting ..........................................36

Voice Tag (Quick Access)

Adding or editing ............................38

Deleting ..........................................38

Voicemail

Number ...........................................62

VoiceNotes ....................................33, 61

Recording ................................. 14, 33

Volume

Adjusting the earpiece and keypad

volume ..........................................13

Adjusting the ringer volume .............64

Button .............................................13

What to do if... ....................................87

leap_en.bk : leap_en.IX Page 92 Wednesday, February 24, 1999 4:21 PM

Motorola Mobility T6ZD1 User Manual leap en bk

Motorola Mobility LLC leap en bk

Motorola Exhibit 14 Instruction Manual

Navigation menu

Namespaces

Views

Navigation
