Motorola Solutions 89FT4853 T7100 and T7200 User Manual 6864110R94

Motorola Solutions, Inc. T7100 and T7200 6864110R94

Contents

Amended User Manual

010730-O
Models T7100 and T7200
@6864110R94@
6864110R94-O
A
6864110R94.book Page 0 Friday, February 8, 2002 2:34 PM
6864110R94.book Page 1 Friday, February 8, 2002 2:34 PM
Introduction
Congratulations on your purchase of a Motorola Product!
Product registration is an important step toward enjoying your new Motorola Product.
Registering helps us facilitate warranty service, and permits us to contact you should
your Motorola Product require an update or other service. Registration is not required
for warranty coverage. To register your product on-line, visit www.motorola.com/
warranty/radios.
Please retain your original dated sales receipt for your records. For warranty service
of your Motorola Personal Communications Product you will need to provide a copy
of your dated sales receipt to confirm warranty status.
Product Specifications
Frequency UHF 462.550-467.7250 MHz
Channels 22
30
T7100
T7200
Codes 38 CTCSS
Channel Spacing 12.5/25kHz Consumer selectable when FCC permits
Power Source 1 NiMH Battery pack or 4 AA Alkaline
6864110R94.book Page 2 Friday, February 8, 2002 2:34 PM
Motorola, the Stylized M Logo, and all other trademarks indicated as such herein are
trademarks of Motorola, Inc.
âReg. U.S. Pat. & Tm. Off.
© 2002 Motorola, Inc. All rights reserved. Printed in the U.S.A.
Motorola
Consumer Products Division
1705 Belle Meade Court
Lawrenceville, GA 30043
For a copy of a large-print version of this guide, or for product-related
questions, please call the following numbers:
1-800-353-2729 (U.S.A.)
1-800-461-4575 (Canada)
1-888-390-6456 TTY (Text Telephone)
On the web, please refer to the following url:
www.motorola.com/talkabout
6864110R94.book Page 3 Friday, February 8, 2002 2:34 PM
ContentsContents
4
Contents
Safety and General Information . . . . 1
FCC Licensing Information . . . . . . . 9
Getting Started . . . . . . . . . . . . . . . . 11
Turning On/Off Your Radio . . . . . . . 11

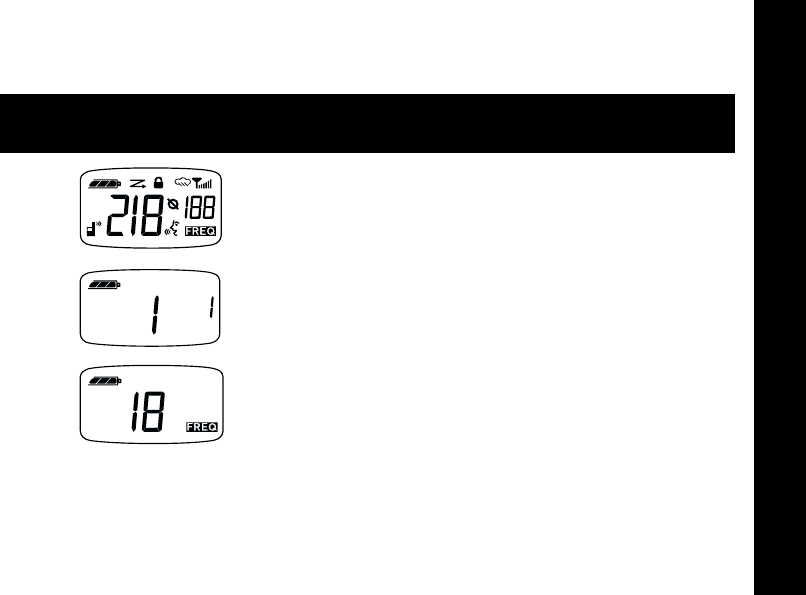

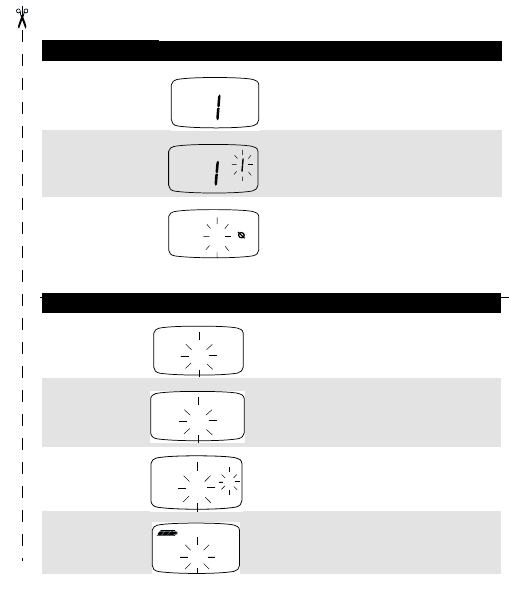

Diagram of Your Radio’s Display . . 12

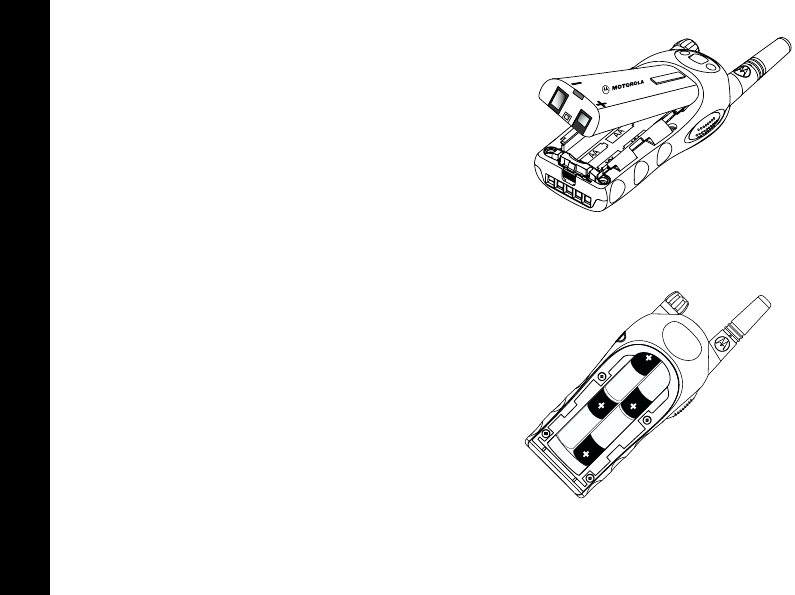

Installing Batteries . . . . . . . . . . . . . 13

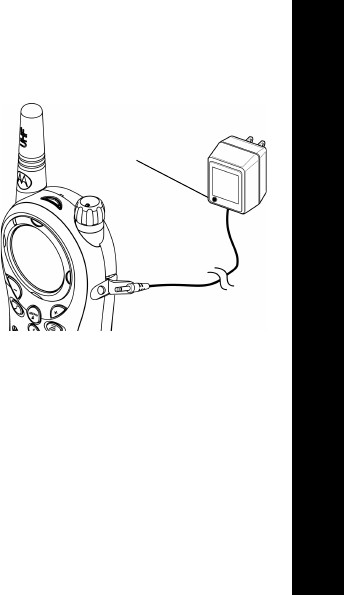

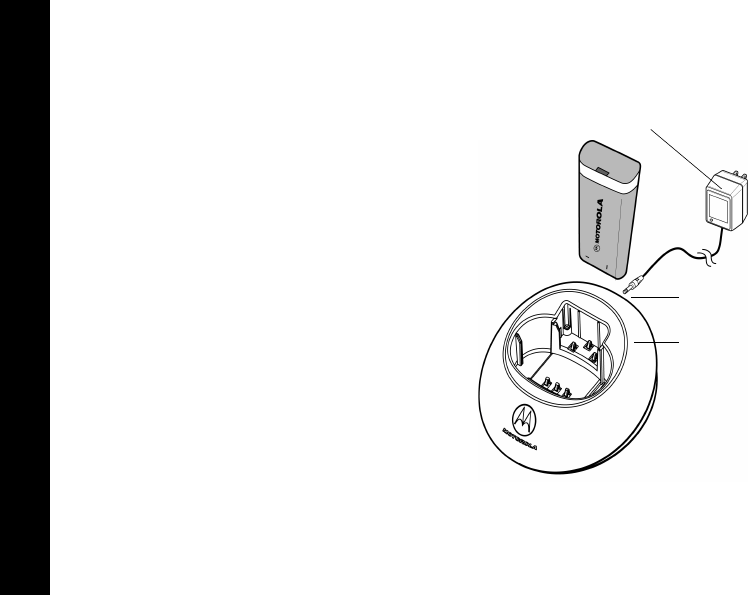

Charging . . . . . . . . . . . . . . . . . . . . . 15
Diagram of Your New Talkabout . . 18
Operating Your T7000-Series Radio 19
Talking Range . . . . . . . . . . . . . . . . 19
Changing Your Radio’s Settings . . . 20
Accessing the Backlight . . . . . . . . . 21
Lock . . . . . . . . . . . . . . . . . . . . . . . . 21
Checking Monitor/
Signal Strength Indicator . . . . . . . 21
“Roger” Beeps/
Talk Confirmation Tone . . . . . . . . 22
Button Beeps . . . . . . . . . . . . . . . . . 22
Changing Settings . . . . . . . . . . . . . . 23
Setting the
Channel . . . . . . . . . . . . . . . . . . . . 23
Interference Eliminator Code . . . . 23
Eavesdrop Reducer (T7200 Only) 24
Call Tone . . . . . . . . . . . . . . . . . . . 24
Microphone Gain . . . . . . . . . . . . . . 25

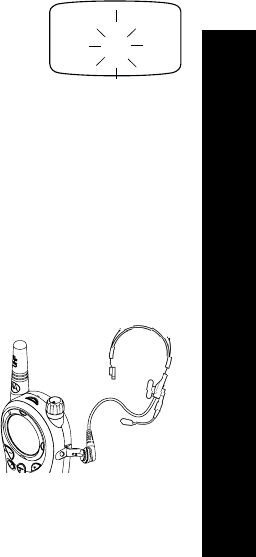

Hands-Free Use/VOX . . . . . . . . . . . 25
Scanning . . . . . . . . . . . . . . . . . . . . . 27
Setting the Battery Type . . . . . . . . . 28
Battery Life . . . . . . . . . . . . . . . . . . . 29
Menu Functions . . . . . . . . . . . . . . . 30
Advanced Features . . . . . . . . . . . . . 33
Selecting Bandwidth . . . . . . . . . . . . 33
Advanced Features (T7200) . . . . . . 34
Understanding Repeater Channels 34
Setting Repeater
Channels . . . . . . . . . . . . . . . . . . . 35
Interference Eliminator Codes . . . 35
Scanning Repeater Channels . . . . . 36
Weather (T7200) . . . . . . . . . . . . . . . 37
Turning On Weather
Channel Reception . . . . . . . . . . . 37
Setting the Weather Channel . . . . . 38
Using Accessories . . . . . . . . . . . . . . 39
Use and Care . . . . . . . . . . . . . . . . . . 41
Frequency and Code Charts . . . . . . 42
Troubleshooting . . . . . . . . . . . . . . . 45
Motorola Limited Warranty . . . . . . . 48
6864110R94.book Page 4 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
1
SAFETY AND GENERAL INFORMATION
IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION
READ THIS INFORMATION BEFORE USING YOUR RADIO
The information provided in this document supersedes the general
safety information contained in user guides published prior to July
2000. For information regarding radio use in a hazardous atmosphere
please refer to the Factory Mutual (FM) Approval Manual Supplement
or Instruction Card, which is included with radio models that offer this
capability.
Transmit and Receive Procedure
Your two-way radio contains a transmitter and a receiver. To transmit
(talk), you must push the Push-to-Talk button; to receive (listen),
release the Push-to-Talk button.
Exposure To Radio Frequency Energy
Your Motorola radio is designed to comply with the following national
and international standards and guidelines regarding exposure of
human beings to radio frequency electromagnetic energy:
• United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR part 2 sub-part J
6864110R94.book Page 1 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
2
• American National Standards Institute (ANSI) / Institute of Electrical and
Electronic Engineers (IEEE) C95. 1-1992
• Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
• National Council on Radiation Protection and Measurements (NCRP) of the
United States, Report 86, 1986
• International Commission on Non-Ionizing Radiation Protection
(ICNIRP) 1998
• Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to
Radiofrequency Electromagnetic Fields in the Frequency Range from 3 kHz
to 300 GHz, 1999
• Australian Communications Authority Radiocommunications
(Electromagnetic Radiation - Human Exposure) Standard 1999 (applicable
to wireless phones only)
To assure optimal radio performance and make sure human exposure to radio
frequency electromagnetic energy is within the guidelines set forth in the
above standards, always adhere to the following procedures:
PORTABLE RADIO OPERATION AND EME EXPOSURE
Antenna Care
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications, or attachments could damage the radio and
may violate FCC regulations.
DO NOT hold the antenna when the radio is “IN USE.” Holding the antenna
affects call quality and may cause the radio to operate at a higher power level
than needed.
6864110R94.book Page 2 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
3
Two-way Radio Operation
When using your radio as a traditional two-way radio, hold the radio in a vertical
position with the microphone one to two inches (2.5 to 5 cm) away from the
lips.
Body-worn Operation
To maintain compliance with FCC/Health Canada RF exposure guidelines, if you
wear a radio on your body when transmitting, always place the radio in a Motorola
supplied or approved clip, holder, holster, case, or body harness for this product.
Use of non-Motorola-approved accessories may exceed FCC/Health Canada RF
exposure guidelines. If you do not use one of the Motorola-supplied or approved
body-worn accessories, and are not using the radio held in the normal use position,
ensure the radio and its antenna are at least one inch (2.5 cm) from your body
when transmitting.
Data operation
When using any data feature of the radio, with or without an accessory cable,
position the radio and its antenna at least one inch (2.5 cm) from the body.
Approved Accessories
For a list of approved Motorola accessories visit our website at www.mot.com.
ELECTROMAGNETIC INTERFERENCE/COMPATIBILITY
Note: Nearly every electronic device is susceptible to electromagnetic interference
(EMI) if inadequately shielded, designed or otherwise configured for
electromagnetic compatibility.
6864110R94.book Page 3 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
4
• FACILITIES
To avoid electromagnetic interference and/or compatibility conflicts, turn off your
radio in any facility where posted notices instruct you to do so. Hospitals or health
care facilities may be using equipment that is sensitive to external RF energy.
• AIRCRAFT
When instructed to do so, turn off your radio when on board an aircraft. Any use
of a radio must be in accordance with applicable regulations per airline crew
instructions.
• MEDICAL DEVICES
Pacemakers
The Advanced Medical Technology Association recommends that a minimum
separation of 6 inches (15 centimeters) be maintained between a handheld
wireless radio and a pacemaker. These recommendations are consistent with
the independent research by, and recommendations of, the United States Food
and Drug Administration.
Persons with pacemakers should:
• ALWAYS keep the radio more than six inches (15 centimeters) from their
pacemaker when the radio is turned ON.
• not carry the radio in the breast pocket.
• use the ear opposite the pacemaker to minimize the potential for
interference.
• turn the radio OFF immediately if you have any reason to suspect that
interference is taking place.
6864110R94.book Page 4 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
5
Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event
of such interference, you may want to consult your hearing aid manufacturer to
discuss alternatives.
Other Medical Devices
If you use any other personal medical device, consult the manufacturer of your
device to determine if it is adequately shielded from RF energy. Your physician
may be able to assist you in obtaining this information.
Safety and General Use While Driving
Check the laws and regulations on the use of radios in the area where you drive.
Always obey them.
When using your radio while driving, please:
• Give full attention to driving and to the road.
• Use hands-free operation, if available.
• Pull off the road and park before making or answering a call if driving
conditions so require.
OPERATIONAL WARNINGS
• FOR VEHICLES WITH AN AIR BAG
Do not place a portable radio in the area over an air bag or in the air bag
deployment area. Air bags inflate with great force. If a portable radio is placed in
the air bag deployment area and the air bag inflates, the radio may be propelled
with great force and cause serious injury to occupants of the vehicle.
6864110R94.book Page 5 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
6
• POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn off your radio prior to entering any area with a potentially explosive
atmosphere, unless it is a radio type especially qualified for use in such areas as
“Intrinsically Safe.” Do not remove, install, or charge batteries in such areas.
Sparks in a potentially explosive atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note: The areas with potentially explosive atmospheres referred to above include
fueling areas such as below decks on boats, fuel or chemical transfer or
storage facilities, areas where the air contains chemicals or particles, such
as grain, dust or metal powders, and any other area where you would
normally be advised to turn off your vehicle engine. Areas with potentially
explosive atmospheres are often but not always posted.
• BLASTING CAPS AND AREAS
To avoid possible interference with blasting operations, turn off your radio when
you are near electrical blasting caps, in a blasting area, or in areas posted: “Turn
off two-way radio.” Obey all signs and instructions.
OPERATIONAL CAUTIONS
• ANTENNAS
Do not use any portable radio that has a damaged antenna. If a damaged
antenna comes into contact with your skin, a minor burn can result.
6864110R94.book Page 6 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
7
•BATTERIES
All batteries can cause property damage and/or bodily injury such as burns if a
conductive material such as jewelry, keys, or beaded chains touch exposed
terminals. The conductive material may complete an electrical circuit (short
circuit) and become quite hot. Exercise care in handling any charged
battery, particularly when placing it inside a pocket, purse, or other container
with metal objects.
BATTERY CHARGER SAFETY INSTRUCTIONS
Save these Charger Instructions
1. Do not expose the charger to rain or snow.
2. Do not operate the charger if it has received a sharp blow, or has been dropped
or damaged in any way.
3. Do not disassemble the charger if it has received a sharp blow, or has been
dropped or damaged in any way.
4. Never alter the AC cord or plug provided with the unit. If plug will not fit the
outlet, have proper outlet installed by a qualified electrician. An improper
condition can result in a risk of electric shock.
5. To reduce risk of damage to cord or plug, pull the plug rather than the cord when
disconnecting charger from AC receptacle.
6. To reduce the risk of electric shock, unplug the charger from the outlet before
attempting any maintenance or cleaning.
7. Use of an attachment not recommended or sold by Motorola may result in a risk
of fire, electric shock, or personal injury.
6864110R94.book Page 7 Friday, February 8, 2002 2:34 PM
SAFETY AND GENERAL INFORMATION
8
8. Make sure that the cord is located so that it will not be stepped on, tripped over,
or subjected to damage or stress.
9. An extension cord should not be used unless absolutely necessary. Use of an
improper extension cord could result in a risk of fire and/or electric shock. If an
extension cord must be used, make sure:
• That the pins on the plug of the extension cord are the same number, size
and shape as those on the plug of the charger.
• That the extension cord is properly wired and in good electrical condition,
and
• That the cord size is18 AWG for lengths up to 100 feet, and 16 AWG for
lengths up to 150 feet.
10. The supply cord of this charger cannot be replaced. If the cord is damaged,
callMotorola Product Services at:
1-800-353-2729 (U. S. A.)
1-800-461-4575 (Canada)
1-888-390-6456 TTY (Text Telephone)
6864110R94.book Page 8 Friday, February 8, 2002 2:34 PM
9
FCC Licensing Information
FCC
FCC Licensing Information
Your Motorola radio operates on General Mobile Radio Service (GMRS) frequencies
and is subject to the Rules and Regulations of the Federal Communications
Commission (FCC). The FCC requires that all operators using General Mobile Radio
Service (GMRS) frequencies obtain a radio license before operating their equipment.
To obtain the FCC forms please request Form 605 which includes all forms and
instructions. If you wish to have the document faxed, mailed or have questions,
please use the following contact information.
See the Frequency and Code Charts on page 42. For questions on determining your
radio frequency, please call Motorola Product Services at:
1-800-353-2729
Faxed
Contact the Fax-On-
Demand system at:
Mailed
Call the FCC forms
hotline at:
Questions
regarding FCC license
Contact the FCC at:
1-202-418-0177 1-800-418-FORM
1-800-418-3676
1-888-CALL-FCC
1-888-225-5322
Or: http://www.fcc.gov
6864110R94.book Page 9 Friday, February 8, 2002 2:34 PM
FCC Licensing Information
10
FCC
Changes or modifications not expressly approved by Motorola may void the user’s
authority granted by the FCC to operate this radio and should not be made. To
comply with FCC requirements, transmitter adjustments should be made only by or
under the supervision of a person certified as technically qualified to perform
transmitter maintenance and repairs in the private land mobile and fixed services as
certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited.
6864110R94.book Page 10 Friday, February 8, 2002 2:34 PM
11
Getting Started
Getting Started
Turning On/Off Your Radio
A Diagram of your New T7000-Series Radio and its Functions is on
page 18.
Note: The red indicator light under the antenna flashes every three seconds, unless
it has been disabled as described on page 20.
Turn
Knob Display Normal Menu Mode
P
Turn Knob on the top of the radio clockwise to use. Turn
the Knob counterclockwise to turn the radio Off.
The radio chirps and displays all feature icons that your
radio has available for approximately one second.
Depending upon your radio model; T7100 will have
the Channel 1-22 and the Interference Eliminator Code
(0-38) left on display. Previous usage dictates
Interference Eliminator Code.

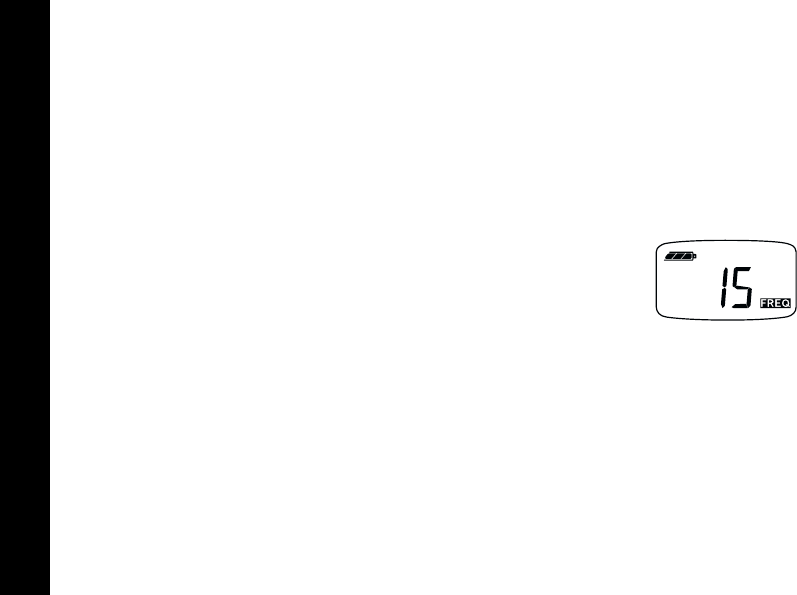

For T7200 the Channel 1-22 and/or Repeater Channel
15 x - 22 x will be left on display.
x
6864110R94.book Page 11 Friday, February 8, 2002 2:34 PM
Getting Started
12

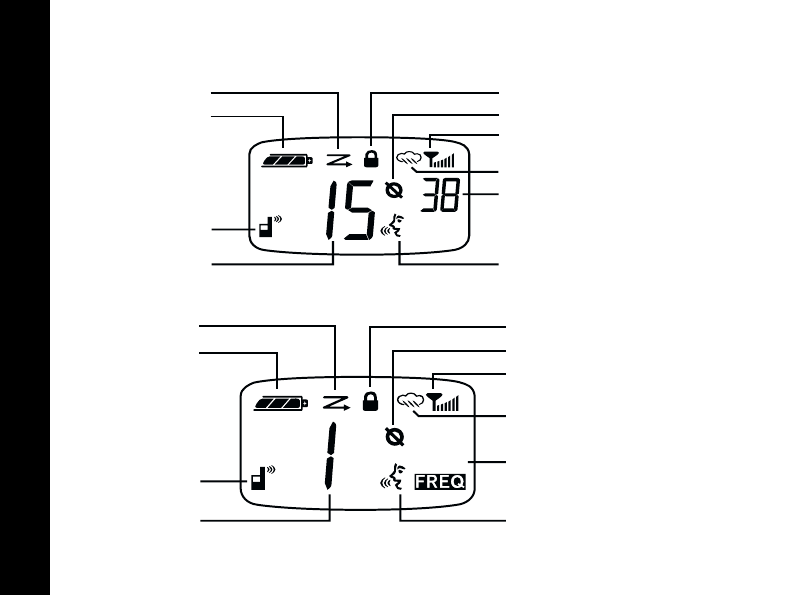

Diagram of Your Radio’s Display
Scan Keypad Lock
Eavesdrop Reducer/Scramble (T7200 only)
Signal Strength
Interference Eliminator Code
Weather (T7200 only)
VOX/Hands-free use with
or without accessories
Battery Meter
Channel Indicator
1/2 Watt/Low Power
Channels 8-14 Only
NORMAL USE FOR ALL MODELS
Scan Keypad Lock
Eavesdrop Reducer/Scramble (T7200 only)
Signal Strength
(Frequency) Indicators
Weather (T7200 only)
VOX/Hands-free use with
or without accessories
Battery Meter
Channel Indicator
1/2 Watt/Low Power
xRepeater Channel
5
Channels 8-14 only
T7200 ONLY WITH REPEATER ENABLED
6864110R94.book Page 12 Friday, February 8, 2002 2:34 PM
13
Getting Started
Installing Batteries
Some radio packages include a rechargeable Nickel-Metal Hydride (NiMH) battery
(NTN8971 or NNTN4190), or you may use 4 AA Alkaline batteries. If you would like
to obtain the battery, the charger or the Rechargeable Upgrade Kit (Accessory
53897), please call the following numbers to locate the dealer nearest you:
(U.S.A.) 1-800-353-2729
(Canada) 1-800-461-4575
You may also obtain accessory items via Motorola’s Talkabout website:
www.motorola.com/talkabout
NiMH Battery Installation
Your radio uses one rechargeable Nickel-Metal Hydride Battery pack (Motorola part
numbers NTN8971 or NNTN4190). These cells provide 13 hours of radio use; Based
upon 5/5/90 duty cycle (5% Transmit, 5% Receive, 90% Standby).

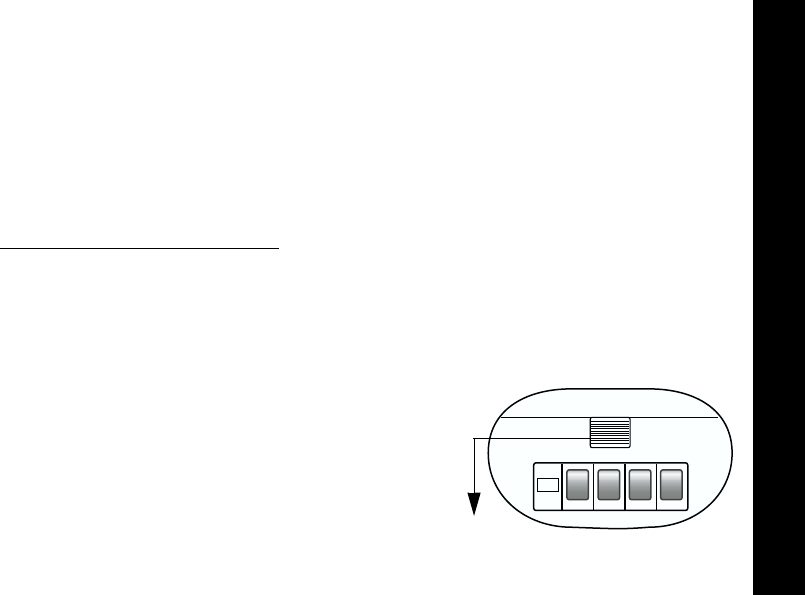

• To begin, slide the Ribbed Latch on the
bottom of the radio away from the back cover,
or toward the contacts.
Ribbed
Latch
6864110R94.book Page 13 Friday, February 8, 2002 2:34 PM
Getting Started
14
AA Alkaline Batteries Installation
Your radio also uses 4 AA alkaline batteries.
These cells provide 22 hours of radio use;
Based upon 5/5/90 duty cycle.
•Push the Ribbed Latch on the bottom of the
radio away from the battery door.
•Slide and lift the battery door off.
•Place AA batteries so that the + markings
match the markings in the compartment.
•Slide and snap the battery cover into place.
•Slide and lift the back cover off.
•Position the battery with the Motorola Logo
side up, and the charge contacts are facing
the bottom of the radio. Insert the top of the
battery into the radio and push the battery up
and into the battery compartment to fit tightly
into place.
•Slide and snap the cover back into place
6864110R94.book Page 14 Friday, February 8, 2002 2:34 PM
15
Getting Started
Charging
The NiMH Battery with Plug-in Charger Part No. NNTN4078
•Make sure NiMH battery (Motorola part
numbers NNTN8971 or NNTN4190) is left
inside the radio.
•Make sure the radio is Off.
•Plug the charger into an electric outlet.
•Lift Accessory cover and plug the Charger
firmly into the jack socket. Please see figure.
Note: The light on the charger will glow red
continuously while charging.
Charge the battery overnight (16 hours)
before using it for the first time. It will need
up to ten (10) hours of charging thereafter.
For optimum battery life, the battery must
not be left charging for prolonged periods after reaching full charge.
If radio is On while charging, additional time is required to charge the battery.
The approved NiMH Battery-pack (NNTN8971 or NNTN4190) and Plug-in
Charger (NNTN4078) are included in the T7000 Series Rechargeable
Upgrade Kit (53897).
The approved NiMH Battery-pack is included in the NiMH Rechargeable
Battery Accessory Package (53871).
Light
6864110R94.book Page 15 Friday, February 8, 2002 2:34 PM
Getting Started
16

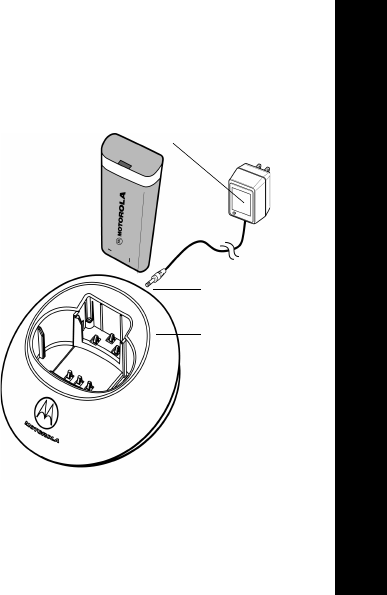

With Standard Drop-In Charging Tray
Note: Allow up to 10 hours for the battery to reach full charge.
The Drop-In Charging Tray can be placed on
any flat surface and provides drop-in charging
convenience.
•Connect Plug-in Charger and Drop-In
Charging Tray by inserting the pin into the
rear of Drop-In Charging Tray. The
charger pin does not have to be plugged
in all the way to function properly. Insert
the pin as far as possible, then stop.
•To charge the battery, drop the radio into
the Drop-In Charging Tray with the front of
the radio facing toward you.
Note:
The battery (Motorola part numbers
NNTN8971 or NNTN4190) can be
charged while inside the radio or
separately. The battery’s silver contacts
must face down and the Motorola Logo
must face the front of Charger.
The light on the Plug-in Charger will glow
continuously when radio/battery is inserted.
Pin
Drop-In
Charging
Tray 53872
NNTN4019
Plug-in
Charger
NNTN4078
6864110R94.book Page 16 Friday, February 8, 2002 2:34 PM
17
Getting Started
With Rapid Drop-In Charging Tray
Note: Allow up to 2 hours for the battery to reach full charge.
The Rapid Charger is packaged as an Accessory Kit (Part No. 53875).
The Drop-In Charging Tray can be placed on
any flat surface and provides drop-in charging
convenience.
•Connect Plug-in Charger and Drop-In
Charging Tray by inserting the pin into the
rear of Drop-In Charging Tray.
•To charge the battery, drop the radio into
the Drop-In Charging Tray with the front of
the radio facing toward you.
Note:
The battery (Motorola part numbers
NNTN8971 or NNTN4190) can be
charged while inside the radio or
separately. The battery’s silver contacts
must face down and the Motorola Logo
must face the front of Charger.
The light on the Plug-in Charger will glow
continuously when radio / battery is inserted.
Pin
Drop-In
Charging
Tray
NNTN4075
Plug-in
Charger
2585747D01
6864110R94.book Page 17 Friday, February 8, 2002 2:34 PM
Getting Started
18

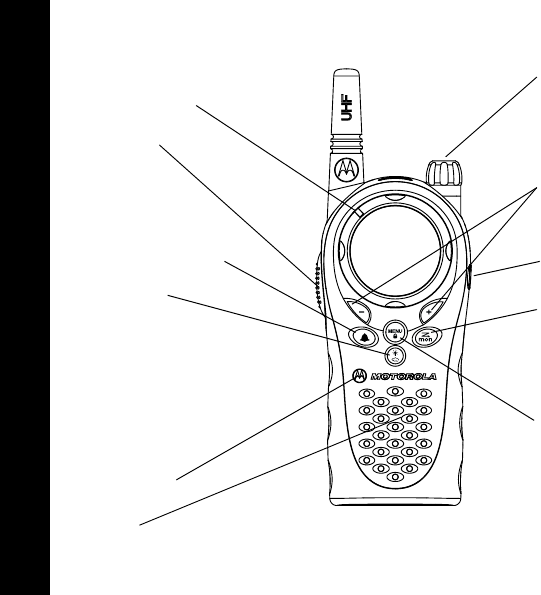

Diagram of Your New Talkabout T7000 Series Radio and its Functions
Indicator Light
Use M to
Ta l k
Exit a menu
Use B to
Transmit Call Tone
Use G to
Turn on Backlight
(short press)
Press and hold to
switch between
Weather Mode & Two-
way Mode
(T7200 only)
Microphone
Speaker
Use P (Power) to
Turn power On/Off
Adjust volume to talk on
your radio
Use [ and ] to
Scroll through menu settings
Change Channels
Accessory cover/flap
Use J to
Turn Scan On/Off
(Short press.)
Monitor the Frequency
(Long press.)
Use \to
Scroll through menus
Lock the keypad
(when held down
& not in a menu)
6864110R94.book Page 18 Friday, February 8, 2002 2:34 PM
19
Operating Your T7000-Series Radio
Operating Your T7000-Series Radio
Note: The microphone is located on the front of your radio, please refer to the
diagram on page 18.
•Press and hold M..
•Talk two-to-three inches away from the microphone.
•When you’re finished talking, release M.
While transmitting, the red indicator light located just below the antenna on the left
front of the radio, glows, unless the Indicator Light has been disabled as described
on page 20.

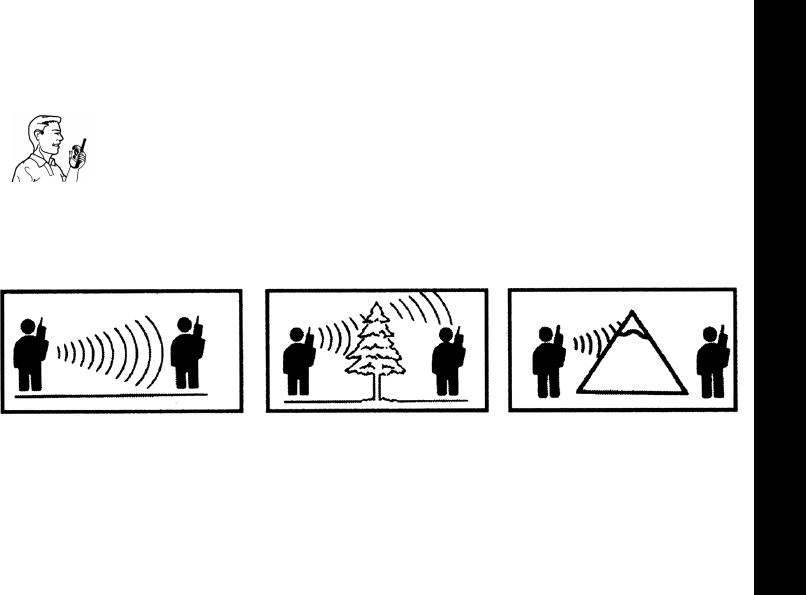

Talking Range
Optimal Range
Flat, open areas
Medium Range
Buildings or trees
Minimal Range
Dense foliage or mountains
• Outdoor • Outdoor
Also near residential
buildings
• Outdoor
Also inside some buildings
• Indoor
6864110R94.book Page 19 Friday, February 8, 2002 2:34 PM
Operating Your T7000-Series Radio
20
Changing Your Radio’s Settings through Button Combinations
Note: The following table lists the functions you can set by pressing and holding
specific key combinations while turning your radio to the On position: P.
Note: For more specific information regarding Menu/\Button Combinations,
please refer to Menu Functions on page 30.
Key(s) Pressed Function
P\ M Reset factory settings by holding down for three seconds.
P MEnable VOX/Hands-free use without accessories.
P ]Tu r n s “Roger” Beeps/Talk Confirmation Tone, On or Off.
P [Turns Audible Button Beeps On or Off.
P G
Disable backlight so it lights up when pressing G. The
Indicator Light is also disabled.
Enable backlight so it lights up at any press of a button. The
Indicator Light is also enabled.
Please refer to page 21.
P B M Enable/Disable Repeater Channels by holding down B
and Mfor three seconds. (T7200 only)
PJ M Select bandwidth between 12.5 kHz and 25 kHz.
Does not apply to Channels 8-14.
6864110R94.book Page 20 Friday, February 8, 2002 2:34 PM
21
Operating Your T7000-Series Radio
Accessing the Backlight
Your radio has a Backlight that turns On automatically any time you press a front
button. The Backlight turns Off automatically five seconds after you last pressed a
front button.
•By pressing and holding G as you turn your radio On, you can disable the
backlight.
•To return to normal Backlight operation, turn your radio Off and then back On
while pressing and holding G.
Lock
•To avoid accidentally changing radio operation, press \ for three seconds. Now
you will see f.
•The Lock Feature locks \, [ and ], Weather (T7200 only), and Scan
functions. When the keypad is locked you can still adjust the volume, transmit
M, send a Call Tone B, and monitor J (Long Press).
•To unlock, press \ for three seconds.
Checking Monitor/Signal Strength Indicator
J allows you to listen to all activity on a Channel to tell whether the Channel is
currently in use. J
can also help you determine when a radio is moving out of range.
•To check for Channel activity, press and hold J for three seconds, then
release. You’ll hear static if the Channel is clear and w will display. To avoid
interrupted conversation, wait until the Channel is clear or switch to another
Channel. To stop monitoring, briefly press J and release.
6864110R94.book Page 21 Friday, February 8, 2002 2:34 PM
Operating Your T7000-Series Radio
22
Note: Obstacles that block the signal path affect the strength of the incoming signal.
“Roger” Beeps/Talk Confirmation Tone
When you turn this feature On, your two-way radio transmits a unique tone when you
finish transmitting. It’s like saying “Roger” or “Over” and lets others know you’re
finished talking. If the person you are talking to does not hear the talk confirmation
tone, you can enable it by pressing and holding ] as you turn On your radio. Now,
whenever you release M, you let your friends know you’re finished talking by
transmitting a “Roger” Beep tone. “Roger” Beeps will be disabled as the
Default Setting.
Note: To toggle the Talk Confirmation Tone feature, turn your radio Off and then
back On while pressing and holding ].
Button Beeps
Every time you press a button on the front of your radio, it beeps unless you turn
Button Beeps Off. To turn Button Beeps Off, turn your radio On while you press and
hold [.. To turn Button Beeps back On, turn the radio Off and then back On again
while you press and hold [.. Button Beeps will be turned On, out of the factory. On
is the Default setting.
The w helps you determine when a radio is moving out of range
by displaying a receive signal-strength value next to the w while
you press and hold J. This value from 0 (weakest) through 6
(strongest) indicates the relative strength of the incoming signal.
6864110R94.book Page 22 Friday, February 8, 2002 2:34 PM
23
Changing your Radio’s Settings
\
Changing your Radio’s Settings

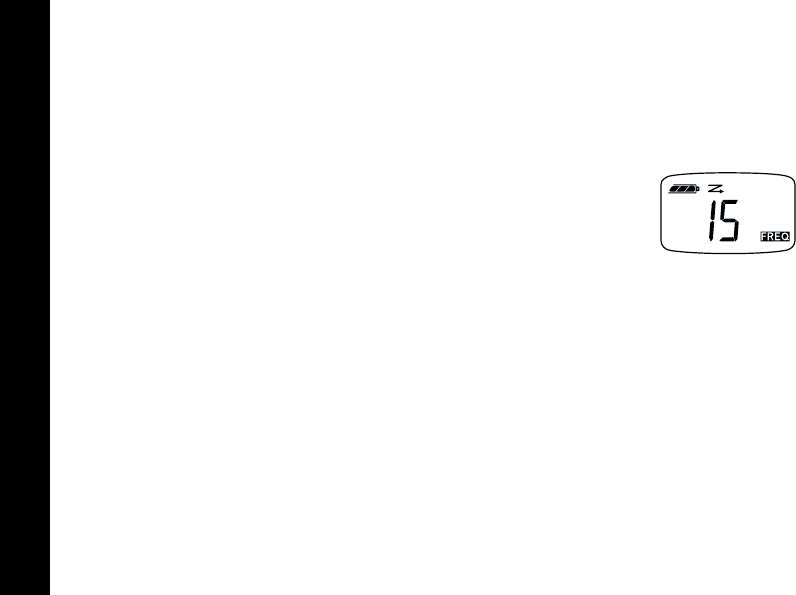

Setting the Channel
•Turn radio On.
•Press [ or ] to select Channel.
Note: The red indicator light below the antenna on the left front of
the radio flashes every second when the Channel is in use.
To set Repeater Channels (T7200 only), please refer to Setting Repeater
Channels on page 35.

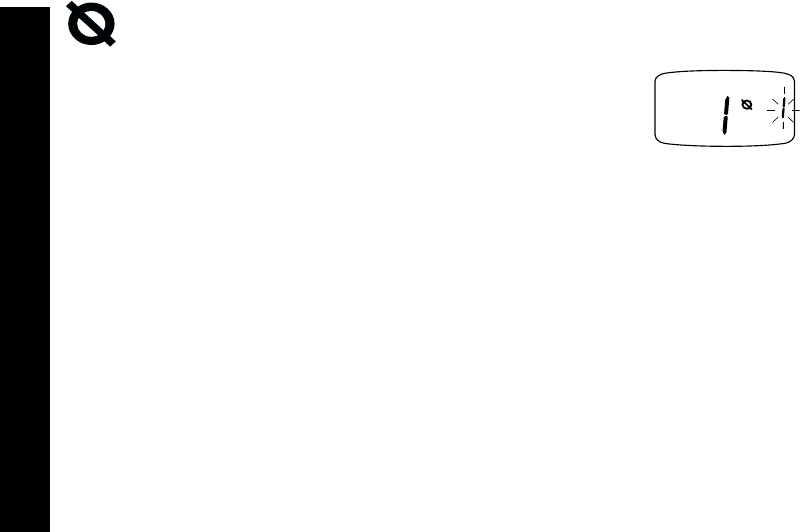

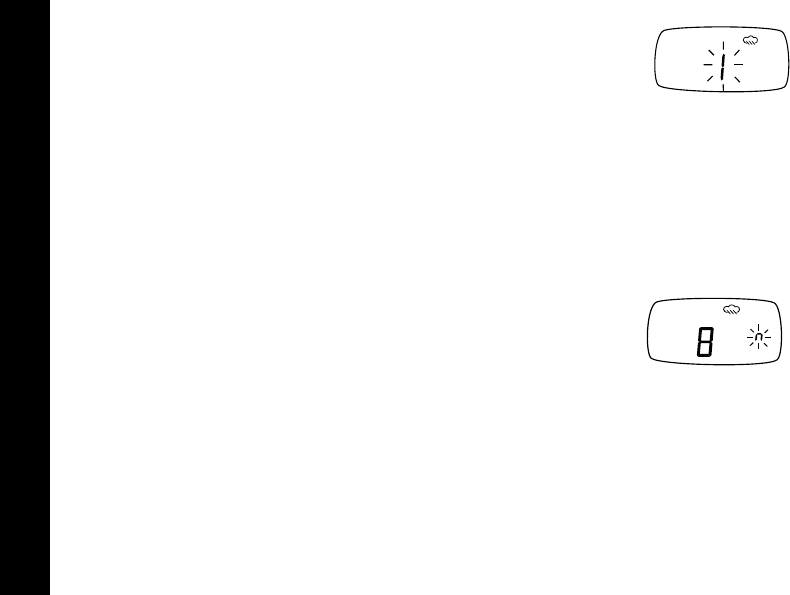

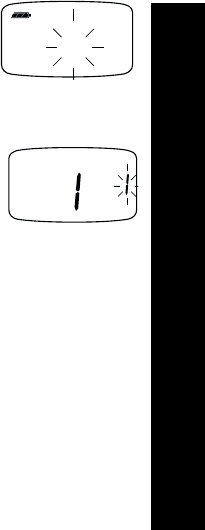

Setting the Interference Eliminator Code
The Interference Eliminator Code helps minimize interference by
providing you with a choice of code combinations.
•Turn radio On.
•To set, press \ once the Code display begins to flash.
•Then press [ or ] to choose the Code.
•Press M to exit this menu.
Note: To hear everyone on your Channel, select Interference Eliminator Code 0.
You can specify a different Interference Eliminator Code for each Channel.
•To set a Channel and Code combination, press [ or ] to select the Channel.
•Press \and then press [ or ] to select a Code.
•To exit the menu, press M.
•To set another Channel and Code combination, repeat these steps.
Note: To set your Repeater Interference Eliminator Code (T7200 only), please refer
to Setting Repeater Interference Eliminator Codes on page 35.
6
6864110R94.book Page 23 Friday, February 8, 2002 2:34 PM
Changing your Radio’s Settings
24
\Setting Eavesdrop Reducer (T7200 Only)
Your radio has the Eavesdrop Reducer feature, a scramble code that makes
your transmissions sound garbled to anyone listening without the same Code.
It doesn’t guarantee secrecy, but it adds an extra layer of privacy.
Note: All the radios have to be set to the same Scramble Code
for transmission to be clear.
•Turn radio On.
•To turn the Eavesdrop Reducer feature On, press \ as
needed until e is displayed.
•Then press [ or ] to choose the Code.
•
Select Code
0
-
3. Factory Default is set on 0, which means that the feature is Off.
•When you exit by pressing M, radio displays e.
•To turn the Eavesdrop Reducer feature Off, press \ as needed until e is
displayed, then
select
[ or ] until 0 appears.
•Then press M to exit.
Setting the Call Tone
Your radio can transmit different individual call tones to other radios in your group
so you can alert the group that you want to talk to them. There are ten distinct
individual call tones to choose from and you can also turn Call Tones Off by selecting
Call Tone 0. Once selected, press B to transmit the Call Tone to others.
6864110R94.book Page 24 Friday, February 8, 2002 2:34 PM
25
Changing your Radio’s Settings
\
Microphone Gain
The sensitivity of your radio’s microphone can be adjusted to fit different users or
operating environments. Please refer to page 26.
Hands-Free Use/VOX
With Compatible VOX Accessories
To set your Call Tone:
• Tu r n r ad io O n.
• Press \ as needed to display: E.
• You can press [ or ] to scroll through the available call tones.
The radio plays a sample of each individual Call tone as you scroll through them.
• The default is set on 1, or you may choose 0
-
10.
•Turn radio Off.
•Open Accessory Cover.
•Insert plug of audio accessory firmly into Accessory Jack.
•Turn radio On. Radio will display: g.
•Lower radio volume BEFORE placing accessory on head
or in ear.
•To transmit, speak into Accessory Microphone and to
receive, stop talking.
•VOX operation can be disabled by pressing Mor
removing audio accessory.
1
E
6864110R94.book Page 25 Friday, February 8, 2002 2:34 PM
Changing your Radio’s Settings
26
\Note: There is a short delay between when you start talking and the radio
transmits.
To order accessories, please refer to: www.motorola.com/talkabout
Without Accessories
•Enable VOX by pressing M while turning the radio On.
•VOX operation can be temporarily disabled by pressing M, g will flash.
•A short press of M will re-enable VOX. g will be displayed (not flashing).
Note:
There is a short delay between when you start talking and the radio transmits.
Setting Sensitivity Level
Adjusting your radio’s Sensitivity Level helps minimize the possibility of unintended
noises triggering a transmission, or enhances the ability to pick up quiet voices.
•Press \ as needed to display g. The radio will also display the
sensitivity type you are setting:
? = Microphone Gain
H = External VOX (with audio accessory) - appears if a VOX-
capable audio accessory is inserted and VOX is enabled.
I = Internal VOX (without accessory) - appears if internal VOX is enabled.
•Select Sensitivity Level of1, 2, or 3 by using [ or ]:
3 = High Sensitivity, for quiet environments
2 = Medium Sensitivity, for most environments
1 = Low Sensitivity, for noisy environments
Note:
There is a short delay between when you start talking and the radio transmits.
3
H
6864110R94.book Page 26 Friday, February 8, 2002 2:34 PM
27
Changing your Radio’s Settings
\
Scanning
By using J, you can monitor Channels and Codes for transmissions and lock in on
the one that interests you. More importantly, you can find someone in your group who
has accidentally changed Channels and is talking during your scan. You don’t have
to set a new Channel or Code, the radio just resets itself temporarily to that Channel
and Code and you can start talking.
•To start scanning, briefly press J.
Your Channel/Code screen displays
h
and begins to scroll through Channels. When
the radio detects channel activity, it stops on that channel and displays its Channel and
Code. You can talk to the person(s) transmitting without having to switch Channels by
pressing
M
.
•To stop scanning, briefly press J.
If you press
M
while the radio is scanning, the radio will transmit on the Channel
which was selected before you activated Scan.
If no transmission occurs within five seconds, scanning will resume.
If you want to scan channels without Interference Eliminator Codes, change the Code
for your set Channel to 0 before you briefly press J.
Note: To Scan Repeater Channels (T7200 only), refer to page 36.
Scan Manual Advance
If Scan stops on a Channel that you don’t want, briefly press ] to resume scanning
for the next active Channel in the Scan List.
6864110R94.book Page 27 Friday, February 8, 2002 2:34 PM
Changing your Radio’s Settings
28
\Scan Nuisance Delete
If Scan continuously stops on an undesired Channel, briefly press [ . This will
temporarily remove the undesired Channel from being scanned. To restore the
deleted Channel, turn Scan Off by pressing J, then turn Scan back On by pressing
J again.
Note: Your Home Channel is the Channel your radio was set to when you activated
Scan. You cannot Nuisance Delete your Home Channel.
Editing Scan List
Scan List is changed by pressing \until h displays.
•The flashing Channel will appear on the display with a flashing Y or n.
•Press [ or ] to increase or decrease the Channel.
•Pressing J will change the Scan List to include Y or exclude n that particular
Channel.
Note: Your home Channel will be scanned even if it is deleted from the Scan List.
Setting the Battery Type
Note: Battery type needs to be set when non Motorola batteries are used. However,
if you use the Motorola NiMH battery, the battery type menu will not display
because your radio automatically detects the type of battery.
•Selecting the battery type, allows the battery meter to recognize and properly
display the power usage for single-cell batteries.
•First, press \ until d displays. Either A (Alkaline) or n
(NiMH or NiCd rechargeable) is blinking.
•Press [ or ] until your choice of A or n displays.
•Then press M or \ to exit.
A
6864110R94.book Page 28 Friday, February 8, 2002 2:34 PM
29
Changing your Radio’s Settings
Battery Meter
The battery meter located in the upper left corner of the display indicates how much
battery power you have.
Battery Life
The following chart lists the appropriate battery life during Two-way Use* for Alkaline
and NiMH batteries.
*Two-way Use is defined as 90% standby time, 5 % talk time, and 5% receive time.
Note: Use of Scan, VOX, Weather and other features may reduce Battery Life.
dbcm
NiMH % 100-85 85-25 25-10 Final 10
Alkaline % 100-70 70-40 40-10 Final 10
The radio will power off when the voltage drops below a pre-determined level in
order to protect the rechargeable battery. When the battery meter flashes; m, the
radio chirps after releasing M and every 5 minutes.
Battery Type
Two-way Use*
AA Alkaline (High Capacity) 22 Hours
Motorola NiMH Battery-pack 13 Hours
6864110R94.book Page 29 Friday, February 8, 2002 2:34 PM
Changing your Radio’s Settings
30
\Menu Functions
Radio
Model Press To
T7100 [ or ] one time Change the Channel. Please refer to page 23.
\ one time Change the Interference Eliminator Code.
Please refer to page 23.
\ two times Change the Call Tone (10 to choose from).
Choose 0 if you want to turn Call Tone Off.
Please refer to page 24.
\ three times Sensitivity Level selection.
Please refer to Setting Sensitivity Level on
page 26.
\ four times Select Y (yes) or n (no) for each Channel you want
to keep or delete from your Scan List.
Please refer to page 27.
\ five times Choose Battery setting type A for alkaline, n for
rechargeable cells. Please refer to page 28.
Note: This menu will not appear if the radio
detects a Motorola rechargeable pack.
6864110R94.book Page 30 Friday, February 8, 2002 2:34 PM
31
Changing your Radio’s Settings
\
T7200 [ or ] one time Change the Channel. Please refer to page 23.
Can scroll through Repeater Channels after basic
powerup sequence.
Please refer to Setting Repeater Channels on
page 35.
\ one time Choose the Interference Eliminator Code.
Please refer to Setting the Interference Eliminator
Code on page 23.
\ two times Choose Eavesdrop Reducer Code (0-3).
Please refer to Setting Eavesdrop Reducer (T7200
Only) on page 24.
\ three times Change the Call Tone (0-10).
Please refer to Setting the Call Tone on page 24.
\ four times Sensitivity Level selection.
Please refer to Setting Sensitivity Level on
page 26.
Menu Functions
Radio
Model Press To
6864110R94.book Page 31 Friday, February 8, 2002 2:34 PM
Changing your Radio’s Settings
32
\
T7200 \ five times Select Y (yes) or n (no) for each Channel you want
to keep or delete from your Scan List.
Please refer to Scanning on page 27.
\ six times Choose Battery setting type A for alkaline, n for
rechargeable cells.
Please refer to page 28.
Note: This menu will not appear if the radio
detects a Motorola rechargeable pack.
Menu Functions
Radio
Model Press To
6864110R94.book Page 32 Friday, February 8, 2002 2:34 PM
33
Advanced Features
Advanced Features
(T7100 and T7200)
Selecting Bandwidth
All Channels on your T7100 and/or T7200 GMRS radios are set to 12.5 kHz out of
the factory:
By being set to 12.5 kHz bandwidth, your radio can communicate clearly with the
Motorola T6400 GMRS radio and any FRS radio in your group.
You must match your radio’s bandwidth to that of the other radios in your group. To
match your bandwidth to that of the GMRS radios that you want to talk to at 25 kHz,
you must set your radio to 25 kHz. To do this:
•Turn your radio Off.
•Turn your radio back On while pressing M and J.
•A triple power-up chirp will sound indicating that your radio is now set to 25 kHz
bandwidth on all GMRS Channels, if Button Beeps are enabled.
•Now you can talk to Motorola Talkabout Distance GMRS radios.
•All Channels except 8-14 are now set to 25 kHz.
FRS/GMRS GMRS Direct GMRS Repeater FRS
1-7 15-22 15 x - 22 x
If repeater operation
is enabled.
(T7200 only)
8-14
Permanently locked to 12.5 kHz
on a 1/2 watt of power.
You cannot change this setting.
6864110R94.book Page 33 Friday, February 8, 2002 2:34 PM
Advanced Features
34
To return to 12.5 kHz bandwidth:
•Turn your radio Off.
•Turn your radio back On while pressing M and J.
•A single power-up chirp will sound indicating that your radio is now set to
12.5 kHz bandwidth on all Channels, if Button Beeps are enabled.
Advanced Features
(T7200)
Understanding Repeater Channels
If you have a GMRS Repeater and wish to use it, you must set your
T7200 to repeater mode. Those Channels are identified on the
display by having both x in the Interference Eliminator Code area
and l at the bottom right of the display. They are identified as
channels 15 x - 22 x.
To enable Repeater Channels on your T7200:
•Turn your radio Off.
•Turn your radio back On while you press and hold the M and B for 3 seconds.
A unique power-up chirp will sound (if Button Beeps are enabled) indicating that your
radio now has repeater capability. Now you can talk to other T7200 radios that are
set to your same Repeater Channel, Interference Eliminator Code, and Eavesdrop
Reducer Code.
x
6864110R94.book Page 34 Friday, February 8, 2002 2:34 PM
35
Advanced Features
To disable Repeater Channels:
•Turn your Radio Off.
•Turn your radio back On while you press and hold the M and B for 3 seconds.
A single power-up chirp will sound (if Button Beeps are enabled) indicating that your
radio now has returned to normal Channel mode.
Channels 15 x - 22 x will no longer appear on your display.
Setting Repeater Channels
Once you enable your Repeater Channels on your T7200:
•Press ] to scroll up to Channel 15 x - 22 x, located just after Channel 22.
•When you scroll to a repeater Channel, the selected Interference Eliminator
Code will be displayed briefly. Then, x will appear in these digits to indicate
repeater operation. l will also display when you are on a Repeater
Channel.
Setting Repeater Interference Eliminator Codes
The Interference Eliminator Codes for GMRS Repeater Channels 15 x - 22 x and
GMRS Direct Channels 15-22 are linked. This means that when you change the
Code on a GMRS Repeater Channel, the Code on the equivalent GMRS Direct
Channel will change as well and vice versa (i.e. If you are on Channel 15, Code 30
and you change to Code 31, then the Code will automatically change from 30 to 31
on Channel 15 x). To change your Repeater Interference Eliminator Code:
•Press the ] to scroll up to any Channel between 15 x - 22 x.
6864110R94.book Page 35 Friday, February 8, 2002 2:34 PM
Advanced Features
36
•The Interference Eliminator Code assigned to the Repeater Channel selected
will show for two seconds until x replaces it.
•Press \ once and the Interference Eliminator Code will flash.
•Press ] or [ until you select an Interference Eliminator Code.
•Press \ again or press M.
Scanning Repeater Channels
If you have Repeater Channels and Scan enabled, l will
display as Scan is scrolling through or landing on Channels
15 x- 22 x.
Note: To enhance your radio’s performance, remove the GMRS
direct or GMRS Repeater Channels that you do not plan to
use from the Scan List (see page 28.) For example, it
would be beneficial to remove Channel 16 from your Scan
List if you are using Channel 16 x and vice versa. Your radio will talk back
on the correct transmit frequency if you follow this procedure.
If you need additional help, please refer to Scanning on page 27.
You may also refer to Frequency and Code Charts on page 42 for
more details.
6864110R94.book Page 36 Friday, February 8, 2002 2:34 PM
37
Advanced Features
Weather (T7200)
You can’t change the weather, but you can be prepared for it when you take
your Motorola Talkabout T7200 radio with you. That's because it tunes into
broadcasts by the United States National Oceanic and Atmospheric
Administration (NOAA) Weather Radio and Environment Canada Weatheradio.
You can listen to a Weather Channel or you can even set your radio to alert you
to emergency weather broadcasts that interrupt routine broadcasts.
Both NOAA and Environment Canada have transmitters located throughout the United States
and Canada, respectively. These transmitters broadcast watches, forecasts, and other
information 24 hours a day.
Note: Service may not be available in all areas. Check with your local weather
office for frequency and details, or visit www.nws.noaa.gov/nwr, (Canada:
www.msc-smc.ec.gc.ca/cd/factsheets/wxradio). The use of the NOAA logo
does not provide an endorsement or implied endorsement by NOAA's
National Weather Service nor does the use of the Weatheradio logo provide
an endorsement or implied endorsement by Environment Canada.
Whenever you listen to a Weather Channel, you cannot use your radio for two-way
communications. However, a weather alert will notify you while the radio is in two-
way mode (if you have enabled weather alert) and the radio is On but not transmitting
or receiving.
Turning On Weather Channel Reception
To turn on Weather Channel Reception, press and hold G. To turn off Weather
Channel Reception and return to two-way mode, press and hold G again.
6864110R94.book Page 37 Friday, February 8, 2002 2:34 PM
Advanced Features
38
Setting the Weather Channel
Your radio receives eight frequencies. See the Weather
Frequency Chart on page 43. for a complete list.
•After turning on the weather broadcast, press [ or ] to
select the strongest Channel.
As with two-way radio reception, Weather Channel Reception depends on how close
you are to a transmitter and whether you are indoors or outdoors. Also, because
Weather Channels are transmitted without Codes, they may contain static or noise.
Note: The Talkabout T7200 two-way radios are designed to be two-way radios
primarily, with the added utility of features such as Weather Alert. The radio
uses the same circuitry for both two-way radio and weather alert receptions.
Therefore, you can miss a weather alert while you are engaged in two-way
communication (either transmitting or receiving). To ensure that you do not
miss a weather alert, leave the radio in the Weather Mode.
Note: In some isolated areas, it may not be possible to receive
Weather Channel Transmissions.
To Set Weather Alert:
•Switch to weather mode,
•press \ once, and
•press [ or ] to select Y (On).
•If you activate Weather Alert and return to two-way mode,
owill display.
6864110R94.book Page 38 Friday, February 8, 2002 2:34 PM
39
Using Accessories
Using Accessories
Make sure the radio is turned Off before plugging audio accessories into the
accessory port. Before you place an accessory on your head or in your ear, turn the
volume down. To order accessories, please refer to: www.motorola.com/talkabout.

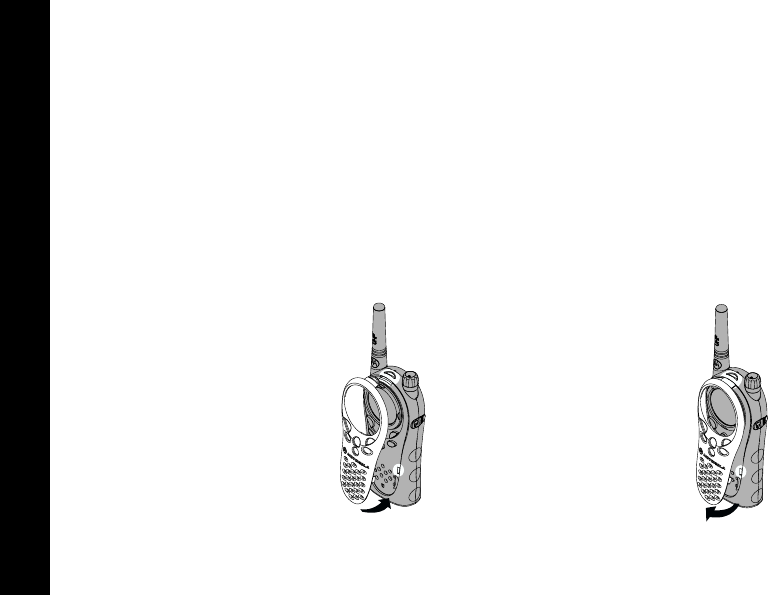

Swivel Belt Holster
Your radio includes a Swivel Belt Holster for your convenience, which allows both
plug-in and drop-in charging.
•Slide the bottom of the radio into the holster until it snaps into place.
•To remove, push the tab above the battery door and pull the radio from
the holster.
In case of loss, please contact your point-of-sale or call 1-800-353-2729 and request
replacement part number NNTN4106AR.
Remote Speaker Microphone
Lapel-mounted speaker/microphone provides hands-on, Push-To-Talk control for low
profile radio operation without removing the radio from belt or carry case
.
Ear-piece with
Push-To-Talk
Microphone
Discreet, lightweight ear-piece with hand-operated lapel or collar-mounted microphone.
It allows clear communication without disturbance or interference.
Ear-piece with Boom Microphone
Discreet, lightweight ear-piece which fits comfortably around the ear while boom
microphone allows for remote radio placement and is VOX/Hands-free compatible.
6864110R94.book Page 39 Friday, February 8, 2002 2:34 PM
Using Accessories
40
Headset with Swivel Boom Microphone
Comfortable, lightweight headset that is VOX/Hands-free compatible.
Earbud
Discreet, lightweight ear-piece which fits comfortably inside the ear allows clear
message reception without disturbing others or when noise would interfere.
Flexible Ear Receiver
Lightweight ear-piece which fits comfortably and securely around the ear.
Face Plate
Attaching Face Plate Removing Radio Face Plate
• Turn the radio Off.
•To attach radio face
plate, insert face plate
tabs into slots aligning
face place with the
appropriate buttons.
•Snap into place.
• Turn the radio Off.
•To remove radio face
plate, press top tab and
gently pull up on both
SIDES of the bezel.
•Pick it up and off the
keypad.
6864110R94.book Page 40 Friday, February 8, 2002 2:34 PM
41
Use and Care

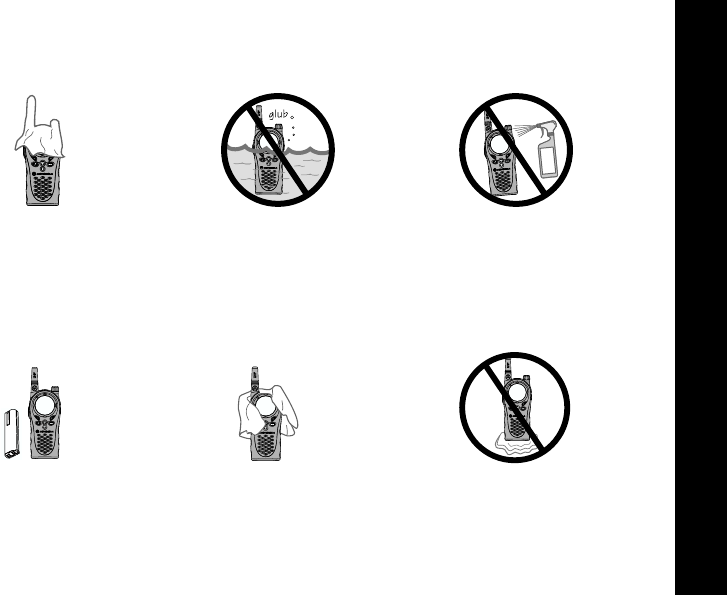

Use and Care
If the radio gets wet...
Use a soft damp cloth to
clean the exterior. Do not immerse in water. Do not use alcohol or
cleaning solutions.
Turn it Off and remove
batteries. Dry with soft cloth. Do not use until
completely dry.
XXX
6864110R94.book Page 41 Friday, February 8, 2002 2:34 PM
Frequency and Code Charts
42
Frequency and Code Charts
The charts on these pages provide frequency and code compatibility information.
These charts are useful when using Motorola Talkabout two-way radios with other
GMRS and FRS radios.
T7100
Channel
T7200
Channel
Code
Display
Transmit
Frequency
(MHz)
Transmit
Power
(Watts)
Receive
Frequency
(MHz)
Description
1 1 0-38 462.5625 2 462.5625 FRS 1/GMRS Interstitial 1
2 2 0-38 462.5875 2462.5875 FRS 2/GMRS Interstitial 2
3 3 0-38 462.6125 2 462.6125 FRS 3/GMRS Interstitial 3
4 4 0-38 462.6375 2462.6375 FRS 4/GMRS Interstitial 4
5 5 0-38 462.6625 2 462.6625 FRS 5/GMRS Interstitial 5
6 6 0-38 462.6875 2462.6875 FRS 6/GMRS Interstitial 6
7 7 0-38 462.7125 2 462.7125 FRS 7/GMRS Interstitial 7
8 8 0-38 467.5625 0.5 467.5625 FRS 8
9 9 0-38 467.5875 0.5 467.5875 FRS 9
10 10 0-38 467.6125 0.5 467.6125 FRS 10
11 11 0-38 467.6375 0.5 467.6375 FRS 11
12 12 0-38 467.6625 0.5 467.6625 FRS 12
13 13 0-38 467.6875 0.5 467.6875 FRS 13
14 14 0-38 467.7125 0.5 467.7125 FRS 14
15 15 0-38 462.5500 2 462.5500 GMRS Primary 1
16 16 0-38 462.5750 2462.5750 GMRS Primary 2
17 17 0-38 462.6000 2 462.6000 GMRS Primary 3
18 18 0-38 462.6250 2462.6250 GMRS Primary 4
6864110R94.book Page 42 Friday, February 8, 2002 2:34 PM
43
Frequency and Code Charts
T7100
Channel
T7200
Channel
Code
Display
Transmit
Frequency
(MHz)
Transmit
Power
(Watts)
Receive
Frequency
(MHz)
Description
19 19 0-38 462.6500 2 462.6500 GMRS Primary 5
20 20 0-38 462.6750 2462.6750 GMRS Primary 6
21 21 0-38 462.7000 2 462.7000 GMRS Primary 7
22 22 0-38 462.7250 2462.7250 GMRS Primary 8
15 x0-38 467.5500 2 462.5500 GMRS Repeater 1
16 x0-38 467.5750 2462.5750 GMRS Repeater 2
17 x0-38 467.6000 2 462.6000 GMRS Repeater 3
18 x0-38 467.6250 2462.6250 GMRS Repeater 4
19 x0-38 467.6500 2 462.6500 GMRS Repeater 5
20 x0-38 467.6750 2462.6750 GMRS Repeater 6
21 x0-38 467.7000 2 462.7000 GMRS Repeater 7
22 x0-38 467.7250 2462.7250 GMRS Repeater 8
Weather Frequency Chart (T7200 Only)
WX1 162.550 WX5 162.450
WX2 162.400 WX6 162.500
WX3 162.475 WX7 162.525
WX4 162.425 WX8 163.275
6864110R94.book Page 43 Friday, February 8, 2002 2:34 PM
Frequency and Code Charts
44
Carrier squelch (0) disables Interference Eliminator Codes. This allows you to
monitor all activity on the Channel you are using. Interference Eliminator Codes help
minimize interference by providing you with a choice of code combinations.
Interference Eliminator Codes
Code Hz Freq Code Hz Freq Code Hz Freq
167.0 14 107.2 27 167.9
271.9 15 110.9 28 173.8
374.4 16 114.8 29 179.9
477.0 17 118.8 30 186.2
579.7 18 123.0 31 192.8
682.5 19 127.3 32 203.5
785.4 20 131.8 33 210.7
888.5 21 136.5 34 218.1
991.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
13 103.5 26 162.2
6864110R94.book Page 44 Friday, February 8, 2002 2:34 PM
45
Troubleshooting
Troubleshooting
Symptom Try This:
No power
Reposition or replace Alkaline batteries.
Recharge or replace NiMH battery.
Message not
transmitted
Make sure M is completely pressed as you transmit.
Reposition, replace, or recharge batteries.
Hearing other
noises or
conversation on
a Channel
Confirm Interference Eliminator Code is set.
Shared Channel or Interference Eliminator Code may be in use,
try another.
Message
scrambled
(T7200) Eavesdrop Reducer Code is On, or setting does not
match other radios’ settings; all radios must use the same
Eavesdrop Reducer Code.
Limited talk
range
Steel and/or concrete structures, heavy foliage, use in buildings
or vehicles decrease range. Check for clear line of sight to
improve transmission.
Wearing radio close to body such as in a pocket or on a belt
decreases range. Change location of radio.
6864110R94.book Page 45 Friday, February 8, 2002 2:34 PM
Troubleshooting
46
Message not
received
Confirm radios have the same Channel and Interference
Eliminator Code settings.
Make sure M is NOT being pressed while trying to listen.
Reposition, replace, or recharge batteries.
Obstructions and operating indoors, or in vehicles, may interfere
-- change location.
Heavy static or
interference
Radios are too close, they must be at least five feet apart.
Radios are too far apart or obstacles interfering with
transmission.
Keypad locked
Make sure keypad is unlocked. Unlock by pressing \ for three
seconds.
Low batteries
Recharge or replace NiMH battery. Replace AA batteries.
Extreme operating temperatures affect battery life.
Symptom Try This:
6864110R94.book Page 46 Friday, February 8, 2002 2:34 PM
47
Troubleshooting
Audio sounds
muffled/
excessively soft
or distorted/
excessively
loud.
Check with the person you are talking to and make sure your
bandwidth matches (12.5 kHz or 25 kHz). See Selecting
Bandwidth on page 33.
Difficulty talking
from T7100 or
T7200 to FRS
radio on
Channels 1-7.
Change to Channels 8-14 or move closer together.
Low battery
meter reading
although new
batteries are
installed
Verify that the radio is set to the correct battery type.
Cannot activate
VOX
Feature not set and On. You can also increase the
Sensitivity Level.
Please refer to Setting Sensitivity Level on page 26.
Symptom Try This:
6864110R94.book Page 47 Friday, February 8, 2002 2:34 PM
Motorola Limited Warranty
48
Motorola Limited Warranty
Motorola Personal Communications Products and Accessories Purchased in
the United States and Canada
I. What This Warranty Covers
Defects in materials and workmanship in the following new “Products”
manufactured, sold or certified by Motorola, with which this limited warranty is
included in/on the package: (a) wireless cellular telephones, pagers and two-way
radios that operate via “Personal Radio Service” (such as Family Radio Service and
General Mobile Radio Service), together with software imbedded in any of these
products, and (b) subject to the following exceptions, accessories or software sold for
use with these products.
•Battery Exception. This limited warranty extends only to batteries in which the
fully-charged capacity falls below 80% of rated capacity and batteries that leak;
•Software Exceptions. This limited warranty extends only to physical defects in
the media (such as CD-ROM) that tangibly embodies each copy of any software
sold and/or certified by Motorola for use with Products. Software that is not
tangibly embodied in media and that is purchased separately from Products
(such as software that is downloaded from the internet) comes “as is” and
without warranty.
II. What the Period of Coverage Is
Subject to the following exceptions, one year from the date the Products are
purchased by the first end-user:
6864110R94.book Page 48 Friday, February 8, 2002 2:34 PM
49
Motorola Limited Warranty
•90-Day Warranty Exception. The warranty is for 90 days for: (a) any software
tangibly embodied in media or (b) any accessories for two-way radios that are
covered by this warranty, as described in Section I, above.
•Limited Lifetime Warranty Exception. The warranty is a limited lifetime warranty
for the lifetime of ownership by the first end-user of the following products, only:
(a) decorative covers, including bezel, PhoneWrap™ or case (any model); and
(b) ear buds and boom headsets that transmit mono sound through a wire
connection (this does not include ear buds or boom headsets that either transmit
stereo sound or that are wireless, or both).
•Repair / Replacement Exception. The warranty is for the balance of the
original warranty or for 90 days from the date returned and delivered to the first
end-user, whichever is longer.
III. Who is Covered
This warranty extends to you only if you are the first end-user purchaser.
IV. What We Will Do to Correct Warranty Problems
At no charge to you, we have the option to repair or replace the Products that do not
conform to the warranty, or to refund the Products’ purchase price. We may use
functionally equivalent reconditioned/refurbished/pre-owned or new Products or
parts. No software updates are provided.
6864110R94.book Page 49 Friday, February 8, 2002 2:34 PM
Motorola Limited Warranty
50
V. How to Get Warranty Service
PLEASE CALL US – DO NOT SHIP:
USA Canada
Cellular 1-800-331-6456 All Products 1-800-461-4575
Paging 1-800-548-9954 TTY (Text Telephone)
FRS Radios 1-800-353-2729 1-888-390-6456
TTY (Text Telephone)
1-888-390-6456
Accessories and software -- call the number designated for the product with which
they are used.
You will receive instructions on how to ship the Products to Motorola or our
designated resource. If instructed to ship the Products, you must ship them with
freight, duties and insurance prepaid. Regardless of where you are instructed to
return the Products, you must include: (a) a copy of your receipt, bill of sale or other
comparable proof of purchase; (b) a written description of the problem; (c) the name
of your service provider (if this Product requires subscription service); (d) the name
and location of the installation facility (if applicable) and, most importantly; (e) your
address and telephone number. If requested, you must also return all detachable
parts such as antennas, batteries and chargers. RETAIN YOUR ORIGINAL PROOF
OF PURCHASE.
6864110R94.book Page 50 Friday, February 8, 2002 2:34 PM
51
Motorola Limited Warranty
For Products we ask you ship to us, we will ship repaired or replacement Products at
our expense for the freight and insurance, but at your expense for any duties. If
additional information is needed, please contact us at the telephone number listed
above.
VI. What This Warranty Does Not Cover
•Products that are operated in combination with ancillary or peripheral equipment
or software not furnished or otherwise certified by Motorola for use with the
Products (“ancillary equipment”), or any damage to the Products or ancillary
equipment as a result of such use. Among other things, “ancillary equipment”
includes batteries, chargers, adaptors, and power supplies not manufactured or
supplied by Motorola. Any of these voids the warranty.
•Someone other than Motorola (or its authorized service centers) tests, adjusts,
installs, maintains, alters, modifies or services the Products in any way. Any of
these voids the warranty.
•Rechargeable batteries that: (a) are charged by other than the Motorola-
approved battery charger specified for charging such batteries; (b) have any
broken seals or show evidence of tampering; (c) are used in equipment other
than the Product for which they are specified; or (d) are charged and stored at
temperatures greater than 60 degrees centigrade. Any of these voids the
warranty.
•Products that have: (a) serial numbers or date tags that have been removed,
altered or obliterated; (b) board serial numbers that do not match each other, or
board serial numbers that do not match the housing; or (c) nonconforming or
non-Motorola housings or parts. Any of these voids the warranty.
6864110R94.book Page 51 Friday, February 8, 2002 2:34 PM
Motorola Limited Warranty
52
•Defects or damage that result from: (a) use of the Products in a manner that is
not normal or customary; (b) improper operation or misuse; (c) accident or
neglect such as dropping the Products onto hard surfaces; (d) contact with
water, rain, extreme humidity or heavy perspiration; (e) contact with sand, dirt or
the like; or (f) contact with extreme heat, or spills of food or liquid.
•Physical damage to the surface of the Products, including scratches, cracks or
other damage to a display screen, lens or other externally exposed parts.
•Failure of Products that is due primarily to any communication service or signal
you may subscribe to or use with the Products.
•Coil cords that are stretched or that have any broken modular tabs.
•Leased Products.
Flat-rate repair rates may apply to Products not covered by this warranty. To obtain
information about Products needing repairs that are not covered by this warranty,
please call the telephone number previously listed. We will provide information on
repair availability, rates, methods of payment, where to send the Products, etc.
VII. Some Other Limitations
This is Motorola’s complete warranty for the Products, and states your
exclusive remedies. This warranty is given in lieu of all other express
warranties. Implied warranties, including without limitation, the implied
warranties of merchantability and fitness for a particular purpose, are given
only if specifically required by applicable law. Otherwise, they are specifically
excluded.
6864110R94.book Page 52 Friday, February 8, 2002 2:34 PM
53
Motorola Limited Warranty
No warranty is made as to coverage, availability, or grade of service provided
by the Products, whether through a service provider or otherwise.
No warranty is made that the software will meet your requirements or will work
in combination with any hardware or applications software products provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software products will be
corrected.
In no event shall Motorola be liable, whether in contract or tort (including
negligence) for damages in excess of the purchase price of the Product, or for
any indirect, incidental, special or consequential damages of any kind, or loss
of revenue or profits, loss of business, loss of information or data, or other
financial loss arising out of or in connection with the ability or inability to use
the Products, to the full extent these damages may be disclaimed by law.
VIII. Patent and Software Provisions
At Motorola’s expense, we will defend you, and pay costs and damages that may be
finally awarded against you, to the extent that a lawsuit is based on a claim that the
Products directly infringe a United States patent. Our obligation is conditioned on: (a)
you notifying us promptly in writing when you receive notice of the claim; (b) you
giving us sole control of the defense of the suit and all negotiations for its settlement
or compromise; and (c) should the Products become, or in Motorola's opinion be
likely to become, the subject of a claim of infringement of a United States patent, you
permit us, at our option and expense, either to: procure for you the right to continue
6864110R94.book Page 53 Friday, February 8, 2002 2:34 PM
Motorola Limited Warranty
54
using the Products; replace or modify them so that they become non-infringing; or
grant you a credit for such Products, as depreciated, and accept their return. The
depreciation will be an equal amount per year over the lifetime of the Products, as
established by Motorola.
Motorola will have no liability to you with respect to any claim of patent infringement
that is based upon the combination of the Products or parts furnished under this
limited warranty with ancillary equipment, as defined in VI., above.
This is Motorola’s entire liability with respect to infringement
of patents by the Products.
IX. State Law and Other Jurisdiction Rights
Some states and other jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, or limitation on the length of an implied
warranty, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights,
which vary from jurisdiction to jurisdiction.
To obtain information on Motorola Personal Communications Products, including
warranty service, accessories and optional Extended Warranties on selected
Products, please call:
6864110R94.book Page 54 Friday, February 8, 2002 2:34 PM
55
Motorola Limited Warranty
USA Canada
Cellular 1-800-331-6456 All Products 1-800-461-4575
Paging 1-800-548-9954 TTY (Text Telephone)
FRS Radios 1-800-353-2729 1-888-390-6456
TTY (Text Telephone)
1-888-390-6456
Accessories and software -- call the telephone number designated above for the
product with which they are used.
DO NOT SHIP PRODUCTS TO THESE ADDRESSES – INSTEAD PLEASE CALL.
To correspond with Motorola about the Products, please write us at
http://www.motorola.com or at:
In the USA: In Canada:
Motorola, Inc. Motorola Canada Limited
600 North U.S. Highway 45 5875 Whittle Road
Libertyville, IL 60048 Mississauga, ON L4Z 2H4
6864110R94.book Page 55 Friday, February 8, 2002 2:34 PM
Motorola Limited Warranty
56
Software Copyright Notice
The Motorola products described in this manual may include copyrighted Motorola
and third party software stored in semiconductor memories or other media. Laws in
the United States and other countries preserve for Motorola and third party software
providers certain exclusive rights for copyrighted software, such as the exclusive
rights to distribute or reproduce the copyrighted software. Accordingly, any
copyrighted software contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to the extent allowed
by law. Furthermore, the purchase of the Motorola products shall not be deemed to
grant either directly or by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third party software
provider, except for the normal, non-exclusive, royalty-free license to use that arises
by operation of law in the sale of a product.
Patent Notice
This product is covered by one or more of the following United States patents.
5896277 5894292 5864752 5699006 5742484 6246866 D408396 D399821
D387758 D389158 5894592 5893027 5789098 5734975 5861850 D395882
D383745 D389827 D389139 5929825 5926514 5953640 6071640 D413022
D416252 D416893 D433001
6864110R94.book Page 56 Friday, February 8, 2002 2:34 PM
57
Motorola Limited Warranty
Export Law Assurances
This product is controlled under the export regulations of the United States of
America and Canada. The Governments of the United States of America and
Canada may restrict the exportation or re-exportation of this product to certain
destinations. For further information contact the U.S. Department of Commerce or
the Canadian Department of Foreign Affairs and International Trade.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
More specifically, changes or modifications not expressly approved by Motorola may
void the user’s authority granted by the FCC to operate this radio and should not be
made. To comply with FCC requirements, transmitter adjustments should be made
only by or under the supervision of a person certified as technically qualified to
perform transmitter maintenance and repairs in the private land mobile and fixed
services as certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.) not
authorized by the FCC equipment authorization for this radio could violate FCC rules.
Note: Use of this radio outside the country where it was intended to be distributed
is subject to government regulations and may be prohibited
6864110R94.book Page 57 Friday, February 8, 2002 2:34 PM
Talkabout T7100/T7200 Quick Reference
Function
Appearance
Channel
Use
[
or
]
for
1 through 22.
Interference
Eliminator
Code
Use
[
or
]
for
0 through 38
Eavesdrop
Reducer
Use
[
or
]
for
1
-
3
or
0
for disables feature.
(T7200 Only)
Function Appearance
Call Tone
Use
[
or
]
for
1 through 10
or Off = 0.
Mic Gain/
Sensitivity
Level
Use
[
or
]
for
1 low,
2 medium, or 3 high.
?
= Mic Gain,
H
= External VOX,
I
= Internal VOX.
Scan List
Use
J
for
Y/yes or n/no for
each channel.
Battery
Type
Use
[
or
]
for
A = Alkaline
n = NiMH or NiCd.
d1
0
1
E
1
?
1
Y
h
A
6864110R94.book Page 67 Friday, February 8, 2002 2:34 PM

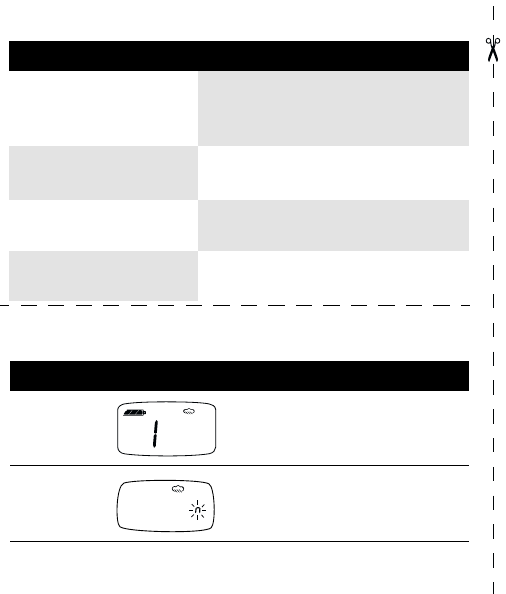

Talkabout T7100/T7200 Quick Reference
Weather Mode (T7200 Only)
Talkabout T7000 Series Controls.
P•Tu r n p o we r
On/Off
•Adjust Volume
M•Talk on the radio
•Exit a menu
G•Weather*/
Backlight \•Scroll through menus
•Lock Keypad
B•Transmit call
tone [ or ]•Scroll through and
select settings
S
J•Scan/Monitor * T7200 Only
Function Appearance
Weather
Channel
Press and hold G to access.
Use
[
or
]
for
1 through 8..
Weather
Alert
Press
\
once.
Use
[
or
]
for
n (off) and Y (on)
n
1
6864110R94.book Page 68 Friday, February 8, 2002 2:34 PM
6864110R94.book Page 1 Friday, February 8, 2002 2:34 PM
• Up to 5-mile *Range
*Range will vary based on terrain and
conditions.
• 22 Channels (8 GMRS + 14 FRS), each
with 38 Interference Eliminator codes
GMRS channels feature increased power
for longer range; 14 FRS channels ensure
backward compatibility with FRS two-way
radios. 38 interference eliminator codes
per channel help minimize interference
from other groups.
• Motorola Quality
Shock/drop/temperature tested to meet
Motorola's High standards.
• Multiple Audible Call Tones
Accessories for T7000 series -
Convenient headphones, some with
hands-free talk capabilities, mesh and
waterproof carry cases, and rechargeable
battery packs available from your retailer
or www.motorola.com/talkabout
MOTOROLA, the Stylized M Logo,
TALKABOUT, and all other trademarks
indicated as such herein are trademarks of
Motorola, Inc.
®
Reg. U.S. Pat. & Tm. Off. All
other product or service names are the property
of their respective owners.
©
2002 Motorola,
Inc. All rights reserved. Printed in Malaysia.
• Plug-in/Drop-In Charging
Capable
• Belt Clip/Carry Holster
Included
• Talk Hands-Free (VOX)
Advanced voice activation lets
you talk hands-free.
• “Roger” Beep/Talk
Confirmation Tone
Signals you're done talking.
• Digital Audio Processing
Provides crisper audio quality.
• Scan
Easily finds Channel and Code
by searching all combinations.
• Signal Strength Indicator
Visual indicator lets you know when
other radios are heading out of
range while you're communicating.
• Batteries (not included)
Requires only 4 AA Alkaline batteries
or 1 NiMH rechargeable battery .
• Eavesdrop Reducer (T7200)
Helps enhance privacy.
• 8 GMRS Repeater Channels (T7200)
• 8 Weather Channels (T7200)
• 1-Year Limited Warranty
For details, call 1-800-353-2729.
• Nuisance Delete
Manual Advance Scan Features
Specification Chart
Tran smi t P ow er
Receiver Sensitivity
Audio Output
Receiver Technology
2 W GMRS (conducted), 0.5 W FRS
0.18uV
500 mW
Digital Direct Conversion - DZIF
Note: For T7200, weather radio service may not be available in all areas.
Check with your local weather office for frequency and details or visit
www.nws.noaa.gov/nwr in the US or www.msc-smc.ec.gc.ca/cd/
factsheets/wxradio in Canada. The use of the NOAA logo does not
provide an endorsement or implied endorsement by NOAA's National
Weather Service nor does the use of the Weatheradio logo provide an
endorsement or implied endorsement by Environment Canada.
FCC GMRS
License Required
@T7000@
Motorola
®
Talkabout
®
T7000
Proof of Purchase
WARNING CHOKING HAZARD
SMALL PARTS
Not for children under 3 years.
This product is not intended to be used
as a toy or plaything.
6864110R94.book Page 2 Friday, February 8, 2002 2:34 PM

Navigation menu
