Motorola
iDEN
Digital Multi-service Data-capable Phone
i
325 Phone User’s Guide
@NNTN5837A@
NNTN5837A
IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use with
the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models:
i
30
sx
,
i
35
s
,
i
50
sx
,
i
55
sr
,
i
58
sr
,
i
60
c
,
i
80
s
,
i
85
s
,
i
88
s
,
i
90
c
,
i
95
cl
series, and the
i
2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden/support.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited One Year warranty located in
this user’s guide for complete details.
i
Contents
Getting Started........................................... 1

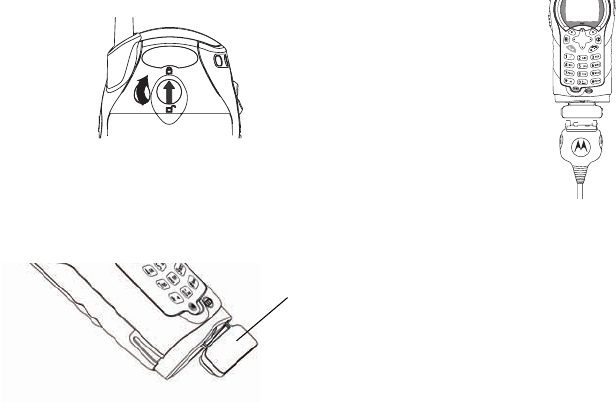

Removing the Battery Door...............................2

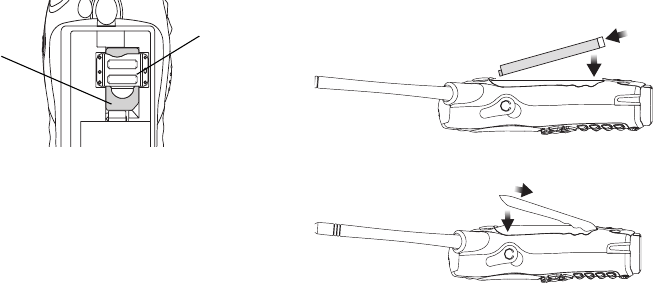

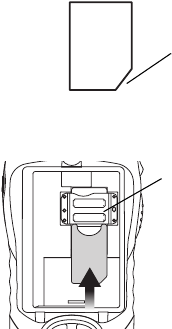

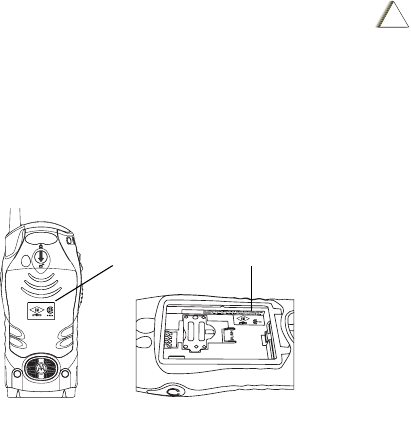

Locating Your SIM Card....................................3
Activating Service..............................................6
Antenna.............................................................6
Maintaining Durability........................................6
Powering On and Off.........................................6
Enabling Over-the-Air Security..........................7
Finding Your Phone Number.............................8
Phone Basics ....................................................9
SIM Card Security ...........................................12
Locking the Keypad.........................................15
Accessories.....................................................16
For More Information.......................................16
Making Calls............................................. 17
Phone Calls.....................................................17
Private Calls ....................................................17
Receiving Calls................................................17
Call Icons.........................................................18
Ways to Enter Calls.........................................18
Using Speakerphone.......................................20
Using Mute ......................................................21
Making Emergency Phone Calls .....................21
MOTOtalkTM ..............................................22
Channels and Codes.......................................23
Private MOTOtalk Calls...................................25
Emergency Calls Using MOTOtalk .................26
Setup Options .................................................26
Call Alerts..................................................28
Sending Call Alerts..........................................28
Receiving Call Alerts .......................................28
Using the Call Alert Queue..............................28
Recent Calls..............................................30
Storing Recent Calls to Contacts ....................30
Deleting Recent Calls......................................31
Contacts ....................................................32
Viewing Contacts ............................................33
Creating Entries ..............................................34
Storing Numbers Faster ..................................36
ii
Editing Entries .................................................36
Deleting Entries...............................................36
Checking Capacity ..........................................37
Creating Pauses and Waits.............................37
International Numbers.....................................37
Accessing Contacts with GSM Phones...........38
Call Forwarding........................................ 39
Forwarding All Calls ........................................39
Turning Off Call Forwarding ............................40
Forwarding Missed Calls.................................40
Viewing Call Forwarding Settings....................41
Additional Calling Options...................... 42
Call Waiting .....................................................42
Call Hold..........................................................43
Making a 3-Way Call .......................................43
Creating Pauses and Waits While Dialing.......44
Making International Calls...............................44
Setting One Touch PTT...................................44
Group Calls .....................................................45
Call Timers ......................................................46
Using Your Phone as a Modem ......................47
Making TTY Calls............................................48
Memo .........................................................50
Ring Tones................................................51
Setting Your Phone to Vibrate.........................51
Turning Ring Tones Off...................................51
Ring and Vibrate .............................................52
Assigning Ring Tones to Contacts ..................53
Viewing Ring Tone Assignments ....................53
Downloading More Ring Tones.......................53
Managing Memory ..........................................53
Deleting Custom Ring Tones ..........................54
Entering Text ............................................55
Using Alpha Mode...........................................55
Using Word Mode ...........................................55
Special Function Keys.....................................56
Using Numeric Mode.......................................57
Using Symbols Mode ......................................57
Messages ..................................................58
Message Notifications .....................................58
Message Center..............................................59
iii
Voice Mail Messages............................... 60
Receiving a Message......................................60
Accessing Voice Mail from
the Message Center ...................................60
Sending Unanswered Calls to Voice Mail .......60
MOSMS Messages................................... 61
Setting Up........................................................61
Receiving a Message......................................61
Reading from the Message Center .................62
Creating and Sending Messages ....................62
Managing Memory...........................................66
Advanced Features.................................. 67
Group Calls, Talkgroups, and Hubs ................67
Emergency Group Calls ..................................69
Isolated Operation ...........................................70
Call Alert Status Messages .............................71
Java Applications .................................... 72
Installing Applications......................................72
Running Applications.......................................72
Suspending Applications .................................72
Resuming Applications....................................73
Ending Applications.........................................73
Downloading Applications...............................73
Deleting Applications.......................................73
Managing Memory ..........................................74
Shortcuts on the Main Menu ...........................74
Java Applications and GPS Enabled ..............75
GPS Enabled.............................................78
IMPORTANT: Things to Keep in Mind ............78
Making an Emergency Call .............................79
Viewing Your Approximate Location ...............80
Enhancing GPS Performance .........................81
Updating Satellite Almanac Data ....................83
Setting Privacy Options...................................83
Using GPS with Map Software........................84
Voice Records ..........................................87
Creating Voice Records ..................................87
Playing Voice Records ....................................87
Labeling Voice Records ..................................88
Deleting Voice Records...................................88
Locking Voice Records ...................................88
Managing Memory ..........................................88
i
v
Customizing Your Phone........................ 90
Setting the Volume..........................................90
Setting Your Phone to Not Ring ......................90
Seeing the Display Better................................91
Using Settings .................................................91
Profiles ..................................................... 95
Viewing Profiles...............................................95
Switching Profiles............................................95
Surveillance Profile..........................................96
How Changing Settings Affects Profiles..........96
Temporary Profiles..........................................97
Creating Profiles..............................................97
Editing Profiles ................................................98
Deleting Profiles ..............................................98
Setting Call Filtering ........................................98
Shortcuts................................................ 100
Creating a Shortcut .......................................100
Using a Shortcut............................................100
Editing a Shortcut..........................................101
Deleting Shortcuts .........................................101
Using a Headset .....................................102
Attaching a Headset......................................102
Using a Remote PTT Button .........................102
Understanding Status Messages..........103
Safety and General Information ............105
RF Operational Characteristics .....................105
Portable Radio Product Operation and EME
Exposure...................................................105
Electro Magnetic Interference/Compatibility..108
Medical Devices ............................................108
Operational Warnings ...................................109
Operational Cautions ....................................110
Intrinsically Safe Radio Information...............111
Accessory Safety Information .......................114
v
MOTOROLA LIMITED WARRANTY ...... 116
Limited Warranty
Motorola Communication Products
(International) ..................................... 120
Patent and Trademark Information ...... 124
Index ....................................................... 125
Driving Safety Tips ................................ 130
v
i
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name:
i
325
Model Number: H68XAH6RR1AN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device
complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Note: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency
energy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving
antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
1
Getting Started
audio jack
volume
controls
speaker
(in back)
Push-To-Talk
(PTT) button
microphone
accessory connector
Emergency
Group call
button;
speaker on/off
pPower button.
Navigation key — press the arrows to
scroll through menus and lists.
mMenu key — accesses context-sensitive
menus.
AOption key — selects the option
appearing above it on the display.
sSend key — places phone calls.
eEnd key — ends phone calls; returns to
idle screen.
2
Getting Started
To start using your
i
325 phone:
•Make sure your SIM card is in place.
•Charge the battery.
•Activate your service.
•Enable security.
Removing the Battery Door
1Make sure the phone is powered off. See
“Powering On and Off” on page 6.
2Slide the release button forward until it releases
the battery door.
Note: If the release button does not slide
forward to release the battery door, rotate
the circular piece in the center of the
releasebuttontounlockit.
3Remove the battery door from the back of your
phone.
release
button
speaker
3
Locating Your SIM Card
Locating Your SIM Card
Your SIM (Subscriber Identity Module) card is a
small piece of plastic located in the SIM card
holder in the back of your phone, underneath the
battery.
If your SIM card is not in the SIM card holder, it
may be in the box your phone came in, attached to
a piece of plastic about the size of a credit card. If
this is the case, carefully detach your SIM card
from the surrounding plastic and insert it as
described in “Inserting Your SIM Card” on page 14.
If there is no SIM card in your phone or the box,
contact your service provider.
Battery
Inserting the Battery
1Remove the battery door.
2Insert the top of the battery into the battery area.
Press the bottom of the battery to secure it.
3Replace the battery door and press it gently until
you hear a click.
SIM card
holder
SIM card
4
Getting Started
4If you want to ensure the battery door does not
accidentally come off, rotate the circular piece in
the center of the release button to lock it.
Charging the Battery
Your phone comes with a standard travel charger.
1Plug the charger into an electrical outlet.
2Open the connector cover.
3Plug the other end of the charger into the
accessory connector.
Charger Attached appears on the display.
Tip: To remove the charger from the accessory
connector: Press the buttons on the sides
of the plug. Pull the plug straight out.
4When charging the battery for the first time,
charge for 30 minutes longer than the time
shown in “Charging Times” on page 5.
connector cover
5
Locating Your SIM Card
Charging Times
See your battery and charger to determine the
appropriate charging time.
For best results, charge the batteries within the
temperature range of 50°F to 104°F (10°C to
40°C).
Prolonged charging is not recommended.
Removing the Battery
1With the phone powered off, remove the battery
door.
2Remove the battery by pushing the battery
toward the antenna and lifting it out.
Battery Use and Maintenance
•The Motorola iDEN Approved Lithium Ion
chargers provide optimum performance. Other
chargers may not fully charge the iDEN Lithium
Ion battery or may yield a reduced number of
lifetime charge cycles.
•Extreme temperatures degrade battery
performance. Do not store the battery where
temperatures exceed 140°F (60°C) or fall below
4°F (-20°C).
•Lithium Ion batteries have a self discharge rate
and without use, lose about 1% of their charge
per day.
•The battery capacity is degraded if the battery is
stored for long periods while fully charged. If
long term storage is required, store at half
capacity.
Battery Charger
Rapid Mid-Rate
High
Performance 2hours 4hours
Extra
Capacity 2.5 hours 6 hours
Maximum
Capacity 3.5 hours 7.5 hours
6
Getting Started
Activating Service
The first time you power on your phone, you must
be in your local calling area. This activates your
service.
Antenna
Attach the phone antenna before using your
phone. The antenna must be screwed in
completely for proper operation and water
resistance.
Attaching the Antenna
1Place the antenna into the antenna socket.
2Press and turn antenna clockwise until it will no
longer turn.
Removing the Antenna
1Grip the antenna firmly and turn it
counter-clockwise until it is loose.
2Remove the antenna from the antenna socket.
Maintaining Durability
To maintain the water resistant nature of your
phone:
•Attach the phone antenna before using your
phone.
•Always reinsert the audio jack cover and bottom
connector cover.
Powering On and Off
To power your phone on:
Press p.
To power your phone off:
Press and hold p.
When You Power On for the First Time
The first time you power your phone on, a screen
may appear asking you to update your browser
information. This means you must enable security.
antenna
socket
7
Enabling Over-the-Air Security
If the Enter SIM PIN Code screen appears, enter
your SIM PIN. See “Entering the PIN” on page 12
.
Press Aunder Ok.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card (see “Changing the PIN” on page
12).
As your phone connects to the network, you will
see a connecting message. When the idle screen
appears, the phone is ready to use.
Enabling Over-the-Air
Security
If you are set up to receive over-the-air
programming from your service provider, you must
enable security the first time you power on your
phone or within 20 days of first activation of your
phone:
1When you power on your phone for the first time,
after the idle screen appears, you will be
prompted to select Ok to update your browser
information.
Note: If you press Aunder Later,youwillbe
prompted to enable security each time
you power on your phone until you press
Aunder Ok.
2Press Aunder Ok.
3You are prompted to enable security. Press A
under Yes. A series of screens appears. If you
subscribe to your service provider’s plan, your
home page appears.
4Press eto return to the idle screen.
Within 24 hours of enabling security, you will
receive a Net alert containing your Private ID and
Talkgroup lists for Private calls.
b
8
Getting Started
To accept programming:
1When you receive a Net alert saying New
Browser Message - Receive Programming
Info,pressAunder Goto.
2You are prompted to accept changes to your
lists. Press Aunder Ok.
3If you are prompted again to accept changes to
your lists, press Aunder Ok.
4A confirmation screen displays. Press Aunder
Ok.
5Press eto return to the idle screen.
Finding Your Phone Number
My Info lets you view your phone number, Private
ID, and other phone information:
1Press mto access the main menu.
2Scroll to My Info.
3Press Aunder Select.
4Scroll to see your information:
•Name— Enter your name. See “Entering
Text”onpage55.
•Line1and Line 2 — your phone numbers for
phone lines 1 and 2. These are filled in when
you receive your first phone call after enabling
over-the-air security on your phone.
•PrivateID— Your Private ID is the number
that others use to contact you using Private
calls. It is filled in when you receive your first
Private call.
•GroupID— the number of the Hub you have
joined.
• Carrier IP — the IP address assigned to your
serviceprovider.Itisfilledinwhenyou
register for packet data services.
• IP1 Address and IP2 Address —theIP
addresses you use to access the Internet with
your phone.
•Ckt— Your circuit data number is the number
youuseifyouwanttouseyourphoneto
transfer circuit data. See “Using Your Phone
as a Modem” on page 47. You receive this
number from your service provider.
Note: The context-sensitive menu under My Info
contains information that may be used by
your service provider if there is a problem
with your phone.
9
Phone Basics
Phone Basics
Any time your phone is powered on, the display
provides you with information and options.
The screen shown above is the idle screen. The
text that appears on your idle screen depends on
your service provider. The idle screen appears
when your phone is on, but not engaged in any
activity.
Text Area
This area displays menus, messages, names,
phone numbers, and other information.
Display Options
Two display options appear at the bottom of most
screens. You select a display option by pressing
theoptionkeybelowit.
Menus and Lists
Your phone’s features are arranged in menus,
submenus, and lists.
Toaccesstheitemsinamenuorlist,scrollusing
the navigation key at the top of your keypad. This
key lets you scroll up, down, left, or right. Holding
down the appropriate part of the navigation key
speeds up scrolling.
In this guide, this symbol >tells you to select a
menu or list item. For example, Settings >
Security means:
1Scroll to Settings on the main menu.
2Press Aunder Select to see the Settings
screen.
3Scroll to Security.
4Press Aunder Select to see the Security
screen.
b
status icons
text area
menu icon
display options
10
Getting Started
Menu Key
Many features provide context-sensitive menus
that let you access related features and actions.
The Sicon appears any time a context-sensitive
menu is available. Press mto access the menu.
Main Menu
All your phone’s features can be accessed through
the main menu. When you are using a feature, the
icon for that feature appears in the upper left
corner of the display.
aNet Browse the Web.
jJava Apps Java applications on your
phone. See page 72.
sSettings Customize your phone.
Seepage90.
vVoiceRecord Record and play audio
messages. See page 87.
CContacts View,store,editcontacts.
Seepage32.
eMessages Access messages. See
page 58.
fCall Forward Set call forwarding
options. See page 39.
gMemo Store a number to access
later.Seepage50.
hCall Timers Phone usage information.
Seepage46.
iRecent Calls Lists recent calls. See
page 30.
cShortcuts Create shortcuts to
screens. See page 100.
PProfiles Groups of settings you
apply together. See
page 95.
jMy Info View personal phone
information, including
phone number and Private
ID. See page 8.
kCall Alert Lists call alerts. See
page 28.
gGPS Find your approximate
geographical location. See
page 78.
mRing Tones Assign ring tones and turn
ringer off. See page 51.
11
Phone Basics
Status Icons
Status icons appear in the two rows at the top of
the display. Some appear at all times. Others
appear only when your phone is engaged in certain
activities or when you have activated certain
features.
VVoice Recog Used with voice-activated
dialing and shortcuts. See
page 20 and page 100.
mMOTOtalk/MT
Options Launch/Exit MOTOtalk
Access MOTOtalk Setup
and Help. See page 22.
abcd
efgd
Battery Strength —Morebars
on the battery indicate a greater
charge.
opqr
sSignal Strength — More bars
next to the antenna indicate a
stronger signal.
APhone In Use — Your phone is
active on a phone call.
BPrivate In Use — Your phone is
active on a Private call.
CTalkgroup In Use — Your phone
is active on a group call.
12 Active Phone Line —1indicates
phone line 1 is ready to make
calls; 2 indicates phone line 2 is
readytomakecalls.
mMOTOtalk — Your phone is set
to MOTOtalk mode.
SScan — Your phone is set to
receive Group calls from all the
Talkgroups in a Hub.
TTalkgroup Icon — Your phone is
active as a group call
eEmergency Group Call —Your
phone is active on an Emergency
Group call.
GHI
JKL Call Forward — Your phone is
set to forward calls. See “Call
Forwarding” on page 39.
uvMR Ringer Off — Your phone is set
not to ring. See “Turning Ring
Tones Off” on page 51.
wy xMessages —Youhaveoneor
more messages. See “Messages”
on page 58.
12
Getting Started
SIM Card Security
Your SIM card protects your personal information.
The SIM card stores all your Contacts information.
Since this information is stored on your SIM card,
not in your phone, you can remove the information
by removing your SIM card.
Note: Except for making emergency phone
calls, your phone will not function without
the SIM card.
To prevent unauthorized use of your phone, your
SIM card is protected by a PIN that you enter each
time the phone is powered on. You can change the
PIN or turn off the requirement that it be entered.
Entering the PIN
You may be required to enter a SIM PIN when you
first use your phone.
When you receive your phone, the SIM PIN is
0000. Change your PIN to prevent fraudulent use
of the SIM card.
Important: If you enter your PIN incorrectly 3 times,
your SIM card is blocked. To unblock
your SIM card, you must contact your
service provider. See “Unblocking the
PIN” on page 13.
1When the Enter SIM PIN Code screen appears,
enter your SIM PIN. An asterisk appears for
each character entered.
2Press Aunder Ok.
Changing the PIN
1From the main menu, select Settings >
Security > Change Password > SIM PIN.
2At the Enter Old SIM PIN Code screen, enter
the current SIM PIN.
3Press Aunder Ok.
4At the Enter New SIM PIN Code screen, enter
thenew4to8-digitSIMPIN.
5Press Aunder Ok.
DInternet — You are ready to
browse the internet.
YZ Packet Data — You are ready to
transfer packet data or are
transferring packet data. See
“Using Your Phone as a Modem”
on page 47.
PRoaming — You are using your
phone outside your carrier's
network.
13
SIM Card Security
6At the Re-enter New SIM PIN Code screen,
re-enter the new SIM PIN to confirm.
7Press Aunder Ok.
Turning the PIN Requirement On and
Off
When the SIM PIN requirement is on, you are
prompted to enter your PIN each time you turn on
your phone.
Note: If a SIM PIN is required, your phone will
not function until the SIM PIN is entered,
except for making emergency phone calls.
When the PIN requirement is off, your phone can
be used without entering a PIN.
Important: When the SIM PIN requirement is off,
the personal data on your SIM card is
not protected. Anyone can use your
phone and access your personal data.
1From the main menu, select Settings >
Security > SIM PIN.
2Select On or Off.
3Enter the current SIM PIN.
4Press Aunder Ok.
Unblocking the PIN
If you enter your PIN incorrectly 3 times, your SIM
card is blocked. To unblock your SIM card, you
must contact your service provider to get a PIN
Unblock Code (PUK).
Important: If you unsuccessfully enter the PUK
code 10 times, your SIM card is
permanently blocked and must be
replaced. If this happens, all data is
lost. You will get a message to contact
your service provider. Except for
making emergency phone calls, your
phone will not function with a blocked
SIM card.
To unblock the PIN:
1Press *#m1.
2At your service provider representative’s
request, provide the information needed to give
youaPUKcode.
3Select Unblock PIN.
4Enter the PUK code.
5Enteranew4to8-digitSIMPIN.
6Re-enter your SIM PIN.
If you entered the codes properly, SIM Unlocked
appears on the display.
14
Getting Started
Inserting and Removing Your SIM
Card
Important: Do not touch the gold-colored areas of
your SIM card.
Switching SIM Cards
Moving your SIM card from one phone to another
moves all your Contacts information, but erases
other information. If you remove your SIM card and
use it with another phone, or use another SIM card
with your phone, the following information is
erased:
•The recent calls list
•Call forwarding settings
•Net alerts
•Mobile originated text messages, drafts, and
quick notes
•InformationstoredinMemo
•3 most recent GPS Enabled locations
•Voice records
•Voice names
Inserting Your SIM Card
With your phone powered off, remove the battery
door and battery. See “Removing the Battery” on
page 5.
1Hold your SIM card as shown. Do not touch the
gold-colored area.
2Carefully slide your SIM card into your phone,
until it lies flat in the SIM card holder.
cut corner
SIM card
holder
15
Locking the Keypad
Removing Your SIM Card
Important: To avoid loss or damage, do not remove
your SIM card from your phone unless
absolutely necessary.
1With your phone powered off, remove the
battery door and battery.
2While holding the tab down, slide your SIM card
out of the SIM card holder.
Note: Protect your SIM card as you would any
delicate object. Store it carefully.
Locking the Keypad
Locking the phone’s keypad prevents its buttons
from being pressed. When the keypad is locked,
you can only:
•Power the phone on and off
•Unlock the keypad
•Respond to incoming calls, messages, and
alerts
Important: Emergency phone calls cannot be
placed while the keypad is locked.
To lock the keypad:
1From the idle screen, press m.
2Press *.
If you press a key while the keypad is locked,
instructions for unlocking the keypad display
briefly.
To unlock the keypad:
1From the idle screen, press m.
2Press *.
While the keypad is locked, you can respond to
incoming calls, messages, and alerts just as you
do when the keypad is not locked. When finished,
press eto return to the idle screen. The keypad
remains locked.
tab
SIM card
holder
16
Getting Started
Accessories
To order accessories, log on to our Web site at
www.motorola.com/store/iden or contact your
Motorola Authorized Retailer.
For More Information
If you have questions about your
i
325 phone,
contact your sales representative or your service
provider.
17
Making Calls
Your
i
325 phone makes two types of calls: digital
cellular phone calls and Private calls. With Private
calls, you use your phone as a long-range, digital
walkie-talkie.
Phone Calls
1Enter the number you want to call.
2Press sto place the call.
3Press eto end the call.
Private Calls
1Enter the Private ID you want to call.
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
a chirping sound.
3Release the PTT button to listen.
Tip: To let someone know you want to talk to
him or her on a Private call, send a call
alert. See “Call Alerts” on page 28.
Receiving Calls
Phone Calls
When you receive a phone call, your phone rings,
vibrates, or lights up its backlight.
Answering
Press s.-or-
Press Aunder Yes.-or-
Press any number key.
To answer a call by pressing any number key, you
must have the Any Key Ans feature turned on (see
“Phone Calls Features” on page 91).
SendingtoVoiceMail
Press e.-or-
Press Aunder No.
Ending
Press e.
Private Calls
When you receive a Private call, your phone emits
a chirping sound or vibrates.
Answering
1Wait for the caller to finish speaking.
18
Making Calls
2Press and hold the PTT button on the side of
your phone. Begin talking after your phone emits
a chirping sound.
3Release the PTT button to listen.
Call Icons
When you make a call, call icons appear in the text
area of the phone’s display.
When you miss a call, this icon appears in the text
area:
Ways to Enter Calls
To enter the number you want to call, you can:
•Use the numbers on the keypad
•Select the number from the recent calls list
•Select the number from Contacts
•Redial the last phone number called
•Sayavoicenameintoyourphone
•Use Speed Dial or Turbo Dial®
•UseOneTouchPTTtomakeaPrivatecall
•Use a TTY device — see “Making TTY Calls” on
page 48
From the Keypad
To enter the number you want to call, press the
numbers on the keypad.
Ifyoumakeamistake:
•To clear a digit, press Aunder Delete.
•To clear all digits, press and hold Aunder
Delete.
•To insert or delete a digit anywhere in the string
of digits you have entered, scroll left or right.
•To cancel, press e.
From the Recent Calls List
The recent calls list stores the last 20 calls you
made or received, except Emergency Group calls.
XPlacing a phone call.
WReceiving a phone call.
YPhone call is active.
ZPhone call is on hold.
UPhone call ended.
VYou missed a phone call.
19
Ways to Enter Calls
To select a number from the recent calls list as the
number you want to call:
1From the idle screen, scroll down. -or-
From the main menu, select Recent Calls.
2Scroll to the name or number you want to call.
From Contacts
If you have numbers stored in Contacts, you can
use these numbers to make calls. For information
on entering numbers into Contacts, see “Creating
Entries” on page 34.
Calling from the Contacts List
1From the main menu, select Contacts.
2Scroll to the name or number you want to call.
Tip: To find Contacts entries faster, use the
keypad to enter the first letter of the name.
3Place the call now. -or-
Scroll left or right to display the Contacts type for
the number you want to call.
If you are making a Private call, your phone places
the call to the Private ID stored in the Contacts
entry, even if the Private icon is not displayed.
Ifyouaremakingaphonecall:
•Your phone places the call to the phone number
assigned to the Contacts type displayed.
•If the Contacts type displayed is not a phone
number, your phone places the call to the phone
number stored in the Contacts entry.
•If the Contacts type displayed is not a phone
number and you have more than one phone
number stored in the Contacts entry, your phone
prompts you to select the phone number you
want to place the call to.
Calling from a Contacts Entry
1From the main menu, select Contacts.
2Scroll to the name or number you want to call.
3Press Aunder View.-or-
If View is not one of your options: Press m.
Select View.
4Place the call now. -or-
Scroll to view more numbers. When you place
the call, it is made to the number displayed.
Redialing the Last Number
Press and hold sto place a call to the last phone
number you called.
20
Making Calls
Using a Voice Name
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
If you have created a voice name in Contacts for
the number you want to call, you can say the voice
name into your phone to enter the number. See
page 33 for more information about voice names.
To use a voice name:
1Press and hold tuntil a prompt appears telling
you to say the voice name.
2Speaking into the microphone, say the voice
name assigned to the number you want to call.
Your phone plays the name back to you.
If you are making a phone call, the call is placed
automatically.
Tip: To stop a phone call from being completed,
press e.
IfyouaremakingaPrivatecall,pressandholdthe
PTTbuttontoplacethecall.
Using Speed Dial and Turbo Dial®
Each phone number stored in Contacts is assigned
a Speed Dial number which you can use to enter
that number.
Speed Dial
1From the idle screen, use the keypad to enter
the Speed Dial number assigned to the phone
number you want to call.
2Press #.
3Press s.
Turbo Dial
From the idle screen, press and hold the Speed
Dial number (1 through 9) assigned to the phone
number you want to call.
Using One Touch PTT®
One Touch PTT sets your phone to call the most
recent Private ID on the recent calls list, or a
Private ID you choose, every time you press the
PTT button. See “Setting One Touch PTT” on page
44.
Using Speakerphone
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
Turning on speakerphone makes incoming sound
come out of the phone’s speaker instead of the
earpiece. Speakerphone is available whenever you
areonanactivephonecall.
21
Using Mute
To turn speakerphone on or off:
Press under Aunder Spkr. -or-
Press t.
Using Mute
Muting calls lets you listen to incoming sound
without transmitting sound. Mute is available
whenever you are on an active call.
To turn mute on:
Press Aunder Mute.
Whilemuteison,Unmute appears as a display
option.
To turn mute off:
Press Aunder Unmute.
Making Emergency Phone
Calls
Your phone supports emergency calling.
Emergency phone calls can be made even when
your SIM card is blocked or not in your phone.
Dial 911 to be connected to an emergency
response center. If you are on an active call, you
must end it before calling 911.
When you make an emergency call, your phone’s
GPS Enabled feature can help emergency service
personnel find you, if you are in a location where
your phone's GPS antenna has established a clear
view of the open sky and your local emergency
response center has the equipment to process
location information. See “GPS Enabled” on page
78, and particularly “IMPORTANT: Things to Keep
in Mind” on page 78 and “Making an Emergency
Call” on page 79, for more information on the
limitations of this feature. Because of the
limitations of this feature, always provide your best
knowledge of your location to the emergency
response center when you make an emergency
call.
Important: Emergency phone calls cannot be
placed while the keypad is locked.
Important: If you have not registered on the
network, emergency calls cannot be
placed while your SIM card is in your
phone.
22
MOTOtalkTM
MOTOtalk allows direct two-way phone-to-phone
communications between two or more phones
equipped for MOTOtalk. You can make and
receive MOTOtalk calls even when network service
is not available. You can talk to anyone on your
code and channel within your range.
Note: Range will vary based on terrain,
man-made structures and atmospheric
conditions.
MOTOtalk allows you to:
•Use code or private mode operation
•Useupto10channels
•Communicate with standalone MOTOtalk radios
Note: MOTOtalk is not compatible with older
Family Radio Services products.
The following features and main menu items will
notbeavailablewhileinMOTOtalk:
•On-network phone calls
•On-network Private calls
•Data transmission
•Incoming message notification
•Musical ring tones
•Call forwarding
•Messages
•Call Timers
•Call alerts
•Voice records
Using MOTOtalk
To set your phone to MOTOtalk:
1From the main menu, scroll to MOTOtalk and
press Aunder Select.
2Select Go to MOTOtalk.
Switching to MOTOtalk Please Wait displays.
After a few seconds, the MOTOtalk idle screen
appears. MT Ready appears on the first line of the
display. The code you are set to appears on the
second line of the display. The channel you are set
to appears on the third line of the display.
Note: When switching from the network to
MOTOtalk, the last channel and code that
were set appear on the MOTOtalk idle
screen.
While in MOTOtalk, this icon mappears on the
display, indicating that there is no network signal
and MOTOtalk is active.
23
Channels and Codes
Exiting MOTOtalk
To set your phone to network mode when
MOTOtalk is active:
1From the MOTOtalk idle screen, press m.
2Scroll to MT Options and press Aunder
Select.
3Select Exit MOTOtalk.
SwitchingtoNetworkPleaseWaitdisplays. After
a few seconds, the network idle screen appears.
Talk Range
Phones used in MOTOtalk mode should be a
minimum of 6 feet apart to maximize performance
and improve transmission range.
Channels and Codes
Your phone has 10 channels and 15 codes.
Channels are divided into sets of frequencies that
allow you to make and receive MOTOtalk calls.
Other parties may also be talking on the same
channel.
Codes help minimize interference from unwanted
messages and other disturbances when you are on
the same channel as others.
To have a conversation, all parties must be on the
same channel and code. For private MOTOtalk
calls, the person you are calling must be in
MOTOtalk and set to the same channel to receive
your call.
Note: When making a code call, all parties that
are on your code and channel can hear
your conversation.
To set a channel:
1From the MOTOtalk idle screen, press Aunder
Edit.
2Scroll to Channel.
3Press Aunder Edit.
4Select a channel.
5When you are finished, press Aunder Back to
return to the MOTOtalk idle screen.
To set a code:
1From the MOTOtalk idle screen, press Aunder
Edit.
2Scroll to Code.
3Press Aunder Edit.
4Select a code.
5When you are finished, press Aunder Back to
return to the MOTOtalk idle screen.
24
MOTOtalkTM
Making and Receiving Code Calls in
MOTOtalk
TomakeacodecallinMOTOtalk:
1Press and hold the PTT button. MT Transmit
appears on the first line of display. Begin
speaking after your phone emits the MOTOtalk
tone.
2Release the PTT button to listen.
The tone emitted from your phone when using
MOTOtalk is 4 beeps and sounds different from the
standard tone heard with on-network Private and
group calls.
If you receive an error message:
•There may be no parties on your channel or
code.
•Youareoutofrange.
When you receive a code call using MOTOtalk, MT
Receive appears on the first line of the display.
Note: An incoming MOTOtalk call can be
terminated at any time by pressing e.
Receive All
You can set your phone to receive MOTOtalk
transmissions from any phone that is set to the
same channel, regardless of the code (1-15), by
setting the code to Receive All. When you receive
transmissions with the code set to Receive All,the
display changes from Receive All to the code on
which the transmission was received.
Tip: Youcanreplytoanincomingcallwithin6
seconds after hearing the short ending
beep by pressing the PTT button.
Note: You cannot initiate a code call when the
code is set to Receive All. If you press
the PTT button with the code set to
Receive All, you will receive an error
message.
To set the code to Receive All:
1From the MOTOtalk idle screen, press Aunder
Edit.
2Scroll to Code.
3Press Aunder Edit.
4Select Receive All.
5When you are finished, press Aunder Back to
return to the MOTOtalk idle screen.
25
Private MOTOtalk Calls
Private MOTOtalk Calls
You can have a private conversation with another
person using MOTOtalk. When on a private
MOTOtalk call, no other parties can hear your
conversation. In order to make a private MOTOtalk
Call, you must use the valid 10-digit Personal
Telephone Number (PTN) of the person you are
calling. The person you are calling must be in
MOTOtalk and set to the same channel to receive
your call.
If you receive an error message:
•YoumaynotbeusingavalidPTN.
•The person that you are trying to reach may not
be in MOTOtalk.
•Thepersonthatyouaretryingtoreachissetto
a different channel or is out of range.
Private Only
To limit MOTOtalk to private conversation only, set
your code to Private Only. In this mode, code calls
will be ignored and only private calls can be made
or received.
Note: YouwillberequiredtoenteravalidPTN
before pressing the PTT button.
To set the code to Private Only:
1From the MOTOtalk idle screen, press Aunder
Edit.
2Scroll to Code.
3Press Aunder Edit.
4Select Pvt Only.
Making a Private MOTOtalk Call
1Enter the 10-digit PTN of the person you want to
call on your channel. -or-
ScrolltoanumberornameinContacts.-or-
Scroll to a number in the recent calls list.
2Press and hold the PTT button. Begin speaking
after your phone emits the MOTOtalk tone.
3Release the PTT button to listen.
The number or name of the person you are calling
will appear in the first line of the display.
Receiving a Private MOTOtalk Call
The number or name of the person who initiated
the call will appear in the first line of the display.
Note: You can reply within 6 seconds simply by
pressing the PTT button.
26
MOTOtalkTM
Ending a Private MOTOtalk Call
A private MOTOtalk call will end if there is no
communication for 6 seconds.
Note: A private MOTOtalk call may be
interruptedduringthe6secondidletime
by another code call or private call.
The display will return to the MOTOtalk idle screen.
Emergency Calls Using
MOTOtalk
Emergency phone calls can still be made even
when you are not connected to network service.
Dial 911 to be connected to an emergency
responsecenter.IfyouareonanactiveMOTOtalk
call, you must end it before calling 911.
Setup Options
MOTOtalk setup options are available in the MT
OptionsscreeninbothnetworkandMOTOtalk
modes.
To access Setup Options in network:
1From the main menu, select MOTOtalk.
2Select Setup.
To access Setup Options in MOTOtalk:
1From the main menu, select MT Options.
2Select Setup.
You can set your phone to:
•Launch directly into MOTOtalk when you select
MOTOtalk from the main menu.
•Notifyyouperiodicallywithatonethatyouarein
MOTOtalk.
Using Direct Launch
To set your phone to launch MOTOtalk when you
select MOTOtalk from the main menu:
1From the Setup screen, scroll to Direct Launch
and press Aunder Change.
2Select On.
Note: If Direct Launch is set to On,youwillnot
see MT Options when you select
MOTOtalk from the main menu. In order
to have access to your setup options,
Direct Launch must be set to Off.Oryou
can access setup options while in
MOTOtalk by pressing mand selecting MT
Options.
27
Setup Options
To turn off Direct Launch:
1From the Setup screen, scroll to Direct Launch
and press Aunder Change.
2Select Off.
Your phone now displays MT Options when you
select MOTOtalk from the main menu.
Using State Tone
To set your phone to notify you with a tone that you
areinMOTOtalk:
1From the Setup screen, scroll to State Tone and
press Aunder Change.
2Select the time frame during which you want to
be notified that you are in MOTOtalk.
For example, if you select 1 hour, you will be
notified every hour that you are in MOTOtalk.
To turn off State Tone:
3From the Setup screen, scroll to State Tone and
press Aunder Change.
4Select Off.
28
Call Alerts
Sending a call alert lets the recipient know you
want to talk to him or her on a Private call.
When you send a call alert, the recipient’s phone
emits a series of beeps, or vibrates, and displays
your name or Private ID.
The recipient can:
•Answer — begin a Private call with the sender
•Queue — store the call alert to the call alert
queue, which is a list of call alerts
•Clear — dismiss and delete the call alert
Sending Call Alerts
1Enter the Private ID you want to send to, as you
wouldwhenmakingaPrivatecall.
2Press Aunder Alert.Ready to Alert appears
on the display.
3Press the PTT button until Alert Successful
appears on the display.
Note: If the alert is not successful, this may
meanthepersonyouaretryingtoreachis
on a call or has the phone turned off.
Receiving Call Alerts
When you receive a call alert, you must answer,
queue, or clear it. You cannot receive phone calls
or Private calls until you do.
To answer a call alert, press the PTT button to
make a Private call to the sender.
To queue a call alert, press Aunder Queue.
To clear a call alert, press Aunder Clear.
Note: The recent calls list also stores call alerts
you have received. They appear as
Private calls. Call alerts remain in your
recent calls list until you delete them or
until they reach the end of the list.
Using the Call Alert Queue
When you queue a call alert, it remains in the call
alert queue until you make a Private call to the
senderordeleteit.
Viewing Call Alerts
1From the main menu, select Call Alert.
2Scroll through the list.
29
Using the Call Alert Queue
Viewing Date and Time
To view the date and time a call alert was received:
1From the main menu, select Call Alert.
2Scroll to the call alert you want information on.
3Press m.
4Select View.
Responding to Call Alerts in the
Queue
After you queue a call alert, you can respond to it
by making a Private call to the sender or sending a
call alert to the sender.
Making a Private Call to the Sender
1From the main menu, select Call Alert.
2Scrolltothecallalertyouwanttorespondto.
3PressthePTTbuttontobeginthecall.
This removes the call alert from the queue.
Sending a Call Alert to the Sender
1From the main menu, select Call Alert.
2Scrolltothecallalertyouwanttorespondto.
3Press Aunder Alert.Ready to Alert appears
on the display.
4Press the PTT button until Alert Successful
appears on the display.
Deleting Call Alerts
To delete a call alert from the queue:
1From the call alert queue, scroll to the call alert
you want to delete.
2Press m.
3Select Delete.
4Press Aunder Yes to confirm.
To delete all call alerts from the queue:
1From the call alert queue, press m.
2From the call alert menu, select Delete All.
3Press Aunder Yes to confirm.
Sorting Call Alerts
Tip: Youmusthaveatleastonecallalertinthe
queue to access this feature.
To sort call alerts by the order they were received:
1From the main menu, select Call Alert.
2Press m.
3Select Sort By.
4Scroll to First on Top or Last on Top.
5Press Aunder Select.
30
Recent Calls
The recent calls list stores the numbers of the 20
most recent calls you have made and received.
To view the recent calls list:
1From the idle screen, press the down arrow on
the navigation key. -or-
From the main menu, select Recent Calls.
2Scroll through the list.
If the number of a recent call is stored in Contacts,
the name associated with the number appears on
the recent calls list.
An icon appears beside the name or number
indicating the Contacts type of the number used in
thecall.See“Contacts”onpage32.
For phone calls, an icon appears to the left of the
name or number giving more information about the
call:
Note: The recent calls list also stores call alerts
you have received. They appear as
Private calls. Call alerts remain in your
recent calls list until you delete them or
until they reach the end of the list.
To get more information on a recent call:
1From the recent calls list, scroll to the call you
want information on.
2Press Aunder View.-or-
If View is not one of your options: Press m.
Select View.
This displays information such as the name
associated with the call, the number, the date,
time, and duration of the call.
Storing Recent Calls to
Contacts
1From the recent calls list, scroll to the number
you want to store.
2Press Aunder Store.-or-
If Store is not one of your options: Press m.
Select Store.
Tip: If Store is not on this menu, the number is
already stored in Contacts.
XA call you made.
WA call you received.
VA missed call. Missed calls appear on the
recent calls list only if you have Caller ID.
31
Deleting Recent Calls
3To store the number as a new entry, select [New
Contact].-or-
To store the number to an existing entry, select
the entry.
4With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number. For information on
Contacts types, see page 32.
5If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 34.
6Press Aunder Done.
Deleting Recent Calls
To delete a call:
1From the recent calls list, scroll to the call you
want to delete.
2Press m.
3Select Delete.
4Press Aunder Yes to confirm.
To delete all calls:
1From the recent calls list, press m.
2Select Delete All.
3Press Aunder Yes to confirm.
32
Contacts
Contacts stores up to 600 numbers or addresses.
Each Contacts entry can store several numbers or
addresses.
InformationstoredinContactsissavedonyour
SIM card.
A Contacts entry contains:
•A name — A name is required if you are storing
more than one number or address to the entry;
otherwise, it is optional. Typically, this is the
name of the person whose contact information is
stored in the entry.
•Aringtone—Youcanassignaringtoneto
each entry. This is the sound your phone makes
when you receive phone calls or call alerts from
any of the numbers stored in the entry.
•A Contacts type — Each number or address
stored must be assigned a Contacts type:
•A number or address — Each Contacts entry
must contain a number or address. This may be
any type of phone number, Private ID, Talkgroup
number, Hub number, email address, or IP
address.
AMobile phone number
BPrivate Private ID
CWork1 phone number
DWork2 phone number
EHome phone number
FEmail email address
GFax phone number
HPager phone number
TTalkgroup Talkgroup number
JIP IP address
KOther phone number
HHub Hub number
33
Viewing Contacts
Note: You can store numbers up to 64 digits
long, but every 20 digits must be
separated by a pause or wait. See
“Creating Pauses and Waits” on page 37.
•A Speed Dial number — When you store a
phone number, it is assigned a Speed Dial
number. You can accept the default Speed Dial
number or change it.
•A voice name — If you create a voice name for a
number, you can then dial that number by
saying the voice name into your phone. This
icon appears Pto the left of the Contacts type
icon if a voice name is assigned.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
Viewing Contacts
To access Contacts:
Press Aunder Contcs.-or-
From the main menu, select Contacts.-or-
Ifyouareonacall:Pressm. Select Contacts.
To view entries:
1From the Contacts list, scroll to the entry you
want to view.
2If an entry has more than one number or
address stored, <> surrounds the Contacts type
icon. Scroll left or right to view the icon for each
number stored in the entry.
3Whentheiconforthenumberoraddressyou
want to view is displayed, press Aunder View.
-or-
If View is not one of your options: Press m.
Select View.
4Scroll to view the other numbers and addresses
stored for the entry.
Tip: To view more entries, continue scrolling.
Searching for a Name
To search for a name in Contacts:
1From the Contacts list, press m.
2Select Search.
3Enter the name you want to see. See “Entering
Text”onpage55.
4Press Aunder Ok.
Your phone finds the name you entered or the
nearest match.
34
Contacts
Showing Only Private IDs and Groups
To set Contacts to show only entries that contain
Private IDs and entries for Talkgroups and Hubs:
1From the Contacts list, press m.
2Select Filter.
3With Prvt/Grp/Hub highlighted, press Aunder
Select.
To set Contacts to show all entries:
1From the Contacts list, press m.
2Select Filter.
3With Show All highlighted, press Aunder
Select.
Creating Entries
A number or address and a Contacts type are
required for all Contacts entries. Other information
is optional. You may enter the information in any
order by scrolling through the entry details.
After you have entered the number or address,
Contacts type, and any other information you want,
you can press Aunder Done to save the entry to
Contacts.
To cancel a Contacts entry at any time press, eto
return to the idle screen.
Tip: In some fields that require you to enter
information, you can begin entering the
information from the keypad instead of
pressing Aunder Change.
To create a Contacts entry:
1To access the entry details screen:
Select Contacts > [New Contact].-or-
From the Contacts list, press m.ScrolltoNew.
Press Aunder Select.
2Ifyouwanttoassignanametotheentry:
With the Name field highlighted, press Aunder
Change.
Enter the name. See “Entering Text” on page
55. When you are finished, press Aunder Ok.
3Ifyouwanttoassignaringtonetothename:
With the Ringer field highlighted, press A
under Change.
Scroll to the ring tone you want to assign. Press
Aunder Select.
4ToassignaContactstypetothenumberor
address being stored:
With the Contacts type field highlighted, press
Aunder Change.
35
Creating Entries
Scroll to the Contacts type you want to assign.
Press Aunder Select.
5To store a number or address:
With the #field highlighted (or ID for an email
address, or IP for an IP address), press A
under Change.
Enter the number or address. For phone
numbers, use the 10-digit format. For email
addresses, see “Entering Text” on page 55.
Tip: Press Aunder Browse to select a number
or address from Contacts, the recent calls
list, or Memo.
When you are finished, press Aunder Ok.
6Ifyouwanttoassignmoreoptionstothe
number, press Aunder Change with the
[Options] field highlighted. See “Assigning
Options”.
7If you want to add more numbers or addresses
to the entry:
Scroll past the information you already entered.
Enter the additional information for the entry
usingstep2throughstep6.Youmustassigna
name to the entry, if you have not already.
8Press Aunder Done.
Assigning Options
1If you have not already, press Aunder Change
with the [Options] field highlighted.
2The default Speed Dial number assigned to a
phone number is displayed in the Speed # field.
This is always the next available Speed Dial
location.
Ifyouwanttoassignthephonenumbertoa
different Speed Dial location:
With the Speed # field highlighted, press A
under Change.
Press and hold Aunder Delete to delete the
current Speed Dial number.
Enter the new Speed Dial number using the
keypad.
When you are finished, press Aunder Ok.
3Ifyouwanttocreateavoicenameforaphone
number, scroll to Voice Name and press A
under Record.
As directed by the screen prompts, say and
repeat the name you want to assign to the
number. Speak clearly into the microphone.
4When you are finished, press Aunder Back.
36
Contacts
Storing Numbers Faster
To store numbers to Contacts from the recent calls
list, see “Storing Recent Calls to Contacts” on page
30.
To store numbers to Contacts from Memo, see
“Memo” on page 50.
To store numbers to Contacts from the idle screen:
1Use the keypad to enter the number you want to
store.
2Press m.
3Select Store Number.
4To store the number as a new entry, select [New
Contact].-or-
To store the number to an existing entry, select
the entry.
5With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number.
6If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 34.
7Press Aunder Done.
Editing Entries
1From the Contacts list, scroll to the entry you
want to edit.
2Press m.
3Select Edit. The entry details screen displays.
4Follow the applicable instructions in “Creating
Entries” on page 34 to edit the various fields.
Deleting Entries
Delete an Entry
1From the Contacts list, scroll to the entry you
want to delete.
2Press m.
3To delete the entire entry, scroll to Delete
Contact.
4Press Aunder Select.
5Press Aunder Yes to confirm.
Delete a Number or Address
1From the Contacts list, scroll to the entry that
contains the number or address you want to
delete.
2Scroll left or right to display the Contacts type for
the number you want to delete.
3Press m.
37
Checking Capacity
4Scroll to Delete Number.
5Press Aunder Select.
6Press Aunder Yes to confirm.
Note: If an entry contains only one number or
address, deleting the number or address
deletes the entry.
Checking Capacity
To see how many numbers are stored in Contacts:
1From the Contacts list, press m.
2Select Capacity.
Creating Pauses and Waits
When storing a number, you can program your
phone to pause or wait between digits while
dialing. A pause makes your phone pause for 3
seconds before dialing further. A wait makes your
phone wait for your response before dialing further.
This feature is useful when using voice mail or
other automated phone systems that require you to
dial a phone number and then enter an access
number.
To program a pause:
Press and hold *until the letter P appears.
The P represents a 3-second pause.
If you store 17035551235P1234, when you select
this number and make a call, your phone dials the
first 11 digits, pauses for 3 seconds, then dials the
last 4 digits.
If you want a pause longer than 3 seconds, press
and hold *more than once. Each P represents a
3-second pause.
To program a wait:
Press and hold *until the letter W appears.
The W means your phone waits before dialing
further.
If you store 17035551235W1234, when you select
this number and make a call, your phone dials the
first 11 digits and then waits. A message appears
asking if you want to send the rest of the digits.
Press Aunder Yes to dial the last 4 digits.
Tip: You can create pauses and waits while
dialing a number from the keypad. See
“Creating Pauses and Waits While Dialing”
on page 44.
International Numbers
Note: This feature may not be offered by your
service provider.
38
Contacts
When storing a number that you plan to use for
international calls, use Plus Dialing:
1Press and hold 0for two seconds. A “0”
appears, then changes to a “+”.
Note: The network translates the “+” into the
appropriate international access code
needed to place the call.
2Enter the country code, city code or area code,
and phone number.
For information about making international calls,
see “Making International Calls” on page 44.
Accessing Contacts with GSM
Phones
Ifyouplantousetheinformationstoredin
Contacts with an
i
2000,
i
2000
plus
, or any other
GSM phone, download iDEN Phonebook Manager.
Go to idenphones.motorola.com/iden/support for
more information.
You can use iDEN Phonebook Manager to make
the Contacts information saved to your
i
325
phone’s SIM card accessible in this type of phone.
39
Call Forwarding
Call forwarding sends calls to the phone numbers
you specify. You can forward all calls to one
number or forward missed calls to different
numbers depending on the reason you missed the
call.
You can forward phone lines 1 and 2
independently.
Forwarding All Calls
When you set your phone to forward all calls, an
icon appears in the top row of the display:
To forward all calls:
1From the main menu, select Call Forward.
2Press Aunder Change.
3Select All Calls.
4Scroll to To.
5Press Aunder Change.
6If you specified a forwarding number for all calls
before, this number displays.
To forward calls to this number, press Aunder
Back.-or-
To delete this number, press Aunder Change,
then press and hold Aunder Delete.
To enter the number you want to forward calls
to:
Enter the number using your keypad. -or-
Press Aunder Search. Select Contacts,
Recent Calls,orMemo. Select the number you
want to enter.
7Press Aunder Ok.
All your calls are now forwarded to the number you
specified.
Tip: In some fields, you can select an option by
scrolling left or right instead of pressing A
under Change.
GPhone line 1 is active; calls to phone line 1
are being forwarded.
HPhone line 1 is active; calls to phone line 2
are being forwarded.
IPhone line 1 is active; calls to phone lines 1
and 2 are being forwarded.
JPhone line 2 is active; calls to phone line 1
are being forwarded.
KPhone line 2 is active; calls to phone line 2
are being forwarded.
LPhone line 2 is active; calls to phone lines 1
and 2 are being forwarded.
40
Call Forwarding
Turning Off Call Forwarding
If you don’t want all your calls forwarded, turn the
feature off:
1From the main menu, select Call Forward.
2Press Aunder Change.
3Select All Calls.
4Scroll to To.
5Press Aunder Change.
6Scroll to Off.
7Press Aunder Select.
All your calls are now sent to your phone.
Calls you miss are forwarded according to the
options set for missed calls. By default, missed
calls are forwarded to voice mail.
Forwarding Missed Calls
You can specify a forwarding number for each type
of missed call:
•IfBusy— Your phone is on a call or transferring
data.
•IfNoAnswer— You do not answer on the first
4rings.
• If Unreachable — Your phone is out of
coverage or powered off.
Note: If you want a type of missed call sent to
voicemail,thecallforwardingnumberfor
that type of missed call must be your
voice mail access number.
Toforwardmissedcalls:
1From the main menu, select Call Forward.
2Press Aunder Change.
3Select Detailed.
4Scroll to If Busy to specify a forwarding number
for calls received when your phone is busy.
5Press Aunder Change.
6If you specified a forwarding number for this type
of call before, this number displays.
To forward calls to this number, press Aunder
Back andgotostep9.-or-
To delete this number, press Aunder Change,
then press and hold Aunder Delete.
7To enter the number you want to forward this
type of call to:
Enter the number using your keypad. -or-
Press Aunder Search. Select Contacts,
Recent Calls,orMemo. Select the number you
want to enter.
8Press Aunder Ok.
41
Viewing Call Forwarding Settings
9Repeat step 4 through step 8 for If No Answer
and If Unreachable.
When you are finished, press Aunder Back.
Viewing Call Forwarding
Settings
1From the main menu, select Call Forward.
2Press Aunder Change.
3Select All Calls.
4Scroll to To.
5Press m.
6Select Retrieve Status.
42
Additional Calling
Options
Call Waiting
Call Waiting lets you receive a second call while on
an active call. Call Waiting is always available,
unless you turn it off for a specific call.
Ifyouareonacallandreceiveasecondcall,your
phone emits a tone and displays a message saying
youarereceivingasecondcall.
To accept the second call and put the active call on
hold:
Press Aunder Yes.
To accept the second call and end the active call:
1Press e.
Your phone rings with the second call.
2Answer the second call.
To decline the second call:
Press Aunder No. If you subscribe to voice
mail, the call is forwarded to your voice mail box,
unless you set Call Forward for If Busy to a
different number.
Switching Between Calls
When you accept a second call, the display shows
the name or number of each call, with an icon
indicating which call is active:
Tomakethecallonholdactiveandputtheactive
call on hold:
Press Aunder Switch.
Turn Off Call Waiting
To turn off Call Waiting during a call:
1Press m.
2Select In Call Setup > Call Waiting.
3Press Aunder Change.
4Scroll to Off.
Tip: To turn Call Waiting back on while still on
the call: Scroll to On.
5Press Aunder Select.
YPhone call is active.
ZPhonecallisonhold.
43
Call Hold
To turn off Call Waiting for the next call you make
or receive:
1From the main menu, select Settings > Phone
Calls > Call Waiting.
2Press Aunder Change.
3Scroll to Off.
4Press Aunder Select.
CallWaitingisturnedbackonwhenyouendthe
call.
Call Hold
Call Hold lets you put an active call on hold and
makeasecondcall.
To put a call on hold:
1Whileonanactivecall,pressm.
2Scroll to Hold.
3Press Aunder Select.
4If you want to make the call active again, press
Aunder Resum.
Tomakeasecondcallwhileacallisonhold:
1Enter the number you want to call.
Tip: To enter the number from Contacts: Press
m. Select Contacts.
2Press sto place the call.
To end the second call and make the call on hold
active again:
Press e.
Tomakethecallonholdactiveandputtheactive
call on hold:
Press Aunder Switch.
Making a 3-Way Call
Note: This feature may not be offered by your
service provider.
1Place or receive a phone call.
2While the call is active, press m.
3Select 3Way. This puts the call on hold.
4Enter the second phone number you want to
call.
Tip: For quick ways to enter the number, press
m.
5Press sto place the call.
6Press Aunder Join.
All 3 people in the call can speak to and hear each
other.
44
Additional Calling Options
Creating Pauses and Waits
While Dialing
You can enter a pause or wait while dialing a
number. For more information on pauses and
waits, see “Creating Pauses and Waits” on page
37.
To create a pause while dialing a phone number:
1From the keypad, enter the digits you want to
occur before the pause.
2Press m.
3Select Insert Pause.
4Enter the digits you want to occur after the
pause.
To create a wait while dialing a phone number:
1From the keypad, enter the digits you want to
occur before the wait.
2Press m.
3Select Insert Wait.
4Enter the digits you want to occur after the wait.
Making International Calls
Note: This feature may not be offered by your
service provider.
Plus Dialing lets you place an international call to
most countries without entering the local
international access code.
1Press and hold 0for two seconds. A “0”
appears, then changes to a “+”.
Note: The network translates the “+” into the
appropriate international access code
needed to place the call.
2Enter the country code, city code or area code,
and phone number.
Setting One Touch PTT
One Touch PTT sets your phone to call the most
recent Private ID or Hub on the recent calls list, or
a Private ID or Hub you choose, every time you
press the PTT button.
To set your phone to call the most recent Private ID
on the recent calls list:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT.
2Scroll to Last Call.
3Press Aunder Select.
45
Group Calls
To set your phone to call a Private ID you choose:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT > Assigned Number.
2To enter the Private ID you want your phone to
call every time you press the PTT button:
Enter the number using your keypad. -or-
Press Aunder Search. Select Contacts,
Recent Calls,orMemo. Select the number you
want to enter.
Tip: If you are entering a Talkgroup number,
enter # before the number.
3Press Aunder Ok.
To turn off One Touch PTT:
1From the main menu, select Settings > 2-Way
Radio > One Touch PTT.
2Scroll to Off.
3Press Aunder Select.
Group Calls
Note: This section describes how group calls
work on phone’s without Advance
Features. If your have Advanced
Features, see “Group Calls, Talkgroups,
and Hubs” on page 67 for a a description
of how group calls work on your phone.
A group call is similar to a Private call, but is made
to all members of a Talkgroup at once. A Talkgroup
is a predetermined group of your service provider’s
customers.
Before you can make or receive group calls, a
Talkgroup must be established. After the Talkgroup
is established, you must join the Talkgroup.
Joining a Talkgroup
Your sales representative or your service provider
establishes Talkgroups for you and assigns each
Talkgroup a Talkgroup number. You can choose a
name for each of your Talkgroups when you create
entries for them in Contacts.
To receive group calls made to a Talkgroup, you
must join the Talkgroup. You can belong to only
one Talkgroup at a time. When you join a new
Talkgroup, you no longer belong to your previous
Talkgroup.
To join a Talkgroup:
1Press #. Then enter the Talkgroup number
using the keypad. -or-
Choose the Talkgroup name from Contacts or
the recent calls list.
2Press Aunder Join.
46
Additional Calling Options
Making Group Calls
1Press #. Then enter the Talkgroup number
using the keypad. -or-
Choose the Talkgroup name from Contacts or
recent calls list.
2Proceed as if making a Private call.
Receiving Group Calls
To answer a group call:
Proceed as if answering a Private call. Only one
person at a time may speak on a group call.
The Private ID or name of the person who is
speaking will appear on the display below the
Talkgroup number.
TurningoffGroupCalls
To control whether you hear group calls to your
Talkgroup:
1From the main menu, select Settings > 2-Way
Radio > Tkgrp Silent.
2Press Aunder Change.
3Scroll to On if you don’t want to hear group calls
to your Talkgroup. -or-
Scroll to Off if you want to hear group calls to
your Talkgroup.
4Press Aunder Select.
Call Timers
Call timers measure the duration of your phone
calls, Private or group calls, and optionally circuit
data use, as well as the number of Kilobytes sent
and received by your phone:
•LastCall— displays the duration of your most
recent phone call.
• Phone Reset — keeps a running total of your
phone call minutes, until you reset it.
• Phone Lifetime — displays the total minutes of
all your phone calls.
• Prvt/Grp Reset — keeps a running total of all of
your Private and group call minutes, until you
reset it.
• Prvt/Grp Lifetime — displays the total minutes
of all your Private and group calls.
• Circuit Reset — keeps a running total of all of
your circuit data use, until you reset it.
• Circuit Lifetime — displays the total minutes of
all of your circuit data use.
• Kbytes Reset — keeps a running total of the
number of Kilobytes sent and received by your
phone, until you reset it.
To view or reset a timer:
1From the main menu, select Call Timers.
2Select the feature you want to view or reset.
47
Using Your Phone as a Modem
3To view a feature without resetting: Press A
under Done when you are finished viewing.
-or-
To reset a feature: Press Aunder Reset.Press
Aunder Yes to confirm.
Note: The values displayed by Call Timers
should not be used for billing. Call timers
are estimates only.
Using Your Phone as a Modem
Note: This feature may not be offered by your
service provider.
To use your phone as a modem with a laptop,
handheld device, or desktop computer:
1Open the connector cover.
2With the phone’s display facing up, insert a data
cable’s connector into the accessory connector,
until you hear a click.
3InsertthedataplugintotheCOMportofthe
other device.
When used as a modem, your phone has these
data transfer modes:
•Circuit data — used for sending and receiving
faxes and for transferring large files
•Packet data — used for small file transfers such
as email
To use these services, you must install the iDEN
Wireless Data Services software (available
separately). For more information on setting up
your computer and your
i
325 phone for packet and
circuit data calls, refer to the
Wireless Data
Services User’s Guide
or contact your service
provider.
Note: Please remember to reinsert the
connector cover after a data session.
connector
cover
48
Additional Calling Options
Making TTY Calls
Note: This feature may not be offered by your
service provider.
To use your phone to make phone calls using a
teletypewriter (TTY) device:
1Connect one end of a 2.5mm cable into the
audio jack on your phone. Connect the other
endofthecabletoyourTTYdevice.
2Make sure that your phone’s TTY feature is on
and select the TTY mode you want to use.
3Use your phone to enter phone numbers and
make calls.
When you make a TTY call, these icons appear on
the phone’s display:
TTY device features such as Turbo-Code,
High-Speed, and Interruption are not supported by
your phone. These features must be turned off or
disabled to use your TTY device with your phone.
Turning On the TTY Feature
Your phone’s TTY feature must be on if you want
to make TTY calls, set the TTY mode, or change
the TTY baud rate. To make sure the TTY feature
is on:
From the main menu, select Settings > Phone
Calls > TTY. This field must say On.
Choosing a Mode
Your phone supports these TTY modes:
•TTY— You type and read text on your TTY
device.
•VCO(Voice-Carry-Over) — You speak into your
phone and read text replies on your TTY device.
• HCO (Hearing-Carry-Over) — You type text on
your TTY device and listen to voice replies on
your phone speaker.
To change mode while not in a call:
1From the main menu, select Settings > Phone
Calls > TTY > Type.
2Press Aunder Change.
3Scroll to the TTY mode you want.
4Press Aunder Select.
When you make a TTY call, the call begins in the
TTY mode you last selected.
NPhone call is active.
OPhone call is on hold.
49
Making TTY Calls
To change mode during a call using your phone:
1Press m.
2Select In Call Setup > TTY > Type.
3Selectthemodeyouwant.
To change mode during a call using your TTY
device, issue one of the following commands:
•“VCO please” — to select VCO mode
•“HCO please” — to select HCO mode
•“HCO off please” — to turn off HCO mode
Important: When you are using HCO, the sound
coming from your phone speaker may
be uncomfortably loud. Use caution
when putting the phone to your ear.
(For information on setting the volume
of your phone speaker, see “Setting the
Volume” on page 90.)
Changing the TTY Baud Rate
By default, your phone’s TTY baud rate is set to
45.45, the baud rate required for TTY calls within
the U.S. To make calls outside the U.S., set your
TTY baud rate to 50.0.
To change the TTY baud rate:
1From the main menu, select Settings > Phone
Calls > TTY > Baud.
2Press Aunder Change
3Scroll to the baud rate for your location.
4Press Aunder Select.
50
Memo
Memoletsyoustoreanumber,makeacalltothat
number, and save it to Contacts.
To create a memo:
1From the main menu, select Memo.
2Enter the number using your keypad.
3Press Aunder Store.
Toviewthememolater:
1From the main menu, select Memo.
To delete the memo:
1From the main menu, select Memo.
2Press and hold Aunder Delete.
3Press Aunder Store.
To edit the memo:
1From the main menu, select Memo.
2Enter the new number.
3Press Aunder Store.
To make a call to the memo number:
1From the main menu, select Memo.
2To make a phone call, press s.-or-
To make a Private call, press the PTT button.
To store the memo number to Contacts:
1From the main menu, select Memo.
2Press m.
3Press Aunder Select.
4To store the number as a new entry, select [New
Contact].-or-
To store the number to an existing entry, select
the entry.
5With the Contacts type field highlighted, scroll
left or right to display the Contacts type you want
to assign to the number.
6If you want to add more information to the entry,
follow the applicable instructions in “Creating
Entries” on page 34.
7Press Aunder Done.
51
Ring Tones
To set the ring tone your phone makes when you
receive phone calls, message notifications, or call
alerts:
1From the main menu, select Ring Tones.
2Make sure VibeAll or is SilentAll set to Off.
3Scroll through the list of ring tones and select the
one you want to assign. Vibrate sets your phone
to vibrate instead of making a sound; Silent sets
your phone to neither vibrate nor make a sound.
Tip: Highlighting a ring tone lets you hear it.
4Press Aunder Assign.
5Scrolltothefeatureyouwanttoassignthering
tone to.
6Press Aunder Select.
Tip: A checkmark next to a feature means the
current ring tone has been assigned to it. To
remove the assignment: Scroll to the
feature. Press Aunder Select.
7To assign the ring tone to other features, repeat
step 5 through step 6.
8When you are finished, press Aunder Done.
Setting Your Phone to Vibrate
If your phone includes a vibrate feature, you can
set your phone to vibrate when you receive phone
calls, Private calls and group calls, messages
notifications, or call alerts.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
TurningRingTonesOff
You can set your phone to make no sound when
you receive phone calls, Private calls and group
calls, messages notifications, or call alerts.
These icons indicate how the ringer is set.
These icons may appear at the same time.
vThe phone always vibrates instead of making
a sound.
RThe phone vibrates instead of making a
sound for phone calls.
MThe phone never vibrates nor makes a
sound; or, the phone neither vibrates nor
makes a sound for phone calls.
uPrvt/Grp speaker set to off.
52
Ring Tones
Never Ring
1From the main menu, select Ring Tones >
SilentAll.
2Scroll left or right to set SilentAll to On.
Always Vibrate Instead of Ringing
If your phone includes a vibrate feature:
1From the main menu, select Ring Tones >
VibeAll.
2Scroll left or right to set VibeAll to On.
Tip: Pressing the volume controls to turn down
the volume as far as possible sets VibeAll
to On.
Do Not Ring for Some Features
To set individual ring options for phone calls,
messages notifications, or call alerts:
1From the main menu, select Ring Tones.
2Make sure VibeAll or SilentAll is set to Off.
3Scroll through the list of ring tones to Silent.-or-
If your phone includes the vibrate feature, scroll
through the list of ring tones to Vibrate.
4Press Aunder Assign.
5Scroll to the feature you want to set to make no
sound.
6Press Aunder Select.
7To assign Vibrate or Silent to another feature,
repeat step 5 through step 6.
8When you are finished, press Aunder Done.
Note: To set ring options for Private calls and
group calls, see “Setting Your Phone to
Not Ring” on page 90.
Ring and Vibrate
To set your phone to ring and vibrate when you
receive phone calls or call alerts:
1From the main menu, select Ring Tones.
2Make sure VibeAll is set to Off.
3Scroll through the list of ring tones and select the
one you want to assign.
4Press m.
5Select Assign w/Vibe.
6Selectthefeatureyouwanttosettoringand
vibrate.
7When you are finished, press Aunder Done.
This icon Sappears on the display.
53
Assigning Ring Tones to Contacts
Assigning Ring Tones to
Contacts
You can set the ring tone your phone makes when
you receive phone calls or call alerts from
someone you have stored in Contacts.
1From the main menu, select Ring Tones.
2Make sure VibeAll or SilentAll is set to Off.
3Scroll through the list of ring tones to the one
you want to assign. Highlighting a ring tone lets
you hear it.
4Press Aunder Assign.
5Select AContact.
6Scroll to the Contacts entry you want to assign
theringtoneto.
7Press Aunder Select.
Viewing Ring Tone
Assignments
1From the main menu, select Ring Tones.
2Make sure VibeAll or SilentAll is set to Off.
3Highlight any ring tone.
4Press m.
5Select Overview.
6Scroll to view ring tones assigned to features
and Contact entries.
Downloading More Ring
Tones
Note: This feature may not be offered by your
service provider.
If you want to use other ring tones, you can
download them into your phone for a fee. Go to
www.motorola.com/idenupdate for a selection of
custom ring tones and downloading instructions.
Note: Ring tones may be downloaded only
once. If you delete a ring tone from your
phone, you must purchase it to download
it again.
Managing Memory
To view the amount of memory available for
custom ring tones:
1From the main menu, select Ring Tones.
2Make sure VibeAll or SilentAll is set to Off.
3Highlight any ring tone.
4Press m.
5Select Memory Usage.
Deleting custom ring tones frees memory.
54
Ring Tones
Note: Ring tones are stored in your phone using
the same memory space used to store
voice records. Deleting voice records
frees memory space for ring tones.
Deleting Custom Ring Tones
To delete a custom ring tone:
1From the main menu, select Ring Tones.
2Make sure VibeAll or SilentAll is set to Off.
3Scroll to the ring tone you want to delete.
4Press m.
5Select Delete.
6Press Aunder Yes to confirm.
55
Entering Text
You can enter text into your phone using the
traditional method of pressing a key several times
for each character, or by pressing a key once for
each letter while words likely to be the one you
want are chosen from a database. You can also
enter symbols and numbers into a text field.
In screens that require you to enter text, you see
the following icons near the top right corner. These
icons tell you which text input mode you are using:
When you access a screen that requires you to
enter text, you start in Alpha mode.
To choose a text input mode:
1At a screen that requires you to enter text, press
m.
2A checkmark appears next to the current text
input mode. Scroll to the text input mode you
want to use.
3Press Aunder Select.
Using Alpha Mode
•Press any key on the keypad to enter the letters,
numbers, and symbols on that key. For example,
to enter the letter Y, press 9three times.
•Type a letter then scroll up to make that letter
uppercase, or type a letter then scroll down to
make that letter lowercase.
•See “Special Function Keys” on page 56 for
more information on adding spaces,
capitalization, and punctuation.
Using Word Mode
In Word mode, T9 Text Input analyzes the letters
on the keypad button you press and arranges them
to create words. As you type, T9 Text Input
matches your keystrokes to words in its database
and displays the most commonly used matching
word. You can add you own words to this
database.
Entering a Word
1Select Word as your text input mode.
lAlpha — Press a key several times for each
character.
jWord — Press a key once for each letter
while words likely to be the one you want are
chosen from a database.
iSymbols — Enter punctuation and other
symbols.
kNumeric — Enter numbers.
56
Entering Text
2Type a word by pressing one key for each letter.
For example, to type “test” press 837
8.
The displayed word may change as you type it.
Do not try to correct the word as you go. Type to
the end of the word before editing.
3If the word that appears is not the desired word,
press 0to change the word on the display to
the next most likely word in the database.
Repeat until the desired word appears.
If the desired word does not appear, you can add it
to the database.
Adding Words to the Database
1Select Alpha as your text input mode.
2Type the word using Alpha mode.
3Select Word as your text input mode.
4Press #.
ThewordyoutypedinAlphatextentrymodeis
now in the database.
Note: You cannot store alphanumeric
combinations, such as Y2K.
Choosing a Language
To change the language of the database:
1At a screen that requires you to enter text, press
m.
2Select Languages.
3Scroll to the language you want for your
database.
4Press Aunder Select.
Special Function Keys
Some of the phone’s keys assume different
functions while in Alpha or Word mode.
Spaces
Press #for a space.
Capitalization
When you press and hold #,itactsasa3-way
toggle. Press and hold #to make the next letter
typed uppercase (shift), to make all subsequent
letters typed uppercase (caps lock), or to go back
to lowercase letters.
57
Using Numeric Mode
These icons appear in the top row of your display:
When neither of these icons appear, letters typed
are lowercase.
Note: Your phone automatically makes the first
letter of a sentence uppercase.
Punctuation
Press 1or 0to insert punctuation. Continue to
press the key to view the list of symbols available
through that key. Pause to select the symbol you
want.
Note: Additional punctuation symbols are
available in Symbols mode.
Using Numeric Mode
1Select Numeric as your text input mode.
2Press the number buttons on your keypad to
enter numbers.
Using Symbols Mode
1Select Symbols as your text input mode.
A row of symbols appears along the bottom of
your phone’s display. Scroll right to view the
complete row.
2Scroll left or right to choose the symbol you want
to enter.
3Press Aunder Select.
mShift is on.
nCaps lock is on.
58
Messages
You can receive the following types of messages
on your phone:
•Voice mail messages
•Short Message Service (SMS) text messages
•Depending on your service provider, you may
have the option to receive fax mail and Net
alerts.
You have 2 ways to access the messages you
receive:
•Respond to the message notification that
appears when the message is received.
•Dismiss the message notification and access
the message later through the message center.
You can listen to or view these messages, delete
them, or continue to store them in the message
center.
Message Notifications
When you receive a message, your phone notifies
youwithtextonthedisplayandanotificationtone
or vibration. You can access the message or
dismiss the notification.
If you dismiss the notification, the message is not
deleted. It can be accessed through the message
center.
If you are not on a phone call when you receive a
message, your phone sounds a notification tone
every 30 seconds until you access the message,
dismiss the notification, or the alert time-out
expires.
Setting Notification Options
To control whether your phone sounds message
notification tones while you are on phone calls:
1From the main menu, select Settings > Phone
Calls > Notifications.
2Choose the option you want:
• Receive All — Tones sound during calls for
all types of messages.
•MsgMailOnly— Tones sound during calls
for SMS messages; tones for all other types
of messages are held until you end calls.
• Delay All — Tones for all types of messages
are held until you end calls.
3Press Aunder Select.
Tip: To set notification options during a call:
Press m. Select In Call Setup >
Notifications.
59
Message Center
Message Center
The message center manages your messages.
All your messages are stored in the message
center. The message center shows how many
messages you have of each type.
To access your messages through the message
center:
1From the main menu, select Messages.
2Scrolltothetypeofmessageyouwantto
access.
3Press Aunder the display option on the left.
60
Voice Mail Messages
Note: To receive voice mail messages, you must
first set up a voice mail account with your
service provider.
Receiving a Message
When you receive a voice mail message, New
Voice Mail Message appears on the display.
To call your service provider’s voice mail system
and listen to the message:
Press Aunder Call.
To dismiss the message notification:
Press Aunder Back.Thisiconyappears
on the display, reminding you that you have a
new message.
Accessing Voice Mail from
the Message Center
1From the main menu, select Messages > Voice
Mail.
2Press Aunder Call to call your service
provider’s voice mail system.
Sending Unanswered Calls to
Voice Mail
Tosendaphonecalltovoicemailinsteadof
answering it:
Press e.-or-
Press Aunder No.
If the caller leaves a message, this icon y
appears on the display, reminding you that you
have a new message.
61
MOSMS Messages
Note: This feature may not be offered by your
service provider.
If your service provider offers MOSMS, your phone
sends SMS messages using MOSMS and receives
SMS messages from other phones that are using
MOSMS.
Setting Up
Before you begin using MOSMS, you may need to
set up your signature, service center number, and
expiration information:
1From the main menu, select Messages.
2Scroll to Text Inbox.
3Press m.
4Select Text Msg Setup.
5With the Signature field highlighted, press A
under Change.
Enter your signature. It may be up to 11
characters long. See “Entering Text” on page
55. When you are finished, press Aunder Ok.
6With the Srvc Cntr No field highlighted, press
Aunder Change.
Enter the phone number of your service center.
If you do not know this number, contact your
service provider.
When you are finished, press Aunder Ok.
7With the Expire After field highlighted, press A
under Change.
This is the amount of time messages you send
are saved if they cannot be delivered. After this
period, they are discarded.
Scroll or press Aunder Qto change field.
When you are finished, press Aunder Done.
8Press Aunder Back to save the information
you entered.
Receiving a Message
When you receive a text message, New Text
Message appears on the display.
To view the message:
1Press Aunder Read.
2If the message fills more than one screen, scroll
to read it.
3To keep the message, scroll to the end of the
message and press Aunder Save.-or-
62
MOSMS Messages
To delete the message, scroll to the end of the
message and press Aunder Delete.
To dismiss the message notification:
Press Aunder Exit.Thisiconwappears on
the display, reminding you that you have a new
message.
If your phone is powered off when you receive a
text message, your phone notifies you the next
time you power it on. If you are out of your
coverage area, your phone alerts you when you
return to your coverage area.
Tip: While reading a text and numeric message
that contains a phone number, you can
press sto call that number.
Reading from the Message
Center
1From the main menu, select Message > Text
Inbox.
2Scroll to the message you want to read.
3Press Aunder Read.
4If the message fills more than one screen, scroll
to read it.
5To keep the message, press Aunder Save.
-or-
To delete the message, scroll to the end of the
message and press Aunder Delete.
Tip: To see more choices, including replying to
the message, press m.
Creating and Sending
Messages
1From the main menu, select Messages > Text
Inbox>[CreateMsg].-or-
From the main menu, select Messages > Text
Outbox > [Create Msg].
2Press Aunder Create.
3To address the message:
Use the keypad to enter the phone number of
the person you want to send the message to.
-or-
Press Aunder Browse.SelectContacts,
Recent Calls,orMemo. Enter the number from
Contacts, the recent calls list, or Memo, as you
wouldwhenmakingacall.
When you are finished, press Aunder Ok.
4Enter the text of the message. See “Entering
Text”onpage55.-or-
To use a quick note: Press Aunder Browse.
Scroll to the quick note you want. Press A
63
Creating and Sending Messages
under Select. For more information on quick
notes, see “Using Quick Notes” on page 64.
If you want to add your signature: Press m.
Select Add Signature.
When you are finished, press Aunder Ok.
5If you want to send the message, press A
under Yes.-or-
If you want to request confirmation of delivery,
specify the type of message you want to send,
save the message as a draft, or delete the
message without sending it, press Aunder No.
6If you want to request confirmation of delivery:
With the Report field highlighted, press A
under Change. Select Yes.
7Ifyouwanttospecifythetypeofmessageyou
want to send:
With the Send As field highlighted, press A
under Change. Scroll to the message type you
want. Press Aunder Select.
8To send the message: Press s.PressAunder
Yes.-or-
To save the message as a draft without sending
it: Press m.ScrolltoSave As Draft.PressA
under Select.-or-
To delete the message without sending it: Press
m.ScrolltoDelete.PressAunder Select.
Tip: In some fields, you can select an option by
scrolling left or right instead of pressing A
under Change.
Beginning Messages From the Recent
Calls List
1From the recent calls list, scroll to the name you
want to send a message to.
2If the entry has more than one phone number
stored, view the phone number you want to send
the message to.
3Press m.
4Select Compose SMS.Themessageis
automatically addressed to the phone number
you chose.
5Follow step 4 through step 8 of “Creating and
Sending Messages” on page 62.
Beginning Messages From the Idle
Screen
1Using the keypad, enter the number you want to
sendamessageto.
2Press m.
64
MOSMS Messages
3Select Compose SMS. The message is
automatically addressed to the phone number
you chose.
4Follow step 4 through step 8 of “Creating and
Sending Messages” on page 62.
Using Quick Notes
Quick notes are short, pre-written text messages
that you can create, edit, and send. You can store
up to 20 quick notes. A quick note may be up to 30
characters long.
To create a quick note:
1From the main menu, select Messages > Quick
Notes > [New Quick Note].
2Press Aunder Create.
Enter text. See “Entering Text” on page 55. -or-
To choose from pre-installed notes: Press A
under Browse. Scroll to the note you want.
Press Aunder Select.
3Press Aunder Store.
Tip: For more options, including sending the
quick note, press m.
Using Drafts
When you save a message as a draft, it is saved in
thedraftsfolder.Youmusthaveadraftsavedto
have a drafts folder.
To edit a draft:
1From the main menu, select Messages > Drafts
Folder.
2Press Aunder Change.
3To edit the fields you want to change, follow
step3throughstep8in“CreatingandSending
Messages” on page 62.
If you have a draft saved, you can create more
drafts in the drafts folder:
1From the main menu, select Messages > Drafts
Folder > [Create Msg].
2Press Aunder Create.
3Followstep3throughstep7in“Creatingand
Sending Messages” on page 62.
4Scroll to Save As Draft.
Using the Outbox
Messagesyouhavesentarestoredintheoutbox.
65
Creating and Sending Messages
These icons appear next to messages in the
outbox:
Resending Messages
To resend a message:
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to resend.
3Press m.
4Select Re-send.
5Press Aunder Yes to confirm.
Deleting Sent Messages
To delete a sent message:
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to delete.
3Press m.
4Select Delete.
5Press Aunder Yes to confirm.
To delete all unlocked sent messages:
1From the main menu, select Messages > Text
Outbox.
2Press m.
3Select Delete All.
4Press Aunder Yes to confirm.
Locking Sent Messages
When you lock a message, it cannot be deleted
until you unlock it.
1From the main menu, select Messages > Text
Outbox.
2Scroll to the message you want to lock or
unlock.
3Press m.
4Scroll to Lock to lock the message. -or-
5Sent and confirmed.
9Send attempted.
0Forwarded.
4Received by addressee.
6Not received by addressee.
8Send failed.
7Re-sent.
RLocked.
66
MOSMS Messages
Scroll to Unlock to unlock the message.
5Press Aunder Select.
Managing Memory
Your text inbox, outbox, and drafts folder have a
set amount of memory available for storing
messages.
The text inbox holds 20 messages. If the text inbox
is full, you cannot receive messages until you
delete some.
The outbox and drafts folder share memory space.
Together they can hold 30 messages. If the outbox
and drafts folder memory is full, you cannot send
messages or save drafts until you delete some.
To view the amount of memory available in your
text inbox:
1From the main menu, select Messages > Text
Inbox.
2Press m.
3Select Memory Meter.
To view the amount of memory available in your
outbox and drafts folder:
1From the main menu, select Messages > Text
Outbox.
2Press m.
3Select Memory Meter.
67
Advanced Features
Note: These features may not be offered by
your service provider.
Group Calls, Talkgroups, and
Hubs
A group call is similar to a Private call, but is made
to all members of a Talkgroup at once. A Talkgroup
is a predetermined group of your service provider’s
customers.
A Hub consists of 1 to 4 Talkgroups. You can make
and receive calls on one of these Talkgroups,
called the primary Talkgroup. You can set your
phone to receive calls, but not make calls, to the
other Talkgroups.
YoumustjoinaTalkgrouptomakeorreceivecalls
on that Talkgroup. On your
i
325 phone, you join a
Talkgroup by joining the Hub it belongs to.
On your
i
325 phone, all group calls you make are
Hub calls. Group calls you receive are Hub calls or
Talkgroup calls to Talkgroups in the Hub you have
joined.
Your sales representative or your service provider
establishes Talkgroups and Hubs for you. You can
choose a name for each when you create entries
for them in Contacts.
Joining a Hub
To make and receive group calls, you must join a
Hub.
WhenyoujoinaHub,youcanmakeorreceive
group calls only with Talkgroups in that Hub. You
canonlybelongtooneHubattime.
To join a Hub:
1Press #. Enter the Hub number using the
keypad. -or-
Scroll to the Hub name in Contacts or recent
calls list.
2Press Aunder Join.
Talkgroups Not in Hubs
If you have a Talkgroup saved to Contacts that is
not in a Hub, you cannot join that Talkgroup from
Contacts or the recent calls list unless you create a
Hub for it in Contacts.
To create a Hub for a Talkgroup:
1Begin creating a new Contacts entry. See
“Creating Entries” on page 34.
68
Advanced Features
2Assign the Hub Contacts type to the entry.
3Assign the Talkgroup number as the number of
the Hub.
This creates a Hub with the same number as the
Talkgroup it contains. You cannot add any more
Talkgroups to this Hub.
You can also join a Talkgroup that is not in a Hub
by pressing #and then entering the Talkgroup
number using the keypad. Your phone treats this
as if you had joined a Hub containing only that
Talkgroup.
Viewing Hub Details
While you belong to a Hub, you can see which
Talkgroups are in it.
1From the recent calls list, scroll to the Hub.
2Press m.
3Select Details.
The primary Talkgroup is shown first, after the Hub
number.
Tip: You can also view this information while in a
Hub call: Press m. Select Details.
Making Group Calls
You make calls using the primary Talkgroup in a
Hub.
1Press #. Enter the Hub number using the
keypad. -or-
Scroll to the Hub name in Contacts or recent
calls list.
2Proceed as if making a Private call.
Receiving Group Calls
To answer a group call:
Proceed as if answering a Private call. Only one
personatatimemayspeakonagroupcall.
When you receive a group call, the following
appears on the screen:
•The name of the Hub
•The name or number of the primary Talkgroup in
the Hub
•The Private number of the person speaking
You can set your phone to receive group calls from
all the Talkgroups in a Hub or only from the primary
Talkgroup. See “Setting Talkgroup Scan” on page
69.
69
Emergency GroupCalls
Setting Talkgroup Scan
To set your phone to receive group calls from all
theTalkgroupsinaHub:
1From the main menu, select Settings > 2-Way
Radio > Scan.
2Press Aunder Change.
3Scroll to On.
4Press Aunder Select.
To set your phone to receive group calls only from
theprimaryTalkgroupinaHub:
Scroll to Off in step 3.
Tip: You can also set this option from Contacts,
from the recent calls list, or after you begin
entering a number using the keypad: Press
m. Select Call Setup > Scan.
TurningoffGroupCalls
To control whether you hear group calls:
1From the main menu, select Settings > 2-Way
Radio > Tkgrp Silent.
2Press Aunder Change.
3Scroll to On if you don’t want to hear group calls.
-or-
Scroll to Off if you want to hear group calls.
Note: Setting Tkgrp Silent to On prevents you
from hearing Emergency Group calls.
Emergency Group Calls
An Emergency Group call is a Hub call that takes
priority over all other phone activities in the phone
making the call and sounds a special emergency
tone in the phones receiving the call.
WhenyoumakeanEmergencyGroupcall,agroup
callismadeusingadesignatedemergencyHubor
the Hub you currently belong to.
A designated emergency Hub must be created for
you by your service provider and is stored on your
SIM card.
If no designated emergency Hub has been created
for you, Emergency Group calls you make are
made using the Hub you currently belong to. If no
designated emergency Hub has been created for
youandyouhavenotjoinedaHub,youcannot
make Emergency Group calls.
Making an Emergency Group Call
Important: Making an Emergency Group call ends
all other activity on your phone,
including 911 emergency calls.
Unlike other group calls, pressing the PTT button
does not start an Emergency Group call. Pressing
Tstarts the call. Pressing the PTT button lets you
begin talking.
70
Advanced Features
To make an Emergency Group call:
1Press and hold Tfor 3 seconds to start the
Emergency Group call.
2Press and hold the PTT button on the side of
your phone to talk. Begin talking after your
phoneemitsachirpingsound.
3Release the PTT button to listen.
ToendanEmergencyGroupcall:
Press and hold Tfor 3 seconds.
An Emergency Group call automatically ends if
there is no activity for 30 seconds.
Emergency Group calls you make do not appear in
the recent calls list.
ReceivinganEmergencyGroupCall
When receive an Emergency Group call, your
phone sounds a special emergency tone, unless
your phone is set to make no sounds.
To answer an Emergency Group call:
Proceed as if answering a Private call.
Emergency Group calls you receive do not appear
in the recent calls list.
Isolated Operation
Isolated Operation lets you continue to make and
receive group calls on the Hub you last used,
within a limited coverage area, even if you lose
network coverage.
When you lose network coverage during a phone
call, Private call, group call, or data transfer, the
call or data transfer ends. But you can make and
receivenewgroupcallsontheHubyoulastused.
If the One Touch PTT settings on your phone
would prevent you from making group calls on the
Hub you last used, these setting are overridden
while your phone is in Isolated Operation.
Important: You cannot make Emergency Group
calls in Isolated Operation, even if the
Hub you last used is the designated
emergency Hub. You must have
network coverage to make Emergency
Group calls.
If the designated emergency Hub is the Hub you
last used when you lost network coverage, your
phone treats the Hub you used before the
designated emergency Hub as the Hub you last
used.
71
Call Alert Status Messages
Call Alert Status Messages
You can send call alerts that include text messages
up to 10 characters long. These messages are
stored on your SIM card when your receive your
phone. There are 10 you can choose from.
If the phone you send the call alert to has this
capability, the text message appears on that phone
when the call alert is received. If the phone you
send the call alert to does not this capability, the
call alert appears without the text message.
Sending a Call Alert Status Message
1Proceed as you would when sending any call
alert.
2When the Ready to Alert screen appears,
choose the text message you want to send:
Scroll left or right to display the message you
want to send. -or-
Press Aunder Select to view all messages and
select the one you want to send. -or-
Press the number on you key pad associated
with the message you want to send. Press 1 and
then 0 to choose message 10.
3Press the PTT button until Alert Successful
appears on the display.
Receiving a Call Alert Status Message
When you receive a call alert that includes a text
message, the text message appears as the part of
ofthecallalertinformationwhenyoureceivethe
call alert and in the recent calls list.
72
Java Applications
Your phone arrives with Java applications loaded
and ready to install. You can download and install
more Java applications.
Note: Using Java applications may cause your
phone to use up more battery power than
other uses of your phone.
Installing Applications
1From the main menu, select Java Apps.
2Scroll to the application or suite of applications
you want to install.
3Press Aunder Install.
Installation messages appear as the application
installs.
4IfyouwanttocreateashortcuttotheJava
application on the main menu: Press Aunder
Next.PressAunder Yes.PressAunder Add.
5Press Aunder Done.
Running Applications
To run an application that has a shortcut on the
main menu:
1From the main menu, select the application or
suite of applications you want to run.
2Ifyouhaveselectedasuiteofapplications,
selecttheapplicationyouwanttorun.
To run an application that does not have a shortcut
on the main menu:
1From the main menu, select Java Apps.
2Scroll to the application or suite of applications
you want to run and press Aunder Run.
3Ifyouhaveselectedasuiteofapplications,
scroll to the application you want to run and
press Aunder Run.
Tip: If you don’t hear the sounds associated with
the Java application, select Settings >
Volume and check the volumes of Java
Speaker and Java Earpiece.
Suspending Applications
When you suspend an application, it does not stop
running. It goes to the background so that you can
run another application in the foreground.
To suspend an application:
Press e.
73
Resuming Applications
To view your suspended applications:
From the Java menu, scroll to Suspended
Apps and press Aunder Open.
You can have up to 3 applications running at one
time — 1 running in the foreground and 2 in the
background.
Resuming Applications
You can resume a suspended application at any
time. This brings it to the foreground.
1From the Java menu, scroll to Suspended
Apps and press Aunder Open.
2Scroll to the application you want to resume and
press Aunder Open.
Ending Applications
Toendanapplication:
1From the main menu, select Java Apps.
2If the application you want to end is part of a
suite of applications, select the suite.
3Scroll to the application you want to end.
4Press m.
5Select End.
Tip: You can also end applications from the
Suspended Apps screen.
To end all applications:
1From the main menu, select Java Apps.
2Scroll to Suspended Apps.
3Press m.
4Select End All.
5Press Aunder Yes.
6If you want to end all applications without letting
them exit, press Aunder EndNow.
Downloading Applications
If you want to run more Java applications, you can
download them into your phone.
Go to www.motorola.com/idenupdate for a
selection of Java applications and downloading
instructions.
Deleting Applications
To delete an application:
1From the main menu, select Java Apps.
2Scroll to the application you want to delete.
3Press m.
4Select Deinstall.
5Press Aunder Yes to confirm.
74
Java Applications
6When your phone has finished deleting the
application, press Aunder Done.
To delete all Java applications:
1From the main menu, select Java Apps.
2Scroll to Java System.
3Press m.
4Select Delete All.
5Press Aunder Yes to confirm.
Managing Memory
To view the amount of memory available for Java
applications:
1From the main menu, select Java Apps > Java
System.
2Press Aunder Next.
3To see more memory information, press A
under Next again.
Deleting Java applications frees memory.
Note: Java application data is stored in your
phone using the same memory used to
store voice records, and ring tones.
Deleting some of these other items frees
memory for Java applications.
Shortcuts on the Main Menu
When you install an application, you can create a
shortcut to the application on the main menu.
Tocreateashortcuttoanapplicationthatis
already installed:
1From the main menu, select Settings >
Personalize > Menu Options > Add/Remove
Apps.-or-
From the main menu: Press m. Select Main
Menu Setup > Add/Remove Apps.
2Scroll to view the list of Java applications. Any
application that has a shortcut on the main menu
has a checkmark next to it.
3Scroll to the application you want to create a
shortcut for.
4Press Aunder Add.
5Press Aunder Done.
Toremoveashortcut:
1From the main menu, select Settings >
Personalize > Menu Options > Add/Remove
Apps.-or-
From the main menu: Press m. Select Main
Menu Setup > Add/Remove Apps.
75
Java Applications and GPS Enabled
2Scroll to view the list of Java applications. Any
application that has a shortcut on the main menu
hasacheckmarknexttoit.
3Scroll to the application you want to remove the
shortcut for.
4Press Aunder Remve.
5Press Aunder Done.
Java Applications and GPS
Enabled
Some Java applications can make use of your
phone’s GPS feature to determine the approximate
geographical location of your phone. (See “GPS
Enabled” on page 78 for more information on the
GPS feature.) However, for privacy reasons, you
may not always want Java applications to access
the location of your phone. Your phone protects
your privacy by giving you the option to block all or
some Java applications from accessing the
location of your phone.
Setting Privacy for All Java
Applications
These options control the privacy of all Java
applications on your phone:
• Restricted — No Java or similar software
applications may access the location of your
phone. However, location information may still
be available to the phone’s owner, fleet
manager, or account administrator.
• Unrestricted — All Java applications may
access the location of your phone, without
notifying you.
•ByPermission— When a Java application
attempts to access the location of your phone,
you are prompted to give permission. However,
location information may still be available to the
phone’s owner, fleet manager, or account
administrator.
See “Setting Privacy Options” on page 83 for
information on choosing these options.
Granting or Denying Permission
If you choose By Permission, you must grant or
deny each Java application access to the location
of your phone when the application requests
access for the first time. You may be required to
grant or deny subsequent requests from the same
application, depending on the privacy setting you
choose for the individual Java application (see
“Setting Privacy for Each Java Application” on
page 76).
76
Java Applications
When a Java application requests access to the
location of your phone, a screen appears informing
you.
To deny this request:
1Press Aunder Deny. The application does not
access the location of your phone.
2Select the denying option you want:
• Always — If the application requests access
to the location of your phone again, the
request is denied without notifying you.
• For this session — If the application
requests access to the location of your phone
again before you power off your phone, the
request is denied without notifying you.
•OnlyOnce— If the application requests
access to the location of your phone again,
you are prompted to grant or deny
permission.
To grant this request:
1Press Aunder Grant. The application accesses
your phone’s location.
2Select the granting option you want:
• Always — If the application requests access
to the location of your phone again, the
request is granted without notifying you.
• For this session — If the application
requests access to the location of your phone
again before you power off your phone, the
request is granted without notifying you.
•OnlyOnce— If the application requests
access to the location of your phone again,
you are prompted to grant or deny
permission.
Setting Privacy for Each Java
Application
After a given Java application requests access to
the location of your phone for the first time, you
have the opportunity to set the GPS privacy option
for that Java application.
1From the main menu, select Java Apps.
2Scroll to the application or suite of applications
youwanttosettheprivacyoptionfor.
If the application has requested access to the
location of your phone,Sappears when you
highlight the application.
3Press m.
4Select Privacy Settings.
5Scroll to Location and press Aunder Change.
6Select the privacy option you want for this
application:
77
Java Applications and GPS Enabled
• Always — The application always has
permission to access the location of your
phone, without notifying you.
•Ask— When the application requests access
to the location of your phone, you are
prompted to grant or deny permission (see
“Granting or Denying Permission” on page
75).
• Never — When the application requests
access to the location of your phone, the
request is denied without notifying you.
78
GPS Enabled
Your phone’s GPS Enabled feature uses
information from Global Positioning System (GPS)
satellites orbiting the Earth to determine the
approximate geographical location of your phone,
expressed as latitude and longitude. The
availability and accuracy of this location
information (and the amount of time that it takes to
calculate it) will vary depending on the environment
in which you are using the GPS feature. For
example, GPS location fixes are often difficult to
obtain indoors, in covered locations, between high
buildings, or in other situations where you have not
established a clear broad view of the sky. SEE:
“IMPORTANT: Things to Keep in Mind”.
When you make a 911 emergency call, the GPS
feature of your phone can help emergency
personnel locate you if your phone has adequate
access to GPS satellite signals and your
emergency response center is equipped to process
such information.
You can also use the GPS feature to view your
approximate location. Location information
appears on the phone’s display.
If your phone is connected to a laptop computer or
similar device, software running on that device can
request your location. To protect your privacy, you
can control whether these requests are granted.
IMPORTANT: Things to Keep
in Mind
If you are using the GPS feature of your phone
while driving, please give full attention to driving
and to the road.
Where adequate signals from multiple satellites
are not available (usually because your GPS
antenna cannot establish a view of a wide area of
open sky), the GPS feature of your phone WILL
NOT WORK. Such situations include but are
not limited to:
• In underground locations
• Inside of buildings, trains, or other covered
vehicles
• Under any other metal or concrete roof or
structure
• Between tall buildings or under dense
tree-cover
• Near a powerful radio or television tower
• When your GPS antenna is covered (for
example, by your hand or other object) or
facing the ground
• In temperature extremes outside the
operating limits of your phone
79
Making an Emergency Call
Walking or driving very slowly may also
substantially reduce GPS performance.
Even where location information can be
calculated in such situations, it may take much
longer to do so, and your location estimate may
not be as accurate. Therefore, in any 911 call,
always report the location to the emergency
response center if you can and if you cannot,
remain on your phone for as long as the
emergency response center instructs you.
Even where adequate signals from multiple
satellites are available, your GPS feature will
only provide an approximate location, often
within 150 feet (45 meters) but sometimes
much further from your actual location. Advice
on how to improve GPS performance is
provided in “Enhancing GPS Performance” on
page 81.
While the GPS feature of your phone can be a
valuable navigational aid, it does not replace the
need for careful navigating and good judgment.
Never rely solely on one device for navigation.
Remember that the accuracy of the location
information and the time needed to obtain it will
vary depending on circumstances, particularly the
ability to receive signals from adequate numbers of
satellites.
On emergency calls, your phone uses assistance
information from the phone network to improve the
speed and accuracy of your phone’s location
calculation: if such assistance information
becomes unavailable, it may reduce the speed and
accuracy of the location calculation.
The satellites used by the GPS feature of your
phone are controlled by the U.S. government and
are subject to changes implemented in accordance
with the Department of Defense GPS user policy
and the Federal Radionavigation Plan. These
changes may affect the performance of the GPS
feature of your phone.
Making an Emergency Call
Dial 911 to be connected to an emergency
response center. If you are on an active call, you
must end it before calling 911.
When you make an emergency 911 call, the GPS
feature of your phone begins to seek information to
calculate your approximate location. It will take
the GPS feature of your phone some time to
determine your approximate location. Even
where your phone has good access to sufficient
GPS satellite signals and network assist data, it
may take 30 seconds or more to determine the
approximate location. This time will increase where
80
GPS Enabled
there is reduced access to satellite signals. When
your approximate location is determined, it is made
available to the appropriate emergency response
center.
In some cases, your local 911 emergency
response center may not be equipped to
receive GPS location information. For this
reason, and because the GPS location information
reported is only approximate or may not be
available in your location (see “IMPORTANT:
Things to Keep in Mind” on page 78), always
report your location to the 911 operator you
speak to when making an emergency call, if able,
just as you would when using a phone without GPS
capabilities.
Note: If you are concerned about whether your
local 911 emergency response center is
equipped to receive GPS location
information, contact your local authorities.
In general, if your phone has access to signals
from more GPS satellites, your location will be
determined faster and more accurately than if your
phone has access to signals from fewer GPS
satellites.
If your phone does not have adequate access to
GPS satellites signals, the location of the nearest
cell tower in contact with your phone is
automatically made available to the emergency
response center, if the center has the capability to
receive such information.
See “Enhancing GPS Performance” on page 81
for information on how to help your phone
determine your location.
Viewing Your Approximate
Location
1From the main menu, select GPS > Position.
2Scroll to view the entire screen.
This displays the following information about the
last time your location was calculated:
•The time (as Greenwich Mean Time) and date
that the location was last calculated.
•The approximate location, expressed as latitude
and longitude.
•The estimated accuracy of the calculated
location. This estimate of accuracy is only a very
rough estimate and may vary substantially from
the actual accuracy of the approximate location
information reported.
81
Enhancing GPS Performance
•The number of satellites used to calculate the
location. In general, more satellites make for
better accuracy.
To calculate your location again:
Press Aunder Rfrsh.
It may take your phone several minutes to
complete the process of determining your location.
During this time, a message usually appears on
your phone’s display saying your phone is
scanning for satellites. For tips on getting the best
location calculation, see “Enhancing GPS
Performance”.
The Position screen displays the updated
information.
To cancel a location calculation before it is
completed:
Press Aunder Cancel to return to the Position
screen. -or-
Press eto return to the idle screen.
Each time approximate location of your phone is
calculated, the latest location information is stored
in your phone and remains there even when your
phone is powered off. You will see this information
thenexttimeyouviewthePosition screen.
If you received a phone call or alert while
attempting to determine your location, the Position
screen will disappear, but your phone will continue
attempting to determine its location. If it is
successful, the new location information will be
displayed the next time you view the Position
screen.
Enhancing GPS Performance
Sometimes the GPS feature of your phone may be
unable to complete a location calculation
successfully. If this happens when you are making
an emergency call, the location of the nearest cell
tower in contact with your phone is made available
to the appropriate emergency response center if
the center has the capability to receive such
information. If this happens when you are trying to
view your location on the phone’s display, you will
see a message indicating that your phone cannot
access satellites.
82
GPS Enabled
To improve accuracy and increase your chances of
a successful calculation, do the following while
your phone is determining your approximate
location:
•Stay in the open. The GPS feature works best
where there is nothing between your phone and
a large amount of open sky. If possible, go
outside, away from tall buildings and foliage.
While performance in a building is improved by
moving closer to windows, glass with certain sun
shielding films may block satellite signals.
•Hold your phone to enhance reception. Signals
from GPS satellites are transmitted to your GPS
antenna, which is inside the back of your phone,
opposite the earpiece, above the label with your
service provider’s name on it. Hold your phone
away from your body, giving the antenna clear
access to satellite signals. Do not cover the
antenna area with your fingers or anything else.
•Stand still. If possible, stand still until your phone
is finished determining your location. Moving
your phone at a walking pace while your phone
is calculating your approximate location may
substantially decrease GPS performance.
•In a car. When using the GPS Enabled feature in
a car, position your phone so that the GPS
antenna has good access to GPS signals
through the car’s windows. Typically, the GPS
antenna has best access to GPS signals in a car
when placed near a window.
Note: Although moving your phone at a walking
pace decreases GPS performance,
moving it at the speed of a moving car
does not.
GPS antenna area
83
Updating Satellite Almanac Data
•Stay in network coverage. Depending on who
your service provider is, the network will provide
your phone with information that helps
determine your location more quickly and
accurately.
Updating Satellite Almanac
Data
Another way to keep the GPS feature of your
phone working well is to keep your satellite
almanac data up to date.
The United States government maintains an
almanac of data about where GPS satellites are as
they orbit the Earth. This information is available to
your phone. Keeping your satellite almanac up to
date helps your phone determine your location
more quickly.
The almanac contains information about the
location of satellites, their operational status, and
other satellite information. Keeping this information
updated enhances the performance of your GPS
feature. In most cases, your phone will be able to
get a fix in strong satellite signal conditions with
outdated almanac data, but it may take longer.
Note: When you make an emergency call, your
phone does not rely upon the almanac to
determine your location.
If your satellite almanac data is out of date, your
phone may prompt you to update it. Follow the
instructions that appear on the phone’s display.
Youmaybeaskedtogotoawebsiteorcalla
customer care number.
Setting Privacy Options
Your phone’s GPS privacy options control whether
software applications may view the location of your
phone.You may set your phone to one of these
GPS privacy options:
• Restricted — No software applications may
view the location of your phone. However,
location information may still be available to the
phone’s owner, fleet manager, or account
administrator.
• Unrestricted — All applications may view the
location of your phone, without notifying you.
•ByPermission— When an application
attempts to view the location of your phone, you
will be prompted to give permission. However,
location information may still be available to the
phone’s owner, fleet manager, or account
administrator.
Note: Privacy options do not apply to the
transmission of location information
during emergency 911 calls.
84
GPS Enabled
To set your GPS privacy options:
1From the main menu, select GPS > Privacy.
2If your GPS PIN security feature is enabled,
enter your GPS PIN. (See “Setting the GPS PIN
Security Feature” for more information.)
3Scroll to the privacy setting you want.
4Press Aunder Select.
Setting the GPS PIN Security Feature
To prevent your GPS privacy settings from being
altered without your knowledge, your GPS privacy
optioncanbeprotectedbyaPIN.
When you receive your phone, the GPS security
featureisturnedoff,soyoudonothavetoentera
GPS PIN to access your GPS privacy options. If
you turn this feature on, you will be required to
enter a GPS PIN to access your GPS privacy
options.
To turn the GPS Enabled security feature on or off:
1From the main menu, select Settings >
Security > GPS PIN.
2Scroll to On or Off.
3Press Aunder Select.
4Enter the current GPS PIN.
Note: When you receive your phone, your GPS
PIN is 0000.
5Press Aunder Ok.
To change your GPS PIN:
1From the main menu, select Settings >
Security > Change Password > GPS PIN.
2Enter the current GPS PIN.
Note: When you receive your phone, your GPS
PIN is 0000.
3Press Aunder Ok.
4Enter the new 4- to 8-digit GPS PIN.
5Press Aunder Ok.
6Enter the new 4- to 8-digit GPS PIN to confirm.
7Press Aunder Ok.
Using GPS with Map Software
You can use the GPS feature of your phone to
provide approximate location data to a laptop
computer or similar device that is running
interactive map software such as that made by
DeLorme or Microsoft. This way, if your phone has
good access to GPS signals, your approximate
position on a map can be made available as you
travel in a vehicle.
To do this, connect your phone to your laptop (or
other device) with a data cable and set your phone
to transmit data (see “Getting Started” on page 85).
Your phone then provides your approximate
85
Using GPS with Map Software
location to the device running the map software,
which displays your location on a map. Your phone
provides an updated location every second and the
map software displays your changing location on
its map.
See “Enhancing GPS Performance” on page 81
for more details on obtaining good location
information.
Note: Because your phone is continuously
determining your location, using the GPS
feature of your phone with map software
uses the phone’s battery power quickly.
Software Compatibility
Your phone sends location information to your
laptop or other device using the standard National
Marine Electronics Association (NMEA) format.
Your phone supports output messages in
NMEA-0183 format and supports the following
NMEA-0183 sentences: GGA, GLL, GSA, GSV,
RMC, and VTG.
The map software running on your laptop or other
device must support NMEA 3.0.
Getting Started
To connect your phone to your laptop or other
device:
1Open the connector cover.
2With the phone’s display facing up, insert the
data cable’s connector into the accessory
connector, until you hear a click.
connector
cover
86
GPS Enabled
3InsertthedataplugintotheCOMportofyour
laptop or other device.
Make sure no other application is using the COM
port selected.
Make sure the COM port settings of your laptop or
other device are set to the following:
•Bits per second: 4800
•Data bits: 8
•Parity: None
•Stop bits: 1
•Flow control: Hardware
To set your phone to send location information to
your laptop or other device:
1From the main menu, select GPS > Interface.
2With NMEA OUT highlighted, press Aunder
Change.
3Scroll to On.
4Press Aunder Select. Your phone is now
sending location data to your laptop or other
device.
To stop your phone from sending location data to
your laptop or other device:
Set NMEA OUT to Off.
Each time you power your phone on, NMEA OUT
is automatically set to Off.
87
Voice Records
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
A voice record is a recording you make with your
phone and can play back. You can record notes to
yourself or phone calls.
Your phone can store up to 20 voice records.
Creating Voice Records
Torecordanotetoyourself:
1From the main menu, select VoiceRecord.
2With [New VoiceRec] highlighted, press A
under Record.
3Say the message you want to record into the
microphone.
Tip: To stop recording before you are finished,
press m, then select Pause.Tostart
recording again, press Aunder Resume.
To stop recording and discard the voice
record at any time, press Aunder Cancel.
4When you are finished recording, press A
under Stop.
To add to the end of voice record:
1From the main menu, select VoiceRecord.
2Scroll to the voice record you want to add to.
3Press m.
4Select Add To.
5When you are finished recording, press A
under Stop.
To record a phone call:
1Whileonanactivecall,pressm.
2Select Record.
3When you are finished recording, press A
under Stop.
Note: Recording of phone calls is subject to
applicable laws regarding privacy and
recording of phone conversations.
Playing Voice Records
1From the main menu, select VoiceRecord.
2Scroll to the voice record you want to play.
3Press Aunder Play.
4To stop the voice record while it is playing, press
Aunder Back.
Tip: To fast forward, scroll right. To rewind, scroll
left. To pause or resume, press any number
key.
88
Voice Records
Labeling Voice Records
When you create a voice record, it is labeled with
the time and date it was recorded. You can then
rename it with a custom label.
1From the main menu, select VoiceRecord.
2Scroll to the voice record you want to label.
3Press m.Select Label.
4Enter the label you want to assign. See
“Entering Text” on page 55.
5Press Aunder Ok.
Deleting Voice Records
To delete a voice record:
1From the main menu, select VoiceRecord.
2Scroll to the unlocked voice record you want to
delete.
3Press m.
4Select Delete.
5Press Aunder Yes to confirm.
To delete all voice records:
1From the main menu, select VoiceRecord.
2Scroll to any voice record.
3Press m.
4Select Delete All.
5Press Aunder Yes to confirm.
Locking Voice Records
When you lock a message, it cannot be deleted
until you unlock it.
1From the main menu, select VoiceRecord.
2Scroll to the message you want to lock or
unlock.
3Press m.
4Scroll to Lock to lock the message. -or-
Scroll to Unlock to unlock the message.
When a voice record is locked, this icon l
appears next to it.
Managing Memory
To view the amount of memory available for voice
records:
1From the main menu, select VoiceRecord.
2With [New VoiceRec] highlighted, press m.
Select Memory.-or-
With any voice record highlighted, press m.
Select Memory.
89
Managing Memory
To free more memory by deleting all unlocked
voice records:
1From the voice records memory screen, press
Aunder Delete.
2Press Aunder Yes to confirm.
Note: Voice records are stored in your phone
using the same memory space used to
store messages, Java application data,
and ring tones. Deleting some of these
other items frees memory for voice
records.
90
Customizing Your Phone
Setting the Volume
To set the volume of the sound coming from the
phone’s earpiece or speaker:
1From the main menu, select Settings > Volume.
2Scroll to Earpiece to set the earpiece volume.
-or-
Scroll to Speaker to set the speaker volume.
3Press Aunder Change.
4To select the volume:
Scroll left or right. -or-
Press the volume controls.
5Press Aunder Ok.
To set the volume of the phone’s ring:
Press the volume controls.
For another way to set the volume of the phone’s
ring, or the volume of many other sounds your
phone makes:
1From the main menu, select Settings > Volume.
2Scroll to the option you want and make the
change. Choose Line 1 or Line 2 to set the
volume of the phone’s ring when you get a call
on that line.
See “Volume Features” on page 92.
Setting Your Phone to Not
Ring
To set your phone to make no sound when you
receive phone calls, Private calls, group calls,
message notifications, and call alerts, see “Setting
YourPhonetoVibrate”onpage51.
To set your phone to vibrate instead of making a
sound when you receive Private calls and group
calls, even if you want your phone to ring for other
features:
1From the main menu, select Settings > 2-Way
Radio > Alert Type.
Tip: If Alert Type does not appear: From the
main menu, select Ring Tones.Makesure
VibeAll or SilentAll is set to Off. Repeat
step 1.
2Press Aunder Change.
3Scroll to Vibrate.
4Press Aunder Select.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
91
Seeing the Display Better
If your phone does not include a vibrate feature,
you can still set your phone to make no sound.
Scroll to Silent in step 3.
Seeing the Display Better
To set the contrast of the display:
1From the main menu, select Settings >
Display/Info > Contrast.
2Press Aunder Change.
3Scroll left or right to set the contrast.
4Press Aunder Ok.
Using Settings
Settings contains many submenus that let you
customize your phone.
Display/Info Features
The Display/Info menu controls how the keypad
and display appear:
• Palette — changes the color scheme of the
display.
• Backlight — controls how long the backlight
stays on after you make or receive a call.
•Clock— controls whether the time and date
appears on the idle screen, sets the format of
the time and date, and sets the year.
•Contrast— sets the contrast on the display.
See “Seeing the Display Better”.
• Language — sets the language that your phone
displays.
Phone Calls Features
The Phone Calls menu controls how your phone
handles phone calls:
• Set Line — sets phone line 1 or phone line 2 as
the active line for outgoing calls.
•AnyKeyAns— If this feature is on, you can
answer calls by pressing any number key on the
keypad.
•AutoRedial— sets your phone to automatically
redial calls you make when the system is busy.
•CallWaiting— See “Call Waiting” on page 42.
• Auto Ans — sets your phone to automatically
answer an incoming call after a specified
number of rings. When this feature is on, the
phone answers by connecting you to the caller;
it does not send the call to voice mail, unless
you are out of coverage or on the line.
•MinuteBeep— causes a beep to sound every
minute of an active call.
92
Customizing Your Phone
• Call Duration — causes the duration of a call to
appear on the phone’s display when the call
ends.
• TTY — lets you use your phone with a TTY
device. See “Making TTY Calls” on page 48.
• Notifications — See “Message Notifications” on
page 58.
2-Way Radio Features
The 2-Way Radio menu controls how your phone
handles Private calls and group calls:
•Scan— controls whether your phone receives
Group calls from all the Talkgroups in a Hub.
See “Setting Talkgroup Scan” on page 69.
Note: This feature may not be offered by your
service provider.
• Tkgrp Silent — controls whether you hear
group calls to your Talkgroup or Hub. See
“Turning off Group Calls” on page 69.
• Tkgrp Area — lets you define your Talkgroup or
Hub area.
• One Touch PTT — See “Setting One Touch
PTT” on page 44.
•AlertType— controls how your phone notifies
you when you receive Private calls and group
calls. See “Setting Your Phone to Not Ring” on
page 90.
Personalize Features
The Personalize menu makes main menu items
easier to access.
• Menu Options —Reorder Menu lets you
change the order of the items on the main menu
by grabbing and moving them; Add/Remove
Apps letsyoucreateashortcuttoaJava
application on the main menu.
• Left Sftkey — sets the main menu item you
accesswhenyoupresstheleftoptionkeyfrom
the idle screen.
• Right Sftkey — sets the main menu item you
access when you press the right option key from
the idle screen.
•PowerUp— sets the main menu item you see
when you power on your phone.
Volume Features
The Volume menu sets the volume of sounds your
phone makes:
•Line1— sets ring volume for phone line 1.
•Line2— sets ring volume for phone line 2.
93
Using Settings
• Messages — sets the volume of message
notifications.
• Earpiece — sets the volume of sound coming
out of the earpiece.
• Speaker — sets the volume of sound coming
outofthespeaker.
•Keypad— sets the volume of sound associated
with pressing keys and buttons.
• Java Earpiece — sets the volume of sound
associated with Java applications coming out of
the earpiece.
• Java Speaker — sets the volume of sound
associated with Java applications coming out of
the speaker.
•Data— sets the volume of sounds that notify
you that you are receiving a circuit data call.
Security Features
The Security menu lets you turn security features
on and off and change passwords:
• Phone Lock — turns on a feature that locks
your phone, either immediately or automatically
after a set period of inactivity. An unlock code is
required to enable this feature, to unlock the
phone, and to set a new unlock code. Contact
your service provider for your default unlock
code.
•KeypadLock— locks the phone’s keypad,
either immediately or automatically after a set
period of inactivity. See “Locking the Keypad” on
page 15 for more information on locking and
unlocking the keypad.
•SIMPIN— enables and disables your phone’s
SIM PIN security feature. See “Turning the PIN
Requirement On and Off” on page 13.
•GPSPIN— enables and disables your phone’s
GPS PIN security feature. See “Setting the GPS
PIN Security Feature” on page 84.
• Change Passwords — changes your phone
unlock code, security code, SIM PIN, and GPS
PIN.
Advanced Features
The Advanced menu contains advanced and rarely
used Settings features.
• Alert Timeout — controls the amount of time a
tone continues to sound when you receive a
message notification or call alert.
• Headset/Spker — sets headset option. See
“Using a Headset” on page 102.
94
Customizing Your Phone
• Connectivity —Network ID sets the phone’s
network IDs and their roaming options under the
direction of your service provider; Master Reset
lets your service provider reset your service in
the event of a security or provisioning problem.
• Reset Defaults —Reset Settings returns all
settings to their original defaults; Reset All
returns all settings to their original defaults and
erases all stored lists. Use only under the
direction of your service provider.
• ReturntoHome— controls how long the recent
calls list displays after calls.
• Phone Only — prevents your phone from
making or receiving Private calls or group calls.
Note: This feature may not be offered by your
service provider.
•BaudRate— sets the baud rate at which your
phone communicates with a laptop computer,
PC, or similar device.
95
Profiles
A profile is a group of settings saved together so
that you can apply them to your phone easily.
A profile contains these settings:
•RingTones— sets all options described in
“Ring Tones” on page 51, except assigning ring
tones to Contacts.
• Display/Info —setsColor Palette and
Backlight options. See “Display/Info Features”
on page 91.
• Phone Calls —setsSet Line and Auto Ans
options. See “Phone Calls Features” on page
91.
• Volume — sets all options described in “Volume
Features” on page 92.
•CallFilter— controls which calls, call alerts,
and message notifications your phone responds
to. See “Setting Call Filtering” on page 98.
• Advanced — sets headset option. See “Using a
Headset” on page 102.
Your phone arrives with pre-set profiles. You can
also create your own profiles.
Viewing Profiles
To view the profiles stored in your phone:
1From the main menu, select Profiles.
2Scrolltotheprofileyouwanttoview.
Tip: The profile that is currently in effect on your
phone has a checkmark next to it.
3Press m.
4Select View.
5Scroll to view settings.
Switching Profiles
To apply a profile to your phone:
1From the main menu, select Profiles.
2Scrolltotheprofileyouwanttoapply.
3Press Aunder Select.
The profile you selected is now in effect.
96
Profiles
Surveillance Profile
During Surveillance profile the following features
will be disabled:
•screen backlight
•keypad backlight
•speaker audio
•ringtones
•all vibration
This setting is designed for public safety use with
an earbud or headset only.
Note: Earbuds and headsets are sold
separately. See “Accessories” on page
16.
How Changing Settings
Affects Profiles
Many of the settings contained in profiles can be
set without switching or editing profiles — for
example, by selecting Settings or Ring Tones to
set options, or by setting the volume of the phone’s
ring using the volume controls.
When you do this, your phone either:
•Updates the profile in effect to reflect these
changes, without notifying you -or-
•Creates a temporary profile that contains these
changes
Note: This feature may not be offered by your
service provider.
To set your phone to create a temporary profile
that contains changes you make to settings:
1From the main menu, select Profiles.
2Press m.
3Select Setup > Temp Profile.
4Press Aunder Change.
5Set this option to On.
To set your phone to update the profile in effect to
reflect any changes you make to settings:
Set Temp Profile to Off in step 5.
Note: You cannot change any of the settings in
the Surveillance profile.
If your service provider does not offer the Temp
Profile option, your phone always updates the
profile in effect to reflect the changes you make to
settings.
97
Temporary Profiles
Temporary Profiles
If your phone is set to create temporary profiles, a
temporary profile is created when you make
changes to settings without switching or editing
profiles.
A temporary profile is based on the profile in effect
when you made the changes, but reflects the
changed settings. Making more changes further
updates the temporary profile, for as long as it is in
effect.
A temporary profile stays in effect until you switch
profiles, power off your phone, or delete it (or the
profile it is based on) from the list of profiles.
If you do not store a temporary profile, it is deleted
when you switch profiles or power off your phone.
A temporary profile is automatically given the same
name as the profile it is based on, but with an
asterisk (*) in front of it.
When you view a temporary profile’s settings, the
options that differ from the profile it is based on
have an asterisk in front of them.
Storing a Temporary Profile
To store a temporary profile as a new profile:
1From the main menu, select Profiles.
2Scroll to the temporary profile.
3Press m.
4Select StoreAsNew.
5Enter the name you want to give the profile. See
“Entering Text” on page 55.
When you are finished, press Aunder OK.
To overwrite the profile the temporary profile is
based on:
1From the main menu, select Profiles.
2Scroll to the temporary profile.
3Press m.
4Select Store Changes.
The temporary profile is stored with the name of
the profile it is based on. The profile it is based on,
as it existed before you made changes to settings,
is gone.
Creating Profiles
1From the main menu, select Profiles.
2Select [New Profile].-or-
Scroll to any profile. Press m. Select New.
3Enter the name you want to give the profile. See
“Entering Text” on page 55.
98
Profiles
Tip: You can begin entering text from the
keypad instead of pressing Aunder
Change.
When you are finished, press Aunder OK.
4If you want to base this profile on an existing
profile: With Copy From highlighted, press A
under Change. Select the profile you want to
base this profile on. If you do not choose a
profile to copy from, the new profile is based on
a default profile.
5Press Aunder Create.
6Scroll through the list of options and set their
values.
7Press Aunder Done.
Editing Profiles
1From the main menu, select Profiles.
2Scrolltotheprofileyouwanttoedit.
3Press m.
4Select Edit.
5Scroll through the list of options and set their
values.
Note: You cannot edit the Surveillance profile.
Deleting Profiles
To delete a profile:
1From the main menu, select Profiles.
2Select the profile you want to delete.
Note: A temporary profile is automatically
deleted when the profile it is based on is
deleted.
3Press m.
4Select Delete.
5Press Aunder Yes to confirm.
To delete all profiles:
1From the main menu, select Profiles.
2Press m.
3Select Delete All.
4Press Aunder Yes to confirm.
Setting Call Filtering
The call filtering setting in each profile lets you
control which calls, call alerts, and message
notifications your phone notifies you of, and which
it ignores.
99
Setting Call Filtering
To set call filtering:
1While setting options for a profile, select Call
Filter.
2To set filtering options for phone calls, scroll to
Phone and press Aunder Change.
•Offsets your phone to notify you of all phone
calls.
•Allsets your phone to ignore all phone calls.
•AllContactssets your phone to notify you
only of phone calls from numbers stored in
Contacts.
• Some Cntcs sets your phone to notify you
only of phone calls from numbers you select
from Contacts.
3If you set the Phone option to Some Cntcs,
select up to 5 Contacts entries that contain
phone numbers you want to be notified of calls
from.
When you are finished, press Aunder Done.
4To set filtering options for Private calls and
group calls, scroll to Prvt/Grp and press A
under Change.
•Offsets your phone to notify you of all Private
calls and group calls.
•Onsets your phone to ignore all Private calls
and group calls.
5To set filtering options for call alerts, scroll to
Alerts and press Aunder Change.
•Offsets your phone to notify you of all call
alerts.
•Onsets your phone to ignore all call alerts.
6To set filtering options for message notifications,
scroll to Notifications and press Aunder
Change.
•Offsets your phone to notify you of all
messages.
• Voice Messages sets your phone not to
sound a tone or vibrate when you receive
voice messages.
• Text Messages sets your phone not to sound
atoneorvibratewhenyoureceivetext
messages.
•Allsets your phone not to sound a tone or
vibrate when you receive any message.
Note: When you receive a type of message you
have set not to sound a tone or vibrate,
the message notification screen appears
as usual.
7Press Aunder Done.
100
Shortcuts
Shortcuts lets you access most menu options by
pressing a number on your keypad (1 through 9) or
saying the voice name of the shortcut. You create
theshortcutandthenuseittotakeyoutothat
screen any time.
Creating a Shortcut
Note: When you receive your phone, all number
keys may already be assigned to
shortcuts. If this is the case, you can
create new shortcuts by deleting or
replacing existing shortcuts.
1Go to the menu item you want to create a
shortcut for.
Forexample,ifyouwanttocreateashortcutto
the screen for creating a new Contacts entry:
From the main menu, select Contacts,then
highlight [New Contact].
2Press and hold muntil a confirmation screen
appears.
3Press Aunder Yes.
4With key highlighted, press Aunder Change.
5Press the number key you want to assign to the
shortcut.
6Press Aunder Ok.
7Ifyouwanttorecordavoicenameforthe
shortcut: With Voice highlighted, press Aunder
Record. As directed by the screen prompts, say
and repeat the name you want to assign to the
number. Speak clearly into the microphone.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
8Press Aunder Done.
9If the number key you chose is already assigned
to a shortcut, a prompt appears asking if you
want to replace the existing shortcut.
Press Aunder Yes to replace the existing
shortcut. -or-
Press Aunder No ifyouwanttokeepthe
existing shortcut and assign another number key
to the shortcut.
Using a Shortcut
If you know the shortcut number:
1From the idle screen, press m.
2On your keypad, press the number assigned to
the shortcut.
101
Editing a Shortcut
If you do not know the shortcut number:
1From the main menu, select Shortcuts.
2Scroll to the shortcut you want to use. -or-
Ifyouassignedavoicenametotheshortcut:
Select Voice Recog from the main menu. As
directed by the screen prompt, say the name of
the shortcut into the microphone. The name of
the shortcut will be repeated back to you and the
shortcut with that voice name will be highlighted.
Note: This is an optional feature. Contact your
service provider about its availability for
purchase.
3Press Aunder Go to.
Editing a Shortcut
To change the number assigned to a shortcut:
1From the main menu, select Shortcuts.
2With any shortcut highlighted, press m.
3Select Reorder.
4Scroll to the shortcut you want to move.
5Press Aunder Grab.
6Scroll to the place where you want the shortcut
to appear.
7Press Aunder Insert.
8Repeat step 4 through step 7 for all the items
you want to move.
9Press Aunder Done.
To change the number or voice name assigned to
ashortcut:
1From the main menu, select Shortcuts.
2Highlight any shortcut.
3Press m. Select Edit.
4With Key or Voice highlighted, press Aunder
the display option on the left to change
assignments.
Deleting Shortcuts
To delete a shortcut:
1From the main menu, select Shortcuts.
2Scroll to the shortcut you want to delete.
3Press m.
4Select Delete.
5Press Aunder Yes to confirm.
To delete all shortcuts:
1From the main menu, select Shortcuts.
2With any shortcut highlighted, press m.
3Select Delete All.
4Press Aunder Yes to confirm.
102
Using a Headset
Ifyouuseaheadsetorsimilardevicewithyour
phone, you can set your phone to send incoming
sound to the headset only, or to the headset and
the speaker at the same time:
1From the main menu, select Settings >
Advanced > Headset/Spkr.
2Press Aunder Change.
3Scroll to HdsetOnly to send incoming sound to
the headset only. -or-
Select Hdset&Spkr to send incoming sound to
the headset and ring tones to the speaker.
4Press Aunder Select.
Note: When using a headset, the PTT button on
your phone works the same way as when
you are not using a headset. Sounds
associated with Private calls and group
calls are heard through the headset.
Attaching a Headset
1Lift the audio jack cover.
2Insert the headset connector firmly into the
audio jack. You may have to rotate the headset
connector until it fits securely into the audio jack.
Using a Remote PTT Button
If you are using a headset or other accessory with
a remote PTT button, you can use the remote PTT
button for phone calls and Private calls.
For phone calls, use the remote PTT button to
answer calls, switch between calls, and end calls.
HoldtheremotePTTbuttonforlessthan2
secondstoanswercallsandswitchbetweencalls.
Hold the remote PTT button for more than 2
seconds to end calls.
For Private calls, use the remote PTT button as
you would the PTT button on your phone.
103
Understanding Status
Messages
You may receive status messages under certain
conditions. Before contacting Customer Care, note
the message, numeric code, and the conditions
under which it appeared. The following table lists
and describes the status messages.
Status Messages Message Description
Number Not in
Service
The number that you entered is not
valid.
User Not Available The phone that you called is either
busy, out of coverage, or turned off.
Please try again later.
User Not
Authorized
The person that you called has not
purchased this service.
Please Try Later This service is temporarily not
available. Please try again later.
Service Restricted This service was restricted by your
service provider, or this service was
not purchased.
Service Not
Available
You are either out of coverage or
having problems with provisioning.
System Busy The system is experiencing heavy
traffic. Please try again later.
Please Try Again An error occurred. Please try again.
Self Check Error +
Number Code
A fault was detected with your
phone. If this error recurs, note the
error code and contact Customer
Care.
Self Check Fail +
Number Code
An operational fault was detected
with your phone. Note the numeric
code, turn your phone off, and
contact Customer Care.
PIN Blocked
Call Your Provider
The incorrect PIN was entered 3
consecutive times. You will be
unable to place or receive calls on
your phone. Contact Customer
Care to have them obtain the PIN
Unblocking Key (PUK) code.
Insert SIM Your SIM card is not being
detected. Please check to ensure
that you have inserted the SIM card
correctly into your phone.
Check SIM Card Please check your SIM card to
make sure it has been inserted
properly.
Wrong PIN You have entered an incorrect PIN
number.
Status Messages Message Description
104
Understanding Status Messages
Enter SIM PIN Please enter your 4 to 8-digit SIM
PIN code.
Enter Unlock Code Auto Phone Lock is activated.
Enter you unlock code.
New Browser
Message Memory
Full!
Warns of low memory for Net
Alerts.
Scanning for
Satellites
Searching for GPS satellites.
Unable to Locate
Sats
Could not find GPS satellites.
Technical Error A problem occurred in your phone’s
GPS circuitry. If this error occurs,
contact Customer Care.
Status Messages Message Description
105
Safety and General
Information
IMPORTANT INFORMATION ON SAFE AND
EFFICIENT OPERATION.
READ THIS INFORMATION BEFORE USING
YOUR INTEGRATED MULTI-SERVICE
PORTABLE RADIO.
RF Operational
Characteristics
Your radio product contains a radio frequency
transmitter to convey the information you wish to
send as well as occasional automatic signals used
to sustain connection to the wireless network, and
a receiver which enables you to receive
communication and connection information from
the network.
Portable Radio Product
Operation and EME Exposure
Your Motorola radio product is designed to comply
with the following national and international
standards and guidelines regarding exposure of
human beings to radio frequency electromagnetic
energy (EME):
•United States Federal Communications
Commission, Code of Federal Regulations; 47
CFR part 2 sub-part J.
•American National Standards Institute (ANSI) /
Institute of Electrical and Electronics Engineers
(IEEE). C95. 1-1992.
•Institute of Electrical and Electronics Engineers
(IEEE). C95. 1-1999 Edition.
•International Commission on Non-Ionizing
Radiation Protection (ICNIRP) 1998.
•Ministry of Health (Canada). Safety Code 6.
Limits of Human Exposure to Radiofrequency
Electromagnetic Fields in the Frequency Range
from 3 kHz to 300 GHz, 1999.
•Australian Communications Authority
Radiocommunications (Electromagnetic
Radiation - Human Exposure) Standard 2003.
•ANATEL, Brasil Regulatory Authority,
Resolution 256 (April 11, 2001) “additional
requirements for SMR, cellular and PCS product
certification.”
To assure optimal radio product performance
and make sure human exposure to radio
frequency electromagnetic energy is within the
guidelines set forth in the above standards,
always adhere to the following procedures:
106
Safety and General Information
Phone Operation
When placing or receiving a phone call, hold your
radio product as you would a wireline telephone.
Speak directly into the microphone.
Two-way radio operation
When using your radio product as a
traditional two-way radio, hold the
radio product in a vertical position
with the microphone one to two
inches (2.5 to 5 cm) away from the lips.
Body-worn operation
To maintain compliance with FCC RF exposure
guidelines, if you wear a radio product on your
body when transmitting, always place the radio
product in a Motorola approved clip, holder,
holster, case or body harness for this product.
Use of non-Motorola-approved accessories may
exceed FCC RF exposure guidelines. If you do
not use a Motorola approved body-worn
accessory and are not using the radio product
in the intended use positions along side the
head in the phone mode or in front of the face
in the two-way radio mode, then ensure the
antenna and the radio product are kept the
following minimum distances from the body
when transmitting
• Phone or Two-way radio mode: one inch (2.5
cm)
• Data operation using any data feature with or
without an accessory cable: one inch (2.5
cm)
Antenna Care
Use only the supplied or an approved
replacement antenna. Unauthorized antennas,
modifications, or attachments could damage the
radio product and may violate FCC regulations.
DO NOT hold the antenna when the radio
product is “IN USE”. Holding the antenna affects
call quality and may cause the radio product to
operate at a higher power level than needed.
Approved Accessories
For a list of approved Motorola accessories call
1-800-453-0920, or visit our website at
www.motorola.com/iden.
107
Portable Radio Product Operation and EME Exposure
ALL MODELS WITH FCC ID AZ489FT5830 MEET THE
GOVERNMENT’S REQUIREMENTS FOR EXPOSURE
TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It
is designed and manufactured not to exceed the emission
limits for exposure to radiofrequency (RF) energy set by
the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive
guidelines and establish permitted levels of RF energy for
the general population. The guidelines are based on
standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial
safety margin designed to assure the safety of all persons,
regardless of age and health.
The exposure standard for wireless mobile phones
employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is
1.6W/kg.1Tests for SAR are conducted using standard
operating positions reviewed by the FCC with the phone
transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the
phone while operating can be well below the maximum
value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required
to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
Before a phone model is available for sale to the public, it
must be tested and certified to the FCC that is does not
exceed the limit established by the government-adopted
requirement for safe exposure. The tests are performed in
positions and locations (e.g., at the ear and worn on the
body) as required by the FCC for each model. The highest
SAR value for this model phone when tested for use at the
ear is 1.06 W/kg and when tested on the body, as
described in this user guide, is 1.09 W/kg during packet
data transmission. (Body-worn measurements differ
among phone models, depending upon available
accessories and FCC requirements.)2
While there may be differences between the SAR levels of
various phones and at various positions, they all meet the
government requirement for safe exposure.
The FCC has granted an Equipment Authorization for this
model phone with all reported SAR levels evaluated as in
compliance with the FCC RF exposure guidelines. SAR
information on this model phone is on file with the FCC
and can be found under the Display Grant section of
http://www.fcc.gov/oet/fccid after searching on FCC ID
AZ489FT5830.
Additional information on Specific Absorption Rates (SAR)
can be found on the Cellular Telecommunications Industry
Association (CTIA) web-site at http://www.wow-com.com.
1In the United States and Canada, the SAR limit for
mobile phones used by the public is 1.6 watts/kg (W/kg)
averaged over one gram of tissue. The standard
incorporates a substantial margin of safety to give
additional protection for the public and to account for any
variations in measurements.
2The SAR information reported to the FCC includes the
FCC-accepted Motorola testing protocol, assessment
procedure, and measurement uncertainty range for this
product.
108
Safety and General Information
Electro Magnetic
Interference/Compatibility
Note: Nearly every electronic device is
susceptible to electromagnetic
interference (EMI) if inadequately
shielded, designed or otherwise
configured for electromagnetic
compatibility.
Facilities
To avoid electromagnetic interference and/or
compatibility conflicts, turn off your radio product in
any facility where posted notices instruct you to do
so. Hospitals or health care facilities may be using
equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio
product when on board an aircraft. Any use of a
radio product must be in accordance with
applicable regulations per airline crew instructions.
Medical Devices
Pacemakers
The Advanced Medical Technology Association
(AdvaMed) recommends that a minimum
separation of 6 inches (15 cm) be maintained
between a handheld wireless radio product and a
pacemaker. These recommendations are
consistent with those of the U.S. Food and Drug
Administration.
Persons with pacemakers should:
•ALWAYS keep the radio product more than 6
inches (15 cm) from their pacemaker when the
radio product is turned ON.
•Not carry the radio product in a breast pocket.
•Use the ear opposite the pacemaker to minimize
the potential for interference.
•Turn the radio product OFF immediately if you
have any reason to suspect that interference is
taking place.
Hearing Aids
Some digital wireless radio products may interfere
with some hearing aids. In the event of such
interference, you may want to consult your hearing
aid manufacturer to discuss alternatives.
109
Operational Warnings
Other Medical Devices
If you use any other personal medical device,
consult the manufacturer of your device to
determine if it is adequately shielded from RF
energy. Your physician may be able to assist you
in obtaining this information.
Operational Warnings
Use While Driving
Check the laws and regulations on the use of radio
products in the area where you drive. Always obey
them.
When using the radio product while driving, please:
•Give full attention to driving and to the road.
•Use hands-free operation, if available.
•Pull off the road and park before making or
answering a call if driving conditions so require.
For Vehicles with an Air Bag
Do not place a portable radio product in the area
over the air bag or in the air bag deployment area.
Air bags inflate with great force. If a portable radio
is placed in the air bag deployment area and the air
bag inflates, the radio product may be propelled
with great force and cause serious injury to
occupants of the vehicle.
Potentially Explosive Atmospheres
Turn off your radio product prior to entering any
area with a potentially explosive atmosphere,
unless it is a radio product type especially qualified
for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved).
Do not remove, install, or charge batteries in such
areas. Sparks in a potentially explosive
atmosphere can cause an explosion or fire
resulting in bodily injury or even death.
Note: The areas with potentially explosive
atmospheres referred to above include
fueling areas such as below decks on
boats, fuel or chemical transfer or
storage facilities, areas where the air
contains chemicals or particles, such
as grain, dust or metal powders, and
any other area where you would
normally be advised to turn off your
vehicle engine. Areas with potentially
explosive atmospheres are often but
not always posted.
Blasting Caps and Areas
To avoid possible interference with blasting
operations, turn off your radio product when you
are near electrical blasting caps, in a blasting area,
or in areas posted: “Turn off two-way radio”. Obey
all signs and instructions.
!!
110
Safety and General Information
Operational Cautions
Batteries
All batteries can cause property damage and/or
bodily injury, such as burns if a conductive material
such as jewelry, keys, or beaded chains touches
exposed terminals. The conductive material may
complete an electrical circuit (short circuit) and
become quite hot. Exercise care in handling any
charged battery, particularly when placing it inside
a pocket, purse, or other container with metal
objects. To reduce the risk of injury, batteries
should not be exposed to fire, disassembled, or
crushed.
Cleaning and Drying Considerations
Using a leather carry case may help protect the
surfaces and help prevent liquids (e.g., rain) from
entering into the interior of the radio product. This
product is not water proof, and exposing the unit to
liquids may result in permanent damage to the unit.
If your radio product interior gets wet, then do not
trytoacceleratedryingwiththeuseofanovenora
dryer as this will damage the radio product and
void the warranty. Instead, do the following:
1Immediately power off the radio product.
2Remove Battery and SIM card (if so equipped)
from radio product.
3Shake excess liquid from radio product.
4Place the radio product and battery in an area
that is at room temperature and has good air
flow.
5Let the radio product, battery, and SIM card dry
for 72 hours before reconnecting the battery
and/or powering on the radio product.
If the radio product does not work after following
the steps listed above, contact your dealer for
servicing information.
Clean the external surfaces of the radio product
withadampcloth,usingamildsolutionof
dishwashing detergent and water. Some
household cleaners may contain chemicals that
could seriously damage the radio product. Avoid
the use of any petroleum-based solvent cleaners.
Also, avoid applying liquids directly on the radio
product.
!
111
Intrinsically Safe Radio Information
Intrinsically Safe Radio
Information
The Intrinsically Safe Approval unit refers to a
product that has been approved as intrinsically
safe by an approval agency (for example FM, CSA)
and certifies that a particular product meets the
Agency's applicable Intrinsic Safety standards for
specific types of hazardous classified locations. A
portable radio that has been approved for Intrinsic
Safety will have an Approval label attached to the
radio to identify the unit as being Approved for
specified hazardous atmospheres. This label
specifies the hazardous Class/Division/Group
along with the part number of the battery that must
be used. The Intrinsically Safe Approval Label will
be located on the portable radio unit.
Operational Cautions for Intrinsically
Safe Equipment
Intrinsically Safe Approval Label
•Do not operate radio communications
equipment in hazardous environments
unless it is a type especially qualified
(e.g., FM/CSA Approved) for such use.
An explosion or fire may result.
•Do not operate an FM/CSA Approved
Product in a hazardous atmosphere if it
has been physically damaged (e.g.,
cracked housing). An explosion or fire
may result.
•Do not replace or charge batteries in a
hazardous atmosphere. Contact sparking
may occur while installing or removing
batteries and cause an explosion or fire.
!
112
Safety and General Information
Warnings for Radios Approved as
Intrinsically Safe
Portable radio products must ship from the
Motorola manufacturing facility with the hazardous
atmosphere capability and the intrinsic safety
approval labeling (FM, CSA, CEPEL, etc). Portable
radio products will not be upgraded to this
capability and labeled once they have been
shipped to the field.
A modification changes the unit’s hardware from its
original design configuration. Modifications can
only be made by the original product manufacturer.
•Do not replace or change accessories in
a hazardous atmosphere. Contact
sparking may occur while installing or
removing accessories and may cause an
explosion or fire.
•Turn the radio communications
equipment off before removing or
installing a battery or accessory.
•Do not disassemble the FM/CSA
Approved Product unit in any way that
exposes the internal electrical circuits of
the unit.
!!
• Failure to use an FM/CSA Approved
Portable Radio Product with the specific
approved battery or accessories may
result in a dangerously unsafe condition
when being used in a hazardous
environment.
• Unauthorized or incorrect modification of
an Intrinsically Safe approved portable
radio product can negate the FM or CSA
Approval for that radio unit.
• Incorrect repair or relabeling of any
intrinsically safe Agency-approved radio
could adversely affect the Approval rating
of the unit.
• Use of a radio that is not intrinsically safe
in a hazardous atmosphere could result in
serious injury or death.
!!
113
Intrinsically Safe Radio Information
Repair
A repair constitutes something done internally to
the unit that would bring it back to its original
condition.
Items not considered as repairs are those in which
an action is performed on a unit which does not
require the outer casing of the unit to be opened in
a manner that exposes the internal electrical
circuits of the unit.
Do Not Substitute Options or Accessories
The Motorola communications equipment certified
as intrinsically safe by the approving agency, (FM,
UL, CSA, CENELEC) is tested as a complete
system which consists of the listed agency
Approved portable, Approved battery, and
Approved accessories or options, or both. This
Approved portable and battery combination must
be strictly observed. There must be no substitution
of items, even if the substitute has been previously
Approved with a different Motorola
communications equipment unit. Approved
configurations are listed by the Approving Agency
(FM, UL, CSA, CENELEC).
The Intrinsically Safe Approval Label affixed to
radio refers to the intrinsically safe classification of
that radio product, and the approved batteries that
canbeusedwiththatsystem.
The manual PN referenced on the Intrinsically Safe
Approval Label identifies the approved
Accessories and or options that can be used with
that portable radio unit.
Using a non Motorola intrinsically safe battery and
or accessory with the Motorola approved radio unit
REPAIRS FOR MOTOROLA PRODUCTS
WITH INTRINSICALLY SAFE APPROVAL
ARE THE RESPONSIBILITY OF THE
USER.
Repairs to a Motorola FM approved radio
product should only be done at a
location that has been FM audited under
the FM 3605 repairs and service
standard.
Contact Motorola for assistance
regarding repairs and service of
Motorola intrinsically safe equipment.
!!
114
Safety and General Information
will void the intrinsically safe approval of that radio
unit.
Accessory Safety Information
Important: Save these accessory safety
instructions.
•Before using any battery or battery charger, read
all the instructions for and cautionary markings
on (1) the battery, (2) the battery charger, which
may include a separate wall-mounted power
supply or transformer, and (3) the radio product
using the battery.
•Do not expose any battery charger to water,
rain, or snow as they are designed for indoor or
in-vehicle use only.
•To reduce the risk of damage to the cord or plug,
pull by the plug rather than the cord when you
disconnect the battery charger from the power
source outlet.
•Do not operate any battery charger with a
damaged cord or plug — replace them
immediately.
•Battery chargers may become warm during
operation, but not hot. If it becomes hot to the
touch, unplug it from the power outlet
immediately and discontinue its use.
•Use of a non-recommended attachment to a
battery charger may result in a risk of fire,
electric shock, or injury to persons.
•Make sure the battery charger power cord is
located so that it will not be stepped on, tripped
over, or subjected to damage or stress.
•An extension cord should not be used with any
battery charger unless absolutely necessary.
Use of an improper extension cord could result
in a risk of fire and electric shock. If an extension
cord must be used, make sure that:
•The pins on the plug of the extension cord are
the same number, size, and shape as those
on the plug of the charger.
•The extension cord is properly wired and in
good electrical condition.
Warning: To reduce the risk of injury,
charge only the rechargeable
batteries described in “Battery” on
page 3. Other types of batteries may
burst, causing personal injury and
damage.
!!
115
Accessory Safety Information
•The cord size is 18AWG for lengths up to 100
feet and 16AWG for lengths up to 150 feet.
•Do not operate any battery charger if it has
received a sharp blow, has been dropped, or
has been damaged in any way; take it to a
qualified service technician.
•Do not disassemble a battery charger; take it to
aqualifiedservicetechnicianwhenserviceor
repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
•Maximum ambient temperature around the
power supply or transformer of any battery
charger should not exceed 40°C (104°F).
•The output power from the power supply or
transformer must not exceed the rating given on
the Desktop Dual-Pocket Charger.
•The disconnection from the line voltage is made
by unplugging the power supply from the AC
receptacle.
•To reduce risk of electric shock, unplug any
battery charger from the outlet before attempting
any maintenance or cleaning.
For optimum charging performance, turn off the
radio product while charging it in any battery
charger.
116
MOTOROLA LIMITED
WARRANTY
Note: FOR IDEN SUBSCRIBER PRODUCTS,
ACCESSORIES AND SOFTWARE
PURCHASED IN THE UNITED STATES
OR CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola, Inc. warrants its Motorola iDEN Digital
Mobile and Portable Handsets ("Products"),
Motorola-branded or certified accessories sold for
use with these Products ("Accessories") and
Motorola software contained on CD-Roms or other
tangible media and sold for use with these
Products ("Software") to be free from defects in
materials and workmanship under normal
consumer usage for the period(s) outlined below.
Thislimitedwarrantyisaconsumer'sexclusive
remedy, and applies as follows to new
Products, Accessories and Software
purchased by consumers in the United States
or Canada, which are accompanied by this
written warranty:
PRODUCTS
COVERED LENGTH OF
COVERAGE
Products as defined
above. One (1) year from the
date of purchase by the
first consumer
purchaser of the
product.
Accessories as
defined above. One (1) year from the
date of purchase by the
first consumer
purchaser of the
product.
Products or
Accessories that are
Repaired or Replaced.
The balance of the
original warranty or
for ninety (90) days
from the date returned
to the consumer,
whichever is longer.
Software as defined
above. Applies only to
physical defects in the
media that embodies
the copy of the software
(e.g. CD-ROM, or
floppy disk).
Ninety (90) days from
thedateofpurchase.
117
What is not covered? (Exclusions)
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal wear
and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80% of their rated capacity and
batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and
Accessories. Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification.Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
including without limitation, software changes, or
modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals or
that show evidence of tampering; (c) mismatched
board serial numbers; or (d) nonconforming or
non-Motorola housings, antennas, or parts, are
excluded from coverage.
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products,
AccessoriesorSoftwareisexcludedfrom
coverage.
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by third
parties, that the operation of the software products
will be uninterrupted or error free, or that all defects
in the software products will be corrected.
118
MOTOROLA LIMITED WARRANTY
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided "as is" and without warranty.
Who is covered? This warranty extends only to
the first consumer purchaser, and is not
transferable.
What will Motorola Do? Motorola, at its option,
will at no charge repair, replace or refund the
purchase price of any Products, Accessories or
Software that does not conform to this warranty.
We may use functionally equivalent
reconditioned/refurbished/pre-owned or new
Products, Accessories or parts. No data, software
or applications added to your Product, Accessory
or Software, including but not limited to personal
contacts, games and ringer tones, will be
reinstalled. To avoid losing such data, software
and applications please create a back up prior to
requesting service.
How to Obtain Warranty Service or Other
Information? To obtain service or information,
please call:
Motorola iDEN Customer Services
1-800-453-0920 or 954-723-4910
TTY-877-483-2840
Or visit us online at
http://www.motorola.com/iden/support
You will receive instructions on how to ship the
Products, Accessories or Software, at your
expense, to a Motorola Authorized Repair Center.
To obtain service, you must include: (a) a copy of
your receipt, bill of sale or other comparable proof
of purchase; (b) a written description of the
problem; (c) the name of your service provider, if
applicable; (d) the name and location of the
installation facility (if applicable) and, most
importantly; (e) your address and telephone
number.
What Other Limitations Are There? ANY
IMPLIED WARRANTIES, INCLUDING WITHOUT
LIMITATION THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED
TO THE DURATION OF THIS LIMITED
WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED
UNDER THIS EXPRESS LIMITED WARRANTY IS
THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF
ALL OTHER WARRANTIES, EXPRESS OF
IMPLIED. IN NO EVENT SHALL MOTOROLA BE
LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE
119
PRODUCT, ACCESSORY OR SOFTWARE, OR
FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR
LOSS OF REVENUE OR PROFITS, LOSS OF
BUSINESS, LOSS OF INFORMATION OR DATA,
SOFTWARE OR APPLICATIONS OR OTHER
FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY
TO USE THE PRODUCTS, ACCESSORIES OR
SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the
limitation or exclusion of incidental or
consequential damages, or limitation on the
length of an implied warranty, so the above
limitations or exclusions may not apply to you.
This warranty gives you specific legal rights,
and you may also have other rights that vary
from state to state or from one jurisdiction to
another.
Laws in the United States and other countries
preserve for Motorola certain exclusive rights for
copyrighted Motorola software such as the
exclusive rights to reproduce and distribute copies
of the Motorola software. Motorola software may
only be copied into, used in, and redistributed with,
theProductsassociatedwithsuchMotorola
software. No other use, including without limitation
disassembly of such Motorola software or exercise
of the exclusive rights reserved for Motorola, is
permitted.
120
Limited Warranty Motorola Communication Products (International)
Limited Warranty
Motorola
Communication
Products (International)
Note: This Warranty applies in Singapore and
the Philippines.
I. What This Warranty Covers
and For How Long:
MOTOROLA warrants the MOTOROLA
manufactured iDEN Communication Products
listed below (“Product”) against defects in material
and workmanship under normal use and service
for a period of time from the date of purchase as
scheduled below:
Rechargeable Batteries will be replaced during the
applicable warranty period if:
a. the battery capacity falls below 80% of rated
capacity, or
b. the battery develops leakage.
MOTOROLA, at its option, will at no charge either
repair the Product (with new or reconditioned
parts), replace it (with a new or reconditioned
Product), or refund the purchase price of the
Product during the warranty period provided it is
returned in accordance with the terms of this
warranty. Replaced parts or boards are warranted
for the balance of the original applicable warranty
period. All replaced parts of Product shall become
the property of MOTOROLA.
This express limited warranty is extended by
MOTOROLA to the original end user purchaser
only and is not assignable or transferable to any
other party. This is the complete warranty for the
Product manufactured by MOTOROLA.
MOTOROLA assumes no obligations or liability for
additions or modifications to this warranty unless
madeinwritingandsignedbyanofficerof
MOTOROLA. Unless made in a separate
agreement between MOTOROLA and the original
end user purchaser, MOTOROLA does not warrant
the installation, maintenance or service of the
Product.
iDEN Subscriber Digital Mobile and
Portable Units One (1) Year
Product Accessories
(manufactured by or under license
from MOTOROLA)
One (1) Year
Batteries One (1) Year
121
MOTOROLA cannot be responsible in any way for
any ancillary equipment not furnished by
MOTOROLAwhichisattachedtoorusedin
connection with the Product, or for operation of the
Product with any ancillary equipment, and all such
equipment if expressly excluded from this
warranty. Because each system which may use
the Product is unique, MOTOROLA disclaims
liability for range, coverage, or operation of the
system as a whole, or any portion of the system not
produced by MOTOROLA, under this warranty.
II. General Provisions:
This warranty sets forth the full extent of
MOTOROLA’S responsibilities regarding the
Product, Repair, replacement or refund of the
purchase price, at MOTOROLA’S options, is the
exclusive remedy. THIS WARRANTY IS GIVEN
IN LIEU OF ALL OTHER EXPRESS
WARRANTIES. IMPLIED WARRANTIES,
INLCUDING WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY TO THE FULL EXTENT SUCH MAY
BE DISCLAIMED BY LAW. IN NO EVENT SHALL
MOTOROLA BE LIABLE FOR DAMAGES IN
EXCESS OF THE PURCHASE PRICE OF THE
PRODUCT, FOR ANY LOSS OF USE, LOSS OF
TIME, INCONVENIENCE, COMMERCIAL LOSS,
LOST PROFITS OR SAVINGS OR OTHER
INCIDENTAL, SPECIAL OR CONSEQUENTIAL
DAMAGES ARISING OUT OF THE USE OR
INABILITY TO USE SUCH PRODUCT, TO THE
FULL EXTENT SUCH MAY BE DISCLAIMED BY
LAW.
III. How to Get Warranty
Service:
You must provide proof of purchase (bearing the
date of purchase and Product item serial number)
in order to receive warranty service and, also,
deliver or send the Product item, transportation
and insurance prepaid, to an authorized warranty
service location. Warranty service will be provided
by MOTOROLA through one of its authorized
warranty service locations. If you first contact the
company which sold you the Product (e.g., dealer
or communication service provider), it can facilitate
your obtaining warranty service.
IV. What This Warranty Does
Not Cover:
a. Defects or damage resulting from use of the
Product in other than its normal and customary
manner.
122
Limited Warranty Motorola Communication Products (International)
b. Defects or damage from misuse, accident,
water, or neglect.
c. Defects or damage from improper testing,
operation, maintenance, installation, alteration,
modification, or adjustment.
d. Breakage or damage to antennas unless
caused directly by defects in material
workmanship.
e. A Product subjected to unauthorized Product
modifications, disassemblies or repairs
(including, without limitation, the audition to the
Product of non-MOTOROLA supplied
equipment).
f. Product which has had the serial number
removed or made illegible.
g. Rechargeable batteries if:
1.Any of the seals on the battery enclosure of
cells are broken or show evidence of
tampering.
2.The damage or defect is caused by
charging or using the battery in equipment
or service other than the Product for which it
is specified.
h. Freight costs to the repair depot.
i. A Product which, due to illegal or unauthorized
alteration of the software/firmware in the
Product, does not function in accordance with
MOTOROLA’S published specifications or the
local type acceptance labeling in effect for the
Product at the time the Product was initially
distributed from MOTOROLA.
j. Scratches or other cosmetic damage to
Product surfaces that does not effect the
operation of the Product.
k. Normal and customary wear and tear.
l. Exclusion for defects or damage arising from
use of the products in connection with
non-MOTOROLA equipment.
VI. Patent and Software
Provisions:
MOTOROLA will defend, at its own expense, any
suit brought against the end user purchaser to the
extent that it is based on a claim that the Product or
parts infringe a patent, and Motorola will pay those
costs and damages finally awarded against the
end user purchaser in any such suit which are
attributable to any such claim, but such defense
and payments are conditioned on the following:
a. That MOTOROLA will be notified promptly in
writing by such purchaser of any notice of such
claim;
b. That MOTOROLA will have sole control of the
defense of such suit and all negotiations for its
123
settlement or compromise; and
c. Should the Product or parts become, or in
MOTOROLA’S opinion be likely to become, the
subject of a claim of infringement of a patent,
that such purchaser will permit MOTOROLA, at
its option and expense, either to procure for
such purchaser the right to continue using the
Product or parts or to replace or modify the
same so that it becomes non-infringing or to
grant such purchaser a credit for the Product or
parts as depreciated and accept its return. The
depreciation will be an equal amount per year
over the lifetime of the Product or parts as
established by MOTOROLA.
MOTOROLA will have no liability with respect to
any claim of patent infringement which is based
upon the combination of the Product or parts
furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will
MOTOROLA have any liability for the use of
ancillary equipment or software not furnished by
MOTOROLAwhichisattachedtoorsuedin
connection with the Product or any parts thereof. In
no event shall MOTOROLA be liable for any
incidental, special or consequential damages
arising from any claim of patent infringement or
alleged infringement.
Laws in the United States and other countries
preserve for MOTOROLA certain exclusive rights
for copyrighted MOTOROLA software, such as the
exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software.
MOTOROLA software may be used in only the
Product in which the software was originally
embodied and such software in such Product may
not be replaced, copied, distributed, modified in
any way, or used to produce any derivative thereof.
No other use including, without limitation,
alteration, modification, reproduction, distribution,
or reverse engineering of such MOTOROLA
software or exercise or rights in such MOTOROLA
software is permitted. No license is granted by
implication, estoppel or otherwise under
MOTOROLA patent rights or copyrights.
124
Patent and Trademark
Information
MOTOROLA, the Stylized M Logo and all other
trademarks indicated as such herein are
trademarks of Motorola, Inc. ® Reg. U.S. Pat. &
Tm. Off. © 2004 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are
registered trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic
Communications.
T9®Text Input Patent and Trademark Information
This product is covered by U.S. Pat. 5,818,437,
U.S. Pat. 5,953,541, U.S. Pat. 6,011,554 and other
patents pending.
Java and all other Java-based marks are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
All other product names or services mentioned in
this manual are the property of their respective
trademark owners.
Software Copyright Notice
The Motorola products described in this manual
may include copyrighted Motorola and third party
software stored in semiconductor memories or
other media. Laws in the United States and other
countries preserve for Motorola and third party
software providers certain exclusive rights for
copyrighted software, such as the exclusive rights
to distribute or reproduce the copyrighted software.
Accordingly, any copyrighted software contained in
the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in
any manner to the extent allowed by law.
Furthermore, the purchase of the Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or patent
applications of Motorola or any third party software
provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation
of law in the sale of a product.
125
Index
Numerics
2-way radio 92
seealsoPrivatecalls,group
calls, and call alerts
A
Accessories 16
safety 114
Alpha mode 55
Antenna 6
attaching 6
removing 6
B
Backlight 91
Battery 3
care 5
charging 4, 5
door 2
inserting 3
safety 110
Baud rate 94
C
Call alerts 28
deleting 29
queue 28
receiving 28
responding 28, 29
sending 28
sorting 29
status messages 71
viewing 28
Call filtering 98
Call forwarding
all calls 39
missed calls 40
off 40
Call Hold 43
Call Timers 46
Call Waiting 42
off 42
Calls
answering automatically 91
answering with any key 91
emergency 21
ending 17
from Contacts 19
from memo 50
from Recent calls 18
group, see Group calls
icons 18
international 44
making 17
on hold 43
phone calls 17
Private calls 17, 20, 92
receiving 17
redialing 19, 91
remote PTT 102
Speed Dial 20
TTY, see TTY calls
Turbo Dial 20
voice name 20
Circuit data 47
Clock 91
Contacts 19
capacity 37
creating entries 34
deleting 36
editing entries 36
126
Index
icons 32
iDEN Phonebook Manager
38
international numbers 37
searching 33
showing all entries 34
showing only Private IDs 34
SIM card 32
storing fast 36
storing from idle screen 36
storing from Memo 36, 50
storing from recent calls 30,
36
type 30, 32
viewing 33
with non-i325 phones 38
D
Direct Launch 26
Display
backlight 91
colors 91
contrast 91
options 9
screen 9
E
Email 32, 35, 47
Emergency calls 21
Emergency Group calls 69
ending 70
making 69
receiving 70
End key 1
F
Faxes
receiving 47
sending 47
G
GPS Enabled 78
almanac data 83
best results 81
emergency calls 21, 79
map software 84
privacy options 83
security 84
viewing location 80
GPS PIN 93
GPS, see GPS Enabled
Group calls 45, 67, 92
seealsoEmergencyGroup
calls
making 46, 68
off 46, 69
receiving 46, 68
H
Handset, see phone
Headset 102
Hubs 67
joining 67
setting up 67
viewing 68
I
Icons
calls 18
Contacts 32
main menu 10
MOSMS messages 65
Recent calls 30
status 11
text entry 55
iDEN Phonebook Manager 38
Idle screen 9
127
storingtoContacts36
International numbers 44
calling 44
storing 37
Isolated Operation 70
J
Java applications
deleting 73
memory 74
K
Keypad 1
locking 15, 93
L
Language 91
Lists, see menus
M
Memo 50
calling from 50
creating 50
editing 50
storingtoContacts36, 50
viewing 50
Memory
Java applications 74
MOSMS messages 66
ring tones 53
voice records 88, 89
Menu key 1, 10
Menus 9, 10
context-sensitive 1, 10
main menu 10
Message center 59, 60
seealsomessages
MOSMS messages 62
voice mail 60
Message notifications 58
setting options 58
Messages 58
seealsovoicemail,MOSMS
messages, and SMS
messages
receiving 58
MOSMS messages 61
creating 62
deleting 65, 66
drafts 64
icons 65
memory 66
message center 62
outbox 64
quick notes 64
receiving 61
sending 62
sent messages 65
setting up 61
MOTOtalk
channels 23
codes 23
emergency 26
private MOTOtalk calls 25
setup options 26
talk range 23
using 22
Mute 21
N
Navigation key 1
Numeric mode 57
O
Over-the-air programming 7
128
Index
P
Packet data 47
Passwords 93
Patent information 124
Pauses
dialing 44
storing 37
Phone 1, 9
active line 91
care 6
locking 93
modem 47
off 6
on 6
only 94
setting up 2
Private Calls 17
Private calls 17
Profiles 95
call filtering 98
changing settings 96
creating 97
deleting 98
editing 98
surveillance 96
switching 95
temporary 97
viewing 95
Programming, over-the-air 7
PTT
One Touch 20
One Touch, setting 44
PUK code 13
R
Radio frequency 105
Recent calls 18, 30
deleting 31
display time 94
icons 30
storingtoContacts30, 36
viewing 30
Redialing 19, 91
Ring tones 32, 51
deleting 54
downloading 53
memory 53
off 51
setting 51
settinginContacts34, 53
silent 51, 52
vibrate 51, 52
viewing assigned 53
Ringer 90
seealsoRingtones
off 90
S
Safety 105
accessory 114
battery 110
driving 130
electromagnetic interference
108
intrinsically safe 111
medical devices 108
radio frequency 105
Security 93
Send key 1
Service, activating 6
Settings 91
resetting 94
Shortcuts
creating 100
129
deleting 101
editing 101
using 100
SIM card 3, 12, 14
Contacts 32
inserting 14
removing 15
with non-i325 phones 38
SIM PIN 12, 93
changing 12
default 12
entering 12
requirement 13
unblocking 13
SMS messages 58, 61
also see MOSMS messages
61
Speakerphone 20
Speed Dial 20, 33, 35
State Tone 27
Status messages 103
in call alerts 71
Surveillance profile 96
Symbols mode 57
T
T9 Text Input, see text entry
Talkgroup Scan 69
Talkgroups 45, 67, 92
Text display area 9, 18
Text entry 55
Alpha mode 55
database 55, 56
icons 55
mode 55
Numeric mode 57
Symbols mode 57
Word mode 55
Trademark information 124
TTY calls 48
baud rate 49
making 48
mode 48
on 48
Turbo Dial 20
V
Voice mail 58, 60
receiving 60
sending calls to 17
setting up 60
Voice name 20, 33
Voice records 87
creating 87
deleting 88
labelling 88
locking 88
memory 88, 89
playing 87
Volume, setting 90, 92
W
Waits
dialing 44
storing 37
Warranty 120
Word mode 55
130
Driving Safety Tips
“Safety is your most important call!”
Your Motorola wireless telephone gives you the
powerful ability to communicate by voice — almost
anywhere, anytime, wherever wireless phone
service is available and safe conditions allow. But
an important responsibility accompanies that
benefits of wireless phones, one that every user
must uphold.
When driving a car, driving is your first
responsibility. If you find it necessary to use your
wireless phone while behind the wheel of a car,
practice good common sense and remember the
following tips:
•Get to know your Motorola wireless phone and
its features such as speed dial and redial. If
available, these features help you to place your
call without taking your attention off the road.
•When available, use a hands-free device. If
possible, add an additional layer of convenience
to your wireless phone with one of the many
Motorola Original hands-free accessories
available today.
•Position your wireless phone within easy reach.
Be able to access your wireless phone without
removing your eyes from the road. If you receive
an incoming call at an inconvenient time, if
possible, let your voice mail answer it for you.
•Let the person you are speaking with know you
are driving; if necessary, suspend the call in
heavy traffic or hazardous weather conditions.
Rain, sleet, snow, ice, and even heavy traffic can
be hazardous.
•If you receive an incoming call at an
inconvenient time do not take notes or look up
phone numbers while driving. Jotting down a “to
do” list or going through your address book
takes attention away from your primary
responsibility — driving safely.
•Dial sensibly and assess the traffic; if possible,
place calls when you are not moving or before
pullingintotraffic.Trytoplancallswhenyourcar
will be stationary. If you need to make a call
while moving, dial only a few numbers, check
the road and your mirrors, then continue.
•Do not engage in stressful or emotional
conversations that may be distracting. Make
people you are talking with aware you are
driving and suspend conversations which have
the potential to divert your attention away from
the road.
131
•Your phone can perform many other functions
besides allowing you to make and receive calls.
Do not let these features distract you from
driving. Use them only when it is safe to do so.
•Use your wireless phone to call for help. Dial
9-1-1 or other local emergency number in the
case of fire, traffic accident or medical
emergencies.
•Use your wireless phone to help others in
emergencies. If you see an auto accident, crime
in progress or other serious emergency where
lives are in danger, call 9-1-1 or other local
emergency number, as you would want others to
do for you.
•Call roadside assistance or a special
non-emergency wireless assistance number
when necessary. If you see a broken-down
vehicle posing no serious hazard, a broken
traffic signal, a minor traffic accident where no
one appears injured, or a vehicle you know to be
stolen, call roadside assistance or other special
non-emergency wireless number.
