APX 1000

APX™ TWO-WAY RADIOS

APX 1000

MODEL 2

USER GUIDE

English

ASTRO® APX™ 1000 Series

Digital Portable Radios

Quick Reference Card

RF Energy Exposure and Product Safety

Guide for Portable Two-Way Radios

ATTENTION!

This radio is restricted to Occupational use only. Before using

the radio, read the RF Energy Exposure and Product Safety

Guide for Portable Two-Way Radios which contains important

operating instructions for safe usage and RF energy awareness

and control for Compliance with applicable standards and

Regulations.

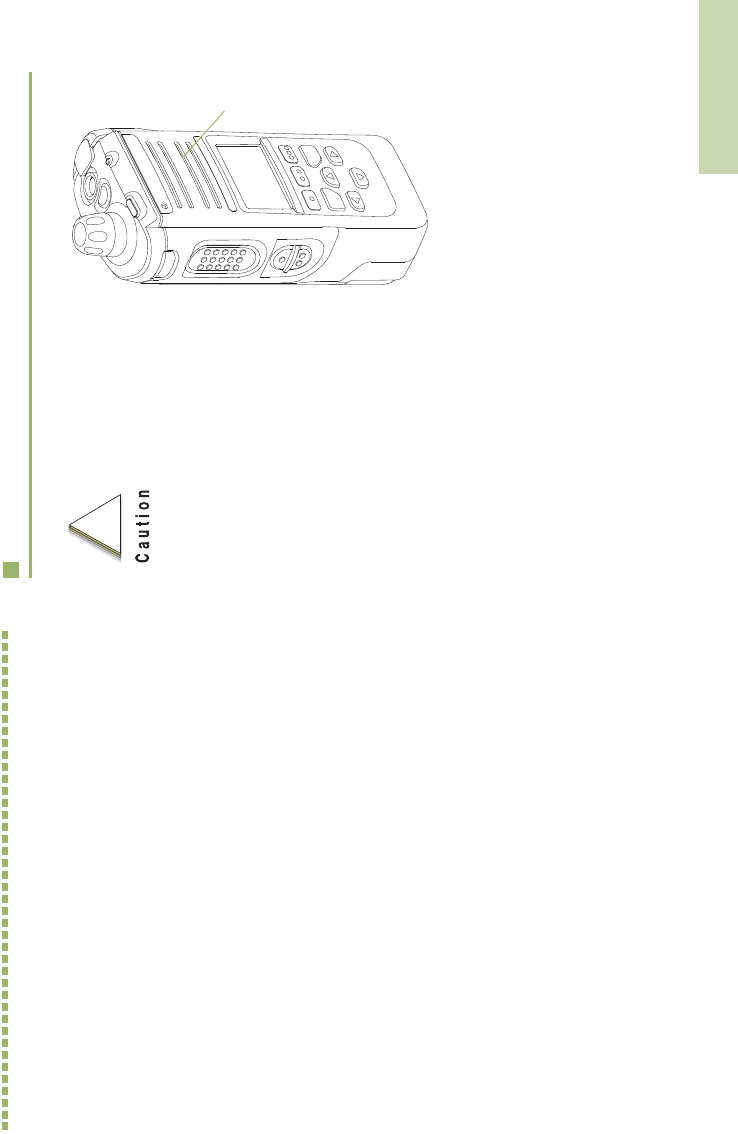

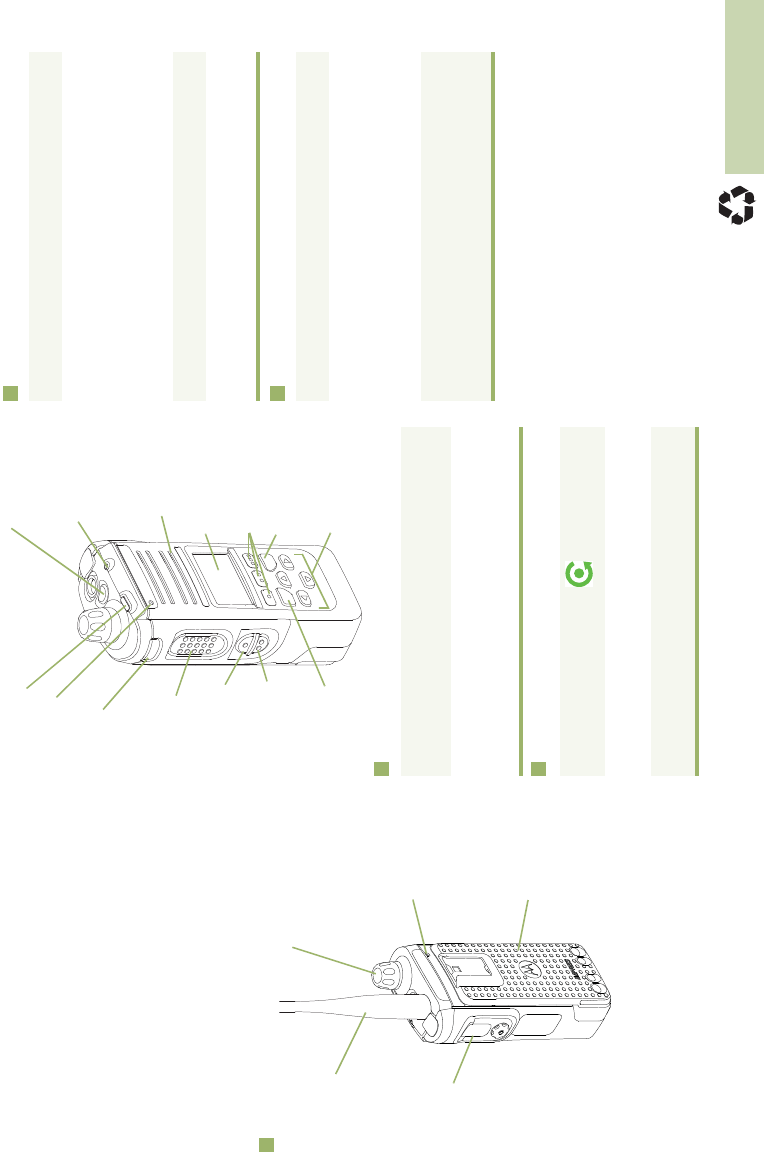

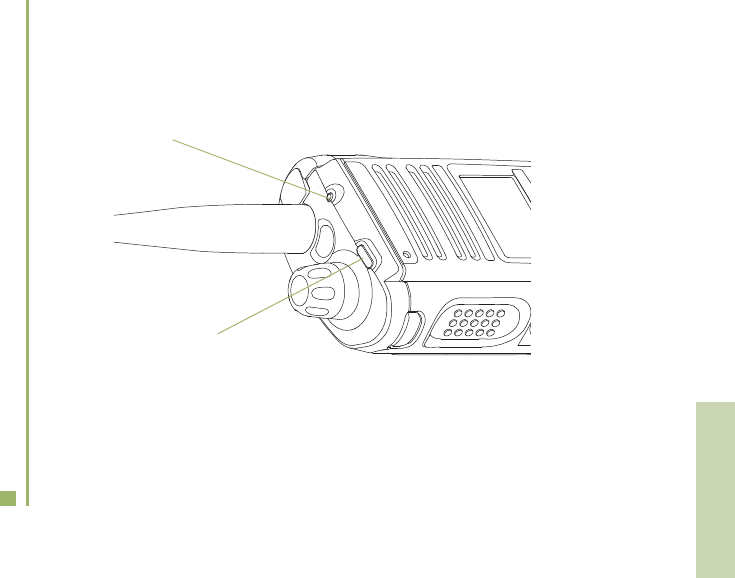

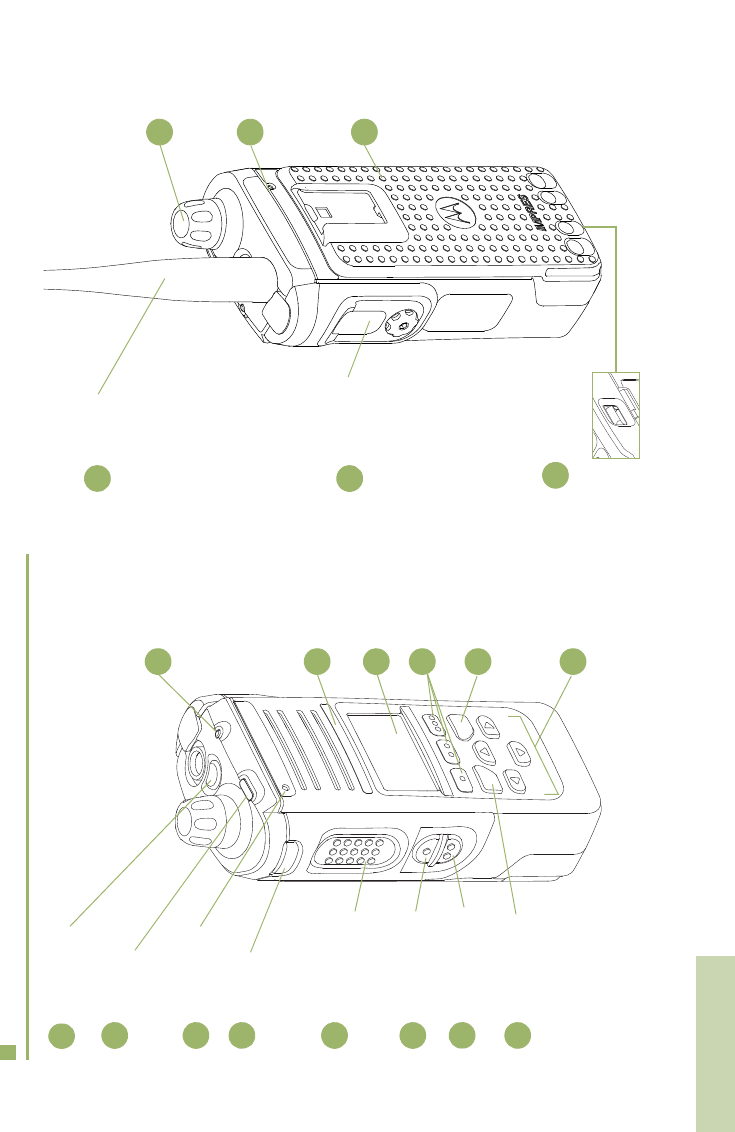

Radio Controls

Radio On/Off

Zones and Channels

Receiving and Transmitting

Sending an Emergency Alarm

* Default emergency button press timer is set

to 1 second. This timer is programmable, see

page 56 in the user guide for details.

To exit emergency at any time, press and hold

the Emergency button.

Antenna

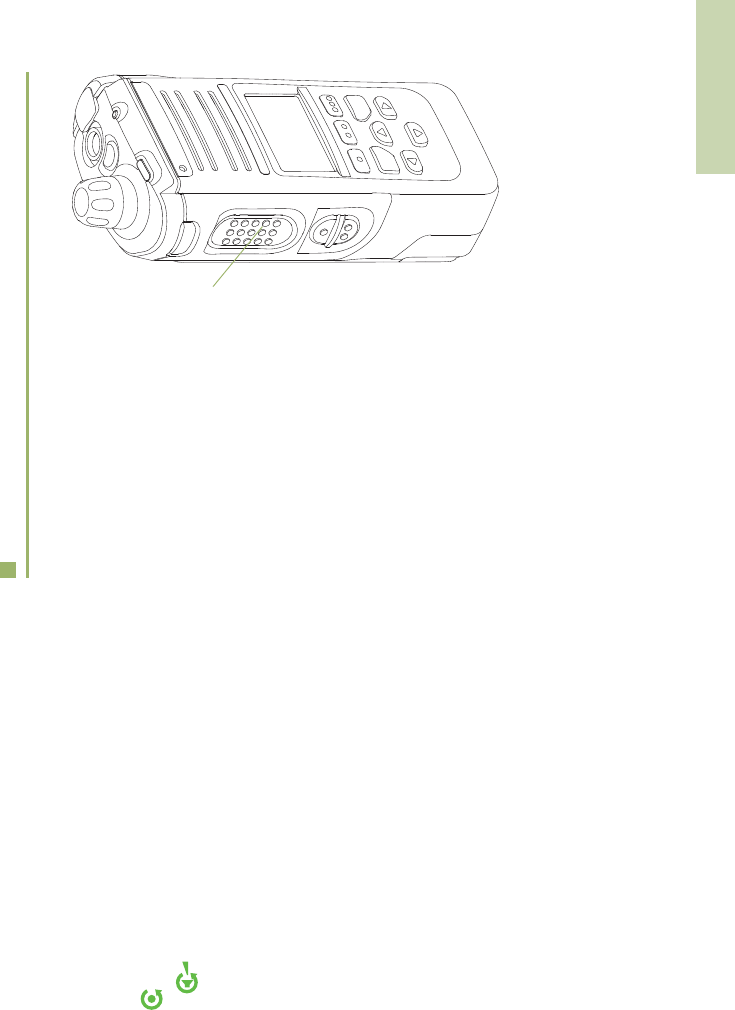

Accessory

Connector

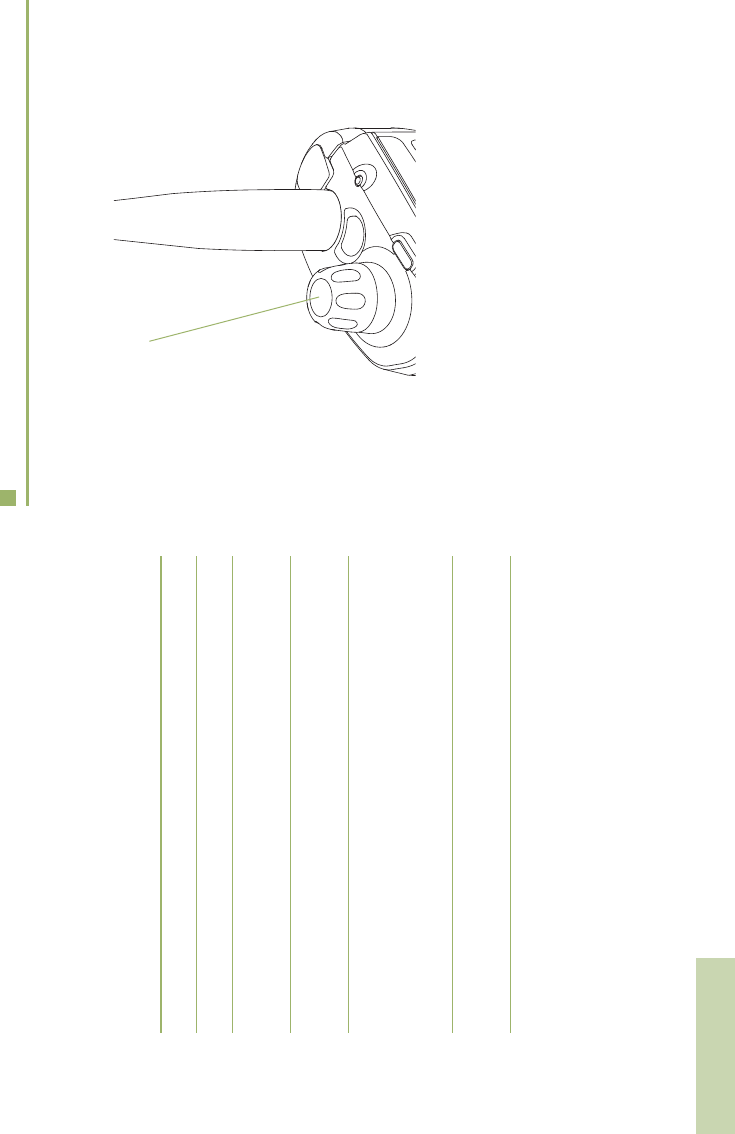

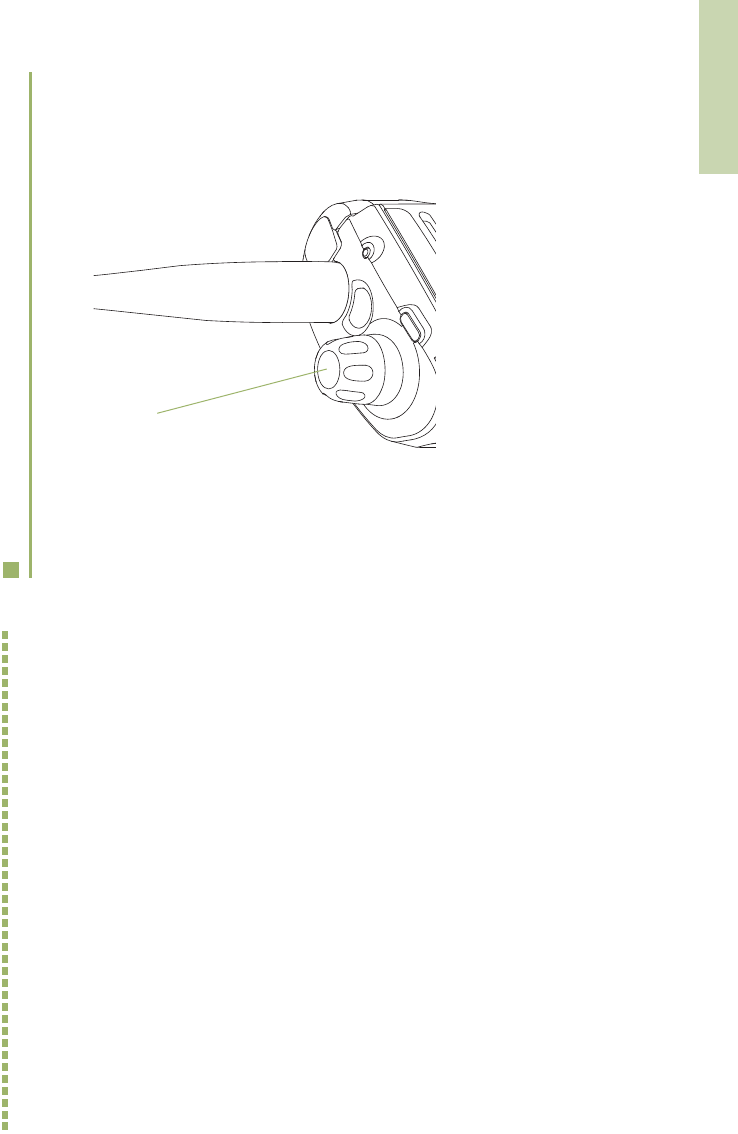

Multi-Function Knob

(MFK):

Primary Feature:

_________________

Secondary Feature:

_________________

Battery

Microphone

•On – Press and hold the MFK until the display

lights up.

•Off – Press and hold the MFK until you see

Power off?, then press Menu Select button

below Yes.

1Press the MFK to see on the screen.

2Turn the MFK to scroll to desired zone or

channel.

3Press MFK to select the desired zone or

channel and exit Mode Change.

Top Lightbar

Side Button 1

__________

PTT Button

Top Side

(Select)

Button

__________ Main

Speaker

Microphone

Side Button 2

__________

Home Button

LED

Menu Select

Buttons

Data Feature

Button

4-Way Navigation

Button

Main Display

Top (Orange)

Button

__________

1Select zone/channel.

2Listen for a transmission.

Press and hold Volume Set button.

Press Monitor button and listen for activity.

3Adjust volume, if necessary.

4Press the PTT button to transmit; release to

receive.

1Press and hold the Emergency button*.

2The display shows Emergency and the

current zone/channel. Radio sounds a short,

medium-pitched tone, and the LED blinks red

momentarily.

3When acknowledgment is received, you hear

four beeps; alarm ends; and radio exits

emergency.

*PMLN6812A*

PMLN6812A

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and

East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.

English

Sending an Emergency Call

To exit emergency at any time, press and hold

the Emergency button.

Sending a Silent Emergency Call

To exit emergency at any time, press and hold

the Emergency button.

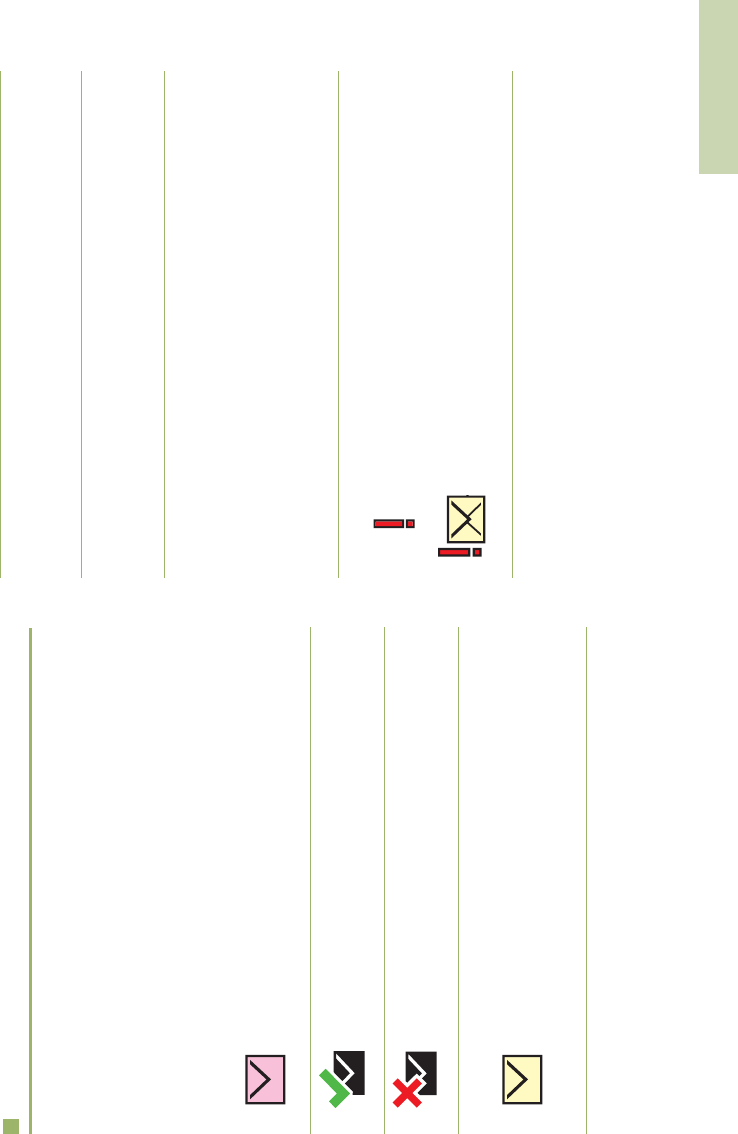

Display Status Icons

1Press the Emergency button.

2Press and hold the PTT button. Speak clearly

into the microphone.

3Release the PTT button to end call.

4Press and hold Emergency button to exit

emergency.

1Press the Emergency button.

2The display does not change; the LED does

not light up, and there is no tone.

3Silent emergency continues until you:

Press and hold the Emergency button to exit

emergency state.

Press and release the PTT button to exit the

Silent Emergency Alarm mode and enter

regular dispatch or Emergency Call mode.

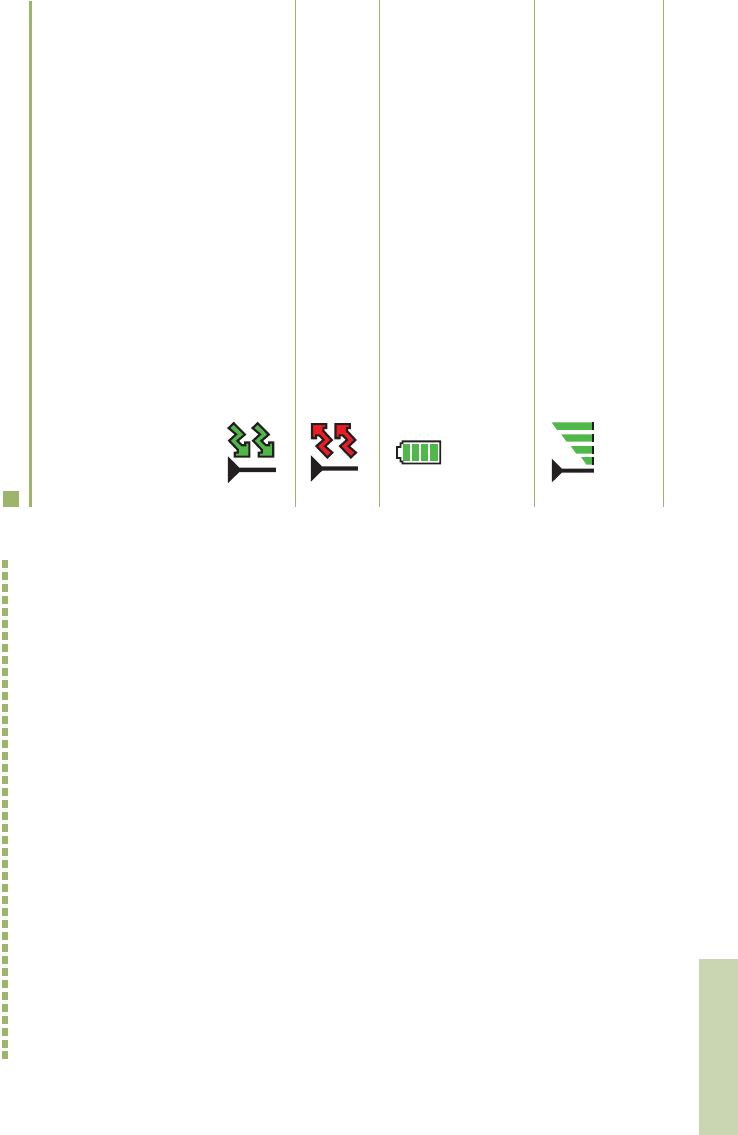

Receiving a call or data

Transmitting a call or data

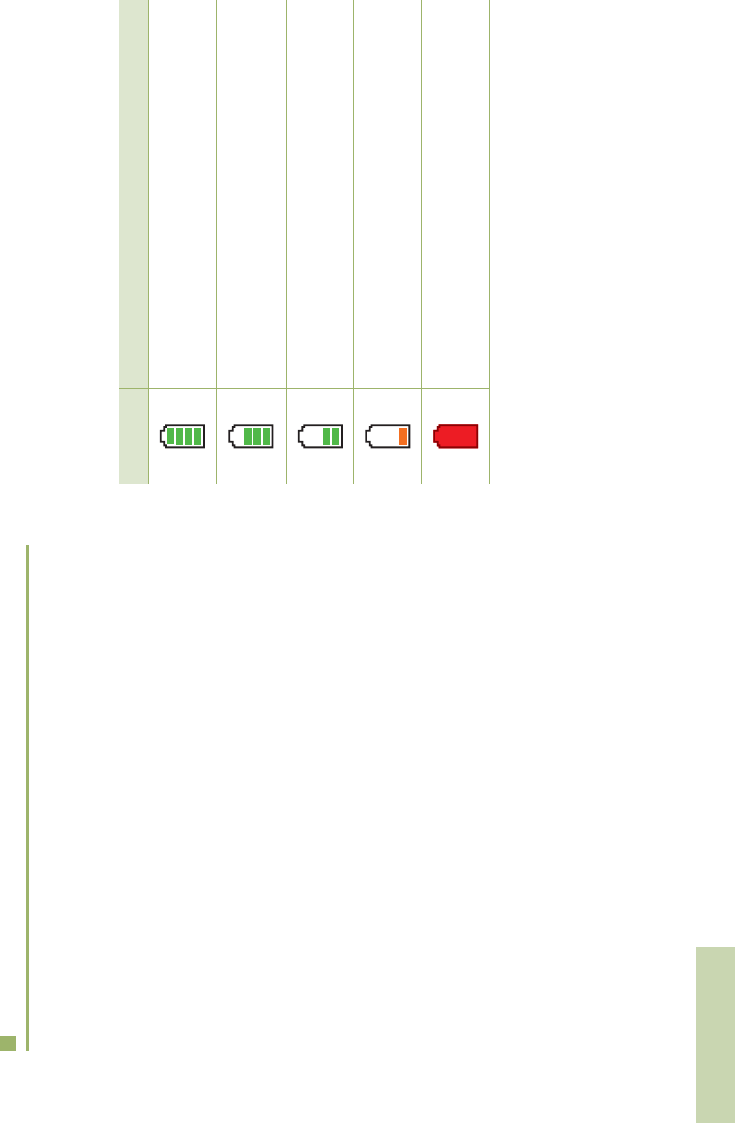

Blinks when the battery is low.

The more stripes, the stronger the

signal strength for the current site

(trunking only).

Direct radio to radio communication or

connected through a repeater.

On = Direct

Off = Repeater

This channel is being monitored.

L = Radio is set at Low power.

H = Radio is set at High power.

Scanning a scan list.

Blinking dot = Detects activity on the

Priority-One Channel

during scan.

Steady dot = Detects activity on the

Priority-Two Channel

during scan.

The vote scan feature is enabled.

HOR .

On = User is currently associated with

the radio.

Off = User is currently not associated

with the radio.

Blinking = Device registration or user

registration with the server failed due

to an invalid username or pin.

Data activity is present.

MFK is in Mode Change feature.

MFK is in Volume Change feature.

On = Secure operation.

Off = Clear operation.

Blinking = Receiving an encrypted

voice call.

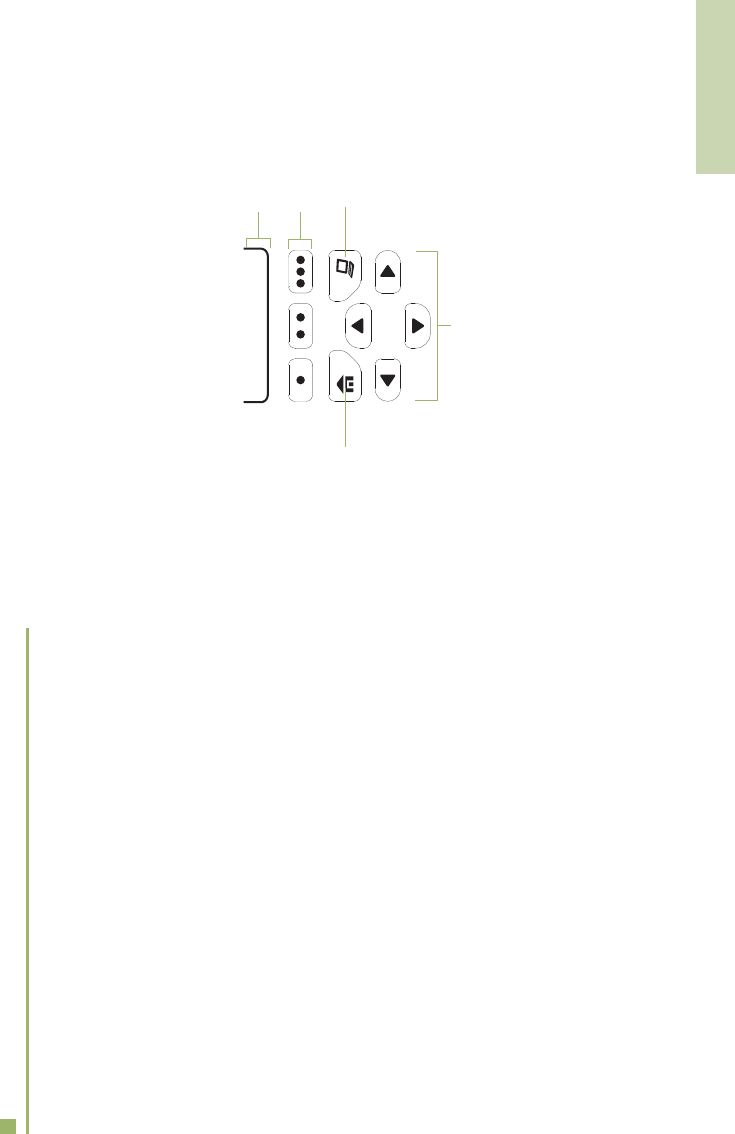

Menu Navigation

< or > to Menu Entry.

{, |, or } directly below Menu

Entry to select.

H to exit.

U or D to scroll through sub-list.

{, |, or } directly below

Menu Entry to select.

Declaration of Conformity

English

Declaration of Conformity

This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.

DECLARATION OF CONFORMITY

Per FCC CFR 47 Part 2 Section 2.1077(a)

Responsible Party

Name: Motorola Solutions, Inc.

Address: 1303 East Algonquin Road, Schaumburg, Illinois 60196, U.S.A.

Phone Number: 1-800-927-2744

Hereby declares that the product:

Model Name: APX 1000

conforms to the following regulations:

FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)

Class B Digital Device

As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

English

Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Contents

English

iii

Contents

This User Guide contains all the information you need

to use the APX™ 1000 Series Digital Portable Radios.

Declaration of Conformity . . . . . . . . . . . . . . . . .i

Important Safety Information . . . . . . . . . . . . .viii

RF Energy Exposure and Product Safety Guide

for Portable Two-Way Radios . . . . . . . . . . . . . . . .viii

Software Version . . . . . . . . . . . . . . . . . . . . . . . .ix

Notice to Users (FCC and Industry Canada) . . . . . .ix

Informations importantes sur la

sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x

Exposition aux radiofréquences et sécurité du

produit pour radios bidirectionnelles portatives . . . . x

Version du logiciel . . . . . . . . . . . . . . . . . . . . . . .xi

Avis aux utilisateurs (FCC et Industrie

Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi

Computer Software Copyrights . . . . . . . . . . . xii

Documentation Copyrights . . . . . . . . . . . . . . .xii

Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . .1

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1

Notations Used in This Manual . . . . . . . . . . . . . . . . . 1

Additional Performance Enhancement . . . . . . . . . . . 2

ASTRO 25 Enhanced Data . . . . . . . . . . . . . . . . . . . 2

Dynamic System Resilience (DSR) . . . . . . . . . . . . . 2

CrossTalk Prevention . . . . . . . . . . . . . . . . . . . . . . . 3

SecureNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

What Your Dealer/System Administrator

Can Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Preparing Your Radio for Use . . . . . . . . . . . . . .4

Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 4

Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

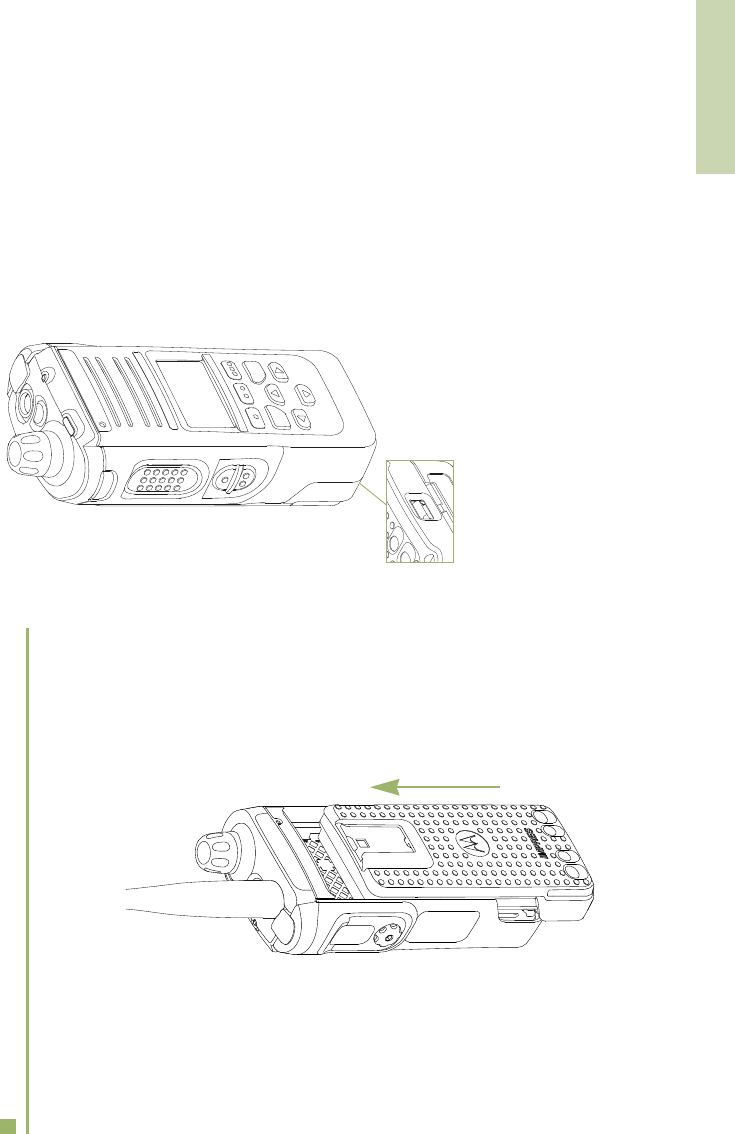

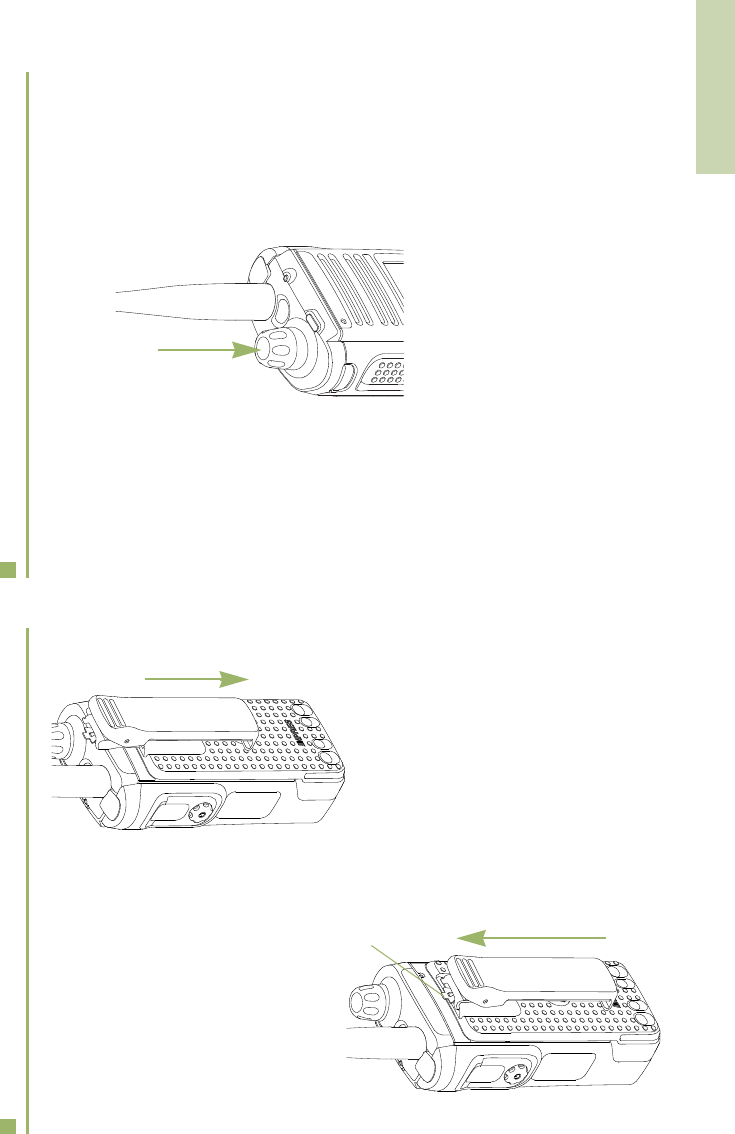

Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 5

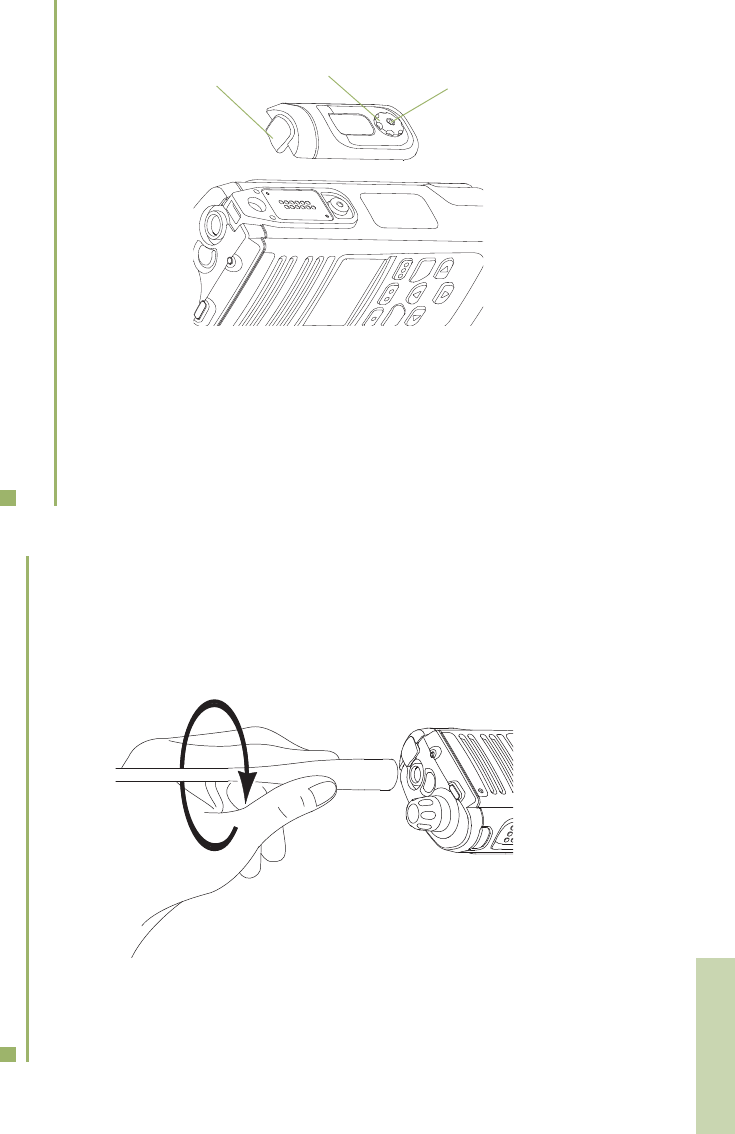

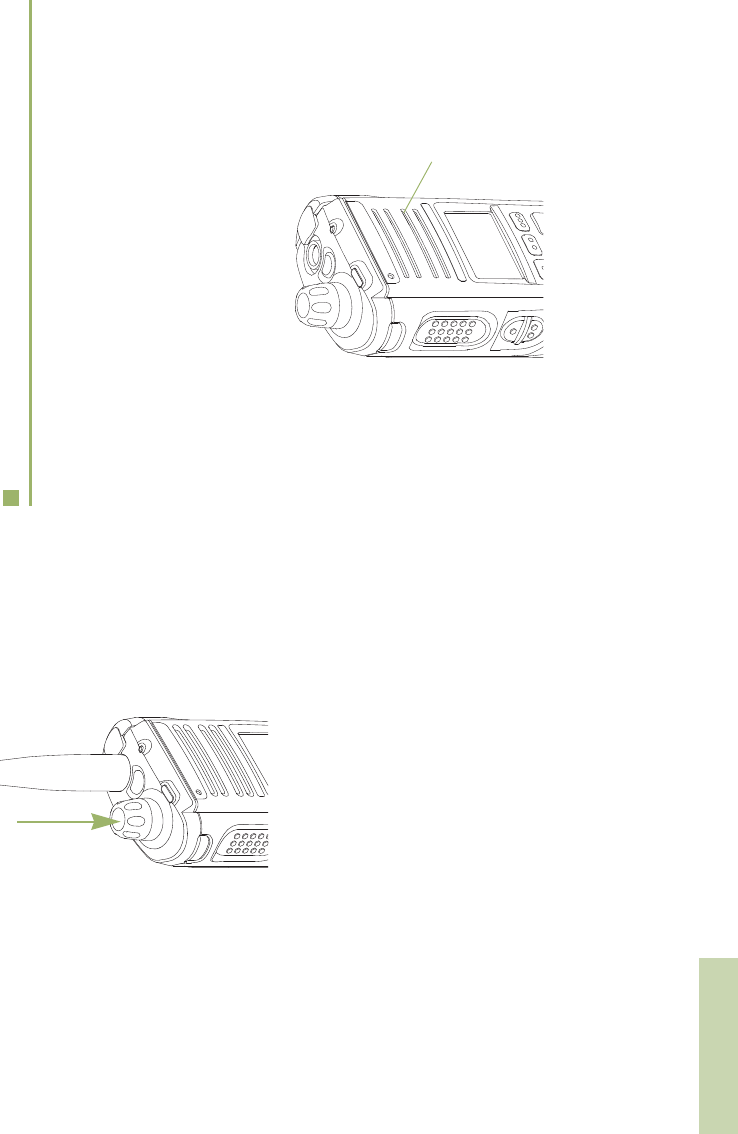

Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 6

Attaching the Accessory Connector

Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . 7

Contents

English

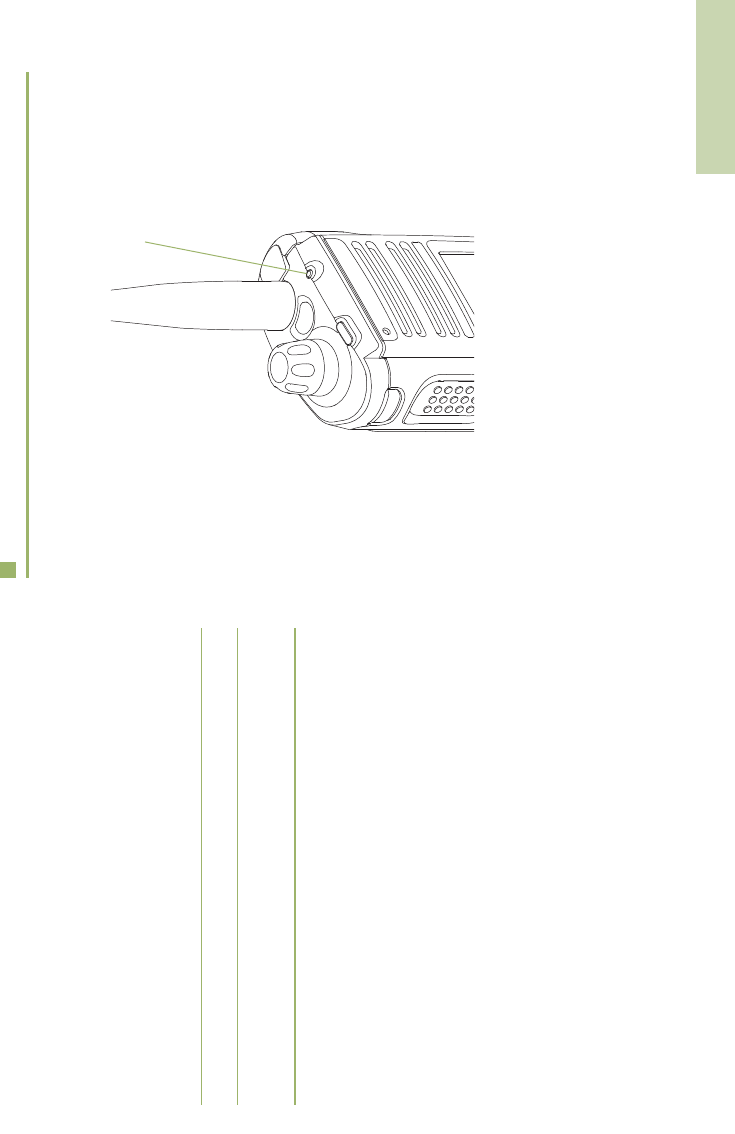

Turning On the Radio . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 8

Identifying Radio Controls . . . . . . . . . . . . . . . . .9

Radio Parts and Controls . . . . . . . . . . . . . . . . . . . . 10

Programmable Features . . . . . . . . . . . . . . . . . . . . . 11

Assignable Radio Functions . . . . . . . . . . . . . . . . . . 11

Assignable Settings or Utility Functions . . . . . . . . . 12

Accessing the Preprogrammed Functions . . . . . . . 13

Using the Menu Select Buttons . . . . . . . . . . . . . . . 13

Using the Navigation Buttons . . . . . . . . . . . . . . . . . 14

Home Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Data Feature Button . . . . . . . . . . . . . . . . . . . . . . . 14

4-Way Navigation Button . . . . . . . . . . . . . . . . . . . . 14

Multi-Function Knob (MFK) . . . . . . . . . . . . . . . . . . 15

Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . 15

Identifying Status Indicators . . . . . . . . . . . . . .16

Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Text Messaging Service (TMS) Icons . . . . . . . . . . 19

Status Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TMS Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . 20

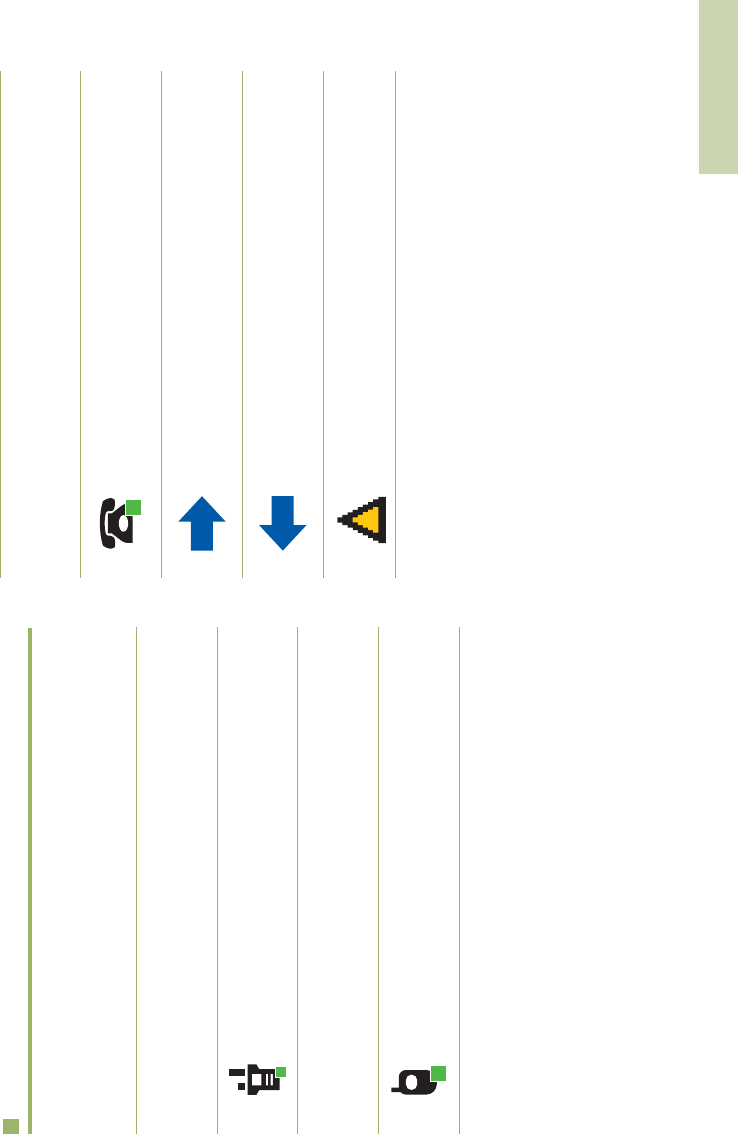

Call Type Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Top Lightbar and LED Indicators . . . . . . . . . . . . . . 22

LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Top Lightbar Indications . . . . . . . . . . . . . . . . . . . . .23

Intelligent Lighting Indicators . . . . . . . . . . . . . . . . . 24

Alert Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Phone Call Display and Alert Prompts . . . . . . . . . . 28

General Radio Operation . . . . . . . . . . . . . . . . 29

Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . 30

Using Mode Select Feature . . . . . . . . . . . . . . . . . . 32

Saving a Zone and Channel to a Softkey . . . . . . . .32

Saving a Zone and Channel to a Programmable

Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Receiving and Responding to a Radio Call . . . . . . 33

Receiving and Responding to a Talkgroup Call . . .34

Receiving and Responding to a Private Call

(Trunking Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Receiving and Responding to a Telephone Call

(Trunking Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 36

Making a Talkgroup Call . . . . . . . . . . . . . . . . . . . . .36

Making a Private Call (Trunking Only) . . . . . . . . . . .36

Making an Enhanced Private Call (Trunking Only) .37

Making a Telephone Call (Trunking Only) . . . . . . . .38

Contents

English

Repeater or Direct Operation . . . . . . . . . . . . . . . . . 39

Monitoring Features . . . . . . . . . . . . . . . . . . . . . . . . 39

Monitoring a Channel . . . . . . . . . . . . . . . . . . . . . . .40

Conventional Mode Operation . . . . . . . . . . . . . . . .40

Advanced Features . . . . . . . . . . . . . . . . . . . . . 41

Advanced Call Features . . . . . . . . . . . . . . . . . . . . . 41

Receiving and Making a Selective Call (ASTRO

Conventional Only) . . . . . . . . . . . . . . . . . . . . . . . . .41

Receiving a Selective Call . . . . . . . . . . . . . . . . . . .42

Making a Selective Call . . . . . . . . . . . . . . . . . . . . .42

Using the Talkgroup Call Feature (Conventional

Operation Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Selecting a Talkgroup . . . . . . . . . . . . . . . . . . . . . .43

Sending a Status Call . . . . . . . . . . . . . . . . . . . . . . .43

Using the Dynamic Regrouping Feature (Trunking

Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Requesting a Reprogram (Trunking Only) . . . . . . .45

Classifying Regrouped Radios . . . . . . . . . . . . . . . .45

Using Dynamic Zone Programming (DZP) . . . . . . .45

Entering the Dynamic Zone to Select a Dynamic

Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Saving a Channel in the Dynamic Zone from List

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Deleting a Channel in the Dynamic Zone . . . . . . . .47

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Making a Private Call from Contacts . . . . . . . . . . . .48

Adding a Contact to a Call List . . . . . . . . . . . . . . . 49

Removing a Contact from a Call List . . . . . . . . . . . 49

Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Viewing a Scan List . . . . . . . . . . . . . . . . . . . . . . . . 50

Editing the Scan List . . . . . . . . . . . . . . . . . . . . . . . 50

Changing the Scan List Status . . . . . . . . . . . . . . . 51

Viewing and Changing the Priority Status . . . . . . 51

Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Turning Scan On or Off . . . . . . . . . . . . . . . . . . . . . 52

Making a Dynamic Priority Change (Conventional

Scan Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Deleting a Nuisance Channel . . . . . . . . . . . . . . . . 52

Restoring a Nuisance Channel . . . . . . . . . . . . . . . 53

Call Alert Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Receiving a Call Alert Page . . . . . . . . . . . . . . . . . . 54

Sending a Call Alert Page . . . . . . . . . . . . . . . . . . . 54

Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . 55

Sending an Emergency Alarm . . . . . . . . . . . . . . . . 56

Sending an Emergency Call (Trunking Only) . . . . 57

Sending an Emergency Alarm with Emergency

Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Sending a Silent Emergency Alarm . . . . . . . . . . . . 58

Changing Channels during Emergncy . . . . . . . . . . 58

Using the Emergency Keep-Alive Feature . . . . . . . 58

Automatic Registration Service (ARS) . . . . . . . . . . 59

Selecting or Changing the ARS Mode . . . . . . . . . . 59

Contents

English

Accessing the User Login Feature . . . . . . . . . . . . . 60

Logging In as a User . . . . . . . . . . . . . . . . . . . . . . . 60

Logging Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Text Messaging Service (TMS) . . . . . . . . . . . . . . . 61

Accessing the TMS Features . . . . . . . . . . . . . . . . . 62

Sending a Quick Text Message . . . . . . . . . . . . . . . 62

Using the Priority Status and Request Reply

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Appending a Priority Status to a Text Message . . . 63

Removing a Priority Status from a Text Message . 64

Appending a Request Reply to a Text Message . . 64

Removing a Request Reply from a Text Message 64

Appending a Priority Status and a Reply Request to

a Text Message . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Removing a Priority Status and a Reply Request

from a Text Message . . . . . . . . . . . . . . . . . . . . . . . 65

Managing Text Messages . . . . . . . . . . . . . . . . . . . 65

Receiving a Text Message . . . . . . . . . . . . . . . . . . 65

Viewing a Text Message from the Inbox . . . . . . . . 66

Replying to a Received Text Message . . . . . . . . . 66

Managing Sent Text Messages . . . . . . . . . . . . . . . 67

Viewing a Sent Text Message . . . . . . . . . . . . . . . . 67

Sending a Sent Text Message . . . . . . . . . . . . . . . 68

Deleting a Text Message . . . . . . . . . . . . . . . . . . . . 68

Deleting All Text Messages . . . . . . . . . . . . . . . . . . 69

The Global Positioning System (GPS) . . . . . . . . . . 69

Understanding the GPS Feature . . . . . . . . . . . . . . 69

Enhancing GPS Performance . . . . . . . . . . . . . . . . 70

The Outdoor Location Feature (Using GPS) . . . . . .70

Enabling MGRS Coordinates . . . . . . . . . . . . . . . . .71

Accessing the Outdoor Location Feature . . . . . . . .71

Saving a Waypoint . . . . . . . . . . . . . . . . . . . . . . . . .72

Viewing a Saved Waypoint . . . . . . . . . . . . . . . . . . .73

Deleting a Single Saved Waypoint . . . . . . . . . . . . .73

Deleting All Saved Waypoints . . . . . . . . . . . . . . . .74

Measuring the Distance and Bearing from a Saved

Waypoint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Using the Location Feature While in Emergency

Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Trunking System Controls . . . . . . . . . . . . . . . . . . . 75

Using the Failsoft System . . . . . . . . . . . . . . . . . . . .75

Going Out of Range . . . . . . . . . . . . . . . . . . . . . . . .76

Using the Site Trunking Feature . . . . . . . . . . . . . . .76

Locking and Unlocking a Site . . . . . . . . . . . . . . . . .76

Viewing and Changing a Site . . . . . . . . . . . . . . . . .77

Viewing the Current Site . . . . . . . . . . . . . . . . . . . . .77

Changing the Current Site . . . . . . . . . . . . . . . . . . .77

Programming Over Project 25 (POP 25)

(ASTRO 25 and ASTRO Conventional) . . . . . . . . 77

Responding to the notification of Upgrade . . . . . . .77

Voice Announcement . . . . . . . . . . . . . . . . . . . . . . . 78

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Viewing the Recent Calls . . . . . . . . . . . . . . . . . . . .79

Selecting the Power Level . . . . . . . . . . . . . . . . . . . .80

Selecting a Radio Profile . . . . . . . . . . . . . . . . . . . . .81

Contents

English

vii

Enabling and Disabling the Radio Alias . . . . . . . . .81

Selecting the Audio Speaker . . . . . . . . . . . . . . . . . .82

Controlling the Display Backlight . . . . . . . . . . . . . . .83

Locking and Unlocking the Controls . . . . . . . . . . . .83

Turning the Switch and Buttons Tones On or Off . .83

Turning Voice Mute On or Off . . . . . . . . . . . . . . . . .84

Using the Time-Out Timer . . . . . . . . . . . . . . . . . . . .84

Setting the Time and Date . . . . . . . . . . . . . . . . . . .85

Editing the Time and Date . . . . . . . . . . . . . . . . . . .85

Using the Conventional Squelch Operation

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .85

Analog Options . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Digital Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Using the PL Defeat Feature . . . . . . . . . . . . . . . . . .86

Using the Digital PTT ID Feature . . . . . . . . . . . . . .86

Using the Smart PTT Feature (Conventional Only) 87

IMPRES™ Battery Annunciator . . . . . . . . . . . . . . .87

Accessing the Battery Info screen . . . . . . . . . . . . .88

Accessing the General Radio Information . . . . . . . .88

Accessing the Radio Information . . . . . . . . . . . . . .88

Viewing the IP Information . . . . . . . . . . . . . . . . . . .89

Viewing the Control Assignments . . . . . . . . . . . . .90

Helpful Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Caring for Your Radio . . . . . . . . . . . . . . . . . . . . . . . 91

Cleaning Your Radio . . . . . . . . . . . . . . . . . . . . . . . .92

Handling Your Radio . . . . . . . . . . . . . . . . . . . . . . . .93

Servicing Your Radio . . . . . . . . . . . . . . . . . . . . . . . 93

Taking Care of the Battery . . . . . . . . . . . . . . . . . . . 94

Checking the Battery Charge Status . . . . . . . . . . . 94

LED and Sounds . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Fuel Gauge Icon . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Battery Recycling and Disposal . . . . . . . . . . . . . . . 95

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Highlights for the Accessories . . . . . . . . . . . . . . . . . 96

Appendix: Maritime Radio Use in the VHF

Frequency Range . . . . . . . . . . . . . . . . . . . . . . .97

Special Channel Assignments . . . . . . . . . . . . . . . . 97

Emergency Channel . . . . . . . . . . . . . . . . . . . . . . . 97

Non-Commercial Call Channel . . . . . . . . . . . . . . . 97

Operating Frequency Requirements . . . . . . . . . . . . 98

Declaration of Compliance for the User of

Distress and Safety Frequencies . . . . . . . . . . . . . 100

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Commercial Warranty . . . . . . . . . . . . . . . . . . .105

Important Safety Information

English

viii

Important Safety Information

RF Energy Exposure and Product Safety Guide

for Portable Two-Way Radios

ATTENTION!

This radio is restricted to Occupational use only.

Before using the radio, read the RF Energy Exposure and

Product Safety Guide for Portable Two-Way Radios

which contains important operating instructions for safe

usage and RF energy awareness and control for

Compliance with applicable standards and Regulations.

For a list of Motorola-approved antennas, batteries, and

other accessories, visit the following website:

http://www.motorolasolutions.com/APX

Under Industry Canada regulations, this radio transmitter

may only operate using an antenna of a type and

maximum (or lesser) gain approved for the transmitter by

Industry Canada. To reduce potential radio interference

to other users, the antenna type and its gain should be so

chosen that the equivalent isotropically radiated power

(e.i.r.p.) is not more than that necessary for successful

communication.

This radio transmitter has been approved by Industry

Canada to operate with the Motorola-approved antenna

types with the maximum permissible gain and required

antenna impedance for each antenna type indicated.

Antenna types not included, having a gain greater than

the maximum gain indicated for that type, are strictly

prohibited for use with this device.

Software Version

English

Software Version

All the features described in the following sections are

supported by the radio's software version R12.00.00 or

later.

See Accessing the Radio Information on page 88 to

determine your radio's software version.

Check with your dealer or system administrator

for more details of all the features supported.

Notice to Users (FCC and Industry Canada)

This device complies with Part 15 of the FCC rules and

RSS 210 of the Industry Canada rules per the conditions

listed below:

1This device may not cause harmful interference.

2This device must accept any interference received,

including interference that may cause undesired

operation.

3Changes or modifications made to this device, not

expressly approved by Motorola, could void the user's

authority to operate this equipment.

Informations importantes sur la sécurité

Français Canadien

Informations importantes sur la

sécurité

Exposition aux radiofréquences et sécurité du

produit pour radios bidirectionnelles portatives

ATTENTION!

Cette radio ne doit être utilisée qu'à des fins

professionnelles. Avant d'utiliser la radio, lisez le guide

Exposition aux radiofréquences et sécurité du produit

pour radios bidirectionnelles portatives, qui contient

d'importantes instructions de fonctionnement pour une

utilisation sécuritaire et des informations sur l'exposition

aux fréquences radioélectriques afin d'assurer la

conformité aux normes et règlements applicables.

Pour obtenir une liste d'antennes et d'autres accessoires

approuvés par Motorola, consultez le site Web:

http://www.motorolasolutions.com/APX

Selon la règlementation d'Industrie Canada, cet émetteur

radio ne peut être utilisé qu'avec une antenne dont le

type et le gain maximal (ou minimal) sont approuvés par

Industrie Canada pour cet émetteur. Afin de limiter les

interférences radio pour les

autres utilisateurs, le type et le gain de l'antenne doivent

être choisis de façon à ce que la puissance isotrope

rayonnée équivalente (P.I.R.E.) ne soit pas plus forte qu'il

ne le faut pour établir la communication.

Le présent émetteur a été approuvé par Industrie Canada

pour fonctionner avec les types d'antenne agréés par

Motorola et ayant un gain admissible maximal ainsi que

l'impédance requise pour chaque type d'antenne indiqué.

Les types d'antenne non inclus, dont le gain est supérieur

au gain maximal indiqué, sont strictement interdits pour

l'exploitation de l'émetteur.

Version du logiciel

Français Canadien

Version du logiciel

Toutes les fonctionnalités décrites dans les sections

suivantes sont prises en charge par la version du logiciel

R12.00.00 ou ultérieure de la radio.

Vérifiez auprès de votre détaillant ou de l'administrateur

de système pour obtenir des renseignements sur les

fonctionnalités prises en charge.

Avis aux utilisateurs (FCC et Industrie

Canada)

Cet appareil est conforme à la Partie 15 des règlements

de la FCC et RSS 210 du règlement d'Industrie Canada

selon les conditions énumérées ci-dessous:

1Ce dispositif ne doit pas causer d'interférences

nuisibles.

2Cet appareil doit accepter toute interférence reçue, y

compris les interférences qui peuvent perturber le

fonctionnement.

3Les changements ou les modifications apportées à ce

dispositif, non expressément approuvées par Motorola,

peuvent annuler le droit de l'utilisateur à utiliser cet

équipement.

Computer Software Copyrights

English

xii

Computer Software Copyrights

The Motorola products described in this manual may

include copyrighted Motorola computer programs stored

in semiconductor memories or other media. Laws in the

United States and other countries preserve for Motorola

certain exclusive rights for copyrighted computer

programs, including, but not limited to, the exclusive right

to copy or reproduce in any form the copyrighted

computer program. Accordingly, any copyrighted

Motorola computer programs contained in the Motorola

products described in this manual may not be copied,

reproduced, modified, reverse-engineered, or distributed

in any manner without the express written permission of

Motorola. Furthermore, the purchase of Motorola

products shall not be deemed to grant either directly or by

implication, estoppel, or otherwise, any license under the

copyrights, patents or patent applications of Motorola,

except for the normal non-exclusive license to use that

arises by operation of law in the sale of a product.

Documentation Copyrights

No duplication or distribution of this document or any

portion thereof shall take place without the express

written permission of Motorola. No part of this manual

may be reproduced, distributed, or transmitted in any

form or by any means, electronic or mechanical, for any

purpose without the express written permission of

Motorola.

Disclaimer

The information in this document is carefully examined,

and is believed to be entirely reliable. However, no

responsibility is assumed for inaccuracies. Furthermore,

Motorola reserves the right to make changes to any

products herein to improve readability, function, or

design. Motorola does not assume any liability arising out

of the applications or use of any product or circuit

described herein; nor does it cover any license under its

patent rights, nor the rights of others.

Getting Started

English

Getting Started

Take a moment to review the following:

How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . page 1

Notations Used in This Manual . . . . . . . . . . . . . . . . . . . page 1

Additional Performance Enhancement . . . . . . . . . . . . . page 2

What Your Dealer/System Administrator

Can Tell You. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

How to Use This Guide

This User Guide covers the basic operation of the APX™ 1000

Portables.

However, your dealer or system administrator may have

customized your radio for your specific needs. Check with your

dealer or system administrator for more information.

Notations Used in This Manual

Throughout the text in this publication, you will notice the use of

WARNING, Caution, and Note. These notations are used to

emphasize that safety hazards exist, and the care that must be

taken or observed.

An operational procedure, practice, or condition,

etc., which may result in injury or death if not

carefully observed.

An operational procedure, practice, or

condition, etc., which may result in damage

to the equipment if not carefully observed.

Note: An operational procedure, practice, or condition,

etc., which is essential to emphasize.

Getting Started

English

The following special notations identify certain items: Additional Performance Enhancement

The following are some of the latest creations designed to

enhance the security, quality and efficiency of your radio.

ASTRO 25 Enhanced Data

ASTRO 25 Enhanced Data is optimized to handle different

message sizes and update rates from different applications.

Install Enhanced Data to the Integrated Data system with a

software installation to improve data channel efficiency and

enable denser network traffic.

Dynamic System Resilience (DSR)

DSR seamlessly switches the radio system to a backup master

site during system failures. DSR also provides additional

indication e.g. failure detection, fault recovery, and redundancy

within the system to address to the user in need. Mechanisms

related to the Integrated Voice and Data (IV&D) or data centric

are all supported by DSR.

Example Description

Home button

or HButtons and keys are shown in bold print

or as an icon.

Phone Menu entries are shown similar to the

way they appear on your radio’s display.

>This means “Press the right side of the

4-way Navigation button”.



Getting Started

English

CrossTalk Prevention

This feature prevents crosstalk scenarios from happening,

especially when a wideband antenna is used. This feature

allows the adjustment of the Trident Transmitting SSI clock rate

in the radio to be different from the Receiving Frequency. This

subsequently reduces the possibilities of radio frequency

interfering spurs and it also prevents crosstalk.

SecureNet

SecureNet allows user to perform secured communications on

an Analog or Motorola Data Communication (MDC) channel.

What Your Dealer/System Administrator

Can Tell You

Check with your dealer or system administrator for the correct

radio settings, if the radio is to be operated in extreme

temperatures (less than -30 °C or more than +60 °C), to ensure

proper top and front display operation.

You can also consult your dealer or system administrator about

the following:

•Is your radio preprogrammed with any preset conventional

channels?

•Which buttons have been preprogrammed to access other

features?

•What optional accessories may suit your needs?



Preparing Your Radio for Use

English

Preparing Your Radio for Use

Assemble your radio by following these steps:

Charging the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Battery Charger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Attaching the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . page 5

Attaching the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . page 6

Attaching the Accessory Connector Cover . . . . . . . . . . page 6

Turning On the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

Charging the Battery

The Motorola-approved battery shipped with your radio is

uncharged. Prior to using a new battery, charge it for a minimum

of 16 hours to ensure optimum capacity and performance.

For a list of Motorola-authorized batteries available for use

with your radio, see Accessories on page 96.

Note: When charging a battery attached to a radio, turn your

radio off to ensure a full charge.

Battery Charger

To charge the battery, place the battery, with or without the

radio, in a Motorola-approved charger. The charger’s LED

indicates the charging progress; see your charger’s user guide.

For a list of chargers, see Accessories on page 96.

To avoid a possible explosion:

•DO NOT replace the battery in any area

labeled “hazardous atmosphere”.

•DO NOT discard batteries in a fire.



Preparing Your Radio for Use

English

Attaching the Battery

With the radio turned off, slide the battery into the radio’s frame

until click into place.

To remove the battery,

turn the radio off. Lift up

the latch then slide the

battery down to remove

the battery from the radio.

You can view the status of

the IMPRES™ battery if

the radio is using an

IMPRES™ battery. See

IMPRES™ Battery

Annunciator on page 87

for more information.

Battery Latch is at the bottom of the battery.

Preparing Your Radio for Use

English

Attaching the Antenna

With the radio turned off, set the antenna in its receptacle and

turn clockwise to attach it to the radio.

To remove the antenna, turn the antenna counterclockwise.

Make sure you turn off the radio first.

Attaching the Accessory Connector

Cover

The accessory connector is located on the antenna side of the

radio. It is used to connect accessories to the radio.

Note: To prevent damage to the connector, shield it with the

connector cover when not in use.

Insert the hooked

end of the cover

into the slot above

the connector.

Press downward on

the cover’s top to

seat it in the slot.

Once in place,

tighten by rotating

the thumbscrew

clockwise by hand.

To remove the

accessory connector cover, rotate the thumbscrew

counterclockwise until it disengages from the radio.

If the thumbscrew is too tight, use an Allen wrench to loosen

it first.

Rotate and lift the connector cover to disengage it from

the radio.

Hooked End

Thumbscrew

Hex Socket Head

Preparing Your Radio for Use

English

Attaching the Belt Clip

Align the grooves of the belt clip

with those of the radio and

press upward until you hear a

click.

To remove the clip, use a flat-

bladed object to press the belt

clip tab away from the radio.

Then, slide the clip downward

and away from your radio.

Turning On the Radio

Press and hold the Multi-Function Knob (MFK) until the radio

display lights up, then release the MFK.

If the power-up test is successful, you see the Home screen.

Note: If the power-up test is unsuccessful, you see Error

XX/YY (XX/YY is an alphanumeric code).

Turn off your radio, check the battery, and turn the

radio back on. If your radio fails the power-up test

again, record the Error XX/YY code and contact

your dealer.

Tab

Preparing Your Radio for Use

English

To turn off your radio, press and hold the MFK until the radio

display shows

Power off?

, press the Menu Select button

below

Yes

to power off.

Adjusting the Volume

Your radio is preprogrammed to reset to medium volume rate,

which is Level 12, by default whenever the radio powers up.

To increase the volume, turn the MFK clockwise. The display

shows volume bars and volume level when you change the

volume.

Note: If Volume Change is secondary feature of MFK, see

Multi-Function Knob (MFK) on page 15 to toggle the

function of the MFK.

To decrease the volume, turn this MFK counterclockwise.

Note: Ensure that the main speaker is pointed towards you

for increased loudness and intelligibility, especially in

areas with loud background noises.

Main

Speaker

Identifying Radio Controls

English

Identifying Radio Controls

Take a moment to review the following:

Radio Parts and Controls . . . . . . . . . . . . . . . . . . . . . . page 10

Programmable Features . . . . . . . . . . . . . . . . . . . . . . . page 11

Assignable Radio Functions . . . . . . . . . . . . . . . . . . page 11

Assignable Settings or Utility Functions. . . . . . . . . . page 12

Accessing the Preprogrammed Functions. . . . . . . . . . page 13

Using the Menu Select Buttons . . . . . . . . . . . . . . . . page 13

Using the Navigation Buttons. . . . . . . . . . . . . . . . . . page 14

Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . page 15

Identifying Radio Controls

English

Radio Parts and Controls

Antenna

LED

Accessory

Connector

Home Button

4-Way

Navigation

Button

Microphone

Top (Orange)

Button*

Battery

Latch (at the

bottom)

Menu Select

Buttons

Main Display

Data Feature

Button

Multi-

Function

Knob

(MFK)*

Side Button 2*

Side Button 1*

Push-to-Talk

(PTT) Button

Top Side

(Select)

Button*

Battery

Top

Lightbar

* These radio controls/buttons are programmable.

Speaker

Microphone

Identifying Radio Controls

English

Programmable Features

Any reference in this manual to a control that is

“preprogrammed” means that the control must be programmed

by a dealer or qualified radio technician using the radio's

programming software, in order to assign a feature to that

control.

The programmable buttons can be programmed as shortcuts to

radio functions or preset channels/groups depending on the

duration of a button press:

•Press – Pressing and releasing rapidly.

•Long press – Pressing and holding for the preprogrammed

duration (between 0.25 seconds and 3.75

seconds).

•Hold down – Keeping the button pressed.

Assignable Radio Functions

Call Alert – Allows the radio to function like a pager, or to verify

if a radio is active on the system.

Call Response – Allows you to answer a private call.

Channel – Selects a channel.

Contacts – Selects the Contacts menu.

Dynamic Priority (Conventional Only) – Allows any channel

in a scan list (except for the Priority-One channel) to temporarily

replace the Priority-Two channel.

Emergency – Depending on the programming, initiates or

cancels an emergency alarm or call.

Information – Displays the information of the radio.

Internet Protocol Address – Displays the Internet Protocol (IP)

address, device name and status of the radio.

Location – Determines the current location (latitude, longitude,

time and date), and also the distance and bearing to another

location. Or, turns the GPS functionality on or off for all location.

Message – Enters the current message list.

Mode Select – Long-press programs a button with the radio's

current zone and channels; then once programmed, the short

press of that button jumps the radio to the programmed zone

and channel.

Monitor (Conventional Only) – Monitors a selected channel

for all radio traffic until function is disabled.

Multiple Private Line (Conventional Only) – Selects the

Multiple Private Line lists.

Nuisance Delete – Temporarily removes an unwanted channel,

except for priority channels or the designated transmit channel,

from the scan list.



Identifying Radio Controls

English

Phone – Allows you to make and receive calls similar to

standard phone calls.

Private Call (Trunking Only) – Allows a call from an individual

radio to another individual radio.

Private Line Defeat (Conventional Only) – Overrides any

coded squelch (DPL or PL) that is preprogrammed to a channel.

Radio Profiles – Allows for easy access to a set of

preprogrammed visual and audio settings of the radio.

Recent Calls – Allows for easy access to the list of calls

recently received or made.

Repeater Access Button (RAB) (Conventional Only) –

Allows to manually send a repeater access codeword.

Reprogram Request (Trunking Only) – Notifies the dispatcher

you want a new dynamic regrouping assignment.

Request-To-Talk (Conventional Only) – Notifies the

dispatcher you want to send a voice call.

Scan – Toggles scan on or off.

Secure Transmission Select (Conventional and Trunking) –

Toggles to transmit is secure or clear transmission.

Selective Call (Conventional Only) – Calls an assigned radio.

Site Display/Search (Trunking Only) – Displays the current

site ID and RSSI value; performs site search for AMSS

(Automatic Multiple Site Select) operation.

Site Lock/Unlock (Trunking Only) – Locks onto a specific site.

Status – Sends data calls to the dispatcher about a predefined

status.

Talkaround/Direct (Conventional Only) – Toggles between

using a repeater and communicating directly with another radio.

Talkgroup (Conventional Only) – Allows a call from an

individual radio to a group of radios.

Text Messaging Service (TMS) – Selects the text messaging

menu.

TMS Quick Text – Selects a predefined message.

User – Automatically registers with the server.

Zone Select – Allows selection from a list of zones.

Assignable Settings or Utility Functions

Light/Flip – Press the button to toggle the display backlight on

or off.

Keypad/Control Lock – Locks or unlocks the Menu Select,

Navigation, Home, Data, programmable buttons and rotary

knob.

Voice Announcement – Audibly indicates the current feature

mode, Zone or Channel the user has just assigned.

Voice Mute – Toggles voice mute on or off.

Volume Set Tone – Sets the volume set tone.



Identifying Radio Controls

English

Accessing the Preprogrammed Functions

You can access various radio functions through one of the

following ways:

•A short or long press of the relevant programmable buttons.

•Use the Menu Select Buttons ({, |, and }).

Using the Menu Select Buttons

The Menu Select buttons access the menu entries of features.

Note: Check with your dealer or system administrator for the

list of features activated in your radio.

Your radio may be preprogrammed differently from the following

example, but the steps for selecting a channel may appear as

shown below:

•Press the Menu Select button ( | ) directly below Chan.



Data Feature

Button

4-Way Navigation Button

Home Button

Mute | Chan | Zone

Menu Select

Buttons

Softkeys

Identifying Radio Controls

English

Using the Navigation Buttons

Home Button

The H button returns you to the Home (default) screen. In most

cases, this is the current mode.

For selected radio features, the H button is also used to save

user-edited radio settings or information before returning you to

the Home screen.

Note: Some features do not require you to press H to go to

the Home screen. Refer to the individual feature

sections in this manual for further details on saving

user-edited radio settings or information.

Data Feature Button

Use this button to access data-related features, such as the

Text Messaging Service (TMS) feature screen.

4-Way Navigation Button

Use this button to scroll up, down, left or right.

Press and release one of the button to scroll from one entry to

the next one. Press and hold one of the button to have your

radio toggles through the list automatically (release the button

to stop).



Identifying Radio Controls

English

Multi-Function Knob (MFK)

MFK is the on/off button of your radio. See Turning On the

Radio on page 7 for the procedure to power up and down your

radio.

In addition, there are programmable features available for MFK,

which are:

Mode Change – Turn MFK to scroll the channel or zone list.

Volume Change – Turn MFK to increase or decrease the

volume level of the speaker. Fast turn of MFK makes coarse

tuning of the volume level; slow turn of MFK makes fine tuning

of the volume level. The display shows the volume level and

bars to indicate the current level. The level of last selected

volume before your radio powers down remains the same when

the radio powers up.

The main display only shows the icon of secondary feature; the

main display does not show the icon of primary feature.

Your radio by default is set to use the primary feature. Short

presses of MFK toggle it to work on either the secondary or

primary feature.

The secondary feature has an inactivity timer. This timer starts

when the secondary feature is left idle. The radio returns to

primary feature when this timer expires.

If the MFK is set to operate only one feature besides On/Off the

radio, Volume Change should be the only feature applied to

MFK.

Consult your dealer or system administrator for the best option

available for MFK.

Push-To-Talk (PTT) Button

The PTT button on the side

of the radio serves two basic

purposes :

•While a call is in progress,

the PTT button allows

your radio to transmit to

other radios in the call.

Press and hold down PTT

button to talk. Release the

PTT button to listen.

The microphone is

activated when the PTT

button is pressed.

•While a call is not in

progress, the PTT button

is used to make a new

call. See Making a Radio

Call on page 36 for more

information.



PTT

Button

Identifying Status Indicators

English

Identifying Status Indicators

Your radio indicates its operational status through the following:

Status Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16

Text Messaging Service (TMS) Icons . . . . . . . . . . . . . page 19

Status Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 19

TMS Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Call Type Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21

Top Lightbar and LED Indicators. . . . . . . . . . . . . . . . . page 22

LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 22

Top Lightbar Indications. . . . . . . . . . . . . . . . . . . . . . page 23

Intelligent Lighting Indicators. . . . . . . . . . . . . . . . . . . . page 24

Alert Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25

Phone Call Display and Alert Prompts . . . . . . . . . . . . page 28

Status Icons

The 160 x 90 pixel front liquid crystal display (LCD) of the radio

shows radio status, text entries, and menu entries. The top

display row contain color icons that indicate radio operating

conditions.

The following icons are for the front display screen unless

indicated otherwise.

Receiving

Radio is receiving a call or data.

Transmitting

Radio is transmitting a call or data.

Battery

For IMPRES battery operation only – the icon

shown indicates the charge remaining in the

battery.

For all battery operation – the icon blinks when

the battery is low.

Received Signal Strength Indicator (RSSI)

The number of bars displayed represents the

received signal strength for the current site, for

trunking only. The more stripes in the icon, the

stronger the signal.

Identifying Status Indicators

English

Roaming

The radio has roamed to and is currently

registered to a foreign system.

Direct

•On = Radio is currently configured for direct

radio-to-radio communication (during

conventional operation only).

•Off = Radio is connected with other radios

through a repeater.

Monitor (Carrier Squelch)

Selected channel is being monitored (during

conventional operation only).

In-Call User Alert

•On = The feature is enabled. Voice muting of

the affiliated trunking talkgroup or

selected conventional channel is

activated.

•Off = The feature is disabled. Voice muting of

the affiliated trunking talkgroup or

selected conventional channel is

deactivated.

Power Level

•L = Radio is set at Low power.

•H = Radio is set at High power.

Scan

Radio is scanning a scan list.

Priority Channel Scan

•Blinking dot = Radio detects activity on

channel designated as

Priority-One.

•Steady dot = Radio detects activity on channel

designated as Priority-Two.

Vote Scan Enabled

The vote scan feature is enabled.

Secure Operation

•On = Secure operation.

•Off = Clear operation.

•Blinking = Receiving an encrypted voice call.

H or .

Identifying Status Indicators

English

Location Signal

•On = Location feature is enabled, and location

signal is available.

•Off = Location feature is disabled.

•Blinking = Location feature is enabled, but no

location signal is available.

User Login Indicator (IP Packet Data)

•On = User is currently associated with your

radio.

•Off = User is currently not associated with your

radio.

•Blinking = Device registration or user

registration with the server failed

due to an invalid username or pin.

•Inverted = User successfully login to the

secured IP Packet Data.

Data Activity

Data activity is present.

MFK is in Mode Change feature

Turn the MFK to change the channel/zone.

MFK is in Volume Change feature

Turn the MFK to turn the volume up or down.

Identifying Status Indicators

English

Text Messaging Service (TMS) Icons

This feature allows you to send and receive text messages. See

Text Messaging Service (TMS) on page 61 for more

information.

Status Icons

The following icons appear on your radio’s display when you

send and receive text messages.

Inbox Full

The Inbox is full.

Message Sent

The text message is sent successfully.

Message Unsent

The text message cannot be sent.

Unread Message

•User receives a new message.

•The selected text message in the Inbox has not

been read.



Read Message

The selected text message in the Inbox has been

read.

Normal Message

User is composing a message with normal priority

and without a request for a reply.

3/6 Message Index

Indicates the index of the current message the

user is viewing.

Example: If the user is looking at the third

message out of a total of 6 messages in the Inbox

folder, the icon is displayed as the icon on the left

column.

Priority Status

•The “Priority” feature is toggled on before the

message is sent.

•Messages in the Inbox folder are flagged with

”Priority”.

Identifying Status Indicators

English

TMS Menu Options

Request Reply

•The “Request Reply” feature is toggled on

before the message is sent.

•Messages in the Inbox folder are flagged with

“Request Reply”.

Priority Status and Request Reply

•User is composing a message with a priority

status and a request for a reply.

•Messages in the Inbox folder are flagged with

“Priority” and “Request Reply”.

Menu Option Description/Function

Back Brings you back to the previous screen.

Clr Deletes all messages.

Del Deletes a message.

Exit Exits to the Home screen.

No Returns to the previous screen.

Optn Brings you to the Options main screen.

Rply Replies to a message.

Sel Selects the highlighted command.

Send Sends the message.

Yes Updates or saves a command.



Identifying Status Indicators

English

Call Type Icons

The following icons appear on your radio’s main display, when

you make or receive a call, or view selected call lists, to indicate

the different call types associated with an alias or ID.

Radio number.

Radio number added to a Call List.

Mobile number.

Mobile number added to a Call List.

Landline phone number.

Landline phone number added to a Call List.

Incoming call or data.

Outgoing call or data.

Incoming emergency call.

Identifying Status Indicators

English

Top Lightbar and LED Indicators

The Top Lightbar and LED indicators show the operational

status of the radio.

LED Indications

Solid red – Radio is transmitting.

Blinking red – Radio is transmitting at low battery condition.

Rapidly blinking red – Radio has failed the self test upon

powering up or encountered a fatal error.

Solid yellow (Conventional Only) – Channel is busy.

Blinking yellow – Radio is receiving a secured transmission.

Solid green – Radio is powering up, or is on a non-priority

channel while in the Scan List Programming mode.

Blinking green – Radio is receiving an individual or telephone

call, or is on a Priority-Two channel while in the Scan List

Programming mode.

Rapidly blinking green – Radio is on a Priority-One channel

while in the Scan List Programming mode.

Note: No LED indication when your radio receives a clear

(non-secured) transmission in trunking Mode.

LED

Top Lightbar



Identifying Status Indicators

English

Top Lightbar Indications

The lightbar blinks green when the MFK is using the secondary

feature. See Multi-Function Knob (MFK) on page 15 to

understand the functionality of MFK.

The lightbar turn into solid color of orange, red or green

depending on the status of Intelligent Lighting. See Intelligent

Lighting Indicators on page 24 for different status of Intelligent

Lighting.



Identifying Status Indicators

English

Intelligent Lighting Indicators

This feature temporary changes the color of the Top Lightbar and adds a color bar to the main display screen to help signal that a

radio event has occurred.

Note: This feature must be preprogrammed by a qualified radio technician.

Bar Color Notification When

Orange Emergency Alerts The radio initiates an emergency alarm or call.

The radio receives an emergency alarm or call.

Red Critical Alerts

The radio battery is low.

The radio is out of range.

The radio enters failsoft mode.

The radio is unable to establish a full connection with the system.

The radio is unable to authenticate or register with the system.

Green Call Alerts

The radio receives a private call.

The radio receives a phone call.

The radio receives a call alert.

The radio receives a selective call.

Identifying Status Indicators

English

Alert Tones

The radio uses alert tones to inform you of the radio’s condition. The following table lists these tones and when they occur.

You Hear Tone Name Heard

Short,

Low-Pitched

Tone

Radio Self Test Fail When radio fails its power-up self test.

Reject When an unauthorized request is made.

Time-Out Timer Warning Four seconds before time out.

No ACK Received When radio fails to receive an acknowledgment.

Individual Call

Warning Tone When radio is in an individual call for greater than 6 seconds without any activity.

Long,

Low-Pitched

Tone

Time-Out Timer

Timed Out After time out.

Talk Prohibit/PTT Inhibit (When PTT button is pressed) transmissions are not allowed.

Out of Range (When PTT button is pressed) the radio is out of range of the system.

Invalid Mode When radio is on an unpreprogrammed channel.

A Group of

Low-Pitched

Tones Busy When system is busy.

Identifying Status Indicators

English

Short,

Medium-Pitched

Tone

Valid Key-Press When a correct key is pressed.

Radio Self Test Pass When radio passes its power-up self test.

Clear Voice At beginning of a non-coded communication.

Priority Channel

Received When activity on a priority channel is received.

Emergency Alarm /Call

Entry When entering the emergency state.

Central Echo When central controller has received a request from a radio.

Long,

Medium-Pitched

Tone

Volume Set When volume is changed on a quiet channel.

Emergency Exit When exiting the emergency state.

A Group of

Medium-Pitched

Tones

Failsoft When the trunking system fails.

Automatic Call Back When voice channel is available from previous request.

Console Acknowledge When status, emergency alarm, or reprogram request ACK is received.

Received Individual Call When Call Alert or Private Call is received.

Call Alert Sent When Call Alert is received by the target radio.

Short,

High-Pitched

Tone (Chirp) Low-Battery Chirp When battery is below preset threshold value.

You Hear Tone Name Heard

Identifying Status Indicators

English

Ringing

Fast Ringing When system is searching for target of Private Call.

Enhanced Call Sent When waiting for target of Private Call to answer the call.

Phone Call Received When a land-to-mobile phone call is received.

Gurgle

Dynamic Regrouping (When PTT button is pressed) a dynamic ID has been received.

Talk Permit (When PTT button is pressed) is verifying with the system for accepting its

transmissions.

Unique,

Low-Pitched

Chirp New Message When a new message is received.

Unique,

High-Pitched

Chirp Priority Status When a priority message is received.

Doh-Sol MFK Enters Secondary

Feature When MFK is toggled to secondary feature.

Sol-Doh MFK Exits Secondary

Feature When MFK is toggled to exit secondary feature and return to primary feature, or

when secondary function timer expires.

You Hear Tone Name Heard

Identifying Status Indicators

English

Phone Call Display and Alert Prompts

The following appears on the radio’s display when you make and receive Phone calls. The radio also uses alert tones to indicate the

current status.

You Hear You See When Notes

A Long

Tone

No phone You press the PTT button and the

phone system is not available. Press H to hang up. The radio returns to the Home screen.

Phone busy The phone system is busy. Press H to exit the phone mode and try your call later.

A Busy

Tone Phone busy When a channel is not available. The radio automatically connects when a channel opens.

–No

acknowledge The call is not acknowledged. Press H to hang up. The radio returns to the Home screen.

A High-

Pitched

Tone –When you release the PTT button. The radio indicates to the landline party that he or she may begin

talking.

General Radio Operation

English

General Radio Operation

Once you understand how your APX 1000 Portable is

configured, you are ready to use your radio.

Use this navigation guide to familiarize yourself with the basic

Call features:

Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 29

Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . . . page 30

Receiving and Responding to a Radio Call. . . . . . . . . page 33

Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . page 36

Repeater or Direct Operation . . . . . . . . . . . . . . . . . . . page 39

Monitoring Features. . . . . . . . . . . . . . . . . . . . . . . . . . . page 39

Selecting a Zone

A zone is a group of channels.

Use the following procedure to select a zone.

Note: Your radio must be preprogrammed to allow you to use

this feature.

If Mode Change is secondary feature of the MFK, see

Multi-Function Knob (MFK) on page 15 to toggle the

function of MFK.

MFK

General Radio Operation

English

Procedure:

Turn the preprogrammed Zone Change MFK to the required

zone and proceed to Step 3.

Follow the procedure below.

1< or > to Zone.

2Press the Menu Select button directly below Zone.

3U or D to the required zone.

4Press the Menu Select button directly below Sel to confirm

the displayed zone.

5Press the PTT button to transmit on the displayed zone

channel.

Follow the procedure below.

1< or > to ZnUp or ZnDn.

2Press and hold the Menu Select button directly below ZnUp

or ZnDn until the required zone appears.

Note: Positions of ZnUp and ZnDn on the display may differ

each time you release the Menu Select button. Read

carefully before you press.

Selecting a Radio Channel

A channel is a group of radio characteristics, such as transmit/

receive frequency pairs.

Use the following procedure to select a channel.

Note: Your radio must be preprogrammed to allow you to use

this feature. If you select a channel that is not within the

preprogrammed band, the radio indicates that it is on

an unsupported frequency with both audio and visual

warnings.

Consult a qualified radio technician for the right choice

between the following methods.

MFK

General Radio Operation

English

If Mode Change is secondary feature of MFK, see

Multi-Function Knob (MFK) on page 15 to toggle the

function of MFK.

Procedure:

Turn the preprogrammed MFK to the desired channel.

Follow the procedure below.

1< or > to Chan.

2Press the Menu Select button directly below Chan.

3U or D to the required channel.

4Press the Menu Select button directly below Sel to confirm

the selected channel.

5Press the PTT button to transmit on the displayed zone

channel.

Follow the procedure below.

1< or > to ChUp or ChDn.

2Press the Menu Select button directly below ChUpor ChDn.

3Press the PTT button to transmit on the displayed zone and

channel.

Note: Positions of ChUp and ChDn on the display may differ

each time you release the Menu Select button. Read

carefully before you press.

General Radio Operation

English

Using Mode Select Feature

Mode Select allows a long press to save the radio’s current

zone and channel to a programmable button or a softkey; then

once programmed, the short-press of that button or softkey

changed the transmission to the saved zone and channel.

There are two methods to save the selected zone and channel:

•Softkeys

•Programmable buttons

Note: Your radio must be preprogrammed to allow you to use

this feature.

Saving a Zone and Channel to a Softkey

Five softkeys are available for you to save the frequent used

zone and channel.

Procedure:

1Toggle your zone and channel to the required zone and

channel.

2< or > to MS1, MS2 ... or MS5.

3Press and hold the Menu Select button directly below the

softkey.

4You hear a short, medium-pitched tone when the zone and

channel is saved.

Note: To change the programmed zone and channel, repeat

this procedure.

Short press of the programmed softkey changes your current

transmission to the zone and channel programmed in this

softkey.



General Radio Operation

English

Saving a Zone and Channel to a Programmable

Button

All the programmable buttons allow you to save the frequent

used zone and channel.

Procedure:

1Toggle your zone and channel to the required zone and

channel.

2Press and hold the digit button you desire to program.

3You hear a short, medium-pitched tone when the zone and

channel is saved.

Note: Repeat this procedure to change the zone and channel

of the programmed button.

Short press of the programmed button changes your current

transmission to the zone and channel programmed in this

button.

Receiving and Responding to a Radio Call

Once you have selected the required channel and/or zone, you

can proceed to receive and respond to calls.

The LED lights up solid red while the radio is transmitting. In

conventional mode, the LED lights up solid yellow when the

radio is receiving a transmission. In trunking mode, there is no

LED indication when the radio receives a transmission.

If the radio is receiving a secure transmission, the LED blinks

yellow.



LED Indicator

General Radio Operation

English

Receiving and Responding to a Talkgroup Call

To receive a call from a group of users, the radio must be

configured as part of that talkgroup.

Procedure:

When you receive a talkgroup call (while on the Home screen),

depending on how your radio is preprogrammed:

1ASTRO Conventional Only:

The LED lights up solid yellow. The display shows the

talkgroup alias or ID, and the caller alias or ID.

Trunking Only:

The display shows the caller alias or ID.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to respond to the call. The LED lights

up solid red.

4Release the PTT button to listen.

See Making a Talkgroup Call on page 36 for details on making

a Talkgroup Call.

Receiving and Responding to a Private Call

(Trunking Only)

A Private Call is a call from an individual radio to another

individual radio.

These one-to-one calls between two radios are not heard by

others in the current talkgroup. The calling radio automatically

verifies that the receiving radio is active on the system and can

display the caller ID.

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Procedure:

When you receive a Private Call:

1You hear two alert tones and the LED blinks green. The

display shows Call received.

2Press the Menu Select button directly below Resp.

Press the Call Response button within 20 seconds after the

call indicators begin.

3During the call, the display shows the caller alias (name), if it

is in the call list.

During the call, the display shows the caller ID (number), if the caller’s name is not in the call list.



General Radio Operation

English

4Press and hold the PTT button to talk. Release the PTT

button to listen.

5Press H or the Call Response button to hang up and

return to the Home screen.

See Making a Private Call (Trunking Only) on page 36 for

details on making a Private Call.

Receiving and Responding to a Telephone Call

(Trunking Only)

This feature allows you to receive calls similar to standard

phone calls from a landline phone.

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Procedure:

Use the preprogrammed Call Response button to answer a

Telephone Call:

1You hear a telephone-type ringing and the LED blinks green.

The backlight of the screen and the bar turns green. The

display shows Phone Call.

2Press the Call Response button within 20 seconds after the

call indicators begin.

3Press and hold the PTT button to talk. Release the PTT

button to listen.

4Press H or the Call Response button to hang up and

return to the Home screen.

See Making a Telephone Call (Trunking Only) on page 38 for

details on making a Telephone Call.



General Radio Operation

English

Making a Radio Call

You can select a zone, channel, subscriber ID, or talkgroup by

using:

•MFK preprogrammed with channel or zone change

•The Contacts list

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Making a Talkgroup Call

To make a call to a group of users, your radio must be

configured as part of that talkgroup.

Procedure:

1Turn the MFK to select the channel with the desired

talkgroup.

2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

3Press the PTT button to make the call.

4ASTRO Conventional Only:

The LED lights up solid red. The display shows the

talkgroup alias or ID.

Trunking Only:

The LED lights up solid red.

5Speak clearly into the microphone.

6Release the PTT button to listen.

Making a Private Call (Trunking Only)

Procedure:

1< or > to Call.

2Press the Menu Select button directly below Call. The

display shows the last transmitted or received ID.



General Radio Operation

English

3Press the Menu Select button directly below Cnts to scroll

through and select the required ID.

Press the Menu Select button directly below LNum to go to

the last number dialed.

U or D to the required ID.

4Press the PTT button to start the Private Call.

5The display shows Calling... <Number>.

6Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

7When you are connected, the display shows the ID of the

target radio. Press and hold the PTT button to talk. Release

the PTT button to listen.

If no acknowledgment is received, the display shows No

acknowledge.

8Press H to return to the Home screen.

Making an Enhanced Private Call (Trunking Only)

This feature allows you to send an individual Call Alert page if

there is no answer from the target radio. See Sending a Call

Alert Page on page 54 for more information.

Note: Your radio must be preprogrammed to allow you to use

this feature.

Procedure:

1< or > to Call.

2Press the Menu Select button directly below Call. The

display shows the last transmitted or received ID.

3Press the Menu Select button directly below Cnts to scroll

through and select the required ID.

Press the Menu Select button directly below LNum to go to

the last number dialed.

U or D to the required ID.

4Press the PTT button to start the Private Call.

5The display shows Calling... <Number>.

6Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

7When you are connected, the display shows the ID of the

target radio. Press and hold the PTT button to talk. Release



General Radio Operation

English

the PTT button to listen.

If no acknowledgment is received, the display shows No

acknowledge.

If the target radio does not respond before the time out, the

display shows No answer.

8Press H to return to the Home screen.

Making a Telephone Call (Trunking Only)

This feature allows you to make calls similar to standard phone

calls to a mobile or landline phone.

Procedure:

1< or > to Phon.

2Press the Menu Select button directly below Phon. The

display shows the last transmitted phone number.

3Press the Menu Select button directly below Cnts to scroll

through and select the required ID.

Press the Menu Select button directly below LNum to go to

the last number dialed.

U or D to the required phone number.

4Press and release the PTT button to dial the phone number.

5Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

6When your call is answered, press the PTT button to talk.

Release the PTT button to listen.

7Press H to return to the Home screen.

See Phone Call Display and Alert Prompts on page 28 for

more information if your call is NOT answered.



General Radio Operation

English

Repeater or Direct Operation

The REPEATER operation increases the radio’s range by

connecting with other radios through a repeater. The transmit

and receive frequencies are different.

The DIRECT or “talkaround operation” allows you to bypass the

repeater and connect directly to another radio. The transmit and

receive frequencies are the same.

Procedure:

Press the preprogrammed Repeater/Direct button to toggle

between talkaround and repeater modes.

Follow the procedure below.

1< or > to Dir.

2Press the Menu Select button directly below Dir.

3The display shows Repeater mode if the radio is currently

in Repeater mode.

The display shows Direct mode and the Talkaround icon if

the radio is currently in Direct mode (during conventional

operation only).

Monitoring Features

Radio users who switch from analog to digital radios often

assume that the lack of static on a digital channel is an

indication that the radio is not working properly. This is not the

case.

This digital technology quiets the transmission by removing the “

noise” from the signal and allows only the clear voice or data

information to be heard.

Use the Monitor feature to make sure a channel is clear before

transmitting.

General Radio Operation

English

Monitoring a Channel

Procedure:

Press the preprogrammed Monitor button and proceed to

Step 3.

Follow the procedure below.

1Select the desired zone and channel.

2Listen for a transmission.

3Adjust the Volume Change MFK if necessary.

4Press and hold the PTT button to transmit. The LED lights

up solid red.

5Release the PTT button to receive (listen).

The Carrier Squelch indicator appears on the display when you

monitor a channel via the preprogrammed Monitor button.

Conventional Mode Operation

Your radio may be preprogrammed to receive Private-Line®

(PL) calls.

Procedure:

1Momentarily press the Monitor button to listen for activity.

The Carrier Squelch indicator appears on the display.

2Press and hold the Monitor button to set continuous

monitor operation. The duration of the button press is

programmable.

3Press the Monitor button again, or the PTT button, to return

to the original squelch setting.

If you try to transmit on a receive-only channel, you hear an

invalid tone until you release the PTT button.



Advanced Features

English

Advanced Features

Use this navigation guide to learn more about advanced

features available with your radio:

Advanced Call Features . . . . . . . . . . . . . . . . . . . . . . . page 41

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 47

Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 50

Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 52

Call Alert Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 53

Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 55

Automatic Registration Service (ARS). . . . . . . . . . . . . page 59

Text Messaging Service (TMS) . . . . . . . . . . . . . . . . . . page 61

The Global Positioning System (GPS) . . . . . . . . . . . . page 69

Trunking System Controls . . . . . . . . . . . . . . . . . . . . . . page 75

Programming Over Project 25 (POP 25) (ASTRO 25 and

ASTRO Conventional) . . . . . . . . . . . . . . . . . . . . . . . page 77

Voice Announcement . . . . . . . . . . . . . . . . . . . . . . . . . page 78

Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 79

Advanced Call Features

Receiving and Making a Selective Call (ASTRO

Conventional Only)

This feature allows you to receive a call from or to call a specific

individual. It is intended to provide privacy and to eliminate the

annoyance of having to listen to conversations that are of no

interest to you.



Advanced Features

English

Receiving a Selective Call

Procedure:

1When you receive a Selective Call, the display shows Call

received.

You hear two alert tones,

the LED lights up solid yellow to indicate the transmitting

radio is still sending signal.

the LED blinks solid green once to indicate the transmitting

radio is pending to receive signal.

2The speaker unmutes.

3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

4Press and hold the PTT button to talk. Release the PTT

button to listen.

Making a Selective Call

Procedure:

1< or > to Call.

2Press the Menu Select button directly below Call. The

display shows the last transmitted or received ID.

3Press the Menu Select button directly below Cnts to scroll

through and select the required ID.

Press the Menu Select button directly below LNum to go to

the last number dialed.

U or D to the required ID.

4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

5Press and hold the PTT button to start the Selective Call.

The display shows the ID of the target radio.



Advanced Features

English

6Release the PTT button to listen.

7Press H to hang up and return to the Home screen.

Using the Talkgroup Call Feature (Conventional

Operation Only)

This feature allows you to define a group of conventional

system users so that they can share the use of a conventional

channel.

Selecting a Talkgroup

Procedure:

1< or > to Tgrp.

2Press the Menu Select button directly below Tgrp. The

display shows the last talkgroup that was selected and

stored, Sel and Exit.

3U or D to Preset for the preset preprogrammed talkgroup.

U or D to the required talkgroup.

4Press the Menu Select button directly below Sel to save the

currently selected talkgroup and return to the Home screen.

5Press H to return to the Home screen.

Sending a Status Call

This feature allows you to send data calls to the dispatcher

about a predefined status.

Each status can have up to a 14-character name. A maximum

of sixteen status conditions is possible.

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Procedure:

Press the preprogrammed Status button and proceed to

Step 3.

Follow the procedure below.

1< or > to Sts.

2Press the Menu Select button directly below Sts.

3The display shows the last acknowledged status call, or the

first status in the list.

4U or D to the required status.

5Press the PTT button to send the status.

6When the dispatcher acknowledges, you hear four tones

and the display shows Ack received. The radio returns to

normal dispatch operation.



Advanced Features

English

If no acknowledgment is received, you hear a low-pitched

tone and the display shows No acknowledge.

7Press H to return to the Home screen.

No traffic is heard on trunked channels while Status Call is

selected. If the radio detects no Status Call activity for six

seconds, you will hear an alert tone until you press H or the

PTT button.

Using the Dynamic Regrouping Feature (Trunking

Only)

This feature allows the dispatcher to temporarily reassign

selected radios to a particular channel where they can

communicate with each other. This feature is typically used

during special operations and is enabled by a qualified radio

technician.

You will not notice whether your radio has this feature enabled

until a dynamic regrouping command is sent by the dispatcher.

Note: If you try to access a zone or channel that has been

reserved by the dispatcher as a dynamically regrouped

mode for other users, you will hear an invalid tone.

Procedure:

1When your radio is dynamically regrouped, it automatically

switches to the dynamically regrouped channel. You hear a

“gurgle” tone and the display shows the dynamically

regrouped channel’s name.

2Press the PTT button to talk. Release PTT button to listen.

When the dispatcher cancels dynamic regrouping, the radio

automatically returns to the zone and channel that you were

using before the radio was dynamically regrouped.



Advanced Features

English

Requesting a Reprogram (Trunking Only)

This feature allows you to notify the dispatcher when you want a

new dynamic regrouping assignment.

Procedure:

Press the preprogrammed Reprogram Request button to send

reprogram request to the dispatcher and proceed to Step 3.

Follow the procedure below.

1< or > to Rpgm.

2Press the Menu Select button directly below Rpgm to send

reprogram request to the dispatcher.

3The display shows Reprgrm rqst and Please wait.

4If you hear four beeps, the dispatcher has acknowledged the

reprogram request. The display shows Ack received and

the radio returns to the Home screen.

If the dispatcher does not acknowledge the reprogram

request within six seconds, you hear a low-pitched alert tone

and the display shows No acknowledge.

Try again or press H to cancel and return to the Home

screen.

Classifying Regrouped Radios

The dispatcher can classify regrouped radios into either of two

categories: Select Enabled or Select Disabled.

•Select-enabled radios are free to change to any available

channel, including the dynamic-regrouping channel, once the

user has selected the dynamic-regrouping position.

•Select-disabled radios cannot change channels while

dynamically regrouped. The dispatcher has forced the radio

to remain on the dynamic-regrouping channel.

The Scan or Private Call feature cannot be selected while your

radio is Select Disabled.

Using Dynamic Zone Programming (DZP)

Note: Your radio must be preprogrammed to allow you to use

this feature.

This feature works on the condition at least one zone

in the radio must be a non-dynamic zone.

This feature provides one or more Dynamic Zones to store the

frequent used channels be it conventional or trunking. These

dynamic channels are saved from pre-existing (non-dynamic)

channels in the radio. This saves the time and effort from the

regular navigation around the working zones and channels.

User can also delete or update the list in the Dynamic Zone.



Advanced Features

English

Entering the Dynamic Zone to Select a Dynamic

Channel

Procedure:

1< or > to Zone.

2Press the Menu Select button directly below Zone. The

display shows the Zone screen.

3U or D to <Dynamic Zone Channels>.

4Press the Menu Select button below Sel. The display

returns to Home screen with the selected <Dynamic Zone

Channels> shown on the screen.

Press the Menu Select button below Exit. The display

returns to Home screen without any changes.

Saving a Channel in the Dynamic Zone from List

Selection

With the radio in Dynamic Zone, follow the procedure below.

Procedure:

1< or > to ZnPr. Press the Menu Select button directly below

ZnPr to enter Program Zone screen.

2Press the Menu Select button directly below Edit. The

display shows Search Options screen.

3U or D to List Selecton. Press the Menu Select button

directly below Sel. The display shows Select Zone screen.

4U or D to the required zone. Press the Menu Select button

directly below Sel. The display shows Select Chan screen.

5U or D to the required channel. Press the Menu Select

button directly below Sel. The display shows Channel

updated.

6Press the Menu Select button directly below Exit to return

to Home screen.



Advanced Features

English

Deleting a Channel in the Dynamic Zone

With the radio in Dynamic Zone, follow the procedure below.

Procedure:

1< or > to ZnPr. Press the Menu Select button directly below

ZnPr to enter Program Zone screen.

2The display shows the dynamic channels list.

3U or D to the saved dynamic channel. Press the Menu

Select button directly below Del. The display shows

Channel deleted.

4Press the Menu Select button below Exit to return to Home

screen.

5The Home screen shows <Dynamic Zone Channels>.

The Home screen shows <Zone Name>+“Blank” if the

channel deleted is the Home channel.

Contacts

This feature provides “address-book” capabilities on your radio.

Each entry corresponds to an alias (name) or ID (number) that

you use to initiate a call.

Contact entries are alphabetically sorted according to entry

alias. Each alias can have up to five IDs of different call types

associated with it.

Additionally, each entry, depending on context (conventional,

trunking, or phone), associates with one or more of the four

types of calls: Phone Call, Selective Call, Private Call, or Call

Alert.

Each entry within Contacts displays the following information:

•Call Alias (Name)

•Call ID (Number)

•Call Type (Icon)

•WACN ID (Astro 25 Trunking IDs only)

•System ID

Note: Your radio must be preprogrammed to allow you to

add, edit, or delete the contact entries.

Your radio also supports a maximum of 50 call lists. Each list

can store up to 100 IDs (numbers).



Advanced Features

English

Note: Your radio is preprogrammed with a number of

contacts per Call Lists. Check with your dealer or

system administrator for more information.

The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Making a Private Call from Contacts

Note: Your radio must be preprogrammed to allow you to use

this feature.

Procedure:

Use the Options Menu.

1< or > to Cnts.

2Press the Menu Select button directly below Cnts. The

entries are alphabetically sorted.

3U or D to the required subscriber alias.

4Press the Menu Select button directly below Optn.

5U or D to Call and press the Menu Select button directly

below Sel.

6U or D to select the call type.

7Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

8Press the PTT button to initiate the call. During the call, the

display shows the subscriber alias.

9Press and hold the PTT button to talk. The LED lights up

solid red.

Release the PTT button to listen.

10 If there is no voice activity for a preprogrammed period of

time, the call ends.

The call ends when it reaches the maximum ring time.



Advanced Features

English

Adding a Contact to a Call List

Procedure:

1< or > to Cnts.

2Press the Menu Select button directly below Cnts. The

entries are alphabetically sorted.

3U or D to the entry you want to add to a call list and press

the Menu Select button directly below Optn.

4U or D to Add to CallLst and press the Menu Select button

directly below Sel.

5U or D to the required Call List and press the Menu Select

button directly below Add.

U or D to Cncl to return to the main display for Contacts.

6The display momentarily shows Please wait before

showing <Entry> added, confirming the addition of the

contact to the list.

7The radio returns to the main display for Contacts.

Removing a Contact from a Call List

Procedure:

1< or > to Cnts.

2Press the Menu Select button directly below Cnts. The

entries are alphabetically sorted.

3U or D to the entry you want to remove from a call list and

press the Menu Select button directly below Optn.

4U or D to Rm frm CallLst and press the Menu Select button

directly below Sel.

5The display shows .

6Press the Menu Select button directly below Yes to remove

the entry from the Call List.

Press the Menu Select button directly below No to return to

the main display for Contacts.

7The display momentarily shows Please wait before

showing <Entry> removed, confirming the removal of the

contact from the list.

8The radio returns to the main display for Contacts.



Advanced Features

English

Scan Lists

Scan lists are created and assigned to individual channels/

groups. Your radio scans for voice activity by cycling through the

channel/group sequence specified in the scan list for the current

channel/group.

Your radio supports different types of Scan Lists:

•Trunking Priority Monitor Scan List

•Conventional Scan List

•Talkgroup Scan List

Please refer to a qualified radio technician for the maximum

number of Scan Lists can be programmed in your radio. These

lists must be preprogrammed by a qualified radio technician.

Viewing a Scan List

Procedure:

1< or > to ScnL.

2Press the Menu Select button directly below ScnL.

3U or D to view the members on the list.

4Press H to exit the current display and return to the Home

screen.

Editing the Scan List

This feature lets you change scan list members and priorities.

Procedure:

Long press the preprogrammed Scan List Programming

button (side button) and proceed to Step 3.

Follow the procedure below.

1< or > to ScnL.

2Press the Menu Select button directly below ScnL. The

display shows the lists that can be changed.

3U or D to the entry you want to edit.

4Press the Menu Select button directly below Sel to add and/

or change the priority of the currently displayed channel in

the scan list.

Press the Menu Select button directly below Del to delete

the currently displayed channel from the scan list.

Press the Menu Select button directly below Rcl to view the

next member of the scan list.

5U or D to select more channels to be added or deleted.

Use the MFK to select additional channels to be added or

deleted.



Advanced Features

English

6Press H to exit scan list programming and return to the

Home screen.

See Viewing and Changing the Priority Status on page 51 for

more information on how to add and/or change the priority of

the currently displayed channel in the scan list.

Changing the Scan List Status

Procedure:

1Long press the preprogrammed Scan List Programming

button (side button).

2The display shows the programming mode icon and the first

list member.

3U or D to the member you want to edit.

4Press the Select button once to add the currently displayed

channel to the scan list.

Press the Select button one or more times to change the

scan list status icon of the currently displayed channel.

5U or D to select more list members whose scan status you

want to change.

Use the MFK to select another scan list member.

6Press H to exit scan list programming and return to the

Home screen.

Viewing and Changing the Priority Status

Procedure:

1Below the Sel, Del, and Rcl screen, press the Menu Select

button directly below Sel to view and/or change the priority

status of the currently displayed channel.

Below the Sel, Del, and Rcl screen, press the Select button

one or more times to view and/or change the scan list status

icon of the currently displayed channel.

2A Scan icon indicates that the current channel is in the scan

list as a non-priority channel. The LED lights up solid green.

A Priority-Two Channel Scan icon indicates that the current

channel is in the scan list as the Priority-Two channel. The

LED blinks green.

A Priority-One Channel Scan icon indicates that the current

channel is in the scan list as the Priority-One channel. The

LED rapidly blinks green. You hear all traffic on the Priority-

One channel, regardless of traffic on non-priority channels.

No icon indicates that the current channel is deleted from

the scan list.



Advanced Features

English

Scan

This feature allows you to monitor traffic on different channels

by scanning a preprogrammed list of channels.

Turning Scan On or Off

Procedure:

Press the preprogrammed Scan button to start or stop scan.

Follow the procedure below.

1< or > to Scan.

2Press the Menu Select button directly below Scan.

3The display shows Scan off if scan is disabled. Press the

Menu Select button directly below Scan to enable scan.

The display shows Scan on and the scan status icon if scan

is enabled. Press the Menu Select button directly below

Scan to disable scan.

4The radio returns to the Home screen.

Making a Dynamic Priority Change (Conventional

Scan Only)

While the radio is scanning, the dynamic priority change feature

allows you to temporarily change any channel in a scan list

(except for the Priority-One channel) to the Priority-Two

channel.

This change remains in effect until scan is turned off. Scan then

reverts to the preprogrammed (original) setting.

Procedure:

1When the radio locks onto the channel designated as the

new Priority-Two channel, press the preprogrammed

Dynamic Priority button.

2The radio continues scanning the remaining channels in the

list.

Deleting a Nuisance Channel

If a channel continually generates unwanted calls or noise

(termed a “nuisance” channel), you can temporarily remove the

unwanted channel from the scan list.

This capability does not apply to priority channels or the

designated transmit channel.

Procedure:

1When the radio is locked onto the channel to be deleted,

press the preprogrammed Nuisance Delete button.



Advanced Features

English

< or > to Nuis. Press the Menu Select button directly below

Nuis.

2The radio continues scanning the remaining channels in the

list.

Restoring a Nuisance Channel

Procedure:

To restore the deleted nuisance channel, do one of the

following:

•Turn the radio off and then turning it on again.

•Stop and restart a scan via the preprogrammed Scan button

or menu.

•Change the channel via the MFK.

Call Alert Paging

This feature allows your radio to work like a pager.

Even if other users are away from their radios, or if they are

unable to hear their radios, you can send them an individual

Call Alert page. You can also verify if a radio is active on the

system.

Depending on how your radio is programmed, when you make

an Enhanced Private Call, the radio either automatically sends

a call alert page if there is no answer after the maximum ring

time, OR when you press the PTT button.

Note: This feature must be preprogrammed by a qualified

radio technician.



Advanced Features

English

Receiving a Call Alert Page

Procedure:

1When you receive a Call Alert page, you hear four repeating

alert tones and the LED blinks green.

2The display shows Page received.

Press any button to clear the Call Alert page. See Making a

Talkgroup Call on page 36 or Making a Private Call

(Trunking Only) on page 36 for more information on returning

the call.

Sending a Call Alert Page

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Procedure:

1< or > to Page.

2Press the Menu Select button directly below Page.

3Press Cnts to scroll through and select the required ID.

U or D to the required ID.

4Press the PTT button to send the page.

5The display shows Paging... <Number>.

6If the call alert page is sent successfully, you hear a tone

and the display shows Ack received.

If the call alert page is not acknowledged, you hear a low

tone and the display shows No acknowledge.

7The radio returns to the Home screen.

Press the Menu Select button directly below Ok to return to

the Contacts screen.

Follow the procedure below.

1< or > to Call.

2Press the Menu Select button directly below Call.

3U or D to select the alias or ID, and press the PTT button to

initiate the call.

4If the target radio does not respond after a preprogrammed

period of time, the display shows Send page?.

5Press the Menu Select button directly below Yes to send

the call alert page.

Press the Menu Select button directly below No to exit the

screen without sending the call alert page.

6The display shows Paging... <Alias>.



Advanced Features

English

7If the call alert page is sent successfully, you hear a tone

and the display shows Ack received.

If the call alert page is not acknowledged, you hear a low

tone and the display shows No acknowledge.

8The radio returns to the Home screen.

Press the Menu Select button directly below Ok to return to

the Contacts screen.

Emergency Operation

The Emergency feature is used to indicate a critical situation.

If the Top (Orange) button is preprogrammed to send an

emergency signal, this signal overrides any other

communication over the selected channel.

Your radio supports the following Emergency modes:

•Emergency Alarm

•Emergency Call (Trunking Only)

•Emergency Alarm with Emergency Call

•Silent Emergency Alarm

Check with your dealer or system administrator for more

information on the programming of this feature.

Only one of the Emergency modes above can be assigned to

the preprogrammed Emergency button.

Note: To exit emergency at any time, press and hold the

preprogrammed Emergency button for about a

second.

Advanced Features

English

Note: The radio operates in the normal dispatch manner

while in Emergency Call, except if enabled, it returns to

one of the following:

•Tactical/Non-Revert – The radio sends emergency

alarm and/or make emergency call on the current

selected channel.

•Non-Tactical/Revert for Conventional system –

The radio reverts to the preprogrammed emergency

channel to send alarm and/or make emergency call.

•Non-Tactical/Revert for Trunking system – The

radio reverts to the preprogrammed emergency

talkgroup to send alarm and/or make emergency

call.

Sending an Emergency Alarm

This feature allows you to send a data transmission, which

identifies the radio sending the emergency, to the dispatcher.

Note: Emergency button press timer by default is set to 1

second. This timer is programmable from 0 – 6

seconds by a qualified technician.

Procedure:

1Press the preprogrammed Emergency button.

2The display shows Emergency and the current zone or

channel. You hear a short, medium-pitched tone and the

LED momentarily blinks red.

You hear the radio sounds a short low-pitched tone to

indicate the selected channel does not support emergency

and rejects to launch emergency mode. The display shows

No emergency, if the selected channel does not support

emergency.

3When you receive the dispatcher’s acknowledgment, the

display shows Ack received. You hear four tones, the

alarm ends, and the radio exits the Emergency Alarm mode.

If no acknowledgment is received, the display shows

No acknowledge. The alarm ends and the radio exits the

Emergency Alarm mode.



Advanced Features

English

Sending an Emergency Call (Trunking Only)

This feature gives your radio priority access to a talkgroup.

Procedure:

1Press the preprogrammed Emergency button.

2The display shows Emergency and the current zone or

channel. You hear short, medium-pitched tone and the

LED momentarily blinks red.

You hear the radio sounds a short low-pitched tone to

indicate the selected channel does not support emergency

and rejects to launch emergency mode.

3Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.

4Press and hold the PTT button. Speak clearly into the

microphone.

5Release the PTT button to end the transmission and wait for

a response from the dispatcher.

6Press and hold the preprogrammed Emergency button for

about a second to exit the Emergency Call mode.

Sending an Emergency Alarm with Emergency

Call

This feature gives your radio priority access on a channel for

conventional system, and to a talkgroup for trunking system.

Procedure:

1Press the preprogrammed Emergency button.

2The display shows Emergency and the current zone or

channel. You hear a short, medium-pitched tone and the

LED momentarily blinks red.

You hear the radio sounds a short low-pitched tone to

indicate the selected channel does not support emergency

and rejects to launch emergency mode.

3The radio enters the Emergency Call state when:

You receive the dispatcher’s acknowledgment. The display

shows Ack received.

You receive no acknowledgment. The display shows

No acknowledge.

You press the PTT button while in the Emergency Alarm

mode.

4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from

your mouth.



Advanced Features

English

5Press and hold the PTT button. Speak clearly into the

microphone.

6Release the PTT button to end the transmission and wait for

a response from the dispatcher.

7Press and hold the preprogrammed Emergency button for

about a second to exit the Emergency Call mode.

Sending a Silent Emergency Alarm

This feature allows you to send an Emergency Alarm to the

system without triggering any audio or visual indicators.

Procedure:

1Press the preprogrammed Emergency button.

2The display shows no changes, the LED does not light up,

and you hear no tones.

3The silent emergency state continues until you:

Press and hold the preprogrammed Emergency button for

about a second to exit the Silent Emergency Alarm mode.

Press and release the PTT button to exit the Silent

Emergency Alarm mode and enter regular dispatch or

Emergency Call mode.

Changing Channels during Emergncy

For ALL Emergency signals, when changing channels:

•If the new channel is also preprogrammed for Emergency,

you can change channels while in Emergency operation. The

emergency alarm or call continues on the new channel.

•If the new channel is NOT preprogrammed for Emergency,

the display shows No emergency, and you hear an invalid

tone until you exit the Emergency state or change to a

channel preprogrammed for Emergency.

Using the Emergency Keep-Alive Feature

This feature, when enabled, prevents the radio from being

turned off via the MFK when the radio is in the Emergency

state.

Note: The radio only exits the Emergency state using one of

the ways mentioned in the previous sections.

See Sending an Emergency Alarm on page 56,

Sending an Emergency Call (Trunking Only) on

page 57, Sending an Emergency Alarm with

Emergency Call on page 57, or Sending a Silent

Emergency Alarm on page 58.



Advanced Features

English

Automatic Registration Service (ARS)

This feature provides an automated data application registration

for the radio. When you turn on the radio, the device

automatically registers with the server.

Data applications within the fixed network can determine the

presence of a device on the system and send data to the

device. For example: Text Messaging Service (TMS).

The Automatic Registration Service for the radio consists of

two (2) modes:

•ARS Server Mode (default mode)

•ARS Non-Server Mode

Note: The default ARS mode can be changed by a qualified

radio technician using the radio’s programming

software.

Selecting or Changing the ARS Mode

Procedure:

Turn the preprogrammed MFK, once the zone you want is

displayed, to the desired mode.

Follow the procedure below.

1< or > to Chan.

2Press the Menu Select button directly below Chan. The

display shows the current channel name.

3U or D to the required channel or mode.

4In ARS Server Mode, the display shows the zone, and ARS

server channel.

In ARS Non-Server Mode, the display shows the zone, and

ARS non-server channel.

If the channel or mode selected is unprogrammed, the

display shows Unprogrammed. Repeat Step 3.

5Press Sel to confirm the displayed channel.



Advanced

Advanced Features

English

Accessing the User Login Feature

This feature allows you as the user to be associated with the

radio. With this association, every data application (Example:

Text Messaging Service) takes on a friendly username.

You can still send text messages without logging in as a user.

The user login feature only enables the recipient of your

message to identify you as the sender by assigning a username

to your message.

Logging In as a User

Procedure:

Press the preprogrammed User Login button and proceed to

Step 3.

Follow the procedure below.

1< or > to User.

2Press the Menu Select button directly below User.

3The display shows the User Login screen.

4U or D to scroll through the list of predefined usernames.

Press the Menu Select button directly below Logn to select

the predefined username.

Press and hold U or D to scroll through the list of predefined

usernames at a fast scroll rate.

Press the Menu Select button directly below Logn to select

the predefined username.

5If the ID is invalid, the display shows momentary Invalid ID.

Repeat Step 4.

6In ARS Server Mode, the display shows the User Login

Indicator icon, the ID, and In progress, with Cncl.

In ARS Non-Server Mode, the display shows the User Login

Indicator icon, the ID, and Logged in, with Logt and Exit.

In non-ARS enabled mode, the display shows Offline, with

Logt and Exit.

7If the username is invalid, login fails and the user login

failure indicator (IP indicator) icon blinks. The display also

shows momentary Login failed. Repeat Step 4.

Press the Menu Select button directly below Cncl to cancel

the login in progress screen and return to the initial user

Wait for the logged in confirmation screen. If the login

process is successful, the display shows the successful user

and Exit.



Advanced Features

English

Logging Out

When you have logged in or you are using Offline mode, you

can log out.

Procedure:

1Press the Menu Select button directly below Logt.

2The display shows the User Login Indicator icon and Clear

private data?.

If the Delete Messages On Session End feature is enabled,

the radio clears the private data and returns to User login

Screen.

3Select Yes to clear all your private data. The display shows

momentary Private data cleared.

Select No to keep your private data.

Note: Private data refers to all messages in the text

messaging inbox, and Sent folder. The next user is

able to access the Inbox and Sent messages if private

data is not deleted.

Text Messaging Service (TMS)

This features allows you to quickly send and receive messages

and run database queries directly from your radios.

The types of text messages available:

•A predefined message (quick text message).

•An edited quick text message.

The main menu consists of the following options:

•Inbox

•Compose

•Sent

Note: See Status Icons on page 16 for more information on

the TMS icons and TMS Menu Options on page 20 for

more information on each menu option.



Advanced Features

English

Accessing the TMS Features

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Press the Menu Select button directly below Back at

any time to return to the previous screen.

Procedure:

Press the preprogrammed Data Feature button or the TMS

Feature button to access the TMS feature screen.

Press and hold the preprogrammed Data Feature button or the

TMS Feature button to access the Inbox.

Follow the procedure below.

1< or > to TMS.

2Press the Menu Select button directly below TMS to access

the TMS feature screen.

3U or D to scroll through the main menu options.

Sending a Quick Text Message

Quick Text messages are messages that are predefined and

usually consist of messages that are used most frequently.

Each Quick Text message has a maximum length of 50

characters.You can select the required text from the Quick Text.

Procedure:

Press the preprogrammed Quick Text button and proceed to

Step 4.

Follow the procedure below.

1< or > to TMS.

2Press the Menu Select button directly below TMS to access

the TMS feature screen.

3U or D to Compose and press the Menu Select button

directly below Sel.

Press the Menu Select button directly below Exit to return to

the Home screen.

4U or D to Quick Text and press the Menu Select button

directly below Sel for a predefined message.

5U or D to scroll through the list of messages and press the

Menu Select button directly below Sel to select the required

message.



Advanced Features

English

6Press the Menu Select button directly below Optn.

7U or D to Send Message and press the Menu Select

button directly below Sel.

8U or D to scroll through the address list and highlight the

required address.

9Press the Menu Select button below Sel or the PTT button

to send the message.

10 The display shows the Send Message screen and

Sending msg.

11 If the message is sent, you hear a tone and the display

shows Msg sent.

If the message is not sent, you hear a low tone and the

display shows Send failed.

12 The radio returns to main TMS screen.

Note: You can append a priority status and/or a request reply

to your message. See Using the Priority Status and

Request Reply Features on page 63 for more

information.

Using the Priority Status and Request Reply

Features

Before sending your message, you can append a priority status

and/or a request reply to your message.

Appending a Priority Status to a Text Message

Note: The Priority Status icon on a message does not imply

that the message gets higher priority over the other

messages when it is being transmitted. It is just an

indication that can be embedded into a message to let

the receiver know that the message is important.

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to Mark Important and press the Menu Select

button directly below Sel to indicate the message as

important.

3The priority status icon appears beside the normal message

icon on the label bar.



Advanced Features

English

Removing a Priority Status from a Text Message

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to Mark as Normal and press the Menu Select

button directly below Sel to remove the priority status from

the message.

3The display shows the normal message icon on the label

bar.

Appending a Request Reply to a Text Message

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to Req Reply and press the Menu Select button

directly below Sel to request for a reply.

3The request reply icon appears beside the normal message

icon on the label bar.

Removing a Request Reply from a Text Message

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to No Req Reply and press the Menu Select button

directly below Sel to remove the request reply icon from the

message.

3The display shows the normal message icon on the label

bar.

Appending a Priority Status and a Reply Request to

a Text Message

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to Mark Important and press the Menu Select

button directly below Sel to indicate the message as

important.

AND

U or D to Req Reply and press the Menu Select button

directly below Sel to request for a reply.

3The priority status and request reply icons appear beside

the normal message icon on the label bar.



Advanced Features

English

Removing a Priority Status and a Reply Request

from a Text Message

Procedure:

1Press the Menu Select button directly below Optn.

2U or D to Mark as Normal and press the Menu Select

button directly below Sel to indicate the message as normal

and no request reply.

AND

U or D to No Req Reply and press the Menu Select button

directly below Sel to request for a reply.

3The display shows the normal message icon on the label

bar.

Managing Text Messages

Receiving a Text Message

Note: When you receive a message that is flagged with the

“Request Reply” icon, you must manually respond to

the sender that you have received the message. The

system will not automatically send back a notification

that the radio has received such message.

Procedure:

When you receive a message, press and hold the

preprogrammed Data Feature button or the TMS Feature

button to access the Inbox and go to Step 3.

Follow the procedure below.

1The new message icon appears and the display shows

momentary New msg.

2Press the Menu Select button directly below TMS.

3U or D to Inbox and press the Menu Select button below

Sel.

4The display shows a list of aliases or IDs, with the sender of

the latest received message on top.



Advanced Features

English

Viewing a Text Message from the Inbox

The Inbox can hold up to thirty (30) messages.

Note: U or D to read the message if fills more than one

screen.

Procedure:

Press the preprogrammed Data Feature button or the TMS

Feature button to access the TMS feature screen, and proceed

to Step 3.

Press and hold the preprogrammed Data Feature button or the

TMS Feature button to access the Inbox and proceed to Step 4.

Follow the procedure below.

1< or > to TMS.

2Press the Menu Select button directly below TMS to access

the TMS feature screen.

3U or D to Inbox and press the Menu Select button below

Sel.

4The display shows a list of aliases or IDs, with the sender of

the latest received message on top.

5U or D to the required aliases or ID and press the Menu

Select button below Sel to view the message.

While on the view message screen, press the Menu Select

button directly below

Rply

Del

, or

Back

to access the option.

•Select

Rply

to reply the message.

•Select

Del

to delete the message.

•Select

Back

to return to the previous screen.

Note: The icon at the top right corner of the screen indicates

the status of the message. See Text Messaging

Service (TMS) Icons on page 19 for more information.

Replying to a Received Text Message

Note: The original date and time stamp, address and

message content is automatically appended to the

reply message.

Procedure:

1U or D to the required aliases or ID and press the Menu

Select button below Sel to view the message.

2Press the Menu Select button directly below Rply to reply to

a message.

3The display shows a list of Quick Text. Press the Menu

Select button directly below Optn once you have selected

the message.

4U or D to Send Message and press the Menu Select

button directly below Sel to send the message.



Advanced Features

English

5The display shows the Send Message screen and

Sending msg.

Press the Menu Select button directly below

Back

at any time to

return to the previous screen.

Note: You can append a priority status and/or a request reply

to your message. See Using the Priority Status and

Request Reply Features on page 63 for more

information.

Managing Sent Text Messages

Once a message is sent to another radio, it is saved in the Sent

folder. The most recent sent text message is always added to

the top of the Sent list.

The Sent folder is capable of storing a maximum of ten (10) last

sent messages. When the folder is full, the oldest message in

the folder is deleted when the 11th message comes in.

Viewing a Sent Text Message

Procedure:

Press the preprogrammed Data Feature button or the TMS

Feature button to access the TMS feature screen, and proceed

to Step 3.

Follow the procedure below.

1< or > to TMS.

2Press the Menu Select button directly below TMS to access

the TMS feature screen.

3U or D to Sent and press the Menu Select button below

Sel.

4The display shows a list of aliases or IDs, with the recipient

of latest sent message on top.

5U or D to the required aliases or ID and press the Menu

Select button below Sel to view the message.

While on the view message screen, press the Menu Select

button directly below

Optn

Del

, or

Back

to access the option.

•Select

Optn

to configure the message settings.

•Select

Del

to delete the message.

•Select

Back

to return to the previous screen.

Note: The icon at the top right corner of the screen indicates

the status of the message. See Text Messaging

Service (TMS) Icons on page 19 for more information.



Advanced Features

English

Sending a Sent Text Message

Procedure:

1Press the Menu Select button directly below Optn while

viewing the message.

2U or D to Send Message and press the Menu Select

button directly below Sel.

3U or D to scroll through the address list and highlight the

required address.

4Press the Menu Select button below Sel or the PTT button

to send the message.

5The display shows the Send Message screen and

Sending msg.

Press the Menu Select button directly below

Back

at any time to

return to the previous screen.

Note: You can append a priority status and/or a request reply

to your message. See Using the Priority Status and

Request Reply Features on page 63 for more

information.

Deleting a Text Message

Procedure:

From the Inbox or Sent screen:

1U or D to scroll through the messages.

2Press the Menu Select button directly below Del to delete

the current message.



Advanced Features

English

Deleting All Text Messages

Procedure:

Press the preprogrammed Data Feature button or the TMS

Feature button to access the TMS feature screen, and proceed

to Step 3.

Follow the procedure below.

1< or > to TMS.

2Press the Menu Select button directly below TMS to access

the TMS feature screen.

3U or D to Inbox or Sent then press the Menu Select

button below Clr to select all messages in the selected

folder.

4The display shows Del All?.

5Press the Menu Select button directly below Yes to delete

all the messages in the selected folder.

Press the Menu Select button directly below No to return to

the main TMS screen.

The Global Positioning System (GPS)

This feature uses information from the Global Positioning

System (GPS) satellites orbiting the Earth to determine the

approximate geographical location of your radio, expressed as

latitude and longitude or MGRS format per request from

customer. The availability and accuracy of this location

information (and the amount of time that it takes to calculate it)

varies depending on the environment in which you are using the

GPS feature.

For example, GPS location fixes are very difficult to obtain

indoors, in covered locations, between high buildings, or in

situations where you have not established a clear broad view of

the sky.

Understanding the GPS Feature

The GPS technology uses radio signals from earth orbiting

satellites, to establish the location coordinates, maximizing your

view of clear unobstructed sky is essential for optimum

performance.

Where adequate signals from multiple satellites are not

available (usually because you cannot establish a view of a

wide area of the sky), the GPS feature of your radio will not

work. Such situations include but are not limited to:

•Underground locations



Advanced Features

English

•Inside of buildings, trains, or other covered vehicles

•Under any other metal or concrete roof or structure

•Between tall buildings or under dense tree-cover

•In temperature extremes outside the operating limits of your

radio

Even where location information can be calculated in such

situations, it may take longer to do so, and your location

estimate may not be as accurate. Therefore, in any emergency

situation, always report your location to your dispatcher.

Note: Even where adequate signals from multiple satellites

are available, your GPS feature only provides an

approximate location, usually within 20 meters from

your actual location, but sometimes further away.

Keep in mind that the accuracy of the location information and

the time it takes to obtain it varies depending upon

circumstances, particularly the ability to receive signals from an

adequate number of satellites.

Note: The satellites used by the GPS feature are controlled

by the U.S. government and are subject to changes

implemented in accordance with the Department of

Defense GPS user policy and the Federal Radio

Navigation Plan. These changes may affect the

performance of the GPS feature on your radio.

Enhancing GPS Performance

Sometimes, the GPS feature may be unable to complete a

location calculation successfully. You then see a message

indicating that your radio cannot connect to enough visible

satellites.

To maximize the ability of your radio to determine a fix, please

note the following guidelines:

•For your initial fix, hold the radio in the face position.

•Stay in the open. The GPS feature works best where there is

nothing between your radio and a large amount of open sky.

The Outdoor Location Feature (Using GPS)

This feature allows you to determine your current location using

a location menu, as well as your current distance and bearing in

relation to another location. Radio location may be requested

and reported over-the-air.

Your radio stores up to a maximum of sixty (60) programmable

location coordinates, also known as waypoints. When the

memory is full, the next waypoints automatically replaces the

oldest waypoints in the radio.



Advanced Features

English

The radio also stores four (4) preprogrammed waypoints. These

coordinates cannot be deleted.

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Enabling MGRS Coordinates

This feature can only be enabled through CPS configuration.

When the MGRS coordinate is enabled, all location coordinates

are displayed in MGRS format, including the editable locations

in GPS.

Accessing the Outdoor Location Feature

Note: An ON menu key may be present on the location menu

if it is preprogrammed by the dealer or system

administrator.

Procedure:

Press the preprogrammed GPS button to toggle the Outdoor

Location feature on or off.

Follow the procedure below.

1< or > to Loc.

2Press the Menu Select button directly below Loc.

3The display shows Location off.

4Press the Menu Select button directly below On to obtain a

location fix.

Press the Menu Select button directly below Optn.

U or D to Turn On GPS and press the Menu Select button

directly below Sel.

5The front display shows the MGRS or latitude/longitude

location, time and date of the last successful location fix.

Programmable Waypoints Preprogrammed Waypoints

User-configurable location

coordinates.

Fixed location coordinates:

•Home

•Emergency

•Last Known Location

•Destination

Coordinates can be deleted

one at a time, or all at once. Coordinates cannot be

deleted.



Advanced Features

English

6Press the Menu Select button directly below Rfsh to obtain

a new location fix.

7The top line temporarily displays Please wait while the new

location is being determined.

While the new location is being determined, the location

signal can be a solid or blinking icon.

8Once the location coordinates are fixed, the display shows

the current latitude and longitude, along with the UTC (Zulu)

time and date that the location fix was obtained.

The location coordinates are updated automatically every

five seconds while the location signal is present.

If the radio fails to get a location fix, the display shows No

service and returns to the previous display.

9Press the Menu Select button directly below Exit to exit the

feature and return to the main screen.

Press H, the PTT button (if preprogrammed), or the

preprogrammed GPS button to return to the Home screen.

The radio also exits the menu if the emergency button is

pressed.

Saving a Waypoint

Procedure:

While in the current location display:

1Press the Menu Select button directly below Optn.

2U or D to Save as Waypt and press the Menu Select

button directly below Sel.

U or D to Save as Home and press the Menu Select button

directly below Sel.

U or D to Save as Dest. and press the Menu Select button

directly below Sel.

3The display shows saved as <Waypoint name>.

The display shows saved as {Home}.

The display shows saved as {Destination}.

4Press the Menu Select button directly below Exit to exit the

feature and return to the main screen.

Press H, the PTT button, or the preprogrammed GPS

button to return to the Home screen.



Advanced Features

English

Viewing a Saved Waypoint

Procedure:

While in the current location display:

1Press the Menu Select button directly below Optn.

2U or D to Waypoints and press the Menu Select button

directly below Sel.

3The display shows a list of waypoints.

4U or D to scroll through the list.

U or D to select a waypoint to view the location information

in full.

5Press the Menu Select button directly below Optn.

6U or D to View and press the Menu Select button directly

below Sel to view the MGRS or latitude/longitude location,

time and date of the selected waypoint.

7Press the Menu Select button directly below Back to return

to the previous screen.

Press H, the PTT button, or the preprogrammed GPS

button to return to the Home screen.

Deleting a Single Saved Waypoint

Procedure:

While in the current location display:

1Press the Menu Select button directly below Optn.

2U or D to Waypoints and press the Menu Select button

directly below Sel.

3The display shows a list of waypoints.

4U or D to the required saved waypoint, and press the Menu

Select button directly below Optn.

U or D to Edit name and press the Menu Select button

directly below Del.

Press the Menu Select button directly below Del.

5The display shows <Waypoint name> confirm del?.

6Press the Menu Select button directly below Yes to delete

the waypoint.

Press the Menu Select button directly below No to return to

the Waypoints main screen.

7The display shows momentary <Waypoint name> deleted

before the radio returns to the Waypoints main screen.



Advanced Features

English

Deleting All Saved Waypoints

Procedure:

While in the current location display:

1Press the Menu Select button directly below Optn.

2U or D to Waypoints and press the Menu Select button

directly below Sel.

3The display shows a list of waypoints.

4U or D to a saved waypoint, and press the Menu Select

button directly below Optn.

5U or D to Delete All and press the Menu Select button

directly below Sel.

6The display shows All saved wayp confirm del?.

7Press the Menu Select button directly below Yes to delete

all waypoints.

Press the Menu Select button directly below No to return to

the Waypoints main screen.

8The display shows momentary All saved wayp deleted

before the radio returns to the Waypoints main screen.

You cannot delete any of the preprogrammed waypoints.

Measuring the Distance and Bearing from a Saved

Waypoint

Procedure:

While in the current location display:

1Press the Menu Select button directly below Optn.

2U or D to Dist frm here and press the Menu Select button

directly below Sel.

3The display shows a list of waypoints.

4U or D to the required waypoint, and press the Menu Select

button directly below Sel.

5The display shows the distance and bearing from the current

to the selected coordinates.



Advanced Features

English

Using the Location Feature While in Emergency

Mode

When the Emergency feature is activated by pressing the

emergency button, the radio exits the Location menu and

returns to the Home (default) screen so that you can see which

channel the emergency signal is going out on.

However, you may re-enter the Location menu while still in

emergency mode, provided that Silent Emergency has not been

activated.

If you have turned Location off using the ON/OFF menu key, it

automatically turns back on when Emergency is activated.

If there is a solid location signal during Emergency, the current

location and the location information received is saved as

Emergency and Last Known Location waypoints, respectively.

Trunking System Controls

Using the Failsoft System

The failsoft system ensures continuous radio communications

during a trunked system failure. If a trunking system fails

completely, the radio goes into failsoft operation and

automatically switches to its failsoft channel.

Procedure:

1During failsoft operation, your radio transmits and receives

in conventional operation on a predetermined frequency.

2You hear a medium-pitched tone every 10 seconds and the

display shows Failsoft.

When the trunking system returns to normal operation, your

radio automatically leaves failsoft operation and returns to

trunked operation.



Advanced Features

English

Going Out of Range

When your radio goes out of the range of the system, it can no

longer lock onto a control channel.

Procedure:

1You hear a low-pitched tone.

AND/OR

The display shows the currently selected zone/channel

combination and Out of range.

2Your radio remains in this out-of-range condition until:

It locks onto a control channel.

It locks onto a failsoft channel.

It is turned off.

Using the Site Trunking Feature

If the zone controller loses communication with any site, that

site reverts to site trunking.

The display shows the currently selected zone/channel

combination and Site trunking.

Note: When this occurs, you can communicate only with

other radios within your trunking site.

Locking and Unlocking a Site

This feature allows your radio to lock onto a specific site. This

feature should be used with caution, since it inhibits roaming to

another site in a wide-area system.

Procedure:

Use the preprogrammed Site Lock/Unlock button to toggle the

lock state between locked and unlocked.

Follow the procedure below.

1< or > to Site.

2Press the Menu Select button directly below Site.

3Press the Menu Select button directly below Lock to lock

the site. The display shows Site locked.

Press the Menu Select button directly below Unlk to unlock

the site. The display shows Site unlocked.

4The radio saves the new site lock state and returns to the

Home screen.



Advanced Features

English

Viewing and Changing a Site

This feature allows you to view the name of the current site or

forces your radio to change to a new one.

Viewing the Current Site

Procedure:

1Press the preprogrammed Site Displ/Srch button.

2The display momentarily shows the name of the current site

and its corresponding received signal strength indicator

(RSSI).

Changing the Current Site

Procedure:

1Press and hold down the preprogrammed Site Displ/Srch

button.

2You hear a tone and the display shows momentary

Scanning site.

3When the radio finds a new site, it returns to the Home

screen.

Programming Over Project 25 (POP 25)

(ASTRO 25 and ASTRO Conventional)

This feature enables configuration data to be upgraded to your

radio over-the-air. This feature retains full use of the radio

during the configuration data transfer without interrupting

communication. The upgrade pauses to give priorities to voice

call, and continues after the voice call ended.

Once a configuration upgrade is downloaded to your radio, you

can install new changes immediately or delay changes to be

installed on the radio when it is being powered up. Your radio

can also be configured to allow you to accept or reject an

upgrade.

Note: This feature must be preprogrammed by a qualified

radio technician. Check with your dealer or system

administrator for more information.

Responding to the notification of Upgrade

Procedure:

1The display shows Upgrade?.

2Press the Menu Select button below Acpt to accept the

request to upgrade immediately. The display shows

UpgRxInProg to indicate the upgrade received is in

progress.



Advanced Features

English

Press the Menu Select button below Dlay to delay the

request to upgrade. The radio prompts to upgrade in the

next power up of your radio.

Press the Menu Select button below Rej to reject the

request to upgrade. The display shows Upg Aborted. The

radio continues to function with the current configuration

until it gets reprogrammed.

3If the upgrade is successful, the display shows Program

done.

If the upgrade failed, the display shows Program failed.

The radio remains in current configuration.

If your radio has problem of upgrade over-the-air, consult the

qualified technician for details.

Voice Announcement

This feature enables the radio to audibly indicate the current

feature mode, Zone or Channel the user has just assigned. This

audio indicator can be customized per customer requirements.

This is typically useful when the user is in a difficult condition to

read the content shown on the display.

Each voice announcement is within a limit of three seconds

maximum. The sum duration of all different voice

announcements in a radio shall be no more than 1000 seconds.

Note: This feature must be preprogrammed by a qualified

radio technician.

Check with your agent if Voice Announcement is

available for the feature you need.

The two options of priority for the Voice Announcement

available are:

•High – enables the voice of the feature to announce even

when the radio is receiving calls.

•Low – disables the voice of the feature from announcing

when the radio is receiving calls.

Procedure:

You hear a voice announcement when the features below are

preprogrammed in the radio.

Advanced Features

English

•The radio powers up. The radio announces the current zone

and channel it is transmitting.

•Press the preprogrammed voice announcement button

(which specifically programmed to playback the current zone

and channel). The radio announces the current zone and

channel it is transmitting.

Note: Pressing this preprogrammed playback button will

always enable the voice feature to announce in High

priority.

All the three programmable buttons at the side of the

radio support this feature.

•Change to a new zone. The radio announces the current

zone and channel it is transmitting.

•Change to a new channel remaining within the current zone.

The radio announces the current channel.

Press either the Menu Select button or preprogrammed button

of the radio to launch or terminate Scan, PL Disabled,

Talkaround/Direct or Transmit Inhibit. The radio announces the

corresponding feature activation or deactivation.

Utilities

Viewing the Recent Calls

This feature allows you to view the recent incoming and

outgoing call information of the following call types:

•Call Alert

•Selective Call

•Private Call

•Phone Call (Outgoing Only)

•Emergency Call (Incoming Only)

Note: The radio can also be preprogrammed to log only the

radio IDs associated with incoming Dispatch Calls.

Check with your dealer or system administrator for

more information.

Procedure:

Press the preprogrammed Recent Calls button and proceed to

Step 3.

Follow the procedure below.

1< or > to Rcnt.



Advanced Features

English

2Press the Menu Select button directly below Rcnt to access

the Recent Calls feature screen.

3U or D to scroll through the list.

4Press the Menu Select button directly below Exit to return to

the Home screen.

Press H or the PTT button to return to the Home screen.

The radio automatically exits the feature, if the feature inactivity

timer is enabled, when the radio is left idle and the timer

expires. You will hear the Menu Inactive Exit Tone upon feature

exit.

Selecting the Power Level

This feature enables you to reduce the transmit power level for

specific case that require a lower power level. You can select

the power level at which your radio transmits. The radio always

turns on to the default setting.

Note: Please refer to your agent or qualified radio technician

to enable or disable this feature.

These reduced transmit power level settings do not affect your

radio’s receiving performance, nor diminish the overall quality of

the radio’s audio and data functionality given with the following

conditions.

Settings:

•Select Low for a shorter transmitting distance and to

conserve power.

•Select High for a longer transmitting distance.

Procedure:

Use the preprogrammed Transmit Power Level to toggle the

power level between low and high power.

Follow the procedure below.

1< or > to Pwr.

2Press the Menu Select button directly below Pwr.

3The display shows Low power and the low power icon.

The display shows High power and the high power icon.



Advanced Features

English

Selecting a Radio Profile

This feature allows you to manually switch the visual and audio

settings of the radio. The display, backlight, alert tones, and

audio settings are defined according to the preprogrammed

radio settings of each radio profile.

Please refer to a qualified technician for more information.

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Procedure:

Use the preprogrammed Profile button and proceed to Step 3.

Follow the procedure below.

1< or > to Prfl.

2Press the Menu Select button directly below Prfl to access

the Profiles feature screen.

3U or D to scroll through the menu selections.

4Press the Menu Select button directly below Sel to select

the required radio profile.

Press the Menu Select button directly below Exit to exit the

screen without making any changes.

5The radio returns to the Home screen. The profile name on

the Home screen indicates the current selected radio profile.

Enabling and Disabling the Radio Alias

This feature allows you to display or hide the radio alias (name).

Procedure:

1Press the Menu Select button directly below MyID.

2The display shows momentary Radio ID off, and the radio

alias disappears from the Home screen.

The display shows momentary Radio ID on, and the radio

alias appears on the Home screen.



Advanced Features

English

Selecting the Audio Speaker

This feature allows you to select the speaker route for the

radio's audio from either the main or the secondary speaker

using the radio profile settings.

Note: Your radio must be preprogrammed to allow you to use

this feature.

While both speakers function together with the secondary

speaker enhancing intelligibility of the received audio

during typical radio operation, each speaker has an

independently-tuned frequency response and volume

level operation.

The secondary speaker also has a "whisper" mode with a

modified volume taper for quieter modes of operation.

Note: If an external speaker or microphone accessory is

attached to the radio, neither internal speakers are

operational as audio is routed to the accessory.

Procedure:

Use the preprogrammed Profile button and proceed to Step 3.

Follow the procedure below.

1< or > to Prfl.

2Press the Menu Select button directly below Prfl to access

the Profiles feature screen.

3U or D to scroll through the menu selections.

4Press the Menu Select button directly below Sel to select

the radio profile with the required speaker routing.

Press the Menu Select button directly below Exit to exit the

screen without making any changes.

5The radio returns to the Home screen. The profile name on

the Home screen indicates the current selected radio profile.



Advanced Features

English

Controlling the Display Backlight

You can enable or disable the radio’s display backlight as

needed, if poor light conditions make the display difficult to read.

Depending on how your radio is preprogrammed, you can also

maintain a minimum backlight level on the radio's front display.

Note: The backlight setting also affects the Menu Select

buttons and the Menu Navigation buttons backlighting

accordingly.

Procedure:

Press the preprogrammed Light/Flip button to toggle the

backlight on or off.

Press either the Menu Select or Menu Navigation buttons, or

any programmable radio controls or buttons to turn the backlight

on.

Note: The backlight remains on for a preprogrammed time

before it automatically turns off completely or returns to

the minimum backlight level.

Locking and Unlocking the Controls

You can lock your radio’s programmable buttons and MFK to

avoid inadvertent entry. Check with your dealer or qualified

technician for best selection to suite your usage.

Procedure:

1Toggle the preprogrammed Keypad/Control Lock button to

on.

2The display shows Kypd/Ctrl Lock.

3Toggle again to unlock the buttons.

Note: The keypad mentioned here is based on the radio

model availablility.

Turning the Switch and Buttons Tones On or Off

You can enable and disable Control Buttons tones, if needed.

Procedure:

Press the preprogrammed Mute button to turn the tones off or

on.

Follow the procedure below.

1< or > to Mute.

2Press the Menu Select button directly below Mute.



Advanced Features

English

3The display shows momentary Tones off, indicating that

the keypad tones are disabled.

The display shows momentary Tones on, and you hear a

short tone, indicating that the tones are enabled.

Turning Voice Mute On or Off

You can enable and disable voice transmission, if needed.

Procedure:

Press the preprogrammed Voice Mute button to turn the feature

off or on.

Follow the procedure below.

1< or > to VMut.

2Press the Menu Select button directly below VMut.

3The display shows momentary Voice mute off, and you

hear a short tone, indicating that the feature is disabled.

The display shows momentary Voice mute on, and you

hear a short tone, indicating that the feature is enabled.

Using the Time-Out Timer

This feature turns off your radio’s transmitter. You cannot

transmit longer than the preset timer setting.

If you attempt to do so, the radio automatically stops your

transmission, and you hear a talk-prohibit tone.

The timer is defaulted at 60 seconds, but it can be

preprogrammed from 3 to 120 seconds, in 15-second intervals,

or it can be disabled entirely for each radio mode, by a qualified

radio technician.

Note: You will hear a brief, low-pitched, warning tone four

seconds before the transmission times out.

Procedure:

1Hold down the PTT button longer than the preprogrammed

time. You hear a short, low-pitched warning tone, the

transmission is cut-off, and the LED goes out until you

release the PTT button.

2Release the PTT button. The timer resets.

3Press the PTT button to re-transmit. The time-out timer

restarts and the LED lights up solid red.



Advanced Features

English

Setting the Time and Date

You can set the time and date for your radio.

Settings:

•The default time setting is a 12-hour clock.The display shows

12:00AM.

•The AM/PM selection is not available for the 24-hour clock

setting.

•The default setting for the domestic date shows MDY.

Note: Check with your dealer or system administrator for

additional programmable settings for this feature.

Editing the Time and Date

Procedure:

1< or > to Clck.

2Press the Menu Select button directly below Clck. The

display shows the current setting of the radio.

3Press the Menu Select button directly below Edit. The first

item blinks.

4U or D to change the selected item.

< or > one or more times to move to an item you wish to

change.

U or D to change the selected item.

Press the Menu Select button directly below Exit to exit the

screen without making any changes and return to the Home

screen.

5Press the Menu Select button directly below Ok once you

have finished to save your changes and return to the Home

screen.

Press H at any time to return to the Home screen without

saving your changes.

Note: If a call arrives while the radio is in the clock-setting

menu, the radio exits clock setting and displays the call

information. Any changes made before the call is NOT

saved.

Using the Conventional Squelch Operation

Features

This feature filters out unwanted calls with low signal strength or

channels that have a higher than normal background noise.



Advanced Features

English

Analog Options

Tone Private Line (PL), Digital Private-Line (DPL), and carrier

squelch can be available (preprogrammed) per channel.

Digital Options

One or more of the following options may be preprogrammed in

your radio. Check with your dealer or system administrator for

more information.

Using the PL Defeat Feature

This feature allows you to override any coded squelch (DPL or

PL) that might be preprogrammed to a channel. The radio will

also unmute to any digital activity on a digital channel.

Procedure:

Place the preprogrammed PL Defeat in the PL Defeat position.

You hear any activity on the channel.

The radio is muted if no activity is present.

Note: When this feature is active, the Carrier Squelch status

indicator is displayed.

Using the Digital PTT ID Feature

This feature allows you to see the radio ID (number) of the radio

from whom you are currently receiving a transmission. This ID,

consisting up to a maximum of eight characters, can be viewed

by both the receiving radio and the dispatcher.

Your radio’s ID number is also automatically sent every time the

PTT button is pressed. This is a per-channel feature. For digital

voice transmissions, your radio’s ID is sent continuously during

the voice message.

Mode Result

Carrier squelch (C) You hear all traffic on a channel.

PL or DPL The radio responds only to your

messages.

Option Result

Digital Carrier-Operated

Squelch (COS) You hear any digital traffic.

Normal Squelch You hear any digital traffic having

the correct network access code.

Selective Switch You hear any digital traffic having

the correct network access code

and correct talkgroup.



Advanced Features

English

Using the Smart PTT Feature (Conventional Only)

Smart PTT is a per-personality, programmable feature used in

conventional radio systems to keep radio users from talking

over other radio conversations.

When smart PTT is enabled in your radio, you cannot transmit

on an active channel.

If you try to transmit on an active smart-PTT channel, you hear

an alert tone, and the transmission is inhibited. The LED lights

up solid yellow to indicate that the channel is busy.

Three variations of smart PTT are available:

IMPRES™ Battery Annunciator

This feature displays the current capacity and charges cycles of

your battery when a IMPRES Battery is powering your radio.

This feature must be enabled in your radio to see the

information.

The information shown are:

•Rated Capacity – Percentage of current battery capacity.

•Remaining Capacity – Remaining power of the battery in

mAh.

•Estimated Charges – Number of charges cycles the battery

has gone through.

Mode Description

Transmit Inhibit

on Busy Channel

with Carrier

You cannot transmit if any traffic is

detected on the channel.

Transmit Inhibit

on Busy Channel

with Wrong

Squelch Code

You cannot transmit on an active

channel with a squelch code other than

your own. If the PL code is the same as

yours, the transmission is not

prevented.

Quick-Key

Override

This feature can work in conjunction

with either of the two above variations.

You can override the transmit-inhibit

state by quick-keying the radio. In other

words, two PTT button presses within

the preprogrammed time limit.



Advanced Features

English

Accessing the Battery Info screen

Procedure:

1< or > to Batt.

2Press the Menu Select button directly below Batt. The

display shows the details of the battery.

3U or D to scroll through the various information.

Press the Menu Select button directly below Exit to return

to the previous screen.

Press H to return to the Home screen.

Accessing the General Radio Information

Your radio contains information on the following:

•Radio Information

•IP Display

•Control Assignments

•Soft ID (If Enabled)

Note: The radio automatically exits the feature, if the feature

inactivity timer is enabled, when the radio is left idle

and the timer expires. You will hear the Menu Inactive

Exit Tone upon feature exit.

Accessing the Radio Information

This feature displays the following information of your radio:

Note: Press H at any time to return to the Home screen.



•Host Version

•Model Number

•ESN

•Flash Code

•Tuning Version

•Option Board Type

(optional)

•Expansion Board Type

(optional)

•MFK Secondary Function

•DSP Version

•Serial Number

•Flash Size & Type

•RF Band

•Processor Version

•Option Board Serial Number

(optional)

•Option Board Software Version

(optional)

•MFK Primary Function

•Language Pack ID and Version

(only when the language of the

display is set to non-English)



Advanced Features

English

Procedure:

Press the preprogrammed Info button and proceed to Step 3.

Follow the procedure below.

1< or > to Info.

2Press the Menu Select button directly below Info.

3U or D to Radio Info and press the Menu Select button

directly below Sel.

4The display shows the Information screen.

5U or D to scroll through the various information.

Press the Menu Select button directly below Back to return

to the previous screen.

Press H to return to the Home screen.

Viewing the IP Information

This feature displays the device name, IP address, and status of

your radio.

Note: The device name of your radio is preprogrammed.

Check with your dealer or system administrator for

more information.

Procedure:

Press the preprogrammed Info button and proceed to Step 3.

Follow the procedure below.

1< or > to Info.

2Press the Menu Select button directly below Info.

3U or D to IP Info and press the Menu Select button directly

below Sel.

4The display shows the IP Info screen.

5U or D to scroll through the various information.

Press the Menu Select button directly below Back to return

to the previous screen.

Press H to return to the Home screen.



Advanced Features

English

Viewing the Control Assignments

This feature displays the programmable radio functions

assigned to the controls of your radio for the currently selected

channel.

See Programmable Features on page 11 for more information

on the various programmable features of your radio.

Procedure:

Press the preprogrammed Info button and proceed to Step 3.

Follow the procedure below.

1< or > to Info.

2Press the Menu Select button directly below Info.

3U or D to Control map and press the Menu Select button

directly below Sel.

4The display shows the Control Map screen.

5U or D to scroll through the various information.

Press the Menu Select button directly below Back to return

to the previous screen.

Press H to return to the Home screen.



Helpful Tips

English

Helpful Tips

Take a moment to review the following:

Caring for Your Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 91

Cleaning Your Radio . . . . . . . . . . . . . . . . . . . . . . . . page 92

Handling Your Radio . . . . . . . . . . . . . . . . . . . . . . . . page 93

Servicing Your Radio . . . . . . . . . . . . . . . . . . . . . . . . page 93

Taking Care of the Battery. . . . . . . . . . . . . . . . . . . . . . page 94

Checking the Battery Charge Status . . . . . . . . . . . . page 94

Battery Recycling and Disposal . . . . . . . . . . . . . . . . page 95

Caring for Your Radio

•The radio casting

has a vent port

that allows for

pressure

equalization in the

radio. Never poke

this vent with any

objects, such as

needles,

tweezers, or

screwdrivers.

Vent

Port

Helpful Tips

English

Cleaning Your Radio

To clean the external surfaces of your radio:

1Combine one teaspoon of mild dishwashing detergent to

one gallon of water (0.5% solution).

2Apply the solution sparingly with a stiff, non-metallic, short-

bristled brush, making sure excess detergent does not get

entrapped near the connectors, controls or crevices. Dry the

radio thoroughly with a soft, lint-free cloth.

3Clean battery contacts with a lint-free cloth to remove dirt or

grease.

•Do not submerge the radio as this results in

damage to the radio.

•If water is observed on the battery contact area,

dry and clean the radio battery contacts before

attaching a battery to the radio. Otherwise, the

water could short-circuit the radio.

•If water is observed on the speaker grill area,

shake the radio well so that any water that may

be trapped inside the speaker grille and

microphone port can be removed. Otherwise,

the water will decrease the audio quality of the

radio.

•Do not disassemble the radio. This could

damage radio seals and result in leak paths into

the radio. Any radio maintenance should be

performed only by a qualified radio technician.

Do not use solvents to clean your radio as most

chemicals may permanently damage the radio

housing and texture.

Do not submerge the radio in the detergent

solution.



Helpful Tips

English

Handling Your Radio

•Do not pound, drop, or throw the radio unnecessarily. Never

carry the radio by the antenna.

•Avoid subjecting the radio to an excess of liquids.

•Avoid subjecting the radio to corrosives, solvents or

chemicals.

•Do not disassemble the radio.

•Keep the accessory-connector cover in place until ready to

use the connector. Replace the cover immediately once the

accessory has been disconnected.

Servicing Your Radio

Proper repair and maintenance procedures will assure efficient

operation and long life for this product. A Motorola maintenance

agreement will provide expert service to keep this and all other

communication equipment in perfect operating condition. A

nationwide service organization is provided by Motorola to

support maintenance services. Through its maintenance and

installation program, Motorola makes available the finest

service to those desiring reliable, continuous communications

on a contract basis. For a contract service agreement, please

contact your nearest Motorola service or sales representative,

or an authorized Motorola dealer.

Express Service Plus (ESP) is an optional extended service

coverage plan, which provides for the repair of this product for

an additional period of either one or two years beyond the

normal expiration date of the standard warranty. For more

information about ESP, contact the Motorola Radio Support

Center at 3761 South Central Avenue, Rockford, IL 61102 (800)

227-6772 / (847)725-4200.



Helpful Tips

English

Taking Care of the Battery

Checking the Battery Charge Status

Your radio can indicate the battery’s charge status through:

•the LED and sounds.

•the fuel gauge icon on the display.

You can also check the battery charge status via the menu

entry. See IMPRES™ Battery Annunciator on page 87 for

more information.

LED and Sounds

When your battery is low:

•the LED blinks red when the PTT button is pressed.

•you hear a low-battery “chirp” (short, high-pitched tone).

Fuel Gauge Icon

A blinking fuel gauge icon ( ) is displayed only when the

battery voltage drops to low level. In this case, replace with a

fully charged battery.

*These are for IMPRES battery operation only.



Gauge Battery Charge

76% to 100% full*

51% to 75%*

26% to 50%*

11% to 25%*

10% or less (at 10%, the gauge begins blinking.)



Helpful Tips

English

Battery Recycling and Disposal

In the U.S. and Canada, Motorola participates in the nationwide

Rechargeable Battery Recycling Corporation (RBRC) program

for battery collection and recycling. Many retailers and dealers

participate in this program.

For the location of the drop-off facility closest to you, access

RBRC's Internet web site at www.rbrc.com or call 1-800-8-

BATTERY. This internet site and telephone number also provide

other useful information concerning recycling options for

consumers, businesses, and governmental agencies.



Accessories

English

Accessories

The accessory link below is for APX radios. Not all accessories

are FCC certified for operation with all APX models and/or

bandsplits. Please refer to the specific APX radio price pages

for a list of FCC certified accessories or contact your sales

representative for accessory compatibility.

http://www.motorolasolutions.com/APX

Highlights for the Accessories

1Only the following programming cables are compatible with

APX 1000

– APX DMR Port Programming Cable (PMKN4012B)

– Test and Alignment Programming Cable (PMKN4013C)

Appendix: Maritime Radio Use in the VHF Frequency Range

English

Appendix: Maritime Radio Use in the

VHF Frequency Range

Take a moment to review the following:

Special Channel Assignments. . . . . . . . . . . . . . . . . . . page 97

Operating Frequency Requirements . . . . . . . . . . . . . . page 98

Declaration of Compliance for the User of Distress and Safety

Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 100

Special Channel Assignments

Emergency Channel

If you are in imminent and grave danger at sea and require

emergency assistance, use VHF Channel 16 to send a distress

call to nearby vessels and the United States Coast Guard.

Transmit the following information, in this order:

1“MAYDAY, MAYDAY, MAYDAY.”

2“THIS IS _____________________, CALL SIGN

__________.”

State the name of the vessel in distress 3 times, followed

by the call sign or other identification of the vessel, stated 3

times.

3Repeat “MAYDAY” and the name of the vessel.

4“WE ARE LOCATED AT _______________________.”

State the position of the vessel in distress, using any

information that will help responders to locate you, e.g.:

• latitude and longitude

• bearing (state whether you are using true or magnetic

north)

• distance to a well-known landmark

• vessel course, speed or destination

5State the nature of the distress.

6Specify what kind of assistance you need.

7State the number of persons on board and the number

needing medical attention, if any.

8Mention any other information that would be helpful to

responders, such as type of vessel, vessel length and/or

tonnage, hull color, etc.

9“OVER.”

10 Wait for a response.

11 If you do not receive an immediate response, remain by the

radio and repeat the transmission at intervals until you

receive a response. Be prepared to follow any instructions

given to you.

Non-Commercial Call Channel

For non-commercial transmissions, such as fishing reports,

rendezvous arrangements, repair scheduling, or berthing

information, use VHF Channel 9.



Appendix: Maritime Radio Use in the VHF Frequency Range

English

Operating Frequency Requirements

A radio designated for shipboard use must comply with Federal

Communications Commission Rule Part 80 as follows:

• on ships subject to Part II of Title III of the Communications

Act, the radio must be capable of operating on the 156.800

MHz frequency

• on ships subject to the Safety Convention, the radio must be

capable of operating:

• in the simplex mode on the ship station transmitting

frequencies specified in the 156.025 – 157.425 MHz

frequency band, and

• in the semiduplex mode on the two frequency channels

specified in the table below.

Note: Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83

cannot be lawfully used by the general public in US

waters.

Additional information about operating requirements in the

Maritime Services can be obtained from the full text of FCC

Rule Part 80 and from the US Coast Guard.

Table A-1: VHF Marine Channel List

Channel

Number

Frequency (MHz)

Transmit Receive

1 156.050 160.650

2 156.100 160.700

* 156.150 160.750

4 156.200 160.800

5 156.250 160.850

6 156.300 –

7 156.350 160.950

8 156.400 –

9 156.450 156.450

10 156.500 156.500

11 156.550 156.550

12 156.600 156.600

13** 156.650 156.650

14 156.700 156.700

15** 156.750 156.750

16 156.800 156.800

17** 156.850 156.850

18 156.900 161.500

19 156.950 161.550

20 157.000 161.600

* 157.050 161.650

22 157.100 161.700

Table A-1: VHF Marine Channel List (Continued)

Channel

Number

Frequency (MHz)

Transmit Receive

Appendix: Maritime Radio Use in the VHF Frequency Range

English

* Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83 cannot be

lawfully used by the general public in US waters.

** Low power (1 W) only

*** Guard band

Note: A – in the Receive column indicates that the channel is

transmit only.

* 157.150 161.750

24 157.200 161.800

25 157.250 161.850

26 157.300 161.900

27 157.350 161.950

28 157.400 162.000

60 156.025 160.625

* 156.075 160.675

62 156.125 160.725

63 156.175 160.775

* 156.225 160.825

65 156.275 160.875

66 156.325 160.925

67** 156.375 156.375

68 156.425 156.425

69 156.475 156.475

71 156.575 156.575

72 156.625 –

73 156.675 156.675

74 156.725 156.725

Table A-1: VHF Marine Channel List (Continued)

Channel

Number

Frequency (MHz)

Transmit Receive

75 *** ***

76 *** ***

77** 156.875 –

78 156.925 161.525

79 156.975 161.575

80 157.025 161.625

* 157.075 161.675

* 157.125 161.725

* 157.175 161.775

84 157.225 161.825

85 157.275 161.875

86 157.325 161.925

87 157.375 161.975

88 157.425 162.025

Table A-1: VHF Marine Channel List (Continued)

Channel

Number

Frequency (MHz)

Transmit Receive

Appendix: Maritime Radio Use in the VHF Frequency Range

English

100

Declaration of Compliance for the User of

Distress and Safety Frequencies

The radio equipment does not employ a modulation other than

the internationally adopted modulation for maritime use when it

operates on the distress and safety frequencies spedified in

RSS-182 Section 6.1.

Table A-2: Technical Paratmeters for Interfacing External

Data sources

RS232 USB SB9600

Input Voltage (Volts Peak-to-

peak) 18 V 3.6 V 5 V

Max Data Rate 28 kb/s 12 Mb/s 9.6 kb/s

Impedance 5k Ohm 90 Ohm 120 Ohm

Glossary

English

101

Glossary

This glossary is a list of specialized terms used in this manual.

Term Definition

ACK Acknowledgment of communication.

Active Channel A channel that has traffic on it.

Analog Signal An RF signal that has a continuous nature

rather than a pulsed or discrete nature.

ARS Automatic Registration Service

ASTRO 25 Motorola standard for wireless digital

trunked communications.

ASTRO

Conventional Motorola standard for wireless digital

conventional communications.

Autoscan A feature that allows the radio to

automatically scan the members of a scan

list.

Call Alert Privately page an individual by sending an

audible tone.

Carrier Squelch

Feature that responds to the presence of

an RF carrier by opening or unmuting

(turning on) a receiver’s audio circuit. A

squelch circuit silences the radio when no

signal is being received so that the user

does not have to listen to “noise”.

Central

Controller

A software-controlled, computer-driven

device that receives and generates data for

the trunked radios assigned to it. It

monitors and directs the operations of the

trunked repeaters.

Channel A group of characteristics such as transmit/

receive frequency pairs and radio

parameters.

Control Channel

In a trunking system, one of the channels

that is used to provide a continuous, two-

way/data communications path between

the central controller and all radios on the

system.

Conventional Typically refers to radio-to-radio

communications, sometimes through a

repeater (see Trunking).

Conventional

Scan List A scan list that includes only conventional

channels.

Term Definition

Glossary

English

102

Digital Private

Line (DPL)

A type of coded squelch using data bursts.

Similar to PL except a digital code is used

instead of a tone.

Digital Signal An RF signal that has a pulsed, or discrete,

nature, rather than a continuous nature.

Dispatcher An individual who has radio system

management duties.

DSP Digital Signal Processing

Dynamic

Regrouping

A feature that allows the dispatcher to

temporarily reassign selected radios to a

single special channel so they can

communicate with each other.

DSR Dynamic System Resilience

ESN Electrical Serial Number

Failsoft

A feature that allows communications to

take place even though the central

controller has failed. Each trunked repeater

in the system transmits a data word

informing every radio that the system has

gone into failsoft.

FCC Federal Communications Commission.

FM Frequency Modulation

Hang Up Disconnect.

Term Definition

Home screen The first display information after the radio

completes its self test.

IV&D Integrated Voice and Data

LCD Liquid crystal display.

LED Light-emitting diode.

MDC Motorola Data Communication

Menu Entry

A software-activated feature shown at the

bottom of the display – selection of these

features is controlled by the {, |,

and } buttons.

Monitor

Check channel activity by pressing the

Monitor button. If the channel is clear, you

hear static. If the channel is in use, you

hear conversation. It also serves as a way

to check the volume level of the radio,

since the radio “opens the squelch” when

the monitor button is pressed.

Multi-Function

Knob

It works as a power on/off button, provides

primary and secondary functions like

volume change and mode change.

Multi-System

Talkgroup Scan

List

A scan list that can include both talkgroups

(trunked) and channels (conventional).

Term Definition

Glossary

English

103

Network Access

Code

Network Access Code (NAC) operates on

digital channels to reduce voice channel

interference between adjacent systems

and sites.

Non-Tactical/

Revert

The user talks on a preprogrammed

emergency channel. The emergency alarm

is sent out on this same channel.

OTAR Over-the-air rekeying.

Page A one-way alert, with audio and/or display

messages.

Personality A set of unique features specific to a radio.

PIN Personal Identification Number

Preprogrammed Refers to a software feature that has been

activated by a qualified radio technician.

Private

(Conversation)

Call

A feature that lets you have a private

conversation with another radio user in the

talkgroup.

Private Line

(PL)

A sub-audible tone that is transmitted such

that only receivers decoding the tone

receives it.

Programmable Refers to a radio control that can have a

radio feature assigned to it.

Term Definition

PTT Push-To-Talk – the PTT button engages

the transmitter and puts the radio in

transmit (send) operation when pressed.

Radio

Frequency (RF)

The part of the general frequency spectrum

between the audio and infrared light

regions (about 10 kHz to 10,000,000 MHz).

Repeater

A conventional radio feature, where you

talk through a receive/transmit facility that

re-transmits received signals, in order to

improve communications range and

coverage.

Selective Call

A feature that allows you to call a select

individual, intended to provide privacy and

to eliminate the annoyance of having to

listen to conversations of no interest to you.

Selective Switch Any digital P25 traffic having the correct

Network Access Code and the correct

talkgroup.

Squelch

Special electronic circuitry, added to the

receiver of a radio, that reduces, or cuts off,

unwanted signals before they are heard in

the speaker.

SSI Synchronous Serial Interface

Term Definition

Glossary

English

104

Standby An operating condition whereby the radio’s

speaker is muted but still continues to

receive data.

Status Calls Pre-defined text messages that allow the

user to send a conditional message without

talking.

Tactical/

Non-Revert

The user talks on the channel that was

selected before the radio entered the

emergency state.

Talkaround Bypass a repeater and talk directly to

another unit for easy local unit-to-unit

communications.

Talkgroup An organization or group of radio users

who communicate with each other using

the same communication path.

TMS Text Messaging Service

Trunking The automatic sharing of communications

paths between a large number of users

(see Conventional).

Trunking

Priority Monitor

Scan List

A scan list that includes talkgroups that are

all from the same trunking system.

USK Unique Shadow Key.

Term Definition

UTC

Coordinated Universal Time. The

international time standard (formerly

Greenwich Mean Time, or GMT). Zero

hours UTC is midnight in Greenwich,

England, which is located at 0 degrees

longitude. Everything east of Greenwich

(up to 180 degrees) is later in time;

everything west is earlier. There are 42

time authorities around the world that are

constantly synchronizing with each other.

Abbreviated as UTC (English backronym =

Universal Time, Coordinated), it is also

known as Zulu (Z) Time.

Zone A grouping of channels.

Term Definition

Commercial Warranty

English

105

Commercial Warranty

Limited Warranty

MOTOROLA COMMUNICATION PRODUCTS

I. WHAT THIS WARRANTY COVERS AND FOR HOW

LONG:

MOTOROLA SOLUTIONS INC. (“MOTOROLA”) warrants the

MOTOROLA manufactured Communication Products listed below

(“Product”) against defects in material and workmanship under

normal use and service for a period of time from the date of

purchase as scheduled below.

Other region:

LACR region:

MOTOROLA, at its option, will at no charge either repair the

Product (with new or reconditioned parts), replace it (with a new or

reconditioned Product), or refund the purchase price of the Product

during the warranty period provided it is returned in accordance

with the terms of this warranty. Replaced parts or boards are

warranted for the balance of the original applicable warranty period.

All replaced parts of Product shall become the property of

MOTOROLA.

This express limited warranty is extended by MOTOROLA to the

original end user purchaser only and is not assignable or

transferable to any other party. This is the complete warranty for the

Product manufactured by MOTOROLA. MOTOROLA assumes no

obligations or liability for additions or modifications to this warranty

unless made in writing and signed by an officer of MOTOROLA.

Unless made in a separate agreement between MOTOROLA and

the original end user purchaser, MOTOROLA does not warrant the

installation, maintenance or service of the Product.

MOTOROLA cannot be responsible in any way for any ancillary

equipment not furnished by MOTOROLA which is attached to or

used in connection with the Product, or for operation of the Product

with any ancillary equipment, and all such equipment is expressly

excluded from this warranty. Because each system which may use

the Product is unique, MOTOROLA disclaims liability for range,

coverage, or operation of the system as a whole under this

warranty.

II. GENERAL PROVISIONS:

This warranty sets forth the full extent of MOTOROLA'S

responsibilities regarding the Product. Repair, replacement or

refund of the purchase price, at MOTOROLA’s option, is the

exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL

OTHER EXPRESS WARRANTIES. IMPLIED WARRANTIES,

INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE, ARE LIMITED TO THE DURATION OF THIS LIMITED

ASTRO APX 1000 Portable Units One (1) Year

Product Accessories One (1) Year

ASTRO APX 1000 Portable Units Three (3) Years

Product Accessories One (1) Year

Commercial Warranty

English

106

WARRANTY. IN NO EVENT SHALL MOTOROLA BE LIABLE FOR

DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE

PRODUCT, FOR ANY LOSS OF USE, LOSS OF TIME,

INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR

SAVINGS OR OTHER INCIDENTAL, SPECIAL OR

CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR

INABILITY TO USE SUCH PRODUCT, TO THE FULL EXTENT

SUCH MAY BE DISCLAIMED BY LAW.

III. STATE LAW RIGHTS:

SOME STATES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES

OR LIMITATION ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATION OR EXCLUSIONS MAY

NOT APPLY.

This warranty gives specific legal rights, and there may be other

rights which may vary from state to state.

IV. HOW TO GET WARRANTY SERVICE:

You must provide proof of purchase (bearing the date of purchase

and Product item serial number) in order to receive warranty

service and, also, deliver or send the Product item, transportation

and insurance prepaid, to an authorized warranty service location.

Warranty service will be provided by MOTOROLA through one of its

authorized warranty service locations. If you first contact the

company which sold you the Product (e.g., dealer or

communication service provider), it can facilitate your obtaining

warranty service. You can also call MOTOROLA at 1-800-927-2744

US/Canada.

V. WHAT THIS WARRANTY DOES NOT COVER:

A)Defects or damage resulting from use of the Product in other

than its normal and customary manner.

B)Defects or damage from misuse, accident, water, or neglect.

C)Defects or damage from improper testing, operation,

maintenance, installation, alteration, modification, or adjustment.

D)Breakage or damage to antennas unless caused directly by

defects in material workmanship.

E)A Product subjected to unauthorized Product modifications,

disassembles or repairs (including, without limitation, the addition

to the Product of non-MOTOROLA supplied equipment) which

adversely affect performance of the Product or interfere with

MOTOROLA's normal warranty inspection and testing of the

Product to verify any warranty claim.

F) Product which has had the serial number removed or made

illegible.

G)Rechargeable batteries if:

(1) any of the seals on the battery enclosure of cells are broken

or show evidence of tampering.

(2) the damage or defect is caused by charging or using the

battery in equipment or service other than the Product for which it

is specified.

H)Freight costs to the repair depot.

I) A Product which, due to illegal or unauthorized alteration of the

software/firmware in the Product, does not function in

accordance with MOTOROLA’s published specifications or the

FCC certification labeling in effect for the Product at the time the

Product was initially distributed from MOTOROLA.

Commercial Warranty

English

107

J) Scratches or other cosmetic damage to Product surfaces that

does not affect the operation of the Product.

K)Normal and customary wear and tear.

VI. PATENT AND SOFTWARE PROVISIONS:

MOTOROLA will defend, at its own expense, any suit brought

against the end user purchaser to the extent that it is based on a

claim that the Product or parts infringe a United States patent, and

MOTOROLA will pay those costs and damages finally awarded

against the end user purchaser in any such suit which are

attributable to any such claim, but such defense and payments are

conditioned on the following:

A)that MOTOROLA will be notified promptly in writing by such

purchaser of any notice of such claim;

B)that MOTOROLA will have sole control of the defense of such

suit and all negotiations for its settlement or compromise; and

C)should the Product or parts become, or in MOTOROLA’s opinion

be likely to become, the subject of a claim of infringement of a

United States patent, that such purchaser will permit

MOTOROLA, at its option and expense, either to procure for

such purchaser the right to continue using the Product or parts or

to replace or modify the same so that it becomes non-infringing

or to grant such purchaser a credit for the Product or parts as

depreciated and accept its return. The depreciation will be an

equal amount per year over the lifetime of the Product or parts as

established by MOTOROLA.

MOTOROLA will have no liability with respect to any claim of patent

infringement which is based upon the combination of the Product or

parts furnished hereunder with software, apparatus or devices not

furnished by MOTOROLA, nor will MOTOROLA have any liability

for the use of ancillary equipment or software not furnished by

MOTOROLA which is attached to or used in connection with the

Product. The foregoing states the entire liability of MOTOROLA with

respect to infringement of patents by the Product or any parts

thereof.

Laws in the United States and other countries preserve for

MOTOROLA certain exclusive rights for copyrighted MOTOROLA

software such as the exclusive rights to reproduce in copies and

distribute copies of such MOTOROLA software. MOTOROLA

software may be used in only the Product in which the software was

originally embodied and such software in such Product may not be

replaced, copied, distributed, modified in any way, or used to

produce any derivative thereof. No other use including, without

limitation, alteration, modification, reproduction, distribution, or

reverse engineering of such MOTOROLA software or exercise of

rights in such MOTOROLA software is permitted. No license is

granted by implication, estoppel or otherwise under MOTOROLA

patent rights or copyrights.

VII. GOVERNING LAW:

This Warranty is governed by the laws of the State of Illinois, U.S.A.

Commercial Warranty

English

108

VIII. FOR AUSTRALIA ONLY:

This warranty is given by Motorola Solutions Australia Pty

Limited (ABN 16 004 742 312) of Tally Ho Business Park, 10

Wesley Court. Burwood East, Victoria.

Our goods come with guarantees that cannot be excluded

under the Australia Consumer Law. You are entitled to a

replacement or refund for a major failure and compensation for

any other reasonably foreseeable loss or damage. You are also

entitled to have the goods repaired or replaced if the goods fail

to be of acceptable quality and the failure does not amount to a

major failure.

Motorola Solutions Australia’s limited warranty below is in

addition to any rights and remedies you may have under the

Australian Consumer Law. If you have any queries, please call

Motorola Solutions Australia at 1800 457 439. You may also

visit our website: http://www.motorolasolutions.com/XA-EN/

Pages/Contact_Us for the most updated warranty terms.

Motorola Solutions, Inc.

1303 East Algonquin Road

Schaumburg, Illinois 60196 U.S.A.

MOTOROLA, MOTO, MOTOROLA SOLUTIONS and

the Stylized M logo are trademarks or registered trademarks

of Motorola Trademark Holdings, LLC and are used under

license.

All other trademarks are the property of their respective owners.

June 2014.

*MN000254A01*

MN000254A01-A

Motorola Solutions 89FT5861 Portable 2-Way Radio User Manual APX 1000 Model 2 Portable Radio User Guide

Motorola Solutions, Inc. Portable 2-Way Radio APX 1000 Model 2 Portable Radio User Guide

Contents

Manual

Navigation menu

Namespaces

Views

Navigation
