Motorola Solutions 89FT5870 Portable 2-way radio User Manual

Motorola Solutions, Inc. Portable 2-way radio

Contents

User Manual

DLR1020, DLR1060 models
User Guide
Two-Way Radios
English
1
CONTENTS
CONTENTS
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Product Safety . . . . . . . . . . . . . . . . . . . . . . . .3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . .4
Package Contents . . . . . . . . . . . . . . . . . . . . . .4
FCC Licensing Information . . . . . . . . . . . . .6
Batteries and Chargers Safety
Information. . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operational Safety Guidelines. . . . . . . . . . . . .8
Radio Overview . . . . . . . . . . . . . . . . . . . . . . .9

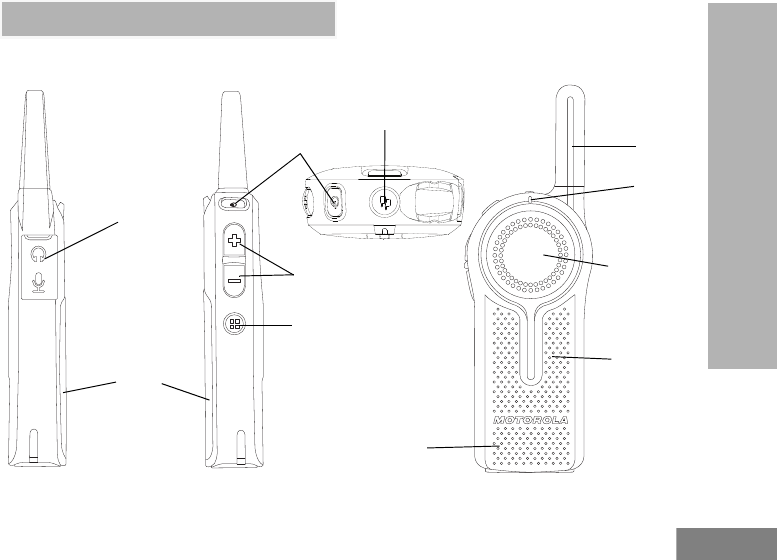

Parts Of The Radio . . . . . . . . . . . . . . . . . . . . .9
Power Button . . . . . . . . . . . . . . . . . . . . .10

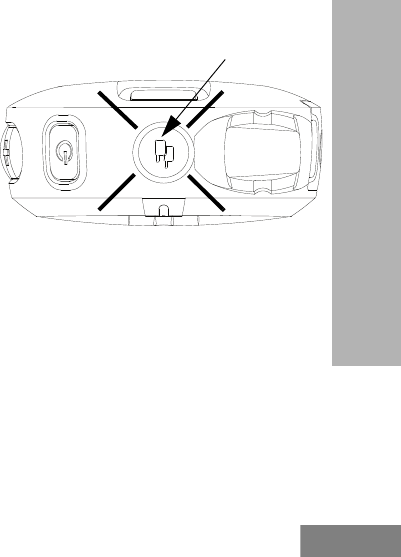

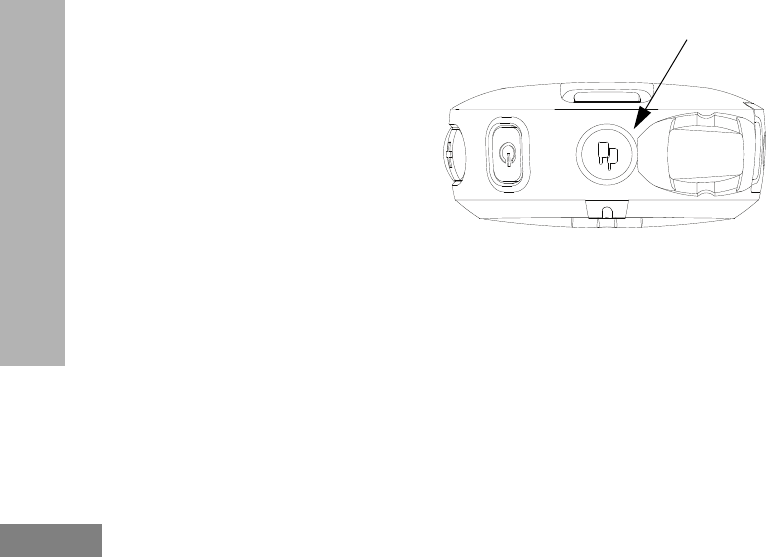

Programmable Top Button . . . . . . . . . . .10
Volume Control (+/-) Button . . . . . . . . . .10
Audio Accessory Connector . . . . . . . . . .10
Microphone . . . . . . . . . . . . . . . . . . . . . . .10
Antenna. . . . . . . . . . . . . . . . . . . . . . . . . .10

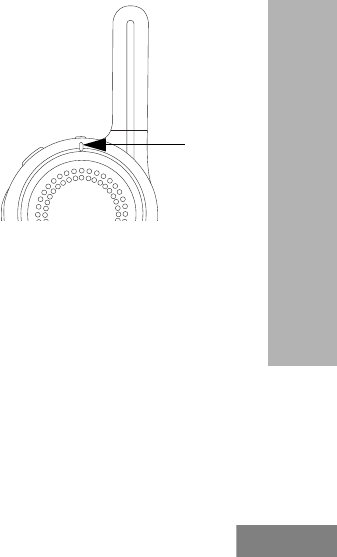

Tx/Rx Indicator LED . . . . . . . . . . . . . . . .10
Push-to-Talk (PTT) Button . . . . . . . . . . .10
Menu Button . . . . . . . . . . . . . . . . . . . . . .10
The Lithium-Ion (Li-Ion) Battery . . . . . . .10
Battery Features . . . . . . . . . . . . . . . . . . . . . .12
About the Li-Ion Battery . . . . . . . . . . . . . 12
Battery Recycling and Disposal . . . . . . . 13

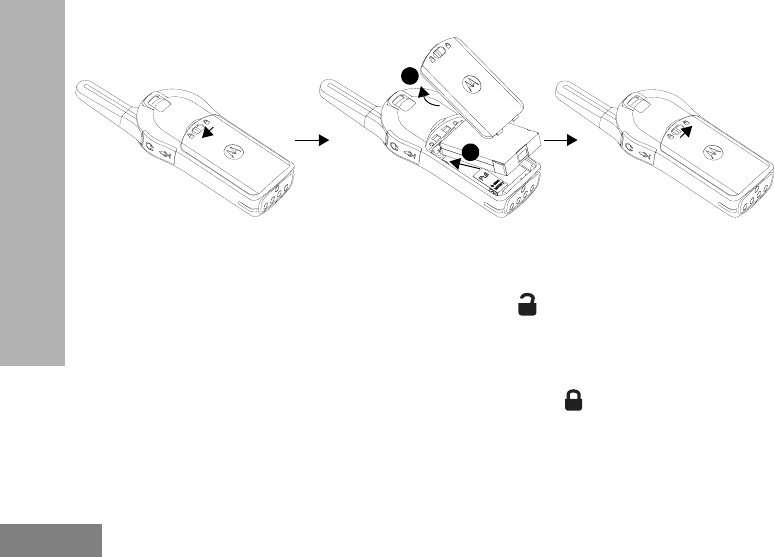

Installing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . 14

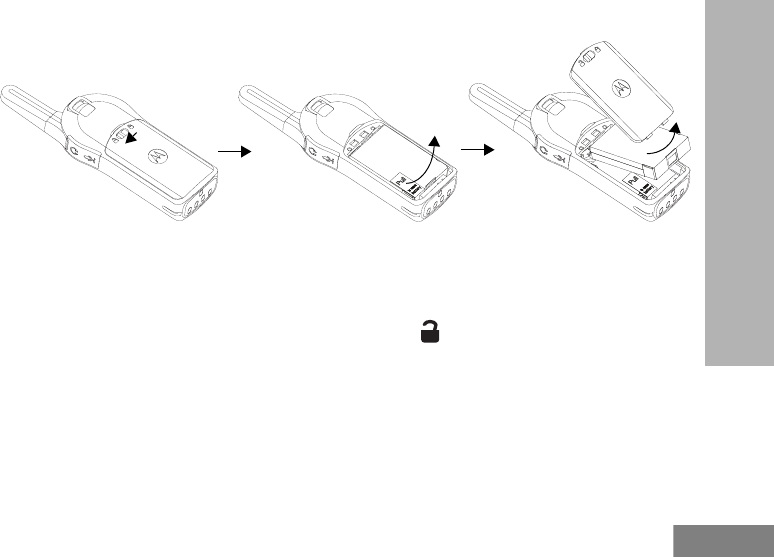

Removing the Lithium-Ion
(Li-Ion) Battery . . . . . . . . . . . . . . . . . . 15
Holster . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Power Supply, Adaptor and Drop-in
Tray Charger . . . . . . . . . . . . . . . . . . . 16
Battery Life Information . . . . . . . . . . . . . 17

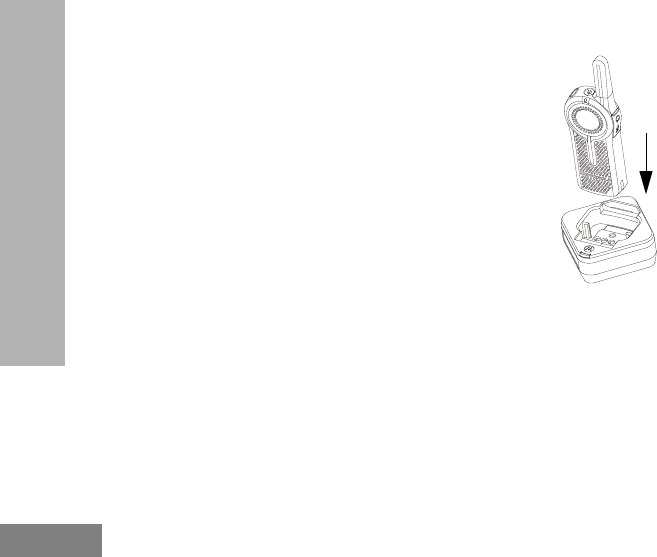

Charging the Battery . . . . . . . . . . . . . . . 18

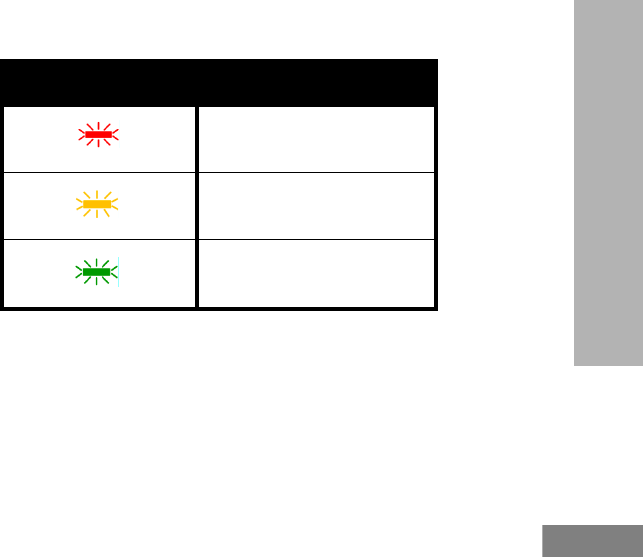

Drop-in Tray Charger Charge
Status Indicators . . . . . . . . . . . . . . . . 20
Drop-in Tray Charger Battery State of
Charge Indications . . . . . . . . . . . . . . . 21
Estimated Charging Time . . . . . . . . . . . 22

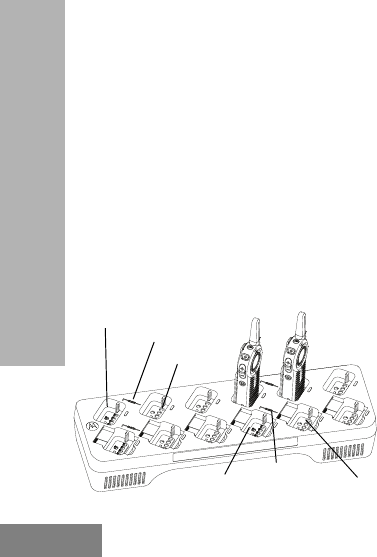

Multi-Unit Charger Charge Status
Indicators . . . . . . . . . . . . . . . . . . . . . . 24
Multi-Unit Charger Battery State
of Charge Indications . . . . . . . . . . . . . 25
Getting Started . . . . . . . . . . . . . . . . . . . . . . 27
Turning radio ON/OFF . . . . . . . . . . . . . . . . . 27
Adjusting Volume . . . . . . . . . . . . . . . . . . . . . 27
English
2
CONTENTS
Checking Battery Status . . . . . . . . . . . . . . . .27
Selecting a Channel . . . . . . . . . . . . . . . . . . .28
Programmable Top Button Options. . . . . . . .28
Programmable Top Button Options: . . . .28
Transmitting and Receiving. . . . . . . . . . . . . .29
Talking to a Group in a Channel . . . . . . .29
Private Reply . . . . . . . . . . . . . . . . . . . . . . . . .29
Private Reply Request . . . . . . . . . . . . . .30
Private Reply Hang Time . . . . . . . . . . . .30
Talking in a Private Mode . . . . . . . . . . . .32
Ending a Private Reply Or Direct Call. . .33
Private Direct Call . . . . . . . . . . . . . . . . . . . . .33
Talk Range . . . . . . . . . . . . . . . . . . . . . . . . . .35
Radio Status . . . . . . . . . . . . . . . . . . . . . . . . .36
Advanced Radio Configuration . . . . . . . . .37
Entering Advanced Radio
Configuration. . . . . . . . . . . . . . . . . . . .37
Setting Radio Profile ID (PIN) . . . . . . . . .38
Setting the Maximum Channels . . . . . . .39
Setting the Programmable Top
Button Options . . . . . . . . . . . . . . . . . .39
Setting the Microphone Gain . . . . . . . . .39
Customer Programming
Software (CPS) . . . . . . . . . . . . . . . . . . . . . . 41
Cloning Radios. . . . . . . . . . . . . . . . . . . . . . . 42
Cloning with a Multi-Unit
Charger (MUC) . . . . . . . . . . . . . . . . . 42
Wireless PIN Cloning Radios. . . . . . . . . 43

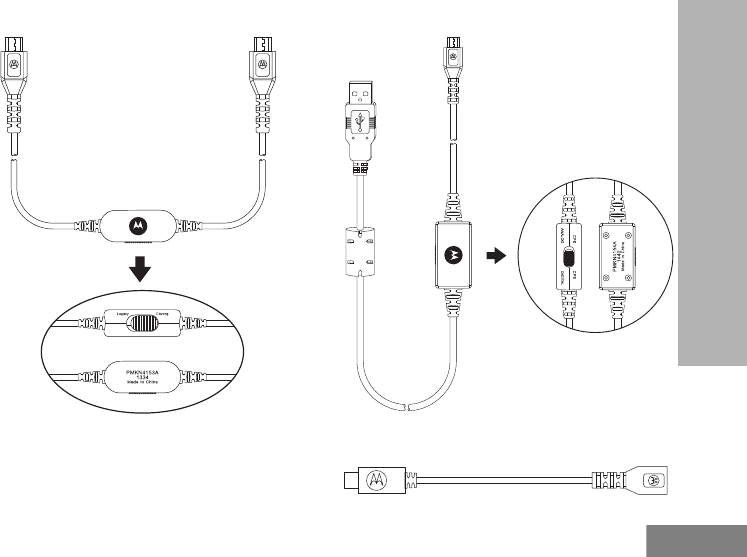

CPS and Cloning Cables
(Optional Accessory) . . . . . . . . . . . . . 44

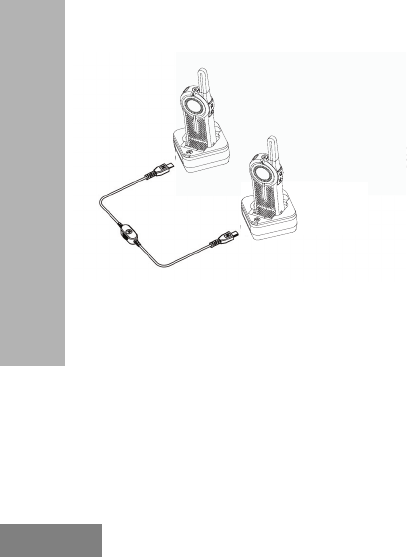

Cloning Radio using the Radio
to Radio (R2R) Cloning Cable
(Optional Accessory) . . . . . . . . . . . . . 45

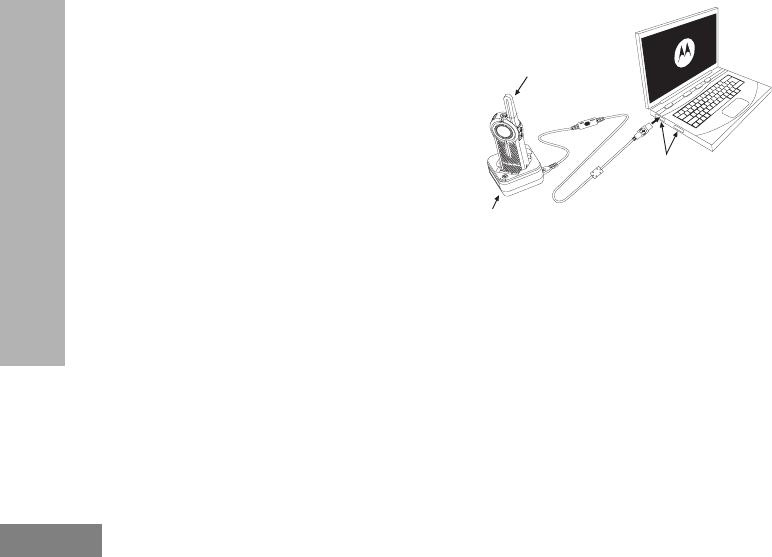

Cloning using the Customer
Programming Software (CPS) . . . . . . 48
Troubleshooting . . . . . . . . . . . . . . . . . . . . . 49

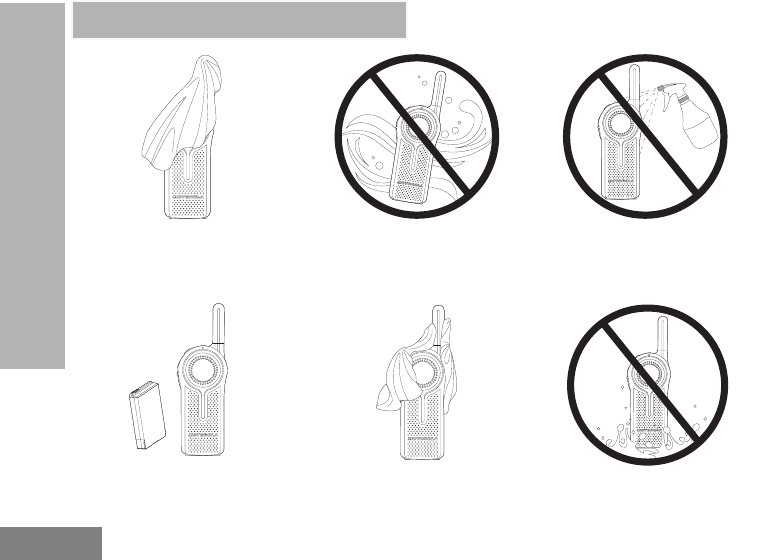

Use and Care . . . . . . . . . . . . . . . . . . . . . . . 52
Motorola Limited Warranty for
the United States and Canada . . . . . . . . . 53
Accessories . . . . . . . . . . . . . . . . . . . . . . . . 57
Audio Accessories . . . . . . . . . . . . . . . . . . . . 57
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Carry Accessories . . . . . . . . . . . . . . . . . . . . 58
Software Applications. . . . . . . . . . . . . . . . . . 58
English
3
PRODUCT SAFETY
PRODUCT SAFETY
PRODUCT SAFETY AND RF
EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only
to satisfy FCC RF energy exposure
requirements.
For a list of Motorola-approved batteries and
other accessories, visit the following website
which lists approved accessories:
www.motorolasolutions.com/DLR
Before using this product,
read the operating
instructions and RF energy
awareness information
contained in the Product
Safety and RF Exposure
booklet enclosed with your
radio.
!
C a u t i o n
English
4
INTRODUCTION
INTRODUCTION
Thank you for purchasing the Motorola® DLR
Series Radio. This radio is a product of
Motorola's 80 plus years of experience as a
world leader in the designing and
manufacturing of communications equipment.
The DLR Series radios provide cost-effective
communications for businesses such as retail
stores, restaurants, schools, construction sites,
manufacturing, property and hotel
management and more. Motorola professional
two-way radios are the perfect communications
solution for all of today's fast-paced industries.
Note: Read this user guide carefully to ensure you
know how to properly operate the radio
before use
Business Radios,
Mailstop 1C15, Motorola
8000 West Sunrise Boulevard
Plantation, Florida 33322

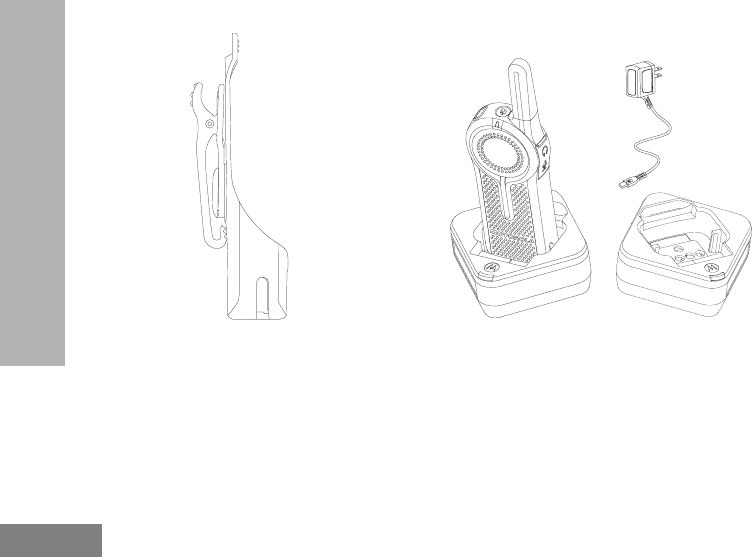

PACKAGE CONTENTS
• Radio
• Holster
• Lithium-Ion Battery
• Power Supply
• Quick Reference Guide
• Drop-in Tray Charger with Power Adapter
• Product Safety & RF Exposure Booklet
English
5
INTRODUCTION
For a copy of a large-print version of this user
guide or for product-related questions, contact
1-800-448-6686 in the USA
1-800-461-4575 in Canada
1-888-390-6456 on TTY (Text Telephone)
For product related information, visit us at:
www.motorolasolutions.com/DLR
English
6
FCC LICENSING
INFORMATION
FCC LICENSING
INFORMATION
DLR Series business two-way radios operate in
the license-free 900 MHz ISM Band (902 – 928
MHz) and are subject to the Rules and
Regulations of the Federal Communications
Commission (FCC).
This device complies with part 15 of the FCC
Rules and RSS210 of the Industry Canada.
Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved
by Motorola may void the user’s authority granted
by the FCC/IC to operate this radio and should not
be made. To comply with FCC/IC requirements,
transmitter adjustments should be made only by or
under the supervision of a person certified as
technically qualified to perform transmitter
maintenance and repairs. Replacement of any
transmitter component (crystal, semiconductor,
etc.) not authorized by the FCC/IC equipment
authorization for this radio could violate FCC/IC
rules.
Note: Use of this radio outside the country where it
was intended to be distributed is subject to
government regulations and may be
prohibited.
Cet appareil est conforme à la partie 15 des règles
de la FCC / IC . Son fonctionnement est soumis
aux deux conditions suivantes : (1) Ce dispositif
ne doit pas causer d’interférences nuisibles , et
(2) cet appareil doit accepter toute interférence
reçue, y compris les interférences qui peuvent
causer une opération indésirable.
Les changements ou modifications non
expressément approuvés par Motorola peuvent
annuler l'autorisation de l'utilisateur accordée par
la FCC / IC pour opérer cette radio et ne devraient
pas être faits . Pour se conformer aux exigences
de la FCC / IC, les ajustements de l'émetteur
doivent être effectués seulement par ou sous la
supervision d'une personne certifiée en valeur
technique .
English
7
BATTERIES AND CHARGERS
SAFETY INFORMATION
BATTERIES AND
CHARGERS SAFETY
INFORMATION
This document contains important safety and
operating instructions. Read these instructions
carefully and save them for future reference.
Before using the battery charger, read all the
instructions and cautionary markings on
• the charger,
• the battery, and
• the radio using the battery
1. To reduce risk of injury, charge only the
rechargeable Motorola-authorized batteries.
Other batteries may explode, causing personal
injury and damage.
2. Use of accessories not recommended by
Motorola may result in risk of fire, electric
shock, or injury.
3. To reduce risk of damage to the electric plug
and cord, pull by the plug rather than the cord
when disconnecting the charger.
4. An extension cord should not be used unless
absolutely necessary. Use of an improper
extension cord could result in risk of fire and
electric shock. If an extension cord must be
used, make sure that the cord size is 18AWG
for lengths up to 100 feet (30.48 m), and
16AWG for lengths up to 150 feet (45.72 m).
5. To reduce risk of fire, electric shock, or injury, do
not operate the charger if it has been broken or
damaged in any way. Take it to a qualified
Motorola service representative.
6. Do not disassemble the charger; it is not
repairable and replacement parts are not
available. Disassembly of the charger may
result in risk of electrical shock or fire.
7. To reduce risk of electric shock, unplug the
charger from the AC outlet before attempting
any maintenance or cleaning
English
8
BATTERIES AND CHARGERS
SAFETY INFORMATION
OPERATIONAL SAFETY
GUIDELINES
• Turn the radio OFF when charging battery.
• The charger is not suitable for outdoor use. Use
only in dry locations/conditions.
• Connect charger only to an appropriately fused
and wired supply of the correct voltage (as
specified on the product).
• Disconnect charger from line voltage by removing
main plug.
• The outlet to which this equipment is connected
should be nearby and easily accessible.
• In equipment using fuses, replacements must
comply with the type and rating specified in the
equipment instructions.
• Maximum ambient temperature around the power
supply equipment must not exceed 40°C (104°F).
• Power output from the power supply unit must not
exceed the ratings stated on the product label
located at the bottom of the charger.
• Make sure that the cord is located where it will
not be stepped on, tripped over, or subjected to
water, damage, or stress.
English
9
RADIO OVERVIEW
RADIO OVERVIEW
PARTS OF THE RADIO
English
10
RADIO OVERVIEW
Power Button
Used to turn the radio ON or OFF.
Programmable Top Button
This Programmable Top button can be
configured by the Programming Mode to initiate
private call, private direct call, call all available
or disable.
Note: The Programmable Top button must be set
to be configurable in the user menu via CPS
in order to appear in the device user menu.
Volume Control (+/-) Button
Used to increase (+), decrease (-) or mute the
volume.
Audio Accessory Connector
Used to connect compatible audio accessories.
Microphone
Speak clearly into the microphone when
sending a message.
Antenna
For models DLR1020 and DLR1060 the
antennas are non-removable.
Tx/Rx Indicator LED
Used to indicate whether the radio is on
standby, receiving or transmitting.
Push-to-Talk (PTT) Button
To respond, press the PTT (Push to Talk) and
WAIT to hear the Talk Permit Tone (a quick
double beep) BEFORE you start speaking.
Hold the radio vertically 1 to 2 inches (2.5cm to
5cm) from mouth when talking. Release the
PTT to listen.
Menu Button
Gives access to set up features and allows
navigation through all features while in
Programming Mode.
The Lithium-Ion (Li-Ion) Battery
DLR Series comes with a Standard Capacity
Li-Ion battery. Other batteries may be available.
For more information, see “Battery Features”
on page 12.
English
11
RADIO OVERVIEW
This User Guide covers multiple DLR Series
models, and may detail some features your
radio does not have. The radio’s model is
shown on the back of the radio and provides
the following information:
Table 1: DLR Series Radio Specifications
Model Frequency
Band
Transmit
Power
(Watts)
Number of
Channels Antenna
DLR1020 ISM 900 MHz 1 2 Non-removable
DLR1060 ISM 900 MHz 1 6 Non-removable
English
12
RADIO OVERVIEW
BATTERY FEATURES
DLR Series radios provide the standard
Lithium-Ion
Note: Batteries that come in different capacities
that defines the battery life may be available
in future.
About the Li-Ion Battery
The DLR Series radio comes equipped with a
rechargeable Li-Ion battery. This battery should
be fully charged before initial use to ensure
optimum capacity and performance.
Battery life is determined by several factors.
Among the more critical are the regular
overcharge of batteries and the average depth
of discharge with each cycle. Typically, the
greater the overcharge and the deeper the
average discharge, the fewer cycles a battery
will last. For example, a battery which is
overcharged and discharged 100% several
times a day, lasts fewer cycles than a battery
that receives less of an overcharge and is
discharged to 50% per day. Further, a battery
which receives minimal overcharging and
averages only 25% discharge, lasts even
longer.
Motorola batteries are designed specifically to
be used with a Motorola charger and vice
versa. Charging in non-Motorola equipment
may lead to battery damage and void the
battery warranty. The battery should be at
about 77°F (25°C) (room temperature),
whenever possible. Charging a cold battery
(below 50° F [10°C]) may result in leakage of
electrolyte and ultimately in failure of the
battery. Charging a hot battery (above 95°F
[35°C]) results in reduced discharge capacity,
affecting the performance of the radio.
Motorola rapid-rate battery chargers contain a
temperature-sensing circuit to ensure that
batteries are charged within the temperature
limits stated above.
English
13
RADIO OVERVIEW
Battery Recycling and Disposal
Li-Ion rechargeable batteries can be recycled.
However, recycling facilities may not be
available in all areas. Under various U.S. state
laws and the laws of several other countries,
batteries must be recycled and cannot be
disposed of in landfills or incinerators. Contact
your local waste management agency for
specific requirements and information in your
area. Motorola fully endorses and encourages
the recycling of Li-Ion batteries. In the U.S. and
Canada, Motorola participates in the
nationwide Rechargeable Battery Recycling
Corporation (RBRC) program for Li-Ion battery
collection and recycling.
Many retailers and dealers participate in this
program. For the location of the drop-off facility
closest to you, access RBRC's Internet web
site at:
www.rbrc.com
or call:
1-800-8-BATTERY
This internet site and telephone number also
provides other useful information concerning
recycling options for consumers, businesses
and governmental agencies.
English
14
RADIO OVERVIEW
Installing the Lithium-Ion (Li-Ion) Battery
1. Slide the latch at the top of the battery door to the unlock position and lift up the battery door at the
center recess.
2. Align the battery contacts with the tabs in the battery compartment. Insert the contact side of the battery first,
then press the battery down to secure in place.
3. Put the battery door back on the radio. Slide the latch to the lock position .
1
2
English
15
RADIO OVERVIEW
Removing the Lithium-Ion (Li-Ion) Battery
1. Turn OFF the radio.
2. Slide the latch at the top of battery door to the unlock position and lift up the battery door at the center
recess.
3. Pull on the battery removal tab until battery is disengaged from battery compartment.
4. Pull the battery away from radio.
English
16
RADIO OVERVIEW
Holster
1. Insert the radio into the base of the holster at an
angle. Press the radio against the back of the
holster until the hooks on the holster are
inserted in the top recesses of the battery.
2. To remove, using the top tab on the holster,
detach the hooks of the holster from the top
recesses of the battery. Slide the radio at an
angle and remove from the holster.
Power Supply, Adaptor and Drop-in Tray
Charger
The radio is equipped with one Drop-in Tray
Charger and one Power Supply with Adaptor.
For more information, refer to “Chargers” on
page 57.
English
17
RADIO OVERVIEW
Battery Life Information
When the Battery Save feature is set to ON (enabled by default), the battery life lasts longer. The
following table summarizes battery life estimations:
Note: Battery life is estimated based on 5% transmit / 5% receive / 90% standby standard duty cycle.
Table 2: Li-Ion Battery Life with Tx Power 1 Watt for DLR1020 and DLR1060
Battery Type Battery Save OFF Battery Save ON
Standard 10.0 - 12.0 Hours TBA
English
18
RADIO OVERVIEW
Charging the Battery
The DLR Series radio comes with a Standard
Power Supply.
To charge the battery (with the radio attached),
place it in a Motorola-approved Drop-in Tray
Single Unit Charger or Drop-in Tray Multi Unit
Charger.
Charging with the Drop-in Tray
Single Unit Charger (SUC)
1. Place the Drop-in Tray Charger on a flat
surface.
2. Insert the connector of the Power Supply into
the charger port on the back of the Drop-in Tray
Charger.
3. Plug the AC Adaptor into a power outlet.
4. Insert the radio into the Drop-in Tray Single Unit
Charger with the radio facing the Motorola logo
on the charger as shown in the figure above.
English
19
RADIO OVERVIEW
Note: When charging a battery attached to the
radio, turn the radio OFF to ensure a full
charge. See “Operational Safety Guidelines”
on page 8 for more information.
Charging A Stand-Alone Battery
To charge only the battery - at step 4 on
page 18, insert the battery into the tray, with the
inside surface of the battery facing the front of
the Drop-in Tray Single Unit Charger as shown
above. Align the slots in the battery with the
alignment ribs in the Drop-in Tray Single Unit
Charger.
Table 3: Motorola Authorized Batteries
Part Number Description
HKNN4013_ Li-Ion Battery 1800mAh
English
20
RADIO OVERVIEW
Drop-in Tray Charger Charge Status Indicators
(*) Battery temperature is too warm or too cold or wrong power voltage is being used.
(**) Normally, re-positioning the battery pack will correct this issue.
(***) Battery is charged to at least 95% threshold of the battery.
Table 4: Charge Status LED Indicator
LED Indication Charger State
Single Flash Green
Charger Ready for Use
Slow Flash Amber
Waiting to Charge(*)
Fast Flash Red
Battery Fault(**)
Steady Red
Charging
Steady Green
Charged(***)
LED Off
No Battery in Pocket
English
21
RADIO OVERVIEW
Drop-in Tray Charger Battery State of Charge Indications
If there is NO LED indication:
1. Check if the radio with battery, or the battery alone, is inserted correctly. (refer to step 4 of "Charging with the
Drop-in Tray Single Unit Charger (SUC)" on page 18)
2. Ensure that the power supply cable is securely plugged into the charger socket using an appropriate AC
outlet and there is power to the outlet.
3. Confirm that the battery being used with the radio is listed in Table 3 on page 19.
Table 5: Battery State of Charge
LED Indication Battery State of Charge
Flash Red 1 Time
Battery Low
Flash Amber 2 Times
Battery Medium
Flash Green 3 Times
Battery High
English
22
RADIO OVERVIEW
Estimated Charging Time
The following table provides the estimated charging time of the battery. For more information, see
“Battery” on page 57.
Table 6: Battery Estimated Charging Time
Charging Solutions
Estimated Charging Time
Standard Battery
Standard ≤3.50 Hours
English
23
RADIO OVERVIEW
Charging a Radio and Battery using
a Multi Unit-Charger - MUC (Optional
Accessory)
The Multi-Unit Charger (MUC) allows drop-in
charging of up to 12 radios or up to 6 radios
and 6 stand-alone batteries. Batteries can be
charged with the radios or removed and placed
in the MUC separately. Each of the 12 charging
pockets can hold a radio (with or without the
Holster) or battery, but not both.
1. Place the Multi-Unit Charger on a flat surface.
2. Insert the power cord plug into the MUC’s dual
pin connector at the bottom of the MUC.
3. Plug the power cord into an AC outlet.
4. Turn the radio OFF.
5. Insert the radio or battery into the charging
pocket with the radio or battery facing away
from the contacts.
Note:
• This Multi-Unit Charger clones up to 2 radios (2
Source radios and 2 Target radios). Refer to
“Cloning with a Multi-Unit Charger (MUC)” on
page 42 for more information.
• More information on the Multi-Unit Charger’s
operation is available in the Instruction Sheets
provided with the MUC. For more information on
the parts and their part numbers, refer to Chapter
“Accessories” on page 57.
English
24
RADIO OVERVIEW
Multi-Unit Charger Charge Status Indicators
(*) Battery temperature is too warm or too cold or wrong power voltage is being used.
(**) Normally, re-positioning the battery pack will correct this issue.
(***) Battery is charged to at least 95% threshold of the battery.
Table 7: Charge Status LED Indicator
LED Indication Charger State
Single Flash Green
Charger Ready for Use
Slow Flash Amber
Waiting to Charge(*)
Fast Flash Red
Battery Fault(**)
Steady Red
Charging
Steady Green
Charged(***)
LED Off
No Battery in Pocket
English
25
RADIO OVERVIEW
Multi-Unit Charger Battery State of Charge Indications
If there is NO LED indication:
1. Check if the radio with battery or the battery alone, is inserted correctly (refer to step 5 of "Charging a Radio
and Battery using a Multi Unit-Charger - MUC (Optional Accessory)" on page 23).
2. Make sure the power cord is securely plugged into the MUC and the appropriate AC outlet. Make sure there
is power to the AC outlet.
3. Confirm that the battery being used with the radio is listed in Table 3 on page 19.
Table 8: Battery State of Charge
LED Indication Battery State of Charge
Flash Red 1 Time
Battery Low
Flash Amber 2 Times
Battery Medium
Flash Green 3 Times
Battery High
English
26
RADIO OVERVIEW
Notes
English
27
GETTING STARTED
GETTING STARTED
For the following explanations, refer to “Parts
Of The Radio” on page 9.
TURNING RADIO ON/OFF
To turn ON the radio, press and hold the Power
button until the radio plays the power up tone
and the standby light begins to blink.
To turn the radio OFF, press and hold the
Power button (~3 seconds) until the radio Tx/
Rx Indicator LED turns OFF and power down
tone is heard.
ADJUSTING VOLUME
Press the (+) button to increase the volume, or
the (-) button to decrease the volume.
To mute, press and hold the (-) button (~2
seconds) until you hear the voice
announcement “Mute”.
To maximize volume, press and hold the (+)
button (~2 seconds). The volume will fast scroll
up to maximum volume. You will hear the
volume beeps increment as the volume
increases.
Note: Do not hold the radio too close to the ear
when the volume is high or when adjusting
the volume
There are 16 increments of volume.
As the (+) / (-) buttons are pressed, you will
hear a beep at the current volume level. If
device is receiving during volume
interaction, received audio will be heard at
the new volume instead of beeps.
CHECKING BATTERY STATUS
To check the battery status:
• Press Menu button until the voice announcement
“Battery Level <Level>” is heard, OR
Note: The four levels available for battery status
are : High, Medium, Low and Critical.
To exit battery status checking, press the PTT
button or wait for menu timer to expire. Radio
plays exit menu tone.
English
28
GETTING STARTED
SELECTING A CHANNEL
To select a channel, press Menu button until
the voice announcement “Channel <Number>,
to change press + or -” is heard.
Press (+) or (-) buttons to select the desired
channel. An audible voice indicates the
selected channel.
To exit Channel Change, press the PTT button
or wait for Menu timer to expire.
PROGRAMMABLE TOP BUTTON OPTIONS
The Programmable Top button can be
configured to allow multiple calling options.
Upon pressing the Programmable Top button,
you will be able to transmit and receive based
on how the button has been configured. The
interaction for all options, with the exceptions of
“Disabled” comes with specific LED indications.
Programmable Top Button Options:
Private Reply – Enters the Private Call mode
with the last user that was transmitting on the
talkgroup when the Programmable Top Button
is pressed.
Private Direct Call – Enters into Private Direct
Call mode with a pre-programmed radio user
ID
Note: The radio user ID must be configured via the
CPS
Call All Available – Calls all radio users that
are available in all channels. This feature is
only available when the radio is programmed
using a PIN.
Note: Only radios that are not currently
transmitting or receiving hears the call.
Radios in private hangtime does not receive
the call.
IMPORTANT: Call All Available feature does NOT
interrupt ongoing conversations.
Disabled – When the Programmable Top
Button is not configured, pressing it returns a
bonk tone. No call is made or initiated.
English
29
GETTING STARTED
TRANSMITTING AND RECEIVING
• Press the (+) button to increase the volume, or
the (-) button to decrease the volume.
• To receive, listen through the speaker. To
respond, press the PTT (Push to Talk) and
WAIT to hear the Talk Permit Tone (a quick
double beep) BEFORE you start speaking.
Hold the radio vertically 1 to 2 inches (2.5cm to
5cm) from mouth when talking. Release the
PTT to listen.
• The Tx/Rx Indicator slow blinks RED when on
standby. When the radio is transmitting, the Tx/
Rx Indicator is solid RED.
• When the radio is receiving, the Tx/Rx
Indicator LED blinks RED quickly.
Talking to a Group in a Channel
To transmit, press the PTT (Push to Talk) and
WAIT to hear the Talk Permit Tone (a quick
double beep) BEFORE you start speaking.
PRIVATE REPLY
Note: All the DLR Series radio Programmable Top
Button is defaulted to Private Reply function.
If you need to change this setting, please
use the free online CPS software that is
available in
www.motorolasolutions.com/DLR.
Solid Red
Tx/Rx
Indicator
LED when
transmitting
English
30
GETTING STARTED
Private Reply Request
Privately reply to someone talking to a group by
pressing the Programmable Top Button (while
the person is still talking) in order for your
Private Reply request to be queued.
If your Private Reply request is successfully in
queue, the Programmable Top Button starts
blinking GREEN.
Note: You will not be able to talk to the person
privately UNTIL the person transmitting
finish the transmission. While waiting in queue to talk privately, you will
receive a call reminder tone after 1 minute of
being in queue followed by a reminder 4
minutes after that. No other reminder will be
heard afterwards, but you will remain in queue
until the Private Reply mode is exited.
Private Reply Hang Time
The radio allows a window of a few seconds for
anyone to press the Top Programmable and
still be able to queue the Private Reply request
after a user has finished transmitting (or

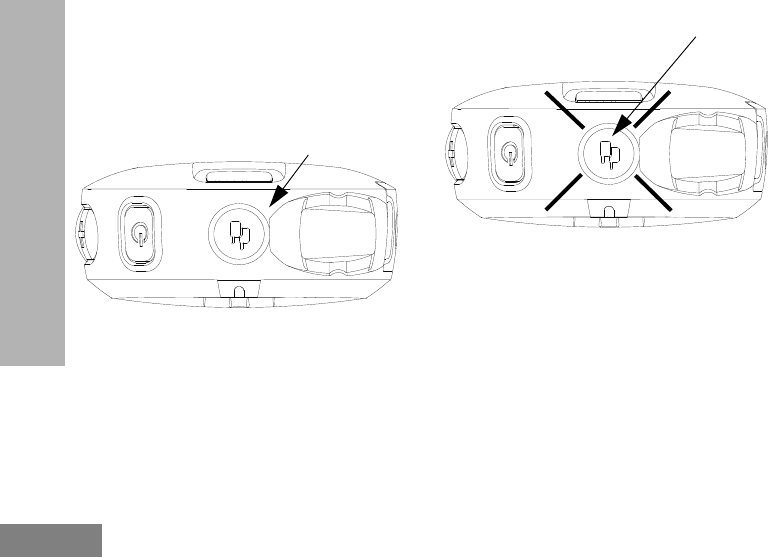

Press button to queue up
for private reply
English
31
GETTING STARTED
talking). This time window is called "Group
Hang Time" (check the CPS settings for more
details). If you private reply within this Group
Hang Time, you can talk privately to the last
user that was transmitting. If the user is busy in
another call you receive a "busy" tone instead.
If you're out of the Hang Time window, you
cannot talk privately but will still be in Group
Talk mode.
Note: The Programmable Top button LED will
remain OFF and you will hear a tone if:
• The Private Reply is not successful due to the
request being done outside the Group Hang
Time.
• Radio ID cannot be stored (outside of hang
time).
• Programmable Top Button is set to ‘Disabled’.
Programmable Top Button
LED blinks GREEN when
queued up
English
32
GETTING STARTED
Talking in a Private Mode
Once you have entered the private mode
(either due to Private Reply or Direct Private
Call), the Programmable Top Button LED
illuminates solid GREEN and you will hear a
distinct Private Talk Permit Tone, to indicate
your conversation is private. (The Tx/Rx LED
indications are as described in the
“Transmitting and Receiving” on page 29).
To talk, press and hold the PTT button, while in
Private Mode. Begin to talk after you hear the
Private Talk Permit Tone. Release the PTT
button when finished.
IMPORTANT: Always make sure the Programmable
Top Button LED is illuminating GREEN
before intending to talk in private
mode. If the button is not illuminated,
your conversations will be heard by all
users in the channel.

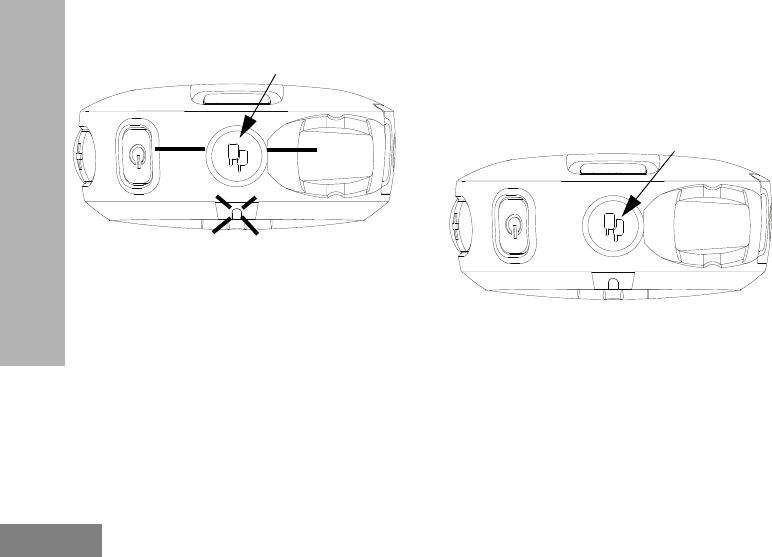

Programmable Top Button LED stays
solid GREEN while in private mode
(either by receiving, transmitting or
stand by).
Programmable Top Button
LED stays illuminated in
Private Call
English
33
GETTING STARTED
Ending a Private Reply Or Direct Call
To end a private or direct call:
• Long press and hold the Programmable Top
Button to end the private or direct call and return
to the current selected channel or talkgroup. An
end tone is heard by both call participants when
the call is ended, or
• Allow call hang timer to expire, effectively ending
the call and return to the current select channel or
talkgroup.
Note: Ending a private or direct call by pressing
and holding the Programmable Top Button
is NOT possible if either radio is
transmitting.
When a private or direct call is ended, an
end tone plays for both call participants
when the call is ended.
Only the call initiatior can end a private or
direct call.
PRIVATE DIRECT CALL
Note: In order to be able to use this feature, the
Programmable Top Button should have
been previously mapped for the Private
Direct Call function. Refer to the “Setting the
Programmable Top Button Options” on
page 39 and “Customer Programming
Software (CPS)” on page 41 for details.
This feature allows you to initiate a private call
to a predetermined user, by pressing the
Programmable Top Button.
Once you press the Top Programmable Button
and if the user on the other end is available, the
Top Programmable Button starts blinking
GREEN. Push and hold the PTT button to talk.
You will hear the distinctive Private Talk Permit
Tone and the Top LED illuminates solid
GREEN to indicate that you are in a private
call. Release the PTT button to hear.
If you press the Programmable Top Button and
the user that you are trying to reach is busy, the
radio gives you a busy tone. The
Programmable Top Button blinks GREEN
indicating you are in queue waiting to talk.
English
34
GETTING STARTED
There will be tone reminders to alert you that
you're still in queue (similar to Private Reply).
Note: You will not be able to talk to the person
privately UNTIL the person on the other end
finish the transmission.
A call reminder tone sounds after 1 minute of
being in queue followed by a reminder 4
minutes after. No other reminder is heard
afterwards, but you remain in queue until the
mode is physically exited.
Note: This assumes that the radio ID to be called
in private is already stored and is always on
Private Direct Call.
While queued for Private Direct Call – press
and hold the PTT button to speak directly to the
stored Radio ID.
•If successful: During Private Direct Call
Transmitting, Programmable Top button becomes
solid green and the Tx/Rx Indicator LED stays
solid red and you will hear a distinct Private Talk
permit tone. Begin speaking to the private

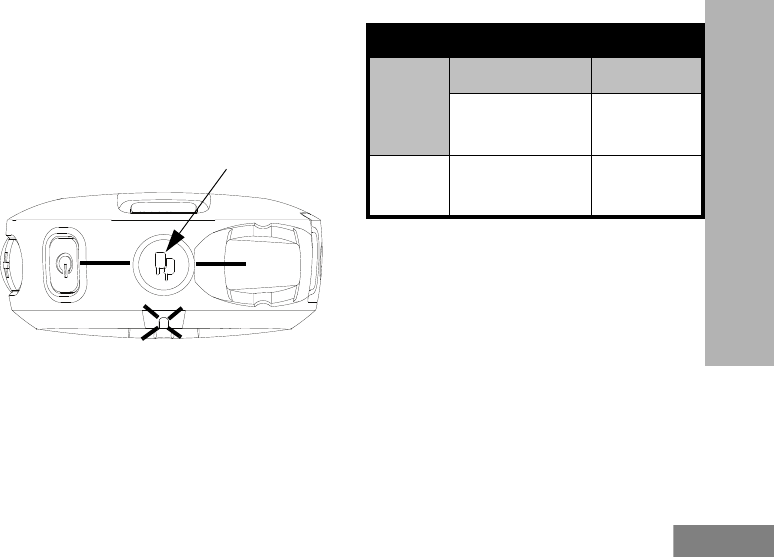

Press button to queue up
for Private Direct Call
Programmable Top Button
LED blinks when queued up
English
35
GETTING STARTED
individual.
Receiving radio’s Programmable Top Button
illuminates solid green and the receiver hears a
private tone before voice begins, indicating that
they are in a private call.
•If not successful: A busy unavailable tone
sounds and the Programmable Top Button
continues to blink and queued up for private call.
You can continue trying as long as you are
queued up. A beep sounds every few seconds
while queued.
TALK RANGE
To establish a proper two-way communication,
the channel and PIN (Profile ID Number)
settings must be the same on both radios. This
depends on the stored profile that has been
preprogrammed on the radio:
1. Channel: Current channel that the radio is
using, depending on radio model.
2. PIN (Profile ID Number): Choose a customized
PIN via CPS or Front Panel Programming.
Refer to “Setting Profile ID Number (PIN)” on
page 38 and “Customer Programming Software
(CPS)” on page 41 for more details.
Programmable Top Button LED stays
solid green while receiving in Private
Direct Call
TALK RANGE
Model
Industrial Multi-Level
Inside steel/
concrete Industrial
buildings
Inside multi-
level buildings
ISM
900 MHz Up to 300,000 Sq. Ft. Up to 20 Floors
English
36
GETTING STARTED
RADIO STATUS
RADIO STATUS LED INDICATION AUDIBLE TONE
Channel Busy Not Available Busy Tone
Cloning Mode Not Available “Cloning Mode”
Cloning In Progress Double Blink Orange Not Available
Fatal Error at Power up
One Green Blink, One Orange Blink,
One Green Blink, then repeat for 4
seconds
TBA
Low Battery Not Available TBA
Low Battery Shutdown Fast Red Heartbeat TBA
Power-Up Solid Red for 2 seconds “Battery Level <Level>,
Channel <Number>”
‘Idle’ Programming Mode /
Channel Mode Not Available Chirp Tone followed by
“Programming Mode”
Transmit (Tx) Solid Red Not Available
Receive (RX) Fast Red Heartbeat Not Available
English
37
ADVANCED RADIO
CONFIGURATION
ADVANCED RADIO
CONFIGURATION
Advanced Radio Configuration provides you
with the ability to check and configure the
following settings from a pre-programmed list
without the need to use a computer.
The navigation is guided by an audible voice
prompt.
• Profile ID Number (PIN),
• Maximum Channels,
• Programmable Top Button Options, and
• Microphone Gain.
The Profile ID Number (PIN) feature allows
you set unique 4 digits profile identification
(0000 – 9999) to your radio.
The Maximum Channels feature sets the
number of maximum channels allowed in the
radio.
The Programmable Top Button Options
allows you to assign one of the following four
features to the Programmable Top Button:
• Private Reply,
• Private Direct Call,
• Call All Available, and
• Disabled.
Note: The default feature for the Programmable
Top Button is Private Reply.
Usage of the Direct Call feature requires a
User ID to be pre-programmed via the CPS.
The Microphone Gain feature allows you to
adjust the sensitivity level of the microphone to
fit different users or operating environment.
The default level of Microphone Gain is
“Normal”.
Entering Advanced Radio Configuration
To enter the Advanced Radio Configuration:
1. Turn OFF the radio.
2. Press the PTT, (+) and Power buttons
simultaneously and hold for 3~5 seconds. A
English
38
ADVANCED RADIO
CONFIGURATION
“programming tone” sounds and you hear the
voice announcement “Programming Mode,
press Menu to continue”.
Note: The Tx/Rx Indicator LED blinks a steady red
heartbeat during the Programming Mode.
3. Short press the Menu button to navigate along
and loop through the different programmable
features available:
• Profile ID Number,
• Maximum Channels,
• Programmable Top Button Options, and
• Microphone Gain.
4. The voice announcements indicate the menu
features and their current settings. To modify
the settings, press the (+) or (-) buttons.
To exit the Advanced Radio Configuration
Mode:
1. Press and hold the PTT button until a “beep”
sound is heard.
Setting Profile ID Number (PIN)
While in Programming Mode:
1. Press the Menu button to hear the voice
announcement “Current Profile ID <####>, to
change press (+) or (-)”.
Note: User must advance through all 4 digits
before new Radio PIN will be saved.
2. Press the (+) or (-) button to start setting the
Radio PIN. The voice announces “First digit
<#>, to change press (+) or (-)”. Short press the
(+) or (-) button until you reach the desired
number. Numbers loop from 0 – 9.
3. To move to the next digit, short press the Menu
button. The voice announces “2nd digit <#>, to
change press (+) or (-)”.
4. Repeat Step 2 and 3 until all 4 digits are set and
you hear the voice announcement “Profile ID
saved as <####>, press Menu to continue”.
5. Press the Menu button to continue to the next
programmable feature available.
Note: If you are done programming, press and
hold the PTT button until a "beep" sound is
heard, to exit the programming mode.
English
39
ADVANCED RADIO
CONFIGURATION
Setting the Maximum Channels
While in Programming Mode:
1. Press the Menu button until the voice
announcement “Max Channels <current
setting>, to change press (+) or (-)” is heard.
2. Press the (+) or (-) button to cycle through the
number of maximum channels allowed. The
voice announces the maximum channels set
“<#>”.
Note: Numbers loop based on the number of
channels allowed by your radio model.
3. Press the Menu button to continue to the next
programmable feature available –
Programmable Top Button Options.
Note: If you are done programming, press and
hold the PTT button until a "beep" sound is
heard, to exit the programming mode.
Setting the Programmable Top Button
Options
While in Programming Mode:
1. Press the Menu button until the voice
announcement “Programmable Button <current
setting>, to change press (+) or (-)” is heard.
Note: The default setting is Private Reply.
2. Press the (+) or (-) button to cycle through the
programmable options available. The voice
announces the options available “<option>”.
3. Press the Menu button to continue to the next
programmable feature available.
Note: If you are done programming, press and
hold the PTT button until a "beep" sound is
heard, to exit the programming mode.
Setting the Microphone Gain
While in Programming Mode:
1. Press the Menu button until the voice
announcement “Mic Gain <current setting>, to
change press (+) or (-)” is heard.
English
40
ADVANCED RADIO
CONFIGURATION
Note: The default level of Microphone Gain is
“Normal”.
2. Press the (+) or (-) button to cycle through the 3
levels (Low, Normal and High) of Microphone
Gain Available. The voice announces the
options the Microphone Gain level selected
“<level>”.
3. Press the Menu button to continue to the next
programmable feature available.
Note: If you are transmitting in a noisy
environment set the Microphone Gain to
"Low". For quiet environments set the
Microphone Gain to "High".
If you are done programming, press and
hold the PTT button until a "beep" sound is
heard, to exit the programming mode.
English
41
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
CUSTOMER
PROGRAMMING
SOFTWARE (CPS)
Figure 1: Setting up the radio to the CPS
The easiest way to program or change features
in your radio is by using the Customer
Programming Software (CPS) and the CPS
Programming Cable(*). CPS Software is
available for free as web based downloadable
software at:
www.motorolasolutions.com/DLR
To program, connect the DLR Series radio via
the Drop-in Charger Tray and CPS
Programming Cable to your computer as
shown in the picture above. Prior to
programming, verify that the switch in the cable
(P/N# HKKN4027)* is in the ‘CPS Digital’
position.
CPS allows you to program other features such
as: Direct Call, Transmit Time-out timer, Private
Group, customized channel announcement,
etc. CPS is a very useful tool as it can restrict
any specific radio feature to be changed (to
avoid accidentally erasing the preset radio
values). It also provides security by giving the
option to set up a password for profile radio’s
management. For more information, refer to
Features Summary Chart Section at the end of
the User Guide.
Note: (*) CPS Programming Cable Kit P/N#
HKKN4027_ is an accessory sold
separately. Please contact your Motorola
point of purchase for more information.
Radio to be programmed
Drop-in Tray Charger
USB Ports
CPS Programming Cable
English
42
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
CLONING RADIOS
You can clone DLR Series radio profiles from
one Source radio to a Target radio by using any
one of these 4 methods:
• Using a Multi Unit Charger (MUC- optional
accessory),
• Using two Single Unit Chargers (SUC) and a
Radio-to-Radio cloning cable (optional
accessory),
• the CPS (free software download), and
• Wireless PIN cloning.
Cloning with a Multi-Unit Charger (MUC)
To clone radios using the MUC, there must be
at least two radios:
• a Source radio (radio which profiles will be cloned
or copied from) and
• a Target radio (the radio which profile will be
cloned from the source radio.)
The Source radio has to be in Pocket 1, 4, 7 or
10 while the Target radio has to be in Pocket 2,
5, 8 or 11, matching in the MUCs pockets by
pairs as follows:
• 1 and 2,
• 4 and 5,
• 7 and 8, or
• 10 and 11.
When cloning, the MUC does not need to be
plugged into a power source, but ALL radios
require charged batteries.
1. Turn ON the Target radio and place it into one of
the MUC Target Pockets
2. Power the Source radio following the sequence
below:
Pocket 1
Pocket 2
“CLONE” symbol
Pocket 11Pocket 10
“CLONE” symbol
English
43
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
• Press the PTT button and the (-) button
simultaneously while turning the radio
ON.
• Wait for 3 seconds before releasing the
buttons until the audible tone and voice
announcement “Clone Mode Serial” are
heard.
3. Place the Source radio in the source pocket that
pairs with the target pocket you chose in step 1.
Press and release the (+) button.
4. After cloning is completed, the Source radio will
announce either “successful” (cloning is
successful) or “fail” (cloning has failed).
5. Once you have completed the cloning process,
turn the radios OFF and ON or, long press the
PTT button to exit the ‘cloning’ mode.
Further details on how to clone radios are
explained in the Instructions Sheet provided
with the MUC.
When ordering the MUC, refer to P/N#
PMLN7135_.
Notes:
• If cloning fails, refer to “What To Do If Cloning
Fails” on page 47.
• Paired Target radios and Source radios must be
of the same band type in order for the cloning to
run successfully.
• MUC pockets numbers should be read from left to
right with the Motorola logo facing front.
Wireless PIN Cloning Radios
To clone radios using the Wireless Pin Cloning
method:
1. Power the Source radio following the sequence
below:
• Press the PTT button and the (-) button
simultaneously while turning the radio
ON.
• Wait for 3 seconds before releasing the
buttons until the audible tone and voice
announcement “Clone Mode Serial” are
heard.
• Press and release the (-) button and the
Source Radio will announce “Wireless”.
English
44
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
2. Power the Target radio following the sequence
below:
• Press the PTT button and the (-) button
simultaneously while turning the radio
ON.
• Wait for 3 seconds before releasing the
buttons until the audible tone and voice
announcement “Clone Mode Serial” are
heard.
3. On the Source radio, press and release the (+)
button to start the Wireless PIN cloning. The
radio generates an audible tone.
4. After cloning is completed, the Source radio will
announce either “successful” (cloning is
successful) or “fail” (cloning has failed).
5. On the Target radio, the radio receives the PIN
information. The Target radio will announce
either “successful” (cloning is successful) or
“fail” (cloning has failed).
CPS and Cloning Cables (Optional
Accessory)
• Both CPS and Cloning Cables are made to work
with DLR Series radios.
•CPS cable programs DLR Series radios. Make
sure the cable switch is in “CPS Digital” position
and the USB converter provided in the CPS cable
kit is attached to the cable.
•Cloning cable allows you to clone DLR Series
radios. Make sure the switch is in “Cloning”
position.
English
45
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
CPS Cable Cloning Cable
USB Converter
English
46
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
Cloning Radio using the Radio to Radio
(R2R) Cloning Cable (Optional Accessory)
Operating Instructions
1. Before starting the cloning process, make sure
you have:
• A fully charged battery on each of the radios.
• Two Single-Unit Chargers (SUC) for cloning
DLR Series radios.
• Turn OFF the radios and,
2. Unplug any cables (power supply or USB
cables) from the SUCs.
3. Plug one side of the cloning cable mini USB
connector to the first SUC and the other end to
the second SUC.
Note: During the cloning process, no power is
being applied to the SUC. The batteries will
not be charged. Only data communication is
being established between the two radios.
4. Turn ON the Target Radio and place it into one
of the SUCs.
5. For the Source Radio, power ON the radio with
the following sequence:
• Press the PTT button and the (-) button
simultaneously while turning the radio ON.
Wait 3 seconds before releasing the buttons
and you hear a distinctive audible tone saying
the word “Clone Mode Serial”.
• Place the Source Radio in its SUC. Press and
release the (+) button.
6. When the cloning is completed, the Source
Radio audible voice will announce either “pass”
(cloning is successful) or “fail” (cloning process
has failed).
7. Once the cloning process is completed, turn the
English
47
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
Radios OFF and ON or, long press the PTT
button to exit the ‘cloning’ mode
What To Do If Cloning Fails
The radio audible voice will announce “Fail”
indicating that the cloning process has failed. In
the event that the cloning fails, perform each of
the following steps before attempting to start
cloning process again:
1. Ensure that the batteries on both radios are fully
charged.
2. Check the cloning cable connection on both
SUCs and the cable is switched to “Cloning”.
3. Ensure that the battery is engaged properly on
the radio.
4. Ensure that there is no debris in the charging
tray or on the radio contacts.
5. Ensure that the Target radio is turned ON.
6. Ensure that the Source radio is in cloning mode.
7. Ensure that the two radios are both from the
same type (i.e.:DLR series), same region and
have the same transmission power.
Note: This cloning cable is designed to operate
only with compatible Motorola SUC
PMLN7139_.
When ordering Cloning Cable Kit, please refer
to P/N# HKKN4028_. For more information
about the accessories, refer to “Accessories”
on page 57.
English
48
CUSTOMER PROGRAMMING
SOFTWARE (CPS)
Cloning using the Customer Programming
Software (CPS)
When cloning using this method, you need the
CPS software, a Drop-In Tray Charger and the
CPS Programming Cable.
To order the CPS Programming Cable Kit,
please refer to P/N# HKKN4028_.
Information on how to clone using the CPS is
available either in:
• the CPS Help File --> Content and Index -->
Cloning Radios, or
• in the CPS Programming Cable Accessory
Leaflet.
Radio to be programmed
Drop-in Tray Charger
USB Ports
CPS Programming Cable
English
49
TROUBLESHOOTING
TROUBLESHOOTING
Symptom Try This...
No Power
Recharge or replace the Li-Ion battery.
Extreme operating temperatures may affect battery life.
Refer to “About the Li-Ion Battery” on page 12
Hearing other noises or
conversation on a channel
Change settings: select a different PIN profile ID on all radios.
Make sure radio is at the right frequency and code when transmitting.
Refer to “Transmitting and Receiving” on page 29
Audio quality not good enough Radio settings might not be matching up correctly. Double check to make sure
they are identical in all radios
English
50
TROUBLESHOOTING
Limited talk range
Steel and/or concrete structures, heavy foliage, buildings or vehicles decrease
range. Check for clear line of sight to improve transmission.
Wearing radio close to body such as in a pocket or on a belt decreases range.
Change location of radio. To increase range and coverage, you can reduce
obstructions. Radios provide greater coverage in industrial and commercial
buildings.
Refer to “Transmitting and Receiving” on page 29
Message not transmitted or
received
Make sure the PTT button is completely pressed when transmitting.
Confirm that the radios have the same settings and PIN profile ID. Refer to
“Transmitting and Receiving” on page 29 for further information.
Recharge, replace and/or reposition batteries. Refer to “About the Li-Ion
Battery” on page 12.
Obstructions and operating indoors, or in vehicles, may interfere. Change
location. Refer to “Transmitting and Receiving” on page 29.
Heavy static or interference
Radios are too close; they must be at least five feet apart.
Radios are too far apart or obstacles are interfering with transmission.
Refer to “Transmitting and Receiving” on page 29.
Symptom Try This...
English
51
TROUBLESHOOTING
Note: Whenever a feature in the radio seems to not correspond to the default or preprogrammed values, check
to see if the radio has been programmed using the CPS with a customized profile.
Low batteries
Recharge or replace Li-Ion battery.
Extreme operating temperatures affect battery life.
Refer to “About the Li-Ion Battery” on page 12.
Drop-in Charger LED light
does not blink
Check that the radio/battery is properly inserted and check the battery/charger
contacts to ensure that they are clean and charging pin is inserted correctly.
Refer to “Charging the Battery” on page 18, “Drop-in Tray Charger Charge
Status Indicators” on page 20 and “Installing the Lithium-Ion (Li-Ion) Battery” on
page 14.
Low battery indicator is
blinking although new
batteries are inserted
Refer to “Installing the Lithium-Ion (Li-Ion) Battery” on page 14, and “About the
Li-Ion Battery” on page 12.
Battery does not charge
although it has been placed in
the drop-in charger for a while
Check drop-in tray charger is properly connected and correspond to a
compatible power supply.
Refer to “Charging with the Drop-in Tray Single Unit Charger (SUC)” on
page 18 and “Charging A Stand-Alone Battery” on page 19.
Check the charger’s LEDs indicators to see if the battery has a problem. Refer
to “Drop-in Tray Charger Charge Status Indicators” on page 20.
Symptom Try This...
English
52
USE AND CARE
If the radio is submerged in water...
Turn radio OFF and
remove batteries
USE AND CARE
Use a soft damp cloth to
clean the exterior
Do not immerse in water Do not use alcohol or
cleaning solutions
Dry with soft cloth Do not use radio until
completely dry
English
53
MOTOROLA LIMITED WARRANTY
FOR THE UNITED STATES AND
CANADA
MOTOROLA LIMITED
WARRANTY FOR THE
UNITED STATES AND
CANADA
What Does this Warranty Cover?
Subject to the exclusions contained below,
Motorola, Inc. warrants its telephones, pagers, and
consumer and business two-way radios (excluding
commercial, government or industrial radios) that
operate via Family Radio Service or General
Mobile Radio Service, Motorola-branded or
certified accessories sold for use with these
Products (“Accessories”) and Motorola software
contained on CD-ROMs or other tangible media
and sold for use with these Products (“Software”)
to be free from defects in materials and
workmanship under normal consumer usage for
the period(s) outlined below.
This limited warranty is a consumer's exclusive
remedy, and applies as follows to new Motorola
Products, Accessories and Software purchased by
consumers in the United States, which are
accompanied by this written warranty.
Products and Accessories
Products Covered Length of Coverage
Products and
Accessories as defined
above, unless otherwise
provided for below.
One (1) year from the date
of purchase by the first
consumer purchaser of the
product unless otherwise
provided for below.
Decorative
Accessories and
Cases.
Decorative covers,
bezels, PhoneWrap™
covers and cases.
Limited lifetime warranty
for the lifetime of ownership
by the first consumer
purchaser of the product.
Business Two-way
Radio Accessories
One (1) year from the date
of purchase by the first
consumer purchaser of the
product.
Products and
Accessories that are
Repaired or Replaced.
The balance of the original
warranty or for ninety (90)
days from the date returned
to the consumer, whichever
is longer.
English
54
MOTOROLA LIMITED WARRANTY
FOR THE UNITED STATES AND
CANADA
Exclusions
Normal Wear and Tear. Periodic maintenance,
repair and replacement of parts due to normal
wear and tear are excluded from coverage.
Batteries. Only batteries whose fully charged
capacity falls below 80% of their rated capacity
and batteries that leak are covered by this limited
warranty.
Abuse & Misuse. Defects or damage that result
from: (a) improper operation, storage, misuse or
abuse, accident or neglect, such as physical
damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with
liquid, water, rain, extreme humidity or heavy
perspiration, sand, dirt or the like, extreme heat, or
food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or
Accessory to abnormal usage or conditions; or (d)
other acts which are not the fault of Motorola, are
excluded from coverage.
Use of Non-Motorola Products and
Accessories. Defects or damage that result from
the use of Non-Motorola branded or certified
Products, Accessories, Software or other
peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects
or damages resulting from service, testing,
adjustment, installation, maintenance, alteration,
or modification in any way by someone other than
Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with
(a) serial numbers or date tags that have been
removed, altered or obliterated; (b) broken seals
or that show evidence of tampering; (c)
mismatched board serial numbers; or (d)
nonconforming or non-Motorola housings, or
parts, are excluded form coverage.
English
55
MOTOROLA LIMITED WARRANTY
FOR THE UNITED STATES AND
CANADA
Communication Services. Defects, damages, or
the failure of Products, Accessories or Software
due to any communication service or signal you
may subscribe to or use with the Products
Accessories or Software is excluded from
coverage.
Software
Exclusions
Software Embodied in Physical Media. No
warranty is made that the software will meet your
requirements or will work in combination with any
hardware or software applications provided by
third parties, that the operation of the software
products will be uninterrupted or error free, or that
all defects in the software products will be
corrected.
Software NOT Embodied in Physical Media.
Software that is not embodied in physical media
(e.g. software that is downloaded from the
internet), is provided “as is” and without warranty.
WHO IS COVERED?
This warranty extends only to the first consumer
purchaser, and is not transferable.
HOW TO OBTAIN WARRANTY SERVICE OR
OTHER INFORMATION?
Contact your Motorola point of purchase.
SOFTWARE COPYRIGHT NOTICE
The Motorola products described in this manual
may include copyrighted Motorola and third party
software stored in semiconductor memories or
other media. Laws in the United States and other
countries preserve for Motorola and third party
software providers certain exclusive rights for
copyrighted software, such as the exclusive rights
to distribute or reproduce the copyrighted
software. Accordingly, any copyrighted software
contained in the Motorola products may not be
modified, reverse-engineered, distributed, or
reproduced in any manner to the extent allowed by
law.
Products Covered Length of Coverage
Software. Applies only
to physical defects in
the media that
embodies the copy of
the software (e.g. CD-
ROM, or floppy disk).
Ninety (90) days from the
date of purchase.
English
56
MOTOROLA LIMITED WARRANTY
FOR THE UNITED STATES AND
CANADA
Furthermore, the purchase of the Motorola
products shall not be deemed to grant either
directly or by implication, estoppel, or otherwise,
any license under the copyrights, patents, or
patent applications of Motorola or any third party
software provider, except for the normal, non-
exclusive, royalty-free license to use that arises by
operation of law in the sale of a product.
PATENT NOTICE
This product is covered by one or more of the
following United States patents.
5896277 5894292 5864752 5699006 5742484
D408396 D399821 D387758 D389158 5894592
5893027 5789098 5734975 5861850 D395882
D383745 D389827 D389139 5929825 5926514
5953640 6071640 D413022 D416252 D416893
D433001
EXPORT LAW ASSURANCES
This product is controlled under the export
regulations of the United States of America. The
Governments of the United States of America may
restrict the exportation or re-exportation of this
product to certain destinations. For further
information contact the U.S. Department of
Commerce.
English
57
ACCESSORIES
ACCESSORIES
AUDIO ACCESSORIES
BATTERY
CABLES
CHARGERS
Part No. Description
HKLN4599_ Earpiece w/PTT, Mic, Slim Plug
HKLN4601_ Dual Pin Surveillance w/PTT,
Slim Plug
HKLN4604_ Swivel Earpiece, w/PTT, Slim
Plug
HKLN4605_ Earbud w/PTT, Mic, Slim Plug
HKLN4606_ Remote Speaker Mic, w/PTT,
Slim Plug
HKLN4608_ Transparent Acoustic Tube
Replacement Part
Part No. Description
HKNN4013_ Li-Ion Battery 1800mAh
Part No. Description
HKKN4027_ Business Radio CPS Cable Kit
HKKN4028_ Business Radio Cloning Cable
Kit
Part No. Description
PMLN7140_ DLR Single-Unit Charger (SUC)
Kit
PMLN7136_ DLR 12-Pocket Multi-Unit
Charger (MUC) Kit
English
58
ACCESSORIES
CARRY ACCESSORIES
SOFTWARE APPLICATIONS
Part No. Description
HKLN4615_ DLR Swivel Clip Holster Kit
Part No. Description
82012694001 Customer Programming
Software (CPS)
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark
Holdings, LLC and are used under license. All other trademarks are the property of their respective owners.
© 2015 Motorola Solutions, Inc.
All rights reserved.
*MN001132A01*
MN001132A01-AA
m
Motorola Solutions, Inc.
1303 E. Algonquin Rd.
Schaumburg, IL 60196-1078, U.S.A.
http://www.motorolasolutions.com
