Motorola Solutions 99FT5011 800/900 PORTABLE RADIO User Manual UG XPR6380 NDP
Motorola Solutions, Inc. 800/900 PORTABLE RADIO UG XPR6380 NDP
Contents
- 1. Users Manual
- 2. RF Safety Manual
Users Manual
Declaration of Conformity
English
i
Declaration of Conformity
This declaration is applicable to your radio only if your radio is labeled with the FCC logo shown below.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party
Name: Motorola, Inc.
Address: 1301 East Algonquin Road, Schaumburg, IL 60196-1078, U.S.A.
Phone Number: 1-800-927-2744
Hereby declares that the product:
Model Name: XPR 6380
conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a), 15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Declaration of Conformity
English
ii
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Contents
English
iii
Contents
This User Guide contains all the information you need
to use the MOTOTRBO XPR Series Digital Portable
Radios.
Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . i
Important Safety Information . . . . . . . . . . . . . . . . . . v
Product Safety and RF Exposure Compliance . . . v
Software Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
Computer Software Copyrights . . . . . . . . . . . . . . . vi
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . 1
What Your Dealer/System Administrator Can
Tell You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparing Your Radio for Use . . . . . . . . . . . . . . . . . . 2
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 2
Attaching the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 3
Attaching the Antenna . . . . . . . . . . . . . . . . . . . . . . . . 3
Attaching the Belt Clip . . . . . . . . . . . . . . . . . . . . . . . . 4
Attaching the Universal Connector Cover
(Dust Cover) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . 5
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . 5

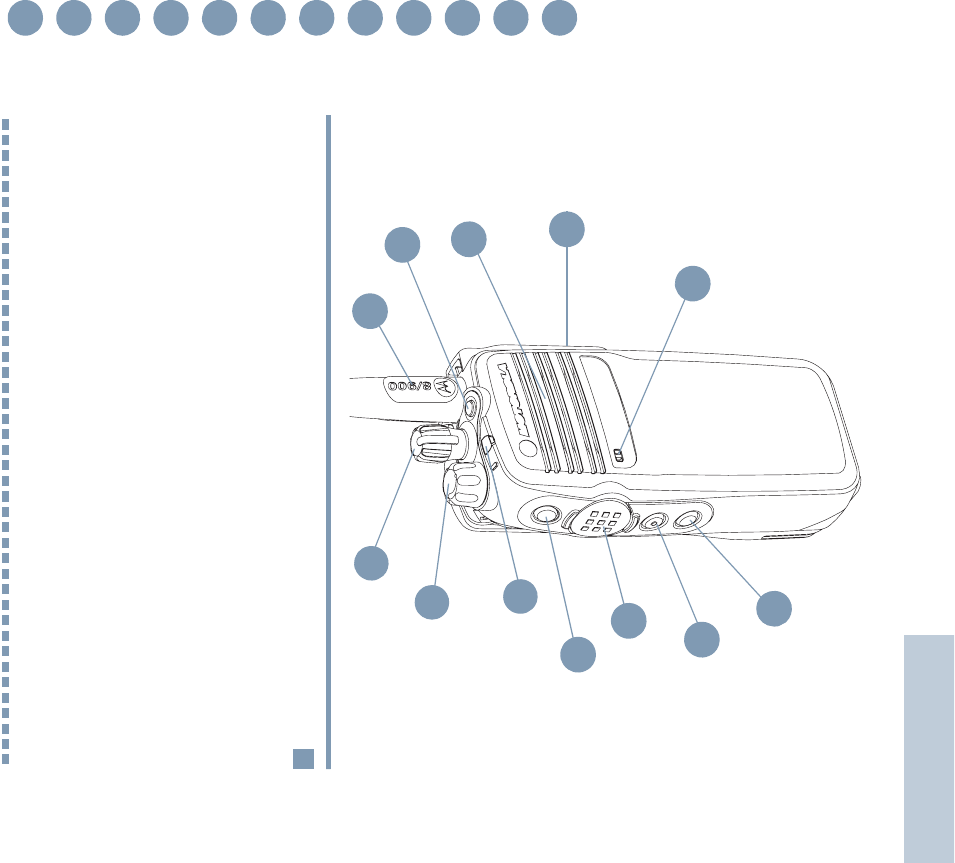

Identifying Radio Controls . . . . . . . . . . . . . . . . . . . . 6
Radio Controls You Will Be Using . . . . . . . . . . . . . . 6
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . 7
Assignable Radio Functions . . . . . . . . . . . . . . . . . 7
Assignable Settings or Utility Functions . . . . . . . . . 7
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . 8
Switching Between Conventional and
Trunking Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Identifying Status Indicators . . . . . . . . . . . . . . . . . . . 9
LED Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Audio Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Receiving and Making Calls . . . . . . . . . . . . . . . . . . 11
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . 11
Receiving and Responding to a Radio Call . . . . . . 12
Receiving and Responding to a Group Call . . . . . 12
Receiving and Responding to a Private Call . . . . 13
Receiving and Responding to a Phone Call . . . . 13
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . 14
Making a Call with the Channel Selector Knob . . 14
Making a Group Call . . . . . . . . . . . . . . . . . . . . . 14
Using the Dynamic Regrouping Feature . . . . . 14
Talkaround . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Contents
English
iv
Monitoring Features . . . . . . . . . . . . . . . . . . . . . . . . 15
Monitoring a Channel . . . . . . . . . . . . . . . . . . . . . 15
Permanent Monitor . . . . . . . . . . . . . . . . . . . . . . . 15
Advanced Features . . . . . . . . . . . . . . . . . . . . . . . . . 16
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Starting and Stopping Scan . . . . . . . . . . . . . . . . 17
Responding to a Transmission During a Scan . . 17
Deleting a Nuisance Channel . . . . . . . . . . . . . . . 18
Restoring a Nuisance Channel . . . . . . . . . . . . . . 18
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . 18
Escalating Alarm Tone Volume . . . . . . . . . . . . . . 18
Call Alert Operation . . . . . . . . . . . . . . . . . . . . . . . . 18
Receiving and Acknowledging a Call Alert . . . . . 18
Making a Call Alert with the One Touch
Call Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . 19
Sending an Emergency Call . . . . . . . . . . . . . . . . 20
Sending an Emergency Alarm . . . . . . . . . . . . . . 20
Sending an Emergency Alarm with Call . . . . . . . 21
Sending an Emergency Alarm with
Voice to Follow . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Reinitiating an Emergency Mode . . . . . . . . . . . . 23
Exiting an Emergency Mode . . . . . . . . . . . . . . . . 23
Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setting the Squelch Level . . . . . . . . . . . . . . . . . . 23
Setting the Power Level . . . . . . . . . . . . . . . . . . . 24
Turning Radio Tones/Alerts On or Off . . . . . . . . 24
Checking the Battery Strength . . . . . . . . . . . . . . 24
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Surveillance Accessories . . . . . . . . . . . . . . . . . . . . 25
Miscellaneous Accessories . . . . . . . . . . . . . . . . . . 25
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Batteries and Chargers Warranty . . . . . . . . . . . . . 27
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Important Safety Information
English
v
Important Safety Information
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to
satisfy FCC RF energy exposure requirements.
Before using this product, read the RF energy awareness
information and operating instructions in the Product
Safety and RF Exposure booklet enclosed with your radio
(Motorola Publication part number 6881095C98) to
ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries, and
other accessories, visit the following website:
http://www.motorola.com/governmentandenterprise
Software Version
All the features described in the following sections are
supported by the radio's software version R01.00.00 or
later.
Please check with your dealer or system administrator
for more details of all the features supported.
Before using this product, read the operating
instructions for safe usage contained in the
Product Safety and RF Exposure booklet
enclosed with your radio.
!
C
a u t i o
n
Computer Software Copyrights
English
vi
Computer Software Copyrights
The Motorola products described in this manual may
include copyrighted Motorola computer programs stored
in semiconductor memories or other media. Laws in the
United States and other countries preserve for Motorola
certain exclusive rights for copyrighted computer
programs including, but not limited to, the exclusive right
to copy or reproduce in any form the copyrighted
computer program. Accordingly, any copyrighted
Motorola computer programs contained in the Motorola
products described in this manual may not be copied,
reproduced, modified, reverse-engineered, or distributed
in any manner without the express written permission of
Motorola. Furthermore, the purchase of Motorola
products shall not be deemed to grant either directly or by
implication, estoppel, or otherwise, any license under the
copyrights, patents or patent applications of Motorola,
except for the normal non-exclusive license to use that
arises by operation of law in the sale of a product.
The AMBE+2TM voice coding Technology embodied in
this product is protected by intellectual property rights
including patent rights, copyrights and trade secrets of
Digital Voice Systems, Inc.
This voice coding Technology is licensed solely for use
within this Communications Equipment. The user of this
Technology is explicitly prohibited from attempting to
decompile, reverse engineer, or disassemble the Object
Code, or in any other way convert the Object Code into a
human-readable form.
U.S. Pat. Nos. #5,870,405, #5,826,222, #5,754,974,
#5,701,390, #5,715,365, #5,649,050, #5,630,011,
#5,581,656, #5,517,511, #5,491,772, #5,247,579,
#5,226,084 and #5,195,166.
Getting Started
English
1
Getting Started
Take a moment to review the following:
How to Use This Guide . . . . . . . . . . . . . . . . . . . . . . . . . page 1
What Your Dealer/System Administrator Can Tell You . page 1
How to Use This Guide
This User Guide covers the basic operation of the MOTOTRBO
Non-Display Portables.
However, your dealer or system administrator may have
customized your radio for your specific needs. Check with your
dealer or system administrator for more information.
Throughout this publication, a note is shown for Conventional
mode and Trunking mode only features to differentiate the
features according to the two modes.
For features that are available in both Conventional and
Trunking modes, no note is shown.
What Your Dealer/System Administrator
Can Tell You
You can consult your dealer or system administrator about the
following:
•Is your radio programmed with any preset conventional
channels?
•Which buttons have been programmed to access other
features?
•What optional accessories may suit your needs?
Preparing Your Radio for Use
English
2
Preparing Your Radio for Use
Assemble your radio by following these steps:
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . page 2
Attaching the Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Attaching the Antenna. . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Attaching the Belt Clip. . . . . . . . . . . . . . . . . . . . . . . . . . page 4
Attaching the Universal Connector Cover (Dust Cover) page 4
Powering Up the Radio . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . page 5
Charging the Battery
Your radio is powered by a Nickel Metal-Hydride (NiMH) or
Lithium-Ion (Li-lon) battery. To avoid damage and comply with
warranty terms, charge the battery using a Motorola charger
exactly as described in the charger user guide.
Charge a new battery 14 to 16 hours before initial use for best
performance.
IMPORTANT:ALWAYS charge your IMPRES battery with the
IMPRES charger. Using a conventional charger
causes irrecoverable loss of IMPRES battery
data. As a result, the battery functions as a
non-IMPRES battery and cannot display the
data on your radio. Additionally, it voids your
IMPRES battery warranty, although the
standard battery warranty still applies.
Preparing Your Radio for Use
English
3

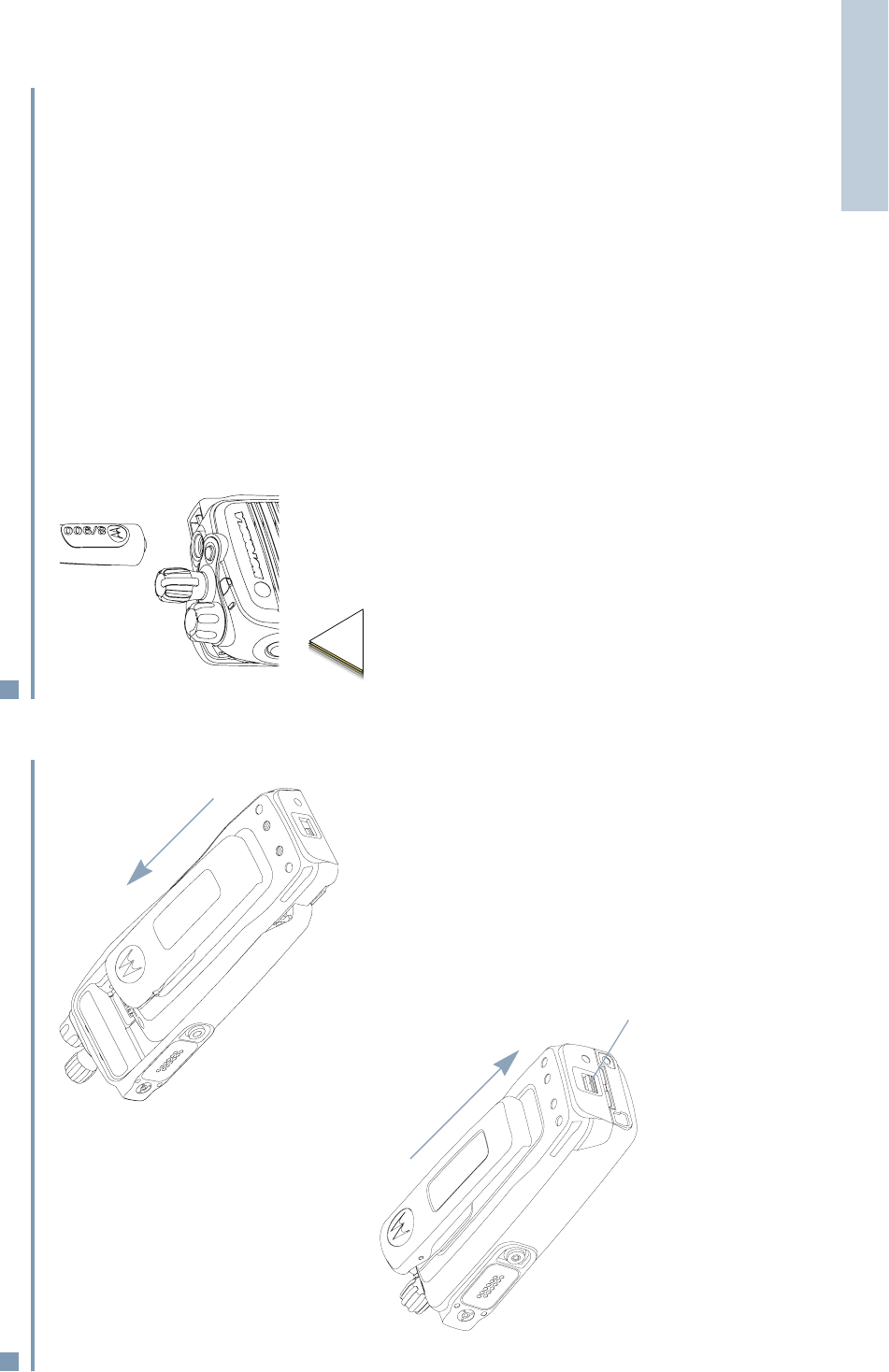

Attaching the Battery
Align the battery with
the rails on the back of
the radio. Press the
battery firmly, and slide
upward until the latch
snaps into place. Slide
battery latch into lock
position.
To remove the
battery, turn the
radio off. Move the
battery latch into
unlock position
and hold, and slide
the battery down
and off the rails.
Attaching the Antenna
With the radio turned off, set the
antenna in its receptacle and turn
clockwise.
To remove the antenna, turn the
antenna counterclockwise. Make sure
you turn off the radio and remove the
universal connector cover first.
Battery Latch
If antenna needs to be replaced, ensure that only
MOTOTRBO antennas are used. Neglecting this will
damage your radio. See Antenna on page 25 for the
available antenna.
!
C
a u t i o
n
Preparing Your Radio for Use
English
4
Attaching the Belt Clip
Align the grooves on the clip with those
on the battery and press downward until
you hear a click.
To remove the clip, press the belt clip
tab away from the battery using a key.
Then slide the clip upward and away
from the radio.

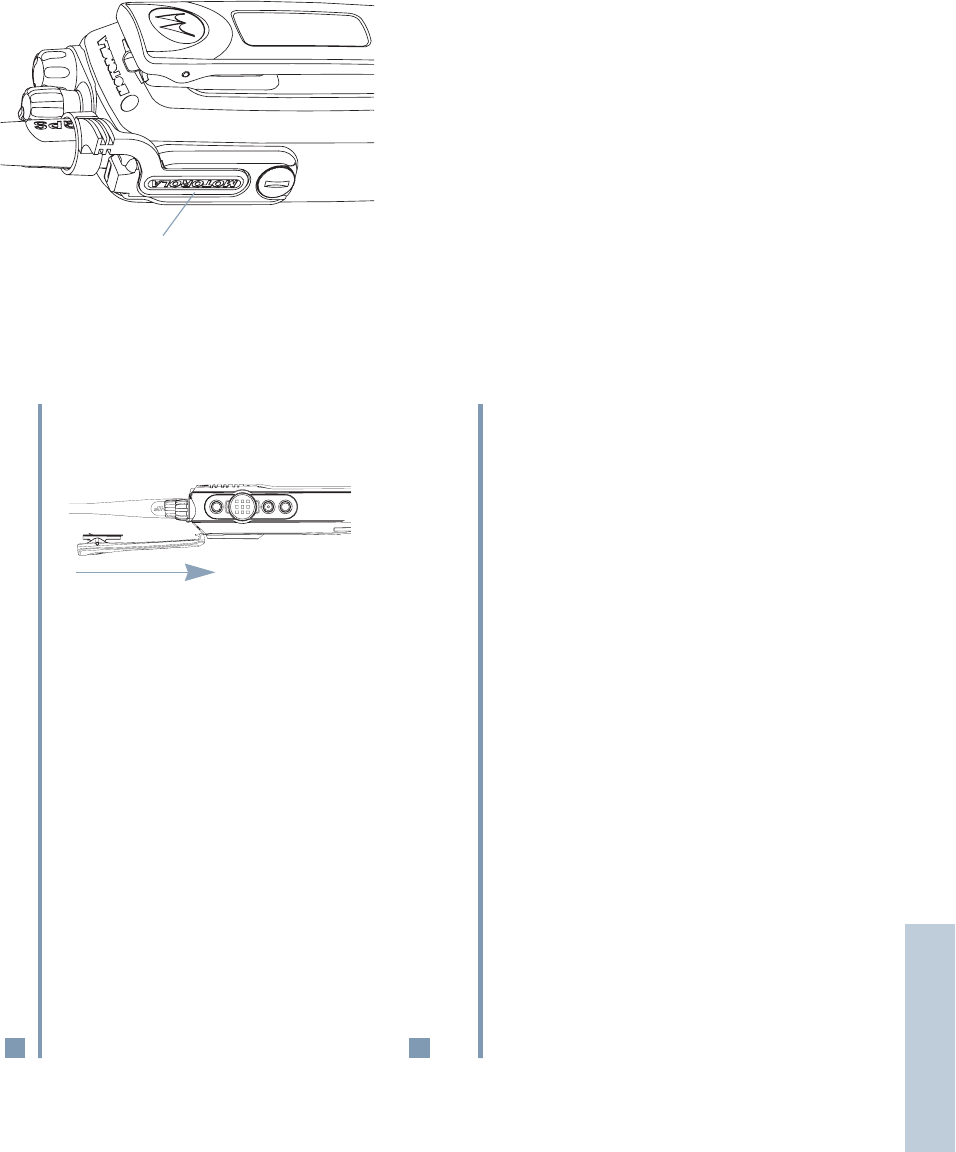

Attaching the Universal Connector Cover
(Dust Cover)
The universal connector is located on the antenna side of the
radio. It is used to connect MOTOTRBO accessories to the
radio.
Place the universal
connector cover loop over
the attached antenna. Slide
it all the way down to the
base of the antenna.
Insert the hooked end of the
cover into the slots above
the universal connector.
Press downward on the
cover to seat the lower tab
properly into the RF
connector.
Turn the thumbscrew clockwise to secure the connector cover
to the radio.
To remove the universal connector cover, press down on the
cover and turn the thumbscrew counterclockwise. Lift the cover
up, slide the connector cover loop upwards, and remove it from
the attached antenna.
Replace with dust cover when the universal connector is not in
use.
Universal
Connector
Cover
(Dust Cover)
Preparing Your Radio for Use
English
5

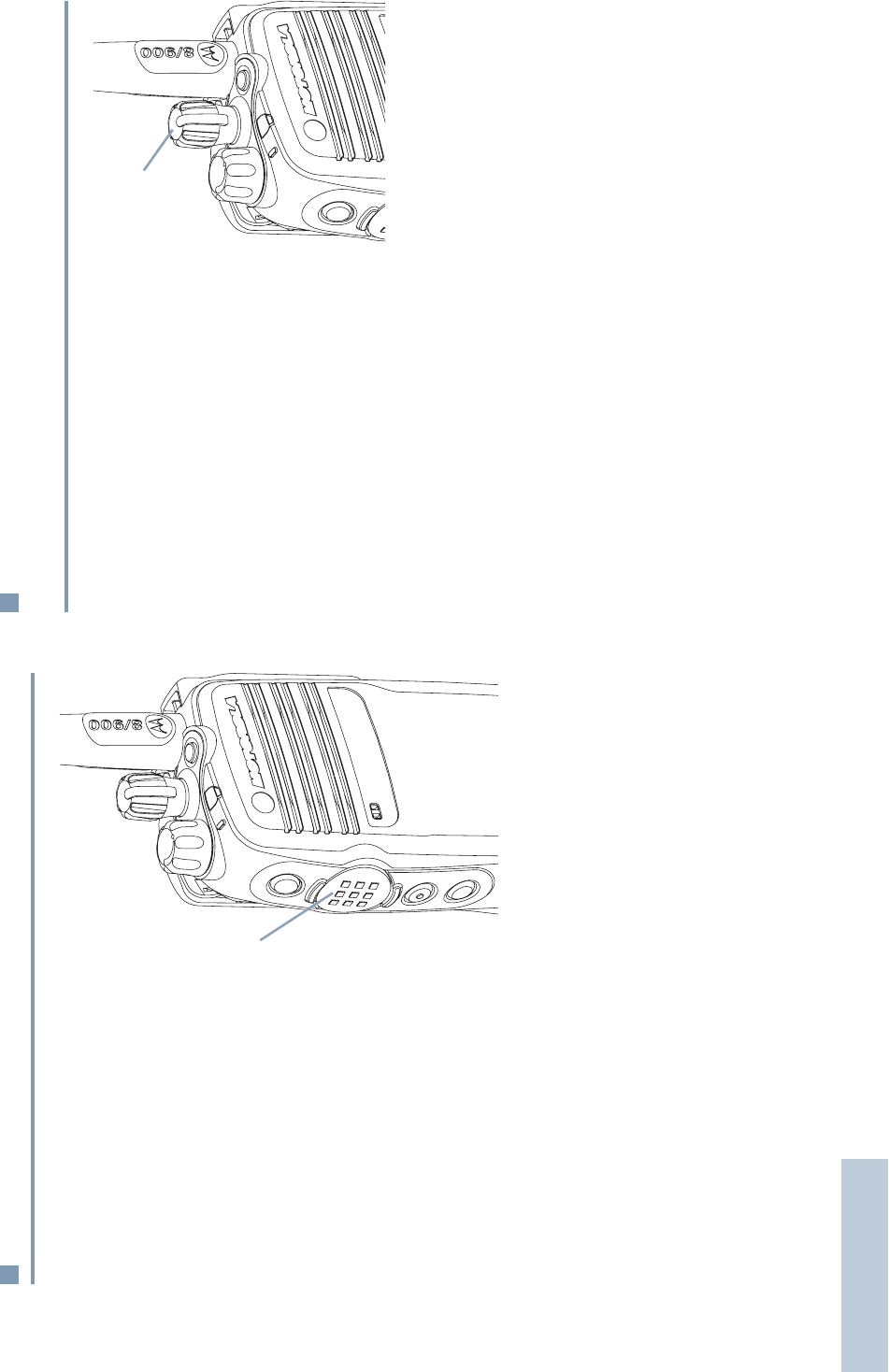

Powering Up the Radio
Rotate the On/Off/Volume
Control Knob clockwise
until you hear a click. The
LED blinks green.
A brief tone sounds,
indicating that the power up
test is successful.
NOTE: There is no power up
tone if the radio
tones/alerts
function is disabled
(see Turning
Radio Tones/
Alerts On or Off on
page 24).
If your radio does not power up, check your battery. Make sure
that it is charged and properly attached. If your radio still does
not power up, contact your dealer.
To turn off the radio, rotate this knob counterclockwise until you
hear a click.
Adjusting the Volume
To increase the
volume, turn the On/
Off/Volume Control
Knob clockwise.
To decrease the
volume, turn this knob
counterclockwise.
Identifying Radio Controls
English
6
Identifying Radio Controls
Take a moment to review the following:
Radio Controls You Will Be Using. . . . . . . . . . . . . . . . . page 6
Programmable Buttons . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Push-To-Talk (PTT) Button . . . . . . . . . . . . . . . . . . . . . . page 8
Switching Between Conventional and Trunking Mode . page 8
Radio Controls You Will Be Using
12
8
6
5
2
1
11
4
10
3
9
7
Channel Selector Knob
On/Off/Volume Control Knob
LED Indicator
Side Button 1*
Push-to-Talk (PTT) Button
Side Button 2*
Side Button 3*
Microphone
Universal Connector for Accessories
Speaker
Emergency Button*
Antenna
* These buttons are programmable.
1
2
3
4
5
6
7
8
9
10
11
12
Identifying Radio Controls
English
7
Programmable Buttons
Your dealer can program the programmable buttons as
shortcuts to radio functions or preset channels/groups
depending on the duration of a button press:
•Press –Pressing and releasing rapidly.
•Long press –Pressing and holding for the programmed
duration (between 0.25 seconds and 3.75 seconds).
•Hold down –Keeping the button pressed.
Assignable Radio Functions
Battery Indicator –Checks the battery charge status via the
LED.
Emergency* –Depending on the programming, initiates or
cancels an emergency alarm or call.
Monitor** –Monitors a selected channel for activity.
Nuisance Delete –Temporarily removes an unwanted channel
from the scan list until the radio is powered off and on again.
One Touch Call* –Directly initiates a predefined Private Call,
Phone Call, or a Call Alert to a target radio.
Permanent Monitor** –Monitors a selected channel for all
radio traffic until function is disabled.
Repeater/Talkaround** –Toggles between using a repeater
and communicating directly with another radio.
Scan –Toggles scan on or off.
Site Lock On/Off* –Toggles the automatic site roam on or off
in Smart Zone operation.
Zone –Allows selection from a list of zones.
Assignable Settings or Utility Functions
All Tones/Alerts –Toggles all tones and alerts on or off.
Power Level –Toggles transmit power level between high and
low.
Squelch** –Toggles squelch level between tight and normal.
* A trunking only feature
** A conventional only feature
Identifying Radio Controls
English
8

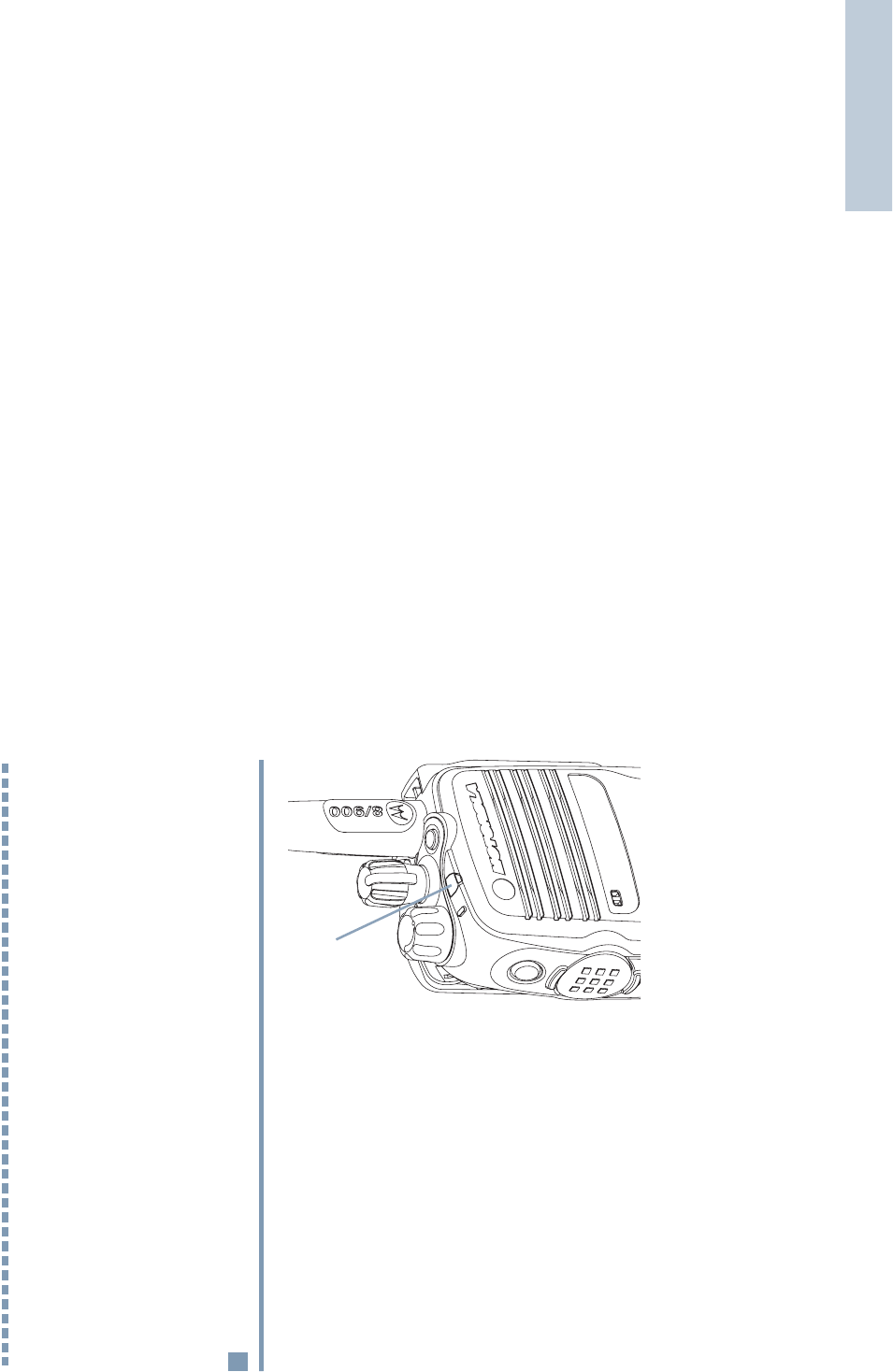

Push-To-Talk (PTT) Button
The PTT button on the
side of the radio serves
two basic purposes:
•While a call is in
progress, the PTT
button allows the radio
to transmit to other
radios in the call.
Press and hold down
PTT button to talk.
Release the PTT
button to listen.
The microphone is
activated when the
PTT button is pressed.
•While a call is not in progress, the PTT button is used to make
a new call (see Making a Radio Call on page 14).
Depending on programming, if the Talk Permit Tone is enabled,
wait until the short alert tone ends before talking.
Switching Between Conventional and
Trunking Mode
Each channel in your radio
can be configured as a
conventional channel or a
trunking channel. Use the
Channel Selector Knob to
switch between a
conventional or a trunking
channel.
When switching from
conventional to trunking
mode, certain features are
unavailable.
Your radio also has features available in both conventional and
trunking mode. However, the minor differences in the way each
feature works does NOT affect the performance of your radio.
PTT
Button
Channel Selector Knob
Identifying Status Indicators
English
9
Identifying Status Indicators
Your radio indicates its operational status through the following:
LED Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9
Audio Tones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Indicator Tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
LED Indicator
The LED indicator shows the
operational status of your radio.
Blinking red –Radio is
transmitting at low battery
condition, receiving an emergency
transmission or has failed the self-
test upon powering up.
Solid yellow –Radio is in
Permanent Monitor mode, at a fair
battery condition, monitoring a
channel, or requested trunked call
has no voice channel or target is
busy.
Blinking yellow – Radio is scanning for activity or receiving a
Call Alert.
Solid green –Radio is transmitting or at a good battery
condition.
Blinking green –Radio is powering up, receiving a non-
privacy-enabled call or data, or detecting activity over the air.
NOTE: When the LED blinks green, it indicates the radio
detects activity over the air. Due to the nature of the
digital protocol, this activity may or may not affect the
radio's programmed channel.
Upon a PTT button press, if the radio is programmed
for polite operation, the radio automatically determines
whether a transmission is permitted via a Talk Permit
or a Talk Denial tone.
LED Indicator
Identifying Status Indicators
English
10
Audio Tones
Alert tones provide you with audible indications of the radio’s
status or the radio’s response to data received.
Indicator Tones
High pitched tone Low pitched tone
Continuous Tone A monotone sound. Sounds
continuously until termination.
Periodic Tone Sounds periodically depending on the
duration set by the radio. Tone starts,
stops, and repeats itself.
Repetitive Tone A single tone that repeats itself until it is
terminated by the user.
Momentary Tone Sounds only once for a short period of
time defined by the radio.
Positive Indicator Tone
Negative Indicator Tone
Receiving and Making Calls
English
11
Receiving and Making Calls
Once you understand how your MOTOTRBO Portable is
configured, you are ready to use your radio.
Use this navigation guide to familiarize yourself with the basic
Call features:
Selecting a Zone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 11
Selecting a Radio Channel . . . . . . . . . . . . . . . . . . . . . page 11
Receiving and Responding to a Radio Call. . . . . . . . . page 12
Making a Radio Call . . . . . . . . . . . . . . . . . . . . . . . . . . page 14
Talkaround. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Monitoring Features. . . . . . . . . . . . . . . . . . . . . . . . . . . page 15
Selecting a Zone
A zone is a group of channels. Your radio supports up to a
maximum of 2 zones.
Procedure:
1Press the programmed Zone button.
2You hear a positive indicator tone, indicating the radio has
switched from Zone 1 to Zone 2.
OR
You hear a negative indicator tone, indicating the radio has
switched from Zone 2 to Zone 1.
Selecting a Radio Channel
Procedure:
Once the required
zone is set (if you
have multiple zones in
your radio), turn the
Channel Selector
Knob to select the
number that
represents the
channel.
Receiving and Making Calls
English
12
Receiving and Responding to a Radio Call
NOTE: This is a trunking only feature.
Once you have selected
the required channel and/
or zone, you can proceed
to receive and respond to
calls.
The LED lights up solid
green while the radio is
transmitting and blinks
when the radio is receiving.
Receiving and Responding to a Group Call
To receive a call from a group of users, your radio must be
configured as part of that group.
Procedure:
When you receive a group call:
1The LED blinks green. You hear a voice from the Group Call
request.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to talk.
4Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
5Release the PTT button to listen.
See Making a Group Call on page 14 for details on making a
Group Call.
LED Indicator
Receiving and Making Calls
English
13
Receiving and Responding to a Private Call
A Private Call is a call from an individual radio to another
individual radio.
There are two types of Private Calls. The first type is called
Enhanced Private Call, where a radio presence check is
performed prior to setting up the call, while the other, Basic
Private Call, sets up the call immediately.
Procedure:
When you receive a private call:
1The LED blinks green.
OR
For Basic Private Call, the LED blinks green. You hear the
caller’s voice.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the Call button to respond to the call. The LED lights
up solid green.
4Press the PTT button to talk.
5Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
6Release the PTT button to listen.
7Press Call button to end the call.
Receiving and Responding to a Phone Call
A Phone Call is a call similar to a standard phone call from a
landline phone.
Procedure:
When you receive a phone call:
1The LED blinks green.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the Phone button to respond to the call. The LED
lights up solid green.
4The LED blinks green. You hear the caller’s voice.
5Press the PTT button to talk.
6Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
7Release the PTT button to listen.
8If there is no voice activity for a predetermined period of
time, the call ends.
Receiving and Making Calls
English
14
Making a Radio Call
NOTE: This is a trunking only feature.
Making a Call with the Channel Selector Knob
Making a Group Call
To make a call to a group of users, your radio must be
configured as part of that group.
Procedure:
1Turn the Channel Selector Knob to select the channel with
the active group ID.
2Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
3Press the PTT button to make the call. The LED lights up
solid green.
4Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
5Release the PTT button to listen. When the target radio
responds, the LED blinks green.
6Press the PTT button to respond.
7If there is no voice activity for a predetermined period of
time, the call ends.
Using the Dynamic Regrouping Feature
This feature allows the dispatcher to temporarily reassign
selected radios to a single special channel so they can
communicate with each other. This feature is typically used
during special operations and is enabled by a qualified radio
technician.
You will not notice whether your radio has this feature enabled
until a dynamic regrouping command is sent by the dispatcher.
NOTE: If you try to access a zone or channel that has been
reserved by the dispatcher as a dynamically regrouped
mode for other users, an invalid tone sounds.
Procedure:
1When your radio is dynamically regrouped, it automatically
switches to the dynamically regrouped channel. A “gurgle”
tone sounds.
2Press the PTT button to talk. Release PTT button to listen.
When the dispatcher cancels dynamic regrouping, the radio
automatically returns to the zone and channel that you were
using before the radio was dynamically regrouped.
Receiving and Making Calls
English
15
Talkaround
NOTE: This is a conventional only feature.
You can continue to communicate when your repeater is not
operating, or when your radio is out of the repeater’s range but
within talking range of other radios. This is called “talkaround”.
Procedure:
1Press the programmed Repeater/Talkaround button.
2You hear a positive indicator tone, indicating the radio is in
Talkaround mode.
OR
You hear a negative indicator tone, indicating the radio is in
Repeater mode.
The Talkaround setting is retained even after powering down.
Monitoring Features
NOTE: This is a conventional only feature.
Monitoring a Channel
Use the Monitor feature to make sure a channel is free before
transmitting.
Procedure:
1Press and hold the programmed Monitor button and listen
for activity.
2You hear radio activity or total silence, depending on how
your radio is programmed.
3When you hear “white noise” (that is, the channel is free),
press the PTT button to talk and release it to listen. The LED
lights up solid yellow.
Permanent Monitor
Use the Permanent Monitor feature to continuously monitor a
selected channel for activity.
Procedure:
1Press the programmed Permanent Monitor button.
2Radio sounds alert tone, and the LED lights up solid yellow.
3Press the programmed Permanent Monitor button to
remove the radio from permanent monitor mode.
4Radio sounds an alert tone and the LED turns off.
Advanced Features
English
16
Advanced Features
Use this navigation guide to learn more about advanced
features available with your radio:
Scan Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 16
Call Indicator Settings . . . . . . . . . . . . . . . . . . . . . . . . . page 18
Call Alert Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . page 18
Emergency Operation . . . . . . . . . . . . . . . . . . . . . . . . . page 19
Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 23
Scan Lists
Scan lists are created and assigned to individual channels/
groups. Your radio scans for voice activity by cycling through
the channel/group sequence specified in the scan list for the
current channel.
Your radio supports up to 128 scan lists, with a maximum of 16
members in a list.
Scan
When you start a scan, your radio cycles through the
programmed scan list for the current channel looking for voice
activity.
The LED blinks yellow.
There are two types of scans:
•Main Channel Scan (Manual): Your radio scans all the
channels/groups in your scan list. On entering scan, your
radio may – depending on the settings – automatically start
on the last scanned “active” channel/group or on the channel
where scan was initiated.
•Auto Scan (Automatic): Your radio automatically starts
scanning when you select a channel/group that has Auto
Scan enabled.
Advanced Features
English
17
Starting and Stopping Scan
Procedure:
1Press the programmed Scan button.
OR
Use the Channel Selector Knob to select a channel with
Auto Scan enabled.
2When Scan is enabled, the LED blinks yellow and you hear
a positive indicator tone.
OR
When Scan is disabled, the LED turns off and you hear a
negative indicator tone.
Responding to a Transmission During a Scan
During scanning, your radio stops on a channel/group where
activity is detected. The radio stays on that channel for a
programmed time period known as “hang time”.
Procedure:
1Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
2Press the PTT button during hang time. The LED lights up
solid green.
3Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
4Release the PTT button to listen.
5If you do not respond within the hang time, the radio returns
to scanning other channels/groups.
Advanced Features
English
18
Deleting a Nuisance Channel
If a channel continually generates unwanted calls or noise
(termed a “nuisance” channel), you can temporarily remove the
unwanted channel from the scan list.
This capability does not apply to the channel designated as the
Selected Channel.
Procedure:
1When your radio “locks on to” an unwanted or nuisance
channel, press the programmed Nuisance Delete button
until you hear a tone.
2Release the Nuisance Delete button. The nuisance
channel is deleted.
Restoring a Nuisance Channel
Procedure:
To restore the deleted nuisance channel, do one of the
following:
•Turn the radio off and powering it on again, OR
•Stop and restart a scan via the programmed Scan button, OR
•Change the channel via the Channel Selector Knob.
Call Indicator Settings
You can turn on or off the ringing tones for a received Private
Call (see Turning Radio Tones/Alerts On or Off on page 24).
Escalating Alarm Tone Volume
Your radio can be programmed by your dealer to continually
alert you when a radio call remains unanswered. This is done
by automatically increasing the alarm tone volume over time.
This feature is known as Escalert.
Call Alert Operation
NOTE: This is a trunking only feature.
Call Alert paging enables you to alert a specific radio user to call
you back when they are able to do so. This feature is accessible
via a programmed One Touch Call button.
Receiving and Acknowledging a Call Alert
Procedure:
When you receive a Call Alert page:
1You hear a repetitive tone. The LED blinks yellow.
2Press and release the PTT button to acknowledge the alert.
Advanced Features
English
19
Making a Call Alert with the One Touch Call
Button
Procedure:
1Press the programmed One Touch Call button to make a
Call Alert to the predefined ID.
2The LED lights up solid green when your radio is sending
the Call Alert.
3If the Call Alert acknowledgment is received, two chirps
sound.
OR
If the Call Alert acknowledgment is not received, a low-pitch
tone sounds.
Emergency Operation
NOTE: This is a trunking only feature.
An Emergency feature is used to indicate a critical situation.
You are able to initiate an Emergency at any time, in any state,
even when there is activity on the current channel.
Your radio supports the following Emergency modes:
•Emergency Call
•Emergency Alarm
•Emergency Alarm with Call
•Emergency Alarm with Voice to Follow*
In addition, each mode has the following types:
•Regular –Radio transmits an alarm signal and shows audio
and/or visual indicators.
•Silent –Radio transmits an alarm signal without any audio or
visual indicators. There will be no response (call) from the
target radio until you press the PTT button to initiate the call.
•Silent with Voice – Radio transmits an alarm signal and is
able to receive an incoming call, without any audio or visual
indicators, until you press the PTT button to initiate, or
respond to, the call.
Only ONE of the Emergency modes above can be assigned to
the programmed Emergency button.
Advanced Features
English
20
Sending an Emergency Call
This feature gives your radio priority access on a channel.
NOTE: The radio operates in the normal dispatch manner
while in Emergency Call, except, if enabled, it returns
to one of the following:
•Tactical/Non-Revert – You talk on the channel you
selected before you entered the emergency state.
•Non-Tactical/Revert – You talk on a programmed
emergency channel. The emergency alarm is sent
on this same channel.
Procedure:
1Press the programmed Emergency button.
2If the selected channel supports emergency, a Good Key
Tone sounds. OR
If the selected channel does not support emergency, a low-
pitch tone sounds.
3Press PTT button to start the Emergency Call. The LED
lights up solid green.
4Long press the programmed Emergency button to exit
Emergency Call mode.
If your radio is set to Silent, it will not have any audio or visual
indicators related to the Emergency feature.
Sending an Emergency Alarm
This feature allows you to send an Emergency Alarm, a non-
voice signal, which triggers an alert indication on another radio.
Procedure:
1Press the programmed Emergency button.
2The LED lights up solid green. An Emergency Enter Tone
sounds at each retry.
3When an Emergency Alarm acknowledgment is received,
the Emergency Acknowledgment Tone sounds. The LED
blinks green.
OR
If your radio does not receive an Emergency Alarm
acknowledgment, and after all retries have been exhausted,
a low-pitch tone sounds.
4Radio exits the Emergency Alarm mode.
If your radio is set to Silent, it will not have any audio or visual
indicators related to the Emergency feature.
Advanced Features
English
21
Sending an Emergency Alarm with Call
This feature allows you send an Emergency Alarm to another
radio. Upon acknowledgment, both radios can communicate
over a programmed Emergency channel.
Procedure:
1Press the programmed Emergency button.
2The LED lights up solid green. An Emergency Enter Tone
sounds at each retry.
3When an Emergency Alarm acknowledgment is received,
the Emergency Acknowledgment Tone sounds. The LED
blinks green.
4Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from
your mouth.
5Press the PTT button to make the call. The LED lights up
solid green.
6Wait for the Talk Permit Tone to finish (if enabled) and
speak clearly into the microphone.
7Release the PTT button to listen.
8Press the PTT button to respond.
9Long press the programmed Emergency button to exit the
Emergency mode.
If your radio is set to Silent, it will not have any audio or visual
indicators related to the Emergency feature, or receive any
response (call) from the target radio, until you press the PTT
button to initiate the call.
If your radio is set to Silent with Voice, it will not have any audio
or visual indicators related to the Emergency feature, or when
you are receiving a call from the target radio. The indicators will
only appear once you press the PTT button to initiate, or
respond to, the call.
Advanced Features
English
22
Sending an Emergency Alarm with Voice to Follow
This feature allows you to send an Emergency Alarm to another
radio. Upon acknowledgment, your radio’s microphone is
automatically activated, allowing you to communicate with the
other radio without pressing the PTT button.
This activated microphone state is also known as “hot mic”.
If you press the PTT button during the programmed hot mic
transmission period, the radio ignores the PTT press and
remains in Emergency mode.
NOTE: If you press the PTT button during hot mic, and
continue to press it after the hot mic duration expires,
the radio continues to transmit until you release the
PTT button.
Procedure:
1Press the programmed Emergency button.
2The LED lights up solid green. An Emergency Enter Tone
sounds at each retry.
3When an Emergency Alarm acknowledgment is received,
the Emergency Acknowledgment Tone sounds. The LED
blinks green. Speak clearly into the microphone.
4When hot mic has been enabled, the radio automatically
transmits without a PTT press until the hot mic duration
expires.
5While transmitting, the LED lights up solid green.
6Once the hot mic duration expires, the radio automatically
stops transmitting.To transmit again, press the PTT button.
If your radio is set to Silent, it will not have any audio or visual
indicators related to the Emergency feature, or receive any
response from the target radio, until the programmed hot mic
transmission period is over, and you press the PTT button.
If your radio is set to Silent with Voice, it will not have any audio
or visual indicators related to the Emergency feature when you
are making the call with hot mic, or when the target radio
responds after the programmed hot mic transmission period is
over. The indicators will only appear when you press the PTT
button.
Advanced Features
English
23
Reinitiating an Emergency Mode
There are two instances where this can happen:
•You change the channel while the radio is in Emergency
mode. This exits the Emergency mode. If Emergency Alarm
is enabled on this new channel, the radio reinitiates
Emergency.
•You press the programmed Emergency button during an
Emergency initiation/transmission state. This causes the
radio to exit this state, and to reinitiate Emergency.
Exiting an Emergency Mode
Your radio exits Emergency mode when one of the following
occurs:
•Emergency Alarm acknowledgment is received
(for Emergency Alarm only), OR
•All retries to send the alarm have been exhausted
(for Emergency Alarm only), OR
•The programmed Emergency button is long pressed.
NOTE: If your radio is powered off, it exits the Emergency
mode. The radio will not reinitiate the Emergency
mode automatically when it is turned on again.
Utilities
Setting the Squelch Level
NOTE: This is a conventional only feature.
You can adjust your radio's squelch level to filter out unwanted
calls with low signal strength or channels that have a higher
than normal background noise.
Settings: Normal is the default. Tight filters out (unwanted)
calls and/or background noise. However, calls from remote
locations may also be filtered out.
Procedure:
1Press the programmed Squelch button.
2You hear a positive indicator tone, indicating the radio is
operating in tight squelch.
OR
You hear a negative indicator tone, indicating the radio is
operating in normal squelch.
Advanced Features
English
24
Setting the Power Level
You can toggle your radio’s power setting between high or low
for each channel.
Settings: High enables communication with radios located at a
considerable distance from you. Low enables communication
with radios in closer proximity.
Procedure:
1Press the programmed Power Level button.
2You hear a positive indicator tone, indicating the radio is
transmitting at low power.
OR
You hear a negative indicator tone, indicating the radio is
transmitting at high power.
Turning Radio Tones/Alerts On or Off
You can enable and disable all radio tones and alerts (except for
the incoming Emergency alert tone) if needed.
Procedure:
1Press the programmed All Tones/Alerts button.
2You hear a positive indicator tone, indicating all tones and
alerts are on.
OR
You hear a negative indicator tone, indicating all tones and
alerts are off.
Checking the Battery Strength
You can check how much battery power you have left.
Settings: The LED Indicator in solid yellow indicates fair battery
charge while solid green indicates full charge of the battery.
Procedure:
Press the programmed Battery Indicator button to view the
battery strength via the LED Indicator.
Accessories
English
25
Accessories
Your radio is compatible with the accessories listed in this
chapter. Contact your dealer for details.
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
Chargers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 25
Surveillance Accessories. . . . . . . . . . . . . . . . . . . . . . . page 25
Miscellaneous Accessories . . . . . . . . . . . . . . . . . . . . . page 25
Antenna
The diagram on the right shows the location of
the color indicator for the following antennas. See
