MtM Plus Technology M904S M904S User Manual

Product Specification

Product Name: M904S

Bluetooth SiP Module

-BT 4.0 LE

Version: 1.04

Doc No:

Date: Nov 25th, 2016

MtM Technology Corporation

8F, 178 MinQuan East Road Section 3,

Taipei, Taiwan (R.O.C.)

www.mtmtech.com.tw

MtM Technology Corporation

Document History

Date

Revise Contents

Revise by

Version

Jan. 23, 2014

Initial Version

Brian Juang

XA

Apr. 28, 2015

1.01

Dec. 29, 2015

1.02

Jun. 14, 2016

Add the antenna Design guide, and Modify Power

consumption

PJ Chang

1.03

Nov. 25, 2016

1. Revise the reference scheme

2. Add FCC Related information

PJ Chang

1.04

Page 2

/

27

MtM Technology Corporation

INDEX

1 Description ...................................................................................................................... 4

2 Feature ............................................................................................................................ 5

3 Block Diagram ................................................................................................................ 6

4 Technical Specification .................................................................................................. 7

4.1Recommendable Operation Condition ......................................................................... 7

4.1Temperature, humidity ................................................................................................. 7

4.2Voltage ......................................................................................................................... 7

4.3 Wireless Specifications ............................................................................................... 7

4.4 Radio Specifications Bluetooth 4.0 Low Energy........................................................ 8

4.5 External Antenna Design Guide ....................................................................... ..........9

4.5.1 PCB Antenna Design Guide .......................................................................... ..........9

4.5.2 Chip Antenna Design Guide .................................................................................. 11

4.6 Power Consumption .................................................................................................. 14

5 Dimensions ................................................................................................................... 17

6 Pin Assignments .......................................................................................................... 19

7 Recommend Footprint ............................................................................................... 20

8 Reference Design Circuit ........................................................................................... 21

9 Recommended Reflow Profile ................................................................................... 22

10 SiP Module Preparation .......................................................................................... 23

10.1 Handling ................................................................................................................ 23

10.2 SMT Preparation ................................................................................................... 23

11 Package Information ............................................................................................... 24

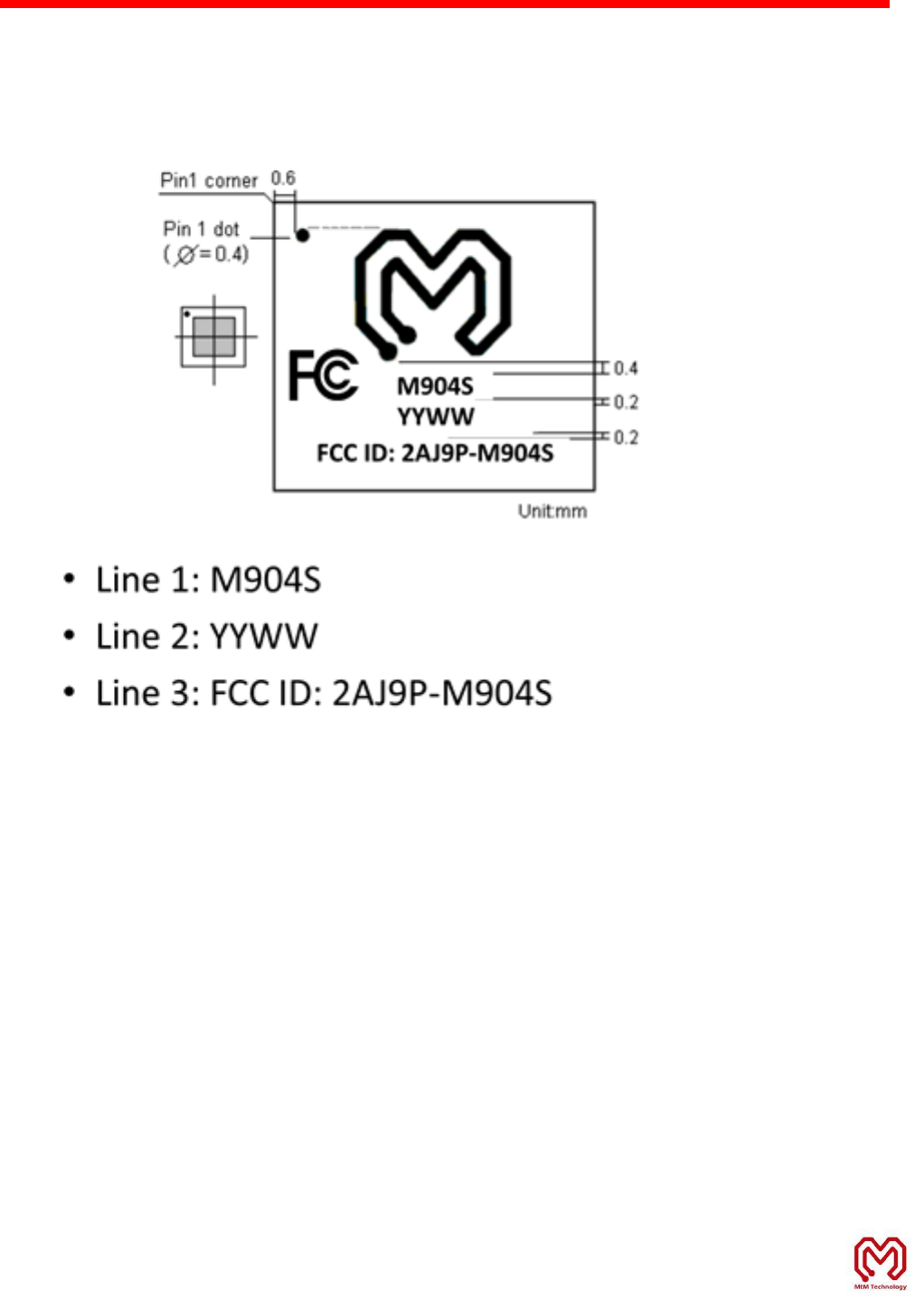

11.1 Product Marking ..................................................................................................... 24

11.2 Package Information ............................................................................................... 25

12 BQB / CE/ FCC Certification .................................................................................. 26

Page 3

/

27

MtM Technology Corporation

1 Description

The SiP module M904S is a small size module with conformal shielding.

The module provides full function of Bluetooth 4.0 Low Energy in a tiny

module via 48 pins LGA Foot Print. The M904S module provides

everything required to create Bluetooth 4.0 Low Energy product with RF,

baseband, MCU, qualified Bluetooth v4.0 stack and customer application

running on a single IC.

M904S enables ultra-low power connectivity and basic data transfer for

applications previously limited by the power consumption, size constraints

and complexity of other wireless standards. The low power consumption

and excellent radio performance make it the best solution for OEM /ODM

customers who require embedded Bluetooth 4.0 Low Energy feature, such

as, IP camera, car key, sport and fitness watch, mouse, led light bulb etc.

For the software and driver development, we provide extensive technical

document and reference software code for the system integration.

Hardware evaluation kit and development utilities will be released base on

listed OS and processors to OEM customers.

Page 4

/

27

MtM Technology Corporation

2 Feature

 Bluetooth® v4.0 LE radio technology

 -90 dBm sensitivity in Bluetooth® low energy mode

 250 kbps, 1 Mbps, 2 Mbps supported data rates

 TX Power -20 to +4 dBm in 4 dB steps

 TX Power -30 dBm Whisper mode

 12 mA peak RX, 10 mA peak TX (0 dBm)

 256 kB embedded flash program memory

 Supply voltage range 1.8 V to 3.6 V

 SPI Master/Slave

 Low power comparator

 Temperature sensor

 Two-wire Master (I2C compatible)

 UART (CTS/RTS)

 AES HW encryption

 Real Timer Counter (RTC)

 Demo SW Open source on nRF51SDK v8/SoftDevice version 1

 Supports the nRF51SDK v11/SoftDevice v2

 LGA-48 package, 6.5 x 6.5 mm

ORDRING INFORMATION

Part Number

Description

M904S

CLASS 2 Bluetooth single mode Module according BT-4.0. Bluetooth SMART

Page 5

/

27

MtM Technology Corporation

3 Block Diagram

M904S supports UART command line interface to connect to the host

processor. The simplified block diagram is depicted in the Fig. as below..

Page 6

/

27

MtM Technology Corporation

4 Technical Specification

4.1 Recommendable Operation Condition

Temperature, humidity

The M904S module has to withstand the operational requirements as listed in the table below

No

Description

Value

Unit

Ratings Over Operating Free-Air Temperature Range

1

Supply voltage

All supply pins

–0.3 to 3.9

V

must have the

same voltage

2

Voltage on any digital pin

TBD

V

3

Operating ambient temperature

–25 to 75

°C

range

4

Storage temperature range

–35 to 75

°C

5

Bluetooth RF output

4 ± 1

dBm

4..2Voltage

Power supply for the M904S module will be provided by the host via the power pins

Operating Condition

Min.

Typ.

Max.

DVDD_3V3

1.8

3.3

3.6

I/O supply voltage (VDD_PADS)

1.2

3.3

3.6

4.3 Wireless Specifications

The M904S module compliance with the following features and standards

Features

Description

Bluetooth Standards

Bluetooth core v4.0 Low Energy

Antenna Port

Support Single Antenna for Bluetooth

Frequency Band

2.402 – 2.480 GHz

Page 7

/

27

MtM Technology Corporation

4.4 Radio Specifications Bluetooth 4.0 Low Energy

Features

Description

Frequency Band

2.402– 2.480 GHz (2.4 GHz ISM Band)

Number of selectable Sub channels

40 channels

Modulation

GFSK

Supported rates

<2Mbps

Maximum receive level

-10dBm (with PER <30. 8%)

Parameter

Mode and Conditions

Min.

Typ.

Max.

Unit.

RX sensitivity

-

-90

-

dBm

Maximum input

-

-10

dBm

Frequency range

2400

-

2483

MHz

Output power adjustment

ranger

-20

-

4

dBm

Output power

-

2

-

dBm

Output power variation

-

4

-

dB

Page 8

/

27

MtM Technology Corporation

4.5 External Antenna Design Guide

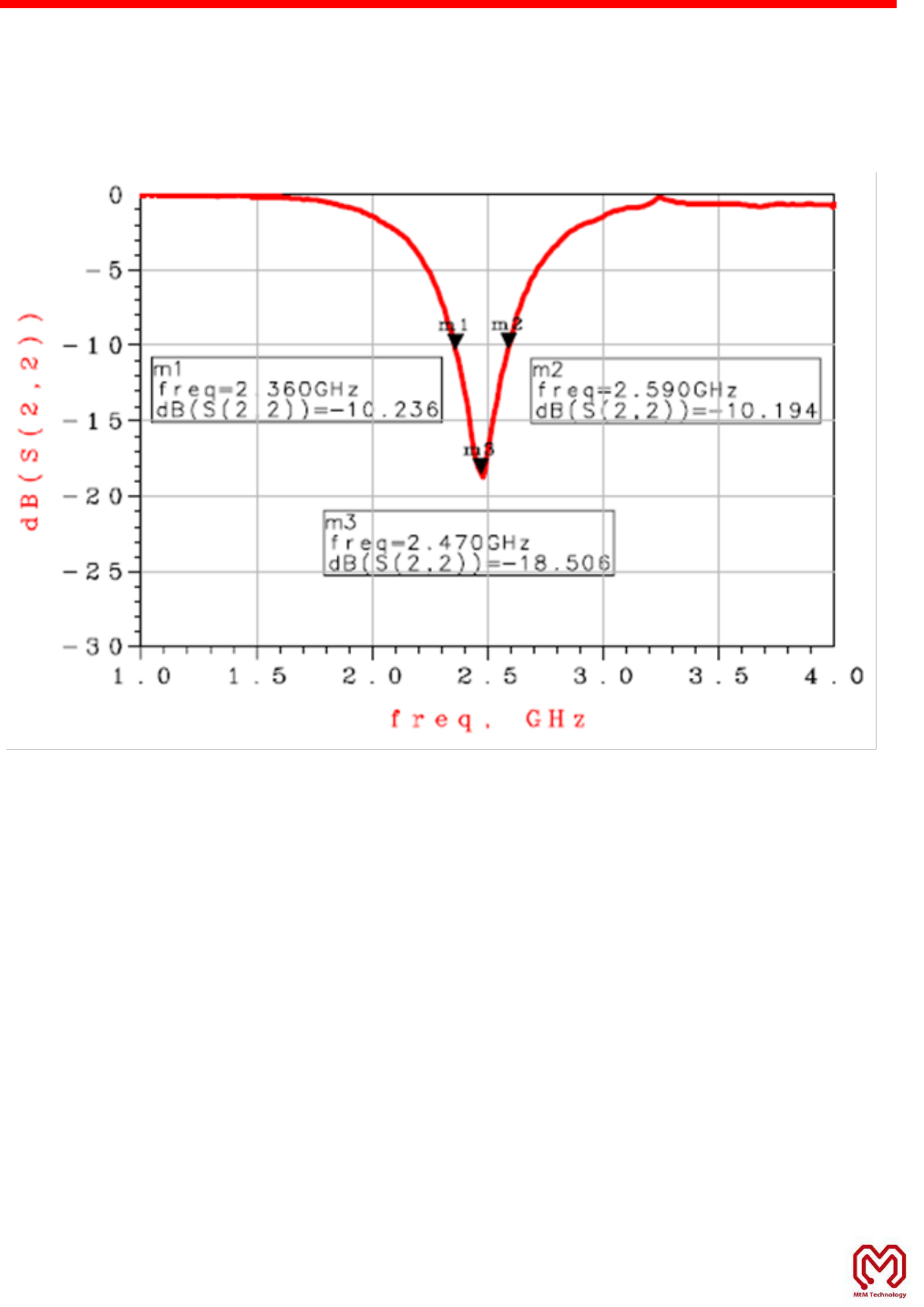

4.5.1 PCB Antenna Design Guide: Peak Gain: -2dBi Typ. / Avg. Gain: -3.5dBi Typ. (XZ-V)

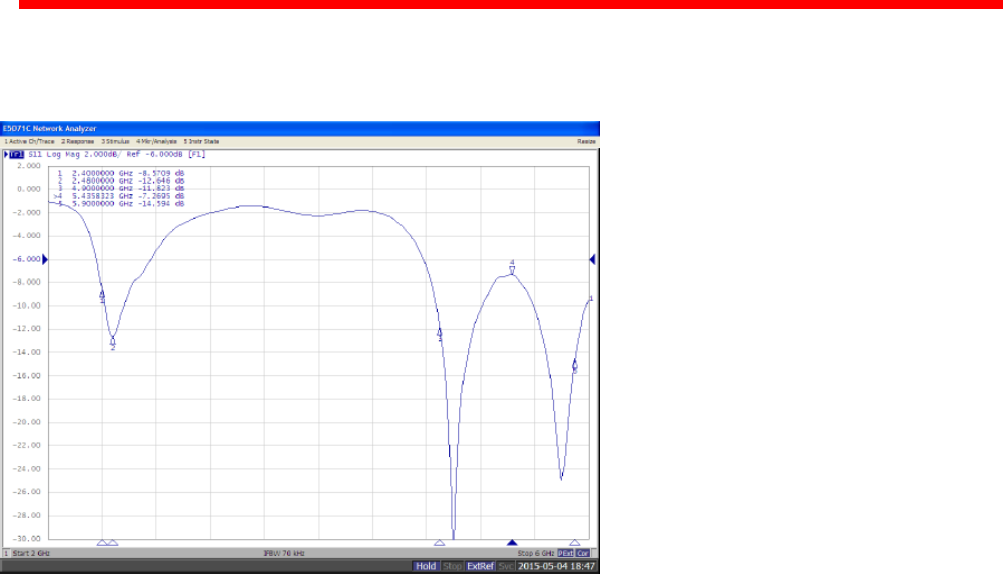

Return Loss

Page 9

/

27

MtM Technology Corporation

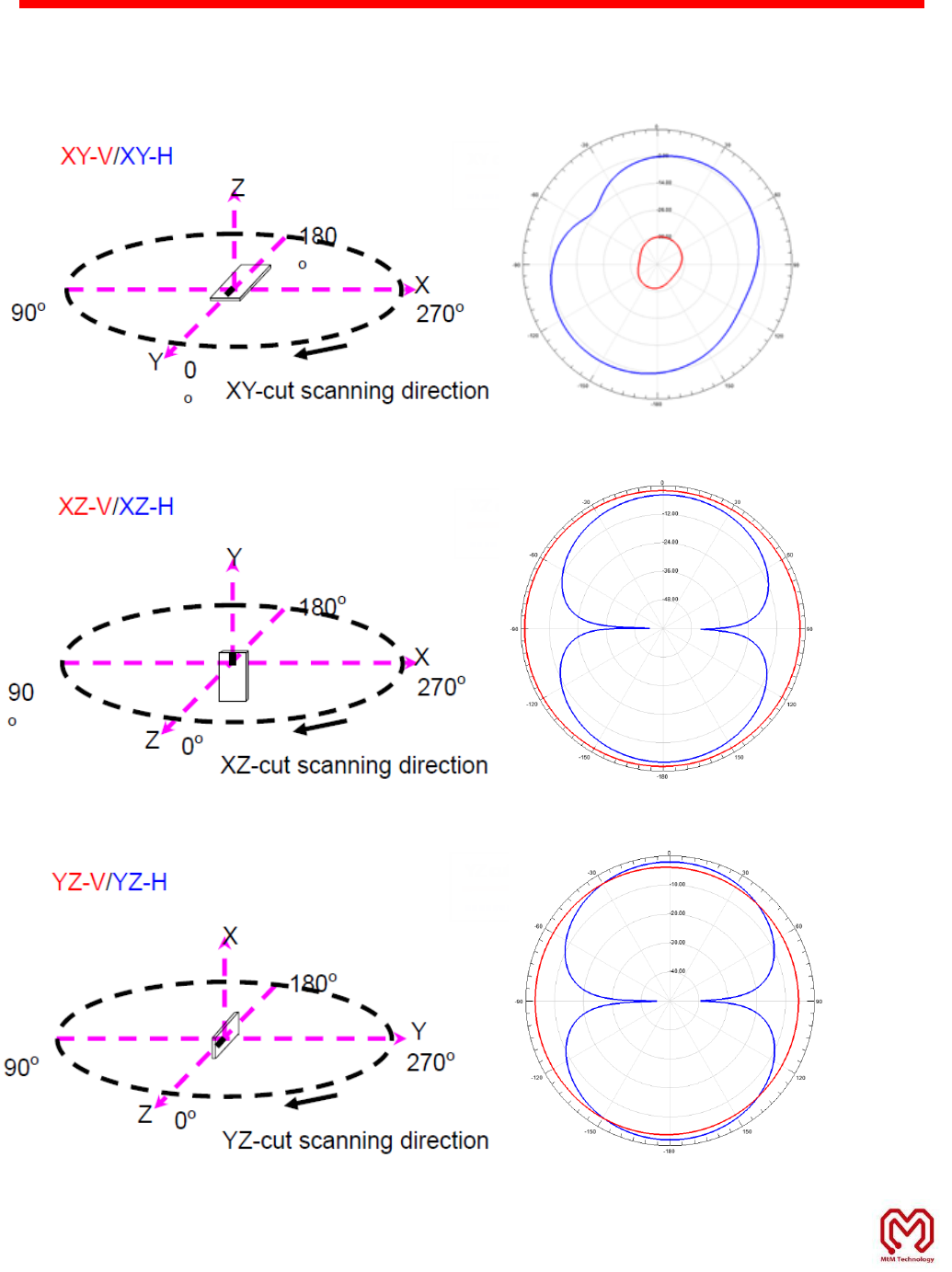

Radiation Patterns

Page 10

/

27

MtM Technology Corporation

4.5.2 Chip Antenna Design Guide

Dimensions and Recommended PC Board Pattern

Page11

/

27

MtM Technology Corporation

Return Loss\With Matching Circuits

Page 12

/

27

MtM Technology Corporation

Page 13

/

27

MtM Technology Corporation

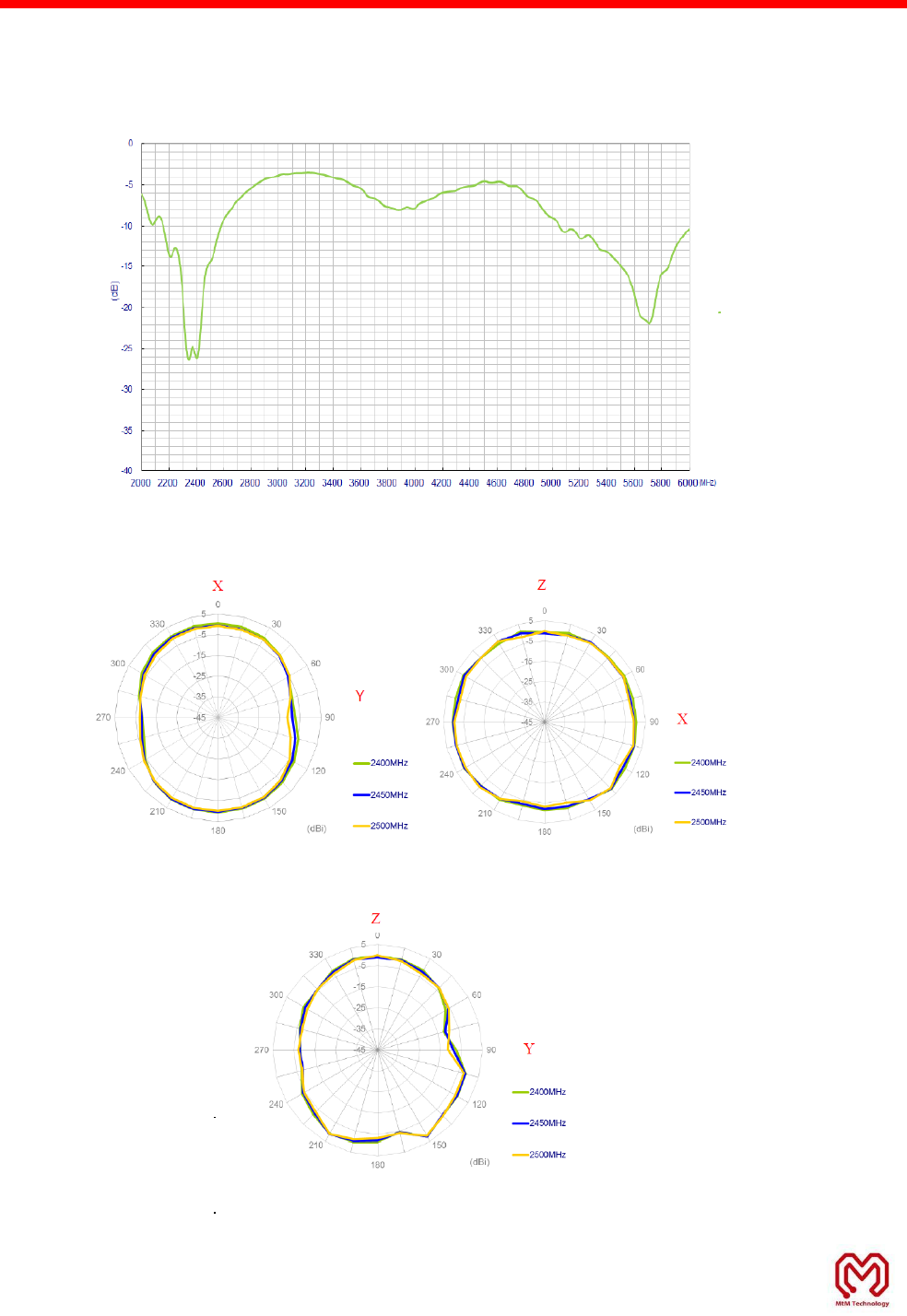

4.5.2 Dipole Antenna Design Guide:

Return Loss

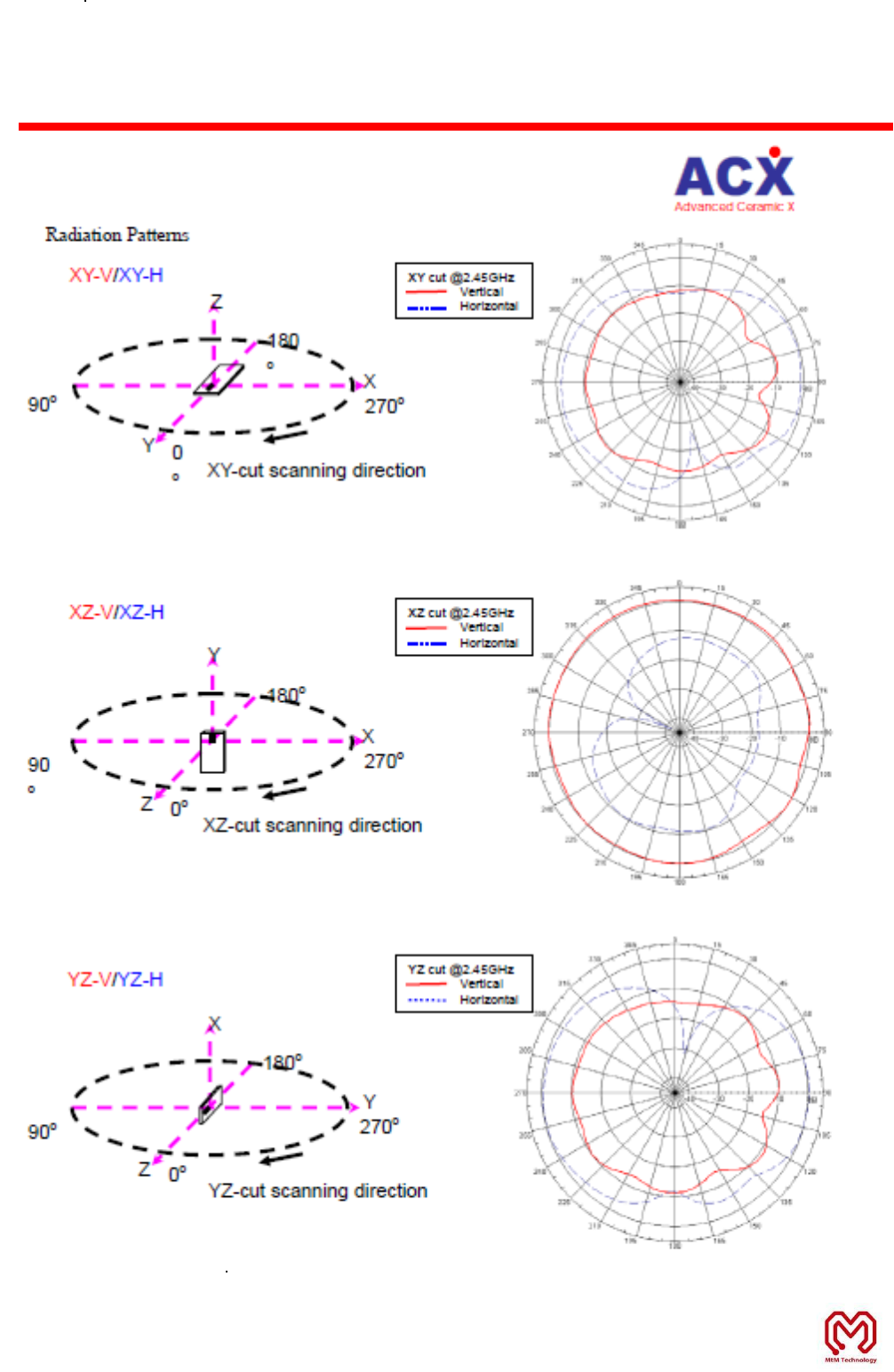

Radiation Patterns

xy-plane xz-plane

yz-plane

Page 14

/

27

MtM Technology Corporation

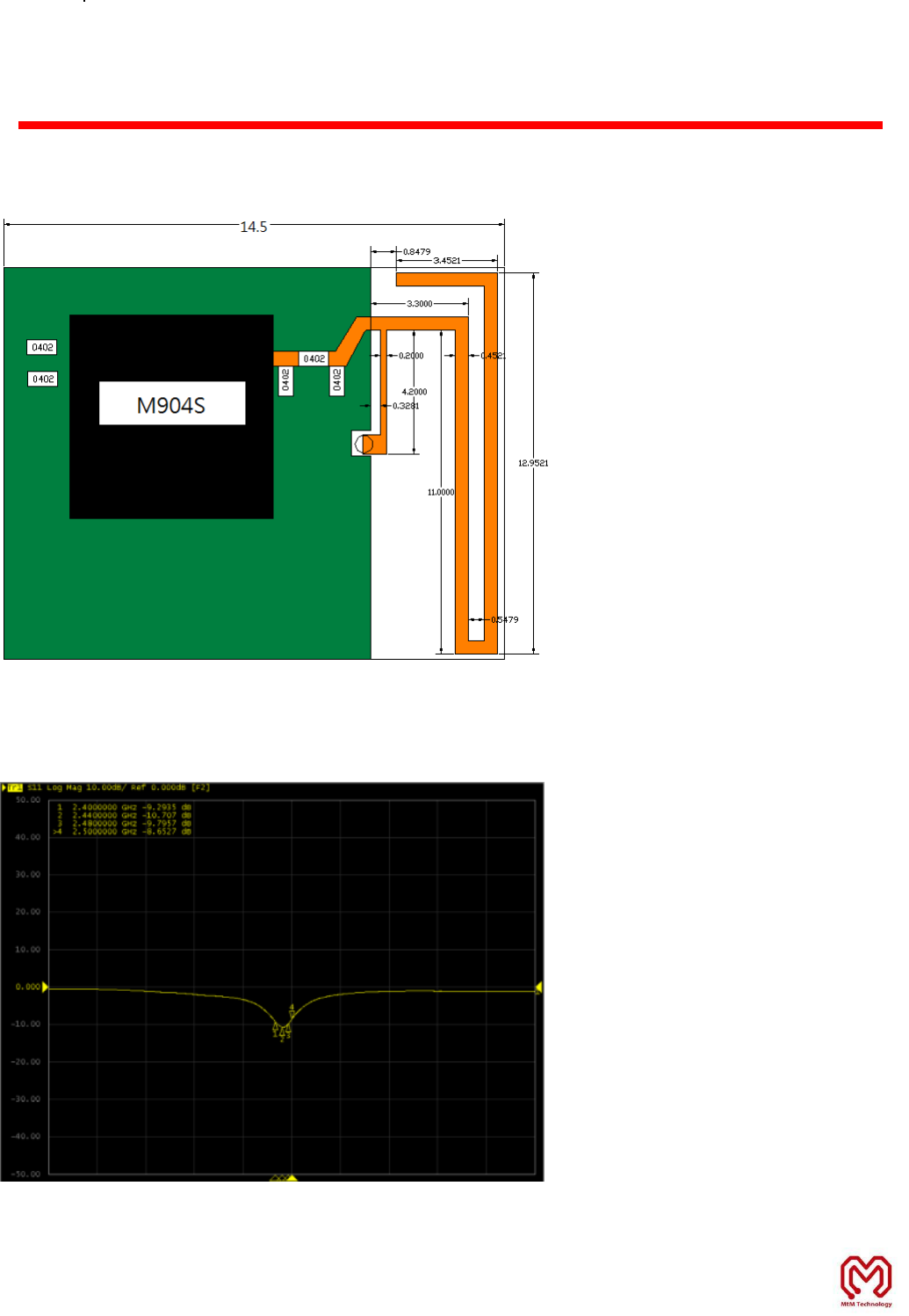

4.5.4 PIFA Antenna Design Guide:

Return Loss

MtM Technology Corporation

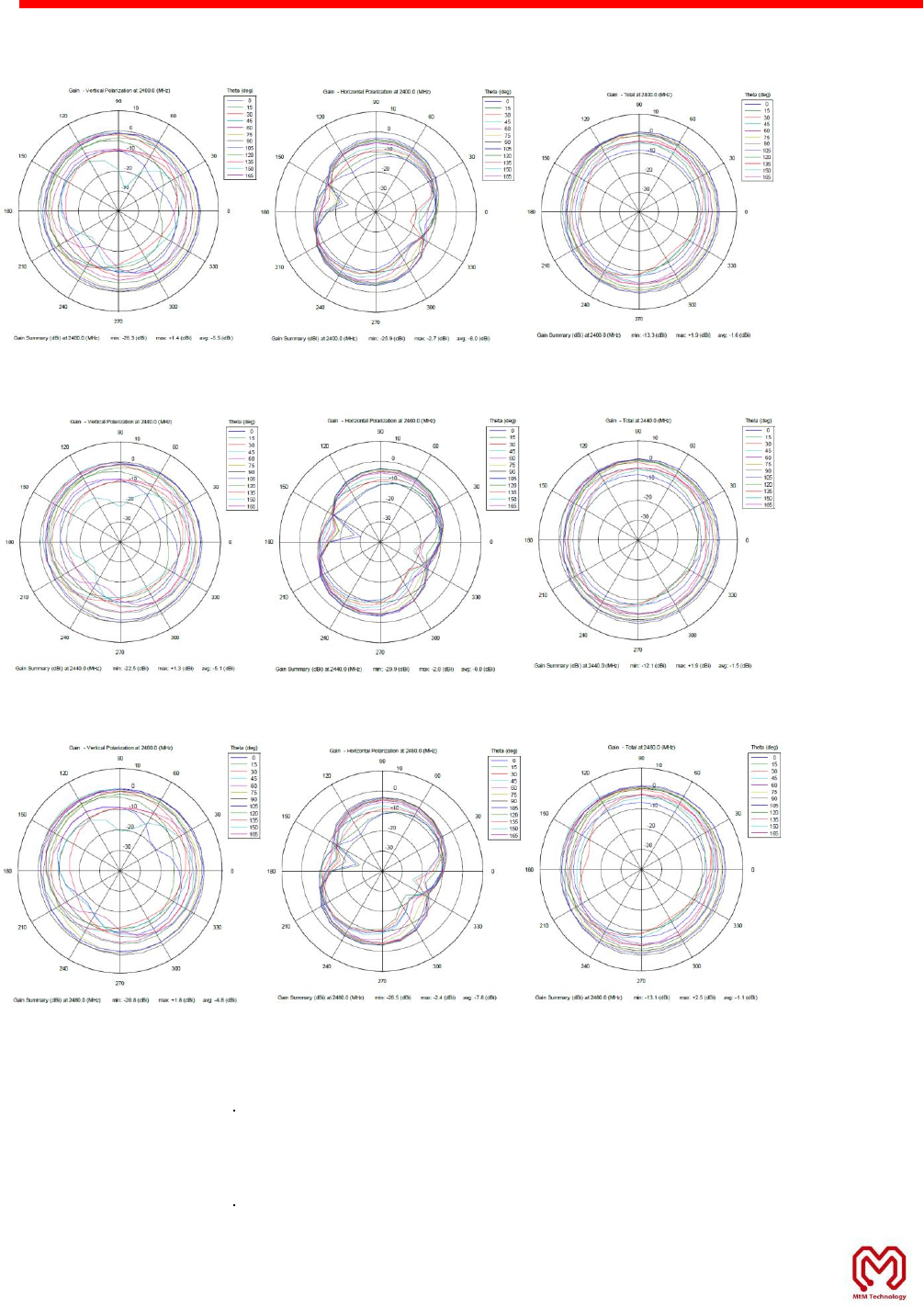

Radiation Patterns

Vertical, Horizontal and Total Gain Patterns at 2400MHz

Vertical, Horizontal and Total Gain Patterns at 2440MHz

Vertical, Horizontal and Total Gain Patterns at 2480MHz

Page 14

/

27

MtM Technology Corporation

4.6 Power Consumption

Item

Condition

Typ.

Tx mode

3.3V

9.76mA

Rx mode

3.3V

12.15mA

System ON

Constant Latency

Sleep Mode

0.41uA

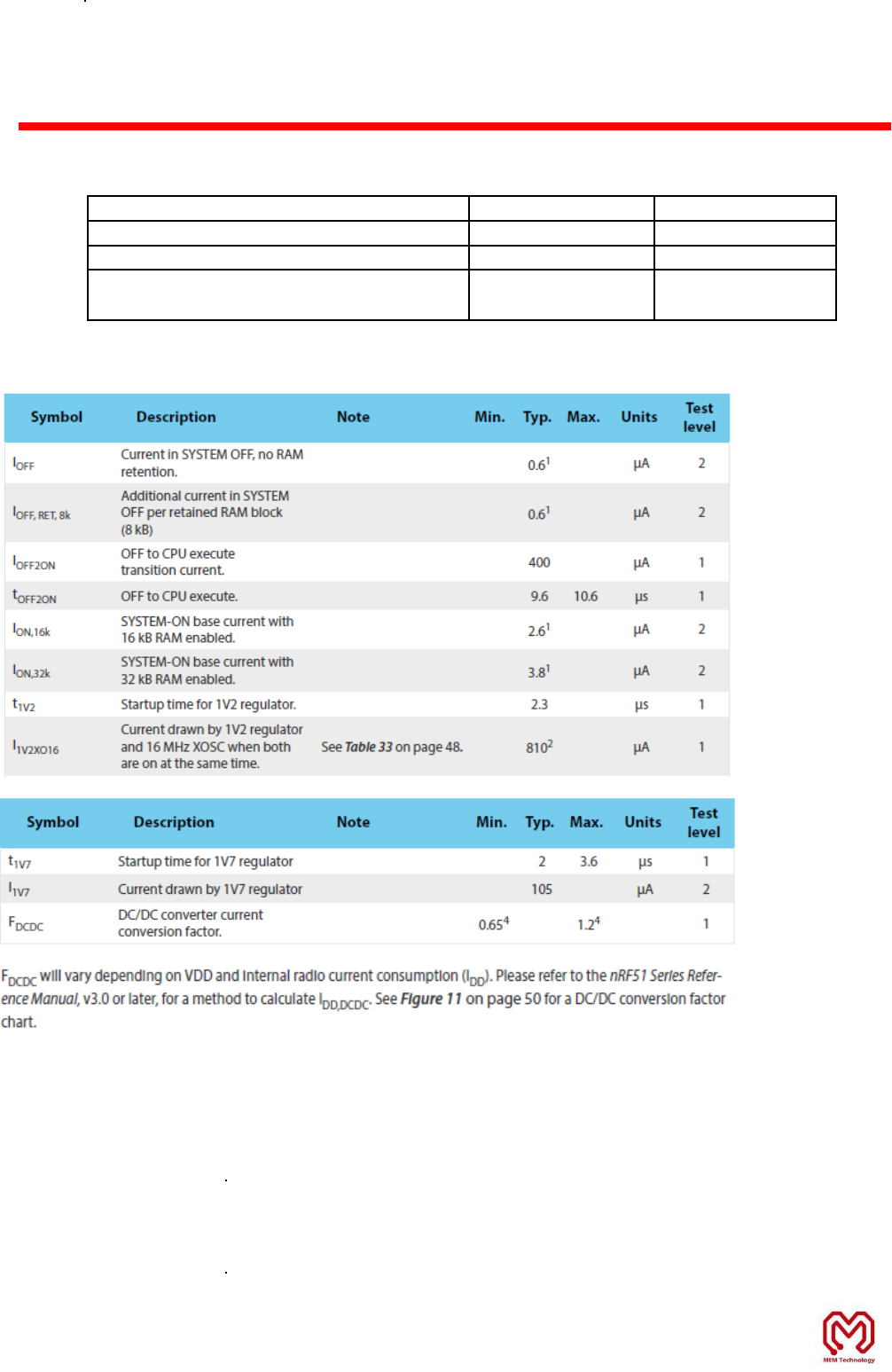

Power Management

Page 14

/

27

MtM Technology Corporation

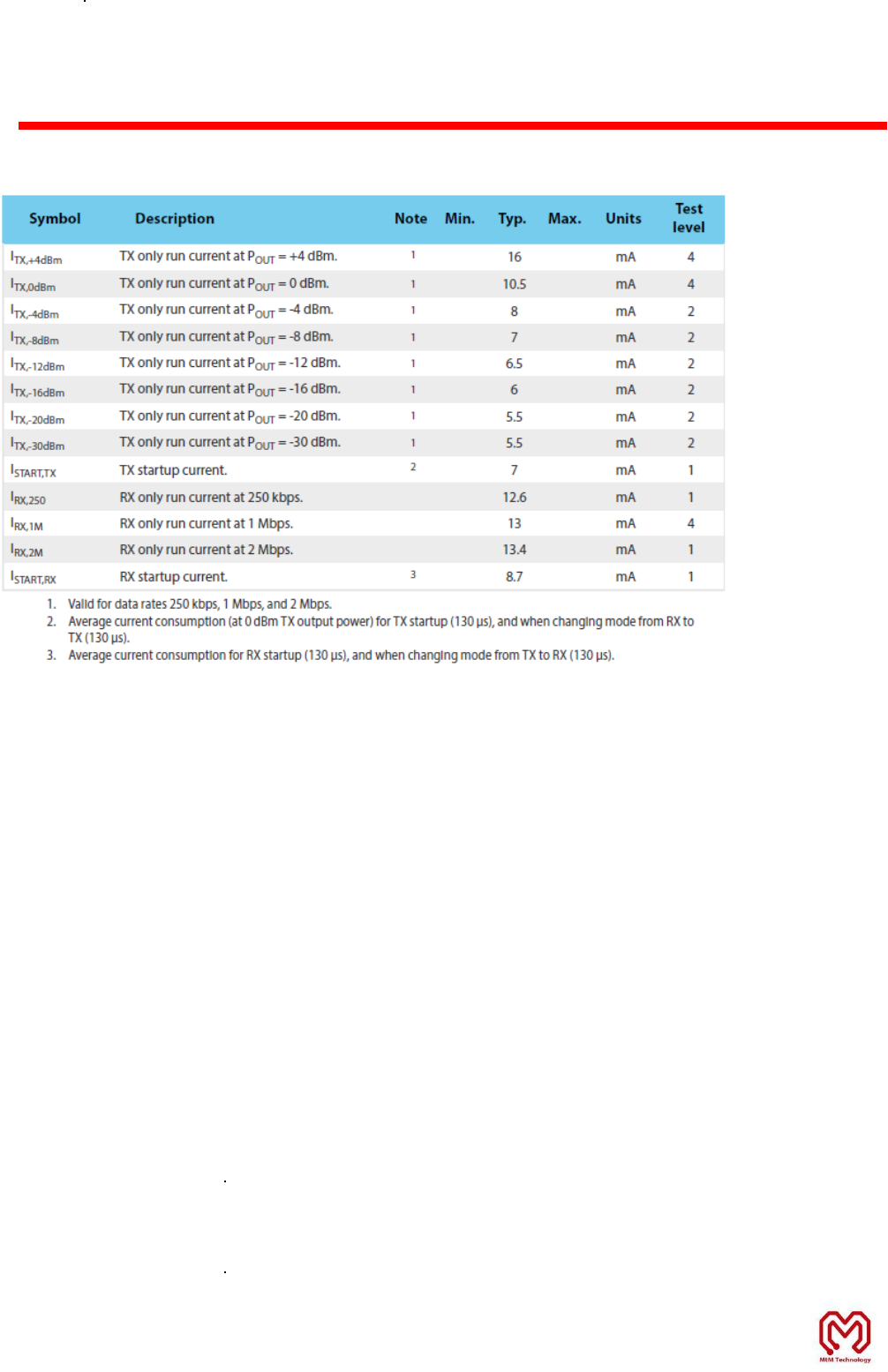

Radio Current Consumption

Page 15

/

27

MtM Technology Corporation

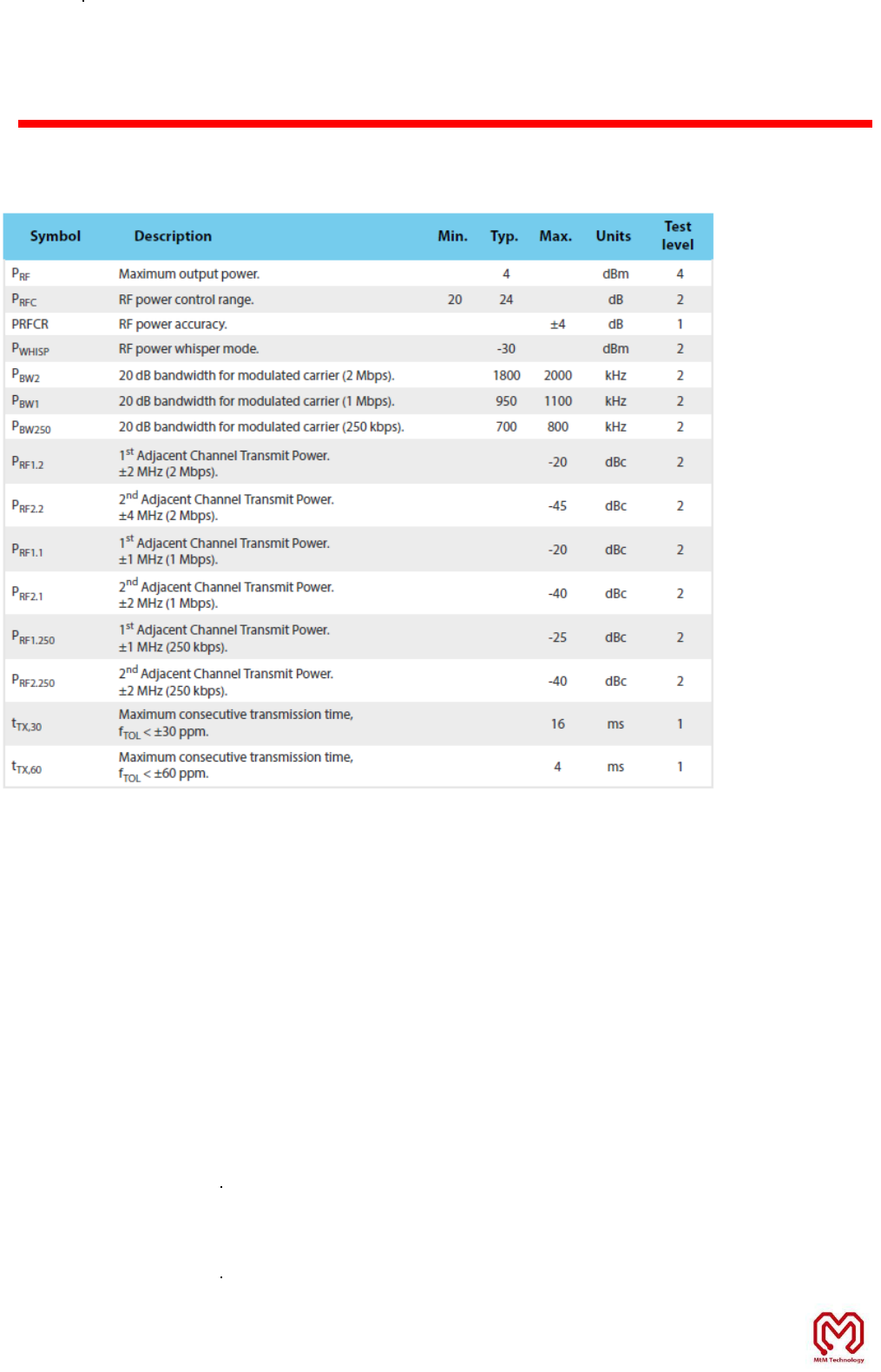

Transmitter Specifications

Page 16

/

27

MtM Technology Corporation

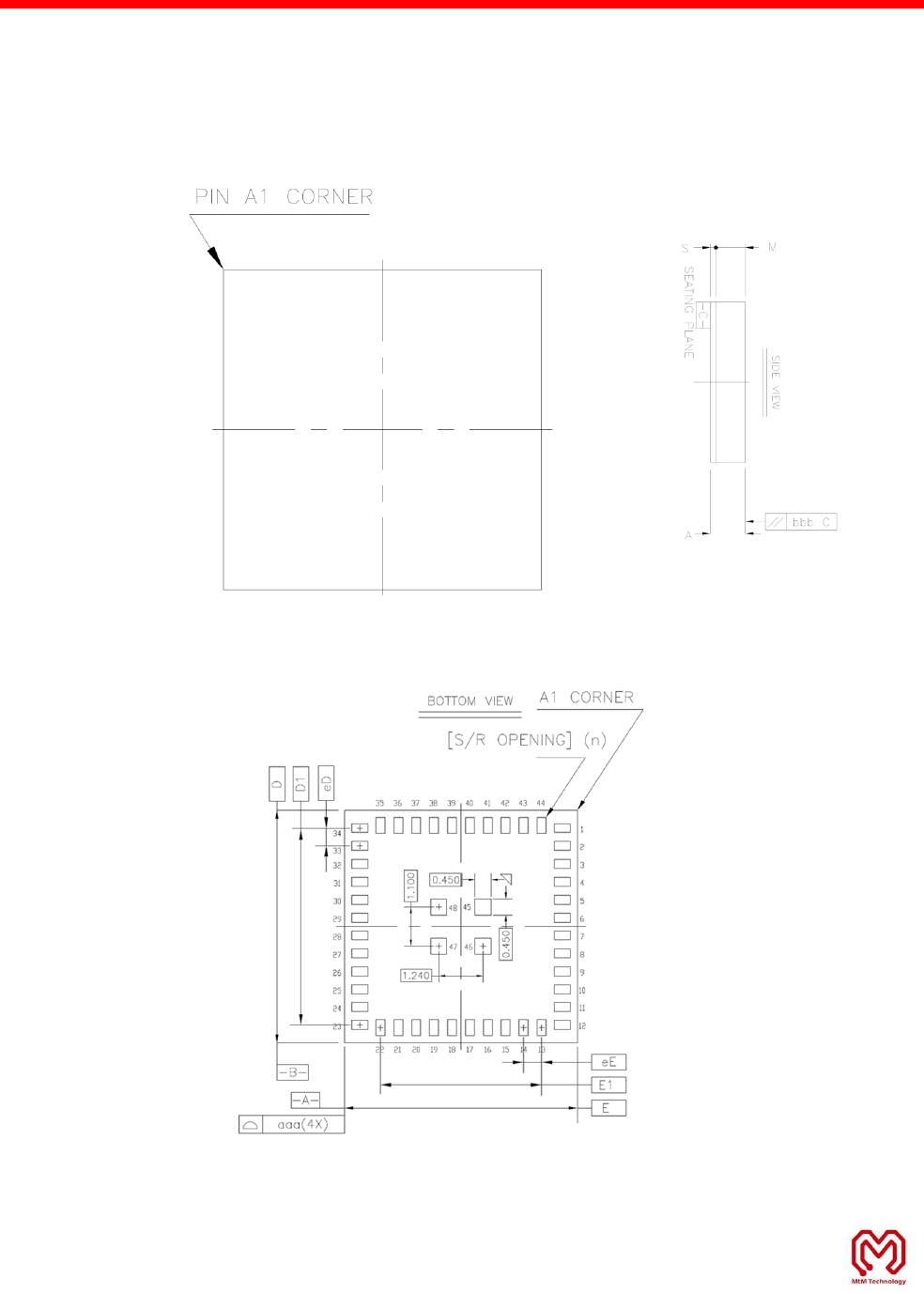

5 Dimensions

The size and thickness of the M904 module 6.5mm (W) x 6.5mm (L) x 1.3mm (H):

Top-View:

Side-View:

Bottom-View:

Page 17

/

27

MtM Technology Corporation

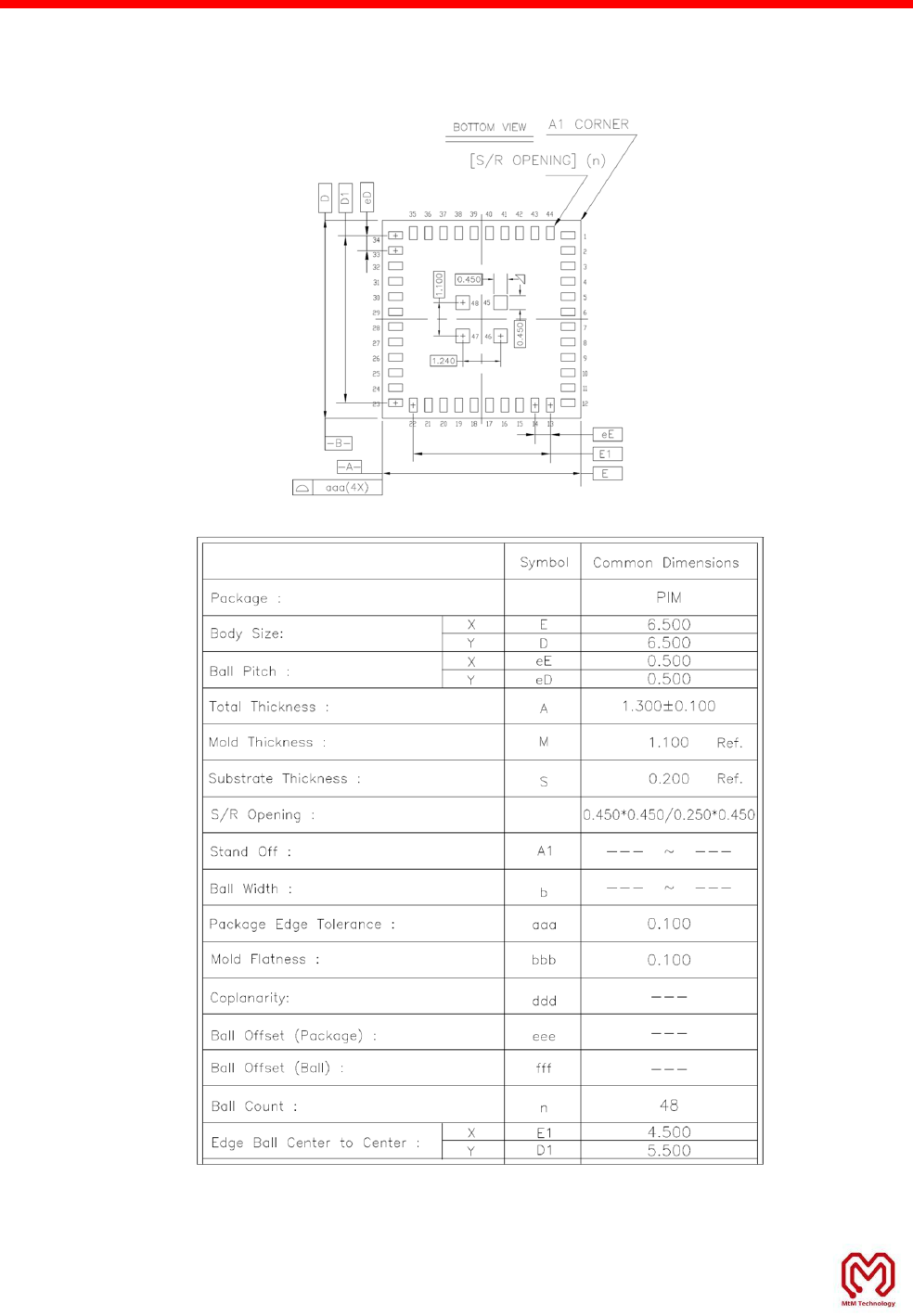

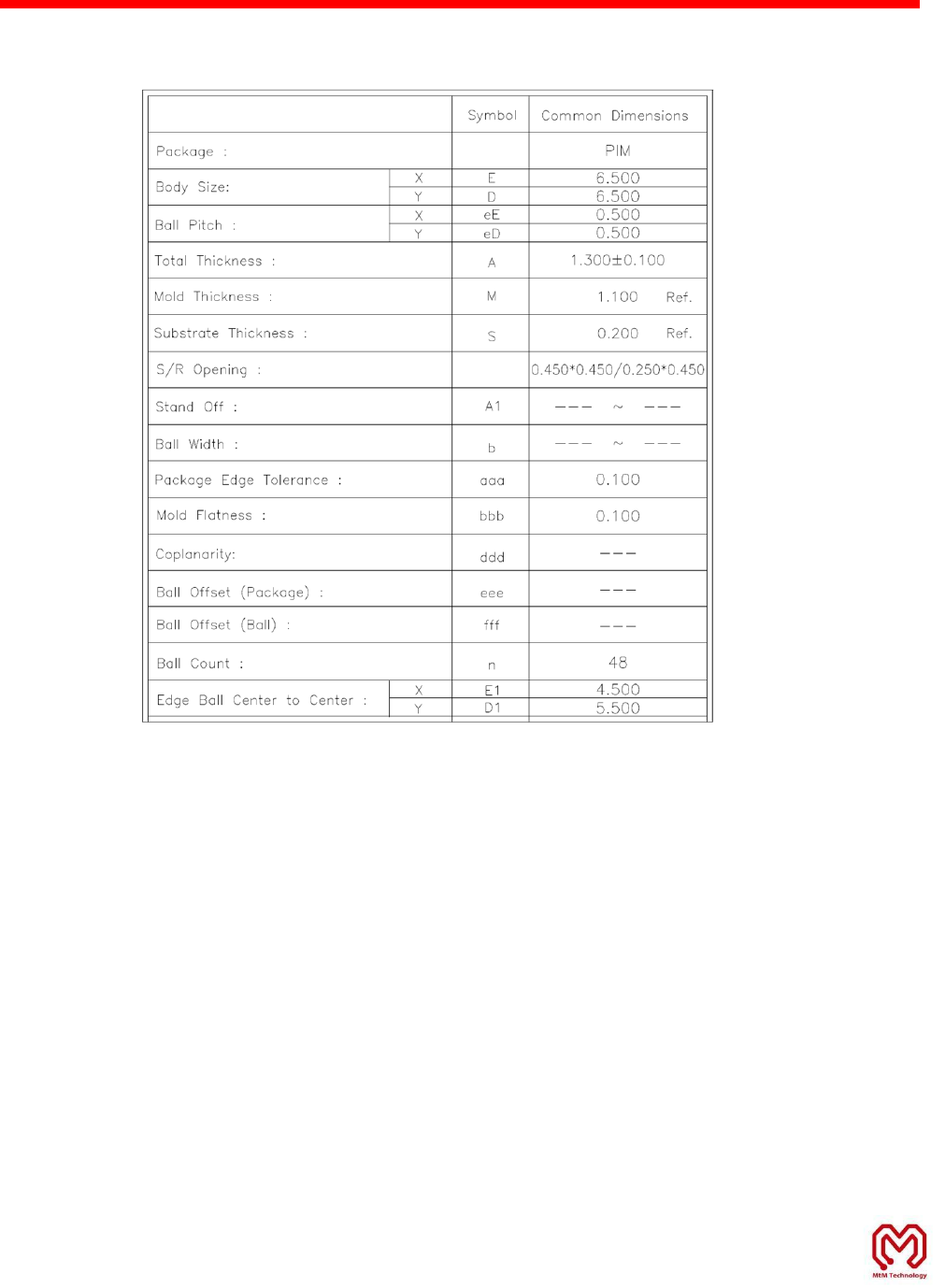

Dimensions

Page 18

/

27

MtM Technology Corporation

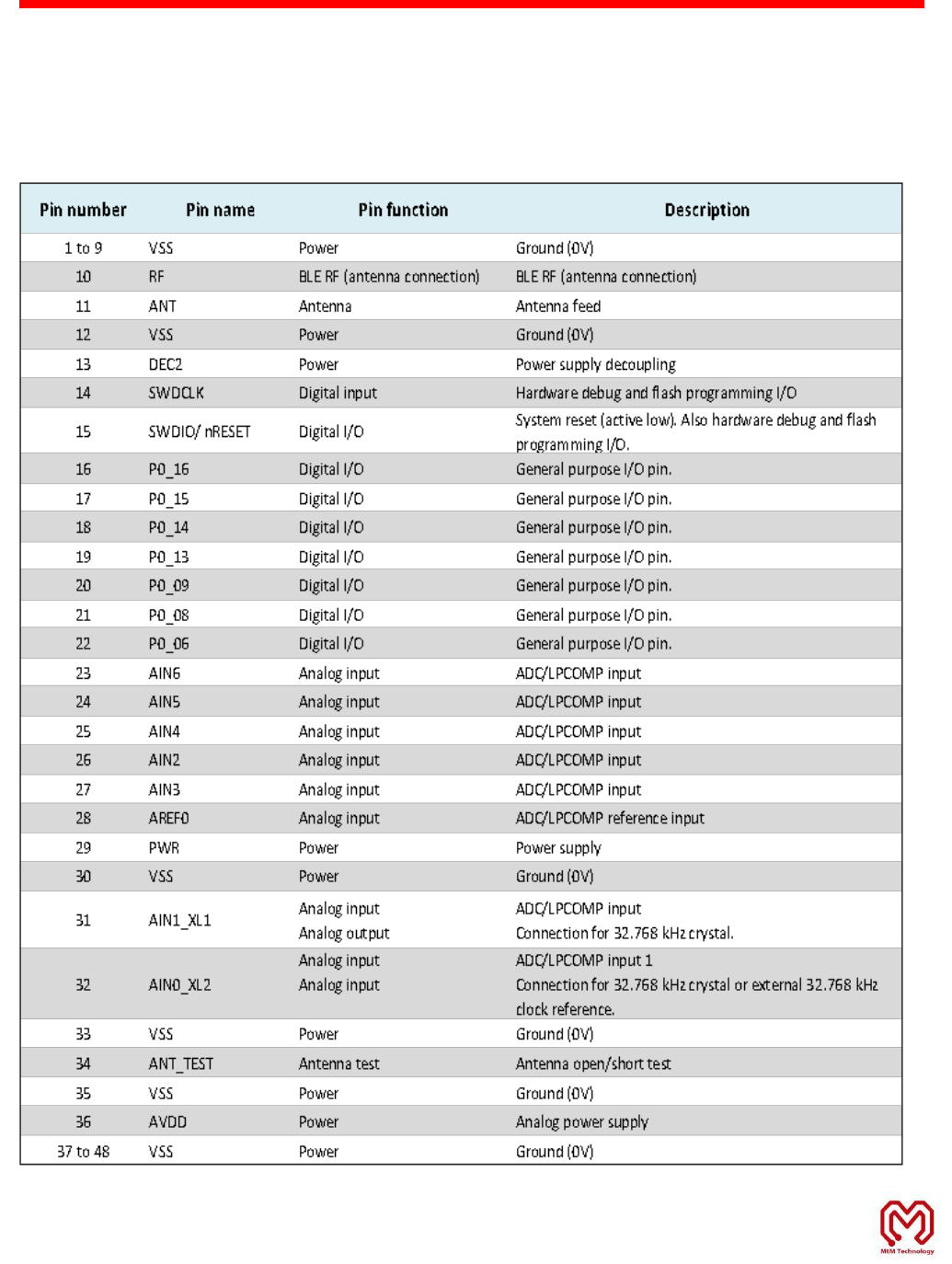

6 Pin Assignments

6.1Pin Description

The foot print dimension and pin definition is defined as below

Page 19

/

27

MtM Technology Corporation

7 Recommend Footprint

Suggest on PCB: SMD (1:1)

Page 20

/

27

MtM Technology Corporation

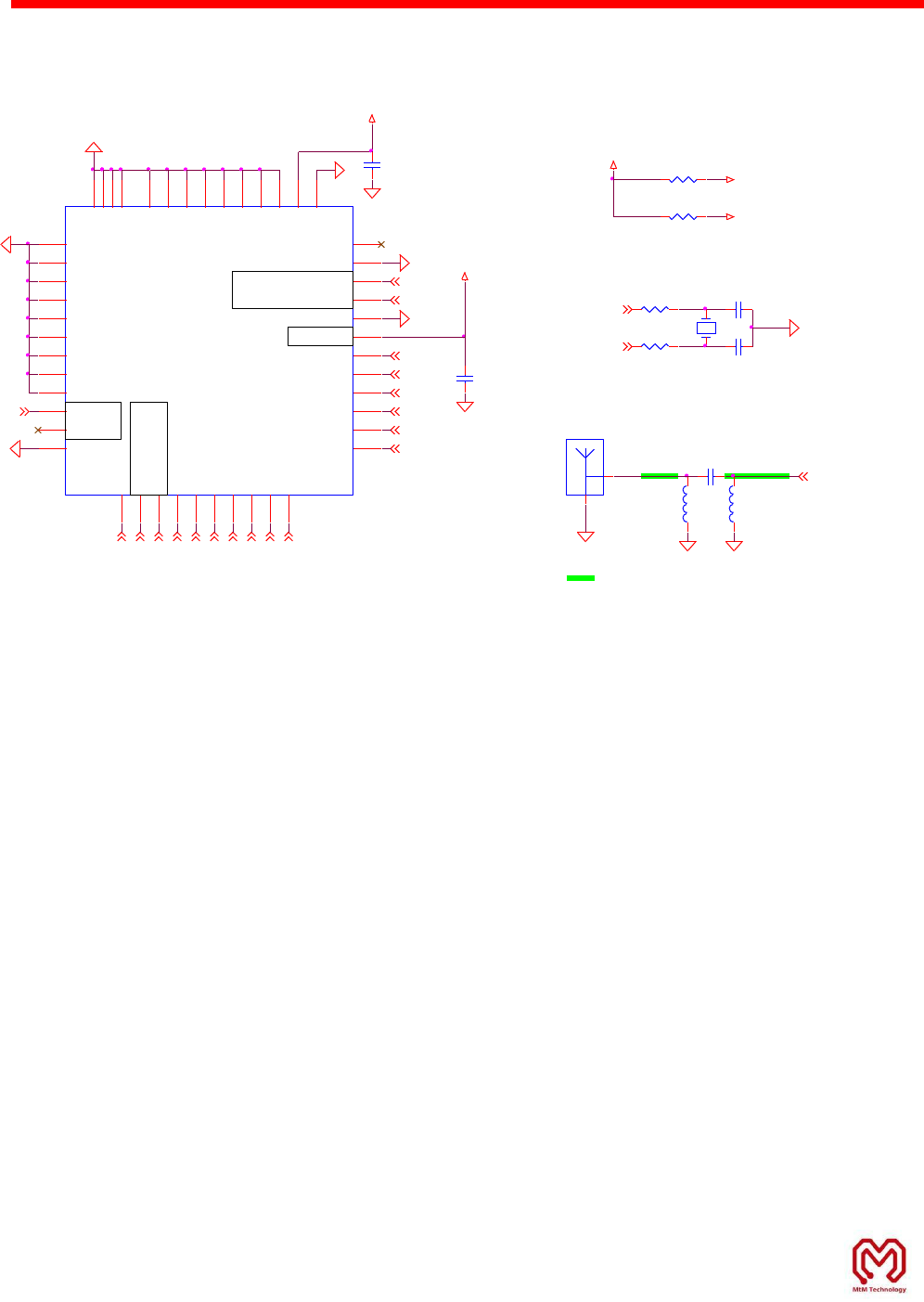

8 Reference Design Circuit

8.1 Reference Schematic

P0_27

P0_26

ANTU11

ANT 1

NC

2

2.4GHz Antenna

RF

50 Ohm trace

C2

1.0uF_0402

L6

N.L_0402

C9

0R_0402

L7

N.L_0402

VDD

AVDD

U1

M904S_BLE_Module

GND

1

GND

2

GND

3

GND

4

GND

5

GND

6

GND

7

GND

8

GND

9

RF

10

ANT

11

GND

12

DEC2

13

SWDCLK

14

SWDIO_nRESET

15

P0_16

16

P0_15

17

P0_14

18

P0_13

19

P0_09

20

P0_08

21

P0_06_AIN7_AREF1

22

ANT_TEST 34

GND 33

P0_26_AIN0_XL2 32

P0_27_AIN1_XL1 31

GND 30

VDD 29

P0_00_AREF0 28

P0_02_AIN3 27

P0_01_AIN2 26

P0_03_AIN4 25

P0_04_AIN5 24

P0_05_AIN6 23

GND 48

GND 47

GND 46

GND 45

GND 44

GND 43

GND 42

GND 41

GND 40

GND 39

GND 38

GND 37

AVDD 36

GND 35

RF

P0_09

P0_08

P0_15

P0_14

P0_13

P0_16

C17 12PF_0402

Y1 NM_32.768kHz

C16 12PF_0402

C3

1.0uF_0402

RTC (External)

P0_00

P0_01

P0_02

P0_03

P0_05

P0_04

P0_06

SWDIO

SWDCLK

DEC2

P0_27

P0_26

DC Power

R5

0R_0402

R4

0R_0402

DEC2

VDD

AVDD

R2

0R_0402

R3

0R_0402

PWR

RTC

RF JTAG

DEC

Page 21

/

27

MtM Technology Corporation

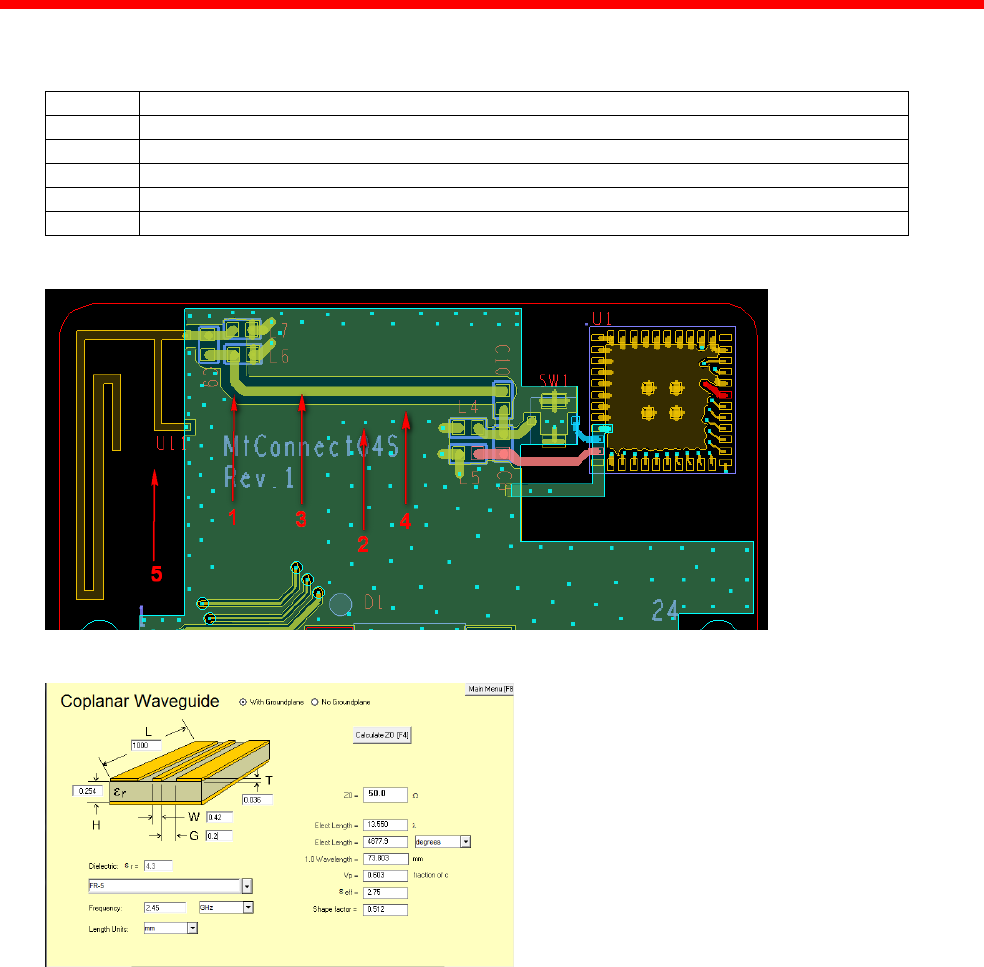

8.2 Layout Guide

The following points are observed for antenna.

Reference Description

1 The RF traces bends must be gradual with an appoximate maximum bend of 45 degrees

2 RF traces must have via on ground plane beside the RF trace on both sides

3 RF traces must have constant impedance (microstrip transmission line)

4 RF trace gound layer must be the solid ground layer immediately below RF trace.

5 There must be no trace and ground under antenna section

RF Section Layout

CPW impedance Calculation

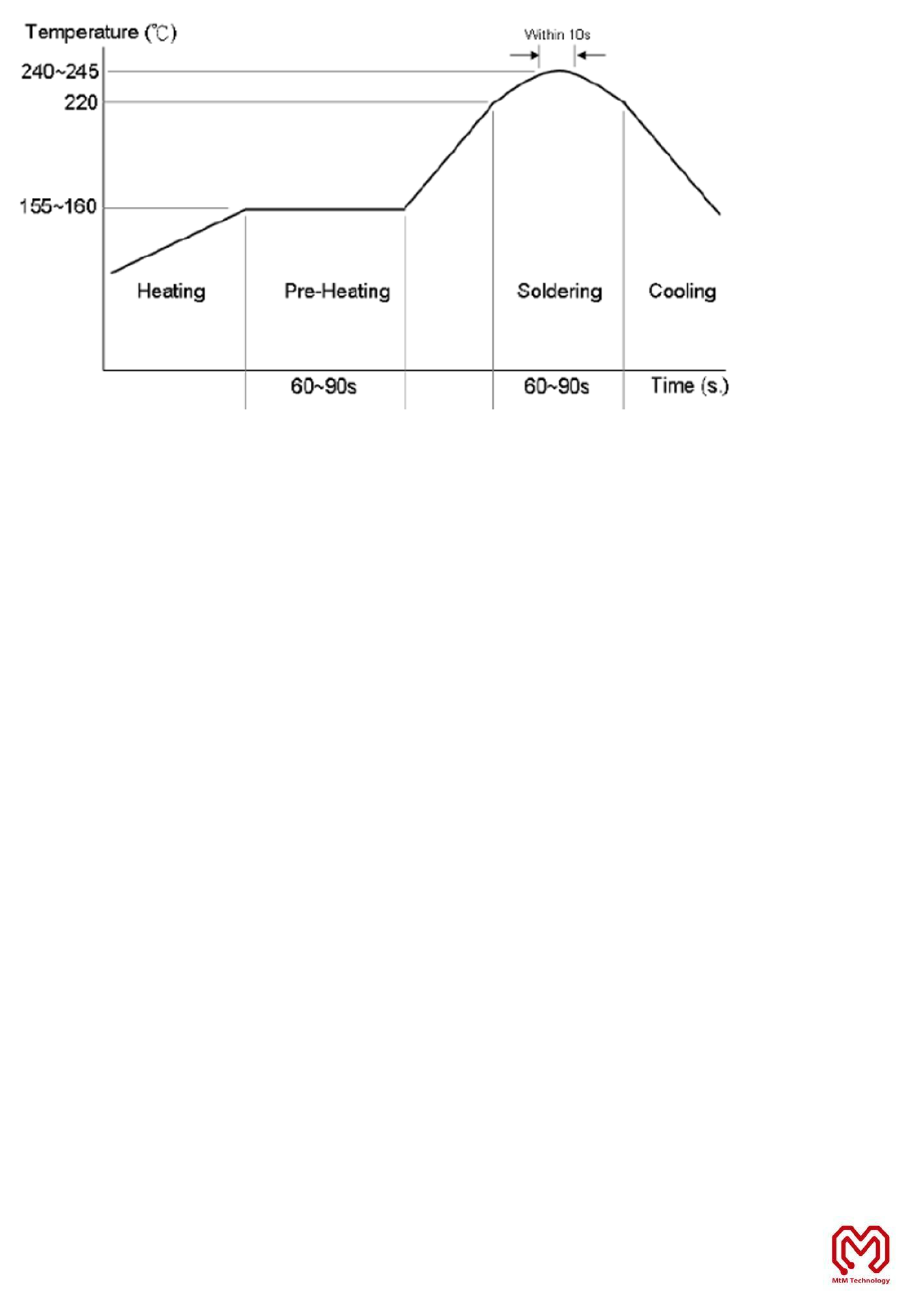

9 Recommended Reflow Profile

Profile Condition

a. Suitable for Lead-Free solder

b. Between 155~160°C: 60~90 sec.

c. Above 220°C: 60~90 sec.

d. Peak Temperature: 240~245 (<10 sec.)

Page 22

/

27

MtM Technology Corporation

10 SiP Module Preparations

10.1 Handling

Handling the module must wear the anti-static wrist strap to avoid ESD damage. After each module

is aligned and tested, it should be transport and storage with anti-static tray and packing. This

protective package must be remained in suitable environment until the module is assembled and

soldered onto the main board.

10.2 SMT Preparation

1. Calculated shelf life in sealed bag: 6 months at <40℃ and <90% relative humidity (RH).

2. Peak package body temperature: 250℃.

3. After bag was opened, devices that will be subjected to reflow solder or other high temperature

process must.

A. Mounted within: 72 hours of factory conditions <30℃/60% RH.

B. Stored at ≦10% RH with N2 flow box.

4. Devices require baking, before mounting, if:

A. Package bag does not keep in vacuumed while first time open.

B. Humidity Indicator Card is >10% when read at 23±5℃.

C. Expose at 3A condition over 8 hours or Expose at 3B condition over 24 hours.

5. If baking is required, devices may be baked for 12 hours at 125±5℃.

Page 23

/

27

MtM Technology Corporation

11 Package Information

11.1 Product Marking

Page 24

/

27

MtM Technology Corporation

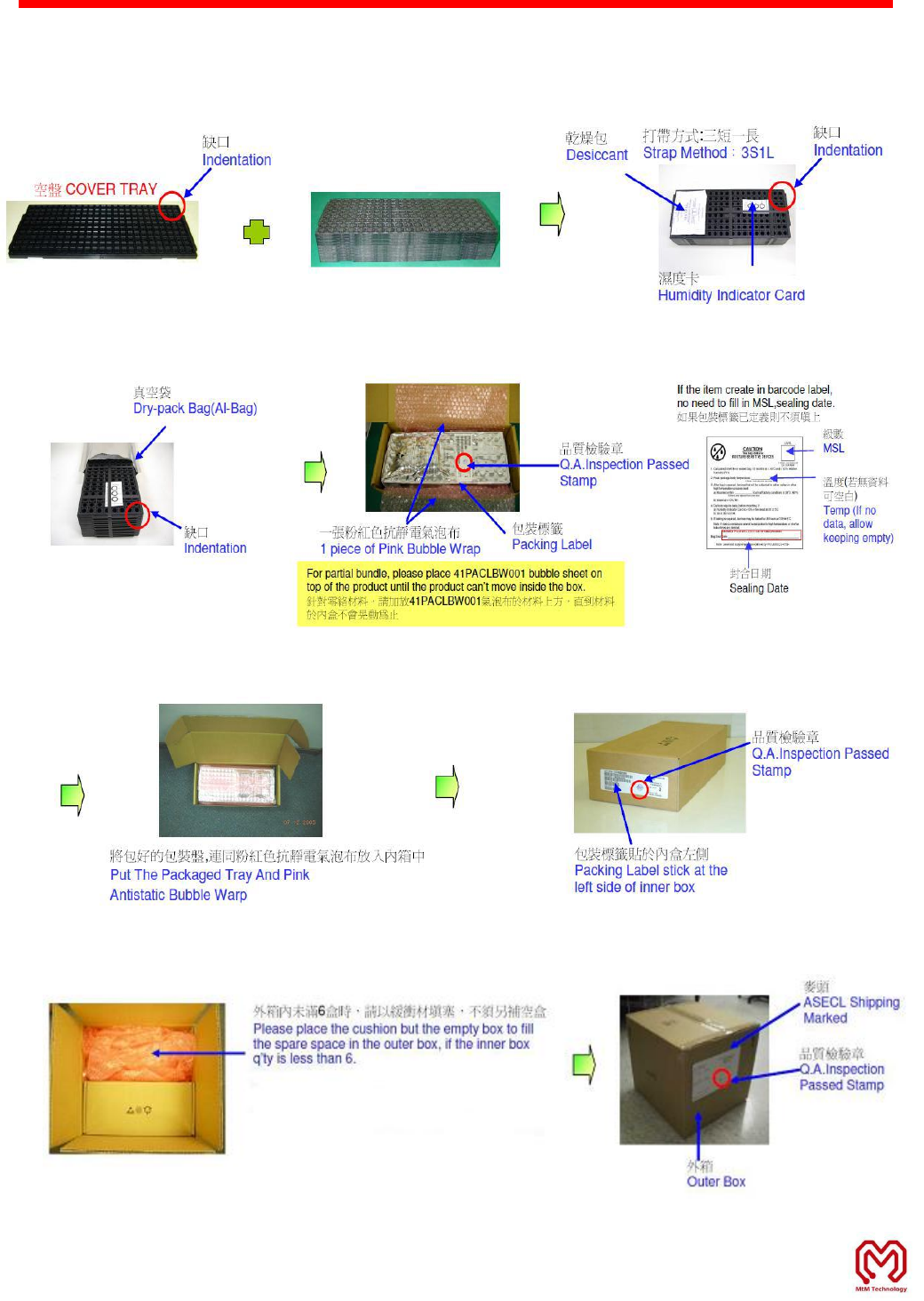

11.2 Package Information

----------------------------------------------------------------------------------------------------------------------------------------

Page 25

/

27

MtM Technology Corporation

12 BQB/CE/FCC Certification

12.1 FCC (USA)

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

Page 26

/

27

IMPORTANT NOTE:

This module is intended for OEM integrator.

The OEM integrator is still responsible for the FCC compliance requirement of the end product,

which integrates this module.

Appropriate measurements (e.g. 15 B compliance) and if applicable additional equipment

authorizations (e.g. Verification , Doc) of the host device to be addressed by the

integrator/manufacturer.

IMPORTANT NOTE:

This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC

compliance requirement of the end product, which integrates this module.

20cm minimum distance has to be able to be maintained between the antenna and the users for

the host this module is integrated into. Under such configuration, the FCC radiation exposure

limits set forth for an population/uncontrolled environment can be satisfied.

Any changes or modifications not expressly approved by the manufacturer could void the user's

authority to operate this equipment.

USERS MANUAL OF THE END PRODUCT:

In the users manual of the end product, the end user has to be informed to keep at least 20cm

separation with the antenna while this end product is installed and operated. The end user has to

be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment

can be satisfied. The end user has to also be informed that any changes or modifications not

expressly approved by the manufacturer could void the user's authority to operate this equipment.

If the size of the end product is smaller than the palm of the hand, then additional FCC part 15.19

statement is required to be available in the users manual: This device complies with Part 15 of

FCC rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference and (2) this device must accept any interference received, including

interference that may cause undesired operation.

LABEL OF THE END PRODUCT:

The final end product must be labeled in a visible area with the following " Contains TX FCC ID:

2AJ9P-M904S". If the size of the end product is larger than the palm of the hand, then the

following FCC part 15.19 statement has to also be available on the label: This device complies

with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device

may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Professional installation

Section 15.204(b) states that an approved "transmission system" must always be marketed as a

complete system including the antenna.

Page 27

/

27

MtM Plus Technology M904S M904S User Manual

MtM Technology Corporation M904S

User Manual

Navigation menu

Namespaces

Views

Navigation
