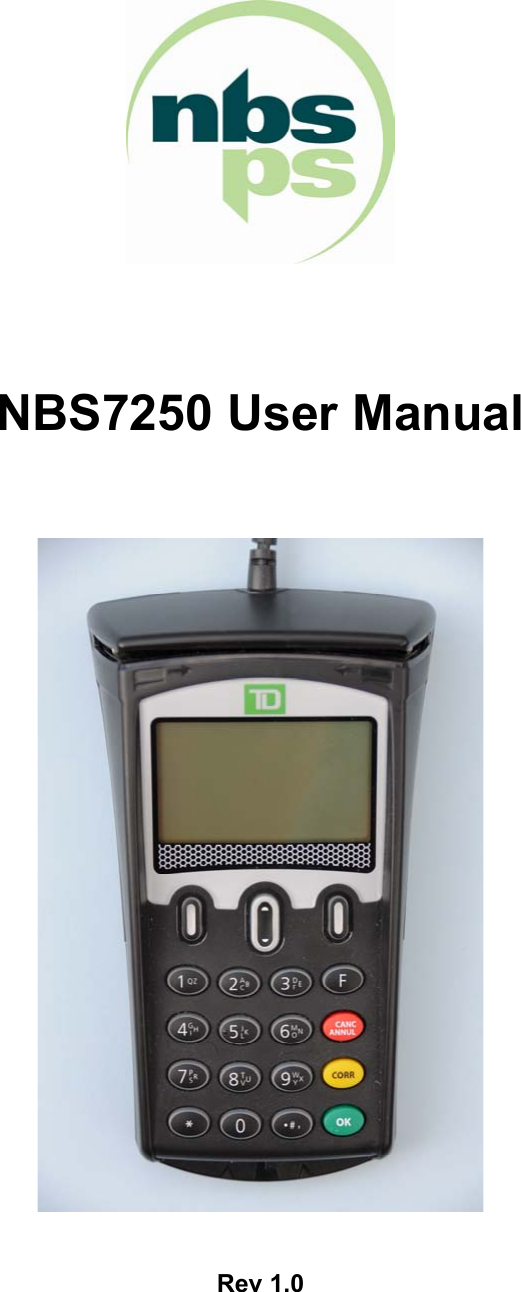

NBS Payment Solutions Division of NBS Technologies NBS7250 PIN Pad with RFID reader User Manual NBS7250

NBS Payment Solutions - Division of NBS Technologies Inc. PIN Pad with RFID reader NBS7250

User Manual

NBS7250 User Manual Rev 1.0

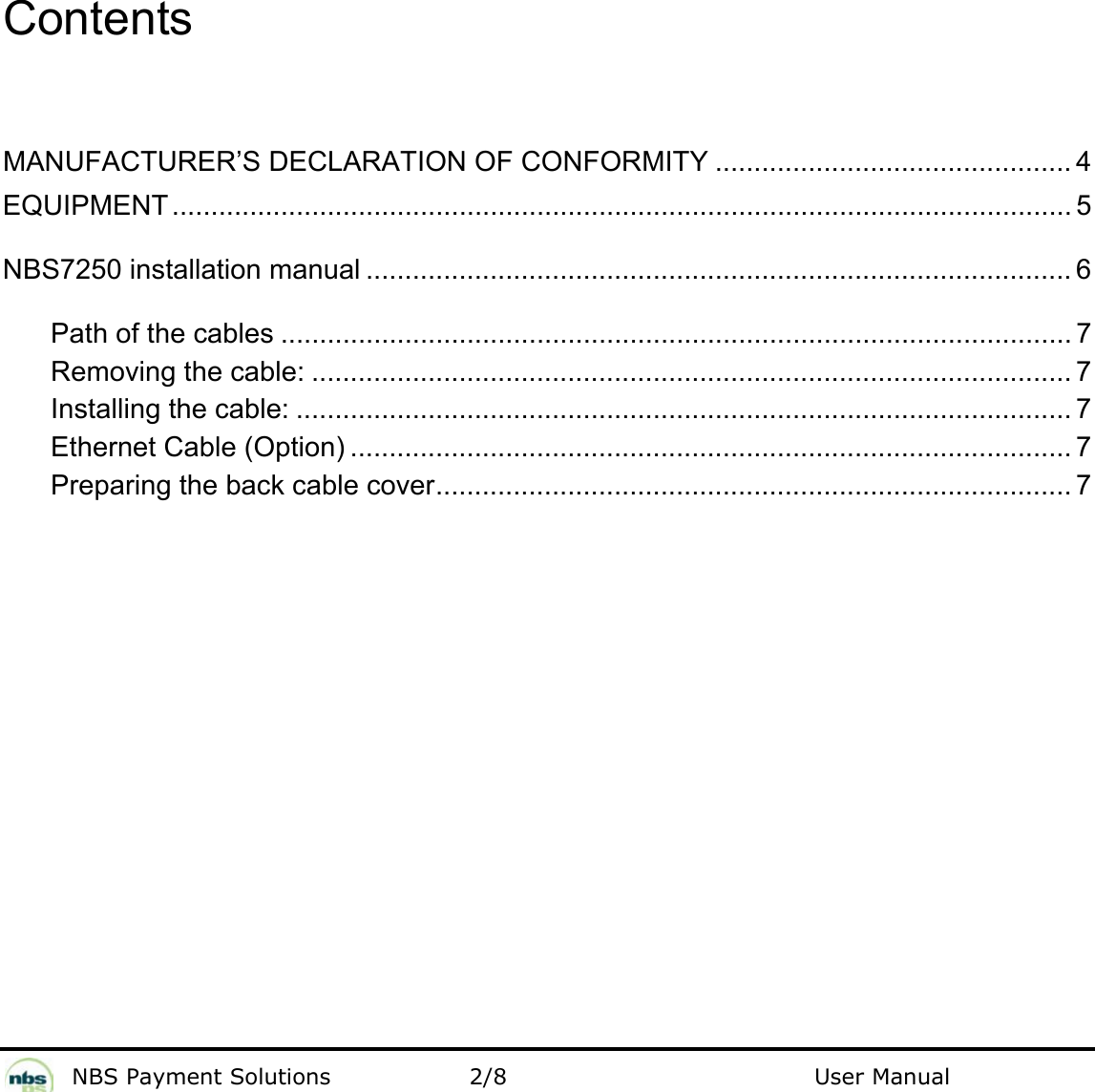

NBS Payment Solutions 2/8 User Manual Contents MANUFACTURER’S DECLARATION OF CONFORMITY .............................................. 4 EQUIPMENT .................................................................................................................... 5 NBS7250 installation manual ........................................................................................... 6 Path of the cables ...................................................................................................... 7 Removing the cable: .................................................................................................. 7 Installing the cable: .................................................................................................... 7 Ethernet Cable (Option) ............................................................................................. 7 Preparing the back cable cover.................................................................................. 7

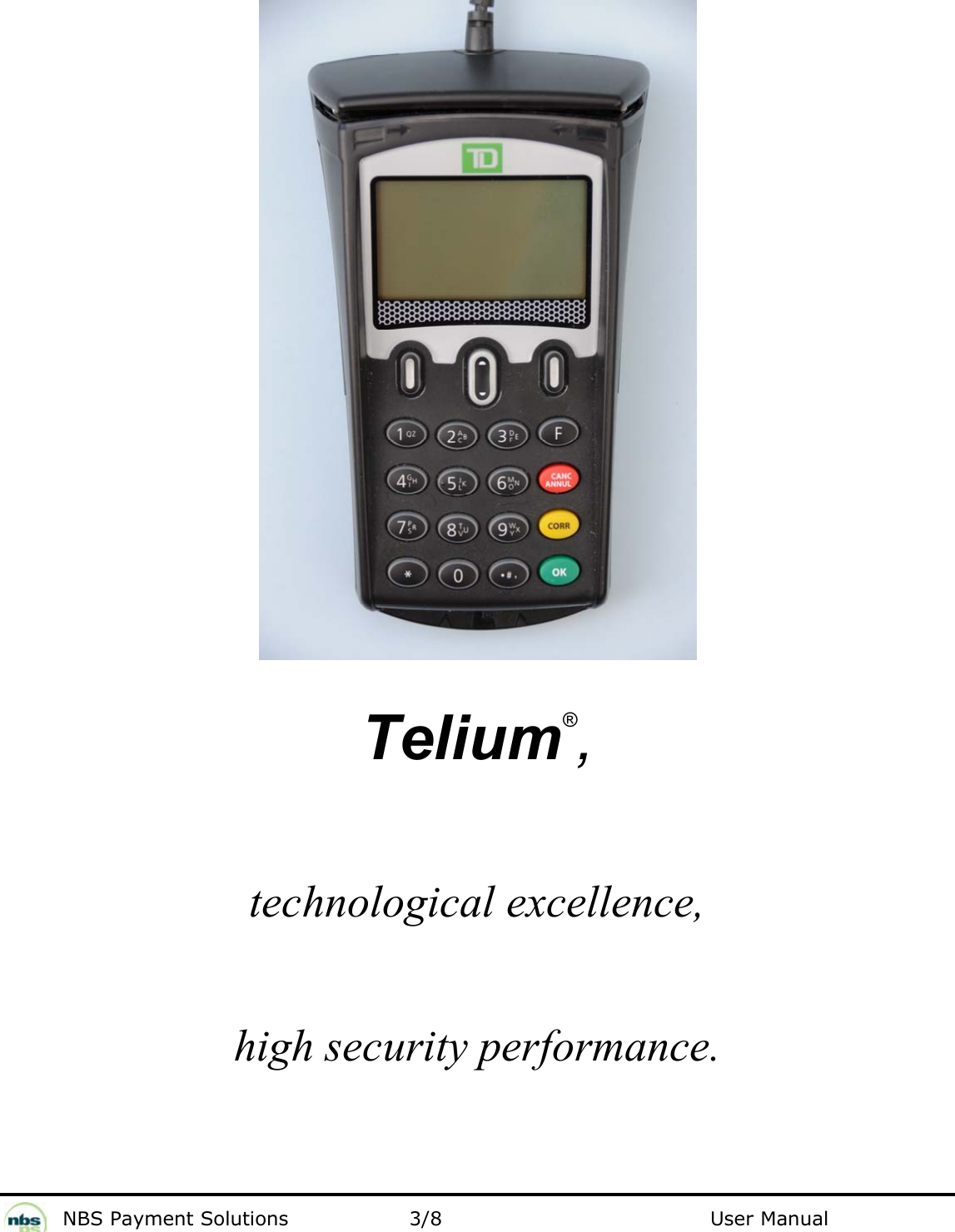

NBS Payment Solutions 3/8 User Manual Telium®, technological excellence, high security performance.

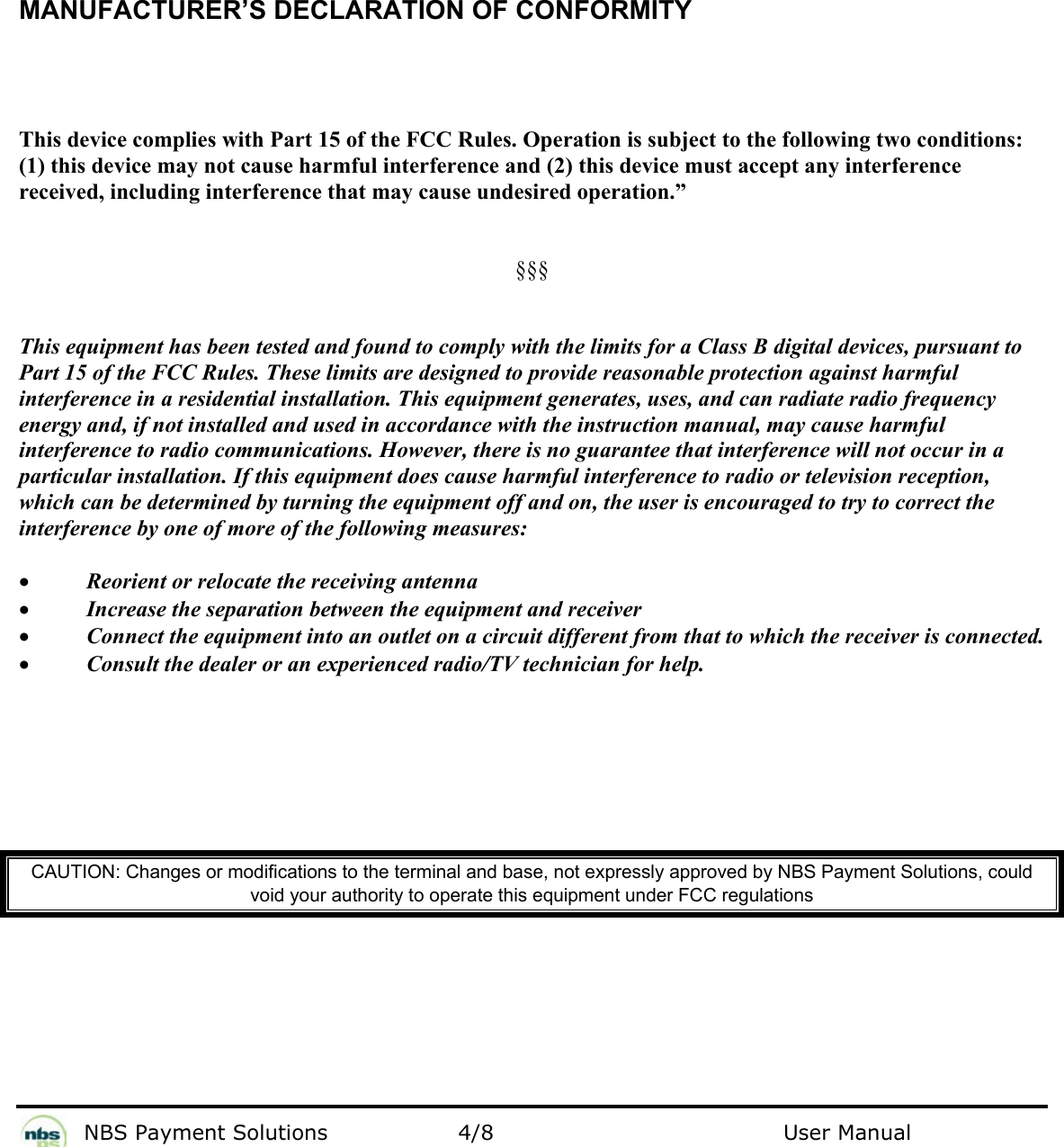

NBS Payment Solutions 4/8 User Manual MANUFACTURER’S DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.” §§§ This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications to the terminal and base, not expressly approved by NBS Payment Solutions, could void your authority to operate this equipment under FCC regulations

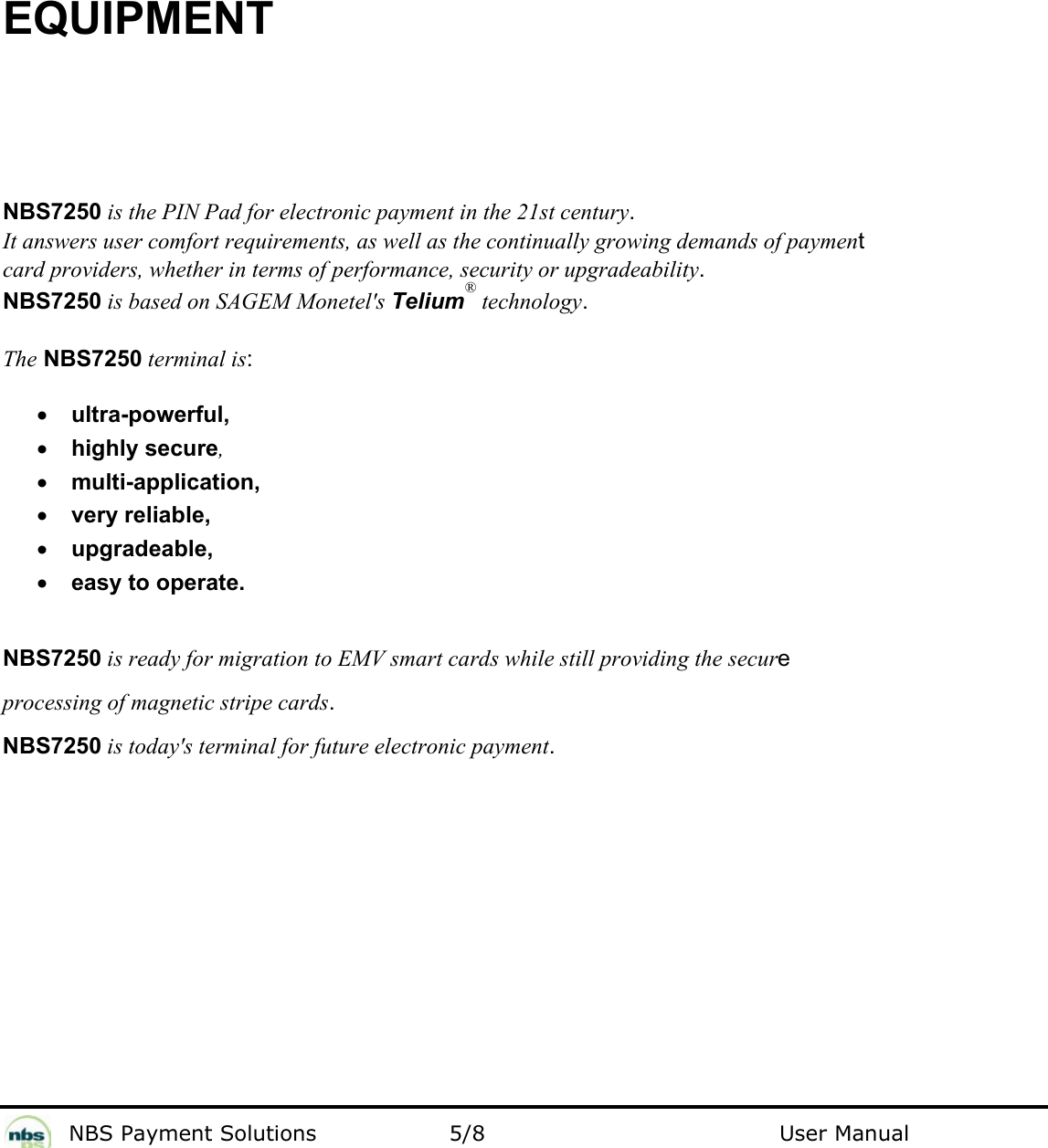

NBS Payment Solutions 5/8 User Manual EQUIPMENT NBS7250 is the PIN Pad for electronic payment in the 21st century. It answers user comfort requirements, as well as the continually growing demands of payment card providers, whether in terms of performance, security or upgradeability. NBS7250 is based on SAGEM Monetel's Telium® technology. The NBS7250 terminal is: • ultra-powerful, • highly secure, • multi-application, • very reliable, • upgradeable, • easy to operate. NBS7250 is ready for migration to EMV smart cards while still providing the secure processing of magnetic stripe cards. NBS7250 is today's terminal for future electronic payment.

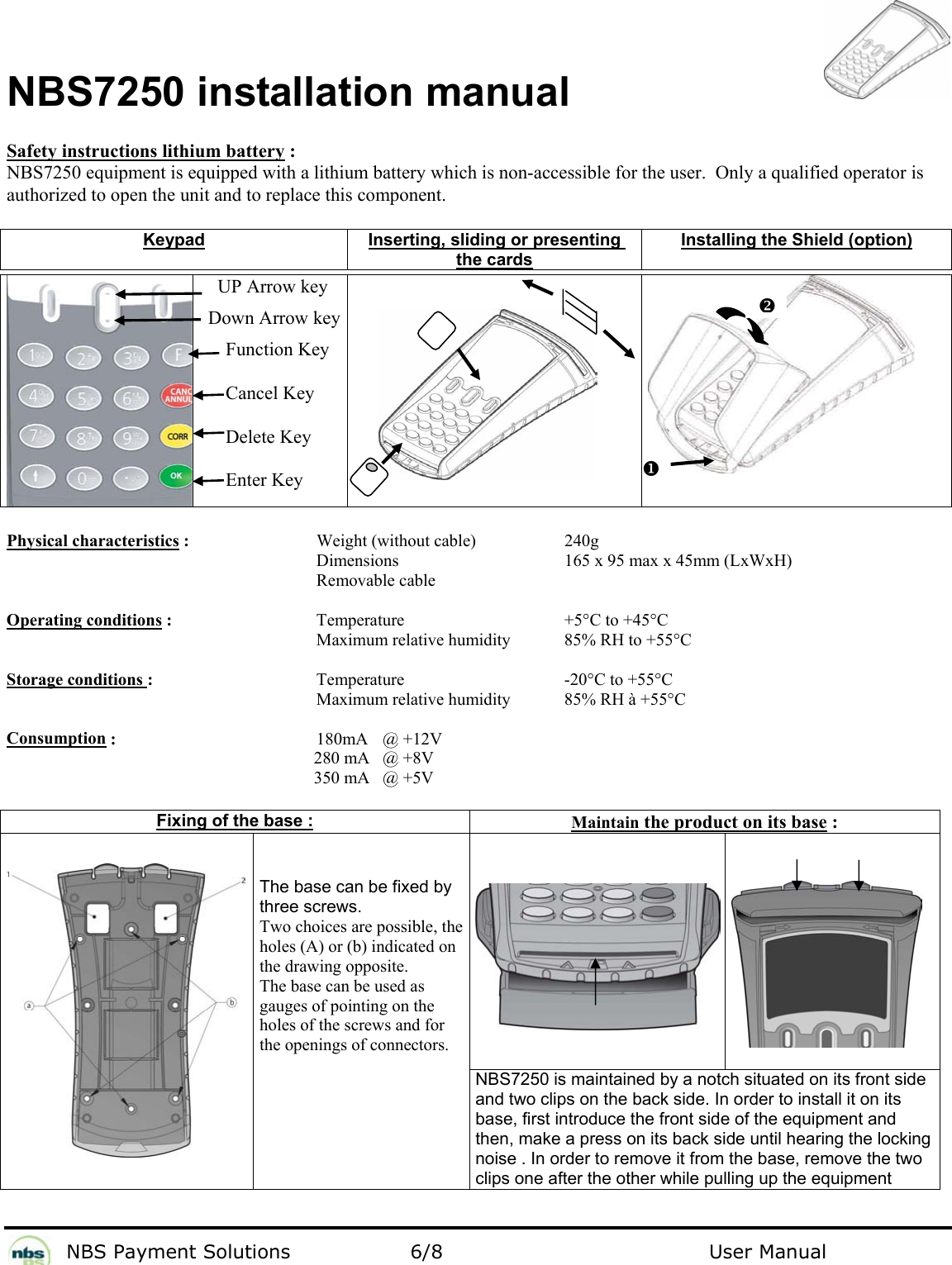

NBS Payment Solutions 6/8 User Manual NBS7250 installation manual Safety instructions lithium battery : NBS7250 equipment is equipped with a lithium battery which is non-accessible for the user. Only a qualified operator is authorized to open the unit and to replace this component. Keypad Inserting, sliding or presenting the cards Installing the Shield (option) UP Arrow key Down Arrow key Function Key Cancel Key Delete Key Enter Key Physical characteristics : Weight (without cable) 240g Dimensions 165 x 95 max x 45mm (LxWxH) Removable cable Operating conditions : Temperature +5°C to +45°C Maximum relative humidity 85% RH to +55°C Storage conditions : Temperature -20°C to +55°C Maximum relative humidity 85% RH à +55°C Consumption : 180mA @ +12V 280 mA @ +8V 350 mA @ +5V Fixing of the base : Maintain the product on its base : The base can be fixed by three screws. Two choices are possible, the holes (A) or (b) indicated on the drawing opposite. The base can be used as gauges of pointing on the holes of the screws and for the openings of connectors. NBS7250 is maintained by a notch situated on its front side and two clips on the back side. In order to install it on its base, first introduce the front side of the equipment and then, make a press on its back side until hearing the locking noise . In order to remove it from the base, remove the two clips one after the other while pulling up the equipment YX

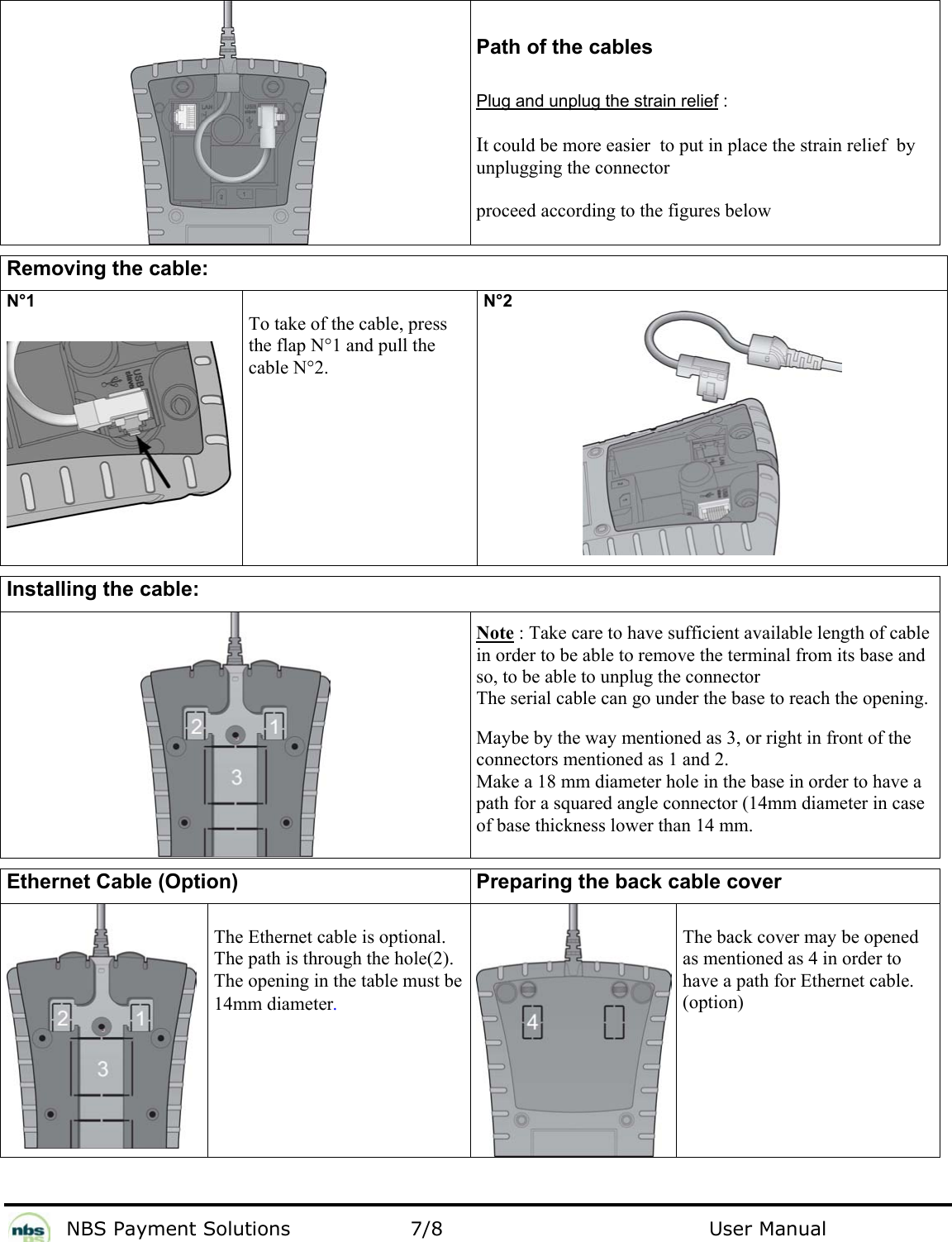

NBS Payment Solutions 7/8 User Manual Path of the cables Plug and unplug the strain relief : It could be more easier to put in place the strain relief by unplugging the connector proceed according to the figures below Removing the cable: N°1 To take of the cable, press the flap N°1 and pull the cable N°2. N°2 Installing the cable: Note : Take care to have sufficient available length of cable in order to be able to remove the terminal from its base and so, to be able to unplug the connector The serial cable can go under the base to reach the opening. Maybe by the way mentioned as 3, or right in front of the connectors mentioned as 1 and 2. Make a 18 mm diameter hole in the base in order to have a path for a squared angle connector (14mm diameter in case of base thickness lower than 14 mm. Ethernet Cable (Option) Preparing the back cable cover The Ethernet cable is optional. The path is through the hole(2). The opening in the table must be 14mm diameter. The back cover may be opened as mentioned as 4 in order to have a path for Ethernet cable. (option)

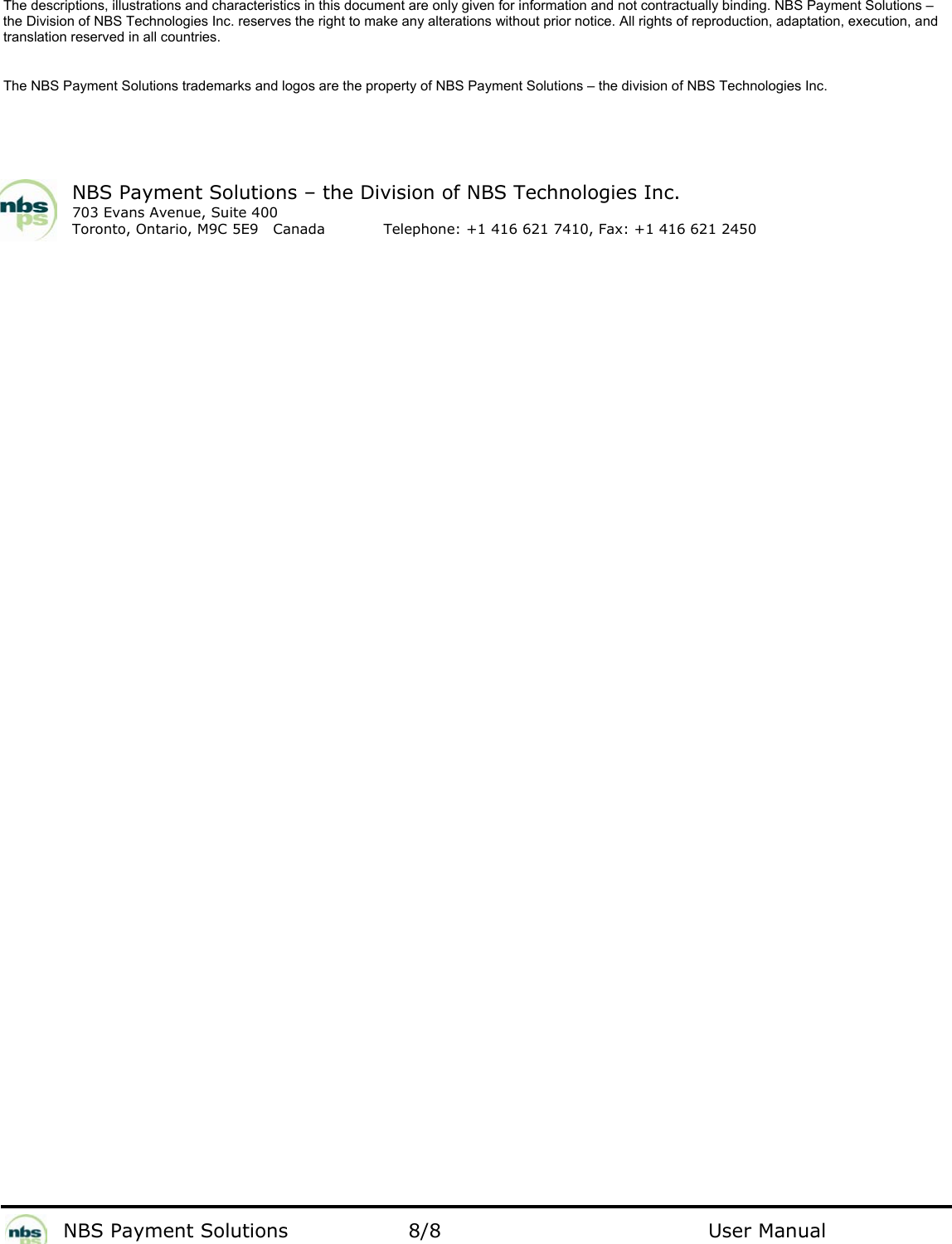

NBS Payment Solutions 8/8 User Manual The descriptions, illustrations and characteristics in this document are only given for information and not contractually binding. NBS Payment Solutions – the Division of NBS Technologies Inc. reserves the right to make any alterations without prior notice. All rights of reproduction, adaptation, execution, and translation reserved in all countries. The NBS Payment Solutions trademarks and logos are the property of NBS Payment Solutions – the division of NBS Technologies Inc. NBS Payment Solutions – the Division of NBS Technologies Inc. 703 Evans Avenue, Suite 400 Toronto, Ontario, M9C 5E9 Canada Telephone: +1 416 621 7410, Fax: +1 416 621 2450
