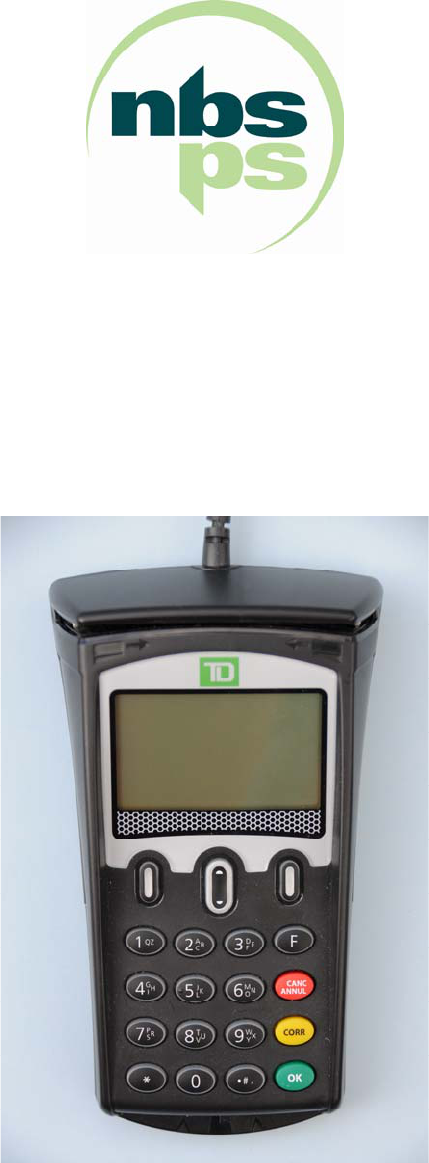

NBS Payment Solutions Division of NBS Technologies NBS7250 PIN Pad with RFID reader User Manual NBS7250
NBS Payment Solutions - Division of NBS Technologies Inc. PIN Pad with RFID reader NBS7250
User Manual
NBS7250 User Manual
Rev 1.0
NBS Payment Solutions 2/8 User Manual
Contents
MANUFACTURER’S DECLARATION OF CONFORMITY .............................................. 4
EQUIPMENT .................................................................................................................... 5
NBS7250 installation manual ........................................................................................... 6
Path of the cables ...................................................................................................... 7
Removing the cable: .................................................................................................. 7
Installing the cable: .................................................................................................... 7
Ethernet Cable (Option) ............................................................................................. 7
Preparing the back cable cover.................................................................................. 7
NBS Payment Solutions 3/8 User Manual
Telium®,
technological excellence,
high security performance.
NBS Payment Solutions 4/8 User Manual
MANUFACTURER’S DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.”
§§§
This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications to the terminal and base, not expressly approved by NBS Payment Solutions, could
void your authority to operate this equipment under FCC regulations
NBS Payment Solutions 5/8 User Manual
EQUIPMENT

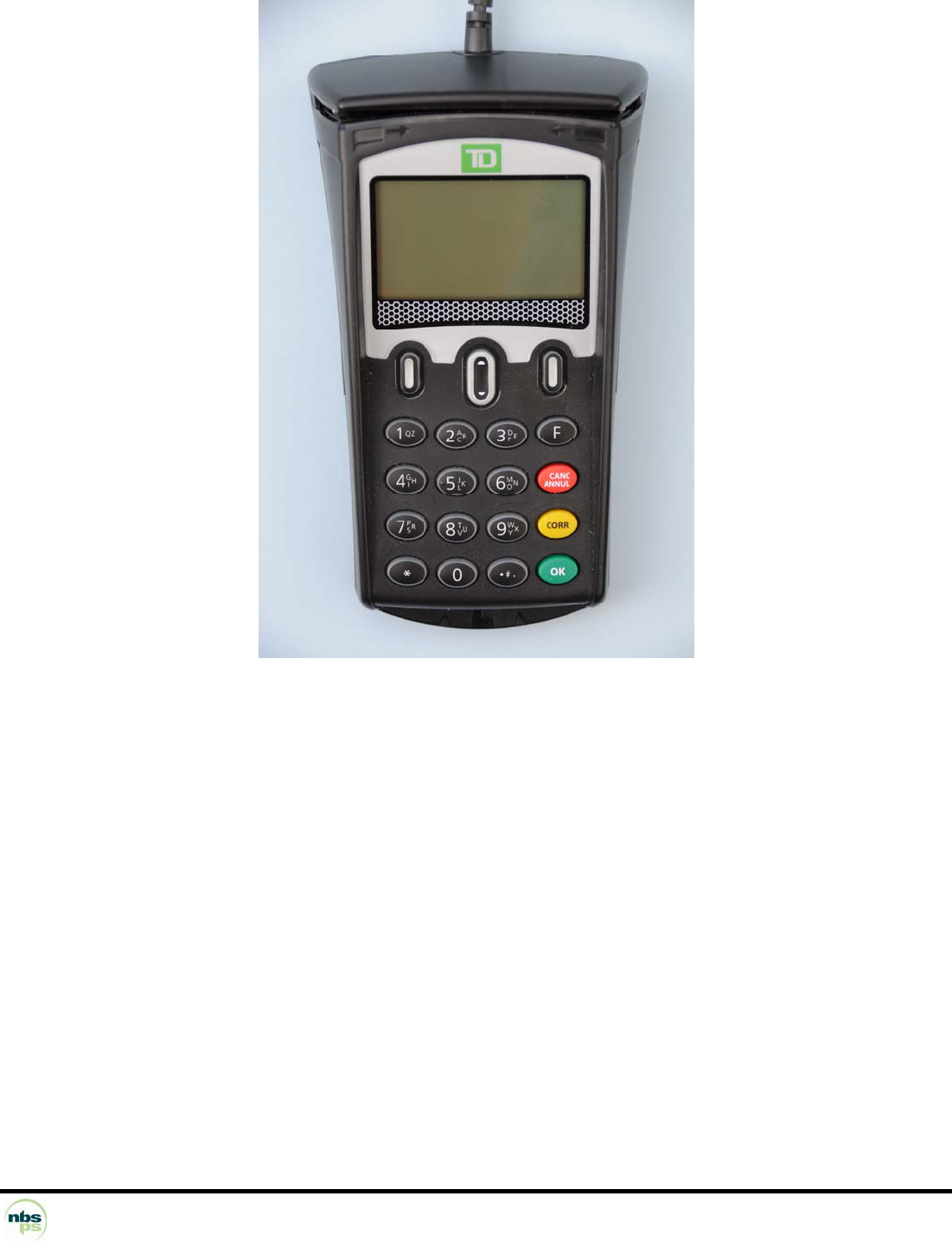

NBS7250 is the PIN Pad for electronic payment in the 21st century.
It answers user comfort requirements, as well as the continually growing demands of payment
card providers, whether in terms of performance, security or upgradeability.
NBS7250 is based on SAGEM Monetel's Telium® technology.
The NBS7250 terminal is:
• ultra-powerful,
• highly secure,
• multi-application,
• very reliable,
• upgradeable,
• easy to operate.
NBS7250 is ready for migration to EMV smart cards while still providing the secure
processing of magnetic stripe cards.
NBS7250 is today's terminal for future electronic payment.
NBS Payment Solutions 6/8 User Manual

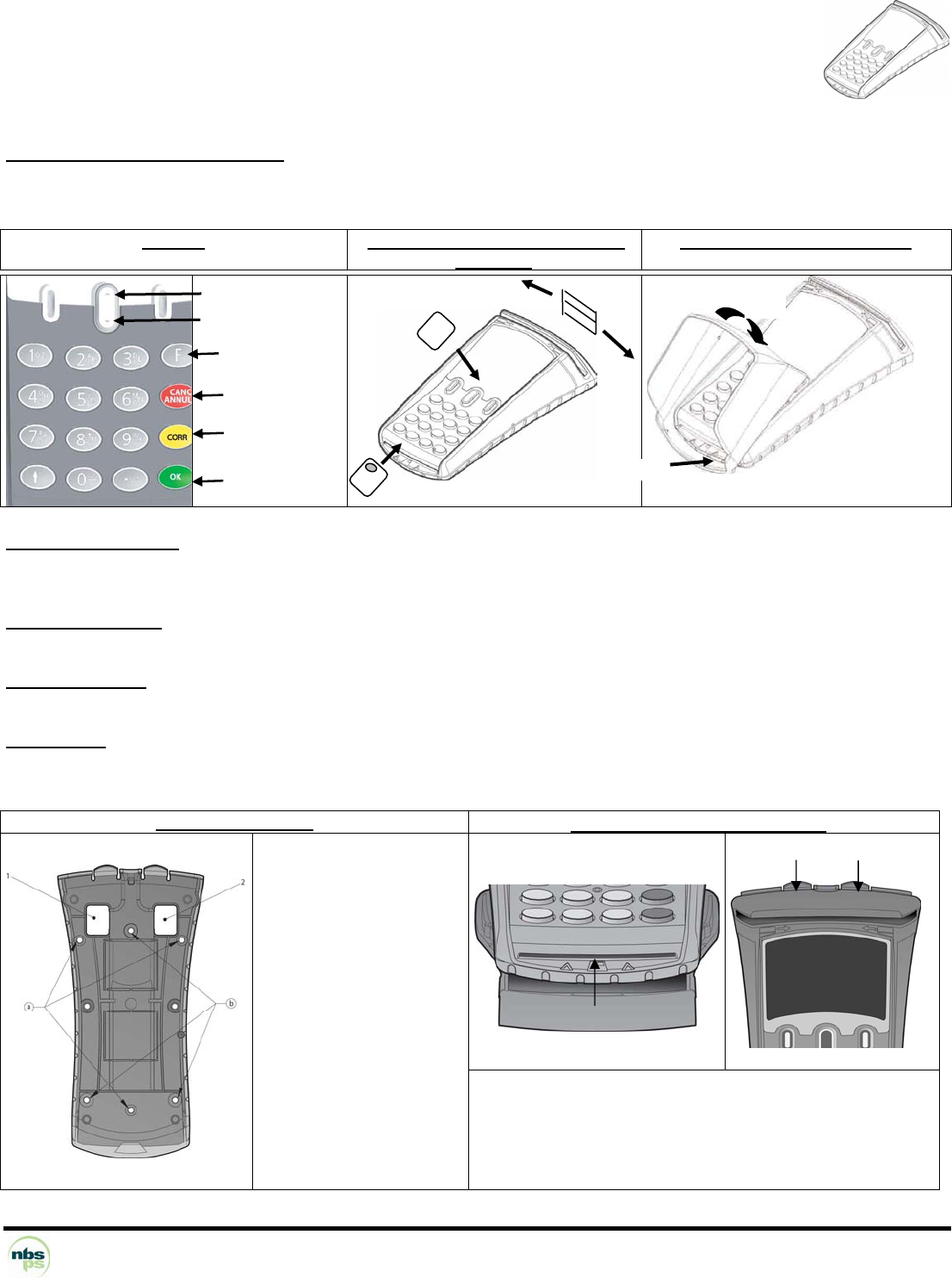

NBS7250 installation manual
Safety instructions lithium battery :
NBS7250 equipment is equipped with a lithium battery which is non-accessible for the user. Only a qualified operator is
authorized to open the unit and to replace this component.
Keypad Inserting, sliding or presenting
the cards
Installing the Shield (option)
UP Arrow key
Down Arrow key
Function Key
Cancel Key
Delete Key
Enter Key
Physical characteristics : Weight (without cable) 240g
Dimensions 165 x 95 max x 45mm (LxWxH)
Removable cable
Operating conditions : Temperature +5°C to +45°C
Maximum relative humidity 85% RH to +55°C
Storage conditions : Temperature -20°C to +55°C
Maximum relative humidity 85% RH à +55°C
Consumption : 180mA @ +12V
280 mA @ +8V
350 mA @ +5V
Fixing of the base : Maintain the product on its base :
The base can be fixed by
three screws.
Two choices are possible, the
holes (A) or (b) indicated on
the drawing opposite.
The base can be used as
gauges of pointing on the
holes of the screws and for
the openings of connectors.
NBS7250 is maintained by a notch situated on its front side
and two clips on the back side. In order to install it on its
base, first introduce the front side of the equipment and
then, make a press on its back side until hearing the locking
noise . In order to remove it from the base, remove the two
clips one after the other while pulling up the equipment
Y
X
NBS Payment Solutions 7/8 User Manual

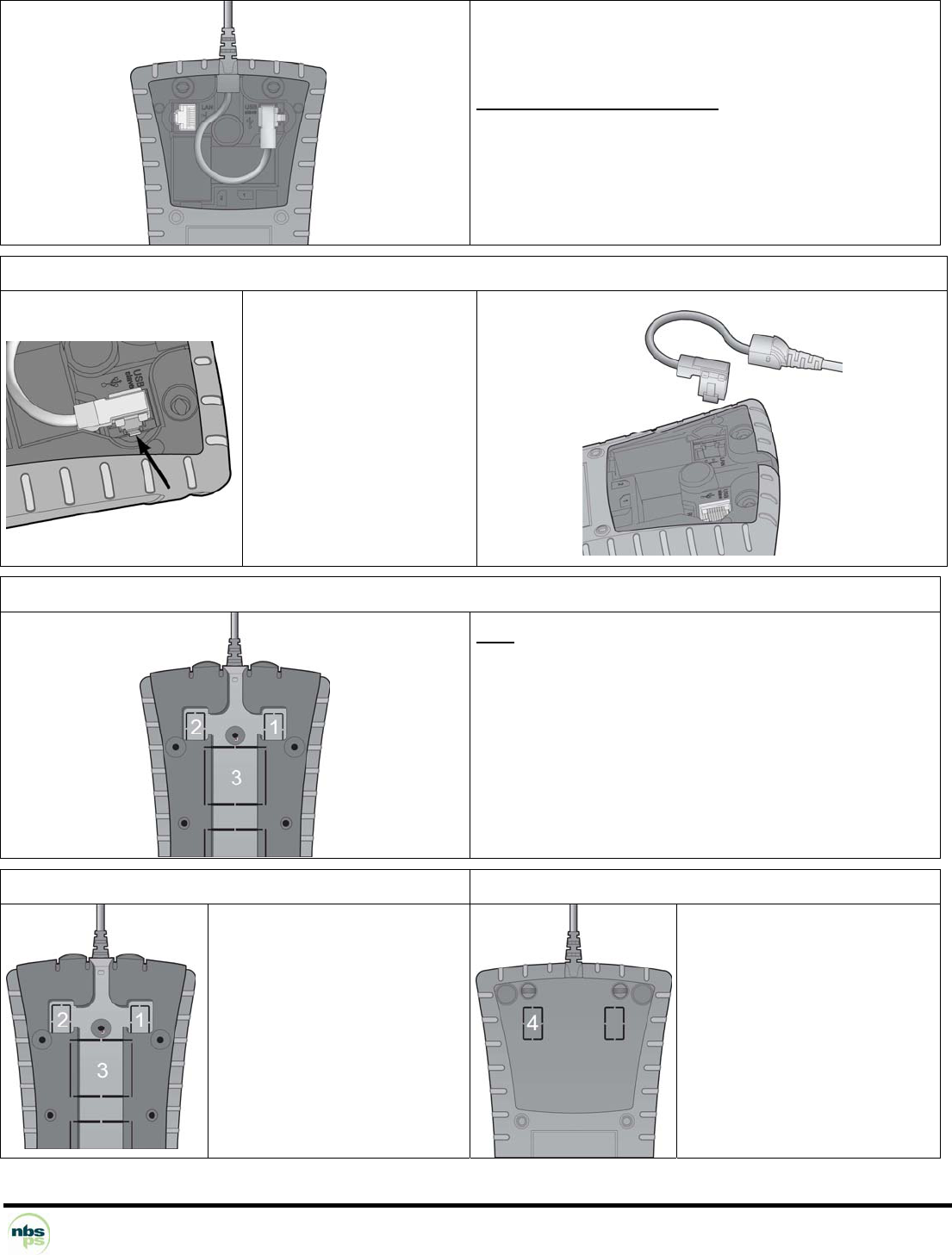

Path of the cables
Plug and unplug the strain relief :
It could be more easier to put in place the strain relief by
unplugging the connector
proceed according to the figures below
Removing the cable:
N°1
To take of the cable, press
the flap N°1 and pull the
cable N°2.
N°2
Installing the cable:
Note : Take care to have sufficient available length of cable
in order to be able to remove the terminal from its base and
so, to be able to unplug the connector
The serial cable can go under the base to reach the opening.
Maybe by the way mentioned as 3, or right in front of the
connectors mentioned as 1 and 2.
Make a 18 mm diameter hole in the base in order to have a
path for a squared angle connector (14mm diameter in case
of base thickness lower than 14 mm.
Ethernet Cable (Option) Preparing the back cable cover
The Ethernet cable is optional.
The path is through the hole(2).
The opening in the table must be
14mm diameter.
The back cover may be opened
as mentioned as 4 in order to
have a path for Ethernet cable.
(option)
NBS Payment Solutions 8/8 User Manual
