NEC Corporation of America Bluetooth Hub BHE L UNIT CCS
Users Manual
<Unpairing>
To unpair a paired the Bluetooth® device, select the device in the [Delete] screen.
ĄOther Setting and Check
<Visibility Setting>
Set whether to make information about the BHA-L UNIT visible to other Bluetooth® devices
(default: [2. Enable]).
<BT Information>
You can view the following kinds of information about the BHA-L UNIT:
¥
Firmware and hardware versions
¥
Bluetooth® module information and
standard
¥
Installed profile versions
¥
Device address and name
ĄSpecifications
※Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc. and is licensed to NEC Infrontia
Corporation.
ĄIntroduction

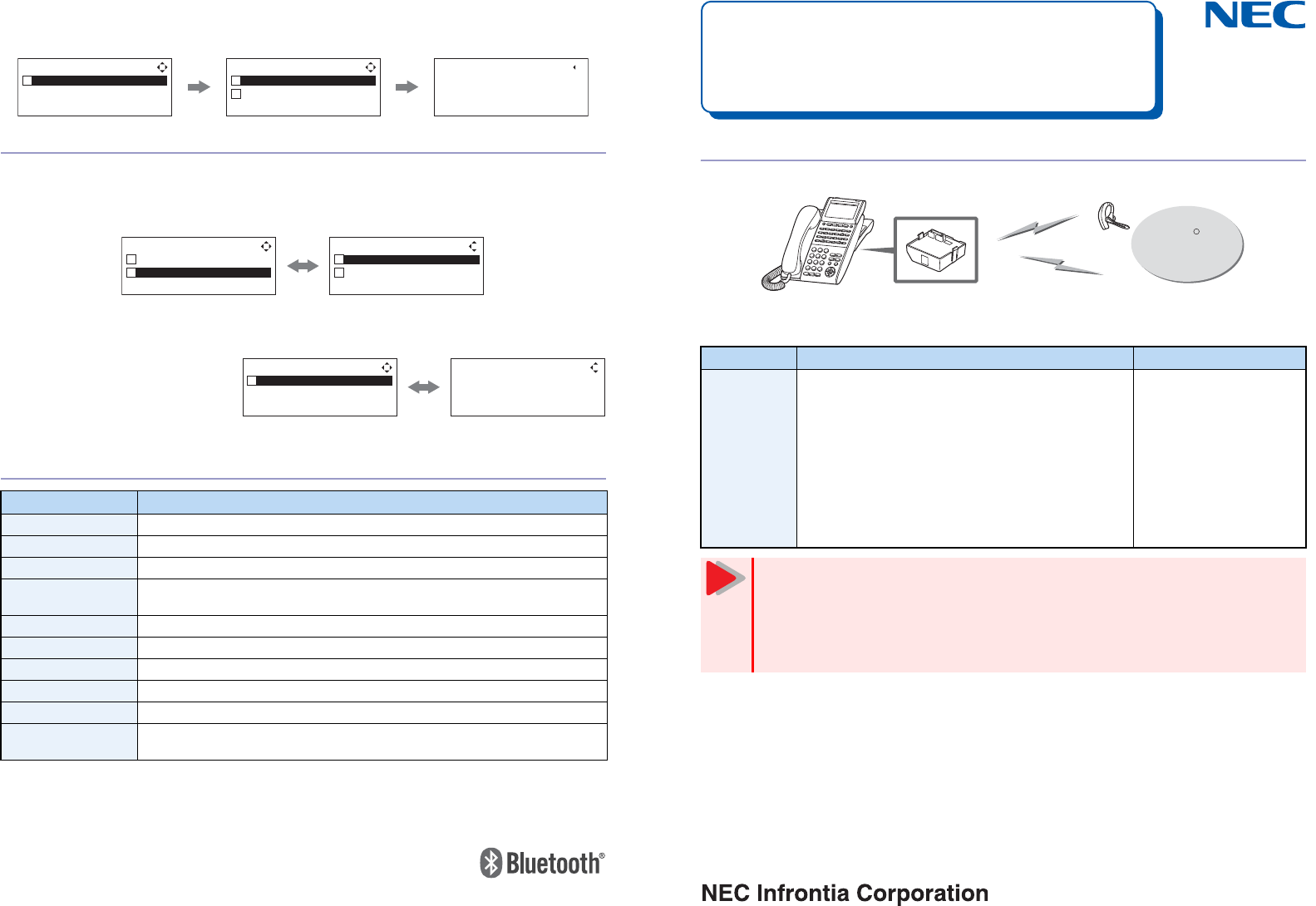

The BHA-L UNIT is an adapter that connects a Bluetooth® device to a multifunctional telephone.
The table below lists the type of device that can be connected to the BHA-L UNIT and the functions sup-
ported by it.
ĄImportant
ûThis product features built-in radio equipment that operates on the entire band of
2.4 to 2.4835 GHz. Bands in which mobile stations are identified can be avoided.
The product supports the FH-SS modulation method and an interfering distance of
80m. It is labeled with a mark to designate these characteristics as shown at right.
ûThe working frequency band of this device is shared by industrial, scientific and medical equipment,
such as microwave ovens, premises radio stations that are typically used in manufacturing lines at
plants for mobile identification (radio stations that require licensing) and specified low-power radio sta-
tions (license-free radio stations).
Item Specification
Destination
Multifunctional telephone bottom-unit connector (except for economy multifunctional telephone)
Bluetooth® version Bluetooth® version 2.0
Radio interface Bluetooth® Class1
Installed profiles eGAP : Generic Access Profile eHSP : Headset Profile
eSPP : Serial Port Profile eHFP : Hands Free Profile
Power consumption About 0.8 W (excluding the telephone)
Power feeding method Power feeding from the multifunctional telephone
Dimensions (L
×
W
×
H)
82mm
×
65mm
×
25mm
Weight 150g
Operating environment Temperature: 0 to 40℃, Relative humidity: 10 to 90% (no dew condensing)
Restrictions Keep the BHA-L UNIT at least 1m apart from other BHA-L units and at least 3m apart
from other radio equipment.
=2CKTKPI?
ĉĊ$CEM1-
Ĵ Ĵ
ĵ
=$NWGVQQVJ*GCFUGV?
&GNGVG
%QPPGEV
ĉĊ$CEM1-
=&GNGVG?
&GNGVG$6&GXKEG1-!
$CEM1-
Ĵ Ĵ
=$NWGVQQVJ?
2CKTKPI/QFG
8KUKDKNKV[
ĉĊ$CEM1-
Ĵ
ĵ
=8KUKDKNKV[?
&KUCDNG
'PCDNG
ĉĊ$CEM1-
Ĵ
ĵ
Ĵ
ĵ
=$NWGVQQVJ?
$6+PHQTOCVKQP
ĉĊ$CEM1-
Ķ
=$6+PHQTOCVKQP?
(KTOYCTG8GTUKQP::ZZ
*CTFYCTG8GTUKQP::ZZ
ĉĊ'ZKV
Ķ
Type of device
Available function Remarks
Bluetooth®
headset
¥
¥
Originating calls to an extension or central office line
Press the headset call (call control) key twice briefly and per-
form a dialing operation from the telephone.
¥
Answering terminating calls
Press the headset call (call control) key while a call termi-
nates with a ring tone.
※The headset call control key allows you to only originate
calls from the headset and answer terminating calls.
Any other headset-specific functions are not supported.
※The handset cannot be used while you are talking with the
Bluetooth® headset on. You cannot switch to the Bluetooth®
headset to use while you are using the handset, either.
¥
The ringing of calls terminat-
ing to the headset is linked
with that of the telephone,
though some ringing fea-
tures, such as a busy tone,
are not supported.
※For latest information about
recommended products,
browse the following Web
site:
http://www.necinfron-
tia.co.jp/
¥
A headset with built-in Bluetooth
®
supporting the HFP/HSP profiles can be connected to the BHA-L UNIT.
¥
The receiver volume can be controlled with the multifunctional telephone (the cursor up and down
keys or the volume key).
¥
Whether the functions mentioned above work or not depends on the destination system. For more
details, refer to the use’s guide that comes with the destination system.
¥
The ways you originate calls from the Bluetooth® headset and answer terminating calls may vary
depending on the type of device you use.
A50-012515-001
Issue 1.0
2007.12
BHA-L UNIT Connection Manual
BHA-L UNIT
Bluetooth -ready
headset
R
Caution
2.4 FH 8
2 3

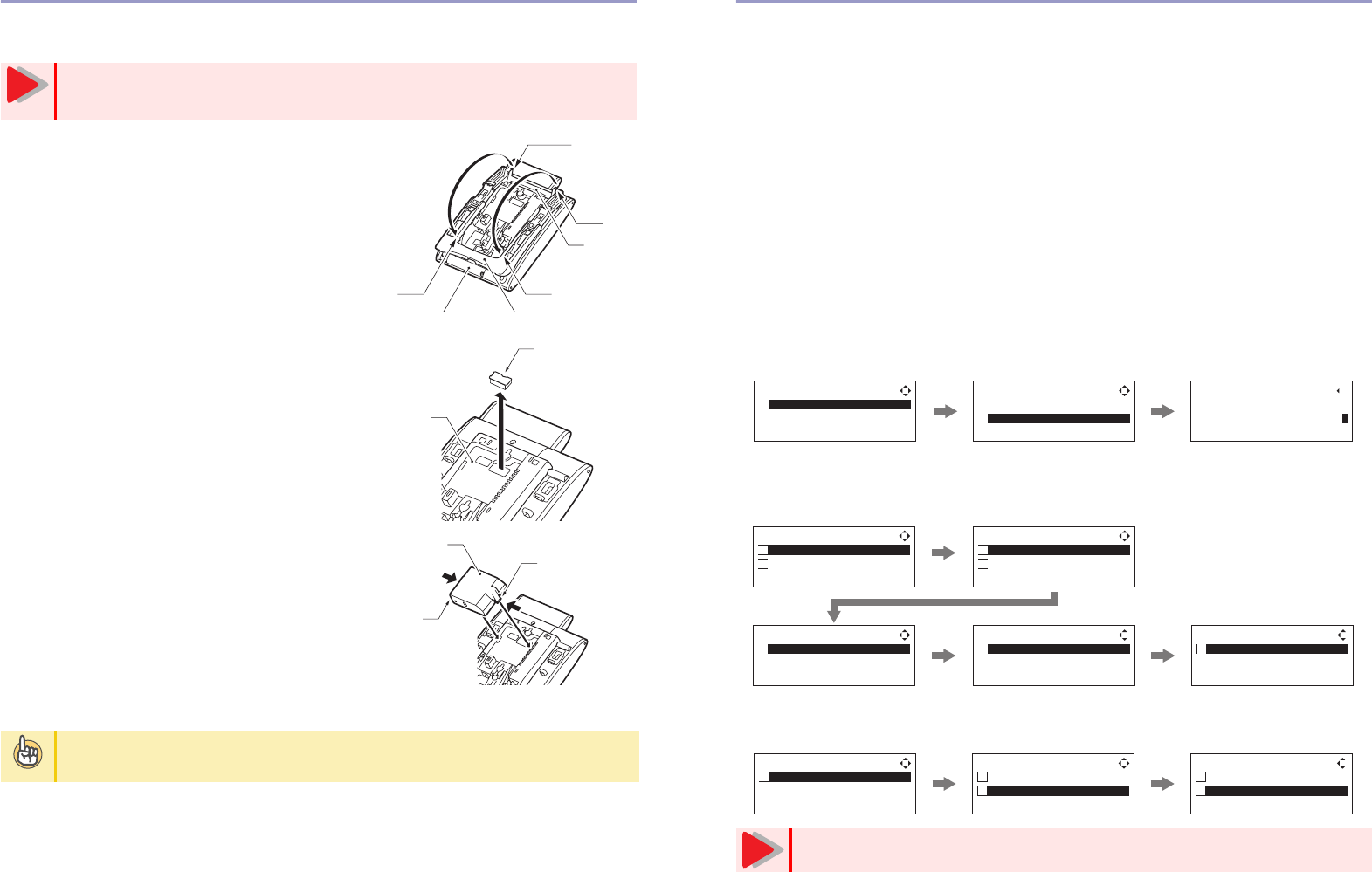

▼Mounting Procedure
Follow the steps below to attach the BHA-L UNIT to the bottom-unit connector on the back of the multi-
functional telephone. If the telephone is furnished with various cables, remove these cables first.
1Turn over the telephone.
2Lower the tilt legs to the first level.
3Release lugs a and b on the stopper
from grooves A and B in the tilt legs
and widen the tilt legs.
4Remove the connector cover (rubber)
from the bottom unit connector.
5Attach the BHA-L UNIT to the tele-
phone connector while pushing the
claws on both sides of the unit.
6Replace the tilt legs in original position.
The installation of the BHA-L UNIT is complete.
▼
Pairing a Bluetooth
®
Device with a Multifunctional Telephone with Each Other
Invoke the Bluetooth® screen from a multifunctional telephone menu and register the Bluetooth® head-
set with the BHA-L UNIT.
For more details on working with the menu, refer to the user's guide or other documentation that comes
with your system.
< Invoking the Bluetooth® Device Setup Screen >
Invoke the Bluetooth® screen in one of the following methods:
◆Digital multifunctional telephone
・If the BHA-L UNIT is connected to an Aspire X:
Press menu keys > [5. Optional Devices] > [1. Bluetooth].
・If the BHA-L UNIT is connected to a PBX (other than Aspire X):
Press menu keys > [3. Setup] > [5. Optional Devices] > [1. Bluetooth].
◆IP multifunctional telephone
・If the BHA-L UNIT is connected to an Aspire X:
Press menu keys > [1. Terminal Setup] > [7. Optional Devices] > [1. Bluetooth].
・If the BLH-L UNIT is connected to a PBX (other than Aspire X):
Press menu keys > [1. Terminal Setup] > [1. User Setup] > [4. Optional Devices] > [1. Bluetooth].
<Entering a PIN Code>
In pairing a Bluetooth® device having a PIN Code other than 0000, enter a string of 4 to 16 digits to suit
that device.
<Pairing>
Up to 8 Bluetooth® devices located around the BHA-L UNIT are located, among which select a device
want to pair with the device.
<Connecting to the Paired Device>
Enable the Bluetooth® device. Select [2. Enable] in the connection screen.
・Only one BHA-L UNIT can be mounted per telephone.
・The BHA-L UNIT cannot be mounted on the economy multifunctional telephone (DTL-2E-1) and the
cordless terminal (DTL-24BT-1).
Removing the BHA-L UNIT
Lift off the BHA-L UNIT while pushing the claws on both sides of the unit.
Caution
a
AB
b
Tilt leg
Stoppe
r
Multifunctional
telephone
Connector cove
r
Multifunctional
telephone
BHA-L UNIT
Claw
Claw
T
i
p
s
After pairing a Bluetooth® device, be sure to configure its connection to enable it. If connected setting is
not done,the Bluetooth® device that does the pairing cannot be used.
=$NWGVQQVJ?
2CKTKPI/QFG
8KUKDKNKV[
ĉĊ$CEM1-
Ĵ
ĵ ĵ
Ĵ
=2CKTKPI/QFG?
2CKTKPI
2+0%QFG
ĉĊ$CEM1-
Ĵ
=2+0%QFG?
2+0%QFG!
$-$CEM1-
=2CKTKPI?
$NWGVQQVJ*GCFUGV
ĉĊ$CEM1-
Ĵ
=2CKTKPI?
ĉĊ$CEM1-
ĴĴ
ĵ
=$NWGVQQVJ*GCFUGV?
CCDDEEFFGGHH
ĉĊ$CEM1-
=$NWGVQQVJ?
2CKTKPI/QFG
8KUKDKNKV[
ĉĊ$CEM1-
Ĵ
ĵ
Ĵ
ĵ
=2CKTKPI/QFG?
2CKTKPI
2+0%QFG
ĉĊ$CEM1-
Ĵ Ĵ
Ĵ Ĵ Ĵ
=2CKTKPI?
ĉĊ$CEM1-
ĴĴ
ĵ
=$NWGVQQVJ*GCFUGV?
&GNGVG
%QPPGEV
ĉĊ$CEM1-
Ĵ
ĵ
=%QPPGEV?
&KUCDNG
'PCDNG
ĉĊ$CEM1-
Ĵ
ĵ ĵ
Caution
iv
FCC portion
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
・Reorient or relocate the receiving antenna.
・Increase the separation between the equipment and receiver.
・Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
・Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired operation.
Caution:
Any changes or modifications not expressly approved by the party responsible for product
compliance could void the user’s authority to operate the equipment.
To comply with FCC RF exposure compliance requirements, this device must not be co-
located or operating in conjunction with any other antenna or transmitter.
Regulatory Statement
FCC portion
To comply with FCC RF exposure compliance requirements, a separation distance of at least
20 cm must be maintained between the antenna of this device and all persons. This device
must not be co-located or operating in conjunction with any other antenna or transmitter.
v
Industry Canada Portion
Canada Regulatory Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numériqué de la classe B est conformé à la norme NMB-003 du Canada.
For Customers in Canada
This device complies with RSS 210 of Industry Canada (IC).
Operation is subject to the following two conditions:
・this device may not cause interference, and
・this device must accept any interference, including interference that may cause undes-
ired operation of this device.
L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes:
・il ne doit pas produire de brouillage et
・I'utilisateur du dispositif doit étre prêt a accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
Exposure to radio frequency radiation
The installer of this radio equipment must ensure that the antenna is located or pointed such
that it does not emit RF field in excess of Health Canada limits for the general population;
consult Safety Code 6, obtainable from Health Canada’s website at www.hc-sc.gc.ca/rpb.
