NEOCONTROL US NMI01WT SLIMTOUCH User Manual

NEOCONTROL US LLC SLIMTOUCH

User Manual

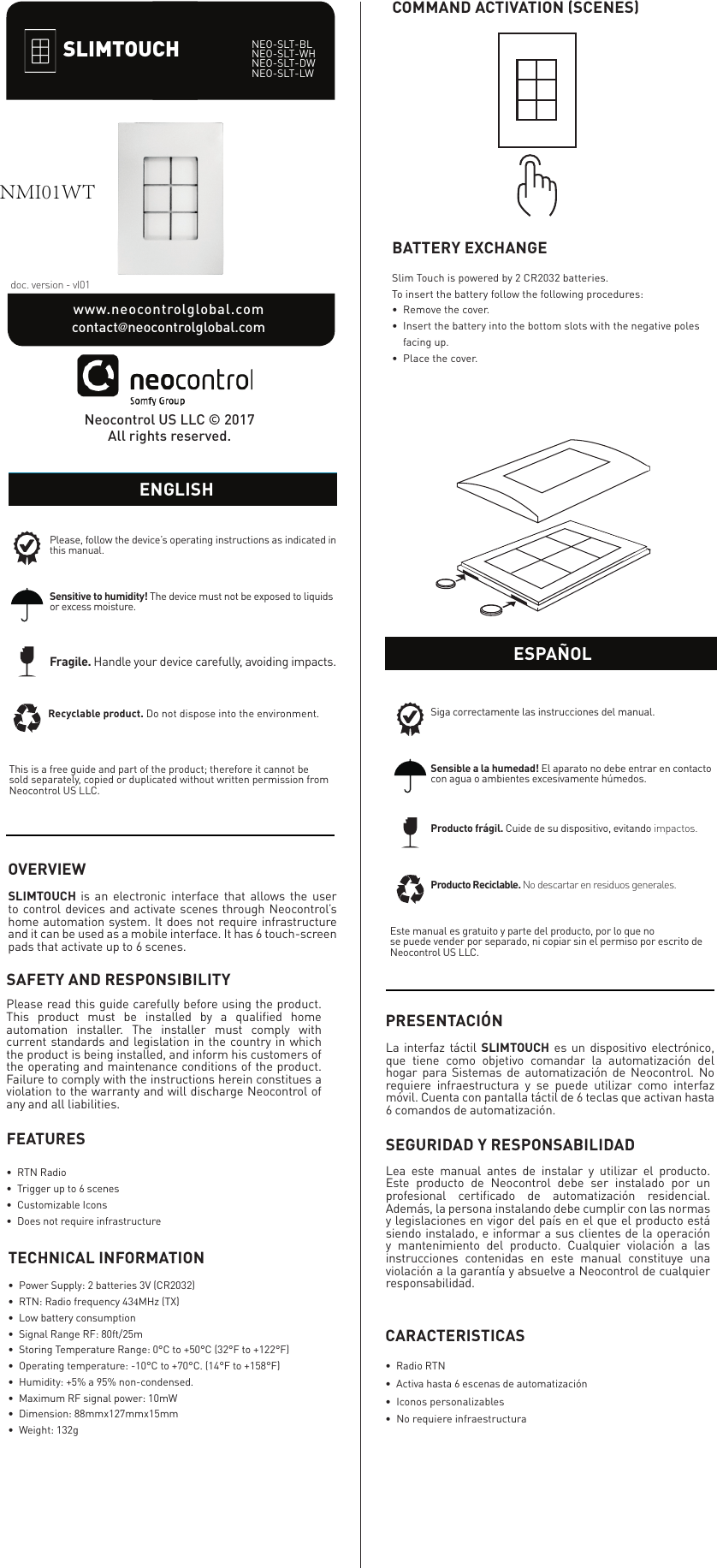

OVERVIEWSLIMTOUCH is an electronic interface that allows the user to control devices and activate scenes through Neocontrol’s home automation system. It does not require infrastructure and it can be used as a mobile interface. It has 6 touch-screen pads that activate up to 6 scenes.NEO-SLT-BLNEO-SLT-WHNEO-SLT-DWNEO-SLT-LWdoc. version - vI01www.neocontrolglobal.com contact@neocontrolglobal.comThis is a free guide and part of the product; therefore it cannot be sold separately, copied or duplicated without written permission from Neocontrol US LLC.Please, follow the device’s operating instructions as indicated in this manual.Fragile. Handle your device carefully, avoiding impacts.Recyclable product. Do not dispose into the environment.Sensitive to humidity! The device must not be exposed to liquids or excess moisture.ENGLISHNeocontrol US LLC © 2017All rights reserved.ENGLISHCOMMAND ACTIVATION (SCENES)Slim Touch is powered by 2 CR2032 batteries.To insert the battery follow the following procedures:•Remove the cover.•Insert the battery into the bottom slots with the negative poles• facing up.•Place the cover.BATTERY EXCHANGEEste manual es gratuito y parte del producto, por lo que nose puede vender por separado, ni copiar sin el permiso por escrito de Neocontrol US LLC.Siga correctamente las instrucciones del manual.Producto frágil. Cuide de su dispositivo, evitando impactos.Producto Reciclable. No descartar en residuos generales.PRESENTACIÓNLa interfaz táctil SLIMTOUCH es un dispositivo electrónico, que tiene como objetivo comandar la automatización del hogar para Sistemas de automatización de Neocontrol. No requiere infraestructura y se puede utilizar como interfaz móvil. Cuenta con pantalla táctil de 6 teclas que activan hasta 6 comandos de automatización.ESPAÑOLSLIMTOUCHSAFETY AND RESPONSIBILITYPlease read this guide carefully before using the product. This product must be installed by a qualified home automation installer. The installer must comply with current standards and legislation in the country in which the product is being installed, and inform his customers of the operating and maintenance conditions of the product. Failure to comply with the instructions herein constitues a violation to the warranty and will discharge Neocontrol of any and all liabilities.SEGURIDAD Y RESPONSABILIDADLea este manual antes de instalar y utilizar el producto. Este producto de Neocontrol debe ser instalado por un profesional certificado de automatización residencial. Además, la persona instalando debe cumplir con las normas y legislaciones en vigor del país en el que el producto está siendo instalado, e informar a sus clientes de la operación y mantenimiento del producto. Cualquier violación a las instrucciones contenidas en este manual constituye una violación a la garantía y absuelve a Neocontrol de cualquier responsabilidad.FEATURES• RTN Radio• Trigger up to 6 scenes• Customizable Icons• Does not require infrastructureTECHNICAL INFORMATION• Power Supply: 2 batteries 3V (CR2032)• RTN: Radio frequency 434MHz (TX)• Low battery consumption • Signal Range RF: 80ft/25m• Storing Temperature Range: 0°C to +50°C (32°F to +122°F)• Operating temperature: -10°C to +70°C. (14°F to +158°F)• Humidity: +5% a 95% non-condensed.• Maximum RF signal power: 10mW• Dimension: 88mmx127mmx15mm• Weight: 132gSensible a la humedad! El aparato no debe entrar en contacto con agua o ambientes excesivamente húmedos.CARACTERISTICAS• Radio RTN• Activa hasta 6 escenas de automatización• Iconos personalizables• No requiere infraestructuraNMI01WT

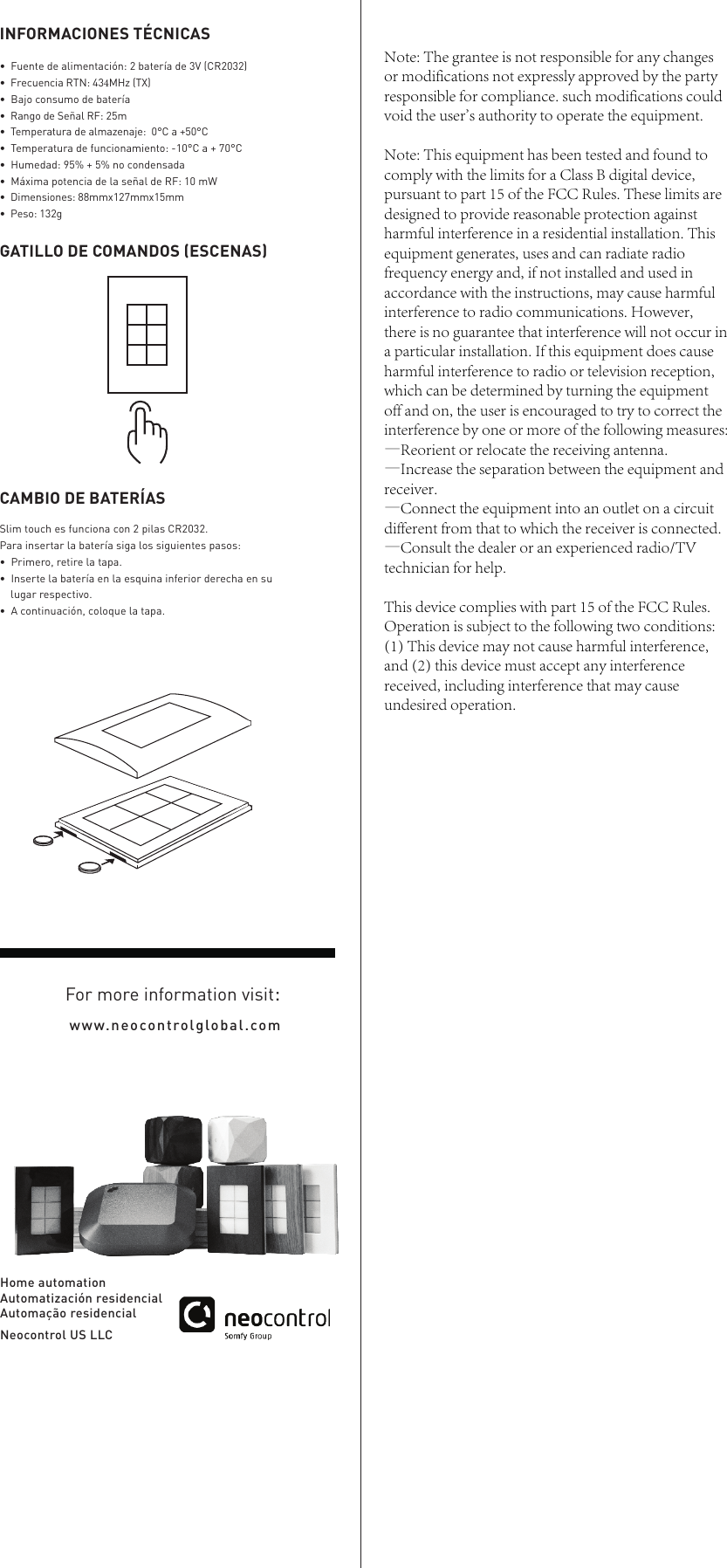

Slim touch es funciona con 2 pilas CR2032.Para insertar la batería siga los siguientes pasos:•Primero, retire la tapa.•Inserte la batería en la esquina inferior derecha en sulugar respectivo.•A continuación, coloque la tapa.CAMBIO DE BATERÍASHome automationAutomatización residencialAutomação residencialNeocontrol US LLCwww.neocontrolglobal.comFor more information visit:GATILLO DE COMANDOS (ESCENAS)INFORMACIONES TÉCNICAS• Fuente de alimentación: 2 batería de 3V (CR2032) • Frecuencia RTN: 434MHz (TX)• Bajo consumo de batería• Rango de Señal RF: 25m • Temperatura de almazenaje: 0°C a +50°C• Temperatura de funcionamiento: -10°C a + 70°C • Humedad: 95% + 5% no condensada • Máxima potencia de la señal de RF: 10 mW• Dimensiones: 88mmx127mmx15mm• Peso: 132gNote: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment.Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for help.This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
