NEW POS Technology 5310 Unattended Terminal User Manual
NEW POS Technology Limited Unattended Terminal Users Manual
Users Manual
NEW5310 www.newpostech.com
Unattended Terminal
N E W 5 3 1 0
PRODUCT MANUAL
NEW POS TECHNOLOGY
NEW POS TECHNOLOGY LIMITED
NEW POS Technology limited
Contents Checklist
The following items should be found inside the box:
Precautions
Do not use the non-dedicated power supply, because it may be in trouble due to
the mismatch of power.
Do not vibrate, shake or knock the product sharply.
When a fault occurs, immediately turn off the power supply and discontinue to
use the product, please contact the service sector related to our company.
Do not open and repair it by yourself.
When the terminal being attacked by unscrupulous environment(such as opening
the terminal shell, etc.), the internal sensitive information stored in the terminal
will be erased. For avoiding unnecessary trouble, you should not open the
housing.
NEW5310 is designed to be unattended terminals, it is used outdoors, Please
follow as below:
1. The device should be covered by a pin shield over the pin entry area.
2. Avoiding the direct sunlight and the rain.
3. Place the device in a ventilated locality and keep good a heat dissipation
condition.
1. POS terminal
2. Product Manual
3. Microfit power cable
1PCS
1PCS
1PCS
1. Warranty valid for 12 months after purchasing date.
2. This warranty will be voided if the product is damaged due to natural disaster,
fire, unauthorized alteration or improper usage.
3. Free Warranty covers original parts only
4. Warranty service will not be provided if no the dealer's stamp or this card is
missing.
Note:
This equipment complies with FCC RF radiation exposure limits set forth for
an uncontrolled environment.
www.newpostech.com www.newpostech.com
NEW5310 www.newpostech.com
NEW5310

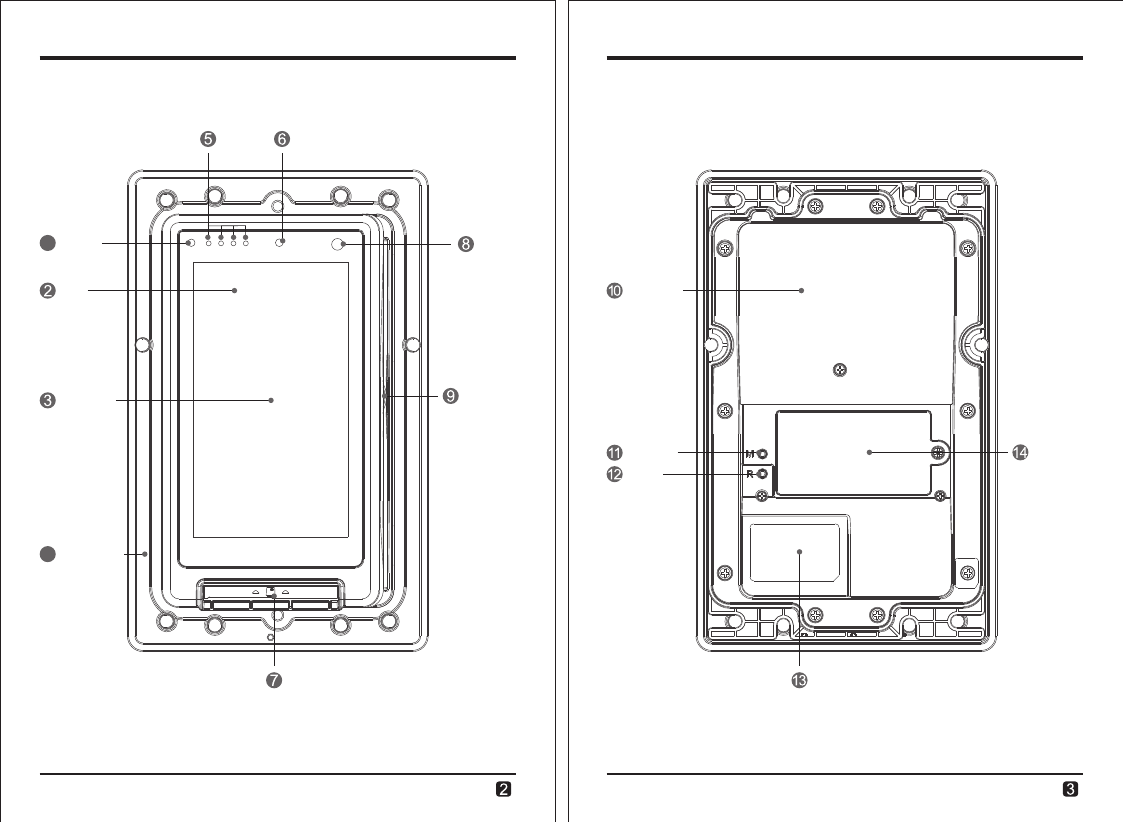

NEW5310 Figure
NEW POS Technology limitedNEW POS Technology limited
Magnetic
stripe card
User smart
card slot
LCD
NFC leds
Antenna
inductive
zone
1
Camera
4
Menu for
setup
Reset
SIM/SAM
card cover
Tag label
Infrared
LED
Infrared
sensor
Waterproof
ring
Port cover
www.newpostech.com
NEW5310 www.newpostech.comwww.newpostech.com
NEW5310
NEW POS Technology limited
Open the battery cover and remove the battery.
Keep the chip side on the SIM/SAM/TF card downward and unfilled corner outward, insert
the card to the bottom.

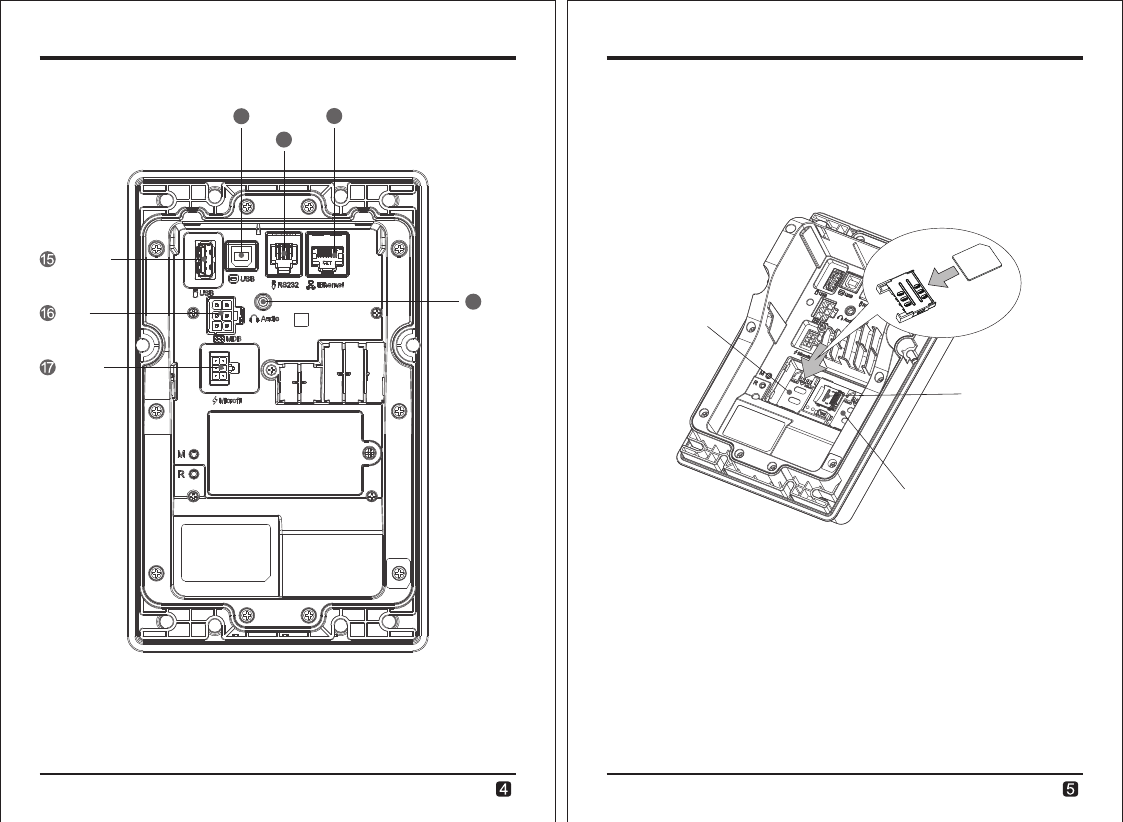

Installation Guidance
1. Install SIM/SAM/TF card
NOTE: 1. Confirm the machine is turned off when you install or uninstall the SIM/UIM card, or
your card will be damaged.
2. Do not paste any label on the SIM/SAM card to influence your card thickness, or it
may result in loading or removing the card can not be carried out smoothly.
2. Power on/off the device
Power on: Plug the Mircrofit jack or the MDB jack into the socket, the device can turn on the
power automatically.
Power off: Pull the Mircrofit jack and the MDB jack away from the socket, the device can turn
off the power.
Reset: Press the “R” button which is on the back of the device.
Setting: Press the ”M” button which is on the back of the device.
NEW POS Technology limited
USB-device
RS232
Port
USB-host
Ethernet
MDB
Microfit
Audio
18
19
20
21
SAM
TF
SIM
Technical
Project
High Performance 4 Core Processor + Secure CPU
1GB RAM, 8GB Flash memory, Support Micro TF Card, up to 32GB
Android 5.X
5”, 720x1280 pixels, support capacitate touch screen
Track 1/2/3, bi-directioanl, compliant with ISO7811,7812
1 user card (EMV4.3), Support Memory Card, CPU Card, EMV4.3,
PBOC3.0, ISO7816 Standard.
13.56MHz. Support Mifare Card, Compliant with ISO/IEC14443 Type A&B
1 PSAM slot
1 TF Card slot
Support PIN Entry from touch screen
RS-232, Ethernet 10/100M, MDB
Ethernet (8P8C), RS232 (6P6C, with power output 12V/0.5A)
Micro fit 43045, power input socket, MDB (24~45 VDC)
USB Host, USB Device
1 key for reset, 1 key for volume+
1 Built-in speaker
Infrared sensor, the distance of reaction is about 20CM~50CM
12V DC, 2A (when using Micro fit), 24 ~ 45V DC (when using MDB)
Input 100~240 VAC, 50 ~ 60 Hz; output 12V DC 2A
ANSI/UL 94 V-0
IP65
IK08
Temperature: -20℃ ~ 45℃(-4℉~ 113℉)
Humidity: 10% ~ 90% (non-condense)
Temperature: -25℃ ~ 75℃(-13℉~167℉)
Humidity: 0% ~ 95% (non-condense)
195*122*94mm
Undetermined
PCI PTS 5.X, EMV LEVEL 1&2, EMV Contactless, CE, FCC, Pay Pass
Processor
Memory
System
Display
Magnetic Card Reader
IC Card Reader
Contactless Card Reader
PSAM
TF Card
Internal PED
Communications
Interfaces
Button
Audio
Proximity detector
Power Supply
Power adapter
Flammability rating
Dust/waterproof rating
Protection classification
Working
Environment
Storage
Environment
Size
Weight
Certification
www.newpostech.com
NEW5310
Technical Specifications
NEW POS Technology limitedNEW POS Technology limited
NEW POS TECHNOLOGY LIMITED
Address: 14/A, Financial Technology Building, Financial & Technology
Building, No.11, Keyuan Rd, Nanshan District, ShenZhen, China
Tel: +86-755-86938425 Fax: +86-755-82790632
E-mail: Sales@newpostech.com Postalcode: 518057
WebSite: www.newpostech.com
Notice: This device may be used in each member state in EU
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device
can be used in portable exposure condition without restriction.
RF exposure information: The EIRP power of the device at maximal case is below
RF exposure assessment has been performed to prove that this unit will not generate
the exemt condition, 20mW specified in EN62479: 2010.
the harmful EM emission above the reference level as specified in EC Council
Recommendation(1999/519/EC).
Hereby, NEW POS TECHNOLOGY LIMITED declares that the radio equipment
type (Unattended Terminal, NEW5310) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:www.newpostech.com
The grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. Such modifications could void
the user’s authority to operate the equipment.
only NFC 13.56MHz in this sample
