NIDEC MOBILITY GHR-M010 Remote engine starter (FOB) User Manual GHR M010 UserManual draft revB
OMRON Automotive Electronics Co. Ltd. Remote engine starter (FOB) GHR M010 UserManual draft revB
(Short-Term Confidential) User Manual
We recommend that you replace the batteries after one year's use as a guide.
Batteries: CR2032 x 2
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Unlock/Start button.
(The vehicle engine will start.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
1. Pressing the Engine control button for more than 1 second.
2. Release the Engine control button, and then press the Lock/Stop button.
(The vehicle engine will stop.)
3. If a response signal from the vehicle is properly received, the LED indicators
will be blinked.
・Pressing the Lock/Stop button, the vehicle door will be locked.
・Pressing the Unlock/Start button, the vehicle door will be unlocked.
Remocon Engine Starter operation manual
FCC
/
IC CAUTION
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Tout changement ou toute modification effectués par l’utilisateur et dont la
conformité n’est pas expressément approvée par l’organisme responsable de
sa conformité peut entraîner l’annulation de droit de cet utilisateur de se servir
de l’équipment.
This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
This device complies with part 15 of FCC Rules and Industry Canada’s
licence-exempt RSSs. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme à la partie 15 des règles de la FCC et aux
normes des CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1)l'appareil ne doit pas produire de brouillage, et (2)l'appareil doit accepter tout
brouillage subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
A
fter sales service
４
Transmission frequency 902 MHz～928MHz band
Transmission power < 20mW
A
ntenna chip antenna
Transmission frequency 315 MHz
Transmission power < 75.6dBuV/m @3m
A
ntenna PWB pattern antenna
Switches Lock/Stop, Unlock/Start, Engine control
Link state acknowledgment LED indicators
Battery Lithium battery (CR2032 x 2)
Operation temperature range -20 ℃ to +60 ℃ (-4°F to 140°F)
Dimensions 81.5 mm x 30 mm x 13 mm ( not including protrusion)
Weight 37 g
A
ntenna module
Transmission frequency 902 MHz～928MHz band
Transmission power < 20mW
Power supply 4.2 V
Current consumption 3 mA (for receiving)
A
ntenna 1/4 lambda printed antenna
Operation temperature range -30 ℃ to +85 ℃ (-22°F to 185°F)
Dimensions 52 mm x 25 mm x 52 mm
Weight 35 g
Main s
p
ecification
３
Door lock / unlock
Remote en
g
ine stop
Remote en
g
ine start
How to use
２
1. Remove the battery cover
Battery cover
Remove the screw and
the battery cover.
Lithium batteries
(CR2032 x 2)
Screw
2. Take out the old batteries
Insert the flathead screw drive
r
which put cloth and take out the
old batteries.
3. Replace the new batteries
Insert the new batteries (CR2032)
with the positive ( + ) side facing up.
4. Place the battery cover
Place the battery cover and
fasten the screw.
How to replace the batteries
Battery replacement
Key fob LED indicators
Lock/Stop
button
Unlock/Start
button
Engine control
button
Ring
Battery
cover
Product
label

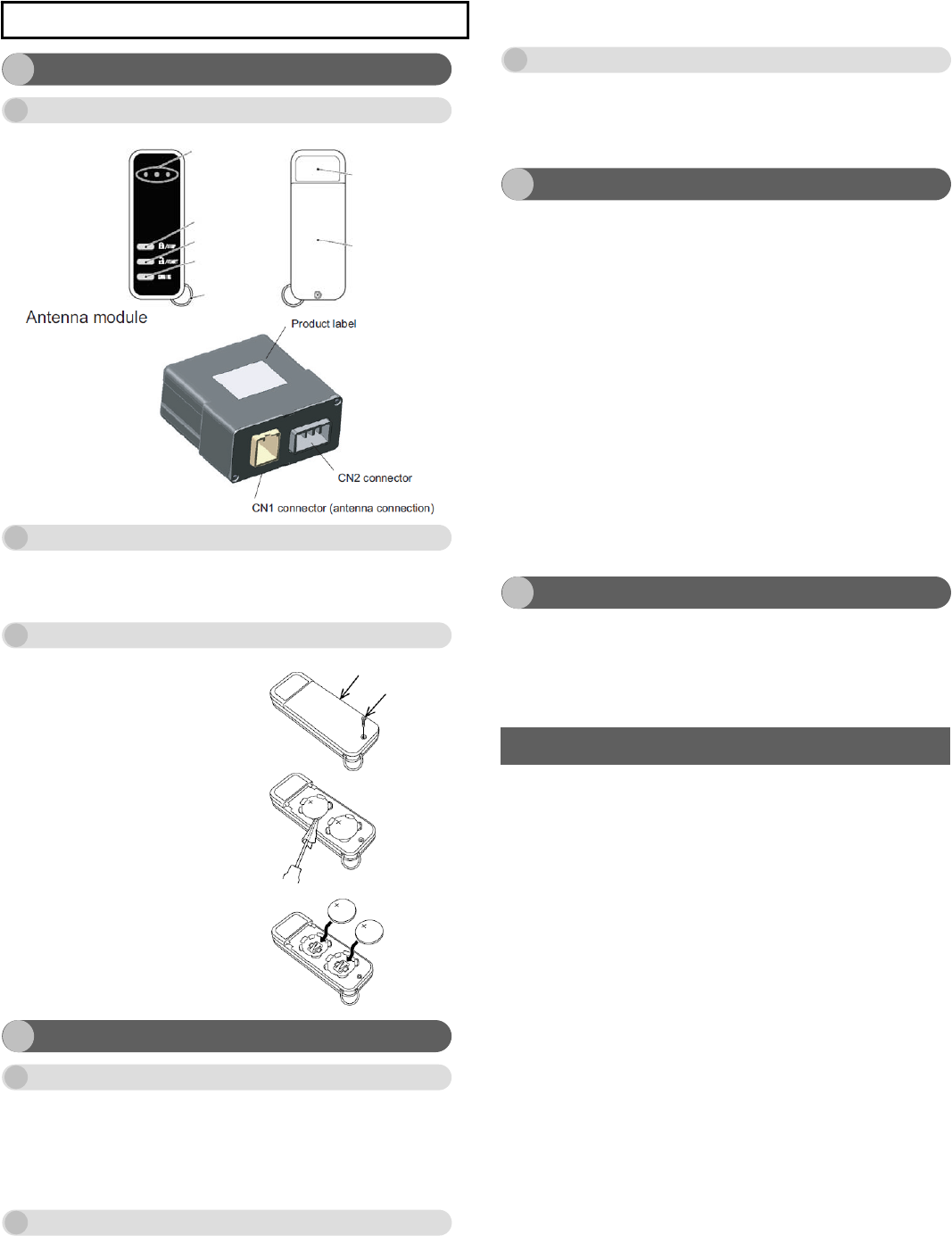

Parts names
Confi
g
uration
１
For after sales service, contact :
OMRON Automotive Electronics Co. Ltd.
6368 nenjyozaka, okusa
Komaki, Aichi 485-0802 JAPAN
URL: http://www.oae.omron.co.jp
Regulatory compliance
Key fob
Regulatory compliance
This equipment complies with FCC/IC radiation exposure limits set forth
for an uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that are
deemed to comply without testing of specific absorption rate (SAR).
Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles les
radioélectriques (RF) de la FCC lignes directrices d'exposition et
d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet
équipement émet une énergie RF très faible qui est considérée conforme
sans évaluation du débit d’absorption spécifique (DAS).
[Key fob]
This equipment complies with FCC/IC radiation exposure limits set forth
for an uncontrolled environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure evaluation
(
MPE
)
.
Cet équipement est conforme aux limites d’exposition aux rayonnements
énoncées pour un environnement non contrôlé et respecte les règles les
radioélectriques (RF) de la FCC lignes directrices d'exposition et
d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet
équipement émet une énergie RF très faible qui est considérée conforme
sans évaluation de l’exposition maximale autorisée (MPE).
[Antenna module]
