DC146/DC147 special-purpose emitter for curtain motor
DC147 five channels double way emitter
DC147 five channels double way emitter
DC146 single channel double way emitter
DC146 single channel double way emitter
DC146 single channel double way emitter: A way and B way can be chosen,each way can
control one set curtain motor separately.A way and B way don`t interfere each other
DC147 five channels double way emitter: Each channel had the same function with DC146.When pressing
channel-shift button and all the channel-shift display lamps light,that means the group control
status.Under the status of group control,Pressing A way buttons will start the group-control function of A
way,A way of all the channels will be availabe.Pressing B way buttons will start the group-control function
of B way,b way of all the channels will be availabe.
The backside of DC147
The backside of DC146
Version No: A 01
B way set button(P2b)
Special-purpose emitter for curtain motor
Special-purpose emitter for curtain motor
DC146DC146
DC147DC147

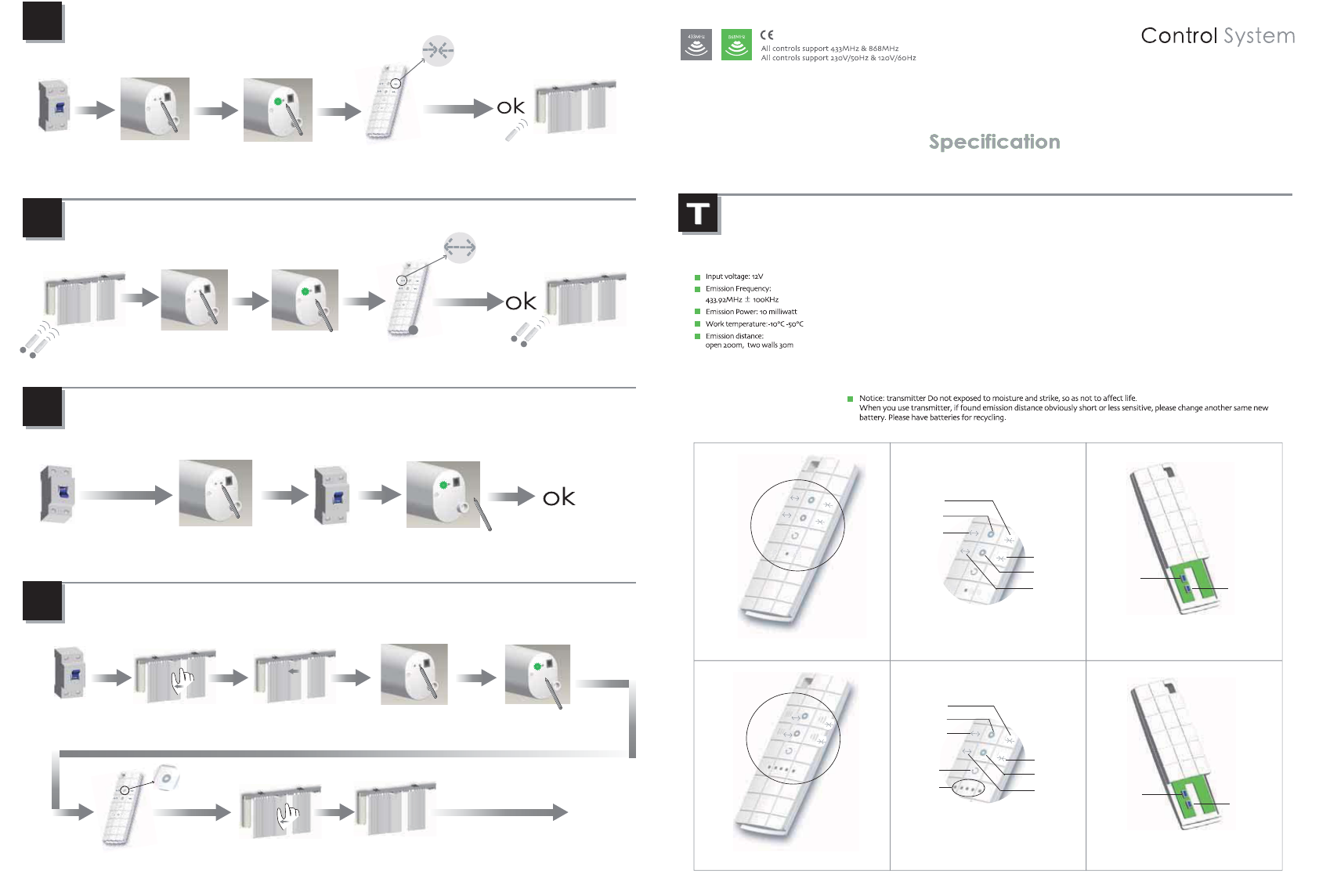

Press the set button
of curtain motor for
about 2S
The display lamp of the
curtain motor is constant
on,loosen the set button
of curtain motor
Press the emitter A way
curtain-close button once
Press the emitter A way
curtain-open button once
OK
Emitter A way programming
adding emitter set are finished
Cancelling all emitters is finished
The curtain motor
are connecting
with the power
Press the set button
of curtain motor for
about 2S
The display lamp of the
curtain motor is constant
on,loosen the set button
of curtain motor
The curtain motor
are connecting
with the power
12
12
1
The display lamp of curtain
motor flashes a few times
and then goes out
The display lamp of curtain
motor flashes a few times
and then goes out
Emitter A way cancelling is finished
Switch off the power
for curtain motor
Press the set button of
curtain motor and don`t lossen
Swich on the power
of curtain motor
When the curtain motor
display lamp flashes several
times and then goes out,
loosen the set button
The curtain motor
are connecting
with the power
The function of pulling and guiding by hand
The function of pulling and guiding by hand
Pull once the curtain
by hand to the desired
derection
The curtain will move toward
the function automatically
Press the set button
of curtain motor for
about 2S
The display lamp of the
curtain motor is constant
on,loosen the set button
of curtain motor
Press the emitter A way
curtain-stop button once
The display lamp of curtain
motor flashes a few times
and then goes out
Pull once the curtain
by hand to the desired
derection
The curtain is unmoved,
the function of pulling and
guiding by hand is closed
Repeat the above set,
the function of pulling
and guiding by hand will start
Cancelling all emitters is finished
Cancelling all emitters is finished
Cancel one channel of emitter
Cancel one channel of emitter
Set up and add emitter
Set up and add emitter
Additional
Function
A
A
Additional
Function
A
A
Additional
Function
A
A
Additional
Function
A
A
The interval of re-
switch on must
over 10 seconds
A way curtain-
open button
A way curtain-
close button
A way curtain-
stop button
A way curtain-
open button
A way curtain-
close button
A way curtain-
stop button
B way curtain-
close button
B way curtain-
open button
B way curtain-
stop button
B way curtain-
close button
B way curtain-
open button
B way curtain-
stop button
Channel shift
button
Channel
display
B way set
button P2b
A way set
button P2a
B way set
button P2b
A way set
button P2a
