Antenna 22 of 36
![](/img.php?id=1145030&img=bg1.png)
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487

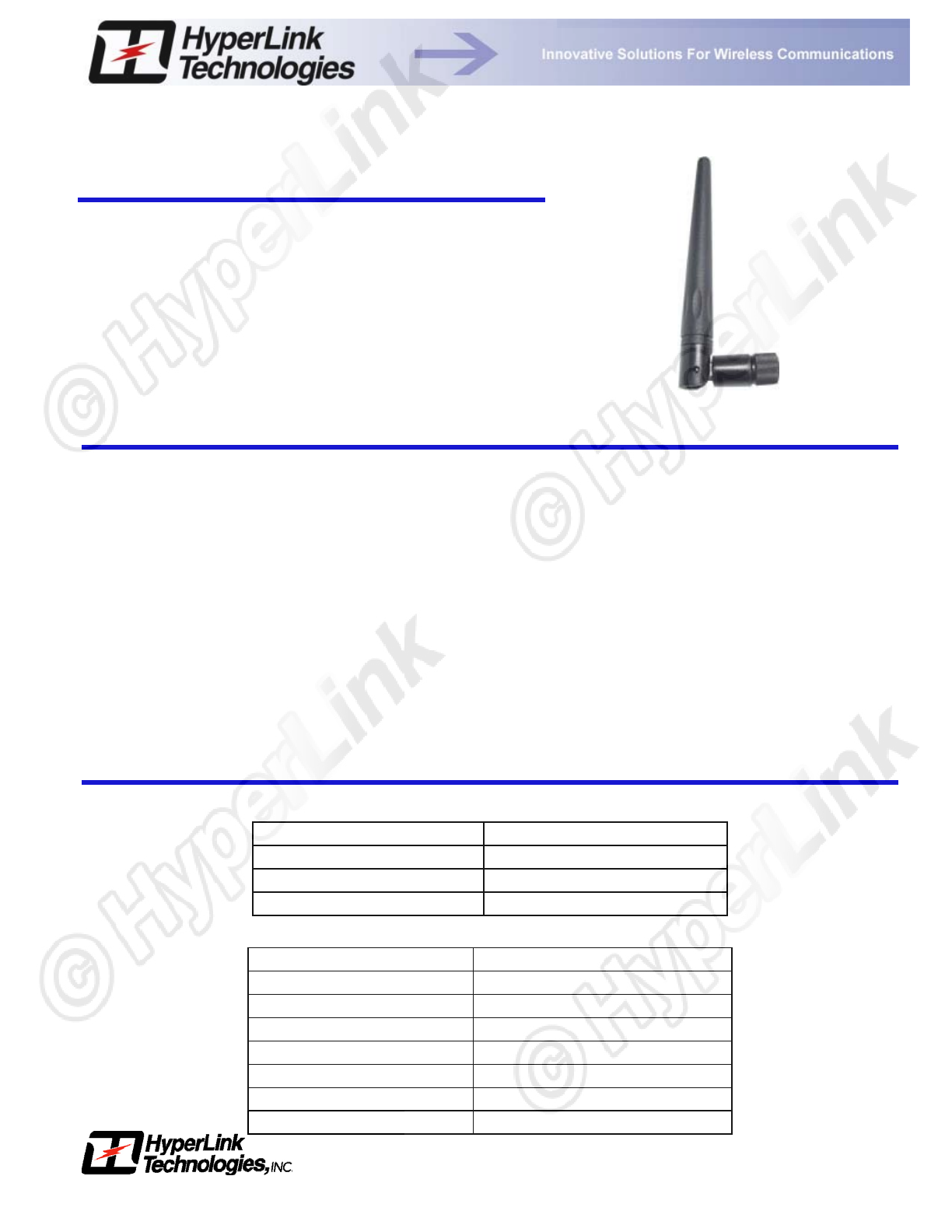

2.4 GHz 2.2 dBi Reverse Polarity SMA "Rubber
Duck" Wireless LAN Antenna
Features
• Compact size, only 4.7" long
• Tilt and swivel design
• RP-SMA Connector
• 802.11b, 802.11g and Bluetooth® compatible
Model: HG2402RD-RSF
Description
This compact 2.4GHz omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 2.2 dBi gain. It is
a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless
LANs, Bluetooth® and other WLAN applications.
Only 4.7" long, this flexible antenna features a tilt-and-swivel reverse-polarity SMA plug connector, allowing them
to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement antenna for many
access points and radios that are equipped with reverse-polarity SMA connectors including D-Link®, Linksys®
WET11 and others (Note: This RF antenna is used as a "replacement" antenna rather than a "range extender"
antenna. It should yield similar range to most radio's stock antennas).
Application Note: This antenna is not for use with U.S.Robotics® RP-SMA equipped devices.
Specifications
Electrical Specifications
Frequency 2400-2500 MHz
Gain 2.2 dBi
Impedance 50 Ohm
VSWR < 2.0
Mechanical Specifications
Weight 0.52 oz. (15 g)
Length 4.7" (105 mm)
Diameter 0.4" (10 mm)
Finish Matte Black
Connector Reverse Polarity SMA Plug
Operating Temperature -40° C to to 85° C (-40° F to 185° F)
Polarization Vertical
RoHS Compliant Yes
![](/img.php?id=1145030&img=bg2.png)
e-mail: sales@hyperlinktech.com • tel: 561-995-2256 • fax: 561-995-2432
web: www.hyperlinktech.com • 1201 Clint Moore Road • Boca Raton FL 33487
Antenna Gain Pattern
