Nanjing Signway Information Technology SWH5186 Media Player Board User Manual

Nanjing Signway Information Technology Co., Ltd Media Player Board

User Manual

Specification V2.0Media Player Board SWH-5186©2017 Nanjing Signway Technology Co., Ltd.

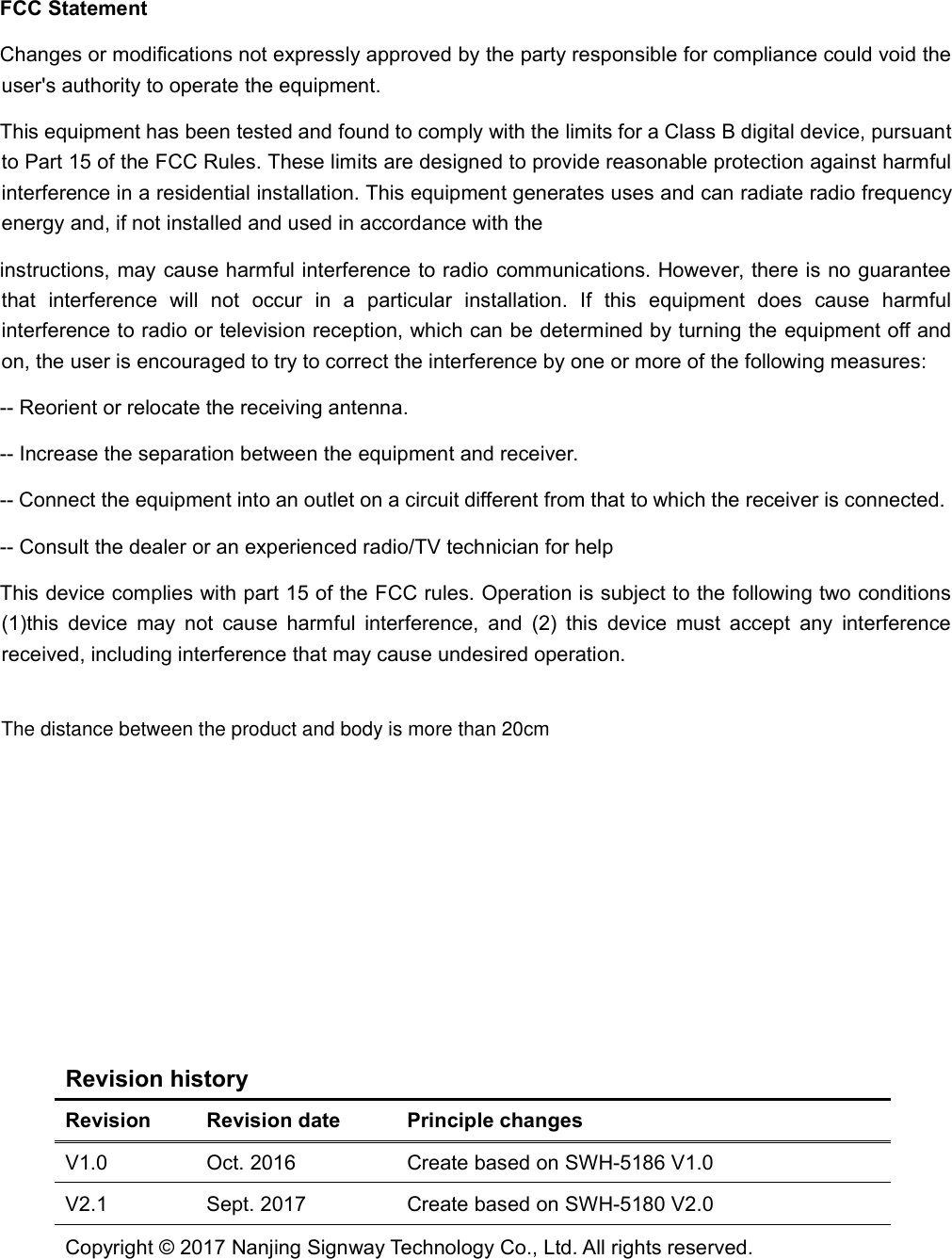

FCC StatementChanges or modifications not expressly approved by the party responsible for compliance could void theuser's authority to operate the equipment.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmfulinterference in a residential installation. This equipment generates uses and can radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off andon, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for helpThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions(1)this device may not cause harmful interference, and (2) this device must accept any interferencereceived, including interference that may cause undesired operation.Revision historyRevision Revision date Principle changesV1.0 Oct. 2016 Create based on SWH-5186 V1.0V2.1 Sept. 2017 Create based on SWH-5180 V2.0Copyright © 2017 Nanjing Signway Technology Co., Ltd. All rights reserved.The distance between the product and body is more than 20cm

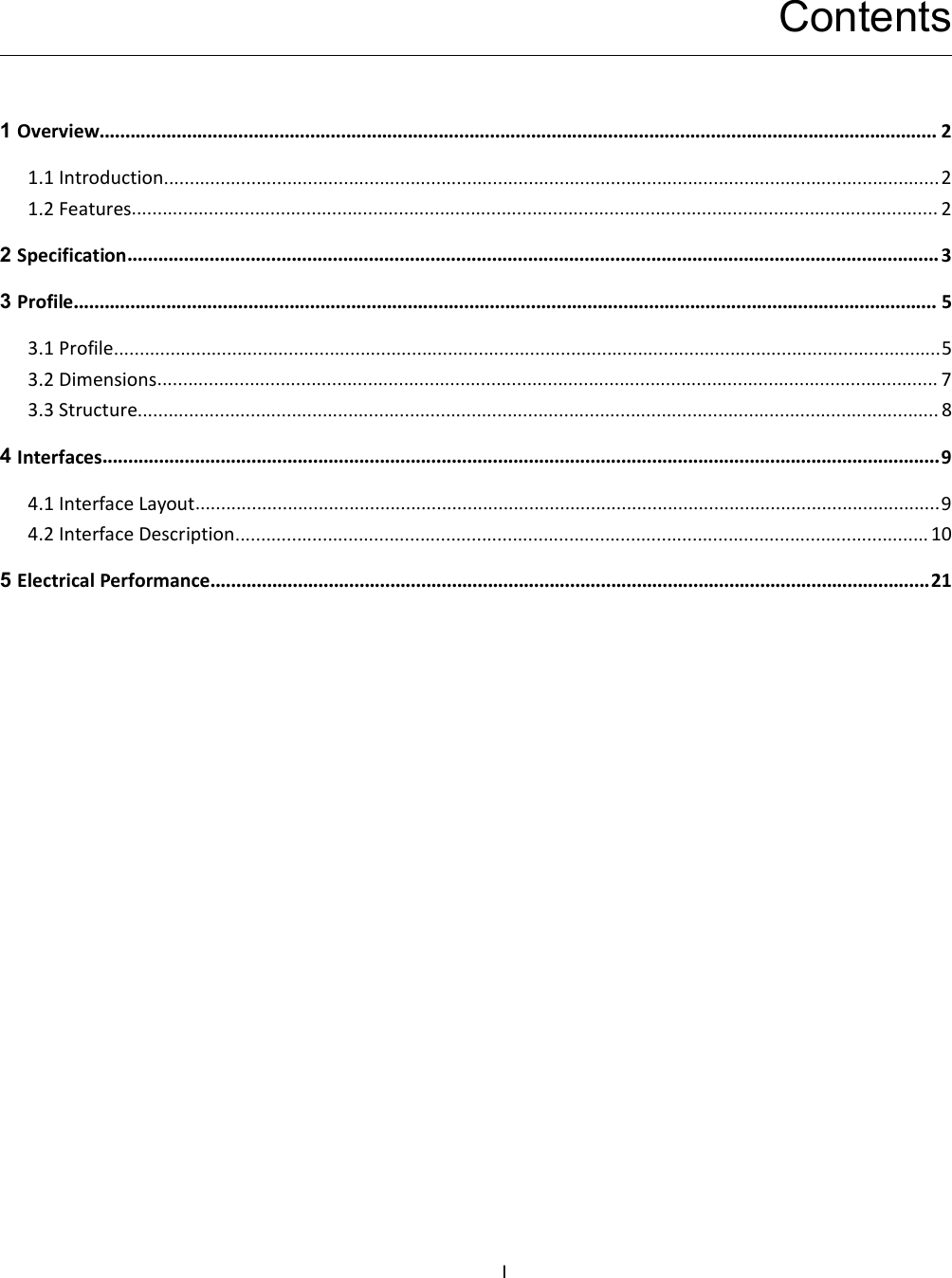

IContents1Overview................................................................................................................................................................... 21.1 Introduction.......................................................................................................................................................21.2 Features............................................................................................................................................................. 22Specification.............................................................................................................................................................. 33Profile........................................................................................................................................................................ 53.1 Profile.................................................................................................................................................................53.2 Dimensions........................................................................................................................................................ 73.3 Structure............................................................................................................................................................ 84Interfaces...................................................................................................................................................................94.1 Interface Layout.................................................................................................................................................94.2 Interface Description....................................................................................................................................... 105Electrical Performance............................................................................................................................................21

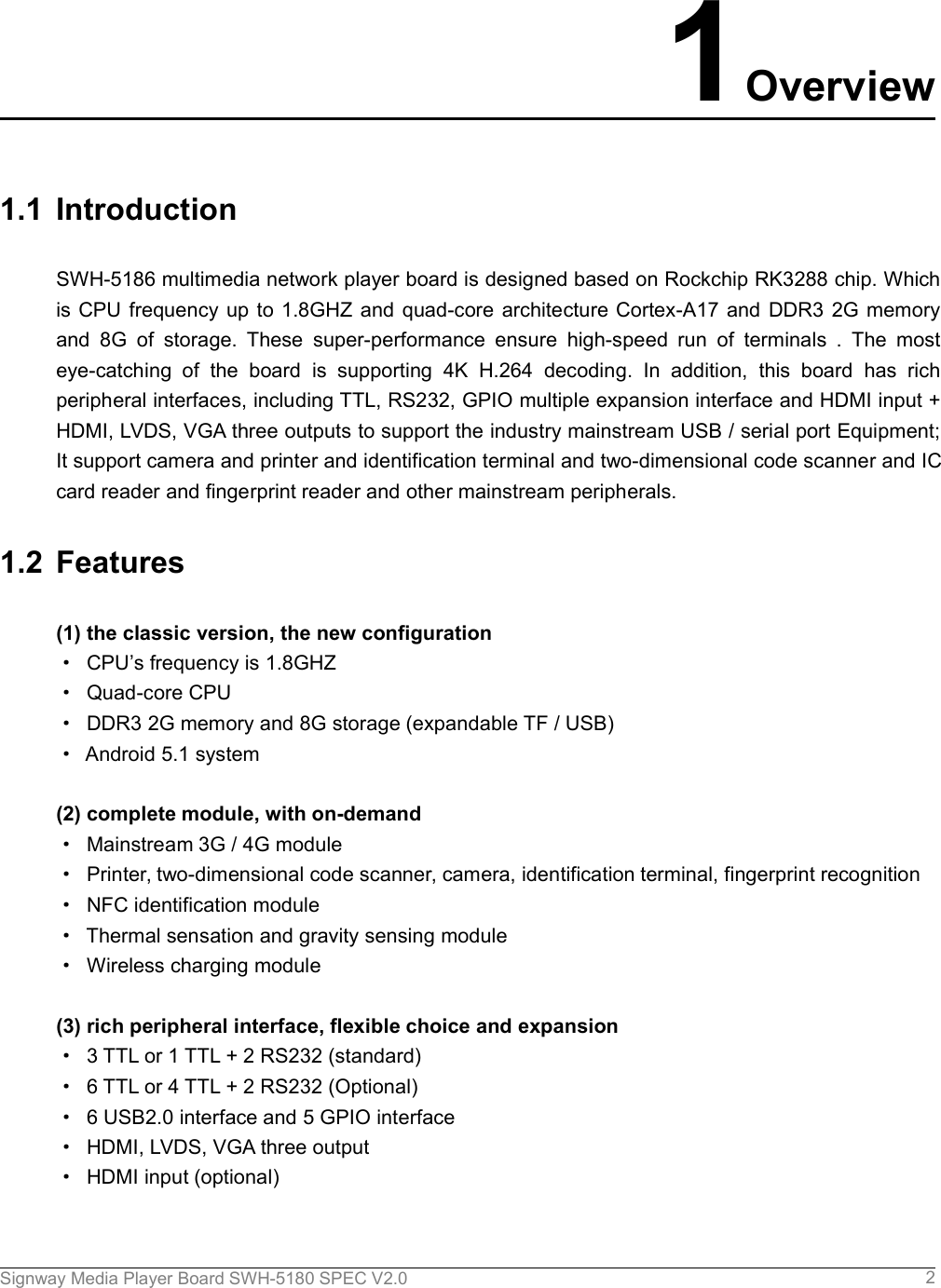

Signway Media Player Board SWH-5180 SPEC V2.0 21Overview1.1 IntroductionSWH-5186 multimedia network player board is designed based on Rockchip RK3288 chip. Whichis CPU frequency up to 1.8GHZ and quad-core architecture Cortex-A17 and DDR3 2G memoryand 8G of storage. These super-performance ensure high-speed run of terminals . The mosteye-catching of the board is supporting 4K H.264 decoding. In addition, this board has richperipheral interfaces, including TTL, RS232, GPIO multiple expansion interface and HDMI input +HDMI, LVDS, VGA three outputs to support the industry mainstream USB / serial port Equipment;It support camera and printer and identification terminal and two-dimensional code scanner and ICcard reader and fingerprint reader and other mainstream peripherals.1.2 Features(1) the classic version, the new configuration·CPU’s frequency is 1.8GHZ·Quad-core CPU·DDR3 2G memory and 8G storage (expandable TF / USB)·Android 5.1 system(2) complete module, with on-demand·Mainstream 3G / 4G module·Printer, two-dimensional code scanner, camera, identification terminal, fingerprint recognition·NFC identification module·Thermal sensation and gravity sensing module·Wireless charging module(3) rich peripheral interface, flexible choice and expansion·3 TTL or 1 TTL + 2 RS232 (standard)·6 TTL or 4 TTL + 2 RS232 (Optional)·6 USB2.0 interface and 5 GPIO interface·HDMI, LVDS, VGA three output·HDMI input (optional)

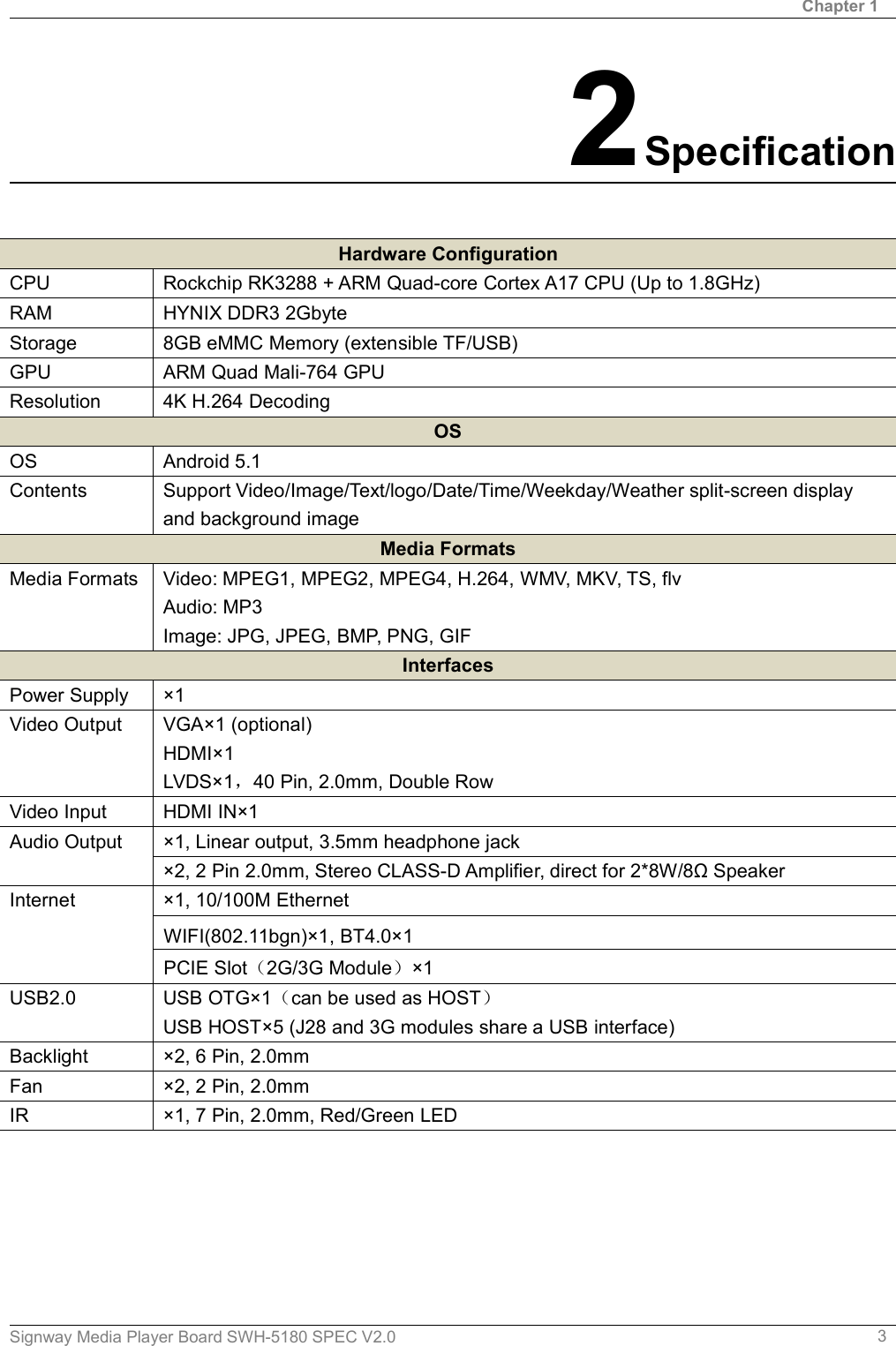

Chapter 1Signway Media Player Board SWH-5180 SPEC V2.0 32SpecificationHardware ConfigurationCPU Rockchip RK3288 + ARM Quad-core Cortex A17 CPU (Up to 1.8GHz)RAM HYNIX DDR3 2GbyteStorage 8GB eMMC Memory (extensible TF/USB)GPU ARM Quad Mali-764 GPUResolution 4K H.264 DecodingOSOS Android 5.1Contents Support Video/Image/Text/logo/Date/Time/Weekday/Weather split-screen displayand background imageMedia FormatsMedia Formats Video: MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flvAudio: MP3Image: JPG, JPEG, BMP, PNG, GIFInterfacesPower Supply ×1Video Output VGA×1 (optional)HDMI×1LVDS×1，40 Pin, 2.0mm, Double RowVideo Input HDMI IN×1Audio Output ×1, Linear output, 3.5mm headphone jack×2, 2 Pin 2.0mm, Stereo CLASS-D Amplifier, direct for 2*8W/8Ω SpeakerInternet ×1, 10/100M EthernetWIFI(802.11bgn)×1, BT4.0×1PCIE Slot（2G/3G Module）×1USB2.0 USB OTG×1（can be used as HOST）USB HOST×5 (J28 and 3G modules share a USB interface)Backlight ×2, 6 Pin, 2.0mmFan ×2, 2 Pin, 2.0mmIR ×1, 7 Pin, 2.0mm, Red/Green LED
Chapter 1 OverviewSignway Media Player Board SWH-5180 SPEC V2.0 4Extension 3 TTL or 1 TTL + 2 RS232 (standard)6 TTL or 4 TTL + 2 RS232 (Optional)SPI×1GPIO×5I2C×2MIC x1TF Card Slot ×1SIM Card Slot ×1Other FeaturesRTC Time synchronization over network and time saving when power failureIR Input Specified remote of NEC formatElectrical ParameterInput Power Switching Power（STB，5VSB，5V，12V）, 10 Pin, 2.00mmSingle 12V (Need to short J41)
Signway Media Player Board SWH-5180 SPEC V2.0 5USB_OTGNote:Serial port type (TTL / RS232) will be different according to the option.3Profile3.1 ProfileFront ViewSpeaker LeftSpeaker RightMain Power InputBack lightRemote WiFi/BT AntennaWiFi/BT AntennaSPI ExtensionUSB ExtensionUSB Extension3G ExtensionUSB ExtensionLAN HDMILVDS OutputVGA(optional)FanMICAudioU_BOOT USBTTLTTLMIPI(optional)HDMI INEDP

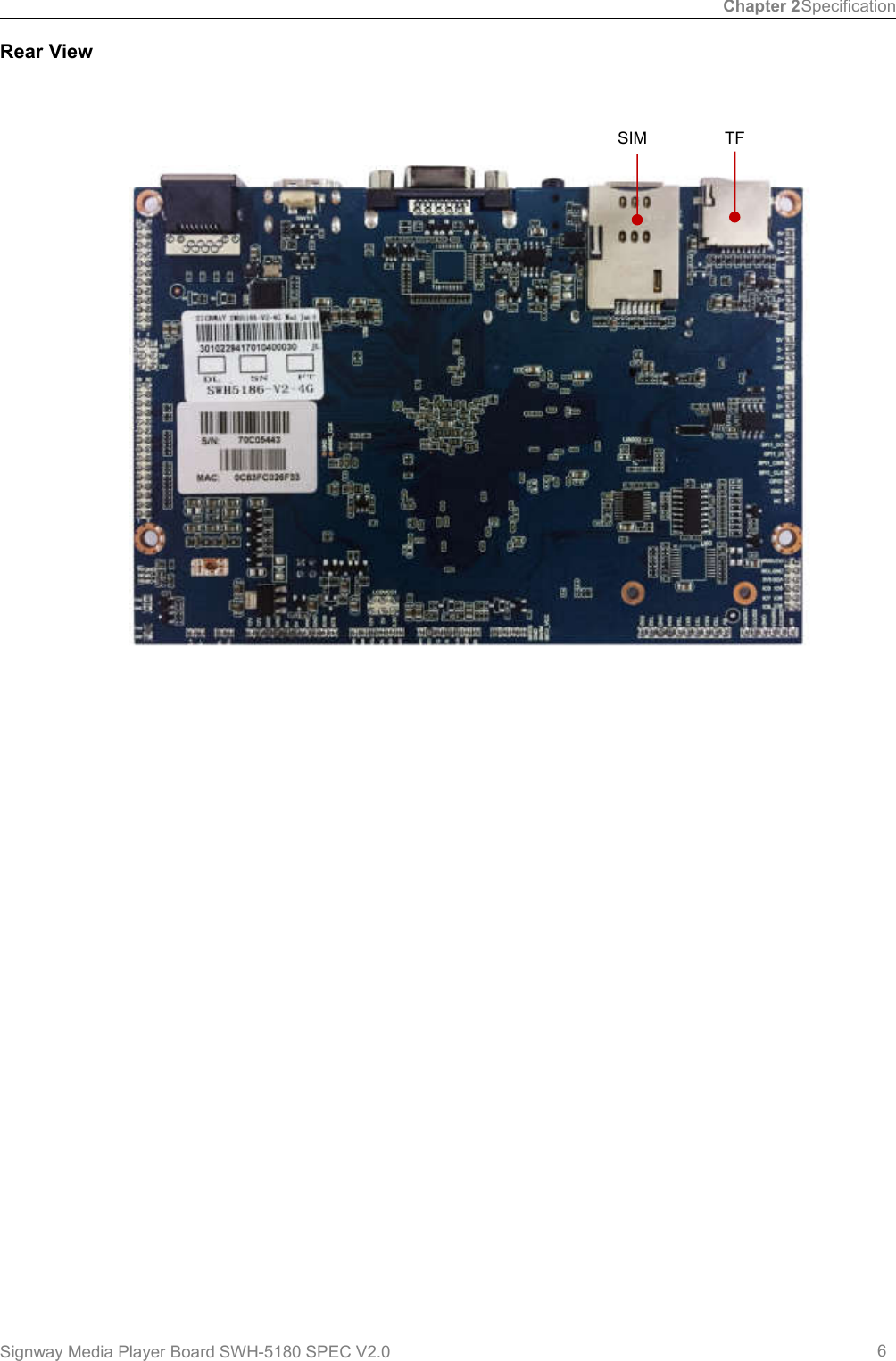

Chapter 2SpecificationSignway Media Player Board SWH-5180 SPEC V2.0 6Rear ViewTFSIM

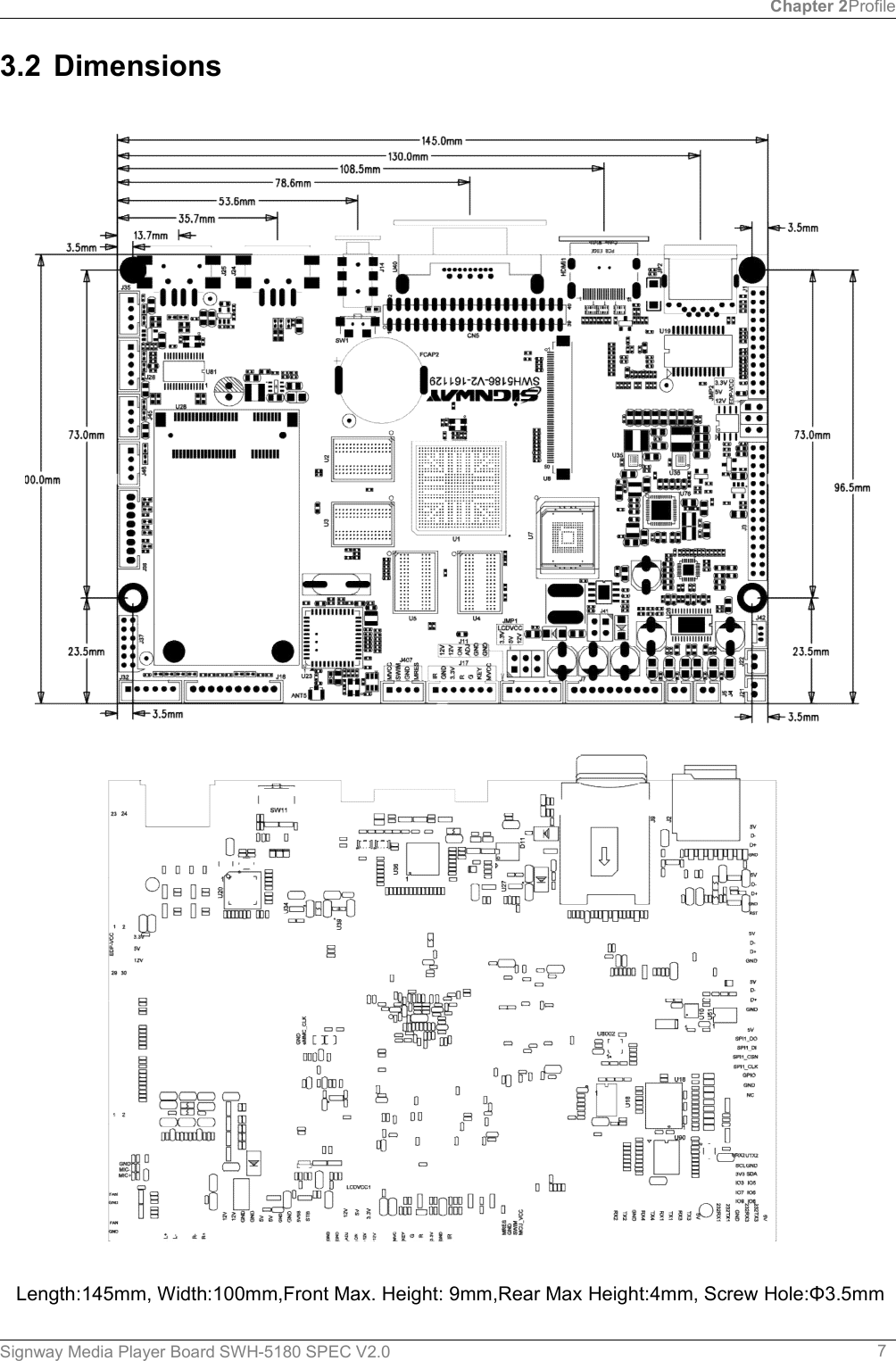

Chapter 2ProfileSignway Media Player Board SWH-5180 SPEC V2.0 73.2 DimensionsLength:145mm, Width:100mm,Front Max. Height: 9mm,Rear Max Height:4mm, Screw Hole:Φ3.5mm

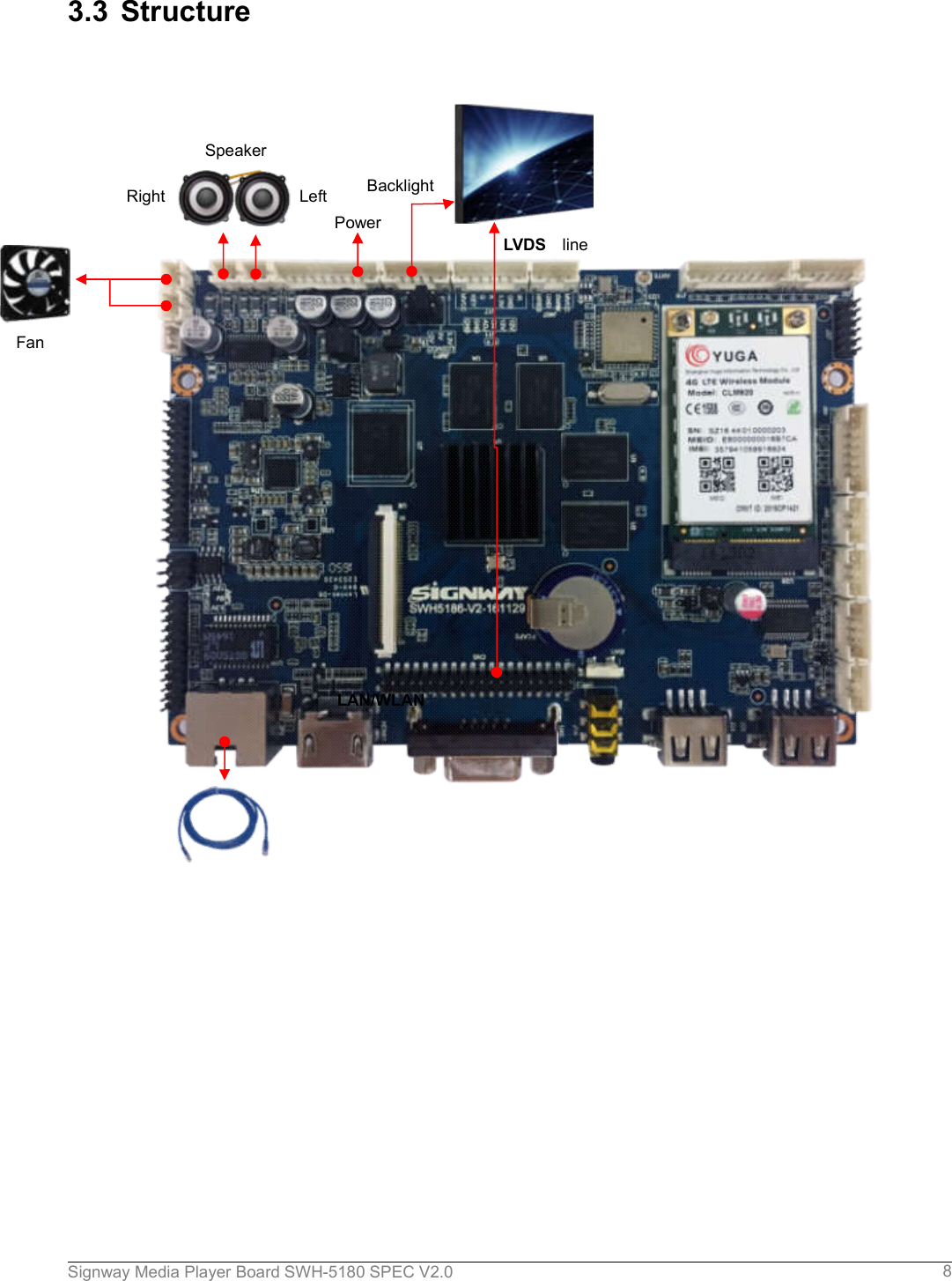

Signway Media Player Board SWH-5180 SPEC V2.0 83.3 StructureRightLAN/WLANSpeakerLVDS lineBacklightLeftFanPower

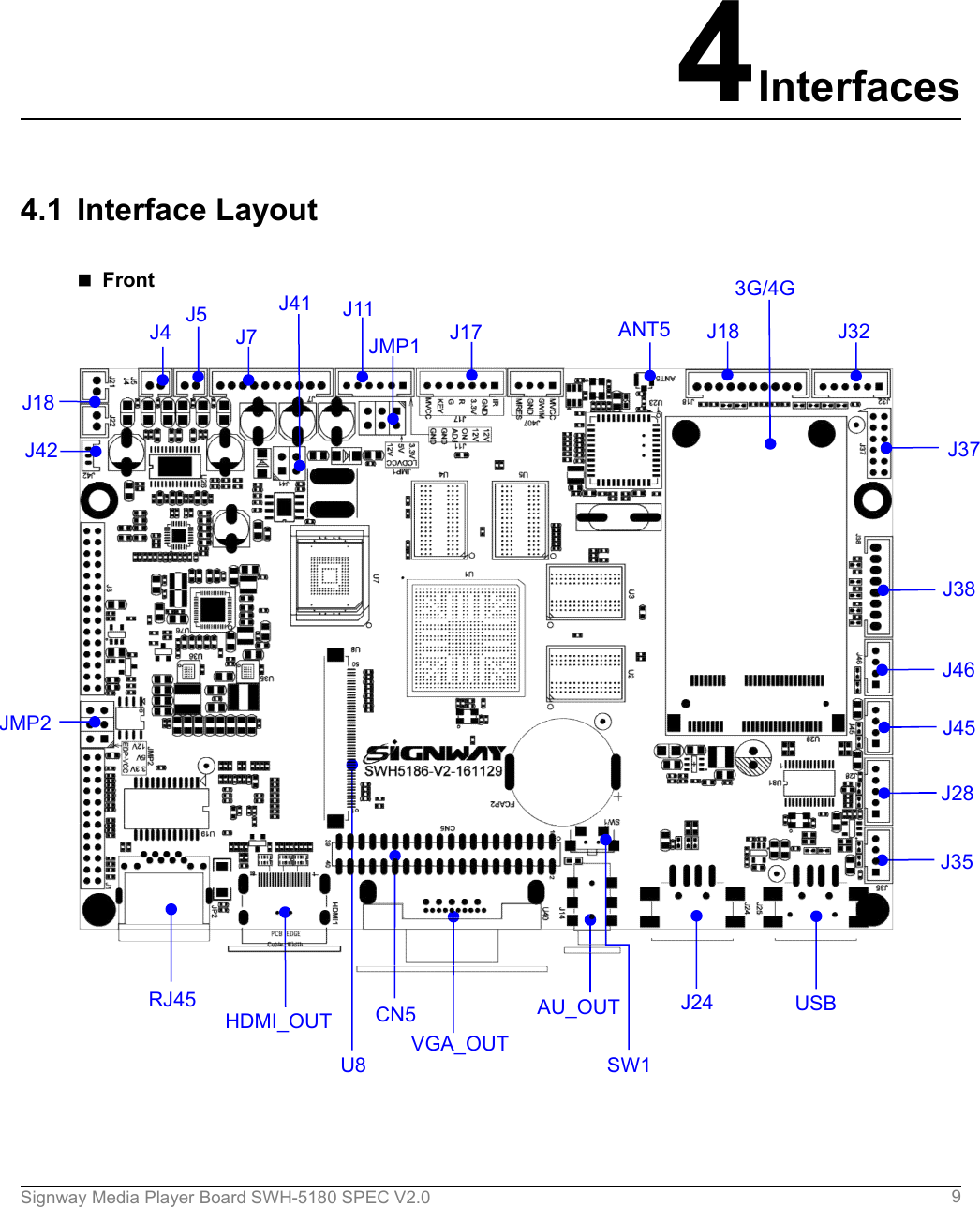

Signway Media Player Board SWH-5180 SPEC V2.0 93G/4GJ32J35CN5J28HDMI_OUTU8 SW1J244Interfaces4.1 Interface LayoutFrontJ18J42JMP2J4 J5JMP1 ANT5 J18J17J11J41J7J37J38J46J45RJ45VGA_OUTAU_OUT USB

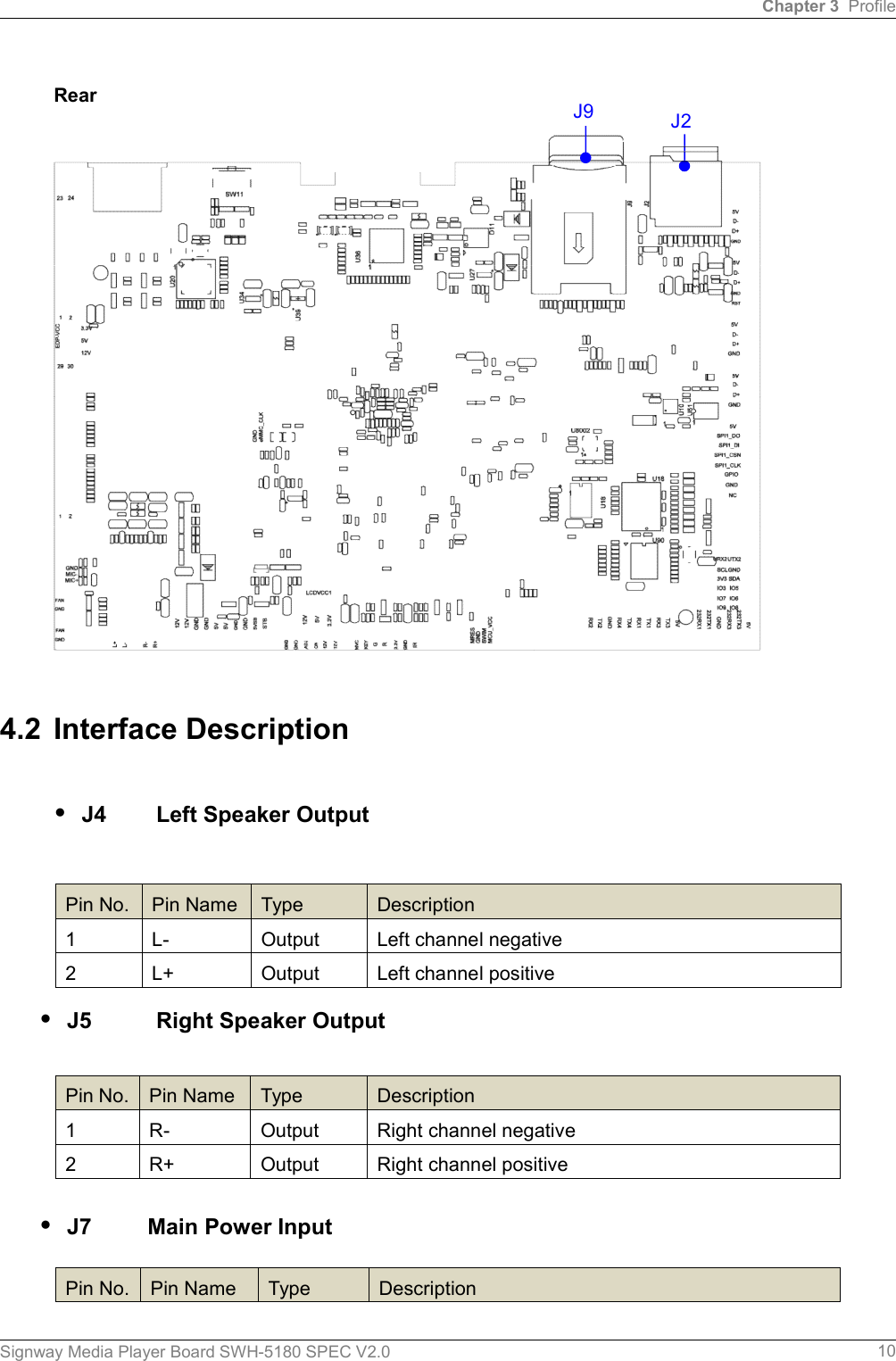

Chapter 3 ProfileSignway Media Player Board SWH-5180 SPEC V2.0 10Rear4.2 Interface Description·J4 Left Speaker OutputPin No. Pin Name Type Description1 L- Output Left channel negative2 L+ Output Left channel positive·J5 Right Speaker OutputPin No. Pin Name Type Description1 R- Output Right channel negative2 R+ Output Right channel positive·J7 Main Power InputPin No. Pin Name Type DescriptionJ2J9

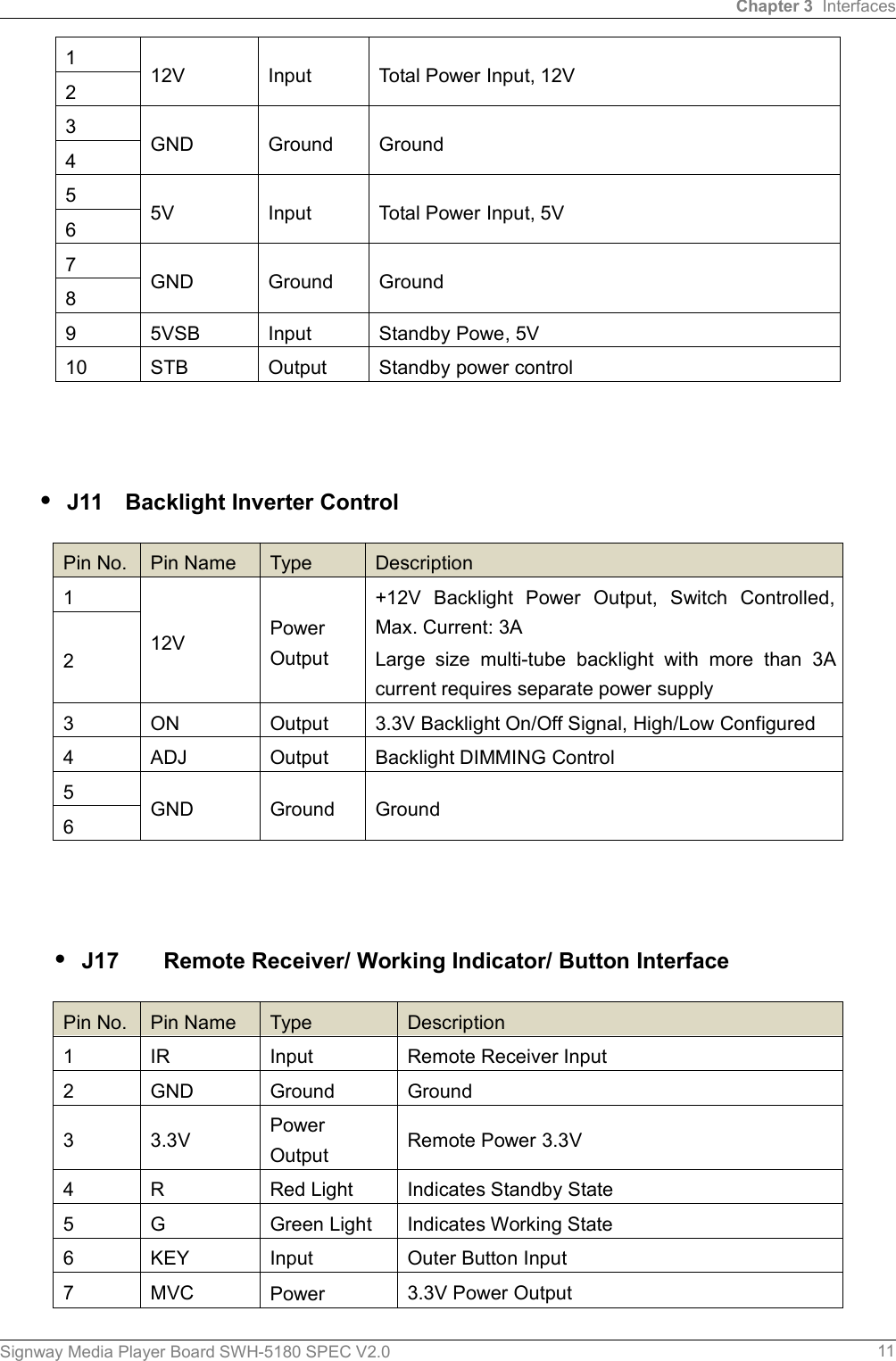

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 11112V Input Total Power Input, 12V23GND Ground Ground455V Input Total Power Input, 5V67GND Ground Ground89 5VSB Input Standby Powe, 5V10 STB Output Standby power control·J11 Backlight Inverter ControlPin No. Pin Name Type Description112V PowerOutput+12V Backlight Power Output, Switch Controlled,Max. Current: 3ALarge size multi-tube backlight with more than 3Acurrent requires separate power supply23 ON Output 3.3V Backlight On/Off Signal, High/Low Configured4 ADJ Output Backlight DIMMING Control5GND Ground Ground6·J17 Remote Receiver/ Working Indicator/ Button InterfacePin No. Pin Name Type Description1 IR Input Remote Receiver Input2 GND Ground Ground3 3.3V PowerOutput Remote Power 3.3V4 R Red Light Indicates Standby State5 G Green Light Indicates Working State6 KEY Input Outer Button Input7 MVC Power 3.3V Power Output

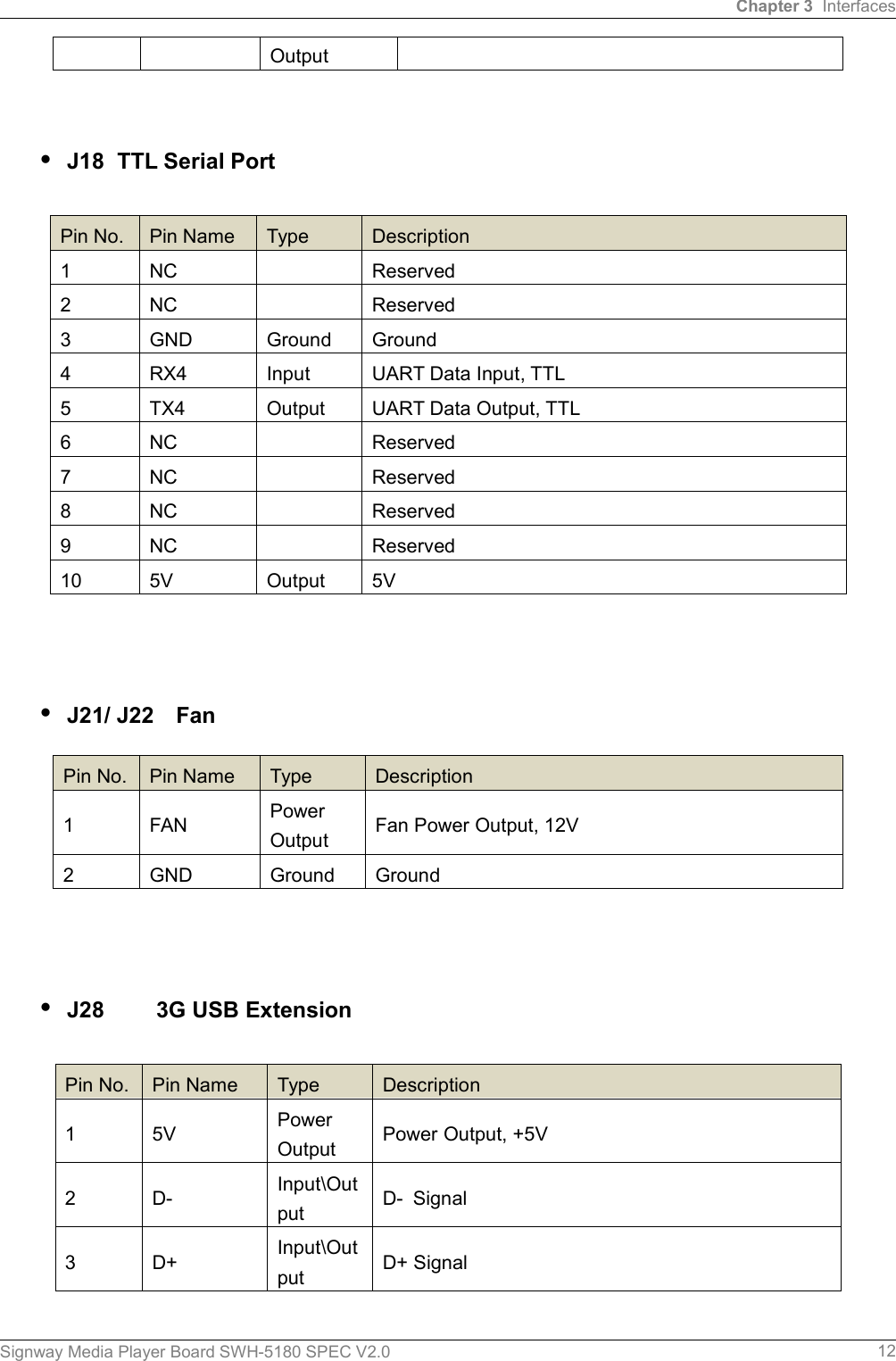

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 12Output·J18 TTL Serial PortPin No. Pin Name Type Description1 NC Reserved2 NC Reserved3 GND Ground Ground4 RX4 Input UART Data Input, TTL5 TX4 Output UART Data Output, TTL6 NC Reserved7 NC Reserved8 NC Reserved9 NC Reserved10 5V Output 5V·J21/ J22 FanPin No. Pin Name Type Description1 FAN PowerOutput Fan Power Output, 12V2 GND Ground Ground·J28 3G USB ExtensionPin No. Pin Name Type Description1 5V PowerOutput Power Output, +5V2 D- Input\Output D- Signal3 D+ Input\Output D+ Signal

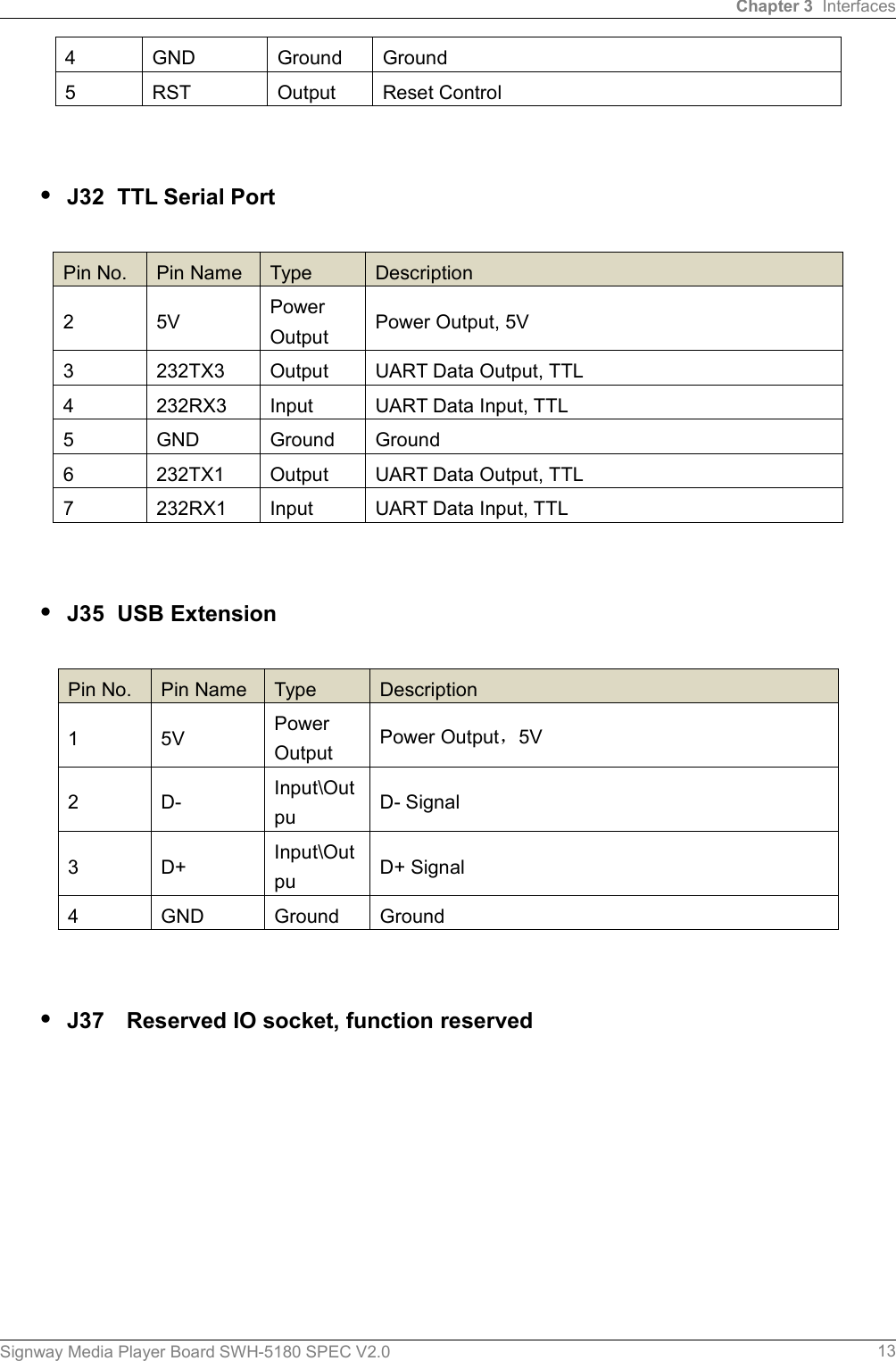

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 134 GND Ground Ground5 RST Output Reset Control·J32 TTL Serial PortPin No. Pin Name Type Description2 5V PowerOutput Power Output, 5V3 232TX3 Output UART Data Output, TTL4 232RX3 Input UART Data Input, TTL5 GND Ground Ground6 232TX1 Output UART Data Output, TTL7 232RX1 Input UART Data Input, TTL·J35 USB ExtensionPin No. Pin Name Type Description1 5V PowerOutput Power Output，5V2 D- Input\Outpu D- Signal3 D+ Input\Outpu D+ Signal4 GND Ground Ground·J37 Reserved IO socket, function reserved
Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 14·J38 SPI ExtensionPin No. Pin Name Type Description1 5V PowerOutput Power Output，5V2 SPI1_DO Output SPI Data Output3 SPI1_DI Input SPI Data Input4 SPI1_CSN Output SPI Chip Select5 SPI1_CLK Output SPI Clock6 GPIO Output/Input IO Port, Reserved7 GND Output SPI Clock Output8 NC NCPin No. Pin Name Type Description1 IO9 Input/Outpu Reserved IO2 IO8 Input/Outpu Reserved IO3 IO4 Input/Outpu Reserved IO4 IO6 Input/Outpu Reserved IO5 IO3 Input/Outpu Reserved IO6 IO5 Input/Outpu Reserved IO7 3V3 Input/Outpu Reserved IO8 SDA Input/Outpu I2C Data, Reserved9 SCL Output I2C Clock, Reserved10 GND Ground Ground11 URX2 Input Debug Interface, Reserved12 URT2 Output Debug Interface, Reserved

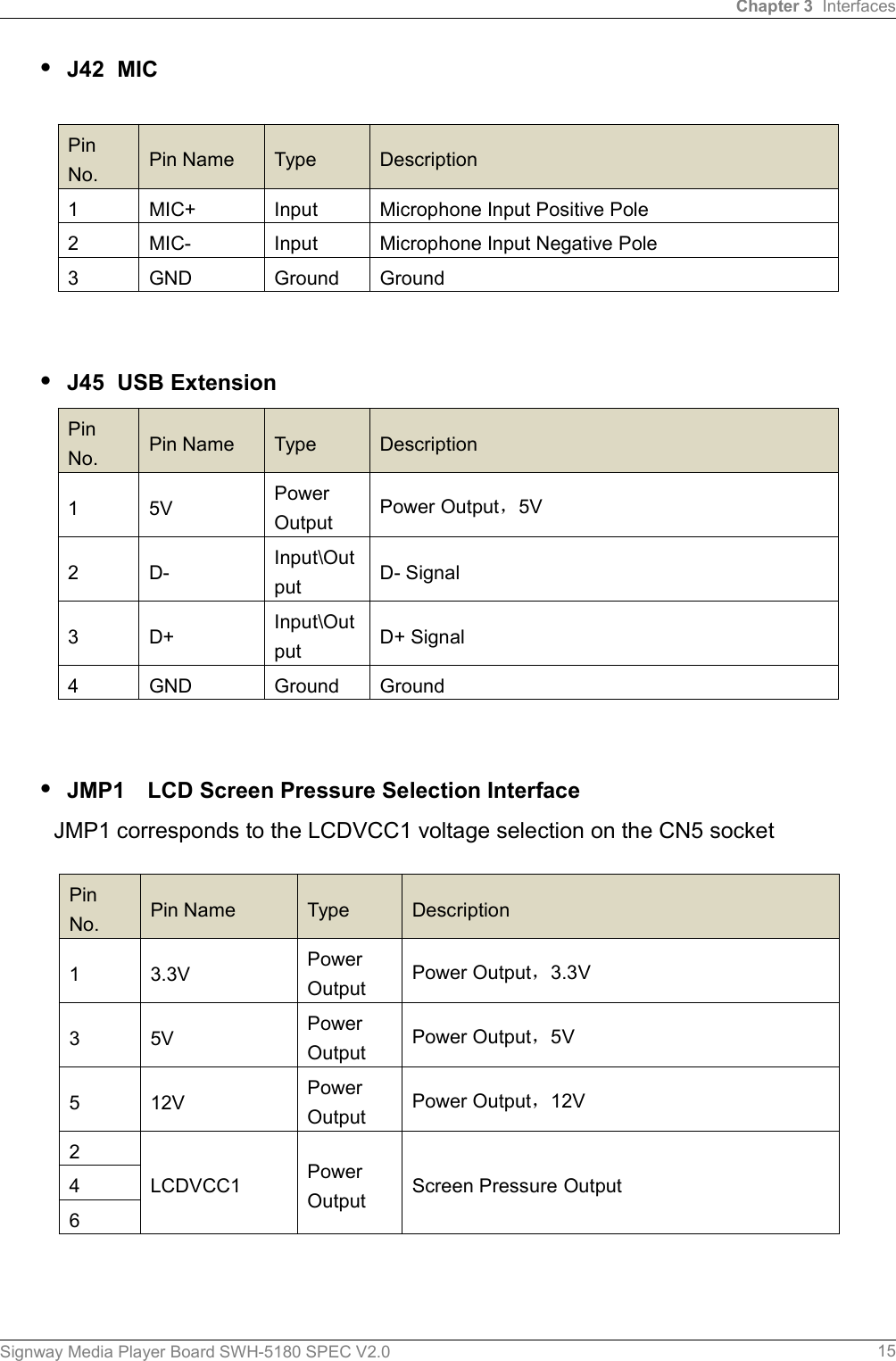

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 15·J42 MICPinNo. Pin Name Type Description1 MIC+ Input Microphone Input Positive Pole2 MIC- Input Microphone Input Negative Pole3 GND Ground Ground·J45 USB ExtensionPinNo. Pin Name Type Description1 5V PowerOutput Power Output，5V2 D- Input\Output D- Signal3 D+ Input\Output D+ Signal4 GND Ground Ground·JMP1 LCD Screen Pressure Selection InterfaceJMP1 corresponds to the LCDVCC1 voltage selection on the CN5 socketPinNo. Pin Name Type Description1 3.3V PowerOutput Power Output，3.3V3 5V PowerOutput Power Output，5V5 12V PowerOutput Power Output，12V2LCDVCC1 PowerOutput Screen Pressure Output46

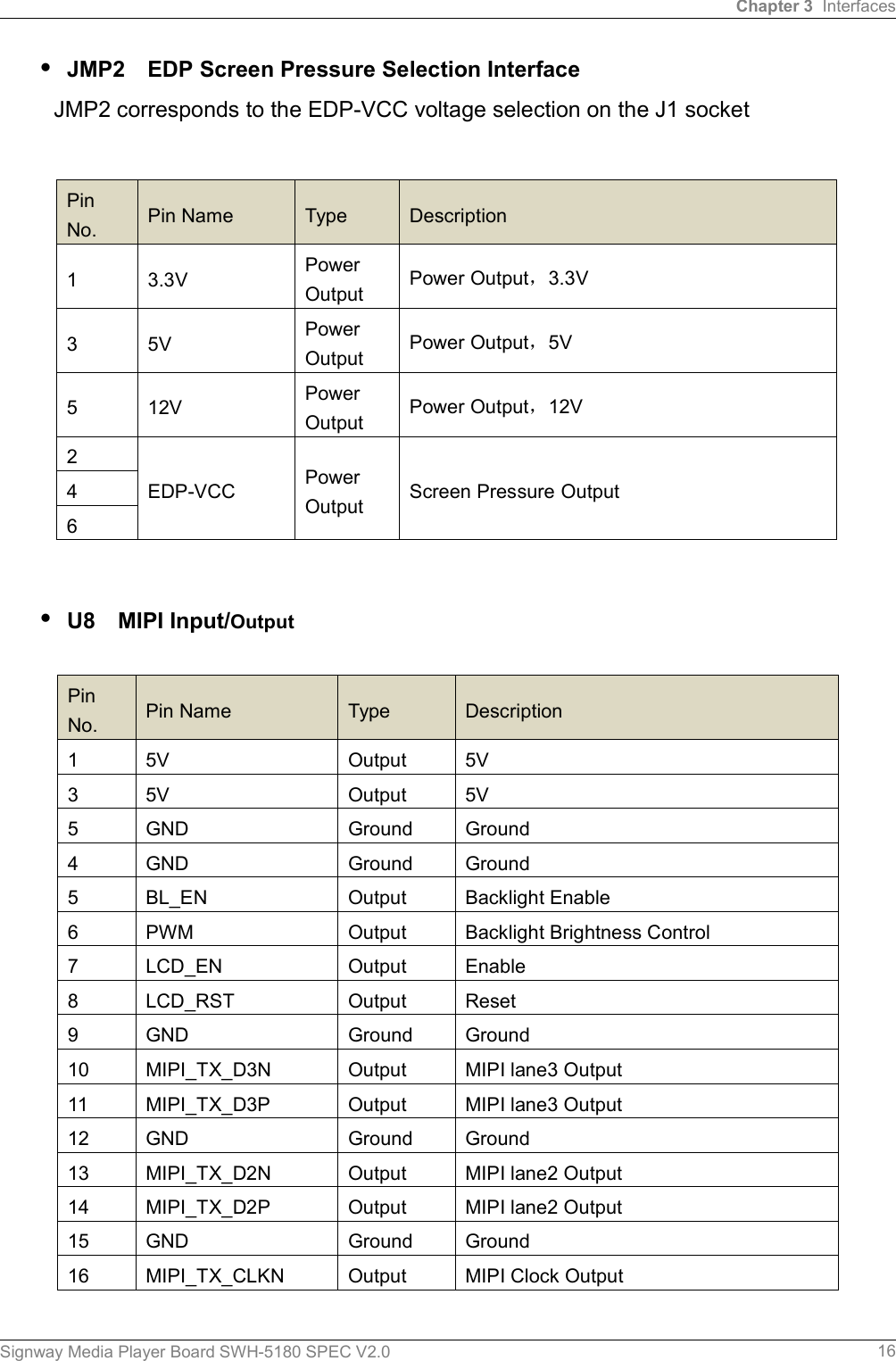

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 16·JMP2 EDP Screen Pressure Selection InterfaceJMP2 corresponds to the EDP-VCC voltage selection on the J1 socket·U8 MIPI Input/OutputPinNo. Pin Name Type Description1 5V Output 5V3 5V Output 5V5 GND Ground Ground4 GND Ground Ground5 BL_EN Output Backlight Enable6 PWM Output Backlight Brightness Control7 LCD_EN Output Enable8 LCD_RST Output Reset9 GND Ground Ground10 MIPI_TX_D3N Output MIPI lane3 Output11 MIPI_TX_D3P Output MIPI lane3 Output12 GND Ground Ground13 MIPI_TX_D2N Output MIPI lane2 Output14 MIPI_TX_D2P Output MIPI lane2 Output15 GND Ground Ground16 MIPI_TX_CLKN Output MIPI Clock OutputPinNo. Pin Name Type Description1 3.3V PowerOutput Power Output，3.3V3 5V PowerOutput Power Output，5V5 12V PowerOutput Power Output，12V2EDP-VCC PowerOutput Screen Pressure Output46
Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 17PinNo. Pin Name Type Description17 MIPI_TX_CLKP Output MIPI Clock Output18 GND Ground Ground19 MIPI_TX_D1N Output MIPI lane1Output20 MIPI_TX_D1P Output MIPI lane1Output21 GND Ground Ground22 MIPI_TX_D0N Output MIPI lane0Output23 MIPI_TX_D0P Output MIPI lane0Output24 GND Ground Ground25 MIPI_TX/RX_D3N Output/Input MIPI lane3Output/Input26 MIPI_TX/RX_D3P Output/Input MIPIlane3Output/Input27 GND Ground Ground28 MIPI_TX/RX_D2N Output/Input MIPI lane2Output/Input29 MIPI_TX/RX_D2P Output/Input MIPI lane2Output/Input30 GND Ground Ground31 MIPI_TX/RX_CLKN Output/Input MIPI Clock32 MIPI_TX/RX_CLKP Output/Input MIPI Clock33 GND Ground Ground34 MIPI_TX/RX_D1N Output/Input MIPI lane1Output/Input35 MIPI_TX/RX_D1P Output/Input MIPI lane1Output/Input36 GND Ground Ground37 MIPI_TX/RX_D0N Output/Input MIPI lane0Output/Input38 MIPI_TX/RX_D0P Output/Input MIPI lane0Output/Input39 GND Ground Ground40 MIPI_RST Output MIPI Reset41 CIF_PDN Output IO Control, Reserved42 CIF_CLK Output Clock Output, Reserved

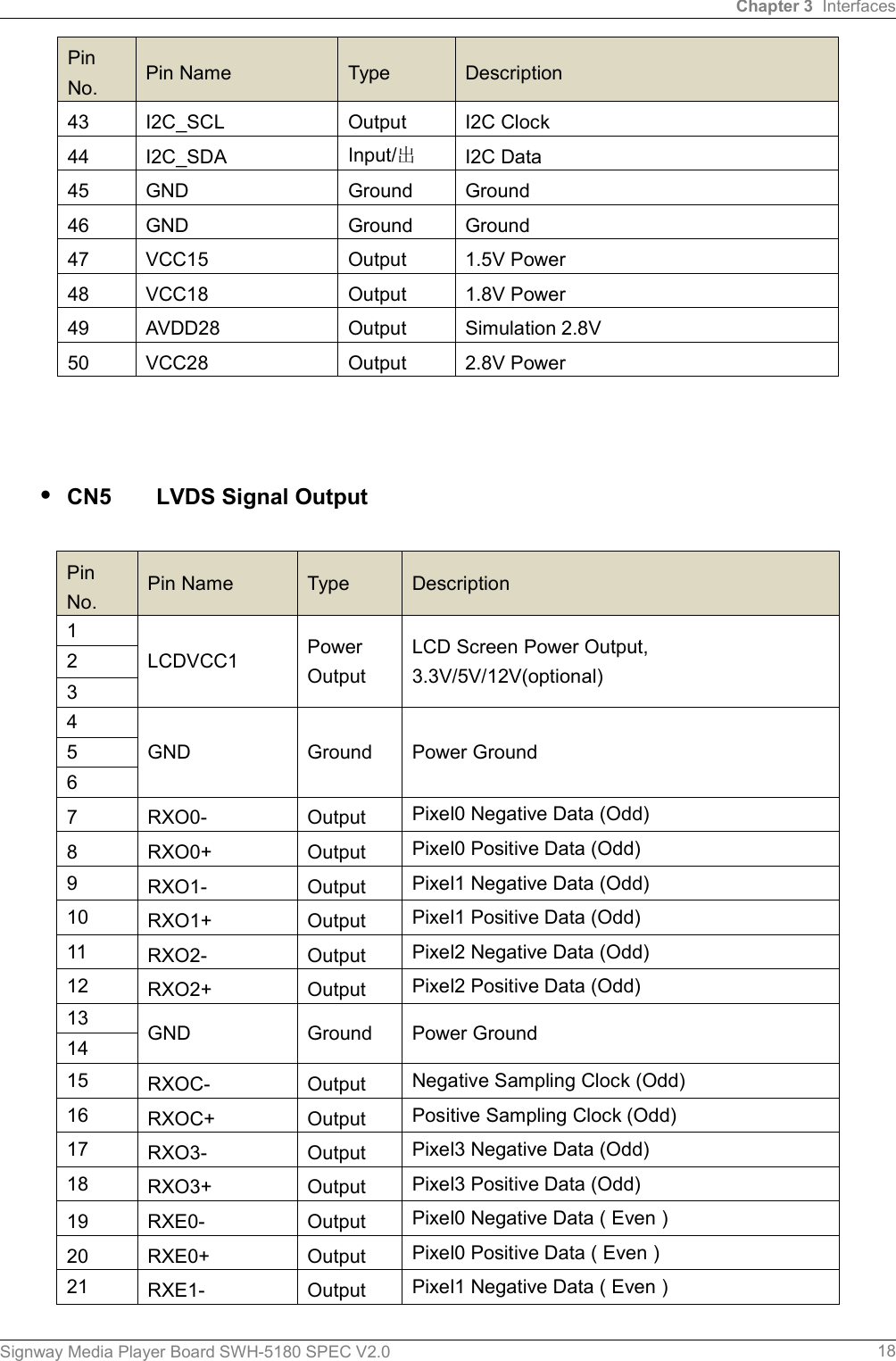

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 18PinNo. Pin Name Type Description43 I2C_SCL Output I2C Clock44 I2C_SDA Input/出I2C Data45 GND Ground Ground46 GND Ground Ground47 VCC15 Output 1.5V Power48 VCC18 Output 1.8V Power49 AVDD28 Output Simulation 2.8V50 VCC28 Output 2.8V Power·CN5 LVDS Signal OutputPinNo.Pin Name Type Description1LCDVCC1 PowerOutputLCD Screen Power Output,3.3V/5V/12V(optional)234GND Ground Power Ground567 RXO0- Output Pixel0 Negative Data (Odd)8 RXO0+ Output Pixel0 Positive Data (Odd)9RXO1- Output Pixel1 Negative Data (Odd)10 RXO1+ Output Pixel1 Positive Data (Odd)11 RXO2- Output Pixel2 Negative Data (Odd)12 RXO2+ Output Pixel2 Positive Data (Odd)13 GND Ground Power Ground1415 RXOC- Output Negative Sampling Clock (Odd)16 RXOC+ Output Positive Sampling Clock (Odd)17 RXO3- Output Pixel3 Negative Data (Odd)18 RXO3+ Output Pixel3 Positive Data (Odd)19 RXE0- Output Pixel0 Negative Data ( Even )20 RXE0+ Output Pixel0 Positive Data ( Even )21 RXE1- Output Pixel1 Negative Data ( Even )

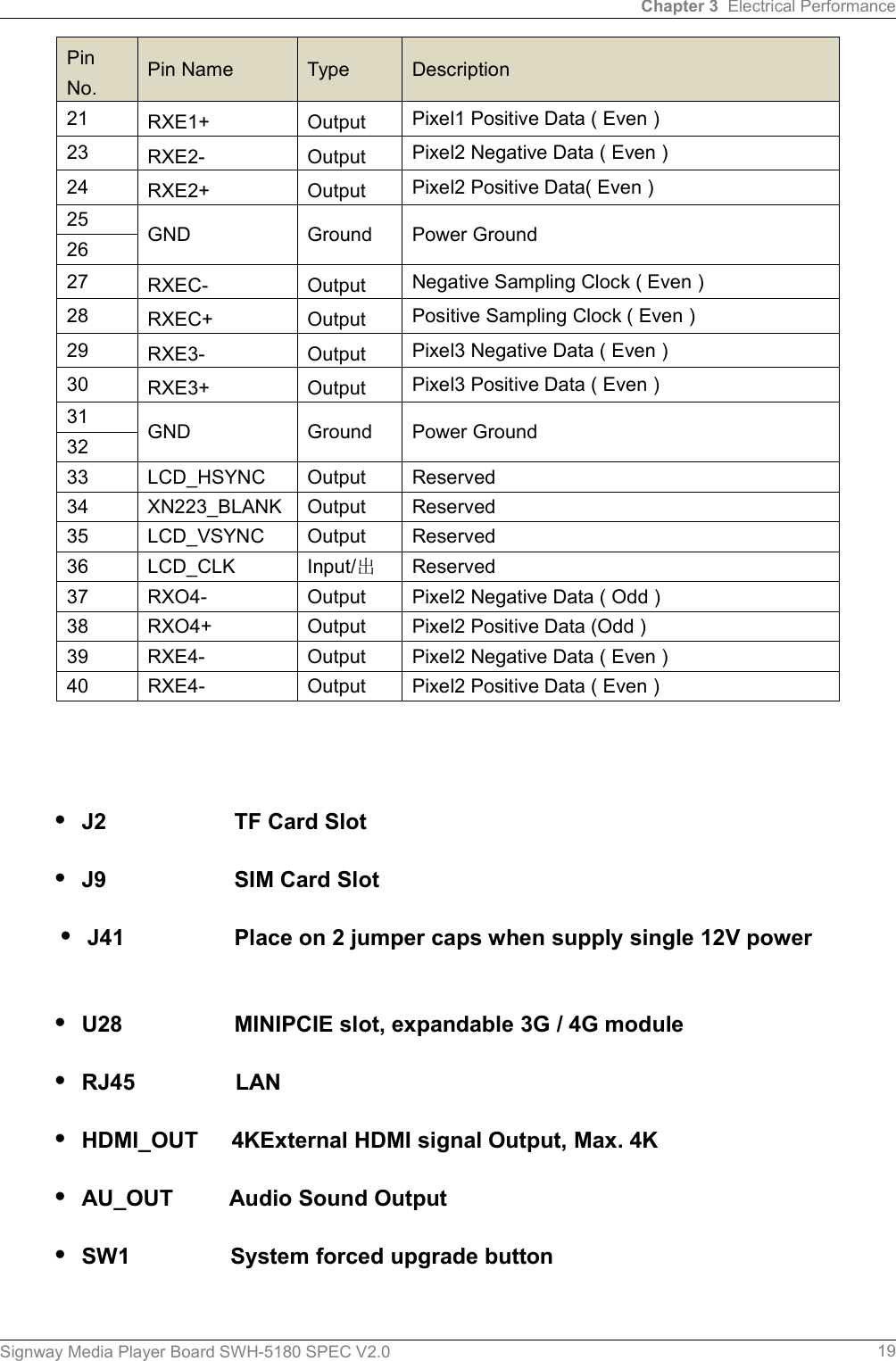

Chapter 3 Electrical PerformanceSignway Media Player Board SWH-5180 SPEC V2.0 19PinNo.Pin Name Type Description21 RXE1+ Output Pixel1 Positive Data ( Even )23 RXE2- Output Pixel2 Negative Data ( Even )24 RXE2+ Output Pixel2 Positive Data( Even )25 GND Ground Power Ground2627 RXEC- Output Negative Sampling Clock ( Even )28 RXEC+ Output Positive Sampling Clock ( Even )29 RXE3- Output Pixel3 Negative Data ( Even )30 RXE3+ Output Pixel3 Positive Data ( Even )31 GND Ground Power Ground3233 LCD_HSYNC Output Reserved34 XN223_BLANK Output Reserved35 LCD_VSYNC Output Reserved36 LCD_CLK Input/出Reserved37 RXO4- Output Pixel2 Negative Data ( Odd )38 RXO4+ Output Pixel2 Positive Data (Odd )39 RXE4- Output Pixel2 Negative Data ( Even )40 RXE4- Output Pixel2 Positive Data ( Even )·J2 TF Card Slot·J9 SIM Card Slot·J41 Place on 2 jumper caps when supply single 12V power·U28 MINIPCIE slot, expandable 3G / 4G module·RJ45 LAN·HDMI_OUT 4KExternal HDMI signal Output, Max. 4K·AU_OUT Audio Sound Output·SW1 System forced upgrade button

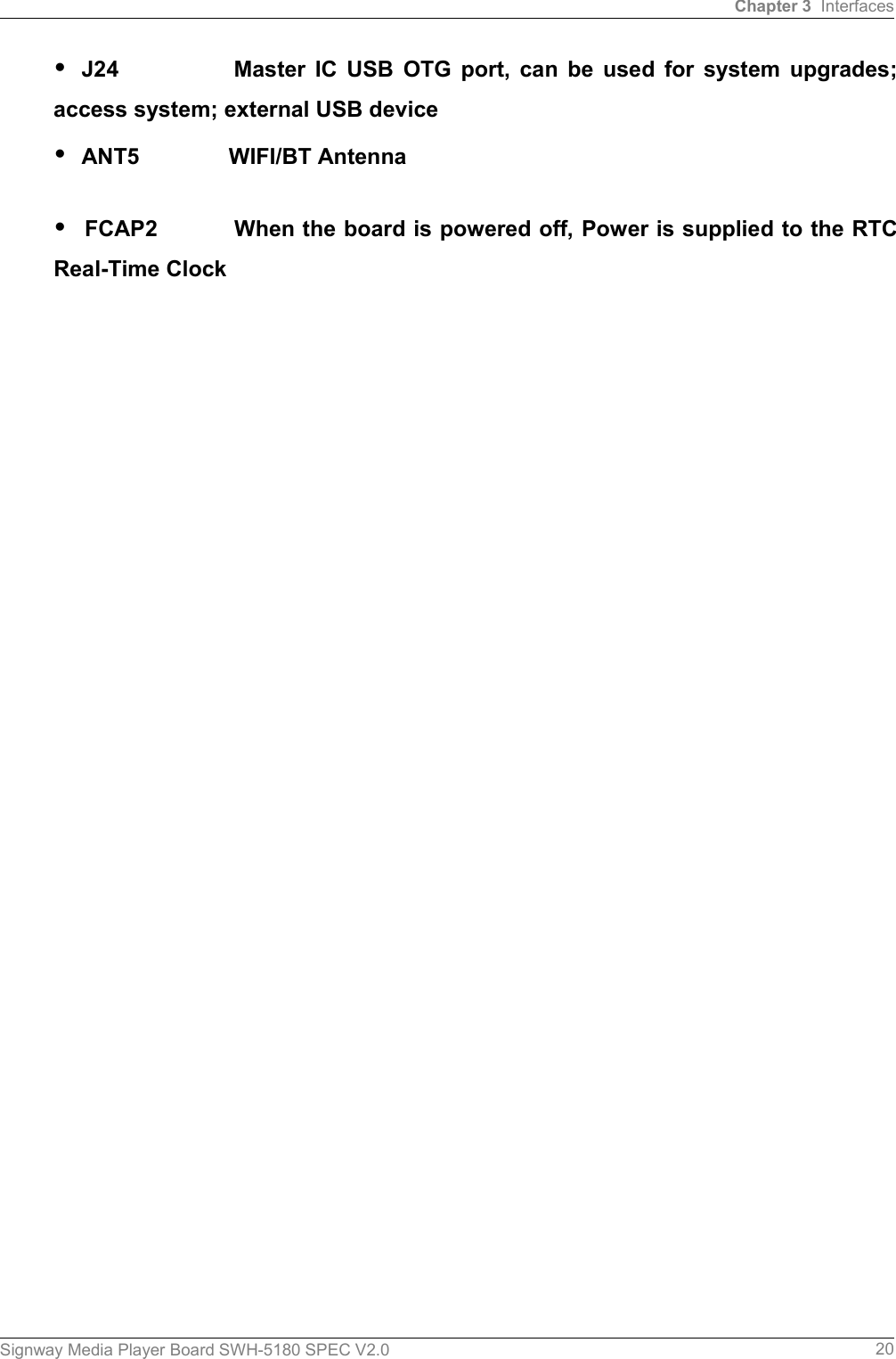

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 20·J24 Master IC USB OTG port, can be used for system upgrades;access system; external USB device·ANT5 WIFI/BT Antenna·FCAP2 When the board is powered off, Power is supplied to the RTCReal-Time Clock

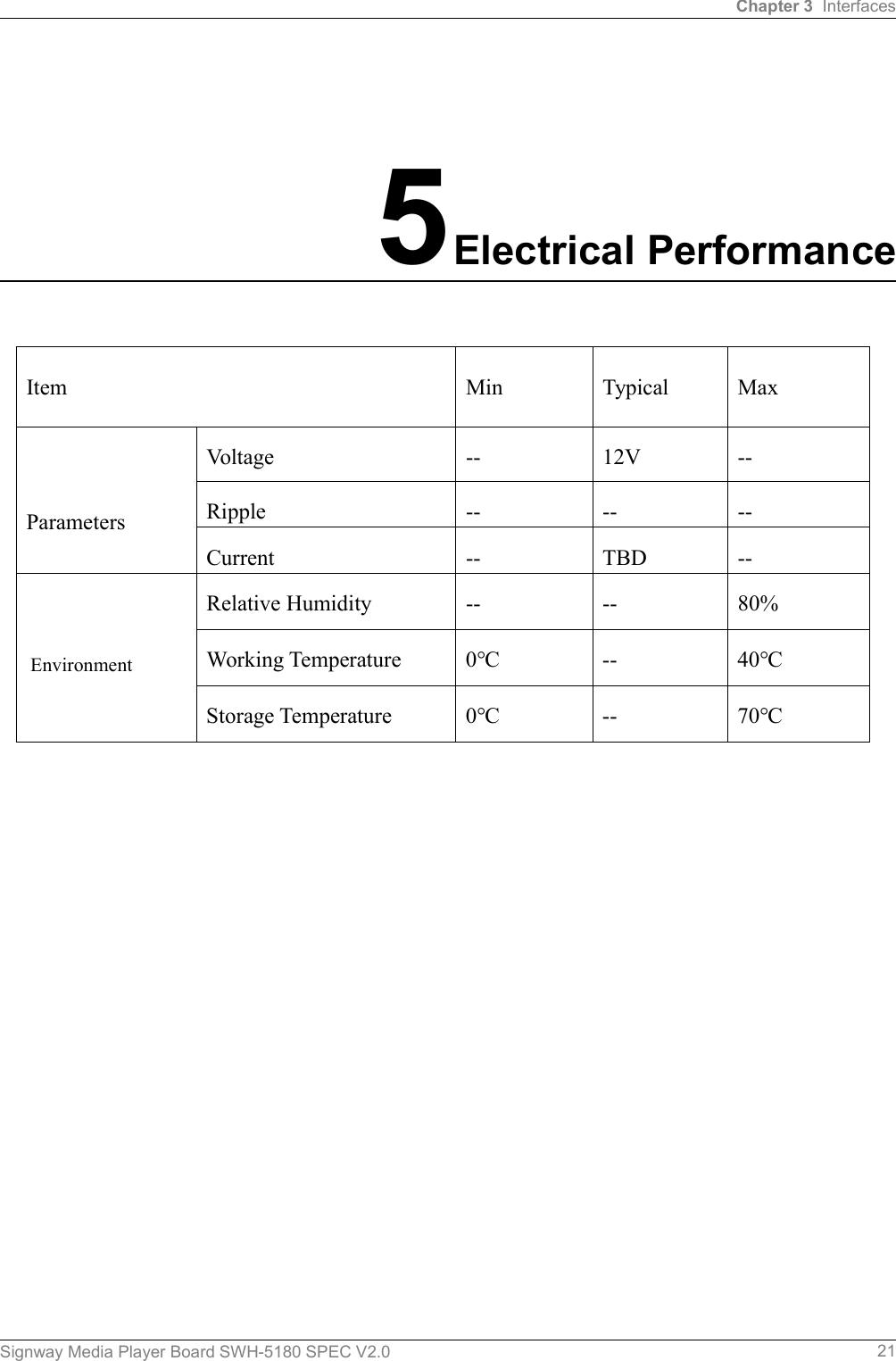

Chapter 3 InterfacesSignway Media Player Board SWH-5180 SPEC V2.0 215Electrical PerformanceItem Min Typical MaxParametersVoltage -- 12V --Ripple -- -- --Current -- TBD --EnvironmentRelative Humidity -- -- 80%Working Temperature 0℃ -- 40℃Storage Temperature 0℃ -- 70℃
