[Installation Guide]
Installation Guide
Version 1.1 | 12 May 2011
![](/img.php?id=1474484&img=bg2.png)
2
info@nedaplibrix.com
Nedap Librix
Parallelweg 2d
Groenlo
The Netherlands
Nedap Librix
P.O. box 102
7140 AC Groenlo
The Netherlands
Tel: +31(0)544 47 15 09
Fax: +31(0)544 46 58 14
©Nedap Librix
Netherlands
Parallelweg 2d, 7141 DC Groenlo
The software / hardware described in this document / file is furnished under a license
agreement and may be used only in accordance with the terms of agreement.
Documentation Installation Guide PG45-13.56MHz Copyright Notice
Any technical documentation that is made available by Nedap Librix is the copyrighted
work of Nedap Librix and is owned by Nedap Librix.
NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix
makes no warranty as to its accuracy or use. Any use of the technical documentation or
the information contained herein is at the risk of the user. Documentation may include
technical or other inaccuracies or typographical errors. Nedap Librix has the right to
make changes without prior notice. No part of this publication may be copied without
the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The
Netherlands.
Trademarks
Nedap, the Nedap and Librix logo are registered trademarks of N.V. Nederlandsche
Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other
product names mentioned in this manual may be trademarks or registered trademarks
of their respective companies and are hereby acknowledged. Printed in the Netherlands.
![](/img.php?id=1474484&img=bg3.png)
3
Date
Version
Description
18-04-2011
1.0
First version
12-05-2011
1.1
Added text to FCC section
![](/img.php?id=1474484&img=bg4.png)
4
1.1 Notices 04
|||||||||||||||||||||||||||||||||||||||||||||||||||
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
![](/img.php?id=1474484&img=bg5.png)
5

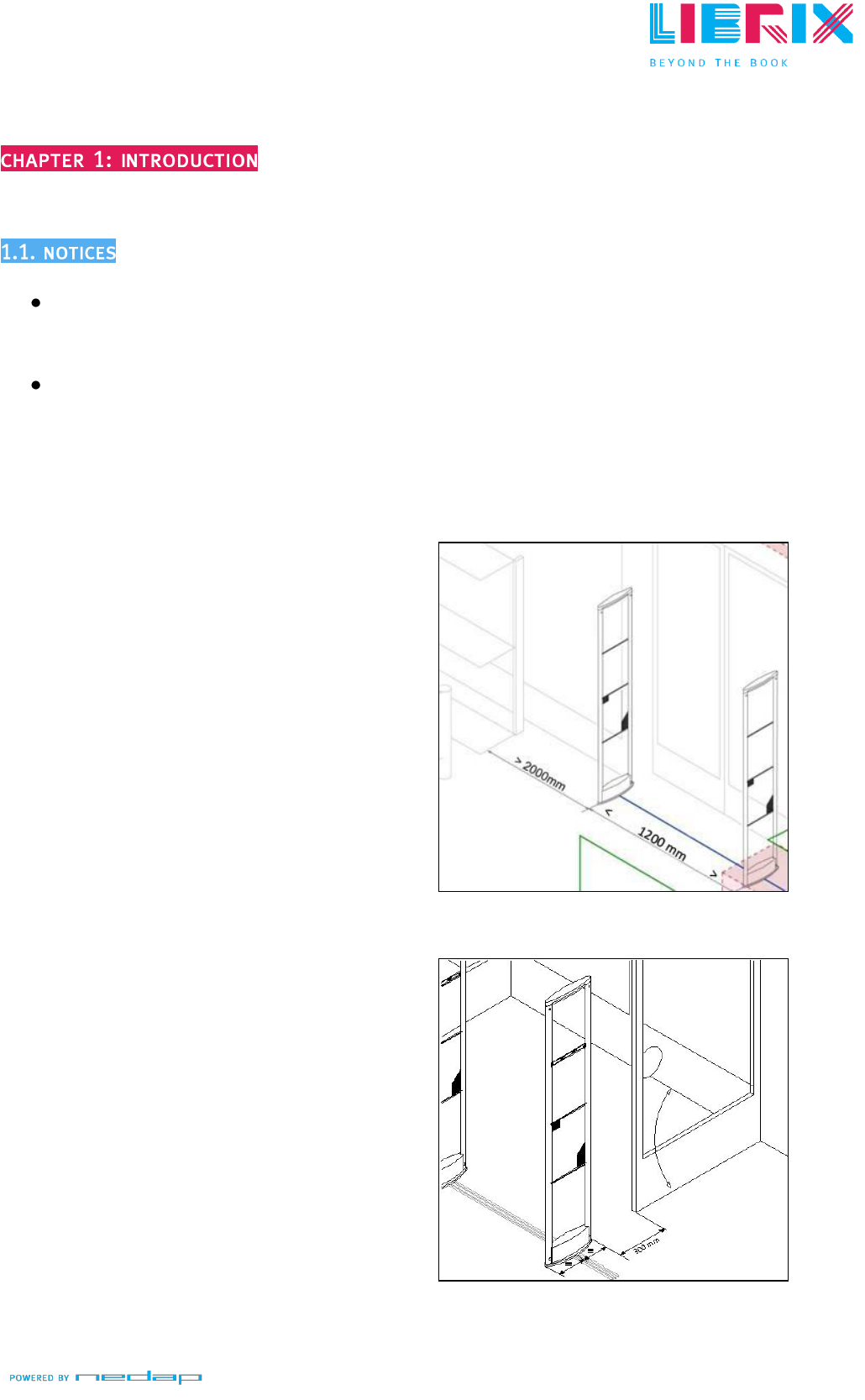

This Quick Installation Guide describes the installation of the PG45-PCC-13.56.
The used antenna images may differ from the ones you will be
installing. However, the installation procedure remains the same.
All measurements in this guide are based on past experiences.
However, local environment properties may cause the need to
change them. The quality of the used labels also influences the
detection capabilities.
1. The distance between two antennas must
be approximately 1050 mm.
2. In a range of 2 meters within the EAS-
antennas there may not be any labeled
articles. If there are labels within this
distance then a shielding must be placed.
3. The distance between the antenna and
door when opened is minimal 300 mm.
Consider this before installing the tubes
in the floor.
![](/img.php?id=1474484&img=bg6.png)
6

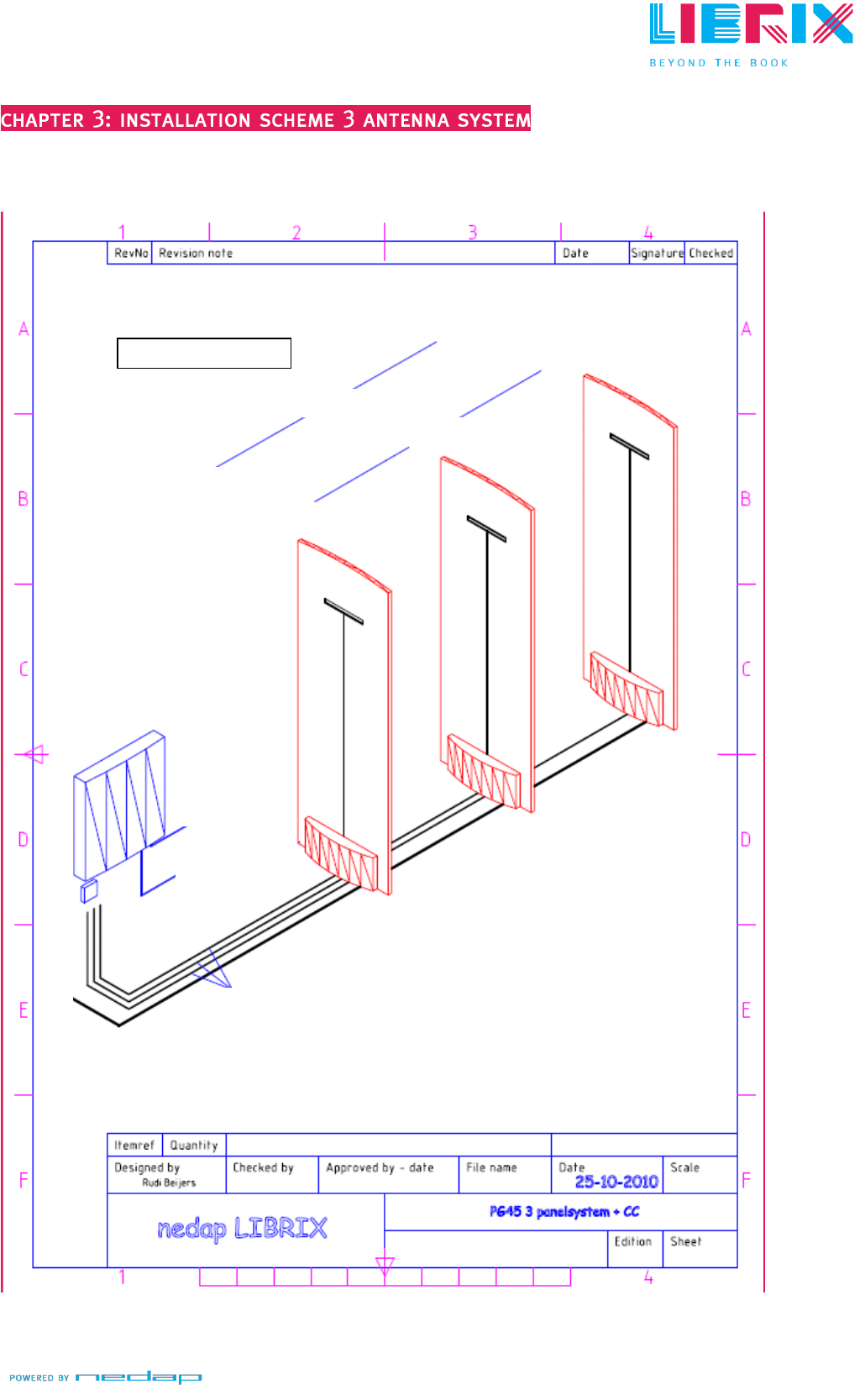

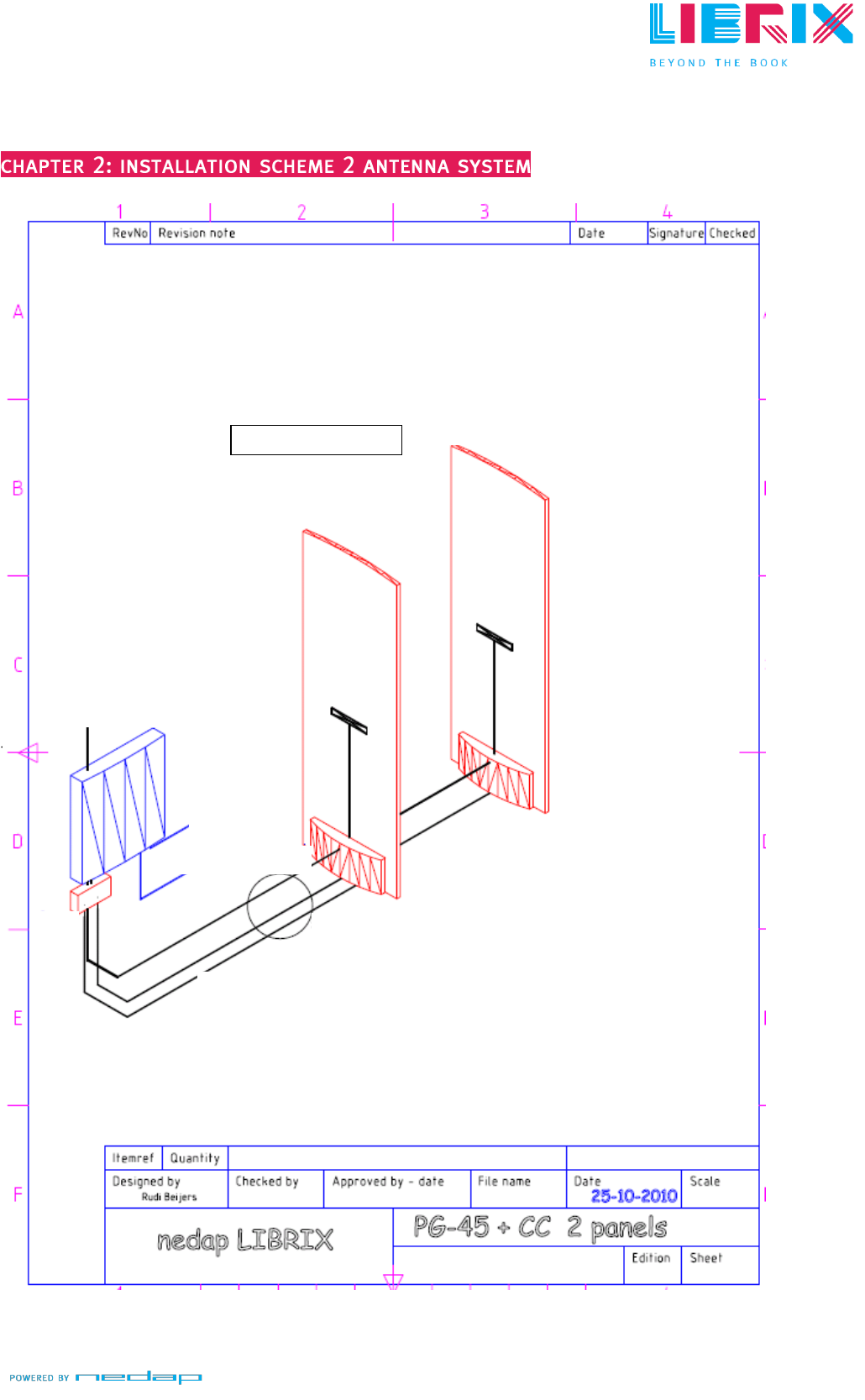

Panel distance ca. 105cm
2 loop antenna
3 loop antenna
Reader unit
Model: DVD31356
Network
Power: 100/230Vac
1 ferrite core per cable
Coax RG-58 (for cable length see LIBRIX support site)
2x (diameter 5mm)
2 way
splitter
![](/img.php?id=1474484&img=bg7.png)
7
Panel distance ca. 105cm
2 loop antenna
3 loop antenna
3 loop antenna
3 loop antenna
2 loop antenna
2 loop antenna
or
or
Reader unit
Model: DVD31356
Network
Power
100/230Vac
3 way splitter
Coax RG-58 (for cable length see LIBRIX support site)
3x (diameter 5mm)
![](/img.php?id=1474484&img=bg8.png)
8
STEP 1:
Mark the holes used for mounting the antennas. Keep the
following dimensions in mind:
STEP 2:
Drill the marked holes using a hammer drill supplied with a
13 mm drill. The holes need to be approximately 90 mm
deep.
STEP 3:
Clean the holes and place the anchors (which the antennas
will be bolted to) according to anchor specification.
![](/img.php?id=1474484&img=bg9.png)
9

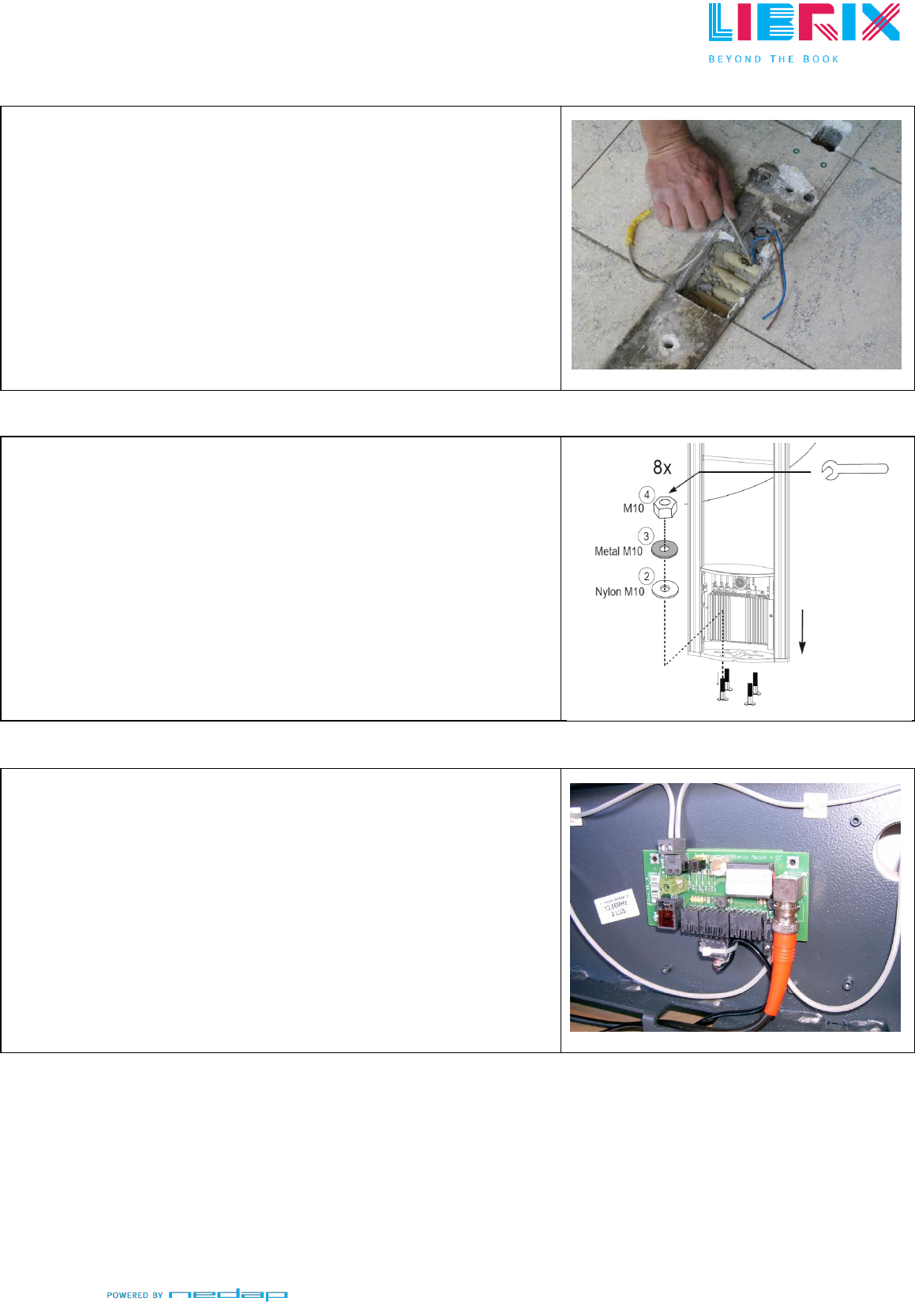

STEP 4:
Use (the told) conduits for wiring the antennas.
STEP 5:
Install the antenna by using the anchors and supplied materials.
STEP 6:
Connect the antenna wires to the electronics as shown.
![](/img.php?id=1474484&img=bga.png)
10
FCC for USA according to Part 15a with FCC ID: CGDDVD31356
IC for Canada according to RS-210 with IC: 1444A-DVD31356
Part 15.19(3) and RSS_Gen Labelling
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operating is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada.
L'opération est soumis aux deux conditions suivantes :
(1) cet appareil ne doit causer aucune interférence, et
(2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui
peut causer une opération non pas voulu de cet appareil.
Warning (part15.21)
Changes or modifications not expressly approved by party responsible for compliance
could void the user’s authority to operate the equipment.
![](/img.php?id=1474484&img=bgb.png)
11
Article numbers: PG 45; 2 loop / 3 loop: 9940448 / 9940456
Dimensions (mm): PG 45: 1665 x 480 x 100 (l x w x h)
Material: PG 45: Metal / Plexiglas
Color: PG 45: Transparent
Weight: PG 45: ca. 29 kg
Function: Detects labels with EAS = on / AFI 07 HEX
Optional expansions: - Light alarm, integral,
- Integral customer counter
Identification %: Dependent on label quality / environmental influences
Article number: 9926798
Supply voltage: 100_230 V, 50-60Hz
Operating voltage: 24 V
Power consumption: 45 Watt
Length power cable: 1.8 m.
RF connection: 50 Ohm BNC coax
Operating temperature: +10 / +45 °C
Storage temperature: -10 / +55 °C
Max. distance between two antennas: PG 45: 1.05 m
Technology: RFID
Frequency: Standard: 13.56 MHz
Antenna power (electrical): Max. 8 Watt
RF antenna power: 37µWatt
Identifies: ISO 15693 / ISO 18000-3.1
EAS-function: Yes, based on EAS-bits and/or AFI
Certificate: CE / EMC / FCC
Warranty: 1 year
![](/img.php?id=1474484&img=bgc.png)
12
This information is furnished for guidance, and with no guarantee as to its accuracy or
completeness; its publication conveys no license under any patent or other right, nor
does the publisher assume liability for any consequence of its use; specifications and
availability of goods mentioned in it are subject to change without notice; it is not to
be reproduced in any way, in whole or in part, without the written consent of the
publisher.
