![](/img.php?id=1474483&img=bg1.png)
pg 45 antenna
beyond the book
![](/img.php?id=1474483&img=bg2.png)

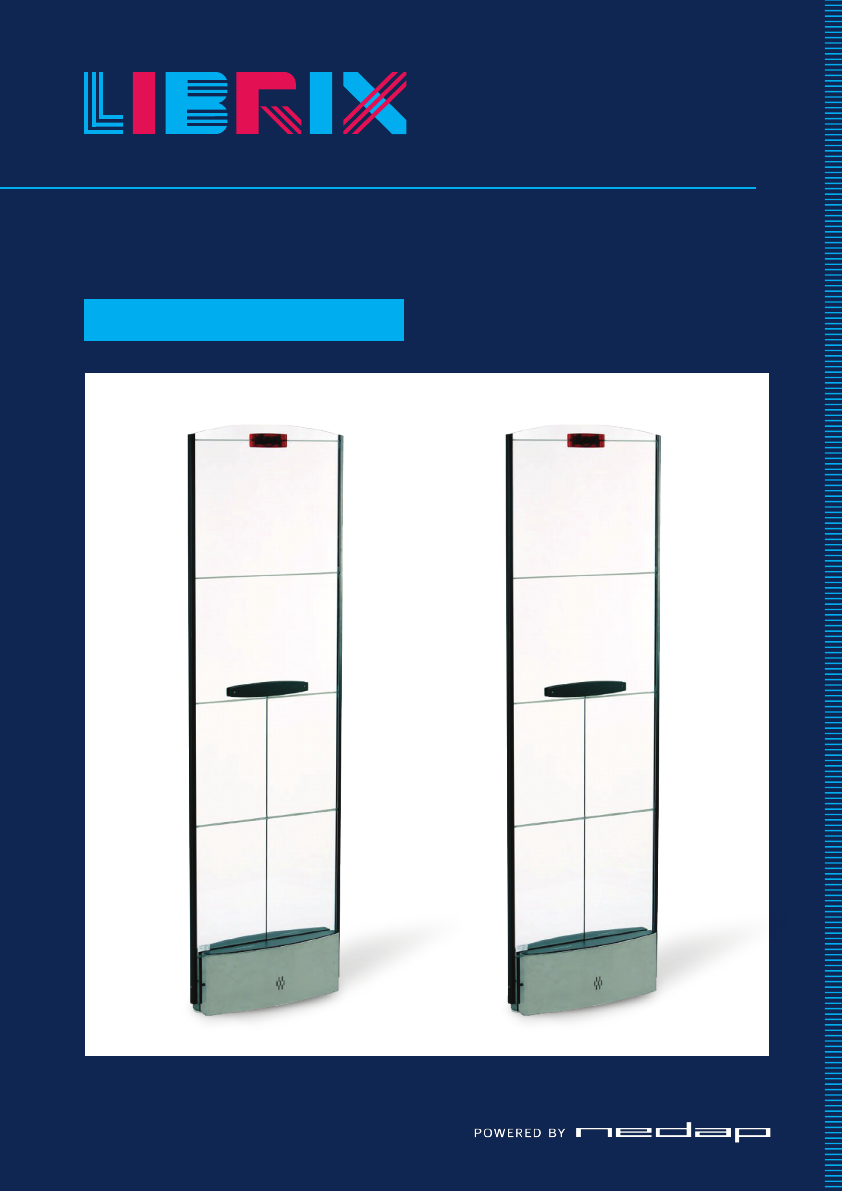

antenna systems
the architect’s favorite
it is hard to believe we have managed to fit this much performance into
something as thin as this.
our antennae are especially designed to blend into your library whilst
maintaining the open character of your building. with its sleek design
(only 20mm width) and high performance, the fully transparent gates are
an absolute must-have for every library.
quality
All our antennae are fully produced in-house and are checked to make sure
performance is always top notch. Where necessary, our highly qualified installation
teams can even adjust the antennae on-site to adjust for external disturbances in
terms of metal or other electronic fields.
![](/img.php?id=1474483&img=bg3.png)
options
- Visual alarm, light
- Integral customer counter
benefits
- Attractive design
- Inconspicious
- Easy to install
- High detection rates
fcc and ic certifications for the conected transceiver
FCC for USA according to Part 15 with FCC ID: CGDDVD31356
IC for Canada according to RS-210 with IC: 1444A-DVD31356
Part 15.19(3) and RSS_Gen Labelling
This device complies with part 15 of the FCC Rules and to RSS-210 of Industry Canada.
Operating is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry
Canada.
L’opération est soumis aux deux conditions suivantes :
(1) cet appareil ne doit causer aucune interférence, et
(2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui
peut causer une opération non pas voulu de cet appareil.
Warning (part15.21)
Changes or modifications not expressly approved by party responsible for compliance
could void the user’s authority to operate the equipment.
contact
Nedap Librix
Parallelweg 2d
7141 DC Groenlo
The Netherlands
T +31 (0) 544 47 11 11
F +31 (0) 544 46 58 14
E info@nedaplibrix.com
www.nedaplibrix.com
pg 13.56 mhz antenna
articles which contain a label with an activated anti-theft function will
cause an alarm to sound if a borrower or visitor carrying the articles
walks between the antennae. since the anti-theft function is deactivated
when books are checked out in the correct manner these articles do not
cause a false alarm.
The anti-theft (EAS) antenna system consists of at least two antennae installed to
form a passageway of more than one meter wide. The standard systems can be
expanded to a maximum of four antennae for use with wide entrances and exits.
Systems with more than four antennae are also available on request.
visual alarm
Our gates can be equipped with an integrated visual alarm. When the alarm goes off,
a red light that is built into each antenna will flash. Not only will this enable you to
notify the hearing impaired of the alarm, but this will also create greater awareness
with your staff and other visitors.
integrated customer counting
The numbers tell the tale. With integrated customer counting and a direct link into Librix
Online, you can get direct insight into how many visitors you have had in your library.
Because of the fact that the customer counting units are only installed 93cm from the
floor, children are also counted.
how much service do you provide?
With our interactive tool Librix Online, you can even make a distinction between
people that have entered your library and the number of unique members that actually
have lent a book. As a result, this great tool provides you with a clear overview of
how many people visit your library just to read a newspaper, do research or enjoy
other services you provide. Because you want to get credit for what you do.
relay
All antennae-readers are equipped with a relay which enables connection to external
hardware, like lights, doors and/or gates.
be flexible
Sometimes you need to be able to easily remove an antenna because of logistics.
Especially for these situations, we can provide you with an optional foot which allows
you to connect and deconnect an antenna, just like you would remove a computer
from a docking station.
Quick, easy and safe.
![](/img.php?id=1474483&img=bg4.png)
PHYSICAL SPECIFICATIONS OF THE PG45 ANTENNA
Article numbers: 9940448 / 9940456 (2 loop / 3 loop)
Dimensions (mm): 1665 x 480 x 100 (l x w x h)
Material: Metal / Plexiglas
Color: Transparent
Weight: ca. 29 kg
Function: Detects labels with EAS = on / AFI 07 HEX
Optional expansions: - Light alar m, integr al
- Integral customer counter
Identification %: Dependant on label quality /
environmental inf luences
ELECTRICAL SPECIFICATIONS READER
Article number: 9926798
Supply voltage: 100 - 230 V ac, 50-60 Hz
Operating voltage: 24 V
Power consumption: 45 Watt
Le ng th po wer c abl e: 1 .8 m .
CONNECTION SPECIFICATIONS
RF c onnec ti on: 50 O hm BN C c oa x
ENVIRONMENTAL SPECIFICATIONS
Operating temperature: +10 / +45 °C
Storage temperature: -10 / +55 °C
Max. distance between two antennas: 1.05 m
RFID SPECIFICATIONS
Technology: RFiD
Frequency: Standard: 13.56 MHz
Antenna power (electrical): Max. 8 Watt
RF antenna power: 37 µW
Identifies: ISO 15693 / ISO 18000-3.1
EAS-function: Yes, based on EAS-bits and/or AFI
WARRANTY / CERTIFICATES
Certificate: CE / EMC
Warranty: 1 year
Approvals of the power adaptor: - c UL us according to UL/CSA 60950-1
- Japan PSE
- CE according to EN60950-1
- FCC compliant
Version 1.0
Specifications are subject to change without notice

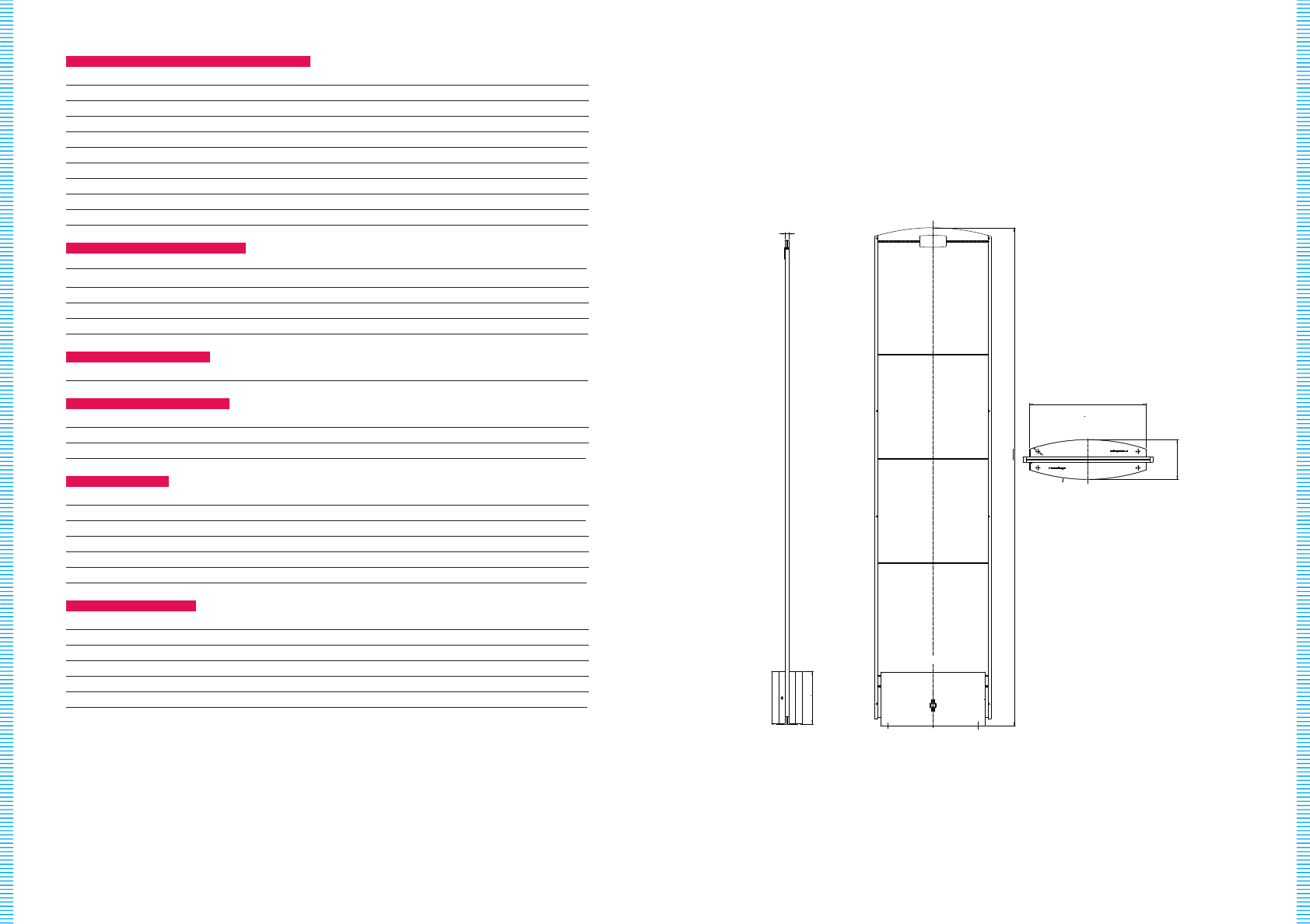

20
181.5
1665
428
143
480
NOTE: Do not use these drawings for installation purposes. Ask your local supplier for technical drawings.
