[Installation Guide]
Installation Guide
Version 1.1 | 12 May 2011
![](/img.php?id=1474485&img=bg2.png)
2
![](/img.php?id=1474485&img=bg3.png)
3
info@nedaplibrix.com
Nedap Librix
Parallelweg 2d
Groenlo
The Netherlands
Nedap Librix
P.O. box 102
7140 AC Groenlo
The Netherlands
Tel: +31(0)544 47 15 09
Fax: +31(0)544 46 58 14
©Nedap Librix
Netherlands
Parallelweg 2d, 7141 DC Groenlo
The software / hardware described in this document / file is furnished under a license
agreement and may be used only in accordance with the terms of agreement.
Documentation Installation Guide Copyright Notice
Any technical documentation that is made available by Nedap Librix is the copyrighted
work of Nedap Librix and is owned by Nedap Librix.
NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix
makes no warranty as to its accuracy or use. Any use of the technical documentation or
the information contained herein is at the risk of the user. Documentation may include
technical or other inaccuracies or typographical errors. Nedap Librix has the right to
make changes without prior notice. No part of this publication may be copied without
the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The
Netherlands.
Trademarks
Nedap and the Nedap logo are registered trademarks of N.V. Nederlandsche
Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other
product names mentioned in this manual may be trademarks or registered trademarks
of their respective companies and are hereby acknowledged. Printed in the Netherlands.
![](/img.php?id=1474485&img=bg4.png)
4
Date
Version
Description
12-04-2011
1.0
First version
12-05-2011
1.1
Added text to FCC section
![](/img.php?id=1474485&img=bg5.png)
5
![](/img.php?id=1474485&img=bg6.png)
6
The following safety instructions and precautions should be observed during normal
use, service and repair.
Do not change anything regarding the dvd reader or the installation
procedure.
Always switch off the power (by disconnecting the power plug) before
you remove the cover.
Always apply the brake to the trolley when it is not moved.
![](/img.php?id=1474485&img=bg7.png)
7
The intelligent book- and cd trolley can be used for checking in books and cd‟s. The
trolleys are equipped with 13.56MHz inductive antennas, which are connected to a DVD
13.56MHz transceiver. The transceiver is connected to a pc inside a flexdesk. When an
item with an RFID tag is placed inside the trolley, it is detected by the antennas and
transceiver. The Bibliocheck4Intelligentshelf software processes the new item by
checking it in into an external 3rd party database.
This document describes the hardware and software installation for an intelligent book-
or cd trolley.

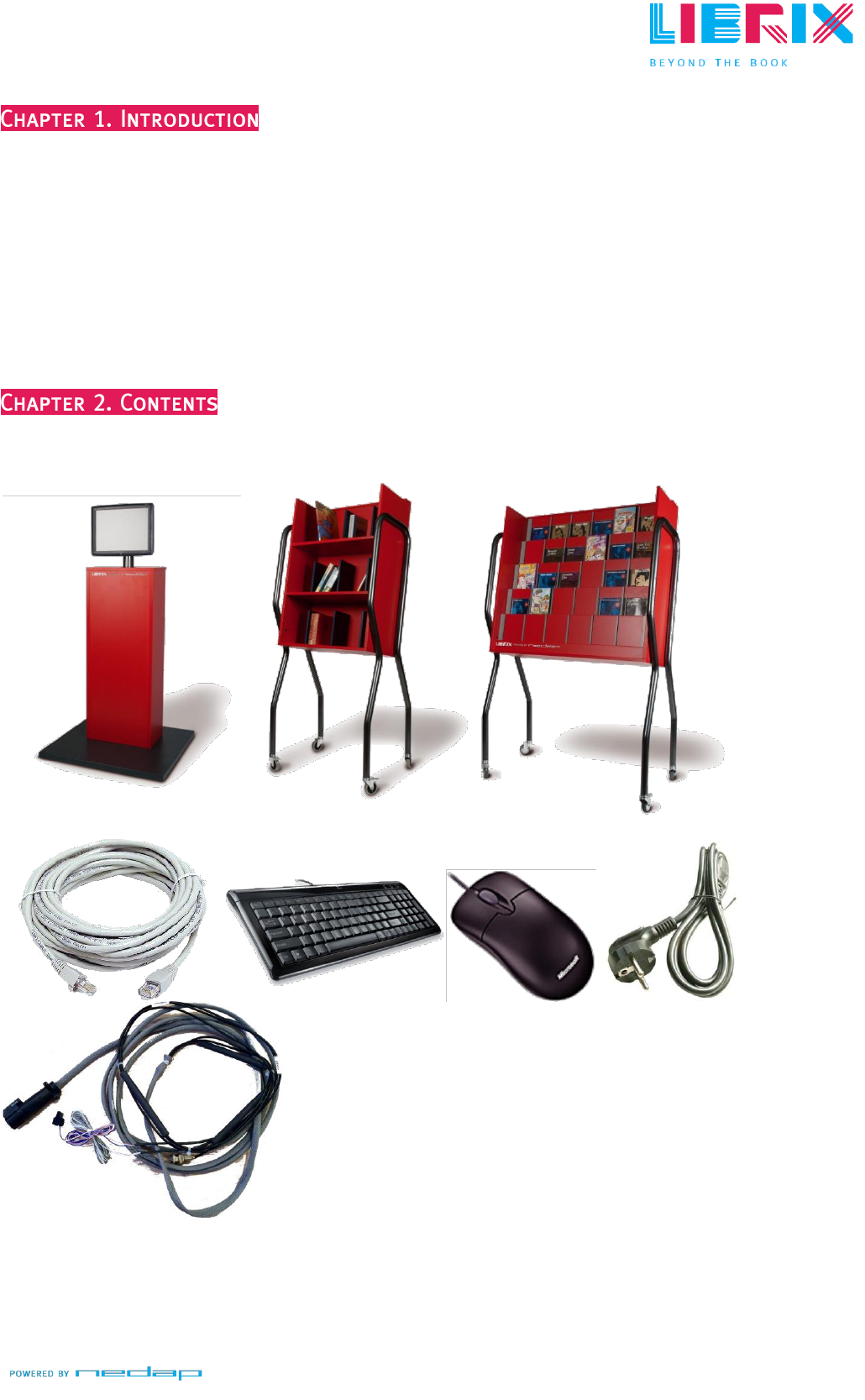

The following items are included:
1x [A] Infodesk with pre-installed embedded pc, touchscreen, DVD 13.56MHz
transceiver, network switch, optionally multiplexer
1x [B] Book or CD/DVD trolley (any combination possible, dependent of your order)
1x [C] 2M UTP network cable
A
B
or
C
D
E
F
G
![](/img.php?id=1474485&img=bg8.png)
8
1x [D] USB keyboard
1x [E] USB mouse
1x [F] Power cable with European connector
1x [G] Disconnectable antenna cable (included in [A] flexdesk)
![](/img.php?id=1474485&img=bg9.png)
9

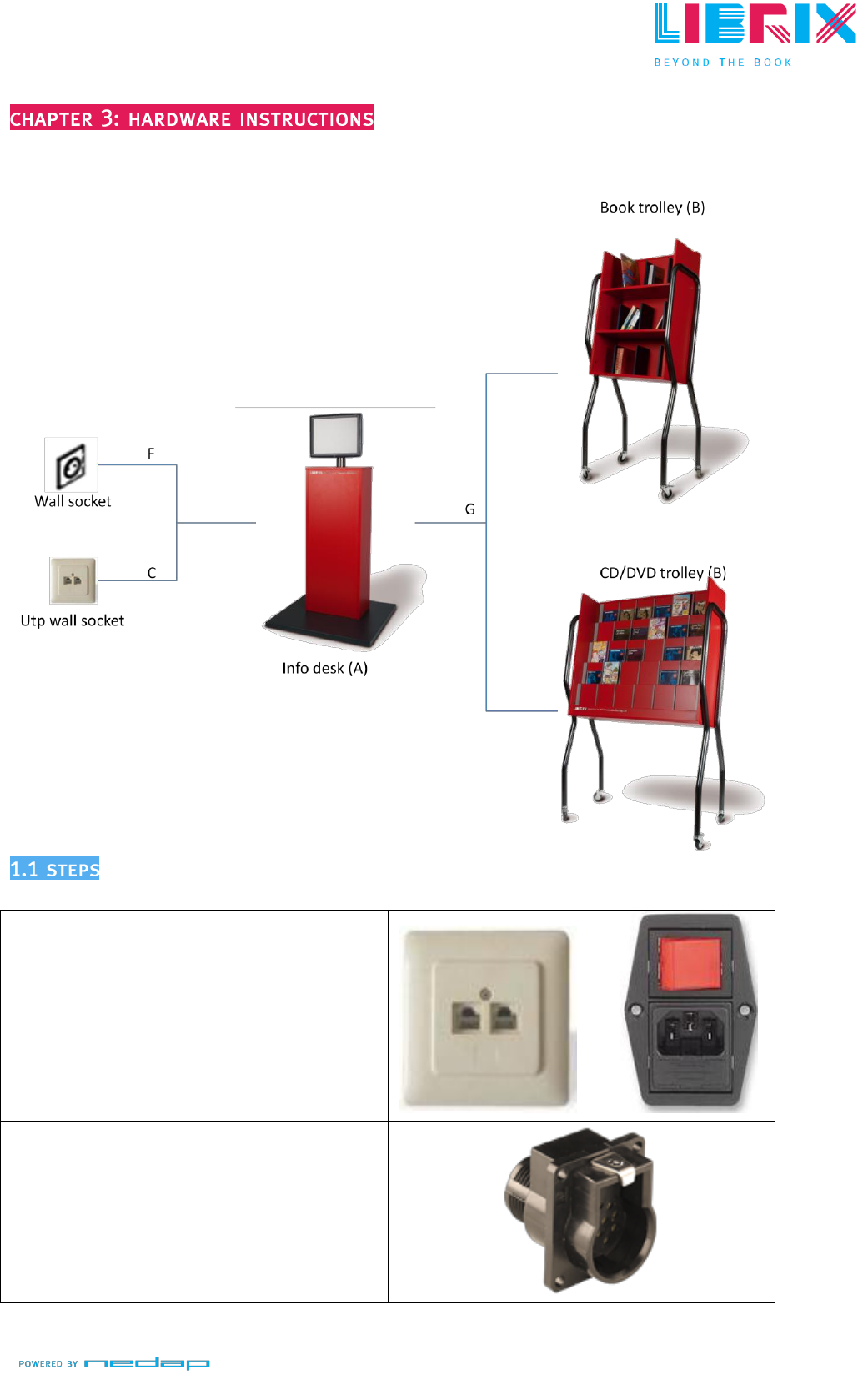

Installation scheme:
Step 1:
Connect the Infodesk [A] to the wall socket
with power cable [F] and to the UTP wall
socket with UTP cable [C]. Connectors are
located on the back of the Info desk
and
Step 2:
Insert the antenna cable into the receptable at
the back of the trolley. The cable is already
connected to the Infodesk.
![](/img.php?id=1474485&img=bga.png)
10

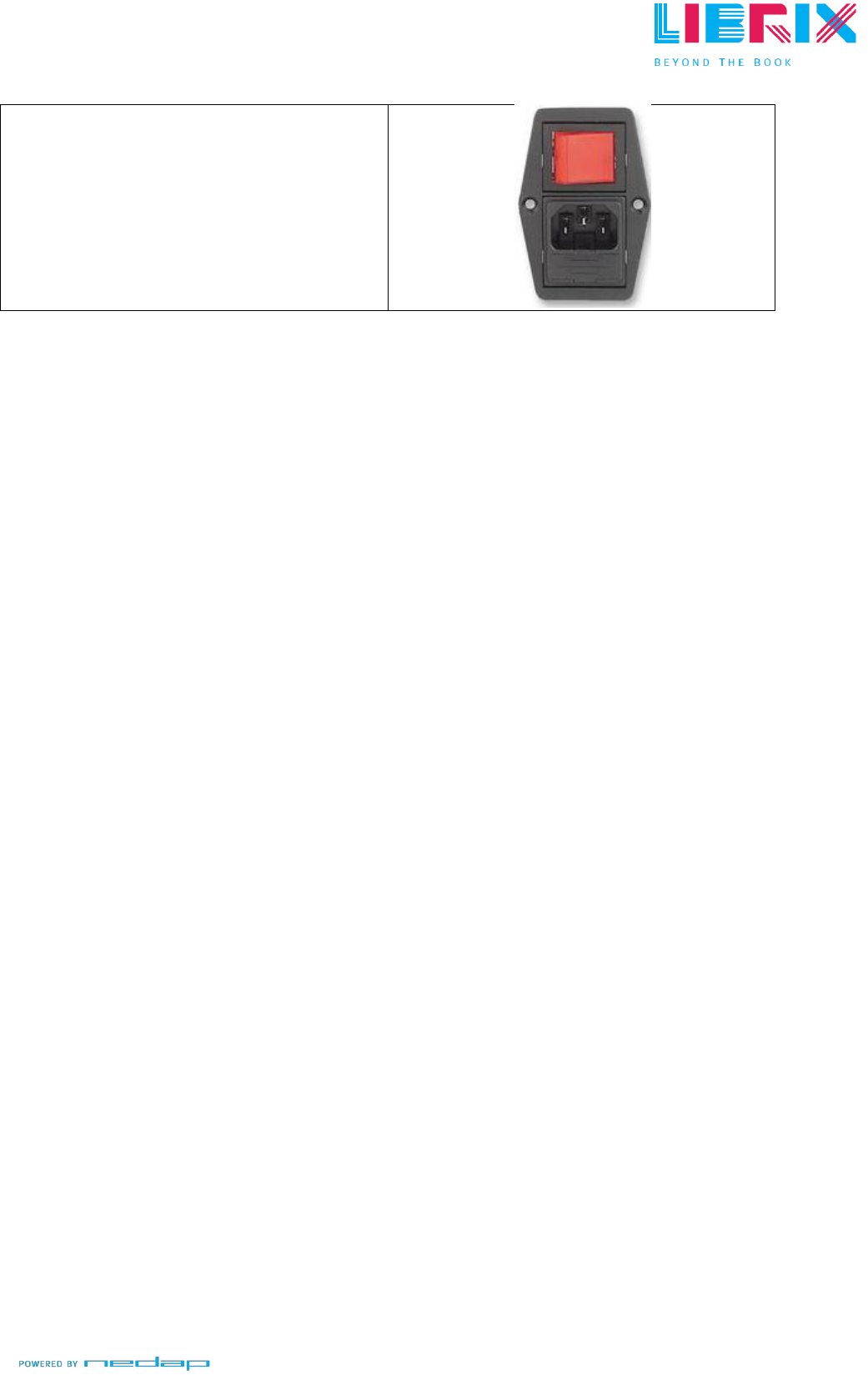

Step 3:
Turn on the power switch at the back of the
Infodesk and proceed to SOFTWARE
INSTRUCTIONS
![](/img.php?id=1474485&img=bgb.png)
11
Refer to the document „Bibliocheck4 man_intelligent_shelf.pdf‟ for detailed software
installation instructions of Bibliocheck4IntelligentShelf.
![](/img.php?id=1474485&img=bgc.png)
12
FCC for USA according to Part 15 with FCC ID: CGDDVD31356
IC for Canada according to RS-210 with IC: 1444A-DVD31356
Part 15.19(3) and RSS_Gen Labelling
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operating is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada.
L'opération est soumis aux deux conditions suivantes :
(1) cet appareil ne doit causer aucune interférence, et
(2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui
peut causer une opération non pas voulu de cet appareil.
Warning (part15.21)
Changes or modifications not expressly approved by party responsible for compliance
could void the user‟s authority to operate the equipment.
![](/img.php?id=1474485&img=bgd.png)
13
Article number: Dependant on function, color
Dimensions (cm): Column: ca. 70 x 70 x 138 (l x w x h)
Trolley: ca. 73 x 53 x 173 (l x w x h)
CD-trolley: ca. 110 x 53 x 173 (l x w x h)
Material: Metal, Wood
Standard color: Wood Red U225; Metal Ral 7016
Optional Color: Any RAL color at extra costs
Weight: Trolley /Column: ca. 42 kg / ca. 65 kg
CD/DVD trolley: ca. 57 kg
Function: Check-in
Check in of CDs/DVDs: Yes, only on special trolley
Supply voltage: 100_230 V , 50-60Hz
Working voltage: Reader: 24 V – 12 V
Power consumption: Max. 100 Watt
Length power cable: Column: 1.8 m
User interface: Touchscreen 15 inch
PC: Type: Industrial PC or Touch PC
Operating system: XP Embedded SP3
Connections: USB, Lan, VGA, Serial, Audio
Communication cable: Standard UTP
Compatibility (software): Bibliocheck4 intelligent shelf
RFID Reader: Model: Nedap DVD3 reader (art. nr. 9926798)
Frequency: 13.56 MHz
Identifies: ISO 15693 / ISO 18000-3.1
EAS function: Yes, EAS-bits and/or AFI
Book Trolley: Cable to column: 4 m total, 3 m effective
Shelve(s): 3
Sorting: No sorting
Max. number of books: 65
Check in of CDs/DVDs: No
Operational temperature: +10 / +45 °C
Storage temperature: 0 / +55 °C
Certificate: CE / EMC / FCC
Warranty: 1 year
![](/img.php?id=1474485&img=bge.png)
14
This information is furnished for guidance, and with no guarantee as to its accuracy or
completeness; its publication conveys no license under any patent or other right, nor
does the publisher assume liability for any consequence of its use; specifications and
availability of goods mentioned in it are subject to change without notice; it is not to
be reproduced in any way, in whole or in part, without the written consent of the
publisher.
Nedap Librix
P.O. Box 102
NL-7140 AC Groenlo
The Netherlands
