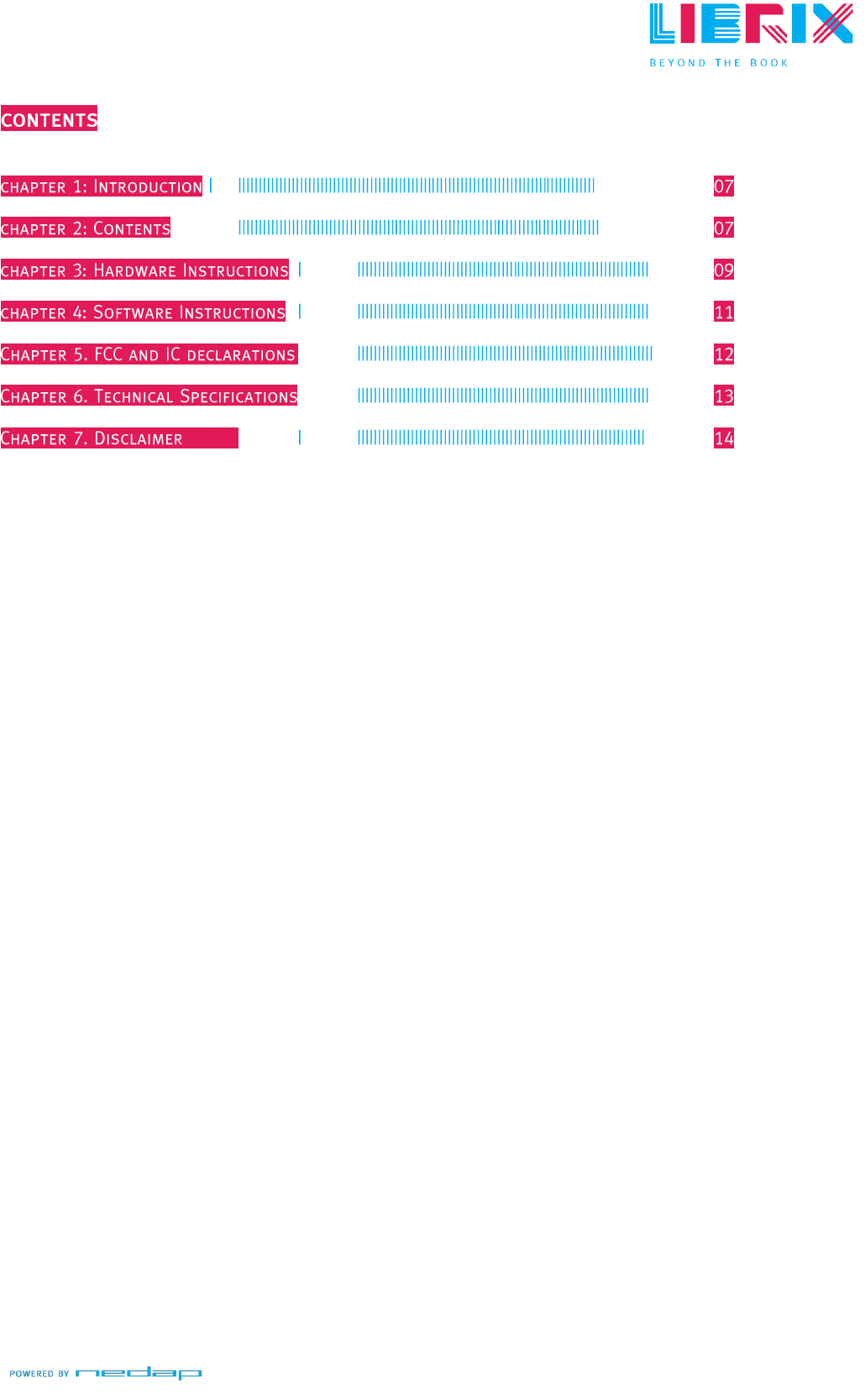

Contents

User 04

[Installation Guide]
Installation Guide
Version 1.1 | 12 May 2011
2
3
info@nedaplibrix.com
Nedap Librix
Parallelweg 2d
Groenlo
The Netherlands
Nedap Librix
P.O. box 102
7140 AC Groenlo
The Netherlands
Tel: +31(0)544 47 15 09
Fax: +31(0)544 46 58 14
©Nedap Librix
Netherlands
Parallelweg 2d, 7141 DC Groenlo
The software / hardware described in this document / file is furnished under a license
agreement and may be used only in accordance with the terms of agreement.
Documentation Installation Guide Flexdesk Copyright Notice
Any technical documentation that is made available by Nedap Librix is the copyrighted
work of Nedap Librix and is owned by Nedap Librix.
NO WARRANTY. The technical documentation is being delivered to you and Nedap Librix
makes no warranty as to its accuracy or use. Any use of the technical documentation or
the information contained herein is at the risk of the user. Documentation may include
technical or other inaccuracies or typographical errors. Nedap Librix has the right to
make changes without prior notice. No part of this publication may be copied without
the express written permission of Nedap Librix, Parallelweg 2d, 7141 DC Groenlo, The
Netherlands.
Trademarks
Nedap and the Nedap logo are registered trademarks of N.V. Nederlandsche
Apparatenfabriek “Nedap”, Parallelweg 2, 7141 DC Groenlo, The Netherlands. Other
product names mentioned in this manual may be trademarks or registered trademarks
of their respective companies and are hereby acknowledged. Printed in the Netherlands.
4
Date
Version
Description
21-04-2011
1.0
First version
12-05-2011
1.1
Added text to FCC section
5
6
The following safety instructions and precautions should be observed during normal
use, service and repair.
Do not change anything regarding the prox reader or the installation
procedure.
Always switch off the power (by disconnecting the power plug) before
you remove the cover.
7

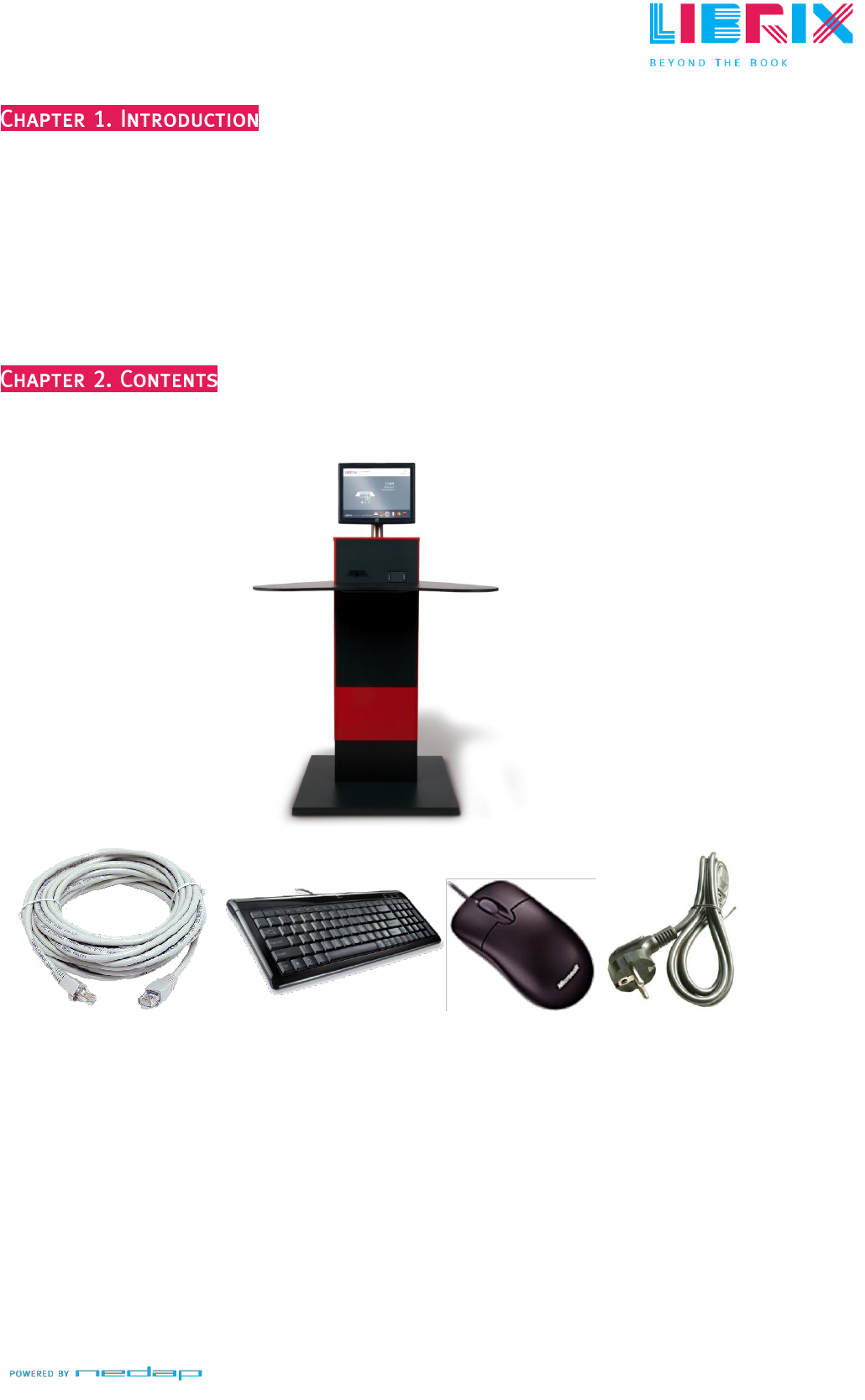

The flexdesk can be used for checking out and/or in books and cd‟s. A prox 13.56MHz
reader is pre-installed inside the desk. The prox is connected to a pc inside a flexdesk.
The pre-installed software Bibliocheck4Selfservice can be configured to operate in
checkin, checkout or combi mode. The software can connect to the library management
system (LMS) over the SIP2 or NCIP protocol. An integrated ticket printer can be used
to issue tickets to a patron.
This document describes the hardware and software installation for a flexdesk.
The following items are included:
1x [A] flexdesk with pre-installed embedded pc, touchscreen, PROX 13.56MHz
transceiver
1x [B] 2M UTP network cable
1x [C] USB keyboard
1x [D] USB mouse
1x [E] Power cable with European connector
A
E
8
The flexdesk is pre-installed with all required hardware and software. The hardware
only needs to be connected to a power source, and to the network over a UTP cable.

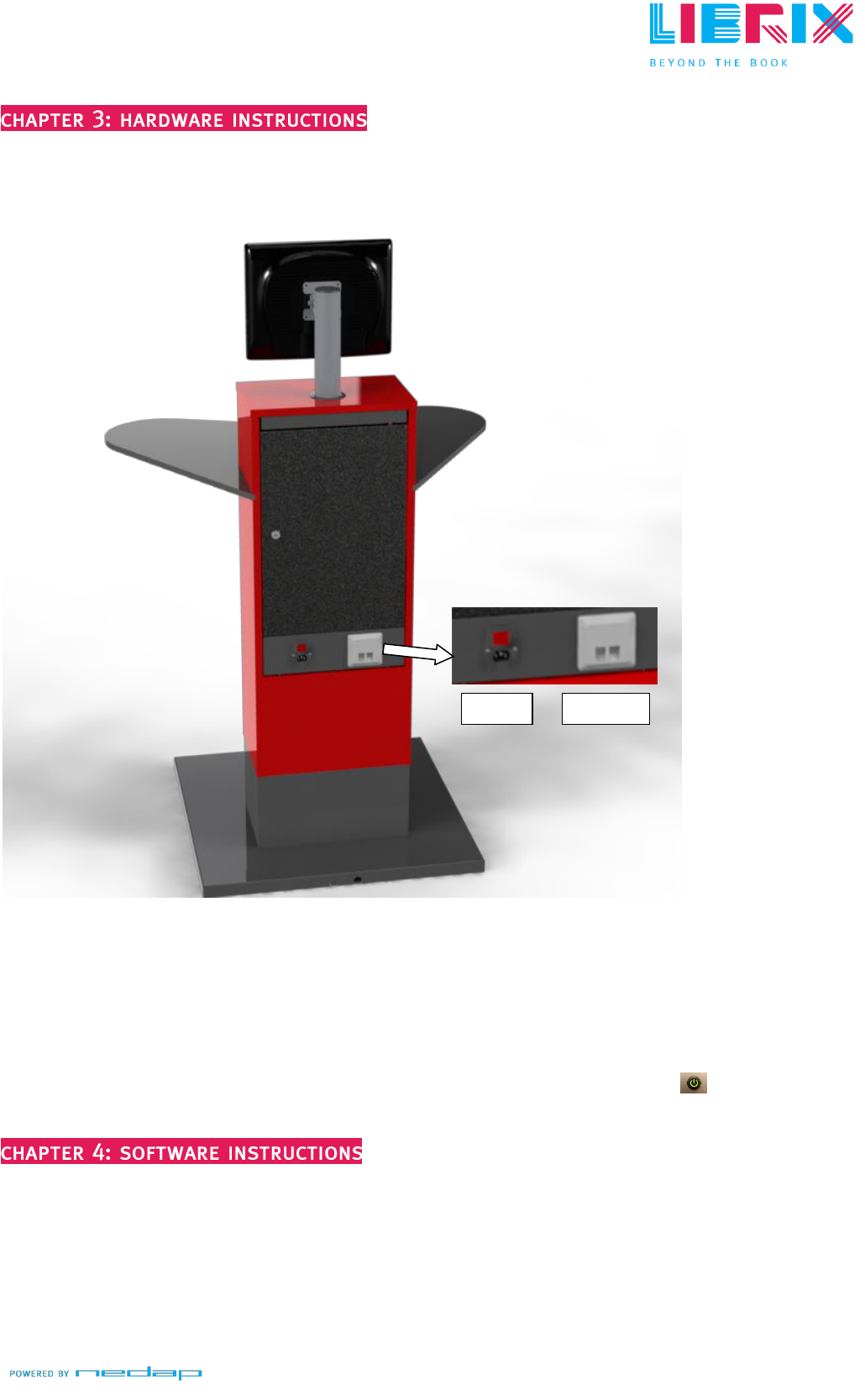

Figure 1 - power and network connector
1. Connect the power cable [E] to the power connector on the back of the flexdesk.
2. Connect the UTP network cable [A] to the UTP connector on the back of the
flexdesk that is labeled „ PC‟ .
3. Switch on the power of the flexdesk by pushing the red power switch.
4. The PC inside the flexdesk will automatically start when power is applied to it.
5. If the screen stays black, only the screen must be turned on manually. This can
be done by pressing the power button on the right side of the screen ( )
The software running on the flexdesk is Bibliocheck4Selfservice. Refer to the manual
for this software package for more information about the installation and configuration
of this program.
Power
Network
9
This device contains PROX1356 with FCC-ID: CGDPROX1356 and IC: 1444A-PROX1356
Part 15.19(3) and RSS_Gen Labelling
This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada.
Operating is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada.
L'opération est soumis aux deux conditions suivantes :
(1) cet appareil ne doit causer aucune interférence, et
(2) cet appareil doit accepter n'importe quelle interférence, y inclus interférence qui
peut causer une opération non pas voulu de cet appareil.
Warning (part15.21)
Changes or modifications not expressly approved by party responsible for compliance
could void the user‟s authority to operate the equipment.
10
Article number: 9927786 / 9930400
Dimensions (cm): Standard furniture: ca. 100 x 83 x 130 (l x w x h)
Height desk: ca. 75
Height ring (optional): 10 or 20
Material: Metal, MDF, vulkanit
Standard color: Wood Red U-225
Metal Ral 7016
Optional color: Any color at extra costs
Weight: ca. 70 kg
Function: Check-in, -out, combi
Check in of CDs/DVDs: Yes
Supply voltage: 110_230 V, 50-60Hz
Working voltage: Reader: 24 V - 12 V - 9 V
Power consumption: Max. 100 Watt
Length power cable: 1.8 m
User interface: Touchscreen 15 inch
PC: Type: Industrial PC or Touch PC
Operating system: XP Embedded SP3
Connections: USB, Lan, VGA, Serial, Audio
Communication cable: Standard UTP
Printer: Thermal, paper 80 mm
Compatibility: Software: Bibliocheck4 Selfservice
Reader: Nedap Prox. Reader, art. nr. 9934634
Antenna power: Max. 1 Watt
Technology: RFID
Frequency: 13.56 MHz
Identifies: ISO 15693 / ISO 18000-3.1
EAS function: Yes, EAS-bits and/or AFI
Patron card reader: Standard : Barcode card reader or
RFID/Mifare card reader
Optional: Magnetic card
Operational temperature: +10 / +45 °C
Storage temperature: 0 / +55 °C
Certificate: CE / EMC / FCC
Warranty: 1 year
