Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking 8-41

March 2004, 202-10027-01

b. Click Pre-Shared Key.

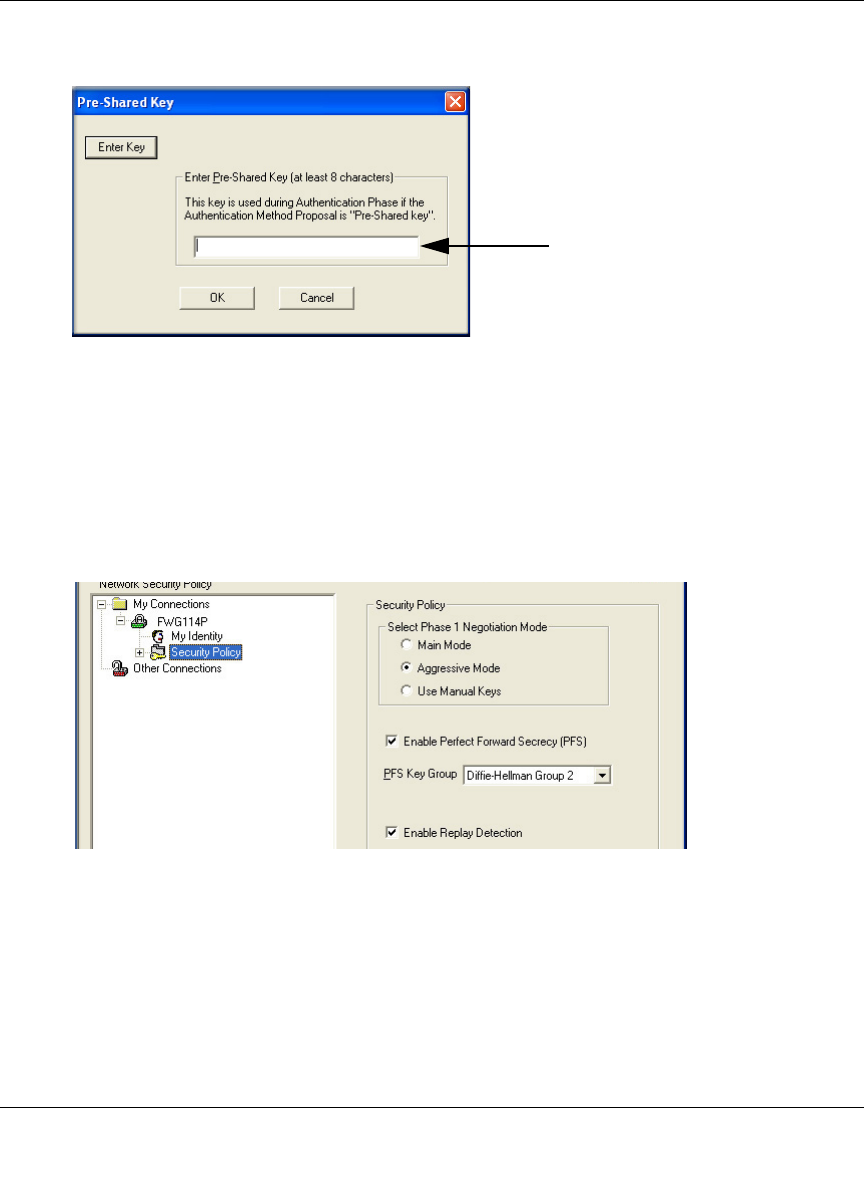

Figure 8-29: Connection Identity Pre-Shared Key

c. Enter hr5xb84l6aa9r6, which is the same Pre-Shared Key entered in the FWG114P.

d. Click OK.

4. Configure the Connection Identity Settings.

a. In the Network Security Policy list, click the Security Policy subheading.

Figure 8-30: Security Policy

b. For this example, ensure that the following settings are configured:

– In the Select Phase 1 Negotiation Mode menu, select Aggressive Mode.

– Select the Enable Perfect Forward Secrecy (PFS) check box.

– In the PFS Key Group drop-down list, Diffie-Hellman Group 2.

– Select the Enable Replay Detection check box.

In this example, enter this

pre-shared key in this field:

hr5xb84l6aa9r6

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

8-42 Virtual Private Networking

March 2004, 202-10027-01

5. Configure the Connection Security Policy

In this step, you will provide the authentication (IKE Phase 1) settings, and the key exchange

(Phase 2) settings. The setting choices in this procedure follow the VPNC guidelines.

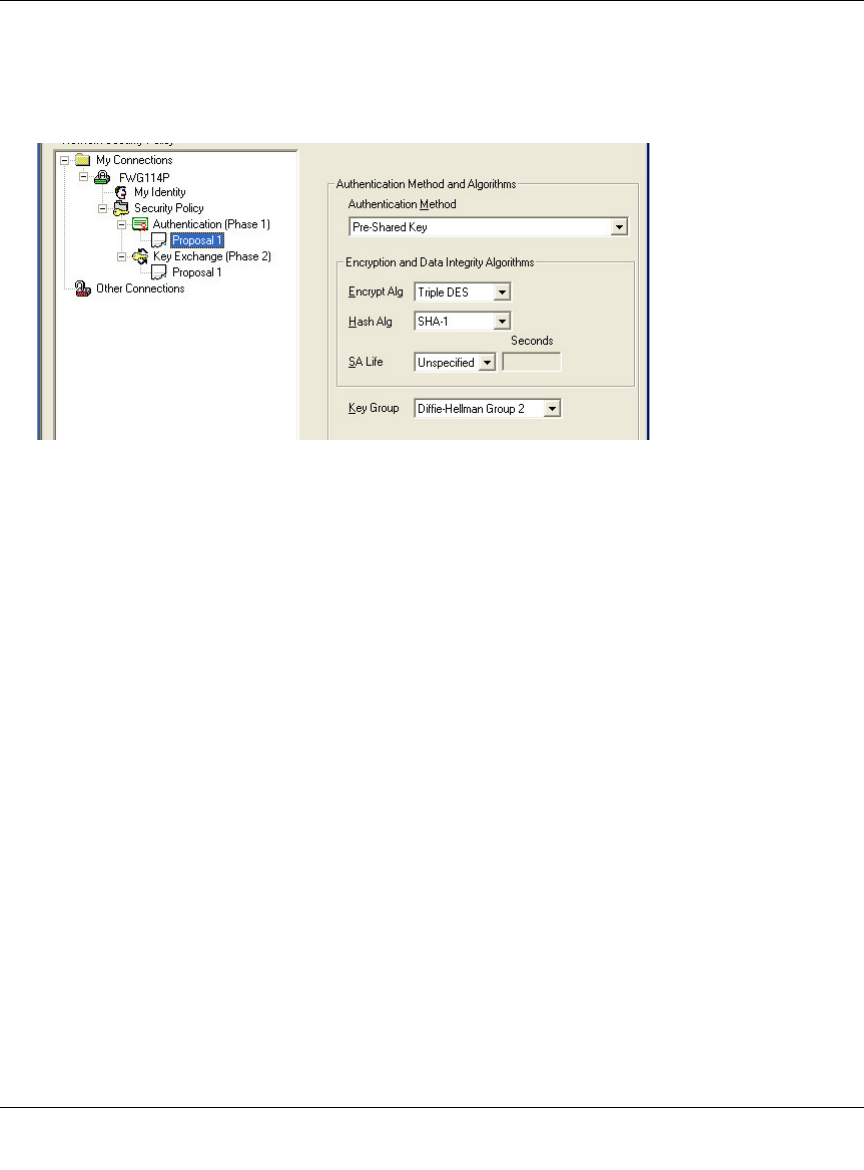

Figure 8-31: Connection Security Policy Authentication (Phase 1)

a. Configure the Authentication (Phase 1) Settings.

• Expand the Security Policy heading, then expand the Authentication (Phase 1)

heading, and click on Proposal 1.

• For this example, ensure that the following settings are configured:

– In the Encrypt Alg menu, select Triple DES.

– In the Hash Alg, select SHA-1.

– In the SA Life, select Unspecified.

– In the Key Group menu, select Diffie-Hellman Group 2.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking 8-43

March 2004, 202-10027-01

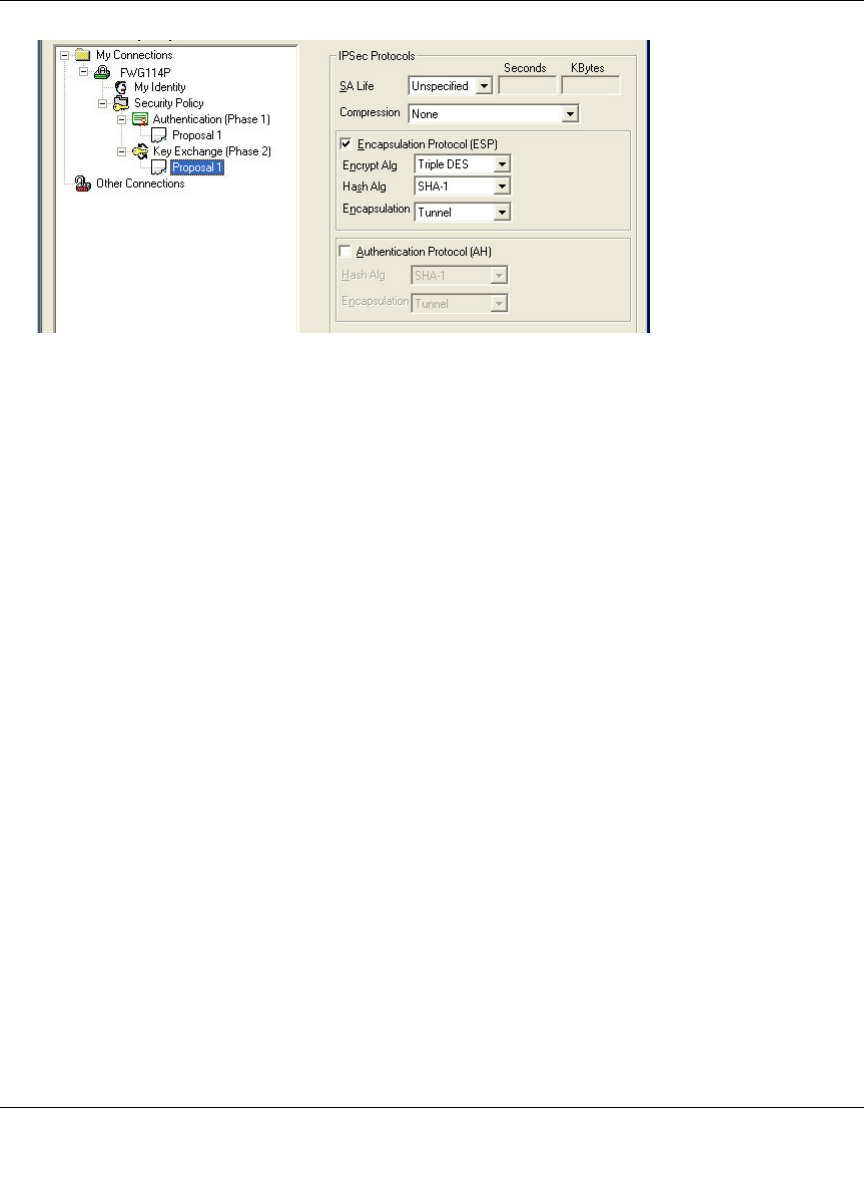

Figure 8-32: Connection Security Policy Key Exchange (Phase 2)

b. Configure the Key Exchange (Phase 2).

• Expand the Key Exchange (Phase 2) heading, and click on Proposal 1.

• For this example, ensure that the following settings are configured:

– In the SA Life menu, select Unspecified.

– In the Compression menu, select None.

– Check the Encapsulation Protocol (ESP) check box.

– In the Encrypt Alg menu, select Triple DES.

– In the Hash Alg, select SHA-1.

– In the Encapsulation menu, select Tunnel.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

8-44 Virtual Private Networking

March 2004, 202-10027-01

6. Configure the Global Policy Settings.

a. From the Options menu at the top of the Security Policy Editor window, select Global

Policy Settings.

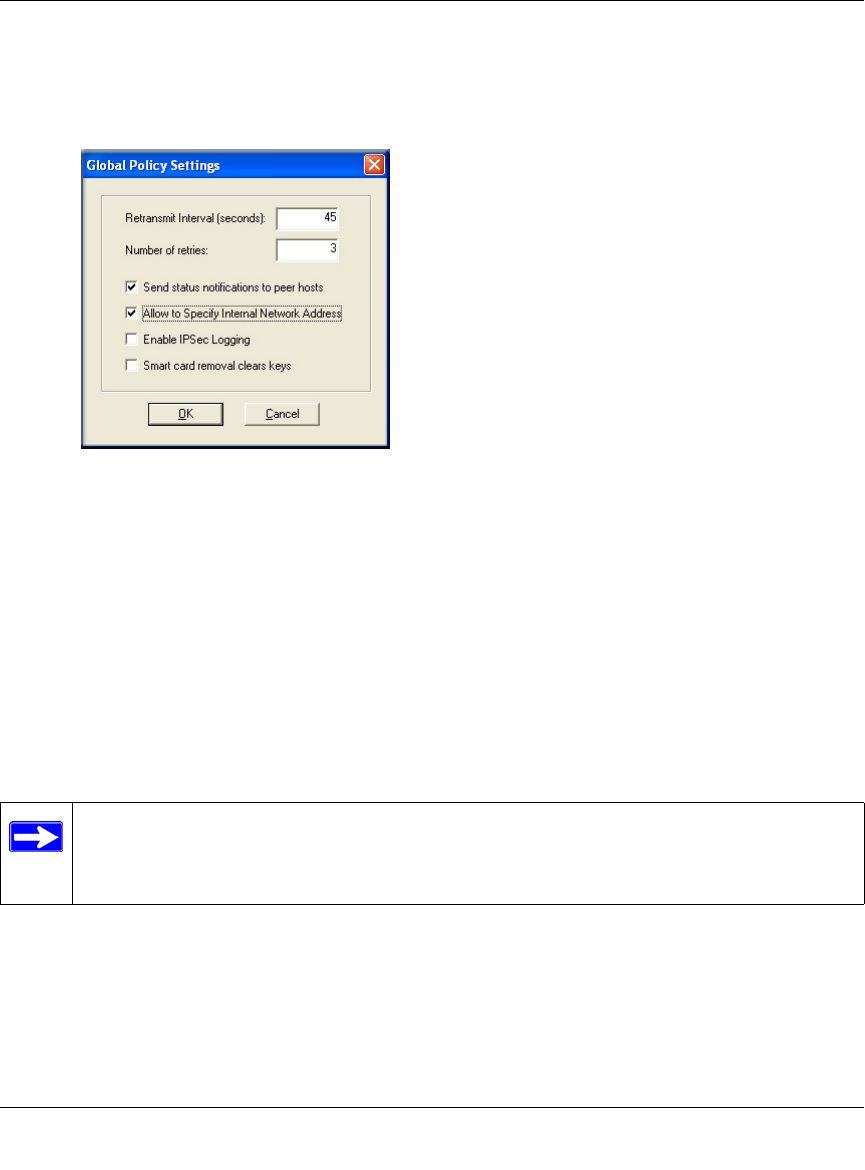

Figure 8-33: Security Policy Editor Global Policy Options

b. Increase the Retransmit Interval period to 45 seconds.

c. Select the Allow to Specify Internal Network Address check box and click OK.

7. Save the VPN Client Settings.

From the File menu at the top of the Security Policy Editor window, select Save.

After you have configured and saved the VPN client information, your PC will automatically

open the VPN connection when you attempt to access any IP addresses in the range of the

remote VPN router’s LAN.

Note: Whenever you make changes to a Security Policy, save them first, then deactivate

the security policy, reload the security policy, and finally activate the security policy.

This ensures that your new settings will take effect.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking 8-45

March 2004, 202-10027-01

Testing the VPN Connection

You can test the VPN connection in several ways:

• From the client PC to the FWG114P

• From the FWG114P to the client PC

These procedures are explained below.

From the Client PC to the FWG114P

To check the VPN Connection, you can initiate a request from the remote PC to the FWG114P by

using the “Connect” option of the FWG114P Wireless Firewall/Print Server popup menu.

1. Open the popup menu by right-clicking on the system tray icon.

2. Select Connect to open the My Connections list.

3. Choose FWG114P.

The FWG114P Wireless Firewall/Print Server will report the results of the attempt to connect.

Once the connection is established, you can access resources of the network connected to the

FWG114P.

Another method is to ping from the remote PC to the LAN IP address of the FWG114P. To

perform a ping test using our example, start from the remote PC:

1. Establish an Internet connection from the PC.

2. On the Windows taskbar, click the Start button, and then click Run.

3. Type ping -t 192.168.0.1 and click OK.

This will cause a continuous ping to be sent to the first FWG114P. After a period of up to two

minutes, the ping response should change from “timed out” to “reply.”

Note: Virus protection or firewall software can interfere with VPN communications. Be

sure such software is not running on the remote PC with the Netgear ProSafe VPN

Client and that the firewall features of the FWG114P are not set in such a way as to

prevent VPN communications.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

8-46 Virtual Private Networking

March 2004, 202-10027-01

To test the connection to a computer connected to the FWG114P, simply ping the IP address of

that computer.

Once connected, you can open a browser on the remote PC and enter the LAN IP Address of the

FWG114P, which is http://192.168.0.1 in this example. After a short wait, you should see the login

screen of the FWG114P.

From the FWG114P to the Client PC

You can use the FWG114P Diagnostic utilities to test the VPN connection from the FWG114P to

the client PC. Run ping tests from the Diagnostics link of the FWG114P main menu.

Monitoring the PC VPN Connection

Information on the progress and status of the VPN client connection can be viewed by opening the

Netgear ProSafe VPN Client Connection Monitor or Log Viewer. To launch these functions, click

on the Windows Start button, then select Programs, then Netgear ProSafe VPN Client, then either

the Connection Monitor or Log Viewer.

The Log Viewer screen for a successful connection is similar to the one shown below:

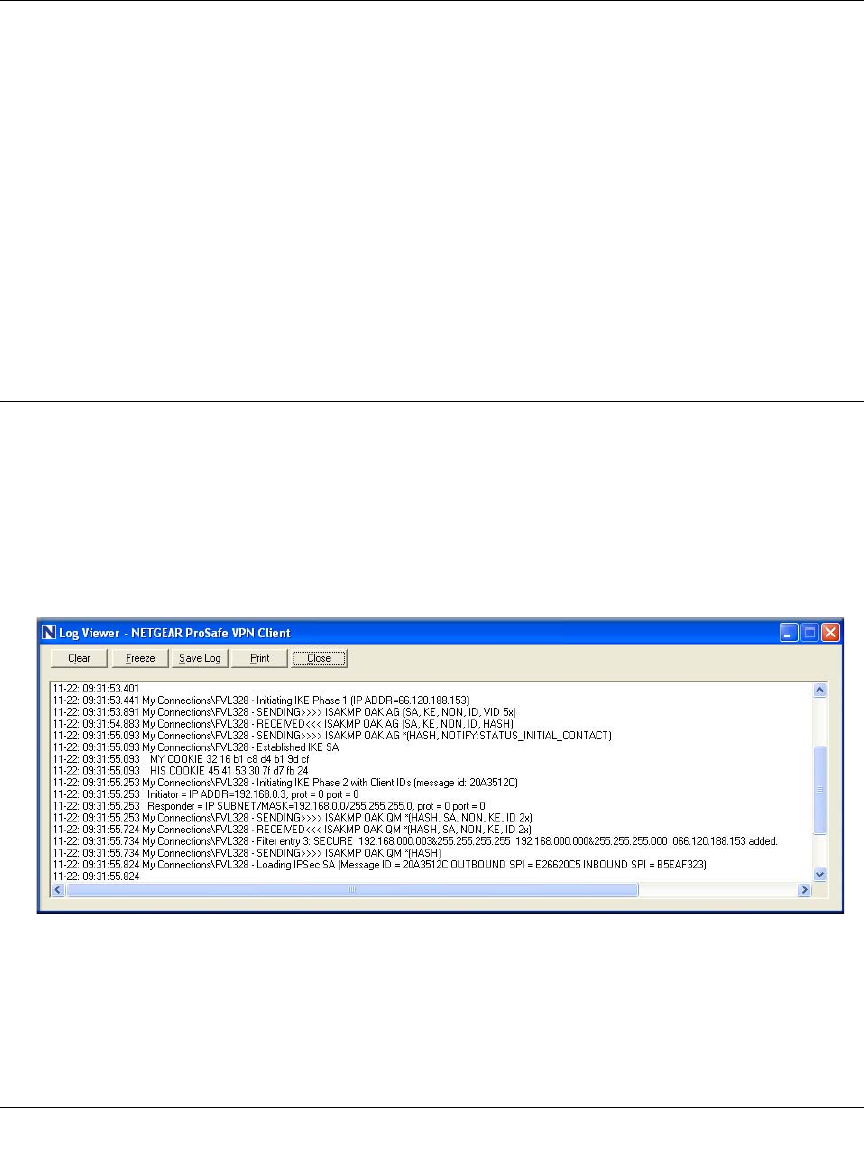

Figure 8-34: Log Viewer screen

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking 8-47

March 2004, 202-10027-01

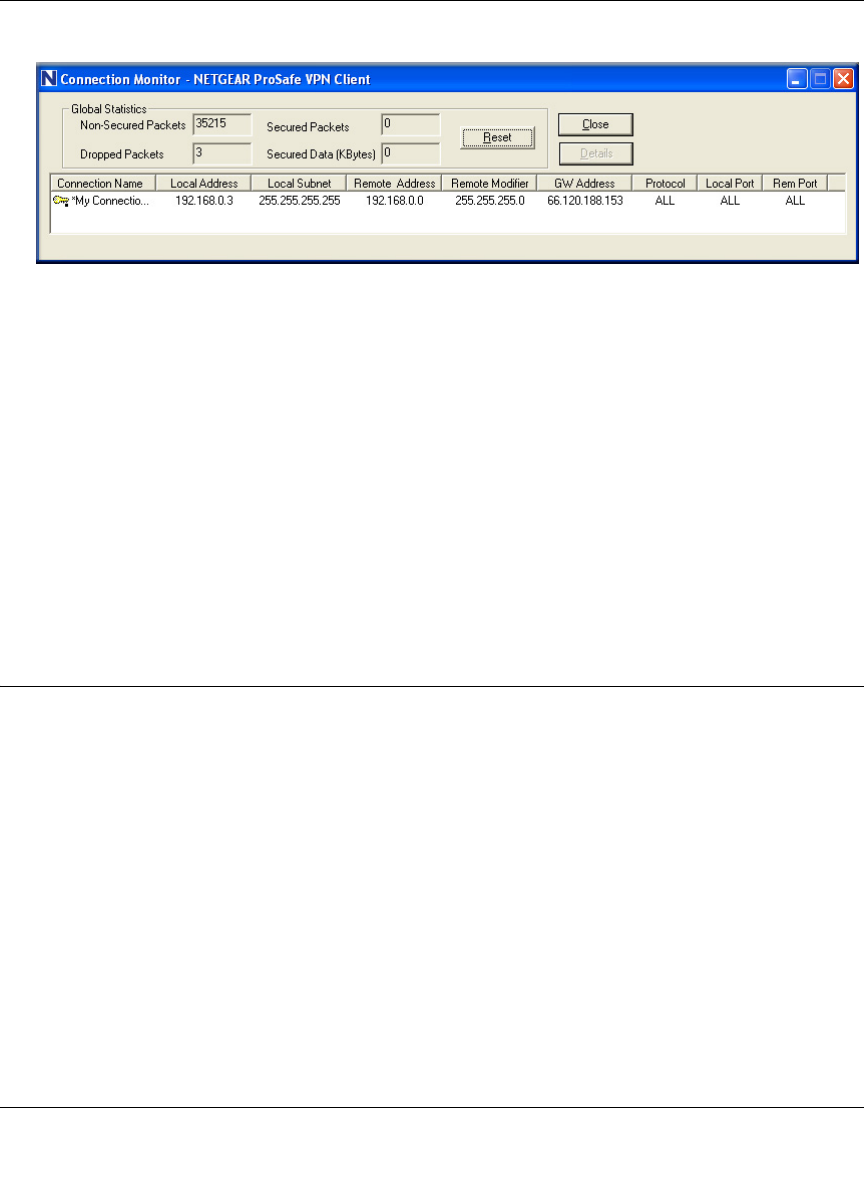

A sample Connection Monitor screen for a different connection is shown below:

Figure 8-35: Connection Monitor screen

In this example the following connection options apply:

• The FWG114P has a public IP WAN address of 66.120.188.153

• The FWG114P has a LAN IP address of 192.168.0.1

• The VPN client PC is behind a home NAT router and has a dynamically assigned address

of 192.168.0.3

While the connection is being established, the Connection Name field in this menu will say “SA”

before the name of the connection. When the connection is successful, the “SA” will change to the

yellow key symbol shown in the illustration above.

Viewing the FWG114P VPN Status and Log Information

Information on the status of the VPN client connection can be viewed by opening the FWG114P

VPN Status screen. To view this screen, click the VPN Status link on the FWG114P main menu.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

8-48 Virtual Private Networking

March 2004, 202-10027-01

The FWG114P VPN Status screen for a successful connection is shown below:

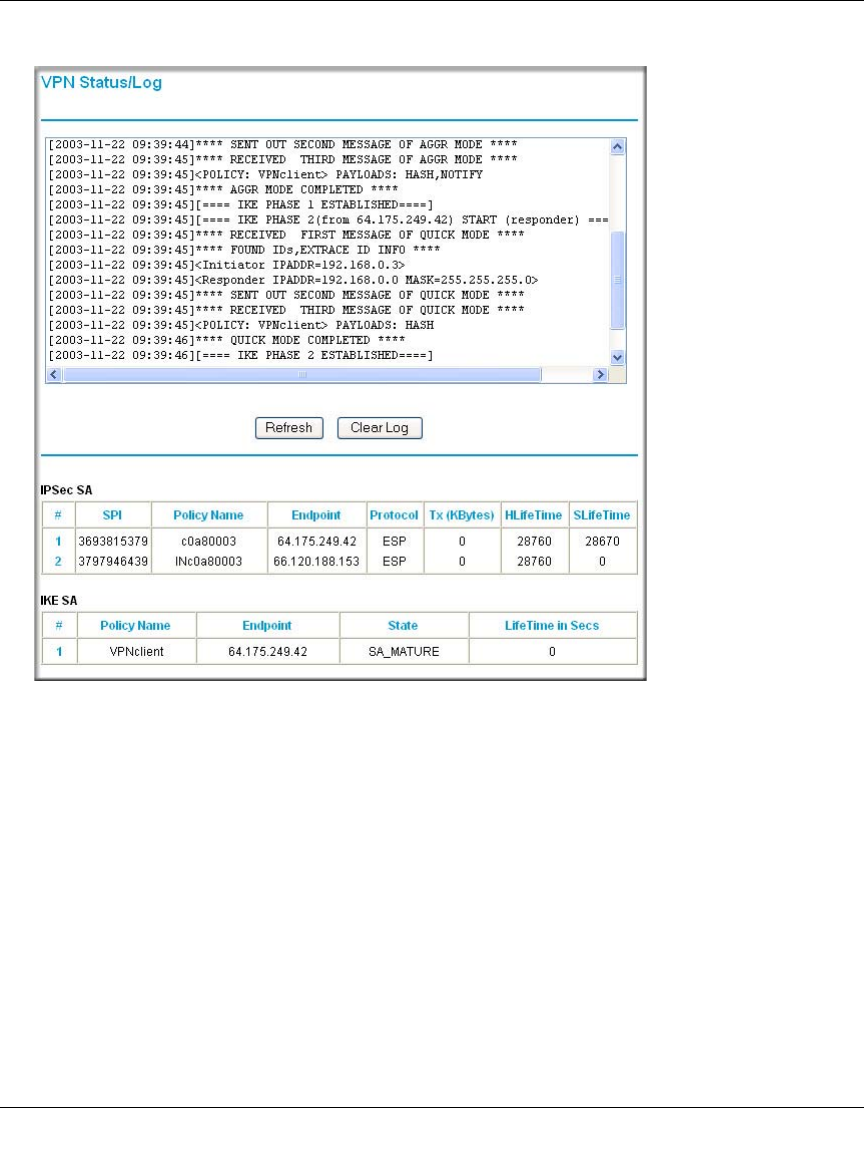

Figure 8-36: FWG114P VPN Status screen

Maintenance 9-1

March 2004, 202-10027-01

Chapter 9

Maintenance

This chapter describes how to use the maintenance features of your ProSafe Wireless 802.11g

Firewall/Print Server Model FWG114P. These features are accessed via the Main Menu

Maintenance heading.

Viewing Wireless Firewall/Print Server Status Information

The Router Status menu provides status and usage information. From the main menu of the

browser interface, click on Maintenance, then select Router Status to view this screen.

Figure 9-1: Router Status screen

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

9-2 Maintenance

March 2004, 202-10027-01

The Router Status screen shows the following parameters:

Table 9-1. Status Fields

Field Description

System Name The System Name assigned to the router.

Firmware Version The router firmware version.

Printer Status The printer status.

WAN Port These parameters apply to the Internet (WAN) port of the router.

MAC Address This field displays the MAC address being used by the Internet (WAN)

port of the router.

IP Address This field displays the IP address being used by the Internet (WAN) port

of the router. If no address is shown, the router cannot connect to the

Internet.

DHCP This field if the WAN port DHCP settings are dynamic or static.

IP Subnet Mask This field displays the IP Subnet Mask being used by the Internet (WAN)

port of the router.

Domain Name Server Identifies the IP address of the DNS server(s).

LAN Port

MAC Address The Media Access Control address being used by the LAN port of the

router.

IP Address The IP address being used by the Local (LAN) port of the router. The

default is 192.168.0.1.

DHCP Identifies if the router’s built-in DHCP server is active for the LAN

attached devices.

IP Subnet Mask The IP Subnet Mask being used by the Local (LAN) port of the router.

The default is 255.255.255.0.

Wireless Port

Name (SSID) This field displays the wireless network name (SSID) being used by the

wireless port of the router. The default is Wireless.

Region This field displays the MAC address being used by the wireless port of

the router.

Channel/Frequency Identifies the channel the wireless port is using. See “Wireless

Channels” on page E-7 for the frequencies used on each channel.

Mode Identifies if the channel the wireless port is set for 802.11b, 802.11g, or

both.

Wireless AP Identifies if the wireless access point is on or off.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Maintenance 9-3

March 2004, 202-10027-01

Click “WAN Status” to display the WAN connection status.

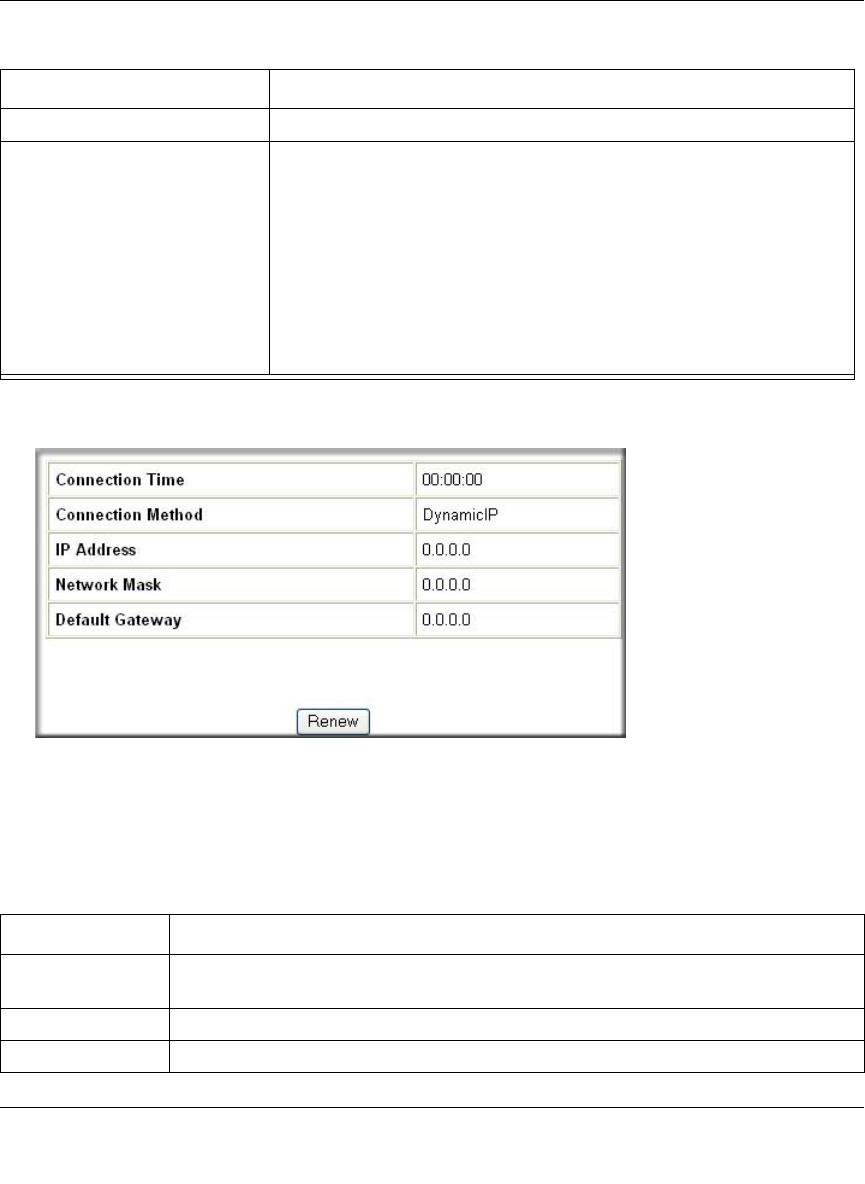

Figure 9-2: Connection Status screen

This screen shows the following statistics:.

Broadcast Name Identifies if the Name (SSID) is being broadcast.

Serial Port

Status The status of the serial port. Click the Details button to view the Serial

Port Log, Port Status, Physical Link, PPP Link, PPP IP Address, Phone

Line Speed, and Serial Line Speed.

Modem The status of the modem port.

Dial-In The status of the Dial-In port.

Internet Access The status of the serial Internet connection.

Lan-to-LAN The status of the serial LAN-to-LAN connection.

Table 9-1. Connection Status Fields

Field Description

Connection Time The length of time the router has been connected to your Internet service provider’s

network.

Connection Method The method used to obtain an IP address from your Internet service provider.

IP Address The WAN (Internet) IP Address assigned to the router.

Table 9-1. Status Fields

Field Description

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

9-4 Maintenance

March 2004, 202-10027-01

Log action buttons are described in Table 9-2.

Click “Show Statistics” to display router usage statistics.

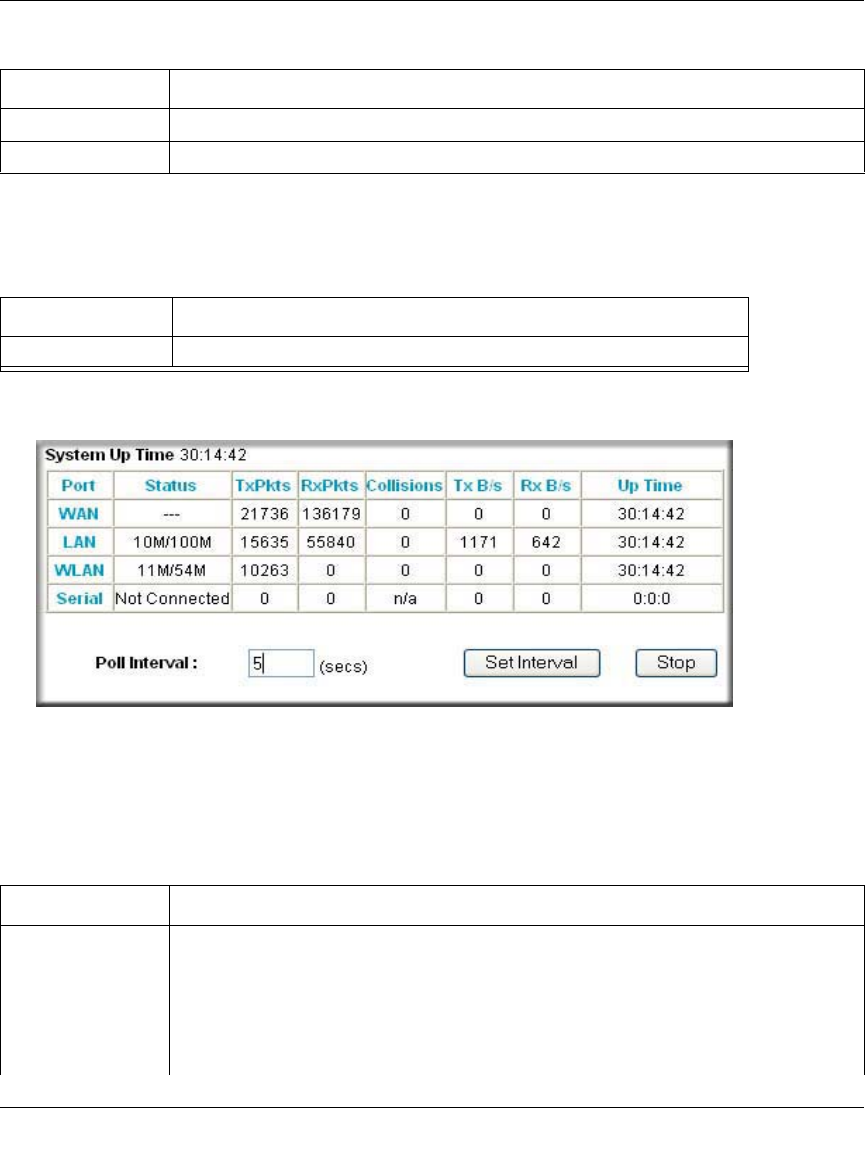

Figure 9-3: Router Statistics screen

This screen shows the following statistics:

Network Mask The WAN (Internet) Subnet Mask assigned to the router.

Default Gateway The WAN (Internet) default gateway the router communicates with.

Table 9-2. Connection Status action buttons

Field Description

Renew Click the Renew button to renew the DHCP lease.

Table 9-1. Router Statistics Fields

Field Description

interface The statistics for the WAN (Internet), LAN (local), Wireless, and Serial interfaces. For

each interface, the screen displays:

Status The link status of the interface.

TxPkts The number of packets transmitted on this interface since reset or manual clear.

RxPkts The number of packets received on this interface since reset or manual clear.

Table 9-1. Connection Status Fields (continued)

Field Description

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Maintenance 9-5

March 2004, 202-10027-01

WAN Status action buttons are described in Table 9-2.

Viewing a List of Attached Devices

The Attached Devices menu contains a table of all IP devices that the router has discovered on the

local network. From the Main Menu of the browser interface, under the Maintenance heading,

select Attached Devices to view the table shown below:

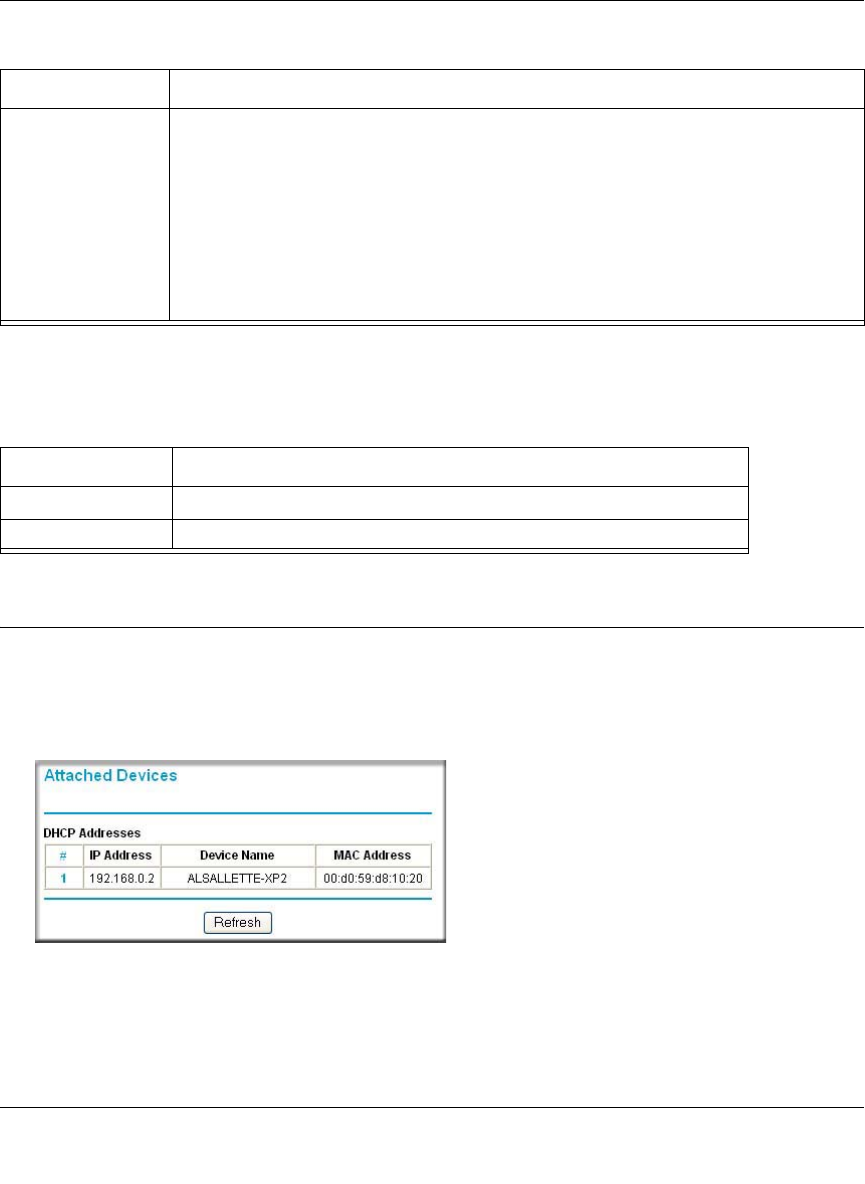

Figure 9-4: Attached Devices menu

Collisions The number of collisions on this interface since reset or manual clear.

Tx B/s The current transmission (outbound) bandwidth used on the interfaces.

Rx B/s The current reception (inbound) bandwidth used on the interfaces.

Up Time The amount of time since the router was last restarted.

Serial Up Time The time elapsed since this port acquired the link.

Poll Interval Specifies the intervals at which the statistics are updated in this window. Click on Stop

to freeze the display.

Table 9-2. Connection Status action buttons

Field Description

Set Interval Enter a time and click the button to set the polling frequency.

Stop Click the Stop button to freeze the polling information.

Table 9-1. Router Statistics Fields (continued)

Field Description

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

9-6 Maintenance

March 2004, 202-10027-01

For each device, the table shows the IP address, Device Name (if available), and Ethernet MAC

address. Note that if the router is rebooted, the table data is lost until the router rediscovers the

devices. To force the router to look for attached devices, click the Refresh button.

Upgrading the Router Software

The routing software of the FWG114P Wireless Firewall/Print Server is stored in FLASH memory,

and can be upgraded as new software is released by NETGEAR. Upgrade files can be downloaded

from Netgear's Web site. If the upgrade file is compressed (.ZIP file), you must first extract the

binary file before sending it to the router. The upgrade file can be sent to the router using your

browser.

Note: The Web browser used to upload new firmware into the FWG114P Wireless Firewall/Print

Server must support HTTP uploads. NETGEAR recommends using Microsoft Internet Explorer or

Netscape Navigator 3.0, or above.

From the Main Menu of the browser interface, under the Maintenance heading, select the Router

Upgrade heading.

To upload new firmware:

1. Download and unzip the new software file from NETGEAR.

2. In the Router Upgrade menu, click the Browse button and browse to the location of the binary

(.IMG) upgrade file.

3. Click Upload.

Note: When uploading software to the FWG114P, it is important not to interrupt the Web

browser by closing the window, clicking a link, or loading a new page. If the browser is

interrupted, it may corrupt the software. When the upload is complete, your router will

automatically restart. The upgrade process will typically take about one minute.

In some cases, you may need to reconfigure the router after upgrading.

Configuration File Management

The configuration settings of the FWG114P Wireless Firewall/Print Server are stored within the

router in a configuration file. This file can be saved (backed up) to a user’s computer, retrieved

(restored) from the user’s computer, or cleared to the factory default settings.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Maintenance 9-7

March 2004, 202-10027-01

From the Main Menu of the browser interface, under the Maintenance heading, select the Settings

Backup heading to bring up the menu shown below.

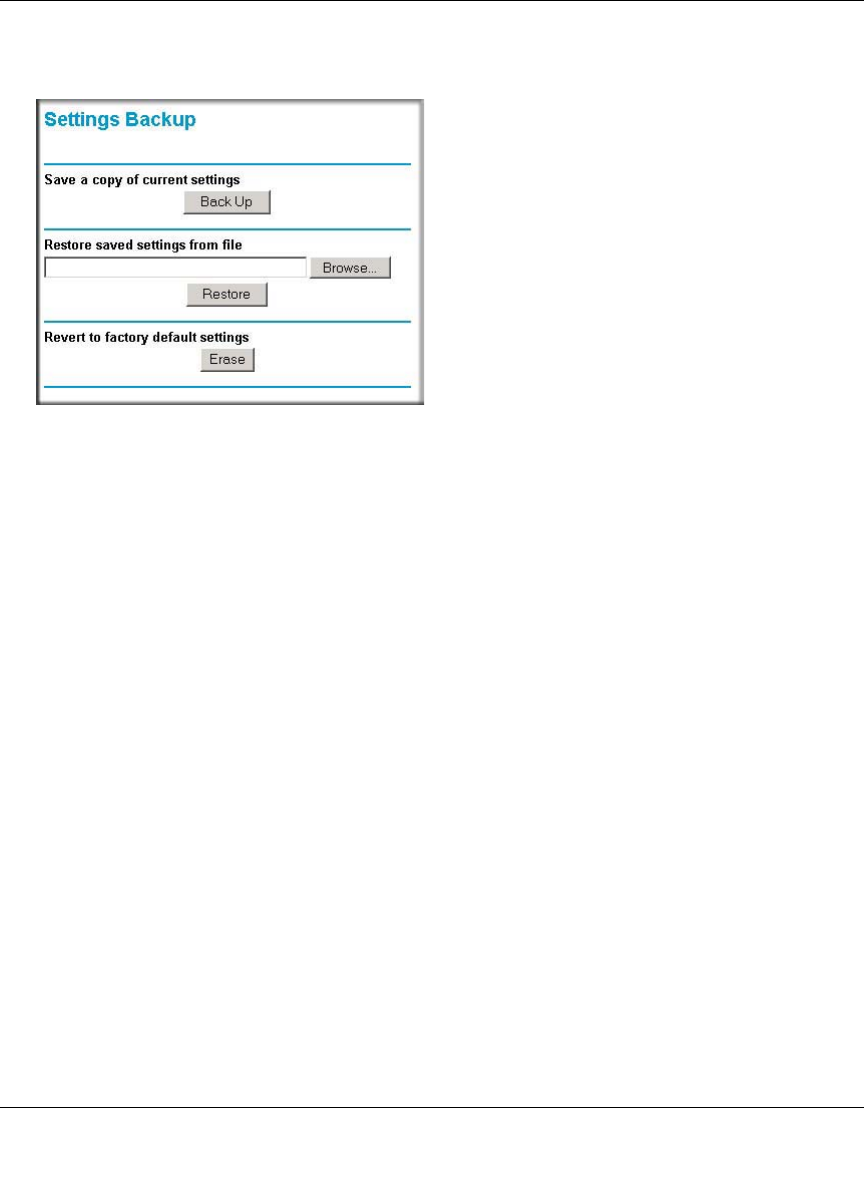

Figure 9-5: Settings Backup menu

Three options are available, and are described in the following sections.

Restoring and Backing Up the Configuration

The Restore and Backup options in the Settings Backup menu allow you to save and retrieve a file

containing your router’s configuration settings.

To save your settings, click Backup. Your browser will extract the configuration file from the

router and will prompt you for a location on your computer to store the file. You can give the file a

meaningful name at this time, such as SBC.cfg.

To restore your settings from a saved configuration file, enter the full path to the file on your

computer or click the Browse button to locate the file. When you have located it, click the Restore

button to send the file to the router. The router will then reboot automatically.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

9-8 Maintenance

March 2004, 202-10027-01

Erasing the Configuration

It is sometimes desirable to restore the router to a known blank condition. This can be done by

using the Erase function, which will restore all factory settings. After an erase, the router's

password will be password, the LAN IP address will be 192.168.0.1, and the router's DHCP client

will be enabled.

To erase the configuration, click the Erase button.

To restore the factory default configuration settings without knowing the login password or IP

address, you must use the Default Reset button on the rear panel of the router. See “Restoring the

Default Configuration and Password” on page 11-7.

Changing the Administrator Password

The default password for the router’s Web Configuration Manager is password. Netgear

recommends that you change this password to a more secure password.

From the main menu of the browser interface, under the Maintenance heading, select Set Password

to bring up this menu.

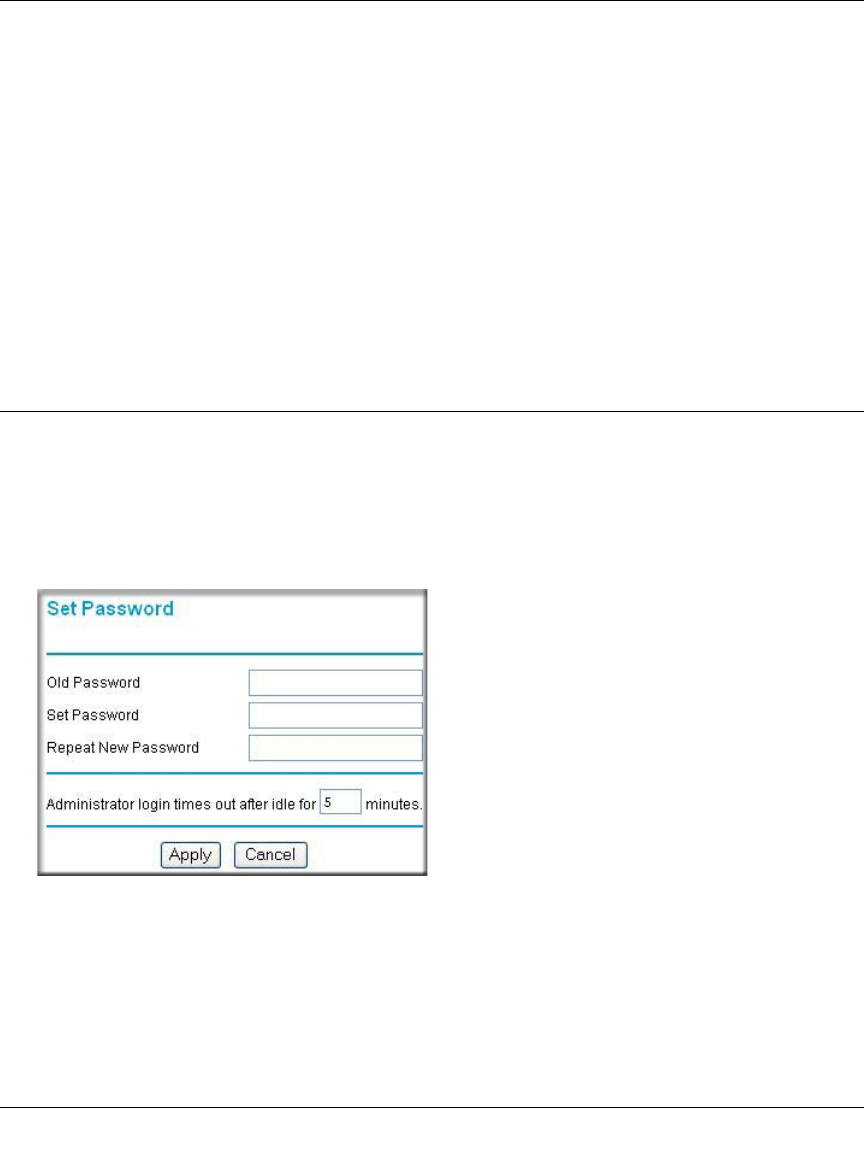

Figure 9-6: Set Password menu

To change the password, first enter the old password, and then enter the new password twice. Click

Apply. To change the login idle timeout, change the number of minutes and click Apply.

Advanced Configuration 10-1

March 2004, 202-10027-01

Chapter 10

Advanced Configuration

This chapter describes how to configure the advanced features of your ProSafe Wireless 802.11g

Firewall/Print Server Model FWG114P. These features can be found under the Advanced heading

in the Main Menu of the browser interface.

Using the WAN Setup Options

The first feature category under the Advanced heading is WAN Setup. This menu allows

configuration of a DMZ server, MTU size, port speed, and so on. From the Main Menu of the

browser interface, under Advanced, click on WAN IP Setup to view the WAN IP Setup menu,

shown below.

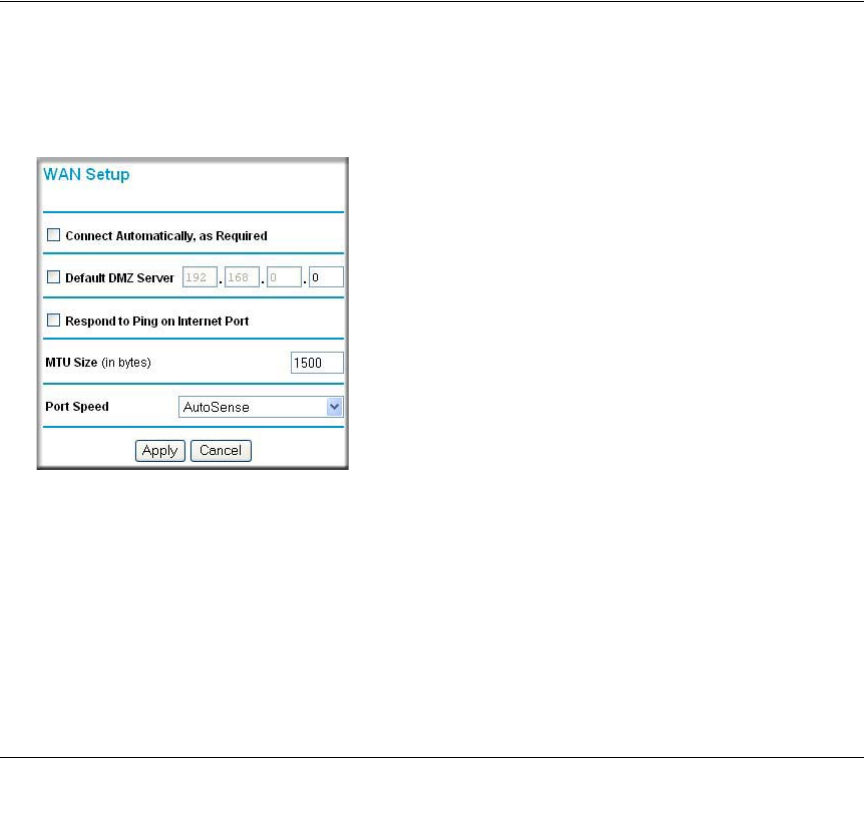

Figure 10-1: WAN Setup Menu

The WAN Setup options let you configure a DMZ server, change the MTU size, and set the WAN

port speed. These options are discussed below.

• Connect Automatically, as Required

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-2 Advanced Configuration

March 2004, 202-10027-01

Normally, this option is Enabled, so that an Internet connection will be made automatically

whenever Internet-bound traffic is detected. In locations where Internet access is billed by the

minute, if this causes high connection costs, you can disable this setting.

If disabled, you must connect manually, using the sub-screen accessed from the Router Status

menu “Show WAN Status” screen.

• Setting Up a Default DMZ Server

The use of the term ‘DMZ’ has become common, although it is a misnomer. In traditional

firewalls, a DMZ is actually a separate physical network port. A true DMZ port is for

connecting servers that require greater access from the outside, and will therefore be provided

with a different level of security by the firewall. A better term for our application is Exposed

Host.

The default DMZ server feature is helpful when using some online games and

videoconferencing applications that are incompatible with NAT. The router is programmed to

recognize some of these applications and to work properly with them, but there are other

applications that may not function well. In some cases, one local computer can run the

application properly if that computer’s IP address is entered as the default DMZ server.

Incoming traffic from the Internet is normally discarded by the router unless the traffic is a

response to one of your local computers or a service that you have configured in the Ports

menu. Instead of discarding this traffic, you can have it forwarded to one computer on your

network. This computer is called the Default DMZ Server.

The WAN Setup menu lets you configure a Default DMZ Server.

To assign a computer or server to be a Default DMZ server, follow these steps:

1. Click WAN Setup link on the Advanced section of the main menu.

2. Type the IP address for that server. To remove the default DMZ server, replace the IP

address numbers with all zeros.

3. Click Apply.

• Respond to Ping on Internet WAN Port

If you want the router to respond to a 'ping' from the Internet, click the ‘Respond to Ping on

Internet WAN Port’ check box. This should only be used as a diagnostic tool, since it allows

your router to be discovered. Do not check this box unless you have a specific reason to do so.

Note: DMZ servers pose a security risk. A computer designated as the default DMZ

server loses much of the protection of the firewall, and is exposed to attacks from the

Internet. If compromised, the DMZ server can be used to attack your network.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-3

March 2004, 202-10027-01

• Setting the MTU Size

The default MTU size is usually fine. The normal MTU (Maximum Transmit Unit) value for

most Ethernet networks is 1500 Bytes. For some ISPs, particularly those using PPPoE, you

may need to reduce the MTU. This should not be done unless you are sure it is necessary for

your ISP.

Any packets sent through the router that are larger than the configured MTU size will be

repackaged into smaller packets to meet the MTU requirement. To change the MTU size,

under MTU Size, enter a new size between 64 and 1500. Then, click Apply to save the new

configuration.

• Setting the WAN Port Speed

In most cases, your router can automatically determine (AutoSense) the connection speed of

the Internet (WAN) port. If you cannot establish an Internet connection and the Internet LED

blinks continuously, you may need to manually select the port speed.

If you know that the Ethernet port on your broadband modem supports 100BaseT, select

100M; otherwise, select 10M.

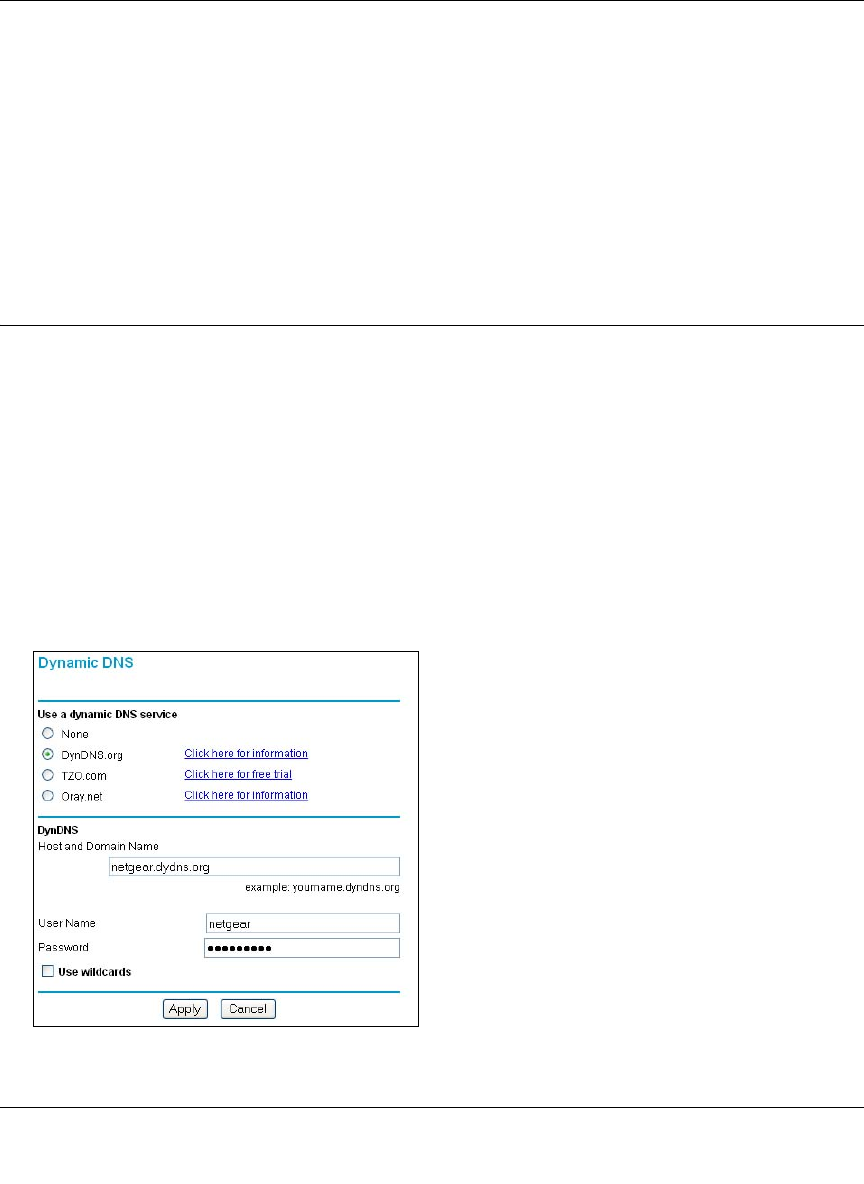

How to Configure Dynamic DNS

If your network has a permanently assigned IP address, you can register a domain name and have

that name linked with your IP address by public Domain Name Servers (DNS). However, if your

Internet account uses a dynamically assigned IP address, you will not know in advance what your

IP address will be, and the address can change frequently. In this case, you can use a commercial

dynamic DNS service, which will allow you to register your domain to their IP address, and will

forward traffic directed to your domain to your frequently-changing IP address.

The router contains a client that can connect to a dynamic DNS service provider. To use this

feature, you must select a service provider and obtain an account with them. After you have

configured your account information in the router, whenever your ISP-assigned IP address

changes, your router will automatically contact your dynamic DNS service provider, log in to your

account, and register your new IP address.

1. Log in to the router at its default LAN address of http://192.168.0.1, with its default user name

of admin, default password of password, or using whatever password and LAN address you

have chosen for the router.

2. From the Main Menu of the browser interface, under Advanced, click on Dynamic DNS.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-4 Advanced Configuration

March 2004, 202-10027-01

3. Access the website of one of the dynamic DNS service providers whose names appear in the

‘Select Service Provider’ box, and register for an account.

For example, for dyndns.org, go to www.dyndns.org.

4. Select the “Use a dynamic DNS service” check box.

5. Select the name of your dynamic DNS Service Provider.

6. Type the host name that your dynamic DNS service provider gave you.

The dynamic DNS service provider may call this the domain name. If your URL is

myName.dyndns.org, then your host name is “myName.”

7. Type the user name for your dynamic DNS account.

8. Type the password (or key) for your dynamic DNS account.

9. If your dynamic DNS provider allows the use of wildcards in resolving your URL, you may

select the Use wildcards check box to activate this feature.

For example, the wildcard feature will cause *.yourhost.dyndns.org to be aliased to the same

IP address as yourhost.dyndns.org

10. Click Apply to save your configuration.

Note: If your ISP assigns a private WAN IP address, such as 192.168.x.x or 10.x.x.x,

the dynamic DNS service will not work because private addresses will not be routed on

the Internet.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-5

March 2004, 202-10027-01

Using the LAN IP Setup Options

The second feature category under the Advanced heading is LAN IP Setup. This menu allows

configuration of LAN IP services, such as DHCP and RIP. From the Main Menu of the browser

interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

Figure 10-2: LAN IP Setup Menu

Configuring LAN TCP/IP Setup Parameters

The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a

DHCP server. The router’s default LAN IP configuration is:

• LAN IP addresses—192.168.0.1

• Subnet mask—255.255.255.0

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-6 Advanced Configuration

March 2004, 202-10027-01

These addresses are part of the IETF-designated private address range for use in private networks,

and should be suitable in most applications. If your network has a requirement to use a different IP

addressing scheme, you can make those changes in this menu.

The LAN IP parameters are:

• IP Address

This is the LAN IP address of the router.

• IP Subnet Mask

This is the LAN Subnet Mask of the router. Combined with the IP address, the IP Subnet Mask

allows a device to know which other addresses are local to it, and which must be reached

through a gateway or router.

• RIP Direction

RIP (Router Information Protocol) allows a router to exchange routing information with other

routers. The RIP Direction selection controls how the router sends and receives RIP packets.

Both is the default.

— When set to Both or Out Only, the router will broadcast its routing table periodically.

— When set to Both or In Only, it will incorporate the RIP information that it receives.

— When set to None, it will not send any RIP packets and will ignore any RIP packets

received.

• RIP Version

This controls the format and the broadcasting method of the RIP packets that the router sends.

(It recognizes both formats when receiving.) By default, this is set for RIP-1.

— RIP-1 is universally supported. RIP-1 is probably adequate for most networks, unless you

have an unusual network setup.

— RIP-2 carries more information. RIP-2B uses subnet broadcasting.

Note: If you change the LAN IP address of the router while connected through the

browser, you will be disconnected. You must then open a new connection to the new IP

address and log in again.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-7

March 2004, 202-10027-01

Using the Router as a DHCP server

By default, the router will function as a DHCP (Dynamic Host Configuration Protocol) server,

allowing it to assign IP, DNS server, and default gateway addresses to all computers connected to

the router's LAN. The assigned default gateway address is the LAN address of the router. IP

addresses will be assigned to the attached PCs from a pool of addresses specified in this menu.

Each pool address is tested before it is assigned to avoid duplicate addresses on the LAN.

For most applications, the default DHCP and TCP/IP settings of the router are satisfactory. See “IP

Configuration by DHCP” on page B-10 for an explanation of DHCP and information about how to

assign IP addresses for your network.

If another device on your network will be the DHCP server, or if you will manually configure the

network settings of all of your computers, clear the ‘Use router as DHCP server’ check box.

Otherwise, leave it checked.

Specify the pool of IP addresses to be assigned by setting the Starting IP Address and Ending IP

Address. These addresses should be part of the same IP address subnet as the router’s LAN IP

address. Using the default addressing scheme, you should define a range between 192.168.0.2 and

192.168.0.253, although you may wish to save part of the range for devices with fixed addresses.

The router will deliver the following parameters to any LAN device that requests DHCP:

• An IP Address from the range you have defined.

• Subnet Mask.

• Gateway IP Address (the router’s LAN IP address).

• Primary DNS Server (if you entered a Primary DNS address in the Basic Settings menu;

otherwise, the router’s LAN IP address).

• Secondary DNS Server (if you entered a Secondary DNS address in the Basic Settings menu).

Using Address Reservation

When you specify a reserved IP address for a computer on the LAN, that computer will always

receive the same IP address each time it access the router’s DHCP server. Reserved IP addresses

should be assigned to servers that require permanent IP settings.

To reserve an IP address:

1. Click the Add button.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-8 Advanced Configuration

March 2004, 202-10027-01

2. In the IP Address box, type the IP address to assign to the computer or server.

(choose an IP address from the router’s LAN subnet, such as 192.168.0.X)

3. Type the MAC Address of the computer or server.

(Tip: If the computer is already present on your network, you can copy its MAC address from

the Attached Devices menu and paste it here.)

4. Click Apply to enter the reserved address into the table.

Note: The reserved address will not be assigned until the next time the computer contacts the

router's DHCP server. Reboot the computer or access its IP configuration and force a DHCP

release and renew.

To edit or delete a reserved address entry:

1. Click the button next to the reserved address you want to edit or delete.

2. Click Edit or Delete.

Configuring Static Routes

Static Routes provide additional routing information to your router. Under normal circumstances,

the router has adequate routing information after it has been configured for Internet access, and

you do not need to configure additional static routes. You must configure static routes only for

unusual cases, such as multiple routers or multiple IP subnets located on your network.

From the Main Menu of the browser interface, under Advanced, click on Static Routes to view the

Static Route menu.

To add or edit a Static Route:

1. Click the Add button to open the Static Routes menu.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-9

March 2004, 202-10027-01

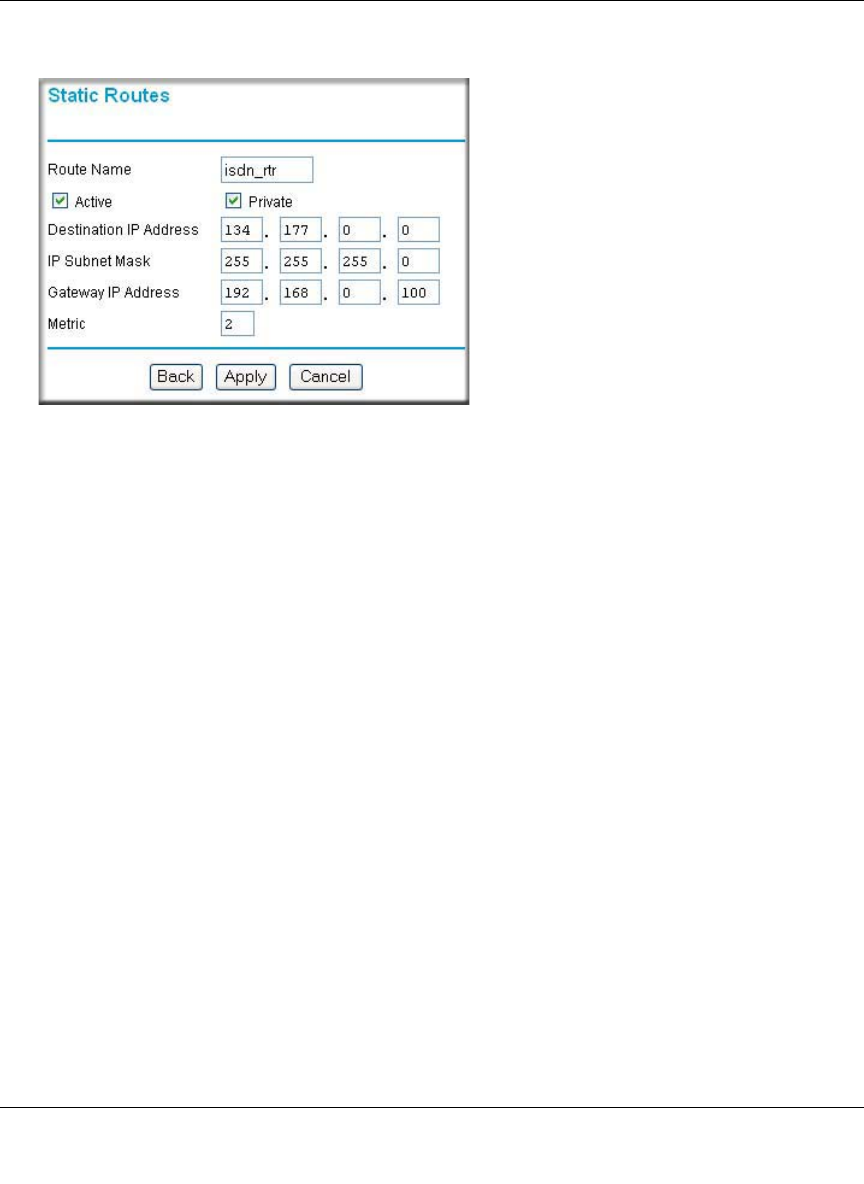

Figure 10-3. Static Route Entry and Edit Menu

2. Type a route name for this static route in the Route Name box.

(This is for identification purpose only.)

3. Select Active to make this route effective.

4. Select Private if you want to limit access to the LAN only. The static route will not be reported

in RIP.

5. Type the Destination IP Address of the final destination.

6. Type the IP Subnet Mask for this destination.

If the destination is a single host, type 255.255.255.254.

7. Type the Gateway IP Address, which must be a router on the same LAN segment as the router.

8. Type a number between 1 and 15 as the Metric value.

This represents the number of routers between your network and the destination. Usually, a

setting of 2 or 3 works, but if this is a direct connection, set it to 1.

9. Click Apply to have the static route entered into the table.

As an example of when a static route is needed, consider the following case:

• Your primary Internet access is through a cable modem to an ISP.

• You have an ISDN router on your home network for connecting to the company where

you are employed. This router’s address on your LAN is 192.168.0.100.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-10 Advanced Configuration

March 2004, 202-10027-01

• Your company’s network is 134.177.0.0.

When you first configured your router, two implicit static routes were created. A default route was

created with your ISP as the gateway, and a second static route was created to your local network

for all 192.168.0.x addresses. With this configuration, if you attempt to access a device on the

134.177.0.0 network, your router will forward your request to the ISP. The ISP forwards your

request to the company where you are employed, and the request will likely be denied by the

company’s firewall.

In this case you must define a static route, telling your router that 134.177.0.0 should be accessed

through the ISDN router at 192.168.0.100. The static route would look like Figure 10-3.

In this example:

• The Destination IP Address and IP Subnet Mask fields specify that this static route applies to

all 134.177.x.x addresses.

• The Gateway IP Address fields specifies that all traffic for these addresses should be

forwarded to the ISDN router at 192.168.0.100.

• A Metric value of 1 will work since the ISDN router is on the LAN.

• Private is selected only as a precautionary security measure in case RIP is activated.

Enabling Remote Management Access

Using the Remote Management page, you can allow a user or users on the Internet to configure,

upgrade and check the status of your FWG114P Wireless Firewall/Print Server.

To configure your router for Remote Management:

1. Select the Turn Remote Management On check box.

2. Specify what external addresses will be allowed to access the router’s remote management.

Note: For enhanced security, restrict access to as few external IP addresses as practical.

a. To allow access from any IP address on the Internet, select Everyone.

Note: Be sure to change the router's default configuration password to a very secure

password. The ideal password should contain no dictionary words from any language,

and should be a mixture of letters (both upper and lower case), numbers, and symbols.

Your password can be up to 30 characters.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-11

March 2004, 202-10027-01

b. To allow access from a range of IP addresses on the Internet, select IP address range.

Enter a beginning and ending IP address to define the allowed range.

c. To allow access from a single IP address on the Internet, select Only this computer.

Enter the IP address that will be allowed access.

3. Specify the Port Number that will be used for accessing the management interface.

Web browser access normally uses the standard HTTP service port 80. For greater security,

you can change the remote management Web interface to a custom port by entering that

number in the box provided. Choose a number between 1024 and 65535, but do not use the

number of any common service port. The default is 8080, which is a common alternate for

HTTP.

4. Click Apply to have your changes take effect.

Note: When accessing your router from the Internet, you will type your router's WAN IP address

into your browser's Address (in IE) or Location (in Netscape) box, followed by a colon (:) and the

custom port number. For example, if your external address is 134.177.0.123 and you use port

number 8080, you must enter in your browser: http://134.177.0.123:8080

Using Universal Plug and Play (UPnP)

Universal Plug and Play (UPnP) helps devices, such as Internet appliances and computers, access

the network and connect to other devices as needed. UPnP devices can automatically discover the

services from other registered UPnP devices on the network.

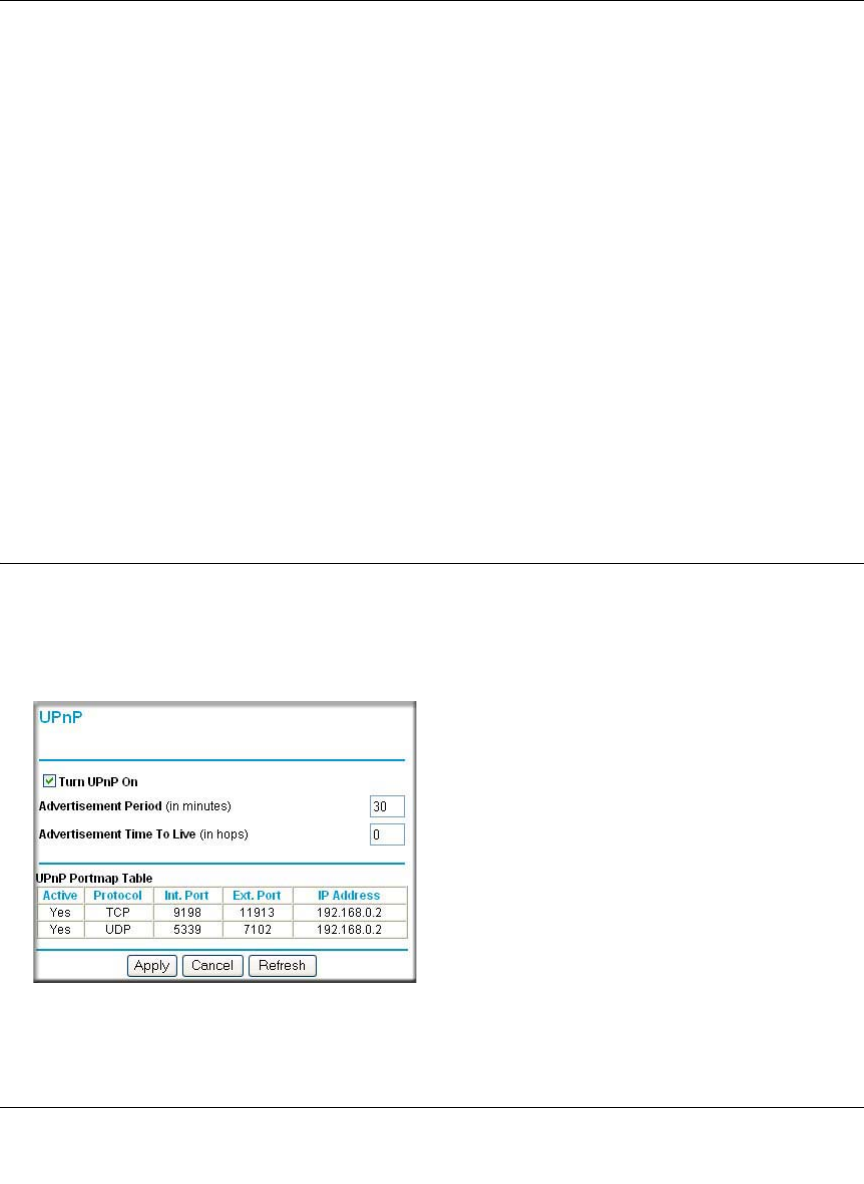

Figure 10-4. UPnP Menu

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-12 Advanced Configuration

March 2004, 202-10027-01

Turn UPnP On: UPnP can be enabled or disabled for automatic device configuration. The default

setting for UPnP is enabled. If disabled, the router will not allow any device to automatically

control the resources, such as port forwarding (mapping), of the router.

Advertisement Period: The Advertisement Period is how often the router will broadcast its UPnP

information. This value can range from 1 to 1440 minutes. The default period is 30 minutes.

Shorter durations will ensure that control points have current device status at the expense of

additional network traffic. Longer durations may compromise the freshness of the device status but

can significantly reduce network traffic.

Advertisement Time To Live: The time to live for the advertisement is measured in hops (steps)

for each UPnP packet sent. The time to live hop count is the number of steps a broadcast packet is

allowed to propagate for each UPnP advertisement before it disappears. The number of hops can

range from 1 to 255. The default value for the advertisement time to live is 4 hops, which should

be fine for most home networks. If you notice that some devices are not being updated or reached

correctly, then it may be necessary to increase this value a little.

UPnP Portmap Table: The UPnP Portmap Table displays the IP address of each UPnP device that

is currently accessing the router and which ports (Internal and External) that device has opened.

The UPnP Portmap Table also displays what type of port is opened and if that port is still active for

each IP address.

Advanced Wireless Settings

Note: Incorrectly changing these settings can prevent the wireless functions from working.

• RTS Threshold

Request to Send Threshold. The packet size that is used to determine if it should use the

CSMA/CD (Carrier Sense Multiple Access with Collision Detection) mechanism or the

CSMA/CA define the mechanism for packet transmission. With the CSMA/CD transmission

mechanism, the transmitting station sends out the actual packet as soon as it has waited for the

silence period. With the CSMA/CA transmission mechanism, the transmitting station sends

out an RTS packet to the receiving station, and waits for the receiving station to send back a

CTS (Clear to Send) packet before sending the actual packet data.

• Fragmentation Length

This is the maximum packet size used for fragmentation. Packets larger than the size

programmed in this field will be fragmented. The Fragment Threshold value must be larger

than the RTS Threshold value.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Advanced Configuration 10-13

March 2004, 202-10027-01

• Beacon Interval

Specifies the data beacon rate between 20 and 1000.

•DTIM

The Delivery Traffic Indication Message. Specifies the data beacon rate between 1 and 255.

• Preamble Type

A long transmit preamble may provide a more reliable connection or slightly longer range. A

short transmit preamble gives better performance.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

10-14 Advanced Configuration

March 2004, 202-10027-01

Troubleshooting 11-1

March 2004, 202-10027-01

Chapter 11

Troubleshooting

This chapter gives information about troubleshooting your ProSafe Wireless 802.11g Firewall/

Print Server Model FWG114P. After each problem description, instructions are provided to help

you diagnose and solve the problem.

Basic Functioning

After you turn on power to the router, the following sequence of events should occur:

1. When power is first applied, verify that the PWR LED is on.

2. After approximately 10 seconds, verify that:

a. The TEST LED is not lit.

b. The LAN port LEDs are lit for any local ports that are connected.

If a port’s LED is lit, a link has been established to the connected device. If a LAN port is

connected to a 100 Mbps device, verify that the port’s LED is green. If the port is 10

Mbps, the LED will be OFF.

c. The Internet port LED is lit.

If any of these conditions does not occur, refer to the appropriate following section.

Power LED Not On

If the Power and other LEDs are off when your router is turned on:

• Make sure that the power cord is properly connected to your router and that the power supply

adapter is properly connected to a functioning power outlet.

• Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product.

If the error persists, you have a hardware problem and should contact technical support.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

11-2 Troubleshooting

March 2004, 202-10027-01

LEDs Never Turn Off

When the router is turned on, the LEDs turns on for about 10 seconds and then turns off. If all the

LEDs stay on, there is a fault within the router.

If all LEDs are still on one minute after power up:

• Cycle the power to see if the router recovers.

• Clear the router’s configuration to the factory defaults. This will set the router’s IP address to

192.168.0.1. This procedure is explained in “Restoring the Default Configuration and

Password” on page 11-7.

If the error persists, you might have a hardware problem and should contact technical support.

LAN or Internet Port LEDs Not On

If either the LAN LEDs or the Internet LED do not light when the Ethernet connection is made,

check the following:

• Make sure that the Ethernet cable connections are secure at the router and at the hub or

workstation.

• Make sure that power is turned on to the connected hub or workstation.

• Be sure you are using the correct cable:

When connecting the router’s Internet port to a broadband modem, use the cable that was

supplied with the broadband modem. This cable could be a standard straight-through Ethernet

cable or an Ethernet crossover cable.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Troubleshooting 11-3

March 2004, 202-10027-01

Troubleshooting the Web Configuration Interface

If you are unable to access the router’s Web Configuration interface from a computer on your local

network, check the following:

• Check the Ethernet connection between the computer and the router as described in the

previous section.

• Make sure your computer’s IP address is on the same subnet as the router. If you are using the

recommended addressing scheme, your computer’s address should be in the range of

192.168.0.2 to 192.168.0.254. Refer to “Verifying TCP/IP Properties” on page 3-5 or

“Verifying TCP/IP Properties (Macintosh)” on page 3-8 to find your computer’s IP address.

Follow the instructions in Chapter 4 to configure your computer.

Note: If your computer’s IP address is shown as 169.254.x.x: Recent versions of Windows

and MacOS will generate and assign an IP address if the computer cannot reach a DHCP

server. These auto-generated addresses are in the range of 169.254.x.x. If your IP address is in

this range, check the connection from the computer to the router and reboot your computer.

• If your router’s IP address has been changed and you do not know the current IP address, clear

the router’s configuration to the factory defaults. This will set the router’s IP address to

192.168.0.1. This procedure is explained in “Restoring the Default Configuration and

Password” on page 11-7.

• Make sure your browser has Java, JavaScript, or ActiveX enabled. If you are using Internet

Explorer, click Refresh to be sure the Java applet is loaded.

• Try quitting the browser and launching it again.

• Make sure you are using the correct login information. The factory default login name is

admin and the password is password. Make sure that CAPS LOCK is off when entering this

information.

If the router does not save changes you have made in the Web Configuration Interface, check the

following:

• When entering configuration settings, be sure to click the APPLY button before moving to

another menu or tab, or your changes will be lost.

• Click the Refresh or Reload button in the Web browser. The changes may have occurred, but

the Web browser may be caching the old configuration.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

11-4 Troubleshooting

March 2004, 202-10027-01

Troubleshooting the ISP Connection

If your router is unable to access the Internet, you should first determine whether the router is able

to obtain a WAN IP address from the ISP. Unless you have been assigned a static IP address, your

router must request an IP address from the ISP. You can determine whether the request was

successful using the Web Configuration Manager.

To check the WAN IP address:

1. Launch your browser and select an external site, such as www.netgear.com.

2. Access the Main Menu of the router’s configuration at http://192.168.0.1.

3. Under the Maintenance heading, select Router Status.

4. Check that an IP address is shown for the WAN Port.

If 0.0.0.0 is shown, your router has not obtained an IP address from your ISP.

If your router is unable to obtain an IP address from the ISP, you may need to force your

broadband modem to recognize your new router by performing the following procedure:

1. Turn off power to the broadband modem.

2. Turn off power to your router.

3. Wait five minutes and reapply power to the broadband modem.

4. When the modem’s LEDs indicate that it has reacquired sync with the ISP, reapply power to

your router.

If your router is still unable to obtain an IP address from the ISP, the problem may be one of the

following:

• Your ISP may require a login program.

Ask your ISP whether they require PPP over Ethernet (PPPoE) or some other type of login.

• If your ISP requires a login, you may have incorrectly set the login name and password.

• Your ISP may check for your computer's host name.

Assign the computer Host Name of your ISP account as the Account Name in the Basic

Settings menu.

• Your ISP only allows one Ethernet MAC address to connect to Internet, and may check for

your computer’s MAC address. In this case:

Inform your ISP that you have bought a new network device and ask them to use the router’s

MAC address.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Troubleshooting 11-5

March 2004, 202-10027-01

Configure your router to spoof your computer’s MAC address. This can be done in the Basic

Settings menu. Refer to “Manually Configuring Your Internet Connection” on page 3-17.

If your router can obtain an IP address, but your computer is unable to load any Web pages from

the Internet:

• Your computer may not recognize any DNS server addresses.

A DNS server is a host on the Internet that translates Internet names (such as www addresses)

to numeric IP addresses. Typically your ISP will provide the addresses of one or two DNS

servers for your use. If you entered a DNS address during the router’s configuration, reboot

your computer and verify the DNS address as described in “Verifying TCP/IP Properties” on

page 3-5. Alternatively, you may configure your computer manually with DNS addresses, as

explained in your operating system documentation.

• Your computer may not have the router configured as its TCP/IP gateway.

If your computer obtains its information from the router by DHCP, reboot the computer and

verify the gateway address as described in “Verifying TCP/IP Properties” on page 3-5.

Troubleshooting a TCP/IP Network Using a Ping Utility

Most TCP/IP terminal devices and routers contain a ping utility that sends an echo request packet

to the designated device. The device then responds with an echo reply. Troubleshooting a TCP/IP

network is made very easy by using the ping utility in your computer or workstation.

Testing the LAN Path to Your Router

You can ping the router from your computer to verify that the LAN path to your router is set up

correctly.

To ping the router from a computer running Windows 95 or later:

1. From the Windows toolbar, click on the Start button and select Run.

2. In the field provided, type Ping followed by the IP address of the router, as in this example:

ping 192.168.0.1

3. Click on OK.

You should see a message like this one:

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

11-6 Troubleshooting

March 2004, 202-10027-01

Pinging <IP address> with 32 bytes of data

If the path is working, you see this message:

Reply from < IP address >: bytes=32 time=NN ms TTL=xxx

If the path is not working, you see this message:

Request timed out

If the path is not functioning correctly, you could have one of the following problems:

• Wrong physical connections

— Make sure the LAN port LED is on. If the LED is off, follow the instructions in “LAN

or Internet Port LEDs Not On” on page 11-2.

— Check that the corresponding Link LEDs are on for your network interface card and

for the hub ports (if any) that are connected to your workstation and router.

• Wrong network configuration

— Verify that the Ethernet card driver software and TCP/IP software are both installed

and configured on your computer or workstation.

— Verify that the IP address for your router and your workstation are correct and that the

addresses are on the same subnet.

Testing the Path from Your Computer to a Remote Device

After verifying that the LAN path works correctly, test the path from your computer to a remote

device. From the Windows run menu, type:

PING -n 10 <IP address>

where <IP address> is the IP address of a remote device, such as your ISP’s DNS server.

If the path is functioning correctly, replies as in the previous section are displayed. If you do not

receive replies:

— Check that your computer has the IP address of your router listed as the default gateway. If

the IP configuration of your computer is assigned by DHCP, this information will not be

visible in your computer’s Network Control Panel. Verify that the IP address of the router

is listed as the default gateway as described in “Verifying TCP/IP Properties” on page 3-5.

— Check to see that the network address of your computer (the portion of the IP address

specified by the netmask) is different from the network address of the remote device.

— Check that your broadband modem is connected and functioning.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Troubleshooting 11-7

March 2004, 202-10027-01

— If your ISP assigned a host name to your computer, enter that host name as the Account

Name in the Basic Settings menu.

— Your ISP could be rejecting the Ethernet MAC addresses of all but one of your PCs. Many

broadband ISPs restrict access by only allowing traffic from the MAC address of your

broadband modem, but some ISPs additionally restrict access to the MAC address of a

single computer connected to that modem. If this is the case, you must configure your

router to “clone” or “spoof” the MAC address from the authorized computer. Refer to

“Manually Configuring Your Internet Connection” on page 3-17.

Restoring the Default Configuration and Password

This section explains how to restore the factory default configuration settings, changing the

router’s administration password to password and the IP address to 192.168.0.1. You can erase the

current configuration and restore factory defaults in two ways:

• Use the Erase function of the router (see “Erasing the Configuration” on page 9-8).

• Use the Default Reset button on the rear panel of the router. Use this method for cases when

the administration password or IP address is not known.

To restore the factory default configuration settings without knowing the administration password

or IP address, you must use the Default Reset button on the rear panel of the router.

1. Press and hold the Default Reset button until the Test LED turns on (about 10 seconds).

2. Release the Default Reset button and wait for the router to reboot.

Problems with Date and Time

The E-Mail menu in the Content Filtering section displays the current date and time of day. The

FWG114P Wireless Firewall/Print Server uses the Network Time Protocol (NTP) to obtain the

current time from one of several Network Time Servers on the Internet. Each entry in the log is

stamped with the date and time of day. Problems with the date and time function can include:

• Date shown is January 1, 2000. Cause: The router has not yet successfully reached a Network

Time Server. Check that your Internet access settings are configured correctly. If you have just

completed configuring the router, wait at least five minutes and check the date and time again.

• Time is off by one hour. Cause: The router does not automatically sense Daylight Savings

Time. In the E-Mail menu, check or uncheck the box marked “Adjust for Daylight Savings

Time”.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

11-8 Troubleshooting

March 2004, 202-10027-01

Technical Specifications A-1

March 2004, 202-10027-01

Appendix A

Technical Specifications

This appendix provides technical specifications for the ProSafe Wireless 802.11g Firewall/Print

Server Model FWG114P.

Network Protocol and Standards Compatibility

Data and Routing

Protocols: TCP/IP, RIP-1, RIP-2, DHCP

PPP over Ethernet (PPPoE)

VPN

Protocols:

Tunnels:

IPSec, SHA-1, MD5, DES, 3DES, ESP, DH1, DH2

2 IPSec Tunnels

Power Adapter

North America: 120V, 60 Hz, input

United Kingdom,

Australia: 240V, 50 Hz, input

Europe: 230V, 50 Hz, input

Japan: 100V, 50/60 Hz, input

All regions (output): 12 V DC @ 1.2 A output, 18W maximum

Physical Specifications

Dimensions: H: 32 x L: 188 x W: 124 mm (1.25 x 7.4 x 4.9 in.)

Weight: 0.64 kg (1.4 lb)

Environmental

Specifications

Operating temperature: 0° to 40° C (32º to 104º F)

Operating humidity: 90% maximum relative humidity, noncondensing

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

A-2 Technical Specifications

March 2004, 202-10027-01

Electromagnetic

Emissions

For North America and

Australia FCC Part 15 Class B

For Japan VCCI Class B

For Europe EN 300 328, EN 301 489-17, EN 301 489-1, EN 60950

Interface Specifications

LAN: 10BASE-T or 100BASE-Tx, RJ-45

WAN: 10BASE-T or 100BASE-Tx

Printer: USB v1.1

Serial: RS-232 male DB-9 connector

Wireless

Data Encoding: 802.11b: Direct Sequence Spread Spectrum (DSSS)

802.11g: Orthogonal Frequency Division Multiplexing (OFDM)

Maximum Computers Per

Wireless Network: Limited by the amount of wireless network traffic generated by each

node. Typically 30-70 nodes.

802.11b and g

Radio Data Rate 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48, and 54 Mbps (Auto-rate capable)

802.11b and g

Transmit Power and

Receive Sensitivity

Maximum Transmit Power / Receive Sensitivity

54 Mbps, 11g 14.5 dBm typical - 72 dBm typical

48 Mbps, 11g 14.5 dBm typical - 75 dBm typical

36 Mbps, 11g 15.5 dBm typical - 80dBm typical

24 Mbps, 11g 15.5 dBm typical - 82 dBm typical

18Mbps, 11g 16.5 dBm typical - 84 dBm typical

12 Mbps, 11g 16.5 dBm typical - 85 dBm typical

6 Mbps, 11g 16.5 dBm typical - 86 dBm typical

11 Mbps, 11b 17.5 dBm typical - 83 dBm typical

5.5 Mbps, 11b 17.5 dBm typical - 86 dBm typical

2 Mbps, 11b 17.5 dBm typical - 89 dBm typical

1Mbps, 11b 17.5 dBm typical - 92 dBm typical

Note: For Europe, the maximum transmit power does not exceed +15 dBm

Antenna: External detachable 5 dBi omnidirectional

802.11 Security 40-bits (also called 64-bits), 128-bits WEP data encryption, and WPA

Networks, Routing, and Firewall Basics B-1

March 2004, 202-10027-01

Appendix B

Networks, Routing, and Firewall Basics

This appendix provides an overview of IP networks, routing, and firewalls.

Related Publications

As you read this document, you may be directed to various RFC documents for further

information. An RFC is a Request For Comment (RFC) published by the Internet Engineering

Task Force (IETF), an open organization that defines the architecture and operation of the Internet.

The RFC documents outline and define the standard protocols and procedures for the Internet. The

documents are listed on the World Wide Web at www.ietf.org and are mirrored and indexed at

many other sites worldwide.

Basic Router Concepts

Large amounts of bandwidth can be provided easily and relatively inexpensively in a local area

network (LAN). However, providing high bandwidth between a local network and the Internet can

be very expensive. Because of this expense, Internet access is usually provided by a slower-speed

wide-area network (WAN) link, such as a cable or DSL modem. In order to make the best use of

the slower WAN link, a mechanism must be in place for selecting and transmitting only the data

traffic meant for the Internet. The function of selecting and forwarding this data is performed by a

router.

What is a Router?

A router is a device that forwards traffic between networks based on network layer information in

the data and on routing tables maintained by the router. In these routing tables, a router builds up a

logical picture of the overall network by gathering and exchanging information with other routers

in the network. Using this information, the router chooses the best path for forwarding network

traffic.

Routers vary in performance and scale, number of routing protocols supported, and types of

physical WAN connection they support.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-2 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

Routing Information Protocol

One of the protocols used by a router to build and maintain a picture of the network is the Routing

Information Protocol (RIP). Using RIP, routers periodically update one another and check for

changes to add to the routing table.

The FWG114P Wireless Firewall/Print Server supports both the older RIP-1 and the newer RIP-2

protocols. Among other improvements, RIP-2 supports subnet and multicast protocols. RIP is not

required for most home applications.

IP Addresses and the Internet

Because TCP/IP networks are interconnected across the world, every machine on the Internet must

have a unique address to make sure that transmitted data reaches the correct destination. Blocks of

addresses are assigned to organizations by the Internet Assigned Numbers Authority (IANA).

Individual users and small organizations may obtain their addresses either from the IANA or from

an Internet service provider (ISP). You can contact IANA at www.iana.org.

The Internet Protocol (IP) uses a 32-bit address structure. The address is usually written in dot

notation (also called dotted-decimal notation), in which each group of eight bits is written in

decimal form, separated by decimal points.

For example, the following binary address:

11000011 00100010 00001100 00000111

is normally written as:

195.34.12.7

The latter version is easier to remember and easier to enter into your computer.

In addition, the 32 bits of the address are subdivided into two parts. The first part of the address

identifies the network, and the second part identifies the host node or station on the network. The

dividing point may vary depending on the address range and the application.

There are five standard classes of IP addresses. These address classes have different ways of

determining the network and host sections of the address, allowing for different numbers of hosts

on a network. Each address type begins with a unique bit pattern, which is used by the TCP/IP

software to identify the address class. After the address class has been determined, the software

can correctly identify the host section of the address. The following figure shows the three main

address classes, including network and host sections of the address for each address type.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-3

March 2004, 202-10027-01

Figure 11-1: Three Main Address Classes

The five address classes are:

• Class A

Class A addresses can have up to 16,777,214 hosts on a single network. They use an eight-bit

network number and a 24-bit node number. Class A addresses are in this range:

1.x.x.x to 126.x.x.x.

• Class B

Class B addresses can have up to 65,354 hosts on a network. A Class B address uses a 16-bit

network number and a 16-bit node number. Class B addresses are in this range:

128.1.x.x to 191.254.x.x.

• Class C

Class C addresses can have 254 hosts on a network. Class C addresses use 24 bits for the

network address and eight bits for the node. They are in this range:

192.0.1.x to 223.255.254.x.

• Class D

Class D addresses are used for multicasts (messages sent to many hosts). Class D addresses are

in this range:

224.0.0.0 to 239.255.255.255.

• Class E

Class E addresses are for experimental use.

lass A

etwork Node

lass B

lass C

Network Node

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-4 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

This addressing structure allows IP addresses to uniquely identify each physical network and each

node on each physical network.

For each unique value of the network portion of the address, the base address of the range (host

address of all zeros) is known as the network address and is not usually assigned to a host. Also,

the top address of the range (host address of all ones) is not assigned, but is used as the broadcast

address for simultaneously sending a packet to all hosts with the same network address.

Netmask

In each of the address classes previously described, the size of the two parts (network address and

host address) is implied by the class. This partitioning scheme can also be expressed by a netmask

associated with the IP address. A netmask is a 32-bit quantity that, when logically combined (using

an AND operator) with an IP address, yields the network address. For instance, the netmasks for

Class A, B, and C addresses are 255.0.0.0, 255.255.0.0, and 255.255.255.0, respectively.

For example, the address 192.168.170.237 is a Class C IP address whose network portion is the

upper 24 bits. When combined (using an AND operator) with the Class C netmask, as shown here,

only the network portion of the address remains:

11000000 10101000 10101010 11101101 (192.168.170.237)

combined with:

11111111 11111111 11111111 00000000 (255.255.255.0)

Equals:

11000000 10101000 10101010 00000000 (192.168.170.0)

As a shorter alternative to dotted-decimal notation, the netmask may also be expressed in terms of

the number of ones from the left. This number is appended to the IP address, following a backward

slash (/), as “/n.” In the example, the address could be written as 192.168.170.237/24, indicating

that the netmask is 24 ones followed by 8 zeros.

Subnet Addressing

By looking at the addressing structures, you can see that even with a Class C address, there are a

large number of hosts per network. Such a structure is an inefficient use of addresses if each end of

a routed link requires a different network number. It is unlikely that the smaller office LANs would

have that many devices. You can resolve this problem by using a technique known as subnet

addressing.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-5

March 2004, 202-10027-01

Subnet addressing allows us to split one IP network address into smaller multiple physical

networks known as subnetworks. Some of the node numbers are used as a subnet number instead.

A Class B address gives us 16 bits of node numbers translating to 64,000 nodes. Most

organizations do not use 64,000 nodes, so there are free bits that can be reassigned. Subnet

addressing makes use of those bits that are free, as shown below.

Figure 11-2: Example of Subnetting a Class B Address

A Class B address can be effectively translated into multiple Class C addresses. For example, the

IP address of 172.16.0.0 is assigned, but node addresses are limited to 255 maximum, allowing

eight extra bits to use as a subnet address. The IP address of 172.16.97.235 would be interpreted as

IP network address 172.16, subnet number 97, and node number 235. In addition to extending

the number of addresses available, subnet addressing provides other benefits. Subnet addressing

allows a network manager to construct an address scheme for the network by using different

subnets for other geographical locations in the network or for other departments in the

organization.

Although the preceding example uses the entire third octet for a subnet address, note that you are

not restricted to octet boundaries in subnetting. To create more network numbers, you need only

shift some bits from the host address to the network address. For instance, to partition a Class C

network number (192.68.135.0) into two, you shift one bit from the host address to the network

address. The new netmask (or subnet mask) is 255.255.255.128. The first subnet has network

number 192.68.135.0 with hosts 192.68.135.1 to 129.68.135.126, and the second subnet has

network number 192.68.135.128 with hosts 192.68.135.129 to 192.68.135.254.

Note: The number 192.68.135.127 is not assigned because it is the broadcast address

of the first subnet. The number 192.68.135.128 is not assigned because it is the network

address of the second subnet.

7262

lass B

Network Subnet Node

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-6 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

The following table lists the additional subnet mask bits in dotted-decimal notation. To use the

table, write down the original class netmask and replace the 0 value octets with the dotted-decimal

value of the additional subnet bits. For example, to partition your Class C network with subnet

mask 255.255.255.0 into 16 subnets (4 bits), the new subnet mask becomes 255.255.255.240.

The following table displays several common netmask values in both the dotted-decimal and the

masklength formats.

Table 11-1. Netmask Notation Translation Table for One Octet

Number of Bits Dotted-Decimal Value

1 128

2 192

3 224

4 240

5 248

6 252

7 254

8 255

Table 11-2. Netmask Formats

Dotted-Decimal Masklength

255.0.0.0 /8

255.255.0.0 /16

255.255.255.0 /24

255.255.255.128 /25

255.255.255.192 /26

255.255.255.224 /27

255.255.255.240 /28

255.255.255.248 /29

255.255.255.252 /30

255.255.255.254 /31

255.255.255.255 /32

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-7

March 2004, 202-10027-01

NETGEAR strongly recommends that you configure all hosts on a LAN segment to use the same

netmask for the following reasons:

• So that hosts recognize local IP broadcast packets.

When a device broadcasts to its segment neighbors, it uses a destination address of the local

network address with all ones for the host address. In order for this scheme to work, all devices

on the segment must agree on which bits comprise the host address.

• So that a local router or bridge recognizes which addresses are local and which are remote.

Private IP Addresses

If your local network is isolated from the Internet (for example, when using NAT), you can assign

any IP addresses to the hosts without problems. However, the IANA has reserved the following

three blocks of IP addresses specifically for private networks:

10.0.0.0 - 10.255.255.255

172.16.0.0 - 172.31.255.255

192.168.0.0 - 192.168.255.255

NETGEAR recommends that you choose your private network number from this range. The

DHCP server of the FWG114P Wireless Firewall/Print Server is preconfigured to automatically

assign private addresses.

Regardless of your particular situation, do not create an arbitrary IP address; always follow the

guidelines explained here. For more information about address assignment, refer to RFC 1597,

Address Allocation for Private Internets, and RFC 1466, Guidelines for Management of IP

Address Space. The Internet Engineering Task Force (IETF) publishes RFCs on its Web site at

www.ietf.org.

Single IP Address Operation Using NAT

In the past, if multiple computers on a LAN needed to access the Internet simultaneously, you had

to obtain a range of IP addresses from the ISP. This type of Internet account is more costly than a

single-address account typically used by a single user with a modem, rather than a router. The

FWG114P Wireless Firewall/Print Server employs an address-sharing method called Network

Address Translation (NAT). This method allows several networked computers to share an Internet

account using only a single IP address, which may be statically or dynamically assigned by your

ISP.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-8 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

The router accomplishes this address sharing by translating the internal LAN IP addresses to a

single address that is globally unique on the Internet. The internal LAN IP addresses can be either

private addresses or registered addresses. For more information about IP address translation, refer

to RFC 1631, The IP Network Address Translator (NAT).

The following figure illustrates a single IP address operation.

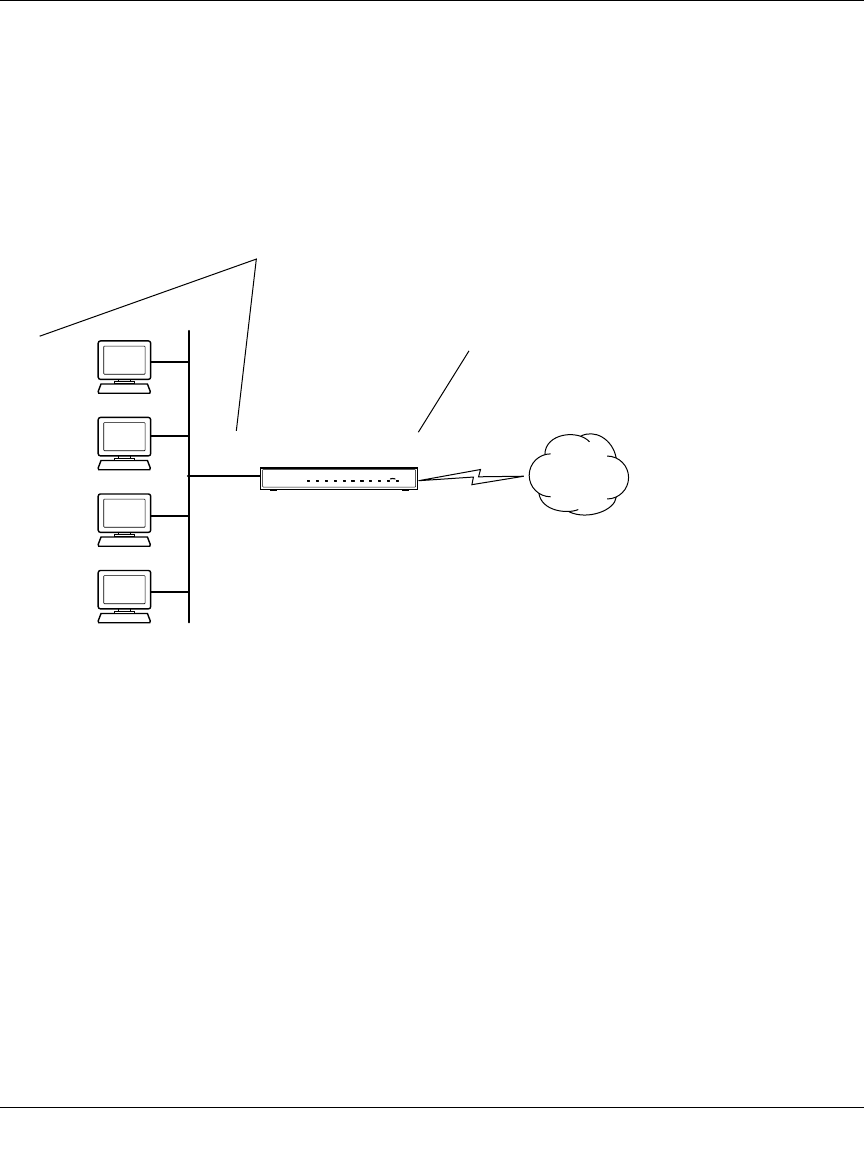

Figure 11-3: Single IP Address Operation Using NAT

This scheme offers the additional benefit of firewall-like protection because the internal LAN

addresses are not available to the Internet through the translated connection. All incoming

inquiries are filtered out by the router. This filtering can prevent intruders from probing your

system. However, using port forwarding, you can allow one PC (for example, a Web server) on

your local network to be accessible to outside users.

92.168.0.2

92.168.0.3

92.168.0.4

92.168.0.5

192.168.0.1 172.21.15.105

Private IP addresses

assigned by user

Internet

IP addresses

assigned by ISP

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-9

March 2004, 202-10027-01

MAC Addresses and Address Resolution Protocol

An IP address alone cannot be used to deliver data from one LAN device to another. To send data

between LAN devices, you must convert the IP address of the destination device to its media

access control (MAC) address. Each device on an Ethernet network has a unique MAC address,

which is a 48-bit number assigned to each device by the manufacturer. The technique that

associates the IP address with a MAC address is known as address resolution. Internet Protocol

uses the Address Resolution Protocol (ARP) to resolve MAC addresses.

If a device sends data to another station on the network and the destination MAC address is not yet

recorded, ARP is used. An ARP request is broadcast onto the network. All stations on the network

receive and read the request. The destination IP address for the chosen station is included as part of

the message so that only the station with this IP address responds to the ARP request. All other

stations discard the request.

Related Documents

The station with the correct IP address responds with its own MAC address directly to the sending

device. The receiving station provides the transmitting station with the required destination MAC

address. The IP address data and MAC address data for each station are held in an ARP table. The

next time data is sent, the address can be obtained from the address information in the table.

For more information about address assignment, refer to the IETF documents RFC 1597, Address

Allocation for Private Internets, and RFC 1466, Guidelines for Management of IP Address Space.

For more information about IP address translation, refer to RFC 1631, The IP Network Address

Translator (NAT).

Domain Name Server

Many of the resources on the Internet can be addressed by simple descriptive names, such as

www.NETGEAR.com. This addressing is very helpful at the application level, but the descriptive

name must be translated to an IP address in order for a user to actually contact the resource. Just as

a telephone directory maps names to phone numbers, or as an ARP table maps IP addresses to

MAC addresses, a domain name system (DNS) server maps descriptive names of network

resources to IP addresses.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-10 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

When a PC accesses a resource by its descriptive name, it first contacts a DNS server to obtain the

IP address of the resource. The PC sends the desired message using the IP address. Many large

organizations, such as ISPs, maintain their own DNS servers and allow their customers to use the

servers to look up addresses.

IP Configuration by DHCP

When an IP-based local area network is installed, each PC must be configured with an IP address.

If the computers need to access the Internet, they should also be configured with a gateway address

and one or more DNS server addresses. As an alternative to manual configuration, there is a

method by which each PC on the network can automatically obtain this configuration information.

A device on the network may act as a Dynamic Host Configuration Protocol (DHCP) server. The

DHCP server stores a list or pool of IP addresses, along with other information (such as gateway

and DNS addresses) that it may assign to the other devices on the network. The FWG114P

Wireless Firewall/Print Server has the capacity to act as a DHCP server.

The FWG114P Wireless Firewall/Print Server also functions as a DHCP client when connecting to

the ISP. The firewall can automatically obtain an IP address, subnet mask, DNS server addresses,

and a gateway address if the ISP provides this information by DHCP.

Internet Security and Firewalls

When your LAN connects to the Internet through a router, an opportunity is created for outsiders

to access or disrupt your network. A NAT router provides some protection because by the very

nature of the Network Address Translation (NAT) process, the network behind the NAT router is

shielded from access by outsiders on the Internet. However, there are methods by which a

determined hacker can possibly obtain information about your network or at the least can disrupt

your Internet access. A greater degree of protection is provided by a firewall router.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-11

March 2004, 202-10027-01

What is a Firewall?

A firewall is a device that protects one network from another, while allowing communication

between the two. A firewall incorporates the functions of the NAT router, while adding features for

dealing with a hacker intrusion or attack. Several known types of intrusion or attack can be

recognized when they occur. When an incident is detected, the firewall can log details of the

attempt, and can optionally send e-mail to an administrator notifying them of the incident. Using

information from the log, the administrator can take action with the ISP of the hacker. In some

types of intrusions, the firewall can fend off the hacker by discarding all further packets from the

hacker’s IP address for a period of time.

Stateful Packet Inspection

Unlike simple Internet sharing routers, a firewall uses a process called stateful packet inspection to

ensure secure firewall filtering to protect your network from attacks and intrusions. Since

user-level applications, such as FTP and Web browsers can create complex patterns of network

traffic, it is necessary for the firewall to analyze groups of network connection "states." Using

stateful packet inspection, an incoming packet is intercepted at the network layer and then

analyzed for state-related information associated with all network connections. A central cache

within the firewall keeps track of the state information associated with all network connections.

All traffic passing through the firewall is analyzed against the state of these connections in order to

determine whether or not it will be allowed to pass through or be rejected.

Denial of Service Attack

A hacker may be able to prevent your network from operating or communicating by launching a

Denial of Service (DoS) attack. The method used for, such an attack can be as simple as merely

flooding your site with more requests than it can handle. A more sophisticated attack may attempt

to exploit some weakness in the operating system used by your router or gateway. Some operating

systems can be disrupted by simply sending a packet with incorrect length information.

Ethernet Cabling

Although Ethernet networks originally used thick or thin coaxial cable, most installations currently

use unshielded twisted pair (UTP) cabling. The UTP cable contains eight conductors, arranged in

four twisted pairs, and terminated with an RJ45 type connector. A normal straight-through UTP

Ethernet cable follows the EIA568B standard wiring as described below in Table B-1

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-12 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

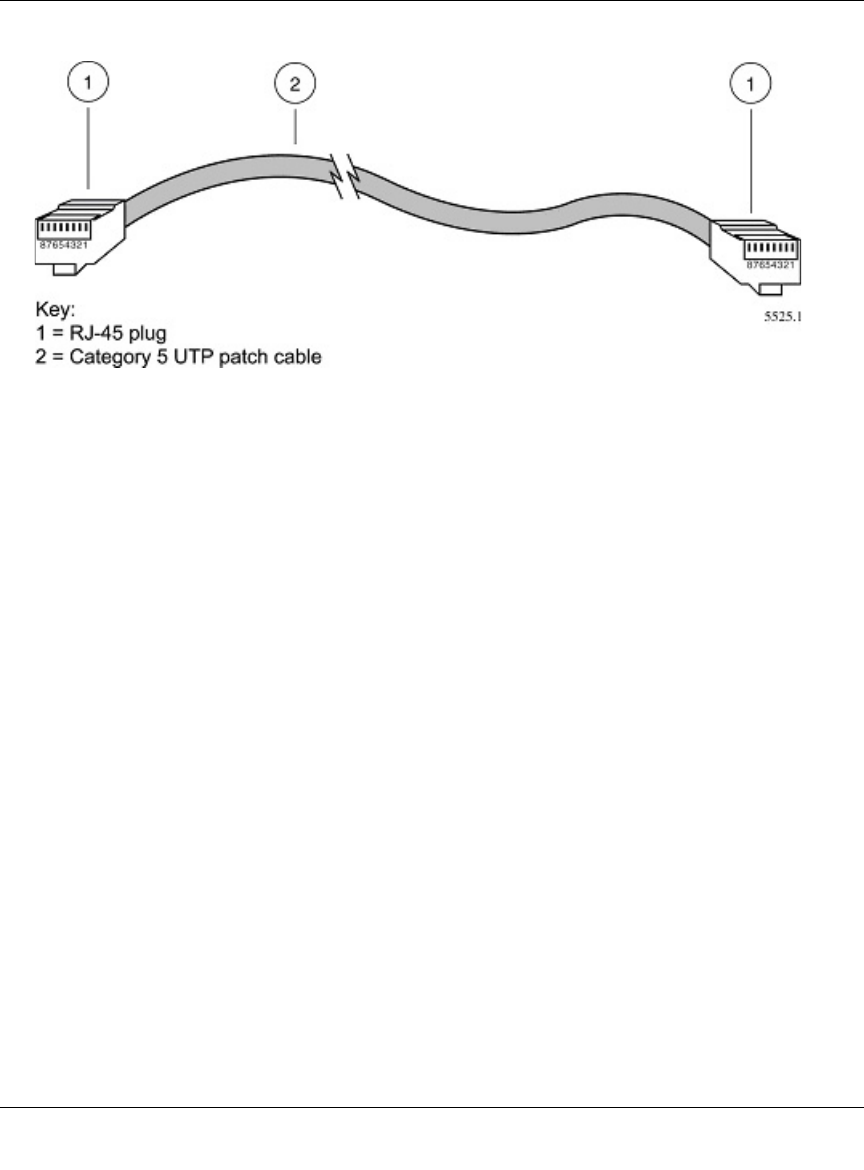

Category 5 Cable Quality

Category 5 distributed cable that meets ANSI/EIA/TIA-568-A building wiring standards can be a

maximum of 328 feet (ft.) or 100 meters (m) in length, divided as follows:

20 ft. (6 m) between the hub and the patch panel (if used)

295 ft. (90 m) from the wiring closet to the wall outlet

10 ft. (3 m) from the wall outlet to the desktop device

The patch panel and other connecting hardware must meet the requirements for 100 Mbps

operation (Category 5). Only 0.5 inch (1.5 cm) of untwist in the wire pair is allowed at any

termination point.

A twisted pair Ethernet network operating at 10 Mbits/second (10BASE-T) will often tolerate low

quality cables, but at 100 Mbits/second (10BASE-Tx) the cable must be rated as Category 5, or

Cat 5, by the Electronic Industry Association (EIA). This rating will be printed on the cable jacket.

A Category 5 cable will meet specified requirements regarding loss and crosstalk. In addition,

there are restrictions on maximum cable length for both 10 and 100 Mbits/second networks.

Table B-1. UTP Ethernet cable wiring, straight-through

Pin Wire color Signal

1 Orange/White Transmit (Tx) +

2 Orange Transmit (Tx) -

3 Green/White Receive (Rx) +

4Blue

5 Blue/White

6 Green Receive (Rx) -

7 Brown/White

8Brown

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-13

March 2004, 202-10027-01

Inside Twisted Pair Cables

For two devices to communicate, the transmitter of each device must be connected to the receiver

of the other device. The crossover function is usually implemented internally as part of the

circuitry in the device. Computers and workstation adapter cards are usually media-dependent

interface ports, called MDI or uplink ports. Most repeaters and switch ports are configured as

media-dependent interfaces with built-in crossover ports, called MDI-X or normal ports. Auto

Uplink technology automatically senses which connection, MDI or MDI-X, is needed and makes

the right connection.

Figure B-1 illustrates straight-through twisted pair cable.

Figure B-1: Straight-Through Twisted-Pair Cable

Figure B-2 illustrates crossover twisted pair cable.

Figure B-2: Crossover Twisted-Pair Cable

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-14 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

Figure B-3: Category 5 UTP Cable with Male RJ-45 Plug at Each End

Note: Flat “silver satin” telephone cable may have the same RJ-45 plug. However, using telephone

cable results in excessive collisions, causing the attached port to be partitioned or disconnected

from the network.

Uplink Switches, Crossover Cables, and MDI/MDIX Switching

In the wiring table above, the concept of transmit and receive are from the perspective of the PC,

which is wired as Media Dependant Interface (MDI). In this wiring, the PC transmits on pins 1 and

2. At the hub, the perspective is reversed, and the hub receives on pins 1 and 2. This wiring is

referred to as Media Dependant Interface - Crossover (MDI-X).

When connecting a PC to a PC, or a hub port to another hub port, the transmit pair must be

exchanged with the receive pair. This exchange is done by one of two mechanisms. Most hubs

provide an Uplink switch which will exchange the pairs on one port, allowing that port to be

connected to another hub using a normal Ethernet cable. The second method is to use a crossover

cable, which is a special cable in which the transmit and receive pairs are exchanged at one of the

two cable connectors. Crossover cables are often unmarked as such, and must be identified by

comparing the two connectors. Since the cable connectors are clear plastic, it is easy to place them

side by side and view the order of the wire colors on each. On a straight-through cable, the color

order will be the same on both connectors. On a crossover cable, the orange and blue pairs will be

exchanged from one connector to the other.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Networks, Routing, and Firewall Basics B-15

March 2004, 202-10027-01

The FWG114P Wireless Firewall/Print Server incorporates Auto UplinkTM technology (also called

MDI/MDIX). Each LOCAL Ethernet port will automatically sense whether the Ethernet cable

plugged into the port should have a normal connection (e.g. connecting to a PC) or an uplink

connection (e.g. connecting to a router, switch, or hub). That port will then configure itself to the

correct configuration. This feature also eliminates the need to worry about crossover cables, as

Auto UplinkTM will accommodate either type of cable to make the right connection.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

B-16 Networks, Routing, and Firewall Basics

March 2004, 202-10027-01

Preparing Your Network C-1

March 2004, 202-10027-01

Appendix C

Preparing Your Network

This appendix describes how to prepare your network to connect to the Internet through the

ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P and how to verify the readiness

of broadband Internet service from an Internet service provider (ISP).

Preparing Your Computers for TCP/IP Networking

Computers access the Internet using a protocol called TCP/IP (Transmission Control Protocol/

Internet Protocol). Each computer on your network must have TCP/IP installed and selected as its

networking protocol. If a Network Interface Card (NIC) is already installed in your PC, then TCP/

IP is probably already installed as well.

Most operating systems include the software components you need for networking with TCP/IP:

•Windows

® 95 or later includes the software components for establishing a TCP/IP network.

• Windows 3.1 does not include a TCP/IP component. You need to purchase a third-party TCP/

IP application package, such as NetManage Chameleon.

• Macintosh Operating System 7 or later includes the software components for establishing a

TCP/IP network.

• All versions of UNIX® or Linux® include TCP/IP components. Follow the instructions

provided with your operating system or networking software to install TCP/IP on your

computer.

Note: If an ISP technician configured your computer during the installation of a

broadband modem, or if you configured it using instructions provided by your ISP, you

may need to copy the current configuration information for use in the configuration of

your firewall. Write down this information before reconfiguring your computers. Refer

to “Obtaining ISP Configuration Information for Windows Computers” on page C-10 or

“Obtaining ISP Configuration Information for Macintosh Computers” on page C-11 for

further information.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-2 Preparing Your Network

March 2004, 202-10027-01

In your IP network, each PC and the firewall must be assigned unique IP addresses. Each PC must

also have certain other IP configuration information, such as a subnet mask (netmask), a domain

name server (DNS) address, and a default gateway address. In most cases, you should install TCP/

IP so that the PC obtains its specific network configuration information automatically from a

DHCP server during bootup. For a detailed explanation of the meaning and purpose of these

configuration items, refer to “Appendix B, “Networks, Routing, and Firewall Basics.”

The FWG114P Wireless Firewall/Print Server is shipped preconfigured as a DHCP server. The

firewall assigns the following TCP/IP configuration information automatically when the

computers are rebooted:

• PC or workstation IP addresses—192.168.0.2 through 192.168.0.254

• Subnet mask—255.255.255.0

• Gateway address (the firewall)—192.168.0.1

These addresses are part of the IETF-designated private address range for use in private networks.

Configuring Windows 95, 98, and Me for TCP/IP Networking

As part of the PC preparation process, you need to manually install and configure TCP/IP on each

networked PC. Before starting, locate your Windows CD; you may need to insert it during the

TCP/IP installation process.

Install or Verify Windows Networking Components

To install or verify the necessary components for IP networking:

1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network icon.

The Network window opens, which displays a list of installed components:

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Preparing Your Network C-3

March 2004, 202-10027-01

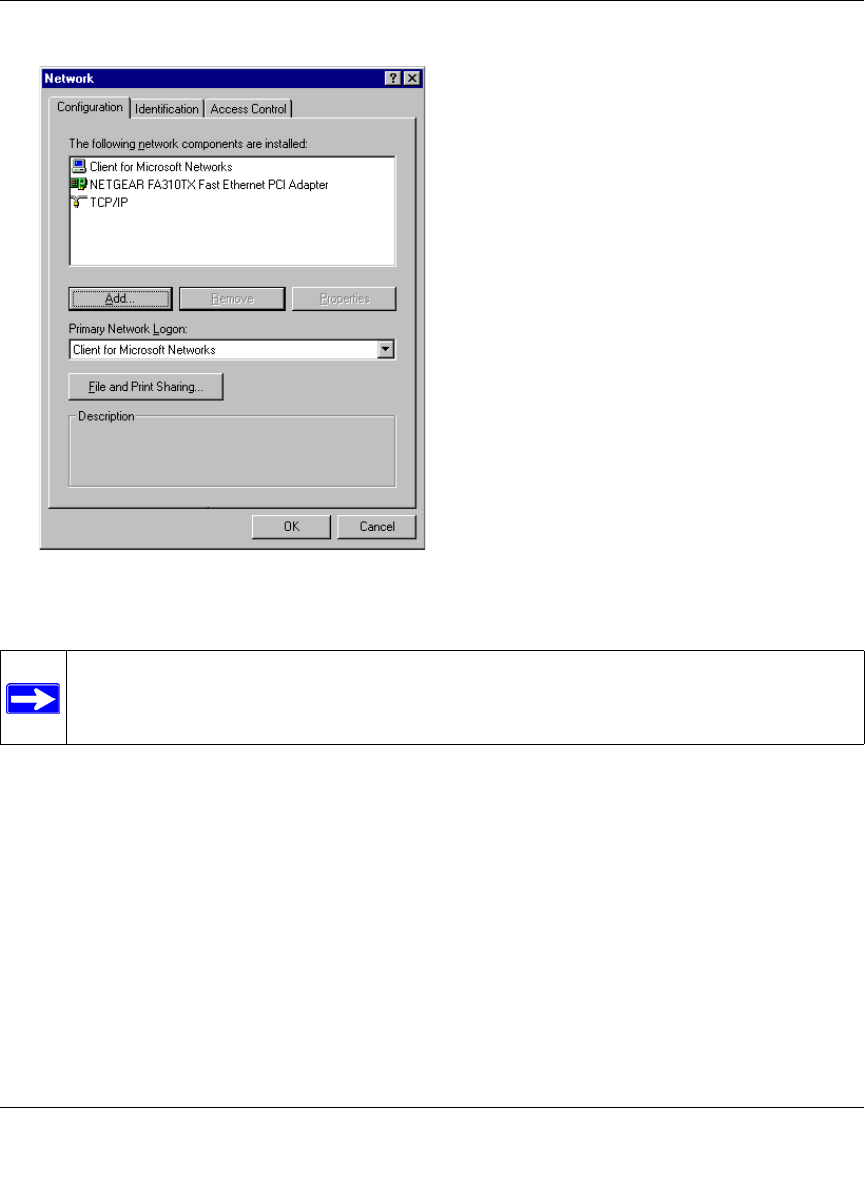

You must have an Ethernet adapter, the TCP/IP protocol, and Client for Microsoft Networks.

If you need to install a new adapter, follow these steps:

a. Click the Add button.

b. Select Adapter, and then click Add.

c. Select the manufacturer and model of your Ethernet adapter, and then click OK.

If you need TCP/IP:

a. Click the Add button.

b. Select Protocol, and then click Add.

c. Select Microsoft.

d. Select TCP/IP, and then click OK.

Note: It is not necessary to remove any other network components shown in the

Network window in order to install the adapter, TCP/IP, or Client for Microsoft

Networks.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-4 Preparing Your Network

March 2004, 202-10027-01

If you need Client for Microsoft Networks:

a. Click the Add button.

b. Select Client, and then click Add.

c. Select Microsoft.

d. Select Client for Microsoft Networks, and then click OK.

3. Restart your PC for the changes to take effect.

Enabling DHCP to Automatically Configure TCP/IP Settings

After the TCP/IP protocol components are installed, each PC must be assigned specific

information about itself and resources that are available on its network. The simplest way to

configure this information is to allow the PC to obtain the information from the internal DHCP

server of the FWG114P Wireless Firewall/Print Server. To use DHCP with the recommended

default addresses, follow these steps:

1. Connect all computers to the firewall, then restart the firewall and allow it to boot.

2. On each attached PC, open the Network control panel (refer to the previous section) and select

the Configuration tab.

3. From the components list, select TCP/IP->(your Ethernet adapter) and click Properties.

4. In the IP Address tab, select “Obtain an IP address automatically”.

5. Select the Gateway tab.

6. If any gateways are shown, remove them.

7. Click OK.

8. Restart the PC.

Repeat steps 2 through 8 for each PC on your network.

Selecting Windows’ Internet Access Method

1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Internet Options icon.

3. Select “I want to set up my Internet connection manually” or “I want to connect through a

Local Area Network” and click Next.

4. Select “I want to connect through a Local Area Network” and click Next.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Preparing Your Network C-5

March 2004, 202-10027-01

5. Uncheck all boxes in the LAN Internet Configuration screen and click Next.

6. Proceed to the end of the Wizard.

Verifying TCP/IP Properties

After your PC is configured and has rebooted, you can check the TCP/IP configuration using the

utility winipcfg.exe:

1. On the Windows taskbar, click the Start button, and then click Run.

2. Type winipcfg, and then click OK.

The IP Configuration window opens, which lists (among other things), your IP address, subnet

mask, and default gateway.

3. From the drop-down box, select your Ethernet adapter.

The window is updated to show your settings, which should match the values below if you are

using the default TCP/IP settings that NETGEAR recommends:

• The IP address is between 192.168.0.2 and 192.168.0.254

• The subnet mask is 255.255.255.0

• The default gateway is 192.168.0.1

Configuring Windows NT, 2000 or XP for IP Networking

As part of the PC preparation process, you need to manually install and configure TCP/IP on each

networked PC. Before starting, locate your Windows CD; you may need to insert it during the

TCP/IP installation process.

Installing or Verifying Windows Networking Components

To install or verify the necessary components for IP networking:

1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dialup Connections icon.

3. If an Ethernet adapter is present in your PC, you should see an entry for Local Area

Connection. Double-click that entry.

4. Select Properties.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-6 Preparing Your Network

March 2004, 202-10027-01

5. Verify that ‘Client for Microsoft Networks’ and ‘Internet Protocol (TCP/IP)’ are present. If

not, select Install and add them.

6. Select ‘Internet Protocol (TCP/IP)’, click Properties, and verify that “Obtain an IP address

automatically is selected.

7. Click OK and close all Network and Dialup Connections windows.

8. Make sure your PC is connected to the firewall, then reboot your PC.

Verifying TCP/IP Properties

To check your PC’s TCP/IP configuration:

1. On the Windows taskbar, click the Start button, and then click Run.

The Run window opens.

2. Type cmd and then click OK.

A command window opens

3. Type ipconfig /all

Your IP Configuration information will be listed, and should match the values below if you are

using the default TCP/IP settings that NETGEAR recommends:

• The IP address is between 192.168.0.2 and 192.168.0.254

• The subnet mask is 255.255.255.0

• The default gateway is 192.168.0.1

4. Type exit

Configuring the Macintosh for TCP/IP Networking

Beginning with Macintosh Operating System 7, TCP/IP is already installed on the Macintosh. On

each networked Macintosh, you will need to configure TCP/IP to use DHCP.

MacOS 8.6 or 9.x

1. From the Apple menu, select Control Panels, then TCP/IP.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Preparing Your Network C-7

March 2004, 202-10027-01

The TCP/IP Control Panel opens:

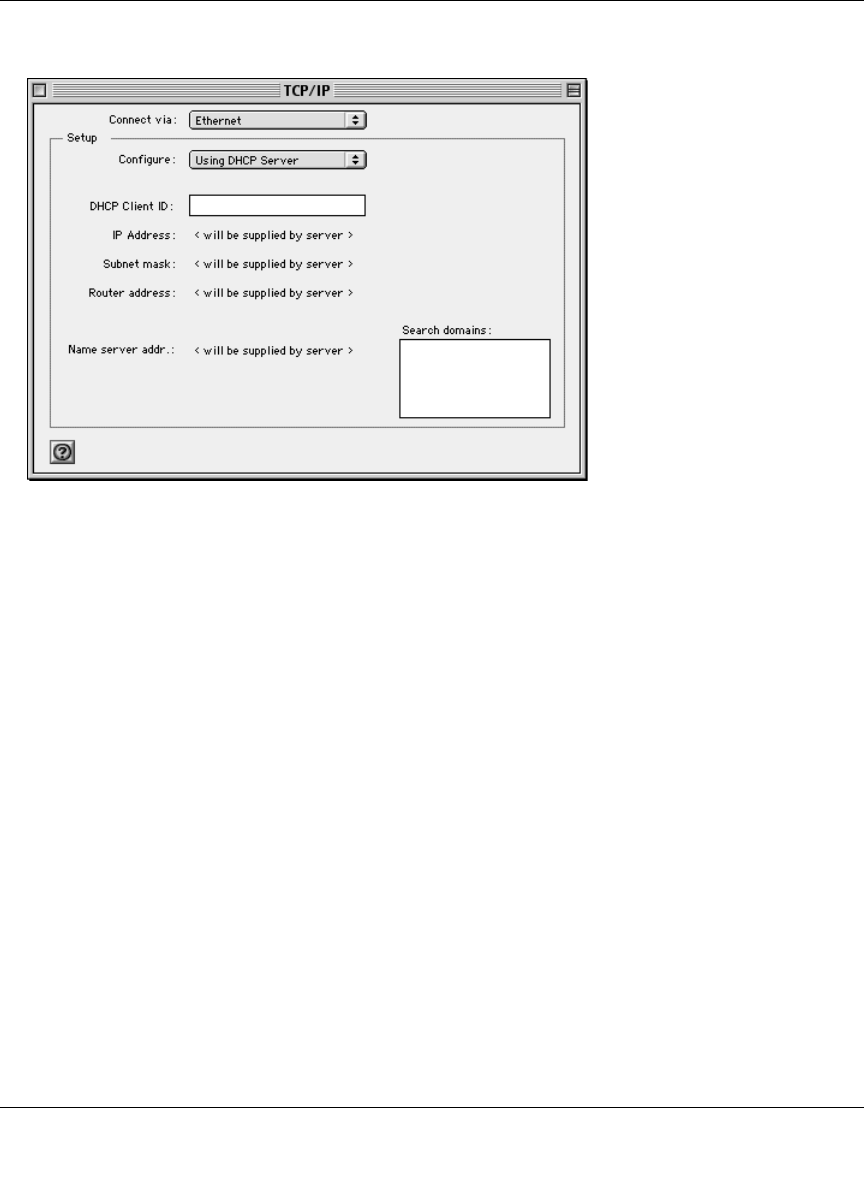

2. From the “Connect via” box, select your Macintosh’s Ethernet interface.

3. From the “Configure” box, select Using DHCP Server.

You can leave the DHCP Client ID box empty.

4. Close the TCP/IP Control Panel.

5. Repeat this for each Macintosh on your network.

MacOS X

1. From the Apple menu, choose System Preferences, then Network.

2. If not already selected, select Built-in Ethernet in the Configure list.

3. If not already selected, Select Using DHCP in the TCP/IP tab.

4. Click Save.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-8 Preparing Your Network

March 2004, 202-10027-01

Verifying TCP/IP Properties for Macintosh Computers

After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by

returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.

The panel is updated to show your settings, which should match the values below if you are using

the default TCP/IP settings that NETGEAR recommends:

• The IP Address is between 192.168.0.2 and 192.168.0.254

• The Subnet mask is 255.255.255.0

• The Router address is 192.168.0.1

If you do not see these values, you may need to restart your Macintosh or you may need to switch

the “Configure” setting to a different option, then back again to “Using DHCP Server”.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Preparing Your Network C-9

March 2004, 202-10027-01

Verifying the Readiness of Your Internet Account

For broadband access to the Internet, you need to contract with an Internet service provider (ISP)

for a single-user Internet access account using a cable modem or DSL modem. This modem must

be a separate physical box (not a card) and must provide an Ethernet port intended for connection

to a Network Interface Card (NIC) in a computer. Your firewall does not support a USB-connected

broadband modem.

For a single-user Internet account, your ISP supplies TCP/IP configuration information for one

computer. With a typical account, much of the configuration information is dynamically assigned

when your PC is first booted up while connected to the ISP, and you will not need to know that

dynamic information.

In order to share the Internet connection among several computers, your firewall takes the place of

the single PC, and you need to configure it with the TCP/IP information that the single PC would

normally use. When the firewall’s Internet port is connected to the broadband modem, the firewall

appears to be a single PC to the ISP. The firewall then allows the computers on the local network to

masquerade as the single PC to access the Internet through the broadband modem. The method

used by the firewall to accomplish this is called Network Address Translation (NAT) or IP

masquerading.

Are Login Protocols Used?

Some ISPs require a special login protocol, in which you must enter a login name and password in

order to access the Internet. If you normally log in to your Internet account by running a program,

such as WinPOET or EnterNet, then your account uses PPP over Ethernet (PPPoE).

When you configure your router, you will need to enter your login name and password in the

router’s configuration menus. After your network and firewall are configured, the firewall will

perform the login task when needed, and you will no longer need to run the login program from

your PC. It is not necessary to uninstall the login program.

What Is Your Configuration Information?

More and more, ISPs are dynamically assigning configuration information. However, if your ISP

does not dynamically assign configuration information but instead uses fixed configurations, your

ISP should have given you the following basic information for your account:

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-10 Preparing Your Network

March 2004, 202-10027-01

• An IP address and subnet mask

• A gateway IP address, which is the address of the ISP’s router

• One or more domain name server (DNS) IP addresses

• Host name and domain suffix

For example, your account’s full server names may look like this:

mail.xxx.yyy.com

In this example, the domain suffix is xxx.yyy.com.

If any of these items are dynamically supplied by the ISP, your firewall automatically acquires

them.

If an ISP technician configured your PC during the installation of the broadband modem, or if you

configured it using instructions provided by your ISP, you need to copy the configuration

information from your PC’s Network TCP/IP Properties window or Macintosh TCP/IP Control

Panel before reconfiguring your PC for use with the firewall. These procedures are described next.

Obtaining ISP Configuration Information for Windows Computers

As mentioned above, you may need to collect configuration information from your PC so that you

can use this information when you configure the FWG114P Wireless Firewall/Print Server.

Following this procedure is only necessary when your ISP does not dynamically supply the

account information.

To get the information you need to configure the firewall for Internet access:

1. On the Windows taskbar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network icon.

The Network window opens, which displays a list of installed components.

3. Select TCP/IP, and then click Properties.

The TCP/IP Properties dialog box opens.

4. Select the IP Address tab.

If an IP address and subnet mask are shown, write down the information. If an address is

present, your account uses a fixed (static) IP address. If no address is present, your account

uses a dynamically-assigned IP address. Click “Obtain an IP address automatically”.

5. Select the Gateway tab.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Preparing Your Network C-11

March 2004, 202-10027-01

If an IP address appears under Installed Gateways, write down the address. This is the ISP’s

gateway address. Select the address and then click Remove to remove the gateway address.

6. Select the DNS Configuration tab.

If any DNS server addresses are shown, write down the addresses. If any information appears

in the Host or Domain information box, write it down. Click Disable DNS.

7. Click OK to save your changes and close the TCP/IP Properties dialog box.

You are returned to the Network window.

8. Click OK.

9. Reboot your PC at the prompt. You may also be prompted to insert your Windows CD.

Obtaining ISP Configuration Information for Macintosh

Computers

As mentioned above, you may need to collect configuration information from your Macintosh so

that you can use this information when you configure the FWG114P Wireless Firewall/Print

Server. Following this procedure is only necessary when your ISP does not dynamically supply the

account information.

To get the information you need to configure the firewall for Internet access:

1. From the Apple menu, select Control Panels, then TCP/IP.

The TCP/IP Control Panel opens, which displays a list of configuration settings. If the

“Configure” setting is “Using DHCP Server”, your account uses a dynamically-assigned IP

address. In this case, close the Control Panel and skip the rest of this section.

2. If an IP address and subnet mask are shown, write down the information.

3. If an IP address appears under Router address, write down the address. This is the ISP’s

gateway address.

4. If any Name Server addresses are shown, write down the addresses. These are your ISP’s DNS

addresses.

5. If any information appears in the Search domains information box, write it down.

6. Change the “Configure” setting to “Using DHCP Server”.

7. Close the TCP/IP Control Panel.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

C-12 Preparing Your Network

March 2004, 202-10027-01

Restarting the Network

Once you have set up your computers to work with the firewall, you must reset the network for the

devices to be able to communicate correctly. Restart any computer that is connected to the firewall.

After configuring all of your computers for TCP/IP networking and restarting them, and

connecting them to the local network of your FWG114P Wireless Firewall/Print Server, you are

ready to access and configure the firewall.

Firewall Log Formats D-1

March 2004, 202-10027-01

Appendix D

Firewall Log Formats

Action List

Drop: Packet dropped by Firewall current inbound or outbound rules.

Reset: TCP session reset by Firewall.

Forward: Packet forwarded by Firewall to the next hop based on matching the criteria in

the rules table.

Receive: Packet was permitted by the firewall rules and modified prior to being

forwarded and/or replied to.

Field List

<DATE><TIME>: Log's date and time

<EVENT>: Event is that access the device or access other host via the device

<PKT_TYPE>: Packet type pass Firewall

<SRC_IP><DST_IP>: IP address in the packet

<SRC_PORT><DST_PORT>: Port in the packet

<SRC_INF><DST_INF>: Include `LAN` and `WAN` (optional)

<ACTION>: As `Action List` referenced

<DESCRIPTION>: A complement to the log (optional)

<DIRECTION>: Inbound and Outbound

<SERVICE>: Firewall costumed service

Outbound Log

Outgoing packets that match the Firewall rules are logged.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

D-2 Firewall Log Formats

March 2004, 202-10027-01

The format is:

[Fri, 2003-12-05 22:19:42] - UDP Packet - Source:172.31.12.233,138 ,WAN -

Destination:172.31.12.255,138 ,LAN [Drop] - [Inbound Default rule match]

[Fri, 2003-12-05 22:35:04] - TCP Packet - Source:172.31.12.156,34239 ,WAN -

Destination:192.168.0.10,21[FTP Control] ,LAN [Forward] - [Inbound Rule(1)

match]

[Fri, 2003-12-05 22:35:11] - UDP Packet - Source:172.31.12.200,138 ,WAN -

Destination:172.31.12.255,138 ,LAN [Forward] - [Inbound Rule(1) not match]

Notes:

SRC_INF = WAN

DST_INF = LAN

DESCRIPTION = "Inbound rule match", "Inbound Default rule match"

PKT_TYPE = "UDP packet", "TCP connection", "ICMP packet"

Inbound Log

Incoming packets that match the Firewall rules are logged.

The format is:

[Fri, 2003-12-05 22:59:56] - ICMP Packet [Echo Request] - Source:192.168.0.10,LAN

- Destination:192.168.0.1,WAN [Forward] - [Outbound Default rule match]

[Fri, 2003-12-05 23:00:58] - ICMP Packet [Echo Request] - Source:192.168.0.10,LAN

- Destination:172.31.12.200,WAN [Forward] - [Outbound Default rule match]

[Fri, 2003-12-05 23:02:30] - TCP Packet - Source:192.168.0.10,3472 ,LAN -

Destination:216.239.39.99,80[HTTP] ,WAN [Forward] - [Outbound Default rule

match]

Notes:

SRC_INF = LAN

DST_INF = WAN

DESCRIPTION = "Outbound rule match", "Outbound Default rule match"

PKT_TYPE = "UDP packet", "TCP connection", "ICMP packet"

Other IP Traffic

Some special packets matching the Firewall rules, like VPN connection, etc. are logged.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Firewall Log Formats D-3

March 2004, 202-10027-01

The format is:

<DATE><TIME><PKT_TYPE>< SRC_IP><SRC_PORT ><SRC_INF>< DST_IP><DST_PORT

><DST_PORT><ACTION><DESCRIPTION>

[Wed, 2003-07-30 17:43:28] - IPSEC Packet - Source: 64.3.3.201, 37180 WAN -

Destination: 10.10.10.4,80[HTTP] LAN - [Drop] [VPN Packet]

[Wed, 2003-07-30 18:44:50] - IP Packet [Type Field: 321] - Source 18.7.21.69

192.168.0.3 - [Drop]

Notes:

DESCRIPTION = "VPN Packet"

PKT_TYPE = "GRE", "AH", "ESP", "IP packet [Type Field: Num]", "IPSEC"

ACTION = "Forward", "Drop"

Router Operation

Operations that the router initiates are logged.

The format is:

[Wed, 2003-07-30 16:30:59] - Log emailed

[Wed, 2003-07-30 13:38:31] - NETGEAR activated

[Wed, 2003-07-30 13:42:01] - NTP Reply Invalid

The format is:

[Wed, 2003-07-30 16:32:33] - Send out NTP Request to 207.46.130.100

[Wed, 2003-07-30 16:35:27] - Receive NTP Reply from 207.46.130.100

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

D-4 Firewall Log Formats

March 2004, 202-10027-01

Other Connections and Traffic to this Router

The format is:

[Fri, 2003-12-05 22:31:27] - ICMP Packet[Echo Request] - Source: 192.168.0.10 -

Destination: 192.168.0.1 - [Receive]

[Wed, 2003-07-30 16:34:56] - ICMP Packet[Type: 238] - Source: 64.3.3.201 -

Destination: 192.168.0.3 - [Drop]

[Fri, 2003-12-05 22:59:56] - ICMP Packet[Echo Request] - Source:192.168.0.10 -

Destination:192.168.0.1 - [Receive]

The format is:

<DATE><TIME><EVENT>< SRC_IP><SRC_PORT ><SRC_INF><

DST_IP><DST_PORT><DST_INF><ACTION>

[Wed, 2003-07-30 16:24:23] - UDP Packet - Source: 207.46.130.100 WAN -

Destination: 10.10.10.4,1234 LAN - [Drop]

[Wed, 2003-07-30 17:48:09] - TCP Packet[SYN] - Source: 64.3.3.201,65534 WAN -

Destination: 10.10.10.4,1765 LAN - [Receive]

[Fri, 2003-12-05 22:07:11] - IP Packet [Type Field:8], from 20.97.173.18 to

172.31.12.157 - [Drop]

Notes:

ACTION = "Drop", "Receive"

EVENT = "ICMP Packet", "UDP Packet", "TCP Packet", "IP Packet"

DoS Attack/Scan

Common attacks and scans are logged.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Firewall Log Formats D-5

March 2004, 202-10027-01

The format is:

<DATE><TIME><PKT_TYPE>< SRC_IP><SRC_PORT ><SRC_INF>< DST_IP><DST_PORT

><DST_PORT><ACTION><DESCRIPTION>

[Fri, 2003-12-05 21:22:07] - TCP Packet - Source:172.31.12.156,54611 ,WAN -

Destination:172.31.12.157,134 ,LAN [Drop] - [FIN Scan]

[Fri, 2003-12-05 21:22:38] - TCP Packet - Source:172.31.12.156,59937 ,WAN -

Destination:172.31.12.157,670 ,LAN [Drop] - [Nmap Xmas Scan]

[Fri, 2003-12-05 21:23:06] - TCP Packet - Source:172.31.12.156,39860 ,WAN -

Destination:172.31.12.157,18000 ,LAN [Drop] - [Null Scan]

[Fri, 2003-12-05 21:27:55] - TCP Packet - Source:172.31.12.156,38009 ,WAN -

Destination:172.31.12.157,15220 ,LAN [Drop] - [Full Sapu Scan]

[Fri, 2003-12-05 21:28:56] - TCP Packet - Source:172.31.12.156,35128 ,WAN -

Destination:172.31.12.157,38728 ,LAN [Drop] - [Full Xmas Scan]

[Fri, 2003-12-05 21:30:30] - IP Packet - Source:227.113.223.77,WAN -

Destination:172.31.12.157,LAN [Drop] - [Fragment Attack]

[Fri, 2003-12-05 21:30:30] - IP Packet - Source:20.97.173.18,WAN -

Destination:172.31.12.157,LAN [Drop] - [Targa3 Attack]

[Fri, 2003-12-05 21:30:30] - TCP Packet - Source:3.130.176.84,37860 ,WAN -

Destination:172.31.12.157,63881 ,LAN [Drop] - [Vecna Scan]

[Fri, 2003-12-05 21:30:31] - ICMP Packet [Type 238] - Source:100.110.182.63,WAN

- Destination:172.31.12.157,LAN [Drop] - [ICMP Flood]

[Fri, 2003-12-05 21:33:52] - UDP Packet - Source:127.0.0.1,0 ,WAN -

Destination:172.31.12.157,0 ,LAN [Drop] - [Fragment Attack]

[Fri, 2003-12-05 19:20:00] - TCP Session - Source:54.148.179.175,58595 ,LAN -

Destination:192.168.0.1,20[FTP Data] ,WAN [Reset] - [SYN Flood]

[Fri, 2003-12-05 19:21:22] - UDP Packet - Source:172.31.12.156,7 ,LAN -

Destination:172.31.12.157,7 ,WAN [Drop] - [UDP Flood]

[Fri, 2003-12-05 20:59:08] - ICMP Echo Request packet - Source:192.168.0.5,LAN -

Destination:172.31.12.99,WAN [Drop] - [ICMP Flood]

[Fri, 2003-12-05 18:07:29] - TCP Packet - Source:192.168.0.10,1725 ,LAN -

Destination:61.177.58.50,1352 ,WAN [Drop] - [TCP incomplete sessions overflow]

[Fri, 2003-12-05 21:11:24] - TCP Packet - Source:192.168.0.10,2342 ,LAN -

Destination:61.177.58.50,1352 ,WAN [Drop] - [First TCP Packet not SYN]

Notes:

DESCRIPTION = "SYN Flood", "UDP Flood", "ICMP Flood", "IP Spoofing", "TearDrop",

"Brute Force", "Ping of Death", "Fragment Attack", "Targa3 Attack", "Big Bomb"

"SYN with Data", "Full Xmas Scan", "Full Head Scan", "Full Sapu Scan", "FIN

Scan", "SYN FIN Scan", "Null Scan", "Nmap Xmas Scan", "Vecna Scan", "Tcp SYN RES

Set", "Other Scan"

"TCP incomplete sessions overflow", "TCP preconnect traffic", "TCP invalid

traffic", "First TCP Packet not SYN", "First TCP Packet with no SYN"

[Wed, 2003-07-30 17:45:17] - TCP Packet [Malformed, Length=896] - Source:

64.3.3.201 - Destination: 10.10.10.4 - [Drop]

[Wed, 2003-07-30 17:45:17] - TCP Packet [Malformed, Length=1000] - Source:

64.3.3.201- Destination: 10.10.10.4 - [Forward]

Notes:

PKT_TYPE = "TCP", "UDP", "ICMP", "Proto: Number"

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

D-6 Firewall Log Formats

March 2004, 202-10027-01

Access Block Site

If keyword blocking is enabled and a keyword is specified, attempts to access a site whose URL

contains a specified keyword are logged.

The format is

[Fri, 2003-12-05 23:01:47] - Attempt to access blocked sites -

Source:192.168.0.10,LAN - Destination:www.google.com/,WAN - [Drop]

Notes:

EVENT = Attempt to access blocked sites

SRC_INF = LAN

DST_INF = WAN

All Web Sites and News Groups Visited

All Web sites and News groups that you visit are logged.

The format is

[Fri, 2003-12-05 23:03:49] - Access site - Source:192.168.0.10,LAN -

Destination:euro.allyes.com,WAN - [Forward]

Notes:

EVENT = Attempt to access blocked sites

SRC_INF = LAN or WAN

DST_INF = WAN or LAN

System Admin Sessions

Administrator session logins and failed attempts are logged, as well as manual or idle-time

logouts.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Firewall Log Formats D-7

March 2004, 202-10027-01

The format is:

[Fri, 2003-12-05 21:07:43] - Administrator login successful - IP:192.168.0.10

[Fri, 2003-12-05 21:09:16] - Administrator logout - IP:192.168.0.10

[Fri, 2003-12-05 21:09:31] - Administrator login fail, Username error -

IP:192.168.0.10

[Fri, 2003-12-05 21:09:25] - Administrator login fail, Password error -

IP:192.168.0.10

[Fri, 2003-12-05 21:16:15] - Login screen timed out - IP:192.168.0.10

[Fri, 2003-12-05 21:07:43] - Administrator Interface Connecting[TCP] - Source

192.168.0.10,2440 - Destination 192.168.0.1,80 - [Receive]

Notes:

ACTION: Receive or Drop

Policy Administration LOG

[Fri, 2003-12-05 21:48:41] - Administrator Action - Inbound Policy to Service

[BGP] is Added

[Fri, 2003-12-05 21:49:41] - Administrator Action - Outbound Policy to Service

[BGP] is Added

[Fri, 2003-12-05 21:50:14] - Administrator Action - Inbound Policy to Service

[BGP] is Modified

[Fri, 2003-12-05 21:50:57] - Administrator Action - Outbound Policy to Service

[BGP] is Modified

[Fri, 2003-12-05 21:51:14] - Administrator Action - Inbound Policy to Service

[BGP] is Deleted

[Fri, 2003-12-05 21:52:12] - Administrator Action - Inbound Policy to Service

[BGP] is Moved to Index [0]

[Fri, 2003-12-05 21:54:41] - Administrator Action - Outbound Policy to Service

[FTP] is Moved to Index [1]

[Fri, 2003-12-05 22:01:47] - Administrator Action - Inbound Policy to Service

[BGP] is changed to Disable

[Fri, 2003-12-05 22:02:14] - Administrator Action - Inbound Policy to Service

[BGP] is changed to Enable

[Fri, 2003-12-05 22:02:35] - Administrator Action - Outbound Policy to Service

[NFS] is changed to Disable

[Fri, 2003-12-05 22:02:52] - Administrator Action - Outbound Policy to Service

[NFS] is changed to Enable

Notes:

DIRECTION: Inbound or Outbound

SERVICE: Supported service name

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

D-8 Firewall Log Formats

March 2004, 202-10027-01

Wireless Networking Basics E-1

March 2004, 202-10027-01

Appendix E

Wireless Networking Basics

This chapter provides an overview of Wireless networking.

Wireless Networking Overview

The FWG114P Wireless Firewall/Print Server conforms to the Institute of Electrical and

Electronics Engineers (IEEE) 802.11b and 802.11g standards for wireless LANs (WLANs). On an

802.11b or g wireless link, data is encoded using direct-sequence spread-spectrum (DSSS)

technology and is transmitted in the unlicensed radio spectrum at 2.5GHz. The maximum data rate

for the 802.11b wireless link is 11 Mbps, but it will automatically back down from 11 Mbps to 5.5,

2, and 1 Mbps when the radio signal is weak or when interference is detected. The 802.11g auto

rate sensing rates are 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48, and 54 Mbps.

The 802.11 standard is also called Wireless Ethernet or Wi-Fi by the Wireless Ethernet

Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standard group promoting

interoperability among 802.11 devices. The 802.11 standard offers two methods for configuring a

wireless network - ad hoc and infrastructure.

Infrastructure Mode

With a wireless Access Point, you can operate the wireless LAN in the infrastructure mode. This

mode provides wireless connectivity to multiple wireless network devices within a fixed range or

area of coverage, interacting with wireless nodes via an antenna.

In the infrastructure mode, the wireless access point converts airwave data into wired Ethernet

data, acting as a bridge between the wired LAN and wireless clients. Connecting multiple Access

Points via a wired Ethernet backbone can further extend the wireless network coverage. As a

mobile computing device moves out of the range of one access point, it moves into the range of

another. As a result, wireless clients can freely roam from one Access Point domain to another and

still maintain seamless network connection.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-2 Wireless Networking Basics

March 2004, 202-10027-01

Ad Hoc Mode (Peer-to-Peer Workgroup)

In an ad hoc network, computers are brought together as needed; thus, there is no structure or fixed

points to the network - each node can generally communicate with any other node. There is no

Access Point involved in this configuration. This mode enables you to quickly set up a small

wireless workgroup and allows workgroup members to exchange data or share printers as

supported by Microsoft networking in the various Windows operating systems. Some vendors also

refer to ad hoc networking as peer-to-peer group networking.

In this configuration, network packets are directly sent and received by the intended transmitting

and receiving stations. As long as the stations are within range of one another, this is the easiest

and least expensive way to set up a wireless network.

Network Name: Extended Service Set Identification (ESSID)

The Extended Service Set Identification (ESSID) is one of two types of Service Set Identification

(SSID). In an ad hoc wireless network with no access points, the Basic Service Set Identification

(BSSID) is used. In an infrastructure wireless network that includes an access point, the ESSID is

used, but may still be referred to as SSID.

An SSID is a thirty-two character (maximum) alphanumeric key identifying the name of the

wireless local area network. Some vendors refer to the SSID as network name. For the wireless

devices in a network to communicate with each other, all devices must be configured with the

same SSID.

The ESSID is usually broadcast in the air from an access point. The wireless station sometimes can

be configured with the ESSID ANY. This means the wireless station will try to associate with

whichever access point has the stronger radio frequency (RF) signal, providing that both the access

point and wireless station use Open System authentication.

Authentication and WEP Data Encryption

The absence of a physical connection between nodes makes the wireless links vulnerable to

eavesdropping and information theft. To provide a certain level of security, the IEEE 802.11

standard has defined these two types of authentication methods:

•Open System. With Open System authentication, a wireless computer can join any network

and receive any messages that are not encrypted.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-3

March 2004, 202-10027-01

•Shared Key. With Shared Key authentication, only those PCs that possess the correct

authentication key can join the network. By default, IEEE 802.11 wireless devices operate in

an Open System network.

Wired Equivalent Privacy (WEP) data encryption is used when the wireless devices are configured

to operate in Shared Key authentication mode.

802.11 Authentication

The 802.11 standard defines several services that govern how two 802.11 devices communicate.

The following events must occur before an 802.11 Station can communicate with an Ethernet

network through an access point, such as the one built in to the FWG114P:

1. Turn on the wireless station.

2. The station listens for messages from any access points that are in range.

3. The station finds a message from an access point that has a matching SSID.

4. The station sends an authentication request to the access point.

5. The access point authenticates the station.

6. The station sends an association request to the access point.

7. The access point associates with the station.

8. The station can now communicate with the Ethernet network through the access point.

An access point must authenticate a station before the station can associate with the access point or

communicate with the network. The IEEE 802.11 standard defines two types of authentication:

Open System and Shared Key.

• Open System Authentication allows any device to join the network, assuming that the device

SSID matches the access point SSID. Alternatively, the device can use the “ANY” SSID

option to associate with any available Access Point within range, regardless of its SSID.

• Shared Key Authentication requires that the station and the access point have the same WEP

Key to authenticate. These two authentication procedures are described below.

Open System Authentication

The following steps occur when two devices use Open System Authentication:

1. The station sends an authentication request to the access point.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-4 Wireless Networking Basics

March 2004, 202-10027-01

2. The access point authenticates the station.

3. The station associates with the access point and joins the network.

This process is illustrated below.

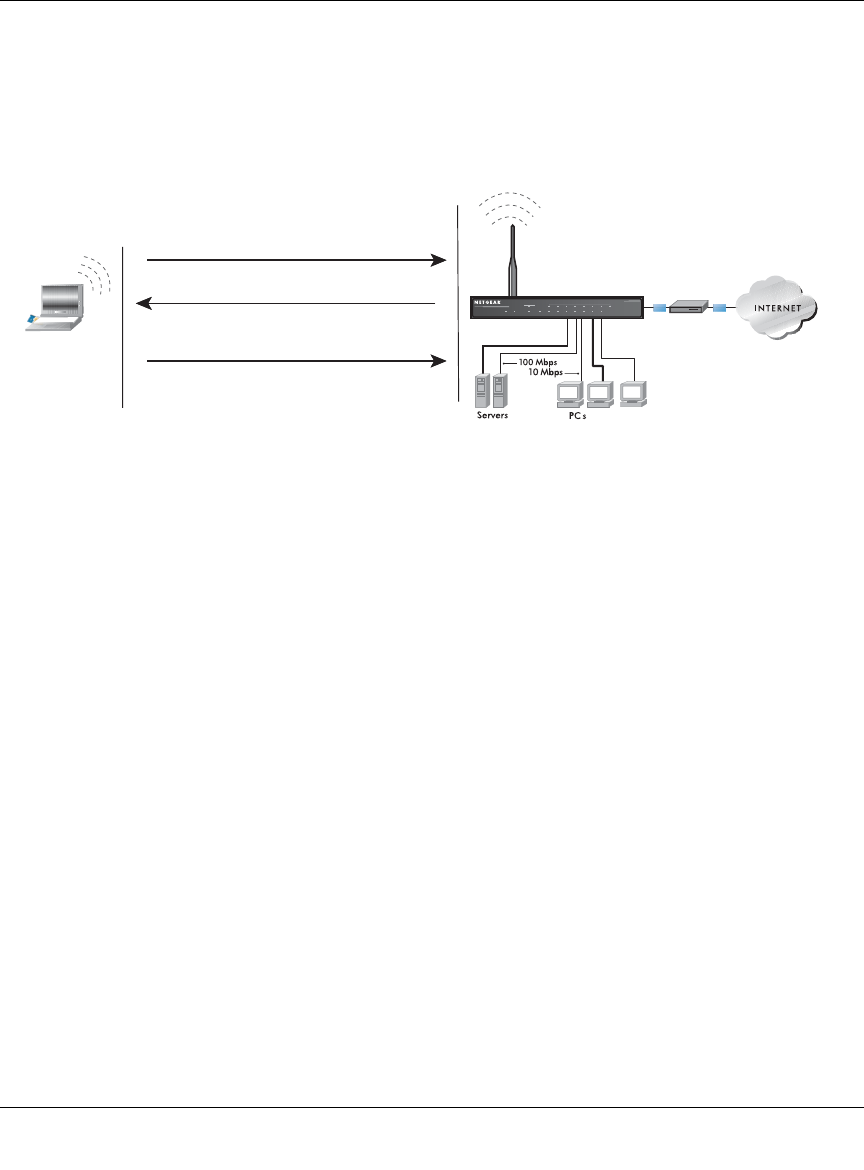

Figure E-1: Open system authentication

Shared Key Authentication

The following steps occur when two devices use Shared Key Authentication:

1. The station sends an authentication request to the access point.

2. The access point sends challenge text to the station.

3. The station uses its configured 64-bit or 128-bit default key to encrypt the challenge text, and

sends the encrypted text to the access point.

4. The access point decrypts the encrypted text using its configured WEP Key that corresponds

to the station’s default key. The access point compares the decrypted text with the original

challenge text. If the decrypted text matches the original challenge text, then the access point

and the station share the same WEP Key and the access point authenticates the station.

5. The station connects to the network.

If the decrypted text does not match the original challenge text (the access point and station do not

share the same WEP Key), then the access point will refuse to authenticate the station and the

station will be unable to communicate with either the 802.11 network or Ethernet network.

This process is illustrated below.

).4%2.%4 ,/#!,

$&7



/1.

/1.$&7



?MjÊ. +Á.?wjË8ÁjjÄÄË7+!Ë.jWÖÁÍßËÁjÝ?

-/$%, 7 Ï¤o

072 4%34

7,!.

(QDEOH

$FFHVV3RLQW$3

!UTHENTICATIONREQUESTSENTTO!0

!0AUTHENTICATES

#LIENTCONNECTSTONETWORK

2SHQ6\VWHP

$XWKHQWLFDWLRQ6WHSV

#ABLEOR

$,3MODEM

&OLHQW

DWWHPSWLQJ

WRFRQQHFW

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-5

March 2004, 202-10027-01

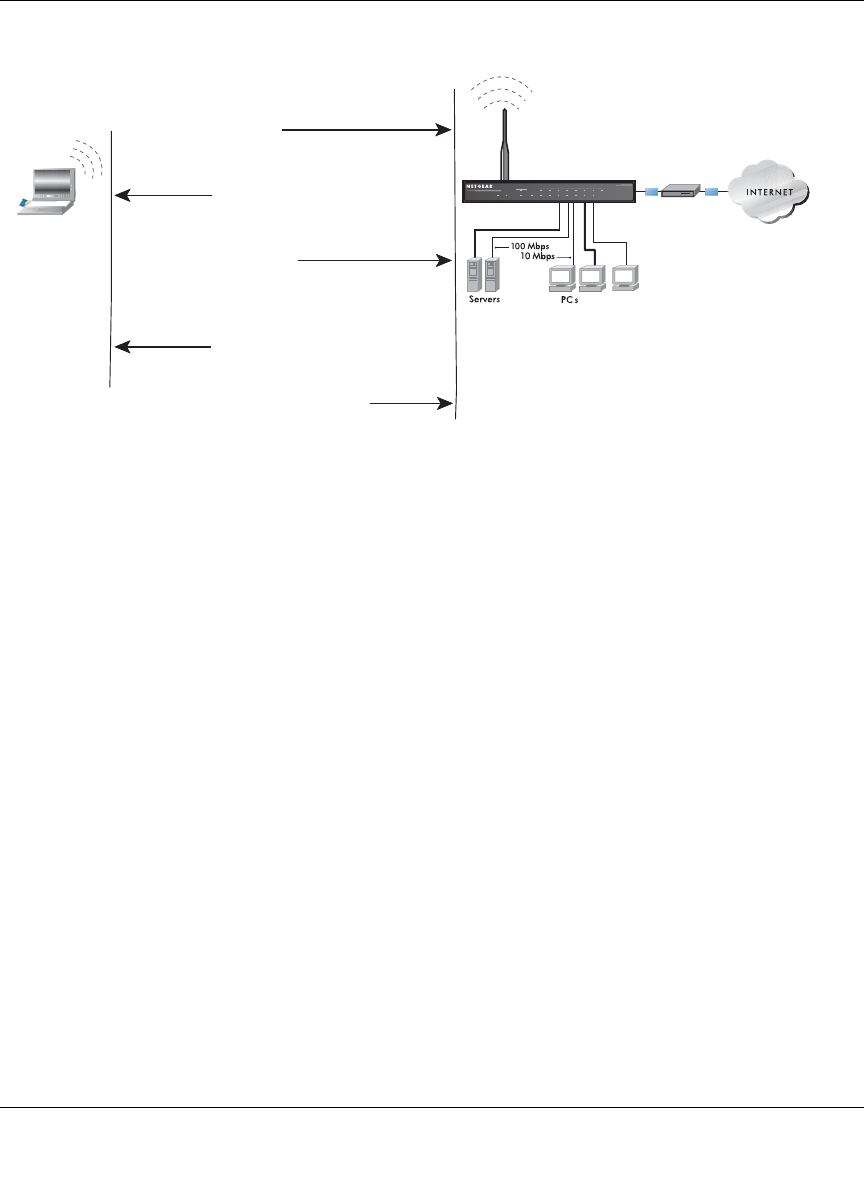

Figure E-2: Shared key authentication

Overview of WEP Parameters

Before enabling WEP on an 802.11 network, you must first consider what type of encryption you

require and the key size you want to use. Typically, there are three WEP Encryption options

available for 802.11 products:

1. Do Not Use WEP: The 802.11 network does not encrypt data. For authentication purposes, the

network uses Open System Authentication.

2. Use WEP for Encryption: A transmitting 802.11 device encrypts the data portion of every

packet it sends using a configured WEP Key. The receiving device decrypts the data using the

same WEP Key. For authentication purposes, the network uses Open System Authentication.

3. Use WEP for Authentication and Encryption: A transmitting 802.11 device encrypts the data

portion of every packet it sends using a configured WEP Key. The receiving device decrypts the

data using the same WEP Key. For authentication purposes, the wireless network uses Shared Key

Authentication.

Note: Some 802.11 access points also support Use WEP for Authentication Only (Shared Key

Authentication without data encryption).

).4%2.%4 ,/#!,

$&7



/1.

/1.$&7



?MjÊ. +Á.?wjË8ÁjjÄÄË7+!Ë.jWÖÁÍßËÁjÝ?

-/$%, 7 Ï¤o

072 4%34

7,!.

(QDEOH

$FFHVV3RLQW!UTHENTICATION

REQUESTSENTTO!0

!0SENDSCHALLENGETEXT

#LIENTENCRYPTS

CHALLENGETEXTAND

SENDSITBACKTO!0

!0DECRYPTSANDIFCORRECT

AUTHENTICATESCLIENT

#LIENTCONNECTSTONETWORK

6KDUHG.H\

$XWKHQWLFDWLRQ6WHSV

#ABLEOR

$,3MODEM

&OLHQW

DWWHPSWLQJ

WRFRQQHFW

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-6 Wireless Networking Basics

March 2004, 202-10027-01

Key Size

The IEEE 802.11 standard supports two types of WEP encryption: 40-bit and 128-bit.

The 64-bit WEP data encryption method allows for a five-character (40-bit) input. Additionally,

24 factory-set bits are added to the forty-bit input to generate a 64-bit encryption key. The 24

factory-set bits are not user-configurable). This encryption key will be used to encrypt/decrypt all

data transmitted via the wireless interface. Some vendors refer to the 64-bit WEP data encryption

as 40-bit WEP data encryption since the user-configurable portion of the encryption key is 40 bits

wide.

The 128-bit WEP data encryption method consists of 104 user-configurable bits. Similar to the

forty-bit WEP data encryption method, the remaining 24 bits are factory set and not user

configurable. Some vendors allow passphrases to be entered instead of the cryptic hexadecimal

characters to ease encryption key entry.

128-bit encryption is stronger than 40-bit encryption, but 128-bit encryption may not be available

outside of the United States due to U.S. export regulations.

When configured for 40-bit encryption, 802.11 products typically support up to four WEP Keys.

Each 40-bit WEP Key is expressed as 5 sets of two hexadecimal digits (0-9 and A-F). For

example, “12 34 56 78 90” is a 40-bit WEP Key.

When configured for 128-bit encryption, 802.11 products typically support four WEP Keys but

some manufacturers support only one 128-bit key. The 128-bit WEP Key is expressed as 13 sets of

two hexadecimal digits (0-9 and A-F). For example, “12 34 56 78 90 AB CD EF 12 34 56 78 90”

is a 128-bit WEP Key.

Table E-1: Encryption Key Sizes

Note: Typically, 802.11 access points can store up to four 128-bit WEP Keys but some 802.11

client adapters can only store one. Therefore, make sure that your 802.11 access and client

adapters’ configurations match.

Encryption Key Size # of Hexadecimal Digits Example of Hexadecimal Key Content

64-bit (24+40) 10 4C72F08AE1

128-bit (24+104) 26 4C72F08AE19D57A3FF6B260037

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-7

March 2004, 202-10027-01

WEP Configuration Options

The WEP settings must match on all 802.11 devices that are within the same wireless network as

identified by the SSID. In general, if your mobile clients will roam between access points, then all

of the 802.11 access points and all of the 802.11 client adapters on the network must have the same

WEP settings.

Note: Whatever keys you enter for an AP, you must also enter the same keys for the client adapter

in the same order. In other words, WEP key 1 on the AP must match WEP key 1 on the client

adapter, WEP key 2 on the AP must match WEP key 2 on the client adapter, and so on.

Note: The AP and the client adapters can have different default WEP Keys as long as the keys are

in the same order. In other words, the AP can use WEP key 2 as its default key to transmit while a

client adapter can use WEP key 3 as its default key to transmit. The two devices will communicate

as long as the AP’s WEP key 2 is the same as the client’s WEP key 2 and the AP’s WEP key 3 is

the same as the client’s WEP key 3.

Wireless Channels

The wireless frequencies used by 802.11b/g networks are discussed below.

IEEE 802.11b/g wireless nodes communicate with each other using radio frequency signals in the

ISM (Industrial, Scientific, and Medical) band between 2.4 GHz and 2.5 GHz. Neighboring

channels are 5 MHz apart. However, due to spread spectrum effect of the signals, a node sending

signals using a particular channel will utilize frequency spectrum 12.5 MHz above and below the

center channel frequency. As a result, two separate wireless networks using neighboring channels

(for example, channel 1 and channel 2) in the same general vicinity will interfere with each other.

Applying two channels that allow the maximum channel separation will decrease the amount of

channel cross-talk, and provide a noticeable performance increase over networks with minimal

channel separation.

The radio frequency channels used in 802.11b/g networks are listed in Table E-2:

Table E-2: 802.11b/g Radio Frequency Channels

Channel Center Frequency Frequency Spread

1 2412 MHz 2399.5 MHz - 2424.5 MHz

2 2417 MHz 2404.5 MHz - 2429.5 MHz

3 2422 MHz 2409.5 MHz - 2434.5 MHz

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-8 Wireless Networking Basics

March 2004, 202-10027-01

Note: The available channels supported by the wireless products in various countries are different.

For example, Channels 1 to 11 are supported in the U.S. and Canada, and Channels 1 to 13 are

supported in Europe and Australia.

The preferred channel separation between the channels in neighboring wireless networks is 25

MHz (5 channels). This means that you can apply up to three different channels within your

wireless network. There are only 11 usable wireless channels in the United States. It is

recommended that you start using channel 1 and grow to use channel 6, and 11 when necessary, as

these three channels do not overlap.

WPA Wireless Security

Wi-Fi Protected Access (WPA) is a specification of standards-based, interoperable security

enhancements that increase the level of data protection and access control for existing and future

wireless LAN systems.

The IEEE introduced the WEP as an optional security measure to secure 802.11b (Wi-Fi) WLANs,

but inherent weaknesses in the standard soon became obvious. In response to this situation, the

Wi-Fi Alliance announced a new security architecture in October 2002 that remedies the

shortcomings of WEP. This standard, formerly known as Safe Secure Network (SSN), is designed

to work with existing 802.11 products and offers forward compatibility with 802.11i, the new

wireless security architecture being defined in the IEEE.

4 2427 MHz 2414.5 MHz - 2439.5 MHz

5 2432 MHz 2419.5 MHz - 2444.5 MHz

6 2437 MHz 2424.5 MHz - 2449.5 MHz

7 2442 MHz 2429.5 MHz - 2454.5 MHz

8 2447 MHz 2434.5 MHz - 2459.5 MHz

9 2452 MHz 2439.5 MHz - 2464.5 MHz

10 2457 MHz 2444.5 MHz - 2469.5 MHz

11 2462 MHz 2449.5 MHz - 2474.5 MHz

12 2467 MHz 2454.5 MHz - 2479.5 MHz

13 2472 MHz 2459.5 MHz - 2484.5 MHz

Table E-2: 802.11b/g Radio Frequency Channels

Channel Center Frequency Frequency Spread

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-9

March 2004, 202-10027-01

WPA offers the following benefits:

• Enhanced data privacy

• Robust key management

• Data origin authentication

• Data integrity protection

The Wi-Fi Alliance is now performing interoperability certification testing on Wi-Fi Protected

Access products. Starting August of 2003, all new Wi-Fi certified products will have to support

WPA. NETGEAR will implement WPA on client and access point products and make this

available in the second half of 2003. Existing Wi-Fi certified products will have one year to add

WPA support or they will lose their Wi-Fi certification.

The 802.11i standard is currently in draft form, with ratification due at the end of 2003. While the

new IEEE 802.11i standard is being ratified, wireless vendors have agreed on WPA as an

interoperable interim standard.

How Does WPA Compare to WEP?

WEP is a data encryption method and is not intended as a user authentication mechanism. WPA

user authentication is implemented using 802.1x and the Extensible Authentication Protocol

(EAP). Support for 802.1x authentication is required in WPA. In the 802.11 standard, 802.1x

authentication was optional. For details on EAP specifically, refer to IETF's RFC 2284.

With 802.11 WEP, all access points and client wireless adapters on a particular wireless LAN must

use the same encryption key. A major problem with the 802.11 standard is that the keys are

cumbersome to change. If you do not update the WEP keys often, an unauthorized person with a

sniffing tool can monitor your network for less than a day and decode the encrypted messages.

Products based on the 802.11 standard alone offer system administrators no effective method to

update the keys.

For 802.11, WEP encryption is optional. For WPA, encryption using Temporal Key Integrity

Protocol (TKIP) is required. TKIP replaces WEP with a new encryption algorithm that is stronger

than the WEP algorithm, but that uses the calculation facilities present on existing wireless devices

to perform encryption operations. TKIP provides important data encryption enhancements

including a per-packet key mixing function, a message integrity check (MIC) named Michael, an

extended initialization vector (IV) with sequencing rules, and a re-keying mechanism. Through

these enhancements, TKIP addresses all of known WEP vulnerabilities.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-10 Wireless Networking Basics

March 2004, 202-10027-01

How Does WPA Compare to IEEE 802.11i?

WPA will be forward compatible with the IEEE 802.11i security specification currently under

development. WPA is a subset of the current 802.11i draft and uses certain pieces of the 802.11i

draft that are ready to bring to market today, such as 802.1x and TKIP. The main pieces of the

802.11i draft that are not included in WPA are secure IBSS (Ad-Hoc mode), secure fast handoff

(for specialized 802.11 VoIP phones), as well as enhanced encryption protocols, such as

AES-CCMP. These features are either not yet ready for market or will require hardware upgrades

to implement.

What are the Key Features of WPA Security?

The following security features are included in the WPA standard:

• WPA Authentication

• WPA Encryption Key Management

– Temporal Key Integrity Protocol (TKIP)

– Michael message integrity code (MIC)

– AES Support (to be phased in)

• Support for a Mixture of WPA and WEP Wireless Clients, but mixing WEP and WPA is

discouraged

These features are discussed below.

WPA addresses most of the known WEP vulnerabilities and is primarily intended for wireless

infrastructure networks as found in the enterprise. This infrastructure includes stations, access

points, and authentication servers (typically RADIUS servers). The RADIUS server holds (or has

access to) user credentials (for example, user names and passwords) and authenticates wireless

users before they gain access to the network.

The strength of WPA comes from an integrated sequence of operations that encompass 802.1X/

EAP authentication and sophisticated key management and encryption techniques. Its major

operations include:

• Network security capability determination. This occurs at the 802.11 level and is

communicated through WPA information elements in Beacon, Probe Response, and (Re)

Association Requests. Information in these elements includes the authentication method

(802.1X or Pre-shared key) and the preferred cipher suite (WEP, TKIP, or AES).

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-11

March 2004, 202-10027-01

The primary information conveyed in the Beacon frames is the authentication method and the

cipher suite. Possible authentication methods include 802.1X and Pre-shared key. Pre-shared

key is an authentication method that uses a statically configured pass phrase on both the

stations and the access point. This obviates the need for an authentication server, which in

many home and small office environments will not be available nor desirable. Possible cipher

suites include: WEP, TKIP, and AES (Advanced Encryption Standard). We talk more about

TKIP and AES when addressing data privacy below.

• Authentication. EAP over 802.1X is used for authentication. Mutual authentication is gained

by choosing an EAP type supporting this feature and is required by WPA. 802.1X port access

control prevents full access to the network until authentication completes. 802.1X

EAPOL-Key packets are used by WPA to distribute per-session keys to those stations

successfully authenticated.

The supplicant in the station uses the authentication and cipher suite information contained in

the information elements to decide which authentication method and cipher suite to use. For

example, if the access point is using the pre-shared key method then the supplicant need not

authenticate using full-blown 802.1X. Rather, the supplicant must simply prove to the access

point that it is in possession of the pre-shared key. If the supplicant detects that the service set

does not contain a WPA information element then it knows it must use pre-WPA 802.1X

authentication and key management in order to access the network.

• Key management. WPA features a robust key generation/management system that integrates

the authentication and data privacy functions. Keys are generated after successful

authentication and through a subsequent 4-way handshake between the station and Access

Point (AP).

• Data Privacy (Encryption). Temporal Key Integrity Protocol (TKIP) is used to wrap WEP in

sophisticated cryptographic and security techniques to overcome most of its weaknesses.

• Data integrity. TKIP includes a message integrity code (MIC) at the end of each plaintext

message to ensure messages are not being spoofed.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-12 Wireless Networking Basics

March 2004, 202-10027-01

WPA Authentication: Enterprise-level User

Authentication via 802.1x/EAP and RADIUS

Figure E-3: WPA Overview

IEEE 802.1x offers an effective framework for authenticating and controlling user traffic to a

protected network, as well as providing a vehicle for dynamically varying data encryption keys via

EAP from a RADIUS server, for example. This framework enables using a central authentication

server, which employs mutual authentication so that a rogue wireless user does not join the

network.

It is important to note that 802.1x does not provide the actual authentication mechanisms. When

using 802.1x, the EAP type, such as Transport Layer Security (EAP-TLS), or EAP Tunneled

Transport Layer Security (EAP-TTLS), defines how the authentication takes place.

Note: For environments with a Remote Authentication Dial-In User Service (RADIUS)

infrastructure, WPA supports Extensible Authentication Protocol (EAP). For environments

without a RADIUS infrastructure, WPA supports the use of a pre-shared key.

Together, these technologies provide a framework for strong user authentication.

Windows XP implements 802.1x natively, and several NETGEAR switch and wireless access

point products support 802.1x.

Certificate

Authority

(for

example

Win Server,

VeriSign)

WPA

enabled

wireless

client with

“supplicant”

TCP/IP

Ports Closed

Until RADIUS Server

Wired Network with Optional

802.1x Port Based Network

Access Control

WPA enabled

Access Point

using

pre-shared key

802.1x

TCP/IP

Ports Opened

After

Authenticated

Wireless LAN

Authentication

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-13

March 2004, 202-10027-01

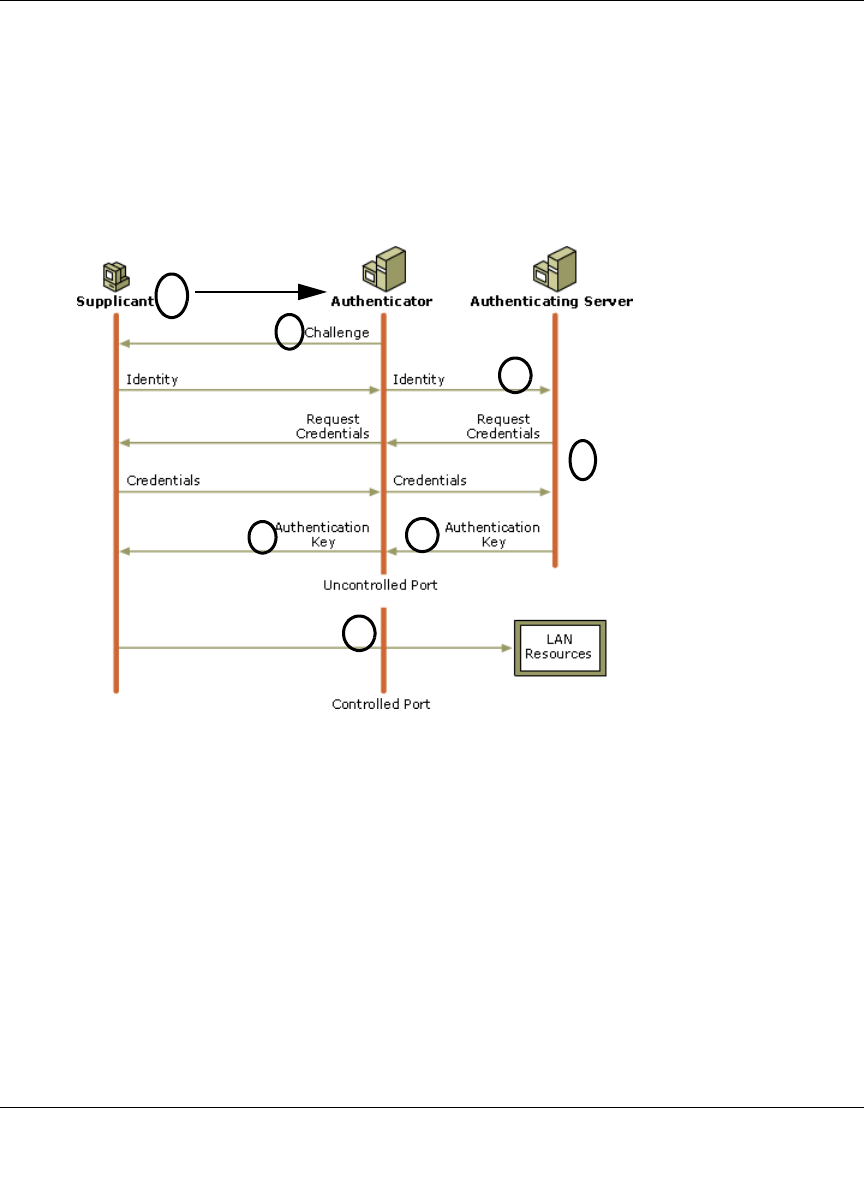

Figure E-4: 802.1x Authentication Sequence

The AP sends Beacon Frames with WPA information element to the stations in the service set.

Information elements include the required authentication method (802.1x or Pre-shared key) and

the preferred cipher suite (WEP, TKIP, or AES). Probe Responses (AP to station) and Association

Requests (station to AP) also contain WPA information elements.

1. Initial 802.1x communications begin with an unauthenticated supplicant (client device)

attempting to connect with an authenticator (802.11 access point). The client sends an

EAP-start message. This begins a series of message exchanges to authenticate the client.

2. The access point replies with an EAP-request identity message.

Client with a WPA-

enabled wireless

adapter and supplicant

(Win XP, Funk,

Meetinghouse)

For example, a

WPA-enabled AP

For example, a

RADIUS server

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-14 Wireless Networking Basics

March 2004, 202-10027-01

3. The client sends an EAP-response packet containing the identity to the authentication server.

The access point responds by enabling a port for passing only EAP packets from the client to

an authentication server located on the wired side of the access point. The access point blocks

all other traffic, such as HTTP, DHCP, and POP3 packets, until the access point can verify the

client's identity using an authentication server (for example, RADIUS).

4. The authentication server uses a specific authentication algorithm to verify the client's identity.

This could be through the use of digital certificates or some other EAP authentication type.

5. The authentication server will either send an accept or reject message to the access point.

6. The access point sends an EAP-success packet (or reject packet) to the client.

7. If the authentication server accepts the client, then the access point will transition the client's

port to an authorized state and forward additional traffic.

The important part to know at this point is that the software supporting the specific EAP type

resides on the authentication server and within the operating system or application “supplicant”

software on the client devices. The access point acts as a “pass through” for 802.1x messages,

which means that you can specify any EAP type without needing to upgrade an 802.1x-compliant

access point. As a result, you can update the EAP authentication type to such devices as token

cards (Smart Cards), Kerberos, one-time passwords, certificates, and public key authentication, or

as newer types become available and your requirements for security change.

WPA Data Encryption Key Management

With 802.1x, the rekeying of unicast encryption keys is optional. Additionally, 802.11 and 802.1x

provide no mechanism to change the global encryption key used for multicast and broadcast

traffic. With WPA, rekeying of both unicast and global encryption keys is required.

For the unicast encryption key, the Temporal Key Integrity Protocol (TKIP) changes the key for

every frame, and the change is synchronized between the wireless client and the wireless access

point (AP). For the global encryption key, WPA includes a facility (the Information Element) for

the wireless AP to advertise the changed key to the connected wireless clients.

If configured to implement dynamic key exchange, the 802.1x authentication server can return

session keys to the access point along with the accept message. The access point uses the session

keys to build, sign and encrypt an EAP key message that is sent to the client immediately after

sending the success message. The client can then use contents of the key message to define

applicable encryption keys. In typical 802.1x implementations, the client can automatically change

encryption keys as often as necessary to minimize the possibility of eavesdroppers having enough

time to crack the key in current use.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-15

March 2004, 202-10027-01

Temporal Key Integrity Protocol (TKIP)

WPA uses TKIP to provide important data encryption enhancements including a per-packet key

mixing function, a message integrity check (MIC) named Michael, an extended initialization

vector (IV) with sequencing rules, and a re-keying mechanism. TKIP also provides for the

following:

• The verification of the security configuration after the encryption keys are determined.

• The synchronized changing of the unicast encryption key for each frame.

• The determination of a unique starting unicast encryption key for each preshared key

authentication.

Michael

With 802.11 and WEP, data integrity is provided by a 32-bit integrity check value (ICV) that is

appended to the 802.11 payload and encrypted with WEP. Although the ICV is encrypted, you can

use cryptanalysis to change bits in the encrypted payload and update the encrypted ICV without

being detected by the receiver.

With WPA, a method known as Michael specifies a new algorithm that calculates an 8-byte

message integrity check (MIC) using the calculation facilities available on existing wireless

devices. The MIC is placed between the data portion of the IEEE 802.11 frame and the 4-byte

ICV. The MIC field is encrypted together with the frame data and the ICV.

Michael also provides replay protection. A new frame counter in the IEEE 802.11 frame is used to

prevent replay attacks.

Optional AES Support to be Phased In

One of the encryption methods supported by WPA, besides TKIP, is the advanced encryption

standard (AES), although AES support will not be required initially for Wi-Fi certification. This is

viewed as the optimal choice for security conscience organizations, but the problem with AES is

that it requires a fundamental redesign of the NIC’s hardware in both the station and the access

point. TKIP is a pragmatic compromise that allows organizations to deploy better security while

AES capable equipment is being designed, manufactured, and incrementally deployed.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-16 Wireless Networking Basics

March 2004, 202-10027-01

Is WPA Perfect?

WPA is not without its vulnerabilities. Specifically, it is susceptible to denial of service (DoS)

attacks. If the access point receives two data packets that fail the message integrity code (MIC)

within 60 seconds of each other, then the network is under an active attack, and as a result, the

access point employs counter measures, which include disassociating each station using the access

point. This prevents an attacker from gleaning information about the encryption key and alerts

administrators, but it also causes users to lose network connectivity for 60 seconds. More than

anything else, this may just prove that no single security tactic is completely invulnerable. WPA is

a definite step forward in WLAN security over WEP and has to be thought of as a single part of an

end-to-end network security strategy.

Product Support for WPA

Starting in August, 2003, NETGEAR, Inc. wireless Wi-Fi certified products will support the WPA

standard. NETGEAR, Inc. wireless products that had their Wi-Fi certification approved before

August, 2003 will have one year to add WPA so as to maintain their Wi-Fi certification.

WPA requires software changes to the following:

• Wireless access points

• Wireless network adapters

• Wireless client programs

Supporting a Mixture of WPA and WEP Wireless Clients is Discouraged

To support the gradual transition of WEP-based wireless networks to WPA, a wireless AP can

support both WEP and WPA clients at the same time. During the association, the wireless AP

determines which clients use WEP and which clients use WPA. The disadvantage to supporting a

mixture of WEP and WPA clients is that the global encryption key is not dynamic. This is because

WEP-based clients cannot support it. All other benefits to the WPA clients, such as integrity, are

maintained.

However, a mixed mode supporting WPA and non-WPA clients would offer network security that

is no better than that obtained with a non-WPA network, and thus this mode of operation is

discouraged.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Wireless Networking Basics E-17

March 2004, 202-10027-01

Changes to Wireless Access Points

Wireless access points must have their firmware updated to support the following:

•The new WPA information element

To advertise their support of WPA, wireless APs send the beacon frame with a new 802.11

WPA information element that contains the wireless AP's security configuration (encryption

algorithms and wireless security configuration information).

•The WPA two-phase authentication

Open system, then 802.1x (EAP with RADIUS or preshared key).

•TKIP

•Michael

•AES (optional)

To upgrade your wireless access points to support WPA, obtain a WPA firmware update from your

wireless AP vendor and upload it to your wireless AP.

Changes to Wireless Network Adapters

Wireless networking software in the adapter, and possibly in the OS or client application, must be

updated to support the following:

•The new WPA information element

Wireless clients must be able to process the WPA information element and respond with a

specific security configuration.

•The WPA two-phase authentication

Open system, then 802.1x supplicant (EAP or preshared key).

•TKIP

•Michael

•AES (optional)

To upgrade your wireless network adapters to support WPA, obtain a WPA update from your

wireless network adapter vendor and update the wireless network adapter driver.

For Windows wireless clients, you must obtain an updated network adapter driver that supports

WPA. For wireless network adapter drivers that are compatible with Windows XP (Service Pack 1)

and Windows Server 2003, the updated network adapter driver must be able to pass the adapter's

WPA capabilities and security configuration to the Wireless Zero Configuration service.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

E-18 Wireless Networking Basics

March 2004, 202-10027-01

Microsoft has worked with many wireless vendors to embed the WPA firmware update in the

wireless adapter driver. So, to update your Microsoft Windows wireless client, all you have to do

is obtain the new WPA-compatible driver and install the driver. The firmware is automatically

updated when the wireless network adapter driver is loaded in Windows.

Changes to Wireless Client Programs

Wireless client programs must be updated to permit the configuration of WPA authentication (and

preshared key) and the new WPA encryption algorithms (TKIP and the optional AES component).

To obtain the Microsoft WPA client program, visit the Microsoft Web site.

Virtual Private Networking F-1

March 2004, 202-10027-01

Appendix F

Virtual Private Networking

There have been many improvements in the Internet, including Quality of Service, network

performance, and inexpensive technologies, such as DSL. But one of the most important advances

has been in Virtual Private Networking (VPN) Internet Protocol security (IPSec). IPSec is one of

the most complete, secure, and commercially available, standards-based protocols developed for

transporting data.

What is a VPN?

A VPN is a shared network, where private data is segmented from other traffic, so that only the

intended recipient has access. The term VPN was originally used to describe a secure connection

over the Internet. Today, however, VPN is also used to describe private networks, such as Frame

Relay, Asynchronous Transfer Mode (ATM), and Multiprotocol Label Switching (MPLS).

A key aspect of data security is that the data flowing across the network is protected by encryption

technologies. Private networks lack data security, which allows data attackers to tap directly into

the network and read the data. IPSec-based VPNs use encryption to provide data security, which

increases the network’s resistance to data tampering or theft.

IPSec-based VPNs can be created over any type of IP network, including the Internet, Frame

Relay, ATM, and MPLS, but only the Internet is ubiquitous and inexpensive.

VPNs are traditionally used for:

•Intranets: Intranets connect an organization’s locations. These locations range from the

headquarters offices, to branch offices, to a remote employee’s home. Often this connectivity

is used for e-mail and for sharing applications and files. While Frame Relay, ATM, and MPLS

accomplish these tasks, the shortcomings of each limits connectivity. The cost of connecting

home users is also very expensive compared to Internet-access technologies, such as DSL or

cable. Because of this, organizations are moving their networks to the Internet, which is

inexpensive, and using IPSec to create these networks.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-2 Virtual Private Networking

March 2004, 202-10027-01

•Remote Access: Remote access enables telecommuters and mobile workers to access e-mail

and business applications. A dial-up connection to an organization’s modem pool is one

method of access for remote workers, but is expensive because the organization must pay the

associated long distance telephone and service costs. Remote access VPNs greatly reduce

expenses by enabling mobile workers to dial a local Internet connection and then set up a

secure IPSec-based VPN communications to their organization.

•Extranets: Extranets are secure connections between two or more organizations. Common

uses for extranets include supply-chain management, development partnerships, and

subscription services. These undertakings can be difficult using legacy network technologies

due to connection costs, time delays, and access availability. IPSec-based VPNs are ideal for

extranet connections. IPSec-capable devices can be quickly and inexpensively installed on

existing Internet connections.

What is IPSec and How Does It Work?

IPSec is an Internet Engineering Task Force (IETF) standard suite of protocols that provides data

authentication, integrity, and confidentiality as data is transferred between communication points

across IP networks. IPSec provides data security at the IP packet level. A packet is a data bundle

that is organized for transmission across a network, and includes a header and payload (the data in

the packet). IPSec emerged as a viable network security standard because enterprises wanted to

ensure that data could be securely transmitted over the Internet. IPSec protects against possible

security exposures by protecting data while in transit.

IPSec Security Features

IPSec is the most secure method commercially available for connecting network sites. IPSec was

designed to provide the following security features when transferring packets across networks:

•Authentication: Verifies that the packet received is actually from the claimed sender.

•Integrity: Ensures that the contents of the packet did not change in transit.

•Confidentiality: Conceals the message content through encryption.

IPSec Components

IPSec contains the following elements:

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking F-3

March 2004, 202-10027-01

•Encapsulating Security Payload (ESP): Provides confidentiality, authentication, and

integrity.

•Authentication Header (AH): Provides authentication and integrity.

•Internet Key Exchange (IKE): Provides key management and Security Association (SA)

management.

Encapsulating Security Payload (ESP)

ESP provides authentication, integrity, and confidentiality, which protect against data tampering

and, most importantly, provides message content protection.

IPSec provides an open framework for implementing industry standard algorithms, such as SHA

and MD5. The algorithms IPSec uses produce a unique and unforgeable identifier for each packet,

which is a data equivalent of a fingerprint. This fingerprint allows the device to determine if a

packet has been tampered with. Furthermore, packets that are not authenticated are discarded and

not delivered to the intended receiver.

ESP also provides all encryption services in IPSec. Encryption translates a readable message into

an unreadable format to hide the message content. The opposite process, called decryption,

translates the message content from an unreadable format to a readable message. Encryption/

decryption allows only the sender and the authorized receiver to read the data. In addition, ESP has

an option to perform authentication, called ESP authentication. Using ESP authentication, ESP

provides authentication and integrity for the payload and not for the IP header.

Figure F-1: Original packet and packet with IPSec Encapsulated Security Payload

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-4 Virtual Private Networking

March 2004, 202-10027-01

The ESP header is inserted into the packet between the IP header and any subsequent packet

contents. However, because ESP encrypts the data, the payload is changed. ESP does not encrypt

the ESP header, nor does it encrypt the ESP authentication.

Authentication Header (AH)

AH provides authentication and integrity, which protect against data tampering, using the same

algorithms as ESP. AH also provides optional anti-replay protection, which protects against

unauthorized retransmission of packets. The authentication header is inserted into the packet

between the IP header and any subsequent packet contents. The payload is not touched.

Although AH protects the packet’s origin, destination, and contents from being tampered with, the

identity of the sender and receiver is known. In addition, AH does not protect the data’s

confidentiality. If data is intercepted and only AH is used, the message contents can be read. ESP

protects data confidentiality. For added protection in certain cases, AH and ESP can be used

together. In the following table, IP HDR represents the IP header and includes both source and

destination IP addresses.

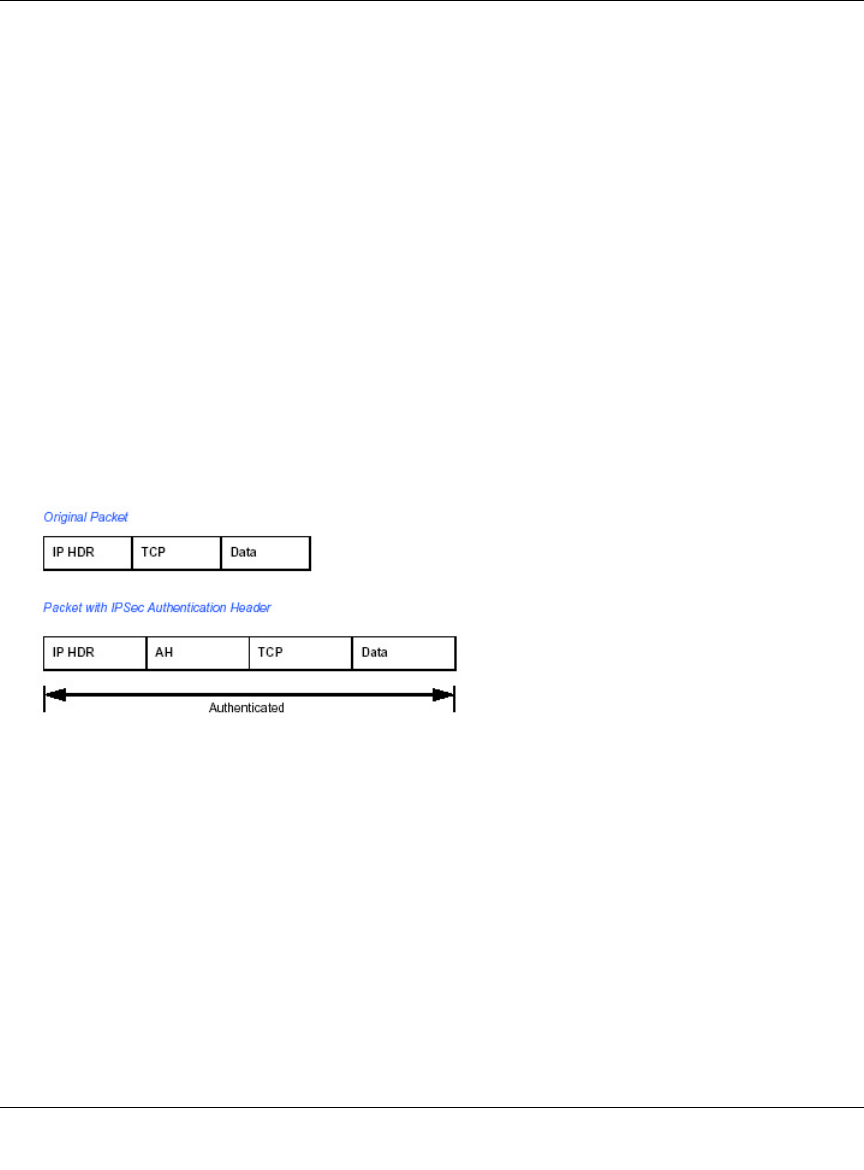

Figure F-2: Original packet and packet with IPSec Authentication Header

IKE Security Association

IPSec introduces the concept of the Security Association (SA). An SA is a logical connection

between two devices transferring data. An SA provides data protection for unidirectional traffic by

using the defined IPSec protocols. An IPSec tunnel typically consists of two unidirectional SAs,

which together provide a protected, full-duplex data channel.

The SAs allow an enterprise to control exactly what resources may communicate securely,

according to security policy. To do this an enterprise can set up multiple SAs to enable multiple

secure VPNs, as well as define SAs within the VPN to support different departments and business

partners.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking F-5

March 2004, 202-10027-01

Mode

SAs operate using modes. A mode is the method in which the IPSec protocol is applied to the

packet. IPSec can be used in tunnel mode or transport mode. Typically, the tunnel mode is used for

gateway-to-gateway IPSec tunnel protection, while transport mode is used for host-to-host IPSec

tunnel protection. A gateway is a device that monitors and manages incoming and outgoing

network traffic and routes the traffic accordingly. A host is a device that sends and receives

network traffic.

•Transport Mode: The transport mode IPSec implementation encapsulates only the packet’s

payload. The IP header is not changed. After the packet is processed with IPSec, the new IP

packet contains the old IP header (with the source and destination IP addresses unchanged)

and the processed packet payload. Transport mode does not shield the information in the IP

header; therefore, an attacker can learn where the packet is coming from and where it is going

to. The previous packet diagrams show a packet in transport mode.

•Tunnel Mode: The tunnel mode IPSec implementation encapsulates the entire IP packet. The

entire packet becomes the payload of the packet that is processed with IPSec. A new IP header

is created that contains the two IPSec gateway addresses. The gateways perform the

encapsulation/decapsulation on behalf of the hosts. Tunnel mode ESP prevents an attacker

from analyzing the data and deciphering it, as well as knowing who the packet is from and

where it is going.

Note: AH and ESP can be used in both transport mode or tunnel mode.

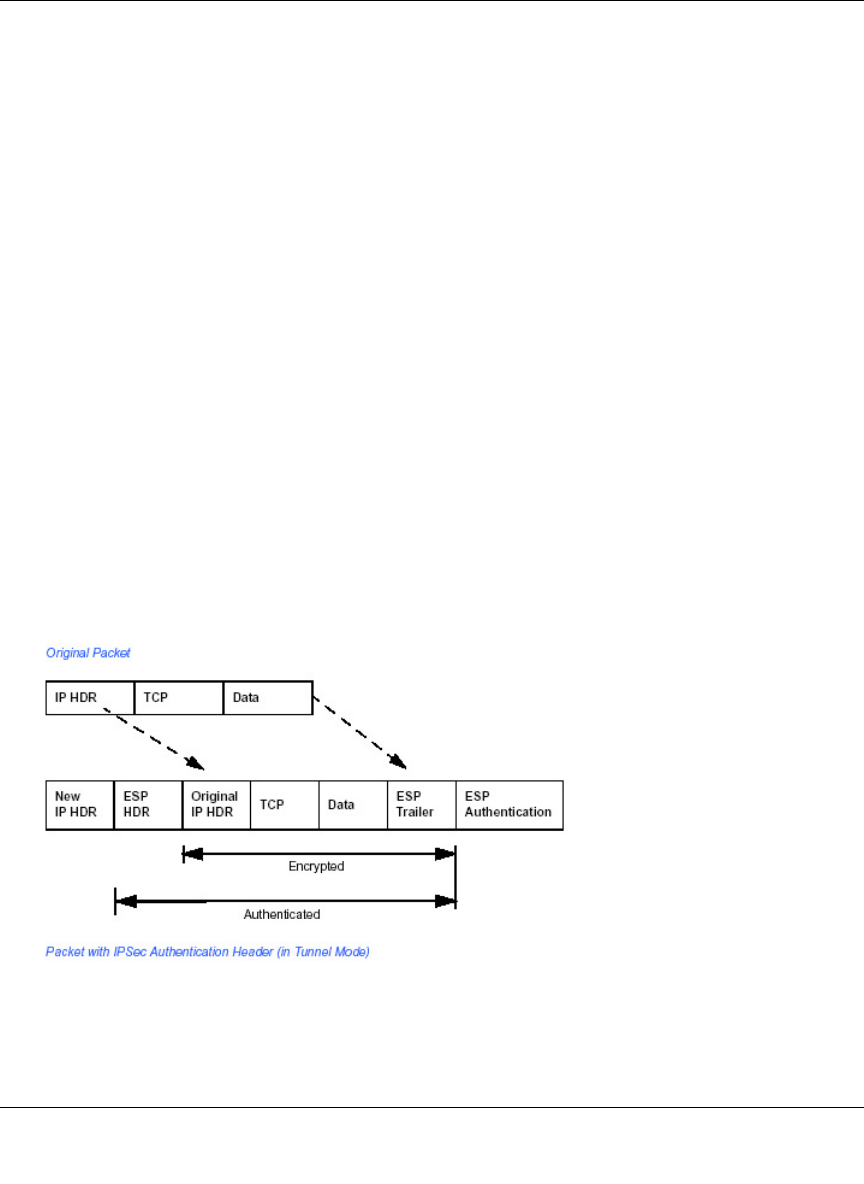

Figure F-3: Original packet and packet with IPSec ESP in Tunnel mode

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-6 Virtual Private Networking

March 2004, 202-10027-01

Key Management

IPSec uses the Internet Key Exchange (IKE) protocol to facilitate and automate the SA setup and

the exchange of keys between parties transferring data. Using keys ensures that only the sender

and receiver of a message can access it.

IPSec requires that keys be re-created, or refreshed, frequently, so that the parties can

communicate securely with each other. IKE manages the process of refreshing keys; however, a

user can control the key strength and the refresh frequency. Refreshing keys on a regular basis

ensures data confidentiality between sender and receiver.

Understand the Process Before You Begin

This document provides case studies on how to configure secure IPSec VPN tunnels. This

document assumes the reader has a working knowledge of NETGEAR management systems.

NETGEAR is a member of the VPN Consortium, a group formed to facilitate IPSec VPN vendor

interoperability. The VPN Consortium has developed specific scenarios to aid system

administrators in the often confusing process of connecting two different vendor implementations

of the IPSec standard. The case studies in this appendix follow the addressing and configuration

mechanics defined by the VPN Consortium. Additional information regarding inter-vendor

interoperability may be found at http://www.vpnc.org/interop.html.

It is a good idea to gather all the necessary information required to establish a VPN before you

begin the configuration process. You should understand whether the firmware is up to date, all of

the addresses that will be necessary, and all of the parameters that need to be set on both sides. Try

to understand any incompatibilities before you begin, so that you minimize any potential

complications which may arise from normal firewall or WAN processes.

If you are not a full-time system administrator, it is a good idea to familiarize yourself with the

mechanics of a VPN. The brief description in this appendix will help. Other good sources include:

• The NETGEAR VPN Tutorial – http://www.netgear.com/planetvpn/pvpn_2.html

• The VPN Consortium – http://www.vpnc.org/

• The VPN bibliography in “Additional Reading“ on page F-11.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking F-7

March 2004, 202-10027-01

VPN Process Overview

Even though IPSec is standards-based, each vendor has its own set of terms and procedures for

implementing the standard. Because of these differences, it may be a good idea to review some of

the terms and the generic processes for connecting two gateways before diving into the specifics.

Network Interfaces and Addresses

The VPN gateway is aptly named because it functions as a “gatekeeper” for each of the computers

connected on the Local Area Network behind it.

In most cases, each Gateway will have a “public” facing address (WAN side) and a “private”

facing address (LAN side). These addresses are referred to as the “network interface” in

documentation regarding the construction of VPN communication. Please note that the addresses

used in the example do not use full TCP/IP notation.

Interface Addressing

This TechNote uses example addresses provided the VPN Consortium. It is important to

understand that you will be using addresses specific to the devices that you are attempting to

connect via IPSec VPN.

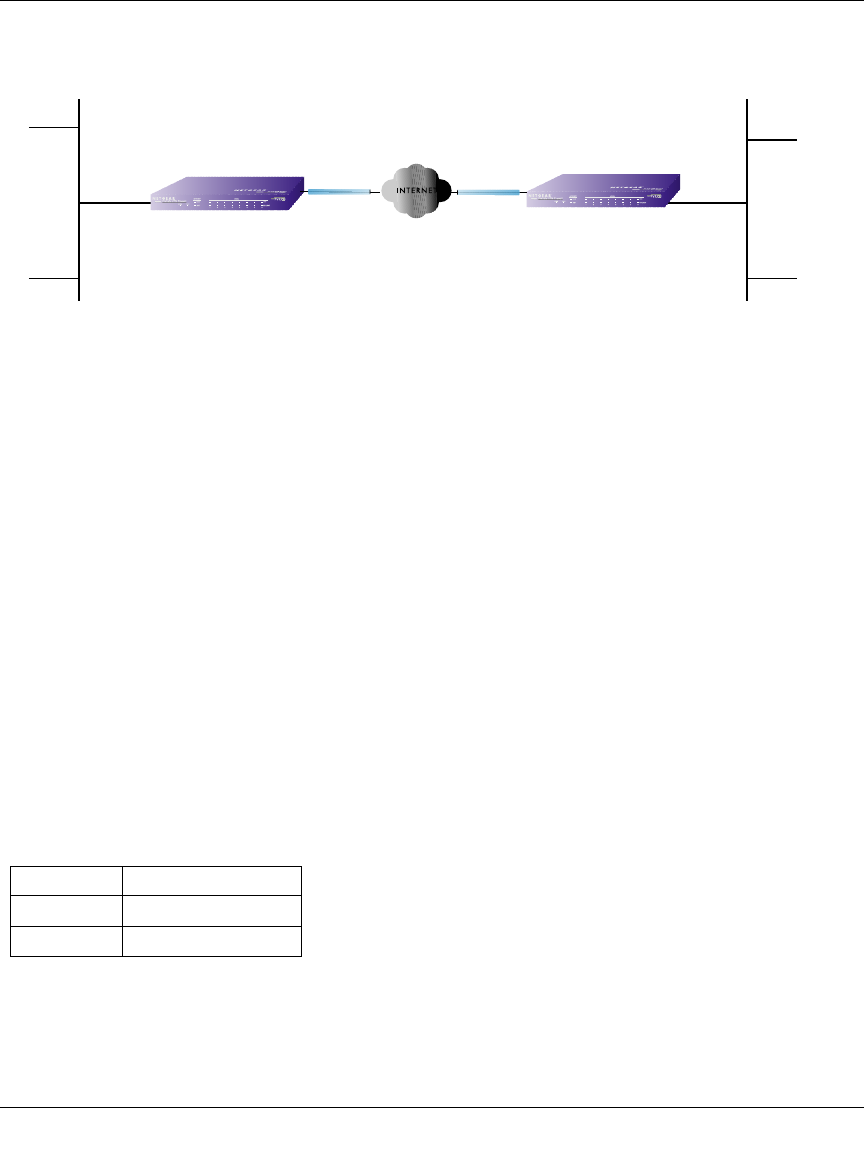

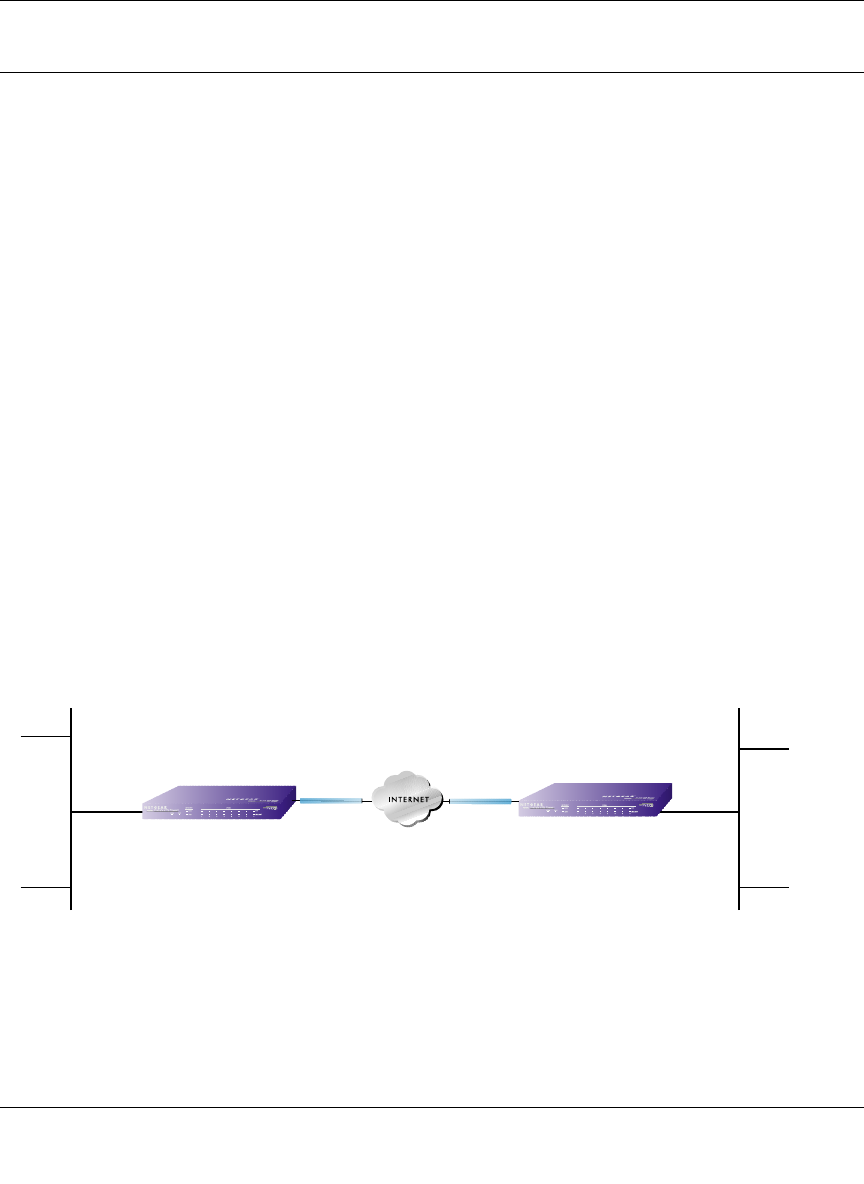

Figure F-4: VPNC Example Network Interface Addressing

It is also important to make sure the addresses do not overlap or conflict. That is, each set of

addresses should be separate and distinct.

Gateway A

22.23.24.25

14.15.16.17

10.5.6.0/24 172.23.9.0/24

172.23.9.110.5.6.1

WAN IP WAN IP LAN IPLAN IP

Gateway B

VPNC Example

Network Interface Addressing

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-8 Virtual Private Networking

March 2004, 202-10027-01

It will also be important to know the subnet mask of both gateway LAN Connections.

Firewalls

It is important to understand that many gateways are also firewalls. VPN tunnels cannot function

properly if firewall settings disallow all incoming traffic. Please refer to the firewall instructions

for both gateways to understand how to open specific protocols, ports, and addresses that you

intend to allow.

Setting Up a VPN Tunnel Between Gateways

An SA, frequently called a tunnel, is the set of information that allows two entities (networks, PCs,

routers, firewalls, gateways) to “trust each other” and communicate securely as they pass

information over the Internet.

Table 5-3. WAN (Internet/Public) and LAN (Internal/Private) Addressing

Gateway LAN or WAN VPNC Example Address

Gateway A LAN (Private) 10.5.6.1

Gateway A WAN (Public) 14.15.16.17

Gateway B LAN (Private) 22.23.24.25

Gateway B WAN (Public) 172.23.9.1

Table 5-4. Subnet Addressing

Gateway LAN or WAN Interface Name Example Subnet Mask

Gateway A LAN (Private) Subnet Mask A 255.255.255.0

Gateway B LAN (Private) Subnet Mask B 255.255.255.0

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking F-9

March 2004, 202-10027-01

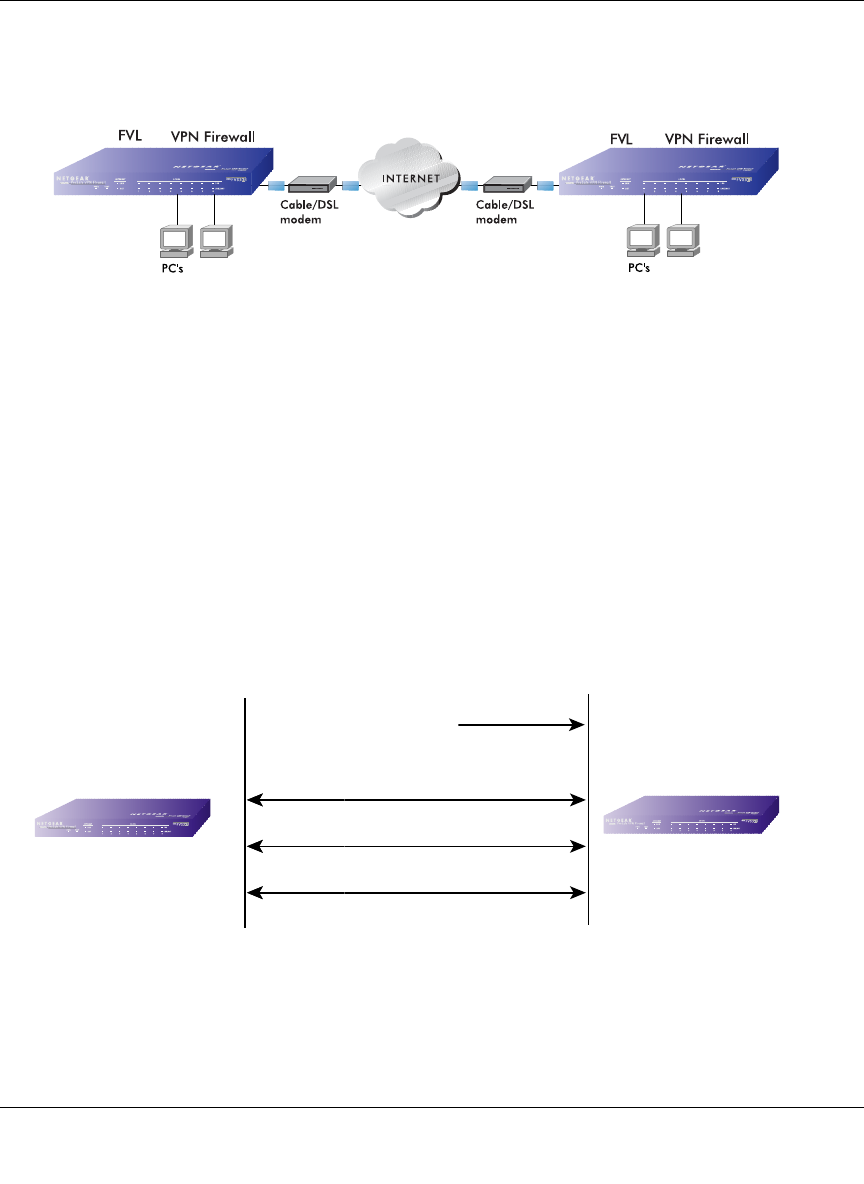

Figure F-5: VPN Tunnel SA

The SA contains all the information necessary for gateway A to negotiate a secure and encrypted

communication stream with gateway B. This communication is often referred to as a “tunnel.” The

gateways contain this information so that it does not have to be loaded onto every computer

connected to the gateways.

Each gateway must negotiate its Security Association with another gateway using the parameters

and processes established by IPSec. As illustrated below, the most common method of

accomplishing this process is via the Internet Key Exchange (IKE) protocol which automates some

of the negotiation procedures. Alternatively, you can configure your gateways using manual key

exchange, which involves manually configuring each paramter on both gateways.

Figure F-6: IPSec SA negotiation

1. The IPSec software on Host A initiates the IPSec process in an attempt to communicate

with Host B. The two computers then begin the Internet Key Exchange (IKE) process.

VPN Gateway

1) Communication

request sent to VPN Gateway

2) IKE Phase I authentication

3) IKE Phase II negotiation

4) Secure data transfer

5) IPSec tunnel termination

IPSec Security Association IKE

VPN Tunnel Negotiation Steps

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-10 Virtual Private Networking

March 2004, 202-10027-01

2. IKE Phase I.

a. The two parties negotiate the encryption and authentication algorithms to use in the IKE

SAs.

b. The two parties authenticate each other using a predetermined mechanism, such as

preshared keys or digital certificates.

c. A shared master key is generated by the Diffie-Hellman Public key algorithm within the

IKE framework for the two parties. The master key is also used in the second phase to

derive IPSec keys for the SAs.

3. IKE Phase II.

a. The two parties negotiate the encryption and authentication algorithms to use in the IPSec

SAs.

b. The master key is used to derive the IPSec keys for the SAs. Once the SA keys are created

and exchanged, the IPSec SAs are ready to protect user data between the two VPN

gateways.

4. Data transfer. Data is transferred between IPSec peers based on the IPSec parameters and

keys stored in the SA database.

5. IPSec tunnel termination. IPSec SAs terminate through deletion or by timing out.

VPNC IKE Security Parameters

It is important to remember that both gateways must have the identical parameters set for the

process to work correctly. The settings in these examples follow the examples given for Scenario 1

of the VPN Consortium.

VPNC IKE Phase I Parameters

The IKE Phase 1 parameters used:

•Main mode

•TripleDES

• SHA-1

• MODP group 1

• Ppre-shared secret of "hr5xb84l6aa9r6"

• SA lifetime of 28800 seconds (eight hours)

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Virtual Private Networking F-11

March 2004, 202-10027-01

VPNC IKE Phase II Parameters

The IKE Phase 2 parameters used in Scenario 1 are:

•TripleDES

• SHA-1

• ESP tunnel mode

• MODP group 1

• Perfect forward secrecy for rekeying

• SA lifetime of 28800 seconds (one hour)

Testing and Troubleshooting

Once you have completed the VPN configuration steps you can use PCs, located behind each of

the gateways, to ping various addresses on the LAN side of the other gateway.

You can troubleshoot connections using the VPN status and log details on the NETGEAR gateway

to determine if IKE negotiation is working. Common problems encountered in setting up VPNs

include:

• Parameters may be configured differently on Gateway A vs. Gateway B.

• Two LANs set up with similar or overlapping addressing schemes.

• So many required configuration parameters mean errors such as mistyped information or

mismatched parameter selections on either side are more likely to happen.

Additional Reading

•Building and Managing Virtual Private Networks, Dave Kosiur, Wiley & Sons; ISBN:

0471295264

•Firewalls and Internet Security: Repelling the Wily Hacker, William R. Cheswick and Steven

M. Bellovin, Addison-Wesley; ISBN: 0201633574

•VPNs A Beginners Guide, John Mains, McGraw Hill; ISBN: 0072191813

• [FF98] Floyd, S., and Fall, K., Promoting the Use of End-to-End Congestion Control in the

Internet. IEEE/ACM Transactions on Networking, August 1999.

Relevant RFCs listed numerically:

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

F-12 Virtual Private Networking

March 2004, 202-10027-01

• [RFC 791] Internet Protocol DARPA Internet Program Protocol Specification, Information

Sciences Institute, USC, September 1981.

• [RFC 1058] Routing Information Protocol, C Hedrick, Rutgers University, June 1988.

• [RFC 1483] Multiprotocol Encapsulation over ATM Adaptation Layer 5, Juha Heinanen,

Telecom Finland, July 1993.

• [RFC 2401] S. Kent, R. Atkinson, Security Architecture for the Internet Protocol, RFC 2401,

November 1998.

• [RFC 2407] D. Piper, The Internet IP Security Domain of Interpretation for ISAKMP,

November 1998.

• [RFC 2474] K. Nichols, S. Blake, F. Baker, D. Black, Definition of the Differentiated Services

Field (DS Field) in the IPv4 and IPv6 Headers, December 1998.

• [RFC 2475] S. Blake, D. Black, M. Carlson, E. Davies, Z. Wang, and W. Weiss, An

Architecture for Differentiated Services, December 1998.

• [RFC 2481] K. Ramakrishnan, S. Floyd, A Proposal to Add Explicit Congestion Notification

(ECN) to IP, January 1999.

• [RFC 2408] D. Maughan, M. Schertler, M. Schneider, J. Turner, Internet Security Association

and Key Management Protocol (ISAKMP).

• [RFC 2409] D. Harkins, D.Carrel, Internet Key Exchange (IKE) protocol.

• [RFC 2401] S. Kent, R. Atkinson, Security Architecture for the Internet Protocol.

NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P G-1

March 2004, 202-10027-01

Appendix G

NETGEAR VPN Configuration

FVS318 or FVM318 to FWG114P

This appendix provides a case study on how to configure a secure IPSec VPN tunnel between a

NETGEAR FVS318 or FVM318 to a FWG114P. The configuration options and screens for the

FVS318 and FVM318 are the same.

Configuration Template

The configuration in this document follows the addressing and configuration mechanics defined

by the VPN Consortium. Gather all the necessary information before you begin the configuration

process. Verify whether the firmware is up to date, all of the addresses that will be necessary, and

all of the parameters that need to be set on both sides. Check that there are no firewall restrictions.

Table G-1. Summary

VPN Consortium Scenario: Scenario 1

Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)

Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)

Date Tested: December 2003

Model/Firmware Tested:

NETGEAR-Gateway A FVS318 firmware version A1.4 or 2.0; FVM318 firmware version 1.1

NETGEAR-Gateway B FWG114P with firmware version 2 Release 2

IP Addressing:

NETGEAR-Gateway A Static IP address

NETGEAR-Gateway B Static IP address

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

G-2 NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

March 2004, 202-10027-01

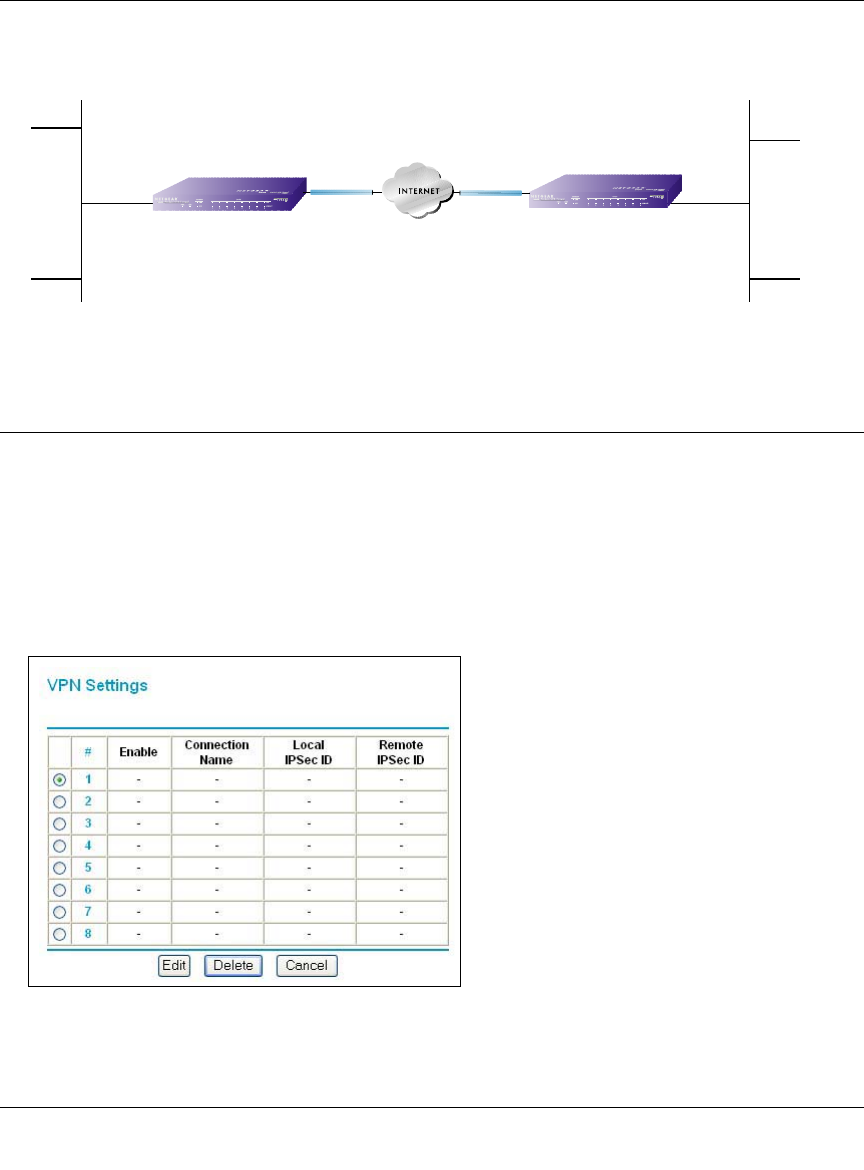

Figure G-1: Addressing and Subnet Used for Examples

Step-By-Step Configuration of FVS318 or FVM318 Gateway A

1. Log in to the FVS318 or FVM318 labeled Gateway A as in the illustration.

Out of the box, the FVS318 or FVM318 is set for its default LAN address of

http://192.168.0.1 with its default user name of admin and default password of password. For

this example we will assume you have set the local LAN address as 10.5.6.1 for Gateway A

and have set your own password.

Figure G-2: NETGEAR FVS318 VPN Settings Pre-Configuration

Gateway A

22.23.24.25

14.15.16.17

10.5.6.0/24 172.23.9.0/24

172.23.9.110.5.6.1

WAN IP WAN IP LAN IPLAN IP

Gateway B

VPNC Example

Network Interface Addressing

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P G-3

March 2004, 202-10027-01

2. Click the VPN Settings link on the left side of the Settings management GUI. Click the radio

button of the first available VPN leg (all 8 links are available in the example). Click the Edit

button below. This will take you to the VPN Settings – Main Mode Menu.

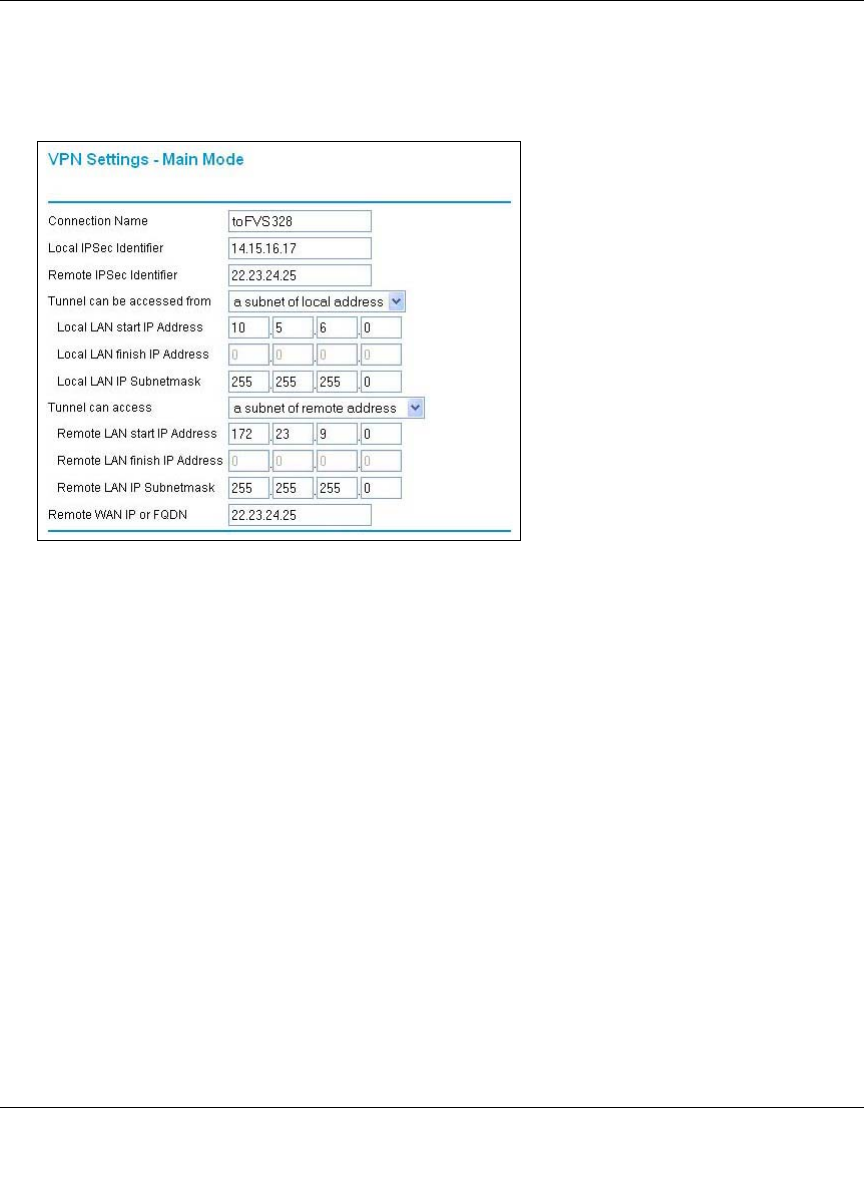

Figure G-3: Figure 3 – NETGEAR FVS318 VPN Settings (part 1) – Main Mode

– In the Connection Name box, enter in a unique name for the VPN tunnel to be configured

between the NETGEAR devices. For this example we have used toFVS328.

– Enter a Local IPSec Identifier name for the NETGEAR FVS318 Gateway A. This name

must be entered in the other endpoint as Remote IPSec Identifier. In this example we used

14.15.16.17 as the local identifier.

– Enter a Remote IPSec Identifier name for the remote NETGEAR FWG114P Gateway B.

This name must be entered in the other endpoint as Local IPSec Identifier. In this example

we used 22.23.24.25 as the remote identifier.

– Choose a subnet from local address from the “Tunnel can be accessed from” pull-down

menu.

– Type the starting LAN IP Address of Gateway A (10.5.6.1 in our example) in the Local IP

Local LAN start IP Address field.

– Type the finishing LAN IP Address of Gateway A (0.0.0.0 in our example) in the Local IP

Local LAN finish IP Address field.

– Type the LAN Subnet Mask of Gateway A (255.255.255.0 in our example) in the Local

LAN IP Subnetmask field.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

G-4 NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

March 2004, 202-10027-01

– Choose a subnet from local address from the “Tunnel can access” pull-down menu.

– Type the starting LAN IP Address of Gateway B (172.23.9.1 in our example) in the Local

IP Remote LAN Start IP Address field.

– Type the finishing LAN IP Address of Gateway B (0.0.0.0 in our example) in the Local IP

Remote LAN Finish IP Address field.

– Type the LAN Subnet Mask of Gateway B (255.255.255.0 in our example) in the Remote

LAN IP Subnetmask field.

– Type the WAN IP address (22.23.24.25 in our example) of Gateway B in the Remote

WAN IP or FQDN field.

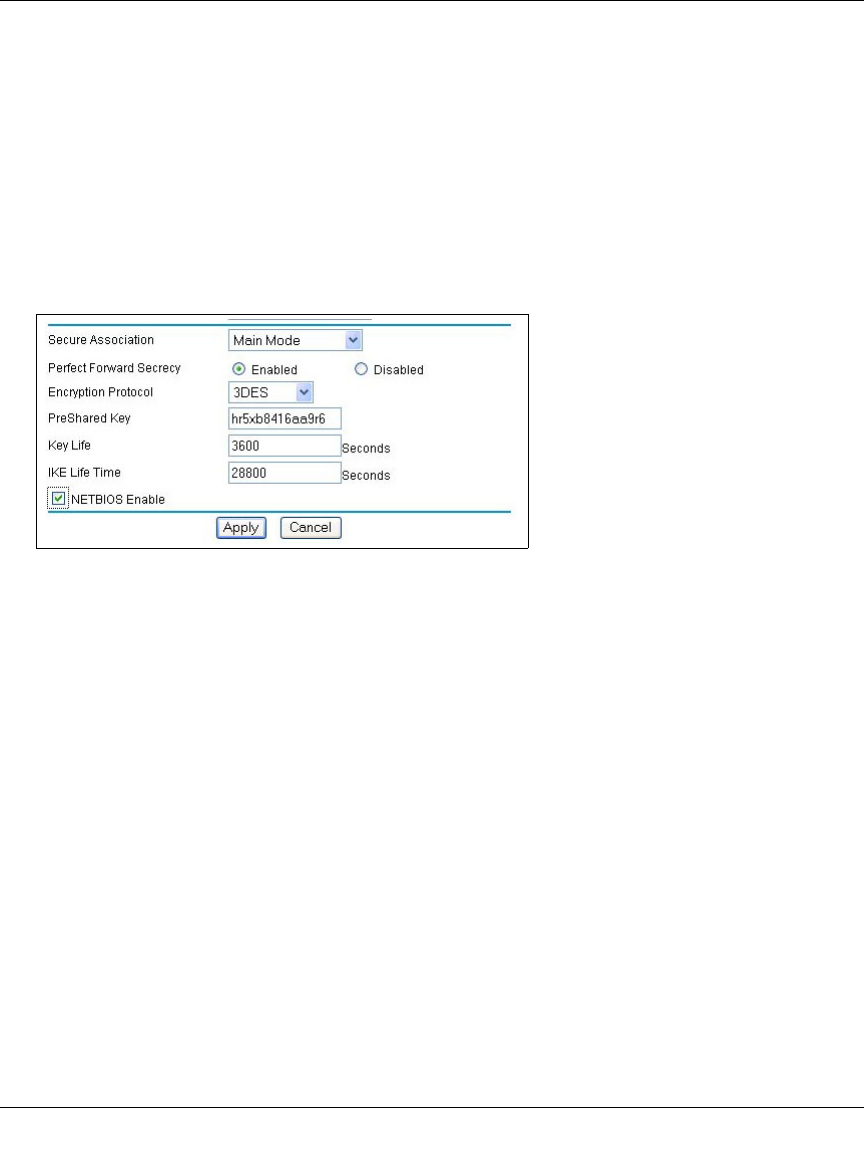

Figure G-4: Figure 4 – NETGEAR FVS318 VPN Settings (part 2) – Main Mode

– From the Secure Association drop-down box, select Main Mode.

– Next to Perfect Forward Secrecy, select the Enabled radio button.

– From the Encryption Protocol drop-down box, select 3DES.

– In the PreShared Key box, type a unique text string to be used as the shared key between

Gateway A and Gateway B. In this example we used hr5xb84l6aa9r6. You must make

sure the key is the same for both gateways.

– In the Key Life box, enter in 3600 seconds.

– In the IKE Life Time, enter 28800 seconds.

– Check the NETBIOS Enable box if you wish to pass NetBIOS traffic over the VPN

tunnel, allowing functions, such as Microsoft Network Neighborhood browsing.

3. Click the Apply button in the lower center of the screen to save all changes and return to the

VPN Settings screen.

4. When the screen returns to the VPN Settings, make sure the Enable check box is selected.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P G-5

March 2004, 202-10027-01

Step-By-Step Configuration of FWG114P Gateway B

1. Log in to the NETGEAR FVS328 labeled Gateway B as in the illustration.

Out of the box, the FVS328 is set for its default LAN address of http://192.168.0.1, with its

default user name of admin and default password of password. For this example we will

assume you have set the local LAN address as 172.23.9.1 for Gateway B and have set your

own user name and password.

2. Click the IKE Policies link under the VPN category link on the left side of the Settings

management GUI. This will open the IKE Policies Menu. Click Add. This will open a new

screen titled IKE Policy Configuration.

Figure G-5: NETGEAR FVS328 IKE Policy Configuration – Part 1

– Enter an appropriate name for the policy in the Policy Name field. This name is not

supplied to the remote VPN Endpoint. It is used to help you manage the IKE policies. In

our example we have used FVS318 as the Policy Name. In the Policy Name field type

FVS318.

– From the Direction/Type drop-down box, select Both Directions.

– From the Exchange Mode drop-down box, select Main Mode.

– From the Local Identity drop-down box, select WAN IP Address (WAN IP address will

automatically be populated into the Local Identity Data field after policy is applied).

– From the Remote Identity drop-down box, select Remote WAN IP (WAN IP address will

automatically be populated into the Local Identity Data field after policy is applied).

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

G-6 NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

March 2004, 202-10027-01

Figure G-6: NETGEAR FVS328 IKE Policy Configuration – Part 2

– From the Encryption Algorithm drop-down box, select 3DES.

– From the Authentication Algorithm drop-down box, select MD5.

– From the Authentication Method radio button, select Pre-shared Key.

– In the Pre-Shared Key field, type hr5xb84l6aa9r6. You must make sure the key is the

same for both gateways.

– From the Diffie-Hellman (DH) Group drop-down box, select Group 1 (768 Bit).

– In the SA Life Time field, type 28800.

3. Click the Apply Button. This will bring you back to the IKE Policies Menu.

Figure G-7: NETGEAR FVS328 IKE Policies (Post Configuration)

The FVS318 IKE Policy is now displayed in the IKE Policies page.

4. Click the VPN Policies link under the VPN category link on the left side of the Settings

management GUI. This will take you to the VPN Policies Menu page. Click Add Auto Policy.

This will open a new screen titled VPN – Auto Policy.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P G-7

March 2004, 202-10027-01

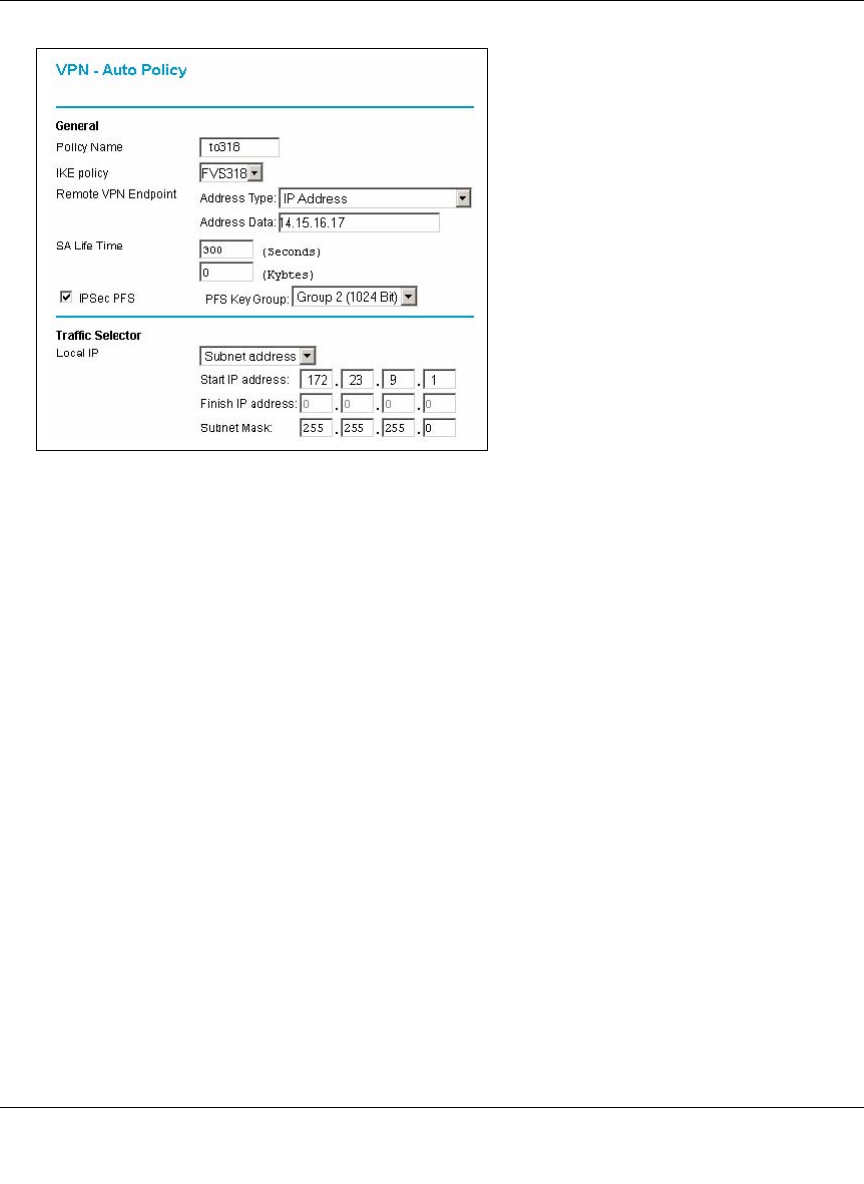

Figure G-8: NETGEAR FVS328 VPN – Auto Policy (part 1)

– Enter a unique name to identify this policy. This name is not supplied to the remote VPN

endpoint. In our example we have used to318 as the Policy Name. In the Policy Name

field type to318.

– From the IKE policy drop-down box, select the IKE Policy that was set up in the earlier

step – this being the FVS318 IKE Policy.

– From the Remote VPN Endpoint Address Type drop-down box, select IP Address.

– Type the WAN IP Address of Gateway A (14.15.16.17 in our example) in the Remote

VPN Endpoint Address Data field.

–Type 300 in the SA Life Time (Seconds) field.

–Type 0 in the SA Life Time (Kbytes) field.

– Check the IPSec PFS check box.

– From the PFS Key Group drop-down box, select Group 2 (1024 Bit).

– From the Traffic Selector Local IP drop-down box, select Subnet address.

– Type the starting LAN IP Address of Gateway B (172.23.9.1 in our example) in the Local

IP Start IP Address field.

– Type the finishing LAN IP Address of Gateway B (0.0.0.0 in our example) in the Local IP

Finish IP Address field.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

G-8 NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

March 2004, 202-10027-01

– Type the LAN Subnet Mask of Gateway B (255.255.255.0 in our example) in the Local IP

Subnet Mask field.

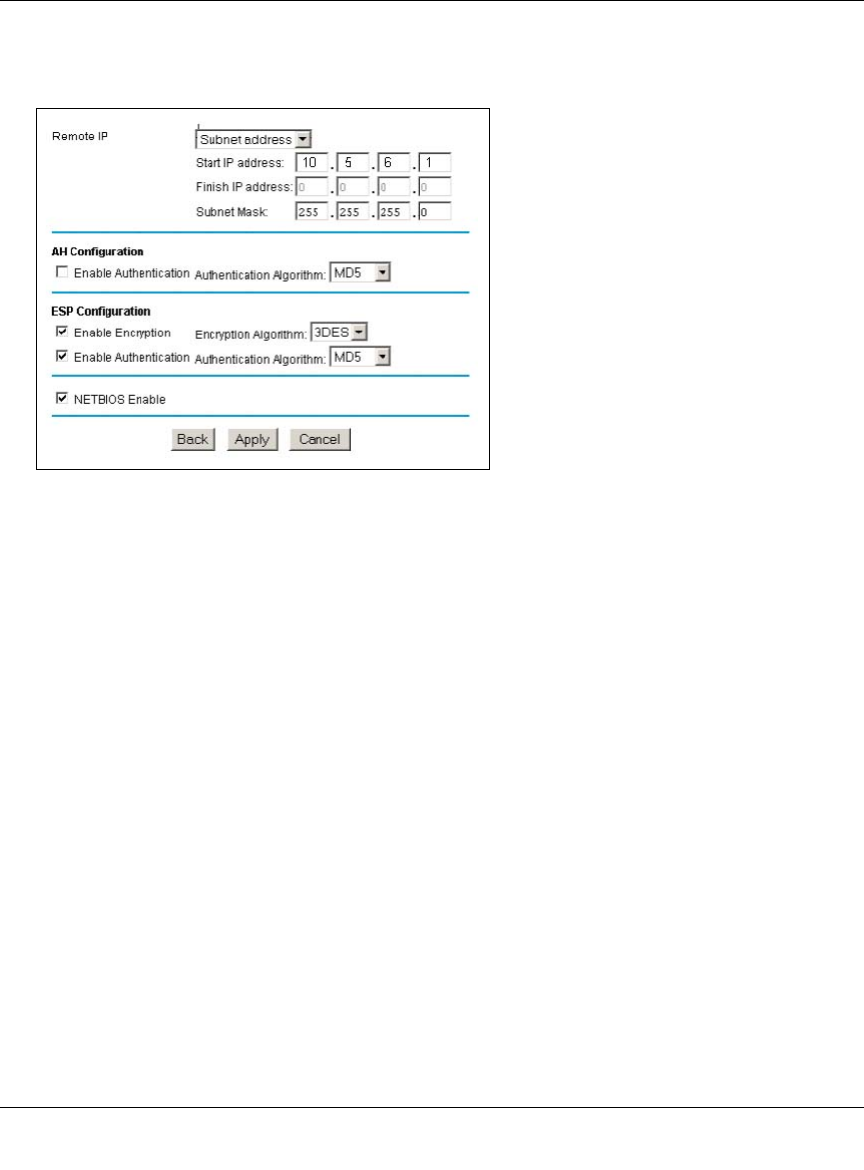

Figure G-9: NETGEAR FWG114P VPN – Auto Policy (part 2)

– From the Traffic Selector Remote IP drop-down box, select Subnet address.

– Type the starting LAN IP Address of Gateway A (10.5.6.1 in our example) in the Remote

IP Start IP Address field.

– Type the finishing LAN IP Address of Gateway A (0.0.0.0 in our example) in the Remote

IP Finish IP Address field.

– Type the LAN Subnet Mask of Gateway A (255.255.255.0 in our example) in the Remote

IP Subnet Mask field.

– From the AH Configuration Authentication Algorithm drop-down box, select MD5.

– Select Enable Encryption in the ESP Configuration Enable Encryption check box.

– From the ESP Configuration Encryption Algorithm drop-down box, select 3DES.

– Select Enable Authentication in the ESP Configuration Enable Authentication check box.

– From the ESP Configuration Authentication Algorithm drop-down box, select MD5.

– Select NETBIOS Enable in the NETBIOS Enable check box.

5. Click the Apply Button. You will be taken back to the VPN Policies Menu page.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P G-9

March 2004, 202-10027-01

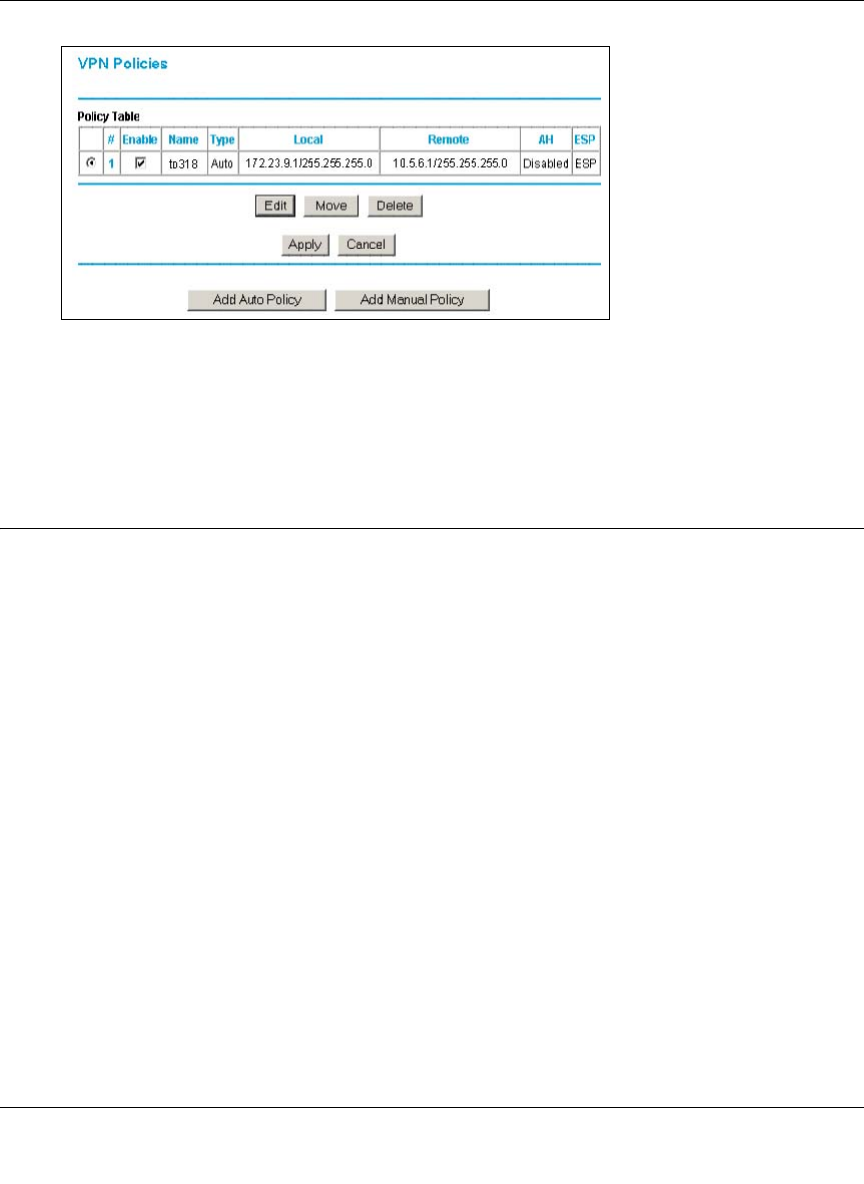

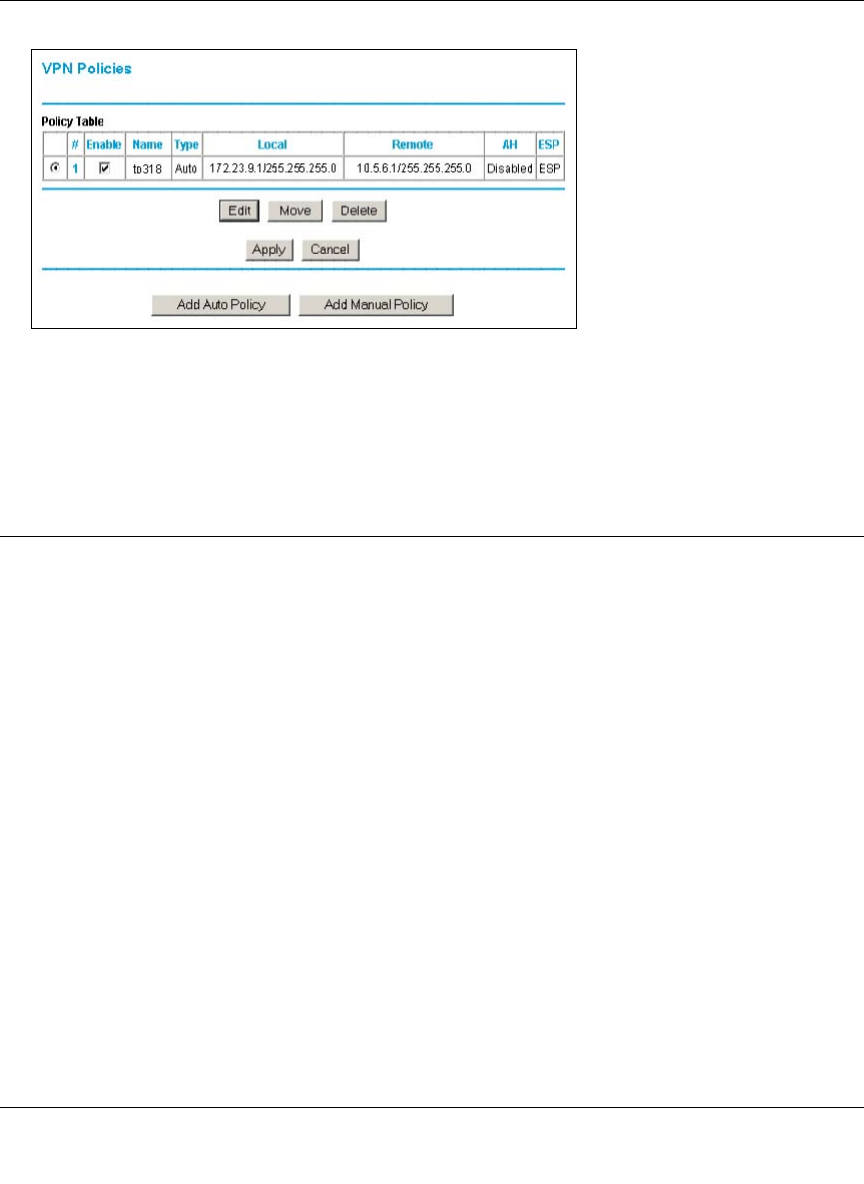

Figure G-10: NETGEAR FWG114P VPN Policies Menu (Post Configuration)

6. When the screen returns to the VPN Policies, make sure the Enable check box is selected.

Click the Apply button.

Test the VPN Connection

1. From a PC behind the NETGEAR FVS318 or FVM318 gateway A attempt to ping the remote

FWG114P gateway B LAN Interface address (example address 172.23.9.1).

2. From a PC behind the FWG114P gateway B attempt to ping the remote NETGEAR FVS318

or FVM318 gateway A LAN Interface address (example address 10.5.6.1).

3. Click the Broadband Status link on the left side of the FWG114P Settings management GUI.

Click the Show VPN Status button below. This will take you to the IPSec Connection Status

Screen. If the connection is functioning properly, the State fields will show “Estab.”

4. Click the Router Status link on the left side of the FVS318 Settings management GUI. Click

the Show VPN Logs button below. NETGEAR log files should be similar to the example

below.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

G-10 NETGEAR VPN Configuration FVS318 or FVM318 to FWG114P

March 2004, 202-10027-01

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-1

March 2004, 202-10027-01

Appendix H

NETGEAR VPN Configuration

FVS318 or FVM318 with FQDN to FVS328

This appendix provides a case study on how to configure a VPN tunnel between a NETGEAR

FVS318 or FVM318 to a FWG114P using a Fully Qualified Domain Name (FQDN) to resolve the

public address of one or both routers. The configurations screens and settings for the FVS318 and

FVM318 are the same.

Configuration Template

The configuration in this document follows the addressing and configuration mechanics defined

by the VPN Consortium. Gather all the necessary information before you begin the configuration

process. Verify whether the firmware is up to date, all of the addresses that will be necessary, and

all of the parameters that need to be set on both sides. Check that there are no firewall restrictions.

Table H-1. Summary

VPN Consortium Scenario: Scenario 1

Type of VPN LAN-to-LAN or Gateway-to-Gateway (not PC/Client-to-Gateway)

Security Scheme: IKE with Preshared Secret/Key (not Certificate-based)

Date Tested: December 2003

Model/Firmware Tested:

NETGEAR-Gateway A FVS318 firmware version A1.4 or 2.0; FVM318 firmware version 1.1

NETGEAR-Gateway B FVS328 with firmware version 1.0 Release 00

IP Addressing:

NETGEAR-Gateway A Fully Qualified Domain Name (FQDN)

NETGEAR-Gateway B Static IP address

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-2 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

Figure H-1: Addressing and Subnet Used for Examples

Using DDNS and Fully Qualified Domain Names (FQDN)

Many ISPs (Internet Service Providers) provide connectivity to their customers using dynamic

instead of static IP addressing. This means that a user’s IP address does not remain constant over

time, which presents a challenge for gateways attempting to establish VPN connectivity.

A Dynamic DNS (DDNS) service allows a user whose public IP address is dynamically assigned

to be located by a host or domain name. It provides a central public database where information

(such as e-mail addresses, host names and IP addresses) can be stored and retrieved. Now, a

gateway can be configured to use a 3rd party service in lieu of a permanent and unchanging IP

address to establish bi-directional VPN connectivity.

To use DDNS, you must register with a DDNS service provider. Example DDNS Service

Providers include:

Table H-1. Example DDNS Service Providers

In this example, Gateway A is configured using an example FQDN provided by a DDNS Service

provider. In this case we established the hostname netgear.dyndns.org for Gateway A using the

DynDNS www.dyndns.org

TZO.com netgear.tzo.com

ngDDNS ngddns.iego.net

Gateway A

22.23.24.25

FQDN

netgear.dydns.org

10.5.6.0/24 172.23.9.0/24

172.23.9.110.5.6.1

WAN IP WAN IP LAN IPLAN IP

Gateway B

VPNC Example

Network Interface Addressing

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-3

March 2004, 202-10027-01

DynDNS service. Gateway B will use the DDNS Service Provider when establishing a VPN

tunnel.

In order to establish VPN connectivity Gateway A must be configured to use Dynamic DNS, and

Gateway B must be configured to use a DNS hostname to find Gateway A provided by a DDNS

Service Provider. Again, the following step-by-step procedures assume that you have already

registered with a DDNS Service Provider and have the configuration information necessary to set

up the gateways.

Step-By-Step Configuration of FVS318 or FVM318 Gateway A

1. Log in to the FVS318 or FVM318 labeled Gateway A as in the illustration.

Out of the box, the FVS318 or FVM318 is set for its default LAN address of

http://192.168.0.1, with its default user name of admin and default password of password.

For this example we will assume you have set the local LAN address as 10.5.6.1 for Gateway

A and have set your own password.

2. Click Dynamic DNS on the left side of the Settings management GUI.

3. Access the Web site of one of the dynamic DNS service providers whose names appear in the

‘Use a dynamic DNS service’ list, and register for an account.

For example, for dyndns.org, click the link or go to www.dyndns.org.

Figure H-2: Dynamic DNS Setup menu

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-4 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

4. Select the Use a dynamic DNS service radio button for the service you are using. In this

example we are using www.DynDNS.org as the service provider.

– Type the Host Name that your dynamic DNS service provider gave you.

The dynamic DNS service provider may call this the domain name. In this example we are

using dyndns.org as the domain suffix.

– Type the User Name for your dynamic DNS account. In this example we used netgear as

the Host Name. This means that the complete FQDN we are using is netgear.dyndns.org

and the Host Name is “netgear.”

– Type the Password (or key) for your dynamic DNS account.

5. Click Apply to save your configuration.

6. Click VPN Settings on the left side of the Settings management GUI.

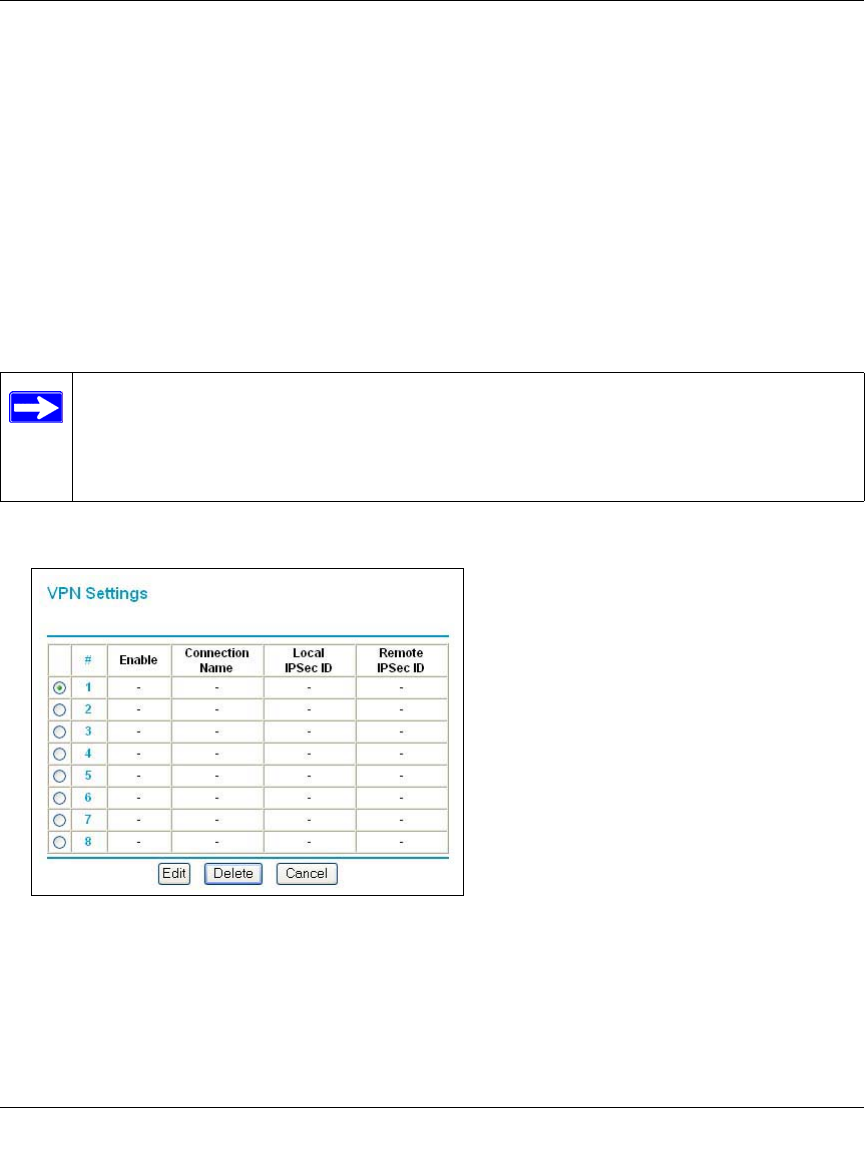

Figure H-3: NETGEAR FVS318 VPN Settings Pre-Configuration

7. Click the radio button of first available VPN leg (all 8 links are available in the example).

Click Edit. This will take you to the VPN Settings – Main Mode Menu.

Note: The router supports only basic DDNS and the login and password may not be

secure. If your ISP assigns a private WAN IP address, such as 192.168.x.x or 10.x.x.x,

the dynamic DNS service will not work because private addresses will not be routed on

the Internet.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-5

March 2004, 202-10027-01

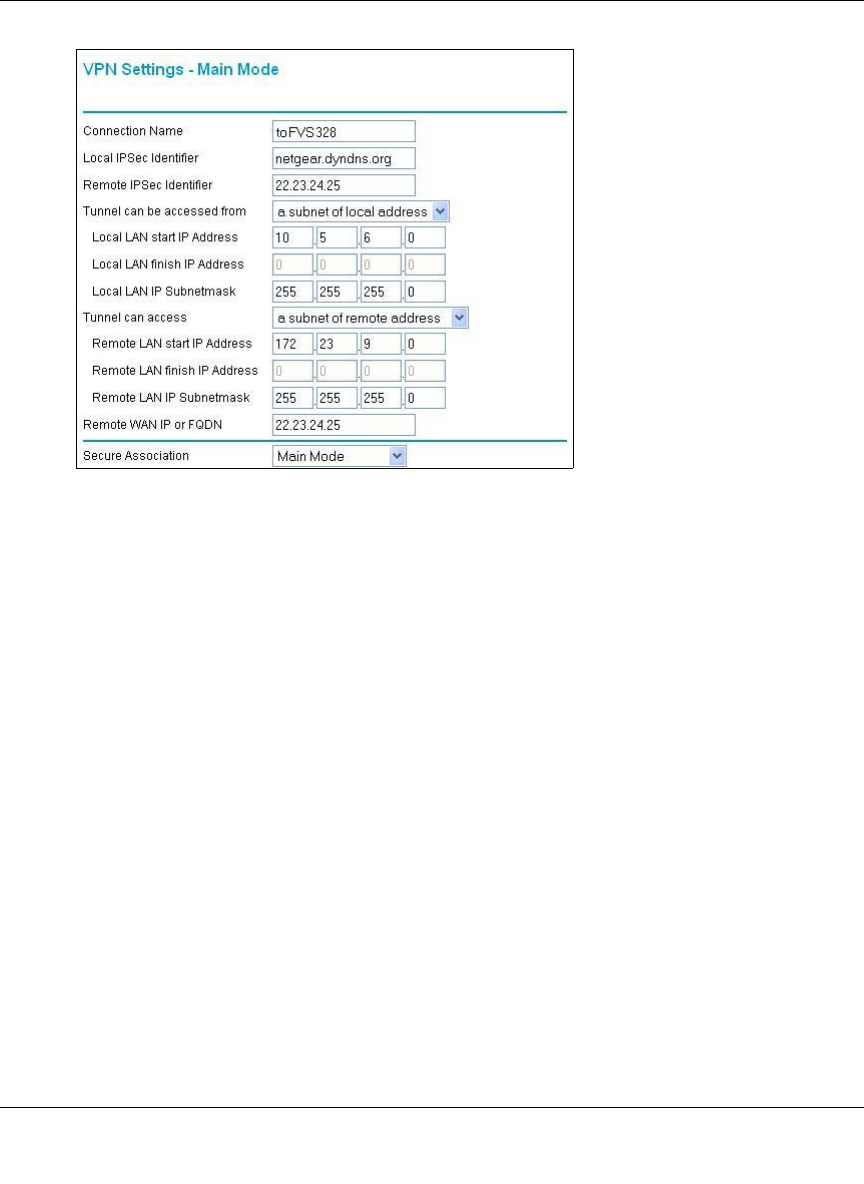

Figure H-4: NETGEAR FVS318 VPN Settings (part 1) – Main Mode

– In the Connection Name box, enter in a unique name for the VPN tunnel to be configured

between the NETGEAR devices. For this example we have used toFVS328.

– Enter a Local IPSec Identifier name for the NETGEAR FVS318 Gateway A. This name

must be entered in the other endpoint as Remote IPSec Identifier. In this example we used

netgear.dyndns.org (the FQDN) as the local identifier.

– Enter a Remote IPSec Identifier name for the remote NETGEAR FVS328 Gateway B.

This name must be entered in the other endpoint as Local IPSec Identifier. In this example

we used 22.23.24.25 as the remote identifier.

– Choose a subnet from local address from the “Tunnel can be accessed” from pull-down

menu.

– Type the starting LAN IP Address of Gateway A (10.5.6.1 in our example) in the Local IP

Local LAN start IP Address field.

– Type the finishing LAN IP Address of Gateway A (0.0.0.0 in our example) in the Local IP

Local LAN finish IP Address field.

– Type the LAN Subnet Mask of Gateway A (255.255.255.0 in our example) in the Local

LAN IP Subnetmask field.

– Choose a subnet from local address from the “Tunnel can access” pull-down menu.

– Type the starting LAN IP Address of Gateway B (172.23.9.1 in our example) in the Local

IP Remote LAN Start IP Address field.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-6 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

– Type the finishing LAN IP Address of Gateway B (0.0.0.0 in our example) in the Local IP

Remote LAN Finish IP Address field.

– Type the LAN Subnet Mask of Gateway B (255.255.255.0 in our example) in the Remote

LAN IP Subnetmask field.

– Type the WAN IP address (22.23.24.25 in our example) of Gateway B in the Remote

WAN IP or FQDN field.

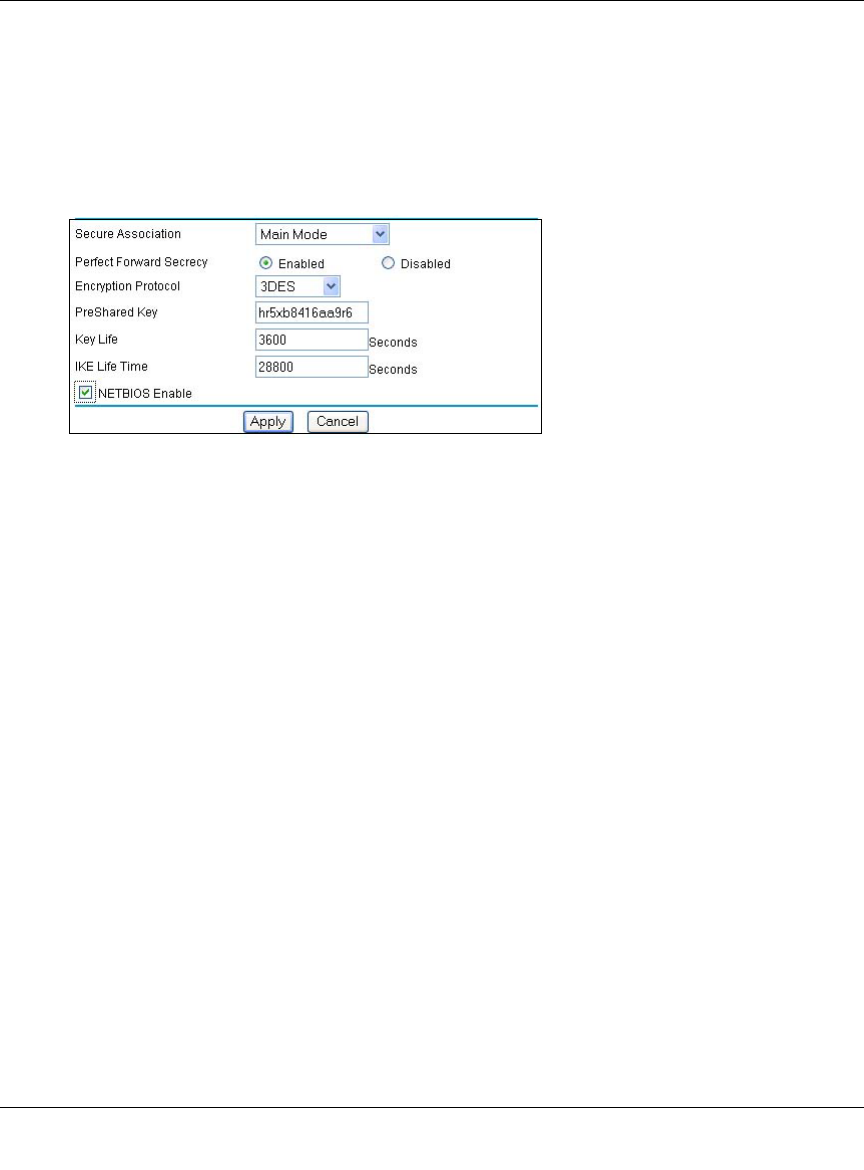

Figure H-5: Figure 4 – NETGEAR FVS318 VPN Settings (part 2) – Main Mode

– From the Secure Association drop-down box, select Main Mode.

– Next to Perfect Forward Secrecy, select the Enabled radio button.

– From the Encryption Protocol drop-down box, select 3DES.

– In the PreShared Key box, type a unique text string to be used as the shared key between

Gateway A and Gateway B. In this example we used hr5xb84l6aa9r6. You must make

sure the key is the same for both gateways.

– In the Key Life box, enter in 3600 seconds.

– In the IKE Life Time, enter 28800 seconds.

– Check the NETBIOS Enable box if you wish to pass NetBIOS traffic over the VPN

tunnel, allowing functions, such as Microsoft Network Neighborhood browsing.

8. Click the Apply button in the lower center of the screen to save all changes and return to the

VPN Settings screen.

9. When the screen returns to the VPN Settings, make sure the Enable check box is selected.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-7

March 2004, 202-10027-01

Step-By-Step Configuration of FVS328 Gateway B

1. Log in to the NETGEAR FVS328, labeled Gateway B in the illustration.

Out of the box, the FVS328 is set for its default LAN address of http://192.168.0.1, with its

default user name of admin and default password of password. For this example we will

assume you have set the local LAN address as 172.23.9.1 for Gateway B.

2. Click IKE Policies link under the VPN category and click Add on the IKE Policies Menu.

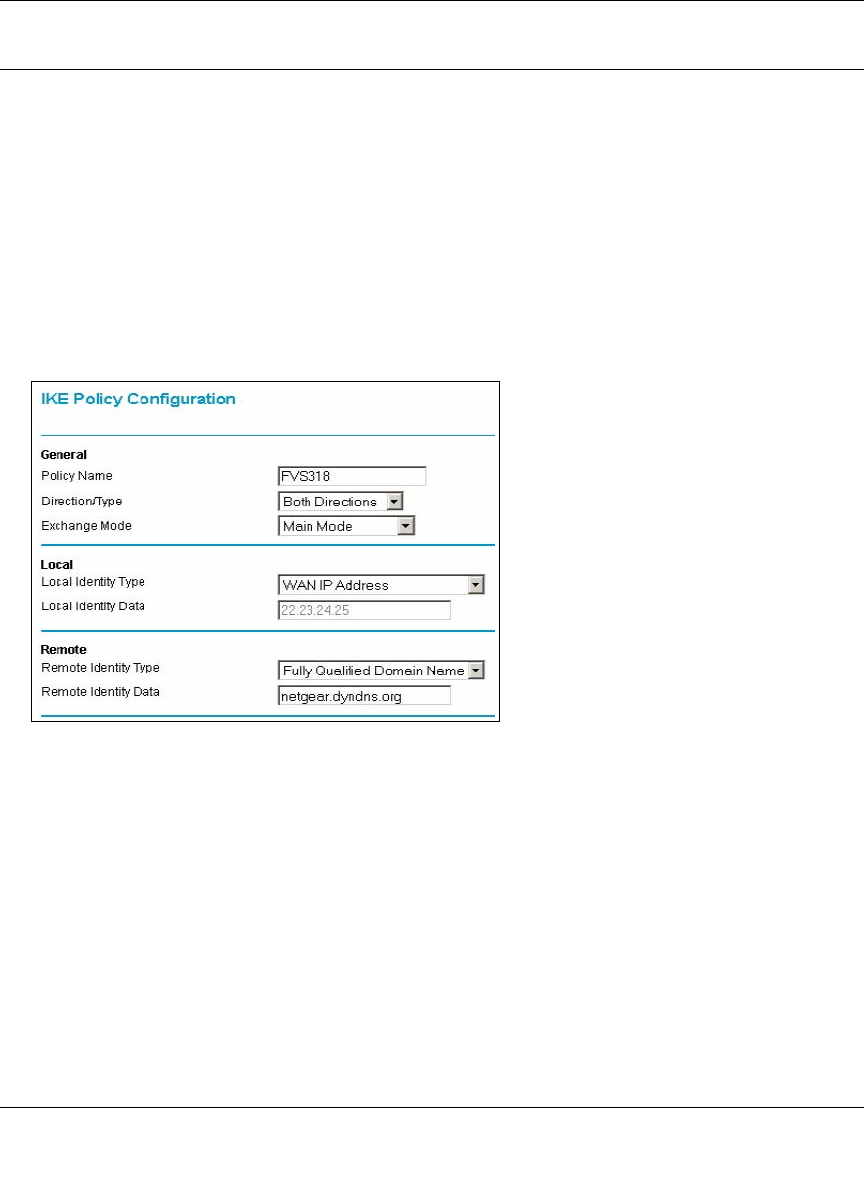

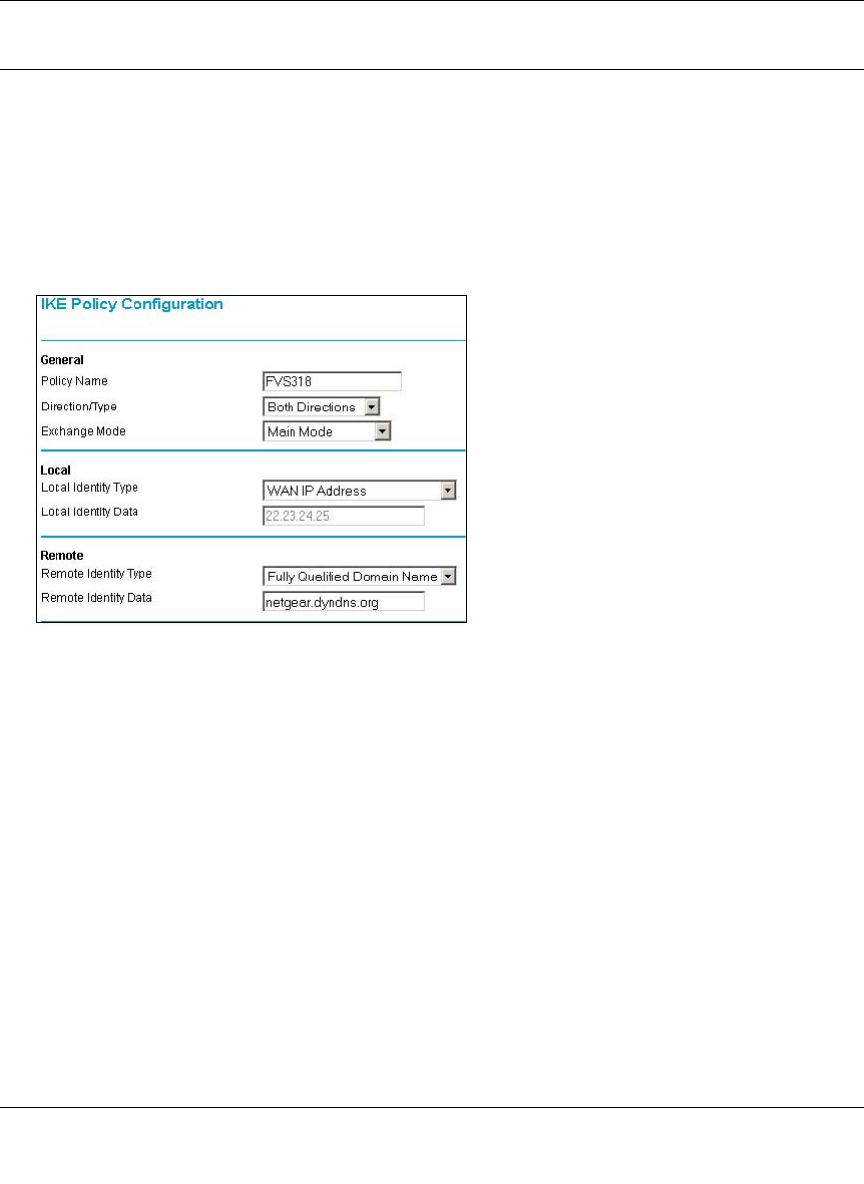

Figure H-6: NETGEAR FVS328 IKE Policy Configuration – Part 1

– Enter an appropriate name for the policy in the Policy Name field. This name is not

supplied to the remote VPN Endpoint. It is used to help you manage the IKE policies. In

our example we have used FVS318 as the Policy Name. In the Policy Name field type

FVS318.

– From the Direction/Type drop-down box, select Both Directions.

– From the Exchange Mode drop-down box, select Main Mode.

– From the Local Identity drop-down box, select WAN IP Address (WAN IP address will

automatically be populated into the Local Identity Data field after policy is applied).

– From the Remote Identity drop-down box, select Fully Qualified Domain Name.

– Type the FQDN (netgear.dnydns.org in our example) in the Remote Identity Data field.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-8 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

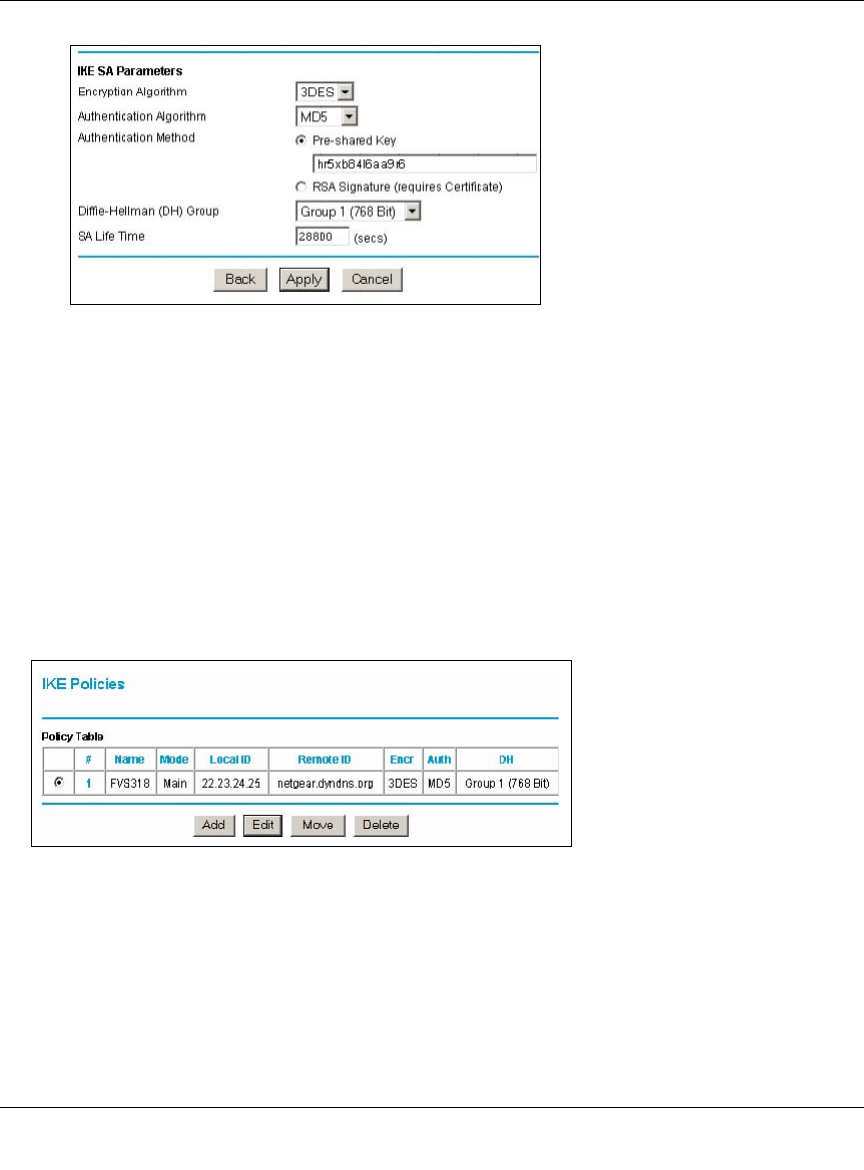

Figure H-7: NETGEAR FVS328 IKE Policy Configuration – Part 2

– From the Encryption Algorithm drop-down box, select 3DES.

– From the Authentication Algorithm drop-down box, select MD5.

– From the Authentication Method radio button, select Pre-shared Key.

– In the Pre-Shared Key field, type hr5xb84l6aa9r6. You must make sure the key is the

same for both gateways.

– From the Diffie-Hellman (DH) Group drop-down box, select Group 1 (768 Bit).

– In the SA Life Time field, type 28800.

3. Click Apply. This will bring you back to the IKE Policies Menu.

Figure H-8: NETGEAR FWG114P IKE Policies (Post Configuration)

The FVS318 IKE Policy is now displayed in the IKE Policies page.

4. Click the VPN Policies link under the VPN category on the left side of the Settings

management GUI. This will take you to the VPN Policies Menu page. Click Add Auto Policy.

This will open a new screen titled VPN – Auto Policy.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-9

March 2004, 202-10027-01

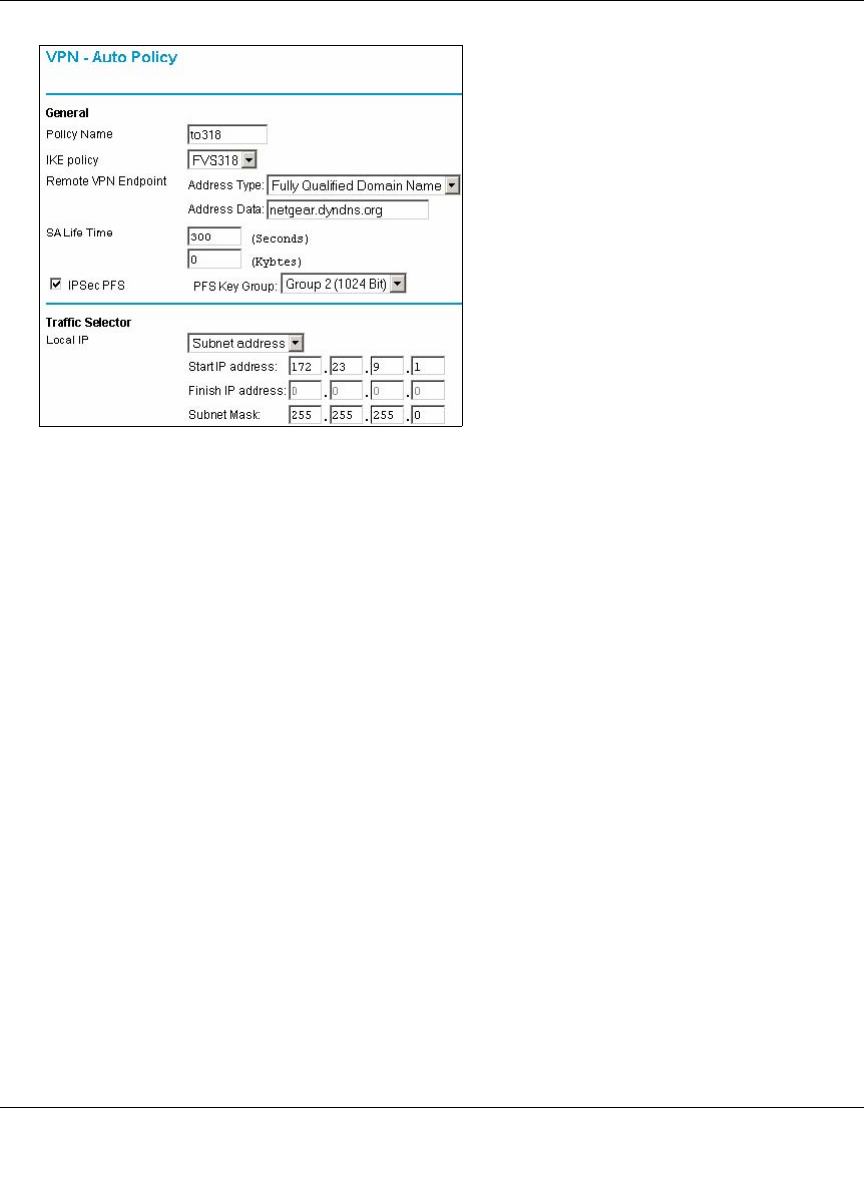

Figure H-9: NETGEAR FVS328 VPN – Auto Policy (part 1)

– Enter a unique name to identify this policy. This name is not supplied to the remote VPN

endpoint. In our example we have used to318 as the Policy Name. In the Policy Name

field type to318.

– From the IKE policy drop-down box, select the IKE Policy that was set up in the earlier

step – the FVS318 IKE Policy.

– From the Remote VPN Endpoint Address Type drop-down box, select IP Address.

– Type the WAN IP Address of Gateway A (14.15.16.17 in our example) in the Remote

VPN Endpoint Address Data field.

–Type 300 in the SA Life Time (Seconds) field.

–Type 0 in the SA Life Time (Kbytes) field.

– Check the IPSec PFS check box.

– From the PFS Key Group drop-down box, select Group 2 (1024 Bit).

– From the Traffic Selector Local IP drop-down box, select Subnet address.

– Type the starting LAN IP Address of Gateway B (172.23.9.1 in our example) in the Local

IP Start IP Address field.

– Type the finishing LAN IP Address of Gateway B (0.0.0.0 in our example) in the Local IP

Finish IP Address field.

– Type the LAN Subnet Mask of Gateway B (255.255.255.0 in our example) in the Local IP

Subnet Mask field.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-10 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

Figure H-10: NETGEAR FVS328 VPN – Auto Policy (part 2)

– From the Traffic Selector Remote IP drop-down box, select Subnet address.

– Type the starting LAN IP Address of Gateway A (10.5.6.1 in our example) in the Remote

IP Start IP Address field.

– Type the finishing LAN IP Address of Gateway A (0.0.0.0 in our example) in the Remote

IP Finish IP Address field.

– Type the LAN Subnet Mask of Gateway A (255.255.255.0 in our example) in the Remote

IP Subnet Mask field.

– From the AH Configuration Authentication Algorithm drop-down box, select MD5.

– Select the Enable Encryption check box.

– From the ESP Configuration Encryption Algorithm drop-down box, select 3DES.

– Select the Enable Authentication check box.

– From the ESP Configuration Authentication Algorithm drop-down box, select MD5.

– Select the NETBIOS Enable check box.

5. Click the Apply Button. You will be taken back to the VPN Policies Menu page.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328 H-11

March 2004, 202-10027-01

Figure H-11: NETGEAR FVS328 VPN Policies Menu (Post Configuration)

6. When the screen returns to the VPN Policies, make sure the Enable check box is selected.

Click the Apply button.

Test the VPN Connection

1. From a PC behind the NETGEAR FVS318 or FVM318 Gateway A, attempt to ping the

remote FWG114P Gateway B LAN Interface address (example address 172.23.9.1).

2. From the FVS318 or FVM318, click the Router Status link on the left side of the Settings

management menu. Click the Show VPN Status button. This will take you to the IPSec

Connection Status Screen. If the connection is functioning properly, the State fields will show

“Estab.”

3. From the FVS328, click the VPN Status link under the VPN section of the main menu. The

VPN Logs and status are displayed.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

H-12 NETGEAR VPN Configuration FVS318 or FVM318 with FQDN to FVS328

March 2004, 202-10027-01

Glossary 1

Glossary

List of Glossary Terms

Use the list below to find definitions for technical terms used in this manual.

10BASE-T

IEEE 802.3 specification for 10 Mbps Ethernet over twisted pair wiring.

100BASE-Tx

IEEE 802.3 specification for 100 Mbps Ethernet over twisted pair wiring.

802.1x

802.1x defines port-based, network access control used to provide authenticated network access and

automated data encryption key management.

The IEEE 802.1x draft standard offers an effective framework for authenticating and controlling user traffic

to a protected network, as well as dynamically varying encryption keys. 802.1x uses a protocol called EAP

(Extensible Authentication Protocol) and supports multiple authentication methods, such as token cards,

Kerberos, one-time passwords, certificates, and public key authentication. For details on EAP specifically,

refer to IETF's RFC 2284.

802.11b

IEEE specification for wireless networking at 11 Mbps using direct-sequence spread-spectrum (DSSS)

technology and operating in the unlicensed radio spectrum at 2.4-2.5GHz.

802.11g

A soon to be ratified IEEE specification for wireless networking at 54 Mbps using direct-sequence

spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz. 802.11g is

backwards compatible with 802.11b.

Access Control List (ACL)

An ACL is a database that an Operating System uses to track each user’s access rights to system objects

(such as file directories and/or files).

Ad-hoc Mode

An 802.11 networking framework in which devices or stations communicate directly with each other,

without the use of an access point (AP). Ad-hoc mode is also referred to as peer-to-peer mode or an

Independent Basic Service Set (IBSS). Ad-hoc mode is useful for establishing a network where wireless

infrastructure does not exist or where services are not required.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

2Glossary

March 2004, 202-10027-01

ADSL

Short for asymmetric digital subscriber line, a technology that allows data to be sent over existing copper

telephone lines at data rates of from 1.5 to 9 Mbps when receiving data (known as the downstream rate) and

from 16 to 640 Kbps when sending data (known as the upstream rate).

ADSL requires a special ADSL modem. ADSL is growing in popularity as more areas around the world

gain access.

ARP

Address Resolution Protocol, a TCP/IP protocol used to convert an IP address into a physical address (called

a DLC address), such as an Ethernet address.

A host wishing to obtain a physical address broadcasts an ARP request onto the TCP/IP network. The host

on the network that has the IP address in the request then replies with its physical hardware address. There is

also Reverse ARP (RARP) which can be used by a host to discover its IP address. In this case, the host

broadcasts its physical address and a RARP server replies with the host's IP address.

Auto Uplink

Auto UplinkTM technology (also called MDI/MDIX) eliminates the need to worry about crossover vs.

straight-through Ethernet cables. Auto UplinkTM will accommodate either type of cable to make the right

connection.

Bandwidth

The information capacity, measured in bits per second, that a channel could transmit. Bandwidth examples

include 10 Mbps for Ethernet, 100 Mbps for Fast Ethernet, and 1000 Mbps (I Gbps) for Gigabit Ethernet.

Baud

The signaling rate of a line, that is, the number of transitions (voltage or frequency changes) made per

second. Also known as line speed.

Broadcast

A packet sent to all devices on a network.

A Certificate Authority is a trusted third-party organization or company that issues digital certificates used

to create digital signatures and public-private key pairs.

Cat 5

Category 5 unshielded twisted pair (UTP) cabling. An Ethernet network operating at 10 Mbits/second

(10BASE-T) will often tolerate low quality cables, but at 100 Mbits/second (10BASE-Tx) the cable must be

rated as Category 5, or Cat 5 or Cat V, by the Electronic Industry Association (EIA).

This rating will be printed on the cable jacket. Cat 5 cable contains eight conductors, arranged in four

twisted pairs, and terminated with an RJ45 type connector. In addition, there are restrictions on maximum

cable length for both 10 and 100 Mbits/second networks.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Glossary 3

March 2004, 202-10027-01

Certificate Authority

A Certificate Authority is a trusted third-party organization or company that issues digital certificates used

to create digital signatures and public-private key pairs.

The role of the CA in this process is to guarantee that the individual granted the unique certificate is, in fact,

who he or she claims to be. Usually, this means that the CA has an arrangement with a financial institution,

such as a credit card company, which provides it with information to confirm an individual's claimed

identity. CAs are a critical component in data security and electronic commerce because they guarantee that

the two parties exchanging information are really who they claim to be.

DHCP

An Ethernet protocol specifying how a centralized DHCP server can assign network configuration

information to multiple DHCP clients. The assigned information includes IP addresses, DNS addresses, and

gateway (router) addresses.

DMZ

Specifying a Default DMZ Server allows you to set up a computer or server that is available to anyone on

the Internet for services that you have not defined. There are security issues with doing this, so only do this

if you are willing to risk open access.

DNS

Short for Domain Name System (or Service), an Internet service that translates domain names into IP

addresses.

Because domain names are alphabetic, they are easier to remember. The Internet however, is really based on

IP addresses. Every time you use a domain name, therefore, a DNS service must translate the name into the

corresponding IP address. For example, the domain name www.example.com might translate to

198.105.232.4. The DNS system is, in fact, its own network. If one DNS server does not know how to

translate a particular domain name, it asks another one, and so on, until the correct IP address is returned.

Domain Name

A descriptive name for an address or group of addresses on the Internet. Domain names are of the form of a

registered entity name plus one of a number of predefined top level suffixes, such as .com, .edu, .uk, and so

on. For example, in the address mail.NETGEAR.com, mail is a server name and NETGEAR.com is the

domain.

DSL

Short for digital subscriber line, but is commonly used in reference to the asymmetric version of this

technology (ADSL) that allows data to be sent over existing copper telephone lines at data rates of from 1.5

to 9 Mbps when receiving data (known as the downstream rate) and from 16 to 640 Kbps when sending data

(known as the upstream rate).

ADSL requires a special ADSL modem. ADSL is growing in popularity as more areas around the world

gain access.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

4Glossary

March 2004, 202-10027-01

Dynamic Host Configuration Protocol

DHCP. An Ethernet protocol specifying how a centralized DHCP server can assign network configuration

information to multiple DHCP clients. The assigned information includes IP addresses, DNS addresses, and

gateway (router) addresses.

EAP

Extensible Authentication Protocol is a general protocol for authentication that supports multiple

authentication methods.

EAP, an extension to PPP, supports such authentication methods as token cards, Kerberos, one-time

passwords, certificates, public key authentication and smart cards. In wireless communications using EAP, a

user requests connection to a WLAN through an AP, which then requests the identity of the user and

transmits that identity to an authentication server, such as RADIUS. The server asks the AP for proof of

identity, which the AP gets from the user and then sends back to the server to complete the authentication.

EAP is defined by RFC 2284.

ESSID

The Extended Service Set Identification (ESSID) is a thirty-two character (maximum) alphanumeric key

identifying the wireless local area network.

Gateway

A local device, usually a router, that connects hosts on a local network to other networks.

IEEE

Institute of Electrical and Electronics Engineers. This American organization was founded in 1963 and sets

standards for computers and communications.

IETF

Internet Engineering Task Force. An organization responsible for providing engineering solutions for TCP/

IP networks. In the network management area, this group is responsible for the development of the SNMP

protocol.

Internet Protocol is the main internetworking protocol used in the Internet. Used in conjunction with the

Transfer Control Protocol (TCP) to form TCP/IP.

IP Address

A four-byte number uniquely defining each host on the Internet, usually written in dotted-decimal notation

with periods separating the bytes (for example, 134.177.244.57).

Ranges of addresses are assigned by Internic, an organization formed for this purpose.

ISP

Internet service provider.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Glossary 5

March 2004, 202-10027-01

Internet Protocol

The main internetworking protocol used in the Internet. Used in conjunction with the Transfer Control

Protocol (TCP) to form TCP/IP.

LAN

A communications network serving users within a limited area, such as one floor of a building.

local area network

LAN. A communications network serving users within a limited area, such as one floor of a building.

A LAN typically connects multiple personal computers and shared network devices, such as storage and

printers. Although many technologies exist to implement a LAN, Ethernet is the most common for

connecting personal computers.

MAC address

The Media Access Control address is a unique 48-bit hardware address assigned to every network interface

card. Usually written in the form 01:23:45:67:89:ab.

Mbps

Megabits per second.

MD5

MD5 creates digital signatures using a one-way hash function, meaning that it takes a message and converts

it into a fixed string of digits, also called a message digest.

When using a one-way hash function, one can compare a calculated message digest against the message

digest that is decrypted with a public key to verify that the message has not been tampered with. This

comparison is called a “hashcheck.”

MDI/MDIX

In cable wiring, the concept of transmit and receive are from the perspective of the computer, which is wired

as a Media Dependant Interface (MDI). In MDI wiring, a computer transmits on pins 1 and 2. At the hub,

switch, router, or access point, the perspective is reversed, and the hub receives on pins 1 and 2. This wiring

is referred to as Media Dependant Interface - Crossover (MDI-X). See also Auto Uplink.

MTU

The size in bytes of the largest packet that can be sent or received.

NAT

A technique by which several hosts share a single IP address for access to the Internet.

NetBIOS

Network Basic Input Output System. An application programming interface (API) for sharing services

and information on local-area networks (LANs). Provides for communication between stations of a

network where each station is given a name. These names are alphanumeric names, 16 characters in length.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

6Glossary

March 2004, 202-10027-01

netmask

Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local

to it, and which must be reached through a gateway or router.

A number that explains which part of an IP address comprises the network address and which part is the host

address on that network. It can be expressed in dotted-decimal notation or as a number appended to the IP

address. For example, a 28-bit mask starting from the MSB can be shown as 255.255.255.192 or as /28

appended to the IP address.

Network Address Translation

A technique by which several hosts share a single IP address for access to the Internet.

packet

A block of information sent over a network. A packet typically contains a source and destination network

address, some protocol and length information, a block of data, and a checksum.

Point-to-Point Protocol

PPP. A protocol allowing a computer using TCP/IP to connect directly to the Internet.

PPP

A protocol allowing a computer using TCP/IP to connect directly to the Internet.

PPPoA

PPPoA. PPP over ATM is a protocol for connecting remote hosts to the Internet over an always-on

connection by simulating a dial-up connection.

PPPoE

PPPoE. PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an always-on

connection by simulating a dial-up connection.

PPP over ATM

PPPoA. PPP over ATM is a protocol for connecting remote hosts to the Internet over an always-on

connection by simulating a dial-up connection.

PPP over Ethernet

PPPoE. PPP over Ethernet is a protocol for connecting remote hosts to the Internet over an always-on

connection by simulating a dial-up connection.

PPTP

Point-to-Point Tunneling Protocol. A method for establishing a virtual private network (VPN) by embedding

Microsoft’s network protocol into Internet packets.

PSTN

Public Switched Telephone Network.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

Glossary 7

March 2004, 202-10027-01

RADIUS

Short for Remote Authentication Dial-In User Service, RADIUS is an authentication system.

Using RADIUS, you must enter your user name and password before gaining access to a network. This

information is passed to a RADIUS server, which checks that the information is correct, and then authorizes

access. Though not an official standard, the RADIUS specification is maintained by a working group of the

IETF.

RIP

A protocol in which routers periodically exchange information with one another so that they can determine

minimum distance paths between sources and destinations.

router

A device that forwards data between networks. An IP router forwards data based on IP source and

destination addresses.

SSID

A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless

local area network. For the wireless devices in a network to communicate with each other, all devices must

be configured with the same SSID.

This is typically the configuration parameter for a wireless computer card. It corresponds to the ESSID in

the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID.

Subnet Mask

Combined with the IP address, the IP Subnet Mask allows a device to know which other addresses are local

to it, and which must be reached through a gateway or router.

TLS

Short for Transport Layer Security, TLS is a protocol that guarantees privacy and data integrity between

client/server applications communicating over the Internet.

The TLS protocol is made up of two layers. The TLS Record Protocol ensures that a connection is private by

using symmetric data encryption and ensures that the connection is reliable. The second TLS layer is the

TLS Handshake Protocol, which allows authentication between the server and client and the negotiation of

an encryption algorithm and cryptographic keys before data is transmitted or received. Based on Netscape’s

SSL 3.0, TLS supercedes and is an extension of SSL. TLS and SSL are not interoperable.

Universal Plug and Play

UPnP. A networking architecture that provides compatibility among networking technology. UPnP

compliant routers provide broadband users at home and small businesses with a seamless way to participate

in online games, videoconferencing and other peer-to-peer services.

UTP

Unshielded twisted pair is the cable used by 10BASE-T and 100BASE-Tx Ethernet networks.

Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P

8Glossary

March 2004, 202-10027-01

WAN

A long distance link used to extend or connect remotely located local area networks. The Internet is a large

WAN.

WEP

Wired Equivalent Privacy is a data encryption protocol for 802.11b wireless networks.

All wireless nodes and access points on the network are configured with a 64-bit or 128-bit Shared Key for

data encryption.

wide area network

WAN. A long distance link used to extend or connect remotely located local area networks. The Internet is a

large WAN.

Wi-Fi

A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility

Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among

802.11b devices.

Windows Internet Naming Service

WINS. Windows Internet Naming Service is a server process for resolving Windows-based computer names

to IP addresses.

If a remote network contains a WINS server, your Windows PCs can gather information from that WINS

server about its local hosts. This allows your PCs to browse that remote network using the Windows

Network Neighborhood feature.

WINS

WINS. Windows Internet Naming Service is a server process for resolving Windows-based computer names

to IP addresses.

Wireless Network Name (SSID)

Wireless Network Name (SSID) is the name assigned to a wireless network. This is the same as the SSID or

ESSID configuration parameter.

WPA

Wi-Fi Protected Access (WPA) is a specification of standards-based, interoperable security enhancements

that increase the level of data protection and access control for existing and future wireless LAN systems.

Index 1

Numerics

802.11b E-1

Account Name 3-10, 3-12, 3-18

Address Resolution Protocol B-9

Addressing F-7

ad-hoc mode E-2

Austria 3-18

Authentication Header (AH) F-3, F-4

Auto MDI/MDI-X B-15, G-2

Auto Uplink 2-4, B-15, G-2

backup configuration 9-7

Basic Wireless Connectivity 4-9

BigPond 3-18

BSSID E-2

CA 8-26

Cabling B-11

Cat5 cable 3-1, B-12, G-2

Certificate Authority 8-26

Classical IP 2-5

configuration

automatic by DHCP 2-5

backup 9-7

erasing 9-8

restore 9-6

router, initial 3-1

Connection Monitor 8-46

content filtering 2-3, 6-1

crossover cable 2-4, 11-2, B-14, B-15, G-2

date and time 11-7

Daylight Savings Time 11-7

daylight savings time 6-13

Default DMZ Server 10-2

Denial of Service (DoS) protection 2-3

denial of service attack B-11

DHCP B-10

DHCP Client ID C-7

DMZ 2-4, 10-2

DMZ Server 10-2

DNS Proxy 2-5

DNS server 3-11, 3-12, 3-18, C-11

domain C-11

Domain Name 3-10, 3-12, 3-18

domain name server (DNS) B-9

DoS attack B-11

Enable VPN Passthrough (IPSec, PPTP, L2TP) 6-11

Encapsulating Security Payload F-3

EnterNet C-9

erase configuration 9-8

ESP F-3

ESSID 4-9, E-2

Ethernet 2-4

Ethernet cable B-11

exposed host 10-2

Index

2Index

factory settings, restoring 9-8

firewall features 2-3

Flash memory, for firmware upgrade 2-1

FQDN 2-3

front panel 2-7, 2-8

Fully Qualified Domain Name 2-3

gateway address C-11

General 8-4, 8-7, 8-11

host name 3-10, 3-12, 3-18

IANA

contacting B-2

IETF B-1

Web site address B-7

IKE Security Association F-4

inbound rules 6-6

infrastructure mode E-2

installation 2-5

Internet account

address information C-9

establishing C-9

Internet Key Exchange (IKE) F-3

Internet Protocol security F-1

Internet Service Provider 3-1

Intranets F-1

IP addresses C-10, C-11

and NAT B-7

and the Internet B-2

assigning B-2, B-9

auto-generated 11-3

private B-7

translating B-9

IP configuration by DHCP B-10

IP networking

for Macintosh C-6

for Windows C-2, C-5

IPSec F-1

IPSec Components F-2

IPSec SA negotiation F-9

IPSec Security Features F-2

ISP 3-1

LAN IP Setup Menu 10-5

LEDs

description 2-7

troubleshooting 11-2

logsending 6-13

Log Viewer 8-46

LPD/LPR Printing 7-1

MAC address 11-7, B-9

spoofing 3-12, 3-19, 11-5

Macintosh C-10

configuring for IP networking C-6

DHCP Client ID C-7

network printing 7-1, 7-8

Obtaining ISP Configuration Information C-11

masquerading C-9

MDI/MDI-X B-15, G-2

MDI/MDI-X wiring B-14, G-5

metric 10-9

Modem 5-2

modem 2-2, 2-5, 2-8, 3-14

Modem Type 3-16

NAT C-9

NAT. See Network Address Translation

netmask

translation table B-6

Index 3

Network Address Translation 2-5, B-7, C-9

Network Time Protocol 6-13, 11-7

newsgroup 6-3

NTP 6-13, 11-7

Open System authentication E-2

outbound rules 6-9

package contents 2-6

Passphrase 4-5, 4-11

passphrase 2-2

password

restoring 11-7

PC, using to configure C-12

ping 10-2

PKIX 8-26

port filtering 6-9

port forwarding behind NAT B-8

port numbers 6-3

PPP over Ethernet 2-5, C-9

PPPoE 2-5, 3-10, C-9

PPTP 3-18

Primary DNS Server 3-11, 3-12, 3-14, 3-18

protocols

Address Resolution B-9

DHCP B-10

Routing Information 2-4, B-2

support 2-1

publications, related B-1

range 4-1

rear panel 2-8

remote management 10-10

requirements

hardware 3-1

reserved IP adresses 10-7

restore configuration 9-6

restore factory settings 9-8

Restrict Wireless Access by MAC Address 4-10

RFC

1466 B-7, B-9

1597 B-7, B-9

1631 B-8, B-9

finding B-7

RIP (Router Information Protocol) 10-6

router concepts B-1

Router Status 9-1

Routing Information Protocol 2-4, B-2

RTS Threshold 5-3, 5-5, 5-6

rules

inbound 6-6

outbound 6-9

SA F-4

Secondary DNS Server 3-11, 3-12, 3-14, 3-18

security 2-1, 2-4

Serial 3-16, 5-2

serial 2-1, 2-8

Serial Line Speed 9-3

Serial Port Log 9-3

Serial Port Phone Line Speed 9-3

Serial Port Physical Link Status 9-3

Serial Port PPP IP Address 9-3

Serial Port PPP Link Status 9-3

Serial Port Status 9-3

service blocking 6-9

service numbers 6-4

Setup Wizard 3-1

Shared Key authentication E-3

SMTP 6-14

spoof MAC address 11-5

SSID 4-4, 4-9, 4-10, E-2

stateful packet inspection 2-3, 6-1, B-11

4Index

subnet addressing B-4

subnet mask B-5, C-10, C-11

TCP/IP

configuring C-1, D-1, F-1

network, troubleshooting 11-5

TCP/IP properties

verifying for Macintosh C-8

verifying for Windows C-5, C-6

Telstra 3-18

Testing and Troubleshooting F-11

time of day 11-7

time zone 6-13

time-stamping 6-13

Transport Mode F-5

troubleshooting 11-1

Trusted Host 6-3

Tunnel Mode F-5

Universal Plug and Play 10-11

Uplink switch B-14

UPnP 10-11

USB C-9

USB 2.0 2-8

VPN F-1

VPN Consortium F-6

VPN Process Overview F-7

VPNC IKE Phase I Parameters F-10

VPNC IKE Phase II Parameters F-11

WEP E-3

Wi-Fi E-1

Windows, configuring for IP routing C-2, C-5

winipcfg utility C-5

WinPOET C-9

Wired Equivalent Privacy. See WEP

Wireless Ethernet E-1

Wireless Security 4-2

Netgear orporated FWG114PV2 ProSafe 802.11g Wireless Firewall/Print Server User Manual FullManual

Netgear Incorporated ProSafe 802.11g Wireless Firewall/Print Server FullManual

Contents

Users Manual Part 3

Navigation menu

Namespaces

Views

Navigation
