Users Manual Part 2
![](/img.php?id=2497865&img=bg1.png)
66
Using Menus
Image Mode (Image Size and Quality)
* This setting can also be changed in shooting modes other than auto. The changed
setting is also applied to other shooting modes.
Select the combination of image size and compression ratio to be used when
saving images.
The higher the image mode setting, the larger the size at which it can be
printed, and the lower the compression ratio, the higher the quality of the
images, but the number of images that can be saved is reduced.
* The numerical values indicate the number of pixels that are captured.
Example: x 5152×3864 = approx. 20 megapixels, 5152 × 3864 pixels
The Shooting Menu (for A (Auto) Mode)
Enter shooting mode* M d button M Image mode M k button
Option* Compression ratio
Aspect ratio
(horizontal to
vertical)
w 5152×3864PApprox. 1:4 4:3
x 5152×3864 (default setting) Approx. 1:8 4:3
i 3648×2736 Approx. 1:8 4:3
r 2272×1704 Approx. 1:8 4:3
q 1600×1200 Approx. 1:8 4:3
O 640×480 Approx. 1:8 4:3
z 5120×2880 Approx. 1:8 16:9
s 3864×3864 Approx. 1:8 1:1
![](/img.php?id=2497865&img=bg2.png)
67
Using Menus
BNotes About Printing Images at 1:1 Aspect Ratio
Change the printer setting to “Border” when printing images at a 1:1 aspect ratio.
Some printers may not be able to print images at a 1:1 aspect ratio.
BNotes About Image Mode
This function may not be available to use in combination with other functions
(A48).
CNumber of Images That Can Be Saved
•The approximate number of images that can be saved can be checked in the
monitor when shooting (A10).
•Note that due to JPEG compression, the number of images that can be saved may
vary greatly depending on the image content, even when using memory cards
with the same capacity and the same image mode setting. In addition, the number
of images that can be saved may vary depending on the make of the memory card.
•If the number of exposures remaining is 10,000 or more, the number of exposures
remaining display shows “9999”.
![](/img.php?id=2497865&img=bg3.png)
68
Using Menus
White Balance (Adjusting Hue)
Adjust white balance to suit the light source or weather conditions in order to
make the colors in images match what you see with your eyes.
BNotes About White Balance
•Set the flash to W (off) when white balance is set to any setting other than Auto
and Flash (A35).
•This function may not be available to use in combination with other functions
(A48).
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M White balance M k button
Option Description
aAuto
(default setting) White balance is automatically adjusted.
bPreset manual Use when the desired result is not achieved with Auto,
Incandescent, etc. (A69).
cDaylight Use under direct sunlight.
dIncandescent Use under incandescent lighting.
eFluorescent Use under fluorescent lighting.
fCloudy Use under overcast skies.
gFlash Use with the flash.
![](/img.php?id=2497865&img=bg4.png)
69
Using Menus
Using Preset Manual
Use the procedure below to measure the white balance value under the
lighting used during shooting.
1Place a white or gray reference object under the lighting
that will be used during shooting.
2Use the multi selector HI to
select Preset manual in the
White balance menu, and press
the k button.
•The camera zooms in to the position for
measuring white balance.
3Select Measure.
•To apply the last measured value, select
Cancel and press the k button.
4Frame the white or gray reference
object in the measuring window,
and press the k button to
measure the value.
•The shutter is released and measurement is
complete (no image is saved).
BNotes About Preset Manual
A value for flash lighting cannot be measured with Preset manual. When shooting
using the flash, set White balance to Auto or Flash.
Auto
Auto
Auto
Preset manual
Daylight
Daylight
Daylight
Incandescent
Incandescent
Incandescent
Fluorescent
Fluorescent
Fluorescent
Cloudy
Cloudy
Cloudy
White balance
Preset manual
Cancel
Measure
Preset manual
Cancel
Measure
Measuring window
![](/img.php?id=2497865&img=bg5.png)
70
Using Menus
Continuous Shooting
BNotes About Continuous Shooting
•Focus, exposure, and white balance are fixed at the values determined with the
first image in each series.
•It may take some time to save the images after shooting.
•This function may not be available to use in combination with other functions
(A48).
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M Continuous M k button
Option Description
USingle
(default setting)
One image is captured each time the shutter-release
button is pressed.
V Continuous
While the shutter-release button is held all the way down,
images are captured continuously.
•The frame rate for continuous shooting is about #.# fps
and the maximum number of continuous shots is about
# (when image mode is set to x 5152×3864).
![](/img.php?id=2497865&img=bg6.png)
71
Using Menus
ISO Sensitivity
A higher ISO sensitivity allows darker subjects to be captured. Additionally,
even with subjects of similar brightness, pictures can be taken at faster shutter
speeds, and blurring caused by camera shake and subject movement can be
reduced.
•When a higher ISO sensitivity is set, images may contain noise.
BNotes About ISO Sensitivity
This function may not be available to use in combination with other functions
(A48).
BNotes About ISO 3200
When ISO sensitivity is set to 3200, the available
Image mode settings are limited to r
2272×1704, q 1600×1200, and O 640×480. X
is displayed next to the ISO sensitivity indicator in
the monitor.
CISO Sensitivity Display on the Shooting Screen
•When Auto is selected, E is displayed when the ISO sensitivity increases.
•When Fixed range auto is selected, the maximum value for ISO sensitivity is
displayed.
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M ISO sensitivity M k button
Option Description
a Auto
(default setting)
Sensitivity is automatically selected from the range of
ISO 80 to 1600.
I Fixed range auto
Select the range in which the camera automatically
adjusts ISO sensitivity, from ISO 80-400 or ISO 80-
800.
80, 100, 200, 400, 800,
1600, 3200 Sensitivity is locked at the specified value.
3200
3200
![](/img.php?id=2497865&img=bg7.png)
72
Using Menus
AF Area Mode
Set how the camera selects the focus area for autofocus.
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M AF area mode M k button
Option Description
aFace priority
When the camera detects
a human face, it focuses
on that face.
See “Using Face
Detection” (A43) for
more information.
When framing a
composition with no
human subjects or
detected faces, the
camera automatically
selects one or more of the
nine focus areas
containing the subject
closest to the camera
when the shutter-release
button is pressed halfway.
xManual
Use the multi selector
HIJK to move the
focus area to where you
want to focus.
•To use the multi
selector to configure
the flash mode or other
settings, press the k
button. To return to
moving the focus area,
press the k button
again.
14001400
8
m
0s8
m
0s
Focus area
F3.7F3.7F3.71/2501/250
Focus areas
Scope of movable
focus area
Focus area
![](/img.php?id=2497865&img=bg8.png)
73
Using Menus
BNotes About AF Area Mode
•When digital zoom is in effect, the camera focuses in the center of the frame
regardless of the AF area mode setting.
•This function may not be available to use in combination with other functions
(A48).
yCenter
The camera focuses on
the subject in the center
of the frame.
s Subject
tracking
Use this function to take
pictures of moving
subjects. Register the
subject on which the
camera focuses. The focus
area automatically moves
to track the subject. See
“Using Subject Tracking”
(A74) for more
information.
M Target finding
AF (default setting)
When the camera detects
the main subject, it
focuses on that subject.
See “Using Target Finding
AF” (A45) for more
information.
Option Description
8
m
0s
8
m
0s
1400
1400
Focus area
Start
1400
1400
F3.7
F3.7
F3.7
1/250
1/250
Focus areas
![](/img.php?id=2497865&img=bg9.png)
74
Using Menus
Using Subject Tracking
1Register a subject.
•Align the subject that you want to track
with the border in the center of the monitor
and press the k button.
•When the subject is registered, a yellow
border (focus area) is displayed around it
and the camera begins tracking the subject.
•If the subject cannot be registered, the
border is displayed in red. Change the
composition and try registering the subject
again.
•To cancel subject registration, press the k button.
•If the camera can no longer track the registered subject, the focus area
disappears. Register the subject again.
2Press the shutter-release button
fully to take the picture.
•If the shutter-release button is pressed
while the focus area is not displayed, the
camera focuses on the subject in the center
of the frame.
BNotes About Subject Tracking
•If you perform operations such as zooming while the camera is tracking the
subject, the registration is canceled.
•Subject tracking may not be possible in certain shooting conditions.
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M AF area mode M k button M
s Subject tracking M k button M d button
Start
F3.7
F3.7
F3.7
1/250
1/250
![](/img.php?id=2497865&img=bga.png)
75
Using Menus
Autofocus Mode
Set how the camera focuses when shooting still images.
CAutofocus Mode for Movie Recording
Autofocus mode for movie recording can be set with Autofocus mode (A84) in
the movie menu.
Enter shooting mode M A (shooting mode) button M A (auto) mode
M k button M d button M Autofocus mode M k button
Option Description
ASingle AF
(default setting)
The camera focuses only when the shutter-release
button is pressed halfway.
BFull-time AF
The camera continues focusing even when the
shutter-release button is not pressed halfway. The
sound of lens drive movement is heard while the
camera focuses.
![](/img.php?id=2497865&img=bgb.png)
76
Using Menus
•See “Image Mode (Image Size and Quality)” (A66) for information about
Image mode.
Self-Collage
The Smart Portrait Menu
Enter shooting mode M A (shooting mode) button M F Smart portrait
mode M k button M d button M Self-Collage M k button
Option Description
Number of shots
Set the number of shots that the camera
automatically captures (number of captured
images for an aggregated image).
•4 (default setting) or 9 can be selected.
Interval
Set the interval time between each shot.
•Short, Medium (default setting), or Long can
be selected.
Shutter sound
Set whether to activate the shutter sound when
shooting with the self-collage function.
•Standard, SLR, Magic (default setting), or Off
can be selected.
•The same setting that is specified for Shutter
sound in Sound settings in the setup menu
is not applied to this setting.
![](/img.php?id=2497865&img=bgc.png)
77
Using Menus
Blink Proof
BNotes About Blink Proof
This function may not be available to use in combination with other functions
(A48).
Enter shooting mode M A (shooting mode) button M F Smart portrait
mode M k button M d button M Blink proof M k button
Option Description
y On
The camera automatically
releases the shutter twice
with every shot and saves
one image in which the
subject’s eyes are open.
•If the camera saved an
image in which the
subject’s eyes may
have been closed, the
dialog shown on the right is displayed for a few seconds.
•The flash cannot be used.
Off (default setting) Turns the blink proof off.
A blink was detected in the
picture just taken.
![](/img.php?id=2497865&img=bgd.png)
78
Using Menus
•See “Editing Images (Still Images)” (A53) for information about image
editing functions.
Mark for Wi-Fi Upload
Select images in the camera that you want to transfer to a smart device in
advance before transferring them.
On the image selection screen (A82), select or deselect images for the Mark
for Wi-Fi upload function.
Note that when you select Reset all (A99) in the setup menu or Restore
default settings (A86) in the Wi-Fi options menu, the Mark for Wi-Fi upload
settings that you made are canceled.
The Playback Menu
Press the c button (playback mode) M d button MMark for Wi-Fi
upload M k button
![](/img.php?id=2497865&img=bge.png)
79
Using Menus
Slide Show
Play back images one by one in an automated “slide show.” When movie files
are played back in the slide show, only the first frame of each movie is
displayed.
1Use the multi selector HI to
select Start and press the k
button.
•The slide show begins.
•To change the interval between images,
select Frame intvl, press the k button,
and specify the desired interval time before
selecting Start.
•To repeat the slide show automatically, select Loop and press the k button
before selecting Start.
•The maximum playback time is up to about 30 minutes even if Loop is
enabled.
2End or restart the slide show.
•The screen shown on the right is displayed
after the slide show ends or is paused. To
exit the show, select G and then press the
k button. To resume the slide show, select
F and then press the k button.
Operations During Playback
•Use the multi selector JK to display the previous/next image. Press and
hold to rewind/fast forward.
•Press the k button to pause or end the slide show.
Press the c button (playback mode) M d button M Slide show M k
button
Slide show
Frame intvl
Start
Loop
PausePause
![](/img.php?id=2497865&img=bgf.png)
80
Using Menus
Protect
The camera protects selected images from accidental deletion.
Select images to protect or cancel protection from the image selection screen
(A82).
Note that formatting the memory card or the camera’s internal memory
permanently deletes all data including protected files (A96).
Rotate Image
Specify the orientation in which saved images are displayed during playback.
Still images can be rotated 90 degrees clockwise or 90 degrees
counterclockwise.
Select an image from the image selection screen (A82). When the Rotate
image screen is displayed, press the multi selector JK to rotate the image 90
degrees.
Press the k button to finalize display orientation, and save orientation
information with the image.
Press the c button (playback mode) M d button M Protect M k
button
Press the c button (playback mode) M d button M Rotate image M
k button
Rotate image
BackBack RotateRotate
Rotate image
BackBack RotateRotate
Rotate image
BackBack RotateRotate
Rotate 90 degrees
counterclockwise
Rotate 90 degrees
clockwise
![](/img.php?id=2497865&img=bg10.png)
81
Using Menus
Copy (Copy Between the Memory Card and
Internal Memory)
Images can be copied between a memory card and the internal memory.
•When a memory card that contains no images is inserted and the camera is
switched to playback mode, Memory contains no images. is displayed. In
that case, press the d button to select Copy.
1Use the multi selector HI to
select a destination option to
which images are copied and
press the k button.
2Select a copy option and press the
k button.
•When you choose Selected images, use the
image selection screen to specify images
(A82).
BNotes About Copying Images
•Only files in formats that this camera can record can be copied.
•Operation is not guaranteed with images captured with another make of camera
or that have been modified on a computer.
Press the c button (playback mode) M d button M Copy M k
button
Camera to card
Card to camera
Copy
Selected images
All images
Camera to card
![](/img.php?id=2497865&img=bg11.png)
82
Using Menus
The Image Selection Screen
When an image selection screen such as the
one shown on the right is displayed while
operating the camera, follow the procedures
described below to select the images.
1Use the multi selector JK to
select an image.
•Move the zoom control (A1) toward g(i)
to switch to full-frame playback or f(h)
to switch to thumbnail playback.
•Only one image can be selected for Rotate
image. Proceed to step 3.
2Use HI to select or deselect (or
to specify the number of copies).
•When an image is selected, an icon is
displayed below the image. Repeat steps 1
and 2 to select additional images.
3Press the k button to apply image selection.
•When a confirmation dialog is displayed, follow the on-screen instructions to
operate.
Protect
BackBack
Protect
BackBack
Protect
BackBack
![](/img.php?id=2497865&img=bg12.png)
83
Using Menus
Movie Options
Select the desired movie option to record. The movie options that can be
selected vary depending on the Video mode setting (A97).
•Memory cards with an SD Speed Class rating of 6 or faster are
recommended for recording movies (A136).
* When recording in the internal memory, the default setting is g 480/30p or
W 480/25p, and f 720/30p or V 720/25p cannot be selected.
The Movie Menu
Enter shooting mode M d button M D menu icon M Movie options
M k button
Option
(Image size/Frame
rate)
Image size Aspect ratio (horizontal to
vertical)
f 720/30p
V 720/25p
(default setting*)
1280 × 720 16:9
g 480/30p
W 480/25p 640 × 480 4:3
u 240/30p
q 240/25p 320 × 240 4:3
![](/img.php?id=2497865&img=bg13.png)
84
Using Menus
Autofocus Mode
Set how the camera focuses in movie mode.
Enter shooting mode M d button M D menu icon M Autofocus mode
M k button
Option Description
A Single AF
(default setting)
Focus is locked when movie recording starts.
Select this option when the distance between the
camera and subject will remain fairly consistent
during movie recording.
B Full-time AF
The camera focuses continuously during movie
recording.
Select this option when the distance between the
camera and subject will change significantly during
recording. The sound of the camera focusing may be
heard in the recorded movie. Use of Single AF is
recommended to prevent the sound of the camera
focusing from interfering with recording.
![](/img.php?id=2497865&img=bg14.png)
85
Using Menus
Movie VR
Select the vibration reduction setting used when recording movies.
Select Off when using a tripod to stabilize the camera during shooting.
BNotes About Movie VR
•The effects of camera shake may not be completely eliminated in some situations.
Wind Noise Reduction
Enter shooting mode M d button M D menu icon M Movie VR M
kbutton
Option Description
V On (hybrid)
(default setting)
Performs optical compensation for camera shake
using lens shift VR and simultaneously performs
electronic VR using image processing. The angle of
view (i.e., the area visible in the frame) becomes
narrower.
g On Performs compensation for camera shake using lens
shift VR.
Off Compensation is not performed.
Enter shooting mode M d button M D menu icon M Wind noise
reduction M kbutton
Option Description
Y On
Reduces the sound that is produced when wind
passes over the microphone during movie recording.
Other sounds may become difficult to hear during
playback.
Off (default setting) Wind noise reduction is disabled.
![](/img.php?id=2497865&img=bg15.png)
86
Using Menus
Configure the Wi-Fi (wireless LAN) settings to connect the camera and a smart
device.
The Wi-Fi Options Menu
Press the d button M J menu icon M k button
Option Description
Connect to
smart
device
Select when wirelessly connecting the camera and a smart device.
See “Using the Wi-Fi (Wireless LAN) Function” (A100) for more
information.
Upload
from
camera
Select when wirelessly connecting the camera and a smart device.
See “Using the Wi-Fi (Wireless LAN) Function” (A100) for more
information.
•Before establishing the wireless connection, select the images to
upload on the image selection screen (A82). After images are
selected, the SSID and password of the camera are displayed on
the screen.
Disable
Wi-Fi
Select to terminate the wireless connection between the camera
and a smart device. See “Using the Wi-Fi (Wireless LAN) Function”
(A100) for more information.
Options
SSID: Change the SSID. The SSID configured here is displayed on
the smart device. Set a 1- to 24-character alphanumeric SSID.
Auth./encryp.: Select whether or not to encrypt the
communications between the camera and the connected smart
device. Communications are not encrypted when Open (default
setting) is selected.
Password: Set the password. Set an 8- to 16-character
alphanumeric password.
Channel: Select the channel used for wireless connections.
Current
settings Display the current settings.
Restore
default
settings
Restore the Wi-Fi settings to their default values. The wireless
connection is terminated if this option is performed while Wi-Fi is
connected.
![](/img.php?id=2497865&img=bg16.png)
87
Using Menus

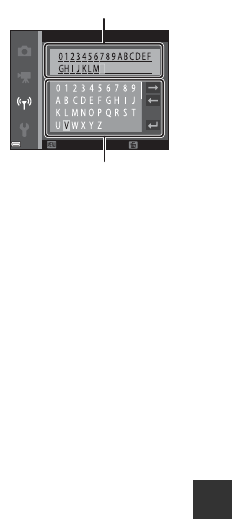

Operating the Text Input Keyboard
•Use the multi selector HIJK to select
alphanumeric characters. Press the k button
to enter the selected character in the text
field and move the cursor to the next space.
•To move the cursor in the text field, select N
or O on the keyboard, and press the k
button.
•To delete one character, press the l button.
•To apply the setting, select P on the
keyboard and press the k button.
SSID
DeleteDeleteBackBack
Text field
Keyboard
![](/img.php?id=2497865&img=bg17.png)
88
Using Menus
Time Zone and Date
Set the camera clock.
Setting the Time Zone
1Use the multi selector HI to
select Time zone and press the k
button.
The Setup Menu
Press the d button M z menu icon M Time zone and date M k
button
Option Description
Date and time
•Select a field: Press the
multi selector JK.
•Edit the date and time:
Press HI.
•Apply the setting: Select
the minute setting and
press the k button.
Date format Select Year/Month/Day, Month/Day/Year, or Day/Month/
Year.
Time zone
Set time zone and daylight saving time.
•When Travel destination (x) is set after having set the
home time zone (w), the time difference between the
travel destination and the home time zone is automatically
calculated, and the date and time are saved for the selected
region.
Date and time
EditEdit
DMYh m
Time zone and date
Date and time
Date format
Time zone
15/11/2015
15
:
30
![](/img.php?id=2497865&img=bg18.png)
89
Using Menus
2Select w Home time zone or x
Travel destination and press the
k button.
•The date and time displayed in the monitor
changes depending on whether the home
time zone or travel destination is selected.
3Press K.
4Use JK to select the time zone.
•Press H to enable daylight saving time
function, and W is displayed. Press I to
disable the daylight saving time function.
•Press the k button to apply the time zone.
•If the correct time is not displayed for the
home or travel destination time zone
setting, set the appropriate time in Date
and time.
Time zone
Home time zone
Travel destination
15/11/2015
15
:
30
Time zone
Home time zone
Travel destination
15/11/2015
15
:
30
BackBack
![](/img.php?id=2497865&img=bg19.png)
90
Using Menus
Monitor Settings
Photo Info
Press the d button M z menu icon M Monitor settings M k button
Option Description
Photo info Set whether or not to display information in the monitor.
Image review
Set whether or not to display the captured image immediately
after shooting.
•Default setting: On
Brightness Adjust the brightness.
•Default setting: 3
Shooting mode Playback mode
Show info
Auto info
(default setting)
The same information as shown in Show info is displayed,
and it is hidden as shown in Hide info if no operations are
performed for a few seconds. The information is displayed
again when an operation is performed.
Hide info
8
m
0s
8
m
0s
1400
1400
4
/
4
4
/
4
15/11/2015 15:30
15/11/2015 15:30
0004.
JPG
0004.
JPG
![](/img.php?id=2497865&img=bg1a.png)
91
Using Menus
Framing
grid+auto info In addition to the information
shown in Auto info, a
framing grid is displayed to
help frame pictures.
The framing grid is not
displayed while recording
movies.
Same as Auto info.
Movie
frame+auto info
In addition to the information
shown in Auto info, a frame
is displayed before movie
recording begins that
represents the area that will
be captured when recording
movies.
The movie frame is not
displayed while recording
movies.
Same as Auto info.
Shooting mode Playback mode
8
m
0s
8
m
0s
1400
1400
4
/
4
4
/
4
15/11/2015 15:30
15/11/2015 15:30
0004.
JPG
0004.
JPG
8
m
0s
8
m
0s
1400
1400
4
/
4
4
/
4
15/11/2015 15:30
15/11/2015 15:30
0004.
JPG
0004.
JPG
![](/img.php?id=2497865&img=bg1b.png)
92
Using Menus
Date Stamp
The shooting date and time can be stamped on
images when shooting. The information can be
printed even when using a printer that does not
support the date imprinting function.
BNotes About Date Stamp
•Stamped dates form a permanent part of image data and cannot be deleted. The
date and time cannot be stamped on images after they have been captured.
•The date and time cannot be stamped in the following situations:
-When using Panorama assist scene mode
- When shooting movies
•The stamped date and time may be difficult to read when using a small image size.
CPrinting a Shooting Date on Images Without a Date Stamp
You can transfer images to a computer and use the ViewNX 2 software (A111) to
imprint the shooting date on the images when they are printed.
Press the d button M z menu icon M Date stamp M k button
Option Description
fDate Date is stamped on images.
SDate and time Date and time are stamped on images.
Off (default setting) Date and time are not stamped on images.
15.11.2015
15.11.2015
![](/img.php?id=2497865&img=bg1c.png)
93
Using Menus
Photo VR
Select the vibration reduction setting used when shooting still images.
Select Off when using a tripod to stabilize the camera during shooting.
BNotes About Photo VR
•After turning on the camera or after switching from playback mode to shooting
mode, wait for the shooting mode screen to be displayed completely before
taking pictures.
•Images in the camera monitor may be displayed blurry immediately after shooting.
•The effects of camera shake may not be completely eliminated in some situations.
Press the d button M z menu icon M Photo VR M k button
Option Description
gOn (default setting) Compensation for camera shake is performed using
lens shift VR.
Off Compensation is not performed.
![](/img.php?id=2497865&img=bg1d.png)
94
Using Menus
AF Assist
Digital Zoom
BNotes About Digital Zoom
•Digital zoom cannot be used in the following shooting modes:
-Portrait, Night portrait, or Pet portrait scene mode
- Smart portrait mode
•Digital zoom cannot be used in other shooting modes when using certain settings
(A49).
Press the d button M z menu icon M AF assist M k button
Option Description
a Auto
(default setting)
The AF-assist illuminator automatically lights up when
you press the shutter-release button under dim
lighting. The illuminator has a range of about #2.0# m
(## ft #in.) at the maximum wide-angle position and
about #1.5# m (## ft #in.) at the maximum telephoto
position.
•Note that for some scene modes or focus areas, the
AF-assist illuminator may not light.
Off The AF-assist illuminator does not light.
Press the d button M z menu icon M Digital zoom M k button
Option Description
On (default setting) Digital zoom is enabled.
Off Digital zoom is disabled.
![](/img.php?id=2497865&img=bg1e.png)
95
Using Menus
Sound Settings
Auto Off
Set the amount of time that elapses before the camera enters standby mode
(A12).
You can select 30 s, 1 min (default setting), 5 min, or 30 min.
CSetting the Auto Off Function
The time that passes before the camera enters standby mode is fixed in the following
situations:
•When a menu is displayed: 3 minutes (when auto off is set to 30 s or 1 min)
•When shooting using Pet portrait auto release: 5 minutes (when auto off is set
to 30 s or 1 min)
•When shooting using Smile timer: 5 minutes (when auto off is set to 30 s or 1
min)
•When the AC Adapter EH-62G is connected: 30 minutes
•When an audio video cable is connected: 30 minutes
Press the d button M z menu icon M Sound settings M k button
Option Description
Button sound
When On (default setting) is selected, the camera
produces one beep when operations are performed,
two beeps when focus is acquired on the subject, and
three beeps when an error occurs. The start-up sound
is also produced.
•Sounds are disabled when using Pet portrait
scene mode.
Shutter sound
When On (default setting) is selected, the shutter
sound is produced when the shutter is released.
•The shutter sound is not produced when using
continuous shooting mode, when recording
movies, or when using Pet portrait scene mode.
Press the d button M z menu icon M Auto off M k button
![](/img.php?id=2497865&img=bg1f.png)
96
Using Menus
Format Card/Format Memory
Use this option to format a memory card or the internal memory.
Formatting the memory cards or internal memory permanently deletes
all data. Data that has been deleted cannot be recovered. Make sure to
save important images to a computer before formatting.
Formatting a Memory Card
•Insert a memory card into the camera.
•Select Format card in the setup menu and then press the k button.
Formatting the Internal Memory
•Remove the memory card from the camera.
•Select Format memory in the setup menu and then press the k button.
To start formatting, select Format on the screen that is displayed and press the
k button.
•Do not turn the camera off or open the battery-chamber/memory card slot
cover during formatting.
•This setting cannot be selected while Wi-Fi is connected.
Press the d button M z menu icon M Format card/Format memory M
k button
![](/img.php?id=2497865&img=bg20.png)
97
Using Menus
Language
Select a language for display of camera menus and messages.
Video Mode
Adjust settings necessary for connection to a TV.
Select from NTSC and PAL.
Both NTSC and PAL are standards for analog color television broadcasting.
•The available frame rates in Movie options (A83) vary depending on the
video mode setting.
Press the d button M z menu icon M Language M k button
Press the d button M z menu icon M Video mode M k button
![](/img.php?id=2497865&img=bg21.png)
98
Using Menus
Charge by Computer
BNotes About Charging with a Computer
•When connected to a computer, the camera turns on and starts charging. If the
camera is turned off, charging stops.
•About 3 hours are required to charge a fully exhausted battery. Charging time
increases when images are transferred while the battery is charging.
•The camera turns off automatically if there is no communication with the
computer for 30 minutes after the battery has finished charging.
BWhen the Charge Lamp Quickly Flashes Green
Charging cannot be performed, possibly due to one of the reasons described below.
•The ambient temperature is not suited to charging. Charge the battery indoors
with an ambient temperature of 5°C to 35°C (41°F to 95°F).
•The USB cable is not connected correctly, or the battery is faulty. Make sure the USB
cable is connected correctly or replace the battery if necessary.
•The computer is in sleep mode and is not supplying power. Wake up the
computer.
•The battery cannot be charged because the computer cannot supply power to the
camera due to the computer’s settings or its specifications.
Press the d button M z menu icon M Charge by computer M k
button
Option Description
a Auto
(default setting)
When the camera is connected to a computer that is
running (A104), the battery inserted into the camera
is automatically charged using power supplied by the
computer.
Off The battery inserted into the camera is not charged
when the camera is connected to a computer.
![](/img.php?id=2497865&img=bg22.png)
99
Using Menus
Reset All
When Reset is selected, the camera’s settings are restored to their default
values.
•Some settings, such as Time zone and date or Language, are not reset.
•This setting cannot be selected while Wi-Fi is connected.
CResetting File Numbering
To reset file numbering to “0001”, delete all images saved on the memory card or in
the internal memory (A15) before selecting Reset all.
Conformity Marking
View the standards with which the camera complies.
Firmware Version
View the current camera firmware version.
•This setting cannot be selected while Wi-Fi is connected.
Press the d button M z menu icon M Reset all M k button
Press the d button M z menu icon M Conformity marking M k
button
Press the d button M z menu icon M Firmware version M k button
![](/img.php?id=2497865&img=bg23.png)
100
Using the Wi-Fi (Wireless LAN) Function
Using the Wi-Fi (Wireless LAN)
Function
You can perform the following functions if you install the dedicated software
“Wireless Mobile Utility” on your smart device that runs on Android OS or iOS,
and connect it to the camera.
Take Photos
You can capture still images using the two methods described below.
•Release the shutter on the camera and save the captured images to a smart
device.
•Use a smart device to remotely release the camera shutter and save images
to the smart device.
View Photos
Images that are saved in the camera’s memory card can be transferred and
viewed on your smart device. You can also preselect the images in the camera
that you want to transfer to your smart device.
1Use your smart device to connect to the Google Play Store,
App Store or other online apps marketplace and search for
“Wireless Mobile Utility.”
•Check the user’s manual provided with your smart device for further details.
2Check the description and other information and install the
software.
CUser’s Manual for Wireless Mobile Utility
Download the user’s manual from the website below.
•Android OS: http://nikonimglib.com/ManDL/WMAU/
•iOS: http://nikonimglib.com/ManDL/WMAU-ios/
Functions That Can Be Performed Using
Wi-Fi
Installing the Software on the Smart Device
To establish a connection with the camera, press the Z (Wi-Fi) button on the
camera, and then turn on the Wi-Fi function of the smart device. Start the “Wireless
Mobile Utility” after the connection is established.
![](/img.php?id=2497865&img=bg24.png)
101
Using the Wi-Fi (Wireless LAN) Function
1Press the Z (Wi-Fi) button on the
camera.
•The screen shown on the right is displayed.
•If no connection confirmation is received
from the smart device within three minutes,
No access. is displayed and the camera
returns to the Wi-Fi options screen.
•You can also select Connect to smart
device in the Wi-Fi options menu to
display the screen shown on the right.
2Set the Wi-Fi setting on the smart device to On.
•Check the user’s manual provided with your smart device for further details.
•After the network names (SSIDs) that can be used for the smart device are
displayed, select the SSID displayed on the camera.
•When Auth./encryp. in the Wi-Fi options menu is set to WPA2-PSK-AES,
the message for entering a password is displayed. Enter the password that is
displayed on the camera.
•When the camera is successfully connected to a Wi-Fi network, the shooting
screen is displayed on the camera with the Wi-Fi communication indicator
(A4).
3Start the “Wireless Mobile Utility” installed on the smart
device.
•The screen for selecting “Take photos” or “View photos” is displayed.
•When the message “Cannot connect to camera.” is displayed, return to step
1 and retry the procedure.
Connecting the Smart Device to the
Camera
Connect to smart device
BackBack
XXXXXXXXXXXXXXXXXX
XXXXXX
CancelCancel
SSID:
![](/img.php?id=2497865&img=bg25.png)
102
Using the Wi-Fi (Wireless LAN) Function
CTouching an NFC-compatible Smart Device to the Camera for a
Wi-Fi Connection
When you use a smart device that is compatible with near
field communication (NFC) functions, you can establish a
Wi-Fi connection and start the “Wireless Mobile Utility” by
touching the Y (N-Mark) on the smart device to the one
on the camera.
To Terminate the Wi-Fi Connection
Perform one of the operations described below.
•Turn off the camera.
•Select Disable Wi-Fi in the Wi-Fi options menu on the camera (except when the
camera is operated by remote control).
•Set the Wi-Fi setting on the smart device to Off.
BNotes About Wi-Fi Connection
•Wi-Fi connection operations are disabled in the following situations:
-When the camera is connected to a TV, computer, or printer.
-While recording movies
-While the camera is processing data such as saving images or recording movies
-When the camera is connected to a smart device
•Select Disable Wi-Fi in areas where the use of radio waves is prohibited.
•When Wi-Fi is connected, Auto off is disabled.
•When Wi-Fi is connected, the battery drains faster than normal.
CSecurity Settings
If no security settings (encryption and password) are configured for the camera’s
Wi-Fi function, unauthorized third parties may access the network and cause harm.
We strongly recommend performing the required security settings before using the
Wi-Fi function.
Use Options in the Wi-Fi options menu (A86) to perform the security settings.
![](/img.php?id=2497865&img=bg26.png)
103
Using the Wi-Fi (Wireless LAN) Function
You can preselect images in the camera that you want to transfer to a smart
device. Movies cannot be preselected for transfer.
1Select images to transfer.
You can preselect the images to transfer to a smart device in the following
menus:
•Mark for Wi-Fi upload in the playback menu (A78)
•Upload from camera in the Wi-Fi options menu (A86)
When using Upload from camera, the SSID and password of the camera are
displayed after images are selected.
2Connect the camera and smart device (A101).
After the camera and smart device are connected and the “Wireless Mobile
Utility” starts, tap “View Photos” on the displayed confirmation screen to
transfer the specified images to the smart device.
BPreselecting Images to Transfer During Playback
While the camera is in playback mode, press the Z (Wi-Fi) button or use the NFC
function to establish a Wi-Fi connection, and preselect the displayed images that you
want to transfer.
•You can preselect one image at a time in full-frame playback mode.
•In thumbnail playback mode, you can add one image that is selected by the cursor.
•In calendar display mode, you can add all images that were shot on the date that is
selected by the cursor.
This operation is not available when you use Connect to smart device in the Wi-Fi
options menu to establish the Wi-Fi connection.
Preselecting Images in the Camera That
You Want to Transfer to a Smart Device
![](/img.php?id=2497865&img=bg27.png)
104
Connecting the Camera to a TV, Printer, or Computer
Connecting the Camera to a TV,
Printer, or Computer
You can enhance your enjoyment of images and movies by connecting the
camera to a TV, printer, or computer.
•Before connecting the camera to an external device, make sure the
remaining battery level is sufficient and turn the camera off. Before
disconnecting, make sure to turn the camera off.
•If the AC Adapter EH-62G (available separately) is used, this camera can be
powered from an electrical outlet. Do not use any other make or model of
AC adapter as it may cause the camera to heat up or malfunction.
•For information about the connection methods and subsequent operations,
refer to the documentation included with the device in addition to this
document.

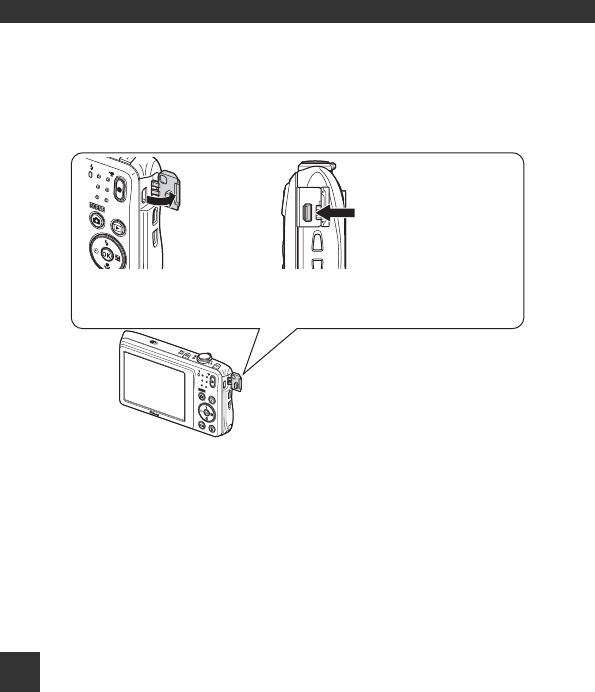

Insert the plug straight.
USB/audio/video
output connector
Open the connector cover.
![](/img.php?id=2497865&img=bg28.png)
105
Connecting the Camera to a TV, Printer, or Computer
Viewing images on a TV A106
Images and movies captured with the camera can be viewed
on a TV.
Connection method: Connect the video and audio plugs of an
optional audio video cable to the TV’s input jacks.
Printing images without using a computer A107
If you connect the camera to a PictBridge-compatible printer,
you can print images without using a computer.
Connection method: Connect the camera directly to the
printer’s USB port with the USB cable.
Viewing and organizing images on a computer A111
You can transfer images to a computer to perform simple
retouching and manage image data.
Connection method: Connect the camera to the computer’s
USB port with the USB cable.
•Before connecting to a computer, install ViewNX 2 on the
computer (A111).
•If any USB devices that draw the power from the computer
are connected, disconnect them from the computer before
you connect the camera to it. Connecting the camera and
other USB-powered devices to the same computer
simultaneously may cause a camera malfunction or
excessive power supply from the computer, which could
damage the camera or memory card.
![](/img.php?id=2497865&img=bg29.png)
106
Connecting the Camera to a TV, Printer, or Computer
1Turn off the camera and connect it to the TV.
•Connect the yellow plug to the video-in jack and the white plug to the
audio-in jack on the TV.
•Make sure that the plugs are properly oriented. Do not insert or remove the
plugs at an angle when connecting or disconnecting them.
2Set the TV’s input to external video input.
•See the documentation provided with your TV for details.
3Hold down the c (playback)
button to turn on the camera.
•Images are displayed on the TV.
•The camera monitor does not turn on.
Connecting the Camera to a TV (Playback
on a TV)
Yellow White
![](/img.php?id=2497865&img=bg2a.png)
107
Connecting the Camera to a TV, Printer, or Computer
Users of PictBridge-compatible printers can connect the camera directly to the
printer and print images without using a computer.
Connecting the Camera to a Printer
1Turn on the printer.
2Turn off the camera and connect it to the printer using the
USB cable.
•Make sure that the plugs are properly oriented. Do not insert or remove the
plugs at an angle when connecting or disconnecting them.
3The camera is automatically turned on.
•The PictBridge startup screen (1) is displayed in the camera monitor,
followed by the Print selection screen (2).
Connecting the Camera to a Printer (Direct
Print)
Print selection
15/11
/
2015
12
![](/img.php?id=2497865&img=bg2b.png)
108
Connecting the Camera to a TV, Printer, or Computer
BIf the PictBridge Startup Screen Is Not Displayed
When Auto is selected for Charge by computer (A98), it may be impossible to
print images with direct connection of the camera to some printers. If the PictBridge
startup screen is not displayed after the camera is turned on, turn the camera off and
disconnect the USB cable. Set Charge by computer to Off and reconnect the
camera to the printer.
Printing Images One at a Time
1Use the multi selector JK to
select the desired image and press
the k button.
•Move the zoom control toward f(h) to
switch to thumbnail playback or g(i) to
switch to full-frame playback.
2Use HI to select Copies and
press the k button.
•Use HI to set the desired number of
copies (up to nine) and press the k button.
3Select Paper size and press the k
button.
•Select the desired paper size and press the
k button.
•To print with the paper size setting
configured on the printer, select Default.
•The paper size options available on the
camera vary depending on the printer that
you use.
4Select Start print and press the k
button.
•Printing starts.
Print selection
15/11
/
2015
PictBridge
1
Copies
Paper size
Start print
prints
PictBridge
4
Copies
Paper size
Start print
prints
PictBridge
4
Copies
Paper size
Start print
prints
![](/img.php?id=2497865&img=bg2c.png)
109
Connecting the Camera to a TV, Printer, or Computer
Printing Multiple Images
1When the Print selection screen
is displayed, press the d (menu)
button.
2Use the multi selector HI to
select Paper size and press the k
button.
•Select the desired paper size and press the
k button.
•To print with the paper size setting
configured on the printer, select Default.
•The paper size options available on the
camera vary depending on the printer that you use.
•To exit the print menu, press the d button.
3Select Print selection or Print all
images and press the k button.
Print selection
15/11
/
2015
Print menu
Print selection
Print all images
Paper size
Print menu
Print selection
Print all images
Paper size
![](/img.php?id=2497865&img=bg2d.png)
110
Connecting the Camera to a TV, Printer, or Computer
Print selection
Select images (up to 99) and the number
of copies (up to 9) of each.
•Use the multi selector JK to select
images, and use HI to specify the
number of copies to be printed.
•Images selected for printing are
indicated by M and the number of
copies to be printed. To cancel the print
selection, set the number of copies to 0.
•Move the zoom control toward g(i) to switch to full-frame playback or
f(h) to switch to thumbnail playback.
•Press the k button when setting is complete. When the screen for
confirming the number of print copies is displayed, select Start print
and press the k button to start printing.
Print all images
One copy each of all images saved in the internal memory, or on the
memory card, is printed.
•When the screen for confirming the number of print copies is displayed,
select Start print and press the k button to start printing.
Print selection
BackBack
311
10
![](/img.php?id=2497865&img=bg2e.png)
111
Connecting the Camera to a TV, Printer, or Computer
Installing ViewNX 2
ViewNX 2 is free software that enables you to transfer images and movies to
your computer so that you can view, edit, or share them. To install ViewNX 2,
download the ViewNX 2 installer from the website below and follow the on-
screen installation instructions.
http://nikonimglib.com/nvnx/
For system requirements and other information, see the Nikon website for your
region.
Transferring Images to a Computer
1Prepare a memory card that contains images.
You can use any of the methods below to transfer images from the memory
card to a computer.
•SD memory card slot/card reader: Insert the memory card into the card
slot of your computer or the card reader (commercially available) that is
connected to the computer.
•Direct USB connection: Turn the camera off and ensure that the memory
card is inserted in the camera. Connect the camera to the computer using
the USB cable.
The camera automatically turns on.
To transfer images that are saved in the camera’s internal memory, remove
the memory card from the camera before connecting it to the computer.
Using ViewNX 2 (Transferring Images to a
Computer)
![](/img.php?id=2497865&img=bg2f.png)
112
Connecting the Camera to a TV, Printer, or Computer
If a message is displayed prompting you to choose a program, select
Nikon Transfer 2.
•When using Windows 7
If the dialog shown at right is
displayed, follow the steps
below to select Nikon Transfer 2.
1Under Import pictures
and videos, click Change
program. A program
selection dialog will be
displayed; select Import
File using Nikon Transfer 2 and click OK.
2Double-click Import File.
If the memory card contains a large number of images, it may take a while for
Nikon Transfer 2 to start. Wait until Nikon Transfer 2 starts.
BNotes About Connecting the USB Cable
Operation is not guaranteed if the camera is connected to the computer via a USB
hub.
2After Nikon Transfer 2 starts, click Start Transfer.
•Image transfer begins. When image transfer is complete, ViewNX 2 starts and
the transferred images are displayed.
•Consult online help for more information on using ViewNX 2.
3Terminate the connection.
•If you are using a card reader or card slot, choose the appropriate option in
the computer operating system to eject the removable disk corresponding
to the memory card and then remove the memory card from the card reader
or card slot.
•If the camera is connected to the computer, turn the camera off and
disconnect the USB cable.
Start Transfer
![](/img.php?id=2497865&img=bg30.png)
113
Technical Notes
Technical Notes
Caring for the Product .................................................................................114
The Camera..............................................................................................114
The Battery...............................................................................................115
The Charging AC Adapter ..................................................................116
Memory Cards.........................................................................................117
Cleaning and Storage ..................................................................................118
Cleaning....................................................................................................118
Storage ......................................................................................................118
Error Messages ...............................................................................................119
Troubleshooting ............................................................................................123
File Names........................................................................................................130
Optional Accessories....................................................................................131
Specifications..................................................................................................132
Approved Memory Cards ...................................................................136
Index...................................................................................................................138
![](/img.php?id=2497865&img=bg31.png)
114
Technical Notes
Observe the precautions described below in addition to the warnings in “For
Your Safety” (Avi–viii) when using or storing the device.
The Camera
Do Not Apply Strong Impact to the Camera
The product may malfunction if subjected to strong shock or vibration. In addition,
do not touch or apply force to the lens or lens cover.
Keep Dry
The device will be damaged if immersed in water or subjected to high humidity.
Avoid Sudden Changes in Temperature
Sudden changes in temperature, such as when entering or leaving a heated building
on a cold day, can cause condensation to form inside the device. To prevent
condensation, place the device in a carrying case or a plastic bag before exposing it
to sudden changes in temperature.
Keep Away from Strong Magnetic Fields
Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fields. Doing so could result in loss of data or
camera malfunction.
Do Not Point the Lens at Strong Light Sources for Extended Periods
Avoid pointing the lens at the sun or other strong light sources for extended periods
when using or storing the camera. Intense light may cause the image sensor to
deteriorate or produce a white blur effect in photographs.
Turn the Product Off Before Removing or Disconnecting the Power
Source or Memory Card
Do not remove the battery while the product is on, or while images are being saved
or deleted. Forcibly cutting power in these circumstances could result in loss of data
or in damage to product memory or internal circuitry.
Caring for the Product
![](/img.php?id=2497865&img=bg32.png)
115
Technical Notes
Notes About the Monitor
•Monitors and electronic viewfinders are constructed with extremely high precision;
at least 99.99% of pixels are effective, with no more than 0.01% being missing or
defective. Hence while these displays may contain pixels that are always lit (white,
red, blue, or green) or always off (black), this is not a malfunction and has no effect
on images recorded with the device.
•Images in the monitor may be difficult to see under bright lighting.
•Do not apply pressure to the monitor, as this could cause damage or malfunction.
Should the monitor break, care should be taken to avoid injury caused by broken
glass and to prevent the liquid crystal from the display touching the skin or
entering the eyes or mouth.
Notes About Smear
White or colored streaks may be visible when bright subjects are framed in the
monitor. This phenomenon, known as “smear,” occurs when extremely bright light
strikes the image sensor; it is characteristic of image sensors and does not indicate a
malfunction. Smear may also take the form of partial discoloration in the monitor
during shooting. It does not appear in images saved with the camera except in the
cases of movies. When recording movies, we recommend that you avoid bright
subjects such as the sun, reflected sunlight, and electric lights.
The Battery
Precautions for Use
•Note that the battery may become hot after use.
•Do not use the battery at ambient temperatures below 0°C (32°F) or above 40°C
(104°F) as this could cause damage or malfunction.
•If you notice any abnormalities such as excessive heat, smoke, or an unusual smell
coming from the battery, immediately discontinue use and consult your retailer or
Nikon-authorized service representative.
•After removing the battery from the camera or optional battery charger, put the
battery in a plastic bag, etc. in order to insulate it.
Charging the Battery
Check the battery level before using the camera and replace or charge the battery if
necessary.
•Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to
95°F) before use.
•A high battery temperature may prevent the battery from charging properly or
completely, and may reduce battery performance. Note that the battery may
become hot after use; wait for the battery to cool before charging.
When charging the battery inserted into this camera using the Charging AC
Adapter or a computer, the battery is not charged at battery temperatures below
0°C (32°F) or above 45°C (113°F).
•Do not continue charging once the battery is fully charged as this will result in
reduced battery performance.
•The battery temperature may increase during charging. However, this is not a
malfunction.
![](/img.php?id=2497865&img=bg33.png)
116
Technical Notes
Carrying Spare Batteries
Whenever possible, carry fully charged spare batteries when taking pictures on
important occasions.
Using the Battery When Cold
On cold days, the capacity of batteries tends to decrease. If an exhausted battery is
used at a low temperature, the camera may not turn on. Keep spare batteries in a
warm place and exchange as necessary. Once warmed, a cold battery may recover
some of its charge.
Battery Terminals
Dirt on the battery terminals may prevent the camera from functioning. Should the
battery terminals become dirty, wipe them off with a clean, dry cloth before use.
Charging an Exhausted Battery
Turning the camera on or off while an exhausted battery is inserted in the camera
may result in reduced battery life. Charge the exhausted battery before use.
Storing the Battery
•Always remove the battery from the camera or optional battery charger when it is
not being used. Minute amounts of current are drawn from the battery while it is in
the camera, even when not in use. This may result in excessive battery drain and
complete loss of function.
•Recharge the battery at least once every six months and completely exhaust it
before returning it to storage.
•Put the battery in a plastic bag, etc. in order to insulate it and store it in a cool place.
The battery should be stored in a dry location with an ambient temperature of 15°C
to 25°C (59°F to 77°F). Do not store the battery in hot or extremely cold locations.
Battery Life
A marked drop in the time a fully charged battery retains its charge, when used at
room temperature, indicates that the battery needs to be replaced. Purchase a new
battery.
Recycling Used Batteries
Replace the battery when it no longer holds a charge. Used batteries are a valuable
resource. Please recycle used batteries in accordance with local regulations.
The Charging AC Adapter
•The Charging AC Adapter EH-70P is for use only with compatible devices. Do not
use with another make or model of device.
•Do not, under any circumstances, use another make or model of AC adapter other
than Charging AC Adapter EH-70P or USB-AC adapter. Failure to observe this
precaution could result in overheating or in damage to the camera.
•The EH-70P is compatible with AC 100–240 V, 50/60 Hz electrical outlets. When
using in other countries, use a plug adapter (commercially available) as necessary.
For more information about plug adapters, consult your travel agency.
![](/img.php?id=2497865&img=bg34.png)
117
Technical Notes
Memory Cards
Precautions for Use
•Use only Secure Digital memory cards. See “Approved Memory Cards” (A136) for
recommended memory cards.
•Be sure to follow the precautions described in the documentation included with
the memory card.
•Do not put labels or stickers on memory cards.
Formatting
•Do not format the memory card using a computer.
•The first time you insert a memory card that has been used in another device into
this camera, be sure to format it with this camera. We recommend formatting new
memory cards with this camera before using them with this camera.
•Note that formatting a memory card permanently deletes all images and
other data on the memory card. Be sure to make copies of any images you wish
to keep before formatting the memory card.
•If the message Card is not formatted. Format card? is displayed when the
camera is turned on, the memory card must be formatted. If there is data that you
do not want to delete, select No. Copy the necessary data to a computer, etc. If you
want to format the memory card, select Yes. The confirmation dialog will be
displayed. To start formatting, press the k button.
•Do not perform the following during formatting, while data is being written to or
deleted from the memory card, or during data transfer to a computer. Failure to
observe this precaution could result in the loss of data or in damage to the camera
or memory card:
- Open the battery-chamber/memory card slot cover to remove/insert the battery
or memory card.
-Turn off the camera.
- Disconnect the AC adapter.
![](/img.php?id=2497865&img=bg35.png)
118
Technical Notes
Cleaning
Do not use alcohol, thinner, or other volatile chemicals.
Storage
Remove the battery if the camera will not be used for an extended period. To
prevent mold or mildew, take the camera out of storage at least once a month.
Turn the camera on and release the shutter a few times before putting the
camera away again. Do not store the camera in any of the following locations:
•Places that are poorly ventilated or subject to humidity of over 60%
•Exposed to temperatures above 50°C (122°F) or below –10°C (14°F)
•Next to equipment that produces strong electromagnetic fields, such as
televisions or radios
For storing the battery, follow the precautions in “The Battery” (A115) in
“Caring for the Product” (A114).
Cleaning and Storage
Lens
Avoid touching glass parts with your fingers. Remove dust or lint with
a blower (typically a small device with a rubber bulb attached to one
end that is pumped to produce a stream of air out the other end). To
remove fingerprints or other stains that cannot be removed with a
blower, wipe the lens with a soft cloth, using a spiral motion that
starts at the center of the lens and working toward the edges. If this
fails, clean the lens using a cloth lightly dampened with commercial
lens cleaner.
Monitor
Remove dust or lint with a blower. To remove fingerprints and other
stains, clean the monitor with a soft, dry cloth, being careful not to
apply pressure.
Body
Use a blower to remove dust, dirt, or sand, then wipe gently with a
soft, dry cloth. After using the camera at the beach or other sandy or
dusty environment, wipe off any sand, dust, or salt with a dry cloth
lightly dampened with fresh water and dry thoroughly. Note that
foreign matter inside the camera could cause damage not
covered by the warranty.
![](/img.php?id=2497865&img=bg36.png)
119
Technical Notes
Refer to the table below if an error message is displayed.
Error Messages
Display Cause/Solution A
Battery temperature is
elevated. The camera will
turn off. The camera turns off automatically. Wait
until the camera or battery temperature
has cooled before resuming use.
–
The camera will turn off
to prevent overheating.
Memory card is write
protected.
The write-protect switch is in the “lock”
position. Slide the write-protect switch to
the “write” position.
–
This card cannot be used. An error occurred while accessing the
memory card.
•Use an approved memory card.
•Check that the terminals are clean.
•Confirm that the memory card is
correctly inserted.
6, 136
This card cannot be read.
Card is not formatted.
Format card?
The memory card has not been
formatted for use in the camera.
Formatting deletes all data saved on the
memory card. If you need to keep copies
of any images, make sure to select No
and save the copies to a computer or
other medium before formatting the
memory card. Select Yes and press the
k button to format the memory card.
117
Out of memory. Delete images or insert a new memory
card. 6, 15
![](/img.php?id=2497865&img=bg37.png)
120
Technical Notes
Image cannot be saved.
An error occurred while saving the image.
Insert a new memory card or format the
memory card or internal memory.
96
The camera has run out of file numbers.
Insert a new memory card or format the
memory card or internal memory.
96
There is insufficient space to save the
copy.
Delete images from the destination.
15
Image cannot be
modified. Check that the images can be edited. 53, 128
Cannot record movie.
A time-out error occurred while saving
the movie on the memory card.
Select a memory card with a faster write
speed.
62, 136
Memory contains no
images.
There are no images in the internal
memory or on the memory card.
•Remove the memory card to play back
images in the internal memory.
•To copy the images saved in the
camera’s internal memory to the
memory card, press the d button to
select Copy in the playback menu.
6
81
File contains no image
data.
The file was not created or edited with
this camera.
The file cannot be viewed on this camera.
View the file using a computer or the
device used to create or edit this file.
–
This file cannot be played
back.
All images are hidden. There are no images available for a slide
show, etc. 79
This image cannot be
deleted.
The image is protected.
Disable protection. 80
Display Cause/Solution A
![](/img.php?id=2497865&img=bg38.png)
121
Technical Notes
No access.
The camera could not receive the signal
from the smart device. Establish the
wireless connection again.
•Press the Z (Wi-Fi) button.
•Touch an NFC-compatible smart
device to the camera.
•Select Connect to smart device in
the Wi-Fi options menu.
86, 101
Could not connect.
The camera failed to establish the
connection while receiving the signals
from the smart device. Set a different
channel in Channel under Options in
the Wi-Fi options menu, and establish the
wireless connection again.
86, 101
Wi-Fi connection
terminated.
A cable was connected to the camera, a
memory card was inserted or removed, or
the connection was aborted due to poor
connectivity. Disconnect the TV,
computer, and printer from the camera
and establish the wireless connection
again.
86, 101
Lens error
A lens error occurred.
Turn the camera off and then on again. If
the error persists, contact your retailer or
Nikon-authorized service representative.
123
Communications error
An error occurred while communicating
with the printer.
Turn the camera off and reconnect the
USB cable.
107
System error
An error occurred in the camera’s internal
circuitry.
Turn the camera off, remove and reinsert
the battery, and turn the camera on. If the
error persists, contact your retailer or
Nikon-authorized service representative.
123
Display Cause/Solution A
![](/img.php?id=2497865&img=bg39.png)
122
Technical Notes
* See the documentation provided with your printer for further guidance and
information.
Printer error: check
printer status.
After solving the problem, select Resume
and press the k button to resume
printing.*
–
Printer error: check
paper.
Load the specified size of paper, select
Resume, and press the k button to
resume printing.*
–
Printer error: paper jam.
Remove the jammed paper, select
Resume, and press the k button to
resume printing.*
–
Printer error: out of
paper.
Load the specified size of paper, select
Resume, and press the k button to
resume printing.*
–
Printer error: check ink.
There is a problem with the printer’s ink.
Check the ink, select Resume, and press
the k button to resume printing.*
–
Printer error: out of ink.
Replace the ink cartridge, select Resume,
and press the k button to resume
printing.*
–
Printer error: file corrupt.
There is a problem with the image file to
be printed.
Select Cancel and press the k button to
cancel printing.
–
Display Cause/Solution A
![](/img.php?id=2497865&img=bg3a.png)
123
Technical Notes
If the camera fails to function as expected, check the list of common problems
below before consulting your retailer or Nikon-authorized service
representative.
Power, Display, Settings Issues
Troubleshooting
Problem Cause/Solution A
The camera is on
but does not
respond.
Wait for recording to end.
If the problem persists, turn the camera off.
If the camera does not turn off, remove and reinsert
the battery or batteries or, if you are using an AC
adapter, disconnect and reconnect the AC adapter.
Note that although any data currently being
recorded will be lost, data that have already been
recorded will not be affected by removing or
disconnecting the power source.
–
The camera
cannot be turned
on.
The battery is exhausted. 6, 7, 116
The camera turns
off without
warning.
•The camera automatically turns off to save power
(auto off function).
•The camera and battery may not work properly at
low temperatures.
•The inside of the camera has become hot. Leave
the camera off until the inside of the camera has
cooled, and then try turning it on again.
12
115
–
The monitor is
blank.
•The camera is off.
•The camera automatically turns off to save power
(auto off function).
•The flash lamp flashes while the flash is charging.
Wait until charging is complete.
•The camera is connected to a TV or computer.
•The camera and smart device are connected
using a Wi-Fi connection and the camera is being
operated by remote control.
9
12
–
–
–
The camera
becomes hot.
The camera may become hot when used for an
extended period of time to shoot movies or when
used in a hot environment; this is not a malfunction.
–
![](/img.php?id=2497865&img=bg3b.png)
124
Technical Notes
The battery
inserted in the
camera cannot be
charged.
•Confirm all connections.
•When connected to a computer, the camera may
not charge for any of the reasons described
below.
-Off is selected for Charge by computer in
the setup menu.
- Battery charging stops if the camera is turned
off.
- Battery charging is not possible if the camera’s
display language and date and time have not
been set, or the date and time were reset after
the camera’s clock battery was exhausted. Use
the Charging AC Adapter to charge the
battery.
- Battery charging may stop when the computer
enters sleep mode.
- Depending on the computer specifications,
settings, and status, battery charging may not
be possible.
7
64, 98
–
9, 10
–
–
The monitor is
hard to read.
•Adjust the monitor brightness.
•The monitor is dirty. Clean the monitor.
90
118
O flashes on the
screen.
•If the camera clock has not been set, O flashes
on the shooting screen, and images and movies
saved before the clock is set are dated “00/00/
0000 00:00” and “01/01/2015 00:00” respectively.
Set the correct time and date for Time zone and
date in the setup menu.
•The camera clock is not as accurate as ordinary
watches or clocks. Periodically compare the time
of the camera clock with that of a more accurate
timepiece, and reset as required.
4, 88
Date and time of
recording are not
correct.
No indicators
displayed in
monitor.
Hide info is selected for Photo info in Monitor
settings in the setup menu. 90
Date stamp not
available.
Time zone and date has not been set in the setup
menu. 88
Date not stamped
on images even
when Date
stamp is enabled.
•The current shooting mode does not support
Date stamp.
•The date cannot be stamped on movies.
92
Problem Cause/Solution A
![](/img.php?id=2497865&img=bg3c.png)
125
Technical Notes
Shooting Issues
Screen for setting
time zone and
date is displayed
when the camera
is turned on.
The clock battery is exhausted; all settings were
restored to their default values. 9, 10
The camera
settings reset.
The camera
makes sound.
When Autofocus mode is set to Full-time AF or
while in some shooting modes, the camera may
produce an audible focusing sound.
17, 75,
84
Problem Cause/Solution A
Cannot switch to
shooting mode.
The camera cannot be switched to shooting mode
while connected to a power outlet via the Charging
AC Adapter.
104
Cannot take
pictures or record
movies.
•When the camera is in playback mode, press the
A button, Shutter-release button, or b(e)
button.
•When menus are displayed, press the d
button.
•The flash is charging while the flash lamp is
flashing.
•The battery is exhausted.
1, 14
64
35
6, 7, 116
The camera
cannot focus.
•The subject is too close. Try shooting using scene
auto selector mode, Close-up scene mode, or
macro mode.
•The subject is hard to focus on.
•Set AF assist in the setup menu to Auto.
•Turn the camera off and then on again.
17, 18,
19, 21,
39
46
94
–
Images are
blurred.
•Use the flash.
•Increase the ISO sensitivity value.
•Use Photo VR when taking still images, and use
Movie VR when recording movies.
•Use a tripod to stabilize the camera (using the
self-timer at the same time is more effective).
35
71
85, 93
37
Problem Cause/Solution A
![](/img.php?id=2497865&img=bg3d.png)
126
Technical Notes
Streaks of light or
partial
discoloration are
visible in the
monitor.
Smear may occur when extremely bright light
strikes the image sensor. When recording movies,
avoiding bright objects, such as the sun, reflections
of the sun, and electric lights is recommended.
62, 115
Bright specks
appear in images
captured with
flash.
The flash is reflecting off particles in the air. Set the
flash mode setting to W (off). 35
Flash does not
fire.
•The flash mode is set to W (off).
•A scene mode that restricts the flash is selected.
•A function that restricts the flash is enabled.
35
41
48
Optical zoom
cannot be used.
Optical zoom cannot be used while recording
movies. 62
Digital zoom
cannot be used.
•Digital zoom is set to Off in the setup menu.
•Digital zoom cannot be used with certain
shooting modes or when using certain settings in
other functions.
94
49, 94
Image mode not
available. A function that restricts Image mode is enabled. 48
No sound when
the shutter is
released.
Off is selected for Shutter sound in Sound
settings in the setup menu. No sound is produced
with some shooting modes and settings, even
when On is selected.
95
AF-assist
illuminator does
not light.
Off is selected for AF assist in the setup menu. AF-
assist illuminator may not light depending on the
position of the focus area or the current scene
mode, even when Auto is selected.
94
Images appear
smeared. The lens is dirty. Clean the lens. 118
Colors are
unnatural. White balance or hue is not adjusted properly. 22, 68
Randomly spaced
bright pixels
(“noise”) appear in
image.
The subject is dark and the shutter speed is too
slow, or ISO sensitivity is too high. Noise can be
reduced by:
•Using the flash
•Specifying a lower ISO sensitivity setting
35
71
Problem Cause/Solution A
![](/img.php?id=2497865&img=bg3e.png)
127
Technical Notes
Randomly spaced
bright pixels
(“noise”) appear in
movies.
When recording movies in dim lighting, the image
may contain noise. This occurs when the ISO
sensitivity increases, and it does not indicate a
malfunction.
–
Images are too
dark
(underexposed).
•The flash mode is set to W (off).
•The flash window is blocked.
•The subject is beyond the range of the flash.
•Adjust exposure compensation.
•Increase ISO sensitivity.
•The subject is backlit. Select Backlighting scene
mode or set the flash mode setting to X (fill flash).
35
11
133
40
71
22, 35
Images are too
bright
(overexposed).
Adjust exposure compensation. 40
Unexpected
results when flash
set to V (auto
with red-eye
reduction).
Use any scene mode other than Night portrait,
and change the flash mode to any setting other
than V (auto with red-eye reduction) and try
taking the picture again.
35, 41
Skin tones are not
softened.
•In some shooting conditions, facial skin tones
may not be softened.
•For images containing four or more faces, try
using the Skin softening effect in Glamour
retouch in the playback menu.
44
56
Saving images
takes time.
It may take more time to save images in the
following situations:
•When the noise reduction function is in
operation, such as when shooting in a dark
environment
•When the flash mode is set to V (auto with
red-eye reduction)
•When the skin softening function is applied while
shooting
•When using continuous shooting mode
–
36
44, 76
70
Colored circles or
light streaks
appear in the
monitor or
images.
When shooting with backlighting or when a very
strong light source (such as sunlight) is in the frame,
colored circles or light streaks (ghosting) may occur.
Change the position of the light source, or frame
the image so that the light source does not enter
the frame, and try again.
–
Problem Cause/Solution A
![](/img.php?id=2497865&img=bg3f.png)
128
Technical Notes
Playback Issues
Problem Cause/Solution A
File cannot be
played back.
•This camera may not be able to play back images
saved with another make or model of digital
camera.
•This camera cannot play back movies recorded
with another make or model of digital camera.
•This camera may not be able to play back data
edited on a computer.
–
Cannot zoom in
on image.
•Playback zoom cannot be used with movies.
•For small images, the magnification rate
displayed on the screen may not be compatible
with the actual magnification rate.
•This camera may not be able to zoom in on
images captured with another make or model of
digital camera.
–
Cannot edit
images.
•Some images cannot be edited. Images that have
already been edited may not be edited again.
•There is not enough free space on the memory
card or in the internal memory.
•This camera is unable to edit images captured
with other cameras.
•Editing functions used for images are not
available for movies.
26, 53
–
–
–
Images are not
displayed on TV.
•Video mode is not correctly set in the setup
menu.
•The memory card contains no images.
•Remove the memory card to play back images in
the internal memory.
64, 97
–
6
Nikon Transfer 2
does not start
when the camera
is connected to a
computer.
•The camera is off.
•The battery is exhausted.
•The USB cable is not correctly connected.
•The camera is not recognized by the computer.
•The computer is not set to start Nikon Transfer 2
automatically. For more information about
Nikon Transfer 2, refer to help information
contained in ViewNX 2.
–
98, 104
104,
111
–
–
![](/img.php?id=2497865&img=bg40.png)
129
Technical Notes
The PictBridge
startup screen is
not displayed
when the camera
is connected to a
printer.
With some PictBridge-compatible printers, the
PictBridge startup screen may not be displayed and
it may be impossible to print images when Auto is
selected for Charge by computer in the setup
menu. Set Charge by computer to Off and
reconnect the camera to the printer.
64, 98
Images to be
printed are not
displayed.
•The memory card contains no images.
•Remove the memory card to print images in the
internal memory.
–
6
Cannot select
paper size with
the camera.
The camera cannot be used to select the paper size
in the following situations, even when printing from
a PictBridge-compatible printer. Use the printer to
select the paper size.
•The printer does not support the paper sizes
specified by the camera.
•The printer automatically selects the paper size.
–
Problem Cause/Solution A
![](/img.php?id=2497865&img=bg41.png)
130
Technical Notes
Images or movies are assigned file names as follows.
File name: DSCN
0001
.JPG
(1) (2) (3)
File Names
(1) Identifier
Not shown on the screen of the camera.
•DSCN: Original still images, movies
•SSCN: Small picture copies
•RSCN: Cropped copies
•FSCN: Images created by an image editing function other
than crop and small picture
(2) File number Assigned in ascending order, starting with “0001” and ending
with “9999.”
(3) Extension
Indicates file format.
•.JPG: Still images
•.AVI: Movies
![](/img.php?id=2497865&img=bg42.png)
131
Technical Notes
Availability may vary with country or region.
See our website or brochures for the latest information.
Optional Accessories
Battery charger
Battery Charger MH-66
It takes about 1 hour and 50 minutes to charge a fully
exhausted battery.
AC adapter
AC Adapter EH-62G
(connect as shown)
Make sure that the power connector cable is fully inserted in
the power connector slot before inserting the AC adapter into
the battery chamber. In addition, make sure that the power
connector cable is fully inserted in the battery chamber slot
before closing the battery-chamber/memory card slot cover. If
part of the cable protrudes from the slots, the cover or cable
may be damaged when the cover is closed.
Audio video
cable Audio Video Cable EG-CP14
![](/img.php?id=2497865&img=bg43.png)
132
Technical Notes
Nikon COOLPIX S3700 Digital Camera
Specifications
Type Compact digital camera
Number of effective pixels 20.1 million (Image processing may reduce the
number of effective pixels.)
Image sensor 1/2.3-in. type CCD; approx. 20.48 million total pixels
Lens NIKKOR lens with 8× optical zoom
Focal length 4.5–36.0 mm (angle of view equivalent to that of
25–200 mm lens in 35mm [135] format)
f/-number f/3.7–6.6
Construction 9 elements in 7 groups
Digital zoom magnification Up to 4× (angle of view equivalent to that of
approx. 800 mm lens in 35mm [135] format)
Vibration reduction Lens shift (still images)
Lens shift and electronic VR (movies)
Autofocus (AF) Contrast-detect AF
Focus range
•[W]: Approx. 50 cm (1 ft 8 in.)–,
[T]: Approx. 1.5 m (5 ft)–
•Macro mode: Approx. 2 cm (# in.)–
(wide-angle
position)
(All distances measured from center of front surface
of lens)
Focus-area selection Face priority, center, manual with 99 focus areas,
subject tracking, target finding AF
Monitor
6.7 cm (2.7-in.), approx. 230k-dot, TFT LCD with anti-
reflection coating and 5-level brightness
adjustment
Frame coverage
(shooting mode)
Approx. 97% horizontal and vertical (compared to
actual picture)
Frame coverage
(playback mode)
Approx. 99% horizontal and vertical (compared to
actual picture)
![](/img.php?id=2497865&img=bg44.png)
133
Technical Notes
Storage
Media Internal memory (approx. 25 MB), SD/SDHC/SDXC
memory card
File system DCF and Exif 2.3 compliant
File formats Still images: JPEG
Movies: AVI (Motion-JPEG compliant)
Image size
(pixels)
•20M (High) [5152 × 3864P]
•20M [5152 × 3864]
•10M [3648 × 2736]
•4M [2272 × 1704]
•2M [1600 × 1200]
•VGA [640 × 480]
•16:9 (14M) [5120 × 2880]
•1:1 [3864 × 3864]
ISO sensitivity
(Standard output
sensitivity)
•ISO 80–1600
•ISO 3200 (available when using Auto mode)
Exposure
Metering mode Matrix, center-weighted (digital zoom less than 2×),
spot (digital zoom 2× or more)
Exposure control
Programmed auto exposure and exposure
compensation
(–2.0 – +2.0 EV in steps of 1/3 EV)
Shutter Mechanical and CCD electronic shutter
Speed •1/1500–1 s
•4 s (Fireworks show scene mode)
Aperture Electronically-controlled ND filter (–3 AV) selection
Range 2 steps (f/3.7 and f/10.5 [W])
Self-timer Can be selected from 10 s and 2 s
Flash
Range (approx.)
(ISO sensitivity: Auto)
[W]: 0.5–#.# m (## ft # in.–## ft # in.)
[T]: 1.5–#.# m (## ft # in.–## ft # in.)
Flash control TTL auto flash with monitor preflashes
![](/img.php?id=2497865&img=bg45.png)
134
Technical Notes
Interface
USB connector
Hi-Speed USB
•Supports Direct Print (PictBridge)
•Also used as audio/video output connector
(NTSC or PAL can be selected for video output.)
Wi-Fi (Wireless LAN)
Standards IEEE 802.11b/g/n (standard wireless LAN protocol)
Communications
protocols
IEEE 802.11b: DBPSK/DQPSK/CCK
IEEE 802.11g: OFDM
IEEE 802.11n: OFDM
Range (line of sight) Approx. 10 m (11 yd)
Operating frequency 2412–2462 MHz (1-11 channels)
Data rates (actual
measured values)
IEEE 802.11b: 5 Mbps
IEEE 802.11g: 20 Mbps
IEEE 802.11n: 20 Mbps
Security WPA2
Access protocols Infrastructure
Supported languages
Arabic, Bengali, Bulgarian, Chinese (Simplified and
Traditional), Czech, Danish, Dutch, English, Finnish,
French, German, Greek, Hindi, Hungarian,
Indonesian, Italian, Japanese, Korean, Marathi,
Norwegian, Persian, Polish, Portuguese (European
and Brazilian), Romanian, Russian, Serbian, Spanish,
Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian,
Vietnamese
Power sources One Rechargeable Li-ion Battery EN-EL19 (included)
AC Adapter EH-62G (available separately)
Charging time Approx. 2 h 40 min (when using Charging AC
Adapter EH-70P and when no charge remains)
Battery life1
Still images Approx. 230 shots when using EN-EL19
Movies (actual battery
life for recording)2Approx. 45 min when using EN-EL19
Tripod socket 1/4 (ISO 1222)
Dimensions (W × H × D) Approx. 95.9 × 58.0 × 20.1 mm (3.8 × 2.3 × 0.8 in.)
(excluding projections)
Weight Approx. 130 g (4.6 oz) (including battery and
memory card)
![](/img.php?id=2497865&img=bg46.png)
135
Technical Notes
•Unless otherwise stated, all figures assume a fully-charged battery and an
ambient temperature of 23 ±3°C (73.4 ±5.4°F) as specified by the Camera
and Imaging Products Association (CIPA).
1Battery life may vary depending on conditions of use, such as the interval between
shots or the length of time that menus and images are displayed.
2Individual movie files cannot exceed 2 GB in size or 29 minutes in length.
Recording may end before this limit is reached if camera temperature becomes
elevated.
Rechargeable Li-ion Battery EN-EL19
Charging AC Adapter EH-70P
•Nikon will not be held liable for any errors this manual may contain.
•The appearance of this product and its specifications are subject to change
without notice.
Operating environment
Temperature 0°C–40°C (32°F–104°F)
Humidity 85% or less (no condensation)
Type Rechargeable lithium-ion battery
Rated capacity DC 3.7 V, 700 mAh
Operating temperature 0°C–40°C (32°F–104°F)
Dimensions (W × H × D) Approx. 31.5 × 39.5 × 6 mm (1.3 × 1.6 × 0.3 in.)
Weight Approx. 14.5 g (0.5 oz)
Rated input AC 100–240 V, 50/60 Hz, 0.07–0.044 A
Rated output DC 5.0 V, 550 mA
Operating temperature 0°C–40°C (32°F–104°F)
Dimensions (W × H × D)
Approx. 55 × 22 × 54 mm (2.2 × 0.9 × 2.2 in.)
(excluding plug adapter)
For Argentina: Approx. 55 × 59 × 63 mm (2.2 × 2.4 ×
2.5 in.)
Weight Approx. 47 g (1.7 oz) (excluding plug adapter)
For Argentina: Approx. 72 g (2.6 oz)
![](/img.php?id=2497865&img=bg47.png)
136
Technical Notes
Approved Memory Cards
The following Secure Digital (SD) memory cards have been tested and
approved for use in this camera.
•Memory cards with an SD Speed Class rating of 6 or faster are
recommended for recording movies. When using a memory card with a
lower Speed Class rating, movie recording may stop unexpectedly.
•Contact the manufacturer for details on the above cards. We cannot guarantee
camera performance when using memory cards made by other manufacturers.
•If you use a card reader, make sure that it is compatible with your memory card.
Trademark Information
•Windows is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.
•Adobe, the Adobe logo, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or
other countries.
•SDXC, SDHC, and SD Logos are trademarks of SD-3C, LLC.
•PictBridge is a trademark.
•Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the
Wi-Fi Alliance.
•Android and Google Play are trademarks or registered trademarks of
Google, Inc.
•The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in
the United States and in other countries.
•All other trade names mentioned in this manual or the other
documentation provided with your Nikon product are the trademarks or
registered trademarks of their respective holders.
SD memory card SDHC memory card SDXC memory
card
SanDisk –4 GB, 8 GB, 16 GB, 32 GB 64 GB, 128 GB
TOSHIBA – 4 GB, 8 GB, 16 GB, 32 GB 64 GB
Panasonic 2 GB 4 GB, 8 GB, 16 GB, 32 GB 64 GB
Lexar –8GB, 16 GB, 32 GB 64 GB, 128 GB
![](/img.php?id=2497865&img=bg48.png)
137
Technical Notes
AVC Patent Portfolio License
This product is licensed under the AVC Patent Portfolio License for the
personal and non-commercial use of a consumer to (i) encode video in
compliance with the AVC standard (“AVC video”) and/or (ii) decode AVC
video that was encoded by a consumer engaged in a personal and non-
commercial activity and/or was obtained from a video provider licensed to
provide AVC video. No license is granted or shall be implied for any other
use. Additional information may be obtained from MPEG LA, L.L.C.
See http://www.mpegla.com.
FreeType License (FreeType2)
•Portions of this software are copyright © 2012 The FreeType Project
(http://www.freetype.org). All rights reserved.
MIT License (HarfBuzz)
•Portions of this software are copyright © 2015 The HarfBuzz Project
(http://www.freedesktop.org/wiki/Software/HarfBuzz). All rights
reserved.
![](/img.php?id=2497865&img=bg49.png)
138
Technical Notes
Symbols
x Scene auto selector mode
................................................................. 17, 19
C Scene mode ........................... 17, 20
R Special effects mode .......... 17, 27
F Smart portrait mode.......... 17, 29
A Auto mode.............................. 17, 33
c Playback mode.............................. 14
C List by date mode......................... 52
J Wi-Fi options menu.......... 64, 86
z Setup menu............................. 64, 88
g (Telephoto)................................. 13, 14
f (Wide-angle)............................ 13, 14
i Playback zoom........................ 14, 50
h Thumbnail playback.......... 14, 51
j Help....................................................... 20
A Shooting mode button...... 2, 17
c Playback button ..................... 2, 14
b (e movie-record) button
.................................................................... 2, 18
k Apply selection button ................ 2
d Menu button......................... 2, 64
l Delete button.............................. 2, 15
Z (Wi-Fi) button .............. 1, 100, 101
Y N-Mark........................................ 2, 102
m Flash mode ................................. 18, 35
n Self-timer.................................... 18, 37
p Macro mode............................ 18, 39
o Exposure compensation
................................................................ 18, 40
R.................................................. 25
A
AC adapter ................................. 104, 131
AF area mode......................................... 72
AF assist................................................ 1, 94
Aperture value ....................................... 13
Audio video cable...... 105, 106, 131
Auto flash ................................................. 36
Auto mode ...................................... 17, 33
Auto off.............................................. 12, 95
Auto with red-eye reduction ....... 36
Autofocus............................... 62, 75, 84
Autofocus mode......................... 75, 84
B
Backlighting o............................ 20, 22
Battery ................................... 6, 7, 10, 135
Battery chamber................................. 131
Battery charger............................... 8, 131
Battery latch............................................... 6
Battery level indicator........................ 10
Battery-chamber/memory card slot
cover................................................................ 2
Beach Z................................................... 20
Blink proof................................................ 77
Brightness................................................. 90
Built-in microphone............................... 1
Button sound......................................... 95
C
Calendar Display ................................... 51
Charge by computer......................... 98
Charge lamp............................................... 2
Charging.............................................. 7, 98
Charging AC Adapter................ 7, 135
Close-up k..................................... 20, 21
Cloudy........................................................ 68
Compression ratio............................... 66
Computer..................................... 105, 111
Conformity Marking........................... 99
Connecting to smart devices...... 86,
101
Connector cover...................................... 1
Index
![](/img.php?id=2497865&img=bg4a.png)
139
Technical Notes
Continuous .............................................. 70
Copying images.................................... 81
Creative Slider ........................................ 33
Crop.............................................................. 59
Cross process o.................................. 27
Current settings ................................... 86
D
Date and time .................................. 9, 88
Date format........................................ 9, 88
Date stamp............................................... 92
Daylight..................................................... 68
Daylight saving time............ 9, 10, 88
Delete.......................................................... 15
Digital zoom................................... 13, 94
Direct print ............................................ 107
Disable Wi-Fi .......................................... 86
D-Lighting ................................................ 55
Dusk/dawn i....................................... 20
Dynamic Fine Zoom........................... 13
E
Editing images....................................... 53
EH-70P...................................................... 135
EN-EL19................................................... 135
Exposure compensation................. 40
Eyelet for camera strap......................... 1
F
Face detection...................................... 43
Face priority............................................. 72
File names.............................................. 130
Fill flash....................................................... 36
Fireworks show m..................... 20, 22
Firmware version................................. 99
Fixed range auto................................... 71
Flash ........................................................ 1, 35
Flash lamp .......................................... 2, 35
Flash mode ..................................... 35, 36
Flash off...................................................... 36
Fluorescent.............................................. 68
Focus........................................................... 72
Focus area................................................ 43
Focus indicator ................................. 3, 12
Focus lock ................................................ 47
Food u.............................................. 20, 22
Format internal memory................. 96
Format memory cards................ 6, 96
Formatting......................................... 6, 96
Full-frame playback............................ 50
Full-time AF.................................... 75, 84
Functions that cannot be used
simultaneously...................................... 48
G
Glamour retouch ........................ 29, 56
H
Help.............................................................. 20
High-contrast monochrome F
........................................................................ 27
I
Image mode........................................... 66
Image review.......................................... 90
Image size ................................................ 66
Incandescent.......................................... 68
Internal memory ..................................... 6
Internal memory indicator........... 3, 5
Interval ....................................................... 76
ISO sensitivity.......................................... 71
L
Landscape c........................................ 20
Language.................................................. 97
Lens....................................................... 1, 132
Lens cover.................................................... 1
List by date mode ............................... 52
M
Macro mode........................................... 39
Mark for Wi-Fi upload............. 78, 103
![](/img.php?id=2497865&img=bg4b.png)
140
Technical Notes
Memory card............................. 117, 136
Memory card slot .................................... 6
Monitor.......................................... 2, 3, 118
Monitor settings .................................. 90
Movie menu.................................. 64, 83
Movie options ........................................ 83
Movie playback ............................ 18, 63
Movie recording .......................... 18, 60
Movie VR.................................................... 85
Multi selector.................................... 2, 64
N
NFC ............................................................ 102
Night landscape j................... 20, 21
Night portrait e................................... 20
Nikon Transfer 2.................................. 112
Nostalgic sepia E.............................. 27
Number of exposures remaining
................................................................ 10, 67
Number of shots................................... 76
O
Optical zoom.......................................... 13
Optional accessories ........................ 131
Options...................................................... 86
P
Panorama assist playback............... 26
Panorama assist U.................. 20, 24
Paper size ................................... 108, 109
Party/indoor f............................ 20, 21
Pet portrait auto release .................. 23
Pet portrait O............................... 20, 23
Photo info ................................................ 90
Photo VR.................................................... 93
PictBridge.................................... 105, 107
Playback..................................................... 14
Playback menu ............................ 64, 78
Playback mode...................................... 14
Playback zoom.............................. 14, 50
Pop l..................................................... 27
Portrait b................................................. 20
Power switch.............................................. 1
Power-on lamp ......................................... 1
Preset manual........................................ 69
Pressing halfway ................................... 13
Print..................................... 105, 108, 109
Printer ........................................... 105, 107
Protect........................................................ 80
Q
Quick effects............................................ 53
Quick retouch........................................ 54
R
Rechargeable Li-ion battery ....... 135
Red-eye correction.............................. 55
Remaining movie recording time
................................................................ 60, 61
Reset all...................................................... 99
Restore default settings................... 86
Rotate image.......................................... 80
S
Scene mode............................................ 20
SD memory card..................... 117, 136
Selective color I................................ 27
Self-collage............................................... 31
Self-timer .................................................. 37
Self-timer lamp ................................ 1, 38
Setup menu................................... 64, 88
Shooting ............................................ 11, 17
Shooting menu............................ 64, 66
Shooting mode ..................................... 17
Shutter sound............................... 76, 95
Shutter speed ......................................... 13
Shutter-release button......................... 1
Single .......................................................... 70
Single AF.......................................... 75, 84
Skin softening........................................ 44
![](/img.php?id=2497865&img=bg4c.png)
141
Technical Notes
Slide show ................................................ 79
Slow sync .................................................. 36
Small picture ........................................... 58
Smart portrait menu................. 64, 76
Smart portrait mode .......................... 29
Smile timer............................................... 30
Snow z..................................................... 20
Soft D........................................................ 27
Sound settings....................................... 95
Speaker.......................................................... 2
Special effects mode.......................... 27
Sports d........................................... 20, 21
Strap................................................................ ii
Subject tracking........................... 73, 74
Sunset h.................................................. 20
T
Target finding AF......................... 45, 73
Telephoto ................................................. 13
Televisions ................................. 105, 106
Thumbnail display....................... 14, 51
Time difference .................................... 88
Time zone........................................ 10, 88
Time zone and date...................... 9, 88
Toy camera effect 1 m.................... 27
Toy camera effect 2 n................... 27
Tripod socket................................. 2, 134
U
Upload from camera......................... 86
USB cable .................... 7, 105, 107, 111
USB/audio/video output connector
............................................................................. 1
V
Video mode............................................. 97
ViewNX 2................................................. 111
Volume ....................................................... 63
W
White balance ....................................... 68
Wide-angle............................................... 13
Wi-Fi button.......................... 1, 100, 101
Wi-Fi options menu .................. 64, 86
Wind noise reduction ....................... 85
Wireless LAN........................................ 100
Wireless Mobile Utility................... 100
Z
Zoom control..................................... 1, 13
Zooming in/out..................................... 13
![](/img.php?id=2497865&img=bg4d.png)
YP4K01(11)
6MN53311-01
No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
