Thanks for choosing the miniLITE!
Front Back
WARNING
Always step on/o from the back of the miniLITE.
Otherwise you risk falls and/or collisions because the steering direction is reversed.
Thanks for choosing the Segway miniLITE(hereinafter referred to as miniLITE). Your miniLITE is both a
powerful, remote controlled, electric balancing device and also a personal recreational vehicle.
Enjoy the many features of your miniLITE, Your miniLITE is easy and safe to control. Have fun with it!
Enjoy your ride!
01 02
9. Be alert! Scan both far ahead and in front of your miniLITE — your eyes are your best tool for safely avoiding obstacles
and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
10. To reduce risk of injury, you must read and follow all “CAUTION” and “WARNING” notices in this document. Do not ride
at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer
recommends riders be between the ages of 8-16 years old. Always follow these safety instructions:
A. People who should not ride the miniLITE include:
i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suers from disease that puts them at risk if they engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain
balance.
iv. Anyone whose height or weight is outside the stated limits (see Specifications).
v. Pregnant women.
B. Riders under the age of 16 years old should ride under adult supervision.
C. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
D. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
E. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do
not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and
could cause a fall.
F. Do not accelerate or decelerate suddenly. Do not accelerate when the miniLITE tilts back or sounds an alarm. Do
not attempt to override the speed limiter.
11. Do not attempt to charge your miniLITE if it, the charger, or the power outlet is wet.
12. As with any electronic device, use a surge protector when charging to help protect your miniLITE from damage due to
power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other product.
13. Use only Ninebot or Segway approved parts and accessories. Do not modify your miniLITE. Modifications to your
miniLITE could interfere with the operation of the miniLITE, could result in serious injury and/or damage, and could
void the Limited Warranty.
14. Do not sit on the steering bar. Doing so could result in serious injury and/or damage to your miniLITE.
1 Riding Safety
1. The miniLITE is a recreational product. Before mastering riding skills, you need to practice. Neither Ninebot (means
Ninebot (Beijing) Tech Co., Ltd.and its subsidiaries and aliates) nor Segway Inc. is responsible for any injuries or
damage caused by a rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you
cannot eliminate all the risks. Remember that whenever you ride the miniLITE you risk injury or death from loss of
control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with
other vehicles, faster speeds require longer braking distance. Sudden braking on smooth surfaces could lead to wheel
slip, loss of balance, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when
riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in
place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or
other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. Pass on the left whenever possible. When approaching a
pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind,
announce yourself and slow down to walking speed when passing. Please obey local trac laws and regulations if
situation is dierent.
6. In places without laws and regulations governing self-balancing electric vehicles, comply with the safety guidelines
outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal
injury/death, accidents, or legal disputes caused by violations of the safety instructions.
7. Do not allow anyone to ride your miniLITE on his/her own unless they have carefully read this manual, watched the safety
video, and followed the New Rider Tutorial on the Ninebot by Segway App. The safety of new riders is your responsibility.
Assist new riders until they are comfortable with the basic operation of the miniLITE. Make sure each new rider wears a
helmet and other protective gear.
8. Before each ride check for loose fasteners, damaged components, and low tire pressure. If the miniLITE makes
abnormal sounds or signals an alarm, immediately stop riding. Diagnose your miniLITE via the Ninebot by Segway App
and call your dealer/distributor for service.
03 04
M5 Screws x2 Rubber cap x1 Hex Wrench x1 Valve Stem
Extension x 1

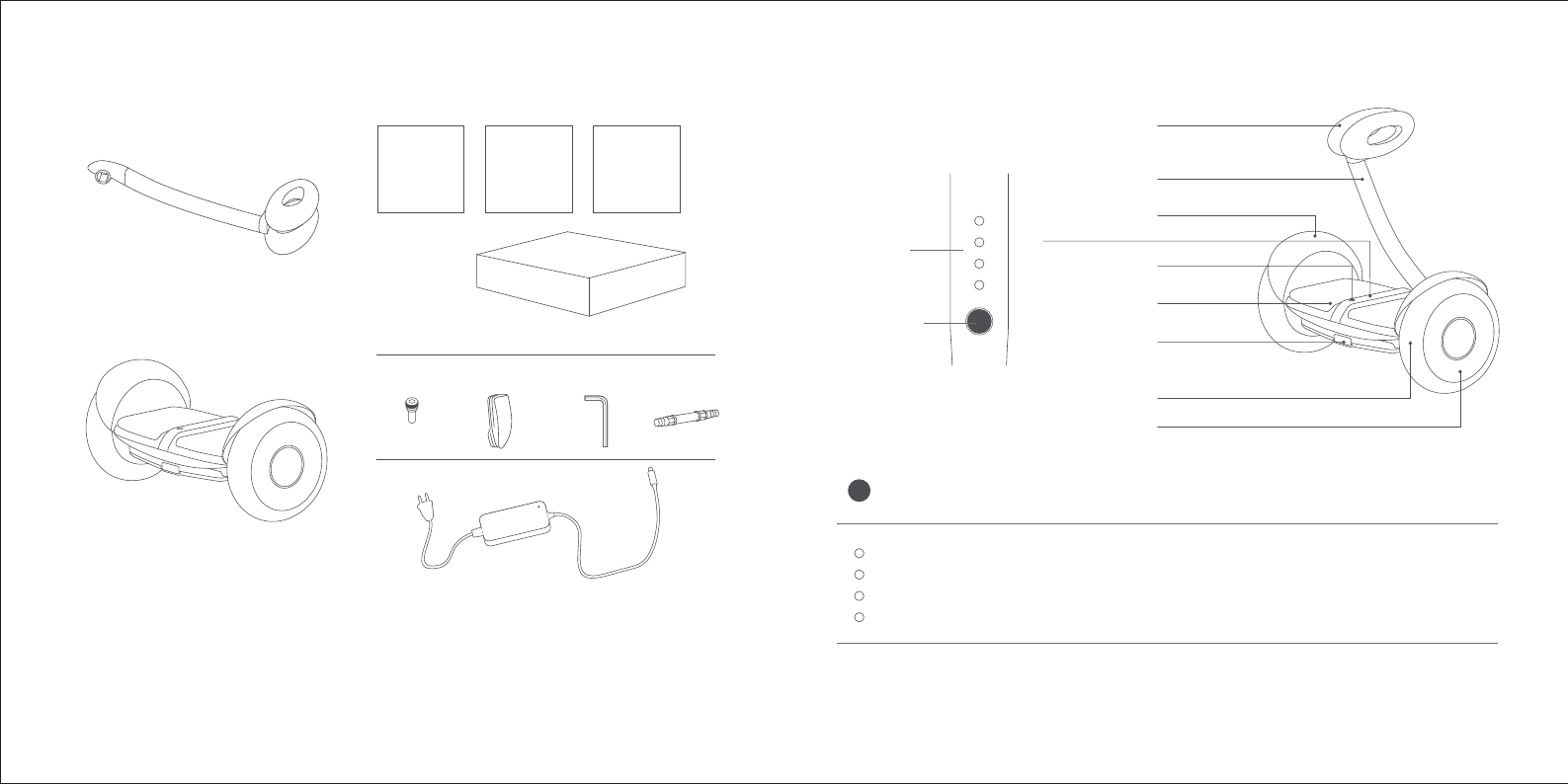

3 Diagram
Indicates the remaining battery life. Each block equates to approximately 25% power level. Half of
the each block power level is cosumed, this block blinks. When the battery is nearly empty, the last
block blinks.
The miniLITE will gradually reduce the max speed limit as the power level gradually decreases. Use
the App to view the remaining power and estimated remaining range.
Charge Port
Handle and Knee Pads
Steering Bar
Fender
Wheel
Hubcap
Foot Mat
Power Button
Power Button
Power Button
Power Level
Power Level
Power Level
2 Packing List
Steering Bar
Mainframe
User Materials
Accessories
Box
Accessories in the Box
Charger, Power Cord
When unpacking your miniLITE, please verify that the above items are included in the package. If you are
missing any components, please contact your dealer/distributor or nearest service center (see contacts
in the user manual). After verifying that all components are present and in good condition, you can
assemble your new miniLITE.
Please retain the box and packaging materials in case you need to ship your miniLITE in the future.
Always power o your miniLITE and unplug the charge cable before assembling, mounting accessories, or
cleaning.
USER MANUAL LIMITED WARRANTYQUICK START
Turn ON/OFF. The miniLITE will automatically power OFF when idle for 10 minutes, or when laid down
(horizontal) for over 30 seconds.
05 06
6 First Ride
5 Charging
Charge port Open the rubber cap Insert the plug
into the socket
Do not connect the charger if the charge port or charge cable is wet.
Your miniLITE is fully charged when the LED on the charger changes from red (charging) to green
(trickle charge). Close the rubber cap when not charging.

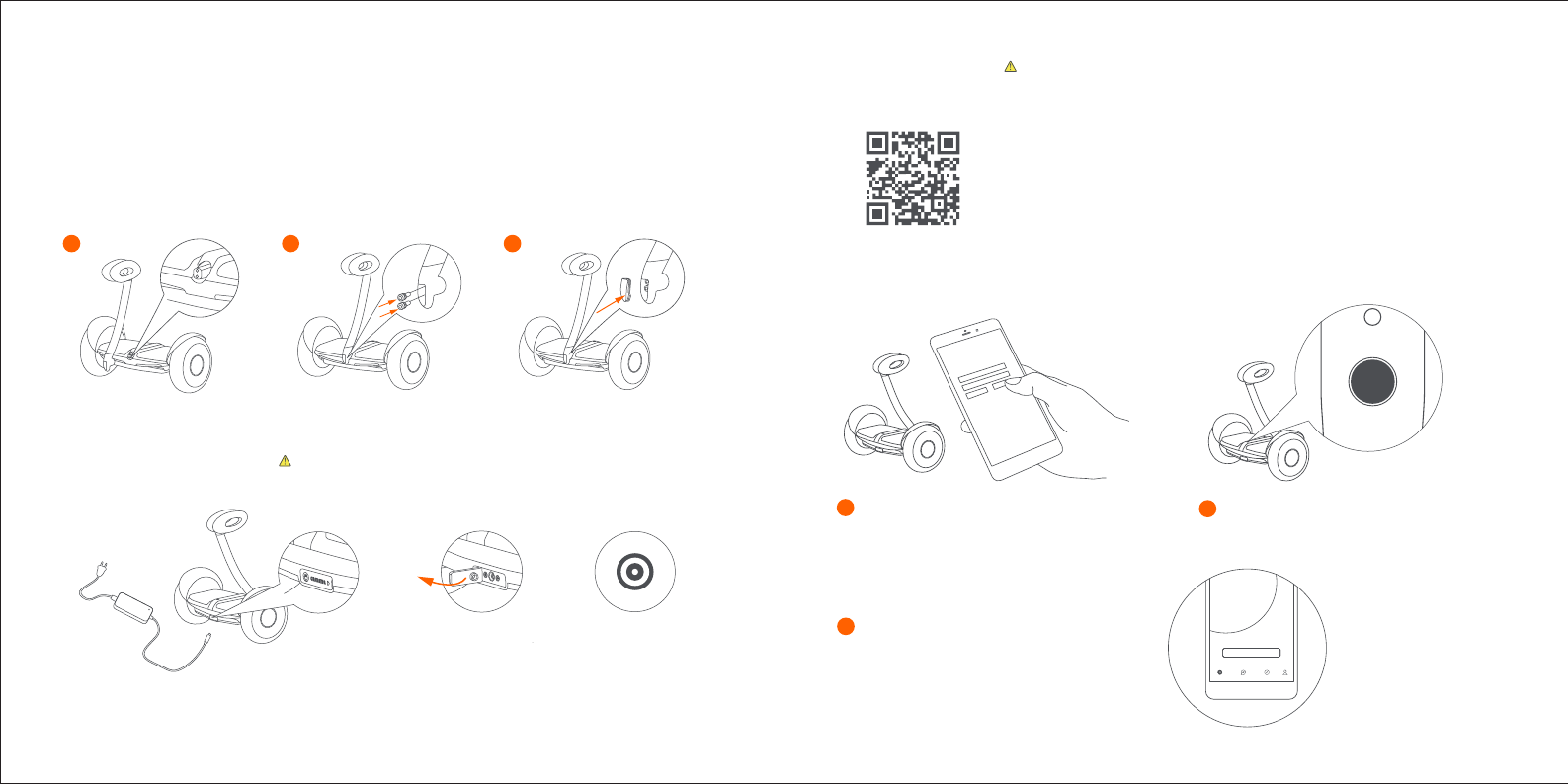

4 Assembling Your Segway miniLITE
1 2 3
1. Slide the steering bar onto to the mounting bracket.
2. Install the two M5 screws. Tighten securely with the included hex wrench.
3. Press the rubber cap onto the steering bar until it snaps in place.
There are safety risks when learning to ride the miniLITE. You must read the
Safety Instructions and follow the New Rider Tutorial in the App before your first
ride.
For your safety, your miniLITE is not activated at this time and will beep
occasionally after Power ON.
Until activated, the miniLITE maintains a very low riding speed and steering
sensitivity, and should not be ridden. Install the App on your mobile device (with
Bluetooth 4.0 or above), connect to the miniLITE with Bluetooth, and follow the
App instructions to activate your miniLITE and follow the training procedures.
Scan the QR code to download the App (iOS 8.0 or above, Android™ 4.3 or
above).
1Install the App and register/login. 2Power ON the miniLITE.
3Click “Vehicle”→“Search device” to connect to
your miniLITE. You will hear one sound of
beep when the bluetooth connection is
successful.
Vehicle N Fans Club Me
Discover
07 08
7 Learning to Ride
Wear an approved helmet and other
protective gear to minimize any
possible injury.
After activation, the App will lead you through the New Rider
Tutorial. Please follow the instructions in the App and in this
manual.
NOTE
You must first download the App on your mobile device. The
App will lead you through the New Rider Tutorial.
For your safety, the miniLITE will limit the max speed to
2.5 mph (4 km/h) until you complete the New Rider
Tutorial. For the first 0.6 miles (1 km) after completing the
New Rider Tutorial, the max speed will be limited to 6.2 mph
(10 km/h), after which you can disable the speed limiter via
the App and reach a maximum speed of 10 mph (16 km/h).

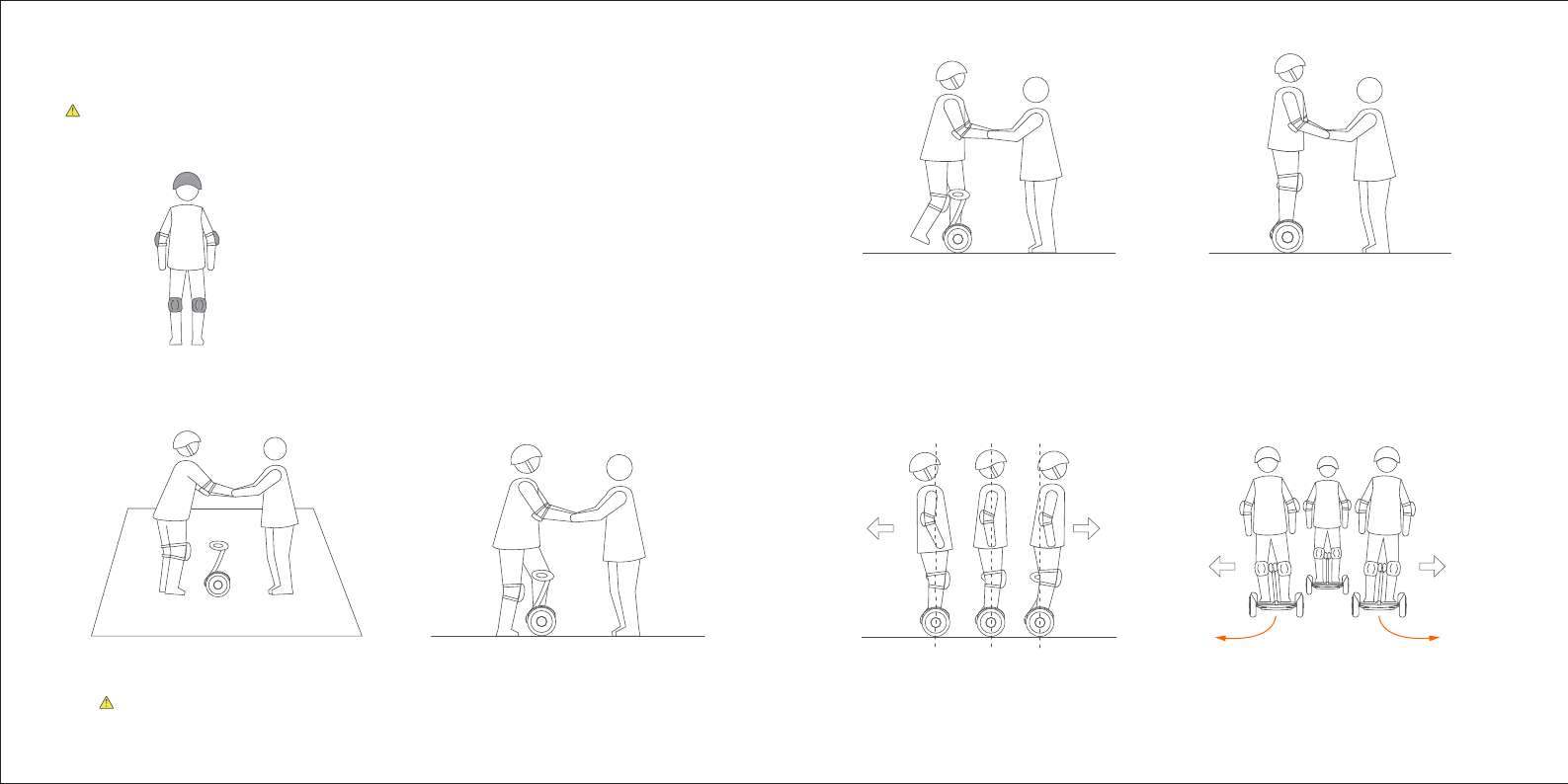

Go to a large open area and ask a friend to assist
you on your first ride.
1
WARNING
Always step on/o from the back of the miniLITE.
Lightly place one foot on the foot mat,
while keeping your other foot on the
ground holding your weight. Do not press
the steering bar with your leg.
2
3Slowly transfer your weight onto the
miniLITE. The unit will beep, indicating
it is now in Balance Mode. Slowly step
on with your other foot.
Stand with your weight evenly distributed
on both feet and relax, looking straight
ahead.
4
Gently lean your body forward and
backward to control your movement.
5To turn, gently lean left or right against
the steering bar.
6
≥ 12 ft. (4 m)
≥ 12 ft. (4 m)
WARNING
Rider must weigh 22–176lbs (10–80 kg)
and must be 3'7"–5'11" (110–180 cm) tall.
Avoid contacting obstacles
with the tire/wheel.
09 10
8 Warning
0

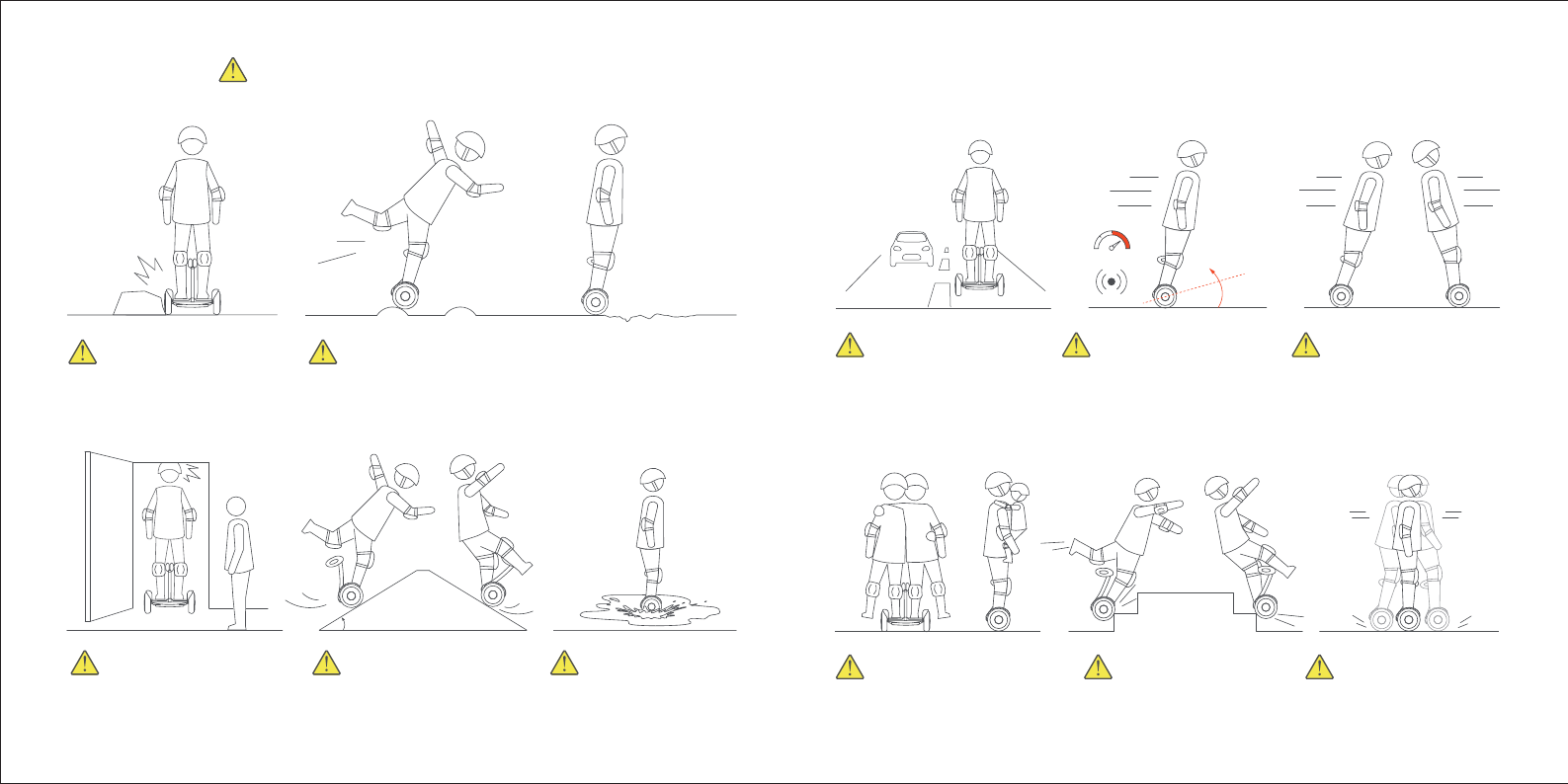

When traversing small bumps or uneven terrain, maintain a
moderate speed of 2-6 mph (3-10 km/h) and keep your
knees bent. Do not go too slow or too fast; otherwise you may
lose control and fall.
Watch your head when
passing through doorways.
Avoid slopes steeper than 15° . Do not ride through
puddles or other
bodies of water.
Do not get wet.
Do not ride on public roads,
motorways, highways, or
streets.
Do not accelerate when the
miniLITE tilts back or sounds
an alarm. Do not attempt to
override the speed limiter.
Do not accelerate or
decelerate abruptly. Do not
lean more than 5° or
accelerate/decelerate faster
than 2.5 mph/s (4 km/h/s).
The miniLITE is for one rider
only. Do not ride double or carry
any passengers. Do not carry a
child.
Do not ride over holes, curbs,
steps, or other obstacles.
You must read and understand the Warnings and Safe Riding instructions in this manual
before attempting to ride the miniLITE Failure to follow these warnings could result in
death or serious injury due to: loss of balance, traction, and/or control; collisions; and falls.
Do not rock back and forth
or shift your weight
abruptly.
15°
11 12
9 Features
Lifting
Power
Assist
Mode
Warning

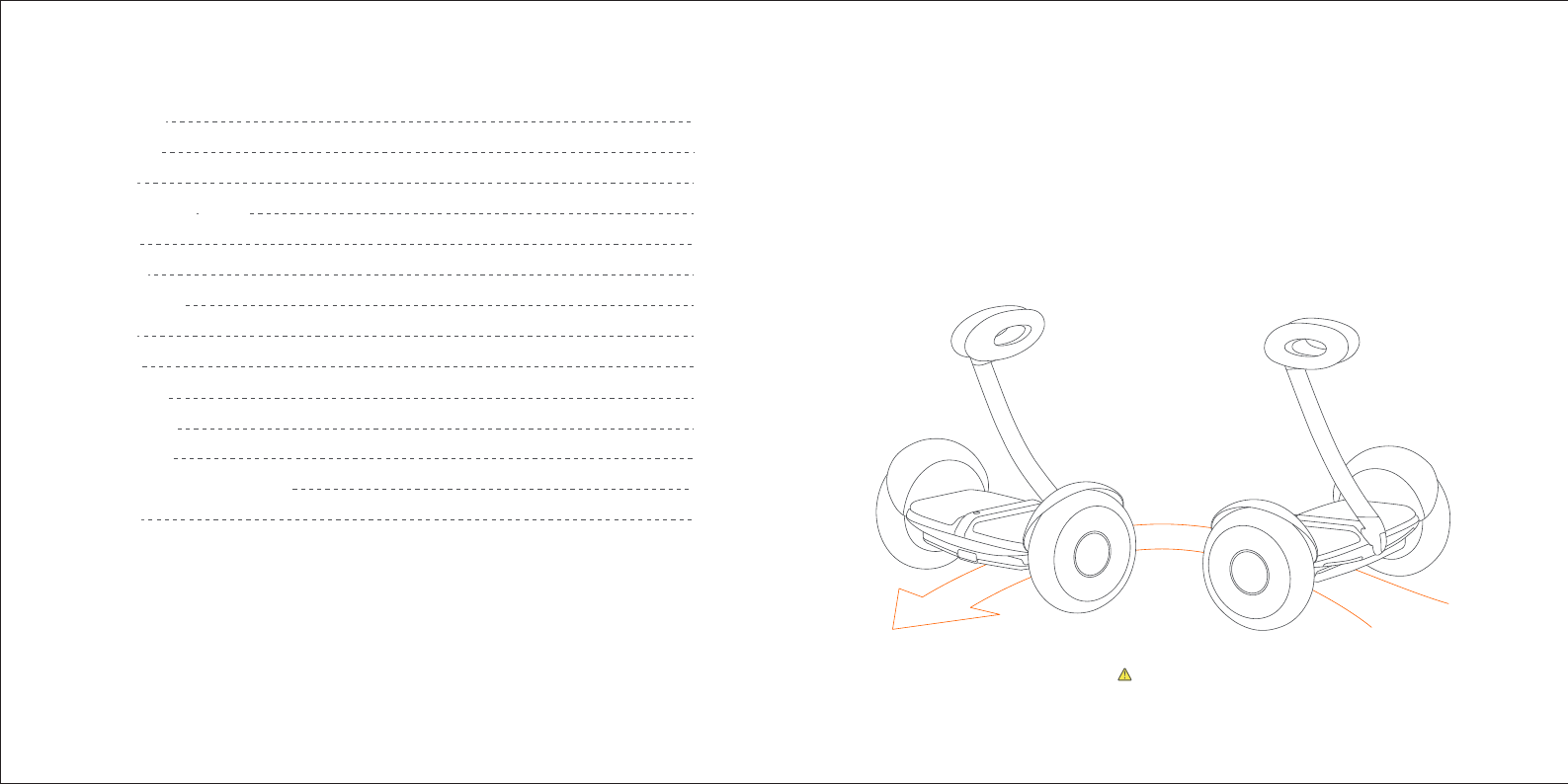

When your miniLITE is powered on, but no rider is standing on it, it is in Power Assist Mode. Steer the
miniLITE across smooth surfaces using the steering bar. Do not guide it up stairs, across potholes, over large
cracked/uneven surfaces, or over other obstacles; guide your miniLITE around the obstacle or carry it over
the obstacle as shown above.
Do not attempt stunts of
any kind. Always keep
both feet on the foot mats.
Maintain contact with the
ground at all times. Do not
jump or attempt stunts.
Do not ride on low traction
surfaces (including, but not
limited to, wet ground,
loose sand, loose gravel,
and ice).
For your safety, motor power is cut o when the miniLITE is lifted o the ground in Balance Mode. When the
miniLITE is put back down it will begin balancing again. Use the App to enable or disable this feature. Lift safely
via the steering bar as shown above.
Do not lift the miniLITE by the fenders or mainframe; you risk pinching or injuring your fingers/hands.
You must read and understand the Warnings and Safe Riding instructions in this manual
before attempting to ride the miniLITE. Failure to follow these warnings could result in
death or serious injury due to: loss of balance, traction, and/or control; collisions; and falls.
WARNING
13 14
.
10 Maintenance 11 Specifications
Cleaning and Storing Your miniLITE
Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste,
then cleaned with a soft, wet cloth. Scratches on plastic parts can be polished with extra fine grit abrasive paper.
NOTE
Do not wash your miniLITE with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may
damage the appearance and internal structure of your miniLITE. Do not wash your miniLITE with a power washer or high
pressure hose.
WARNING
Make sure the miniLITE is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly
sealed before cleaning; otherwise you may expose yourself to electric shock or damage the electronic components.
Store your miniLITE in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and
temperature extremes (both hot and cold) will accelerate the aging process of the plastic components and may reduce
battery life.
Tire Pressure
Inflate tires to 45–50 psi. Inflate both tires equally.
Battery Pack Maintenance
Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not discard or destroy
the battery. For more battery information, refer to the sticker on the battery itself, located on the bottom of the miniLITE.
Refer to your local laws and regulations regarding battery recycling and/or disposal.
A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid
draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its
best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C)
range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details
are available in the App.
NOTE
Typically, a fully charged battery should retain charge for 120-180 days in Standby Mode. Remember to charge the battery
after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery
record the charge-discharge condition of the battery; damage caused by over-discharge or under-discharge will not be
covered by the Limited Warranty.
WARNING
Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.
WARNING
Do not ride when the ambient temperature is outside the machine operation temperature(see Specifications) because
low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due
to slips or falls.
Item N4M160 Parameters
Dimensions Unit
Approx. 25.6lbs (11.6 kg)
Approx. 10 miles (16 km)
10° @ 70kg payload 15° @ 80kg payload
3’7”–5’11” (110–180 cm)
Approx. 10 mph (16 km/h)
Top speed varies to adapt dierent riding manner and remaining battery life.
Top speed will reduce when remaining battery life drops.
Weight Payload
Net
Rider Recommended Age
Required Height
Machine
Parameters
Max. Speed
Typical Range 1
Max. Slope
Battery
Motors
Charge Time
21.6×11.1×22.5 in (548×281×571 mm)
22–176 lbs (10–80 kg)
6–16 years, ref to the bodyweight limit
Pavement, packed dirt, slopes < 10°, obstacles < 0.4 in (1 cm),
gaps < 1.2 in (3 cm)
Traversable Terrain
Operating Temperature
Storage Temperature
IP Rating
Nominal Voltage
Max. Charging Voltage
Charging Temperature
Nominal Capacity
Continuous Discharge Power 2
Battery Management System
Nominal Power
Max. Power
14–104°F (-10–40°C)
-4–122°F (-20–50°C)
Mainframe IP54/ Battery pack IP66
32–104°F (0–40°C)
36 V DC
42 V DC
155 Wh
1147 W
Over-voltage, under-voltage, short circuit, and over-heating
protection. Auto-sleep and auto-wake.
700×2 W
350×2 W
Approx. 3 hours
[1] Typical Range: tested while riding under full power, 132 lbs (60 kg) load, 77°F (25°C), 6-8 mph (10-13 km/h) average speed on
pavement.
[2] Continuous Discharge Power: tested while under full power at 77°F (25°C). The value changes with temperature and remaining
battery capacity. For example, the continuous discharge power drops to ~80% of the maximum value at 10% remaining battery
capacity, and the continuous discharge power drops to ~70% of the maximum value at 32°F (0°C).
15 16
32–104°F (0–40°C)
Charger
Output Power
Input Voltage
Output Voltage
Output Current
Charging Temperature
71 W
100-240 VAC @ 50/60 Hz
42.0VDC
1.7 A
European Union Compliance Statement
Battery recycling information for the European Union
Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries
and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and
recycling of used batteries and accumulators as applicable throughout the European Union. This label is applied to various
batteries to indicate that the battery is not to be thrown away, but rather reclaimed upon end of life per this Directive.
In accordance with the European Directive 2006/66/EC, batteries and accumulators are labeled to indicate that they are to
be collected separately and recycled at end of life. The label on the battery may also include a chemical symbol for the
metal concerned in the battery (Pb for lead, Hg for mercury, and Cd for cadmium). Users of batteries and accumulators
must not dispose of batteries and accumulators as unsorted municipal waste, but use the collection framework available to
customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to
customers for the return, recycling, and treatment of batteries and accumulators. Customer participation is important to
minimize any potential eects of batteries and accumulators on the environment and human health due to the potential
presence of hazardous substances.
Restriction of Hazardous Substances Directive (RoHS)
Ninebot products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU
on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast” or
“RoHS 2”).
This product has been tested and passed ANSI/CAN/UL-2272 certified.
The battery complies with UN/ DOT 38.3
12 Certifications
Radio and Telecommunications Terminal Equipment Directive
European Union Contact Address:
EU Contact Address for regulatory topics only: Hogehilweg 8, 1101CC, Amsterdam, The Netherlands
Hereby, Ninebot (Tianjin) Tech Co., Ltd, declares that the wireless equipment listed in this section are in compliance with
the essential requirements and other relevant provisions of Directive 2014/53/EU.
IC Radiation Exposure Statement for Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent is otropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour
l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son
gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas
l'intensité nécessaire à l'établissement d'une communication satisfaisante.
User manuals for transmitters equipped with detachable antennas shall also contain the
following notice in a conspicuous location:
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son
numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal et l'impédance requise pour chaque type d'antenne. Les types
d'antenne non inclus dans cette liste,ou dont le gain est supérieur au gain maximal indiqué,
sont strictement interdits pour l'exploitation de l'émetteur.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with “Industry Canada RSS-102 for radiation exposure limits set
forth for an uncontrolled environment”.
environnement non contrôlé.
aux rayonnements IC établies pour un
Cetéquipementestconforme aux limitesd'exposition
Déclarationd'exposition aux radiations:
003 du Canada.
-
la norme NMB
est conform à
ppareilnumérique de la classe B
CetaIndustrie Canada.
la Réglementationd’
003. Avis de Conformité à
-
This Class B digital apparatus complies with Canadian ICES
statement
Emissions compliance
–
Industry Canada
Federal Communications Commission (FCC) Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generate, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
17 18
Segway is a trademark of Segway Inc., registered in the U.S. and other countries; Segway miniLITE, miniLITE and Ninebot
by Segway are trademarks of Segway Inc.; Ninebot is a trademark of Ninebot (Tianjin) Tech Co. Ltd., registered in the U.S.
and other countries; Android, Google Play and the Google Play logo are trademarks of Google Inc.; Apple and the Apple logo
are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered
in the U.S. and other countries. The respective owners reserve the rights of their trademarks referred to in this manual.
The miniLITE is covered by relevant patents. For patent information go to http://www.segway.com.
Ninebot (Tianjin) Tech Co. Ltd. manufactures and sells the miniLITE under a license from DEKA Products Limited
Partnership.
We have attempted to include descriptions and instructions for all the functions of the miniLITE at the time of printing.
However, your miniLITE may dier slightly from the one shown in this document. Visit the Apple App Store (iOS) or the
Google Play Store (Android) to download and install the App.
Please note that there are multiple Segway and Ninebot by Segway models with dierent functions, and some of the
functions mentioned herein may not be applicable to your unit. The manufacturer reserves the right to change the design
and functionality of the miniLITE product and documentation without prior notice.
© 2017 Ninebot (Beijing) Tech Co. Ltd. All rights reserved.
13 Trademark and Legal Statement
14 Contact
Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your miniLITE.
Americas:
Segway Inc.
14 Technology Drive, Bedford, NH 03110, USA
Tel : 1-603-222-6000
Fax: 1-603-222-6001
Toll Free: 1-866-473-4929
E-mail Sales: customeroperation@segway.com
E-mail Service: technicalsupport@segway.com
Website: www.segway.com
Europe, Middle East and Africa:
Segway Europe B.V.
Hogehilweg 8, 1101CC, Amsterdam, The Netherlands
Email service: service@segway.eu.com
Website: www.segway.com
Have your Segway miniLITE's serial number on hand when contacting Segway.
You can find your serial number on the skid plate on the underside of your miniLITE
or in the App under More Settings –> Basic Information.
