Nokia Solutions and Networks CPE25400 Non-Line-of-Sight Fixed Wireless Data Link User Manual 5A USER GUIDE 68P09285A67 D
Nokia Solutions and Networks Non-Line-of-Sight Fixed Wireless Data Link 5A USER GUIDE 68P09285A67 D
Contents
- 1. 5A USER GUIDE 68P09285A67 D
- 2. 5B Hardware Installation 68P09287A82 B
5A USER GUIDE 68P09285A67 D
CPEo 400
Series
motorola.com
68P09285A67-D
68P09285A67-D
MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark
Office. All other product or service names are the property of their respective owners.
© Motorola, Inc., 2008.
Best_L2R_V -- PC Version Folds to: 8.5 inches + spine width x 11.0 inches height
All text and images are FPO.
Overall gloss aqueous coating.
PMS 4505 C
100%
Black
Accuracy
While reasonable efforts have been made to assure the accuracy of this document, Motorola, Inc. assumes no
liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained
herein. Motorola, Inc. reserves the right to make changes to any products described herein to improve reliability,
function, or design, and reserves the right to revise this document and to make changes from time to time in content
hereof with no obligation to notify any person of revisions or changes. Motorola, Inc. does not assume any liability
arising out of the application or use of any product, software, or circuit described herein; neither does it convey
license under its patent rights or the rights of others. It is possible that this publication may contain references to, or
information about Motorola products (machines and programs), programming, or services that are not announced
in your country. Such references or information must not be construed to mean that Motorola intends to announce
such Motorola products, programming, or services in your country.
Copyrights
This document, Motorola products, and 3rd Party Software products described in this document may include
or describe copyrighted Motorola and other 3rd Party supplied computer programsstoredinsemiconductor
memories or other media. Laws in the United States and other countries preserve for Motorola, its licensors, and
other 3rd Party supplied software certain exclusive rights for copyrighted material, including the exclusive right
to copy, reproduce in any form, distribute and make derivative works of the copyrighted material. Accordingly,
any copyrighted material of Motorola, its licensors, or the 3rd Party software supplied material contained in the
Motorola products described in this document may not be copied, reproduced, reverse engineered, distributed,
merged or modified in any manner without the express written permission of Motorola. Furthermore, the purchase
of Motorola products shall not be deemed to grant either directly or by implication, estoppel, or otherwise, any
license under the copyrights, patents or patent applications of Motorola or other 3rd Party supplied software,
except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a
product.
A list of 3rd Party supplied software copyrights are contained in the Supplemental information section of this
document.
Restrictions
Software and documentation are copyrighted materials. Making unauthorized copies is prohibited by law. No part
of the software or documentation may be reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in anyformorbyanymeans,withoutpriorwrittenpermission
of Motorola, Inc.
License Agreements
The software described in this document is the property of Motorola, Inc and its licensors. It is furnished by express
license agreement only and may be used only in accordance with the terms of such an agreement.
High Risk Materials
Components, units, or 3rd Party products used in the product described herein are NOT fault-tolerant and are NOT
designed, manufactured, or intended for use as on-line control equipment in the following hazardous environments
requiring fail-safe controls: the operation of Nuclear Facilities, Aircraft Navigation or Aircraft Communication
Systems, Air Traffic Control, Life Support, or Weapons Systems (High Risk Activities). Motorola and its supplier(s)
specifically disclaim any expressed or implied warranty of fitness for such High Risk Activities.
Trademarks
Motorola and the Stylized M Logo are registered in the US Patent & Trademark Office. All other product or service
names are the property of their respective owners.
The CE mark confirms Motorola, Inc. statement of compliance with EU directives applicable to this product. Copies
of the Declaration of Compliance and installation information in accordance with the requirements of EN50385 can
be obtained from the local Motorola representative or by contacting the Customer Network Resolution Center
(CNRC). The 24 hour telephone numbers are listed at https://mynetworksupport.motorola.com. Select Customer
Network Resolution Center contact information. Alternatively if you do not have access to CNRC or the
internet, contact the Local Motorola Office.
MAR 2008
Table
of
Contents
Contents
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
WiMAX CPEo400 Series User Guide
RevisionHistory......................................... 2
VersionInformation..................................... 2
Chapter 1: WiMAX CPEo400 Series User Guide
ProductOverview........................................ 1-2
WiMAXCPEo400SeriesOverview.............................. 1-2
PowerfulFeaturesinaSingleUnit.............................. 1-3
OperatingInformation.................................... 1-3
Chapter 2: Installation
HardwareInstallationOverview................................. 2-2
SoftwareInstallationOverview ................................. 2-3
WhatYouNeedtoBegin................................... 2-3
AdvancedSetup....................................... 2-3
ProceduretoLogintotheCPE.................................. 2-4
Before you Begin Configuration............................... 2-4
LoggingintotheCPE .................................... 2-4
SetupWizardandAuthentication ................................ 2-6
WizardStepOne—EnableLoginPasswordProtection ................... 2-6
WizardStepTwo—DeviceTime............................... 2-6
WizardStepThree—WiMAXSecurity............................ 2-6
CPEUserScreens...................................... 2-8
Chapter 3: Basic Configuration
Basic ConfigurationOverview.................................. 3-2
PersonalizeMenu...................................... 3-2
InternetMenu........................................ 3-4
StatusMenu......................................... 3-7
Chapter 4: Advanced Configuration
Advanced ConfigurationOverview................................ 4-2
PortForwardingMenu.................................... 4-2
LocalAddressMenu..................................... 4-3
ControlPanelMenu..................................... 4-6
Chapter 5: Glossary and Troubleshooting
GlossaryofTerms........................................ 5-2
68P09285A67-D i
MAR 2008
Contents
Glossary........................................... 5-2
BasicTroubleshootingOverview................................. 5-3
AComputerCannotLogOntotheCPE........................... 5-3
CannotConnecttotheInternet............................... 5-3
AdditionalTroubleshootingSupport............................. 5-3
Chapter 6: Configuring TCP/IP and DNS Settings
ConfiguringTCP/IP ....................................... 6-2
ConfiguringTCP/IPinWindows2000............................ 6-2
ConfiguringTCP/IPinWindowsXP ............................. 6-6
Chapter 7: Important Safety and Legal Information
ImportantSafetyInformation.................................. 7-2
This Product complies with the following RF energy exposure standards and guidelines: . . 7-2
CaringfortheEnvironment................................... 7-7
DisposalofMotorolaEquipmentinEUCountries...................... 7-7
DisposalofMotorolaNetworksEquipmentinNonEUCountries .............. 7-7
CMMDisclosure....................................... 7-7
CopyrightsandTrademarks................................... 7-9
Notice............................................ 7-9
Copyrights.......................................... 7-9
UsageDisclosureRestrictions................................ 7-9
ii 68P09285A67-D
MAR 2008
List
of
Figures
List of Figures
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
Figure1-1:CPEo400Unit.................................... 1-2
Figure2-1:CPELoginScreen.................................. 2-4

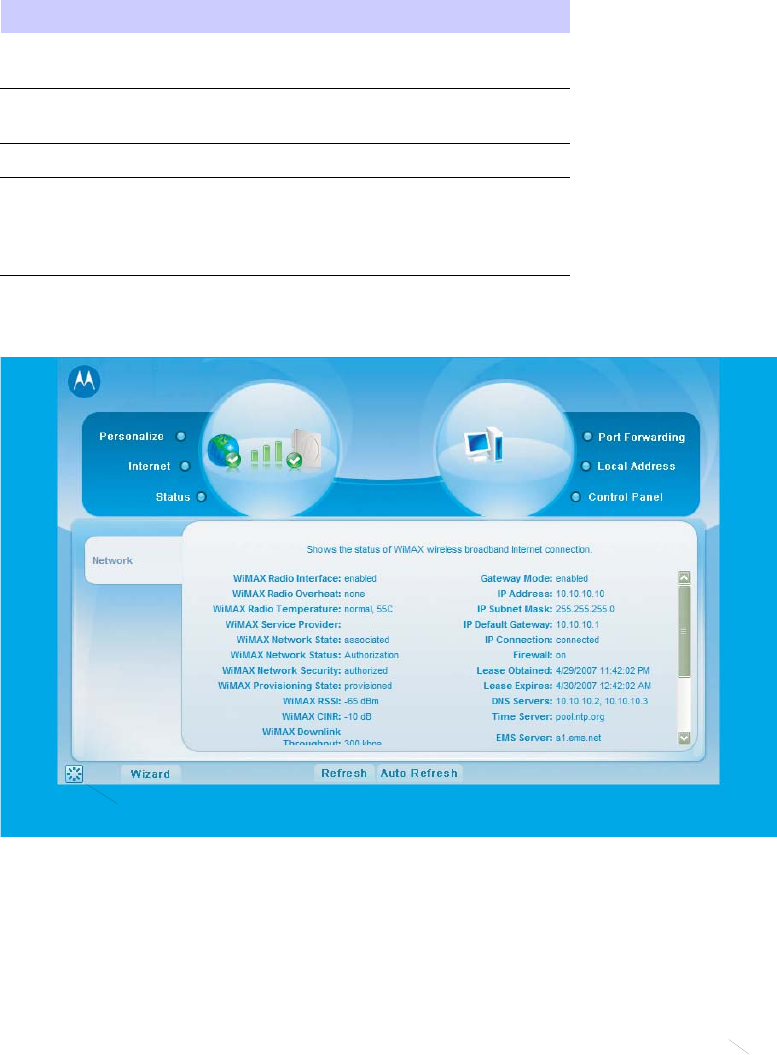

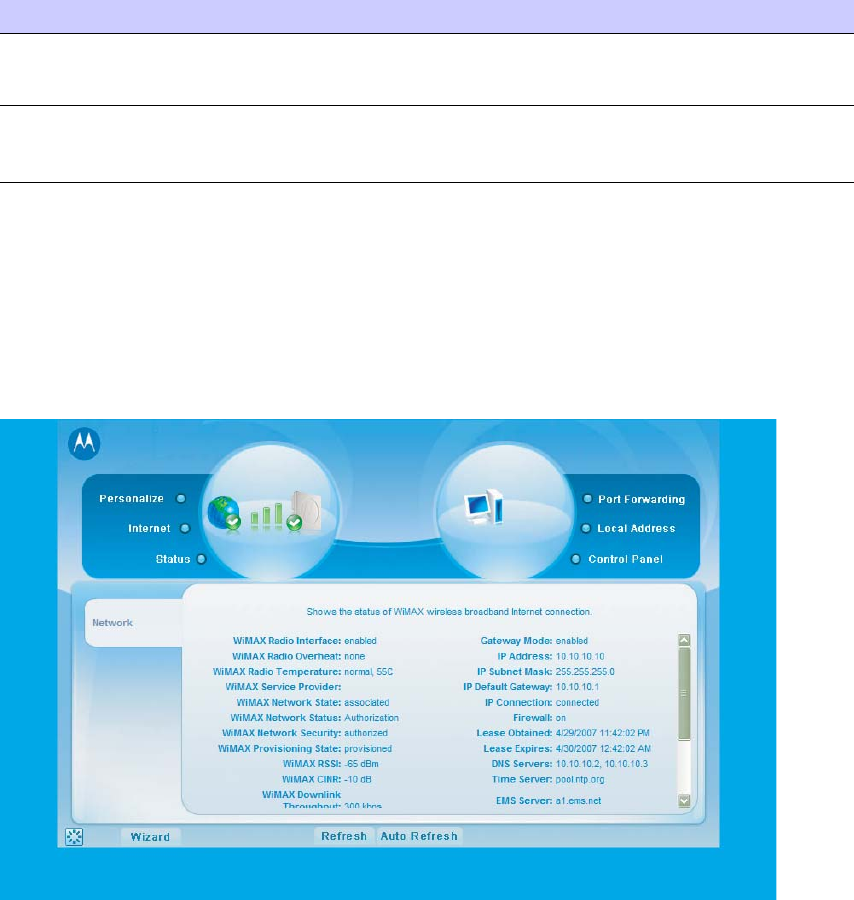

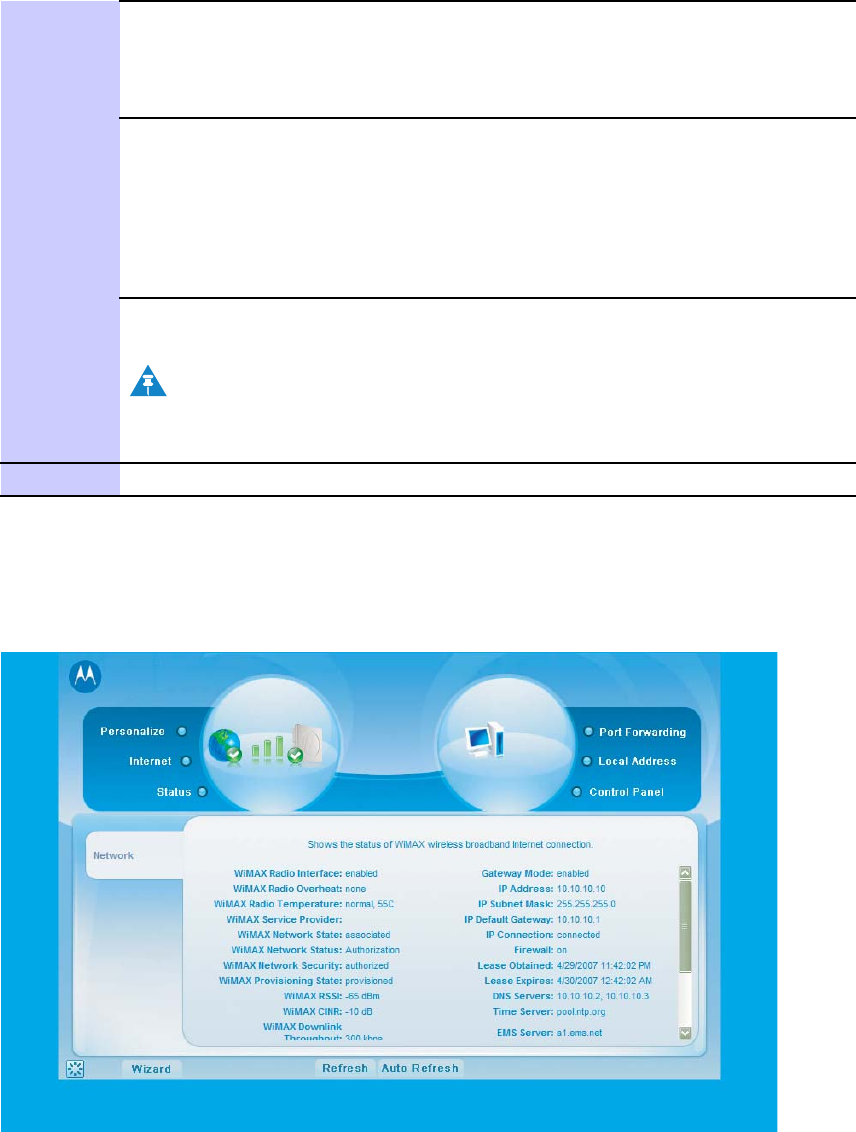

Figure2-2:CPEStatusScreen.................................. 2-7
Figure2-3:UserButtons..................................... 2-8
Figure3-1:PersonalizeMenu.................................. 3-2
Figure3-2:CPEInternetMenu................................. 3-5
Figure3-3:CPEStatusMenu.................................. 3-7

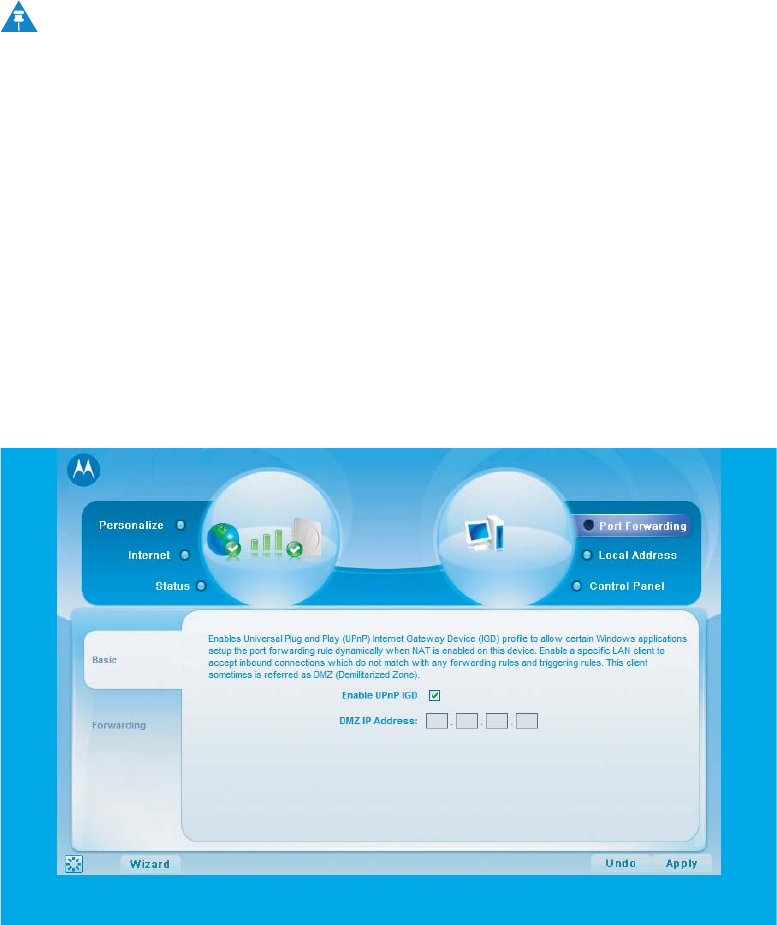

Figure4-1:CPEPortForwardingMenuNew .......................... 4-2

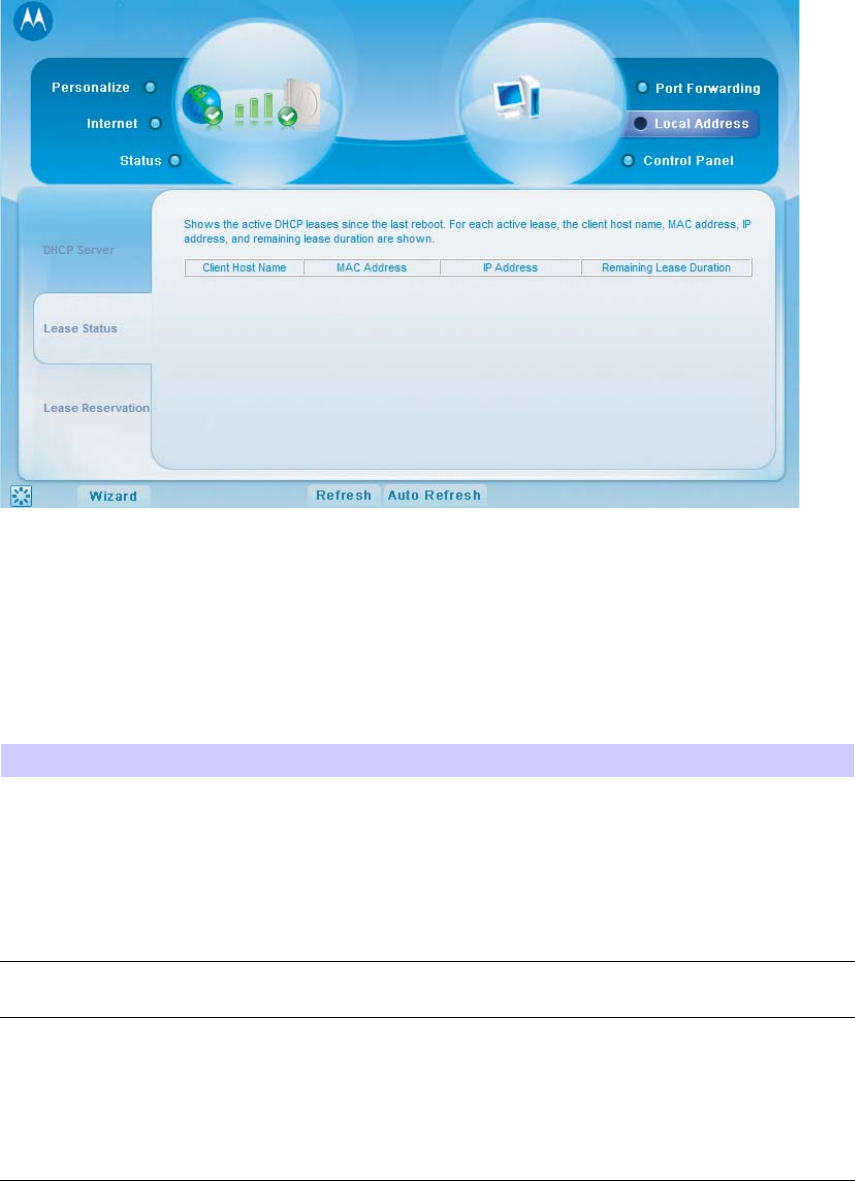

Figure4-2:CPELocalAddressMenu.............................. 4-4

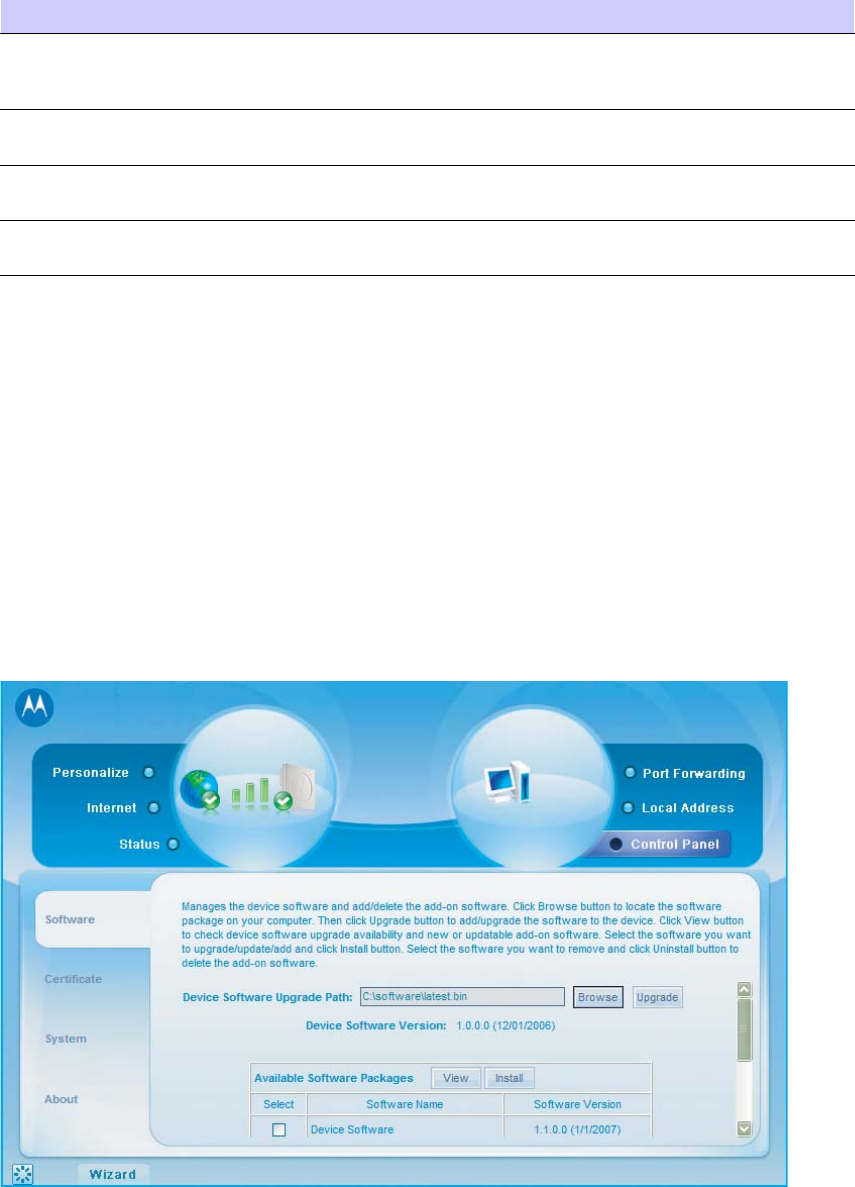

Figure4-3:CPEControlPanelMenu............................... 4-6

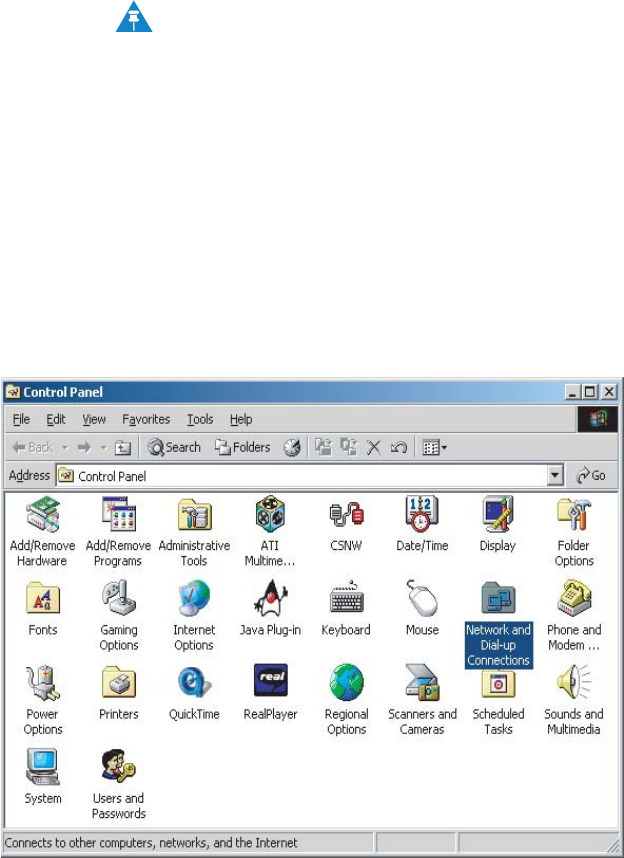

Figure6-1:WindowsControlPanel............................... 6-2

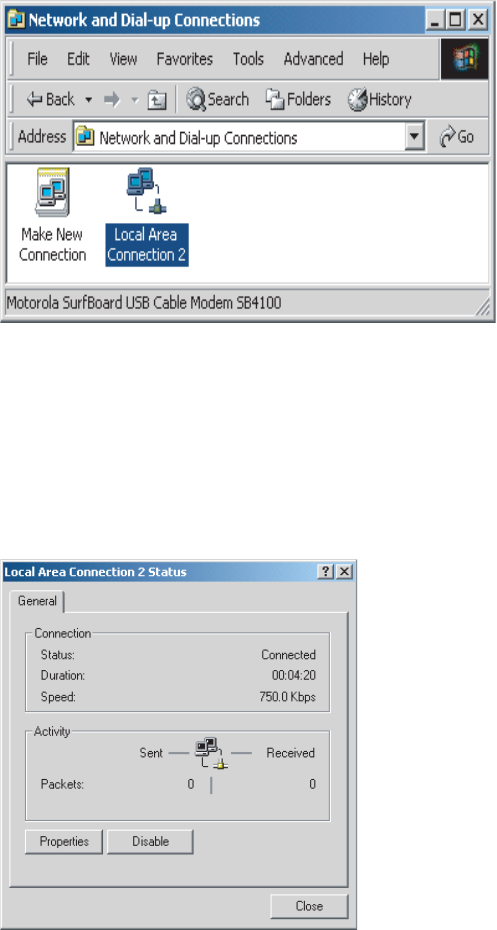

Figure6-2:NetworkandDial-upConnections.......................... 6-3
Figure6-3:LocalAreaConnection................................ 6-3
Figure6-4:Properties...................................... 6-4
Figure6-5:SelectNetworkConnectionType.......................... 6-4
Figure6-6:SelectNetworkProtocol............................... 6-5
Figure6-7:InternetProtocol(TCP/IP)Properties........................ 6-5

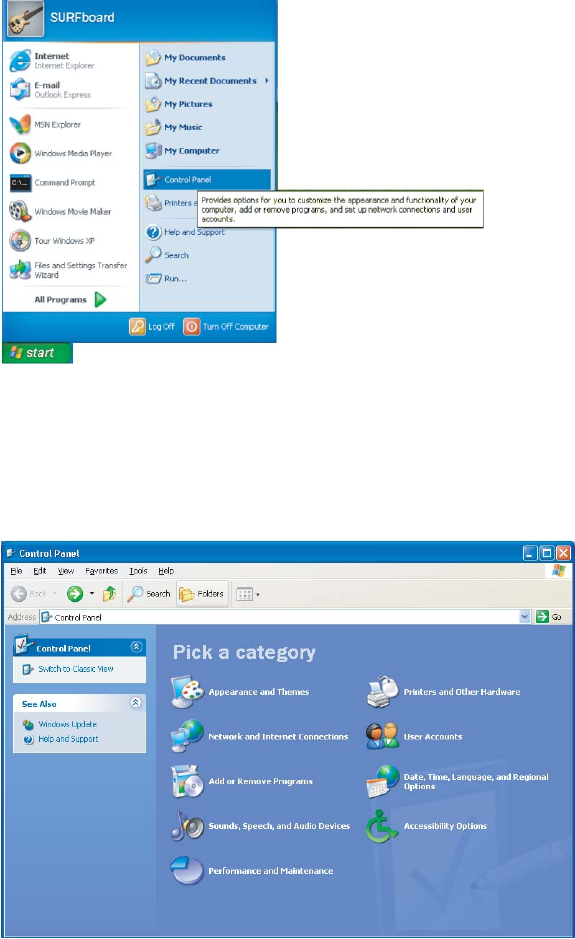

Figure6-8:WindowsXPStartWindow.............................. 6-6
Figure6-9:ControlPanel.................................... 6-6

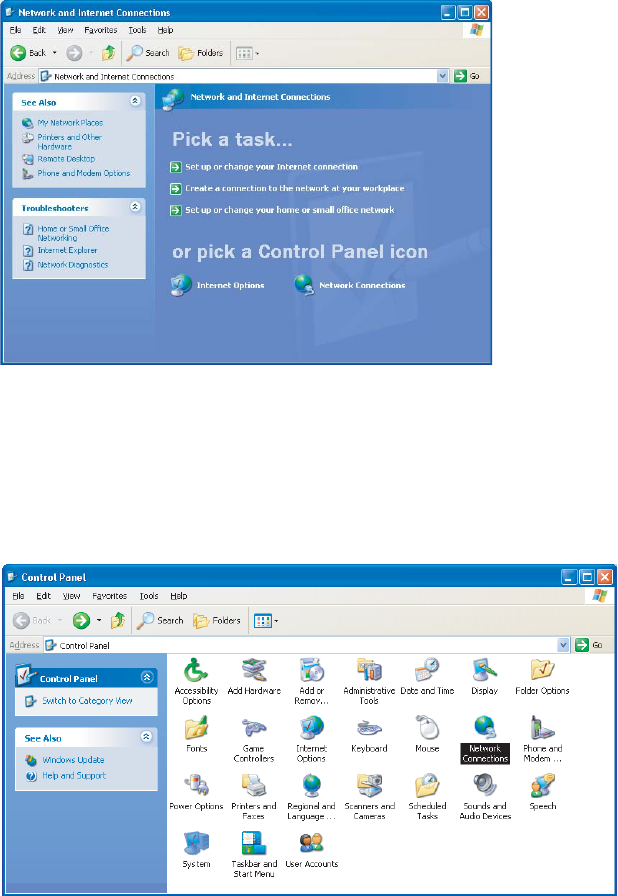

Figure6-10:NetworkandInternetConnections......................... 6-7
Figure6-11:ControlPanelClassicView............................. 6-7

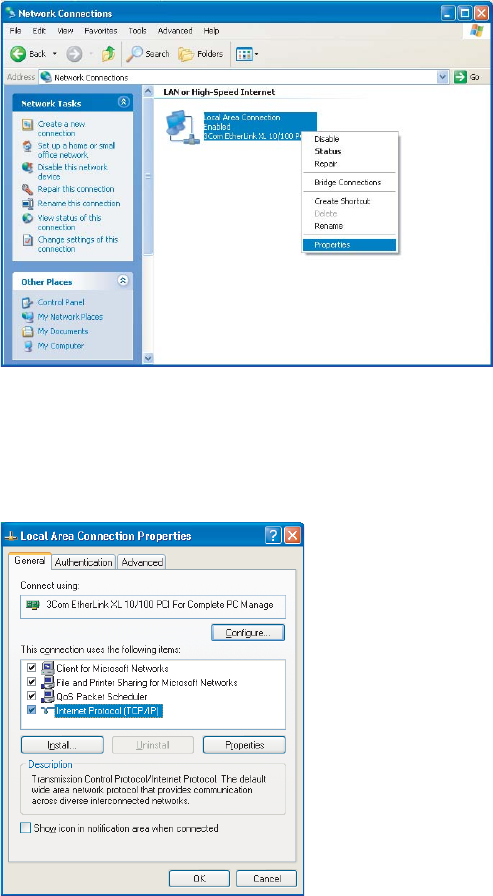

Figure6-12:NetworkConnections ............................... 6-8
Figure6-13:LocalAreaConnectionProperties......................... 6-8

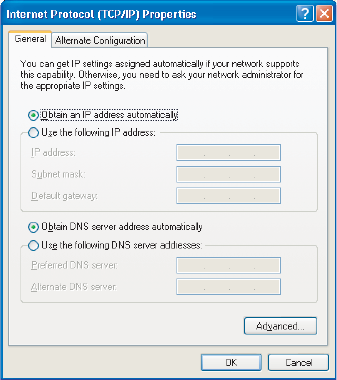

Figure6-14:InternetProtocol(TCP/IP)Properties ....................... 6-9
Figure7-1:EURoHS ...................................... 7-7
Figure7-2:ChinaManagementMethods(CMM)DisclosureTable................ 7-8
68P09285A67-D iii
MAR 2008
List of Figures
iv 68P09285A67-D
MAR 2008
List
of
Tables
List of Tables
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
Table1:Manualversionhistory................................. 2
Table2-1:UserScreens..................................... 2-8
Table3-1:PasswordFields.................................... 3-3
Table3-2:DeviceTimeFields.................................. 3-3
Table3-3:DeviceNameFields.................................. 3-3
Table3-4:RestoreFactorySettingsFields............................ 3-4
Table3-5:WiMAXSecurityFields................................ 3-5
Table3-6:FirewallFields.................................... 3-6
Table3-7:DynamicDNSFields................................. 3-6
Table4-1:PortForwardingBasicFields............................. 4-3
Table4-2:PortForwardingForwardingScreenFields...................... 4-3
Table4-3:DHCPServerFields.................................. 4-4
Table4-4:LeaseStatusFields.................................. 4-5
Table4-5:LeaseReservationFields............................... 4-5
Table4-6:SoftwareTabFields.................................. 4-7
Table4-7:SystemTabFields................................... 4-7
Table5-1:GlossaryTerms.................................... 5-2
Table7-1:ComplianceStatement................................ 7-3
68P09285A67-D v
MAR 2008
List of Tables
vi 68P09285A67-D
MAR 2008
About
This
Manual
WiMAX CPEo400 Series User Guide
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 1
MAR 2008
Revision History
Revision History
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
The following shows the issue status of this manual since it was first released.
Version Information
Table 1 Manual version history
Manual
issue Date of issue Remarks
AAUG 2007 CPEo400 User Guide Release
BSEP 2007 Upissue to Initial Release
C OCT 2007 Includes review comments
DMAR 2008 Update to remove Desktop
268P09285A67-D
MAR 2008
Chapter
1
WiMAX CPEo400 Series User Guide
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 1-1
MAR 2008
Product Overview Chapter 1: WiMAX CPEo400 Series User Guide
Product Overview
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
WiMAX CPEo400 Series Overview
Figure 1-1 CPEo400 Unit
Thank you for purchasing the Motorola Customer Premises Equipment Outdoor (CPEo) 400
device. The Outdoor CPE allows you to connect to the wireless world easily and seamlessly.
The CPE outdoor (CPEo) device provides the user:
•Convenience — with easy plug and play functionality. Flexible connectivity. Compact
design.
•Performance — high gain antenna providing Best in Class range in outdoor environment.
•Control — remote management capability allows easy detection and authentication once
the unit is setup.
The features and the physical appearance of your Outdoor CPE device may differ slightly from
the illustration. This product is subject to change. For the most recent documentation, visit the
Product Documentation page on www.motorola.com.
1-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Powerful Features in a Single Unit
Powerful Features in a Single Unit
The CPE device provides the following features:
•WiMAX (Worldwide Interoperability for Microwave Access) Access
•WAN DHCP Client
•LAN DHCP Server
•Home Gateway Functions
Operating Information
Operating temperature for this unit is -40C to 55C (-40F to 131F).
68P09285A67-D 1-3
MAR 2008
Operating Information Chapter 1: WiMAX CPEo400 Series User Guide
1-4 68P09285A67-D
MAR 2008
Chapter
2
Installation
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 2-1
MAR 2008
Hardware Installation Overview Chapter 2: Installation
Hardware Installation Overview
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
The CPEo400 is an outdoor unit and the hardware installation is beyond the scope of this
document. Please arrange with your service provider for professional installation.
2-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Software Installation Overview
Software Installation Overview
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
What You Need to Begin
Once the CPEo400 has been professionally installed by your service provider, you will need:
•Acomputer
Ensure your computer is plugged in, and the ethernet cable is connected from your computer to
the CPE.
Advanced Setup
The CPE can also be used to connect to a multi-port switch (hub) - purchased separately from
the CPE. Connecting the CPE device to a hub will allow you to connect more than one computer
to your CPE device.
68P09285A67-D 2-3
MAR 2008
Procedure to Log into the CPE Chapter 2: Installation
Procedure to Log into the CPE
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
Before you Begin Configuration
Some settings on your computer must be verified or changed to ensure that your computer
configuration can support the Outdoor CPE.
Verify that the Network Settings of your LAN Connection on your computer are set to
Automatically Obtain IP Addresses and Automatically Obtain DNS Server Addresses. Refer to
Chapter 6 Configuring TCP/IP and DNS Settings for instructions.
Logging into the CPE
Use the following procedure to log into the CPE
Figure 2-1 CPE Login Screen
Continued
2-4 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Logging into the CPE
Procedure 2-1 Logging into the CPE
1Verify that the Network Settings of your LAN Connection on your computer
are set to Automatically Obtain IP Addresses and Automatically Obtain DNS
Server Addresses. Refer to Chapter 6 Configuring TCP/IP and DNS Settings
2On a computer that is connected to the CPE, open a web browser.
3In the Address or Location field, type http://mywimax. and press ENTER
to display the login screen.
NOTE
You must include the period (.) after http://mywimax. in order to
access the login screen.
4The Welcome to Motorola WiMAX CPE screen will be displayed and will
prompt you for a password.
5In the Password field, enter motorola for the password.
6Click Login
7First time users will see a pop-up box that states:
Result: The Wizard application will guide you through for the first time
configuration. Click OK button to continue.
8Click the OK button to launch the wizard application.
68P09285A67-D 2-5
MAR 2008
Setup Wizard and Authentication Chapter 2: Installation
Setup Wizard and Authentication
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
You can use the setup Wizard to quickly set up your CPE for use.
Wizard Step One — Enable Login Password Protection
The setup Wizard automatically enables Password Protection. It is recommended that you keep
the password protection enabled to protect your device and network.
Procedure 2-2 Enable Password Protection
The Setup Wizard automatically enables Password Protection. When Password Protection is
enabled, users are prompted for and must supply the correct password prior to gaining access
the CPE.
1Ensure the Enable Login Password Protection box is checked. The
password will always be motorola.
2Click Next
Wizard Step Two — Device Time
This screen allows you to set the time zone for your location and to enable automatic adjustment
for Daylight Savings Time (when applicable)..
Procedure 2-3 Device Time
1Select the appropriate time zone for your location from the drop down box.
2Check the box called Auto Adjust for Daylight Savings Time if you live in a
region that observes Daylight Savings Time (this box is checked by default).
3Click the Next button.
Wizard Step Three — WiMAX Security
The WiMAX Security tab will contain your authentication method. Check with your service
provider to determine if they require a user name and password for authentication purposes.
Procedure 2-4 WiMAX Security
1Select one of the following:
IF: THEN...
Continued
2-6 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Wizard Step Three — WiMAX Security
Procedure 2-4 WiMAX Security (Continued)
The Authentication
Method is EAP-TLS . 1. Enter the Realm information as provided by
your service provider
2. Click the Apply button
The Authentication
Method is
EAP-TTLS/MS-CHAPv2 1. Enter the User Nameand Password as
supplied by your service provider.
2. Enter the Realminformation as provided by
your service provider.
3. Click the Finish button when finished
Congratulations! You have now completed the setup of your WiMAX
connection.
NOTE
You can confirm a successful WiMAX connection by seeing a green
check mark on the globe symbol at the top of your User Screen.
2Click OK on the Congratulations! dialog box.
A WiMAX Status Screen will appear. This screen will provide any status associated with your
WiMAX Wireless Broadband connection. See the example Status Screen below.
Figure 2-2 CPE Status Screen
68P09285A67-D 2-7
MAR 2008
CPE User Screens Chapter 2: Installation
CPE User Screens
There are buttons that appear on each CPE User Screen. These buttons and their functions
are described here.
Table 2-1 User Screens
Button Function
Restart Shuts down and restarts the
CPE device.
Wizard Prompts you to start the
set-up wizard over again.
Refresh Refreshes the status data
Auto Refresh Allows the web browser to
automatically refresh at the
interval determined in the
Control Panel menu.
Figure 2-3 User Buttons
restart button
2-8 68P09285A67-D
MAR 2008
Chapter
3
Basic Configuration
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 3-1
MAR 2008
Basic Configuration Overview Chapter 3: Basic Configuration
Basic Configuration Overview
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
Once the CPE set up has been completed, you can login to your CPE from any computer on
your home network by typing the device name in the address bar. The default device name is
mywimax. The Basic Configuration Menus that are available are:
•Personalize
•Internet
•Status
Personalize Menu
The Personalize menu provides the following tabs:
•Password
•Device Time
•Device Name
•Restore Factory Settings
Figure 3-1 Personalize Menu
3-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Personalize Menu
Password Tab
The password tab allows you to enable/disable password protection.
The Setup Wizard automatically enables Password Protection. When Password Protection is
enabled, users are prompted for and must supply the correct password prior to gaining access
the CPE.
Table 3-1 Password Fields
Field or Button Description
Enable Login Password Protection Checking this box will require login
password protection. Password will always
be motorola.
Device Time Tab
The Device Time tab allows you to establish the time zone for your location. It also allows you
to automatically adjust for Daylight Savings Time if applicable. Be sure to click the Apply
button when finished
Table 3-2 Device Time Fields
Field or Button Description
Current Local Time Shows the current local date and time
Time Zone Select your local time zone from the drop
down box
Auto Adjust for Daylight Savings Time Check this box if your location observes
Daylight Savings Time (default is checked).
Device Name Tab
The Device Name tab allows you to re-name your CPE device. This is the Device Name you
enter on an internet browser address bar to access your CPE device. For example, during the
setup process you typed http://mywimax.. “mywimax.” is the device name. If you change
the Device Name, subsequent logins would require you to type in the new Device Name. Be
sure to click the Apply button when finished.
Table 3-3 Device Name Fields
Field or Button Description
New Device Name Enter the new name for the CPE device.
Maximum 20 characters.
68P09285A67-D 3-3
MAR 2008
Internet Menu Chapter 3: Basic Configuration
Restore Factory Settings Tab
TheRestoreFactorySettingsTabwillresetyourCPE to the manufacturer’s default settings. Be
sure to click the Apply button when finished.
CAUTION
Only perform a Restore Factory Settings tab under the guidance of your service
provider.
Table 3-4 Restore Factory Settings Fields
Field or Button Description
Restore Factory Settings Checking this box will restore the CPE to
factory default settings. The device will
restart when you click Apply.
Internet Menu
The Internet menu provides the following tabs:
•WiMAX Security
•Internet Protocol
•Firewall
•Dynamic DNS
3-4 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Internet Menu
Figure 3-2 CPE Internet Menu
WiMAX Security Tab
The WiMAX Security tab will contain your authentication method. Check with your service
provider to determine if they require a user name and password for authentication purposes. Be
sure to click the Apply button when finished.
Table 3-5 WiMAX Security Fields
Field or Button Description
Authentication Method Drop down box allows you to select either
EAP-TLS (default) or EAP-TTLS/MS-CHAPv2
User Name (EAP-TTLS/MS-CHAPv2 only) Enter the User Name supplied by your
service provider.
Password (EAP-TTLS/MS-CHAPv2 only) EnterthePasswordsuppliedbyyourservice
provider.
Password Confirmation
(EAP-TTLS/MS-CHAPv2 only)
Re-enter the Password supplied by your
service provider.
Realm Enter the Realm as supplied by your service
provider.
68P09285A67-D 3-5
MAR 2008
Internet Menu Chapter 3: Basic Configuration
Internet Protocol Tab
CAUTION
Please check with your service provider for these settings. If you are unsure of the
settings, leave the default values set and click the Apply button. If your service
provider has instructed you to change any of these settings, be sure to click the Apply
button when you are finished.
Firewall Tab
Afirewall helps to protect your home network from unauthorized access. It will also help to
manage authorized access from the Internet to your CPE. Be sure to click the Apply button
when finished.
Table 3-6 Firewall Fields
Field or Button Description
Enable Firewall Check this box to enable the firewall for
your home network.
Enable Web Login from Internet Check thisboxtoenablesyoutoaccessyour
CPE device from a network other than your
own.
Web Login Port from Internet This is a non-editable field.
Enable ping from Internet Enables the CPE to respond to a ping from
the Internet. This option would be enabled
to allow testing only. Do not leave this
enabled.
Dynamic DNS Tab
Dynamic Domain Name Service (DDNS) allows a user with a non-static IP address to keep their
domain name associated with an ever changing IP address. As an example, DDNS is used when
you are hosting your own website. Be sure to click the Apply button when finished.
Table 3-7 Dynamic DNS Fields
Field or Button Description
Enable DDNS Check this box to Enable DDNS (default is
unchecked)
DDNS Service Provider Select DDNS Service Provider that you
belong to from the drop down box.
DDNS User Name Only valid if Enable DDNS is checked. Enter
your DDNS account user name.
Continued
3-6 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Status Menu
Table 3-7 Dynamic DNS Fields (Continued)
Field or Button Description
DDNS Password Only valid if Enable DDNS is checked. Enter
your DDNS account password.
DDNS Host Name Only valid if Enable DDNS is checked. Enter
the DDNS Host Name. This is assigned by
the DDNS service.
Status Menu
Use the status window to check the status of your WiMAX wireless broadband internet
connection.
Figure 3-3 CPE Status Menu
This completes the Basic Configuration information for your CPEo400 unit. The rest of the
manual contains Advanced User information for use in conjunction with your Service Provider’s
support.
68P09285A67-D 3-7
MAR 2008
Status Menu Chapter 3: Basic Configuration
3-8 68P09285A67-D
MAR 2008
Chapter
4
Advanced Configuration
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 4-1
MAR 2008
Advanced Configuration Overview Chapter 4: Advanced Configuration
Advanced Configuration Overview
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
The Advanced Configuration section describes the following advanced menus:
•Port Forwarding
•Local Address
•Control Panel
NOTE
Contact your service provider for support with this functions.
Port Forwarding Menu
Port forwarding enables you to direct incoming traffictospecificLANhosts(computersonyour
network) based on the protocol and port number. The port forwarding menu provides the
following tabs:
•Basic
•Forwarding
Figure 4-1 CPE Port Forwarding Menu New
4-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Local Address Menu
Basic Tab
Be sure to click the Apply button when finished.
Table 4-1 Port Forwarding Basic Fields
Field or Button Description
Enable UPnP IGD Enables Universal Plug and Play (UPnP)
Internet Gateway Device (IGD) profile to
allow certain Windows applications to setup
the port forwarding rule dynamically when
NAT is enabled on this device.
DMZ (De-Militarized Zone) IP Address Enter the DMZ IP Address
Forwarding Screen
Click on the ADD button to create additional Port Forwarding rules. Be sure to click the Apply
button when finished.
Table 4-2 Port Forwarding Forwarding Screen Fields
Field or Button Description
Select Select a box when you want to delete the
specificrow.
Protocol Select TCP (Transmission Control Protocol)
or UDP (User Datagram Protocol).
WAN Port Start Enter the beginning port range for external
network access.
WAN Port End Enter the ending port range for external
network access.
LAN IP Address Enter the IP address to host the service.
LAN Port Start Enter the beginning port range for internal
network access.
LAN Port End Enter the ending port range for internal
network access.
Enabled Check to enable specificportforwarding.
Local Address Menu
The Local Address menu allows you to configure your Local Area Network (LAN) connections.
The Local Address menu provides the following tabs:
•DHCP Server
•Lease Status
•Lease Reservation
68P09285A67-D 4-3
MAR 2008
Local Address Menu Chapter 4: Advanced Configuration
Figure 4-2 CPE Local Address Menu
DHCP Server Tab
The DHCP Server Tab enables Dynamic Host Configuration Protocol (DHCP) server functionality
on the LAN, allowing the CPE to dynamically assign lease IP addresses to clients that connect to
it from the local network. Be sure to click the Apply button when finished making any changes
Table 4-3 DHCP Server Fields
Field or Button Description
Enable DHCP Server If selected, the DHCP server on the gateway
assignsIPaddressestothecomputersand
other hosts on your network if they have
DHCP enabled. By default, the gateway
server is enabled. If there is another DHCP
server running on your network (on another
router), you must disable one of the DHCP
servers.
DHCP Server IP Address Enter the port forwarding LAN Client IP
Address.
DHCP Starting IP Address Sets the first IP address assigned by the
DHCP server, in dotted-decimal format. It
must be greater than the IP address value of
the gateway. For example, if the IP address
of the gateway is 192.168.15.1 (default), the
starting IP address must be 192.168.15.2
(or higher)
Continued
4-4 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Local Address Menu
Table 4-3 DHCP Server Fields (Continued)
Field or Button Description
DHCP Ending IP Address Sets the final IP address assigned by the
DHCP server. If the DHCP server runs out
of DHCP addresses, users cannot access
network resources. If this happens, increase
the Ending IP or reduce the Lease Time.
DHCP Lease Time Sets the time, in seconds, that a network
computer remains connected to the gateway
using its current assigned IP address. At the
end of this time, the DHCP server renews
the lease or assigns the computer a new
IP address. The default is 3600 seconds (1
hour). The maximum is 999999 seconds
(approx. 278 hours).
Lease Status Tab
The Lease Status tab in the Local Address menu displays the active DHCP leases since the last
reboot. BesuretoclicktheApply button when finished making any changes.
Table 4-4 Lease Status Fields
Field or Button Description
Client Host Name Displays the client host name. The Name
field is limited to 20 characters (only 5
appear in display)
MAC Address Media Access Control (MAC) address.
IP Address Shows the IP Address for each active lease.
Remaining Lease Duration Shows the amount of time, in seconds,
remaining in the lease. When the Remaining
Lease Duration reaches 0, a new IP address
will automatically be assigned.
Lease Reservation Tab
Theleasereservationtabmanagestheleasereservationstoensurethesameclientgetsthesame
IP address every time. Be sure to click the Apply button when finished making any changes
Table 4-5 Lease Reservation Fields
Field or Button Description
Select Select this box if you want to delete an
established lease reservation. Be sure to
click the Delete button once you have
selected your exception to be deleted.
Continued
68P09285A67-D 4-5
MAR 2008
Control Panel Menu Chapter 4: Advanced Configuration
Table 4-5 Lease Reservation Fields (Continued)
Field or Button Description
Client Host Name Enter the client host name. The Name field
is limited to 20 characters (only 5 appear
in display)
MAC Address Media Access Control (MAC) address. Enter
the MAC address of the device.
IP Address Enter the IP address that you want assigned
to the MAC Address.
Enabled Checking this box enables the lease
reservation.
Control Panel Menu
The Control Panel sections allows you to view/update your software information. The Control
Panel menu provides access to the following tabs:
•Software
•Certificate
•System
•About
Figure 4-3 CPE Control Panel Menu
4-6 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Control Panel Menu
Software Tab
TheSoftwareTabmanagesthesoftwareonyourCPE device. It is also where you can upgrade
device software.
CAUTION
Do not upgrade or remove software without first contacting your service provider.
Table 4-6 Software Tab Fields
Field or Button Description
Browse Usethisbuttontobrowseyourcomputerfor
additional software packages.
Upgrade Click this button once you have located the
software package/update you would like to
add to your device.
View Use this button to view any available
software packages.
Install Click this button once you have selected an
available software package that you would
like installed.
Uninstall Select the software package you would like
removed and select this button.
Certificate Tab
The certificate tab is where you manage the certificates that are stored on the device.
Use the BROWSE button to locate the certificate file on your computer, and then click the
IMPORT button. Use the REMOVE button to remove any selected certificate(s).
System Tab
This tab allows you to manage additional features of your CPE device. Be sure to click the Apply
button when finished making any changes
Table 4-7 System Tab Fields
Field or Button Description
Language Used in User Interface Select the desired language for the user
interface. The default language is English.
Enable WiMAX Radio Interface Check this box to enable the WiMAX Radio
Interface. If this box is disabled, the WiMAX
radio will not transmit any signal.
Continued
68P09285A67-D 4-7
MAR 2008
Control Panel Menu Chapter 4: Advanced Configuration
Table 4-7 System Tab Fields (Continued)
Field or Button Description
Auto Refresh Interval Enter, in seconds, the interval for status
Auto Refresh. Valid range is 1 second - 9999
seconds.
Re-bootstrap EMS (Element Management
System)
Check this box to reconnect the device with
the EMS.
NOTE
Only perform this function under
the supervision of a Customer
Support Representative.
Enable Buzzer Check this box to enable/disable the buzzer
for the initial set-up and installation of
your CPE device. The default is enabled
(checked).
About Tab
The About Tab will display basic properties of your CPE device such as: Product Name, Model
ID, Hardware Version, Serial Number and the WiMAX MAC Address.
4-8 68P09285A67-D
MAR 2008
Chapter
5
Glossary and Troubleshooting
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 5-1
MAR 2008
Glossary of Terms Chapter 5: Glossary and Troubleshooting
Glossary of Terms
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
Below is a list of acronyms and their definitions.
Glossary
Table 5-1 Glossary Terms
Acronym Definition
CPE Customer Premise Equipment
EMS Element Management System
IEEE Institute of Electrical and Electronic
Engineers
IP Internet Protocol
LOS Line Of Site
MAC Media Access Control
NLOS Non-Line Of Site
VoIP Voice Over Internet Protocol
Wi-Fi Wireless Fidelity
WiMAX Worldwide Interoperability for Microwave
Access
WLAN Wireless Local Area Network
5-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Basic Troubleshooting Overview
Basic Troubleshooting Overview
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
This section provides basic troubleshooting for your CPEo400 device.
A Computer Cannot Log On to the CPE
Check that the Ethernet cable is properly connected to the CPE unit and the computer.
Cannot Connect to the Internet
Check the Outdoor CPE connection status from the Web Interface, refer to the Connection
Status section to verify the connection status.
If the Outdoor CPE connection is down, and the gateway has not received an IP for 5 to 10
minutes, rerun the setup wizard.
Additional Troubleshooting Support
Please contact your service provider for additional Troubleshooting Support.
68P09285A67-D 5-3
MAR 2008
Additional Troubleshooting Support Chapter 5: Glossary and Troubleshooting
5-4 68P09285A67-D
MAR 2008
Chapter
6
Configuring TCP/IP and DNS Settings
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 6-1
MAR 2008
Configuring TCP/IP Chapter 6: Configuring TCP/IP and DNS Settings
Configuring TCP/IP
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
Thischapterisneededforsetupprocedures. Refer to for more information regarding this
chapter.
All client computers on your network must be configured for TCP/IP (the protocol that controls
communication among computers). Perform one of:
•Configuring TCP/IP in Windows 2000
•Configuring TCP/IP in Windows XP
NOTE
Follow the instructions in your Macintosh or UNIX user manual.
Configuring TCP/IP in Windows 2000
1. On the Windows Desktop, click Start.
2. Select Settings and then Control Panel from the pop-up menus to display the Control
Panel window:
Figure 6-1 Windows Control Panel
6-2 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Configuring TCP/IP in Windows 2000
3. Double-click the Network and Dial-up Connections icon to display the Network and
Dial-up Connections window:
Figure 6-2 Network and Dial-up Connections
In the steps that follow, a connection
number
like 1, 2, 3, etc., is a reference that is
displayed on computers with multiple network interfaces. Computers with only one
network interface may only see the label: Local Area Connection.
4. Click Local Area Connection number. The value of number varies from system to system.
The Local Area Connection number Status window is displayed:
Figure 6-3 Local Area Connection
5. Click Properties. Information similar to the following window is displayed:
68P09285A67-D 6-3
MAR 2008
Configuring TCP/IP in Windows 2000 Chapter 6: Configuring TCP/IP and DNS Settings
Figure 6-4 Properties
6. If Internet Protocol (TCP/IP) is in the list of components, TCP/IP is installed. You can
skip to Step 10
If Internet Protocol (TCP/IP) is not in the list, click Install. The Select Network Component
Type window is displayed:
Figure 6-5 Select Network Connection Type
7. Click Protocol on the Select Network Component Type window and click Add.TheSelect
Network Protocol window is displayed:
6-4 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Configuring TCP/IP in Windows 2000
Figure 6-6 Select Network Protocol
8. Click Internet Protocol (TCP/IP)..
9. Click OK. The Local Area Connection number Properties window is re-displayed.
10. Be sure the box next to Internet Protocol (TCP/IP) is checked.
11. Click Properties. The Internet Protocol (TCP/IP) Properties window is displayed:
Figure 6-7 Internet Protocol (TCP/IP) Properties
12. Be sure Obtain IP address automatically and Obtain DNS server address automatically are
selected.
13. Click OK to accept the TCP/IP settings.
68P09285A67-D 6-5
MAR 2008
Configuring TCP/IP in Windows XP Chapter 6: Configuring TCP/IP and DNS Settings
14. Click Close to close the Local Area Connection number Properties window.
15. Click OK when prompted to restart the computer and click OK again.
Configuring TCP/IP in Windows XP
1. On the Windows desktop, click Start to display the Start window:
Figure 6-8 Windows XP Start Window
2. Click Control Panel to display the Control Panel window. The display varies, depending on
your Windows XP view options. If the display is a Category view as shown below, continue
with Step 3.Otherwise,skiptoStep 5
Figure 6-9 Control Panel
6-6 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Configuring TCP/IP in Windows XP
3. Click Network and Internet Connections to display the Network and Internet
Connections window:
Figure 6-10 Network and Internet Connections
4. Click Network Connections.SkiptoStep 6.
5. If a classic view similar to below is displayed, double-click Network Connections to
display the LAN or High-speed Internet connections.
Figure 6-11 Control Panel Classic View
6. Right-click the Local Area Connection. If more than one connection is displayed, be sure
toselecttheoneforyournetworkinterface.
68P09285A67-D 6-7
MAR 2008
Configuring TCP/IP in Windows XP Chapter 6: Configuring TCP/IP and DNS Settings
Figure 6-12 Network Connections
7. Select Properties from the pop-up menu to display the Local Area Connection Properties
window:
Figure 6-13 Local Area Connection Properties
8. On the Local Area Connection Properties window, select Internet Protocol (TCP/IP)
if it is not selected.
9. Click Properties to display the Internet Protocol (TCP/IP) Properties window:
6-8 68P09285A67-D
MAR 2008
WiMAX CPEo400 Series User Guide Configuring TCP/IP in Windows XP
Figure 6-14 Internet Protocol (TCP/IP) Properties
10. Be sure Obtain IP address automatically and Obtain DNS server address automatically are
selected.
11. Click OK to close the TCP/IP Properties window.
12. Click OK to close the TCP/IP Properties window.
Click OK to close the TCP/IP Properties window.
68P09285A67-D 6-9
MAR 2008
Configuring TCP/IP in Windows XP Chapter 6: Configuring TCP/IP and DNS Settings
6-10 68P09285A67-D
MAR 2008
Chapter
7
Important Safety and Legal Information
■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
■
■
68P09285A67-D 7-1
MAR 2008
Important Safety Information Chapter 7: Important Safety and Legal Information
Important Safety Information
■■■■■■■■■■■ ■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■ ■■■■■■■■■■■■■
■
■
Your Motorola WiMAX Wireless Broadband Gateway is designed and tested to comply with a
number of national and international standards and guidelines (listed below) regarding human
exposure to RF electromagnetic energy.
This Product complies with the following RF energy exposure
standards and guidelines:
•United States Federal Communications Commission, Code of Federal Regulations; 47CFR
part 2 sub-part J
•American National Standards Institute (ANSI)/ Institute of Electrical and Electronic
Engineers (IEEE) C95 1-2005
