1 INTRODUCTION
1.1 System Overview
AWS TRDU List10 connect with BBU which made by Alcatel-Lucent. AWS TRDU is transiver
system which is support LTE fuction in AWS frequency band range.
AWS TRDU is connected by optical cable.
CPRI Interface of one AWS TRDU List10 connect to BBU (LTE)

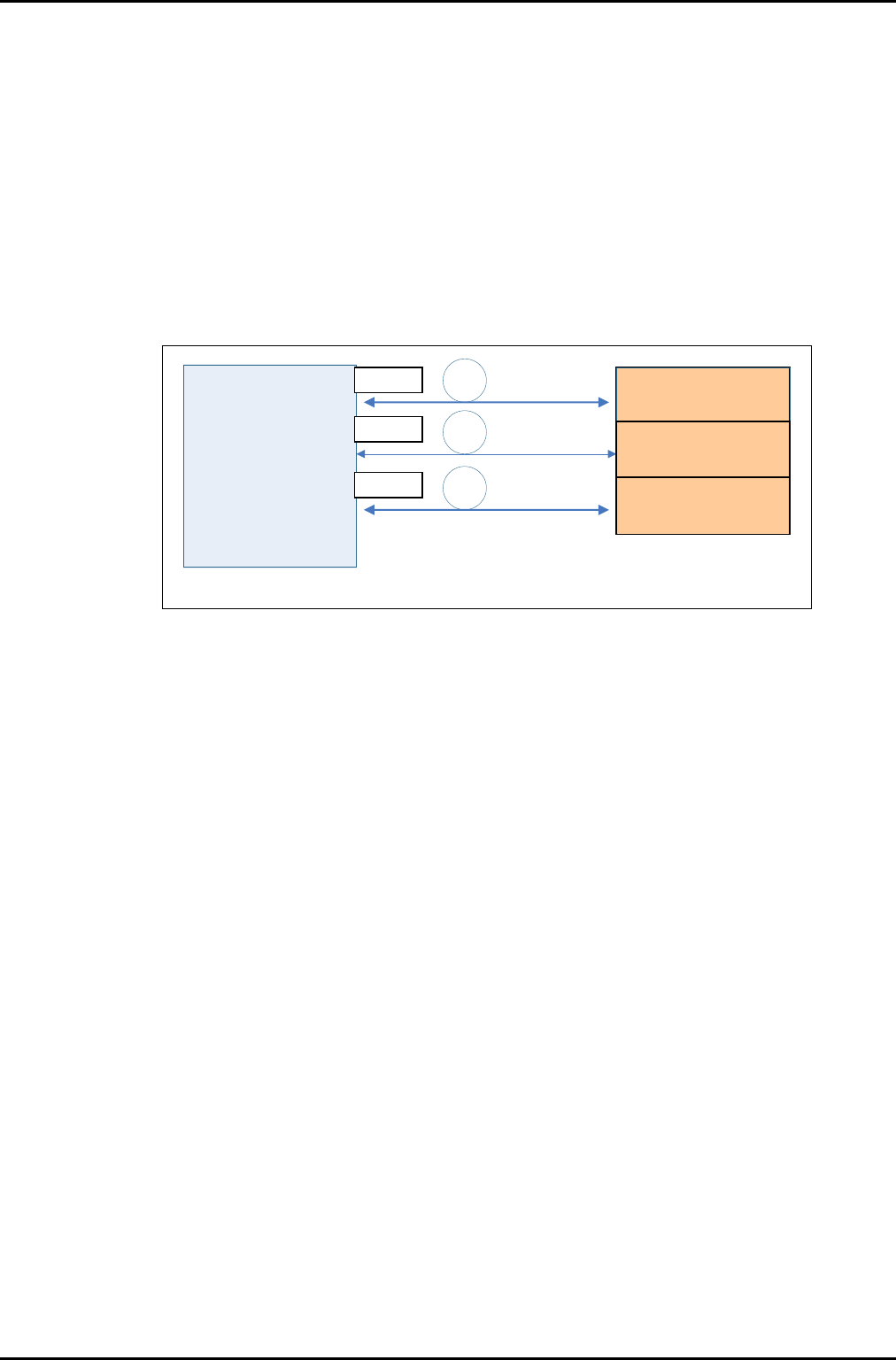

Figure 1-1 System Overview
LTE
BBU
AWS-TRDU
CPRI
AWS-TRDU
AWS-TRDU
TRDU shelf
CPRI
CPRI
AWS TRDU List10 Installation Guide Issue: 1.0.0
6/14 PMC CONFIDENTIAL
1.2 Equipment Outline

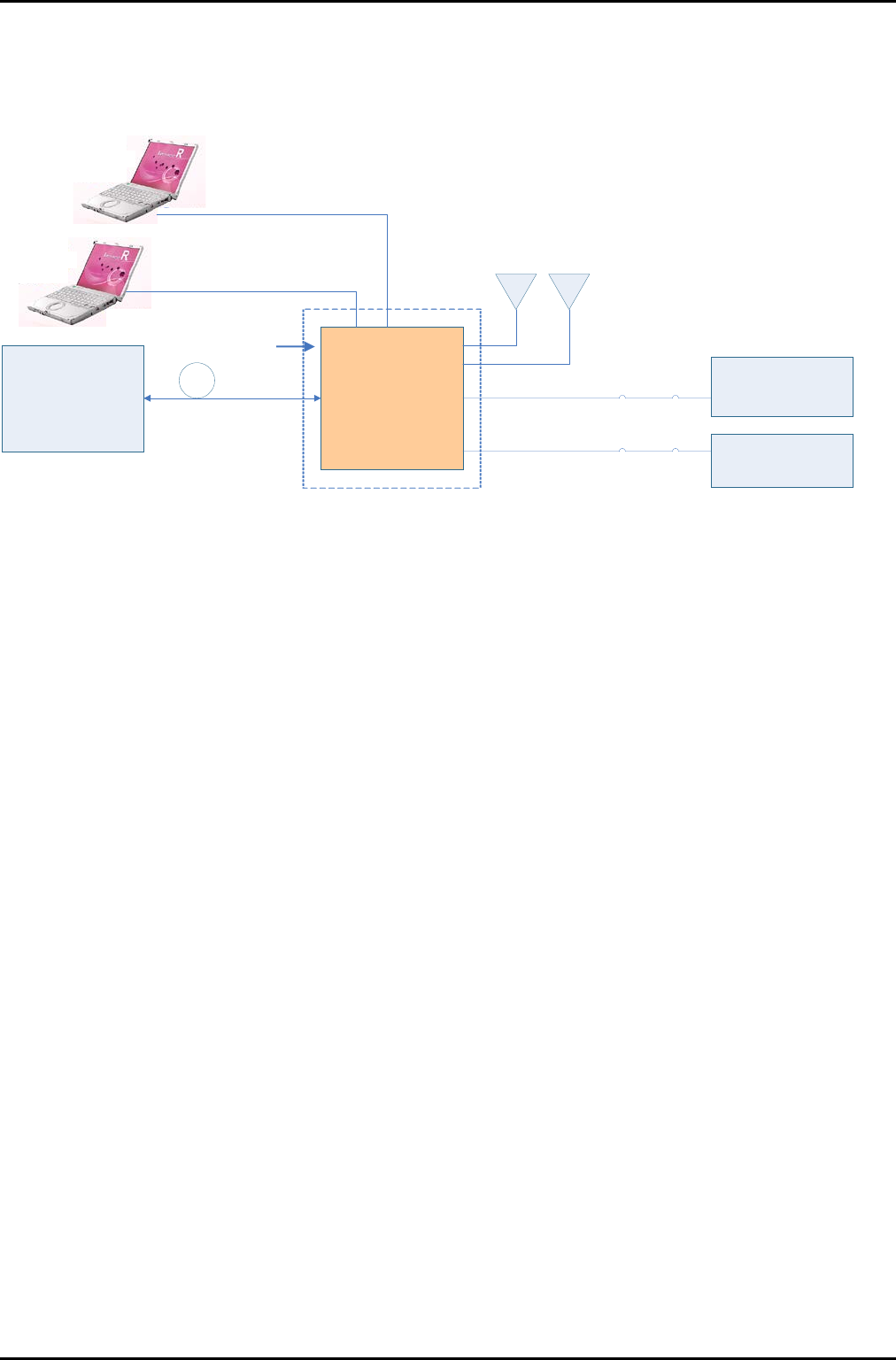

Figure 1-2 Equipment Outline
① Execute transmit and receive BBU and UL/DL Digital Signal by optical interface
② Enable to maintain TRDU with OCI (On site Configuration Interface) and Personal
Computer.
③ Enable to use Alarm-interface detect function
④ AISG supply and control power function which is connected to tower-top equipment
from TRDU.
⑤ This system support DC -48V power input
⑥ Execute several functions (Status-Control/Tranciver-Control/Mesurement/Failure
-Control…) based on control message of BBU.
⑦ Enable to download Software (Control Software, DSP Firmware、FPGA Data) as
remotely
AWS-TRDU
BBU
Tower-top
Equipment
Monitor
OCI Ether net
CPRI
AISG
I2C
DC-48V
OCI Serial(telnet)
AWS TRDU List10 Installation Guide Issue: 1.0.0
7/14 PMC CONFIDENTIAL
1.3 Structural Outline
【Structure Outline】
① Thermal method is air‐cooled engine(TRDU has no cooling fan)
② Enable to load next cable (Power Cable/Optical Cable/AISG Cable/ Antenna Cable
/AUX Cable) from Front side of the TRDU.
③ There are LED in front side of the TRDU which can monitoring system status.
AWS TRDU List10 Installation Guide Issue: 1.0.0
8/14 PMC CONFIDENTIAL
1.4 Specification
1.4.1 System Specification
No
Item
Content
Remark
1
Input Power
-48V (-37V
～
-57V)
2
Power Consumption
Less than 650W
3
Weight
Less than 15kg
4
Temperature range
-40
～
+60
℃
5
Humidity range
5
～
95%
6
Dimension
Width 110 mm
Height 355 mm（ not include guide rail ）
Depth 360 mm
7
Thermal Type
naturally air cooled engine
8
Setting Location
Inside
AWS TRDU List10 Installation Guide Issue: 1.0.0
9/14 PMC CONFIDENTIAL
1.4.2 Optical Module Specification
No
Item
Condition/etc
Remark
1 Optical Center
Length
＜
Primary port
＞
DL：1550 nm、UL：1310 nm
＜
Secondary port
＞
Mix mode
：
1550 nm/1310 nm
2 Bit Rate
＜Primary port＞
1.2288 Gbps～6.1440 Gbps
＜
Secondary port
＞
2.4576 Gbps
～
6.144 Gbps
3 Transmission
Distance
＜Primary port＞
Maximum 20 km
＜
Secondary port
＞
Maximum 50m
AWS TRDU List10 Installation Guide Issue: 1.0.0
10/14 PMC CONFIDENTIAL
1.4.3 AWS TRDU Specification
No
Item
Type
Remark
1
Support Technologies
LTE
2
RF Output Power
67W/Branch×2
134W/Branch×1
3
Downlink RF Frequency
2110 MHz –2155 MHz
4
Uplink RF Frequency
1710 MHz –1755 MHz
5
Number of Carrier
LTE
：
4Carriers×2
AWS TRDU List10 Installation Guide Issue: 1.0.0
11/14 PMC CONFIDENTIAL
2 Installing the TRDU
2.1 Appearance

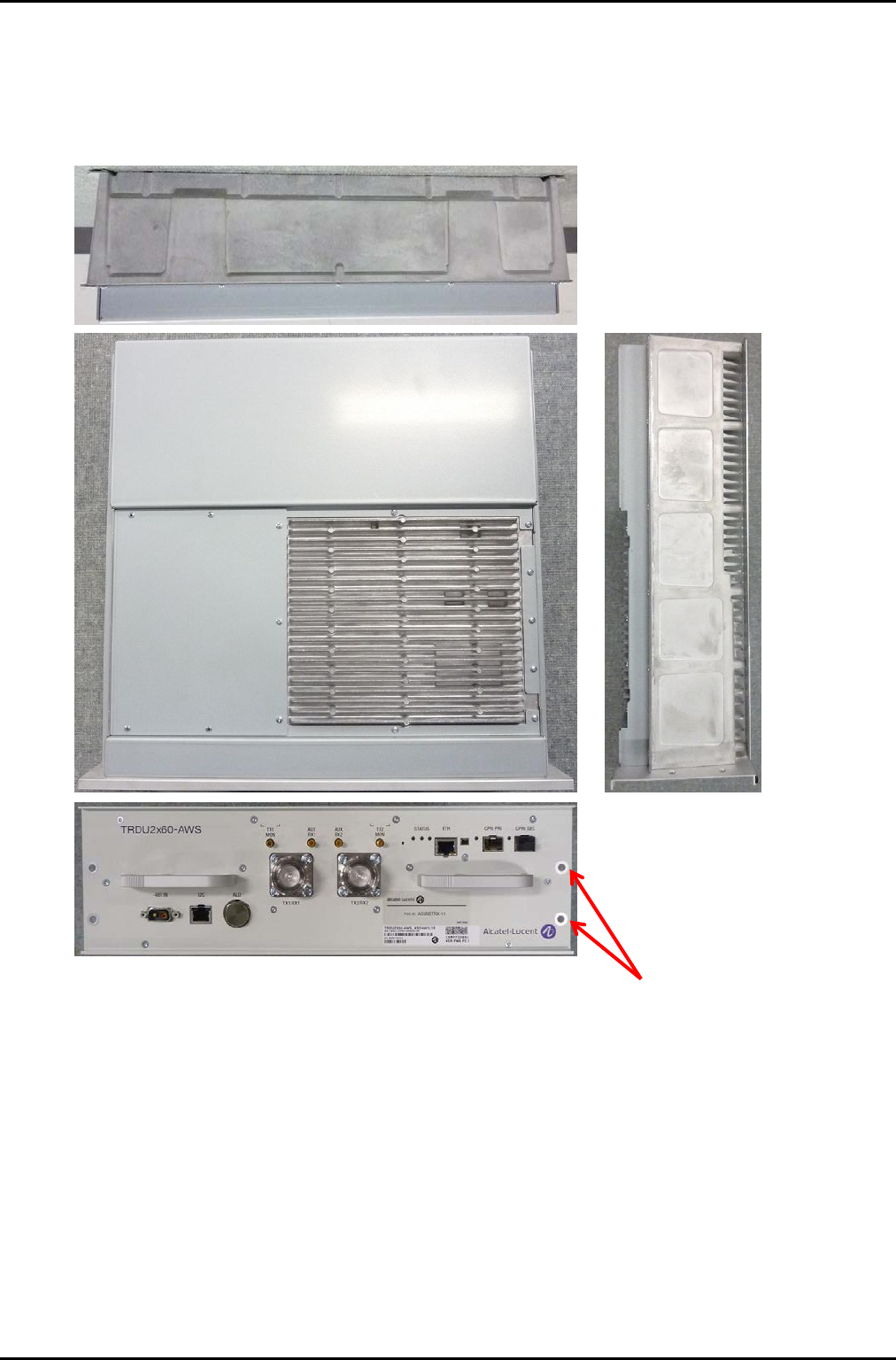

Figure 2-1 Appearance of the TRDU with connector covers
4-φ5.5 holes for Equipment mounting
and Ground Lugs
(There are 2-φ5.5 holes on opposite side)
AWS TRDU List10 Installation Guide Issue: 1.0.0
12/14 PMC CONFIDENTIAL
2.2 User Interface

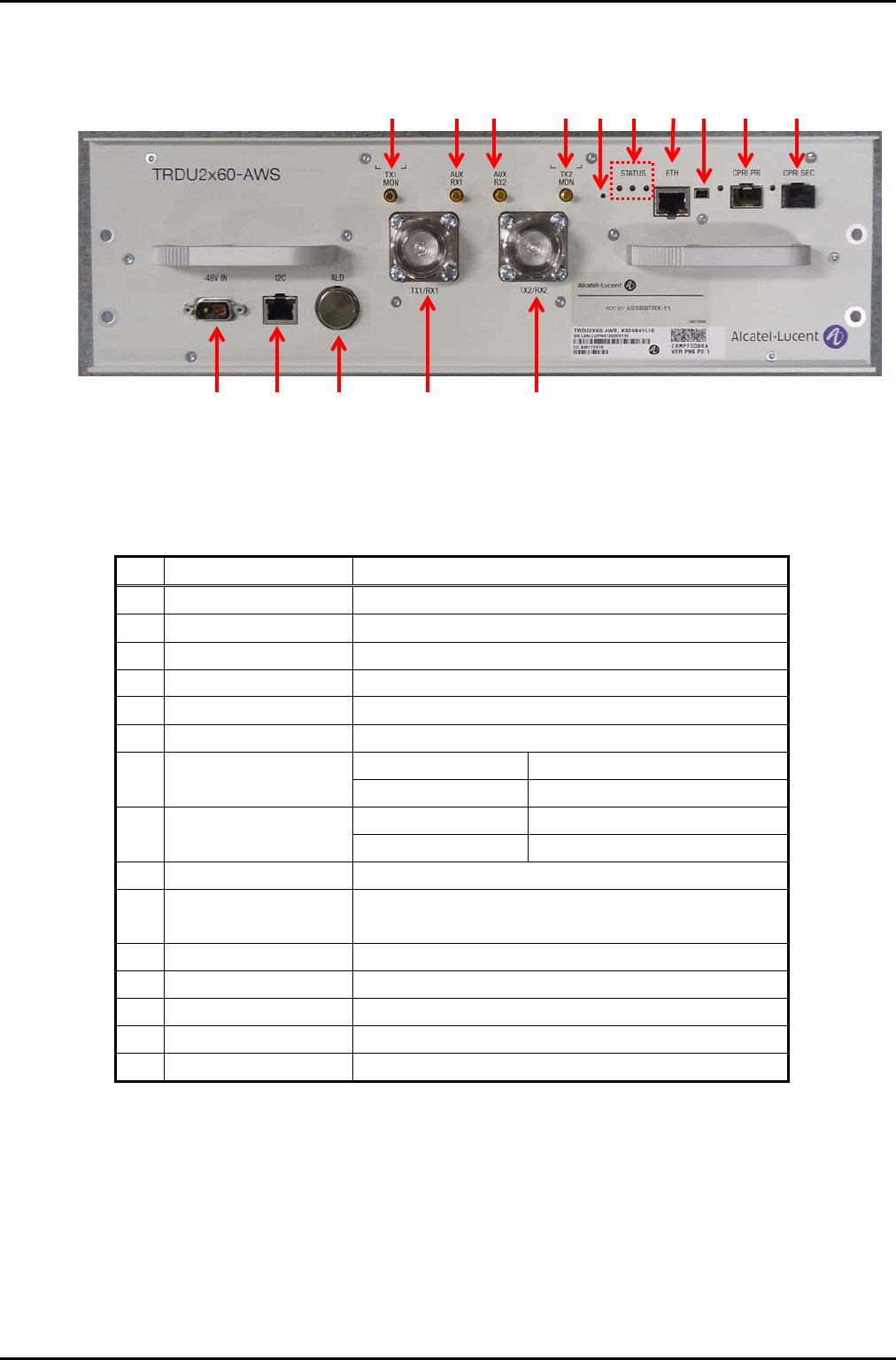

Figure 2-2 User Interface
Table 2-1 Connectors, LED, Reset button etc.
No.
Connector Name
Connector Type and Comment
1 TX/RX 1 7/16 DIN F
2
TX/RX 2
7/16 DIN F
3 TX1 Mon DIN 1.0/2.3 F
4
TX2 Mon
DIN 1.0/2.3 F
5 AUX RX1 DIN 1.0/2.3 F
6
AUX RX2
DIN 1.0/2.3 F
7 CPRI PRI SFP Connector Tyco Electronics 1888247-1
SFP Shield Cage
Tyco Electronics 2007198-1
8 CPRI SEC SFP Connector Tyco Electronics 1888247-1
SFP Shield Cage
Tyco Electronics 2007198-1
9 ALD Female 8-pin circular connector, per IEC 60130-9
10 DC -48V IN 2W2 2-pin D-sub circular connector
Amphenol P-FCE17-E2W2SB-FN5-RevB
11 ETH(Ethernet) RJ 45
12
I2C
RJ 45
13 Serial Port 4-pin Firewire socket, per IEEE1394
14
Reset Button
-
15 Status LED -
(1)
(2)
(5)
(6)
(7)
(8)
(15)
(10)
(11)
(12)
(13)
(9)
(3)
(4)
(14)
AWS TRDU List10 Installation Guide Issue: 1.0.0
13/14 PMC CONFIDENTIAL
2.3 Status LED
Table 2-2 LED Display States
No.
State
Green LED
Yellow LED
Red LED
1
No Power Supplied
Off
Off
Off
2
Initial Power On
Solid
Solid
Solid
3
Normal Operation
Solid
Off
Off
4
Standby
Off
Solid
Off
5
Critical HW Failure
Off
Off
Solid
6
Partial or Non-Critical Failure
Solid
Off
Solid
7
Tmporary HW Critical Fault
Off
Off
Flash
8
Slave CPRI Link External Failure
Off
Solid
Solid
9
External Antenna Failure
Solid
Off
Flash
10
Software Download
Off
Flash
Off
11
Background Software Download
Solid
Flash
Off
12
External Power Supply Failure
Flash
Flash
Flash
13
Reset Button
Solid
Solid
Solid
AWS TRDU List10 Installation Guide Issue: 1.0.0
14/14 PMC CONFIDENTIAL
3 FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Properly shielded and grounded cables and connectors must be used for connection to
host computers and / or peripherals in order to meet FCC emission limits.
Data transmission is always initiated by software, which is the passed down through the
MAC, through the digital
and analog baseband, and finally to the RF chip. Several special
packets are initiated by the MAC. These are the
only ways the digital baseband portion will
turn on the RF transmitter, which it then turns off at the end of the
packet. Therefore, the
transmitter will be on only while one of the aforementioned packets is being transmitted. In
other words, this device automatically discontinue transmission in case of either absence
of information to transmit or operational failure.
FCCPart15: This device complies with Part15 of the FCC Rules.
Operation is subject to the condition that thisdevice does not cause harmful interference.
RF approval: This equipment complies with Part 2, Subpart J – Equipment Authorization
Procedures, of the FCC Rules.
This device complies with Part 27- MISCELLANEOUS
WIRELESS COMMUNICATIONS
SERVICES, Subpart 27.53 (h)
