Nokia of America BBTRX-21 PCS LTE 9764 Metro Cell Outdoor Transceiver System User Manual

APPLICANT: Alcatel-Lucent USA Inc. -13 - FCC ID: AS5BBTRX-21

Alcatel-Lucent USA Inc. - Proprietary

Use pursuant to Company Instructions. 13

Exhibit 6 – Instruction Book

Confidential

SECTION 2.1033(c) (3)

A copy of the installation and operating instructions to be furnished the user. A draft copy of the instructions may be

submitted if the actual document is not available. The actual document shall be furnished to the FCC when it becomes

available.

Response: The installation and operating instructions for the Alcatel-Lucent’s PCS LTE 9764 Metro Cell Outdoor

Transceiver System FCC ID: AS5BBTRX-21 is attached.

The Installation Manual in this exhibit, Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x1W and 2x2W Hardware

Installation, 3MN-01707-0002-RJZZA Issue 3.05 | October 2014, is not furnished to the user, except under very

exceptional and very limited circumstances. This manual contains highly proprietary circuit, equipment and

architecture descriptions that must not be made available for public inspection.

The cover/title page is explicitly labeled: “Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction”.

This information is proprietary both to Alcatel- Lucent and to Alcatel- Lucent’s contracted manufacturer/supplier.

(ALCATEL-LUCENT USA CONFIDENTIAL PROPRIETARY INFORMATION)

Title page

Alcatel-Lucent 9764

Metro Cell Outdoor LTE 2x1W and 2x2W

Hardware Installation

3MN-01707-0002-RJZZA

Issue 3.05 | October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Proprietary Use pursuant to Company instruction

D

RAFT

D

RAFT

Legal notice

Alcatel, Lucent, Alcatel-Lucent and the Alcatel-Lucent logo are trademarks of Alcatel-Lucent. All other trademarks are the property of their respective

owners.

The information presented is subject to change without notice. Alcatel-Lucent assumes no responsibility for inaccuracies contained herein.

Contains proprietary/trade secret information which is the property of Alcatel-Lucent and must not be made available to, or copied or used by anyone outside

Alcatel-Lucent without its written authorization.

Proprietary Use pursuant to Company instruction

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

D

RAFT

D

RAFT

Contents

About this document

Purpose .......................................................................................................................................................................................... xiiixiii

What's new ................................................................................................................................................................................... xiiixiii

Intended audience ...................................................................................................................................................................... xivxiv

Supported systems ..................................................................................................................................................................... xivxiv

How to use this document ....................................................................................................................................................... xivxiv

Safety information ..................................................................................................................................................................... xivxiv

Prerequisites ................................................................................................................................................................................. xivxiv

Conventions used ......................................................................................................................................................................... xvxv

Related information ................................................................................................................................................................. xviixvii

Document support ...................................................................................................................................................................... xixxix

Technical support ....................................................................................................................................................................... xixxix

How to order .................................................................................................................................................................................. xxxx

How to comment .......................................................................................................................................................................... xxxx

1Safety statements

Overview ...................................................................................................................................................................................... 1-11-1

Structure of safety statements ............................................................................................................................................... 1-21-2

Safety ........................................................................................................................................................................................... 1-41-4

Safety - specific hazards ......................................................................................................................................................... 1-51-5

Product safety ............................................................................................................................................................................. 1-91-9

2Product overview

Overview ...................................................................................................................................................................................... 2-12-1

Functional description ............................................................................................................................................................. 2-22-2

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction iii

D

RAFT

D

RAFT

Physical description ................................................................................................................................................................. 2-42-4

Supported installation options ........................................................................................................................................... 2-132-13

Hardware and ancillary items ............................................................................................................................................ 2-172-17

3Installation of the 9764 Metro Dock

Overview ...................................................................................................................................................................................... 3-13-1

9764 Metro Dock pre-installation

Overview ...................................................................................................................................................................................... 3-23-2

9764 Metro Dock Pre-installation information .............................................................................................................. 3-33-3

Pole mount installation requirements ................................................................................................................................ 3-53-5

Wall mount installation requirements ................................................................................................................................ 3-93-9

Pair mount and daisy chain requirements ...................................................................................................................... 3-133-13

9764 Metro Dock installation

Overview ................................................................................................................................................................................... 3-183-18

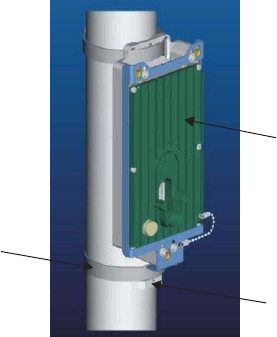

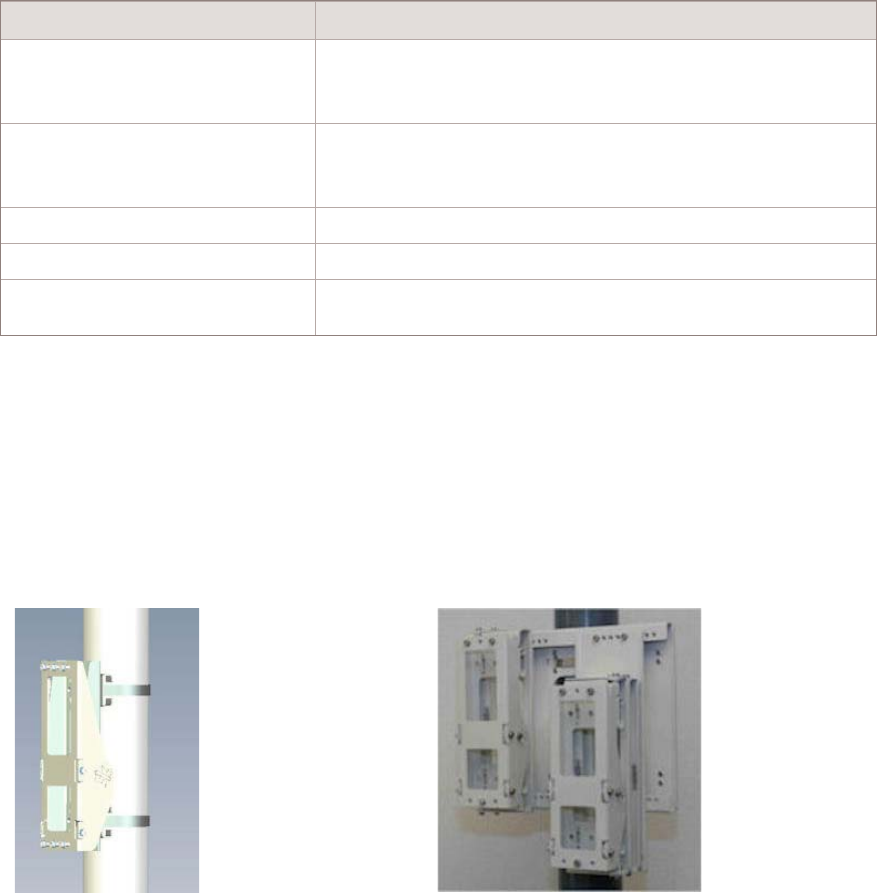

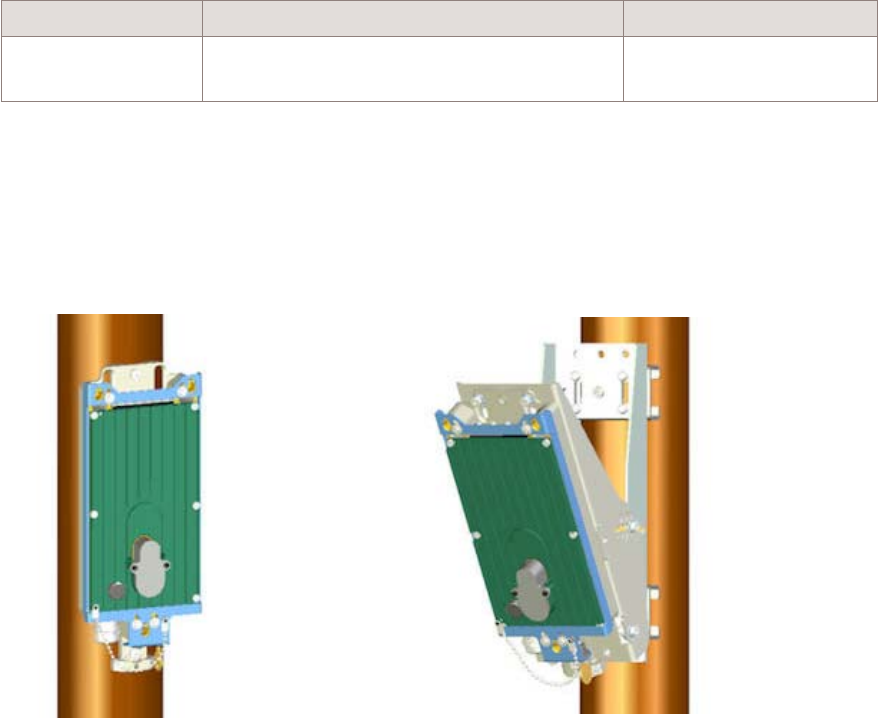

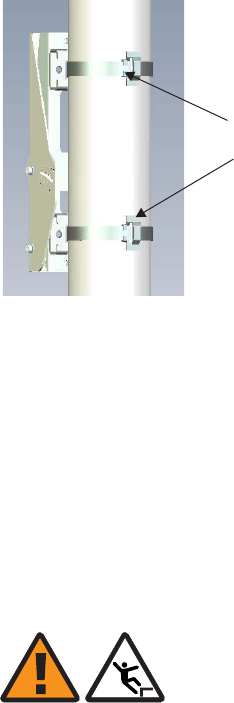

Procedure 3-1: Pole mount the 9764 Metro Dock ...................................................................................................... 3-193-19

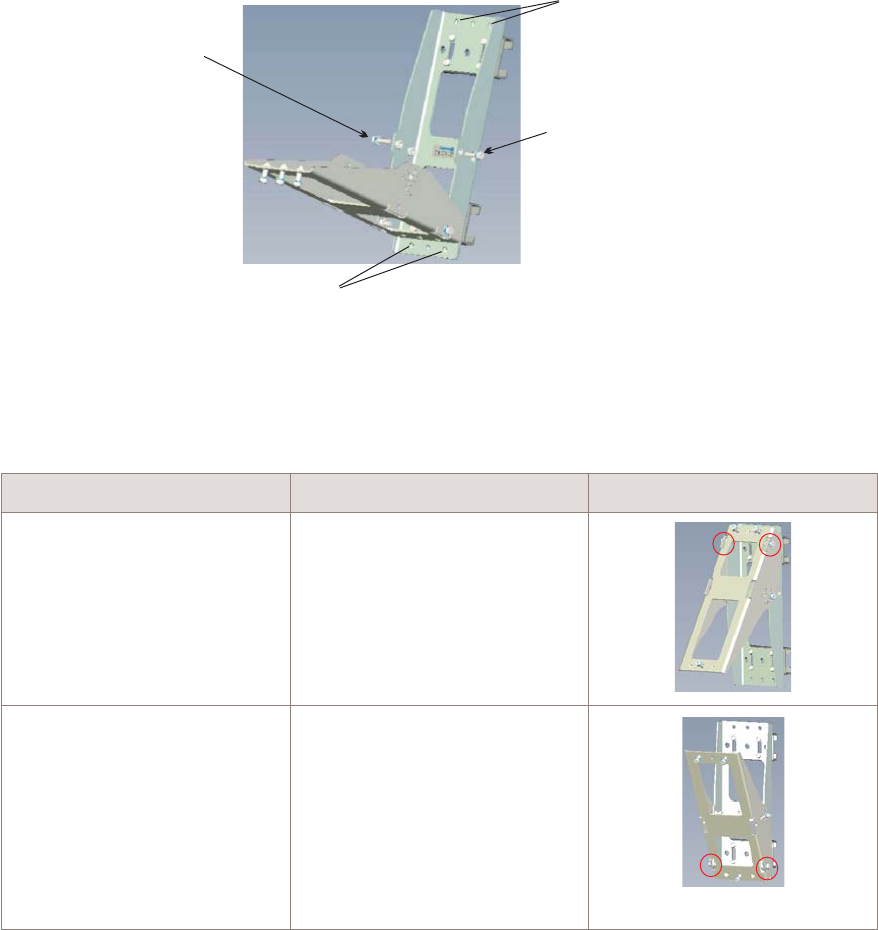

Procedure 3-2: Pole mount the 9764 Metro Dock using optional tilt brackets ................................................ 3-253-25

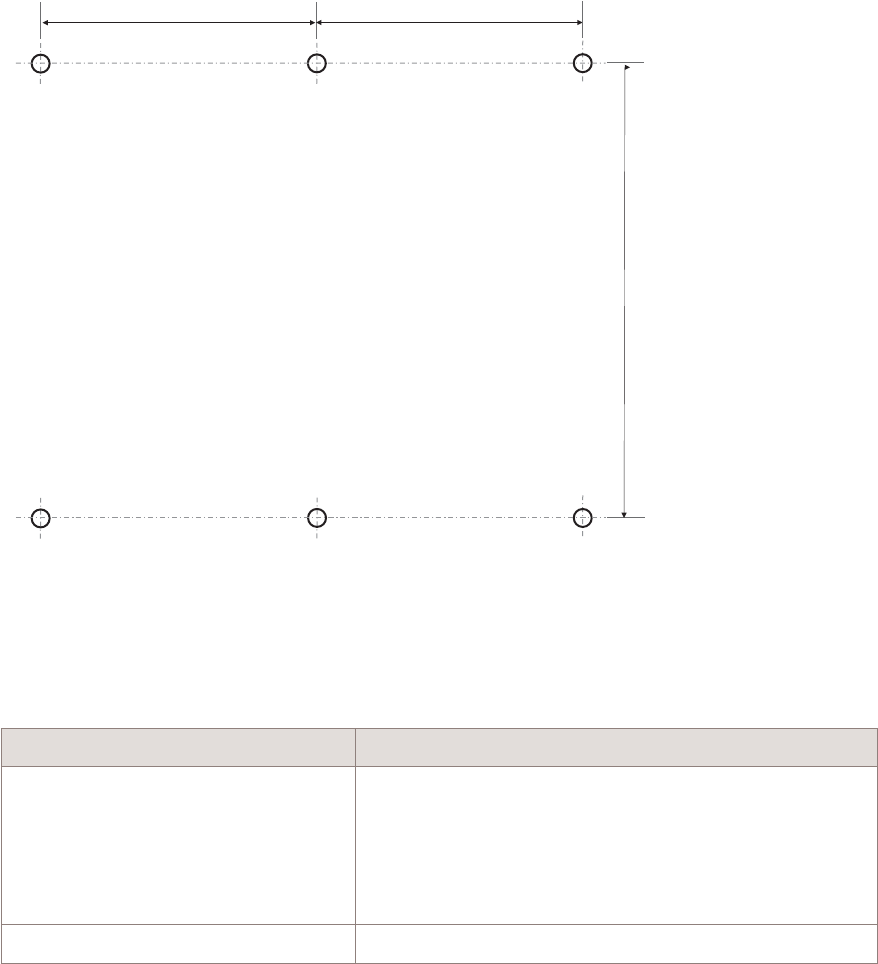

Procedure 3-3: Wall mount the 9764 Metro Dock ..................................................................................................... 3-353-35

Procedure 3-4: Wall mount the 9764 Metro Dock using optional tilt brackets ............................................... 3-403-40

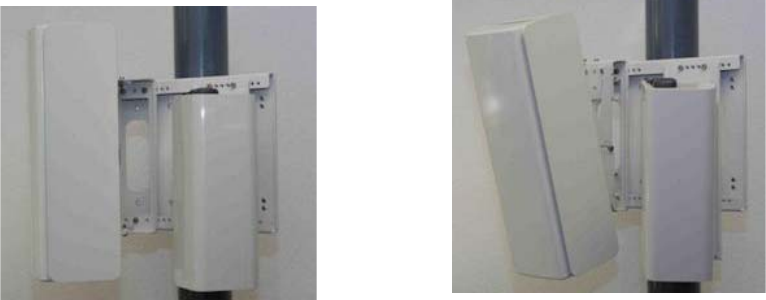

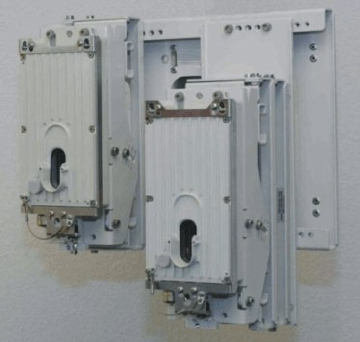

Procedure 3-5: Pole mount the 9764 Metro Dock in a pair configuration ........................................................ 3-543-54

Procedure 3-6: Wall mount the 9764 Metro Dock in a pair configuration ........................................................ 3-713-71

9764 Metro Dock cabling

Overview ................................................................................................................................................................................... 3-893-89

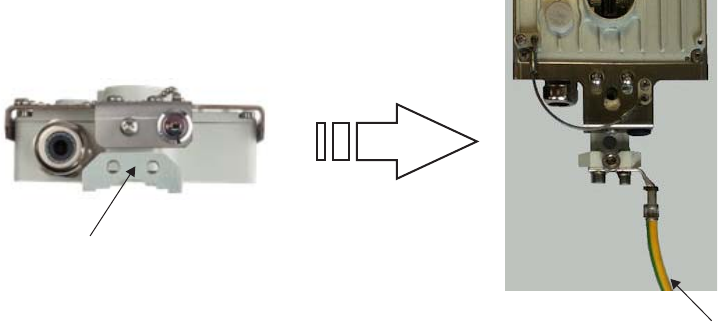

Procedure 3-7: 9764 Metro Dock ground cabling ...................................................................................................... 3-903-90

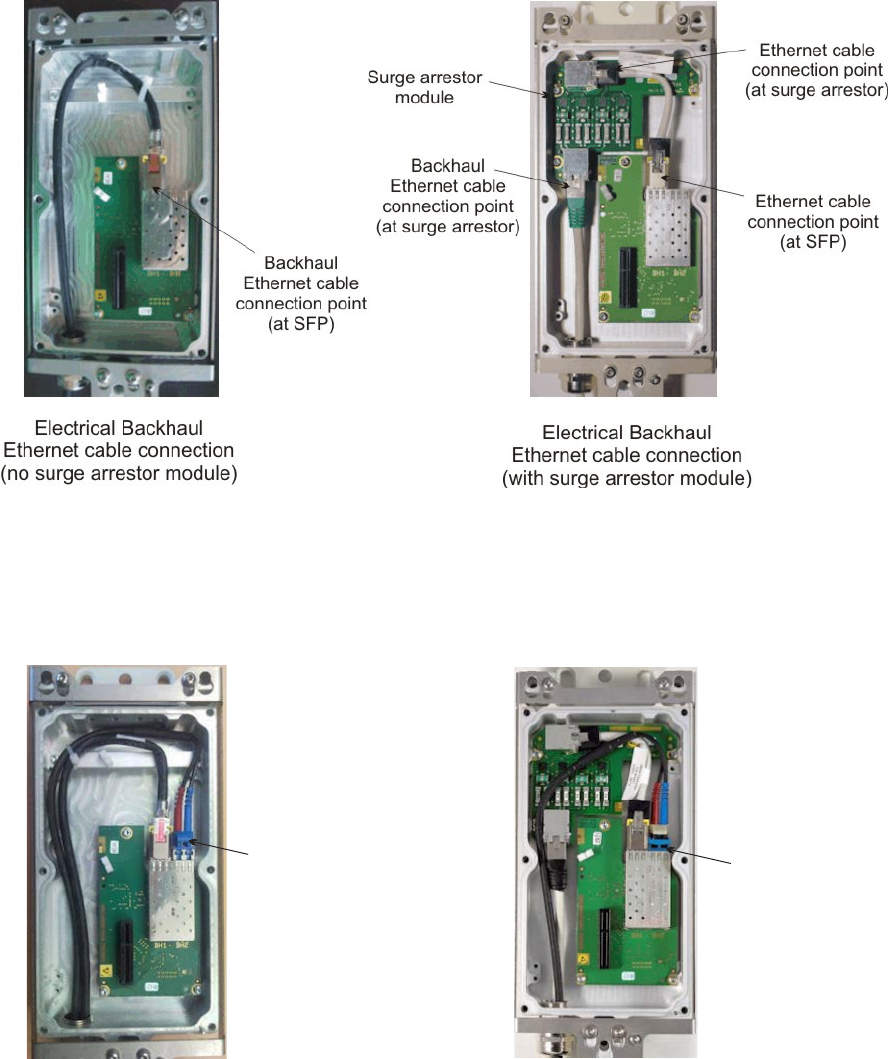

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic .......................................................................... 3-923-92

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical ............................................................................. 3-993-99

9764 Metro Dock post-installation

Overview ................................................................................................................................................................................. 3-1113-111

Contents

....................................................................................................................................................................................................................................

iv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Procedure 3-10: Final installation activities and checks ........................................................................................ 3-1123-112

4Installation of the 9764 MCO module

Overview ...................................................................................................................................................................................... 4-14-1

9764 MCO pre-installation

Overview ...................................................................................................................................................................................... 4-24-2

Pre-installation information .................................................................................................................................................. 4-34-3

9764 MCO cabling

Overview ...................................................................................................................................................................................... 4-44-4

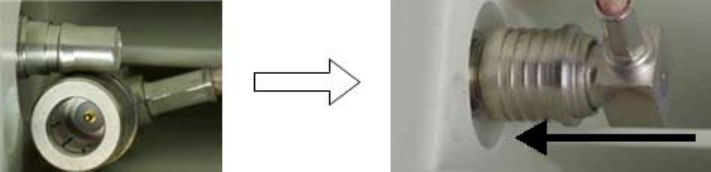

Procedure 4-1: Connect external RF antenna to the Alcatel-Lucent 9764 MCO LTE 2x2W ....................... 4-54-5

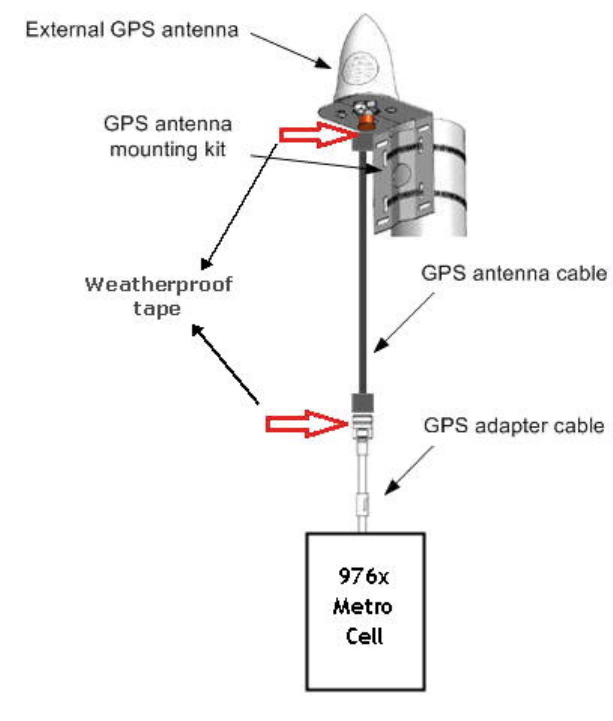

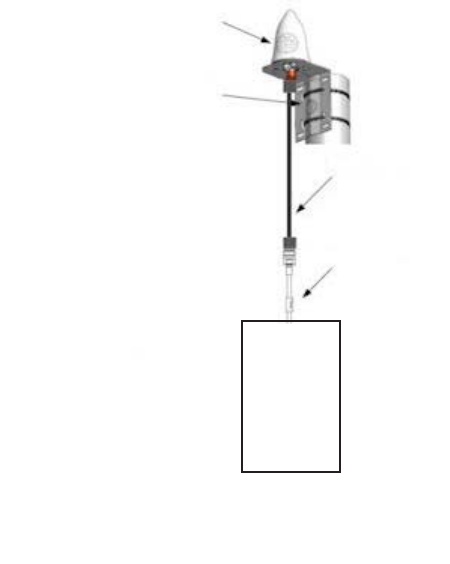

Procedure 4-2: Connect GPS antenna ............................................................................................................................... 4-74-7

Procedure 4-3: 9764 MCO module ground cabling ................................................................................................... 4-184-18

Site power requirements (AC) ........................................................................................................................................... 4-214-21

Site power requirements (DC) ........................................................................................................................................... 4-244-24

Product power requirements ............................................................................................................................................... 4-274-27

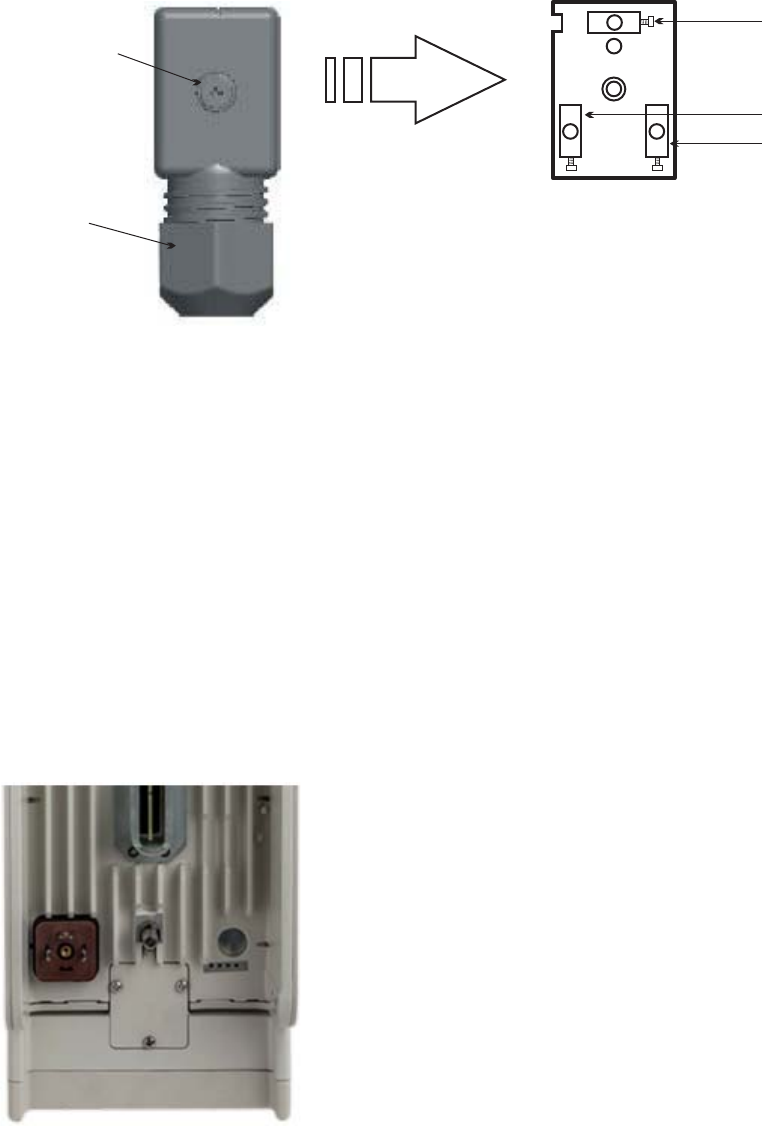

Procedure 4-4: Connect power cable .............................................................................................................................. 4-294-29

9764 MCO installation

Overview ................................................................................................................................................................................... 4-404-40

Procedure 4-5: Attach 9764 MCO module to 9764 Metro Dock .......................................................................... 4-414-41

Procedure 4-6: Orient 9764 MCO module ................................................................................................................... 4-484-48

9764 MCO post-installation

Overview ................................................................................................................................................................................... 4-504-50

Procedure 4-7: Post installation activities ..................................................................................................................... 4-514-51

Procedure 4-8: Power on the 9764 MCO ...................................................................................................................... 4-524-52

ALED State Description

Overview ..................................................................................................................................................................................... A-1A-1

LED status for 9764 MCO LTE ......................................................................................................................................... A-2A-2

Contents

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction v

D

RAFT

D

RAFT

BInstallation of the 9764 MCO Wi-Fi AP

Overview ..................................................................................................................................................................................... B-1B-1

Physical description ................................................................................................................................................................ B-2B-2

9764 MCO Wi-Fi AP pre-installation information ...................................................................................................... B-8B-8

Procedure B-1: Remove 9764 MCO module from 9764 Metro Dock ................................................................. B-9B-9

Procedure B-2: Attach 9764 MCO Wi-Fi AP module to 9764 MCO module ................................................. B-19B-19

LED state description - 9764 MCO Wi-Fi AP ............................................................................................................ B-25B-25

CProduct conformance statements

Overview ..................................................................................................................................................................................... C-1C-1

United States compliance

Introduction ................................................................................................................................................................................ C-2C-2

Federal Communications Commission ............................................................................................................................ C-3C-3

Product safety and RF exposure ......................................................................................................................................... C-4C-4

FDA/IEC optical transmitter product compliance statements ................................................................................. C-5C-5

Eco-environmental statements ............................................................................................................................................ C-6C-6

European Union

Introduction ................................................................................................................................................................................ C-7C-7

CE marking ................................................................................................................................................................................ C-8C-8

EMC and radio spectrum compliance .............................................................................................................................. C-9C-9

Product safety and RF exposure ....................................................................................................................................... C-10C-10

Eco-environmental statements .......................................................................................................................................... C-13C-13

DDocument issue history

Overview ..................................................................................................................................................................................... D-1D-1

Document issue history ......................................................................................................................................................... D-2D-2

Glossary

Index

Contents

....................................................................................................................................................................................................................................

vi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

List of tables

1Document changes from Issue 3.03, September 2014 ................................................................................. xiiixiii

2Terminology .................................................................................................................................................................. xvxv

3Related documents ................................................................................................................................................... xviixvii

2-1 GPS antenna options .............................................................................................................................................. 2-112-11

3-1 Pole mount installation kits and brackets ......................................................................................................... 3-63-6

3-2 Wall mount installation brackets .......................................................................................................................... 3-93-9

4-1 Power materials ....................................................................................................................................................... 4-274-27

B-1 9764 MCO Wi-Fi AP physical characteristics ............................................................................................... B-4B-4

B-2 9764 MCO Wi-Fi AP LEDs during boot-up ................................................................................................. B-25B-25

B-3 9764 MCO Wi-Fi AP LEDs based on Admin status and WLAN mapping ...................................... B-26B-26

B-4 9764 MCO Wi-Fi AP LEDs during normal operation states .................................................................. B-27B-27

C-1 Distances corresponding to reference levels for the general public and workers at maximum Tx

power ....................................................................................................................................................................... C-11C-11

C-2 Distances corresponding to reference levels for the general public and workers at maximum Tx

power ....................................................................................................................................................................... C-12C-12

D-1 Document changes from Issue 3, September 2014 ...................................................................................... D-2D-2

D-2 Document changes from Issue 2,June 2014 .................................................................................................... D-2D-2

D-3 Document changes from Issue 1.06, May 2014 ............................................................................................ D-3D-3

D-4 Document changes from Issue 1.05, May 2014 ............................................................................................ D-3D-3

D-5 Document changes from Issue 1.04, April 2014 ........................................................................................... D-4D-4

D-6 Document changes from Issue 1.03, February 2014 ................................................................................... D-4D-4

D-7 Document changes from Issue 1.02, January 2014 ...................................................................................... D-4D-4

D-8 Document changes from Issue 1.01, December 2013 ................................................................................. D-5D-5

D-9 Document changes from Issue 1, November 2013 ...................................................................................... D-5D-5

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction vii

D

RAFT

D

RAFT

List of tables

....................................................................................................................................................................................................................................

viii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

List of figures

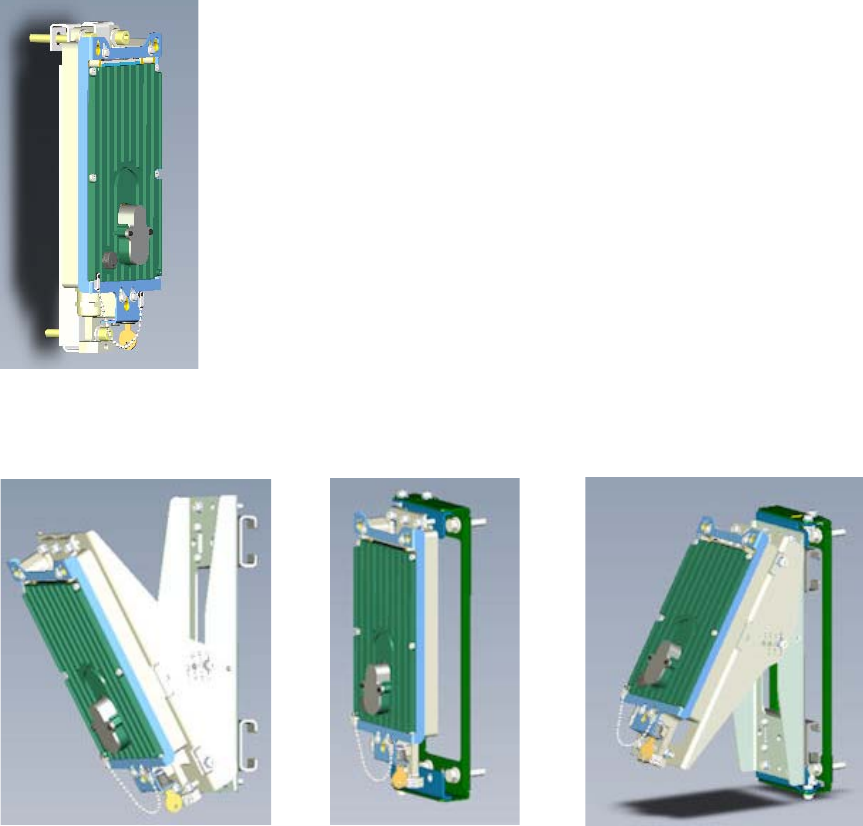

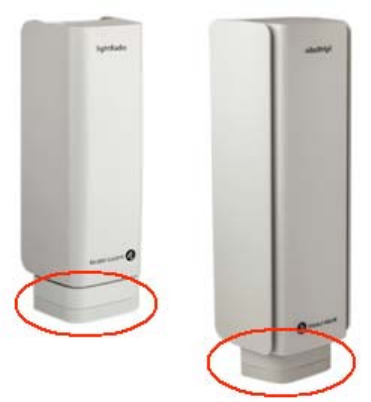

2-1 9764 Metro Dock and 9764 MCO LTE 2x1W and Alcatel-Lucent 9764 Metro Cell Outdoor LTE

2x2W ........................................................................................................................................................................... 2-42-4

2-2 9764 MCO LTE with 9764 MCO Wi-Fi AP .................................................................................................... 2-52-5

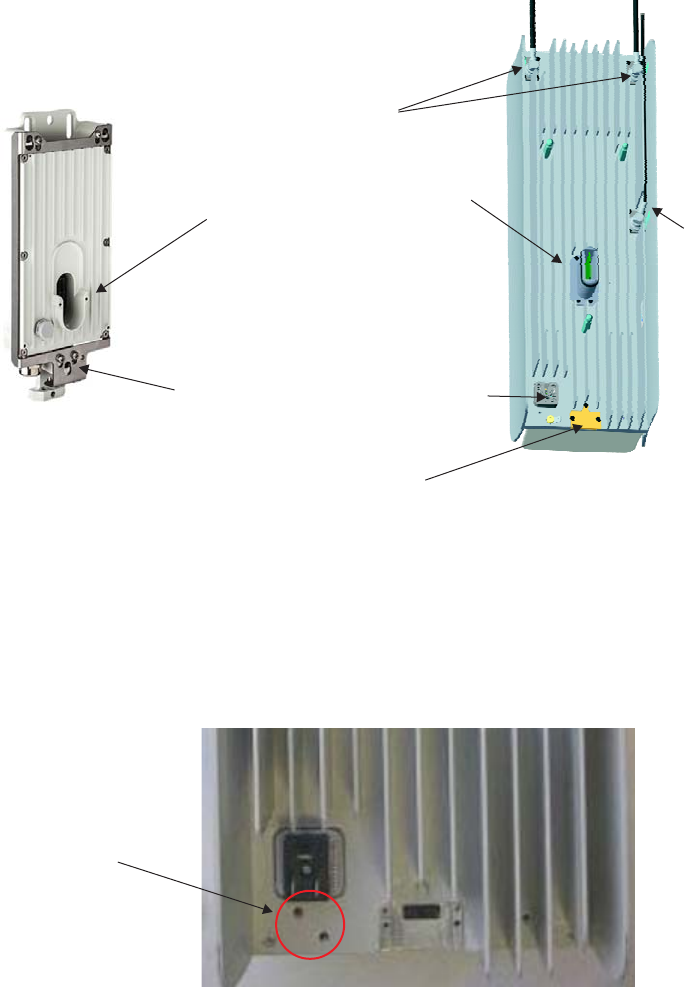

2-3 9764 MCO LTE module connection interfaces .............................................................................................. 2-92-9

2-4 9764 MCO LTE module connection interfaces - double lug ground point detail .............................. 2-92-9

2-5 Installation examples ............................................................................................................................................. 2-132-13

2-6 9764 MCO Wi-Fi AP module attached to 9764 MCO LTE module (front view) ........................... 2-142-14

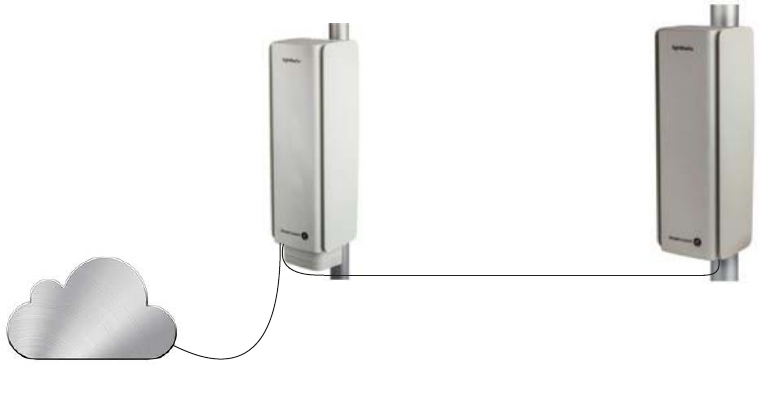

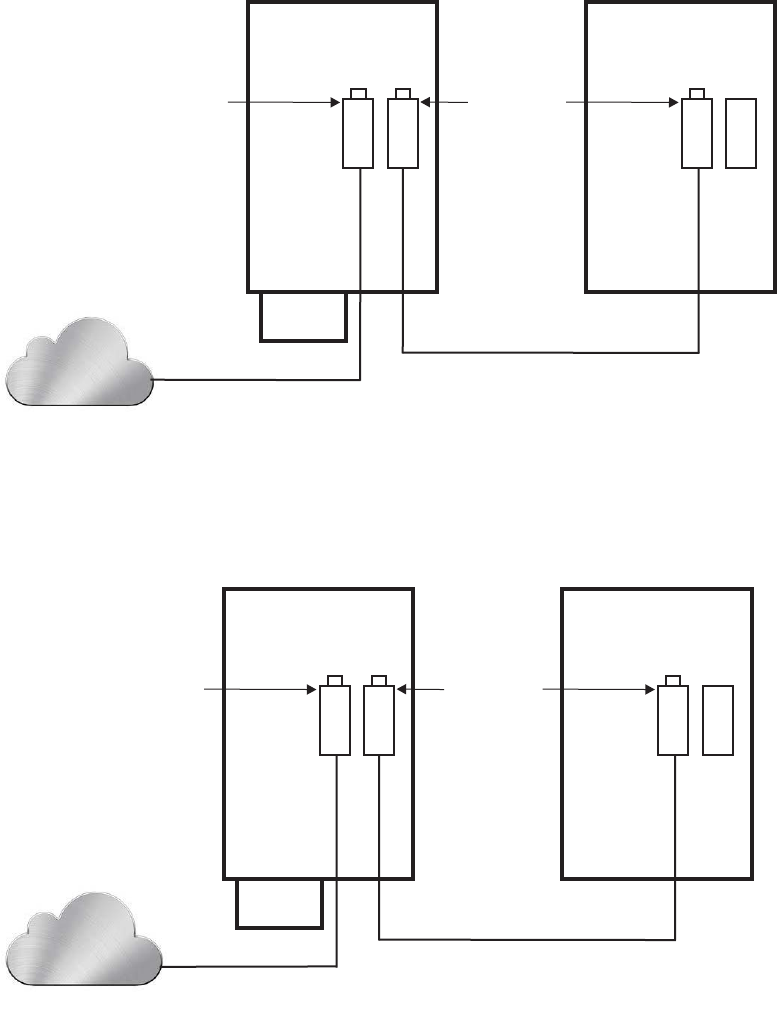

2-7 9764 MCO daisy chain installation example ................................................................................................ 2-152-15

2-8 9764 MCO pair-mount installation example ................................................................................................. 2-162-16

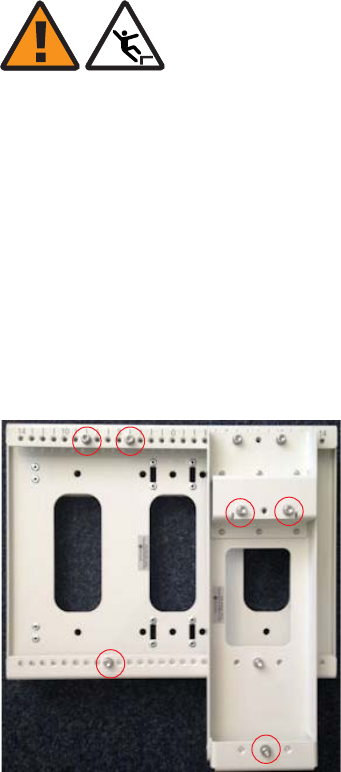

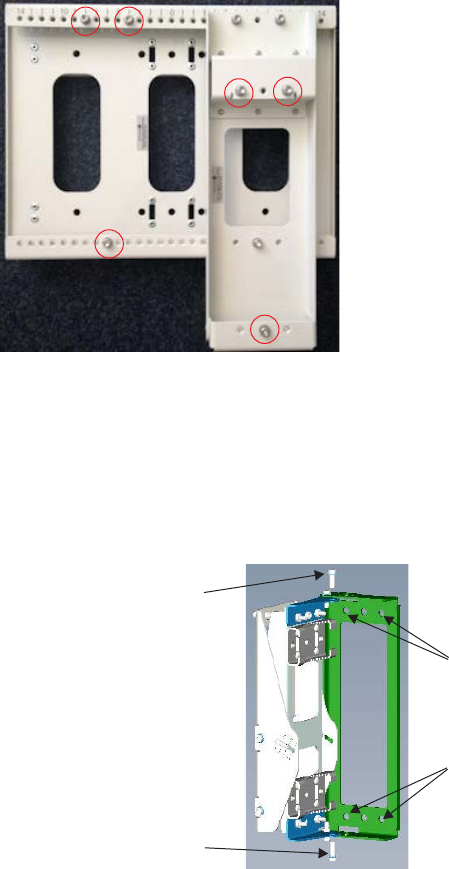

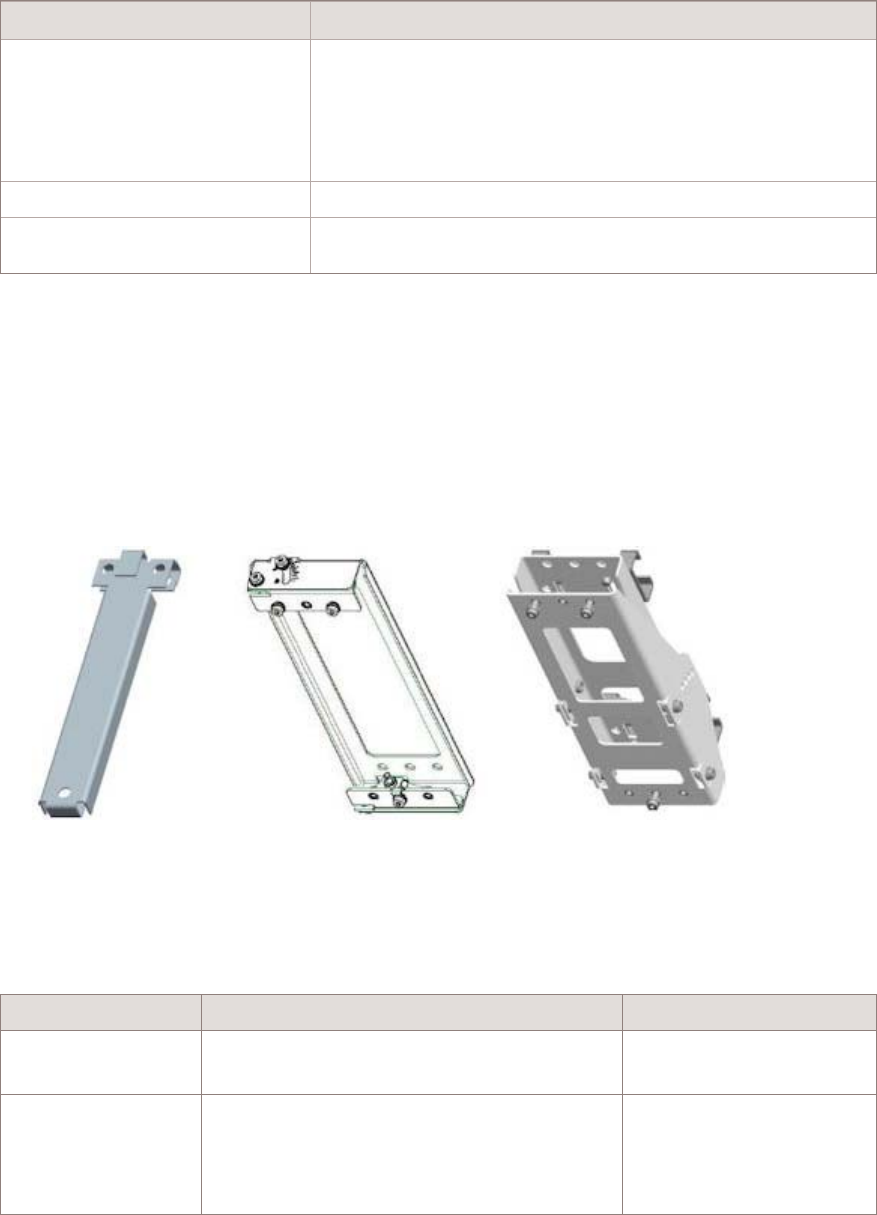

3-1 Pole mount banding and brackets ........................................................................................................................ 3-63-6

3-2 9764 Metro Dock pole mount using screws .................................................................................................... 3-73-7

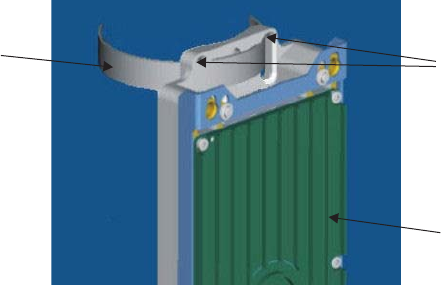

3-3 9764 Metro Dock pole mount using banding .................................................................................................. 3-83-8

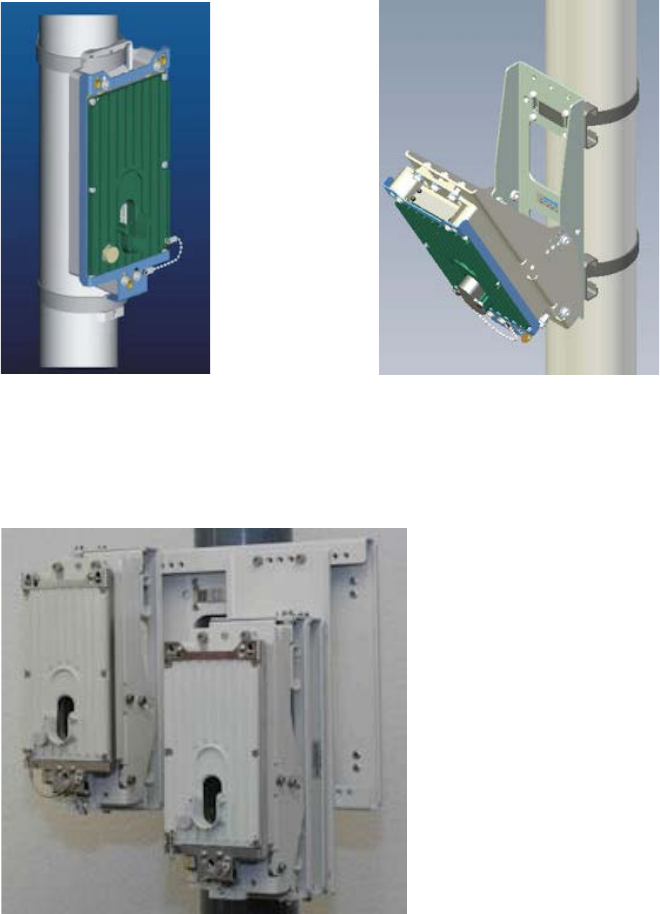

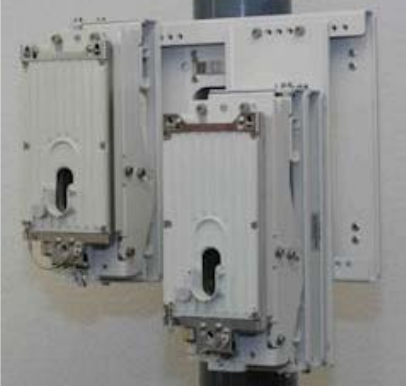

3-4 Double 9764 Metro Dock pole mount ............................................................................................................... 3-83-8

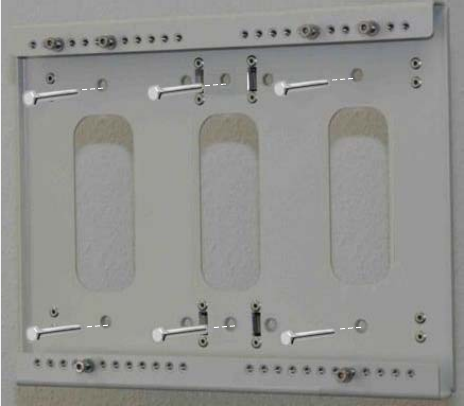

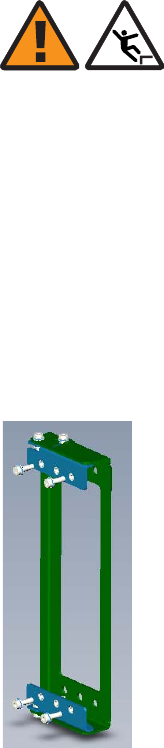

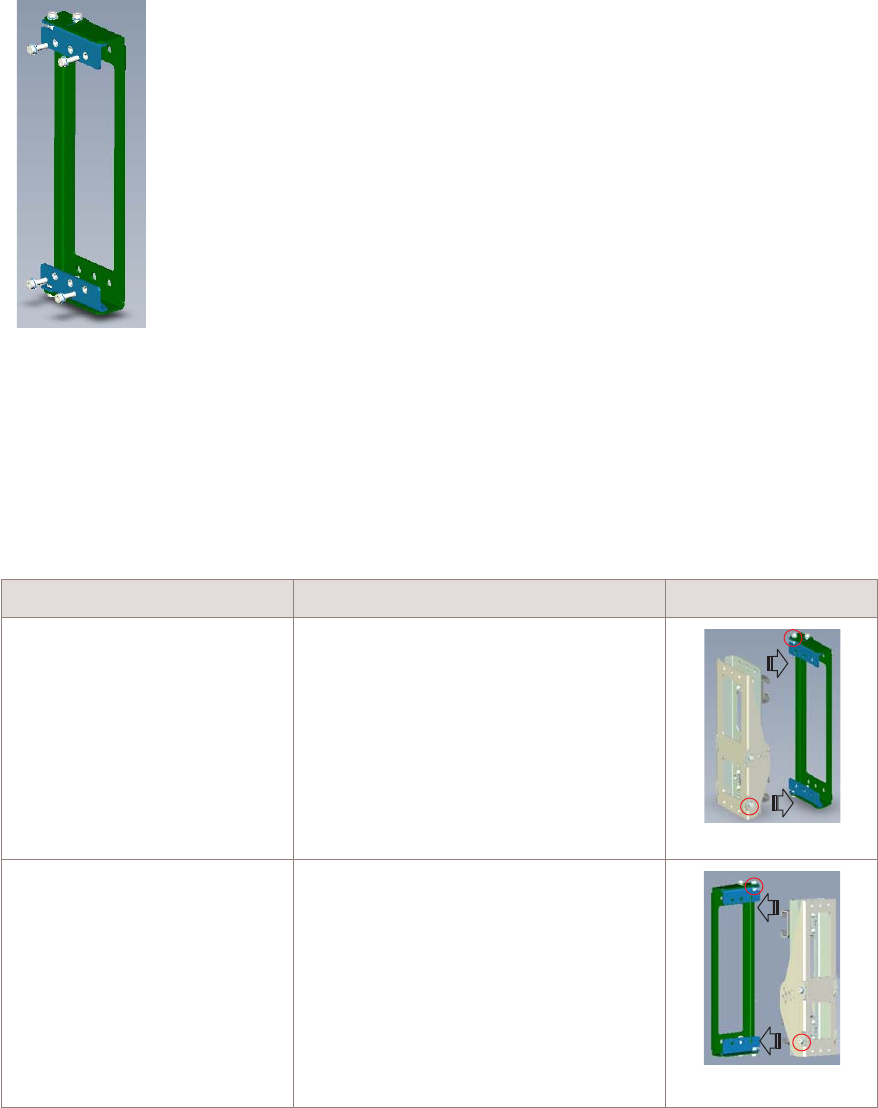

3-5 Wall mount brackets ............................................................................................................................................... 3-103-10

3-6 9764 Metro Dock wall mount (no tilt) ............................................................................................................. 3-113-11

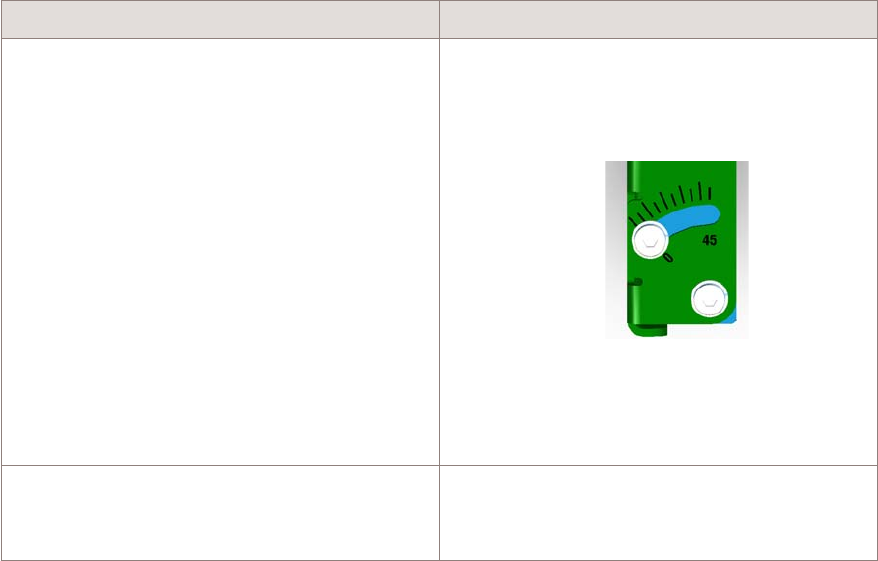

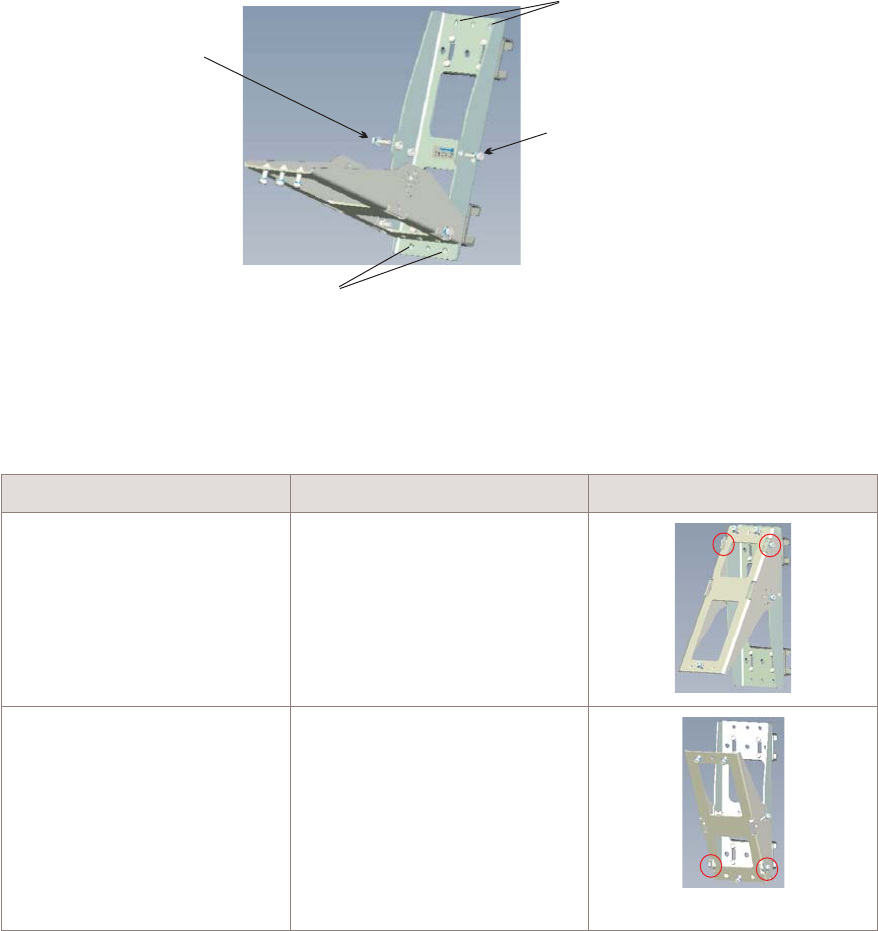

3-7 9764 Metro Dock wall mount (with tilt) ......................................................................................................... 3-113-11

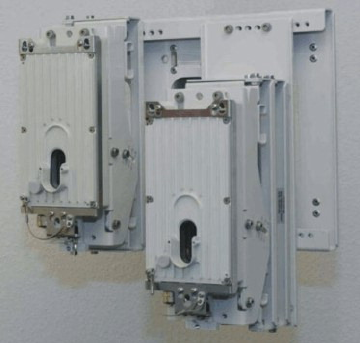

3-8 Double 9764 Metro Dock wall mount ............................................................................................................. 3-123-12

4-1 External GPS antenna configuration .................................................................................................................. 4-74-7

4-2 External GPS antenna connector ....................................................................................................................... 4-104-10

4-3 GPS antenna connection ...................................................................................................................................... 4-104-10

4-4 Weatherproof tape placement for external GPS antenna .......................................................................... 4-114-11

4-5 Internal and external GPS antenna connectors ............................................................................................. 4-124-12

4-6 GPS antenna connection ...................................................................................................................................... 4-134-13

4-7 Weatherproof tape placement for external GPS antenna .......................................................................... 4-144-14

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction ix

D

RAFT

D

RAFT

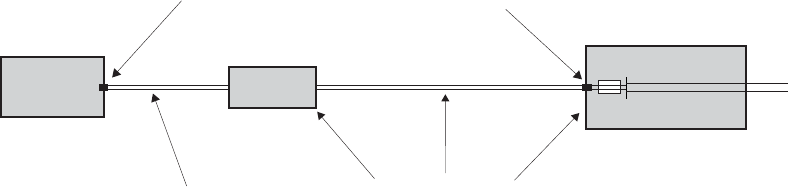

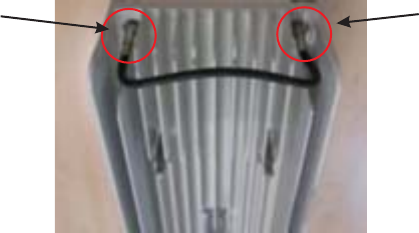

4-8 Bridge cable between external and internal GPS antenna connectors ................................................. 4-154-15

4-9 Internal/external GPS antenna connector ....................................................................................................... 4-164-16

4-10 Weatherproof tape placement for external GPS antenna .......................................................................... 4-174-17

4-11 connection interfaces ............................................................................................................................................. 4-294-29

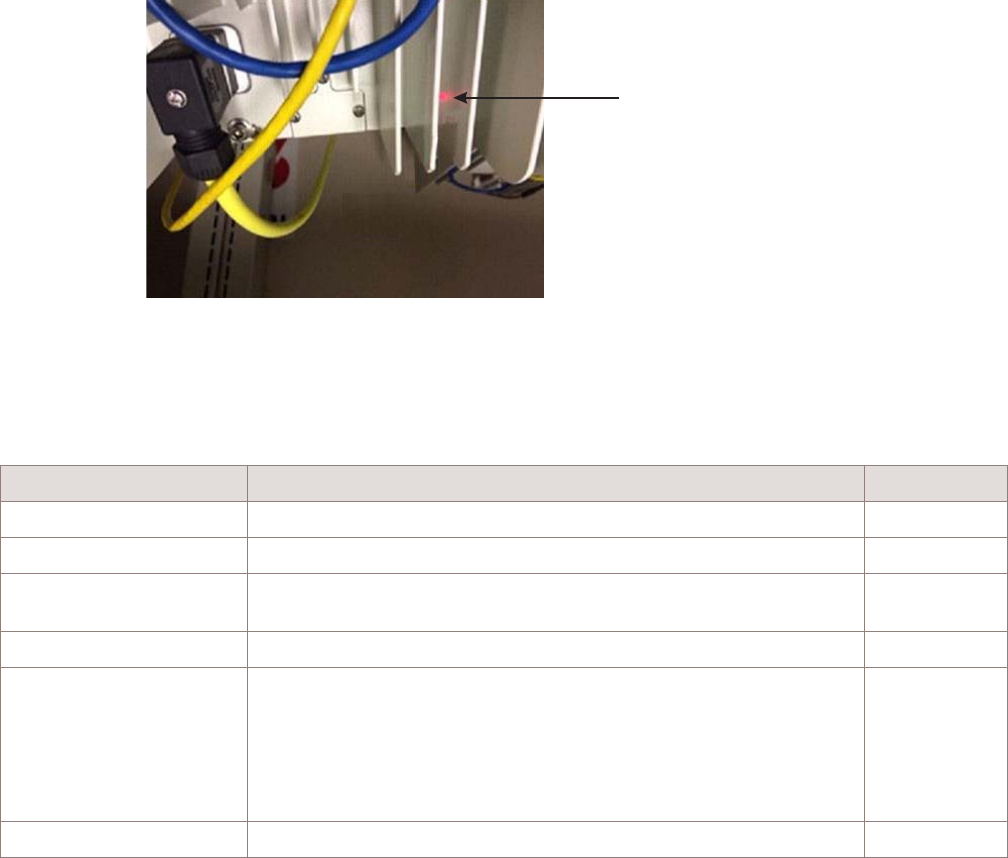

A-1 Location of LED ....................................................................................................................................................... A-2A-2

B-1 9764 MCO Wi-Fi AP attached to 9764 MCO hardware variants ............................................................ B-2B-2

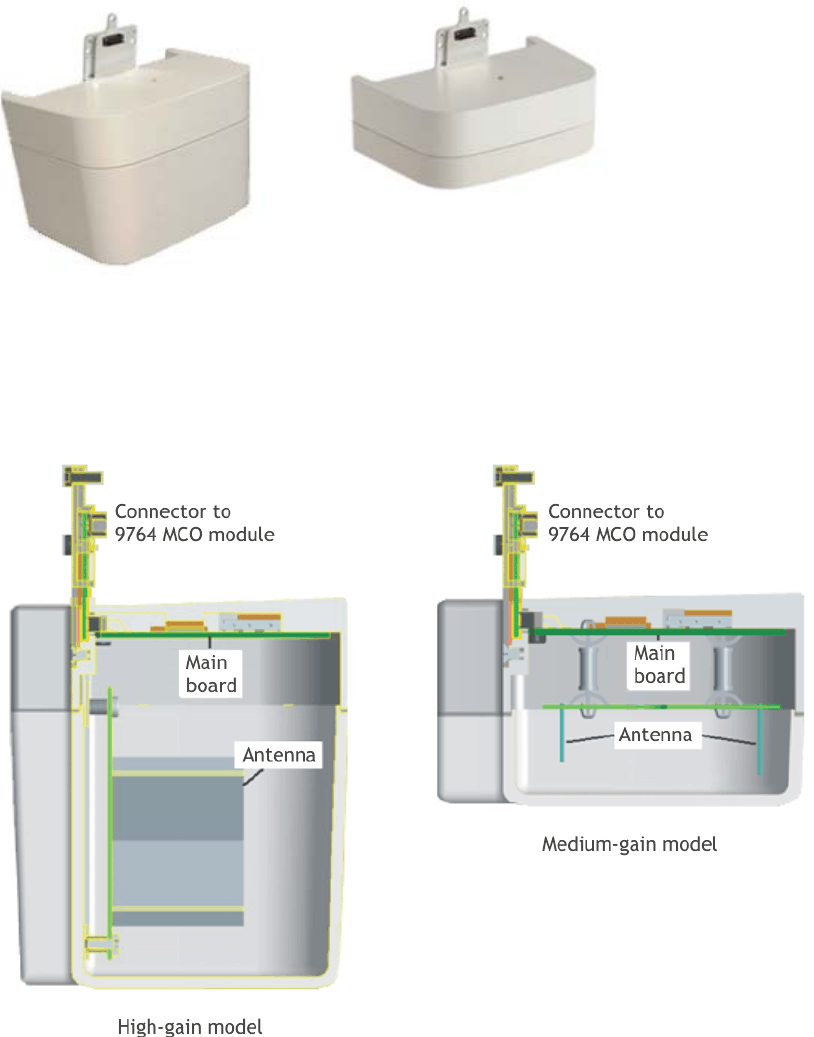

B-2 9764 MCO Wi-Fi AP - closed housing ............................................................................................................. B-3B-3

B-3 9764 MCO Wi-Fi AP - cutaway view ............................................................................................................... B-3B-3

B-4 9764 MCO Wi-Fi AP connection point on 9764 MCO .............................................................................. B-5B-5

B-5 9764 MCO Wi-Fi AP connected to 9764 MCO (cutaway side view) ................................................... B-5B-5

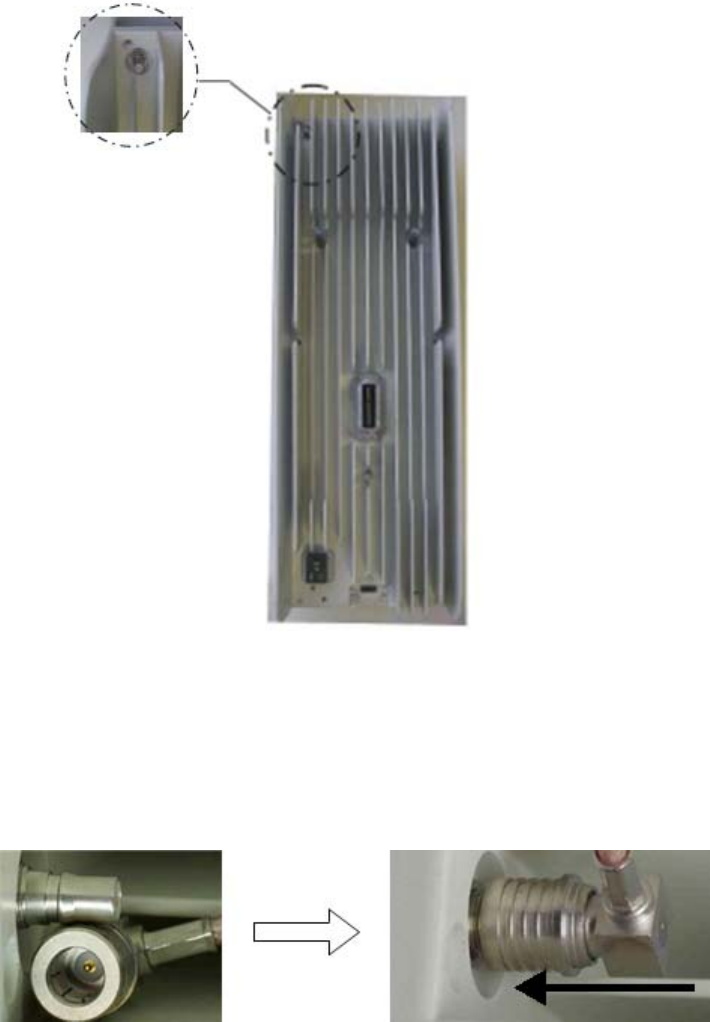

B-6 9764 Metro Dock to LTE 9764 MCO module grounding cable ........................................................... B-13B-13

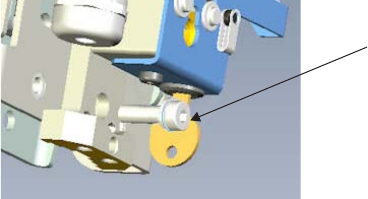

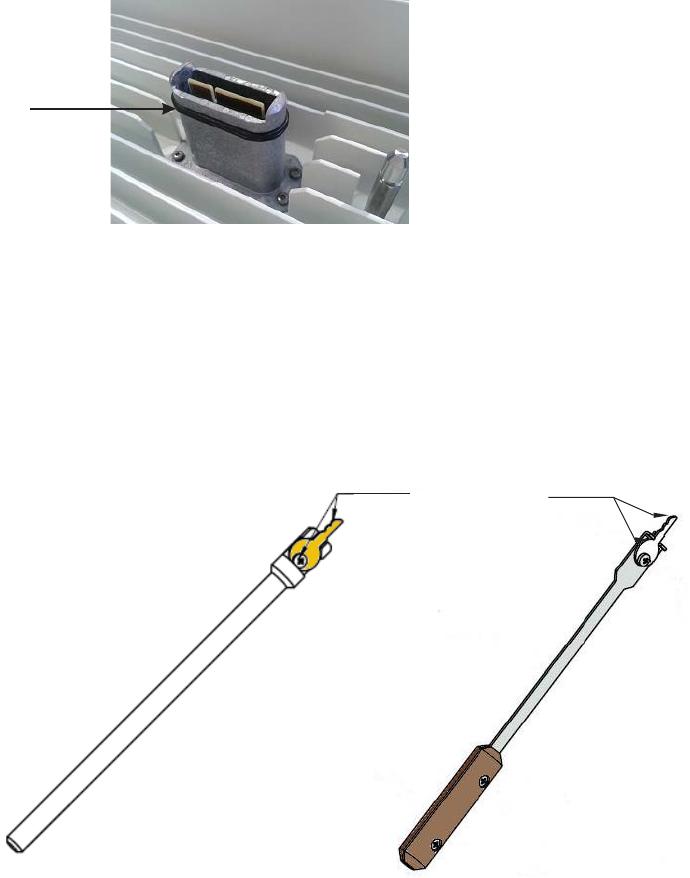

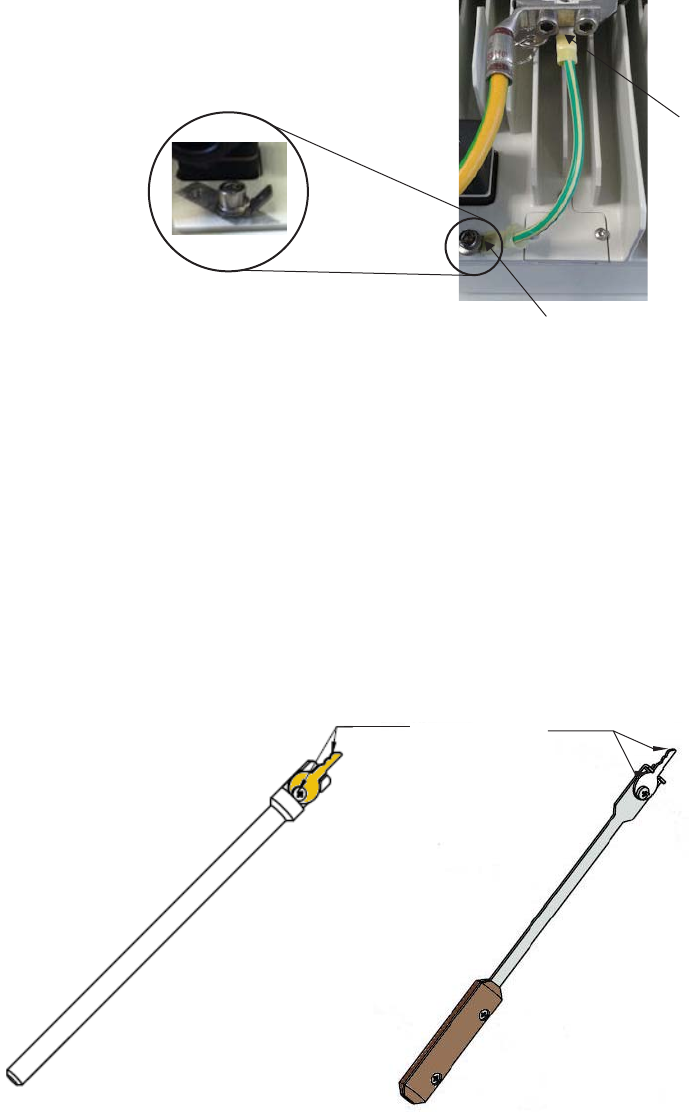

B-7 Key extension .......................................................................................................................................................... B-13B-13

B-8 Pull 9764 MCO module from Metro Dock ................................................................................................... B-16B-16

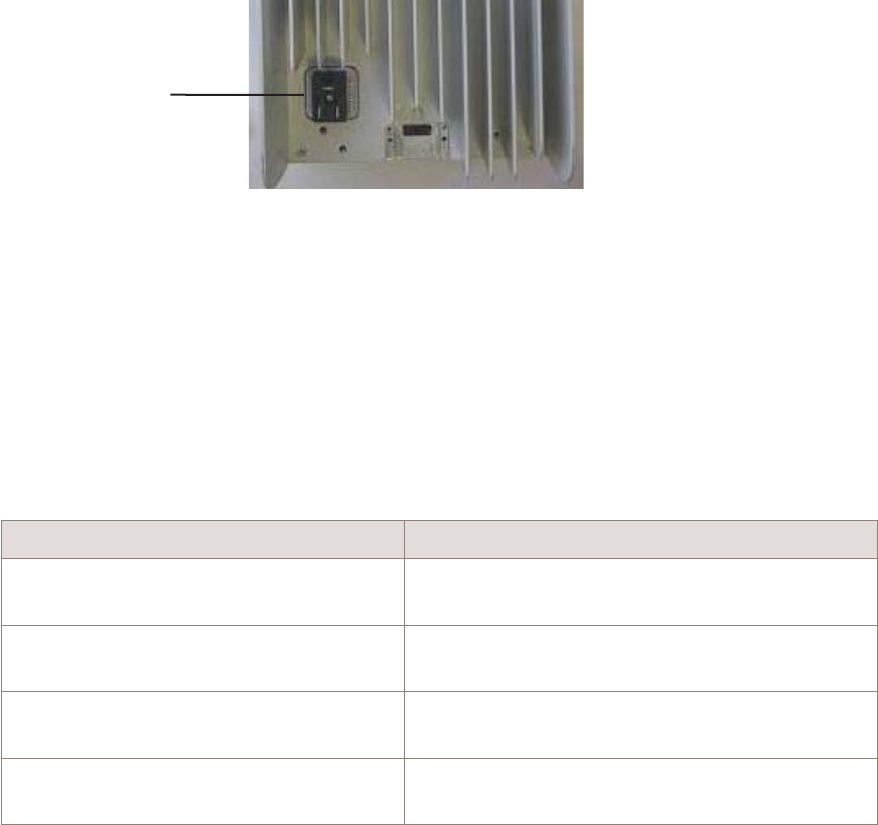

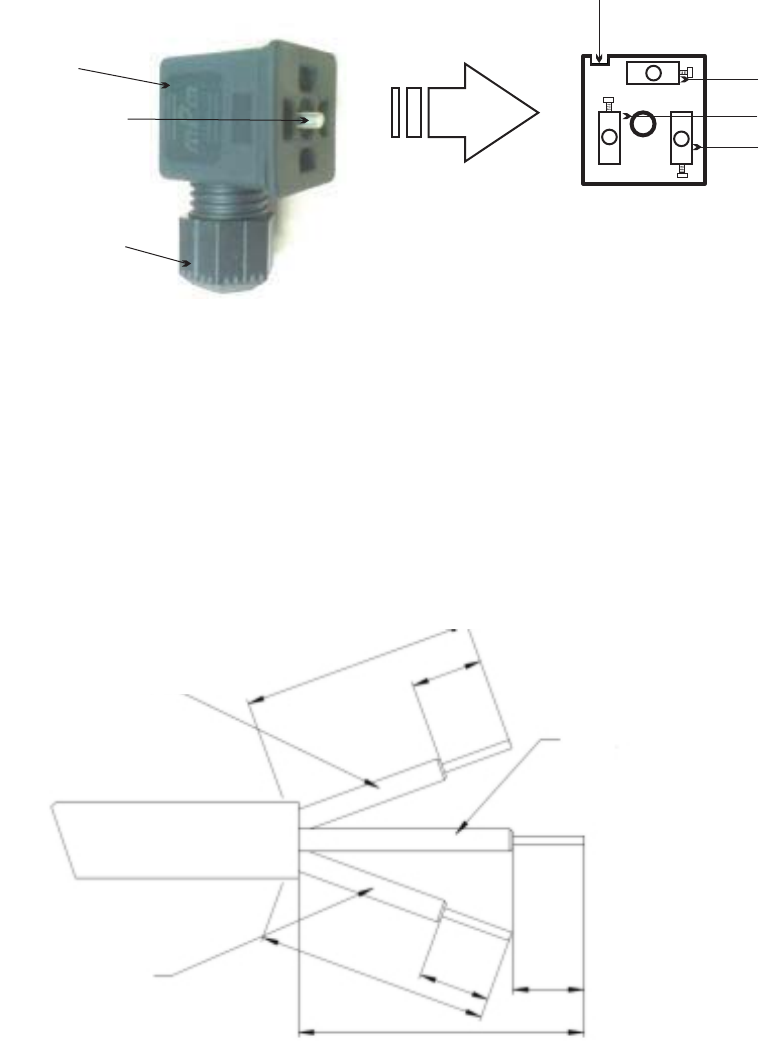

B-9 AC power line connector ..................................................................................................................................... B-16B-16

B-10 DC power line connector ..................................................................................................................................... B-17B-17

B-11 9764 MCO Wi-Fi AP module attached to 9764 MCO module .............................................................. B-17B-17

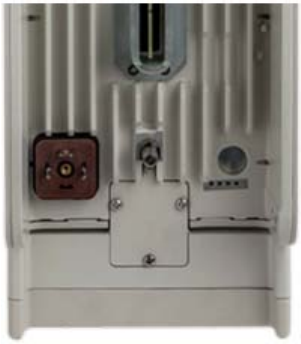

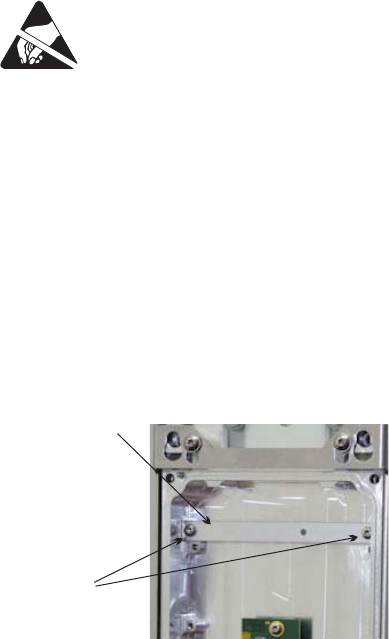

B-12 Wi-Fi AP connector cover on 9764 MCO module ..................................................................................... B-21B-21

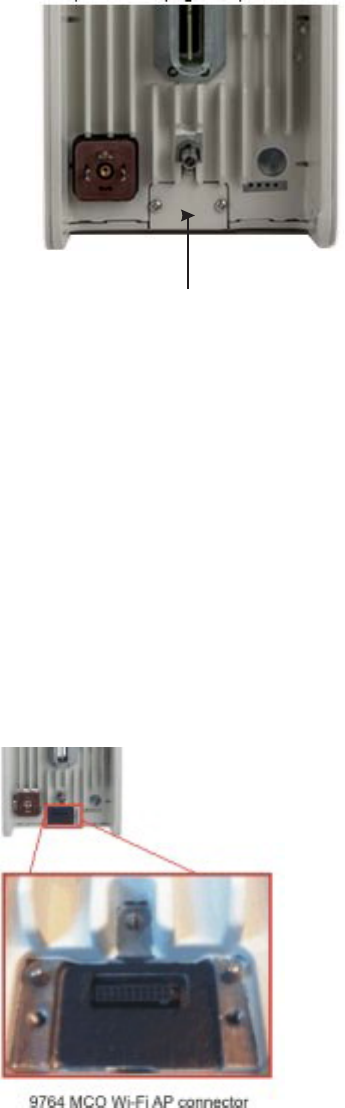

B-13 Wi-Fi AP connector on 9764 MCO module ................................................................................................. B-21B-21

B-14 9764 MCO Wi-Fi AP module attached to 9764 MCO module .............................................................. B-22B-22

List of figures

....................................................................................................................................................................................................................................

xAlcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

List of procedures

3 Installation of the 9764 Metro Dock

3-1 Pole mount the 9764 Metro Dock ..................................................................................................................... 3-193-19

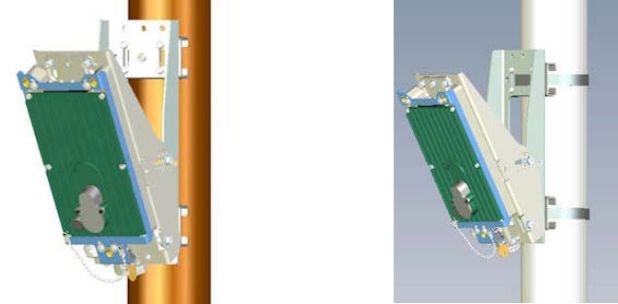

3-2 Pole mount the 9764 Metro Dock using optional tilt brackets ............................................................... 3-253-25

3-3 Wall mount the 9764 Metro Dock ..................................................................................................................... 3-353-35

3-4 Wall mount the 9764 Metro Dock using optional tilt brackets ............................................................... 3-403-40

3-5 Pole mount the 9764 Metro Dock in a pair configuration ........................................................................ 3-543-54

3-6 Wall mount the 9764 Metro Dock in a pair configuration ....................................................................... 3-713-71

3-7 9764 Metro Dock ground cabling ..................................................................................................................... 3-903-90

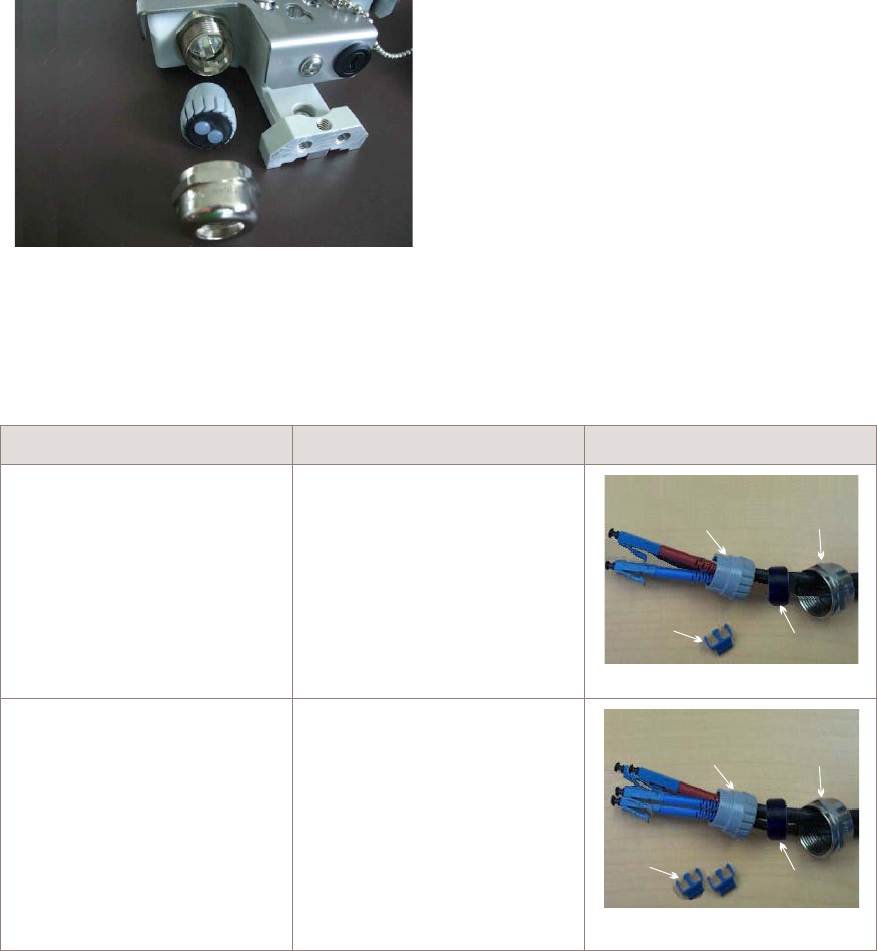

3-8 9764 Metro Dock Ethernet cabling - fiber optic .......................................................................................... 3-923-92

3-9 9764 Metro Dock Ethernet cabling - electrical ............................................................................................ 3-993-99

3-10 Final installation activities and checks .......................................................................................................... 3-1123-112

4 Installation of the 9764 MCO module

4-1 Connect external RF antenna to the Alcatel-Lucent 9764 MCO LTE 2x2W ...................................... 4-54-5

4-2 Connect GPS antenna ............................................................................................................................................... 4-74-7

4-3 9764 MCO module ground cabling .................................................................................................................. 4-184-18

4-4 Connect power cable .............................................................................................................................................. 4-294-29

4-5 Attach 9764 MCO module to 9764 Metro Dock ......................................................................................... 4-414-41

4-6 Orient 9764 MCO module .................................................................................................................................. 4-484-48

4-7 Post installation activities ..................................................................................................................................... 4-514-51

4-8 Power on the 9764 MCO ...................................................................................................................................... 4-524-52

B Installation of the 9764 MCO Wi-Fi AP

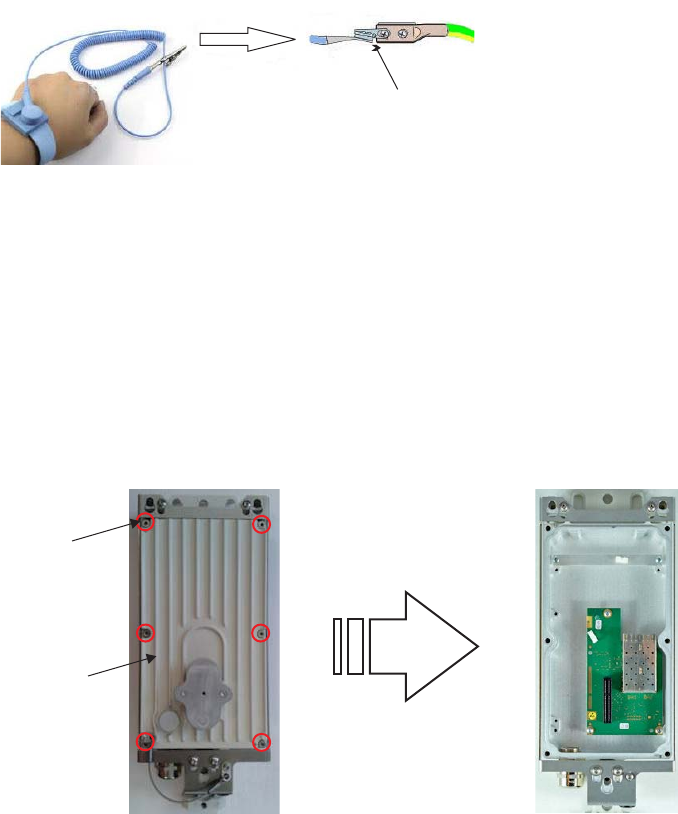

B-1 Remove 9764 MCO module from 9764 Metro Dock ................................................................................. B-9B-9

B-2 Attach 9764 MCO Wi-Fi AP module to 9764 MCO module ................................................................. B-19B-19

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xi

D

RAFT

D

RAFT

List of procedures

....................................................................................................................................................................................................................................

xii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

About this documentAbout this document

Purpose

The purpose of this document is to provide hardware installation instructions for an

Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x1W and an Alcatel-Lucent 9764 Metro

Cell Outdoor LTE 2x2W.

Procedures are provided for mounting, grounding, powering, and cabling the 9764 MCO

LTE 2x1W and the 9764 MCO LTE 2x2W.

What's new

This is Issue 3.05 of Alcatel-Lucent Metro Cell Outdoor LTE 2x1W and 2x2W Hardware

Installation, 3MN-01707-0002-RJZZA.

The major changes introduced in this issue of the document are described in the following

paragraphs. Changes introduced in prior issues of the document are shown in Appendix

D, “Document issue history”

Issue 3.05 (October 2014) - Document changes from the previous release

The document changes from Issue 3.03, September 2014 are shown in the following

table:

Table 1 Document changes from Issue 3.03, September 2014

Feature/enhancement Description Location

Documentation changes

Connect GPS antenna Added information and steps for

using weatherproof tape when

attaching external GPS antenna.

“Connect external GPS antenna - B25, B7 or B2

MCO” (p. 4-9)

“Connect external GPS antenna to MCO - B3

MCO” (p. 4-12)

“Connect internal/external GPS antenna to

Alcatel-Lucent 9764 MCO LTE 2x2W” (p. 4-15)

Hardware and

Ancillary items

Added information about

weatherproof tape when attaching

external GPS antenna in the External

antenna – GPS table.

“Hardware and ancillary items” (p. 2-17)

...................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xiii

D

RAFT

D

RAFT

Intended audience

The audience for this document is Installation personnel.

Supported systems

This document applies to the following Alcatel-Lucent 9764 Metro Cell Outdoor LTE

2x1W and Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x2W products:

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.0 B25 LTE 2x1W

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.1 B2 LTE 2x1W

•Alcatel-Lucent 9764 MCO V1.1 B2/B25 LTE 2x1W

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.1 B7 LTE 2x1W

•Alcatel-Lucent 9764 Metro Cell Outdoor V1.1 B2 LTE 2x2W

•Alcatel-Lucent 9764 Metro Dock.

How to use this document

Start with the first chapter and work through the manual to the end. Once you have done

this, you will have carried out the hardware installation completely and in the proper

sequence.

Prior to installing the equipment, the installer should be familiar with the safety

precautions, warnings, and product conformance statements. Required tools and materials

recommended for installation, and a process checklist, are listed in topic “Pre-installation

information” .

Safety information

For your safety, this document contains safety statements. Safety statements are given at

points where risks of damage to personnel, equipment, and operation may exist. Failure to

follow the directions in a safety statement may result in serious consequences.

Prerequisites

None

About this document

....................................................................................................................................................................................................................................

xiv Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Conventions used

Vocabulary conventions

The following vocabulary conventions are also used when referring to Alcatel-Lucent

products:

Table 2 Terminology

Term Description/Meaning

9764 MCO The 9764 MCO consists of the following modules: 9764 Metro

Dock module, and the 9764 MCO WCDMA module.

9764 Metro Dock Refers to the Alcatel-Lucent 9764 Metro Dock, a module supporting

backhaul for the 9764 MCO.

9764 MCO LTE Refers to the module that contains the complete base station,

including baseband unit, radio unit and antenna. It is attached to the

front of the 9764 Metro Dock to form the 9764 MCO.

9764 MCO V1.1

B2/B25 LTE 2x1W

Refers to the Band 2/Band 25 (combined) 2x1W variant of the 9764

MCO LTE that is the focus of this document.

9764 MCO V1.1 B2

LTE 2x2W

Refers to the Band 2 2x2W variant of the 9764 MCO LTE that is the

focus of this document.

Typographical conventions

The typographical conventions used in this document are described in the following table.

Appearance Description

emphasis Text that is emphasized

document titles Titles of books or other documents

graphical user interface text Text that is displayed in a graphical user

interface

variables

A value or command-line parameter that the

user provides

Technical conventions

Lengths and other measurements are given in metric units, with non-metric units given as

equivalents for use in non-metric markets.

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xv

D

RAFT

D

RAFT

For manufactured parts, the following system of conventions is used:

•Metric sizes of nuts, bolts, flat washers, and lock washers are identified by an

uppercase letter M followed immediately by a size in millimeters (example: M10)

•American fractional sizes of nuts, bolts, anchor bolts, and washers are identified by a

number followed immediately by a double apostrophe (example: 3/8"). In the case of

lengths measured in feet, “2 feet” is used rather than “2'” so that the single apostrophe

is not overlooked.

The illustrations in this document do not contain all details and exceptions, but are

intended to highlight main points. Dimensions are usually shown in millimeters, with

inches in parenthesis. As an example, 680.0 (26.77) equals 680 millimeters or 26.77

inches.

Wire gauges are specified in metric units. Equivalent sizes in the American Wire Gauge

(AWG) system are given in the following table:

Standard cross-sections and wire diameter of round copper conductors

The following table is from CEI/IEC 60947-1:2004, Table 1, Standard cross-sections of

round copper conductors and approximate relationship between mm2and AWG/kcmil

sizes for reference. Additional wire sizes are included in this document as appropriate for

the topic.

ISO rated cross-sectional area (mm2) AWG/kcmil size

0.2 24

0.34 22

0.5 20

0.75 18

1-

1.5 16

2.5 14

412

610

10 8

16 6

25 4

35 2

-1

50 0 (1/0)

70 00 (2/0)

About this document

....................................................................................................................................................................................................................................

xvi Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

ISO rated cross-sectional area (mm2) AWG/kcmil size

95 000 (3/0)

- 0000 (4/0)

120 250 kcmil

150 300 kcmil

185 350 kcmil

- 400 kcmil

240 500 kcmil

300 600 kcmil

NOTE: The dash, when it appears, counts as a size when considering connecting capacity (see

7.1.7.2 in the standard).

Related information

For information on subjects related to the content of this document, refer to the

documents listed in the following table:

Table 3 Related documents

Refer to this document At this location For more information

on

Alcatel-Lucent 9764 Metro Cell

Outdoor LTE 2x1W and 2x2W Site

Preparation, 3MN-01707-0001-

RJZZA

9764 MCO LTE (Metro Cell Outdoor for

LTE) (https://support.alcatel-lucent.com/

portal/productContent.do?entryId=1-

0000000003997)

9764 MCO LTE 2x1W site

preparation

Alcatel-Lucent 9764 Metro Cell

Outdoor LTE 2x1W and 2x2W

Technical Description

9YZ-04152-0056- DEZZA

(LR13.3.L)

9YZ-05817-0056- DEZZA

(LR14.1.L)

9764 MCO LTE (Metro Cell Outdoor for

LTE) (https://support.alcatel-lucent.com/

portal/productContent.do?entryId=1-

0000000003997)

9764 MCO LTE 2x1W

technical overview

Alcatel-Lucent 9764 Metro Cell

Outdoor LTE 2x1W and 2x2W

Maintenance and Troubleshooting

9YZ-04152-0057-REZZA

(LR13.3.L)

9YZ-05817-0057-REZZA

(LR14.1.L)

9764 MCO LTE (Metro Cell Outdoor for

LTE) (https://support.alcatel-lucent.com/

portal/productContent.do?entryId=1-

0000000003997)

9764 MCO LTE 2x1W

maintenance and

troubleshooting

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xvii

D

RAFT

D

RAFT

Table 3 Related documents (continued)

Refer to this document At this location For more information

on

Alcatel-Lucent 9772 Wi-Fi Service

Controller V1.0 L Hardware

Installation, 3MN-01840-0001-

RJZZA

OnLine Customer Support (OLCS)

(http://support.alcatel-lucent.com)

Instructions for installing

the 9772 WiSC-L

hardware and accessing its

management interfaces.

Alcatel-Lucent 9764 and 9772

Metro Cell Outdoor Wi-Fi AP and

Wi-Fi Service Controller, Release

WA5.5, System Reference Guide,

3MN-01840-0002-RKZZA

OnLine Customer Support (OLCS)

(http://support.alcatel-lucent.com)

Instructions for accessing

and using the web-based

graphic user interface

(GUI) to

manage/administer the

9772 Wi-Fi Service

Controller and 9764 MCO

Wi-Fi Access Point

Alcatel-Lucent 9764 and 9772,

Metro Cell Outdoor Wi-Fi AP and

Wi-Fi Service Controller, Release

WA 5.5, CLI Reference Guide,

3MN-01840-0003-RKZZA

OnLine Customer Support (OLCS)

(http://support.alcatel-lucent.com)

Instructions for accessing

and using command line

interface (CLI) to

manage/administer the

9772 Wi-Fi Service

Controller and 9764 MCO

Wi-Fi Access Point.

Library for LTE End-to-End

Solution

LTE End-to-End Solution

(https://infoproducts.alcatel-lucent.com/

aces/cgi-bin/dbaccessproddoc.cgi.edit?

entryId=1-0000000001078)

The full collection of

documents in the LTE

collection

Alcatel-Lucent LTE Radio Access

Network (RAN) eNodeB Macro

and Metro Products Release FDD

Release Notes

9YZ-05817-0001-FMZZA

(LR13.3.L)

9YZ-04152-0001-FMZZA

(LR14.1.L)

LTE End-to-End Solution

(https://infoproducts.alcatel-lucent.com/

aces/cgi-bin/dbaccessproddoc.cgi.edit?

entryId=1-0000000001078)

Release specific software

and feature status

information

9764 lightRadio Metro Cell

Outdoor “Family” Model Offer

Provisioning Guide,

BCR/IRC/APP/038681

Subject to non-disclosure agreement and

available from Alcatel-Lucent

representatives

Product ordering codes

About this document

....................................................................................................................................................................................................................................

xviii Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Table 3 Related documents (continued)

Refer to this document At this location For more information

on

FDD eNodeB Product Engineering

Guide, LTE/DCL/APP/041927

Subject to non-disclosure agreement and

available from Alcatel-Lucent

representatives

The different

Alcatel-Lucent LTE

eNodeB hardware

configurations and the

related engineering rules

and guidelines.

Grounding and Lightning

Protection Guidelines for

Alcatel-Lucent Wireless System

Cell Sites, 401-200-115

OnLine Customer Support (OLCS)

(http://support.alcatel-lucent.com)

Grounding and Lightning

protection systems

Standard for Installation of

Lightning Protection Systems,

NFPA

ANSI web site (http://webstore.ansi.org/

default.aspx)

Lightning protection

systems

Recommended Practices on Surge

Voltages in Low Voltage AC Power

Circuits, IEEE C62.41 (Latest

Edition)

IEEE web site (http://www.ieee.org/index.

html)

Power

Document support

For support in using this or any other Alcatel-Lucent document, contact Alcatel-Lucent at

the following telephone numbers.

From United States

•If you are using a landline, a cellular phone or VoIP, dial this number: 1-888-582-3688

From other countries

•If you are using a cellular phone or VoIP, dial this number: +1-630-224-2485

•If you are using a landline (phone without a plus [+] character), replace the plus sign

with your country's exit code. Dial this number: Exit code for the country of origin:

1-630-224-2485. See the country-specific exit codes listed here.

These numbers apply for document support only. Please see the section “Technical

support” for details about product hardware, software, and technical support.

Technical support

For technical support, contact your local Alcatel-Lucent customer support team. See the

Alcatel-Lucent Support web site (http://www.alcatel-lucent.com/support/) for contact

information.

About this document

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction xix

D

RAFT

D

RAFT

How to order

To order Alcatel-Lucent documents, contact your local sales representative or use Online

Customer Support (OLCS) (http://support.alcatel-lucent.com).

How to comment

Note to reviewers: The following "How to comment" text will appear in the final

document when it is published. However, the feedback method described below is for use

only on final documents. Please send your review comments to the author using the

process you were given when you received this draft document.

To comment on this document, go to the Online Comment Form (http://infodoc.alcatel-

lucent.com/comments/) or e-mail your comments to the Comments Hotline

(comments@alcatel-lucent.com).

About this document

....................................................................................................................................................................................................................................

xx Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

11Safety statements

Overview

Purpose

This chapter provides general information on the structure of safety instructions and

summarizes general safety requirements.

General safety and residual risk

The equipment has been developed in line with state-of-the-art technology and conforms

with current national and international safety requirements.

The equipment is considered safe during normal operation when safe working practices

are complied with. However, hazards may arise if procedures are not followed correctly

or safe working practices are not complied with.

Contents

Structure of safety statements 1-2

Safety 1-4

Safety - specific hazards 1-5

Product safety 1-9

...................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-1

D

RAFT

D

RAFT

Structure of safety statements

Overview

This topic describes the components of safety statements that appear in this document.

General structure

Safety statements include the following structural elements:

Item Structure element Purpose

1 Safety alert symbol Indicates the potential for personal injury

(optional)

2 Safety symbol Indicates hazard type (optional)

3 Signal word Indicates the severity of the hazard

4 Hazard type Describes the source of the risk of damage or

injury

5 Safety message Consequences if protective measures fail

6 Avoidance message Protective measures to take to avoid the hazard

7 Identifier The reference ID of the safety statement

(optional)

SAMPLE

Lifting this equipment by yourself can result in injury

due to the size and weight of the equipment.

Always use three people or a lifting device to transport

and position this equipment. [ABC123]

CAUTION

Lifting hazard

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

1-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Signal words

The signal words identify the hazard severity levels as follows:

Signal word Meaning

DANGER Indicates an extremely hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING Indicates a hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION Indicates a hazardous situation which, if not avoided, could result in

minor or moderate injury.

NOTICE Indicates a hazardous situation not related to personal injury.

Safety statements Structure of safety statements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-3

D

RAFT

D

RAFT

Safety

General precautions for installation procedures

WARNING

Failure to observe these safety precautions may result in personal

injury or damage to equipment.

•Read and understand all instructions.

•Follow all warnings and instructions marked on this product.

•Installation and maintenance procedures must be followed and performed by

trained personnel only.

•The equipment must be provided with a readily accessible disconnect device

as part of site preparation.

•Grounding and circuit continuity is vital for safe operation of the equipment.

Never operate the equipment with grounding/bonding conductor

disconnected.

•Before servicing, disconnect power input to reduce the risk of energy

hazards.

•If installed in ambient temperatures above 46°C (115°F), this unit must be

installed only in restricted access locations, where access is limited to

qualified service personnel only.

Safety statements Safety

....................................................................................................................................................................................................................................

1-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Safety - specific hazards

Danger

DANGER

Electric-shock hazard

Working in severe weather can result in personal injury or death and damage to the

equipment.

Never install or perform maintenance during severe weather (high winds, lightning,

blizzards, hurricane etc.).

DANGER

Noxious-substance hazard

Use of unspecified cleaning agents can result in personal injury.

Use only specified cleaning agents. Never use flammable solvents.

Always ensure there is adequate ventilation in the work area and wear the appropriate

personal protective equipment.

Warning

WARNING

Laser hazard

Use of controls or adjustments or performance of procedures other than those specified

herein may result in hazardous laser radiation exposure.

Do not view directly into the laser beam with optical instruments such as a fiber

microscope because viewing of laser emission in excess of Class 1 limits significantly

increases the risk of eye damage.

Never look into the end of an exposed fiber or an open connector as long as the optical

source is switched on.

Ensure that the optical source is switched off before disconnecting optical fiber

connectors.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-5

D

RAFT

D

RAFT

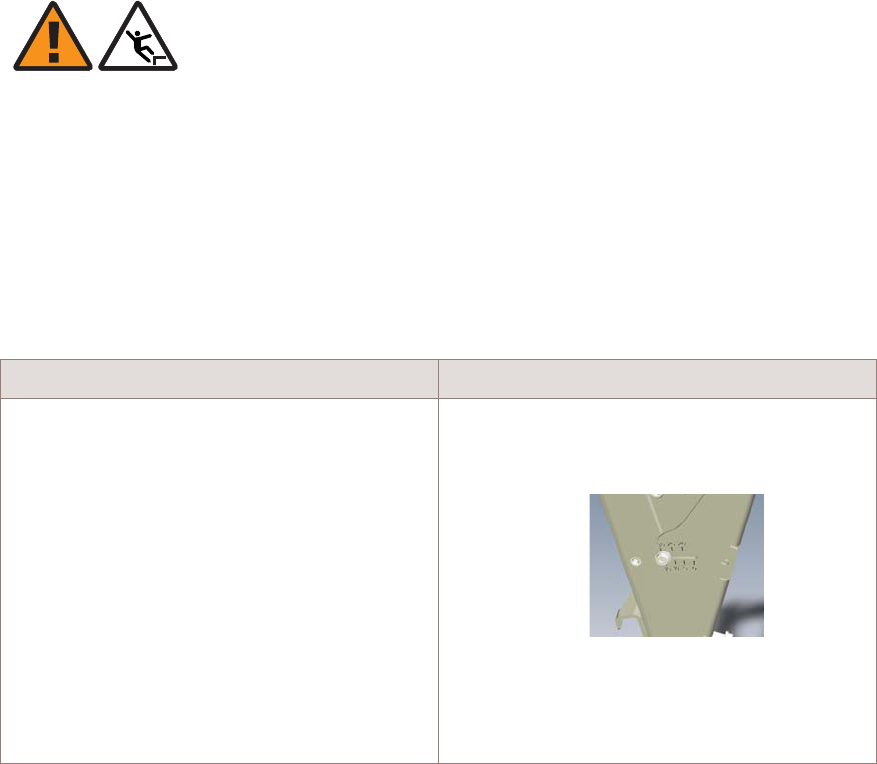

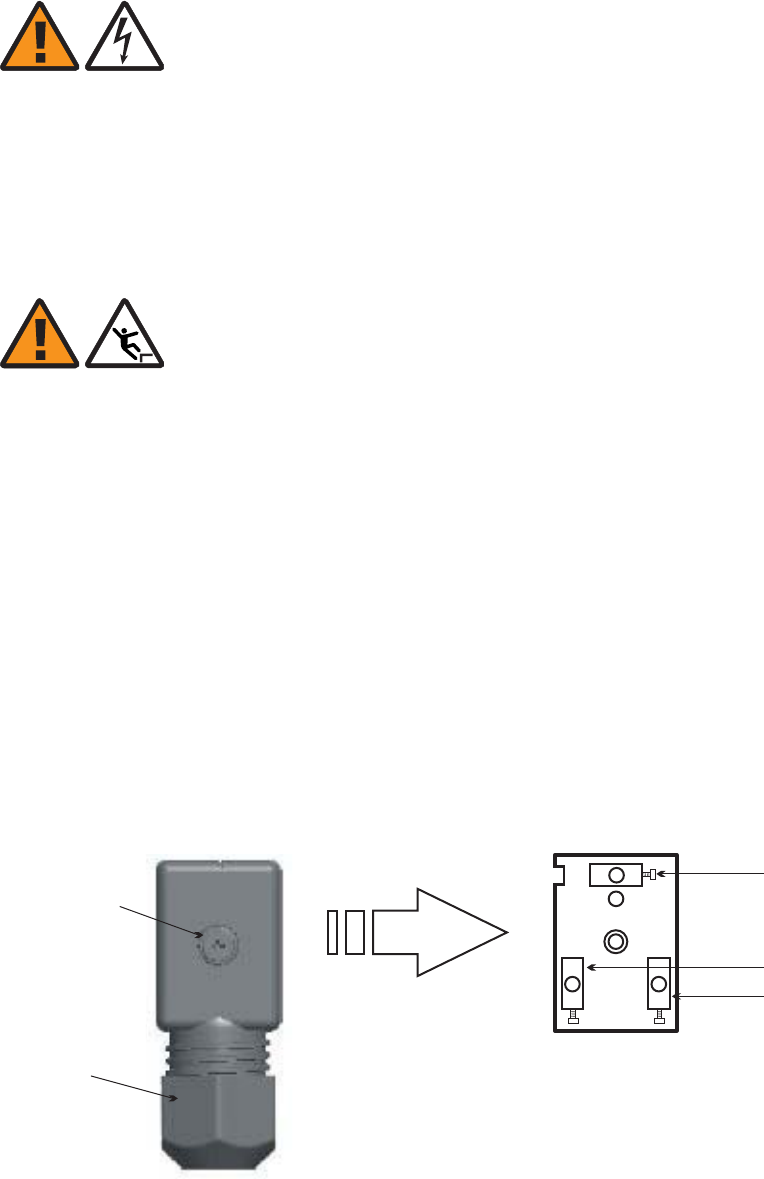

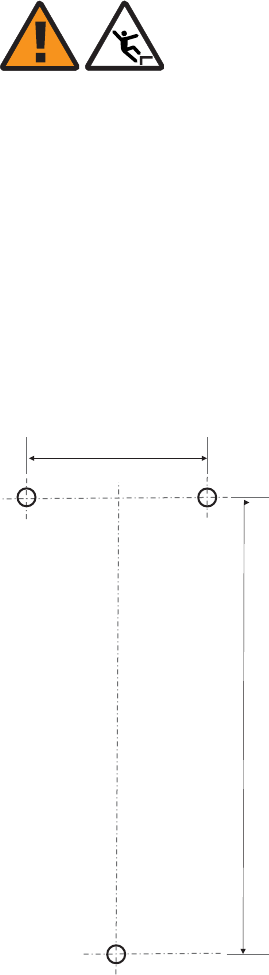

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Caution

CAUTION

RF hazard

RF exposure in excess of applicable limits can result in adverse health effects.

Metro Cells are designed and installed in order to comply with the international exposure

guidelines laid down by the International Commission on Non-Ionizing Radiation

Protection (ICNIRP) and/or the Institute of Electrical & Electronics Engineers

(IEEE) C95.1. ICNIRP guidelines have been implemented by the European Commission

and a number of other countries. IEEE guidelines have been implemented in North

America and some other countries.

Workers that are required to work in close proximity to the equipment, for example

maintenance personnel, should strictly follow instructions provided by their employer.

Workers equipped with personal medical electronic devices, such as pacemakers and

hearing aids, shall consult the manufacturer's instructions and consult their occupational

health practitioner.

CAUTION

Electrical energy hazard

Some parts of all electrical installations are energized. Failure to observe this fact and

the safety warnings may lead to bodily injury and property damage.

For this reason, only trained and qualified personnel (electrical workers as defined in

IEC 60215 + A1 or EN 60215) may install or service the installation.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

CAUTION

Electrical energy hazard

The power supply lines to the network element are energized. Contact with parts carrying

voltage can cause health problems, possibly including death, even hours after the event.

Open and lockout the load disconnect switch in the distribution box to completely

de-energize the network element.

Notices

NOTICE

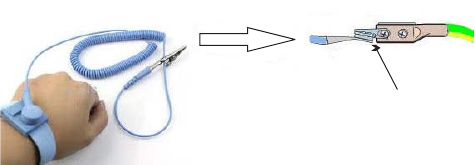

ESD hazard

Semiconductor devices can be damaged by electrostatic discharges (ESD)

The following rules must be complied with when handling any module containing

semiconductor components:

•Wear conductive or antistatic working clothes (for example, coat made of 100%

cotton).

•Wear a grounded wrist strap.

•Wear shoes with conductive soles on a conductive floor surface or conductive work

mat.

•Leave the modules in their original packaging until ready for use.

•Make sure there is no difference in potential between yourself, the workplace, and the

packaging before removing, unpacking, or packing a module.

•Whenever handling ESD-sensitive components, do not touch any connection pins or

tracks.

•Place modules removed from the equipment on a conductive surface.

•Test or handle the module only with grounded tools on grounded equipment.

•Handle defective modules exactly like new ones to avoid causing further damage.

NOTICE

Condensation

Sudden changes in the weather may lead to the formation of condensation on

components. Operating the unit when condensation moisture is present can destroy the

unit.

Units which show signs of condensation must be dried before installation.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-7

D

RAFT

D

RAFT

NOTICE

Tools

Tools left in the working area can cause short circuits during operation which can lead to

the destruction of units.

Make sure after finishing your work that no tools, testing equipment, flashlights, etc.,

have been left in or on the equipment.

Safety statements Safety - specific hazards

....................................................................................................................................................................................................................................

1-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Product safety

Equipment safety

Safety information for this equipment can be found on various Caution, Warning, Danger,

information labels or instructions affixed to or included with the product or included

within this document. Informational and cautionary labels may appear near the item they

address or may be grouped in a single location on the equipment. Warnings are typically

adjacent to the hazard that is noted on the label. The instructions, cautions and warnings

found on these labels must be understood and observed by all personnel involved with the

equipment installation and maintenance.

Safety statements Product safety

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 1-9

D

RAFT

D

RAFT

Safety statements Product safety

....................................................................................................................................................................................................................................

1-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

22Product overview

Overview

Purpose

This chapter provides an overview of Alcatel-Lucent 9764 Metro Cell Outdoor LTE

2x1W and Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x2W products.

Contents

Functional description 2-2

Physical description 2-4

Supported installation options 2-13

Hardware and ancillary items 2-17

...................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-1

D

RAFT

D

RAFT

Functional description

General description

Alcatel-Lucent Metro Cells enable mobile service providers (MSPs) to deliver

cost-effective capacity to urban spots, as well as affordable coverage to rural locations.

They also enhance the quality of experience (QoE) for end users by enabling faster, more

reliable data connections and higher data throughput on 4G networks.

The 9764 MCO LTE 2x1W and 9764 MCO LTE 2x2W products specified here are

targeted for high user density locations where additional capacity is required or even in

areas where cell phone coverage is needed on short notice. The product can be deployed

by mobile operators to provide a transparent outdoor capacity layer to complement the

macro cell “umbrella” coverage layer.

Product features and capabilities

The product features and capabilities in this release are:

•Supports LTE FDD

•Single LTE carrier

•Supports either B25 band, B2 band, B3 band or B7 band

•PCS 1900 MHz frequency band (B25 and B2)

•DCS 1800 MHz frequency band (B3)

•2600 MHz frequency band (B7)

•9764 MCO LTE 2x1W supports the following RF antenna capabilities:

– Transmit power: 1W at each internal RF antenna connector, and a guaranteed

Equivalent Isotropically Radiated Power (EIRP) of 37 dBm per path for the B2

MCO, B2/B25 (combined) MCO, B3 MCO, and B25 MCO, and 40 dBm per path

for the B7 MCO. Transmit power can be reduced by a maximum of 14 dB to

adjust the static cell power.

– Integrated directional “Cube-based” antennas

– Standard 2x2 MIMO configurations, 2 transmit and 2 receive diversity

•The 9764 MCO LTE 2x2W supports the following RF antenna capabilities:

– Supports two external antenna connectors (QN-type) allowing an internal RF

antenna configuration or an external RF antenna configuration. The operator must

obtain the external RF antennas from third party vendors.

– Transmit power of 2W at each external connector.

•Receiver sensitivity optimized to permit near far simultaneous operation (reference

sensitivity:-98 dBm)

•Supports Plug and Play to automatically connect to the network.

Product overview Functional description

....................................................................................................................................................................................................................................

2-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

•The 9764 Metro Dock supports Gigabit Ethernet backhaul (support for other backhaul

variations are planned for the future).

•Supports optional modular and field replaceable Wi-Fi Access Points.

Refer to Alcatel-Lucent Small Cell Wi-Fi AP Technical Description,

3MN-01840-0004-DEZZA for Wi-Fi AP product details.

•The 9764 MCO LTE products have feature parity with some but not all macro

eNodeB features. See the release-specific version of the Alcatel-Lucent LTE eNodeB

Macro and Metro Products FDD Release Notes for more information. Refer to the

“Related Information” block in “About this document” for the applicable document

versions.

•Supported user capacity - refer to the table below.

The number of active users and the number of Voice over LTE (VoLTE) calls supported is

shown in the table below for the 9764 MCO LTE 2x1W and 9764 MCO LTE 2x2W

models.

9764 MCO LTE

2x1W model

Supported

Bandwidth

# active users supported # VoLTE calls

supported

B25 5 MHz up to 64 active users with up

to eight bearers per UE

up to 32 VoLTE calls

B2/B25 (combined) 10 MHz up to 64 active users with up

to eight bearers per UE

up to 64 VoLTE calls

B2 (see note 2) 5 MHz up to 64 active users with up

to eight bearers per UE

up to 64 VoLTE calls

B3 10 MHz up to 64 active users with up

to eight bearers per UE

up to 32 VoLTE calls

B7 10 MHz up to 64 active users with up

to eight bearers per UE

up to 32 VoLTE calls

B7 20 MHz up to 16 active users with up

to eight bearers per UE

up to 32 VoLTE calls

Notes:

1. The 9764 MCO LTE 2x1W and the 9764 MCO LTE 2x2W are hardware ready for 200

simultaneous active users.

2. The B2 capacity figures above apply to both the 9764 MCO V1.1 B2 LTE 2x1W and the

9764 MCO V1.1 B2 LTE 2x2W models.

3. In this release, the number of active users is the same as the number of RRC connected

users.

Product overview Functional description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-3

D

RAFT

D

RAFT

Physical description

Product overview

The Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x1W and Alcatel-Lucent 9764 Metro

Cell Outdoor LTE 2x2W are housed in an Alcatel-Lucent generic metallic case. The

products are designed to be deployed close to the users, usually in streets, on light poles

or on walls of buildings, with a vertical profile that hides cable connectors and mounting

kit for a smooth integration into the surrounding environment.

The Alcatel-Lucent 9764 Metro Cell Outdoor LTE 2x1W and Alcatel-Lucent 9764 MCO

LTE 2x2W products are shown in the following figure.

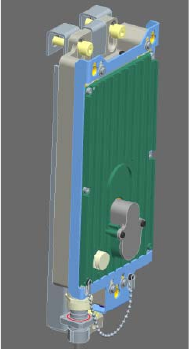

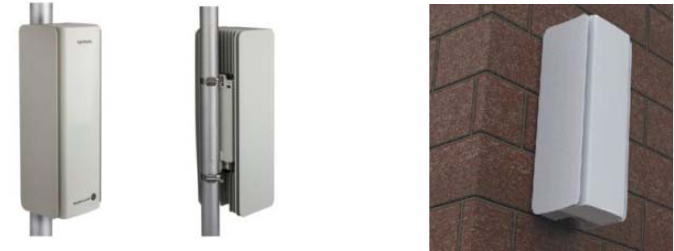

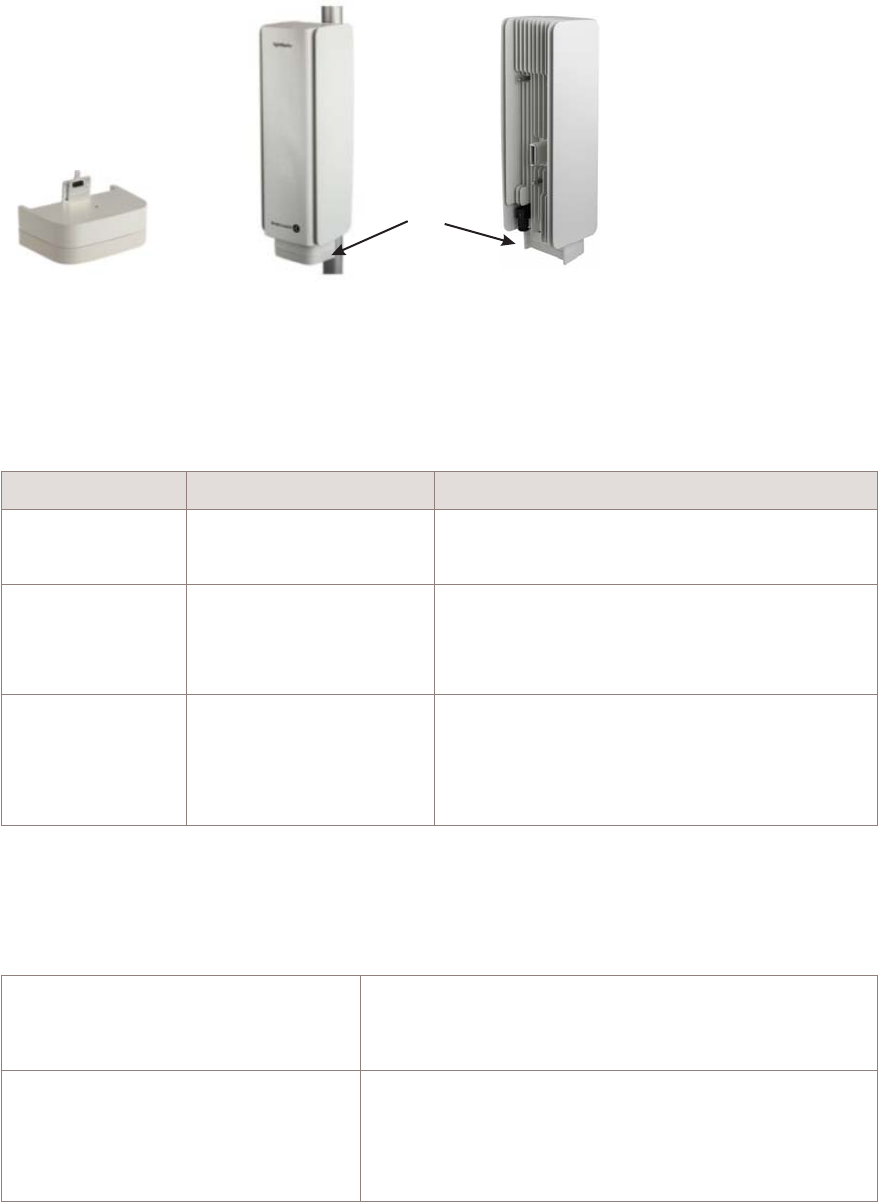

Figure 2-1 9764 Metro Dock and 9764 MCO LTE 2x1W and Alcatel-Lucent 9764

Metro Cell Outdoor LTE 2x2W

9764 Metro Dock

9764 MCO LTE 2x1W module

and

9764 MCO LTE 2x2W module

(reverse view)

Top view

Bottom view

Product overview Physical description

....................................................................................................................................................................................................................................

2-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

In order to simplify configurations the backhaul access function and the radio part

functions are separated, with a common interface as defined:

Unit Function Description

9764 Metro Dock

module

Backhaul access function Supports backhaul options

Holds the 9764 MCO LTE module in place

9764 MCO LTE

module

Radio and baseband

function

Radio functions

Digital processing functions

Power supply functions

9764 MCO Wi-Fi

AP module

Wi-Fi function Wi-Fi network access function.

Refer to Alcatel-Lucent Small Cell Wi-Fi AP

Technical Description, 3MN-01840-0004-

DEZZA for Wi-Fi AP product details.

Weights and dimensions

The physical dimensions of the Alcatel-Lucent 9764 Metro Cell Outdoor are:

Dimensions (9764 MCO LTE module

+ 9764 Metro Dock) (Length x Width

x Depth)

501 x 170 x 164 mm (19.7 x 7.0 x 6.5 in)

Dimensions (9764 MCO module +

9764 Metro Dock + 9764 MCO

Wi-Fi AP) (Length x Width x Depth)

With 9764 MCO Wi-Fi AP V1.0 MG: 550 x 170 x 150

mm (21.7 x 6.7 x 5.9 in)

With 9764 MCO Wi-Fi AP V1.0 HG: 590 x 170 x 150

mm (23.2 x 6.7 x 5.9 in)

Figure 2-2 9764 MCO LTE with 9764 MCO Wi-Fi AP

Wi-Fi

AP

9764 Wi-Fi AP 9764 MCO front view

with 9764 Wi-Fi AP

9764 MCO rear view

with 9764 Wi-Fi AP

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-5

D

RAFT

D

RAFT

Volume (9764 MCO LTE module +

9764 Metro Dock)

12.7 L (3.35 gal)

Weight (9764 MCO LTE module +

9764 Metro Dock)

10.1 kg (22.2 lb)

Weight (9764 MCO LTE module +

9764 Metro Dock + 9764 MCO

Wi-Fi AP)

With 9764 MCO Wi-Fi AP V1.0 MG: 10.57 kg (23.30

lb)

With 9764 MCO Wi-Fi AP V1.0 HG: 10.77 kg (23.74

lb)

Weight (9764 MCO LTE module

only)

9.1 kg (20.1 lb)

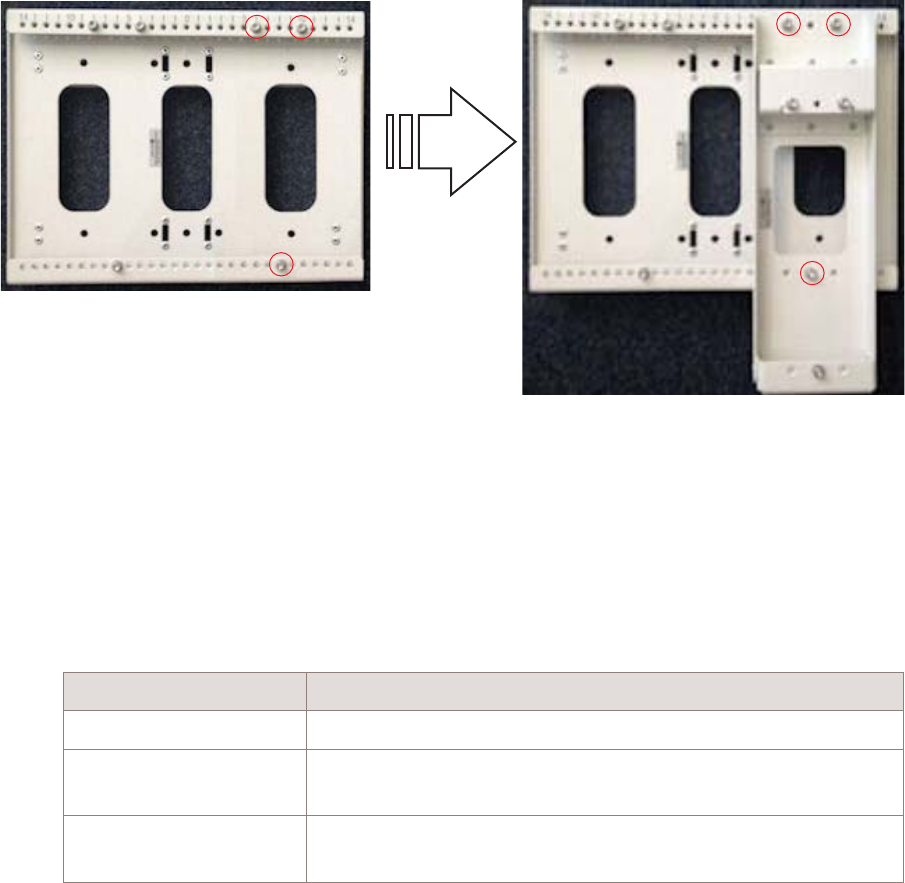

Dimensions for optional pair-mount configuration

The physical dimensions when two 9764 MCOs are pair-mounted are as follows:

Configuration Height Width Depth

4G MCO + 3G MCO

With Wi-Fi AP, Minimal

distance between MCOs,

With full tilt mechanics

590 mm 410 mm including

back-bracket

(338 mm without

back-bracket)

290 mm

4G MCO + 3G MCO NO

Wi-Fi AP, Minimal

distance between MCOs,

NO tilt mechanics

501 mm 410 mm including

back-bracket

(338 mm without

back-bracket)

210 mm

Alcatel-Lucent 9764 Metro Cell Outdoor LTE overview

The 9764 MCO LTE module is made up of three main units which are responsible for

radio, digital processing and power supply functions.

Product overview Physical description

....................................................................................................................................................................................................................................

2-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Unit Function

9764 MCO LTE module Digital part:

•Gigabit Ethernet switch

•Processors to provide modem and controller functionality

•9764 Metro Dock interface (data, control and power supply)

•9764 MCO Wi-Fi AP interface

Radio part

•Radio part B25:

– LTE Band 25 (1850 MHz - 1915 MHz (UL), 1930 MHz - 1995

MHz (DL))

– Two TX antenna connectors and two RX antenna connectors

•Radio part 9764 MCO V1.1 B2 LTE 2x1W:

– LTE Band 2 (1850 MHz - 1910 MHz (UL), 1930 MHz - 1990

MHz (DL))

– Two TX antenna connectors and two RX antenna connectors

•Radio part 9764 MCO V1.1 B2 LTE 2x2W:

– LTE Band 2 (1850 MHz - 1910 MHz (UL), 1930 MHz - 1990

MHz (DL))

– Two external RF antenna connectors (Type QN)

•Radio part B2/B25 (combined):

– LTE Band 25 (1850 MHz - 1915 MHz (UL), 1930 MHz - 1995

MHz (DL))

– Two TX antenna connectors and two RX antenna connectors

•Radio part B3:

– LTE Band 3 (1710 MHz - 1785 MHz (UL), 1805 MHz - 1880

MHz (DL))

– Two TX antenna connectors and two RX antenna connectors

•Radio part B7:

– LTE Band 7 (2500 MHz - 2570 MHz (UL), 2620 MHz - 2690

MHz (DL))

– Two TX antenna connectors and two RX antenna connectors

9764 MCO LTE 2x1W models: Internal GPS antenna connector

(depending on the model) or an external GPS connector for localization

synchronization (only one can be used)

9764 MCO LTE 2x2W models: A GPS connector that is switchable

between internal GPS antenna and external GPS antenna.

Power supply part - please see “Power supply” (p. 2-10) for internal

power module unit information.

9764 MCO LTE 2x1W Antennas •Integrated cube-based RF antennas configured for 2x2 MIMO.

•internal GPS antenna configuration (depending on the model) or

external GPS antenna configuration.

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-7

D

RAFT

D

RAFT

Unit Function

9764 MCO LTE 2x2W Antennas •Integrated 1-element RF antenna or cabling to external remote RF

antennas.

•Internal GPS antenna configuration or external GPS antenna

configuration.

Power source •AC power supply or DC power supply (see “Power supply”

(p. 2-10) for further information)

9764 MCO LTE module connection interfaces

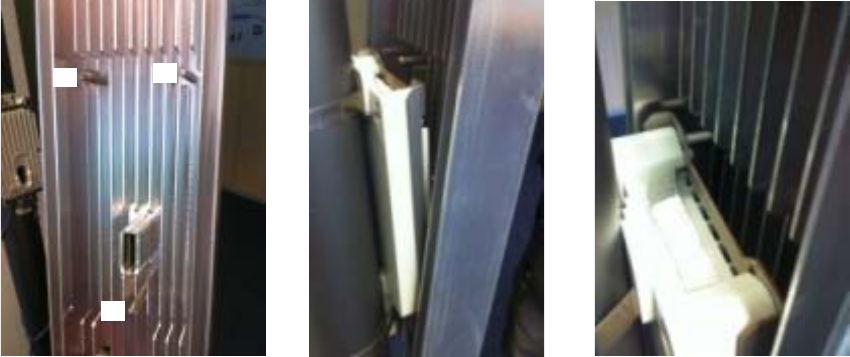

The following figure shows the connection interfaces for the 9764 MCO LTE module.

Figure 2-3 9764 MCO LTE module connection interfaces (1 of 2)

Power connector

Blind mate connector

between Metro Cell Module

and the Metro Dock

Wi-Fi AP connector

(for optional Wi-Fi AP)

Cable gland

9764 MCO LTE

2x1W module

9764 Metro Dock

module

GPS connector

(for optional external

GPS antenna)

Product overview Physical description

....................................................................................................................................................................................................................................

2-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

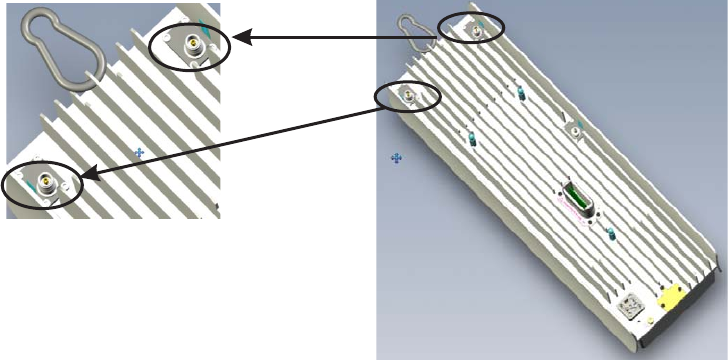

Figure 2-3 9764 MCO LTE module connection interfaces (2 of 2)

External GPS

antenna connector

Power connector

Blind mate connector

between Metro Cell Module

and the Metro Dock

Cable gland

9764 MCO B2 2x2W

LTE module

9764 Metro Dock

module

External antenna connectors

(with antennas attached)

WIFI AP connector

(optional)

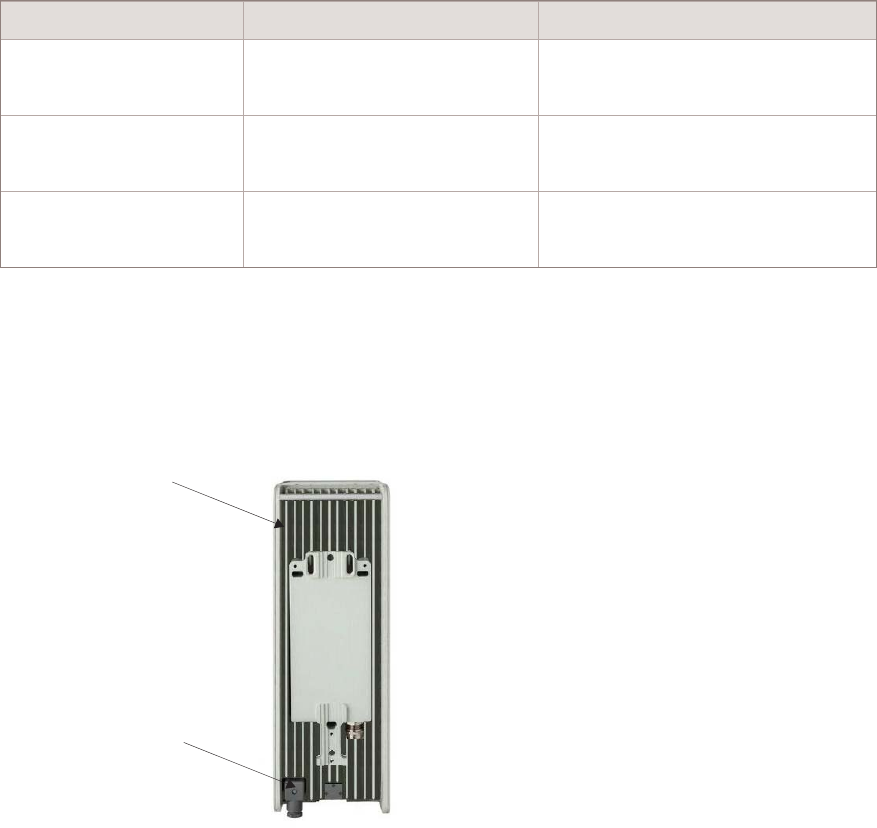

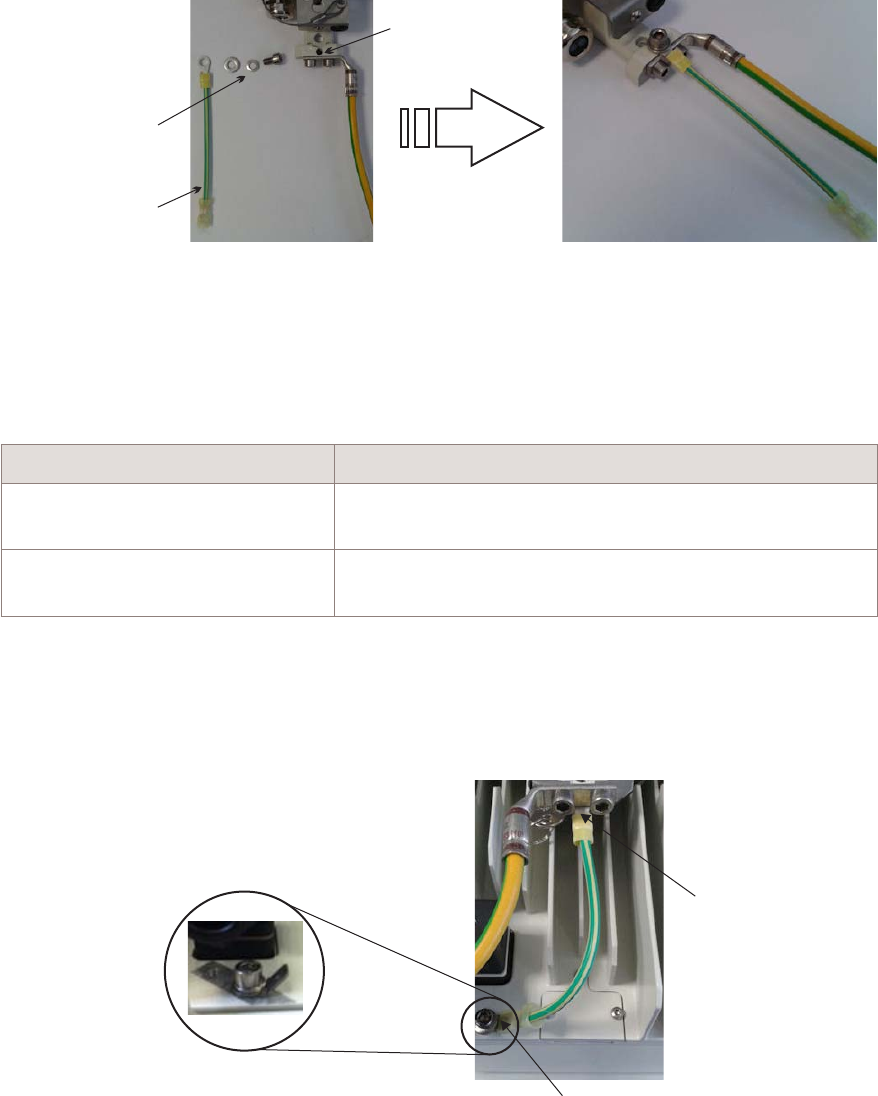

Figure 2-4 9764 MCO LTE module connection interfaces - double lug ground point

detail

Double lug

ground point

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-9

D

RAFT

D

RAFT

Connection location Description

9764 MCO LTE module (back) A power supply connector

A blind mate connector for connecting the 9764 MCO LTE

module and the 9764 Metro Dock

9764 MCO Wi-Fi AP (optional) connector

External GPS antenna connector

Internal GPS antenna connector (only 2x1W models

supporting an internal GPS configuration)

Power supply

The 9764 MCO LTE module supports the following power source variants:

•AC power feed in the 100 V – 240 V AC range, ~2.0 A 50-60 Hz, with nominal

voltages of 110 V and 230 V.

The AC power is surge-protected as follows:

– First level (no damage to equipment, no service interruption): 2 KV/1 KA

•DC power feed of -48 V, 3.5 A SELV Source.

Surge requirements satisfy GR-1089-CORE and IEC 61000-4-5, providing 6 KV (3KA)

surge protection.

Grounding connection points, located below the power connector on the chassis, provide

grounding for the power module.

A power module unit inside the 9764 MCO LTE 2x1W and Alcatel-Lucent 9764 MCO

LTE 2x2W provides AC/DC conversion (5.3 V output) to its power board, which then

provides secondary DC-DC conversion and distributes 5.3 V to the 9764 Metro Dock

module and the 9764 MCO Wi-Fi AP module (if equipped).

The power module supports an average consumption of 100 W, as well as the peak 130 W

consumption projected for the 9764 MCO LTE 2x1W and 9764 MCO LTE 2x2W (9764

MCO LTE module, 9764 Metro Dock module, and optional 9764 MCO Wi-Fi AP

module). Without the optional 9764 MCO Wi-Fi AP module, average consumption is

approximately 92 W (peak 120 W).

RF antenna

The 9764 MCO LTE 2x1W support an integrated RF antenna configured for 2x2 MIMO.

Product overview Physical description

....................................................................................................................................................................................................................................

2-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

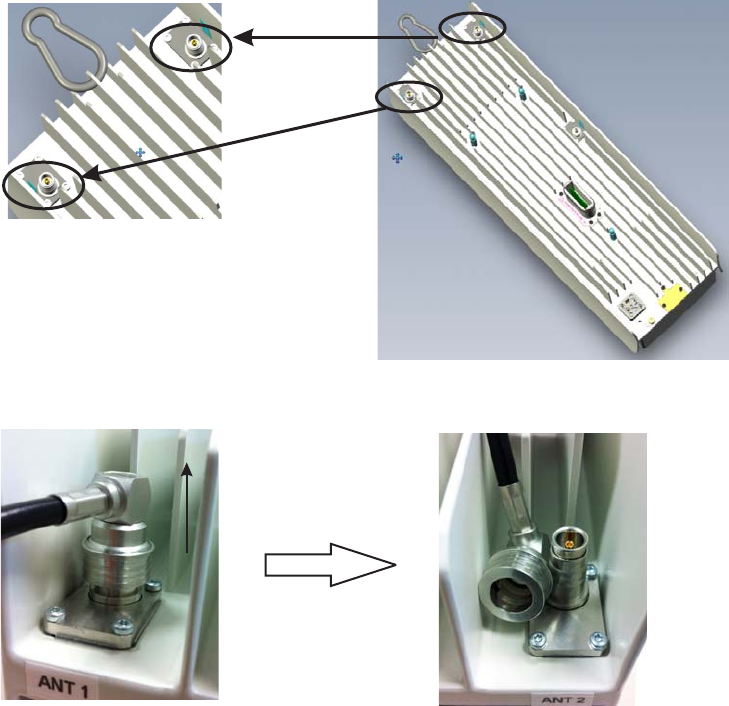

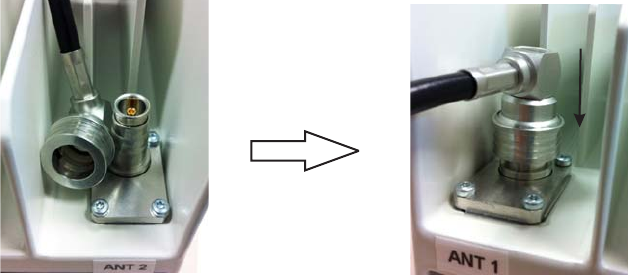

The 9764 MCO V1.1 B2 LTE 2x2W supports two external antenna connectors (Type QN)

allowing the following RF antenna configurations:

•Internal 1-element RF antenna

•Cabling to external remote RF antennas. The external antennas are provided by

third-party vendors selected by the operator.

GPS antenna

The 9764 MCO LTE 2x1W supports the following GPS antenna configurations:

•internal GPS antenna mounted behind the radome to provide localization

synchronization of the unit, or

•an external GPS antenna connector (QMA) on the 9764 MCO LTE module, which

can be used to connect to an external GPS antenna

•The 9764 MCO LTE 2x1W will be installed to use either the internal GPS antenna (if

available for that model) or it will be connected to an external GPS antenna. When

configured to use the internal GPS antenna, a bridge cable is used to connect the

external GPS QMA connector to the internal GPS QMA connector.

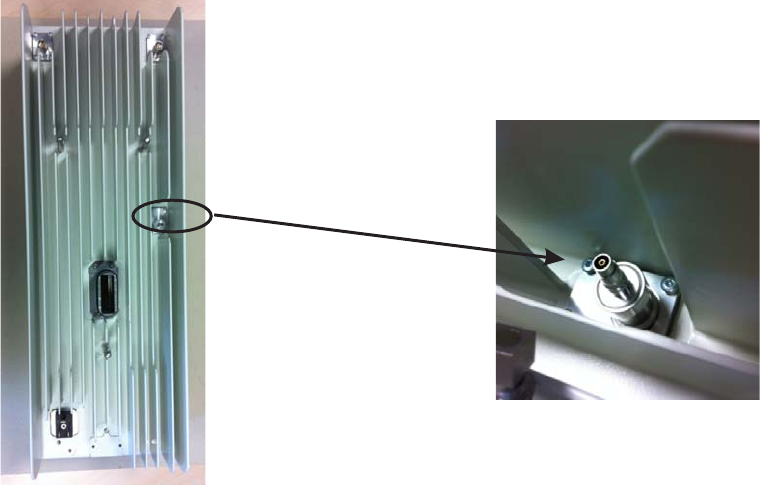

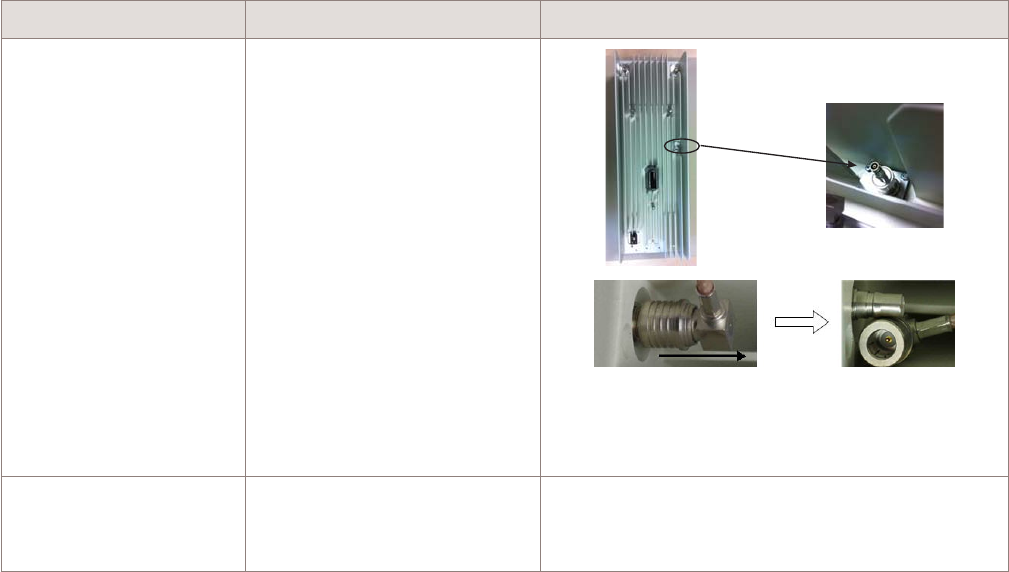

A QMA GPS Antenna switch is available on the 9764 MCO V1.1 B2 LTE 2x2W model,

which allows it to support both internal GPS antenna and external GPS antenna solutions

without the use of a bridge cable. When no external GPS cable is attached to the QMA

connector, the internal GPS antenna is engaged and active. When an external GPS

antenna cable is attached to the QMA connector, a switch in the connector automatically

sets the 9764 MCO V1.1 B2 LTE 2x2W up for the external GPS antenna configuration.

When the external GPS antenna cable is removed, the switch in the QMA connector

moves the 9764 MCO V1.1 B2 LTE 2x2W back to an internal GPS antenna

configuration.

Table 2-1 GPS antenna options

Metro Cell model Internal GPS antenna External GPS antenna

9764 MCO V1.0 B25 LTE 2x1W X

9764 MCO V1.1 B2 LTE 2x1W X

9764 MCO V1.1 B3 LTE 2x1W X X

9764 MCO V1.1 B7 LTE 2x1W X

9764 MCO V1.1 B2/B25 LTE

2x1W

XX

9764 MCO V1.1 B2 LTE 2x2W X X

Product overview Physical description

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-11

D

RAFT

D

RAFT

Status indicator

The 9764 MCO LTE supports a single bi-color LED (red/green) which is located on the

rear lower portion of the 9764 MCO LTE module. The LED is not intended for use during

normal operation of the equipment; however, it can provide a visual status of the

equipment during initial installation and commissioning.

Product labelling

The 9764 MCO LTE module has the following labelling:

1. A product label reflecting:

•Vendor name/Icon

•Model name

•Part number

•Serial number

•Data matrix barcode for Part number and Serial number

•CLEI code

•MAC address

2. A regulatory label reflecting:

•Vendor name/Icon

•Product name

•Regulatory rules

•Power input

•Enclosure rating

•Applicable regulatory and environmental certification logos

•Manufacturer name

3. An FCC label reflecting (for B2, B25 and B2/B25 (combined) MCOs only):

•Vendor name/Icon

•FCC ID

Product overview Physical description

....................................................................................................................................................................................................................................

2-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Supported installation options

Overview

The following section describes the supported installation options for the Alcatel-Lucent

9764 Metro Cell Outdoor LTE 2x1W and Alcatel-Lucent 9764 Metro Cell Outdoor V1.1

B2 LTE 2x2W products. These include:

•Standard installation options for all 9764 MCO LTE 2x1W products.

•Standard installation options for all 9764 MCO LTE 2x2W products.

•Daisy chain installation options where two 9764 MCO modules are daisy chained

together and share the same backhaul port.

•Pair-mount installation options where:

– a 9764 MCO V1.1 B2 LTE 2x1W product is mounted with a 9764 MCO V1.0 B2

WCDMA 1W, or

– a 9764 MCO V1.1 B2 LTE 2x2W product is mounted with a 9764 MCO V1.0 B2

WCDMA 1W, or

– a 9764 MCO V1.1 B7 LTE 2x1W product is mounted with a 9764 MCO V1.0 B1

WCDMA 1W.

– a 9764 MCO V1.1 B2/B25 LTE 2x1W product is mounted with a 9764 MCO

V1.0 B1 WCDMA 1W.

Standard installation options

Alcatel-Lucent 9764 MCO LTE 2x1W and Alcatel-Lucent 9764 MCO LTE 2x2W

products are designed to be deployed outdoors and close to the users, usually on light

poles or lamp posts in streets or on building walls, with a vertical profile. Optional tilt

mounting brackets can be used that allow the 9764 MCO module to be adjusted in

vertical and/or horizontal direction at same time.

Figure 2-5 Installation examples

Pole mount installation Wall mount installation

Product overview Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-13

D

RAFT

D

RAFT

In addition, Alcatel-Lucent 9764 MCO LTE 2x1W and Alcatel-Lucent 9764 MCO LTE

2x2W products can be fitted with an optional 9764 MCO Wi-Fi AP module as shown in

the following figure.

Ethernet daisy chain installation options

In a daisy chain installation configuration two Alcatel-Lucent 9764 MCOs can be daisy

chained together, where they share the same backhaul port, thus reducing the investment

cost needed to connect the 9764 MCOs to the backhaul network and aggregating the

uplink and downlink traffic. Daisy chained 9764 MCOs may be co-located or separated

by some distance.

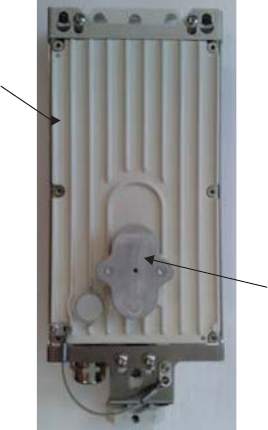

Figure 2-6 9764 MCO Wi-Fi AP module attached to 9764 MCO LTE module (front

view)

Wi-Fi AP

Product overview Supported installation options

....................................................................................................................................................................................................................................

2-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Daisy chain configuration options are described in, “Pair mount and daisy chain

requirements” (p. 3-13)

Pair-mount installation options

In a “pair-mount” installation configuration a 9764 MCO LTE 2x1W product or a 9764

MCO LTE 2x2W product can be mounted with a 9764 MCO WCDMA product to form a

Multi-Standard Pair configuration. The supported pair-mount configurations are as

follows:

•A 9764 MCO V1.1 B2 LTE 2x1W in a pair-mount configuration with a 9764 MCO

V1.0 B2 WCDMA 1W.

•A 9764 MCO V1.1 B2/B25 LTE 2x1W in a pair-mount configuration with a 9764

MCO V1.0 B2 WCDMA 1W.

•A 9764 MCO V1.1 B2 LTE 2x2W in a pair-mount configuration with a 9764 MCO

V1.0 B2 WCDMA 1W,

•A 9764 MCO V1.1 B7 LTE 2x1W in a pair-mount configuration with a 9764 MCO

V1.0 B1 WCDMA 1W.

Note: This 9764 MCO V1.1 B7 LTE 2x1W/9764 MCO V1.0 B1 WCDMA 1W

pair-mount configuration applies to AC variants only.

Service providers can deploy these configurations on the same site to meet the growing

demands of capacity on the 3G and 4G technologies.

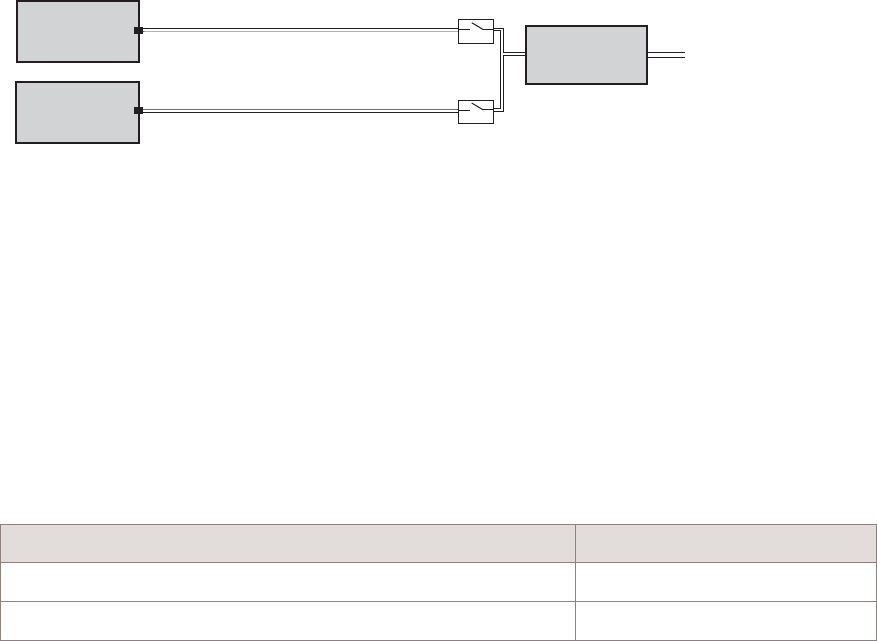

Figure 2-7 9764 MCO daisy chain installation example

Backhaul

Product overview Supported installation options

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-15

D

RAFT

D

RAFT

pair-mount configuration options are described in, “Pair mount and daisy chain

requirements” (p. 3-13)

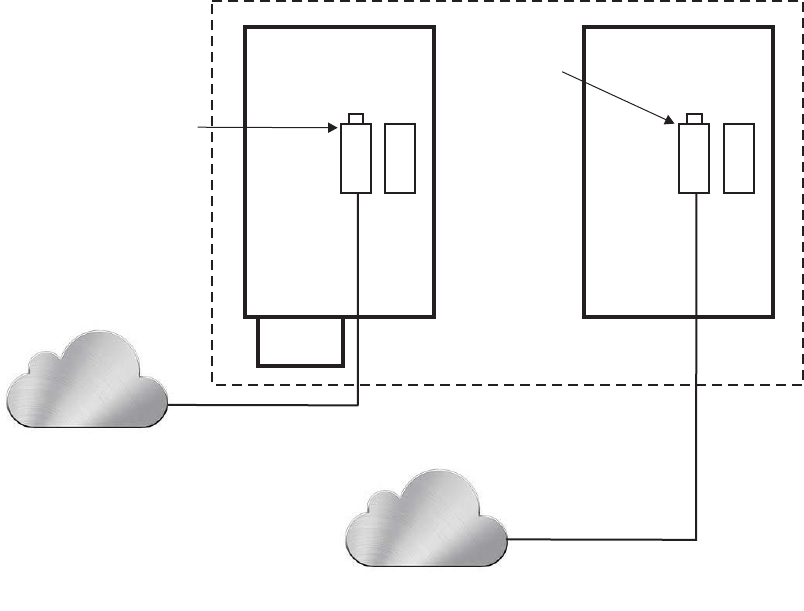

Figure 2-8 9764 MCO pair-mount installation example

Product overview Supported installation options

....................................................................................................................................................................................................................................

2-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Hardware and ancillary items

Overview

The following section lists the Alcatel-Lucent 9764 Metro Cell Outdoor base hardware

equipment, the installation kits and ancillary items that can be ordered from

Alcatel-Lucent.

9764 MCO base items

The Alcatel-Lucent 9764 MCO LTE 2x1W or the Alcatel-Lucent 9764 MCO LTE 2x2W

packaging contains the following base items:

•9764 MCO LTE 2x1W module or

•9764 MCO LTE 2x2W module

9764 Metro Dock base items

The Alcatel-Lucent 9764 Metro Dock packaging contains the following base items:

•Alcatel-Lucent 9764 Metro Dock (including lock and key)

9764 MCO Wi-Fi AP base items

The Alcatel-Lucent 9764 Metro Cell Outdoor Wi-Fi AP is an optional product. Two

models are available:

•9764 MCO Wi-Fi AP v1.0 MG model (medium-gain antenna)

•9764 MCO Wi-Fi AP v1.0 HG model (high-gain antenna)

Ancillary items

The following tables list the ancillary items that are available for order from

Alcatel-Lucent in support of the defined equipment installation and configuration options.

Installation kits

The following table list the installation kits that are available for order from

Alcatel-Lucent in support of the equipment installation options.

Installation kit Description Use

Banding kit Stainless steel bands

Band buckles (Ear-Lokt)

Mandatory:

•pole mount only

Banding tool Standard BAND-IT®Banding Tool

(CR00169), including operating

instructions

Mandatory:

•use with the Banding kit for pole

mount only

Wall spacer kit 9764 Metro Dock wall spacer Mandatory:

•wall mount without tilt

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-17

D

RAFT

D

RAFT

Installation kit Description Use

Vertical tilt installation kit Vertical tilt bracket Mandatory:

•pole mount with tilt

•wall mount: with vertical only

•wall mount: with vertical and

horizontal tilt

Horizontal tilt installation kit Horizontal tilt bracket Mandatory:

•wall mount: with horizontal tilt only

•wall mount: with horizontal and

vertical tilt

Power

Item Description Use

Power connector (AC) AC power connector Required for 9764 MCO module with AC

power (International markets)

Power connector (DC) DC power connector Required for 9764 MCO module with DC

power (International markets)

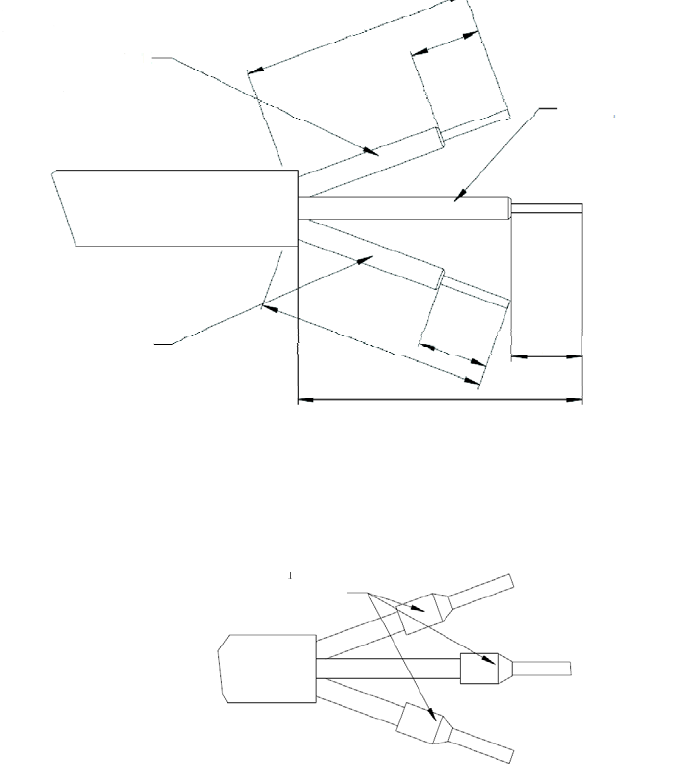

Power cable Power cable IN/OUT 3G1,5mm²,

100m roll or multiples of 1m length

(as needed)

Required for 9764 MCO module

(International markets)

Power cable (AC) Power cable pre-assembled with AC

power connector, various lengths

(2m. 4.5m, 9m, 12m)

Required for 9764 MCO module with AC

power (North America Regional markets)

Power cable (DC) Power cable pre-assembled with DC

power connector, various lengths

(2m. 4.5m, 9m, 12m)

Required for 9764 MCO module with DC

power (North America Regional markets)

Grounding

Item Description Use

Ground cable Ground cable,Y/G 10mm² in 100m

roll

Required for International markets

Ground cable Ground cable, 8 AWG Required for North America Regional

markets

SFP modules

Item Description Use

SFP module SFP GBE 10/100/1000BaseT (copper) Optional

Electrical backhaul only

SFP module SFP GBE 1000BaseLX (Single mode) Optional

Optical backhaul, Daisy chaining

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Item Description Use

SFP module SFP GBE 1000BaseLX / CPRI (Single mode) Optional

Optical backhaul, Daisy chaining,

Pair-mount configuration

SFP module SFP GBE 1000BaseSX / CPRI (Multi mode) Optional

Optical backhaul, Daisy chaining,

Pair-mount configuration

Surge arrestor

Item Description Use

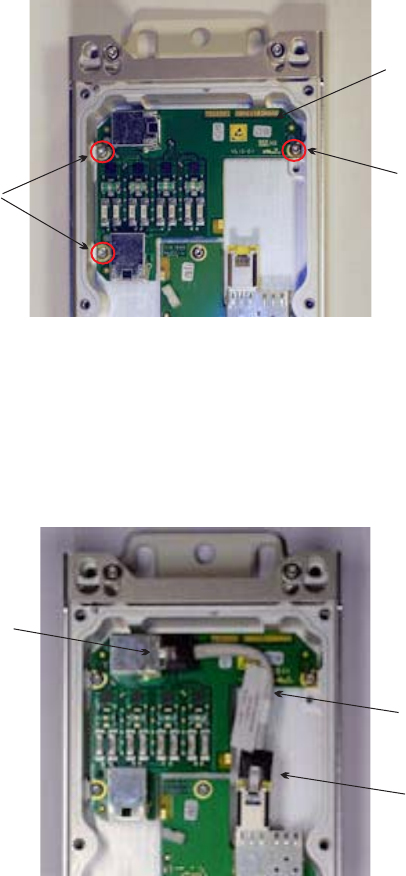

Internal surge arrestor19764 Metro Dock internal Ethernet

surge arrestor kit

Optional

Highly recommended if GBE 1000BaseT

backhaul connection is provided

External surge arrestor External Ethernet surge arrestor kit,

including:

•mounting bracket

•pole bands and buckle

•Ethernet cable, 0.6 m (2 ft)

Optional

Highly recommended if GBE 1000BaseT

backhaul connection is provided

Notes:

1. The 9764 Metro Dock internal Ethernet surge arrestor is available within Release LR14.1.L.

Ethernet cable - Electrical

Item Description Use

Electrical Ethernet cable 2 meter outdoor, 4 pairs, 2 RJ45 (plus

1 spare)

Optional

Use with SFP GBE 10/100/1000BaseT

Electrical Ethernet cable 25 meter outdoor, 4 pairs, 2 RJ45

(plus 1 spare)

Optional

Use with SFP GBE 10/100/1000BaseT

Electrical Ethernet cable 100 meter outdoor, 4 pairs, 2 RJ45

(plus 1 spare)

Optional

Use with SFP GBE 10/100/1000BaseT

Ethernet cable - Optical

Item Description Use

Fiber Optic cable SMDF LC-LC 2SM 5m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 15m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-19

D

RAFT

D

RAFT

Item Description Use

Fiber Optic cable SMDF LC-LC 2SM 30m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 50m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 70m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 85m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 100m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 150m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 200m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 250m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable SMDF LC-LC 2SM 300m

Single mode fiber duplex 250 mm

Breakout on both sides

Optional

Use with SFP GBE 1000BaseLX (Single

mode)

Fiber Optic cable MM LC-LC 2MM 5m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 15m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 30m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 50m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 70m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-20 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Item Description Use

Fiber Optic cable MM LC-LC 2MM 85m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 100m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 150m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 200m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 250m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

Fiber Optic cable MM LC-LC 2MM 300m

Multi mode fiber duplex, 250 mm

Breakout on both sides

Optional

SFP GBE 1000BaseSX (Multi mode)

External antenna - GPS

Item Description Use

GPS antenna External GPS Antenna, 1575

MHz*26 dBi

Used if MCO is configured for external

GPS antenna and cable loss <10dBi @

1575MHz

GPS antenna External GPS Antenna, 1575

MHz*40 dBi

Used if MCO is configured for external

GPS antenna and cable loss >10dBi @

1575MHz

Jumper cable External GPS Antenna jumper cable

(various lengths)

Mandatory

1 cable per MCO if external GPS antenna

is used

Adapter cable External GPS Antenna adaptor cable

from the ancillary

Mandatory

1 cable per MCO if external GPS antenna

is used

Weatherproof tape For B25 MCO, B2 MCO and B2/B25

MCO - one layer of weatherproof

tape applied to the cable connections.

For B3 MCO and B7 MCO, the

following two types of weatherproof

tape must be applied to the cable

connections: first the linerless rubber

splicing tape and then the vinyl

electrical tape (vinyl tape over rubber

tape).

Mandatory

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 2-21

D

RAFT

D

RAFT

Note: The internal GPS antenna solution is not supported on the 9764 MCO V1.1 B7

LTE 2x1W, 9764 MCO V1.1 B2 LTE 2x1W and 9764 MCO V1.0 B25 LTE 2x1W

models.

External RF antennas

The 9764 MCO V1.1 B2 LTE 2x2W module has two external RF antenna ports for the

connection to third party supplied antennas.

For the RF antenna specifications refer to the RF antenna part of the System architecture

section of the 9YZ-04152-0056-DEZZA - Alcatel-Lucent 9764 Metro Cell Outdoor LTE

2x1W and 2x2W Technical Description document.

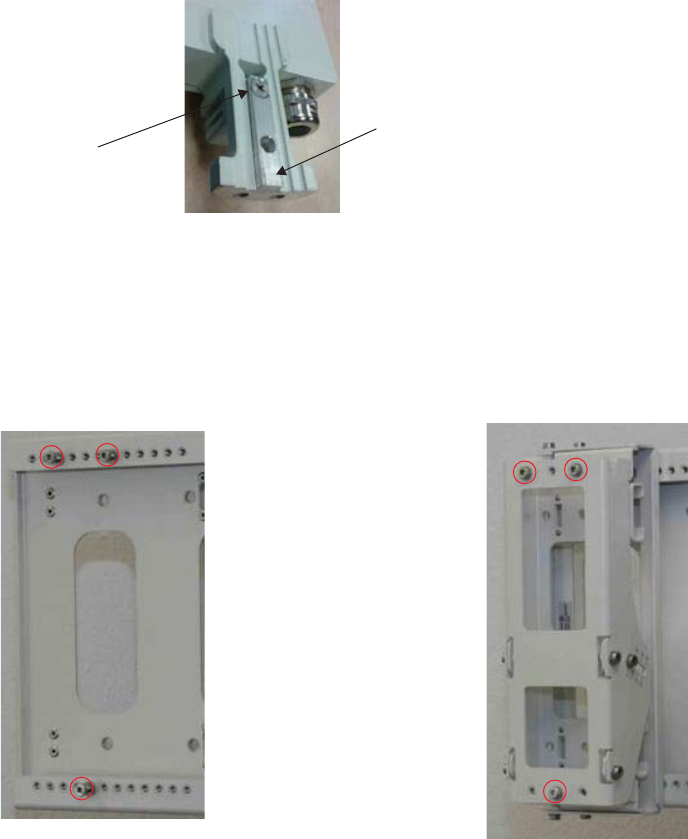

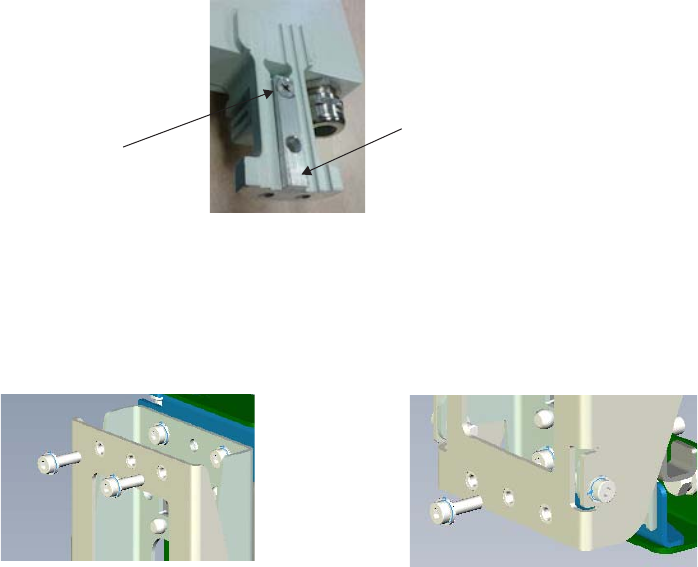

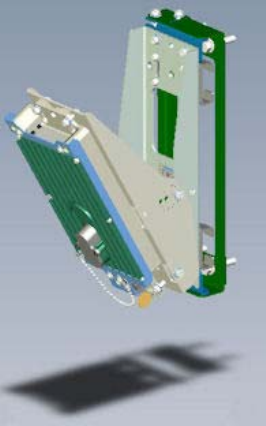

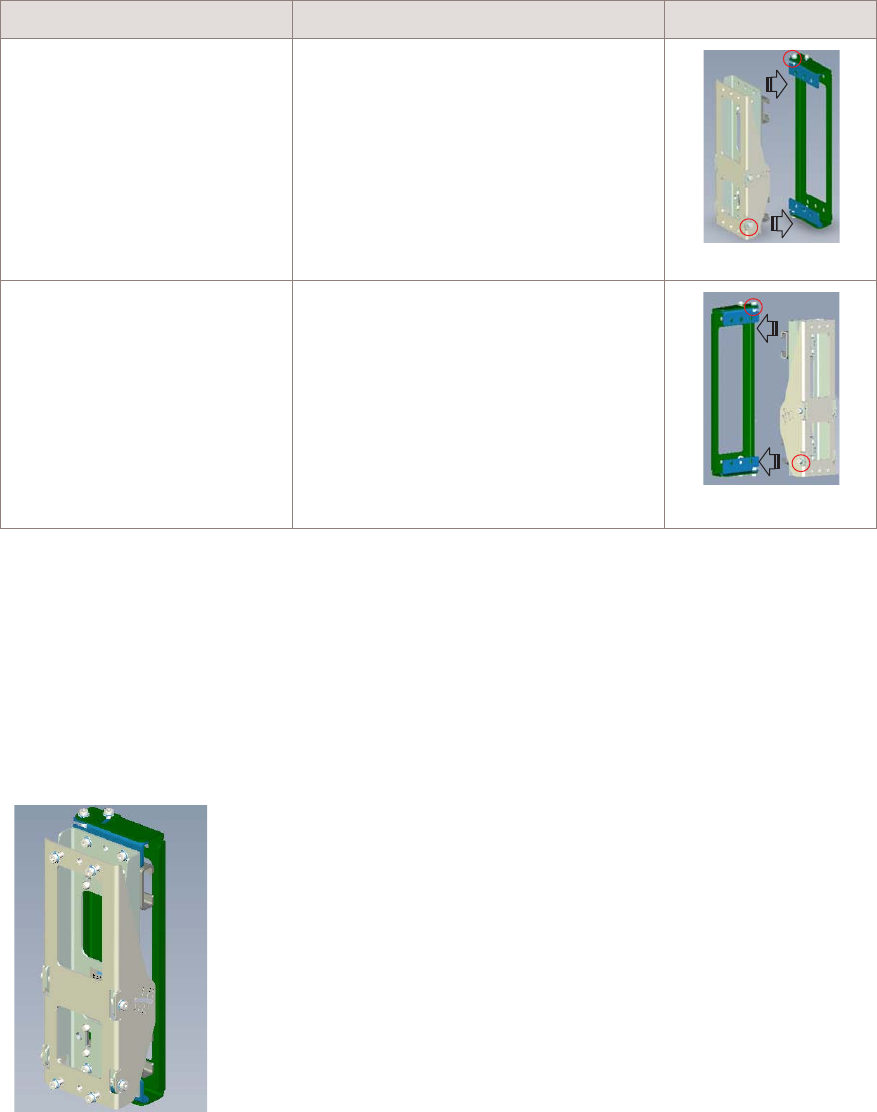

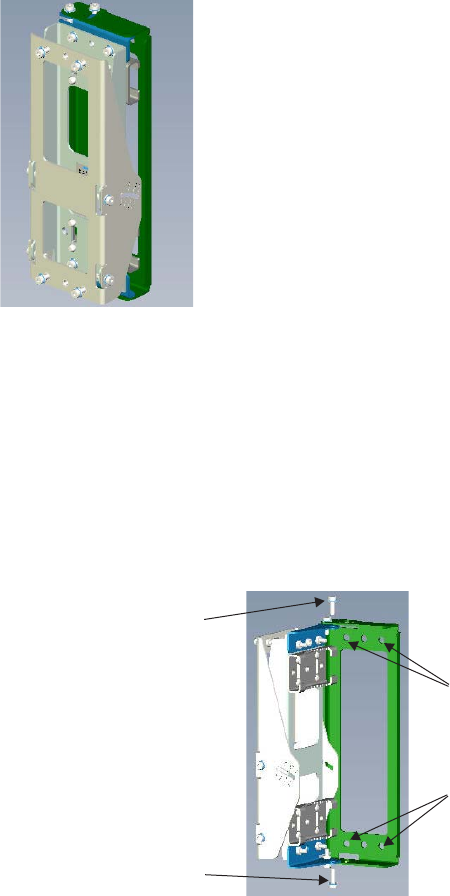

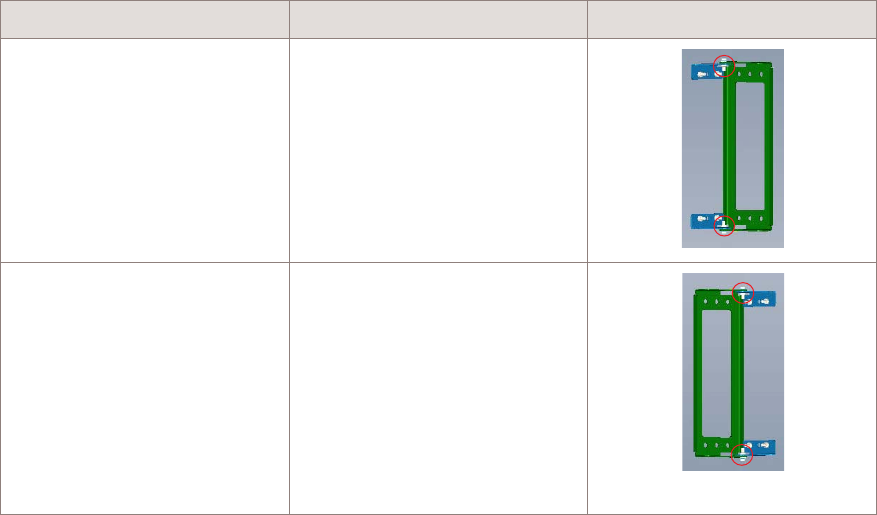

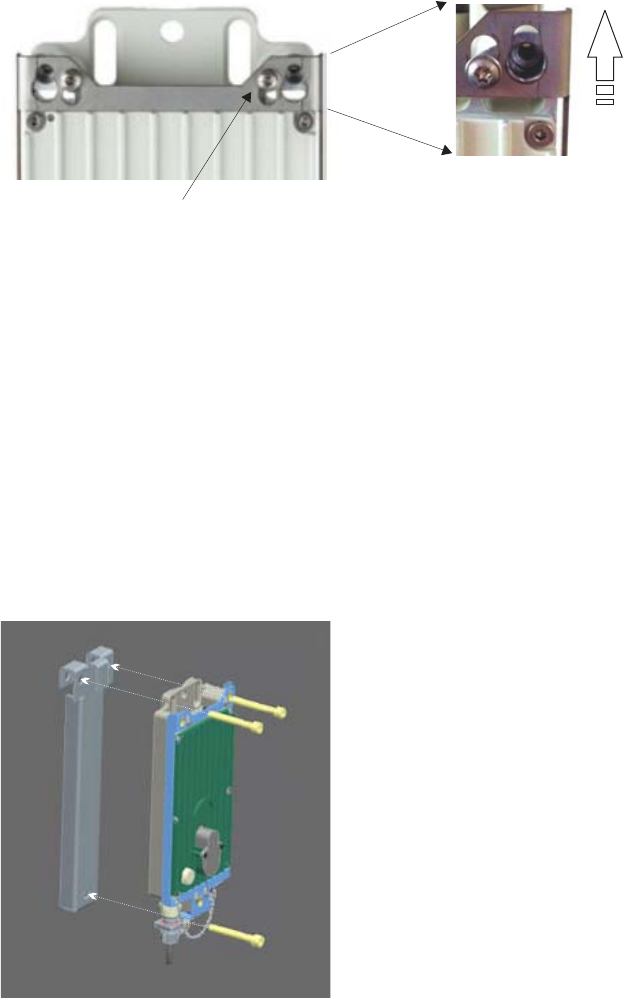

Pair-mount configuration

Item Description Use

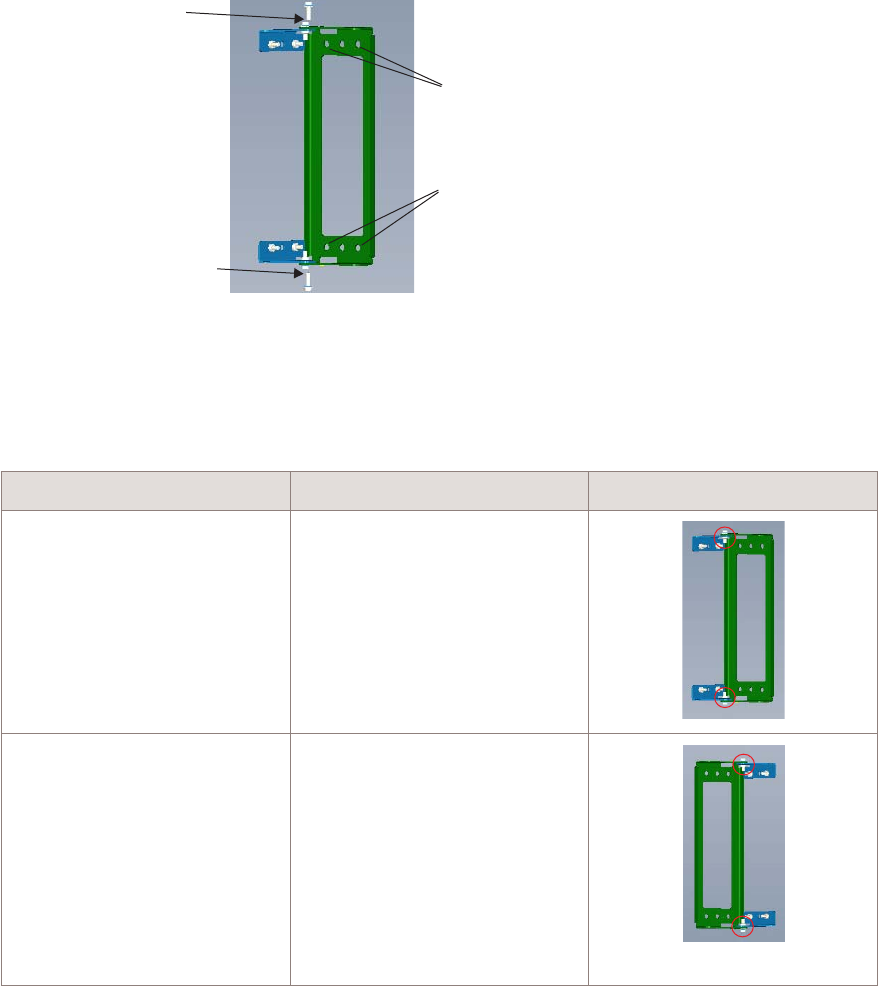

9764 Metro Dock double

support plate

Support plate for mounting 9764

MCO in a pair-mount configuration

Use in a 9764 MCO pair-mount

configuration

Extension plate Alignment Plate for 3G 9764 MCO in

a pair-mount configuration

Use in a 9764 MCO pair-mount

configuration

Product overview Hardware and ancillary items

....................................................................................................................................................................................................................................

2-22 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

33Installation of the 9764

Metro Dock

Overview

Purpose

This chapter provides the information and procedures for mounting the 9764 Metro Dock

onto a pole or wall, with or without the optional tilt mechanism.

Contents

9764 Metro Dock pre-installation 3-2

9764 Metro Dock Pre-installation information 3-3

Pole mount installation requirements 3-5

Wall mount installation requirements 3-9

Pair mount and daisy chain requirements 3-13

9764 Metro Dock installation 3-18

Procedure 3-1: Pole mount the 9764 Metro Dock 3-19

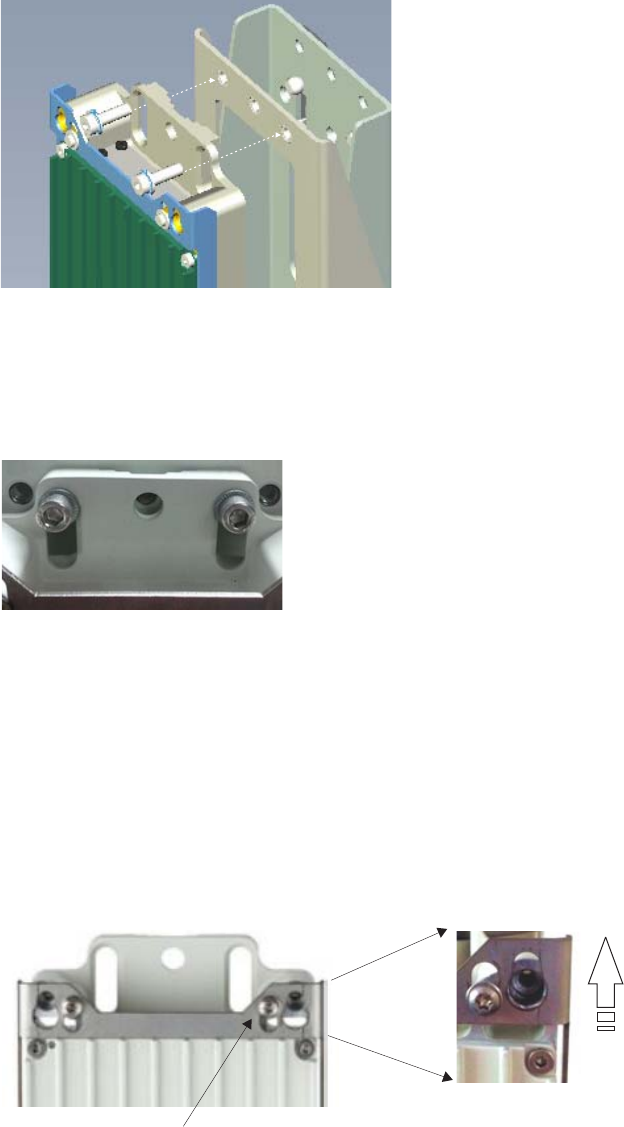

Procedure 3-2: Pole mount the 9764 Metro Dock using optional tilt brackets 3-25

Procedure 3-3: Wall mount the 9764 Metro Dock 3-35

Procedure 3-4: Wall mount the 9764 Metro Dock using optional tilt brackets 3-40

Procedure 3-5: Pole mount the 9764 Metro Dock in a pair configuration 3-54

Procedure 3-6: Wall mount the 9764 Metro Dock in a pair configuration 3-71

9764 Metro Dock cabling 3-89

Procedure 3-7: 9764 Metro Dock ground cabling 3-90

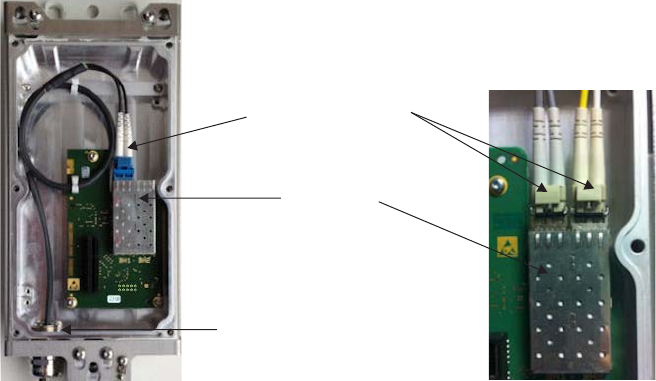

Procedure 3-8: 9764 Metro Dock Ethernet cabling - fiber optic 3-92

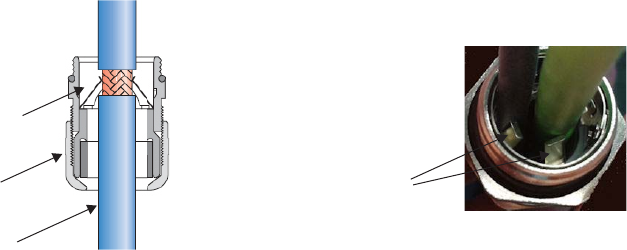

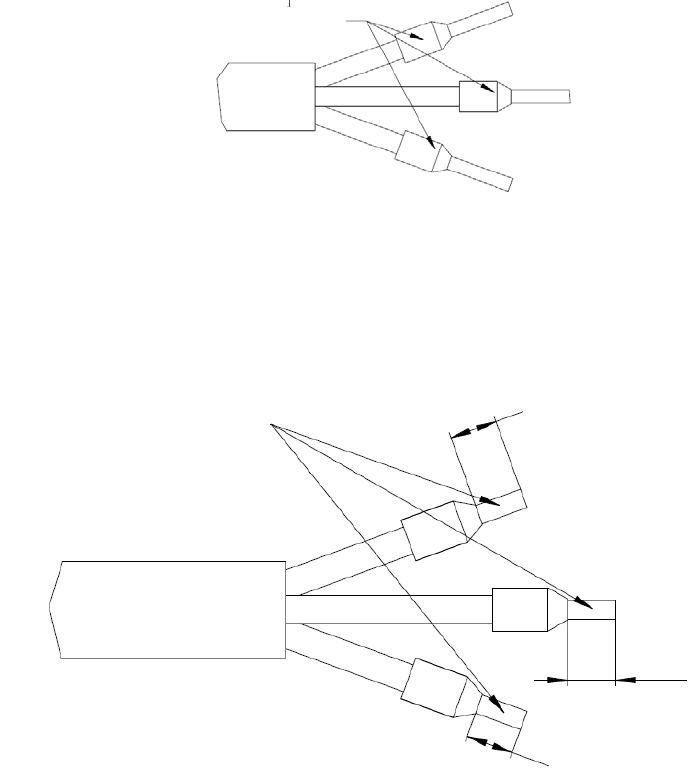

Procedure 3-9: 9764 Metro Dock Ethernet cabling - electrical 3-99

9764 Metro Dock post-installation 3-111

Procedure 3-10: Final installation activities and checks 3-112

...................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-1

D

RAFT

D

RAFT

9764 Metro Dock pre-installation

Overview

Purpose

This section provides pre-installation information as well as listing tools and materials

required for Alcatel-Lucent 9764 Metro Dock mounting.

Contents

9764 Metro Dock Pre-installation information 3-3

Pole mount installation requirements 3-5

Wall mount installation requirements 3-9

Pair mount and daisy chain requirements 3-13

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Overview

....................................................................................................................................................................................................................................

3-2 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

9764 Metro Dock Pre-installation information

Verify site preparation

The following site preparation requirements should be checked and met before the

installation of the equipment can begin. If some of the requirements are not met, the

installer must do so now:

•Ensure equipment is planned to be installed as high as possible to avoid obstructions

•Consider nearby sources of interference. Also check possibility of future obstructions

such as plans to erect buildings and trees that may grow tall enough to obstruct the

wireless path

•Ensure adequate clearance is provided for service access

•Ground, power and backhaul cabling has been routed and is in place

•Ensure any site specific fixing materials (screws, washers, wall plugs) for pole/wall

mounting the equipment are available.

Product delivery contents

Unpack and examine the product packaging contents. If you notice any damage, or

missing items as listed in the Packing List, immediately notify the carrier that delivered

the unit and contact your Alcatel-Lucent representative.

The Alcatel-Lucent 9764 Metro Dock product packaging contains the following items:

•The 9764 Metro Dock module (including lock and key)

Installation kits

In addition to the standard product deliverable ensure the appropriate installation kits and

ancillary items are available to support the product mounting options.

Installation Kits Pole mount Wall mount

No tilt With tilt No tilt Vertical tilt

only

Horizontal

tilt only

Combined

horiz./vert. tilt

Banding kit Yes Yes

Banding tool Yes Yes

Vertical tilt kit Yes Yes Yes

Horizontal tilt kit Yes Yes

Wall spacer kit Yes

Basic kit Yes Yes Yes Yes Yes Yes

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

9764 Metro Dock Pre-installation information

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-3

D

RAFT

D

RAFT

Tools required for installation

The following tools may be used during installation:

•Drill (pneumatic hammer) and assorted drill bits

•Pliers

•Adjustable spanners

•M17 socket wrench

•Screwdrivers (power and/or manual):

– Phillips (flat blade)

– Torx (T-25 and T-40)

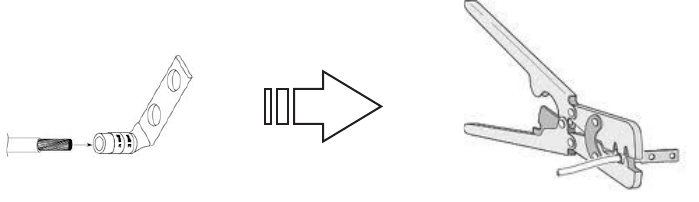

•HRS (Hirose) HT206/TM21p-88p crimping tool (for RJ45 cable)

•Data cable tester for shielded RJ45 (optional)

•Measuring tape

•Digital compass (to aid establishing product orientation)

•Marker, to mark wall mounting holes

•Vacuum cleaner or equivalent (required for clearing debris from wall mounting holes)

•Spirit level

•Hammer

•PIB (self-amalgamating) tape and 3M Super 33+ vinyl tape

•Ear protectors and safety goggles/glasses

•Assorted cable ties (various lengths)

•Heavy duty tape

•Adjustable straps

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

9764 Metro Dock Pre-installation information

....................................................................................................................................................................................................................................

3-4 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Pole mount installation requirements

Purpose

This topic outlines the basic requirements, installation kits and recommended anchor

materials when mounting the Alcatel-Lucent 9764 Metro Dock directly onto a pole, onto

tilt brackets or onto a pair-mount bracket.

Pole mount options

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto a pole

(wooden or metal) for the following installation options:

•9764 Metro Dock screwed onto a wooden pole (without the tilt option).

Mounting screws and washers have to be locally supplied. Two M8x50 stainless steel

hex head screws and two M8x16x1.6 plain washers are recommended.

•9764 Metro Dock banded onto a wooden or metal pole (without the tilt option)

The pole band installation kit is used.

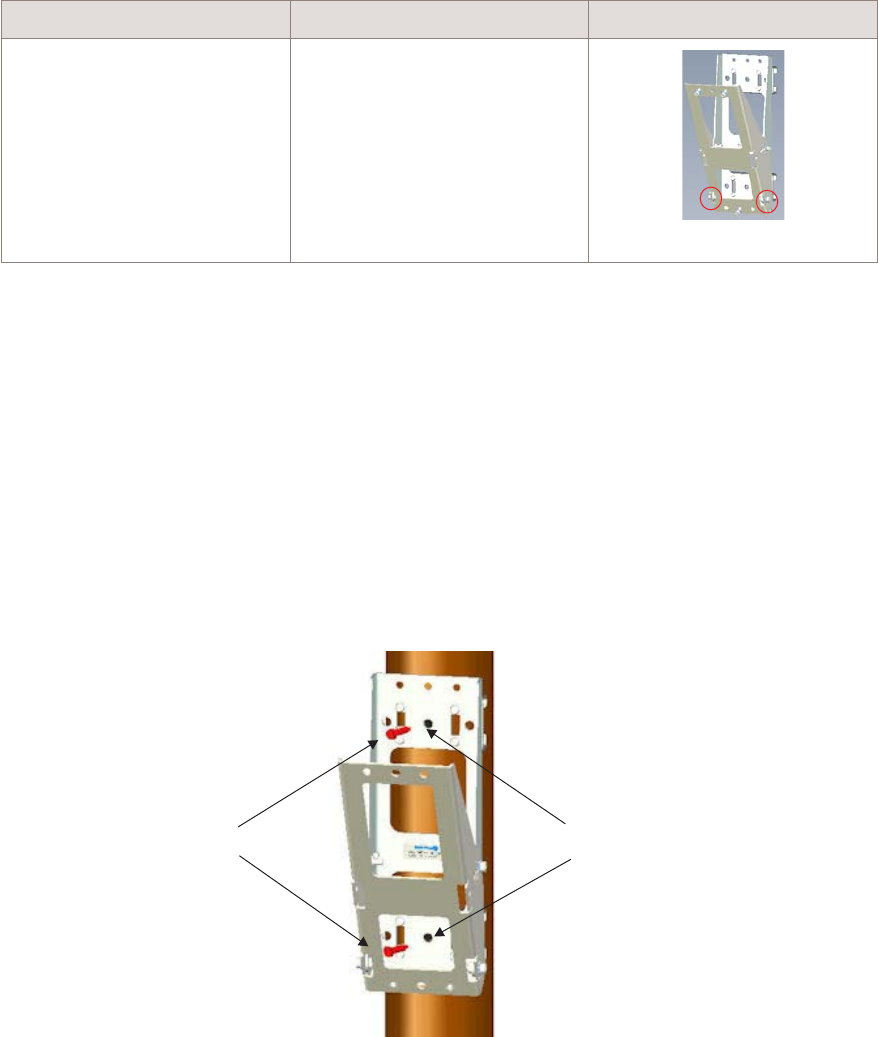

•9764 Metro Dock attached to the vertical tilt bracket. Vertical tilt bracket is either

screwed or banded onto a wooden or metal pole.

•9764 Metro Dock pair (with or without tilt brackets) attached to a double Metro Dock

support plate. Double Metro Dock support plate is banded onto a wooden or metal

pole.

This deployment option is used when a 9764 MCO V1.1 LTE 2x1W or a 9764 MCO

LTE 2x2W product is mounted with a 9764 MCO WCDMA 1W product to form a

Multi-Standard Pair configuration.

The available pair-mount installation options are:

– a 9764 MCO V1.1 B2 LTE 2x1W product mounted with a 9764 MCO V1.0 B2

WCDMA 1W product

– a 9764 MCO V1.1 B2/B25 LTE 2x1W product with a 9764 MCO V1.0 B2

WCDMA 1W product

– a 9764 MCO V1.1 B7 LTE 2x1W product mounted with a 9764 MCO V1.0 B1

WCDMA 1W product

– a 9764 MCO V1.1 B2 LTE 2x2W product mounted with a 9764 MCO V1.0 B1

WCDMA 1W product.

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pole mount installation requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-5

D

RAFT

D

RAFT

Pole mount installation kits and brackets

The following table provides the orderable installation kits and brackets that can be used,

depending on the deployment scenario, for 9764 Metro Dock pole mounting.

Table 3-1 Pole mount installation kits and brackets

Item Description

Banding kit Required when directly attaching the 9764 Metro Dock or vertical tilt

bracket to a pole (diameter 50 to 300 mm) using stainless steel bands.

Stainless steel bands and buckles (Ear-Lokt)

Banding tool Standard BAND-IT®Banding Tool (CR00169), including operating

instructions

Required in order to tighten stainless steel metal bands

Vertical tilt bracket Provides +/- 30° vertical tilt (up/down) adjustment1

Double 9764 MCO support plate Double 9764 MCO support plate for pair-mount deployment option

Double 9764 MCO extension plate Extension plate for 3G 9764 MCO and 4G 9764 MCO alignment in a

pair-mount deployment option

Notes:

1. Due to the length of the 9764 MCO LTE module, thermal limitations dictate maximum

adjustment of +/- 20° vertical tilt.

The following figure shows the orderable brackets used for pole mount installation,

depending on the deployment scenario.

Figure 3-1 Pole mount banding and brackets

Tilt bracket assembly

(single Metro Dock) Tilt bracket assembly

(double Metro Dock)

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pole mount installation requirements

....................................................................................................................................................................................................................................

3-6 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Recommended pole anchor materials

Surface structure Recommended anchor materials Recommended screw torque

Wood Screw Hex T M8x50 stainless steel (x2)

Washer plain M8x16x1.6 stainless steel (x2)

7.0 N.m (62.0 lb.in).

Pole mount installation examples

The following figures show examples of 9764 Metro Dock pole mount installation, pole

mount installation using vertical tilt and pair-mount installation.

Figure 3-2 9764 Metro Dock pole mount using screws

Pole mount - with tilt

Pole mount - without tilt

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pole mount installation requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-7

D

RAFT

D

RAFT

Figure 3-3 9764 Metro Dock pole mount using banding

Pole mount - without tilt Pole mount - with tilt

Figure 3-4 Double 9764 Metro Dock pole mount

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pole mount installation requirements

....................................................................................................................................................................................................................................

3-8 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Wall mount installation requirements

Purpose

This topic outlines basic requirements, installation kits and recommended anchor

materials when mounting the Alcatel-Lucent 9764 Metro Dock onto a solid concrete wall

or flat surface, onto tilt brackets or onto a pair-mount bracket.

Wall mount options

The 9764 Metro Dock weighs less than 1 kg (2.2 lbs) and can be easily mounted onto any

flat, sturdy wall for the following installation options:

•9764 Metro Dock attached to directly to a wall or flat surface (using wall spacer)

•9764 Metro Dock attached to the vertical/horizontal tilt bracket(s). Vertical/horizontal

tilt bracket(s) are attached to a wall.

•9764 Metro Dock pair (with or without tilt brackets) attached to a double Metro Dock

support plate. Double Metro Dock support plate is attached to a wall.

This deployment option is used when a 9764 MCO V1.1 LTE 2x1W product or a

9764 MCO LTE 2x2Wproduct is mounted with a 9764 MCO WCDMA 1W product to

form a Multi-Standard Pair configuration.

The available pair-mount installation options are: a 9764 MCO V1.1 B2 LTE 2x1W

product mounted with a 9764 MCO V1.0 B2 WCDMA 1W, a 9764 MCO V1.1 B7

LTE 2x1W product mounted with a 9764 MCO V1.0 B1 WCDMA 1W product and a

9764 MCO V1.1 B2 LTE 2x2W product mounted with a 9764 MCO V1.0 B1

WCDMA 1W product.

Wall mount installation brackets and kits

The following table lists the orderable installation brackets that can be used, depending on

the deployment scenario, for 9764 Metro Dock wall mounting.

Table 3-2 Wall mount installation brackets

Item Description

Wall spacer Required when directly attaching the 9764 Metro Dock to a wall or flat

surface and no tilt device is used. The wall spacer keeps a sufficient

distance between the wall and 9764 Metro Dock for airflow purposes.

Note: If vertical/horizontal tilt device is used, then the wall spacer is not

required.

Vertical tilt bracket1Provides +/- 30° vertical tilt (up/down) adjustment

Note: Can be used in combination with the horizontal installation kit to

provide:

•+/- 30° vertical tilt (up/down) adjustment, and

•+/-45° horizontal tilt (left/right) adjustment

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Wall mount installation requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-9

D

RAFT

D

RAFT

Table 3-2 Wall mount installation brackets (continued)

Item Description

Horizontal tilt bracket Provides +/-45° horizontal tilt (left/right) adjustment

Note: Can be used in combination with the vertical tilt installation kit to

provide:

•+-45° horizontal tilt (left/right) adjustment, and

•+/- 30° vertical tilt (up/down) adjustment

Double 9764 MCO support plate Double 9764 MCO support plate for pair-mount deployment option

Double 9764 MCO extension plate Extension plate for 3G 9764 MCO and 4G 9764 MCO alignment in a

pair-mount deployment option

Notes:

1. Due to the length of the 9764 MCO LTE module, thermal limitations dictate maximum

adjustment of +/- 20° vertical tilt.

The following figure shows the orderable brackets used for wall mount installation,

depending on the deployment scenario.

Recommended wall anchor materials

Surface structure Recommended anchor materials Recommended screw torque

Wood Screw Hex T M8x70 stainless steel (x3)

Washer plain M8x16x1.6 stainless steel (x3)

7.0 N.m (62.0 lb.in).

Concrete Screw CHC M6x80 stainless steel (x3)

Washer plain M6x12x1.6mm stainless steel (x3)

Washer spring M6x12x1.2mm stainless steel (x3)

Plug expansion Rawlnut M6x50 (x3)

7.0 N.m (62.0 lb.in).

Figure 3-5 Wall mount brackets

Spacer bracket

(wall only)

Vertical tilt bracket

(wall/pole)

Horizontal tilt bracket

(wall only)

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Wall mount installation requirements

....................................................................................................................................................................................................................................

3-10 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Wall mount installation examples

The following figures show examples of 9764 Metro Dock wall mount installation, wall

mount installation using horizontal/vertical tilt and pair-mount installation.

Figure 3-6 9764 Metro Dock wall mount (no tilt)

Figure 3-7 9764 Metro Dock wall mount (with tilt)

Vertical tilt only Horizontal tilt only Horizontal/Vertical tilt

combination

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Wall mount installation requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-11

D

RAFT

D

RAFT

Figure 3-8 Double 9764 Metro Dock wall mount

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Wall mount installation requirements

....................................................................................................................................................................................................................................

3-12 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Pair mount and daisy chain requirements

Overview

Two 9764 MCOs can be daisy chained together to share the same backhaul port, reducing

the investment cost needed to connect the 9764 MCOs to the backhaul network and

aggregating the uplink traffic. Daisy chain connectivity scenarios support 9764 MCOs

that are co-located and connected together (for example, connectivity used for pair-mount

configurations) or 9764 MCOs that are separated by some distance.

Pair-mount configuration with daisy chaining

A 9764 MCO LTE connected to the backhaul network plus a 9764 MCO WCDMA

connected to the daisy chain port of the 9764 MCO LTE that is connected to the backhaul

network.

Pair-mount installation options that form a Multi-Standard Pair configuration are:

•a 9764 MCO V1.1 B2 LTE 2x1W product is pair-mounted with a 9764 MCO V1.0 B2

WCDMA 1W,

•a 9764 MCO V1.1 B2/B25 LTE 2x1W product with a 9764 MCO V1.0 B2 WCDMA

1W product

•a 9764 MCO V1.1 B2 LTE 2x2W product is pair-mounted with a 9764 MCO V1.0 B2

WCDMA 1W,

•a 9764 MCO V1.1 B7 LTE 2x1W product is pair-mounted with a 9764 MCO V1.0 B1

WCDMA 1W product.

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pair mount and daisy chain requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-13

D

RAFT

D

RAFT

Note:

•An optional Wi-Fi Access Point may be attached to the MCO that is connected to

the backhaul network.

•To support Carrier Aggregation or Carrier Aggregation readiness the optical daisy

chain SFPs should a Single Mode GBE/CPRI SFP or a Multi Mode GBE/CPRI

SFP.

Pair-mount configuration without daisy chaining

A 9764 MCO LTE connected to the backhaul network plus a 9764 MCO WCDMA

connected to the backhaul network, with no daisy chaining.

Pair-mount installation options that form a Multi-Standard Pair configuration are:

•a 9764 MCO V1.1 B2 LTE 2x1W product is pair-mounted with a 9764 MCO V1.0 B2

WCDMA 1W,

a 9764 MCO V1.1 B2/B25 LTE 2x1W product with a 9764 MCO V1.0 B2 WCDMA

1W product

•a 9764 MCO V1.1 B2 LTE 2x2W product is pair-mounted with a 9764 MCO V1.0 B2

WCDMA 1W,

•a 9764 MCO V1.1 B7 LTE 2x1W product is pair-mounted with a 9764 MCO V1.0 B1

WCDMA 1W product.

BH1

3G WCDMA MCO (1W)

BH2

Optical 250 mm breakout

cable (SM or MM)

BH1

4G LTE MCO (2x1W)

Wi-Fi AP

Electrical cable

or

Optical 250 mm breakout

cable (SM or MM)

Electrical SFP

or

Optical SFP

(SMorMM)

Optical SFP

(SM or MM)

BH2

Backhaul

Metro Dock double support plate

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pair mount and daisy chain requirements

....................................................................................................................................................................................................................................

3-14 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Note: An optional Wi-Fi Access Point may be attached to the MCO that is connected

to the backhaul network.

Daisy chaining without pair-mount configuration

A maximum of two 9764 MCO modules and a single Wi-Fi Access Point may be daisy

chained together.

The 9764 MCO LTE supports the following daisy chain configurations:

•A 9764 MCO LTE connected to the backhaul network plus a 9764 MCO LTE

connected to the daisy chain port of the 9764 MCO LTE that is connected to the

backhaul network.

BH1

3G WCDMA MCO (1W)

BH2

BH1

4G LTE MCO (2x1W)

Wi-Fi AP

Electrical cable

or

Optical 250 mm breakout

cable (SM or MM)

Electrical SFP

or

Optical SFP

(SMorMM)

BH2

Electrical cable

or

Optical 250 mm breakout

cable (SM or MM)

Electrical SFP

or

Optical SFP

(SMorMM)

Metro Dock double support plate

Backhaul

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pair mount and daisy chain requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-15

D

RAFT

D

RAFT

•A 9764 MCO LTE connected to the backhaul network plus a 9764 MCO WCDMA

connected to the daisy chain port of the 9764 MCO LTE.

BH1

4G LTE MCO (2x1W)

BH2

Optical 250 mm breakout

cable (SM or MM)

Backhaul

BH1

4G LTE MCO (2x1W)

Wi-Fi AP

Electrical cable

or

Optical 250 mm breakout

cable (SM or MM)

Electrical SFP

or

Optical SFP

(SMorMM)

Optical SFP

(SMorMM)

BH2

BH1

3G WCDMA MCO (1W)

BH2

Optical 250 mm breakout

cable (SM or MM)

BH1

4G LTE MCO (2x1W)

Wi-Fi AP

Electrical cable

or

Optical 250 mm breakout

cable (SM or MM)

Electrical SFP

or

Optical SFP

(SMorMM)

Optical SFP

(SMorMM)

BH2

Backhaul

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pair mount and daisy chain requirements

....................................................................................................................................................................................................................................

3-16 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

If a 9764 MCO Wi-Fi AP module is to be included in the daisy chain configuration, the

following Wi-Fi AP configurations are supported:

•A 9764 MCO Wi-Fi AP module can be attached to each daisy chained 9764 MCO

when the daisy chained MCOs are installed in separate locations (e.g., not co-located

on the same pole).

•If the daisy chained MCOs are co-located, only one 9764 MCO Wi-Fi AP module can

be used and the 9764 MCO Wi-Fi AP module must be attached to the 9764 MCO LTE

that is connected to the backhaul network.

Note: An optional Wi-Fi Access Point may be attached to the MCO that is connected

to the backhaul network.

Installation of the 9764 Metro Dock

9764 Metro Dock pre-installation

Pair mount and daisy chain requirements

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-17

D

RAFT

D

RAFT

9764 Metro Dock installation

Overview

Purpose

This section provides the installation instructions for mounting the Alcatel-Lucent 9764

Metro Dock onto either a pole or wall with or without the optional tilt mechanism. The

section also provides the installation instructions for a pair-mount configuration. This

deployment option is used when a 9764 MCO V1.1 LTE 2x1W product or a 9764 MCO

V1.1 B2 LTE 2x2W product is mounted with a 9764 MCO WCDMA 1W product to form

a Multi-Standard Pair configuration.

The available pair-mount installation options are:

•a 9764 MCO V1.1 B2 LTE 2x1W product is mounted with a 9764 MCO V1.0 B2

WCDMA 1W product

•a 9764 MCO V1.1 B2/B25 LTE 2x1W product is mounted with a 9764 MCO V1.0 B2

WCDMA 1W product

•a 9764 MCO V1.1 B7 LTE 2x1W product is mounted with a 9764 MCO V1.0 B1

WCDMA 1W product.

•a 9764 MCO V1.1 B2 LTE 2x2W product is pair-mounted with a 9764 MCO V1.0 B2

WCDMA 1W,

Contents

Procedure 3-1: Pole mount the 9764 Metro Dock 3-19

Procedure 3-2: Pole mount the 9764 Metro Dock using optional tilt brackets 3-25

Procedure 3-3: Wall mount the 9764 Metro Dock 3-35

Procedure 3-4: Wall mount the 9764 Metro Dock using optional tilt brackets 3-40

Procedure 3-5: Pole mount the 9764 Metro Dock in a pair configuration 3-54

Procedure 3-6: Wall mount the 9764 Metro Dock in a pair configuration 3-71

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Overview

....................................................................................................................................................................................................................................

3-18 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Procedure 3-1: Pole mount the 9764 Metro Dock

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock onto a pole (wooden or metal).

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific mounting and anchor materials are available.

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

•the appropriate mounting hardware and any necessary supporting material is used.

Mounting requirements and materials

The 9764 Metro Dock can be mounted onto a wooden or metal pole. Refer to the

following for the installation kits, anchor materials and tools for the installation type:

•For pole mount refer to, “Pole mount installation requirements” (p. 3-5).

•For a list of standard tools that may be required to support the installation, refer to

“Tools required for installation” (p. 3-4)

Before you begin

Before mounting the 9764 Metro Dock:

•Record the 9764 Metro Dock 18 digit serial number

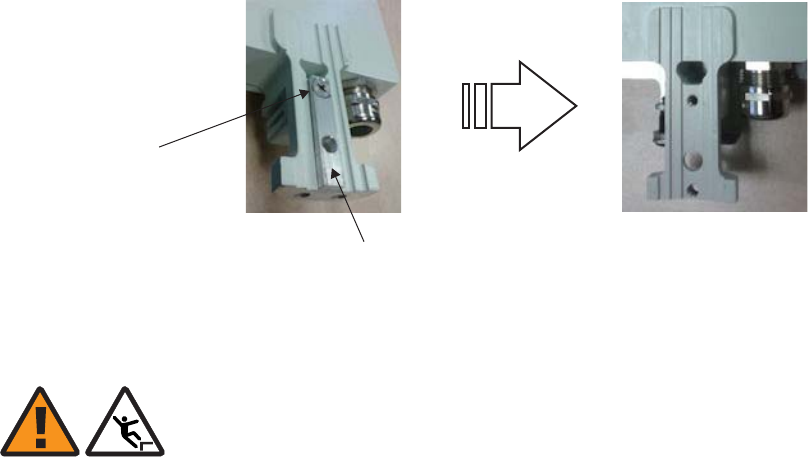

•On the 9764 Metro Dock ensure that the Metro Dock spacer is not attached. If the

spacer is present remove it by unscrewing the M5 screw:

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-19

D

RAFT

D

RAFT

Metro Dock pole mount using bolts

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the 9764 Metro Dock onto a wooden pole

using bolts.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

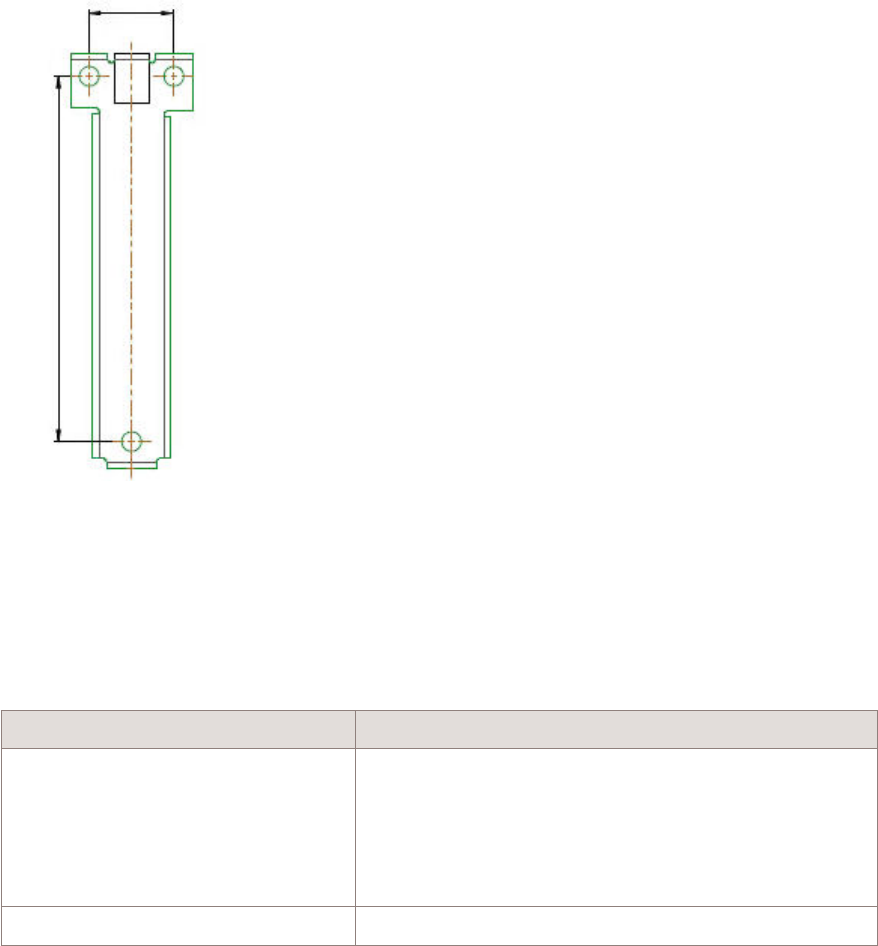

3At the identified 9764 Metro Dock position on the pole, mark the upper and lower bolt

anchor holes. The distance between the upper and lower bolt anchor holes should be 270

mm (10.63 inches).

Tip: The 9764 Metro Dock can be placed against the pole and used as a template to

mark the position of the upper and lower bolt anchor holes.

...................................................................................................................................................................................................

4Place the 9764 Metro Dock against the pole aligning the upper and lower anchor holes on

the 9764 Metro Dock with the marked anchor hole positions on the pole.

M5x12

countersunk screw

Metro Dock

spacer

Metro Dock

spacer removed

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

3-20 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Tip: Use an adjustable strap, cable ties or heavy duty duct tape to temporarily hold the

9764 Metro Dock against the pole while the bolts are applied.

...................................................................................................................................................................................................

5Place a washer on each of the anchor bolts. Using socket wrench (M8) screw the 9764

Metro Dock onto the pole.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

6Finally, check the 9764 Metro Dock is secure and there is no movement of the equipment

on the pole.

Metro Dock pole mount using bands

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Upper and lower

Metro Dock anchor holes

(9 mm diameter)

M8x50 stainless steel

hex head screw and

M8x16x1.6 plain washer

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-21

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Perform the following procedure to mount the 9764 Metro Dock onto a pole (wooden or

metal) using standard pole bands.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

3From the banding installation kit, take a steel pole band and thread the open end into the

upper two slots on the 9764 Metro Dock.

...................................................................................................................................................................................................

4At the marked installation point on the pole place the upper pole band around the pole at

the determined height. Carry out any required adjustment of the 9764 Metro Dock around

the pole so that it is pointing in the desired direction.

Tip: Use an adjustable strap, cable ties or heavy duty duct tape to temporarily hold the

9764 Metro Dock against the pole while the lower band is applied.

...................................................................................................................................................................................................

5Taking the other steel band, place the band around the lower lug on the 9764 Metro Dock

and the pole.

Metro Dock

Upper Metro Dock

band slots

Upper band

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

3-22 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6Once the 9764 Metro Dock is in the correct position and orientation tighten and secure

the bands around the pole. Refer to BAND-IT®C00169 Hand Tool Operation

Instructions, PO5886.

...................................................................................................................................................................................................

7Finally, check the banding is secure, there is no movement of the 9764 Metro Dock

around the pole and that the banding stubs (cut ends) are flattened down with a hammer.

Standard pole mount example

The following figure shows the 9764 Metro Dock mounted onto a wooden pole using

bolts and a metal pole using bands.

Metro Dock

Lower band lug

Lower band

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-23

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a pole the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-89) section.

Metro Dock banded

onto metal pole

Metro Dock screwed

onto wooden pole

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-1: Pole mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

3-24 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Procedure 3-2: Pole mount the 9764 Metro Dock using optional

tilt brackets

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock onto a pole (wooden or metal) using optional vertical tilt brackets.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific mounting and anchor materials are available.

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

•the appropriate mounting hardware and any necessary supporting material is used.

Mounting requirements and materials

The 9764 Metro Dock can be mounted onto a wooden or metal pole. Refer to the

following for the installation kits, anchor materials and tools for the installation type:

•For pole mount refer to, “Pole mount installation requirements” (p. 3-5).

•For a list of standard tools that may be required to support the installation, refer to

“Tools required for installation” (p. 3-4)

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a pole.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-25

D

RAFT

D

RAFT

Bracket pole mount using bolts

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure attach the vertical tilt bracket a wooden pole using bolts.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

3At the identified 9764 Metro Dock position on the pole, mark the upper and lower bolt

anchor holes for the tilt bracket. The distance between the upper and lower bolt anchor

holes should be 200 mm (7.87 inches).

Tip: The vertical tilt bracket can be placed against the pole and used as a template to

mark the position of the upper and lower bolt holes.

...................................................................................................................................................................................................

4Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the pole:

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-26 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

If... Then... View...

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

...................................................................................................................................................................................................

5Place the vertical tilt bracket against the pole aligning the upper and lower anchor holes

on the bracket with the marked bolt hole positions on the pole.

Tip: Use an adjustable strap, cable ties or heavy duty duct tape to temporarily hold the

9764 Metro Dock against the pole while the bolts are applied.

...................................................................................................................................................................................................

6Place a washer on each of the anchor bolts. Using a socket wrench (M8) screw the

vertical tilt bracket onto the pole.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

7Finally, check the bolts are secure and there is no movement of the bracket on the pole.

Upper and lower

Metro Dock anchor holes

(9 mm diameter)

M8x50 stainless steel

hex head screw and

M8x16x1.6 plain washer

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-27

D

RAFT

D

RAFT

...................................................................................................................................................................................................

8Continue onto “Attach 9764 Metro Dock to the tilt bracket” (p. 3-30)

Bracket pole mount using bands

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the vertical tilt bracket onto a pole (wooden or

metal) using standard pole bands.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the pole. Mark

this point.

...................................................................................................................................................................................................

2Using a digital compass determine the planned horizontal (left/right) orientation of the

9764 Metro Dock around the pole. Mark this position.

...................................................................................................................................................................................................

3From the banding installation kit, take a steel pole band and thread the open end into the

upper two slots on the tilt bracket.

Taking the other steel band insert and thread the open end into the lower two slots on the

tilt bracket.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-28 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

4Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the pole:

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

...................................................................................................................................................................................................

5At the marked installation position on the pole wrap the upper and lower pole bands

around the pole at the determined height. Carry out any required adjustment of the 9764

Metro Dock around the pole so that it is pointing in the planned direction.

Tip: Use an adjustable strap, cable ties or heavy duty duct tape to temporarily hold the

9764 Metro Dock against the pole while the bands are applied.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-29

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6Once the 9764 Metro Dock is in the correct position and orientation tighten and secure

the bands around the pole. Refer to BAND-IT®C00169 Hand Tool Operation

Instructions, PO5886.

...................................................................................................................................................................................................

7Finally, check the banding is secure, there is no movement of the bracket around the pole

and that the banding stubs (cut ends) are flattened down with a hammer.

...................................................................................................................................................................................................

8Continue onto “Attach 9764 Metro Dock to the tilt bracket” (p. 3-30)

Attach 9764 Metro Dock to the tilt bracket

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to attach the 9764 Metro Dock to the tilt bracket.

...................................................................................................................................................................................................

1Before attaching the 9764 Metro Dock to the tilt bracket ensure that the Metro Dock

spacer is fitted and in place.

Banding stubs

(cut ends)

Rear view

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-30 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Unscrew and remove the two upper M6 bolts and the one lower M6 bolt from the tilt

bracket.

...................................................................................................................................................................................................

3Position the 9764 Metro Dock against the front of the tilt bracket so that the two upper

bolt holes and the single lower bolt hole on the 9764 Metro Dock are aligned with the

bolts holes on the tilt bracket.

...................................................................................................................................................................................................

4From the 9764 Metro Dock side, screw in the two M6 bolts through the upper bolt holes

on the 9764 Metro Dock and into the upper tilt bracket bolt holes.

M5x12

countersunk screw

Metro Dock

spacer

Lower M6 bolt x 1

Upper M6 bolts x 2

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-31

D

RAFT

D

RAFT

Note: Ensure the bolts are positioned at the upper (or lower) part of the elongated hole

for better contact area with the Metro Dock (the chamfered midsection of the

elongated hole is used for banding installation).

...................................................................................................................................................................................................

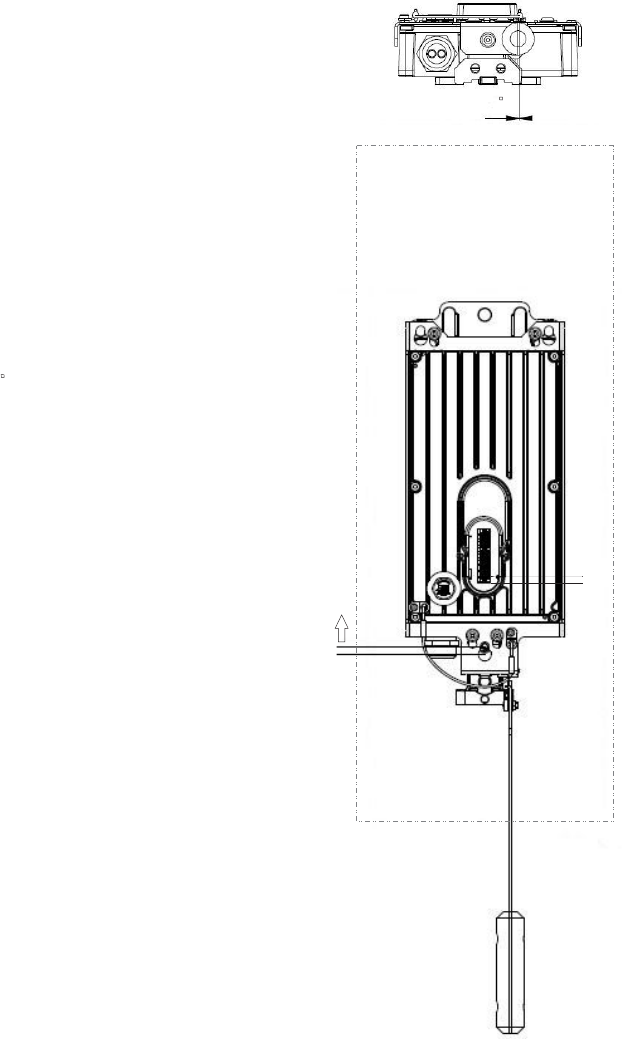

5Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock

2. turn the key to its hard stop position to unlock the slider

3. push the slider upwards and turn the key to its hard stop position. The slider is now

locked in the “up” position.

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-32 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

...................................................................................................................................................................................................

6From the 9764 Metro Dock side, screw in t the single M6 bolts through the lower bolt

hole on the 9764 Metro Dock and into the lower tilt bracket bolt hole.

...................................................................................................................................................................................................

7Using a 10 mm ratchet wrench, tighten the two upper and one lower M6 retaining bolts.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

8Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key to its hard stop position to unlock the slider. The slider will automatically

spring into the “down” position.

2. turn the key to its hard stop position. The slider is now locked in the “down” position

and the key can be removed from the lock.

Pole mount example (with vertical tilt)

The following figure shows the 9764 Metro Dock, with vertical tilt, mounted onto a

wooden pole using bolts and a metal pole using bands.

Lower Metro Dock

attachment bolt

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-33

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

How to continue

After mounting the 9764 Metro Dock onto a pole the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-89) section.

Metro Dock mounted on

wooden pole with vertical tilt Metro Dock mounted on

metal pole with vertical tilt

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-2: Pole mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-34 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Procedure 3-3: Wall mount the 9764 Metro Dock

Purpose

This topic describes the procedures to be followed when installing the Alcatel-Lucent

9764 Metro Dock directly onto a wall or solid flat surface.

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

•the appropriate mounting hardware and any necessary recommended supporting

anchor fixings are used.

Mounting requirements and materials

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto solid

concrete or wooden flat surface. Refer to the following for the installation kits, anchor

materials and tools for the installation type:

•For wall mount refer to, “Wall mount installation requirements” (p. 3-9).

•For a list of standard tools that may be required to support the installation, see “Tools

required for installation” (p. 3-4)

Before you begin

Before mounting the 9764 Metro Dock:

•Record the 9764 Metro Dock 18 digit serial number

•On the 9764 Metro Dock ensure that the Metro Dock spacer is not attached. If the

spacer is present remove it by unscrewing the M5 screw:

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Wall mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-35

D

RAFT

D

RAFT

Perform standard wall mount installation

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to mount the 9764 Metro Dock directly onto a wall.

...................................................................................................................................................................................................

1Measure the height at which the 9764 Metro Dock is to be positioned on the wall. Mark

this point.

...................................................................................................................................................................................................

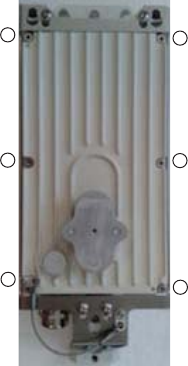

2At the selected installation location, mark the points on the wall for the anchor holes. See

hole spacing pattern below to use as a guide:

M5x12

countersunk screw

Metro Dock

spacer

Metro Dock

spacer removed

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Wall mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

3-36 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Tip: The wall spacer bracket can placed against the wall and used as a template to

mark the position of the upper and lower anchor holes.

Check the horizontal position of the planned holes with a level.

...................................................................................................................................................................................................

3

If.. Then..

Surface structure is concrete 1. Drill two upper holes and one lower hole at the

marked points to the appropriate depth.

2. Insert screw anchor plugs (Rawlnut M6x50) into the

drilled holes and, using a hammer, tap home until

the plugs are flush with the wall.

Surface structure is wood Proceed with the next step.

...................................................................................................................................................................................................

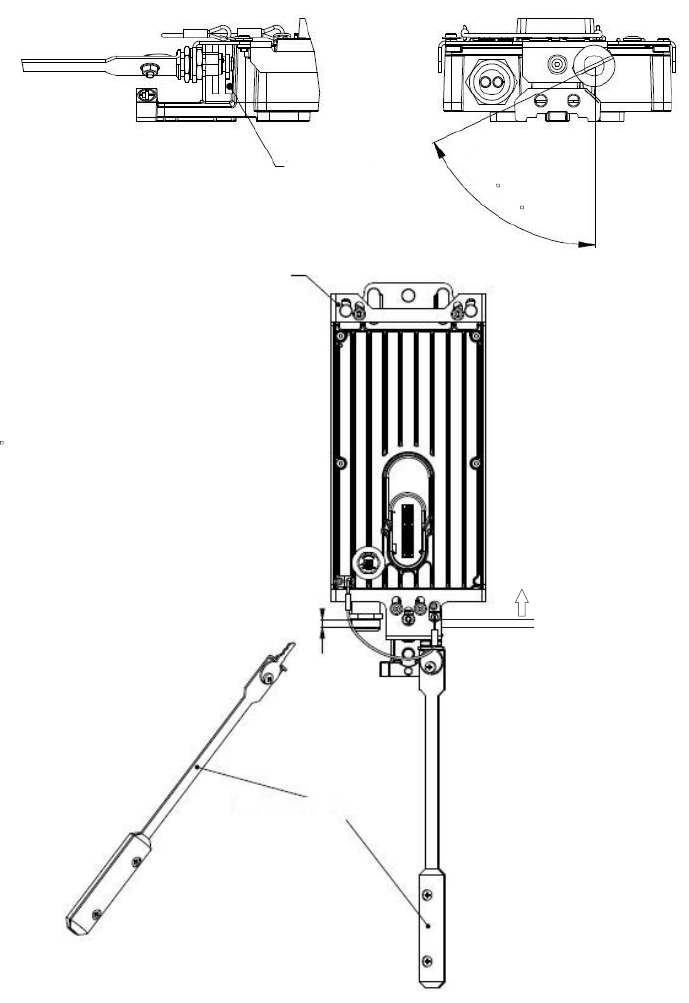

4Move the 9764 Metro Dock metal slider to the “up” position as this allows easier access

to the lower attachment bolt hole:

1. insert supplied key into lock

2. turn the key to its hard stop position to unlock the slider

3. Push the slider upwards and turn the key to its hard stop position. The slider is now

locked in the “up” position.

267mm

(10.51 inches)

52mm

(2.05 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Wall mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-37

D

RAFT

D

RAFT

...................................................................................................................................................................................................

5Place washers onto the anchor bolts.

Note: The type of anchor bolt used depends on the surface structure:

•Wooden surface: use Screw Hex T M8x70 stainless steel

•Concrete surface: use Screw CHC M6x80 stainless steel

...................................................................................................................................................................................................

6Align the 9764 Metro Dock bolt holes with the wall spacer bolt holes and thread bolts

through the corresponding set of holes.

...................................................................................................................................................................................................

7Screw in the upper and lower bolts into the drilled anchor holes for a concrete surface, or

directly into the wooden surface, to the appropriate depth so that the wall spacer and 9764

Metro Dock are securely attached to the wall.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

Slider moves upwards

Metro Dock Slider

(in down position)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Wall mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

3-38 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

...................................................................................................................................................................................................

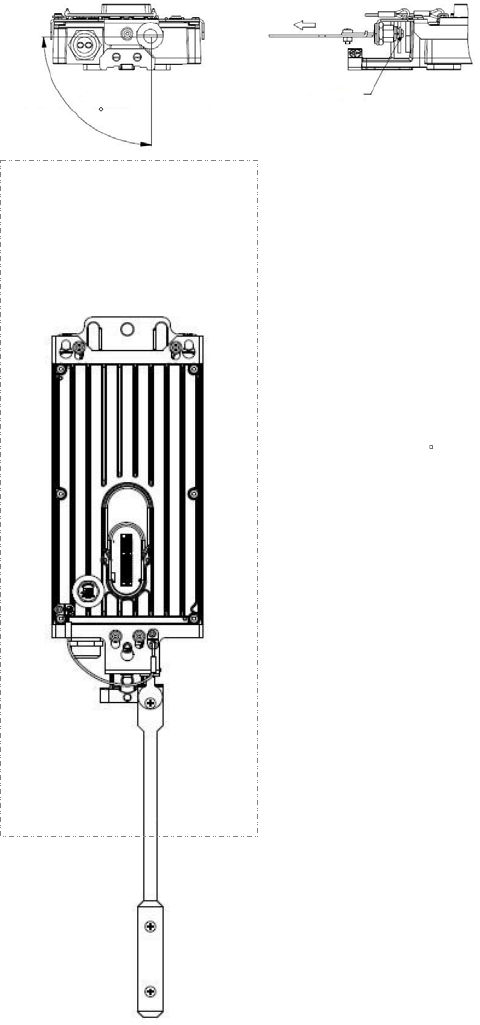

8Finally move the 9764 Metro Dock metal slider to the “down” position:

1. turn the key to its hard stop position to unlock the slider. The slider will automatically

spring into the “down” position

2. turn the key to its hard stop position. The slider is now locked in the “down” position

and the key can be removed from the lock.

Standard wall mount example

The following figure depicts a standard wall mount.

How to continue

After mounting the 9764 Metro Dock onto a wall the cables need to be connected.

Continue with the, “9764 Metro Dock cabling” (p. 3-89) section.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-3: Wall mount the 9764 Metro Dock

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-39

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Procedure 3-4: Wall mount the 9764 Metro Dock using optional

tilt brackets

Purpose

This topic describes the procedures to be followed when the Alcatel-Lucent 9764 Metro

Dock is required to be mounted onto a wall or solid flat surface using tilt brackets

(vertical, horizontal or combined horizontal/vertical).

Prerequisites

A site survey has been conducted and a location for the device has been selected that is

both central to the public space and elevated in order to maximize coverage. Before

installation begins you should ensure the following are in place:

•Ensure adequate clearance is provided for service access

•Ground cable has been routed and the site grounding system is in place

•Backhaul cable has been routed and is in place

•Any site specific fixing materials are available (for example, bolts, washers and wall

plug materials).

Attention: The 9764 Metro Dock must be mounted with the appropriate mounting

hardware suitable for the various supporting structures, building materials and

construction methods. Following a site survey, it is the responsibility of the customer

to ensure that:

•the installation support structure is adequate and compliant with ICC IBC (2012):

International Building Code, and all other national and local codes

•the appropriate mounting hardware and any necessary supporting anchor fixings

are used.

Mounting requirements and materials

The 9764 Metro Dock is less than 1 kg (2.2 lbs) and can be easily mounted onto solid

concrete or wooden flat surface. Refer to the following for the installation kits, anchor

materials and tools for the installation type:

•For wall mount refer to, “Wall mount installation requirements” (p. 3-9).

•For a list of standard tools that may be required to support the installation, see “Tools

required for installation” (p. 3-4)

Before you begin

Record the 9764 Metro Dock 18 digit serial number before mounting onto a wall.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-40 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

Prepare surface for bracket mounting

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to prepare a wall or solid flat surface for mounting tilt

brackets.

...................................................................................................................................................................................................

1At the selected installation location, mark the points on the wall for the bracket anchor

holes. See drill hole pattern below to use as a guide:

Tip: If the tilt bracket is available it can be placed against the wall and be used as a

template to mark the points on the wall for the bracket anchor holes.

Check the horizontal marked position of the holes with a level.

52 mm

(2.05 inches)

270 mm

(10.63 inches)

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-41

D

RAFT

D

RAFT

...................................................................................................................................................................................................

2

If.. Then..

Surface structure is concrete 1. Drill two upper holes and one lower hole at the

marked points to the appropriate depth.

2. Insert screw anchor plugs (Rawlnut M6x50) into the

drilled holes and, using a hammer, tap home until

the plugs are flush with the wall.

Surface structure is wood Mount combined horizontal/vertical tilt brackets

...................................................................................................................................................................................................

3Once the mounting surface has been prepared the tilt brackets can be attached. Continue

with one of the following procedures depending on the tilt configuration:

If.. Then..

Attaching vertical tilt

brackets

Carry out the procedure, “Mount the vertical tilt bracket”

(p. 3-42)

Attaching horizontal tilt

brackets

Carry out the procedure, “Mount the horizontal tilt bracket”

(p. 3-44)

Attaching combined

horizontal and vertical tilt

brackets

Carry out the procedure, “Mount combined horizontal/vertical

tilt brackets” (p. 3-46)

Mount the vertical tilt bracket

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-42 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

Perform the following procedure to attach a vertical tilt bracket onto a flat surface or wall.

...................................................................................................................................................................................................

1Remove the two tilt angle positioning gauge bolts on either side of the vertical tilt bracket

and allow the front part of the bracket to pivot away allowing easier access to the bracket

anchor holes.

...................................................................................................................................................................................................

2Depending on the required vertical tilt orientation ensure the bracket is positioned the

correct way up before placing on the wall:

If... Then... View...

upward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the top

downward vertical tilt is

required

the tilt bracket must be

positioned with the pivot point

at the bottom

...................................................................................................................................................................................................

3Place washers onto the anchor bolts.

Tilt angle positioning

gauge bolt

Tilt angle positioning

gauge bolt

Bracket anchor holes

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-43

D

RAFT

D

RAFT

Note: The type of anchor bolt used depends on the surface structure:

•Wooden surface: use Screw Hex T M8x70 stainless steel

•Concrete surface: use Screw CHC M6x80 stainless steel

...................................................................................................................................................................................................

4At the selected installation location, position the tilt bracket so the anchor holes on the

bracket align with the anchor holes either drilled or marked on the wall.

...................................................................................................................................................................................................

5For each anchor hole (upper and lower) insert bolts through the tilt bracket anchor holes.

...................................................................................................................................................................................................

6Screw the upper and lower bolts into the drilled anchor holes for a concrete surface, or

directly into the wooden surface, to the appropriate depth so that the bracket is firmly

secured to the wall or flat surface.

Recommended screw torque; 7.0 N.m (62.0 lb.in).

...................................................................................................................................................................................................

7Once the tilt bracket is mounted the 9764 Metro Dock can be attached. Continue with

“Attach 9764 Metro Dock to the tilt bracket” (p. 3-30).

Mount the horizontal tilt bracket

WARNING

Fall hazard

Falls can occur when working at heights resulting in serious personal injury or death.

To prevent a fall when working at heights (ladder, scaffold, manlift, roof etc.) follow safe

work practices and wear appropriate fall protection equipment.

Perform the following procedure to attach the horizontal tilt bracket onto a flat surface or

wall.

...................................................................................................................................................................................................

1Remove the two tilt angle positioning gauge bolts from the top and bottom of the

horizontal tilt bracket and allow the front part of the bracket to pivot away allowing easier

access to the bracket anchor holes.

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

3-44 Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

D

RAFT

D

RAFT

END OF STEPS

...................................................................................................................................................................................................

2Depending on the required horizontal tilt orientation ensure the bracket is the correct way

up before securing the bracket onto the wall:

If... Then... View...

left horizontal tilt is required the tilt bracket must be

positioned with the pivot point

on the left

right horizontal tilt is required the tilt bracket must be

positioned with the pivot point

on the right

...................................................................................................................................................................................................

3Place washers onto the anchor bolts.

Note: The type of anchor bolt used depends on the surface structure:

•Wooden surface: use Screw Hex T M8x70 stainless steel

•Concrete surface: use Screw CHC M6x80 stainless steel

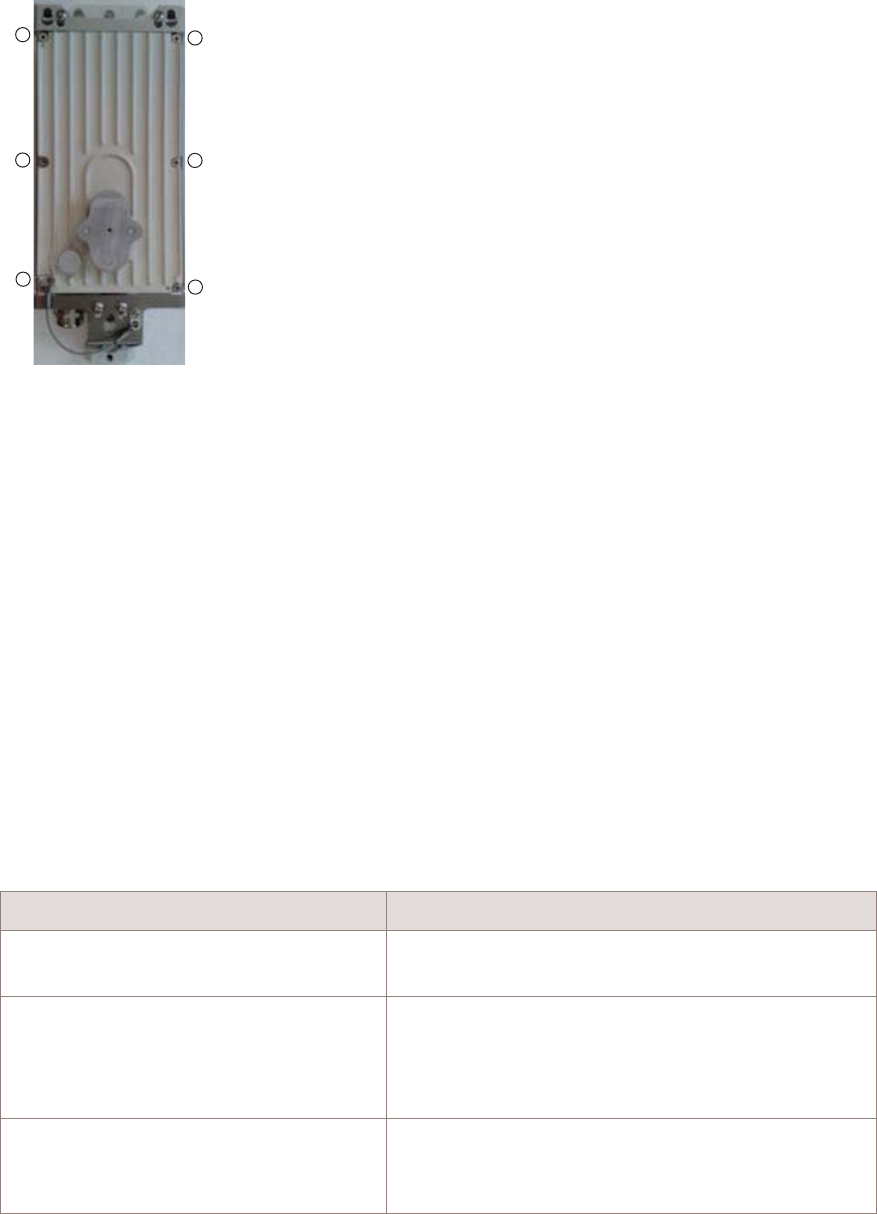

Tilt angle

positioning gauge bolt

Tilt angle

positioning gauge bolt

Bracket anchor holes

Installation of the 9764 Metro Dock

9764 Metro Dock installation

Procedure 3-4: Wall mount the 9764 Metro Dock using

optional tilt brackets

....................................................................................................................................................................................................................................

Alcatel-Lucent 9764 MCO

3MN-01707-0002-RJZZA

Issue 3.05 October 2014

Alcatel-Lucent – Internal

Proprietary – Use pursuant to Company instruction 3-45

D

RAFT

D

RAFT
