Nortek Security and Control GTO Access SGET GATE EDGE Transmitter User Manual
GTO Access Systems, LLC GATE EDGE Transmitter
User Manual
The SGET is part of Linear PRO Access control product line. In a typical
installation, the SGET is mounted on a motorized gate, door or barrier arm and
wired to a 10K exterior safety edge sensor which presents a closed circuit across
the connecting wires when an object is hit during the closing of a gate. To insure
full compatibility with all gate edge supervision features, Linear recommends Miller
gate edge sensors with 10K only. Please specify when ordering sensor. If the edge
sensor is pressed for 1/4 second, the SGET transmits a message to the SGER to
reverse the movement of the gate.
The SGET circuit board has been coated to prevent moisture damage and is
mounted inside a weather resistant berglass box. The mounting box attaches to
the gate through sealed interior mounting screws.
TYPICAL INSTALLATION
Loosen the four screws on transmitter top and remove cover. Install 2 “C” size
batteries at this time.
Refer to diagram below for transmitter parts location and details. Mount safety edge according to manufacturer’s instructions included with the
product.
Choose a location as high as possible on gate in a secure position. Use the
template attached to mark the location for the transmitter. You may have to
attach a metal or wood plate to mount transmitter. Use a 3/32” bit and drill
holes. Attach SGET to gate using the four #6 self-tapping drill point screws.
Unscrew the cable grip about 3/4 of the way and thread the safety edge cable
through the cable entry on the transmitter.
Attach safety edge cable to terminals as shown. Tighten cable grip assembly
using pliers to assure a water tight seal.
SGET
DIGITAL GATE
Transmitter
Installation Instructions
PRO ACCESS
TM
Linear PRO Access • 3121 Hartseld Road • Tallahassee, FL 32303
1.800.543.4283 • linearproaccess.com
Description
STEP 2 Remove Cover and Install Batteries

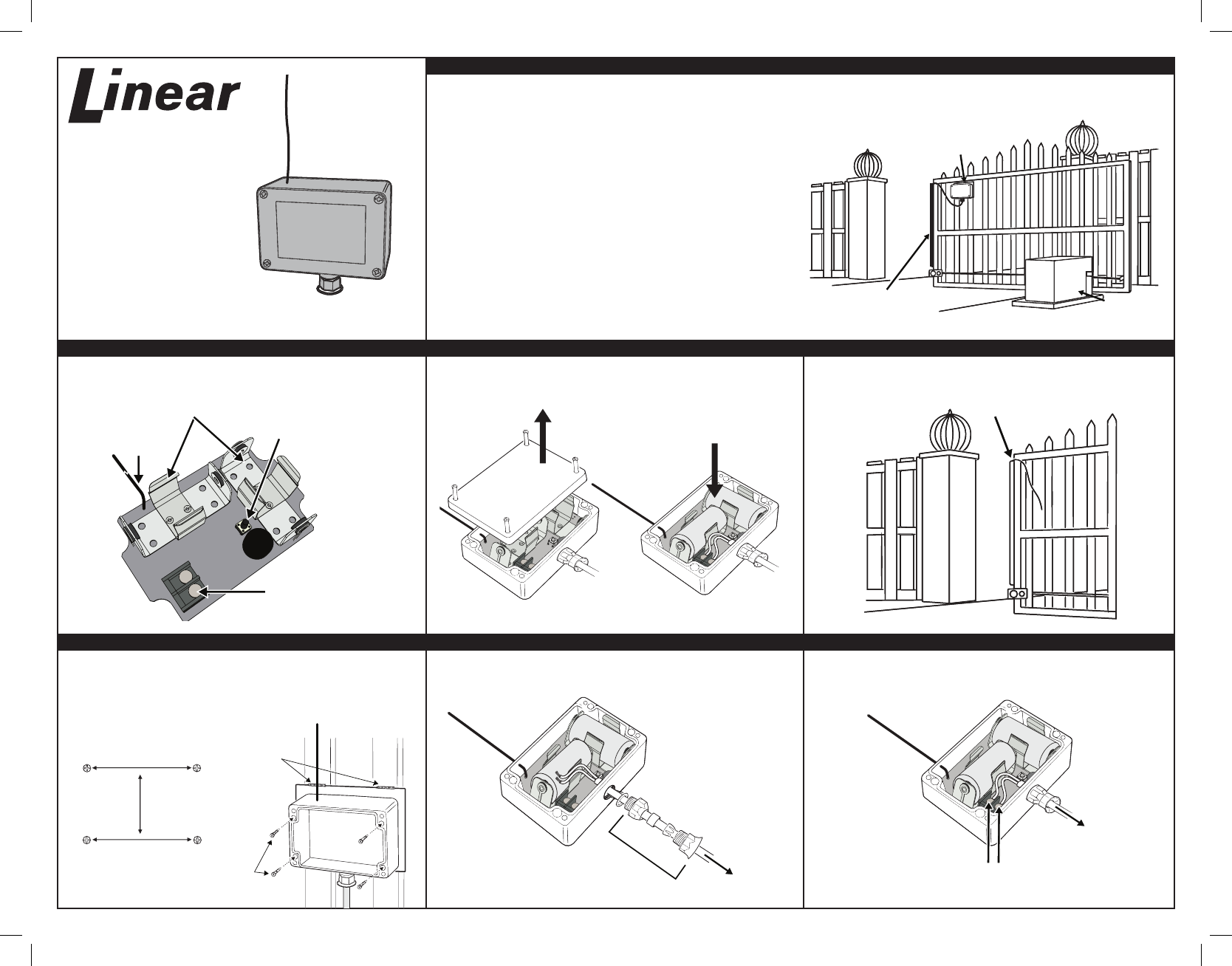

STEP 4 Mount SGET STEP 5 Assemble Cable Grip STEP 6 Attach Cable
STEP 1 Locate Parts STEP 3 Mount Safety Edge
REMOVE
COVER
INSTALL
“C” BATTERIES
SGET
TRANSMITTER
SAFETY EDGE
SENSOR GATE
OPERATOR
CABLE GRIP
ASSEMBLY
TO SAFETY
EDGE
TO SAFETY
EDGE
ATTACH EDGE
SENSOR CABLE
TO TERMINALS
1.77”
3.88”
WELD PLATE
TO GATE
ATTACH SGET
TO GATE
INSTALL
SAFETY EDGE
“C” Size
Battery Holders
Programming Button
Antenna
Wire
Terminals
PRINTERS INSTRUCTIONS
INSTR,INSTL,SGER SERIES - GTO P/N: 10016915 - INK: BLACK - MATERIAL: 20 LB. MEAD BOND - SIZE: 8.500” X 11.000” - SCALE: 1-1 - SIDE 1 of 2
Test safety edge connection by pressing the safety edge. The SGET alarm will
beep 4 times.
Refer to receiver programming instructions to set the receiver into the program
mode. Press the button to program the unit identication code into the receiver.
Replace transmitter cover.
Activate the gate to close. As the gate is closing, press the safety edge with
your hand. Gate should stop and reverse
Remove the transmitter cover and remove old batteries. Replace two “C” batteries
and replace transmitter cover.
STEP 7 Test Safety Edge
STEP 10 Test System
STEP 8 Program Transmitter STEP 9 Close Transmitter
STEP 11 Replacing Batteries
This Linear PRO Access (LPA) product is warranted against defects in material
and workmanship for twelve (12) months. The Warranty Expiration Date is
labeled on the product. This warranty extends only to wholesale customers
who buy direct from LPA or through LPA’s normal distribution channels. LPA
does not warrant this product to consumers. Consumers should inquire from
their selling dealer as to the nature of the dealer’s warranty, if any. There are no
obligations or liabilities on the part of LPA for consequential damages arising
out of or in connection with use or performance of this product or other indirect
damages with respect to loss of property, revenue, or profit, or cost of removal,
installation, or reinstallation. All implied warranties, including implied warranties
for merchantability and implied warranties for fitness, are valid only until Warranty
Expiration Date as labeled on the product. This LPA Warranty is in lieu of all
other warranties express or implied.
All products returned for warranty service require a Return Product Authorization
Number (RPA#). Contact LPA Technical Services at 1-800-543-1236 for an
RPA# and other important details
Linear PRO Access radio controls provide a reliable communications link and fill an
important need in portable wireless signaling. However, there are some limitations
which must be observed.
Copyright© 2017 GTO Access Systems, LLC
Document Number: 10016915 REV A (05-15-17)
LIMITED WARRANTY IMPORTANT
REMOVE/REPLACE
COVER
REMOVE/REPLACE
“C” BATTERIES
PRESS
EDGE
CLOSE GATE
REPLACE
COVER
CAUTION: DO NOT STAND IN THE PATH
OF THE CLOSING GATE.
PRESS THE
PROGRAMMING
BUTTON
SGER
PRESS EDGE
WITH HAND
Troubleshooting
SGET Alarm Fault? Condition
Code
Low Batt 1 NO Low Battery
Open 2 YES Edge not present
No Ack 3 YES SGET not able to send message (dead or too
far away)
Edge 4 YES Edge shorted
