GRILL GUARD
INSTALLATION INSTRUCTIONS
The GoControl® Grill Guard (device) is a contact ON/OFF sensor
that alerts your security panel (and op onally the smartphone
with Alarm.com) when the knob on a grill/stove is turned ON. It
is compa ble with 2GIG security panels, including GC2, GC3, and
Vario.
INNER MARKS KNOB STEM
SLEEVE
MAGNET
GRILL
KNOB
DISC
Figure 1. Grill Knob Device Assembly
Contents
Verify that the package contains the following:
•One (1) Grill Guard disc - w/ pre-installed ba eries and
adhesive strips a ached
•Knob stem sleeves w/magnets – 3 diff erent sizes
Pre-Installation Checks
Before installa on:
1. Ensure the device (grill, stove, heater, etc.) is turned OFF. If
possible, also turn OFF the gas valve and/or the power source.
2. Ensure the grill/stove surface around the knob is fl at, enabling
the disc to be a ached.
3. If a trim ring around the knob is on the surface, ensure the
inner diameter of the ring is no smaller than 2.5 inches.
4. Ensure the knob stem has adequate length for allowing
inser ng the Grill Guard disc on the knob at least 0.2 inches
above its usual “all-the-way-in” posi on on the knob stem,
allowing the grill knob to operate properly.
Installation
1. Ensure the knob where you are installing the Grill Guard is
turned to the OFF posi on.
2. Remove the knob from the grill/stove.
Note: If necessary, remove the knob trim ring.
3. Ensure the grill/stove surface around the knob area is clean.
4. Iden fy the sleeve that best fi ts your knob stem, from the
three provided.
1. 2. 3.
Notes:
•The sleeve orienta on for your grill/stove knob stem may
require fl ipping a sleeve over.
•If the knob stem protrudes too far, try using the cavity-backed
sleeve (3.).
•If the sleeve or knob has a loose fi t or the sensor alignment is
off , use a small amount of duct tape or electrical tape to make
it snug.
5. Install the sleeve onto the knob stem, following the
orienta on, as shown in Step 4.
Note: Ensure the bo om of the sleeve magnet has a clearance
of 0.1 inches from the knob panel surface.
6. Remove the Signal Suppression Tape from the disc to ac vate
the sensor located inside the disc.
ADHESIVE
STRIPS
SIGNAL SUPPRESSION
TAPE
7. Remove the visible protec ve backing material from each
adhesive strip.
8. Align the inner marks on the disc with the magnet on the
sleeve and mount the disc to the grill/stove face.
INNER
MARKS MAGNET
SLEEVE
9. Install the grill knob back onto the knob stem.
10. Use your Panel to program the Grill Guard.
Programming the Device on the GC2/GC2 Panel
For GC2 and GC3 panels, program the Grill Guard on your 2GIG
panel with the following parameters. (Please refer to your panel’s
quick programming guide for the actual steps.)
Sensor Type: (23) No Response Type
Sensor Equipment Type: Contact
Equipment Code: (0862) 2GIG Thin Door/Window Contact1
Serial Number: [Input the unique 7-digit TXID.]2
Equipment Age: New
Sensor Loop Number: 2
Dialer/Transmission Delay:
Enabled
Voice Descriptor: GAS LEFT ON3
Sensor Reports: Enabled
Sensor Supervised: Disabled4
Sensor Chime: [User-specifi ed]
1 This is a provisional Equipment Code. A new category called
“Grill Guard” (or similar name) will be added in a future GC2/GC3
panel update.
2 Alterna vely, a Grill Guard can be automa cally learned in.
3 This is a recommended voice descriptor. The user may defi ne a
custom voice descriptor, as needed.
4 Choose Disabled if the user plans on taking the grill/stove
away from the premises from me to me. Otherwise, choose
Enabled.
PRINTER’S INSTRUCTIONS:
INSTR,INSTL GC-GRILL1-B-345 - P/N: 10017336 X16 INK: BLACK - MATERIAL: 16 LB. MEAD BOND - SIZE: 6.000” X 9.000” - TOL: +/- 0.125”- SCALE: 1-1 - FOLDING: 4X TO 1.5” x 2.25” - FINISH WITH LOGO SHOWING - SIDE 1 OF 2
2 Copyright © 2017 Nortek Security & Control LLC
Programming the Device on the Vario Panel
For the Vario panel, a er learning in1 the Grill Guard, please
confi gure the zone the Grill Guard is in with the following
parameters:
Zone Type: Output Trigger
Zone Sound Armed Away:
Silent
Zone Sound Armed Stay: Silent
Zone Sound Disarmed: Chime or Silent
1If you want to manually program the Grill Guard in the Vario panel
using the TXID, convert the GC2/GC3 TXID, as follows, to obtain the
Vario TXID.
Example: GC2/GC3 TXID = 080-9665, Vario TXID = 809,665 +
11,602,097,152 = 11,602,906,817
Setting up E-mail Notification
–
Alarm.com Accounts Only

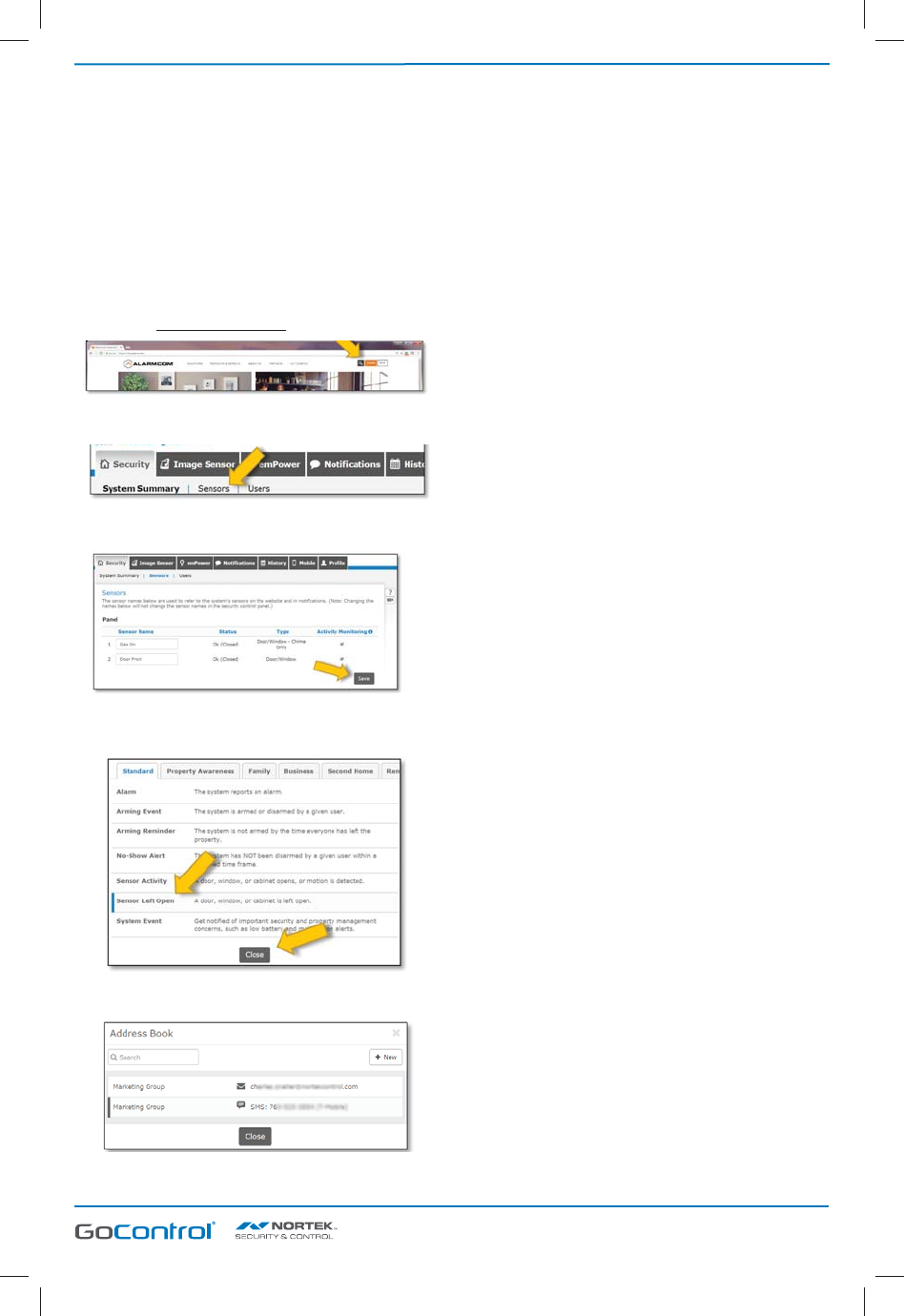

1. Navigate to hƩ p://www.alarm.com and click LOGIN.
2. Your systems dashboard page will appear. Select the Security tab
and click Sensors.
3. Iden fy the new sensor you added. You can rename the
Sensor Name. When fi nished, click Save.
4. Click the NoƟ fi caƟ ons tab, and then +New NoƟ fi caƟ on
bu on to create a new event. The menu will appear with
the Standard tab open by default.
5. Click Sensor LeŌ Open. Add parameters. Also, click +Add
Recipient to add recipients associated with the no fi ca on.
6. Click Close when names have been selected, then click Save
NoƟ fi caƟ on.
Specifications
•Signal Range: 100 . open-air from a 2GIG panel
•Transmission Frequency: 345 MHz
•Disc dimensions: 2.2” diameter, 0.21” thickness
•Opera ng Temperature: 14°F to 167°F (-10°C to 75°C)
FCC & IC Notice
This device complies with Part 15 of the FCC Rules and Industry Canada license
exempt standard(s). Opera on is subject to the following two condi ons:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
received that may cause undesired opera on.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploita on est autorisée aux deux
condi ons suivantes:
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’u lisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est suscep ble d’en comprome re le fonc onnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protec on against harmful interference in a residen al
installa on.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruc ons may cause harmful
interference to radio communica ons. However, there is no guarantee that
interference will not occur in a par cular installa on. If this equipment does
cause harmful interference to radio or television recep on, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separa on between the equipment and receiver
• Connect the equipment into an outlet on a circuit diff erent from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician to help.
WARNINGS:
• Changes or modifications not expressly approved by the manufacturer could
void the user’s authority to operate the equipment.
• The Grill Guard is not intended as a life-safety device. It is not intended to
replace any other safety considerations.
Limited Warranty
This Nortek Security & Control product is warranted against defects in material
and workmanship for 6 months. Nortek Security & Control does not warrant
this product to consumers.
There are no obliga ons or liabili es on the part of Nortek Security & Control
for consequen al damages arising out of or in connec on with use or
performance of this product or other indirect damages with respect to loss of
property, revenue, or profi t, or cost of removal, installa on, or reinstalla on.
All implied warran es for func onality, are valid only un l the warranty expires.
This Nortek Security & Control LLC Warranty is in lieu of all other warran es
expressed or implied.
Nortek Security & Control LLC
2GIG
1950 Camino Vida Roble, Suite 150
Carlsbad, CA 92008-6517 USA
For technical support in the USA and Canada:
800.421.1587
Email: 2gigtechsupport@nortek.com
Visit www.nortekcontrol.com for technical support hours of opera on
For technical support outside of the USA and Canada:
Contact your regional distributor
Visit dealer.2gig.com for a list of distributors in your region
