Users Manual Part II

92 AT Commands

Revision 1.8 P/N 90023363

Test AT+CGEREP=?

Set AT+CGEREP=0

AT+CGMI

Description: MANUFACTURERS IDENTITY REQUEST

Returns manufacturer identification text. Identical to the command

AT+GMI.

Syntax: AT+CGMI

Parameters: NONE

Response: Manufacturer’s ID

Example: Input Output

Query AT+CGMI Novatel Wireless, Inc. OK

Te st AT+CGMI=? OK

AT+CGMM

Description: MODEL IDENTITY REQUEST

Returns product model identification text. Identical to the command

AT+GMM.

Syntax: AT+CGMM

Parameters: None

Response: <model identity>

Example: Input Output

Query AT+CGMM GPRS PC Card 1900 OK

Te s t AT+CGMM=? OK

AT+CGMR

Description: REVISION IDENTITY REQUEST

Returns product software version identification text. Identical to the

command AT+GMR.

Syntax: AT+CGMR

Parameters: None

Response: <software revision text>

Example: Input Output

AT Commands 93

P/N 90023363 Revision 1.8

Query A T + C G M R ? S o f t w a r e V e r s i o n : P N 1 6 0 - 0 3 0 0

Date: May 23 2001, Time: 14:17:39. OK

Tes t AT+CGMR=? OK

AT+CGOI

Description: GLOBAL IDENTITY REQUEST

Reports one or more lines of information text which permit the user to

identify the device, based on the ISO system for registering unique object

identifiers. Identical to the command AT+GOI.

Syntax: AT+CGOI

Parameters: None

Response: Identifier of device type.

AT+CGPADDR

Description: SHOW PDP ADDRESS

This command dictates the behavior of PPP in the ME but not the

behavior of any other GPRS-enabled foreground layer, e.g. browser.

Syntax: AT+CGPADDR=[<cid>[,<cid>[,…]]]

Parameters:

<cid> a numeric parameter which specifies a particular PDP

context definition (see +CGDCONT command). If no <cid> is

specified, the addresses for all defined contexts are

returned.

<PDP_addr> a string that identifies the MT in the address space

applicable to the PDP. The address may be static or

dynamic. For a static address, it will be the one set by the

+CGDCONT command when the context was defined. For a

dynamic address it will be the one assigned during the last

PDP context activation that used the context definition

referred to by <cid>. <PDP_address> is omitted if none is

available.

Response: +CGPADDR: <cid>,<PDP_addr>[<cr><LF>+CGPADDR:

AT+CGQMIN

Description: QUALITY OF SERVICE PROFILE (MINIMUM ACCEPTABLE)

94 AT Commands

Revision 1.8 P/N 90023363

Get current quality of service profile. This reports the minimum quality

standard that will be used by the device / network.

Syntax: AT+CGQMIN=[<cid>[,<precedence>[,<delay>[,<reliability>[,<peak>[,<mean>

]]

<cid> a numeric parameter which specifies a particular

PDP context definition (see +CGDCONT command).

The following parameters are defined in GSM 03.60

<precedence> a numeric parameter which specifies the

precedence class

<delay> a numeric parameter which specifies the delay class

<reliability> a numeric parameter which specifies the reliability

class

<peak> a numeric parameter which specifies the peak

throughput class

<mean> a numeric parameter which specifies the mean

throughput class

Response: AT+CGQMIN?+CGQMIN:

+CGQMIN: <cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[…]]

Query AT+CGQMIN? Current selection OK

Test AT+CGQMIN=? List of possible selections

Set AT+CGQMIN=<n> OK

AT+CGQREQ

Description: REQUEST QUALITY OF SERVICE PROFILE

Request quality of service from carrier.

Syntax: AT+CGQREQ=[<cid>[,<precedence>[,<delay>[,<reliability.>[,<peak>[,<mean

>]]]]]]

Parameters:

<cid> a numeric parameter which specifies a particular

PDP context definition (see +CGDCONT command).

The following parameters are defined in GSM 03.60

<precedence> a numeric parameter which specifies the

precedence class

<delay> a numeric parameter which specifies the delay class

<reliability> a numeric parameter which specifies the reliability

class

<peak> a numeric parameter which specifies the peak

throughput class

AT Commands 95

P/N 90023363 Revision 1.8

<mean> a numeric parameter which specifies the mean

throughput class

Response: +CGQREQ:<cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[<cr

><LF>+CGQREQ:

<cid>,<precedence>,<delay>,<reliability>,<peak>,<mean>[…]]

AT+CGREG

Description: GPRS NETWORK REGISTRATION STATUS

This set command returns the status of an unsolicited result code.

Syntax: AT+CGREG=[<n>]

Parameters:

<n> 0 disable network registration unsolicited result code

1 enable network registration unsolicited result code

+CGREG: <stat>

2 enable network registration and location information

unsolicited result code +CGREG: <stat>[,<lac>,<ci>]

Response: (Read Response)

+CGREG: <n>,<stat>[,<lac>,<ci>]

+CME ERROR: <err>

<n> 0 disable network registration unsolicited result code

1 enable network registration unsolicited result code

+CGREG: <stat>

2 enable network registration and location information

unsolicited result code +CGREG: <stat>[,<lac>,<ci>]

<stat> 0 device is not registered, ME is not currently

searching a new operator to register to

1 device is registered

<lac> string type; two byte location area code in

hexadecimal format (e.g. "00C3" equals 195 in

decimal)

<ci> string type; two byte cell ID in hexadecimal format

Query AT+CGREG? Current selection OK

Test AT+CGREG=? List of possible selections

Set AT+CGREG=<n> OK

AT+CGSMS

Description: SERVICE SELECTION FOR MO SMS MESSAGES

96 AT Commands

Revision 1.8 P/N 90023363

This set command is used to specify the service or service preference

that the MT will use to send MO SMS messages.

Syntax: AT+CGSMS=[<service>]

Parameters:

<service> a numeric parameter which indicates the service or

service preference to be used. The circuit switched

service route is the default method.

0GPRS

1 circuit switched

2 GPRS preferred (use CSD if GPRS not

available)

2 CSD preferred (use GPRS if CSD not

available)

Response: (Read Response)

+CGSMS: [<service>]<cr> +CME ERROR: <err> <service> see

above.

<n> 0 disable network registration unsolicited result code

1 enable network registration unsolicited result code

+CGREG: <stat>

2 enable network registration and location information

unsolicited result code +CGREG:

<stat>[,<lac>,<ci>]

<stat> 0 device is not registered, ME is not currently

searching a new operator to register to

1 device is registered

<lac> string type; two byte location area code in

hexadecimal format (e.g. "00C3" equals 195 in

decimal)

<ci> string type; two byte cell ID in hexadecimal format

AT+CGSN

Description: SERIAL NUMBER REQUEST

Reports the device serial number. Identical to the command AT+GSN.

Syntax: AT+CGSN

Parameters: None

Example: Input Output

Query AT+CGSN 01234567890123. OK

Te s t AT+CGSN=? OK

AT Commands 97

P/N 90023363 Revision 1.8

AT+CHLD

Description: CALL HOLD

Controls the supplementary services Call Hold, MultiParty and Explicit

Call Transfer. Calls can be put on hold, recovered, released, added to

conversation, and transferred. This supplementary service is only

applicable to teleservice 11 (Speech: Telephony).

Syntax: AT+CHLD=[<n>]

n 0 Terminate all held calls or UDUB (User Determined User

Busy) for a waiting call

1 Terminate all active calls (if any) and accept the other call

(waiting call or held call)

1X Terminate the active call number X (X= 1-7)

2 Place all active calls on hold (if any) and accept the other

call (waiting call or held call) as the active call

2X Place all active calls except call X (X= 1-7) on hold

3 Add the held call to the active calls

Example: Input Output

Query AT+CHLD? 1 OK

SET AT+CHLD=1 OK

Tes t AT+CHLD=? List of supported <n>s OK

AT+CIMI

Description: INTERNATIONAL MOBILE SUBSCRIBER IDENTITY REQUEST

Returns international mobile subscriber identity for identifying the

individual SIM which is attached to the device.

Syntax: AT+CIMI

Parameters: None

Response: International Mobile Subscriber Identity

Example: Input Output

Query AT+CIMI? 1234567890123455566

Tes t AT+CIMI=? OK

AT+CLCC

Description: CURRENT CALL LIST

Returns a list of current calls.

98 AT Commands

Revision 1.8 P/N 90023363

Syntax: AT+CLCC

Parameters: None

[+CLCC:<id1>,<dir>,<stat>,<mode>,<mpty>[,<number>,

<type>[,<alpha>]]

<idx> integer type; call identification number as described

in GSM 02.30[19] sub clause 4.5.5.1; this number

can be used in +CHLD command operations.

<dir> 0 mobile originated (MO) call

1 mobile terminated (MO) call

<stat> state of call:

0active

1held

2 dialing (MO call)

3 alerting (MO call)

4 incoming (MT call)

5 waiting (MT call)

<mode> bearer/tele service:

0voice

1data

2fax

9 unknown

<mpty> 0 call is not one of multiparty (conference) call parties

1 call is one of multiparty (conference) call parties

<number> string type phone number in format specified by

<type>

<type> type of address octet in integer format; 145 when

dialing string includes international access code

character "+", otherwise 129

<alpha> string type alphanumeric representation of

<number> corresponding to the entry found in

phone book

Example: Input Output

Query AT+CLCC LIST FORMATTED AS ABOVE

Te s t AT+CLCC=? OK

AT Commands 99

P/N 90023363 Revision 1.8

AT+CLCK

Description: FACILITY LOCK

This command is used to lock, unlock or interrogate an ME or a network

facility. A password is normally needed to perform such actions. When

querying the status of a network service (<mode>=2) the response line for

‘not active’ case (<status>=0) should be returned only if service is not

active for any <class>.

Syntax: AT+CLCK = <fac>, <mode>[,<passwd>[,<class>]]

Parameters:

<fac> “PS” PH-SIM (lock PHone to SIM card) (ME asks

password when other than current SIM card

inserted; ME may remember certain amount of

previously used cards thus not requiring password

when they are inserted).

“SC” SIM (lock SIM card) (SIM asks password in ME

power-up and when this lock command issued).

“AO” BAOC (Barr All Outgoing Calls) (refer GSM02.88[6]

clause 1)

“O” BOIC (Barr Outgoing International Calls) (refer

GSM02.88[6] clause 1)

“OX” BOIC-exHC (Barr Outgoing International Calls

except to Home Country) (refer GSM02.88[6] clause

“AI” BAIC (Barr All Incoming Calls) (refer GSM02.88[6]

clause 2)

“IR” BIC-Roam (Barr Incoming Calls when Roaming

outside the home country) (refer GSM02.88 [6]

clause 2)

“AB” All Barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

“AG” All out Going barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

“AC” All in Coming barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

“PN” Network Personalization (refer GSM 02.22[33])

"PU” network sUbset Personalization (refer GSM

02.22[33])

"PP” service Provider Personalization (refer GSM

02.22[33])

"PC” Corporate Personalization (refer GSM 02.22[33])

<mode> 0 unlock

1lock

100 AT Commands

Revision 1.8 P/N 90023363

2 query status

<passwd> password

<class> 1 voice

2data

4fax

7 all classes (default)

<status> 0 off

1on

Response: If <mode><>2 and command is successful

If <mode>=2 and command is successful

+CLCK: <status>[,<class1>[<cr><LF>

+CLCK: <status>, class2....]] OK

If error is related to ME functionality:

+CME ERROR: <err>

Example: Input Output

Query AT+CLCK? 129

Te s t AT+CLCK=? LIST OF SUPPORTED (<fac>s) OK

AT+CLDTMF

Description: GENERATE LOCAL DTMF TONE

Syntax: AT+CLDTMF=<n>,<dtmf-string>

Parameters:

<n> Duration of all DTMF tones in <dtmf-string> in 1/10

seconds.

<dtmf-string>As a max length of 20 characters of form <dtmf>, must be

entered between double quotes (“ “) and consists of

combinations of the following separated by commas.

<dtmf> A single ASCII characters in the set 0-9,#,*,A-D. This is

interpreted as a sequence of DTMF tones whose duration is

set by <n>.

AT Commands 101

P/N 90023363 Revision 1.8

Response: OK+CME ERROR

<err> AT+CLDTMF, without any parameters will abort any DTMF tone

currently being generated and any DTMF tone sequence

Query: AT+CLDTMF=? Current State OK

Set: AT+CLDTMF=<n> A list of possible selections

Tes t : AT + C LD T M F =

AT+CLIP

Description: CALLING LINE IDENTIFICATION PRESENTATION

TA enables or disables the presentation of the CLI at the TE. It has no

effect on the execution of the supplementary service CLIP in the network.

When the presentation of the CLI at the TE is enabled (and calling

subscriber allows), an unsolicited result code is returned after every RING

(or +CRING: <type>) at a mobile terminating call.

Syntax: AT+CLIP=<n>

Parameters:

<n> 0 suppress unsolicited result codes

1 display unsolicited result codes

Response: +CLIP: <number>, <type>

<number> string type phone number of calling address in format

specified by <type>

<type> type of address octet in integer format; 145 when dialing

string includes international access code character "+",

otherwise 129

Example: Input Output

Query AT+CLIP? List of supported N’s

Tes t AT+CLIP=? List of supported N’s

AT+CLIR

Description: CALLING LINE IDENTIFICATION RESTRICTION

TA restricts or enables the presentation of the CLI to the called party

when originating a call. The command overrides the CLIR subscription

(default is restricted or allowed) when temporary mode is provisioned as a

default adjustment for all following outgoing calls. This adjustment can be

revoked by using the opposite command.

Syntax: AT+CLIR=<n>

Parameters: <n> parameter sets the adjustment for outgoing calls

102 AT Commands

Revision 1.8 P/N 90023363

<n> 0 presentation indicator is used according to the subscription

of the CLIR service

1CLIR invocation

2 CLIR suppression

<m> parameter shows the subscriber CLIR service status in the network

<m> 0 CLIR not provisioned

1 CLIR provisioned in permanent mode

2 unknown (e.g. no network, etc.)

3 CLIR temporary mode presentation restricted

4 CLIR temporary mode presentation allowed

Response: +CLIR: <n>, <m> OK

Example: Input Output

Te s t AT+CLIR=? List of supported n’s

AT+CLTS

Description: GET LOCAL TIME STAMP

Query the master time source (local) for the current time.

Syntax: AT+CLTS

Parameters: None

Response:

<tds> time-string format: “yy/MM/dd,hh:mm:ss±zz” where

characters indicate year (last two digits), month, day, hours,

minutes, seconds and time zone.

AT+CLVL

Description: LOUDSPEAKER VOLUME SETTING

Sets the local loudspeaker volume level. If no loudspeaker provisions

exist, this command does nothing.

Syntax: AT+CLVL=<level>

Parameters:

<level> integer type value with manufacturer specific range

(smallest value represents the lowest sound level)

Response:

Query +CLVL: <level>+CME ERROR: <err>

AT Commands 103

P/N 90023363 Revision 1.8

Test +CLVL: (list of supported <level>s)+CME ERROR: <err>

AT+CMEE

Description: REPORT MOBILE EQUIPMENT ERROR

Modem disables or enables the use of result code +CME ERROR: <err>

as an indication of an error relating to the functionality of the mobile

equipment.

Syntax: AT+CMEE=<n>

Parameters:

<n> 0 disable result code

1 enable result code and use numeric values

2 enable result code and use verbose value

Response: <n> OK

Example: Input Output

Query AT+CMEE? <n>

Tes t AT+CMEE=? List of supported <n>s

AT+CMGD

Description: DELETE SMS MESSAGE

Deletes message from preferred message storage location.

Syntax: AT+CMGD=<index>

Parameters:

<index> integer type; value in the range of location numbers

supported by the associated memory

Response: OK

Example: Input Output

Tes t AT+CMGD=? OK

AT+CMGF

Description: SMS MESSAGE FORMAT

Sets parameter to dictate which input and output format of messages to

use.

Syntax: AT+CMGF = [<mode>]

104 AT Commands

Revision 1.8 P/N 90023363

Parameters:

<mode> 0 PDU mode

1 text mode

Response: OK

Example: Input Output

Query AT+CMGF? +CMGF: <mode> OK

Te s t AT+CMGF=? +CMGF: list of supported <mode>s OK

AT+CMGL

Description: LIST SMS MESSAGES

Returns messages with status value <stat> from message storage

<mem1> to the TE. If status of the message is 'received unread', status in

the storage changes to 'received read'.

Syntax: AT+CMGL [=<stat>]

Parameters:

<stat> Text Mode “REC UNREAD” Received unread message

(default)

“REC READ” Received read messages.

"STO UNSENT" Stored unsent messages

"STO SENT" Stored sent messages

"ALL" All messages

PDU Mode 0 Received unread messages (default)

1 Received read messages

2 Stored unsent messages

3 Stored sent messages

4 All messages

Response:

1. If text mode (+CMGF=1) and command successful: for SMS-SUBMITs

and/or SMS-DELIVERs:+CMGL: <index>,<stat>,<oa/

da>,[<alpha>],[<scts>][,<tooa/

toda>,<length>]<cr><LF><data>[<cr><LF>+CMGL:

<index>,<stat>,<da/oa>,[<alpha>],[<scts>][,<tooa/

toda>,<length>]<cr><LF><data>[...]] OK

2. If PDU mode (+CMGF=0) and command successful: +CMGL:

<index>,<stat>,[<alpha>],<length><cr><LF><pdu>[<cr><LF>+CM

GL: <index>,<stat>,[alpha],<length><cr><LF><pdu>[...]] OK

3. If error is related to ME functionality: +CMS ERROR: <err>

AT Commands 105

P/N 90023363 Revision 1.8

<alpha> string type alphanumeric representation of <da> or

<oa> corresponding to the entry found in MT phone

book; implementation of this feature is manufacturer

specific

<da> GSM 03.40 TP-Destination-Address, Address-Value

field in string format; BCD numbers (or GSM default

alphabet characters) are converted to characters;

type of address given by <toda>

<data> In the case of SMS: GSM 03.40 TP-User-Data in text

mode responses; format:

if <dcs> indicates that GSM 03.38 default alphabet is

used and <fo> indicates that GSM 03.40 TP-User-

Data-Header-Indication is not set: ME/TA converts

GSM alphabet into current TE character set

according to rules of Annex A

if <dcs> indicates that 8-bit or UCS2 data coding

scheme is used, or <fo> indicates that GSM 03.40

TP-User-Data-Header-Indication is set: ME/TA

converts each 8-bit octet into two IRA character long

hexadecimal number (e.g. octet with integer value

42 is presented to TE as two characters 2A (IRA 50

and 65))

In the case of CBS: GSM 03.41 CBM Content of

Message in text mode responses; format:

if <dcs> indicates that GSM 03.38 default alphabet is

used: ME/TA converts GSM alphabet into current TE

character set according to rules of Annex A.

if <dcs> indicates that 8-bit or UCS2 data coding

scheme is used: ME/TA converts each 8-bit octet

into two IRA character long hexadecimal number.

<length> integer type value indicating in the text mode

(+CMGF=1) the length of the message body <data>

(or <cdata>) in characters; or in PDU mode

(+CMGF=0), the length of the actual TP data unit in

octets (i.e. the RP layer SMSC address octets are

not counted in the length)

<index> integer type; value in the range of location numbers

supported by the associated memory

<oa> GSM 03.40 TP-Originating-Address, Address-Value

field in string format; BCD numbers (or GSM default

alphabet characters) are converted to characters;

type of address given by <tooa>

<pdu> In the case of SMS: GSM 04.11 SC address followed

by GSM 03.40 TPDU in hexadecimal format: ME/TA

converts each octet of TP data unit into two IRA

character long hexadecimal number (e.g. octet with

106 AT Commands

Revision 1.8 P/N 90023363

integer value 42 is presented to TE as two

characters 2A (IRA 50 and 65)). In the case of CBS:

GSM 03.41 TPDU in hexadecimal format.

<scts> GSM 03.40 TP-Service-Center-Time-Stamp in time-

string format (refer <dt>)

<toda> GSM 04.11 TP-Destination-Address Type-of-

Address octet in integer format (when first character

of <da> is + (IRA 43) default is 145, otherwise

default is 129)

<tooa> GSM 04.11 TP-Originating-Address Type-of-

Address octet in integer format (default

refer<toda>)

Example: Input Output

Te s t AT+CMGL=? +CMGF: list of supported <stats>s OK

AT+CMGR

Description: READ SMS MESSAGE

Returns SMS message with location value <index> from message

storage <mem1> to the TE. If status of the message is 'received unread',

status in the storage changes to 'received read'.

Syntax: AT+CMGR=<index>

Parameters:

<index> integer type; value in the range of location numbers

supported by the associated memory.

Response:

1.If text mode (+CMGF=1) and command successful: for SMS-DELIVER:

+CMGR: <stat>,<oa>,[<alpha>],<scts>

[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>,<length>]<cr><LF><data>for

SMS-SUBMIT:+CMGR: <stat>,<da>,[<alpha>]

[,<toda>,<fo>,<pid>,<dcs>,[<vp>],<sca>,<tosca>,<length>]<cr><LF><data

2. If PDU mode (+CMGF=0) and command successful:

+CMGR: <stat>,[<alpha>],<length><cr><LF><pdu> OK

AT Commands 107

P/N 90023363 Revision 1.8

3. If error is related to ME functionality:

+CMS ERROR: <err>

<alpha> The string type alphanumeric representation of <da> or

<oa> corresponding to the entry found in MT phone book;

implementation of this feature is manufacturer specific.

<da> GSM 03.40 TP-Destination-Address, Address-Value field in

string format; BCD numbers (or GSM default alphabet

characters) are converted to characters; type of address

given by <toda>.

<data> In the case of SMS: GSM 03.40 TP-User-Data in text mode

responses; format:

if <dcs> indicates that GSM 03.38 default alphabet is used

and <fo> indicates that GSM 03.40 TP-User-Data-Header-

Indication is not set: ME/TA converts GSM alphabet into

current TE character set according to rules of Annex A.

If <dcs> indicates that 8-bit or UCS2 data coding scheme is

used, or <fo> indicates that GSM 03.40 TP-User-Data-

Header-Indication is set: ME/TA converts each 8-bit octet

into two IRA character long hexadecimal number (e.g. octet

with integer value 42 is presented to TE as two characters

2A (IRA 50 and 65))

In the case of CBS: GSM 03.41 CBM Content of Message in

text mode responses; format:

If <dcs> indicates that GSM 03.38 default alphabet is used:

ME/TA converts GSM alphabet into current TE character set

according to rules of Annex A.

If <dcs> indicates that 8-bit or UCS2 data coding scheme is

used: ME/TA converts each 8-bit octet into two IRA

character long hexadecimal number.

<dcs> Depending on the command or result code: GSM 03.38 SMS

Data Coding Scheme (default 0), or Cell Broadcast Data

Coding Scheme in integer format.

<fo> Depending on the command or result code: first octet of

GSM 03.40 SMS-DELIVER, SMS-SUBMIT (default 17),

SMS-STATUS-REPORT, or SMS-COMMAND (default 2) in

integer format.

<length> Integer type value indicating in the text mode (+CMGF=1)

the length of the message body <data> (or <cdata>) in

characters; or in PDU mode (+CMGF=0), the length of the

actual TP data unit in octets (i.e. the RP layer SMSC

address octets are not counted in the length).

<mid> GSM 03.41 CBM Message Identifier in integer format.

108 AT Commands

Revision 1.8 P/N 90023363

<oa> GSM 03.40 TP-Originating-Address, Address-Value field in

string format; BCD numbers (or GSM default alphabet

characters) are converted to characters; type of address

given by <tooa>.

<pdu> In the case of SMS: GSM 04.11 SC address followed by

GSM 03.40 TPDU in hexadecimal format: ME/TA converts

each octet of TP data unit into two IRA character long

hexadecimal number (e.g. octet with integer value 42 is

presented to TE as two characters 2A (IRA 50 and 65). In

the case of CBS: GSM 03.41 TPDU in hexadecimal format.

<sca> GSM 04.11 RP SC address Address Value field in string

format; BCD numbers (or GSM default alphabet characters)

are converted to characters; type of address given by

<tosca>.

<stat> 0 “REC UNREAD” Received unread messages

1 “REC READ” Received read messages

2 “STO UNSENT” Stored unsent messages

3 “STO SENT” Stored sent messages

4 “ALL” All messages

<toda> GSM 04.11 TP-Destination-Address Type-of-Address octet

in integer format (when first character of <da> is + (IRA 43)

default is 145, otherwise default is 129)

<tooa> GSM 04.11 TP-Originating-Address Type-of-Address octet

in integer format (default refer<toda>).

<tosca> GSM 04.11 RP SC address Type-of-Address octet in integer

format (default refer <toda>).

<vp> depending on SMS-SUBMIT <fo> setting: GSM 03.40 TP-

Validity-Period either in integer format (default 167) or in

time-string format (refer <dt>)

Example: Input Output

Te s t AT+CMGR=? +CMGR: list of supported <index>s OK

AT+CMGW

Description: WRITE SMS MESSAGE TO MEMORY

Transmits SMS message from terminal to memory storage. Memory

location of the stored message is returned. By default message status

will be set to 'stored unsent', but parameter allows other status values to

be given.

Syntax:

TEXT MODE: AT+CMGS=[<oa/da>[,<tooa/toda>]]<cr> MESSAGE TEXT

<ctrlZ>

PDU MODE: AT+CMGW==<length><cr> PDU IS GIVEN <ctrlZ>

SENDS MESSAGE <ctrlZ>

AT Commands 109

P/N 90023363 Revision 1.8

EXITS WITHOUT SENDING <esc>

Parameters:

<oa> GSM 03.40 TP-Originating-Address, Address-Value field in

string format; BCD numbers (or GSM default alphabet

characters) are converted to characters; type of address

given by <tooa>

<da> GSM 03.40 TP-Destination-Address, Address-Value field in

string format; BCD numbers (or GSM default alphabet

characters) are converted to characters; type of address

given by <toda>

<tooa> GSM 04.11 TP-Originating-Address Type-of-Address octet

in integer format (default refer <toda>).

<toda> GSM 04.11 TP-Destination-Address Type-of-Address octet

in integer format (when first character of <da> is + (IRA 43)

default is 145, otherwise default is 129)

<length> Integer type value indicating in the text mode (+CMGF=1)

the length of the message body <data> (or <cdata>) in

characters; or in PDU mode (+CMGF=0), the length of the

actual TP data unit in octets (i.e. the RP layer SMSC

address octets are not counted in the length)

<pdu> In the case of SMS: GSM 04.11 SC address followed by

GSM 03.40 TPDU in hexadecimal format: ME/TA converts

each octet of TP data unit into two IRA character long

hexadecimal number (e.g. octet with integer value 42 is

presented to TE as two characters 2A (IRA 50 and 65)). In

the case of CBS: GSM 03.41 TPDU in hexadecimal format.

<index> Index of message in selected storage <mem2>

Response: If writing is successful: +CMGW: <index> OK

If error is related to ME functionality: +CMS ERROR: <err>

Example: Input Output

Tes t AT+CMGW=? OK

AT+CMSS

Description: SEND STORED SMS MESSAGE

Sends message with location value <index> from message storage

<mem2> to the network (SMS-SUBMIT). If new recipient address <da> is

given, it shall be used instead of the one stored with the message.

Reference value <mr> is returned to the TE on successful message

delivery. Values can be used to identify message upon unsolicited

delivery status report result code.

Syntax: AT+CMSS=<index>[,<da>[,<toda>]]

Parameters:

110 AT Commands

Revision 1.8 P/N 90023363

<index> integer type; value in the range of location numbers

supported by the associated memory

<da> GSM 03.40 TP-Destination-Address, Address-Value field in

string format; BCD numbers (or GSM default alphabet

characters) are converted to characters; type of address

given by <toda>

<toda> GSM 04.11 TP-Destination-Address Type-of-Address octet

in integer format (when first character of <da> is + (IRA 43)

default is 145, otherwise default is 129)

<mr> GSM 03.40 TP-Message-Reference in integer format

Response: If text mode(+CMGF=1) and sending successful: +CMGS: <mr> OK

If PDU mode(+CMGF=0) and sending successful: +CMGS: <mr> OK

If error is related to ME functionality: +CMS ERROR: <err>

Example: Input Output

Te s t AT+CMSS=? OK

AT+CMUT

Description: This command is used to enable and disable the uplink voice muting

during a voice call.

Syntax: AT+CMUT=<n>

Parameters:

<n> 0 mute off

1 mute on

Response:

Query +CMUT: <n>+CME ERROR: <err>

Te s t +CMUT: (list of supported <n>s)

AT+CMUX

Description: This command is used to enable/disable the GSM 07.10 multiplexing

protocol control channel.

Syntax: AT+CMUX=<mode>

Parameters:

<mode> 0 Basic option (i.e. No multiplexer in operation)

1 Advanced option (GSM 07.10 multiplexer)

2 Proprietary option (manufacturer specific

multiplexer)

Response:

AT Commands 111

P/N 90023363 Revision 1.8

Query +CMUX: <mode>+CME ERROR: <err>

Test +CMUX: (list of supported <mode>s)

AT+CNMI

Description: SMS MESSAGE ARRIVAL INDICATION

Selects the procedure for receiving of new messages from the network.

Indicates to the TE when TE is active, e.g. DTR signal is ON. If TE is

inactive (e.g. DTR signal is OFF), message receiving should be done as

specified in GSM 03.38.

Syntax: AT+CNMI = [<mode>[,<mt>[,<bm>[,<ds>[,<bfr>]]]]]

Parameters:

<mode> 0 Buffer unsolicited result codes in the TA. If TA result

code buffer is full, indications can be buffered in

some other place or the oldest indications may be

discarded and replaced with the new received

indications.

1 Discard indication and reject new received message

unsolicited result codes when TA-TE link is reserved

(e.g. in on-line data mode). Otherwise forward them

directly to the TE.

2 Buffer unsolicited result codes in the TA when TA-TE

link is reserved (e.g. in on-line data mode) and flush

them to the TE after reservation. Otherwise forward

them directly to the TE.

3 Forward unsolicited result codes directly to the TE.

TA-TE link specific in band technique used to embed

result codes and data when TA is in on-line data

mode.

<mt> The rules for storing received SMs depend on its

data coding scheme (refer GSM 03.38 [2], preferred

memory storage (+CPMS) setting and this value:

0 No SMS-DELIVER indications are routed to the TE.

1 If SMS-DELIVER is stored into ME/TA, indication of

the memory location is routed to the TE using

unsolicited result code: +CMTI: <mem>,<index>

2 SMS-DELIVERs (except class 2) are routed directly

to the TE using unsolicited result code: +CMT:

[<alpha>],<length><cr><LF><pdu> (PDU mode

enabled) or +CMT: <oa>, [<alpha>],<scts>

[,<tooa>,<fo>,<pid>,<dcs>,<sca>,<tosca>,<length>]

<cr><LF><data> (text mode enabled; about

112 AT Commands

Revision 1.8 P/N 90023363

parameters in italics, refer command Show Text

Mode Parameters +CSDH). Class 2 messages

result in indication as defined in <mt>=1.

3 Class 3 SMS-DELIVERs are routed directly to TE

using unsolicited result codes defined in <mt>=2.

Messages of other classes result in indication as

defined in <mt>=1.

<bm> The rules for storing received CBMs depend on its

data coding scheme (refer GSM 03.38 [2]), the

setting of Select CBM Types (+CSCB) and the

following values:

0 No CBM indications are routed to the TE.

2 New CBMs are routed directly to the TE using

unsolicited result code: +CBM:

<length><cr><LF><pdu> (PDU mode enabled) or

+CBM:

<sn>,<mid>,<dcs>,<page>,<pages><cr><LF><data

> (text mode enabled).

<ds> 0 No SMS-STATUS-REPORTs are routed to the TE.

1 SMS-STATUS-REPORTs are routed to the TE using

unsolicited result code: +CDS:

<length><cr><LF><pdu> (PDU mode enabled) or

+CDS: <fo>,<mr>,[<ra>],[<tora>],<scts>,<dt>,<st>

(text mode enabled)

<bfr> 0 TA buffer of unsolicited result codes defined within

this command is flushed to the TE when <mode>

1...3 is entered (OK response shall be given before

flushing the codes).

1 TA buffer of unsolicited result codes defined within

this command is cleared when <mode> 1...3 is

entered.

Response: OK

Unsolicited Response:

+CMTI: <mem>,<index> Indication that new message has

been received

+CMT: ,<length><cr><LF><pdu> Short message is output directly

+CBM: <length><cr><LF><pdu> Cell broadcast message is output

directly

Example: Input Output

Te s t AT+CNMI=? OK

AT+CNUM

Description: SUBSCRIBER NUMBER

AT Commands 113

P/N 90023363 Revision 1.8

This is a query command is used to retrieve the current subscriber

number and associated information.

Syntax: AT+CNUM

<alphax> optional alphanumeric string associated with

<numberx> used character set should be the one selected with

commandSelect TE Character Set +CSCS

<numberx> string type phone number of format specified by <typex>

<typex> type of address octet in integer format (refer GSM 04.08 [8]

subclause 10.5.4.7)

<speed> as defined by the +CBST command

<service> service related to the phone number

0 asynchronous modem

1 synchronous modem

2 PAD Access (asynchronous)

3 Packet Access (synchronous)

4Voice

5Fax

<itc> information transfer capability

03.1 kHz

AT+COLP

Description: CONNECTED LINE IDENTIFICATION PRESENTATION

TA enables or disables the presentation of the COL(Connected Line) at

the TE for a mobile originated call. It has no effect on the execution of the

supplementary service COLR in the network. Intermediate result code is

returned from TA to TE before any +CR or V.25ter responses.

Syntax: AT+COLP=[<n>]

114 AT Commands

Revision 1.8 P/N 90023363

Parameters:

<n> 0 disable

1 enable

<m> 0 COLP not provisioned

1 COLP provisioned

2 Unknown (e.i no network)

Response: +COLP:,NUMBER>,<TYPE>[,SUBADDR>,SATYPE>[,<ALPHA>]]

<number> string type phone number of format specified by <type>

<type> type of address octet in integer format; 145 when dialing

string includes international access code character "+",

otherwise 1

<subaddr> string type sub address of format specified by <satype>

<satype> type of sub address octet in integer format (refer GSM

04.08 [8] sub clause 10.5.4.8)

<alpha> optional string type alphanumeric representation of

<number> corresponding to the entry found in phone book

Example: Input Response

Query AT+COLP? +COLP:<n>,<m> OK

Te s t AT+COLP=? +COLP:(List of supported <n>s) OK

AT+COPN

Description: READ OPERATOR NAME

Execute command returns the list of operator names from the ME. Each

operator code that has an alphanumeric equivalent in the ME memory

shall be returned.

Syntax: AT+COPN

Parameters: <numericn>: string type;operator in numeric format

<alphan>: string type;operator in long alphanumeric format

Response: +COPN: <numeric1>, <alpha>

[<CR><LF>+COPN: <numeric2>, <alpha2>[...]]

AT Commands 115

P/N 90023363 Revision 1.8

AT+COPS

Description: OPERATOR SELECTION

SET forces an attempt to select and register the GSM network operator. If

the selected operator is not available, no other operator shall be selected

(except <mode>=4). The selected operator name format shall apply to

further read commands (+COPS?).

QUERY returns a list of quadruplets, each representing an operator

present in the network. The formats may be unavailable, in this case the

field should be empty. The list of operators shall be in order: home

network, networks referenced in SIM, and other networks.

Syntax: AT+COPS = <mode>[, <format>[, <oper>]]

Parameters:

<oper> operator in format as per <mode>

<mode> 0 automatic mode; <oper> field is ignored

1 manual operator selection; <oper> field shall be

present

2 manual de-register from network

3 set only <format> (for read command +COPS?) – not

shown in Read command response

4 manual/automatic selected; if manual selection fails,

automatic mode (<mode>=0) is entered

<format> 0 long format alphanumeric <oper>;can be up to 16

characters long

1 short format alphanumeric <oper>

2 numeric <oper>; GSM Location Area Identification

number

Response: +COPS: (<stat>, <oper>, <oper>)s [,,(<mode>s),(<format>s)]

<stat> 0 unknown

1 operator available

2 operator current

3 operator forbidden

<oper> operator in format as per <mode>

<mode> 0 automatic mode; <oper> field is ignored

1 manual operator selection; <oper> field

2 manual de-register from network

3 set only <format> (for read command +COPS?) – not

shown in Read command response

116 AT Commands

Revision 1.8 P/N 90023363

4 manual/automatic selected; if manual selection fails,

automatic mode (<mode>=0) is entered

<format> 0 long format alphanumeric <oper>;can be up to 16

characters long

1 short format alphanumeric <oper>

2 numeric <oper>; GSM Location Area Identification

number

Example: Input Response

Query AT+COPS? List of supported <stat>,

<oper>,<mode>,<format> OK

Te s t AT+COPS=? +COPS: <mode>[,<format>[,<oper>]] OK

AT+CPAS

Description: MOBILE EQUIPMENT ACTIVITY STATUS

Returns the current equipment activity status.

Syntax: AT+CPAS

Parameters: None

Response: +CPAS: <pas> OK

0 ready

2 unknown (ME is not guaranteed to respond to instructions)

3 incoming call (ringing)

4 call in progress or call hold

Example: Input Response

Te s t AT+CPAS=? 4 OK

AT+CPBF

Description: PHONE BOOK, FIND ENTRIES

Returns phone book entries (from the current phone book memory

storage selected with +CPBS) containing alphanumeric string <findtext>.

Syntax: AT+CPBF=<findtext>

Parameters: Findtex - An ASCII string which may or may not be contained in the

phone book.

Response: [+CPBF: <index1>,<number>,<type>,<text>[[...]<cr><LF>

+CBPF: <index2>,<number>,<type>,<text>] OK]<index1>

<index1> integer type values in the range of location numbers of

phone book memory

AT Commands 117

P/N 90023363 Revision 1.8

<index2> integer type values in the range of location numbers of

phone book memory

<number> string type phone number of format <type>

<type> type of address octet in integer format ; 145 when dialling

string includes international access code character “+“,

otherwise 129

<findtext> string type field of maximum length <tlength>

<text> string type field of maximum length <tlength>

<nlength> integer type value indicating the maximum length of field

<tlength> integer type value indicating the maximum length of field

<text>

Example: Input Response

Query AT+CPBF=? OK

Tes t +CPBF: [<nlength)],[<tlength>] OK

AT+CPBR

Description: PHONE BOOK READ

Returns phone book entries in location number range <index1>...

<index2> from the current phone book memory storage selected with

+CPBS. If <index2> is left out, only location <index1> is returned.

Syntax: AT+CPBR = <index1>[, <index2>]

Parameters:

<index1> read as of this location number

<index2> read to this location number

<number> phone number

<type> type of number

<text> text for phone number

Response: +CPBR: <index1>, <number>, <type>, <text>[<cr><LF>+CPBR:

.....+CPBR: <index2>, <number>, <type>, <text>] OK

Example: Input Response

Tes t AT+CPBR=? +CPBR: (<index>s), <nlength>, <tlength>

118 AT Commands

Revision 1.8 P/N 90023363

AT+CPBS

Description: PHONE BOOK STORAGE SELECTIONS

Selects current phone book memory storage, which is used by other

phone book commands.

Syntax: AT+CPBS=<storage>

Parameters:

<storage> DC Modem dialed calls list (+CPBW may not be

applicable for this storage)

FD SIM fix dialing-phone book

LD SIM last-dialing-phone book

ON SIM (or ME) own numbers (MSISDNs) list

SM SIM phone book

Example: Input Response

Query AT+CPBS? <storage> OK

Te s t AT+CPBS=? list of supported <storage>s OK

AT+CPBW

Description: PHONE BOOK WRITE ENTRY

This command writes phone book entry in location number <index> in the

current phone book memory storage selected with +CPBS. Entry fields

written are phone number <number> (in the format <type>) and text

<text> associated with the number. If those fields are omitted, phone

book entry is deleted. If <index> is limited, but <number> is given, entry

is written to the first free location in the phone book.

Syntax: AT+CPBW = [<index>], [<number>, [<type>, [<text>]]]

Parameters:

<nlength> max. length of phone number

<tlength> max. length of text for number

<index> location number

<number> phone number

<type> type of number; e.g. 145 when dialing string includes

international access code character "+", otherwise 129

<text> text for phone number

Response: +CPBW: (<index>s),<nlength>,( <typ>s),<tlength> OK

AT Commands 119

P/N 90023363 Revision 1.8

Example: Input Response

Tes t AT+CPBW+? (<index>s),<nlength>,( <typ>s),<tlength>

The following characters in <text> must be entered via the escape

sequence:

GSM Char Seq. Seq.(hex) Note

\ \5C 5C 35 43 (backslash)

“ \22 5C 32 32 (string delimiter)

BSP \08 5C 30 38 (backspace)

NULL \00 5C 30 30 (GSM null)

‘0’ (GSM null) may cause problems for application layer software when

reading string lengths.

AT+CPIN

Description: ENTER PIN

Stores a password which is necessary before it can be operated (SIM

PIN, SIM PUK, PH?SIM PIN, etc.). If the PIN is to be entered twice, the

TA shall automatically repeat the PIN. If no PIN request is pending, no

action is taken and an error message, +CME ERROR, is returned to TE. If

the PIN required is SIM PUK or SIM PUK2, the second pin is required.

This second pin, <newpin>, is used to replace the old pin in the SIM.

Syntax: AT+CPIN=<pin>[, <new pin>]

Parameters:

<pin> string type; password

<new pin> string type; If the PIN required is SIM PUK or SIM PUK2:

new password

Response: +CPIN: <code> OK

READY no further entry needed

SIM PIN ME is waiting for SIM PIN

SIM PUK ME is waiting for SIM PUK

PH_SIM PIN ME is waiting for phone to SIM card (antitheft)

PH_SIM PUK ME is waiting for SIM PUK (antitheft)

SIM PIN2 PIN2, e.g. for editing the FDN book possible only if

preceding command was acknowledged with +CME

ERROR:17

120 AT Commands

Revision 1.8 P/N 90023363

SIM PUK2 possible only if preceding command was acknowledged

with error +CME ERROR:18.

Example: Input Response

Query AT+CPIN? <code> OK

Te s t AT+CPIN=? OK

AT+CPMS

Description: PREFERRED SMS MESSAGE STORAGE

Selects memory storages <mem1>, <mem2> and <mem3> to be used for

reading, writing.

Syntax: AT+CPMS = <mem1>[,<mem2>[,<mem3>]]

Parameters:

<mem1> Messages to be read and deleted from this memory storage

"SM" SIM message storage

<mem2> Messages will be written and sent to this memory storage

"SM" SIM message storage

<mem3> Received messages will be placed in this memory storage if

routing to PC is not set "+CNMI") "SM" SIM message

storage

<usedx> Number of messages currently in <memx>

<totalx> Number of messages storable in <memx>

Response: +CPMS: <used1>,<total1>,<used2>,<total2>,<used3>,<total3> OK

Example:

Input Response

Test: AT+CPMS=? list of supported <mem1>s OK

list of supported <mem2>s OK

list of supported <mem3>s OK

Query: AT+CPMS=?

CPMS:<mem1>,<used1>,<total1>,<mem2>,

<used2>,<total2>,<mem3>,<used3>,<total

3>OK

AT+CPOL

Description: PREFERRED OPERATOR LIST

This command is used to edit the SIM preferred list of networks. Execute

command writes an entry in the SIM list of preferred operators. If <index>

is given but <oper> is left out, entry is deleted. If <oper> is given but

<index> is left out, <oper> is put in the next free location. If only <format>

is given, the format of the <oper> in the read command is changed.

AT Commands 121

P/N 90023363 Revision 1.8

Syntax: AT+CPOL=[<index>][,<format>[,<oper>]]

Parameters:

<index> integer type: order number of operator in SIM preferred

operator list

<format> 0 long format alphanumeric <oper>

1 short format alphanumeric <oper>

2 numeric <oper><oper>string type:

<format> indicates whether alphanumeric or numeric format used

(see +COPS command)

Response:

Query AT+CPOL <index1>,<format>,<oper1>[<CR><LF>+CPOL:

<index2>,<format>,<oper2>[…]]+CME ERROR: <err>

Tes t AT+CPOL? (list of supported <index>s),(list of supported <format>s)

AT+CPUC

Description: PRICE PER UNIT AND CURRENCY TABLE SETTING

This command sets the conversion from minutes of use to the local

currency cost.

Syntax: AT+CPUC=<currency>,<ppu>[,<passwd>]

Parameters:

<currency> string type; three-character currency code (e.g. "GBP",

"DEM"); character set as specified by command Select TE

Character Set +CSCS

<currency> string type; price per unit; dot is used as a decimal

separator (e.g. "2.66")

<passwd> string type; SIM PIN2

Response: OK

Query AT+CPUC <currency>,<ppu>+CME ERROR: <err>

Tes t AT+CPUC? <err>

AT+CPWD

Description: PASSWORD CHANGE

Sets a new password for the facility lock function.

Syntax: AT+CPWD = <fac>, [<oldpwd>], <newpwd>

Parameters:

<fac> SC SIM (lock SIM card) (SIM asks password in ME

power-up and when this lock command issued)

122 AT Commands

Revision 1.8 P/N 90023363

AO BAOC (Barr All Outgoing Calls) (refer GSM02.88[6]

clause 1)

OI BOIC (Barr Outgoing International Calls) (refer

GSM02.88[6] clause 1)

OX BOIC-exHC (Barr Outgoing International Calls

except to Home Country) (refer GSM02.88[6] clause

AI BAIC (Barr All Incoming Calls) (refer GSM02.88[6]

clause 2)

IR BIC-Roam (Barr Incoming Calls when Roaming

outside the home country) (refer GSM02.88 [6]

clause 2)

AB All Barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

AG All outGoing barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

AC All inComing barring services (refer GSM02.30[19])

(applicable only for <mode>=0)

P2 SIM PIN2<oldpwd> password specified for the

facility from the user interface or with command. If

an old password has not yet been set, <oldpwd> is

not to enter.

<newpwd> new password

<pwdlength> integer max. length of password

Response: +CPWD: (<fac>, <pwdlength>)s OK

Example: Input Response

Te s t AT+CPWD=? list of supported <fac>s,<pwdlength>s OK

AT Commands 123

P/N 90023363 Revision 1.8

AT+CR

Description: REPORTING CONTROL

Controls whether or not intermediate result code +CR: <serv> is returned

from the TA to the TE at a call set up. If enabled, an intermediate result

code is transmitted at the point during connect negotiation at which the TA

has determined which speed and quality of service will be used, before

any error control or data compression reports are transmitted, and before

any final result code (e.g. CONNECT) is transmitted.

Syntax: AT+CR=<mode>

Parameters:

0disable

1 enable

Response: +CR:<serv>

ASYNC asynchronous transparent

SYNC synchronous transparent

REL ASYNC asynchronous non-transparent

REL SYNC synchronous non-transparent

Example: Input Response

Query AT+CR? <mode> OK

Tes t AT+CR=? +CR:(0-1) OK

AT+CRC

Description: RESULT CODES, SET CELLULAR CODES FOR INCOMING CALL

INDICATION

Controls whether or not the extended format of incoming call indication is

used.

When enabled, an incoming call is indicated to the TE with unsolicited

result code +CRING: <type> instead of the normal RING.

ASYNC asynchronous transparent

SYNC synchronous transparent

REL ASYNC asynchronous non-transparent

REL SYNC synchronous non-transparent

FAX facsimile

VOICE voice

Syntax: AT+CRC=<mode>

124 AT Commands

Revision 1.8 P/N 90023363

Parameters:

<mode> 0 disable extended format

1 enable extended format

Response: OK

Example: Input Response

Query AT+CRC? 129 OK

Te s t AT+CRC=? 129,145 OK

AT+CREG

Description: REGISTRATION INDICATION

Returns the status of result code presentation and an integer <stat>

which shows whether the network has currently indicated the registration

of the ME. Location information elements <lac> and <ci> are returned

only when <n>=2 and ME is registered in the network.

Syntax: AT+CREG=[<n>]

Parameters:

<n> 0 disable network registration unsolicited result code

1 enable network registration unsolicited result code

+CREG: <stat>

<stat> 0 not registered, ME is not currently searching a new

operator to register to

1 registered, home network

2 not registered, but ME is currently searching a new

operator to register to

3 registration denied

4 unknown

5 registered, roaming

Response: +CREG: <n>,<stat> OK

Example: Input Response

Query AT+CREG? <n>,<stat> OK

Te s t AT+CREG=? list of supported <n>s OK

AT+CRES

Description: RESTORE MESSAGE SERVICE SETTINGS

This command restores SMS settings for +CMGF, +CNMI, +CSDH from

non-volatile memory to active memory.

AT Commands 125

P/N 90023363 Revision 1.8

Syntax: AT+CRES[=<profile>]<CR>

Parameters:

<profile> manufacturer specific profile number where settings are to

be stored

Response:

Tes t AT+CRESAS=?<CR> list of supported <profile>s OK

AT+CRLP

Description: RADIO LINK PROTOCOL SELECT

Sets radio link protocol (RLP) parameters used when non-transparent

data calls are setup, returns values supported. RLP versions 0 and 1

share the same parameter set. TA returns only one line for this set (where

<verx> is not present).

Syntax: AT+CRLP=[<iws>[,<mws>[,<T1>[,<N2>[,<ver>[,<T4>]]]]]]

Parameters:

<iws> 0 6I 255 Interworking window size (IWF to MS)

<mws> 0 6I 255 Mobile window cesiums to IWF)

<T1> 0 48 255 acknowledgment timer T1 in 10 ms units)

<N2> 0 6 255 retransmission attempts N2

<verx> 0-1 RLP version number in integer format; when

version indication is not present it shall equal

0. Versions 0 and 1 share the same

parameter set.

<T4> 0-3-255 Re-sequencing period in integer format, in

units of 10 ms. This is NOT used for RLP

versions 0 and 1.

Response: +CRLP: <iws>,<mws>,<T1>,<N2>,<ver1>,<T4>

Example: Input Response

Query AT+CRLP? returns current settings for RLP version.

RLP versions 0 and 1 share the same

parameter set. TA returns only one line for

this set (where <verx> is not present)

Tes t AT+CRLP=? list of possible settings. OK

AT+CRSL

Description: RINGER SOUND LEVEL

This command sets the ring volume for a phone or voice device.

126 AT Commands

Revision 1.8 P/N 90023363

Syntax: AT+CRSL=<level>

Parameters:

<level> integer type value with manufacturer specific range

(smallest value represents the lowest sound level)

Response:

Query +CRSL: <level>+CME ERROR: <err>

Te s t +CRSL: (list of supported <level>s)+CME ERROR: <err>

AT+CSAS

Description: RESTORE MESSAGE SERVICE SETTINGS

Restores SMS settings for +CMGF, +CNMI, +CSDH from non-volatile

memory to active memory.

Syntax: AT+CSAS[=<profile>]

Parameters: <profile>manufacturer specific profile number where settings are to

be stored

Response: OK

Example: Input Response

Te s t AT+CSAS=? list of supported <profile>s OK

AT+CSCA

Description: SMS SERVICE CENTER ADDRESS

Updates the SMSC address, through which mobile originated SMs are

transmitted. In text mode, setting is used by send and write commands.

In PDU mode, setting is used by the same commands, but only when the

length of the SMSC address coded into <pdu> parameter equals zero.

This command writes the parameters in the NON-VOLATILE memory.

Syntax: AT+CSCA = <sca>[,<tosca>]

Parameters:

<sca> GSM 04.11 RP SC address Address-Value field in string

format; BCD numbers (or GSM default alphabet characters)

are converted to characters; type of address given by

<tosca>

AT Commands 127

P/N 90023363 Revision 1.8

<tosca> Service center address format GSM 04.11 RP SC address

Type-of-Address octet in integer format default refer

<toda>)

Response: OK

Example: Input Response

Query AT+CSCA? +CSCA:<sca>,<tosca> OK

Tes t AT+CSCA=? OK

AT+CSCB

Description: CELL BROADCAST MESSAGE SELECTION

Selects which types of cell broadcast messages that are to be received by

the device.

The command writes the parameters in NON-VOLATILE memory.

Syntax: AT+CSCB=[<mode>[,mids>[,<dcss>]]]

Parameters:

<mode> 0 message types specified in <mids> and <dcss> are

accepted

1 message types specified in <mids> and <dcss> are

not accepted

<mids> string type; all different possible combinations of

CBM message identifiers (refer <mid>) (default is

empty string); e.g. "0,1,5,320-478,922".

<dcss> string type; all different possible combinations of

CBM data coding schemes (refer <dcs>) (default is

empty string); e.g. "0-3,5".

Response: +CSCB: <mode>,<mids>,<dcss> OK

Example: Input Response

Query AT+CSCB? +CSCB: <mode>,<mids>,<dcss> OK

Tes t AT+CSCB=? list of supported <mode>s OK

AT+CSCS

Description: SELECT CHARACTER SET

128 AT Commands

Revision 1.8 P/N 90023363

Sets which character set <chset> is used by the TE. The TA can then

convert character strings correctly between the TE and ME character

sets.

Syntax: AT+CSCS=[<chset>]

Parameters: CHSETGSM

Response: OK

Example: Input Response

Query AT+CSCS? GSM OK

Te s t AT+CSCS=? (GSM) OK

AT+CSDH

Description: SHOW SMS TEXT MODE PARAMETERS

Determines whether detailed header information is shown in text mode

result codes.

Syntax: AT+CSDH=<show>

Parameters:

<show> 0 do not show header values defined in commands

+CSCA and +CSMP (<sca>, <tosca>, <fo>, <vp>,

<pid> and <dcs>) nor <length>, <toda> or <tooa> in

+CMT, +CMGL, +CMGR result codes in text mode

1 show the values in result codes

Response: OK

Example: Input Response

Query AT+CSDH? +CSDH: <show> OK

Te s t AT+CSDH=? list of supported <show>s OK

AT+CSIM

Description: GENERIC SIM ACCESS

This command used to send a command to the SIM card/module and

return the appropriate response.

Syntax: AT+CSIM=<length>,<command>

Parameters:

<length> integer type: length of characters sent to the TE in

<command> or <response> (i.e. twice the number of octets

in the raw data)

<command> hex format: GSM 11.11 SIM command sent from the ME to

the SIM

AT Commands 129

P/N 90023363 Revision 1.8

Response: +CSIM: <command>,<response>

+CME ERROR: <err>

hex format: GSM 11.11 response from SIM to <command>

AT+CSMINS

Description: SIM REMOVAL/INSERTION ALERT

This command is used to set the method for reporting the transitions of

inserting and extracting the SIM from the carrier. It can also be used to

determine the current status of the SIM presence.

Syntax: AT+CSMINS=<n>

Parameters:

<n> 0 Disable unsolicited result code1Enable unsolicited result

code.

Response:

<n> 0 Disable unsolicited result code

1 Enable unsolicited result code

Query: AT+CSMINS?<n>, <inserted>Unsolicited result code:+CSMINS: <inserted>

Tes t : AT+CSMINS=? <inserted> 0 - SIM change inserted - removed

1 - SIM change removed - inserted

AT+CSMP

Description: SET SMS TEXT MODE PARAMETERS

This command selects values for additional parameters needed when SM

is sent to the network or placed in a storage when text mode is selected

(+CMGF=1). It is possible to set the validity period starting from when the

SM is received by the SMSC (<vp> is in range 0... 255) or define the

absolute time of the validity period termination (<vp> is a string).

This command writes the parameters to the NON-VOLATILE memory.

Syntax: AT+CSMP=[<fo>[<vp>[,pid>[,<dcs>]]]]

Parameters:

<fo> depending on the command or result code: first octet of

GSM 03.40 SMS-DELIVER, SMS-SUBMIT (default 17),

SMS-STATUS-REPORT, or SMS-COMMAND (default 2) in

integer format

130 AT Commands

Revision 1.8 P/N 90023363

<vp> depending on SMS-SUBMIT <fo> setting: GSM 03.40 TP-

Validity-Period either in integer format (default 167) or in

time-string format (refer <dt>)

Response: OK

Example: Input Response

Query AT+CSMP? +CSMP: <fo>,<vp> OK

Te s t AT+CSMP=? +CSMP: list of supported <fo>s and <vp>s

AT+CSMS

Description: SELECT MESSAGE SERVICE

Select the type of SMS service.

Syntax: AT+CSMS= <service>

Parameters:

<service> 0 GSM 03.40 and 03.41 (the syntax of SMS AT

commands is compatible with GSM 07.05 Phase 2

version 4.7.0; Phase 2+ features which do not

require new command syntax may be supported

(e.g. correct routing of messages with new Phase

2+ data coding schemes))

128 SMS PDU mode - TPDU only used for sending/

receiving SMSs.

Response: +CSMS: <mt>,<mo>,<bm> OK

Mobile Terminated Messages:

<mt> 0 Type not supported

1 Type supported

Mobile Originated Messages

<mo> 0 Type not supported

1 Type supported

Broadcast Type Messages:

<bm> 0 Type not supported

1 Type supported

Example: Input Response

Query AT+CSMS? As above

Te s t AT+CSMS=? list of supported <services>s OK

AT Commands 131

P/N 90023363 Revision 1.8

AT+CSQ

Description: SIGNAL QUALITY REPORT

Execution command returns received signal strength indication and

channel bit error rate from the modem. Test command returns values

supported by the modem.

Syntax: AT+CSQ<cr>

Parameters: None

Response: +CSQ: <rssi>,<ber>

RSSI (in dBm) = (<rssi> X 2) –113 (FOR 0<= <rssi> <=31)

RSSI (in dBm) = -51 (FOR 31<= <rssi> <=98)

(FOR 99<= <rssi>) rssi is not known or not detectable

BER 0...7 as RXQUAL values in the table in GSM 05.08 [20] sub clause

8.2.4

BER 99 not known or not detectable

Example: Input Response

Tes t AT+CSQ=? list of RSSI and BLER OK

AT+CSSN

Description: SUPPLEMENTARY SERVICE NOTIFICATION

AT+CSTA

Description: SELECT TYPE OF ADDRESS

Selects the type of number for further dialing commands (ATD) according

to GSM specifications. The data services software only supports default

settings.

Syntax: AT+CSTA=[<type>]

Parameters:

Type 129 Type Unknown

145 Type International

Response: OK

Example: Input Response

Tes t AT+CSTA? 129 OK

Query AT+CSTA=? (129,145) OK

132 AT Commands

Revision 1.8 P/N 90023363

AT+CUSD

Description: UNSTRUCTURED SUPPLEMENTARY SERVICE DATA

This command sets the Unstructured response format as well as being

used to query the device with regards to the current session status.

Syntax: AT+CUSD=[<n>[,<str>[,<dcs>]]]

Parameters:

<n> 0 disable result code presentation in the TA

1 enable result code presentation in the TA

2 cancel session<str>string type: USSD string (see GSM

07.07 for use)

<dcs> integer type: GSM 03.38 Cell Broadcast Data Coding

Scheme

<m> 0 no further user action required

0 further user action required

1 USSD terminated by network

2 other local client has responded

3 operation not supportednetwork time out

Response:

Query: AT+CUSD? <n>+CME ERROR: <err>

Te s t : AT+CUSD=? (list of supported <n>s)

AT+DR

Description: DATA COMPRESSION REPORTING CONTROL

This command defines whether or not the result codes for the V.42bis

compression will be returned.

Syntax: AT+DR=[<n>][?]

Parameters: =[0, 1, ?], [?]

0 disables the compression result code reporting

1 enables the compression result code reporting

? queries the command and returns its current setting or displays the

valid values for the commands parameters

Response: AT+DR=[<n>], where value is 0 or 1, the command will return the

string OK.

AT+DR?, the command will return the strings:

+DR: <current command value, either 0 or 1>

AT Commands 133

P/N 90023363 Revision 1.8

AT+DR=?, the command will return the strings:

+DR: (0-1)

indicating the valid parameters for this command

If the result code reporting has been turned on, the following strings are

returned when the modem establishes a connection:

+DR: NONE data compression is not in use

+DR: V42B Rec. V42bis is in use in both direction

+DR: V42B RD Rec. V42bis is in use in receive direction only

+DR: V42B TD Rec. V42bis is in use in transmit direction only

AT+DS

Description: V.42bis COMPRESSION CONTROL

This command determines if the modem will use V.42bis data

compression and what the conditions of its use are after a call has been

set up. This command only works for data calls. During GSM connections,

data is transmitted transparently. The remote terminal adapter may or

may not support this compression. This command must be used in

conjunction with AT+CRLP command.

Syntax: AT+DS[=[<p0>,<n>,<p1>,<p2>]?]] [?]

Parameters:

<p0> defines the compression direction.

0No compression

1 transmit only

2 receive only

3 both directions, but allow for negotiation. This is the

default parameter.

<n> defines the V.42bis negotiation parameters.

0 allows negotiation of for compression to take place,

if allowed for in p0. This is the default parameter.

1 do not allow compression negotiation, even if

allowed for in p0. Instead, disconnect if there is a

difference.

<p1> defines the size of the dictionary. The valid value range is

512 to 2048. The default value is 512.

<p2> defines the maximum string size. The valid value range is 6

to 255. The default is 20.

134 AT Commands

Revision 1.8 P/N 90023363

? queries the command and returns its current setting or

displays the valid values for the commands parameters.

Response: AT+DS? is typed in, the modem will respond with a list of the

commands current settings. For example: +DS: 3,0,512,20 OK.

AT+DS=? is typed in, the modem will respond with a list of the valid value

rages for each of the command parameters. For example: +DS: (0-3),(0-

1),(512-1024),(6-64) OK.

AT+DS=<p0>,<n>,<p1>,<p2> is typed in, the modem will set each of the

parameters to the value defined in each parameter place holder and the

command will return the string OK.

Example: AT+DS=1,0,640,50<cr>

AT+DS=?<cr>

AT+DS?<cr>

AT+FCLASS

Description: FAX CLASS SET OR TEST

Sets a particular mode of operation (data, fax). This causes the TA to

process information in a manner suitable for that specific type of device.

Syntax: AT+FCLASS=<n>

Parameters:

0data

1 fax class 1 (TIA-578-A)

Response: +FCLASS: <n> OK

Example: Input Response

Te s t AT+FCLASS=? (0,1) OK

Query: AT+FCLASS? (0) OK

AT+FMI

Description: FAX MANUFACTURER IDENTITY REQUEST

Reports one or more lines of information text permitting the user to

identify the manufacturer.

Syntax: AT+FMI

Parameters: None

Response: <manufacturer Id> OK

AT Commands 135

P/N 90023363 Revision 1.8

Example: Input Response

Tes t AT+FMI=? OK

Query AT+FMI <manufacturer Id> OK

AT+FMM

Description: FAX MODEL IDENTITY REQUEST

Reports one or more lines of information text permitting the user to

identify the specific model of device.

Syntax: AT+FMM

Parameters: None

Response: <model Id> OK

Example: Input Response

Tes t AT+FMM=? OK

Query AT+FMM <model Id> OK

AT+FMR

Description: FAX VERSION IDENTITY REQUEST

Reports one or more lines of information text which permit the user to

identify the version, revision level or data or other information of the

device.

Syntax: AT+FMR

Parameters: None

Response: <Revision Id> OK

Example: Input Response

Tes t AT+FMR=? OK

Query AT+FMR <Revision

AT+GCAP

Description: REPORT ADDITIONAL CAPABILITIES

Modem reports a list of additional capabilities.

Syntax: AT+GCAP: <name>s ,<cr>

Parameters: None

Response: Not Applicable

Example: AT+GCAP<cr>

136 AT Commands

Revision 1.8 P/N 90023363

AT+GMI

Description: MANUFACTURER IDENTITY

Request for manufacturer identification.

Syntax: AT+GMI or ATI2

Parameters: None

Response: <MANUFACTURERS NAME/ID> OK

AT+GMM

Description: MODEM IDENTITY

Request TA model identification. Unit reports one or more lines of

information text which permits the user to identify the specific model of

device.

Syntax: AT+GMM or ATI3

Parameters: None

Response: <MODEL ID> OK

Example: Input Response

Te s t AT+GMM=? OK

Query AT+GMM <modem Id> OK

AT+GMR

Description: REVISION NUMBER / IDENTITY

This command reports the version, revision and date of the software or

firmware used in the device. It is also used to identify the software

version to facilitate easier tracking and code updates.

Syntax: AT+GMR or ATI1

Parameters: None

Response: <REVISION ID> OK

Example: Input Response

Query AT+GMR Software Version OE071-XX OK

Date: May 17, 2001, Time 10:58:12

Te s t AT+GMR=? OK

AT Commands 137

P/N 90023363 Revision 1.8

AT+GOI

Description: GLOBAL OBJECT IDENTITY

Reports one or more lines of information text which permits the user to

identify the device, based on the ISO system for registering unique object

identifiers.

Syntax: AT+GOI

Parameters: None

Response: NULL ID OK

<OBJECT ID> OK see X.208, 209 for the format

Example: AT+GOI=? <OBJECT ID> OK

AT+GSN

Description: SERIAL NUMBER IDENTITY

Reports the IMEI (international mobile equipment identifier) number in

information text which permits the user to identify the individual ME

device. The serial number (IMEI) is varied by individual ME device.

Syntax: AT+GSN

Parameters: None

Response: <SERIAL NUMBER> OK

Example: Input Response

Tes t AT+GSN=? OK

Query AT+GSN <serial number> OK

AT+ICF

Description: INTERFACE CHARACTER FRAMING

This command setting determines the serial interface character framing

format and parity received by TA from TE.

Syntax: AT+ICF=[<format>,[<parity>]]

Parameters:

<format> 1 8 data 0 parity 2 stop

2 8 data 1 parity 1 stop

3 8 data 0 parity 1 stop

4 7 data 0 parity 2 stop

5 7 data 1 parity 1 stop

6 7 data 0 parity 1 stop

138 AT Commands

Revision 1.8 P/N 90023363

<parity> 0 odd

1even

2 mark (1)

3 space (0)

The parity field is ignored if the format field specifies no parity.

Response: +ICF: <format>,<parity> OK

Example: Input Response

Te s t AT+ICF=? +ICF: <format>,<parity> OK

Query AT+ICF? <3,3> OK

AT+IFC

Description: LOCAL DATA FLOW CONTROL

This setting determines the data flow control on the serial interface for

data mode.

Syntax: AT+IFC=[<dce_by_dte>[,<dte_by_dce>]]

Parameters:

<dce_by_dte> specifies the method will be used by TE at receive

of data from TA

0None

1 XON/XOFF, don’t pass characters on to data

stack

2 line 133: Ready for Receiving

3 XON/XOFF, pass characters on to data stack

<dte_by_dce> specifies the method will be used by TA at receive of

data from TE

0 None

1 XON/XOFF

2 line 106: Clear to send (CTS)

Response: OK

Example: Input Response

Te s t AT+IFC=? OK

AT Commands 139

P/N 90023363 Revision 1.8

AT+ILRR

Description: LOCAL RATE REPORTING

This AT setting determines whether or not an intermediate result code of

local rate is reported at connection establishment. The rate is applied

after the final result code of the connection is transmitted to TE.

Syntax: AT+ILRR=<value>

Parameters:

Value 0 Disables reporting of local port rate

1 Enables reporting of local port rate

Response: <value> OK

Example: Input Response

Tes t AT+ILRR? <value> OK

AT+IPR

Description: FIXED LOCAL RATE

This parameter setting determines the data rate of the TA on the serial

interface. The rate of command takes effect following the issuance of any

result code associated with the current command line.

Syntax: AT+IPR=<rate>

Parameters:

<rate> port rate setting on call connection in Baud per second

300

1200

2400

4800

9600

19200

28800

38400

57600

115200

Response: OK

Example: AT+IPR=2400<cr>

Tes t AT+IPR=? <rate list> OK

Query AT+IPR? <rate> OK

140 AT Commands

Revision 1.8 P/N 90023363

AT+NWOPN

Description: READ OPERATOR NAMES

This command returns the list of operator names, stored in the SIM’s

ONS field, from the SIM Card.

Syntax: AT+NWOPN?

Parameters: None

Response: OK

Example: Operator Name: <Operator Name>

AT+NWRST

Description: RESET MODEM TO POWER-UP STATE

This command resets the modem to its power-up state. The mdoem will

be unresponsive for up to 6 seconds during the reset sequence. Any

characters sent to the modem during this time will be lost.

AT+NWSIM

Description: CHECK FOR SIM PRESENCE

AT+NWW

Description: WRAPPER STATUS

This command queries the status of the wrapper driver.

Syntax: AT+NWW<n>

Parameters:

<status=n> 0 Turns wrapping off

1 Turns wrapping on

Wrapper Protocol not supported by this build

Response: AT+NWW<n> OK

Input Response

Query AT+NWW? +NWW<n> OK

AT+VTD

Description: TONE DURATION (VOICE)

AT Commands 141

P/N 90023363 Revision 1.8

This command refers to an integer <n> that defines the length of tones

emitted as a result of the AT+VTS command in voice mode. This does not

affect the D command.

Syntax: AT+VTD = <duration>

Parameters:

<duration> 0 default setting (NO TONE)

1-255 duration of the tone in 1/10 seconds

Response: +VTD: <n> OK

Example: Input Response

Query AT+VTD? +VTD: <n> OK

Tes t AT+VTD=? List of supported <n>s OK

AT+VTS

Description: DTMF AND TONE GENERATION (VOICE)

This command allows the transmission of DTMF tones and arbitrary tones

in voice mode. These tones may be used when announcing the start of a

recording period.

Syntax: AT+VTS=<DTMF-string>

Parameters:

<dtmf-string> which has a max length of 20 characters, must be

entered between double quotes (“ “) and consists of

combinations of the following separated by commas:

1. <dtmf> A single ASCII characters in the set 0-

9,#,*,A-D. This is interpreted as a sequence of

DTMF tones whose duration is set by the +VTD

command.

2. {<dtmf>,<duration>} This is interpreted as a

DTMF tone whose duration is determined by

<duration>.

<duration> duration of the tone in 1/10 seconds range: 1-255

Response: OK

Example: Input Response

Tes t AT+VTS=? (List of supported parameters) OK

142 AT Commands

Revision 1.8 P/N 90023363

CME ERROR Codes for GSM 07.07 Commands

Final result code +CME ERROR: <err> indicates an error related to mobile equipment or

network, and that the command and any following commands were not executed. As no

commands were executed, no result should be expected.

Table 9: CME Error Codes below, lists and defines <err> values used by common

messaging commands.

Table 9: CME Error Codes

Code of <err> Definition

0 phone failure

1 no connection to phone

2 phone-adapter link reserved

3 operation not allowed

4 operation not supported

5 PH-SIM PIN required

6 PH-FSIM PIN required

7 PH-FSIM PUK required

10 SIM not inserted

11 SIM PIN required

12 SIM PUK required

13 SIM failure

14 SIM busy

15 SIM wrong

16 incorrect password

17 SIM PIN2 required

18 SIM PUK2 required

20 memory full

21 invalid index

22 not found

23 memory failure

24 text string too long

25 invalid characters in text string

26 dial string too long

27 invalid characters in dial string

30 no network service

AT Commands 143

P/N 90023363 Revision 1.8

CMS Error Codes for GSM 07.05 Commands

Final result code +CMS ERROR: <err> indicates an error related to mobile equipment or

network. The operation is similar to ERROR result code in that none of the commands in

the same command line are executed. Neither ERROR nor OK result code shall be

returned.

Table 10: CMS Error Codes below, lists and defines <err> values used by common

messaging commands.

Table 10: CMS Error Codes

31 network time out

32 network not allowed - emergency calls only

40 network personalization PIN required

41 network personalization PUK required

42 network subset personalization PIN required

43 network subset personalization PUK required

44 service provider personalization PIN required

45 service provider personalization PUK required

46 corporate personalization PIN required

47 corporate personalization PUK required

100 Unknown

101...255 Reserved

Code of <err> Definition

0...127 GSM 04.11 Annex E-2 values, see CME ERROR codes related

GSM 07.07

128...255 GSM 03.40 sub clause 9.2.3.22 values

300 ME failure

301 SMS service of ME reserved

302 operation not allowed

303 operation not supported

304 invalid PDU mode parameter

305 invalid text mode parameter

310 SIM not inserted

311 SIM PIN required

312 PH-SIM PIN required

313 SIM failure

144 AT Commands

Revision 1.8 P/N 90023363

314 SIM busy SIM wrong

315 SIM wrong

316 SIM PUK required

317 SIM PIN2 required

318 SIM PUK2 required

320 memory failure

321 invalid memory index

322 memory full

330 SMSC address unknown

331 no network service

332 network time-out

340 no +CNMA acknowledgment expected

500 unknown error

...511 other values in range 256...511 are reserved

512... manufacturer specific

513 Unread SM on SIM

Chapter 4: Firmware

Setup and Upgrades

Firmware is installed in all modems prior leaving the manufacturing facility.

Updates to firmware can be performed by downloading new code into the

modem.

Updating Expedite Firmware

To update the Expedite firmware you will require the Expedite Development Kit

Interface Board, shown below . The interface board will connect the Expedite

module to the host computer.

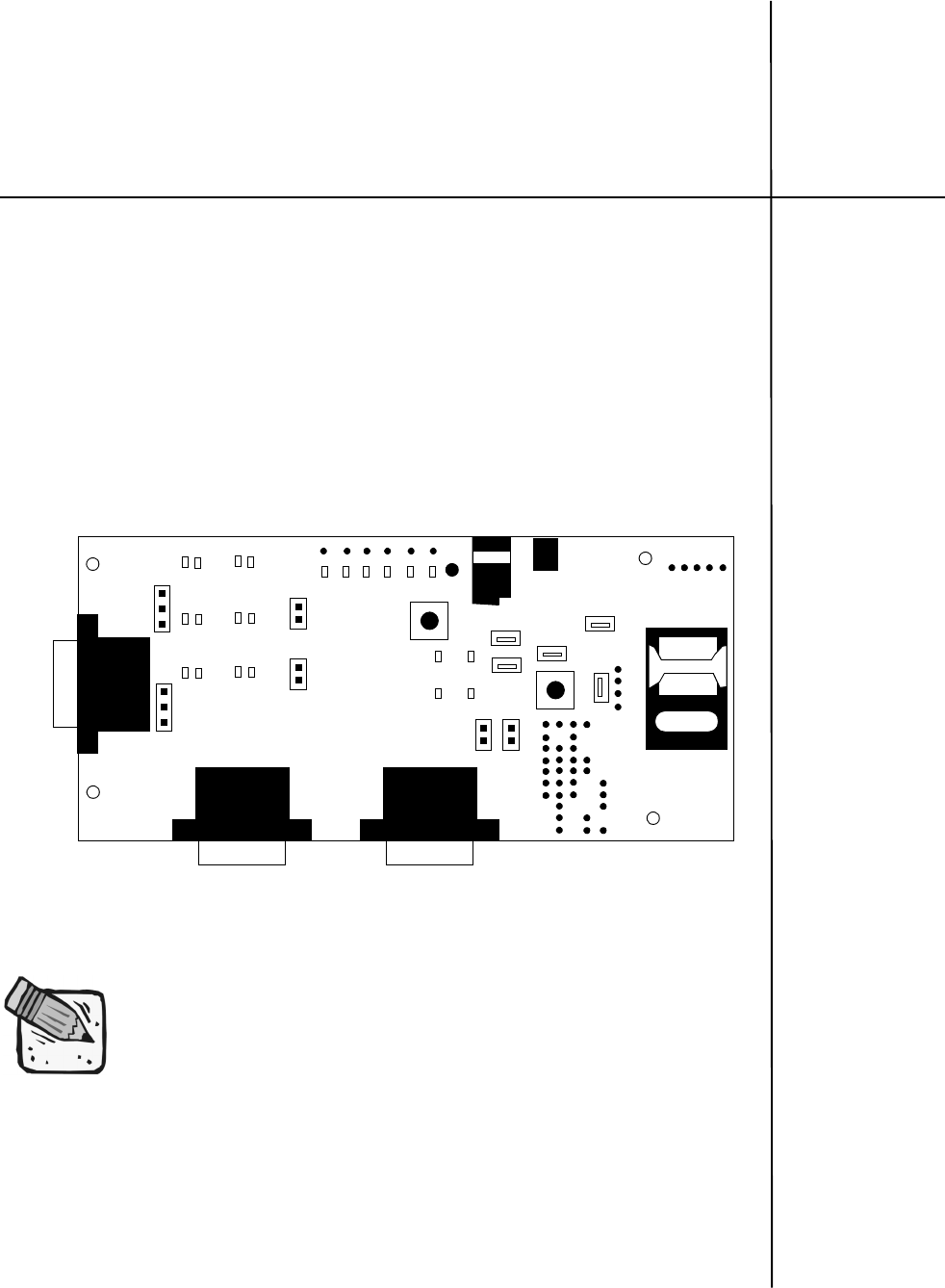

Figure 8: Expedite Development Kit Interface Board

These instructions may change for future product releases.

J106 J105

J107

Test Points

JP3

JP6

JP10

JP7

JP9 JP1

JP4

JP8

JP5

J15

JP2

SW101

SW100

SIM Card

Topics Included in this Chapter

Updating Expedite Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Updating Merlin Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

146 Firmware Setup and Upgrades

Revision 1.8 P/N 90023363

To update Expedite firmware:

1. Disconnect the interface board from the power source.

2. Connect the serial cable to the Primary Serial Port (J106) on the Expedite interface

board.

3. Connect the other end of the cable to a port (either 1 or 2, depending on your PC) in

your computer.

4. Start the Flash.exe program.

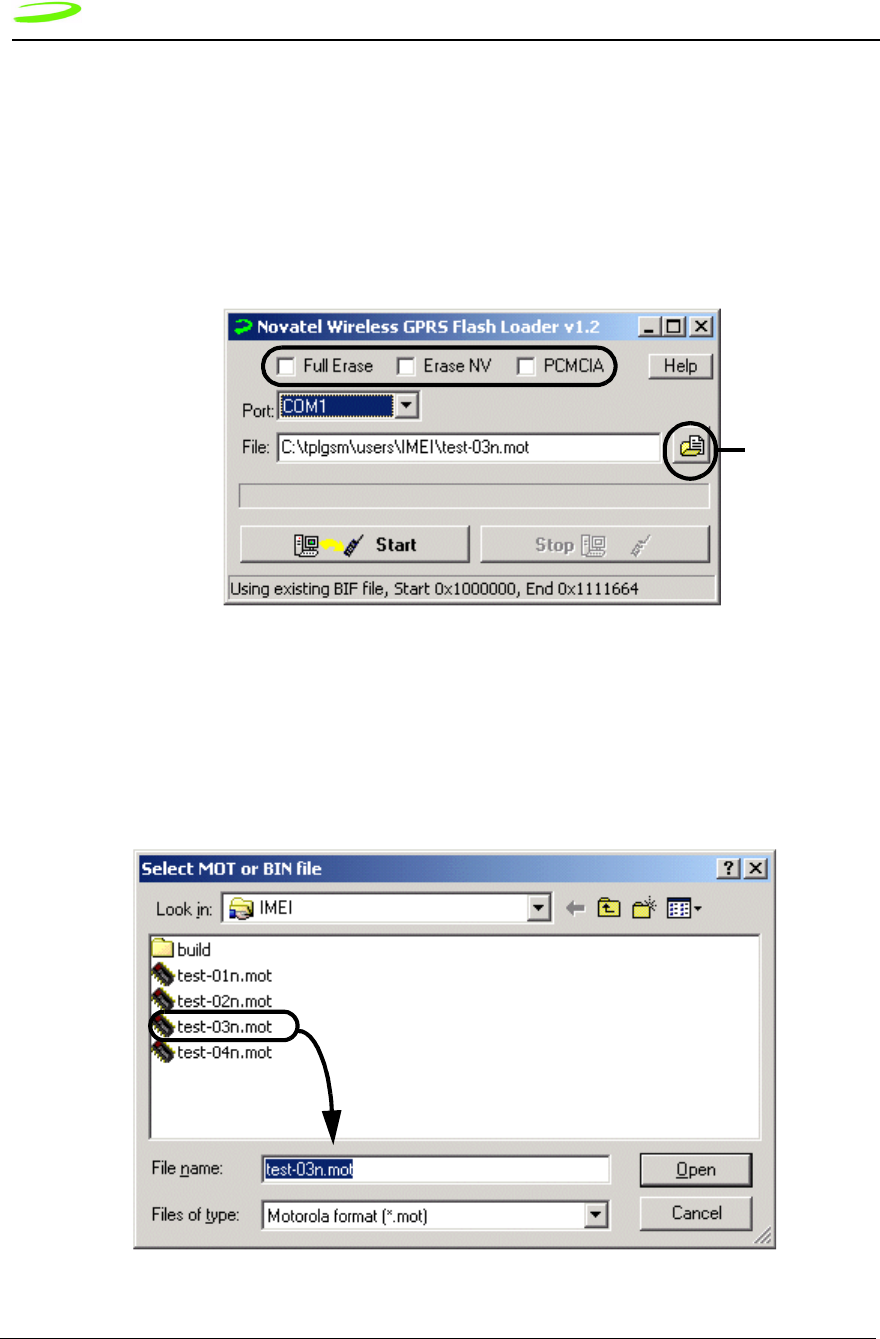

Figure 9: Flash Program

5. Select the appropriate Erase option. With no options chosen (recommended), the

Flash Loader will do a partial erase.

6. Navigate to and select the binary Motorola™ (.mot) file to download by pressing the

New File button.

Figure 10: Selecting MOT file

New File Button

Firmware Setup and Upgrades 147

P/N 90023363 Revision 1.8

7. The default communications port is COM1; select the correct one if necessary.

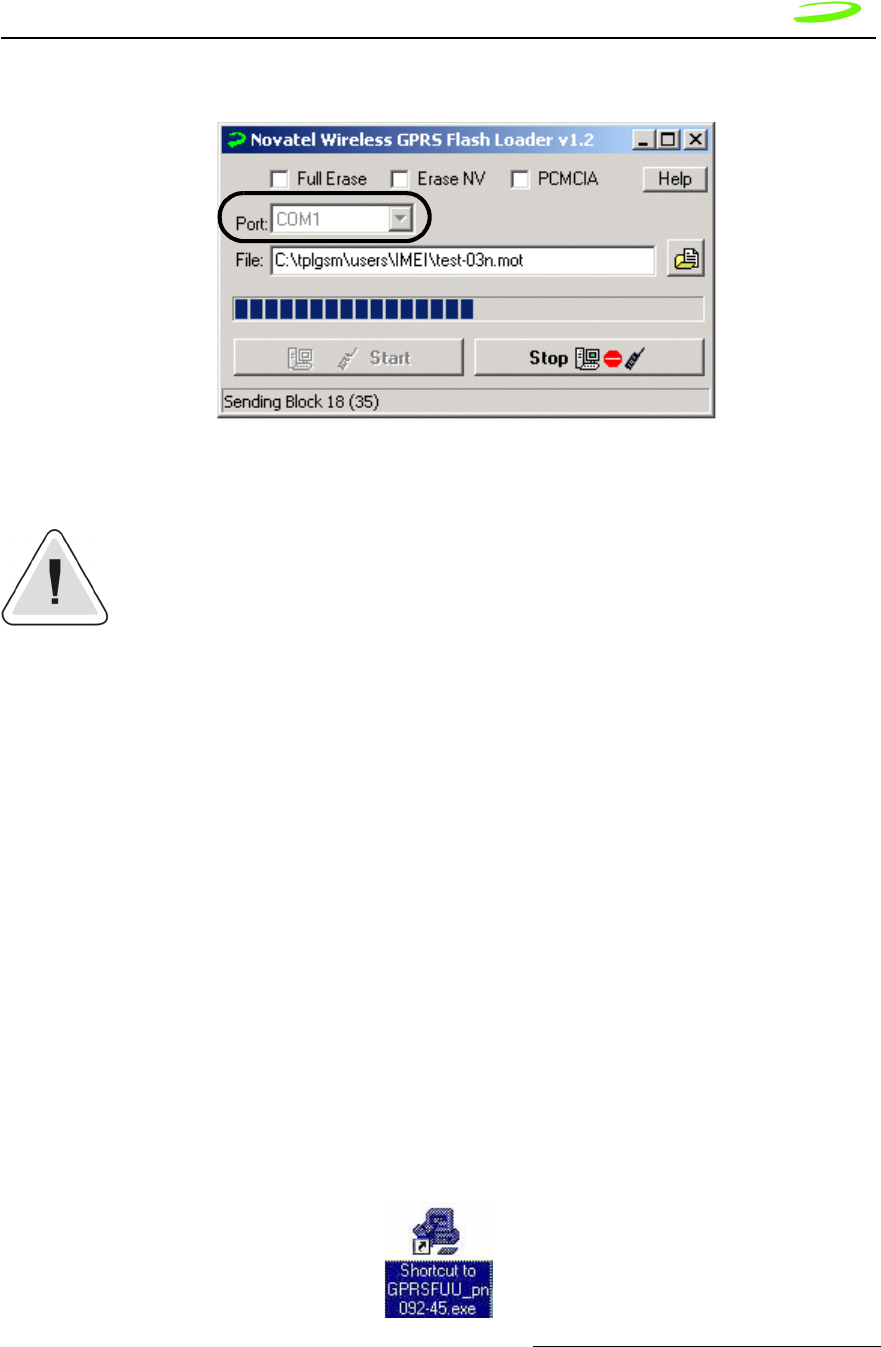

Figure 11: Flash Loader Settings

8. Press Start. The message “Power On/Reset Target” will appear in the status bar.

Once you start downloading firmware, you cannot stop the process until the

“Download Complete” message is shown on the status bar.

9. Apply power to the device. LED’s on interface board will light up.

10. Disconnect the power supply when the “Download Complete” message appears in

the status bar.

11. Reconnect the power again for regular operation.

Updating Merlin Firmware

The GPRS Firmware Upgrade Utility is used to update Merlin firmware. The utility

program and code is delivered as a self-extracting executable file.

To update Merlin firmware:

1. Obtain the executable file from your service provider, ensuring that you have the

appropriate single band or dual band version. (PN=Single band or North America;

PE=Dual band or European.

2. Ensure that you have at least 10 MB of free disk space on your system drive.

3. Close all applications in order to avoid resource conflicts.

4. Run the Firmware Upgrade Utility by double-clicking the Desktop icon:

148 Firmware Setup and Upgrades

Revision 1.8 P/N 90023363

5. After the splash window, the Welcome window will be displayed.

6. Read the Welcome window and click Next.The License agreement will be displayed.

7. Read the License Agreement. To continue with the upgrade utility, you must indicate

that you have accepted the terms of the agreement by selecting “I have read and

agree to the above items.” Click Next. The Instructions for Upgrading window will

appear.

Firmware Setup and Upgrades 149

P/N 90023363 Revision 1.8

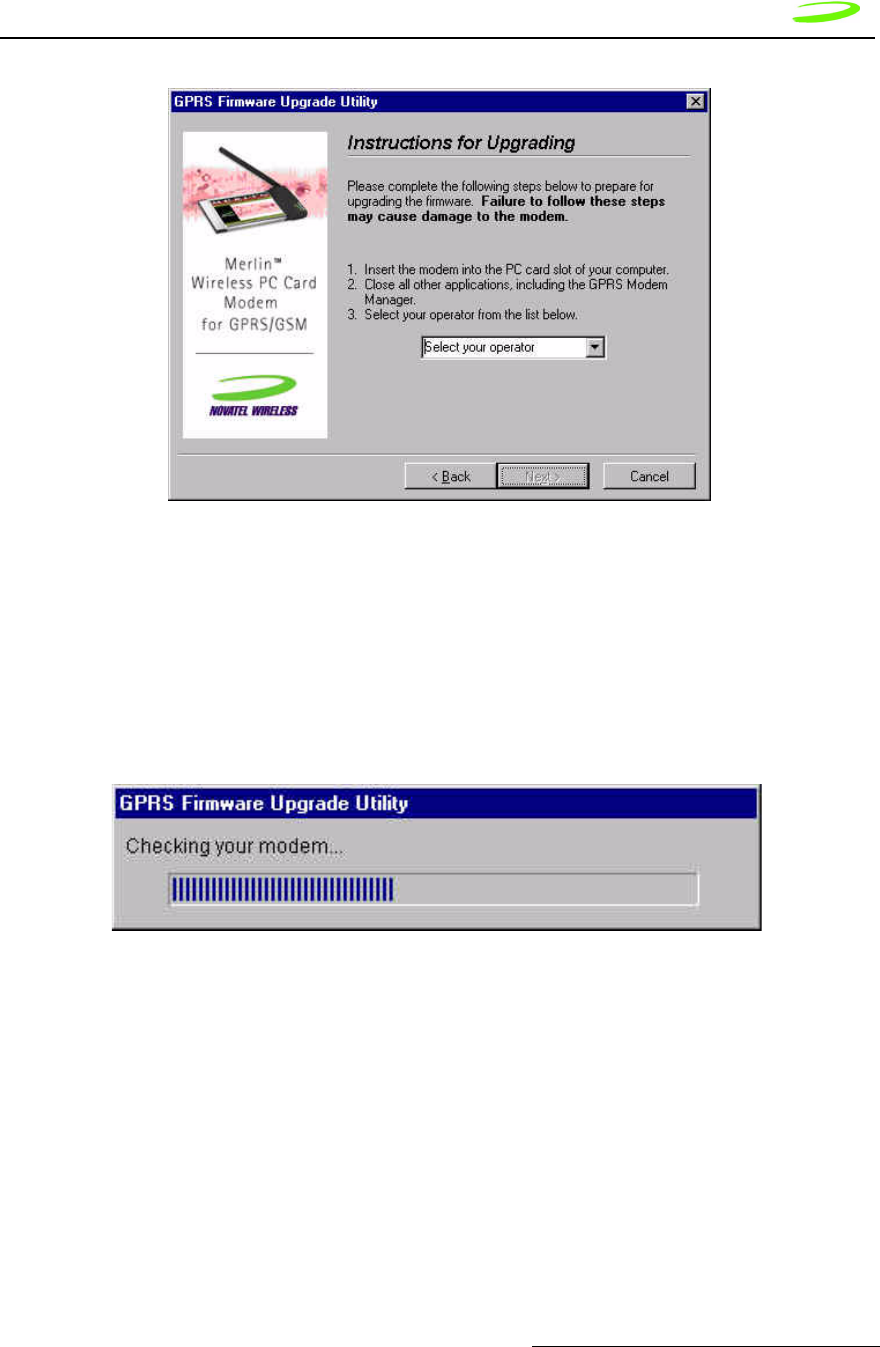

7.1. Insert your modem into the PC Card slot.

7.2. Ensure all other applications are closed.

7.3. Select your operator from the drop down menu.

7.4. Click Next.

The utility will then locate your modem for the upgrade. The Checking your modem

window will appear.

If your modem is located, the Start Upgrade window will be displayed.

Firmware Setup and Upgrades 150

P/N 90023363 Revision 1.8

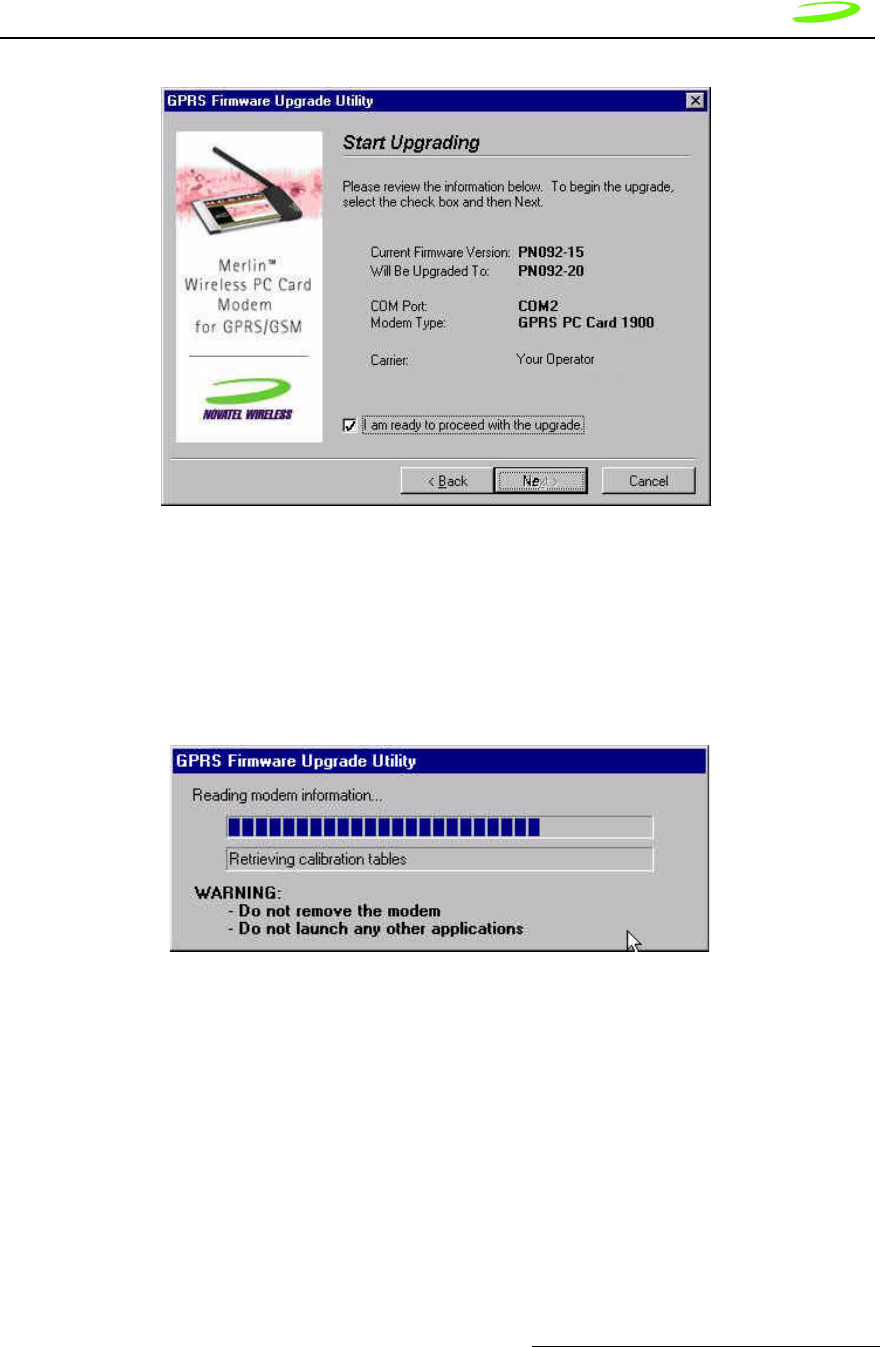

8. Ensure all information on the window is correct, then select I am ready to proceed

with the upgrade. and select Next.

An Upgrade Status window will appear, and the upgrade utility will retrieve your modem

information.

NOTE: Do not remove any modem or launch any other applications during the

upgrade.

The upgrade consists of 3 phases:

• Phase 1: Reading modem information

• Phase 2: Upgrading firmware

• Phase 3: Writing Modem information

NOTE: The upgrade process may take up to 10 minutes for completion. Please wait

for the process to complete even if it appears that the utility has stopped.

Once the upgrade is complete, the Upgrade Complete window will appear.

Firmware Setup and Upgrades 151

P/N 90023363 Revision 1.8

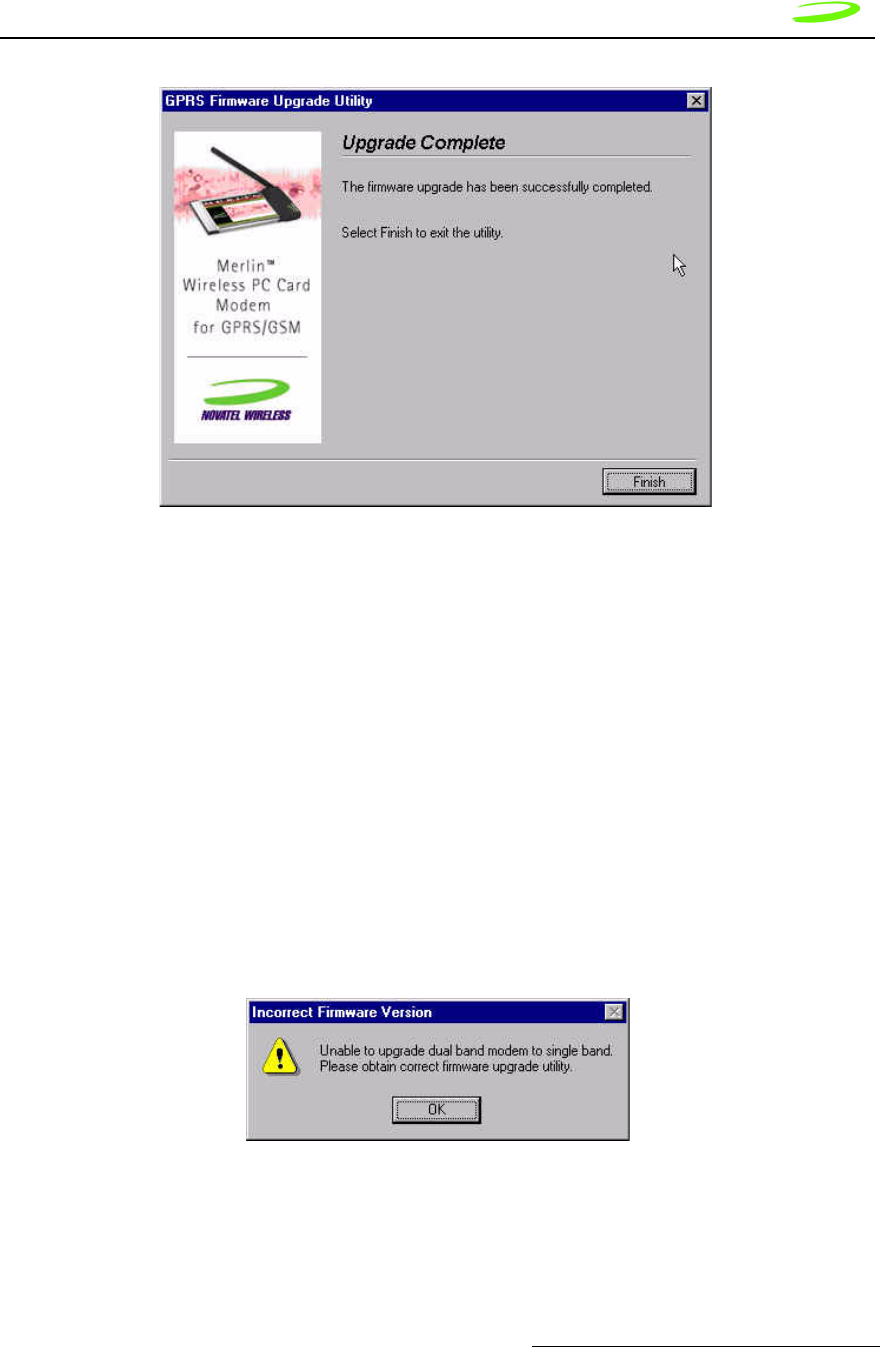

9. Select Finish to close the firmware upgrade utility.

NOTE: This utility creates a log file in your Windows temp directory called GPRSFUU.log.

Customer support may request this log if there was a problem upgrading your modem’s

firmware.

Troubleshooting

If there is a problem with the firmware upgrade, a warning window will appear. Follow

the steps below to solve the problem indicated by the warning window.

Incorrect Firmware Version

Dual Band Modem with Single Band Firmware

If the warning below appears, the wrong type of modem has been inserted into the PC slot

of your computer.

You have inserted a dual band modem that requires a firmware type that starts with “PE.”

Please locate and install the correct firmware version.

152 Firmware Setup and Upgrades

Revision 1.8 P/N 90023363

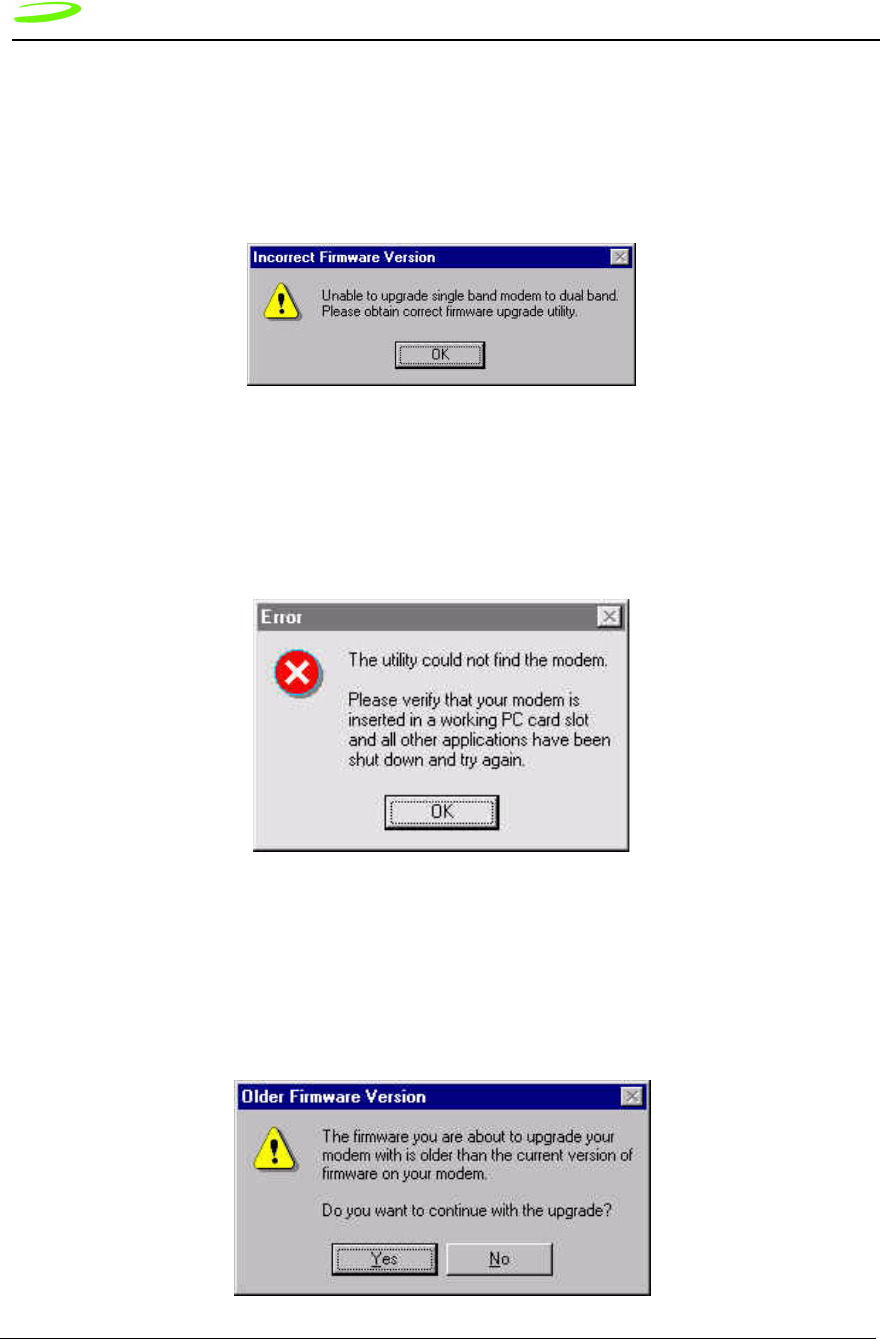

Incorrect Firmware Version

Single Band Modem with Dual Band Firmware

If the warning below appears, the wrong type of modem has been inserted into the PC

slot of your computer.

You have inserted a dual band modem that requires a firmware type that starts with “PN.”

Please locate and install the correct firmware version.

Firmware Utility Cannot Locate Modem

If the warning below appears, the Firmware Upgrade Utility cannot locate your modem.

Please ensure that the modem is firmly inserted into the PCMCIA slot. If the error

message reappears, remove your modem and reinsert it into an adjacent slot.

Older Firmware Version

If the warning below appears, the firmware version that you are about to load is older

than the current version of firmware on your modem.

Firmware Setup and Upgrades 153

P/N 90023363 Revision 1.8

If you have been instructed by your operator to perform the upgrade, click Yes. If you

have NOT been instructed to perform the upgrade, select No. This will stop the upgrade

process.

154 Firmware Setup and Upgrades

Revision 1.8 P/N 90023363

Chapter 5: Software

Interface

Novatel Wireless™ has designed and developed a protocol which provides

facilities to monitor modem status while a data session on the host is active. In a

modem environment, modem status is typically accessed through AT commands

over the serial port. However, after a data session is activated on the host

through the modem, the serial port is deemed “in-use” and direct serial access

of AT Commands is not permitted. All data is now encapsulated through the data

session protocols.

The following items will be discussed within this chapter:

• wireline modem interface

• wrapper protocol

• pros and cons of the wrapper protocol

Topics Included in this Chapter

Point-to-Point Protocol Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156

Software Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Wrapper Protocol Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

156 Software Interface

Revision 1.8 P/N 90023363

Point-to-Point Protocol Interface

A Point-to-Point (PPP) server implementation is supported within the GPRS module.

Remote Access Service (RAS) communication over the serial port is supported using the

AT commands to enter the PPP session and support PPP negotiation of IP and DNS

elements.

PPP negotiation will NOT complete until registration on the network has been completed.

In some cases, particularly where dynamic IP addressing is supported by the carrier, this

will not occur as it would be impossible to report an IP address until the unit had

performed the GPRS “attach request” on the network.

Status Interface

The Expedite and Merlin GPRS modem supports a method to retrieve modem status

information using AT commands while the modem is in a data session. This is

accomplished by using a unique driver called a Wrapper driver which exposes two serial

ports, one for data and the other for status. The Wrapper driver multiplexes or “wraps” the

information across the single serial or PCMCIA connection, and the data is then

“unwrapped” and routed to the appropriate location in the modem or over the air. This

allows status requests to occur in a separate stream to permit either the Novatel Wireless

Modem Manager or another user application to communicate with the modem. It is

anticipated that this approach will work for the majority of applications.

Software Interface 157

P/N 90023363 Revision 1.8

Software Architecture

Figure 12: Software Architecture below depicts the software interfaces for the Novatel GPRS modem

software.

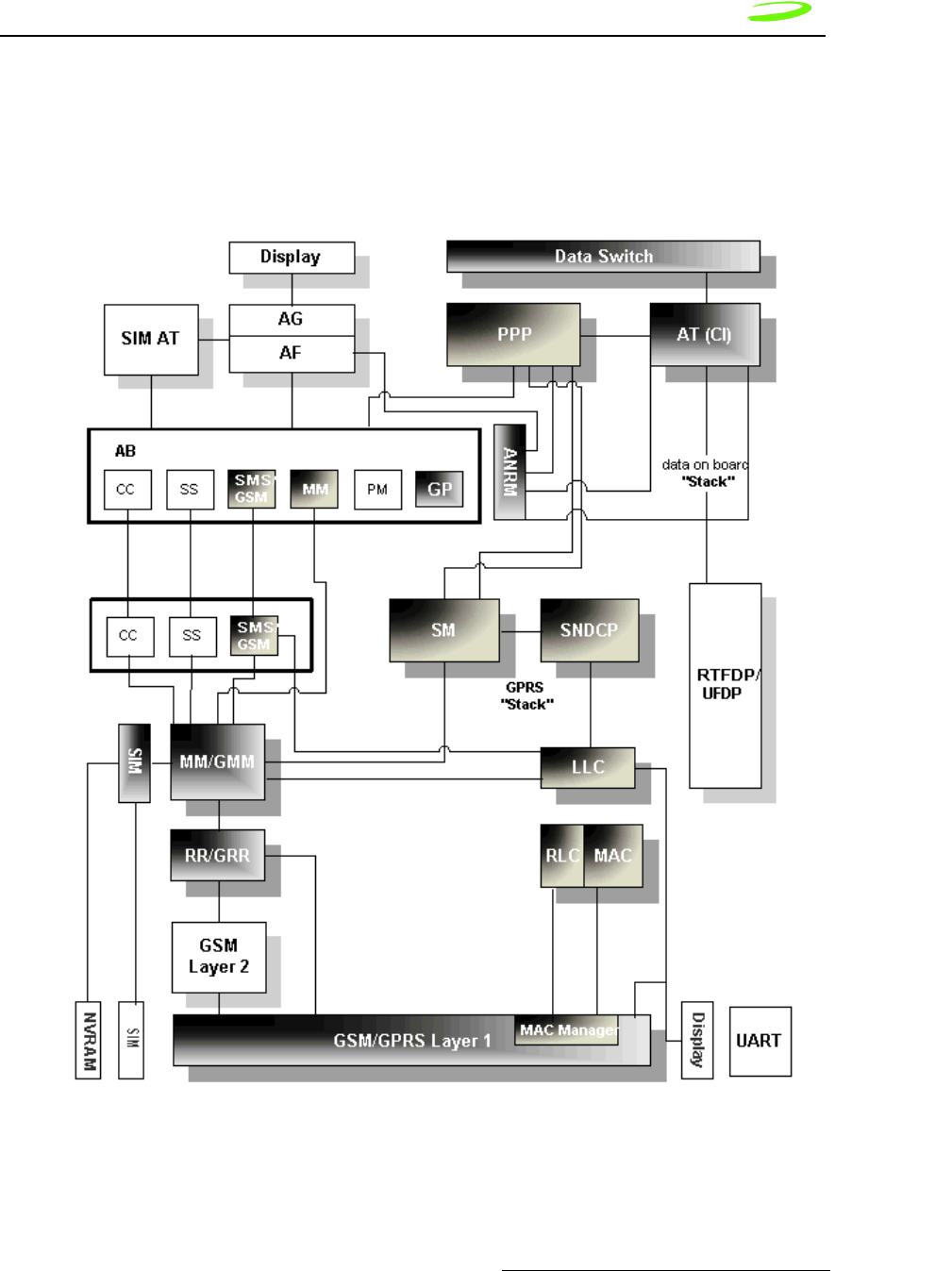

Figure 12: Software Architecture

158 Software Interface

Revision 1.8 P/N 90023363

Wireline Modem Interface

All of the current Merlin based products implement a communication model that emulates

a wireline modem interface.

In a traditional modem model, users:

1. select the appropriate modem from the installation list

2. dial a number using that modem to contact their ISP

3. allow the host stack to establish a PPP session with another network entity.

Wrapper Protocol Overview

Novatel Wireless has created a protocol to provide facilities to monitor modem status

while a data session on the host is active. In a modem environment, modem status is

typically assessed through AT commands over the serial port. However, after a data

session is activated on the host through the modem, the serial port is deemed “in-use”

and direct serial access of AT commands is not permitted. All data is now encapsulated

through the data session protocols. The modem is limited in its processing of the

incoming data stream on the serial port to either passing the data along (as in a data

session) or processing it internally (as in AT commands).

Appendix A - Expedite Connectors 159

P/N 90023363 Revision 1.8

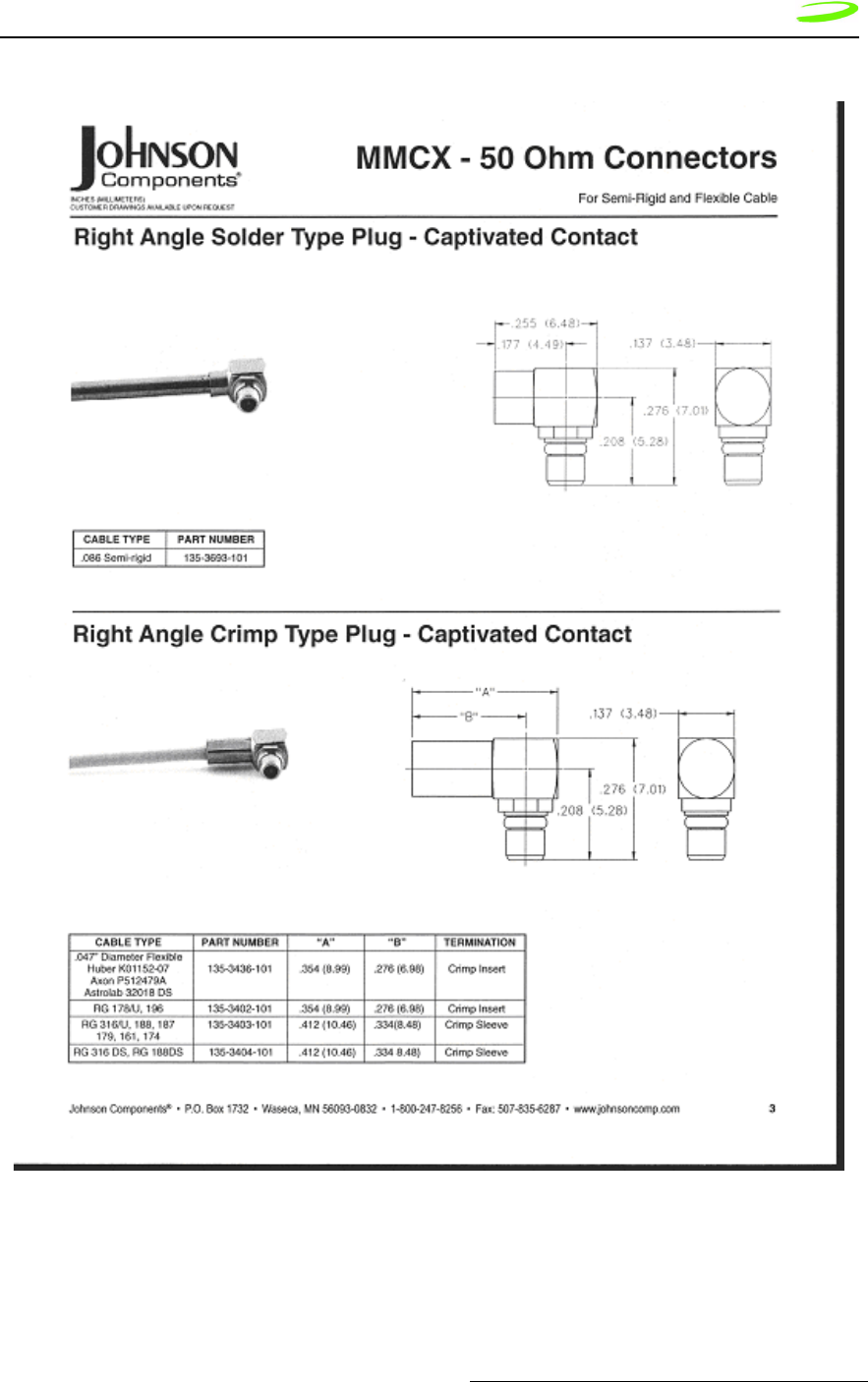

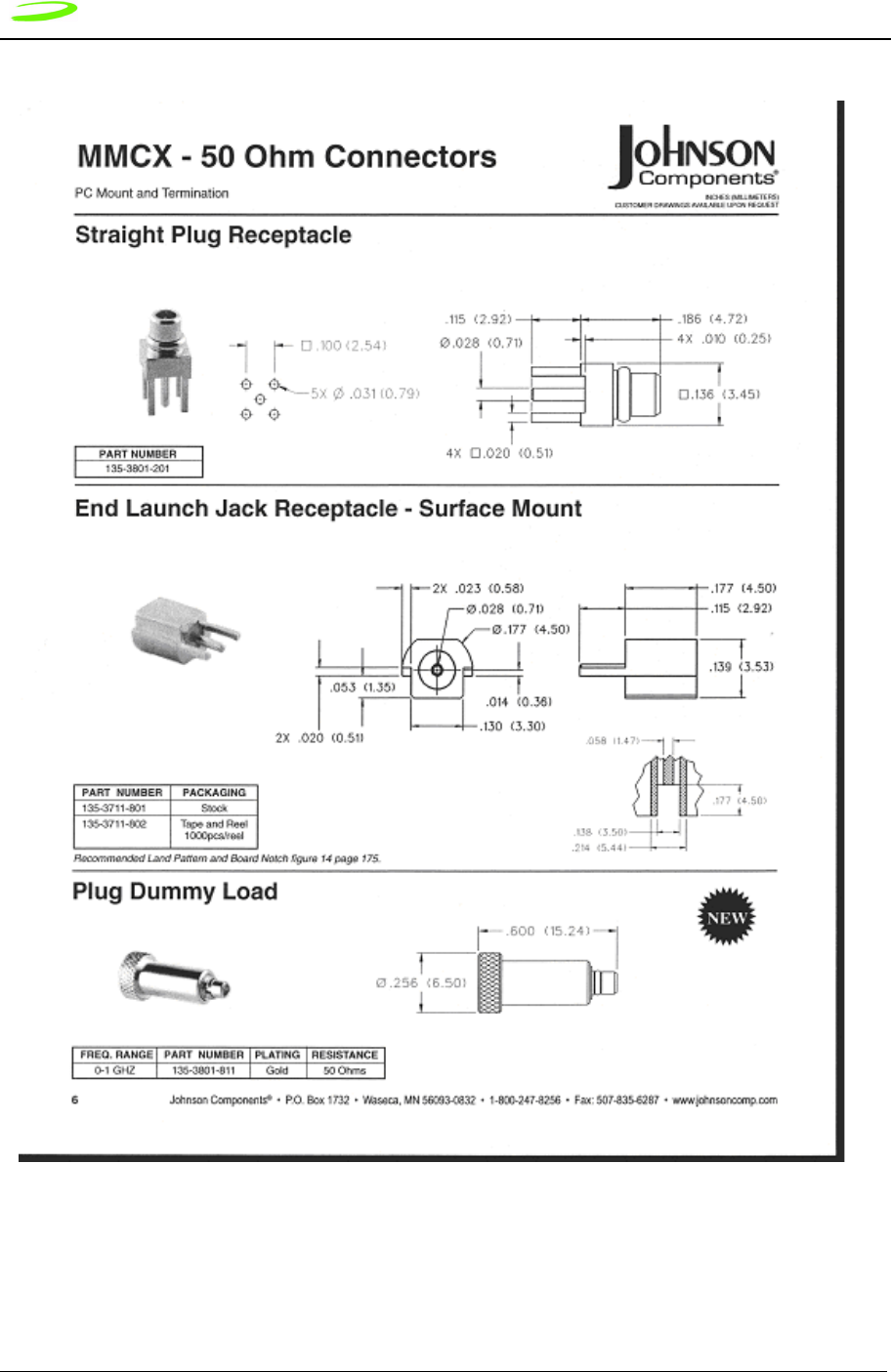

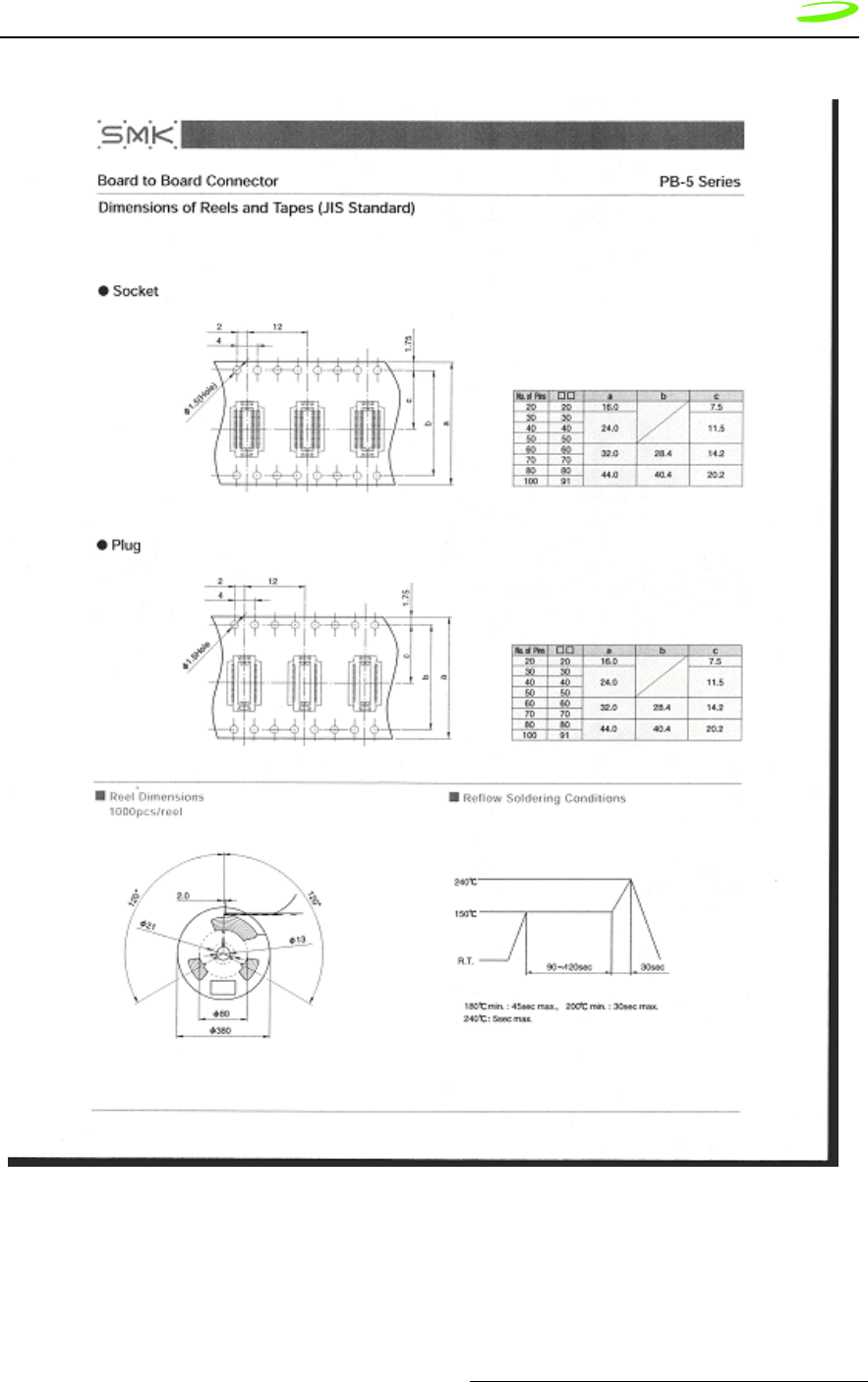

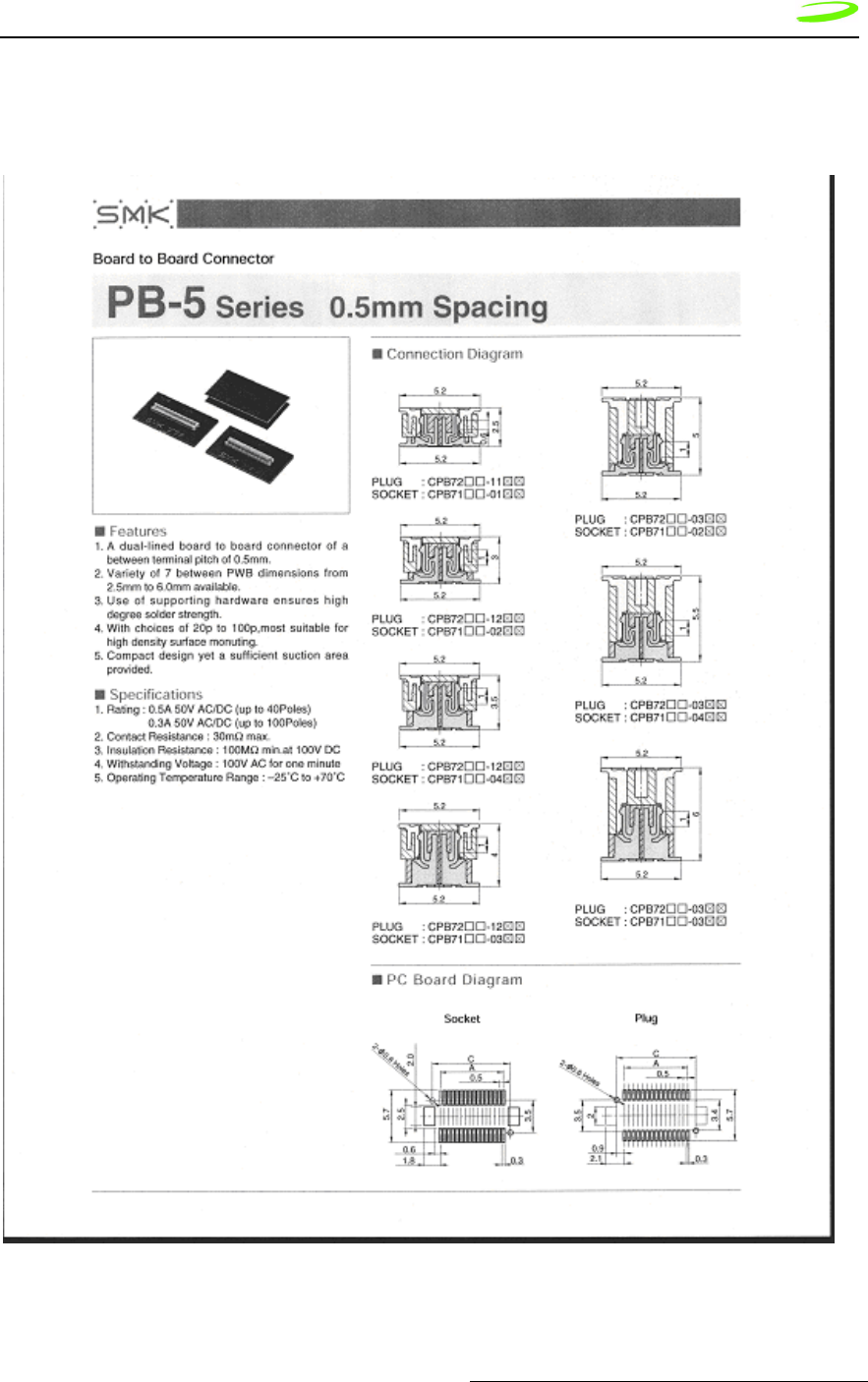

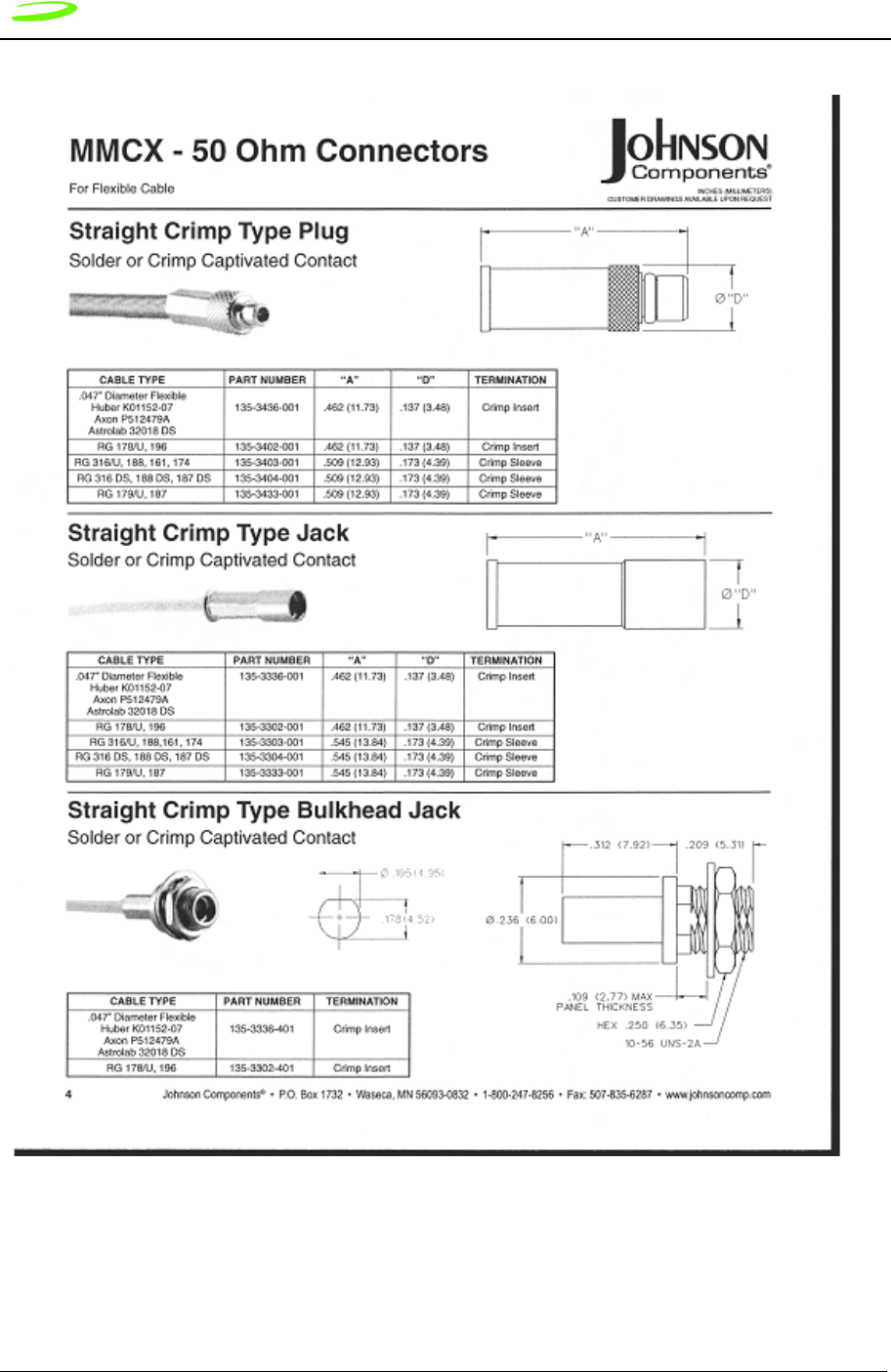

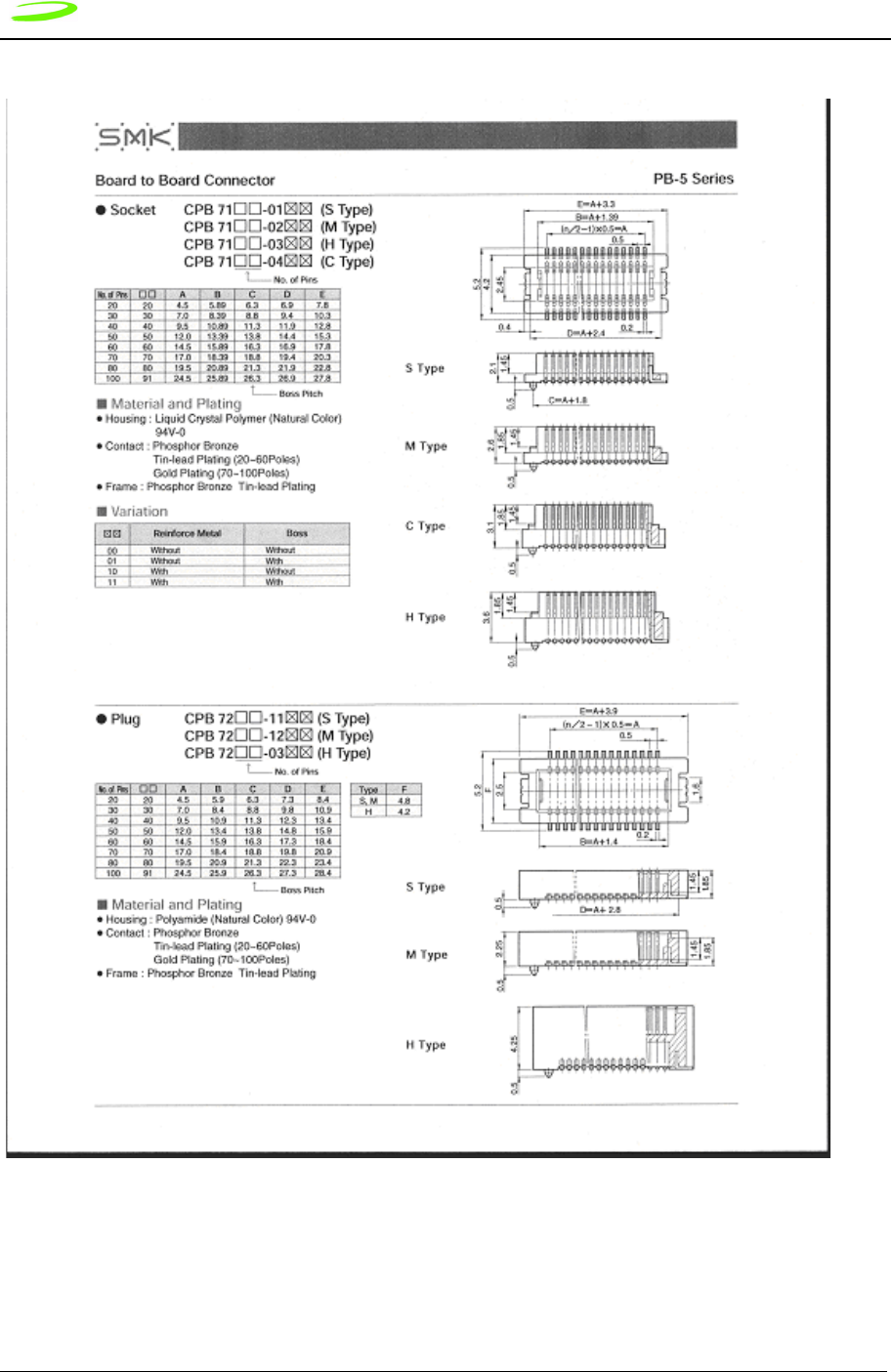

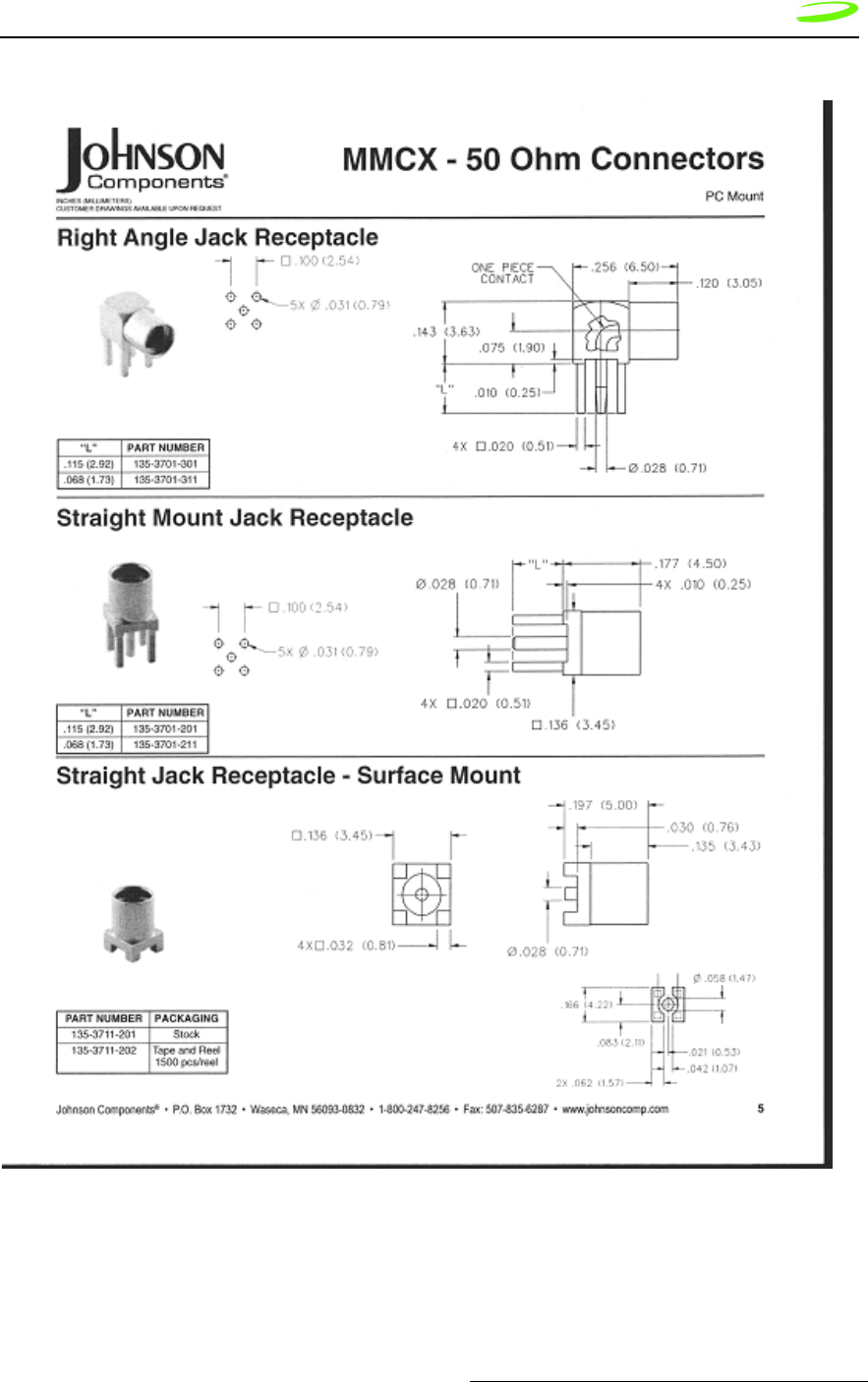

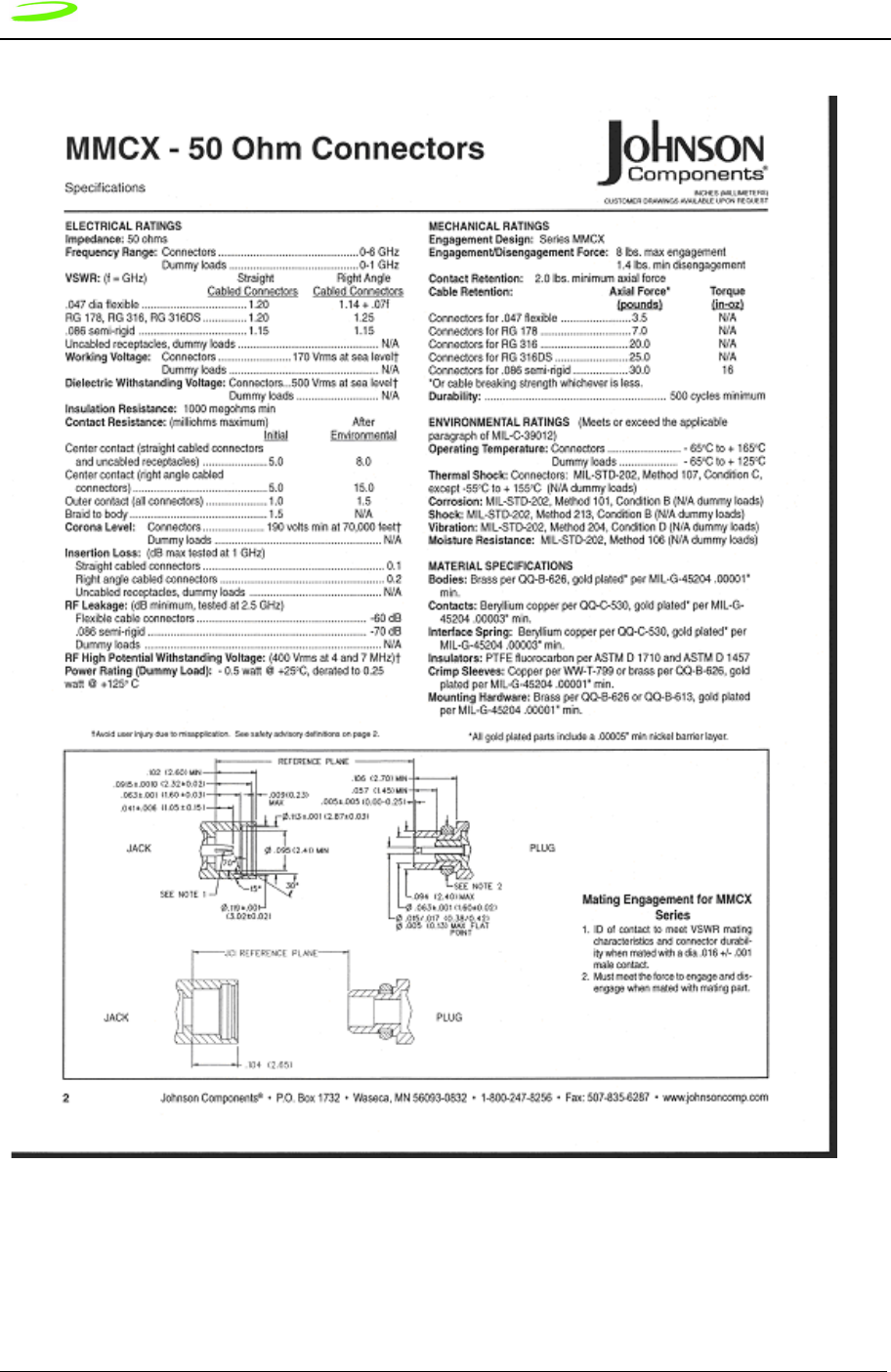

Appendix A - Expedite Connectors

160 Appendix A - Expedite Connectors

Revision 1.8 P/N 90023363

Appendix A - Expedite Connectors 161

P/N 90023363 Revision 1.8

162 Appendix A - Expedite Connectors

Revision 1.8 P/N 90023363

Appendix A - Expedite Connectors 163

P/N 90023363 Revision 1.8

164 Appendix A - Expedite Connectors

Revision 1.8 P/N 90023363

Appendix A - Expedite Connectors 165

P/N 90023363 Revision 1.8

166 Appendix A - Expedite Connectors

Revision 1.8 P/N 90023363

Appendix B - Merlin Connectors 167

P/N 90023363 Revision 1.8

Appendix B - Merlin Connectors

Merlin G100 Connectors

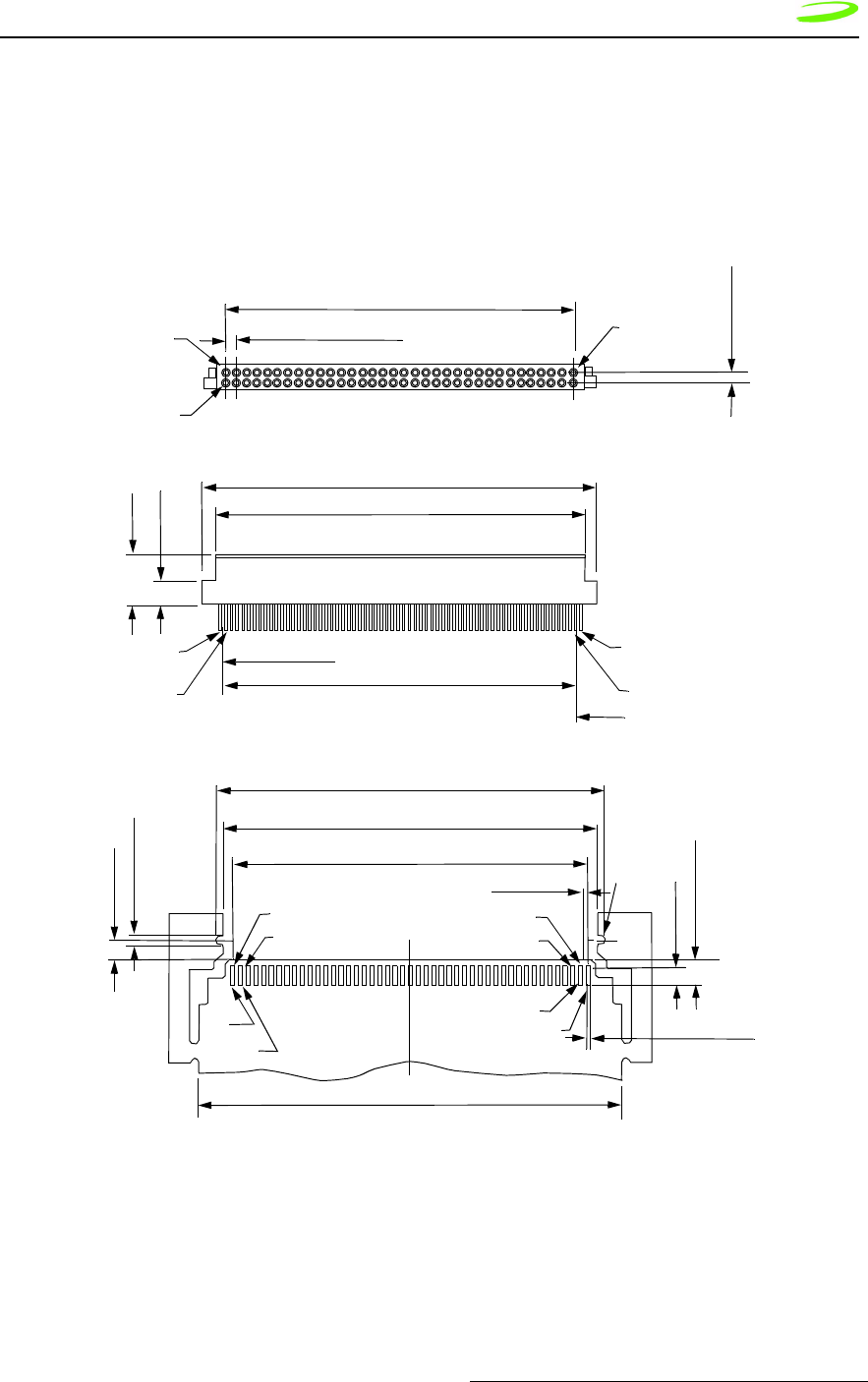

Figure 13: G100 68 Pin Connector

1.27 +/- 0.1 (PITCH)

41.4 +/- 0.15

No. 68

(No. 01)

No. 34

(No. 35)

No. 35

(No. 34)

No. 01

(No. 68)

6.0 +/- 0.1

3.0 +/- 0.1

47.4 +/- 0.2

44.4 +/- .15

0.28 +/- .01

(0.635 x 67 = 42.545)

No. 68

(No. 01)

No. 34

(No. 35)

No. 35

(No. 34)

No. 01

(No. 68)

ITT CANNON 127040-2414 S925

46.6 +/- 0.05

44.8

#01

#02

#34

#33

#35

#36

#67

#68

50.5

RECOMMENDED PCB FOOTPRINT

1.2 +/- 0.1

2.2

3.15 +/- 0.05

67 x 0.635

168 Appendix B - Merlin Connectors

Revision 1.8 P/N 90023363

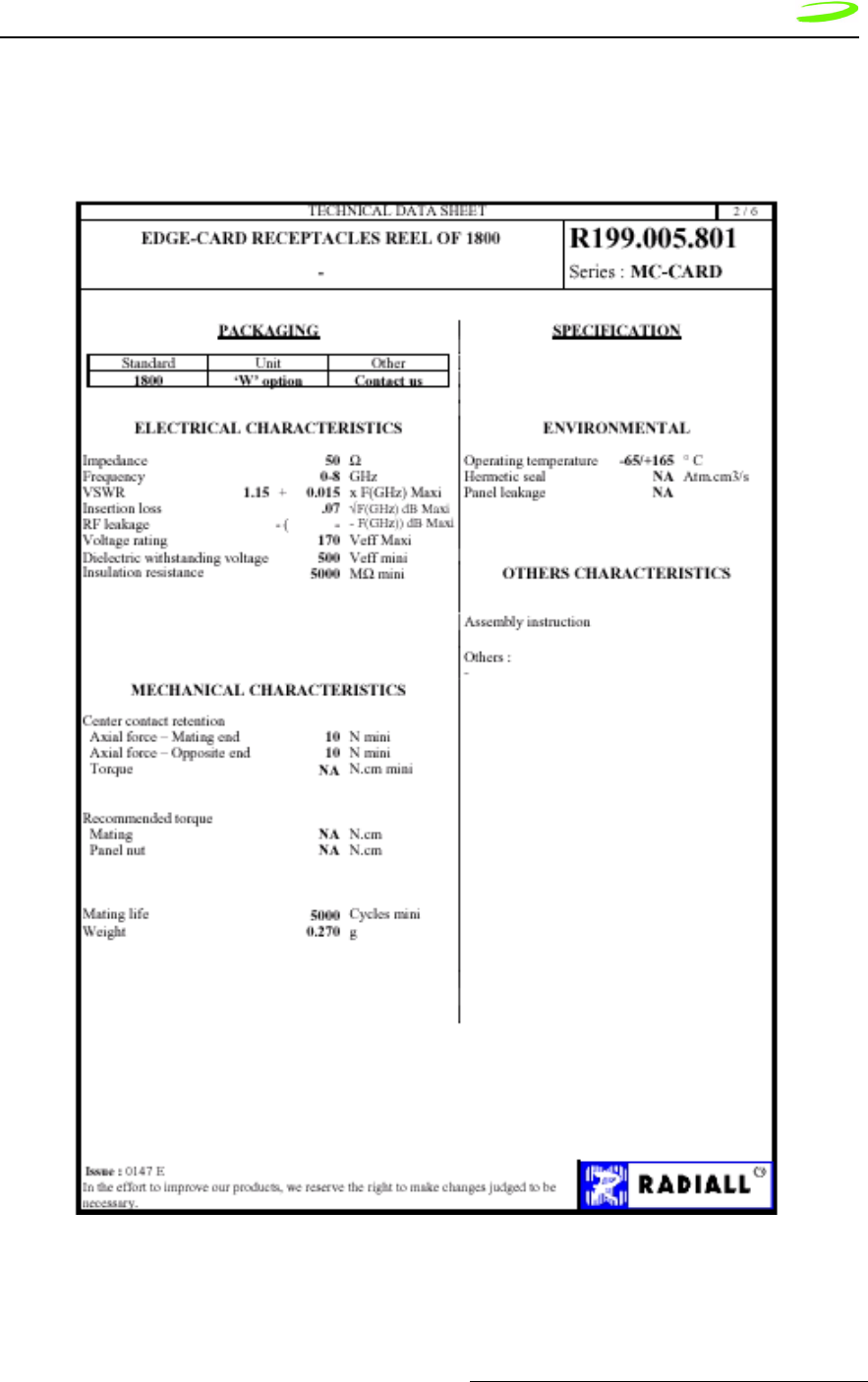

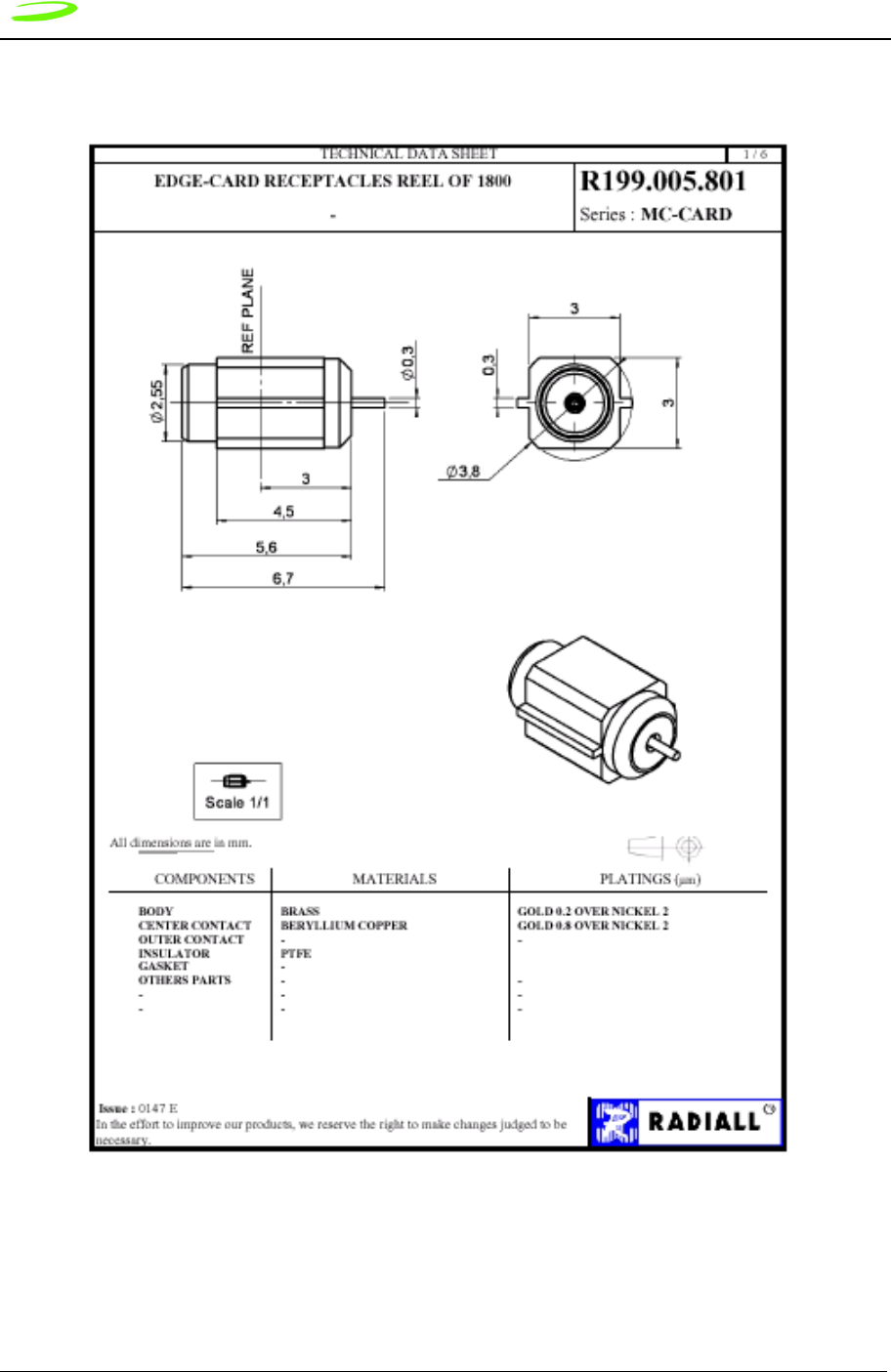

Figure 14: G100 Radiall RF Connector

Appendix B - Merlin Connectors 169

P/N 90023363 Revision 1.8

170 Appendix B - Merlin Connectors

Revision 1.8 P/N 90023363

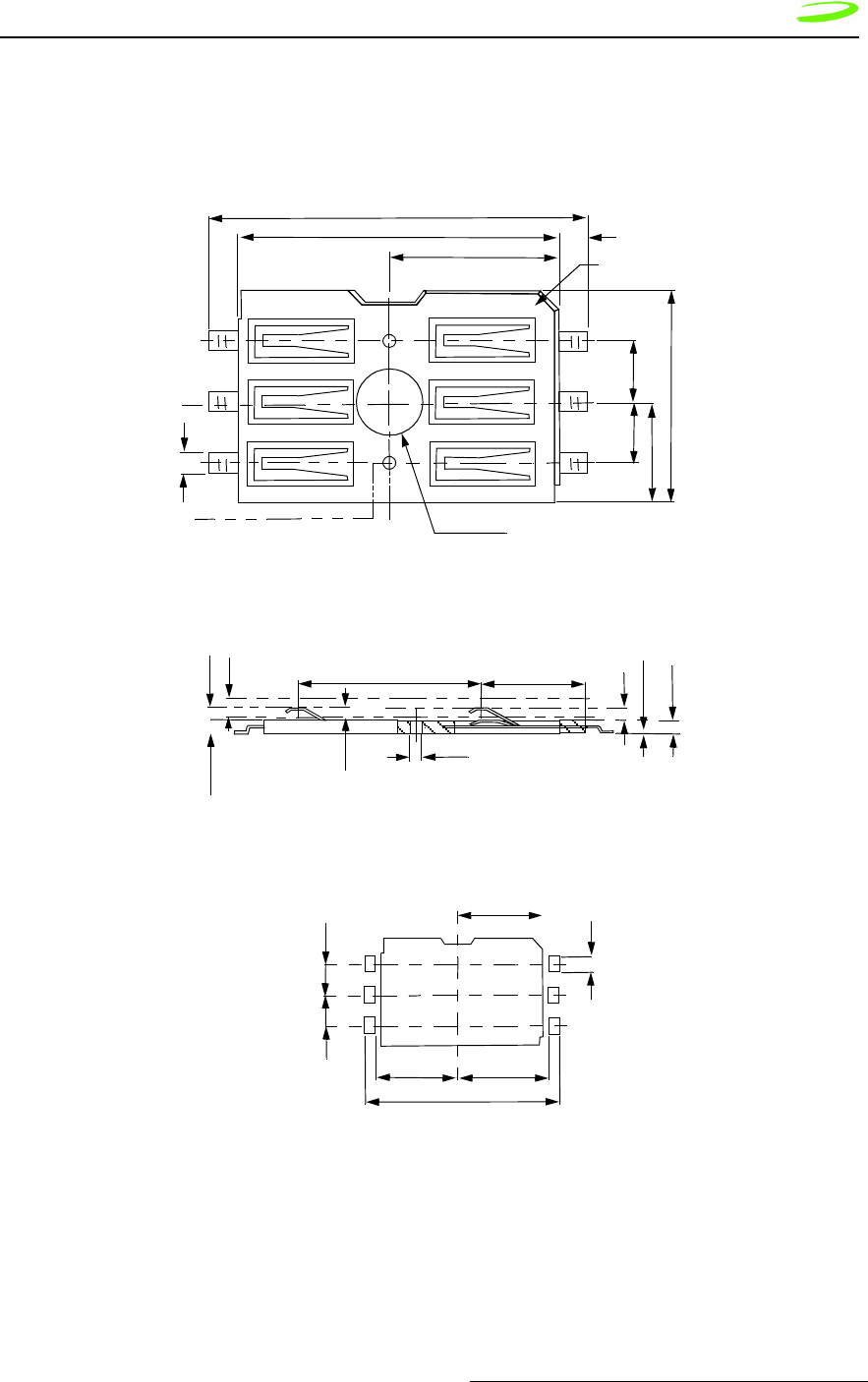

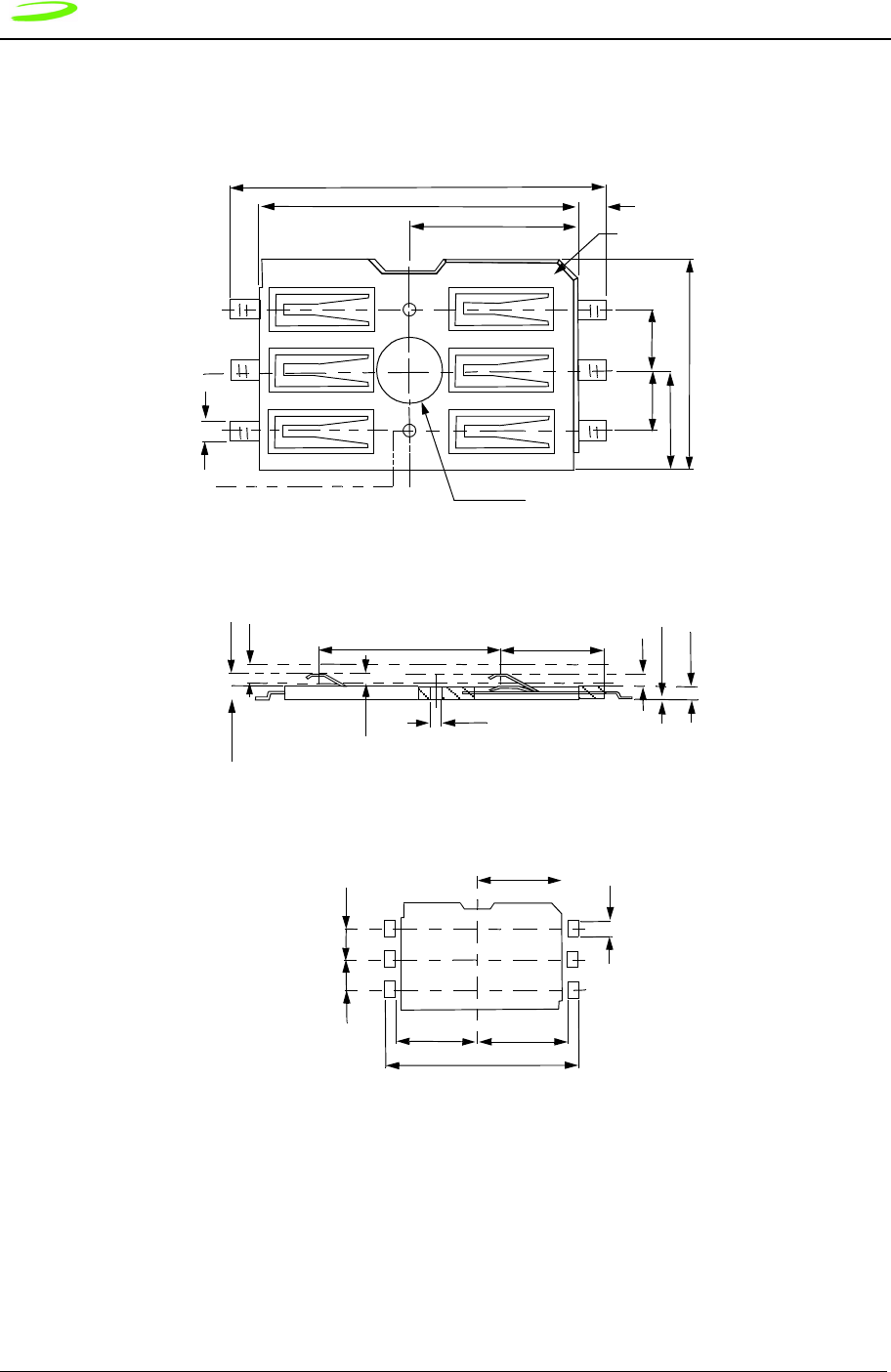

Figure 15: G100 SIM Connector

15.7 +/- 0.2

13.3 +/- 0.1 1.2

7 +/- 0.1

0.8

2.54 +/- 0.1

4.15 +/- 0.1

8.8 +/- 0.1

VACUUM AREA

7.62 +/- 0.2 4.28 +/- .15

(0.4)

3 -- 0.5 +/- .08

0.05 +/- .05

0.53

STAND OFF

(0.55)

0.5 +/- .1 0.55 +/- .1

CONTACT

SHOULDER

THICKNESS

HEIGHT

+/- 0.76

2.54 +/- .05 2.54 +/- .05

16.2 +/- .05

6.8 +/- .05 7.5 +/- .05

7 +/- .05

6 - 1.3 +/- .05

APPLICABLE P.C.B. DIMENSION (REF.)

0.8

+/- 0.1

Appendix B - Merlin Connectors 171

P/N 90023363 Revision 1.8

Merlin G200 Connectors

Figure 16: G200 68 Pin Connector

1.27 +/- 0.1 (PITCH)

41.4 +/- 0.15

No. 68

(No. 01)

No. 34

(No. 35)

No. 35

(No. 34)

No. 01

(No. 68)

6.0 +/- 0.1

3.0 +/- 0.1

47.4 +/- 0.2

44.4 +/- .15

0.28 +/- .01

(0.635 x 67 = 42.545)

No. 68

(No. 01)

No. 34

(No. 35)

No. 35

(No. 34)

No. 01

(No. 68)

ITT CANNON 127040-2414 S925

46.6 +/- 0.05

44.8

#01

#02

#34

#33

#35

#36

#67

#68

50.5

RECOMMENDED PCB FOOTPRINT

1.2 +/- 0.1

2.2

3.15 +/- 0.05

67 x 0.635

172 Appendix B - Merlin Connectors

Revision 1.8 P/N 90023363

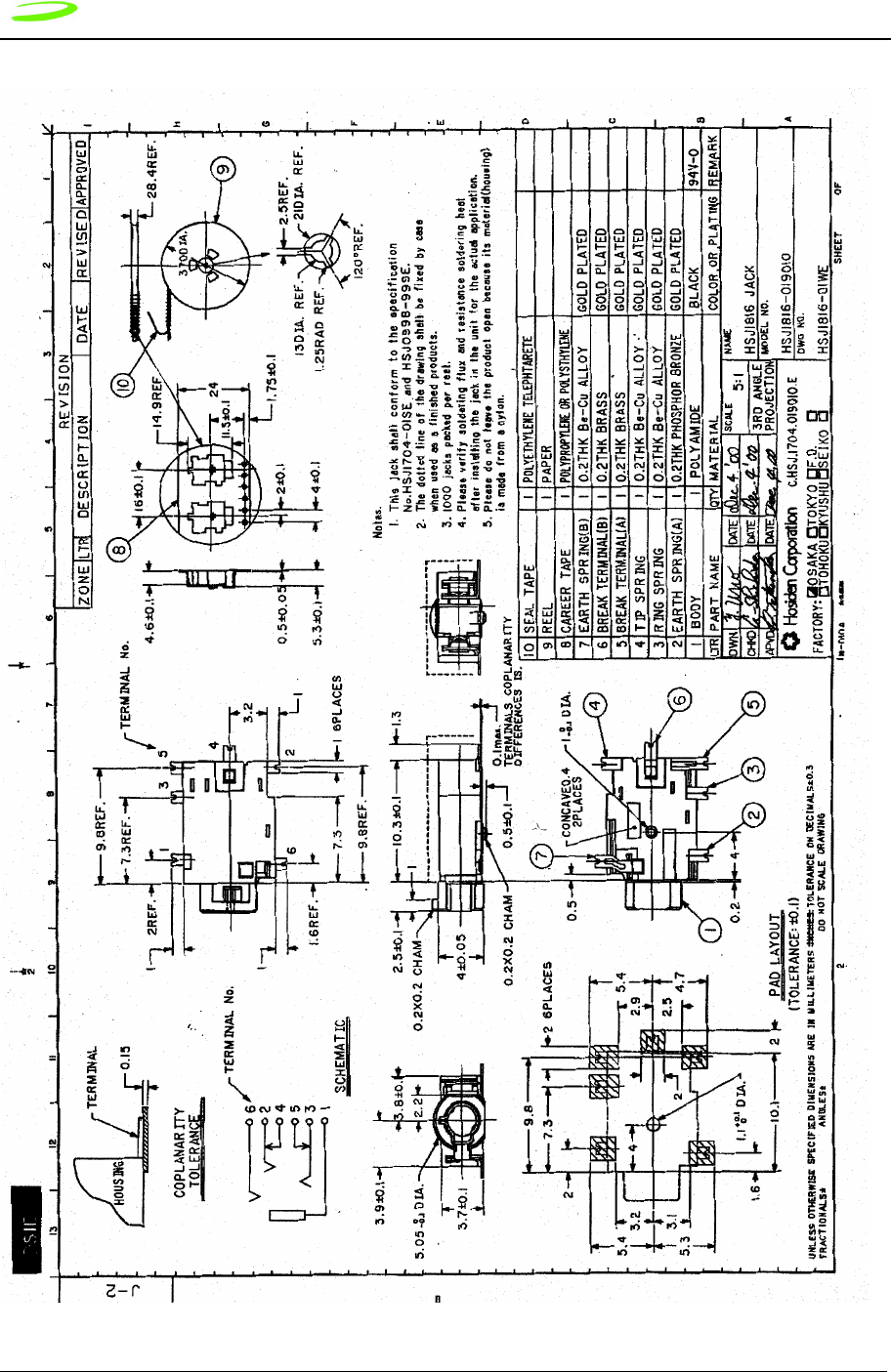

Figure 17: G200 Audio Jack

Appendix B - Merlin Connectors 173

P/N 90023363 Revision 1.8

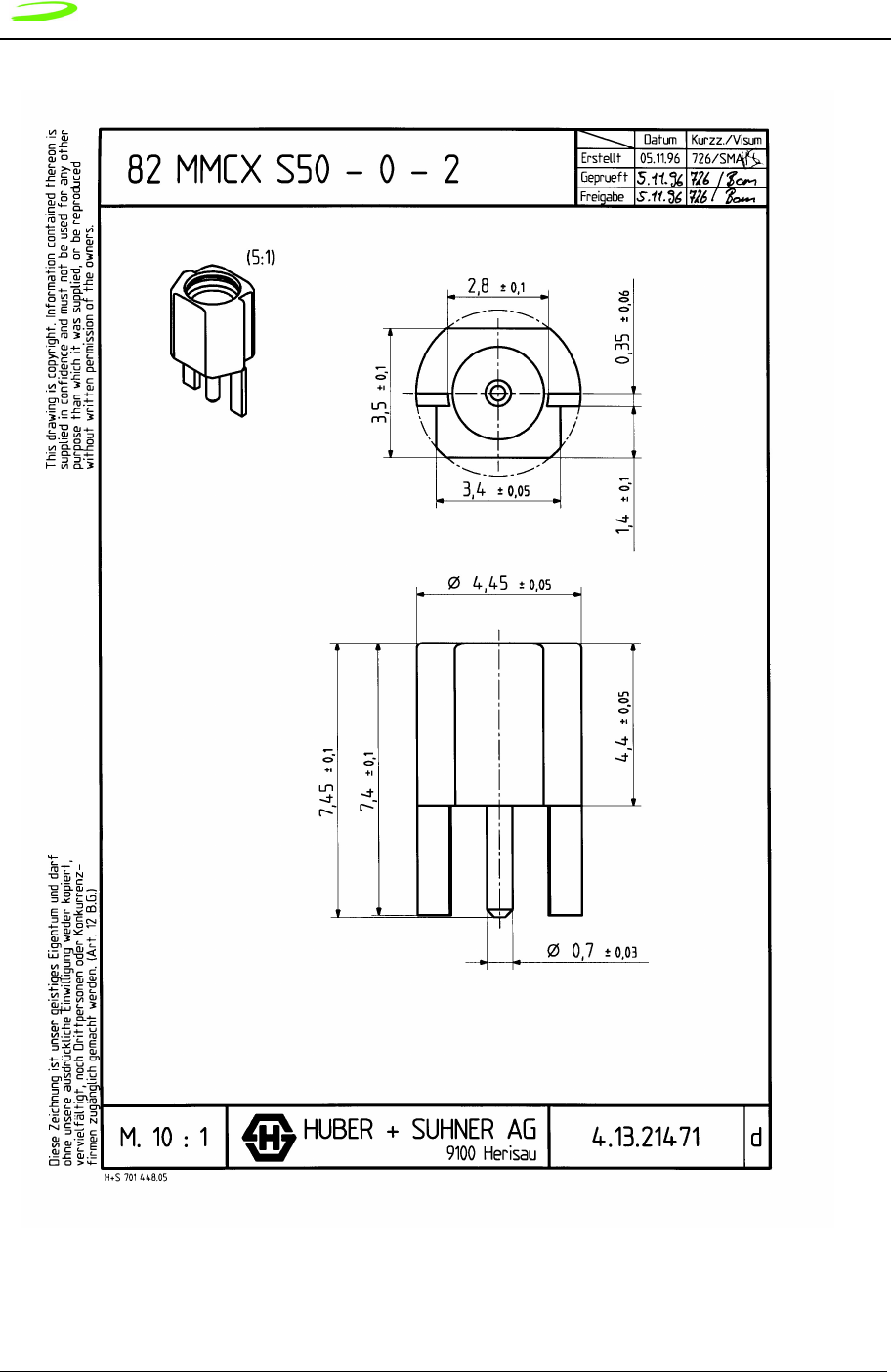

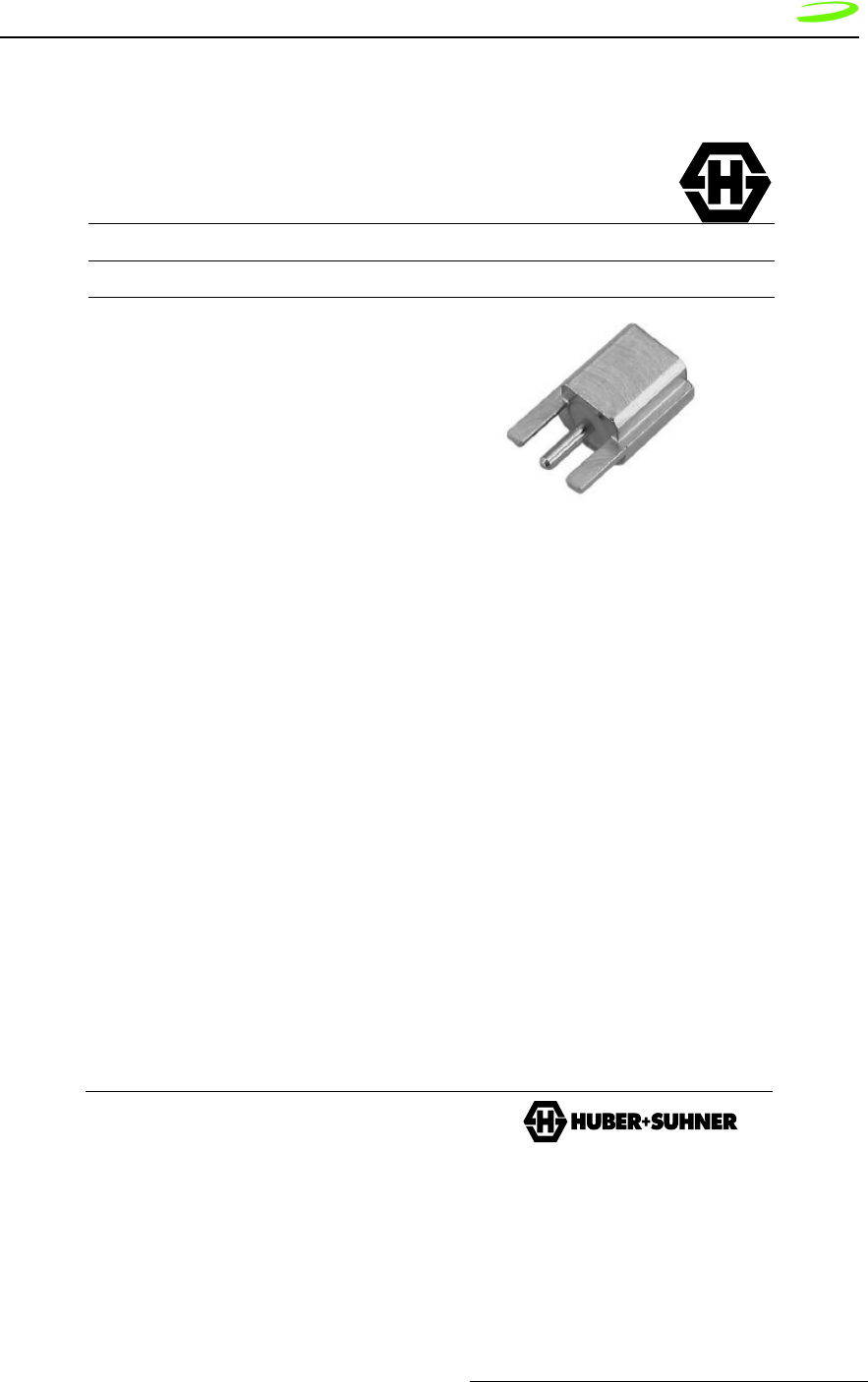

Figure 18: G200 RF Connector

SUHNER



COAXIAL CONNECTOR DATA SHEET

WAIVER!

While the information contained in this folder has been carefully compiled to the best of our present knowledge,

it is not intended as representation or warranty of any kind on our part regarding the fitness of the products

concerned for any particular use or purpose and neither shall any statement contained herein be constructed as

a recommendation to infringe any industrial property rights or as a license to use any such rights. The fitness of

each product for any particular purpose must be checked beforehand with our specialists.

Issued: 10.3.2000 15:49 Document No.: 22649679A.DOC

Uncontrolled copy page 1 of 1

HUBER+SUHNER AG

RF Interconnections

CH-9100 Herisau

Phone +41 (0)71 353 41 11

Fax +41 (0)71 353 45 90

http://www.hubersuhner.com

TYPE 82 MMCX-S50-0-2

Description

Straight PCB jack

General Information

Interface according to: SUHNER® MMCX

Weight: 0.7 g /

0.02 oz

Electrical Data Impedance: 50 Ω

Frequency range for connector interface: DC ... 6.0 GHz

Material Data Material Surface Plating

Centre contact: Copper-Beryllium Gold / nickel underplated

Outer contact: Brass Gold / nickel underplated

Body: Brass Gold / nickel underplated

Insulator: PTFE / PFA

Coupling nut: -

Fastening nut: -

Gasket: -

Washer: -

Packaging Tape and Reel

Attachments Outline drawing No.: 21471

Assembly instruction:

Notes

Order as 82 MMCX-S50-0-2/111 KG under Article No. 22649679

174 Appendix B - Merlin Connectors

Revision 1.8 P/N 90023363

Appendix B - Merlin Connectors 175

P/N 90023363 Revision 1.8

Figure 19: G200 SIM Connector

15.7 +/- 0.2

13.3 +/- 0.1 1.2

7 +/- 0.1

0.8

2.54 +/- 0.1

4.15 +/- 0.1

8.8 +/- 0.1

VACUUM AREA

7.62 +/- 0.2 4.28 +/- .15

(0.4)

3 -- 0.5 +/- .08

0.05 +/- .05

0.53

STAND OFF

(0.55)

0.5 +/- .1 0.55 +/- .1

CONTACT

SHOULDER

THICKNESS

HEIGHT

+/- 0.76

2.54 +/- .05 2.54 +/- .05

16.2 +/- .05

6.8 +/- .05 7.5 +/- .05

7 +/- .05

6 - 1.3 +/- .05

APPLICABLE P.C.B. DIMENSION (REF.)

0.8

+/- 0.1

176 Appendix B - Merlin Connectors

Revision 1.8 P/N 90023363

Appendix C – Expedite Development Kit Interface Board 177

P/N 90023363 Revision 1.8

Appendix C – Expedite Development Kit

Interface Board

The Expedite Development Kit is used to develop applications for embedding GPRS

capability into OEM products and for upgrading firmware.

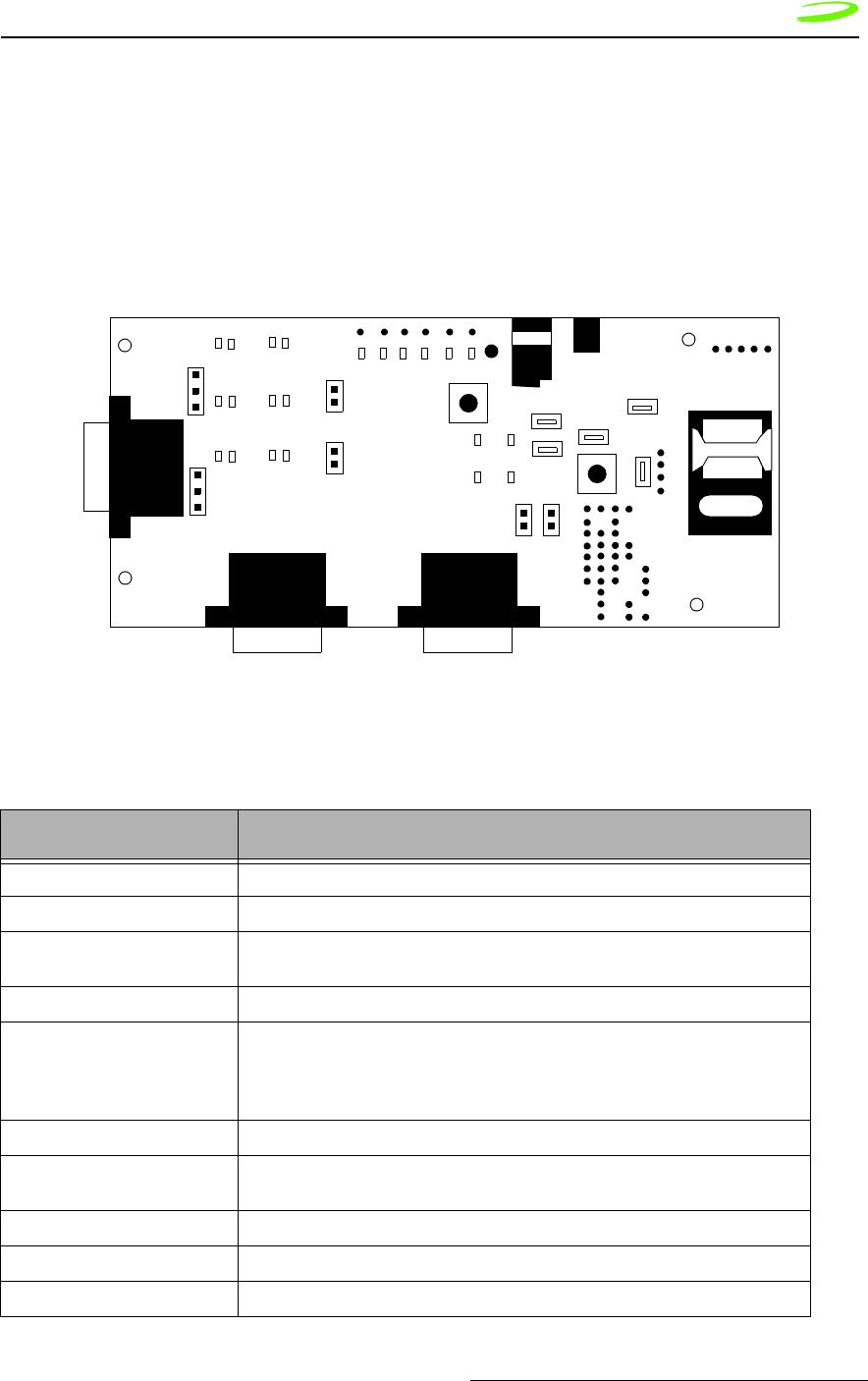

Figure 1: Expedite Development Kit Interface Board

Table 1: Interface Board Connector Assignment

Point Name Function

JP1 & JP9 ADC Input pin – monitors ADC Battery Voltage

JP2 or SIM_IN Activates switch on PC card

JP6 Allows debugging to either J107 (jumper on pins 2 and 3) or not (jumper on pins

1 and 2). GPIO6 LED turns on during transmission regardless.

JP5 & JP15 Always enable jumpers; used for current measurements.

JP7 & JP10 Jumper must be placed on either JP10 (primary serial port) or JP7 (USC) to dis-

able serial port (i.e.: jumper on JP7 disables USC).

NOTE: printing error on interface card – should read DIS_PRM for JP10 and

DIS_USC for JP7.

JP8 Wake up hardware button

JP3 Allows debugging to either J107 (jumper on pins 2 and 3) or to GPIO4 LED

(jumper on pins 1 and 2)

JP108 Voltage bench box supply

JP4 Ground

J3 5 V power supply.

J106 J105

J107

Test Points

JP3

JP6

JP10

JP7

JP9 JP1

JP4

JP8

JP5

J15

JP2

SW101

SW100

SIM Card

J104 Place SIM card here

SW100 Wakeup button (press for 750 ms to wake up device). Jumper on pins above

SW100 enable software download without having to manually press button.

SW101 Testing purposes.

Power supply should vary between 3.8 – 4.5 Volts. DO NOT EXCEED

4.5 V.

Glossary 179

P/N 90023363 Revision 1.8

Glossary

Access Point Name (APN)

The IP domain name (e.i. Novatel Wireless.com) of the network device that acts as a

gateway by connecting a GPRS wireless radio network to a wired local or wide area

network.

Active Network Session

An active network session allows you to send and receive data across the Internet

using point-to-point protocol through your network connection.

Anonymous Access (AA)

Network does not know the real identity of the mobile. Opposite to non-anonymous.

AP Access Point

An entry point to an external network.

AT Commands

AT commands are a language type that enables PC communications software to give

the modem directions. The term AT comes from the command terminology which

always begins with attention, or AT.

Baud Rate

The actual bit rate, excluding compression and other Tx enhancements, on a

communication line.

Border Gateway (BG)

Logical box that connects two (or more) operators together via an Inter-PLMN

backbone. BG protects operator’s intra-PLMN network against intruders.

Carrier

See Service Provider on page 183.

Circuit Switched Data

A wireless network connection established, using a single circuit that extends from you,

directly through the network to your call’s destination. Opposite to packet switched.

This connection type is also referred to as GSM-Data.

CLI

Command Line Interface.

CLIR

Call Line Identification Restriction.

Connection Oriented Network Service (CONS)

Same as X.25 protocol for packet network transmission and switching.

CSD

See “Circuit Switched Data” on page 179.

180 Glossary

Revision 1.8 P/N 90023363

Connection Profile

See Network Connection Profiles on page 182.

dBm

dBm stands for decibels below 1 milliwatt. It is essentially a device’s signal output power

compared against a standard input signal strength of 1 (one) milliwatt. This number

represents a ratio and is expressed as a negative number (e.i. -60dBm)

Default Network Connection Profile

The default network connection profile is the connection profile, chosen by the user, that

the Modem Manager will use to connect to the network. The default network connection

profile can be thought of as the active network connection profile.

Direct Memory Access (DMA)

A fast method of moving data from a storage device or LAN device interface card directly

to RAM which speeds up processing. DMA by passes the CPU.

Domain Name

The name assigned to a computer or group of computers that constitute an IP network

domain. In general, a domain name is comprised of its local host name and its top-level

domain. The top-level domain can be made up of several names, each separated by a

period (.).

An example of a domain name is novatelwireless.com.

Domain Name System (DNS)

This is a network server used on IP networks, such as the Internet, for translating network

host names and Universal Resource Locators (URL’s) into IP addresses.

Domain Name System (DNS) Address

The IP (internet protocol) address of the Domain Name System (DNS).

Firmware

Firmware is a program or set of programs that have been set permanently into a computer

chip. The programs themselves usually are low-level programs that directly manipulate or

interact with the hardware. An example of firmware is your desktop computer’s BIOS.

Gateway GPRS Support Node (GGSN)

The SGSN communicates with what is called the Gateway GPRS Support Node (GGSN),

a system that maintains connections with other networks such as the Internet, X.25

networks or private networks.

GPRS

GPRS stands for General Packet Radio Service. GPRS is a high-speed data transfer

technique, used on GSM networks. It does not require that a continuous data stream be

opened between the data source and destination. Instead, it uses packet to move data

back and forth, making efficient use of the available radio spectrum.

GPRS Mobility Management and Session Management (GMM/SM)

Protocol stack between MS and SGSN that handles GPRS attach/detach and PDP context

activation/deactivation.

Glossary 181

P/N 90023363 Revision 1.8

GPRS Tunnelling Protocol (GTP)

Protocol between SGSN and GGSN to encapsulate user data and to carry GPRS

signaling.

GSM

GSM stands for Global System for Mobiles. It is an open, non-proprietary system with

international roaming capability providing seamless and same standardized same

number contact ability in more than 170 countries. GSM satellite roaming has extended

service access to areas where terrestrial coverage is not available.

GSM uses digital technology and time division multiple access transmission methods.

Voice is digitally encoded via a unique encoder, which emulates the characteristics of

human speech. This method of transmission permits a very efficient data rate/

information content ratio.

GSM-Data

See “Circuit Switched Data” on page 179.

Home Public Land Mobile Network (HPLMN)

The home network.

IMEI

IMEI stands for International Mobile Station Equipment Identity.

Internet Protocol (IP)

Internet Protocol works in conjunction with Transmission Control Protocol (TCP). TCP/

IP are part of a group of protocols that provide communication across interconnected

networks. TCP/IP is the protocol used on the Internet. The TCP protocol first

establishes a connection between the two systems in order to send and receive data,

and then breaks and sequentially marks the message into small packets. The IP

protocol routes and sends the packets based on the IP address.

Internet Control Message Protocol (ICMP)

IP network control protocol.

IP Addresses

As with personal computers that access the Internet, modems using GPRS technology

also have a dedicated Internet Protocol (IP) address, which is used to identify the node

or access point for the modem on the Internet. The service provider assigns this IP

address.

The 32-bit host address is usually represented in dotted decimal notation, e.g.

128.121.4.5. The address can be split into a network number (or network address) and

a host number unique to each host on the network and sometimes also a subnet

address.

IP Network

A network of computer networks that employ Internet Protocol allowing a user to

access the Internet, provided that the user has a modem; telephone line, cable line, or

wireless data network (e.g. CDPD); and a service provider.

182 Glossary

Revision 1.8 P/N 90023363

Local Area Network (LAN)

A computer network that spans a relatively small area (typically up to a 1 km radius),

although most LANS are confined to a single building or group of buildings. This type of

networking allows for easy interconnection of terminals, printers, and computers within a

building or buildings.

Logical Link Control (LLC)

Protocol layer between MS and SGSN.

Medium Access Control (MAC)

Protocol in the radio level that is used to allocate the radio channel.

Megahertz (MHz)

One million hertz. Hertz is another word for cycles in a radio frequency.

Network Connection Profiles

A network connection profile is a group of connection settings that define a specific

network connection to the Modem Manager. This includes such settings as network ID,

network password, APN, DNS addresses and so on.

Mobile Station (MS)

The device being used to receive/transmit data and/or voice.

Original Equipment Manufacturer (OEM)

The original manufacturer of a pieces of equipment, typically complete boards, duplexers

or enclosures etc.

Packet

A short block of data transmitted across a network.

Packet Control Unit (PCU)

Functional element in BSS that handles upper level GPRS control in the radio.

Packet Data Network (PDN)

Network that carries user data in packets. e.i Internet and X.25

Packet Size

The size of a packet expressed in bytes.

PC Card

A PC Card, similar in size to a credit card, is used for adding devices on to portable

computing devices such as laptop, handheld, and palmtop computers. Some examples of

these devices are modems, network cards, disk drive adapters, and extra memory. PC

cards are often called PCMCIA cards.

PCMCIA Card Slots

The PCMCIA card slots are the sockets in the computing device, in which the PCMCIA

card is inserted. It is the hardware interface between the computing device and the

PCMCIA card.

Glossary 183

P/N 90023363 Revision 1.8

Point to Multipoint (PTM)

Widely used protocol under IP to connect. i.e PC and ISP via modems.

Point to Point (PTP)

One sender on receiver.

Point-to-Point Protocol (PPP)

PPP is an interconnection protocol which allows a device, such as a wireless IP

modem, to connect to a network or the Internet.

Primary Domain Name System

In order to get the translated IP addresses, the modem will try to connect to the server

with the primary DNS address. If the modem cannot connect to this address, it will try

to connect using the secondary DNS address.

Protocol Data Unit (PDU)

One data packet.

Quality of Service (QoS)

Definition of the service class of the connection between MS and the network.

Routing Area (RA)

A set of cells that belongs to one group. RA is always a subset of an LA (Location

Area).

Registration

In order to send and receive data across a given network, a GPRS modem must first

interaction with various systems on the GPRS network to set up a communication path.

Remote Access Service (RAS)

Software that enables distant PCs and workstations to get into a Remote Access

Server to retrieve software and/or data on a corporate LAN. This service is provided

through modems, analog telephone lines or digital ISDN lines.

Request to Send (RTS)

A control signal that has a dedicated wire in the RS-232 protocol. When the far device

places a logic “one” or 5-V voltage on this wire, it enables the near modem to initiate

a transmission.

Secondary Domain Name System

If the modem cannot connect to the DNS using the primary address, it will try to connect

using the secondary DNS address.

Segment

Each IP network address consists of four numeric segments, which are divided by a

period ("."). For example, 204.119.63.40.

Service Provider

A company that provides network connections to the Internet.

184 Glossary

Revision 1.8 P/N 90023363

Short Message Service (SMS)

Short messages either in binary (160 characters) or text messages (140 bytes) format.

SIM

The term SIM stands for Subscriber Identity Module.

SIM Card

A SIM card is a type of smart card that contains all of your account information for your GSM and

GPRS account. It also used to encrypt the data and voice that is sent across the network during a

session.

SIM Card Contact Points

These are the small gold- or aluminum-colored.

Serving GPRS Support Node (SGSN)

The SGSN is the node within the GSM infrastructure that sends and receives data to and

from the mobile stations. It also keeps track of the mobiles within its service area.

Transmission Control Protocol (TCP)

Protocol layer on top of conventional IP protocol.

Type II PCMCIA Card

A Type II PCMCIA card is identical to the Type I PCMCIA card in all ways except that it is

thicker than the Type I card. The Type II PCMCIA card is in general use now.

User Datagram Protocol (UDP)

Another protocol on top of IP.

Wireless IP Network

A wireless network (e.g. GPRS) that uses Internet Protocol (IP).

185

P/N 90023363 Revision 1.8

Index

Symbols

.mot .................................................................. 146

Numerics

5-Volt 8-bit I/O memory card .............................. 22

Application Information.......................................41

AT Command Set, by name ...............................53

AT Command, by function ..................................44

AT commands .................................................... 43

Attach Request .................................................156

Circuit Switched.................................................. 40

Comma dial modifier .......................................... 70

Firmware .......................................................... 145

Firmware, GPRS Update Utility........................147

Flash Loader Settings ...................................... 147

GPRS ................................................................... 1

IP Status Interface ............................................ 156

Nonconformities ................................................. 12

OEM Monitoring Task ....................................... 156

Point-to-Point (PPP) ......................................... 156

Radio Channel Frequency............................22, 38

Radio Power Index .......................................23, 39

Remote Access Service (RAS) ........................156

SIM Card Contacts ............................................. 39

SIM Card Specifications ..................................... 39

SIM Card, use .................................................... 39

Sleep .................................................................. 40

SMS Messaging ................................................. 40

Standby .............................................................. 41

Status ............................................................... 156

186

Revision 1.8 P/N 90023363

Novatel Wireless NRM-EG301 PCS OEM Module User Manual GPRS Technical Specifications

Novatel Wireless, Inc. PCS OEM Module GPRS Technical Specifications

Contents

Users Manual Part II

Navigation menu

Namespaces

Views

Navigation
