Prox Smart Card Reader Technology CardMan®5125 User's Manual Copyright © OMNIKEY 2005 (May 2005) Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under the copyright laws. The information contained in this document is subject to change without notice CardMan 5125 User's Manual English If you have any technical problems or other questions please contact our help desk: support@omnikey.com For latest drivers, visit our homepage: http://www.omnikey.com

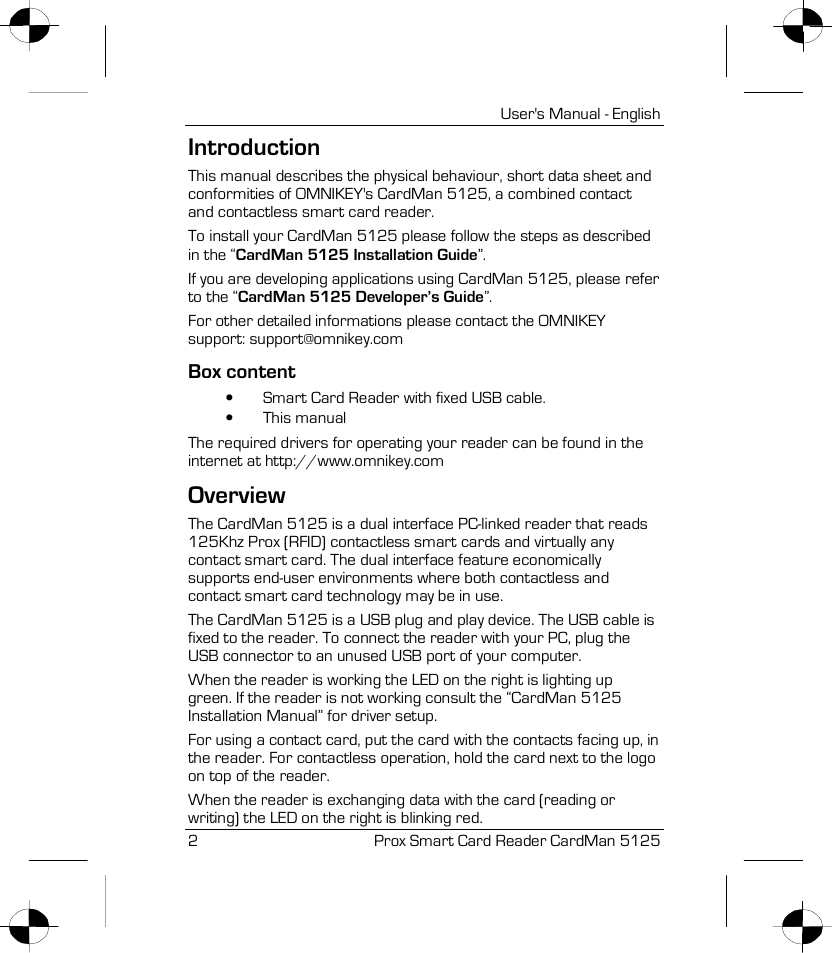

User's Manual - English 2Prox Smart Card Reader CardMan 5125 Introduction This manual describes the physical behaviour, short data sheet and conformities of OMNIKEY's CardMan 5125, a combined contact and contactless smart card reader. To install your CardMan 5125 please follow the steps as described in the “CardMan 5125 Installation Guide”. If you are developing applications using CardMan 5125, please refer to the “CardMan 5125 Developer’s Guide”. For other detailed informations please contact the OMNIKEY support: support@omnikey.com Box content •Smart Card Reader with fixed USB cable. •This manual The required drivers for operating your reader can be found in the internet at http://www.omnikey.com Overview The CardMan 5125 is a dual interface PC-linked reader that reads 125Khz Prox (RFID) contactless smart cards and virtually any contact smart card. The dual interface feature economically supports end-user environments where both contactless and contact smart card technology may be in use. The CardMan 5125 is a USB plug and play device. The USB cable is fixed to the reader. To connect the reader with your PC, plug the USB connector to an unused USB port of your computer. When the reader is working the LED on the right is lighting up green. If the reader is not working consult the “CardMan 5125 Installation Manual” for driver setup. For using a contact card, put the card with the contacts facing up, in the reader. For contactless operation, hold the card next to the logo on top of the reader. When the reader is exchanging data with the card (reading or writing) the LED on the right is blinking red.

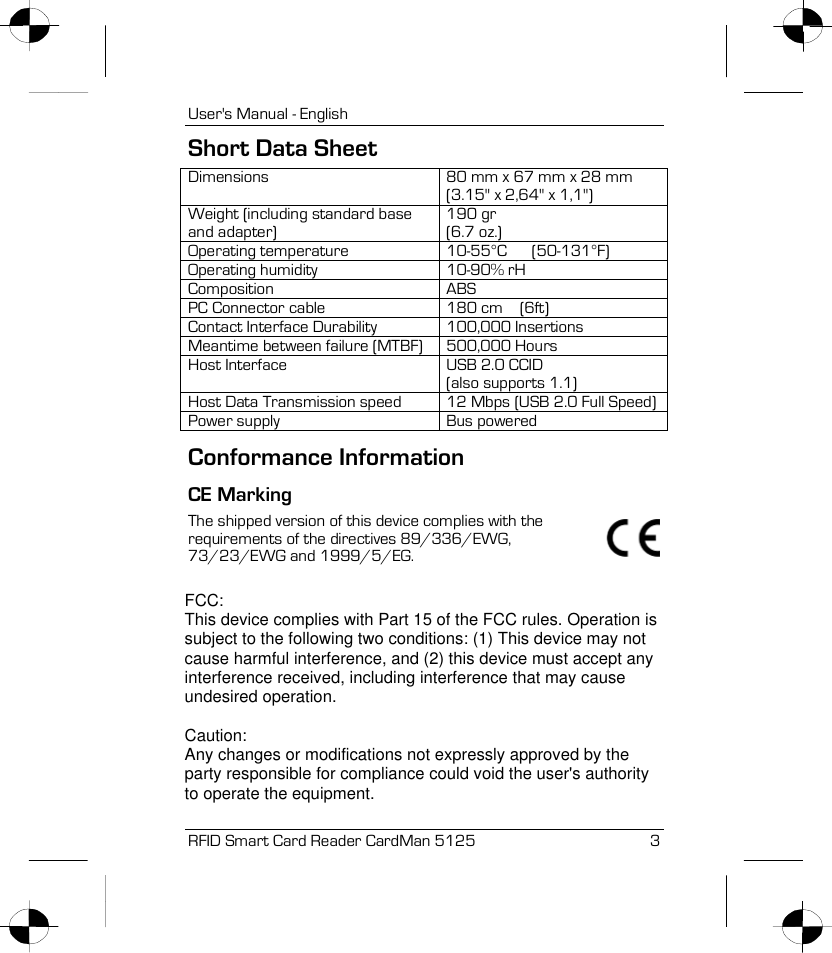

User's Manual - English RFID Smart Card Reader CardMan 5125 3 Short Data Sheet Dimensions 80 mm x 67 mm x 28 mm (3.15" x 2,64" x 1,1") Weight (including standard base and adapter) 190 gr (6.7 oz.) Operating temperature 10-55°C (50-131°F) Operating humidity 10-90% rH Composition ABS PC Connector cable 180 cm (6ft) Contact Interface Durability 100,000 Insertions Meantime between failure (MTBF) 500,000 Hours Host Interface USB 2.0 CCID (also supports 1.1) Host Data Transmission speed 12 Mbps (USB 2.0 Full Speed)Power supply Bus powered Conformance Information CE Marking The shipped version of this device complies with the requirements of the directives 89/336/EWG, 73/23/EWG and 1999/5/EG. FCC:This device complies with Part 15 of the FCC rules. Operation issubject to the following two conditions: (1) This device may notcause harmful interference, and (2) this device must accept anyinterference received, including interference that may causeundesired operation.Caution:Any changes or modifications not expressly approved by theparty responsible for compliance could void the user's authorityto operate the equipment.
